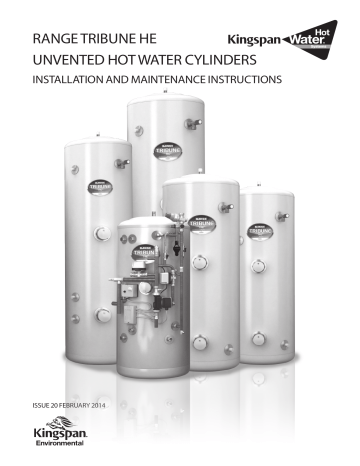

TRibuNE HE - Kingspan Environmental
RANGE Tribune HE
Unvented Hot Water Cylinders
Installation and Maintenance Instructions
Issue 20 february 2014
01
PAGE
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
CONTENT
1Introduction
2Storage, Handling & Supply Requirements
3
Component Table
4Sitting the unit
5
General Installation
7Discharge Arrangement
9
Technical Specifications: Slimline -
Direct & Indirect
10
Technical Specifications: Direct & Indirect
11
Technical Specifications: Ecocyl Direct & Indirect
12
Technical Specifications: Solar - Direct & Indirect
13Solar Coil Installation
14Solar High Limit
15S-Plan Wiring Schematics
INTRODUCTION
The TRIBUNE HE Unvented cylinder is made from Duplex
Stainless Steel for excellent corrosion resistance. TRIBUNE HE
has a strong rust-proofed steel case and is highly insulated
with environmentally friendly foam.
TRIBUNE HE is supplied complete with all the necessary
safety and control devices needed to connect to the cold
water mains. All are pre-adjusted. High quality controls have
been selected to combine high flow rate performance with
minimum pressure drop to make TRIBUNE HE perform well
in all areas, even those with poor water pressure. TRIBUNE
HE is KIWA approved to show compliance with Building
Regulations G3+L.
16Y-Plan Wiring Schematics
17 - 18
Pre-Plumbed Wiring Schematics
19 Pre-Plumbed Installation
20
Technical Specifications: Pre-Plumbed
21
Commissioning & Servicing
22Fault Finding & User Instructions
23
Guarantee - Terms & Conditions
26
Technical Specification
27 - 28Specification & Performance 30
Commissioning Check Sheet
31Service Record
IMPORTANT NOTE TO
THE INSTALLER
Benchmark places responsibilities on both manufacturers and installers. The
purpose is to ensure that customers are provided with the correct equipment
for their needs, that it is installed, commissioned and serviced in accordance
with the manufacturer’s instructions by competent persons and that it meets
the requirements of the appropriate Building Regulations. The Benchmark
Checklist can be used to demonstrate compliance with Building Regulations
and should be provided to the customer for future reference.
Installers are required to carry out installation, commissioning and servicing
work in accordance with the Benchmark Code of Practice which is available
from the Heating and Hotwater Industry Council who manage and promote
the Scheme. Visit www.centralheating.co.uk for more information.
Read these instructions before commencing installation.
Unvented cylinders are a controlled service as defined in the
latest edition of the building regulations and should only be
fitted by a competent person.
The relevant regulations are: England and Wales – Building
Regulation G3, Scotland – Technical Standard P3, N Ireland –
Building Regulation Part F
After installation the Benchmark check list must be
completed and left, with these instructions, with the
householder for future reference.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
STORAGE PRIOR TO INSTALLATION
TRIBUNE HE should be stored in its original packaging in an
upright position in an area free from excessive damp.Regulations
G3+L.
02
UNPACKING THE UNIT
Tribune HE comes complete with the fittings required to complete
the installation. Please see over for component content list.
HANDLING PRODUCT
The TRIBUNE HE should be carried upright where possible.
Assessements of risks for carrying the cylinder should be
conducted. Use more than 1 person for carrying where
appropriate. Always follow latest guide lines for lifting techniques,
to avoid injury and damage to the product.
High flow rate inlet control set
CONTSETALT533
Temperature and pressure relief valve
VALVETP1/2ALT
WATER SUPPLY
TRIBUNE HE operates at 3 bar (controlled by the inlet control
set) and is capable of delivering in excess 50 litres per minute.
The high quality inlet control set has been designed to make the
most of the flow rates available, however the performance of any
unvented system is only as good as the mains water supply. The
maximum possible water demand should be assessed, taking
into consideration that both hot and cold services are supplied
simultaneously from the mains.
Acetal tundish 15 x 22 mm
TUNDPL15ALT
Expansion Vessel
• 60, 90, 120 & 150 ltr units - 12 ltr vessel
EXPVESB12ALT
The water supply should be checked to ensure it can meet these
requirements. If necessary, consult the local water company
regarding the likely pressure and flow rate availability.
• 180, 210 & 250 ltr units - 18 ltr vessel
EXPVESB18ALT
• 300 ltr units - 25 ltr vessel
EXPVESB24ALT
If measuring the water pressure, note that a high static (no flow)
mains pressure is no guarantee of good flow availability. In a
domestic installation 1.5 bar and 25 l/min. should be regarded as
the minimum. The maximum mains pressure that the inlet control
set can accept is 12 bar.
Two port valve
VALVE2PORTH
Incoloy long life 3 kW immersion heater
IMHTRSS - DIRECT I
MHTRTF327A - INDIRECT *
Consideration should be given to upgrading existing ½” (15mm)
cold mains pipework to a larger size if the recommended
minimum pressure/flow rate is not being achieved.
ELECTRIC SUPPLY
The TRIBUNE HE requires 240 Volt electrical supply for the
immersion elements. The standard issue immersion heaters
are designed fordomestic use. The electrical supply to each
immersion heater must be fused at 13A via a double pole isolating
switch to BS 3456. The cable must be at least 2.5mm2 heat
resistant (85°C HOFR) sheathed flex complying to BS 6141:1981
Table 8.
* The immersion heater provided with Indirect cylinders is
intended for back-up use. If the water quality is aggresive or
the heater is to be used on a regular basis it is recommended to
exchange for a IMHTRSS or titanium element.
Dual thermostat
STATDUALALT
High Limit thermostat
STATHIGHALT
TED HOT
UNVEN
NE HE
TRIBU CYLINDERSTENANCE
MAIN
WATER
AND
ATION
INSTALL TIONS
INSTRUC
ISSUE
19 JULY
2013
Installation &
Maintenance Instructions
03
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
COMPONENT CONTENT TABLE
Inlet Control set
•
•
•
•
•
•
•
•
•
•
•
•
Temp & Pressure relief valve
•
•
•
•
•
•
•
•
•
•
•
•
Tundish
•
•
•
•
•
•
•
•
•
•
•
•
Expansion vessel
•
•
•
•
•
•
•
•
•
•
•
•
Immersion Heater (Direct)
•
•
•
•
Immersion Heater (Indirect)
•
•
•
•
•
•
•
•
Two Port Valve
•
•
•
•
•
•
•
•
Dual Thermostat
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Single High Limit Stat
•
•
Sensor pocket retaining bungs
•
•
Robo-Kit
•
•
•
•
TP9000
•
•
•
•
•
Direct Models (Electric)
Direct Solar Models (Electric + Coil)
Indirect Models (Single Coil)
Indirect Solar Models (Twin Coil)
•
•
•
•
•
•
•
•
•
•
•
•
Slimline Indirect Models
Direct Models
Indirect Models
Ecocyl Direct Models
Ecocyl Indirect Models
Solar Direct Models
Solar Indiect Models
Indirect pre-plumbed
models - 1 zone heating
Indirect pre-plumbed
models - 2 zone heating
Solar indirect pre-plumbed models - 1
zone heating
Solar indirect pre-plumbed models - 2
zone heating
Installation & Maintenance
Instructions
•
Slimline Direct Models (Electric)
TP5000
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
SITTING THE UNIT
TRIBUNE HE can supply outlets above it or at some distance from
it. Site the unit to minimise “dead leg” distances, especially to the
point of most frequent use.
Outlets above the TRIBUNE HE will reduce the outlet pressure
available by 0.1 bar for every 1m of height difference. The unit
should be protected from frost. Particular care is needed if
sitting in a garage or outbuilding. All exposed pipework should
be insulated. TRIBUNE HE must be installed VERTICALLY on a
flat base capable of supporting the weight of the cylinder when
full. See technical specification section (page 24-25) for weights.
The minimum recommended cupboard size is 650mm square.
Pre-plumb models would benifit from an additional 100mm for
cupboard depth.
04
Access for maintenance of the valves should be considered.
Consideration should be given to position of discharge pipes
(tundish), drain valves - shall be positioned away from electrical
components.
The immersion heaters are 375mm long and care should be taken
to ensure that they can be withdrawn for servicing if required.
The discharge pipework from the safety valves should fall
continuously and terminate safely.
SCHEMATIC DIAGRAM
Notes:
The pressure reducing
valve, non-return valve and
expansion relief valve are
combined together in the
inlet control set.
HOT OUTLET
SECONDARY RETURN CIRCUIT
( 210, 250 & 300 L SIZES )
TEMPERATURE
& PRESSURE
RELIEF VALVE
EXPANSION
RELIEF
VALVE
TUNDISH
BRONZE
PUMP
NON
RETURN
VALVE
NON
RETURN
VALVE
2 PORT
VALVE
BOILER
FLOW
BOILER
RETURN
IMMERSION
HEATER
PRESSURE
REDUCING
VALVE
ISOLATING
VALVE
BALANCED
COLD
CONNECTION
EXPANSION
VESSEL
WITH WALL
BRACKET
DUAL
STAT
COLD
INLET VIA
DRAIN
COLD
MAIN
On 60 – 180 litre sizes there
is no dedicated secondary
return boss and the
secondary return circuit
should be tee’d into the cold
feed pipe just above the
drain elbow using a swept
tee.
05
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
GENERAL INSTALLATION
COLD MAINS PIPEWORK
Run the cold main through the building to the place where the
TRIBUNE HE is to be installed. Take care not to run the cold pipe
near hot water or heating pipework so that the heat pick-up is
minimized. Identify the cold water supply pipe and fit an isolating
valve (not supplied).
A 22mm BS1010 stopcock can typically be used but a 22mm
quarter turn full bore valve would be better as it does not
restrict the flow as much. Do not use “screwdriver slot” or similar
valves. Make the connection to the cold feed of the cylinder
and incorporate a drain valve. Position the drain valve no higher
than the cold inlet to ensure sufficient draining of cylinder when
required. Position the inlet control just ABOVE the Temperature &
Pressure Relief Valve (TPRV) mounted on the side of the cylinder.
This ensures that the cylinder does not have to be drained down
in order to service the inlet control set. Ensure that the arrow
points in the direction of the water flow. Select a suitable position
for the expansion vessel. Mount it to the wall using the bracket
attached to the vessel. Use suitable fittings capable of supporting
full vessel weight (and with appropriate consideration to wall
material). Connect the expansion vessel to the cold feed pipework
between the inlet control set and the cold inlet on the cylinder.
Ensure that the top of the vessel is accessible for servicing.
Connecting to the cylinder
All of the pipework connections on the cylinder are 22mm
compression and supplied complete with gland nuts and olives, in
the Accessory Kit box. Only connect 22mm Table X copper tube to
these connections.
Cut the tube with a pipe cutter and ensure no sharp edges or
burrs protrude. Slide both gland nut and olive onto the tube and
push tube fully home into the connection, ensuring the tube
end fully bottoms on the connection recess. Smear the outer
wall of the olive with plumbing paste and tighten gland nut
to form a water tight seal. Upon filling/commissioning, ensure
all connections are completely watertight. Note: No control or
isolation valve should be fitted between the expansion relief valve
and the storage cylinder. The relief valve connections should not
be used for any other purpose.
(expansion vessel not to scale)
Turn to
test
Cold
Mains In
Expansion
Vessel
Connection
Expansion
Relief to
Tundish
Outlet to Cylinder
Balanced Cold
Connection
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
BALANCED COLD CONNECTION
If there are to be showers, bidets or monobloc taps in the
installation then a balanced cold supply is necessary. There is a
22mm balanced connection on the inlet set.
HOT WATER PIPEWORK
Run the first part of the hot water distribution pipework in 22mm.
This can be reduced to 15mm and 10mm as appropriate for the
type of tap etc. Your aim should be to reduce the volume of the
hot draw-off pipework to a practical minimum so that the time
taken for the hot water is as quick as possible. Where monobloc
mixing taps and showers are used, these should be installed to
comply with the Water Supply (Water Fittings) Regulations 1999.
If these devices are supplied with un-balanced supplies there
should be single check valves installed at both inlets, to stop over
pressurising of either supply.
PRIMARY COIL CONNECTIONS FOR INDIRECT UNITS
For Solar input models refer to pages 12-13 before making any
connections.
Connect the primary connections (Indirect only) using the
compression connections provided. The primary circuit must
be positively pumped. Gravity circulation is not suitable. Either
primary connection may be used as the primary flow, reheat times
are not effected. The primary circuit can be open vented or sealed,
with up to a maximum pressure of 3.5 bar. If you seal the primary
circuit an additional expansion vessel and safety valve is required.
The boiler may be Gas, Electric or Oil but must be under effective
thermostatic control. Uncontrolled heat sources such as some
AGA’s, back boilers, solid fuel stoves, etc. are NOT SUITABLE. Please
contact our Technical department for guidance. Connect the two
port zone valve ( indirect only ) into the primary flow pipework.
The direction of flow arrow should be towards the primary flow
connection.
06
SECONDARY CIRCULATION
TRIBUNE HE can be used with secondary circulation. An
appropriate WRAS approved bronze or stainless steel circulator
should be used in conjunction with a non-return valve to prevent
backflow. On large secondary circulation systems it may be
necessary to incorporate an extra expansion vessel into the circuit
to accommodate the increased system water volume. Secondary
circulation should be avoided on Direct electrically heated units
being used on off-peak electricity tariffs.
A secondary return boss is fitted as standard on 210, 250 & 300 ltr
units. On smaller sizes, tee into the cold feed pipe above the drain
using swept tee.
TRANSPORTATION
The TRIBUNE HE should be carried upright where possible.
Assessements of risks for carrying the cylinder should be
conducted. Use more than 1 person for carrying where
appropriate. Always follow latest guide lines for lifting techniques,
to avoid injury and damage to the product.
IMMERSION HEATERS
Only immersion heaters with a thermal cut-out may be used. To
help ensure this, the immersion heaters have a special 1¾” thread.
They are rated at 3kW at 240V and are of a low noise Incoloy
construction.
They have both a thermostat and a high limit cutout. Please order
the correct replacement via ourselves; fitting non-approved
immersions may affect your guarantee. When fitting, ensure the
‘O’ ring is positioned correctly on the head of the immersion
heater and lubricate before fitting. Fit it by hand until almost
home then tighten gently as the ‘O’ rings will seal easily. The
electrical supply to each immersion heater must be fused at 13A
via a double pole isolating switch to BS 3456. The cable must be
2.5mm2 heat resistant (85°C HOFR) sheathed flex complying to BS
6141:1981 Table 8. Do not operate the immersion heater/s until the
unit is full of water. Do not operate the immersion heater/s if any
sterilisation liquid is in the cylinder as this will cause premature
failure.
ELECTRICAL CONNECTIONS
Complete the wiring – use the appropriate wiring diagrams on
page 14 - 18.
07
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
DISCHARGE ARRANGEMENT
Note: The discharge may
consist of scalding water and
steam. Asphalt, roofing felt and
non-metallic rainwater goods
may be damaged by such
discharges.
Diagram of a typical discharge pipe arrangement (extract from
Building Regulation G3)
Position the inlet control group so that the discharge from both
safety valves can be joined together via a 15mm Tee (see diagram
above). Connect the Tundish and route the discharge pipe. The
discharge pipework must be routed in accordance with Part G3
of schedule 1 of the Building Regulations. The information that
follows is not exhaustive and if you are in doubt you should seek
advice. The two safety valves will only discharge water under
fault conditions. When operating normally water will not be
discharged. The tundish should be vertical, located in the same
space as the unvented hot water storage system and be fitted
as close as possible to, and lower than, the safety device, with
no more than 600mm of pipe between the valve outlet and the
tundish. The tundish should be positioned away from electrical
Note: D2 pipe from tundish is
now allowed to be installed in
soil stacks within premises. This
activity is not recommended
by Kingspan as discharge
from T&P may continue for
long periods of time. It is the
installer’s responsibility to
ensure the discharge pipework
can support the discharge for
prolonged periods.
If used follow guidance on
mechanical seal without water
trap given in G3 Building
Regulations.
As discharge can be in excess
of 90oC discharge into
plastic pipework is also not
recommended.
devices.
Any Discharge should be visible at the tundish. The tundish should
be located such that any discharge is visible. In addition, where
discharges from safety devices may not be apparent, e.g. people
with impaired vision or mobility, consideration should be given to
the installation of a suitable safety device to warn when discharge
takes place, e.g. electronically operated.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
The discharge pipe (D2) from the tundish should:
A) Have a vertical section of pipe at least 300mm long, below the
tundish before any elbows or bends in the pipework.
B) Be installed with a continuous fall of at least 1 in 200 thereafter.
The discharge pipe (D2) from the tundish should be of metal or
other materials that have been demonstrated to be capable of
withstanding temperatures of the water discharged.
The discharge pipe (D2) should be at least one pipe size larger
than the nominal outlet size of the safety device unless its total
equivalent hydraulic resistance exceeds that of a straight pipe
9m long i.e. discharge pipes between 9m and 18m equivalent
resistance length should be at least two sizes larger than the
nominal outlet size of the safety device, between 18 and 27m at
least 3 sizes larger, and so on. Bends must be taken into account
in calculating the flow resistance. Refer to diagram 1, Table 1 and
the worked example. An alternative approach for sizing discharge
pipes would be to follow BS6700 Specification for design
installation, testing and maintenance of services supplying water
for domestic use within buildings and their curtilages.
The discharge pipe (D2) should terminate in a safe place where
there is no risk to persons in the vicinity of the discharge.
Examples of acceptable discharge arrangements are:
a. To a trapped gully with the end of the pipe below the fixed
grating and above the water seal.
b. Downward discharges at a low level; i.e. up to 100mm above
external surfaces such as car parks, hard standings, grassed
areas etc. are acceptable providing that where children play or
otherwise come into contact with discharges, a wire cage or
similar guard is positioned to prevent contact whilst maintaining
visibility.
c. Discharges at a high level; e.g. in to metal hopper and metal
down pipe with the end of the discharge pipe clearly visible or
onto a roof capable of withstanding high temperature discharges
of water and 3m from any plastic guttering systems that would
collect such discharges.
d. Device to warn when discharge takes place.
08
WORKED EXAMPLE
The example below is for G1/2 temperature relief valve with a
discharge pipe (D2) having 4 No. elbows and length of 7m from
the tundish to the point of discharge.
From Table 1:
Maximum resistance allowed for a straight length of 22mm
copper discharge pipe (D2) from a G1/2 temperature relief valve is:
9.0m. Subtract the resistance for 4 No. 22mm elbows at 0.8m each
= 3.2m. Therefore the maximum permitted length equates to:
5.8m. 5.8m is less than the actual length of 7m therefore calculate
the next largest size. Maximum resistance allowed for a straight
length of 28mm pipe (D2) from a G1/2 temperature relief valve
equates to: 14m. As the actual length is 7m, a 28mm (D2) copper
pipe will be satisfactory.
Table 1
Sizing of copper discharge pipe ‘D2’ for a temperature
relief valve with a G1/2 outlet size (as supplied).
Size of
discharge
pipework
Maximum length of
straight pipe
(no bends or elbows)
Deduct the figure below
from the maximum length
for each bend or elbow in the
discharge pipe
22mm
Up to 9m
0.8m
28mm
Up to 18m
1m
35mm
Up to 27m
1.4m
22mm HOT
DRAW - OFF
09
1
2“
22mm HOT
DRAW - OFF
F PTRV BOSS
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
1
2“
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
22mm SECONDARY
RETURN (not always fitted.
See table)
SECOND IMMERSION HEATER
(not always fitted. See table)
DRY STAT POCKET
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
120.00
Technical Specifications
D
22mm HOT
DRAW - OFF
1
2“
B
C
G
F
D
22mm HOT
DRAW - OFF
F PTRV BOSS
A
1
B
C
G
F PTRV BOSS
2“
22mm SECONDARY
RETURN (not always fitted.
See table)
22mm SECONDARY
RETURN (not always fitted.
See table)
SECOND IMMERSION HEATER
(not always fitted. See table)
50.0˚
45.0
˚
Tribune HE Slimline
Direct
A
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
15.0˚
50.0˚
DRY STAT POCKET
40.0
40.0
˚
1
15.0˚
25.0˚
30.0˚
˚
˚
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
35.0
Code
Height
DIAMETER
A
B
A
TDS60
673
478
175
TDS90
1048
478
175
TDS120
1236
478
TDS150
1424
TDS180
TDS210
C
B
C
210
N/F
22mm HOT
DRAW - OFF
G
1
210
610
175
210
478
175
1674
478
1987
478
2“
F
D
G
N/F
483
22mm HOT
DRAW - OFF
F PTRV BOSS
N/F
858
710
N/F
1046
210
810
N/F
1234
175
210
910
N/F
1484
175
210
1100
1500
1797
22mm SECONDARY
RETURN (not always fitted.
See table)
SECOND IMMERSION HEATER
(not always fitted. See table)
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
D
A
B
C
G
1
2“
120.00
D
D
A
B
C
G
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
DRY STAT POCKET
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
F
120.00
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
D
A
B
C
G
Tribune HE Slimline
Indirect
1
2“
22mm HOT
DRAW - OFF
F PTRV BOSS
1
2“
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
50.0˚
45.0
˚
50.0˚
DRY STAT POCKET
15.0˚
25.0˚
30.0˚
40.0
40.0
˚
˚
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
B
10.0˚
15.0˚
˚
35.0
50.0˚
45.0
C
G
F
120.00
120.00
A
˚
50.0˚
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
45.0
˚
SECOND IMMERSION HEATER
(not always fitted. See table)
D
CODE
HEIGHT
DIAMETER
TIS60
673
A
15.0˚
B
C
A
B
G
30.0˚
C
D
F
G
478
340
380
440
395
N/F
483
TIS90
40
1048 .0
478
340
380
440
395
N/F
858
TIS120
1236
478
340
380
440
395
N/F
1046
˚
TIS150
1424
478
380
420
520
520
N/F
1234
TIS180
1674
478
380
420
520
610
N/F
1484
TIS210
1987
478
380
420
520
710
1500
1797
25.0˚
40.0
˚
15
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
10
Technical Specifications
Tribune HE Direct
22mm HOT
DRAW - OFF
22mm SECONDARY
RETURN (not always fitted.
See table)
1
2“
F PTRV BOSS
45.0 0
SECOND IMMERSION
HEATER (not always fitted.
See table)
30.0 0
25.0 0
15.0 0
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
160mm
F
CODE
HEIGHT
DIAMETER
D
F
TD90
718
550
N/F
N/F
TD120
906
550
N/F
TD150
1093
550
N/F
22mm HOT
DRAW - OFF
1
22mm SECONDARY
RETURN (not always fitted.
See table)
22mm HOT
DRAW - OFF
F PTRV BOSS
SECOND IMMERSION HEATER
(not always fitted. See table)
1281
550
N/F
710
TD210
1469
550
1000
810
TD250
1719
550
1250
TD300
2032
550
1500
2“
F PTRV BOSS
DRY STAT POCKET
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
120.00
TD180
1
22mm SECONDARY
RETURN (not always fitted.
See table)
610
D
2“
510
950
A
B
C
G
F
120.00
195mm
D
D
A
B
C
G
1100
Tribune HE Indirect
22mm HOT
DRAW - OFF
1
2“
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
45.0
45.0
˚
50.0˚
˚
50.0˚
SECOND IMMERSION HEATER
(not always fitted. See table)
15.0˚
25.0˚
30.0˚
40.0
40.0
˚
˚
10.0˚
15.0˚
˚
35.0
DRY STAT
POCKET
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
F
E
D
C
B
A
CODE
HEIGHT
DIAMETER
A
B
C
D
E
F
TI90
718
550
290
330
390
345
N/F
N/F
TI120
906
550
290
330
390
345
N/F
N/F
TI150
1093
550
330
370
465
385
N/F
N/F
TI180
1281
550
330
370
465
385
N/F
N/F
TI210
1469
550
365
405
465
465
N/F
1150
TI250
1719
550
365
405
465
560
950
1400
TI300
2032
550
365
405
465
660
1100
1600
All Dimensions are in mm0and
50.0
are of the cased unit.
N/F = not fitted.
10.0
25.0 0
40.0 0
15.0 0
35.0 0
22mm HOT
DRAW - OFF
1
2“
22mm HOT
DRAW - OFF
F PTRV BOSS
SECOND IMMERSION HEATER
(not always fitted. See table)
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
F PTRV BOSS
DRY STAT POCKET
Technical Specifications
22mm HOT
DRAW - OFF
1
2“
A
B
C
G
F
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
D
Tribune HE ECOCYL
Direct
2“
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
120.00
11
1
22mm SECONDARY
RETURN (not always fitted.
See table)
22mm SECONDARY
RETURN (not always fitted.
See table)
D
A
B
C
G
22mm HOT
DRAW - OFF
F PTRV BOSS
1
2“
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
22mm SECONDARY
RETURN (not always fitted.
See table)
SECOND IMMERSION HEATER
(not always fitted. See table)
45.0
˚
50.0˚
15.0˚
50.0˚
DRY STAT POCKET
15.0˚
25.0˚
30.0˚
1
40
40.0
˚
˚
22mm.0COLD
FEED WITH
35.0
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
˚
HEIGHT
TDS60ECO
718
DIAMETER
550
22mm HOT
DRAW - OFF
22mm SECONDARY
RETURN (not always fitted.
See table)
B
C
A
B
175
210
TDS90ECO
1093
550
175
TDS120ECO
1281
550
175
TDS150ECO
1469
550
175
TDS180ECO
1719
550
1
175
Tribune HE ECOCYL
Indirect
F PTRV BOSS
1
2032
550
175
22mm HOT
DRAW - OFF
2“
1
2“
F
D
N/F
483
22mm SECONDARY
RETURN (not always fitted.
See table)
210
610
N/F
858
210
710
N/F
1046
210
810
N/F
1234
910
N/F
B
C
210
D
A
B
C
G
22mm HOT
DRAW - OFF
N/F
210
A
G
C
F PTRV BOSS
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
D
TDS210ECO
2“
SECOND IMMERSION HEATER
(not always fitted. See table)
120.00
CODE
A
120.00
D
1
2“
F PTRV BOSS
DRY STAT POCKET
G
1484
F
1110
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
1500
D
1797
120.00
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
A
B
C
G
All Dimensions are in mm and are of the cased unit.
N/F = not fitted.
F PTRV BOSS
22mm SECONDARY
RETURN (not always fitted.
See table)
DRY STAT POCKET
45.0
˚
50.0˚
45.0
50.0˚
˚
SECOND IMMERSION HEATER
(not always fitted. See table)
15.0˚
25.0˚
30.0˚
22mm COLD FEED WITH
40.0TO DEFLECTOR
DIP PIPE
˚
IN BOTTOM OF CYLINDER
B
C
G
50.0˚
˚
F
CODE
TIS60ECO
TIS90ECO
D
HEIGHT
DIAMETER
718
550
1093
A
B
C
G
A
B
C
D
F
G
340
380
440
30.0˚
395
N/F
483
550
340
380
440
395
N/F
858
550
340
380
440
395
N/F
1046
15.0˚
˚
35.0
45.0
A
˚
50.0˚
120.00
120.00
22mm COLD FEED WITH
DIP PIPE TO DEFLECTOR
IN BOTTOM OF CYLINDER
40.0
10.0˚
15.0˚
TIS120ECO
401281
.0˚
TIS150ECO
1469
550
380
420
520
520
N/F
1234
TIS180ECO
1719
550
380
420
520
610
N/F
1484
TIS210ECO
2032
550
380
420
520
710
1500
1797
25.0˚
40.0
˚
G
12
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
Technical Specifications
22mm HOT DRAW-OFF
1 “
2 F
22mm SECONDARY
RETURN (not always fitted.
See table)
Tribune HE Solar Direct
PTRV BOSS
DRY STAT
POCKET
22mm HOT DRAW-OFF
1 “
2 F
22mm SECONDARY
RETURN (not always fitted.
See table)
PTRV BOSS
22mm COLD FEED
WITH DIP PIPE
TO DEFLECTOR
IN BOTTOM
OF CYLINDER
DRY STAT
POCKET
F E D C B A
25.00
15.00
35.00
45.00
40.00
G
22mm COLD FEED
WITH DIP PIPE
TO DEFLECTOR
IN BOTTOM
OF CYLINDER
25.00
F E D C B A
15.00
35.00
45.00
40.00
G
22mm HOT DRAW-OFF
CODE
HEIGHT
DIAMETER
1093
TSS180
TSS210
TSS250
TSS300
TSS150
B
C
D
E
550
290
345
390
610
N/F
892
390
1281
550
290
345
445
710
N/F
1080
390
1469
550
365
420
500
810
1150
1268
465
1719
550
365
420
670
1045
1400
1519
465
2032
550
365
420
670
1100
1600
1831
465
F
F
Tribune HE Solar
Indirect
E
½” F PTRV BOSS
DRY STAT
POCKET
A
G
D
C
B
22mm SECONDARY RETURN
(not always fitted. See table)
DRY STAT
POCKET
22mm COLD
FEED WITH DIP PIPE
TO DEFLECTOR IN
BOTTOM OF CYLINDER
A
G
H
22mm HOT DRAW-OFF
½” F PTRV BOSS
DRY STAT
POCKET
22mm SECONDARY RETURN
(not always fitted. See table)
45.0 0
50.0 0
40.0 0
25.0 0
35.0 0
15.0 0
45.0 0
DRY STAT
POCKET
22mm COLD
FEED WITH DIP PIPE
TO DEFLECTOR IN
BOTTOM OF CYLINDER
F
E
D
CODE
C
B
A
G
HEIGHT
DIAMETER
TT150
1093
TT180
1281
TT210
TT250
TT300
H
A
B
C
D
E
F
550
290
345
642
697
N/F
892
390
693
550
290
345
674
729
N/F
1080
390
725
1469
550
365
420
779
834
1150
1268
465
830
1719
550
365
420
950
1005
1400
1518
465
1000
2032
550
365
420
979
1034
1600
1832
465
1030
45.0 0
50.0 0
40.0 0
25.0 0
35.0 0
15.0 0
45.0 0
G
H
All Dimensions are in mm and
are of the cased unit.
N/F = not fitted.
13
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TRIBUNE HE SOLAR
INSTALLATION
DIRECT SINGLE COIL CYLINDER
INDIRECT TWIN COIL CYLINDER
Detail for the installation of a Solar Unvented Direct cylinder.
UPPER COIL
The upper coil is connected to the fossil fuel boiler as per the
instructions for the TRIBUNE HE Unvented Indirect single coil
model with the dual stat control and high limit thermostat
inserted into pocket D (lower diagram page 12). The wiring
requirements are as depicted on page 14.
General
When installing this product it is essential the overall installation
meets all current legislation including, in particular, the high limit
isolation requirements of Building Regulation G3. This document
is designed to assist in achieving that aim.
Water
The potable water connection and tundish discharge connection
are to be connected in exactly the manner described in Pages 6 to
8 of this manual.
Immersion Heaters
The standard issue immersion heaters are designed for domestic
usage where the lower heater is connected to a low rate off-peak
tariff and the upper heater used for occasional top-up purposes.
Heaters of this nature are not designed to be permanently live.
Connect in accordance with instructions on page 6.
Solar Connections
The flow and return from the solar heat source are to be
connected to the indirect coil. Either primary coil connection may
be utilised as the flow or return. The solar primary circuit must
have its own dedicated circulating pump, thermal and safety
controls which must be installed as per the solar manufacturers
instructions. The solar control system used must be of the solar
differential control type and should be connected to the solar
sensor.
The solar sensor, supplied as part of the solar controls should
be inserts into Pocket B and is held in-situ with the black sensor
pocket retaining bung provided.
It is necessary to connect the solar pump via the over-temperature
high limit cut-out (provided) to ensure the heat input to the solar
coil is interupted if the cylinder over heats. Some method to
prevent thermosyphoning must also be employed. Non-return
check valves in the primary flow and return pipework would be
acceptable.
If solar controls do not offer appropriate isolation a 2 port zone
valve (not supplied) can be used with the pump and high limit stat
as shown on page 14.
LOWER COIL: SOLAR INSTALLATION
The flow and return from the solar heat source are to be
connected to the indirect coil. Either primary coil connection may
be utilised as the flow or return. The solar primary circuit must
have its own dedicated circulating pump, thermal and safety
controls which must be installed as per the solar manufacturers
instructions. The solar control system used must be of the solar
differential control type and should be connected to the solar
sensor.
The solar sensor, supplied as part of the solar controls should
be inserts into Pocket B and is held in-situ with the black sensor
pocket retaining bung provided.
It is necessary to connect the solar pump via the over-temperature
high limit cut-out (provided) to ensure the heat input to the solar
coil is interrupted if the cylinder overheats. Some method to
prevent thermosyphoning must also be employed. Non-return
check valves in the primary flow and return pipework would be
acceptable. If solar controls do not offer appropriate isolation a
2 port zone valve (not supplied) can be used with the pump and
high limit stat as shown on page 14.
NOTE: If it is intended to fit a cylinder with a solar coil to be used at
a later date, the 2 coils should be connected in series to make use
of the solar coil, using the dual stat in Pocket D
The Domestic Heating Compliance Guide document L1A and
L1B provides excellent advice in sizing both cylinder designated
solar areas and heat exchangers to the surface area of the solar
collectors. Using this guide Range are able to offer sizing advice
for specification.
NB: The total detail of compliance guide document should be
consulted prior to specifying product or commencing design.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
14
SOLAR HIGH LIMIT CONTROL
TYPICAL SCHEMATIC WIRING DIAGRAMS
HIGH LIMIT CONTROL
E
C
1
These schematic wiring
diagrams depict an IMIT high
limit control stat and the
connections are numbered
accordingly. Where an
alternative is supplied
connect as per manufacturer’s
instructions.
2
HIGH LIMIT CONTROL
Maints supply
double pole
fused spur
230/220 3amp
Maints supply
E
double pole
N
fused spur
230/220 3amp
E
C
1
2
4
5
6
7
E
N
L
L
1
2
3
8
9 10
1
1 2 3 4 5 6 7 8 9 10
2 3 4 5 6 7 8 9 10
1
2
3
4
5
B
L
6
7
B
R
G
O
G
8
9 10
8
9 10
Y
ZONE VALVE
B
L
B
R
G
O
G
Y
ZONE VALVE
HIGH LIMIT CONTROL
E
C
1
2
HIGH LIMIT CONTROL
Maints supply
double pole
fused spur
230/220 3amp
Maints supply
E
double pole
N
fused spur
230/220 3amp
E
C
1
4
5
6
2
E
N
L
L
1
2
3
7
1
1 2 3 4 5 6 7 8 9 10
2 3 4 5 6 7 8 9 10
1
2
3
4
5
6
7
8
9 10
3
B
L
G
B
R
O
ZONE VALVE
B
L
G
B
R
O
ZONE VALVE
G
Y
G
Y
3
E
L PUMP
E
N
L PUMP
2
N
2
15
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TYPICAL SCHEMATIC WIRING DIAGRAMS
The diagrams shown relate to the components listed. Other
components and other manufacturers’ components may vary in
their wiring requirements, particularly thermostats. Always refer
to manufacturers’ instructions which may override the detail in
order to function correctly.
VARIANT DUAL THERMOSTAT WIRING
VARIANT DUAL THERMOSTAT WIRING
WIRING DIAGRAM 2 x TWO PORT ZONE VALVES (S-PLAN)
WIRING DIAGRAM 2 PORT ZONE VALVE (S-PLAN)
2 PORT (HTG)
Br
G
BI
1
2
O
2 PORT (DHW)
DUAL STAT
G
2
C
Y
C
2
Br
1
3
WIRING CENTRE
5A SUPPLY
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
L
N
G
Bl
1
2
O
G
3
3
L PUMP
N
2
1
2
3
ROOM STAT
4
L
N
E
4
PROGRAMMER
5
6
1
2
3
BOILER
4
Y
2
16
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TYPICAL SCHEMATIC WIRING DIAGRAMS
WIRING DIAGRAM THREE PORT MID POSITION VALVE (Y-PLAN) +
TWO PORT VALVE
VARIANT DUAL THERMOSTAT WIRING
VARIANT DUAL THERMOSTAT WIRING
WIRING DIAGRAM 3 PORT MID POSITION (Y-PLAN) +2 PORT VALVE
WIRING DIAGRAM 3 PORT MID POSITION (Y-PLAN) + 2 PORT VALVE
3 PORT (HTG)
W
G
BI
7
2
O
2 PORT (DHW)
DUAL STAT
G
2
C
Y
C
2
Br
1
3
WIRING CENTRE
5A SUPPLY
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
L
N
G
Bl
1
2
O
G
3
3
L PUMP
N
2
1
2
3
ROOM STAT
4
L
N
E
4
PROGRAMMER
5
6
1
2
3
BOILER
4
Y
2
17
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TYPICAL SCHEMATIC WIRING DIAGRAMS
PRE-PLUMBED CYLINDER
SINGLE ZONE HEATING
Connect power supply as per instruction manual. TP9000 terminals 5 & 6 can be used for remote sensor connection.
TWIN ZONE HEATING
Connect power supply as per instruction manual. TP9000 terminals 5 & 6 can be used for remote sensor connection.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
CONNECTED TO BOILER WITH PUMP OVER-RUN FACILITY
TP5000
E
N
L
1
TP9000
2
3
E
N
L
3
Green Plug
4
5
0
W
Y
B1
G/Y
G/Y
Br
Pump
1
2
3
4
5
6
7
8
9
10
11
12
L
N
E
SLB
LP
Boilder with over run
BL
BR
GR OR
Red Plug - Heating 1
BL
BR
GR OR
Yellow Plug - Heating 2
B1
Br
Gr
Or
Blue Plug - Water
Wiring Diagram for Twin Zone Heating and Hot Water
TP9000 + TP5000 to system using boilder to control pump
Instruction for connection to a boiler with pump over
run facility such as Ideal Logic Heat
1.Disconnect brown pre-wire pump flex from position 10
2.Reconnect brown pre-wire pump flex to position 12
3.Connect 5 core cable between boiler and wiring control centre
to following positions
WIRING CENTRE
BOILER
TERMINAL 1
PERMANENT LIVE
L
TERMINAL 3
PERMANENT NEUTRAL
N
TERMINAL 5
PERMANENT EARTH
TERMINAL 10
SWITCHED LIVE TO BOILER
SL B
TERMINAL 12
SWITCH LIVE TO PUMP
LP
E
18
19
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
PRE-PLUMBED
CYLINDER INSTALLATION
COLD MAINS PIPEWORK
Run the cold main through the building to the place where the
TRIBUNE HE PRE-PLUMB unit is to be installed. Take care not to
run the cold pipe near hot water or heating pipework so that the
heat pick-up is minimized. Identify the cold water supply pipe
and fit an isolating valve (not supplied). A 22mm BS1010 stopcock
can typically be used but a 22mm quarter turn full bore valve
would be better as it does not restrict the flow as much. Do not
use “screwdriver slot” or similar valves. Make the connection to
the inlet control set (Position 2). Ensure that the arrow points in
the direction of the water flow. Select a suitable position for the
expansion vessel. Mount it to the wall using the bracket provided.
Connect the expansion vessel to the cold feed pipework between
the inlet control set and the cold inlet. Ensure that the top of the
vessel is accessible for servicing.
Connecting to the cylinder
All of the pipework connections on the cylinder are 22mm
compression and supplied complete with gland nuts and olives, in
the Accessory Kit box. Only connect 22mm Table X copper tube to
these connections. Cut the tube with a pipe cutter and ensure no
sharp edges or burrs protrude. Slide both gland nut and olive onto
the tube and push tube fully home into the connection, ensuring
the tube end fully bottoms on the connection recess. Smear the
outer wall of the olive with plumbing paste and tighten gland nut
in the prescribed manner. Upon filling/commissioning, ensure all
connections are completely watertight.
BALANCED COLD CONNECTION
If there are to be showers, bidets or monobloc taps in the
installation then a balanced cold supply is necessary. There is a
22mm balanced connection on the inlet set.
HOT WATER PIPEWORK
Connect to HWDO (Position 1 on diagram). Run the first part of the
hot water distribution pipework in 22mm. This can be reduced to
15mm and 10mm as appropriate for the type of tap etc. Your aim
should be to reduce the volume of the hot draw-off pipework to
a practical minimum so that the time taken for the hot water is as
quick as possible. Where monobloc mixing taps and showers are
used, these should be installed to comply with the Water Supply
(Water Fittings) Regulations 1999. If these devices are supplied
with un-balanced supplies there should be single check valves
installed at both inlets, to stop over pressurising of either supply.
CONNECTIONS FOR INDIRECT UNITS
Connect to the boiler flow and return (Positions 19 & 14) lines.
An additional expansion vessel and safety valve is supplied. The
boiler may be Gas, Electric or Oil but must be under effective
thermostatic control. Uncontrolled heat sources such as some
AGA’s, back boilers, solid fuel stoves, etc. are NOT SUITABLE.
Please contact our Technical department for guidance. Connect
to (Position 9 & 14) for the radiator circuits. Twin zone heating unit
are supplied with 2 port zone valves in positions 9a and 9b.
CONNECTIONS FOR SOLAR COILS
Connect to the solar coil as detailed on page 13 ensure the solar
pump is connected via the over temperature cut out as described
on page13.
SECONDARY CIRCULATION
TRIBUNE HE can be used with secondary circulation. An
appropriate WRAS approved bronze or stainless steel circulator
should be used in conjunction with a non-return valve to prevent
backflow. On large secondary circulation systems it may be
necessary to incorporate an extra expansion vessel into the circuit
to accommodate the increased system water volume. A secondary
return boss is fitted as standard on 210, 250 & 300 ltr units
(Position 17). On smaller sizes, tee into the cold feed pipe above
the drain using a swept tee.
IMMERSION HEATERS
Only immersion heaters with a thermal cutout may be used. To
help ensure this, the immersion heaters have a special 1¾” thread.
They are rated at 3 kW at 240 V and are of a low noise Incoloy
construction. They have both a thermostat and a high limit cutout.
Please order the correct replacement via partshop; fitting nonapproved immersions may affect your guarantee. When fitting,
ensure the ‘O’ ring is positioned correctly on the head of the
immersion heater and lubricate before fitting. Fit it by hand until
almost home then tighten gently as the ‘O’ rings will seal easily.
The electrical supply to each immersion heater must be fused at
13A via a double pole isolating switch to BS 3456. The cable must
be 2.5mm2 heat resistant (85°C HOFR) sheathed flex complying
to BS 6141:1981 Table 8. Do not operate the immersion heater/s
until the unit is full of water. Do not operate the immersion
heater/s if any sterilisation liquid is in the cylinder as this will cause
premature failure.
ELECTRICAL CONNECTIONS
Complete the wiring – use the appropriate wiring diagrams on
pages 17 & 18.
COMMISSIONING
Carry out commissioning as per instructions on page 21 and in line
with boiler manufacturer’s instructions for the heating and the
primary circuit. Primary pipework must be filled, bled and tested
in accordance with the boiler manufacturer’s instructions, to avoid
damage to the circulation pump.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
INDIRECT PRE-PLUMBED
50.0˚
45.0˚
G
25.0˚
40.0
J
I
H
G
F
E
CODE
D C
A
B
B
C
15.0˚
˚
A
D
E
F
G
˚
35.0
H
I
˚
45.0
J
TI120P4
922
883
836
573
171
246
102
470
590
N/F
TI150P4
1109
1070
1023
760
211
286
140
508
628
N/F
TI180P4
1297
1258
1211
948
211
286
320
690
810
N/F
TI210P4
1485
1446
1399
1136
246
321
320
690
810
1150
TI250P4
1735
1696
1649
1386
246
321
320
690
810
1400
TI300P4
2048
2009
1962
1699
246
321
418
784
904
1600
For Twin Zone codes please replace P4 with PT4
SOLAR INDIRECT PRE-PLUMBED
18
50.0˚
J
I
H
F
CODE
E
A
G
45.0˚
D C B A
B
C
25.0˚
40.0
˚
D
E
F
G
H
I
J
TT180P4
1297
1258
1211
948
560
635
480
850
970
N/F
TT210P4
1485
1446
1399
1136
665
740
585
955
1075
1150
TT250P4
1735
1696
1649
1386
830
905
770
1130
1250
1400
TT300P4
2048
2009
1962
1699
859
934
799
1159
1279
1600
For Twin Zone codes please replace P4 with PT4
All Dimensions are in mm and are of the cased unit.
N/F = not fitted.
15.0˚
˚
35.0
˚
45.0
20
21
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
COMMISSIONING
FLUSHING & FILLING
Check that the pressure in the expansion vessel is 3 bar (45PSI),
i.e. the same as the setting of the pressure reducing valve. The
valve is of the car tyre (Schrader) type. Check all the connections
for tightness including any factory made connections such as the
immersion heater and the temperature and pressure relief valve.
Before filling, open the hot tap furthest away from the TRIBUNE HE
to let air out. Open the cold main isolation valve and allow the unit
to fill. When water flows from the tap allow it to run for a short
while to flush through any dirt, swarf or flux residue. Close the tap
and open every other hot tap in turn to purge all remaining air.
DIRECT UNITS
After filling with water and after sterilisation liquid has been
purged, switch on the power to the immersion heaters and allow
the unit to start to heat. The immersion heater is supplied preset
at 55°C. Turning fully to + sets to approx 65°C. Allow unit to heat
up, adjust the thermostat so that the heater switches off at 60°C.
Record information on commissioning check list (Page 30).
INDIRECT UNITS
Consult the boiler manufacturer’s commissioning instructions and
fill the primary circuit. Ensure the lever on the two port valve is
set to the filling position. When full, move the lever back. Switch
the programmer to Domestic Hot Water (DHW) and allow the
unit to start to heat. Adjust the dial of the dual thermostat to
between 55°C and 65°C as required. Allow unit to heat up, adjust
the thermostat so that the heater switches off at 60°C. Record
information on commissioning check list (Page 30).
The recommended storage temperature for both direct and
indirect cylinders is 60-65°C. In hard water areas consideration
should be given to reducing this to 50-55°C. In many healthcare
applications the guidance on Legionella control and safe water
delivery temperatures will require storing the water at 60-65°C,
distributing at 50- 55°C and using thermostatic mixing valves to
control the final temperature. For details consult the NHS Estates
Guidance on safe hot water temperatures.
SAFETY VALVE CHECKS
During heat-up there should have been no sign of water coming
from either the expansion relief valve or the temperature/
pressure relief valve. Now hold both of these safety valves fully
open, allowing as much water as possible to flow through the
tundish. Check that your discharge pipework is free from debris
and is carrying the water away to waste efficiently. Release the
valves and check that they reseat properly. On Completion of
commissioning, fill in the Benchmark check list and leave with the
house owner.
BENCHMARK SCHEME
The installer must follow the Benchmark code of practice for
the Benchmark certification to be valid. The benchmark code of
practice can be found on the internet using the following internet
site www.centralheating.co.uk and follow links.
STORAGE TEMPERATURE
SERVICING
GENERAL
Servicing should only be carried out by competent installers and
any spare parts used must be purchased from Range Cylinders or
merchants. NEVER bypass any safety devices or operate the unit
without them being fully operational.
DRAINING
Isolate from the electrical supply to prevent the immersion heaters
burning out. Turn off the boiler. Isolate the unit from the cold mains.
Attach a hose to the draining tap ensuring that it reaches to a level
below the unit (this will ensure an efficient syphon is set up and the
maximum amount of water is drained from the unit). First open the
hot tap closest to the unit and then open the draining tap.
WARNING: WATER DRAINED OFF MAY BE VERY HOT!
IMPORTANT: After draining the cylinder do not close the hot tap
until the cylinder has fully cooled, failure to follow this instruction
may result in damage to the cylinder and will invalidate the
guarantee.
ANNUAL MAINTENANCE
TRIBUNE HE requires an annual service in order to ensure safe
working and optimum performance and maintain the guarantee. It
is essential that the following checks are performed by a competent
installer
on an annual basis. Commonly this is done at the same time as the
annual boiler service.
1) Twist the cap of the expansion relief valve on the inlet control
set and allow water to flow for 5 seconds. Release and make sure it
resets correctly. Repeat with the pressure / temperature relief valve.
In both cases check that the discharge pipework is carrying the
water away adequately. If not, check for blockages etc. and clear.
WARNING: THE WATER DISCHARGED MAY BE VERY HOT!
2) Check that any immersion heaters fitted are working correctly
and that they are controlling the water at a temperature between
55°C and 65°C.
3) Check the pressure in the expansion vessel is charged to 3 bar.
Turn off the water supply to the unit and open a hot tap first. The air
valve on expansion vessel is a Schrader (car tyre ) type. Air, Nitrogen
or CO2 may be used to charge the expansion vessel.
4) Unscrew the head on the inlet control set and clean the mesh
filter within. (Some water may escape)
5) The Benchmark Service Record supplied (page 31) with this unit
should be updated at each service.
YOUR GUARANTEE MAY BE VOID WITHOUT PROOF OF ANNUAL
SERVICING.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
22
FAULT FINDING
FAULT
POSSIBLE CAUSE
SOLUTION
Water escaping from the case
Compression fitting on hot - draw off not sealing
Check/remake joint with sealing paste
Cold water at Hot taps
Direct - immersion heater not switched on or cutout has triggered
Check / reset
Indirect - boiler not working
Check boiler - consult boiler manufacturers' instructions
Indirect - motorised valve fault
Check plumbing / wiring to motorised valve
Indirect - cutout in dual stat has operated
Reset and investigate cause
If continual - pressure reducing valve ( part of inlet control set) may
not be operating correctly
Check outlet pressure from inlet control set is 3 bar.
If continual - expansion relief valve seat may be damaged
Remove cartridge - check seat and renew if necessary
If intermittent - expansion vessel charge may have reduced / bladder
perished
Check pressure in expansion vessel. Recharge to 3 bar if necessary. If
bladder perished replace vessel.
Unit it being back pressurised
With cylinder cold check pressure in cylinder. If this is the same as
the incoming mains pressure then you are getting backfeed. Install a
balanced cold supply (see page 6)
Water discharges from temperature &.
pressure relief valve
Unit has overheated - thermal controls have failed
"Switch off power to boiler and immersion heaters.
Leave water supply on. Wait until discharge stops.
Isolate water supply and replace if faulty"
Milky / cloudy water
Oxygenated water
Water from any pressurised system will release oxygen bubbles when
flowing. The bubbles will settle out.
No hot water flow
Cold main off
Check and open stopcock
Strainer blocked in pressure reducing valve
Isolate water supply and clean
Inlet control set may be fitted incorrectly
Check and refit as required
Noise during hot water draw-off
-typically worse in the morning.
Loose airing cupboard pipework
Install extra clips
Hot or warm water from cold tap
If tap runs cold after a minute or so the pipe is picking up heat from
heating pipework.
Insulate / re-route
Water discharges from expansion relief
valve
SPARE PARTS
A full range of spare parts is available from Kingspan spare Parts
Website www.kepartshop.com
USER INSTRUCTIONS
Your stainless system is automatic in normal use and requires only
annual servicing. You should employ a competent installer to
perform the annual servicing. Normally this is timed to coincide
with the annual boiler service.
IF WATER IS FLOWING FROM THE SAFETY VALVES THROUGH THE
TUNDISH THIS INDICATES A FAULT CONDITION AND ACTION IS
NEEDED.
If this water is hot, turn the boiler and / or the immersion heater
off. Do not turn off the water until the discharge runs cool. The
discharge may also stop.
CALL OUT A COMPETENT PLUMBER TO SERVICE THE UNIT.
Tell them you have a fault on an unvented cylinder. We stock all
the spare parts they may need (see page 3).
DRAINING
IMPORTANT: After draining the cylinder do not close the hot tap
until the cylinder has fully cooled, failure to follow this instruction
may result in damage to the cylinder and will invalidate the
guarantee.
The installer must follow the Benchmark code of practice for the
Benchmark certification to be valid. Please see page 28 for further
details.
23
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
GUARANTEE TERMS AND CONDITIONS
This guarantee applies only to products manufactured by
Kingspan Environmental and its associated brands (hereafter the
term ‘product’ refers to Range Tribune HE).
Kingspan Environmental guarantees to the homeowner that
for a period of 2 years from the date of commissioning or legal
completion if new build, that the products and associated
components installed will - Conform to Kingspan Environmental
specification; and be free from defects in materials and
workmanship, subject to the conditions set out below.
Please note: this guarantee excludes all pipework and connections
and excludes any ancillary equipment as may be connected to the
product. (Ex: descaling equipment, water softeners)
The guarantee is extended to a total of 25 years for the stainless
steel inner vessel in domestic properties.
This guarantee means that Kingspan Environmental will take
responsibility for the cost of guarantee repair of a product by an
approved Kingspan Environmental Service Engineer, so that the
product shall conform to Kingspan Environmental specification.
Kingspan Environmental reserves the right, at it’s discretion to
replace a product or major component where it considers it to be
beyond economical repair.
In the event of a breakdown during the guarantee period please
call our Customer Service Department on:
0845 260 7260 - UK
Guarantee repair is free of charge to you for any parts and labour,
providing all the guarantee conditions have been met.
Guarantee Terms & Conditions
Please read the following conditions before registering your
product and before seeking any guarantee service support
IMPORTANT: Kingspan Environmental guarantee is subject to
the home owner registering with the Kingspan Environmental
Customer Service Department within 30 days of commissioning /
occupation if new build to confirm:
• Product Make / Model
• Details installation (can be found in Benchmark Log Book left by
installer)
Please complete the registration card provided and return to:
Customer Service Department, Kingspan Environmental, Tadman
Street, Wakefield, WF1 5QU, UK
or register the product on-line at
www.kingspanhws.com/warranty.
If you do not register the Product then Kingspan Environmental
Guarantee is limited to twelve months from the date of
commissioning.
The product must be serviced by a competent person* within
12 months after commissioning, and thereafter at 12 monthly
intervals. Kingspan Renewables reserves the right to seek
evidence of this maintenance to our reasonable satisfaction
before approving any guarantee servicing / repairs. This may
include evidence of completed BenchmarkTM service record and
service agreement / invoice.
Annual Services are available from the Customer Service/
Technical Support team.
*A competent person is a business that has been adjudged by
an accredited body** to be sufficiently competent to self-certify
that its work complies with Document (G) Part 3 of the Building
Regulations of England and Wales
*May Include SEI registered installers and/or FAS trained plumbers
who have completed the renewables technology module
** An example of which is BPEC
Any exchanged component will become the legal property of
Kingspan Environmental.
This guarantee is valid provided that:
• The product has been installed by a competent installer and as
per the instructions contained in the installation manual and all
relevant Codes of Practice and Regulations in force at the time of
installation.
• Any disinfection has been carried out in accordance with BS
6700.
• The product has not been modified in any way.
• The system is fed from domestic mains water supply complience
with water regulations 2000
• The product has only been used for the storage of wholesome
water (max. 250mg/l chloride – for hard water areas, Kingspan
suggest the use of an electrolytic scale reducer)
• Any 3rd party labour charges associated with replacing the unit
or any of its components have been authorised in advance by the
Customer Service/ Technical Support team.
• It has only been used for the storage of potable water.
• The product has not been subjected to frost, nor has it been
tampered with or been subjected to misuse or neglect.
• No factory fitted parts have been removed for unauthorised
repair or replacement.
• The BenchmarkTM Commissioning Checklist and Service
Record included with this product Installation Manual have been
completed.
• Regular maintenance has been carried out by a competent
person in accordance with the requirements set out in the maintenance section of the installation manual.
• The owner or installer has registered the product on-line at
www.kingspanhws.com/warranty within 30 days of purchase.
Failure to do so may result in a reduced warranty period.
• Evidence of purchase and date of supply must be submitted
upon making a claim.
• Any replacement parts used should be authorised Kingspan
Environmental spare parts.
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
24
GUARANTEE TERMS AND CONDITIONS
• Failure incurred by water contamination, air pollution and natural
disasters.
• This guarantee is not valid for installations outside the United
Kingdom.
• Any consequential loss, loss of profits, revenues or receipts
howsoever arising from any non-conformity or defect affecting
the product or from any delay in repair or replacement of the
product.
• Any loss or damage caused by delay in conduct of services or
supply of parts required to rectify the non-conformity or defect.
(provided Kingspan Environmental will use all reasonable efforts
to ensure services are performed on a timely basis).
• For repair or replacement of any Product consumables or
decorative finishes, such as filters and casings.
This guarantee does not affect any legal rights you may have as
a consumer under applicable national legislation governing your
purchase of this product
Kingspan Environmental shall make final determination as to the
validity of any guarantee claim, and shall be entitled to charge
you all reasonable costs incurred in investigating the claim where
there is no fault found, or the guarantee claim is rejected in
accordance with these conditions.

Customer Service Department
Kingspan Environmental
Tadman Street
WAKEFIELD
WF1 5QU
U.K

•If a defect arises and a valid claim is received within the Warranty
Period, at its option and to the extent permitted by law Kingspan
Environmental shall either
(1) Repair the defect at no charge, using new or refurbished
replacement parts or
(2) Exchange the product with a product that is new or which has
been manufactured using new or serviceable used parts or
(3) Refund the purchase price or a reasonable proportion of the
purchase price.
Kingspan Environmental reserves the right to inspect the product
at your home before proceeding with any guarantee repair or
replacement.
Any valid guarantee claim or guarantee service does not extend
the original guarantee period.
The guarantee only applies to the property at which the product
was originally installed and applied only to properties in the
United Kingdom & Ireland. The guarantee is fully transferable from
a change of legal ownership of the property.
Exclusions – The guarantee does not cover:
Kingspan Environmental will not be liable for any fault or costs
arising from incorrect installation, incorrect application, lack of
regular maintenance or neglect, accidental damage, malicious
damage, misuse, any alteration, tampering or repair carried by a
non competent person.
• The product if the factory fitted temperature and pressure relief
valve has been tampered with or removed.
• Neither the Distributor nor Manufacturer shall be responsible for
any consequential damage howsoever caused.
• The effects of scale build up or the effects of corrosion.
• Any consequential losses caused by the
failure or malfunction of the product.
• Faults and any associated costs arising from lack of power or
water.


25
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
GUARANTEE REGISTRATION CARD
To be completed by the home owner. Please use this card to
register within 30 days of commissioning / occupation if new build
to benefit from the Kingspan Environmental 2 year guarantee.
By completing this form, you consent to Kingspan Renewables
holding and using those details for all purposes directly related to
the administration and conduct of guarantee services. Apart from
the necessary usage, your personal data will not be disclosed to
third parties by Kingspan Environmental.



Home Owner Name
Home Address
Post code
Make of product
Model/size
Serial Number
Installers Contact details
(can be found in benchmark log book)
Date of installation
can be found in benchmark log book)
Signature of homeowner
Or Signature of developer
(If new build)
Date
Date

TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TECHNICAL SPECIFICATIONS
PRESSURE SPECIFICATIONS
Maximum Inlet Water Pressure
12 Bar
Operating Pressure
3.0 Bar
Expansion Valve Opening Pressure
6.0 Bar
Expansion Vessel Charge Pressure
3.0 Bar
Maximum Operating Pressure
7.0 Bar
Opening Pressure of T & P Valve
7.0 Bar
Opening Temperature of T & P Valve
Maximum Pressure on Primary Circuit (Indirect & Solar Coil)
90 oC
3.5 Bar
DIRECT IMMERSION ELEMENT SPECIFICATIONS
Element Rating
3kW 240 V
Thread Type
1 3/4” BSP
Fuse Requirement
Control Thermostat for Element - Temperature Range
High Limit Thermostat for Element - Temperature Set Point
13A via Double Pole Switch
45oC - 65oC
85oC
INDIRECT IMMERSION ELEMENT SPECIFICATIONS
Element Rating
3kW 240 V
Thread Type
1 3/4” BSP
Fuse Requirement
Control Thermostat for Element - Temperature Range
High Limit Thermostat for Element - Temperature Set Point
13A via Double Pole Switch
45oC - 65oC
75oC
26
27
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
SPECIFICATION
INDIRECT COIL
SURFACE AREA
INDIRECT COIL
CAPACITY
INDIRECT
COIL kW RATING
SOLAR COIL
SURFACE AREA
SOLAR COIL
CAPACITY
Heat Loss (kW/24Hr)
-
55m
-
N/A
N/A
N/A
N/A
N/A
0.99
-
-
80m
-
N/A
N/A
N/A
N/A
N/A
1.05
TDS120
38
160
120
-
-
105m
-
N/A
N/A
N/A
N/A
N/A
1.12
TDS150
46
200
150
-
-
125m
-
N/A
N/A
N/A
N/A
N/A
1.29
TDS180
54
235
180
-
-
140m
-
N/A
N/A
N/A
N/A
N/A
1.37
TDS210
60
270
210
-
-
160m
-
N/A
N/A
N/A
N/A
N/A
1.64
70% RE-HEAT TIME
-
90
HEAT-UP TIME
Fossil Fuel Volume
60
120
CAPACITY
80
29
WEIGHT FULL
20
TDS90
WEIGHT EMPTY
TDS60
PRODUCT CODE
Designated Solar Volume
CYLINDER DETAILS & PERFORMANCE
TRIBUNE DIRECT SLIMLINE
TRIBUNE INDIRECT SLIMLINE
TIS60
26
90
60
-
10m 45s
8m 02s
0.67
3.69
17.2
N/A
N/A
0.99
TIS90
36
130
90
-
17m 22s
15m 12s
0.67
3.69
16.1
N/A
N/A
1.05
TIS120
44
165
120
-
25m 01s
16m 25s
0.67
3.69
19.0
N/A
N/A
1.12
TIS150
52
205
150
-
26m 24s
19m 37s
0.77
4.26
19.5
N/A
N/A
1.29
TIS180
60
240
180
-
32m 14s
23m 05s
0.77
4.26
20.4
N/A
N/A
1.37
TIS210
68
280
210
-
36m 36s
27m 40s
0.77
4.26
23.4
N/A
N/A
1.64
TRIBUNE DIRECT
TD90
25
115
90
-
-
85m
-
N/A
N/A
N/A
N/A
N/A
0.91
TD120
30
150
120
-
-
110m
-
N/A
N/A
N/A
N/A
N/A
1.05
TD150
35
185
150
-
-
135m
-
N/A
N/A
N/A
N/A
N/A
1.23
TD180
40
220
180
-
-
160m
-
N/A
N/A
N/A
N/A
N/A
1.32
TD210
45
255
210
-
-
185m
-
N/A
N/A
N/A
N/A
N/A
1.58
TD250
50
300
250
-
-
225m
-
N/A
N/A
N/A
N/A
N/A
1.84
TD300
55
355
300
-
-
270m
-
N/A
N/A
N/A
N/A
N/A
2.10
TRIBUNE INDIRECT
TI90
30
120
90
-
20m 25s
14m 18s
0.67
3.69
15.78
N/A
N/A
0.91
TI120
35
155
120
-
23m 47s
18m 00s
0.67
3.69
18.35
N/A
N/A
1.05
1.23
TI150
40
190
150
-
29m 36s
20m 35s
0.77
4.26
19.07
N/A
N/A
TI180
45
225
180
-
31m 58s
22m 47s
0.77
4.26
20.28
N/A
N/A
1.32
TI210
50
260
210
-
33m 05s
26m 16s
0.86
4.83
23.08
N/A
N/A
1.58
TI250
55
305
250
-
41m 18s
28m 20s
0.86
4.83
24.40
N/A
N/A
1.84
TI300
60
360
300
-
46m 01s
32m 52s
0.86
4.83
24.87
N/A
N/A
2.10
TDS60ECO
25
85
60
-
-
55m
-
N/A
N/A
N/A
N/A
N/A
0.86
TRIBUNE ECOCYL DIRECT
TDS90ECO
30
120
90
-
-
80m
-
N/A
N/A
N/A
N/A
N/A
0.89
TDS120ECO
35
155
120
-
-
105m
-
N/A
N/A
N/A
N/A
N/A
0.96
TDS150ECO
40
190
150
-
-
125m
-
N/A
N/A
N/A
N/A
N/A
1.06
TDS180ECO
45
225
180
-
-
140m
-
N/A
N/A
N/A
N/A
N/A
1.19
TDS210ECO
50
260
210
-
-
160m
-
N/A
N/A
N/A
N/A
N/A
1.36
SOLAR COIL
CAPACITY
Heat Loss (kW/24Hr)
3.69
17.2
N/A
N/A
0.86
0.67
3.69
16.1
N/A
N/A
0.89
INDIRECT COIL
CAPACITY
0.67
15m 12s
INDIRECT COIL
SURFACE AREA
8m 02s
17m 22s
70% RE-HEAT TIME
10m 45s
-
HEAT-UP TIME
-
90
Fossil Fuel Volume
60
125
CAPACITY
90
35
WEIGHT FULL
30
TIS90ECO
WEIGHT EMPTY
TIS60ECO
PRODUCT CODE
SOLAR COIL
SURFACE AREA
28
INDIRECT
COIL kW RATING
Designated Solar Volume
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
TRIBUNE ECOCYL INDIRECT
TIS120ECO
36
156
120
-
25m 01s
16m 25s
0.67
3.69
19.0
N/A
N/A
0.96
TIS150ECO
45
195
150
-
26m 24s
19m 37s
0.77
4.26
19.5
N/A
N/A
1.06
TIS180ECO
36
216
180
-
32m 14s
23m 05s
0.77
4.26
20.4
N/A
N/A
1.19
TIS210ECO
55
265
210
-
36m 36s
27m 40s
0.77
4.26
23.4
N/A
N/A
1.36
TRIBUNE SOLAR DIRECT
TSS150
40
190
150
-
31m 05s
22m 16s
N/A
N/A
N/A
0.67
3.69
1.23
TSS180
45
225
180
-
33m 30s
23m 34s
N/A
N/A
N/A
0.67
3.69
1.32
TSS210
50
260
210
-
33m 05s
26m 33s
N/A
N/A
N/A
0.86
4.83
1.58
TSS250
55
305
250
-
41m 18s
28m 20s
N/A
N/A
N/A
0.86
4.83
1.84
TSS300
60
360
300
-
46m 01s
32m 52s
N/A
N/A
N/A
0.86
4.83
2.10
11m 44s
0.67
3.69
17.2
0.67
3.69
1.23
TRIBUNE SOLAR INDIRECT
TT150
45
200
150
22m 50s
TT180
50
235
180
25m 15s
17m 02s
0.67
3.69
20.2
0.67
3.69
1.32
TT210
55
270
210
28m 31s
15m 50s
0.77
4.26
23.4
0.86
4.83
1.58
TT250
60
315
250
31m 42s
22m 42s
0.77
4.26
28.3
0.86
4.83
1.84
TT300
65
370
300
36m 04s
21m 30s
0.86
4.83
29.2
0.86
4.83
2.10
TRIBUNE INDIRECT PRE-PLUMBED
TI120P4
45
165
120
-
23m 47s
18m 00s
0.67
3.69
18.35
N/A
N/A
1.05
TI150P4
50
200
150
-
31m 05s
22m 16s
0.77
4.26
19.07
N/A
N/A
1.23
TI180P4
55
235
180
-
31m 58s
22m 47s
0.77
4.26
20.28
N/A
N/A
1.32
TI210P4
60
270
210
-
35m 30s
26m 16s
0.86
4.83
23.08
N/A
N/A
1.58
TI250P4
65
315
250
-
41m 08s
30m 06s
0.86
4.83
24.40
N/A
N/A
1.84
TI300P4
70
320
300
-
49m 40s
36m 12s
0.86
4.83
24.87
N/A
N/A
2.10
TRIBUNE SOLAR INDIRECT PRE-PLUMBED
TT180P4
60
240
180
25m 15s
17m 02s
0.67
3.69
20.2
0.67
3.69
1.32
TT210P4
65
275
210
28m 31s
15m 50s
0.77
4.26
23.4
0.86
4.83
1.58
TT250P4
70
320
250
31m 42s
22m 42s
0.77
4.26
28.3
0.86
4.83
1.84
TT300P4
75
375
300
36m 04s
21m 30s
0.86
4.83
29.2
0.86
4.83
2.10
29
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
BENCHMARK SCHEME
The installer must follow the Benchmark code of practice for the Benchmark certification to be
valid. The Benchmark code of practice can be found on the internet using the following internet
site www.centralheating.co.uk and follow links.
Kingspan is a licensed member of the Benchmark Scheme which aims to improve the standards
of installation and commissioning of domestic heating and hot water systems in the UK and to
encourage regular servicing to optimise safety, efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry Council. For more
information visit www.centralheating.co.uk
Please ensure that the installer has fully completed the Benchmark Checklist on the inside back
pages of the installation instructions supplied with the product and that you have signed it to say
that you have received a full and clear explanation of its operation.
The installer is legally required to complete a commissioning checklist as a means of complying
with the appropriate Building Regulations (England and Wales).
All installations must be notified to Local Area Building Control either directly or through a
Competent Persons Scheme. A Building Regulations Compliance Certificate will then be issued to
the customer who should, on receipt, write the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and performance. The
service engineer should complete the relevant Service Record on the Benchmark Checklist after
each service. The Benchmark Checklist will be required in the event of any warranty.
MAINS PRESSURE HOT WATER STORAGE SYSTEM COMMISSIONING CHECKLIST
ThisCommissioningChecklististobecompletedinfullbythecompetentpersonwhocommissionedthestoragesystemasameansof
demonstratingcompliancewiththeappropriateBuildingRegulationsandthenhandedtothecustomertokeepforfuturereference.
Failuretoinstallandcommissionthisequipmenttothemanufacturer’sinstructionsmayinvalidatethewarrantybutdoesnotaffectstatutoryrights.
CustomerName
TelephoneNumber
Address
CylinderMakeandModel
CylinderSerialNumber
Commissionedby(print name)
RegisteredOperativeIDNumber
CompanyName
TelephoneNumber
CompanyAddress
CommissioningDate
To be completed by the customer on receipt of a Building Regulations Compliance Certificate*:
BuildingRegulationsNotificationNumber(if applicable)
ALL SYSTEMS PRIMARY SETTINGS (indirect heating only)
Istheprimarycircuitasealedoropenventedsystem?
Sealed
Open
°C
Whatisthemaximumprimaryflowtemperature?
ALL SYSTEMS
bar
Whatistheincomingstaticcoldwaterpressureattheinlettothesystem?
Hasastrainerbeencleanedofinstallationdebris(iffitted)?
Yes
No
Istheinstallationinahardwaterarea(above200ppm)?
Yes
No
Ifyes,hasawaterscalereducerbeenfitted?
Yes
No
Whattypeofscalereducerhasbeenfitted?
Whatisthehotwaterthermostatsettemperature?
°C
Whatisthemaximumhotwaterflowrateatsetthermostattemperature(measuredathighflowoutlet)?
l/min
TimeandtemperaturecontrolshavebeenfittedincompliancewithPartLoftheBuildingRegulations?
Typeofcontrolsystem(ifapplicable)
YPlan
Isthecylindersolar(orotherrenewable)compatible?
Yes
SPlan
Other
Yes
No
Yes
No
Yes
°C
Whatisthehotwatertemperatureatthenearestoutlet?
Allappropriatepipeshavebeeninsulatedupto1metreorthepointwheretheybecomeconcealed
UNVENTED SYSTEMS ONLY
Whereisthepressurereducingvalvesituated(iffitted)?
bar
Whatisthepressurereducingvalvesetting?
Hasacombinedtemperatureandpressurereliefvalveandexpansionvalvebeenfittedanddischargetested?
Yes
ThetundishanddischargepipeworkhavebeenconnectedandterminatedtoPartGoftheBuildingRegulations
Areallenergysourcesfittedwithacutoutdevice?
Yes
No
Hastheexpansionvesselorinternalairspacebeenchecked?
Yes
No
THERMAL STORES ONLY
Whatstoretemperatureisachievable?
°C
Whatisthemaximumhotwatertemperature?
°C
ALL INSTALLATIONS ThehotwatersystemcomplieswiththeappropriateBuildingRegulations
Yes
Thesystemhasbeeninstalledandcommissionedinaccordancewiththemanufacturer’sinstructions
Yes
Thesystemcontrolshavebeendemonstratedtoandunderstoodbythecustomer
Yes
Themanufacturer’sliterature,includingBenchmarkChecklistandServiceRecord,hasbeenexplainedandleftwiththecustomer
Yes
CommissioningEngineer’sSignature
Customer’sSignature
(To confirm satisfactory demonstration and receipt of manufacturer’s literature)
*AllinstallationsinEnglandandWalesmustbenotifiedtoLocalAuthorityBuildingControl(LABC)eitherdirectlyorthroughaCompetentPersonsScheme.
ABuildingRegulationsComplianceCertificatewillthenbeissuedtothecustomer.
©HeatingandHotwaterIndustryCouncil(HHIC)
www.centralheating.co.uk
SERVICE RECORD
ItisrecommendedthatyourhotwatersystemisservicedregularlyandthattheappropriateServiceRecordiscompleted.
Service Provider
BeforecompletingtheappropriateServiceRecordbelow,pleaseensureyouhavecarriedouttheserviceasdescribedinthemanufacturer’s
instructions.
SERVICE 1 Date
SERVICE 2 Date
EngineerName
EngineerName
CompanyName
CompanyName
TelephoneNumber
TelephoneNumber
Comments
Comments
Signature
Signature
SERVICE 3 Date
SERVICE 4 Date
EngineerName
EngineerName
CompanyName
CompanyName
TelephoneNumber
TelephoneNumber
Comments
Comments
Signature
Signature
SERVICE 5 Date
SERVICE 6 Date
EngineerName
EngineerName
CompanyName
CompanyName
TelephoneNumber
TelephoneNumber
Comments
Comments
Signature
Signature
SERVICE 7 Date
SERVICE 8 Date
EngineerName
EngineerName
CompanyName
CompanyName
TelephoneNumber
TelephoneNumber
Comments
Comments
Signature
Signature
SERVICE 9 Date
SERVICE 10 Date
EngineerName
EngineerName
CompanyName
CompanyName
TelephoneNumber
TelephoneNumber
Comments
Comments
Signature
Signature
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
NOTES
32
33
TRIBUNE HE UNVENTED HOT WATER CYLINDERS
KINGSPAN HOT WATER SYSTEMS
SPECIFICATION
SUMMARY
Specification summary
Materials
Inner shell - Duplex Stainless Steel
Coil - 22mm Diameter Stainless Steel
Bosses - Stainless Steel
Every TRIBUNE HE cylinder is water tested to a pressure of 15 bar.
Insulation
Polyurethane foam, nominal thickness 50mm. & 85mm
The foam is CFC-Free and HCFC-Free.
The foam has an Ozone Depletion Potential of Zero and a
Global Warming Potential of 3.1
Range Cylinders, part of Kingspan Environmental , is a major manufacturer of Domestic
Hot Water storage systems in the UK and offers the trade products backed by the service
and technical development skills that only a company of its size can.
All sites are licensed to British Standards Quality Assurance BS EN ISO 9001 : 2008 and
Range is a BSi registered firm. This means that all manufacturing plants are monitored by
an independent inspectorate and the quality systems employed by Range Cylinders meet
the stringent requirements set down.
Specifiers, users and stockists can depend on Range for consistent quality and supply.
Range continues to develop energy saving and innovative hot water products for
domestic and commercial applications.
Casework
Corrosion proofed steels throughout
Durable, stove enamelled, gloss white paint finish
Anode
None fitted/none required
Expansion Vessel
12 Litre size with 60, 90, 120 and 150 Litre models
18 Litre size with 180, 210 and 250 Litre models
25 Litre size with 300 Litre models
Control Settings
Pressure Reducing Valve - 3 Bar
Expansion Relief Valve - 6 Bar
Pressure and Temperature Relief Valve - 7 Bar/90°C
High Limit Thermostat in Dual Thermostat - 85°C
High Limit Thermostat in Immersion Heater - 85°C
Immersion Heater
1¾” BSP Parallel Threaded Head
Long Life Incoloy Sheathed Low Noise Element 14” Long
Long Life Incoloy Sheathed Thermostat Pocket 11” Long
Brazed Construction
Combined Thermostat and Safety Cutout
Element Rating 3kW at 240V A/C
Approvals
KIWA Approved to Building Regulations G3 & L
CE Compliant and fitted with a BEAB Approved Immersion Heater
Benchmark places responsibilities on both manufacturers and installers. The
purpose is to ensure that customers are provided with the correct equipment for
their needs, that it is installed, commissioned and serviced in accordance with
the manufacturer’s instructions by competent persons and that it meets the
requirements of the appropriate Building Regulations. The Benchmark Checklist
can be used to demonstrate compliance with Building Regulations and should be
provided to the customer for future reference.
Installers are required to carry out installation, commissioning and servicing work in
accordance with the Benchmark Code of Practice which is available from the Heating
and Hotwater Industry Council who manage and promote the Scheme. Visit www.
centralheating.co.uk for more information.
Kingspan Environmental have a policy of continuous product development and may introduce product modifications from time to time.
As a consequence details given in this brochure are subject to alteration without notice. E&OE.
Customer Services: 0845 260 7260
Kingspan Environmental
Tadman Street, Wakefield
WF1 5QU
Tel: 0845 260 0258
Fax: 0845 260 0259
Aftersales:
0845 260 7260
Technical Support
0845 812 0007
Customer Fax Line:
0845 260 7261
www.range-cylinders.co.uk
www.kingspan-enviro.co.uk
Kingspan Environmental Ltd. Registered Office: Tadman Street, Wakefield WF1 5QU Registered in Northern Ireland
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
