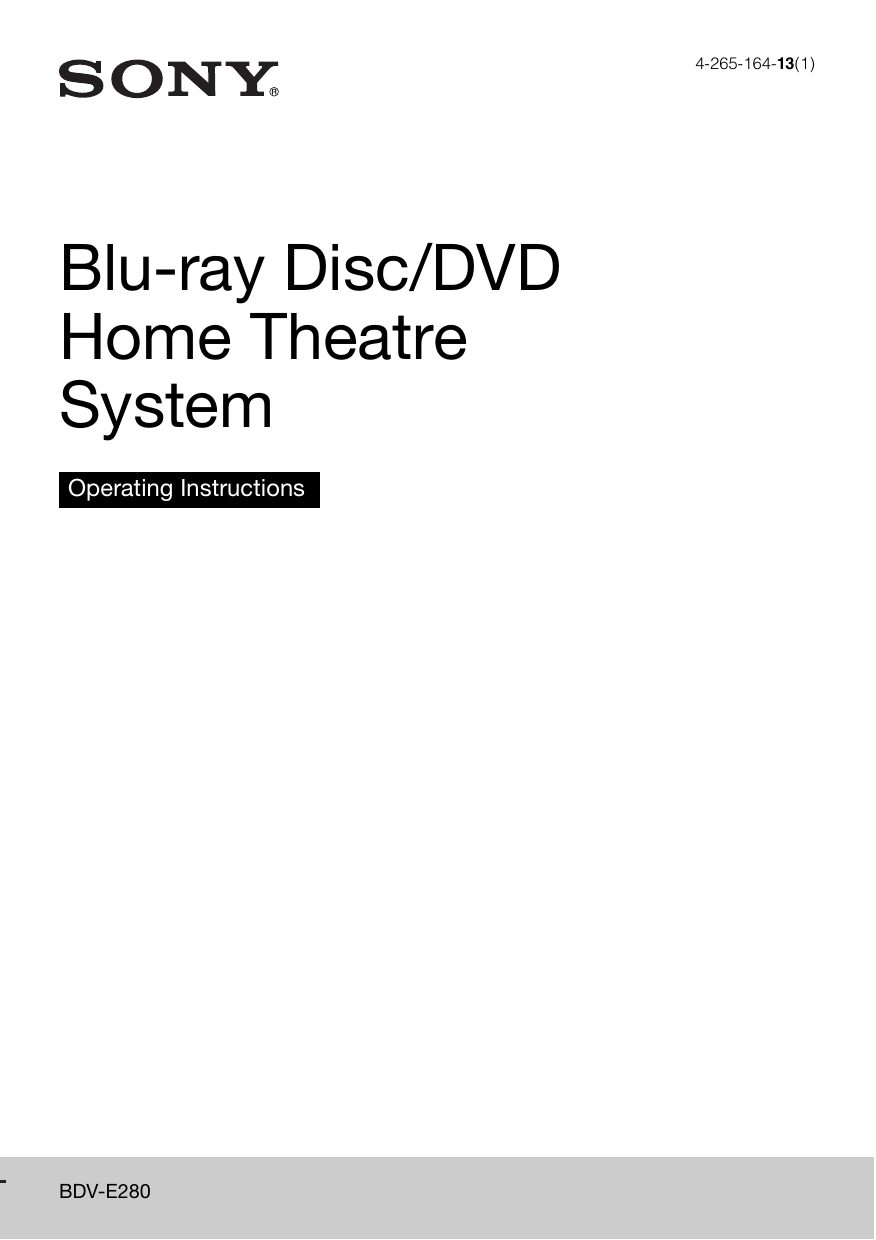

Sony BDV-E280 User manual
Blu-ray Disc/DVD
Home Theatre
System
Operating Instructions
4-265-164-13(1)
BDV-E280
2
GB
WARNING
Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
To reduce the risk of fire, do not cover the ventilation opening of the apparatus with newspapers, tablecloths, curtains, etc. Do not place the naked flame sources such as lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
Do not expose batteries or apparatus with battery-installed to excessive heat such as sunshine, fire or the like.
To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.
Indoor use only.
CAUTION
The use of optical instruments with this product will increase eye hazard. As the laser beam used in this Blu-ray Disc / DVD Home
Theatre System is harmful to eyes, do not attempt to disassemble the cabinet.
Refer servicing to qualified personnel only.
This appliance is classified as a
CLASS 3R LASER product.
Visible and invisible laser radiation is emitted when the laser protective housing is opened, so be sure to avoid direct eye exposure.
This appliance is classified as a
CLASS 1 LASER product. This marking is located on the rear exterior.
For the customers in
Europe
Disposal of
Old Electrical
& Electronic
Equipment
(Applicable in the European
Union and other European countries with separate collection systems)
This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.
By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local Civic Office, your household waste disposal service or the shop where you purchased the product.
This marking is located on the laser protective housing inside the enclosure.
Disposal of waste batteries
(applicable in the European
Union and other
European countries with separate collection systems)
This symbol on the battery or on the packaging indicates that the battery provided with this product shall not be treated as household waste.
On certain batteries this symbol might be used in combination with a chemical symbol. The chemical symbols for mercury (Hg) or lead
(Pb) are added if the battery contains more than 0.0005% mercury or 0.004% lead.
By ensuring these batteries are disposed of correctly, you will help prevent potentially negative consequences for the environment and human health which could otherwise be caused by inappropriate waste handling of the battery. The recycling of the materials will help to conserve natural resources.
In case of products that for safety, performance or data integrity reasons require a permanent connection with an incorporated battery, this battery should be replaced by qualified service staff only.
To ensure that the battery will be treated properly, hand over the product at end-of-life to the applicable collection point for the recycling of electrical and electronic equipment.
For all other batteries, please view the section on how to remove the battery from the product safely.
Hand the battery over to the applicable collection point for the recycling of waste batteries.
For more detailed information about recycling of this product or battery, please contact your local
Civic Office, your household waste
disposal service or the shop where you purchased the product.
Notice for customers: the following information is only applicable to equipment sold in countries applying EU directives.
The manufacturer of this product is
Sony Corporation, 1-7-1 Konan
Minato-ku Tokyo, 108-0075 Japan.
The Authorized Representative for
EMC and product safety is Sony
Deutschland GmbH, Hedelfinger
Strasse 61, 70327 Stuttgart,
Germany. For any service or guarantee matters please refer to the addresses given in separate service or guarantee documents.
Precautions
This equipment has been tested and found to comply with the limits set out in the EMC Directive using a connection cable shorter than 3 meters. (European and Russian models only)
On power sources
• The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off.
• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet.
Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.
On watching 3D video images
Some people may experience discomfort (such as eye strain, fatigue, or nausea) while watching
3D video images. Sony recommends that all viewers take regular breaks while watching 3D video images. The length and frequency of necessary breaks will vary from person to person. You must decide what works best. If you experience any discomfort, you should stop watching the 3D video images until the discomfort ends; consult a doctor if you believe necessary. You should also review
(i) the instruction manual and/or the caution message of any other device used with, or Blu-ray Disc contents played with this product and (ii) our website (http:// esupport.sony.com/) for the latest information. The vision of young children (especially those under six years old) is still under development. Consult your doctor
(such as a pediatrician or eye doctor) before allowing young children to watch 3D video images.
Adults should supervise young children to ensure they follow the recommendations listed above.
Copy Protection
Please be advised of the advanced content protection systems used in both Blu-ray Disc
TM
and DVD media. These systems, called
AACS (Advanced Access Content
System) and CSS (Content
Scramble System), may contain some restrictions on playback, analog output, and other similar features. The operation of this product and the restrictions placed may vary depending on the date of purchase, as the governing board of the AACS may adopt or change its restriction rules after the time of purchase.
Copyrights and
Trademarks
• This system incorporates with
Dolby* Digital and Dolby Pro
Logic (II) adaptive matrix surround decoder and the DTS**
Digital Surround System.
* Manufactured under license from Dolby Laboratories.
Dolby, Pro Logic, and the double-D symbol are trademarks of Dolby
Laboratories.
** Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674;
5,974,380; 5,978,762;
6,226,616; 6,487,535;
7,212,872; 7,333,929;
7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending.
DTS, DTS-HD and the
Symbol are registered trademarks, & DTS-HD
Master Audio, and the DTS logos are trademarks of
DTS, Inc. Product includes software. © DTS, Inc. All
Rights Reserved.
• This system incorporates High-
Definition Multimedia Interface
(HDMI
TM
) technology.
HDMI, the HDMI logo and High-
Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.
• Java is a trademark of Oracle and/ or its affiliates.
• “BD-LIVE” and
“BONUSVIEW” are trademarks of Blu-ray Disc Association.
• “Blu-ray Disc” is a trademark.
• “Blu-ray Disc,” “DVD+RW,”
“DVD-RW,” “DVD+R,” “DVD-
R,” “DVD VIDEO,” and “CD” logos are trademarks.
• “Blu-ray 3D” and “Blu-ray 3D” logo are trademarks of Blu-ray
Disc Association.
• “BRAVIA” is a trademark of
Sony Corporation.
• “AVCHD” and the “AVCHD” logo are trademarks of Panasonic
Corporation and Sony
Corporation.
• , “XMB,” and “xross media bar” are trademarks of Sony
Corporation and Sony Computer
Entertainment Inc.
• “PLAYSTATION” is a trademark of Sony Computer Entertainment
Inc.
• The Wi-Fi CERTIFIED™ Logo is a certification mark of the
Wi-Fi Alliance.
3
GB
4
GB
• The Wi-Fi Protected Setup™
Mark is a mark of the Wi-Fi
Alliance.
• “Wi-Fi CERTIFIED™” and “Wi-
Fi Protected Setup™” are trademarks of the Wi-Fi Alliance.
• “PhotoTV HD” and the “PhotoTV
HD” logo are trademarks of Sony
Corporation.
• MPEG Layer-3 audio coding technology and patents licensed from Fraunhofer IIS and
Thomson.
• iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries.
access PlayReady-protected content and/or WMDRMprotected content. If the device fails to properly enforce restrictions on content usage, content owners may require
Microsoft to revoke the device’s ability to consume PlayReadyprotected content. Revocation should not affect unprotected content or content protected by other content access technologies.
Content owners may require you to upgrade PlayReady to access their content. If you decline an upgrade, you will not be able to access content that requires the upgrade.
• All other trademarks are trademarks of their respective owners.
• Other system and product names are generally trademarks or registered trademarks of the manufacturers. ™ and ® marks are not indicated in this document.
• “Made for iPod,” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet
Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
• Windows Media is either a registered trademark or trademark of Microsoft Corporation in the
United States and/or other countries.
This product contains technology subject to certain intellectual property rights of Microsoft. Use or distribution of this technology outside of this product is prohibited without the appropriate license(s) from Microsoft.
Content owners use Microsoft
PlayReady
™
content access technology to protect their intellectual property, including copyrighted content. This device uses PlayReady technology to
About These
Operating
Instructions
• The instructions in these
Operating Instructions describe the controls on the remote. You can also use the controls on the unit if they have the same or similar names as those on the remote.
• In this manual, “disc” is used as a general reference for
BDs, DVDs, Super Audio
CDs, or CDs unless otherwise specified by the text or illustrations.
• Some illustrations are presented as conceptual drawings, and may be different from the actual products.
• The items displayed on the
TV screen may vary depending on the area.
• The default setting is underlined.
Table of Contents
About These Operating Instructions ....... 4
Unpacking ............................................... 6
Index to Parts and Controls..................... 7
Step 1: Installing the System....... 12
Step 2: Connecting the System... 13
Step 3: Connecting to the
Network.................................... 19
Step 4: Performing the Easy
Setup........................................ 21
Step 5: Selecting the Source ....... 22
Step 6: Enjoying Surround
Sound....................................... 23
Playing a Disc ....................................... 26
Playing from a USB Device.................. 27
Enjoying an iPod/iPhone....................... 28
Playing via a Network........................... 30
Available Options ................................. 30
Selecting the Effect to Suit the Source ....................................... 33
Selecting the Audio Format, Multilingual
Tracks, or Channel.......................... 33
Sound .............................................. 34
Listening to the Radio ........................... 35
(RDS).............................................. 36
Using the Control for HDMI Function for
“BRAVIA” Sync ............................ 37
Setting the Speakers .............................. 38
Using the Sleep Timer .......................... 39
Deactivating the Buttons on the Unit ........................................... 39
Controlling Your TV with the Supplied
Remote............................................ 40
Changing the Brightness of the Front
Panel Display .................................. 40
Saving Power in Standby Mode............ 40
Browsing Websites ............................... 41
Setting up the Network ......................... 42
Using the Setup Display ....................... 46
[Network Update] ................................. 46
[Screen Settings]................................... 47
[Audio Settings].................................... 48
[BD/DVD Viewing Settings]................ 49
[Parental Control Settings] ................... 49
[Music Settings].................................... 50
[System Settings] .................................. 50
[Network Settings]................................ 51
[Easy Setup].......................................... 51
[Resetting] ............................................ 51
Precautions............................................ 52
Notes about the Discs ........................... 53
Troubleshooting.................................... 54
Playable Discs....................................... 59
Playable Types of Files......................... 60
Supported Audio Formats..................... 61
Specifications........................................ 62
Language Code List.............................. 63
Index ..................................................... 64
5
GB
6
GB
Unpacking
• Front speakers (2)
• Surround speakers (2)
• Center speaker (1)
• FM wire antenna (aerial) (1) • Dock for iPod/iPhone
(TDM-iP30) (1) (European and Australian models only) or
• Video cord (1)
• USB cable (1) (European and Australian models only)
• Remote commander
(remote) (1)
• R6 (size AA) batteries (2)
• Operating Instructions
• Quick Setup Guide
• Speaker Installation Guide
• Software License
Information
• Subwoofer (1)
Preparing the remote
Insert two R6 (size AA) batteries (supplied) by matching the 3 and # ends on the batteries to the markings inside the compartment.
Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Front panel
FUNCTION VOLUME
B Remote sensor
C Front panel display
D
Used for connecting a USB device.
E Play operation buttons
Opens or closes the disc tray.
N (play)
Starts or re-starts playback (resume play).
Plays a slideshow when a disc containing
JPEG image files is inserted.
x (stop)
Stops playback and remembers the stop point (resume point).
The resume point for a title/track is the last point you played or the last photo for a photo folder.
FUNCTION
Selects the playback source.
VOLUME +/–
Adjusts the system’s volume.
F "/1 (on/standby)
Turns on the unit, or sets it to standby mode.
7
GB
8
GB
Front panel display
About the indications in the front panel display
A Displays the system’s playing status.
B Lights up when repeat play is
activated.
C Lights up when stereo sound is
received. (Radio only)
D Lights up when the HDMI (OUT) jack is
correctly connected to an HDCP (Highbandwidth Digital Content Protection)compliant device with HDMI or DVI
(Digital Visual Interface) input.
E Lights up when muting is on.
F Displays the system’s status, such as
radio frequency, etc.
G Lights up when outputting 720p/1080i/
1080p video signals from the HDMI
(OUT) jack.
Rear panel
ONLY FOR SS-TSB105 ONLY FOR
SS-WSB103
ONLY FOR
SS-CTB102
ONLY FOR SS-TSB105
FRONT R FRONT L SUBWOOFER CENTER
SPEAKERS
SUR R SUR L
VIDEO OUT
OUT ARC IN 1 IN 2
LAN (100)
DIGITAL IN
OPTICAL
TV
L
AUDIO IN
R
AUDIO
ANTENNA
FM
COAXIAL
75
B
C AUDIO (AUDIO IN L/R) jacks (page 16)
D ANTENNA (FM COAXIAL 75
Ω) jack
E TV (DIGITAL IN OPTICAL) jack (page
F LAN (100) terminal (page 19)
9
GB
10
GB
Remote control
9
SPEAKERS
TV AUDIO
TV
DIMMER
BRAVIA Sync
1 2 3
SLEEP
4 5 6
FUNCTION
7 8 9
0
TOP MENU POP UP/ MENU
1
2
3
4
8
RETURN OPTIONS
SOUND MODE
PRESET
HOME
SOUND MODE
PRESET
TUNING TUNING
DISPLAY
TV
TV
5
6
7
Number 5, , 2 +, and N buttons have a tactile dot. Use the tactile dot as a reference when operating the remote.
• : For TV operations
(For details, see “Controlling Your TV with the Supplied Remote” (page 40).)
A Z (open/close)
Opens or closes the disc tray.
SPEAKERS TV
yAUDIO
Selects whether TV sound is output from the system’s speakers or the TV’s speaker(s). This function works only when you set [Control for HDMI] to [On]
Turns on the TV or sets it to standby mode.
"/1 (on/standby) (pages 21, 35)
Turns on the system or sets it to standby mode.
B Number buttons (pages 36, 40)
Enters the title/chapter numbers, preset station number, etc.
Selects the audio format/track.
Selects the subtitle language when multilingual subtitles are recorded on a BD-
ROM/DVD VIDEO.
C Color buttons (red/green/yellow/blue)
Short cut keys for selecting items on some
BD menus (can also be used for Java interactive operations on BDs).
D TOP MENU
Opens or closes the BD’s or DVD’s Top
Menu.
POP UP/MENU
Opens or closes the BD-ROM’s Pop-up
Menu, or the DVD’s menu.
Displays the options menu on the TV screen or in the front panel display. (The location differs based on the selected function.)
RETURN
Returns to the previous display.
C/X/x/c
Moves the highlight to a displayed item.
(enter)
Enters the selected item.
Selects the sound mode.
HOME (pages 21, 35, 38, 41, 42, 46)
Enters or exits the system’s home menu.
F Playback operation buttons
./> (previous/next)
Skip to the previous/next chapter, track, or file.
(replay/advance)
Briefly replay the current scenes for 10 seconds./Briefly fast forwards the current scenes for 15 seconds.
m/M (fast/slow/freeze frame)
Fast reverse/fast forward the disc during playback. Each time you press the button, the search speed changes.
Activates slow-motion play when pressed for more than one second in pause mode.
Plays one frame at a time when pressed in pause mode.
Slow-motion and single-frame playback are not available for Blu-ray 3D Discs.
N (play)
Starts or re-starts playback (resume play).
Activates One-Touch Play (page 37) when
the system is on and set to the “BD/DVD” function.
X (pause)
Pauses or re-starts playback.
x (stop)
Stops playback and remembers the stop point (resume point). The resume point for a title/track is the last point you played or the last photo for a photo folder.
G
Radio operation buttons
PRESET +/–
TUNING +/–
(muting)
Turns off the sound temporarily.
Adjusts the volume.
TV 2 (volume) +/–
Adjusts the TV volume.
TV t (TV input)
Switches the TV’s input source between the
TV and other input sources.
Displays playback and web browsing information on the TV screen.
Displays the preset radio station, frequency, etc., in the front panel display.
Displays the stream information/decoding status in the front panel display when the function is set to other than “BD/DVD.”
When the system is set to the “HDMI1,”
“HDMI2,” or “TV” function, the stream information/decoding status appears only when a digital signal is input.
The stream information/decoding status may not appear depending on the stream or item being decoded.
Changes the brightness of the front panel display.
Sets the sleep timer.
Selects the playback source.
(favorites)
Displays the Internet contents added to the
Favorites List. You can save 18 favorite
Internet contents.
11
GB
Getting Started
Step 1: Installing the System
How to position the system
Install the system by referring to the illustration below.
A B
F
C
G
A
Front speaker (L (left))
B
Front speaker (R (right))
C
Center speaker
D
Surround speaker (L (left))
E
Surround speaker (R (right))
F
Subwoofer
G
Unit
D E
• Use caution when placing the speakers and/or speaker stands attached to the speakers on a specially treated (waxed, oiled, polished, etc.) floor, as staining or discoloration may result.
• Do not lean or hang on a speaker, as it may fall down.
• You can install the speakers on a wall. For details, refer to the supplied “Speaker Installation Guide.”
12
GB
Step 2: Connecting the System
For connecting the system, read the information on the following pages.
Do not connect the AC power cord (mains lead) of the unit to a wall outlet (mains) until all the other connections are made.
• When you connect another component with a volume control, turn down the volume of the other components to a level where sound is not distorted.
Connecting the speakers
To connect speaker cords to the unit
Connect the speaker cords to match the color of the SPEAKERS jacks of the unit.
When connecting to the unit, insert the connector until it clicks.
White
(Front left speaker (L))
Red
(Front right speaker (R))
Purple
(Subwoofer)
Green
(Center speaker)
Rear panel of the unit
ONLY FOR SS-TSB105
ONLY FOR
SS-WSB103
ONLY FOR
SS-CTB102
ONLY FOR SS-TSB105
FRONT R FRONT L SUBWOOFER CENTER
SPEAKERS
SUR R SUR L
Gray
(Surround right speaker (R))
Blue
(Surround left speaker (L))
13
GB
Connecting the TV
Connect the system to your TV to display the image of the system on your TV, and listen to TV sound via the system’s speakers.
Depending on the jacks and functions on your TV, select the connection method.
• When your TV has an HDMI jack that is marked “ARC*”: Connection A
• When your TV has an HDMI jack: Connections A and C
• When your TV does not have HDMI jacks: Connections B and C
Video connections
A B
Audio connection
C
HDMI cable
(not supplied)
Video cord
(not supplied)
TV
Image quality
HDMI IN VIDEO IN
Digital optical cord
(not supplied)
DIGITAL OUT
OPTICAL
Signal flow
: Video signal
: Audio signal
A or
B
**
Yellow
C
Yellow
Rear panel of the unit
VIDEO OUT
OUT
ARC
IN 1 IN 2
DIGITAL IN
OPTICAL
TV
* Audio Return Channel. For details, see “About Audio Return Channel” (page 15).
** Available only when your TV is compatible with the Audio Return Channel function.
14
GB
A
HDMI cable connection
If your TV has an HDMI jack, connect to the TV with an HDMI cable. This will provide better image quality compared to other types of connections.
When connecting with an HDMI cable, you need to select the type of output signal when performing
For further HDMI settings, see “[HDMI Settings]” (page 50).
About Audio Return Channel
If your TV is compatible with the Audio Return Channel function, an HDMI cable connection also sends a digital audio signal from the TV. You do not need to make a separate audio connection for listening to TV sound. For setting the Audio Return Channel function, see [Audio Return Channel]
B
Video cord connection
If your TV does not have an HDMI jack, make this connection.
C
Digital optical cord connection
This connection sends an audio signal to the system from the TV. To listen to TV sound via the system, perform this connection. With this connection, the system receives a Dolby Digital multiplex broadcast signal and you can enjoy multiplex broadcast sound.
• You can enjoy the TV sound by selecting the “TV” function (page 22).
• If your TV does not have a digital optical output jack, you can connect the unit and your TV with an audio cord for
15
GB
Connecting the other components
When a component you wish to connect to the system has an HDMI
(OUT) jack
You can connect a component that has an HDMI (OUT) jack such as a set-top box/digital satellite receiver or PLAYSTATION
®
3, etc., with an HDMI cable. An HDMI cable connection can send both video and audio signals. By connecting the system and the component using an HDMI cable, you can enjoy high-quality digital picture and sound via the HDMI (IN 1) or HDMI (IN 2) jack.
Rear panel of the unit
OUT ARC IN 1 IN 2
HDMI cable (not supplied)
Use HDMI (IN 1) or HDMI (IN 2).
HDMI OUT
To the HDMI OUT jack of the set-top box/ digital satellite receiver or
PLAYSTATION
®
3, etc.
• Video signals from the HDMI (IN 1/2) jacks are sent to the HDMI (OUT) jack only when the “HDMI1” or
“HDMI2” function is selected.
• To send an audio signal from the HDMI (IN 1/2) jacks to the HDMI (OUT) jack, you may need to change the audio
output setting. For details, see [Audio Output] in [Audio Settings] (page 48).
• You can change the audio input of a component that is connected to the HDMI (IN 1) jack to the TV (DIGITAL IN
only.)
16
GB
When the component does not have an HDMI OUT jack
Connect the system so that video signals from the system and other component are sent to the TV, and audio signals from the component are sent to the system as follows.
TV
Video out
Component
Audio out
System
Signal flow
: Video signal
: Audio signal
If the component plays sound only, connect the audio output of the component to the system.
Rear panel of the unit
L
R
AUDIO IN
AUDIO
: Signal flow
White
Red
Audio cord (not supplied)
White
L
AUDIO OUT
R
Red
To the audio out jacks of the VCR, digital satellite receiver, PlayStation, or portable audio source, etc.
• You can enjoy component sound by selecting the “AUDIO” function (page 22).
17
GB
Connecting the antenna (aerial)
Rear panel of the unit
ANTENNA
FM
COAXIAL
75 or
FM wire antenna (aerial)
(supplied)
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
• If you have poor FM reception, use a 75-ohm coaxial cable (not supplied) to connect the unit to an outdoor FM antenna (aerial).
18
GB
Step 3: Connecting to the Network
• To connect the system to your network, you need to make network settings that suit your usage environment and
components. For details, see “Setting up the Network” (page 42) and “[Network Settings]” (page 51).
Select the method based on your LAN (Local Area Network) environment.
Rear panel of the unit
Internet 2
1
LAN (100)
ADSL modem/ cable modem
ETHER WAN
Broadband router
LAN 1 LAN 2 LAN 3 LAN 4
LAN cable
(not supplied)
USB
Wireless LAN
Adapter
(not supplied)
1
Wired Setup
Use a LAN cable to connect to the LAN (100) terminal on the unit.
2
USB Wireless Setup
Use a wireless LAN via the USB Wireless LAN Adapter (Sony UWA-BR100* only).
The USB Wireless LAN Adapter may not be available in some regions/countries.
* As of November 2010.
Turn the unit off before connecting the extension cable or inserting the USB Wireless LAN Adapter.
After inserting the USB Wireless LAN Adapter to the base and connecting the extension cable to the
(USB) port (front or rear), turn the unit on again.
19
GB
• The placement distance between the USB Wireless LAN Adapter and your wireless LAN router differs based on your usage environment. If the system cannot connect to the network or the network connection is unstable, move the USB Wireless LAN Adapter to a different position or place the USB Wireless LAN Adapter and the wireless
LAN router closer to each other.
• You can also get the information for network settings from the following Sony support page:
For customers in Europe: http://support.sony-europe.com
For customers in Taiwan: http://www.sony-asia.com/support/tw
For customers in other countries/regions: http://www.sony-asia.com/support
20
GB
Step 4: Performing the
Easy Setup
Before performing Step 4
Make sure all connections are secure, and then connect the AC power cord (mains lead).
Follow the Steps below to make the basic adjustments for using the system.
Displayed items vary depending on the country model.
"/1
1
4
7
2
5
8
0
3
6
9
C/X/x/c,
HOME
4
Perform the [Easy Setup]. Follow the on-screen instructions to make the basic settings using
C/X/x/c, and
.
Depending on the connection method
(page 14), perform the following setting.
• HDMI cable connection: Follow the instructions that are displayed on the TV screen.
• Video cord connection: Select [16:9] or
[4:3] so that the picture is displayed correctly.
To recall the Easy Setup Display
1
Press HOME.
The home menu appears on the TV screen.
2
Press
C/c to select
[Setup].
3
Press
X/x to select [Easy Setup], then
press .
4
Press
C/c to select [Start], then press
.
The Easy Setup Display appears.
1
Turn on the TV.
2
Press [/1.
3
Switch the input selector on your TV so that the signal from the system appears on the TV screen.
The Easy Setup Display for OSD language selection appears.
21
GB
Step 5: Selecting the
Source
You can select the playback source.
FUNCTION
1
4
7
2
5
8
0
3
6
9
Press FUNCTION repeatedly until the desired function appears in the front panel display.
Each time you press FUNCTION, the function changes as follows.
“BD/DVD” t “FM” t “HDMI1” t
“HDMI2” t “TV” t “AUDIO” t “BD/
DVD” t …
Function
“BD/DVD”
“FM”
“HDMI1”/
“HDMI2”
“TV”
“AUDIO”
Source
Disc, USB device, iPod/iPhone*, or network device to be played by the system
Component that is connected to the HDMI (IN 1) or HDMI (IN 2)
jack on the rear panel (page 16)
Component (TV, etc.) that is connected to the TV (DIGITAL
IN OPTICAL) jack on the rear panel, or a TV compatible with the
Audio Return Channel function that is connected to the HDMI
(OUT) jack on the rear panel
Component that is connected to the AUDIO (AUDIO IN L/R)
jacks on the rear panel (page 16)
* Except for Russian models.
22
GB
Step 6: Enjoying Surround Sound
After performing the previous Steps and starting playback, you can easily enjoy surround sound. You can also select pre-programmed surround settings that are tailored to different kinds of sound sources.
They bring the exciting and powerful sound of movie theaters into your home.
1
4
7
2
5
8
0
3
6
9
X/x/c,
OPTIONS
Selecting surround settings based on your listening preference
The setting method differs depending on the function.
When playing via the “BD/DVD”* or “FM” function
1
Press OPTIONS.
The option menu appears on the TV screen.
2
Press
X/x to select [Surround Setting], then press
.
3
Press
X/x repeatedly until the surround setting you want appears on the TV screen.
See the table below for surround sound setting descriptions.
4
Press .
The setting is made.
* Surround sound settings do not apply to Internet content.
When playing via the “HDMI1,” “HDMI2,” “TV,” or “AUDIO” function
1
Press OPTIONS.
The option menu appears in the front panel display.
2
Press
X/x repeatedly until “SUR. SET” appears in the front panel display, then press
or
c.
3
Press
X/x repeatedly until the surround setting you want appears in the front panel
display.
See the table below for surround sound setting descriptions.
4
Press .
The setting is made.
5
Press OPTIONS.
The option menu in the front panel display turns off.
23
GB
• When the home menu is displayed on the TV screen, this setting can be changed by selecting the surround setting
via [Surround Setting] in [Audio Settings] of [Setup] (page 48).
About speaker output of each surround setting
The table below describes the options when you connect all the speakers to the unit.
The default setting is [A.F.D. Multi] (“A.F.D. MULTI”).
Sound from Surround setting Effect
Depending on the source.
[A.F.D. Standard]
“A.F.D. STD”
(AUTO FORMAT
DIRECT STANDARD)
The system discriminates the sound format of the source and presents sound as it was recorded/encoded.
[A.F.D. Multi]
“A.F.D. MULTI”
(AUTO FORMAT
DIRECT MULTI)
• 2 channel source: The system simulates surround sound from 2 channel sources and outputs sound from the 5.1 channel speakers by duplicating 2 channel source sound across each speaker.
• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.
• [Dolby Pro Logic]
“PRO LOGIC”
• [Dolby PL II Movie]
“PLII MOVIE”
• 2 channel source: The system simulates surround sound from 2 channel sources and outputs sound from the 5.1 channel speakers.
– [Dolby Pro Logic] (“PRO LOGIC”) performs Dolby Pro
Logic decoding.
– [Dolby PL II Movie] (“PLII MOVIE”) performs Dolby
Pro Logic II movie mode decoding.
• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.
• [DTS Neo:6
Cinema]
“NEO6 CIN”
• [DTS Neo:6 Music]
“NEO6 MUS”
[2ch Stereo]
“2CH ST.”
• 2 channel source: The system simulates surround sound from 2 channel sources and produces 6.1 channel sound.
– [DTS Neo:6 Cinema] (“NEO6 CIN”) performs DTS
Neo:6 Cinema mode decoding.
– [DTS Neo:6 Music] (“NEO6 MUS”) performs DTS
Neo:6 Music mode decoding.
• Multi-channel source: The system outputs sound from the speakers depending on the number of channels of the source.
The system outputs the sound from the front speakers and subwoofer regardless of sound format or number of channels.
Multi-channel surround formats are downmixed to 2 channels.
24
GB
• When you select [A.F.D. Multi] (“A.F.D. MULTI”), depending on the disc or source, the beginning of the sound may be cut off while the optimum mode is automatically selected. To avoid cutting the sound, select [A.F.D.
Standard] (“A.F.D. STD”).
• When bilingual broadcast sound is input, [Dolby Pro Logic] (“PRO LOGIC”) and [Dolby PL II Movie] (“PLII
MOVIE”) are not effective.
• Depending on the input stream, the surround settings may not be effective.
• When you play a Super Audio CD, surround settings are not activated.
• You can also select the surround setting in [Surround Setting] of [Audio Settings] (page 48).
• For functions other than “BD/DVD,” you can check whether [Dolby Pro Logic] (“PRO LOGIC”), [Dolby PL II
Movie] (“PLII MOVIE”), or the DTS Neo:6 mode is activated by pressing DISPLAY repeatedly so that the stream information/decoding status appears in the front panel display.
25
GB
26
GB
Playback
Playing a Disc
For playable discs, see “Playable Discs”
1
Switch the input selector on your TV so that the signal from the system appears on your TV screen.
2
Press Z, and place a disc on the disc
tray.
2
Prepare for BD-LIVE (BD-LIVE only).
• Connect the system to a network
• Set [BD Internet Connection] to [Allow]
3
Insert a BD-ROM with BONUSVIEW/
BD-LIVE.
The operation method differs depending on the disc. Refer to the operating instructions of the disc.
• To delete data in the USB memory, select [Erase BD
Data] in [Video], and press . All data stored in the buda folder will be deleted.
3
Press Z to close the disc tray.
appears on the home menu and playback starts.
If playback does not start automatically, select in the [Video], [Music], or
[Photo] category, and press .
Enjoying BONUSVIEW/BD-LIVE
Some BD-ROMs with “BD-LIVE Logo*” have bonus content and other data that can be downloaded for enjoyment.
*
1
Connect the USB device to the
(USB) port on the rear of the unit.
For local storage, use a 1 GB or larger USB memory.
Rear panel
Enjoying Blu-ray 3D
You can enjoy Blu-ray 3D Discs with the 3D logo*.
*
1
Prepare for Blu-ray 3D Disc playback.
• Connect the system to your 3Dcompatible TV using a High Speed HDMI cable (not supplied).
• Set [3D Output Setting] and [TV Screen
Size Setting for 3D] in [Screen Settings]
2
Insert a Blu-ray 3D Disc.
The operation method differs depending on the disc. Refer to the operating instructions supplied with the disc.
• Refer also to the operating instructions of your 3Dcompatible TV.
USB memory
Displaying the play information
You can check the playback information, etc., by pressing DISPLAY.
The displayed information differs depending on the disc type and system status.
Example: when playing a BD-ROM
Playing from a USB
Device
You can play video/music/photo files on the connected USB device.
For playable types of files, see “Playable Types of Files” (page 60).
1
Connect the USB device to the
(USB) port on the unit.
Refer to the operating instructions of the
USB device before connecting.
Rear panel
USB device
A Output resolution/Video frequency
B Title number or name
C The currently selected audio setting
D Available functions (
subtitle)
angle, audio,
E Playback information
Displays play mode, playing status bar, disc type, video codec, bit rate, repeat type, elapsed time, total playing time
F Chapter number
G The currently selected angle
Front panel
USB device
2
Press HOME.
The home menu appears on the TV screen.
3
Press
C/c to select
[Video],
[Music], or [Photo].
4
Press
X/x to select
[USB device
(front)] or [USB device (rear)], then press .
• Do not remove the USB device during operation. To avoid data corruption or damage to the USB device, turn the system off when connecting or removing the USB device.
27
GB
28
GB
Enjoying an iPod/iPhone
(Except for Russian models)
You can enjoy the music/video/photo and charge the battery of an iPod/iPhone via the system.
Compatible iPod/iPhone models
The compatible iPod/iPhone models are as follows. Update your iPod/iPhone with the latest software before using with the system.
Made for iPod touch 4th generation, iPod touch
3rd generation, iPod touch 2nd generation, iPod touch 1st generation, iPod nano 6th generation, iPod nano 5th generation (video camera), iPod nano 4th generation (video), iPod nano 3rd generation (video), iPod nano 2nd generation
(aluminum), iPod nano 1st generation, iPod 5th generation (video), iPod classic, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
To enjoy an iPod/iPhone via the system
1
Connect the Dock for iPod/iPhone
(supplied) to the front or rear (USB) port on the unit, then place the iPod/ iPhone onto the Dock for iPod/iPhone.
When you play a video/photo file, connect the video out jack of the Dock for iPod/ iPhone to the video input jack of your TV with a video cord (supplied) before placing the iPod/iPhone onto the Dock for iPod/ iPhone.
Front panel
Rear panel or
Dock for iPod/iPhone
USB cable (supplied)
VIDEO OUT
USB
TV
VIDEO IN
Video cord (supplied)
2
Press HOME.
The home menu appears on the TV screen.
3
Press
C/c to select
[Video],
[Music], or [Photo].
4
Press
X/x to select
[iPod (front)] or
[iPod (rear)], then press .
x If you selected [Video] or [Music] in
Step 3
The video/music files are listed on the TV screen. Go to the next Step.
x If you selected [Photo] in Step 3
[Please change the TV input to the video input...] appears on the TV screen. Switch the input selector on your TV so that the signal from the iPod/iPhone appears on your TV screen. Then, start the slideshow by operating the iPod/iPhone directly.
5
Press
C/X/x/c and
to select the file that you want to play.
The sound from the iPod/iPhone is played on the system.
When you play a video file, switch the input selector on your TV so that the signal from the iPod/iPhone appears on your TV screen.
You can operate the iPod/iPhone using the buttons on the remote.
For operation details, refer to the operating instructions of the iPod/iPhone.
• To change a system setting, such as the surround setting, while viewing images from your iPod/iPhone on your TV, select the input on your TV for this system before operating the system.
To operate the iPod/iPhone using the remote
You can operate the iPod/iPhone using the buttons on the remote. The following table shows an example of buttons that can be used.
(Depending on the iPod/iPhone model, the operation may be different.)
For [Video]/ [Music]
Press
N
X x
Operation
Starts play.
Pauses play.
Stops play.
m or M Fast reverses or forwards.
. or > Goes to the previous/next file or chapter (if any).
For [Photo]
Press
N, X
Operation
Starts/pauses play.
When you press and hold either of these buttons for several seconds, the connected iPod/iPhone enters sleep mode.
x
Pauses play.
m or M
Fast reverses or forwards.
. or >
Goes to the previous/next file.
When you press and hold either of these buttons, the connected iPod/ iPhone fast reverses or fast forwards.
DISPLAY Turns the backlight on (or extends it for 30 seconds).
Press Operation
OPTIONS, C Returns to previous display/folder hierarchy.
X/x
, c
Selects the previous/next item.
Enters the selected item.
• The iPod/iPhone is charged when connected to the system while the system is turned on.
• When [Auto Standby] is set to [On], the system may turn off automatically while you are using an iPod/ iPhone.
• You cannot transfer songs onto the iPod/iPhone from this system.
• Sony cannot accept responsibility in the event that data recorded to iPod/iPhone is lost or damaged when using an iPod/iPhone connected to this unit.
• This product has been designed specifically to work with iPod/iPhone and has been certified to meet
Apple performance standards.
• Do not remove the iPod/iPhone during operation. To avoid data corruption or damage to the iPod/iPhone, turn the system off when connecting or removing the iPod/iPhone.
• The system only recognizes iPods/iPhones that have previously been connected to the system.
• The System Audio Control function does not work while playing video/photo files via the iPod/iPhone.
• When you connect an iPod that is not compatible with the video output function and select [iPod (front)] or [iPod (rear)] in [Video] or [Photo], an alert message appears on the TV screen.
• The system can recognize up to 3,000 files (including folders).
29
GB
30
GB
Playing via a Network
D Network transmission speed
E The next video file name
F The currently selected video file name
Streaming BRAVIA Internet
Video
BRAVIA Internet Video serves as a gateway delivering selected Internet content and a variety of on-demand entertainment straight to your unit.
• Some Internet content requires registration via a PC before it can be played.
1
Prepare for BRAVIA Internet Video.
Connect the system to a network (page 19).
2
Press
C/c to select
[Video],
[Music], or [Photo].
3
Press
X/x to select an Internet content
provider icon, then press .
If the Internet content list has not been retrieved, it will be represented by an unacquired icon or a new icon.
To use the control panel
The control panel appears when the video file starts playing. The displayed items may differ depending on Internet content providers.
To display again, press DISPLAY.
A Control display
Press C/X/x/c or for playback operations.
B Playing status bar
Status bar, cursor indicating the current position, playing time, duration of the video file
C
Network condition indicator
Indicates signal strength for a wireless connection.
Indicates a wired connection.
Available Options
Various settings and playback operations are available by pressing OPTIONS. The available items differ depending on the situation.
Common options
Items
[Surround Setting]
[Repeat Setting]
[Favourites List]
[Play/Stop]
[Play from start]
Details
Changes the surround setting
Sets repeat playback.
Displays the Favorites List.
Starts or stops playback.
Plays the item from the beginning.
[Add to Favourites] Adds an Internet content item to the Favorites List.
[Remove from
Favourites]
Erases an Internet content item from the Favorites List.
[Video] only
Items
[A/V SYNC]
Details
Adjusts the gap between picture and sound. For
details, see “Adjusting the delay between the picture and sound” (page 31).
[3D Output Setting] Sets whether or not to output
3D video automatically.
• 3D video from the HDMI
(IN 1) or HDMI (IN 2) jack is output regardless of this setting.
Items
[Video Settings]
[Pause]
[Top Menu]
[IP Content Noise
Reduction]
Details
• [Picture Quality Mode]:
Selects the picture settings for different lighting environments.
• [FNR]: Reduces the random noise appearing in the picture.
• [BNR]: Reduces the mosaic-like block noise in the picture.
• [MNR]: Reduces minor noise around the picture outlines (mosquito noise).
Pauses playback.
Displays the BD’s or DVD’s
Top Menu.
[Menu/Popup Menu] Displays the BD-ROM’s
Pop-up Menu or DVD’s menu.
[Title Search] Searches for a title on BD-
ROMs/DVD VIDEOs and starts playback from the beginning.
[Chapter Search] Searches for a chapter and starts playback from the beginning.
[Angle] Switches to other viewing angles when multi-angles are recorded on BD-ROMs/DVD
VIDEOs.
Adjusts the video quality for
Internet content.
[Music] only
Items
[Add Slideshow
BGM]
[Shuffle Setting]
(iPod/iPhone only)
Details
Registers music files in the
USB memory as slideshow background music (BGM).
Sets shuffle playback.
[Photo] only
Items
[Slideshow]
[Slideshow Speed]
[Slideshow Effect]
[Slideshow BGM]
[Rotate Left]
[Rotate Right]
[View Image]
Details
Starts a slideshow.
Changes the slideshow speed.
Sets the effect when playing a slideshow.
• [Off]: Turns off the function.
• [My Music from USB]: Sets the music files registered in
[Add Slideshow BGM].
• [Play from Music CD]: Sets the tracks on CD-DAs
(music CDs).
Rotates the photo counterclockwise by
90 degrees.
Rotates the photo clockwise by 90 degrees.
Displays the selected picture.
Adjusting the delay between the picture and sound
(A/V SYNC)
When the sound does not match the pictures on the TV screen, you can adjust the delay between the picture and sound.
The setting method differs depending on the function.
• Depending on the input stream, A/V SYNC may not be effective.
When playing video content via the “BD/DVD” function
1
Press OPTIONS.
The option menu appears on the TV screen.
2
Press
X/x to select [A/V SYNC], then
press .
3
Press
C/c to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25 ms increments.
31
GB
32
GB
4
Press .
The setting is made.
When playing via the “HDMI1,”
“HDMI2,” “TV,” or “AUDIO” function
1
Press OPTIONS.
The option menu appears in the front panel display.
2
Press
X/x repeatedly until “A/V SYNC”
appears in the front panel display, then press
c.
3
Press
X/x to adjust the delay between
the picture and sound.
You can adjust from 0 ms to 300 ms in 25 ms increments.
4
Press .
The setting is made.
5
Press OPTIONS.
The option menu in the front panel display turns off.
Sound Adjustment
Selecting the Effect to
Suit the Source
You can select a suitable sound mode for movies or music.
1
4
7
2
5
8
0
3
6
9
Selecting the Audio
Format, Multilingual
Tracks, or Channel
When the system is playing a BD/DVD VIDEO recorded in multiple audio formats (PCM,
Dolby Digital, MPEG audio, or DTS) or multilingual tracks, you can change the audio format or language.
With a CD, you can select the sound from the right or left channel and listen to the sound of the selected channel through both the right and left speakers.
SOUND
MODE +/–
1
4
7
2
5
8
0
3
6
9
Press SOUND MODE +/– repeatedly during playback until the desired mode appears in the front panel display.
• “AUTO”: The system selects “MOVIE” or
“MUSIC” automatically to produce the sound effect depending on the disc or sound stream.
• “MOVIE”: The system provides the sound for movies.
• “MUSIC”: The system provides the sound for music.
• “SPORTS”: The system adds reverberation for sports programs.
• “GAME ROCK”: The system provides the sound for music/rhythm games.
• Depending on the disc or source, when you select
“AUTO,” the beginning of the sound may be cut off as the system selects the optimum mode automatically. To avoid cutting the sound, select other than “AUTO.”
• Depending on the input stream, the sound mode may not be effective.
• When you play a Super Audio CD, this function does not work.
Press repeatedly during playback to select the desired audio signal.
The audio information appears on the TV screen.
x BD/DVD VIDEO
Depending on the BD/DVD VIDEO, the choice of language varies.
When 4 digits are displayed, they indicate a
language code. See “Language Code List”
(page 63) to confirm which language the code
represents. When the same language is displayed two or more times, the BD/DVD
VIDEO is recorded in multiple audio formats.
x DVD-VR
The types of sound tracks recorded on a disc are displayed.
Example:
• [ Stereo]
• [ Stereo (Audio1)]
• [ Stereo (Audio2)]
• [ Main]
33
GB
34
GB
• [ Sub]
• [ Main/Sub]
• [ Stereo (Audio1)] and [ Stereo (Audio2)] do not appear when only one audio stream is recorded on the disc.
x CD
• [ Stereo]: The standard stereo sound.
• [ 1/L]: The sound of the left channel
(monaural).
• [ 2/R]: The sound of the right channel
(monaural).
• [ L+R]: The sound of both the left and right channels output from each individual speaker.
Enjoying Multiplex
Broadcast Sound
(DUAL MONO)
You can enjoy multiplex broadcast sound when the system receives or plays a Dolby Digital multiplex broadcast signal.
• To receive the Dolby Digital signal, you need to connect a TV or other component to the unit with a
digital optical cord (page 14). If your TV is
compatible with the Audio Return Channel function
(pages 14,50), you can receive a Dolby Digital signal
via an HDMI cable.
1
4
7
2
5
8
0
3
6
9
Press repeatedly until the desired signal appears in the front panel display.
• “MAIN”: Sound of the main language will be output.
• “SUB”: Sound of the sub language will be output.
• “MAIN/SUB”: Mixed sound of both the main and sub languages will be output.
Tuner
Listening to the Radio
You can enjoy radio sound with the system’s speakers.
FUNCTION
1
4
7
2
5
8
0
3
6
9
"/1
Number buttons
C/X/x/c,
HOME
OPTIONS
PRESET +/–
TUNING +/– x
2 +/–
Current station
Current band and preset number
FM 07
88.00
MHz
SONY FM
Station name (European and
Russian models only)
1
Press FUNCTION repeatedly until “FM” appears in the front panel display.
2
Select the radio station.
Automatic tuning
Press and hold TUNING +/– until the auto scanning starts.
[Auto Tuning] appears on the TV screen.
Scanning stops when the system tunes in a station.
To stop the automatic tuning manually, press TUNING +/– or x.
Manual tuning
Press TUNING +/– repeatedly.
3
Adjust the volume by pressing
2 +/–.
If an FM program is noisy
If an FM program is noisy, you can select monaural reception. There will be no stereo effect, but reception will improve.
1
Press OPTIONS.
The option menu appears on the TV screen.
2
Press
X/x to select [FM Mode], then
press .
3
Press
X/x to select [Monaural].
• [Stereo]: Stereo reception.
• [Monaural]: Monaural reception.
4
Press .
The setting is made.
To turn off the radio
Press "/1.
Presetting radio stations
You can preset up to 20 stations. Before tuning, make sure to turn down the volume to minimum.
1
Press FUNCTION repeatedly until “FM” appears in the front panel display.
2
Press and hold TUNING +/– until the auto scanning starts.
Scanning stops when the system tunes in a station.
3
Press OPTIONS.
The option menu appears on the TV screen.
4
Press
X/x to select [Preset Memory],
then press .
5
Press
X/x to select the preset number
you want, then press .
6
Repeat Steps 2 to 5 to store other stations.
To change the preset number
Select the desired preset number by pressing
PRESET +/–, then perform the procedure from
Step 3.
35
GB
36
GB
Selecting the preset station
1
Press FUNCTION repeatedly until “FM” appears in the front panel display.
The last received station is tuned in.
2
Press PRESET +/– repeatedly to select the preset station.
The preset number and frequency appear on the TV screen and front panel display.
Each time you press the button, the system tunes in one preset station.
• You can select the preset station number directly by pressing the number buttons.
Using the Radio Data
System (RDS)
(European and Russian models only)
What is the Radio Data
System?
The Radio Data System (RDS) is a broadcasting service that allows radio stations to send additional information along with the regular program signal. This tuner offers convenient
RDS features, such as station name display.
The station name appears on the TV screen as well.
Receiving RDS broadcasts
Simply select a station from the FM band.
When you tune in a station that provides RDS services, the station name* appears in the front panel display.
* If an RDS broadcast is not received, the station name may not appear in the front panel display.
• RDS may not work properly if the station you are tuned to is not transmitting the RDS signal properly, or if the signal strength is weak.
• Not all FM stations provide RDS service, nor do they provide the same type of services. If you are not familiar with the RDS system, check with your local radio stations for details on RDS services in your area.
• While receiving an RDS broadcast, each time you press DISPLAY, the display in the front panel display changes as follows:
Station name t Frequency t Preset number t
Stream information/Decoding status* t Station name t …
* Does not appear depending on the setting of
[Surround Setting].
Other Operations
Using the Control for
HDMI Function for
“BRAVIA” Sync
This function is available on TVs with the
“BRAVIA” Sync function.
By connecting Sony components that are compatible with the Control for HDMI function via an HDMI cable, operation is simplified.
• Some functions can only be used if the connected TV is compatible, and require prior setting via the TV.
Refer to the operating instructions of the TV.
• To use the System Audio Control function, you need to make an audio connection between the system and
Using “BRAVIA” Sync
Control for HDMI - Easy Setting
You can set the system’s [Control for HDMI] function automatically by enabling the corresponding setting on the TV.
For details about the Control for HDMI
function, see “[HDMI Settings]” (page 50)
System Power Off
You can turn the system off in sync with the TV.
• The system does not turn off automatically while playing music or when set to the “FM” function.
One-Touch Play
When you press N on the remote, the system and your TV turn on, and your TV’s input is set to the HDMI input to which the system is connected.
System Audio Control
You can simplify operation to enjoy sound from the TV or other components.
You can use the System Audio Control function as follows:
• When the system is turned on, the sound of the
TV or other components can be output from the speakers of the system.
• When sound from the TV or other components is output via the speakers of the system, you can change the speakers to which TV sound is output by pressing
SPEAKERS TV yAUDIO.
• When sound from the TV or other components is output via the speakers of the system, you can adjust the volume and turn off the sound of the system by operating the TV.
• While the TV is in PAP (picture and picture) mode, or the system is playing video/photo files from the iPod/iPhone, the System Audio Control function will not work.
• Depending on the TV, when you adjust the unit’s volume, the volume level appears on the TV screen.
In this case, the volume level that appears on the TV screen and the unit’s front panel display may differ.
Audio Return Channel
You can enjoy TV sound via the system by using just one HDMI cable. For details of the setting,
see “Connecting the TV” (page 14).
Remote Easy Control
You can control the basic functions of the system via the TV remote when the system’s video output is displayed on the TV screen.
Language Follow
When you change the language for the on-screen display of the TV, the system’s on-screen display language is also changed after turning the system off and on.
Routing Control
When you perform One-Touch Play on the connected component, the system turns on and sets the system’s function to “HDMI1” or
“HDMI2” (depending on the HDMI input jack in use), and your TV’s input is automatically set to the HDMI input to which the system is connected.
37
GB
38
GB
• Make sure that the component is connected to the system via an HDMI cable, and the Control for
HDMI function of the connected component is set to on.
Setting the Speakers
[Speaker Settings]
To obtain the best possible surround sound, set connection of the speakers and their distance from your listening position. Then use the test tone to adjust the level and the balance of the speakers to the same level.
1
Press HOME.
The home menu appears on the TV screen.
2
Press
C/c to select
[Setup].
3
Press
X/x to select [Audio Settings],
then press .
4
Press
X/x to select [Speaker Settings],
then press .
The [Speaker Settings] display appears.
5
Press
X/x to select the item, then press
.
Check the following settings.
x [Connection]
If you do not connect center or surround speakers, set the parameters for [Center] and
[Surround]. Since the front speaker and subwoofer settings are fixed, you cannot change them.
[Front]
[Yes]
[Centre]
[Yes]: Normally select this.
[None]: Select this if no center speaker is used.
[Surround]
[Yes]: Normally select this.
[None]: Select this if no surround speaker is used.
[Subwoofer]
[Yes] x [Distance]
When you move the speakers, be sure to set the parameters of the distance (A) from the listening position to the speakers.
You can set the parameters from 0.0 to 7.0 meters.
The speakers in the illustration correspond to the following:
1
Center speaker
2
Front left speaker (L)
3
Front right speaker (R)
4 Subwoofer
5
Surround left speaker (L)
6
Surround right speaker (R)
2
4
1
A
3
A
5 6
[Front Left/Right] 3.0 m: Set the front speaker distance.
[Centre]* 3.0 m: Set the center speaker distance.
[Surround Left/Right]* 3.0 m: Set the surround speaker distance.
[Subwoofer] 3.0 m: Set the subwoofer distance.
* This item appears when you set it to [Yes] in the
[Connection] setting.
• Depending on the input stream, [Distance] may not be effective.
x [Level]
You can adjust the sound level of the speakers.
You can set the parameters from –6.0 dB to +6.0 dB. Be sure to set [Test Tone] to [On] for easy adjustment.
[Front Left/Right] 0.0 dB: Set the front speaker level.
[Centre]* 0.0 dB: Set the center speaker level.
[Surround Left/Right]
*
0.0 dB: Set the surround speaker level.
[Subwoofer] 0.0 dB: Set the subwoofer level.
* This item appears when you set it to [Yes] in the
[Connection] setting.
x [Test Tone]
The speakers will emit a test tone to adjust
[Level].
[Off]: The test tone is not emitted from the speakers.
[On]: The test tone is emitted from each speaker in sequence while adjusting level. When you select one of the [Speaker Settings] items, the test tone is emitted from each speaker in sequence.
Adjust the sound level as follows.
1
Set [Test Tone] to [On].
2
Press
X/x to select [Level], then press
.
3
Press
X/x to select the desired speaker
type, then press .
4
Press
C/c to select the left or right
speaker, then press
X/x to adjust the
level.
5
Press .
6
Repeat Steps 3 to 5.
7
Press RETURN.
The system returns to the previous display.
8
Press
X/x to select [Test Tone], then
press .
9
Press
X/x to select [Off], then press
.
• The test tone signals are not output from the HDMI
(OUT) jack.
• To adjust the volume of all the speakers at one time, press 2 +/–.
Using the Sleep Timer
You can set the system to turn off at a preset time, so you can fall asleep listening to music.
The time can be preset in intervals of 10 minutes.
Press SLEEP.
Each time you press SLEEP, the minutes display
(the remaining time) in the front panel display changes by 10 minutes.
When you set the sleep timer, the remaining time appears every 5 minutes.
When the remaining time is less than 2 minutes,
“SLEEP” flashes in the front panel display.
To check the remaining time
Press SLEEP once.
To change the remaining time
Press SLEEP repeatedly to select the desired time.
Deactivating the Buttons on the Unit
(Child Lock)
You can deactivate the buttons on the unit
(except for "/1) for preventing misoperation, such as child mischief (child lock function).
Press x on the unit for more than 5
seconds.
“LOCKED” appears in the front panel display.
The child lock function is activated and the buttons on the unit are locked. (You can operate the system by using the remote.)
To cancel, press x for more than 5 seconds so that “UNLOCK” appears in the front panel display.
• When you operate the buttons on the unit while the child lock function is on, “LOCKED” flashes in the front panel display.
39
GB
40
GB
Controlling Your TV with the Supplied Remote
By adjusting the remote signal, you can control your TV with the supplied remote.
• When you replace the batteries of the remote, the code number may reset itself to the default (SONY) setting. Reset the appropriate code number.
Changing the Brightness of the Front Panel
Display
Press DIMMER.
Each time you press DIMMER, the brightness of the front panel display is changed.
Preparing the remote for controlling the TV
Press and hold TV "/1 while entering your
TV’s manufacturer’s code (see the table) using the number buttons. Then release TV
"/1.
If the setting is unsuccessful, the currently registered code is not changed. Re-enter the code number.
Code numbers of controllable
TVs
If more than one code number is listed, try entering them one at a time until you find the code that works with your TV.
Manufacturer
SONY
LG
PANASONIC
PHILIPS
SAMSUNG
TOSHIBA
Code number
01 (default)
05
06
02, 03, 07
02, 08
04
Saving Power in Standby
Mode
Check that the following settings are both made:
– [Control for HDMI] in [HDMI Settings] is set
– [Quick Start Mode] is set to [Off] (page 50).
Browsing Websites
You can connect to the Internet and enjoy websites like the Sony homepage using the system.
1
Prepare for Internet browsing.
Connect the system to a network (page 19).
2
Press HOME.
The home menu appears on the TV screen.
3
Press
C/c to select
[Network].
4
Press
X/x to select [Internet Browser],
then press .
The [Internet Browser] display appears.
• Some websites may not display correctly, or not function.
To enter a URL
Select [URL entry] from the options menu.
Enter the URL using the software keyboard, then select [Enter].
To set the default start page
While the page you want to set is displayed, select [Set as start page] from the options menu.
To return to the previous page
Select [Previous page] from the options menu. If the previous page does not appear even if you select [Previous page], select [Window List] from the options menu and select the page you want to return to from the list.
To quit Internet Browser
Press HOME.
Internet Browser display
You can check website information by pressing
DISPLAY. The display information differs depending on the website and page status.
A Page title
B Cursor
Move by pressing
C/X/x/c. Place the cursor on the link you want to view, then press .
The linked website is displayed.
C Page address
D SSL icon
Appears when the linked URL is secured.
E Signal strength indicator
Appears when the system is connected to a wireless network.
F Progress bar/Loading icon
Appears when the page is being read, or during file download/transfer.
G Text input field
Press , then choose [Input] from the options menu to open the software keyboard.
H Scroll bar
Press C/X/x/c to move the page display left, up, down, or right.
41
GB
42
GB
Available options
Various settings and operations are available by pressing OPTIONS.
The available items differ depending on the situation.
Items
[Browser Setup]
[Input]
[Break]
Details
Displays the Internet Browser settings.
• [Zoom]: Increases or decreases the size of the displayed contents.
• [JavaScript Setup]: Sets whether to enable or disable
JavaScript.
• [Cookie Setup]: Sets whether or not to accept browser cookies.
• [SSL Alarm Display]: Sets whether to enable or disable
SSL.
Displays the software keyboard to enter characters while browsing a website.
Moves the cursor to the next line in the text input field.
[Delete]
[Window List]
Erases one character on the left side of the cursor during text input.
Displays a list of all currently opened websites.
Allows you to return to a previously displayed website by selecting the window.
[Bookmark List] Displays the bookmark list.
[Character encoding] Sets the character code.
[Previous page]
[Next page]
Moves to a previously displayed page.
Moves to the previously displayed next page.
[Cancel loading]
[Reload]
Stops loading a page.
Reloads the same page.
[URL entry] Allows you to enter a URL when the software keyboard is displayed.
[Add to Bookmark] Adds the currently displayed website to the bookmark list.
Items
[Set as start page]
Details
Sets the currently displayed website as the default start page.
[Open in new window]
Opens a link in a new window.
[Display certificate] Displays server certificates sent from pages that support
SSL.
Setting up the Network
[Internet Settings]
Before setting, connect the system to the
network. For details, see “Step 3: Connecting to the Network” (page 19).
To open the setting display
1
Press HOME.
HOME
1
4
7
2
5
8
0
3
6
9
The home menu appears on the TV screen.
2
Press
C/c to select
[Setup].
3
Press
X/x to select [Network Settings],
then press .
4
Press
X/x to select [Internet Settings],
then press .
The [Internet Settings] display appears.
• The [Internet Settings] items are necessary to connect to the Internet. Enter the respective (alphanumeric) values for your broadband router or Wireless LAN router. The items that need to be set may differ, depending on the Internet service provider or the router. For details, refer to the instruction manuals that have been provided by your Internet service provider or supplied with the router.
• For more information, go to the following URL.
For customers in Europe: http://support.sony-europe.com
For customers in Taiwan: http://www.sony-asia.com/support/tw
For customers in other countries/regions: http://www.sony-asia.com/support
When connecting to the LAN with a LAN cable
Follow the Steps below for connecting to a LAN
(Local Area Network).
Auto setting
1
Press
X/x to select [Wired Setup] on
the [Internet Settings] display, then press .
2
Press
X/x to select [Auto], then press
.
The system performs the network setting automatically, and internet settings appear on the TV screen.
3
Press
c.
4
Press
X/x to select [Save & Connect],
then press .
The system starts checking the network connection.
5
Check that the message [Internet
Settings is now complete.] appears, then press .
The setup is finished. If the message does not appear, follow the on-screen messages.
Manual setting
1
Press
X/x to select [Wired Setup] on
the [Internet Settings] display, then press .
2
Press
X/x to select [Custom], then
press .
43
GB
44
GB
3
Press
X/x to select the network setting
type, then press .
• [Auto]: The system sets the IP address automatically, and the [DNS Settings] display appears.
When you select [Auto] and press , the system sets the DNS setting automatically.
When you select [Specify IP address] and press , enter the DNS settings manually.
Press C/X/x/c and the number buttons to set the following items, then press .
– [Primary DNS]
– [Secondary DNS]
• [Specify IP address]: Enter the network settings manually according to your network environment.
Press C/X/x/c and the number buttons to set the following items, then press .
– [IP Address]
– [Subnet Mask]
– [Default Gateway]
– [Primary DNS]
– [Secondary DNS]
4
Press
X/x to select the proxy server
setting, then press .
• [No]: A proxy server is not used.
• [Yes]: Enter the proxy server setting.
Press C/X/x/c and the number buttons, then press .
The value of the internet settings appears on the TV screen.
5
Press
c.
6
Press
X/x to select [Save & Connect],
then press .
The system starts checking the network connection.
7
Check that the message [Internet
Settings is now complete.] appears, then press .
The setup is finished. If the message does not appear, follow the on-screen messages.
When connecting to the wireless LAN with the USB
Wireless LAN Adapter
Follow the Steps below for connecting to a wireless LAN (Local Area Network).
When your wireless router is compatible with the WPS function
1
Press
X/x to select [USB Wireless
Setup] on the [Internet Settings] display, then press .
2
Press
X/x to select [Wi-Fi Protected
Setup (WPS)], then press .
3
Activate the WPS function of your wireless router, press
X/x to select
[Start], then press .
For details about activating the WPS function, see the operating instructions of your router.
4
Check that the message [Wi-Fi
Protected Setup was successful.] appears, then press
c.
Setup of wireless LAN connectivity and the
IP address is finished.
Next, enter the proxy server setting. Follow
Steps 4 to 7 of “Manual setting” in “When connecting to the LAN with a LAN cable”
above.
When your wireless router is not compatible with the WPS function
1
Press
X/x to select [USB Wireless
Setup] on the [Internet Settings] display, then press .
2
Press
X/x to select [Scan], then press
.
The system searches for available wireless
LANs, then the list of wireless LANs appears.
3
Press
X/x to select the wireless LAN
name, then press .
x When the selected wireless LAN is
unsecured
Setup of wireless LAN connectivity is finished. Next, enter the IP address settings
by following the Steps of “Auto setting” or
“Manual setting” in “When connecting to the LAN with a LAN cable” above.
x When the selected wireless LAN is
secured
The display for entering a WEP or WPA key appears. Go to Step 5.
x To specify the wireless LAN name
Select [Manual Entry].
The input display appears. Enter the wireless LAN name by following the onscreen messages, then press c.
4
Press
X/x to select the security mode,
then press .
• [None]: Select this if the wireless LAN is unsecured. Setup of wireless LAN connectivity is finished. Next, enter the IP address settings by following the Steps of
“Auto setting” or “Manual setting” in
“When connecting to the LAN with a
• [WEP]: The wireless LAN is protected by a WEP key.
• [WPA/WPA2-PSK]: The wireless LAN is protected by a WPA-PSK or WPA2-PSK.
• [WPA2-PSK]: The wireless LAN is protected by a WPA2-PSK.
5
Enter the WEP key/WPA key by following the on-screen messages, then press
c.
Setup of wireless LAN connectivity is finished. Next, enter the IP address settings
by following the Steps of “Auto setting” or
“Manual setting” in “When connecting to the LAN with a LAN cable” above.
About wireless LAN security
Since communication via the wireless LAN function is established by radio waves, the wireless signal may be susceptible to interception. To protect wireless communication, this system supports various security functions. Be sure to correctly configure the security settings in accordance with your network environment.
No Security
Although you can easily make settings, anyone can intercept wireless communication or intrude into your wireless network, even without any sophisticated tools. Keep in mind that there is a risk of unauthorized access or interception of data.
WEP
WEP applies security to communications to prevent outsiders from intercepting communications or intruding into your wireless network. WEP is a legacy security technology that enables older device which do not support
TKIP/AES to be connected.
WPA-PSK (TKIP), WPA2-PSK
(TKIP)
TKIP is a security technology developed in response to the deficiencies of WEP. TKIP assures a higher security level than WEP.
WPA-PSK (AES), WPA2-PSK (AES)
AES is a security technology that uses an advanced security method distinct from WEP and TKIP.
AES assures a higher security level than WEP or
TKIP.
45
GB
Settings and Adjustments
Using the Setup Display
You can make various adjustments of items such as picture and sound.
Select (Setup) on the home menu when you need to change the settings of the system.
The default settings are underlined.
• Playback settings stored in the disc take priority over the Setup Display settings and not all the functions described may work.
1
Press HOME.
The home menu appears on the TV screen.
2
Press
C/c to select
[Setup].
3
Press
X/x to select the setup category
icon to change, then press .
Example: [Screen Settings]
Icon Explanation
Makes the audio settings according to the type of connecting jacks.
Makes detailed settings for BD/
DVD playback.
Makes detailed settings for the
Parental Control function.
Makes detailed settings for
Super Audio CD playback.
Makes the system-related settings.
Makes detailed settings for
Internet and network.
Re-runs the Easy Setup to make the basic settings.
Resets the system to the factory settings.
[Network Update]
46
GB
You can setup the following options.
Icon Explanation
Updates the software of the system.
Makes the screen settings according to the type of connecting jacks.
You can update and improve the functions of the system.
For information about update functions, refer to the following website:
For customers in Europe: http://support.sony-europe.com
For customers in Taiwan: http://www.sony-asia.com/support/tw
For customers in other countries/regions: http://www.sony-asia.com/support
During a software update, “UPDATING” appears in the front panel display. After the update completes, the main unit automatically turns off. Please wait for the software update to complete; do not turn the main unit on or off, or operate the main unit or TV.
x [DVD Aspect Ratio]
[Letter Box]: Displays a wide picture with black bands on the top and bottom.
[Pan & Scan]: Displays a full-height picture on the entire screen, with trimmed sides.
[Screen Settings]
x [3D Output Setting]
[Auto]: Normally select this.
[Off]: Select this to display all contents in 2D.
• 3D video from the HDMI (IN 1) or HDMI (IN 2) jack is output regardless of this setting.
x [TV Screen Size Setting for 3D]
Sets the screen size of your 3D compatible TV.
• This setting does not apply to 3D video from the
HDMI (IN 1) or HDMI (IN 2) jack.
x [TV Type]
[16:9]: Select this when connecting to a widescreen TV or a TV with a wide-mode function.
[4:3]: Select this when connecting to a 4:3 screen TV without a wide-mode function.
x [Screen Format]
[Original]: Select this when connecting to a TV with a wide-mode function. Displays a 4:3 screen picture in 16:9 aspect ratio even on a wide-screen TV.
[Fixed Aspect Ratio]: Changes the picture size to fit the screen size with the original picture aspect ratio.
x [Cinema Conversion Mode]
[Auto]: Normally select this. The unit automatically detects whether the material is video-based or film-based, and switches to the appropriate conversion method.
[Video]: The conversion method suited for video-based material will always be selected regardless of the material.
x [Output Video Format]
[HDMI]: Normally select [Auto]. Select
[Original Resolution] to output the resolution recorded on the disc. (When the resolution is lower than SD resolution, it is scaled up to SD resolution.)
[Video]: Automatically sets the lowest resolution.
x [BD/DVD-ROM 1080/24p Output]
[Auto]: Outputs 1920 × 1080p/24 Hz video signals only when connecting a 1080/24pcompatible TV using the HDMI (OUT) jack.
[Off]: Select this when your TV is not compatible with 1080/24p video signals.
x [YCbCr/RGB (HDMI)]
[Auto]: Automatically detects the type of external device, and switches to the matching color setting.
[YCbCr (4:2:2)]: Outputs YCbCr 4:2:2 video signals.
[YCbCr (4:4:4)]: Outputs YCbCr 4:4:4 video signals.
47
GB
48
GB
[RGB]: Select this when connecting to a device with an HDCP-compliant DVI jack.
x [HDMI Deep Colour Output]
[Auto]: Normally select this.
[16bit], [12bit], [10bit]: Outputs 16bit/12bit/
10bit video signals when the connected TV is compatible with Deep Colour.
[Off]: Select this when the picture is unstable or colors appear unnatural.
x [Pause Mode] (BD/DVD VIDEO/DVD-R/
DVD-RW only)
[Auto]: The picture, including subjects that move dynamically, is output with no jitter.
Normally select this position.
[Frame]: The picture, including subjects that do not move dynamically, is output in high resolution.
[Audio Settings]
x [BD Audio MIX Setting]
[On]: Outputs the audio obtained by mixing the interactive audio and secondary audio to the primary audio.
[Off]: Outputs the primary audio only.
x [Audio DRC]
You can compress the dynamic range of the sound track.
[Auto]: Performs playback at the dynamic range specified by the disc (BD-ROM only).
[On]: The system reproduces the sound track with the kind of dynamic range that the recording engineer intended.
[Off]: No compression of dynamic range.
x [Attenuate - AUDIO]
Distortion may occur when you listen to a component connected to the AUDIO (AUDIO
IN L/R) jacks. You can prevent distortion by reducing the input level on the unit.
[On]: Attenuates the input level. The output level is changed.
[Off]: Normal input level.
x [Audio Output]
You can select the output method where the audio signal is output.
[Speaker]: Outputs multi-channel sound from the system’s speakers only.
[Speaker + HDMI]: Outputs multi-channel sound from the system’s speakers and 2-channel linear PCM signals from the HDMI (OUT) jack.
[HDMI]: Outputs sound from the HDMI (OUT) jack only. Sound format depends on the connected component.
• When [Control for HDMI] is set to [On] (page 50),
[Audio Output] is set to [Speaker + HDMI] automatically and this setting cannot be changed.
• Audio signals are not output from the HDMI (OUT) jack when [Audio Output] is set to [Speaker + HDMI]
and [HDMI1 Audio Input Mode] (page 50) is set to
[TV]. (European models only.)
• When [Audio Output] is set to [HDMI], the output signal format for the “TV” function is 2-channel linear PCM.
x [Sound Effect]
You can set the system’s sound effects (SOUND
MODE and [Surround Setting]
) to on/off.
[On]: Enables all of the system’s sound effects.
The upper limit of sampling frequency is set to
48 kHz.
[Off]: The sound effects are disabled. Select this when you do not want to set the upper limit of sampling frequency.
x [Surround Setting]
You can select the surround setting. For details,
see “Step 6: Enjoying Surround Sound”
x [Speaker Settings]
To obtain the best possible surround sound, set
the speakers. For details, see “Setting the
[BD/DVD Viewing
Settings]
You can make detailed settings for BD/DVD playback.
x [BD/DVD Menu]
You can select the default menu language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 63).
x [Audio]
You can select the default track language for
BD-ROMs or DVD VIDEOs.
When you select [Original], the language given priority in the disc is selected.
When you select [Select Language Code], the display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 63).
x [Subtitle]
You can select the default subtitle language for
BD-ROMs or DVD VIDEOs.
When you select [Select Language Code], the display for entering the language code appears.
Enter the code for your language by referring to
“Language Code List” (page 63).
x [BD Hybrid Disc Playback Layer]
[BD]: Plays BD layer.
[DVD/CD]: Plays DVD or CD layer.
x [BD Internet Connection]
[Allow]: Normally select this.
[Do not allow]: Prohibits Internet connection.
[Parental Control
Settings]
x [Password]
Set or change the password for the Parental
Control function. A password allows you to set a restriction on BD-ROM, DVD VIDEO, or
Internet video playback. If necessary, you can differentiate the restriction levels for BD-ROMs and DVD VIDEOs.
x [Parental Control Area Code]
Playback of some BD-ROMs or DVD VIDEOs can be limited according to the geographic area.
Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.
x [BD Parental Control]
Playback of some BD-ROMs can be limited according to the age of the users. Scenes may be blocked or replaced with different scenes.
Follow the on-screen instructions and enter your four-digit password.
x [DVD Parental Control]
Playback of some DVD VIDEOs can be limited according to a predetermined level such as the age of the users. Scenes may be blocked or replaced with different scenes. Follow the on-screen instructions and enter your four-digit password.
x [Internet Video Parental Control]
Playback of some Internet videos can be limited according to the age of the users. Scenes may be blocked or replaced with different scenes.
Follow the on-screen instructions and enter your four-digit password.
x [Internet Video Unrated]
[Allow]: Allows the playback of unrated
Internet videos.
[Block]: Blocks the playback of unrated Internet videos.
49
GB
50
GB
[Music Settings]
You can make detailed settings for Super Audio
CD playback.
x [Super Audio CD Playback Layer]
[Super Audio CD]: Plays the Super Audio CD layer.
[CD]: Plays the CD layer.
x [Super Audio CD Playback Channels]
[DSD 2ch]: Plays the 2ch area.
[DSD Multi]: Plays the multi-channel area.
[System Settings]
You can make the system-related settings.
x [OSD]
You can select your language for the system onscreen displays.
x [HDMI Settings]
[Control for HDMI]
[On]: On. You can operate mutually between components that are connected with an HDMI cable.
[Off]: Off.
[Audio Return Channel]
This function is available when you connect the system and TV that is compatible with the Audio
Return Channel function.
[Auto]: The system can receive the digital audio signal of the TV automatically via an HDMI cable.
[Off]: Off.
• This function is available only when [Control for
HDMI] is set to [On].
[HDMI1 Audio Input Mode] (European models only)
You can select the audio input of the component that is connected to the HDMI (IN 1) jack.
[HDMI1]: The sound of the component that is connected to the HDMI (IN 1) jack is input from the HDMI (IN 1) jack.
[TV]: The sound of the component that is connected to the HDMI (IN 1) jack is input from the TV (DIGITAL IN OPTICAL) jack.
x [Quick Start Mode]
[On]: Shortens the startup time from standby mode. You can operate the system quickly after turning it on.
[Off]: The default setting.
x [Auto Standby]
[On]: Turns on the [Auto Standby] function.
When you do not operate the system for about
30 minutes, the system enters standby mode automatically.
[Off]: Turns off the function.
x [Auto Display]
[On]: Automatically displays information on the screen when changing the viewing titles, picture modes, audio signals, etc.
[Off]: Displays information only when you press DISPLAY.
x [Screen Saver]
[On]: Turns on the screen saver function.
[Off]: Off.
x [Software Update Notification]
[On]: Sets the system to inform you of newer
software version information (page 46).
[Off]: Off.
x [System Information]
You can display the system’s software version information and the MAC address.
[Network Settings]
You can make detailed settings for Internet and network.
x [Internet Settings]
Connect the system to the network beforehand.
For details, see “Step 3: Connecting to the
x [Network Connection Diagnostics]
You can run the network diagnostic to check if the network connection has been made properly.
[Easy Setup]
Re-runs the Easy Setup to make the basic settings. Follow the on-screen instructions.
[Resetting]
x [Reset to Factory Default Settings]
You can reset the system settings to the factory default by selecting the group of settings. All the settings within the group will be reset.
x [Initialize Personal Information]
You can erase your personal information stored in the system.
51
GB
52
GB
Additional Information
Precautions
On safety
• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the system, or place the system near water, such as near a bathtub or shower room. Should any solid object or liquid fall into the cabinet, unplug the system and have it checked by qualified personnel before operating it any further.
• Do not touch the AC power cord (mains lead) with wet hands. Doing so may cause an electric shock.
On power sources
• Unplug the unit from the wall outlet (mains) if you do not intend to use it for an extended period of time. To disconnect the cord, pull it out by the plug, never by the cord.
On placement
• Place the system in a location with adequate ventilation to prevent heat build-up in the system.
• At high volume, over long periods of time, the cabinet becomes hot to the touch. This is not a malfunction.
However, touching the cabinet should be avoided. Do not place the system in a confined space where ventilation is poor as this may cause overheating.
• Do not block the ventilation slots by putting anything on the system. The system is equipped with a high power amplifier. If the ventilation slots are blocked, the system can overheat and malfunction.
• Do not place the system on surfaces (rugs, blankets, etc.) or near materials (curtains, draperies) that may block the ventilation slots.
• Do not install the system in a confined space, such as a bookshelf or similar unit.
• Do not install the system near heat sources such as radiators, air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.
• Do not install the system in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the system and discs away from components with strong magnets, such as microwave ovens, or large loudspeakers.
• Do not place heavy objects on the system.
On operation
• If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the unit. Should this occur, the system may not operate properly. In this case, remove the disc and leave the system turned on for about half an hour until the moisture evaporates.
• When you move the system, take out any disc. If you do not, the disc may be damaged.
• If anything falls into the cabinet, unplug the unit and have it checked by qualified personnel before operating it any further.
On adjusting volume
• Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is suddenly played.
On cleaning
• Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.
If you have any questions or problems concerning your system, please consult your nearest Sony dealer.
On cleaning discs, disc/lens cleaners
• Do not use cleaning discs or disc/lens cleaners
(including wet or spray types). These may cause the apparatus to malfunction.
On replacement of parts
• In the events that this system is repaired, repaired parts may be collected for reuse or recycling purposes.
On your TV’s color
• If the speakers should cause the TV screen to have color irregularity, turn off the TV then turn it on after
15 to 30 minutes. If color irregularity should persist, place the speakers further away from the TV set.
IMPORTANT NOTICE
Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen.
Projection televisions are especially susceptible to this.
On moving the system
• Before moving the system, make sure that there is no disc inserted, and remove the AC power cord (mains lead) from the wall outlet (mains).
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a cleaning cloth.
Wipe the disc from the center out.
• Do not use solvents such as benzine, thinner, commercially available cleaners, or anti-static spray intended for vinyl LPs.
This system can only play a standard circular disc. Using neither standard nor circular discs
(e.g., card, heart, or star shape) may cause a malfunction.
Do not use a disc that has a commercially available accessory attached, such as a label or ring.
53
GB
54
GB
Troubleshooting
If you experience any of the following difficulties while using the system, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.
Note that if service personnel changes some parts during repair, these parts may be retained.
General
Symptom
The power is not turned on.
Problems and solutions
• Check that the AC power cord (mains lead) is connected securely.
The remote does not function.
• The distance between the remote and the unit is too far.
• The batteries in the remote are weak.
The disc tray does not open and you cannot remove the disc even after you press Z.
• Try the following: 1 Press and hold N and Z on the unit for more than 5 seconds to open the disc tray. 2 Remove the disc. 3 Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.
The system does not work normally.
• Disconnect the AC power cord (mains lead) from the wall outlet (mains), then reconnect after several minutes.
Messages
Symptom Problems and solutions
[A new software version is available. Please go to the
“Setup” section of the menu and select “Network Update” to perform the update.] appears on the TV screen.
• See [Network Update] (page 46) to update the system to a newer software
version.
“PROTECTOR” and “PUSH
PWR” appear alternately in the front panel display.
Press "/1 to turn off the system, and check the following items after
“STANDBY” disappears.
• Are the + and – speaker cords short-circuited?
• Are you using only the specified speakers?
• Is anything blocking the ventilation holes of the system?
• After checking the above items and fixing any problems, turn on the system. If the cause of the problem cannot be found even after checking all the above items, consult your nearest Sony dealer.
“LOCKED” appears in the front panel display.
• Set the child lock function to off (page 39).
• Contact your nearest Sony dealer or local authorized Sony service facility.
“DEMO LOCK” appears in the front panel display.
“Exxxx” appears in the front panel display.
• Contact your nearest Sony dealer or local authorized Sony service facility and give the error code.
• Contact your nearest Sony dealer or local authorized Sony service facility.
appears without any messages on the entire TV screen.
Symptom
There is no picture.
There is no picture when you make an HDMI cable connection.
3D images from the HDMI (IN
1) or HDMI (IN 2) jack do not appear on the TV screen.
Problems and solutions
• Check the output method on your system (page 14).
• The unit is connected to an input device that is not HDCP (High-bandwidth
Digital Content Protection) compliant (“HDMI” on the front panel does not
• Depending on the TV or video component, 3D images may not appear.
No picture appears when the video output resolution selected in [Output Video Format] is incorrect.
• Press and hold N and VOLUME – on the unit for more than 5 seconds to reset the video output resolution to the lowest resolution.
The dark area of the picture is too dark/the bright area is too bright or unnatural.
• Set [Picture Quality Mode] to [Standard] (default) (page 30).
The picture is not output correctly.
• Check the [Output Video Format] settings in [Screen Settings] (page 47).
• If the analog and digital signals are output at the same time, set [BD/DVD-
ROM 1080/24p Output] in [Screen Settings] to [Off] (page 47).
• For BD-ROMs, check the [BD/DVD-ROM 1080/24p Output] settings in
Picture noise appears.
An image is not displayed on the entire TV screen.
• Check the setting of [TV Type] in [Screen Settings](page 47).
• The aspect ratio on the disc is fixed.
Color irregularity occurs on the
TV screen.
• Clean the disc.
• If the picture output from your system goes through your VCR to get to your
TV, the copy-protection signal applied to some BD/DVD programs could affect picture quality. If you still experience problems even when you connect your unit directly to your TV, try connecting your unit to the other input jacks.
• If the speakers are used with a CRT-based TV or projector, install the speakers at least 0.3 meters from the TV set.
• If the color irregularity persists, turn off the TV set once, then turn it on after 15 to 30 minutes.
• Make sure that no magnetic object (magnetic latch on a TV stand, health care device, toy, etc.) is placed near the speakers.
There is no picture after playing a video/photo file on the iPod/ iPhone. (European and
Australian models only.)
• Select the input on your TV for this system.
55
GB
56
GB
Sound
Symptom
There is no sound.
Problems and solutions
• The speaker cord is not connected securely.
• Check the speaker settings (page 38).
The Super Audio CD sound of a component that is connected to the HDMI (IN 1) or HDMI (IN
2) jack is not output.
• HDMI (IN 1) and HDMI (IN 2) does not accept an audio format that contains copy protection. Connect the analog audio output of the component to the
AUDIO (AUDIO IN L/R) jacks of the unit.
There is no sound from the TV via the HDMI (OUT) jack when using the Audio Return Channel function.
• Set [Control for HDMI] in [HDMI Settings] of [System Settings] to [On]
(page 50). Also, set [Audio Return Channel] in [HDMI Settings] of [System
Settings] to [Auto] (page 50).
• Make sure that your TV is compatible with the Audio Return Channel function.
• Make sure that an HDMI cable is connected to a jack on your TV that is compatible with the Audio Return Channel function.
The system does not output sound correctly when connected to a set-top box.
• Set [Audio Return Channel] in [HDMI Settings] of [System Settings] to [Off]
Severe hum or noise is heard.
• Move your TV away from the audio components.
• Clean the disc.
The sound loses stereo effect when you play a CD.
• Select stereo sound by pressing
The sound comes from the center speaker only.
• Depending on the disc, the sound may come from the center speaker only.
No sound or only a very lowlevel sound is heard from the surround speakers.
• Check the speaker connections and settings (pages 13, 38).
• Check the surround setting (page 23).
• Depending on the source, the effect of the surround speakers may be less noticeable.
• A 2 channel source is being played.
Distortion occurs in the sound of a connected component.
• Reduce the input level for the connected component by setting [Attenuate -
Tuner
Symptom
Radio stations cannot be tuned in.
Problems and solutions
• Check that the antenna (aerial) is connected securely. Adjust the antenna
(aerial) or connect an external antenna (aerial) if necessary.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use manual tuning.
Playback
Symptom
The disc does not play.
Problems and solutions
• The region code on the BD/DVD does not match the system.
• Moisture has condensed inside the unit and may cause damage to the lenses.
Remove the disc and leave the unit turned on for about half an hour.
• The system cannot play a recorded disc that is not correctly finalized (page 59).
File names are not displayed correctly.
• The system can only display ISO 8859-1-compliant character formats. Other character formats may be displayed differently.
• Depending on the writing software used, the input characters may be displayed differently.
• Resume play has been selected. Press OPTIONS and select [Play from start], then press .
A disc does not start playing from the beginning.
Playback does not start from the resume point where you last stopped playing.
• The resume point may be cleared from memory depending on the disc when
– you open the disc tray.
– you disconnect the USB device.
– you play other content.
– you turn off the unit.
The language for the soundtrack/ subtitle or angles cannot be changed.
• Try using the BD’s or DVD’s menu.
• Multi-lingual tracks/subtitles or multi-angles are not recorded on the BD or
DVD being played.
Bonus contents or other data that are contained in a BD-ROM cannot be played.
• Try the following: 1 Remove the disc. 2 Turn the system off. 3 Remove and
reconnect the USB device (page 27). 4 Turn the system on. 5 Insert the BD-
ROM with BONUSVIEW/BD-LIVE.
USB device
Symptom
The USB device is not recognized.
Problems and solutions
• Try the following: 1 Turn the system off. 2 Remove and reconnect the USB device. 3 Turn the system on.
• Make sure that the USB device is securely connected to the (USB) port.
• Check if the USB device or a cable is damaged.
• Check if the USB device is on.
• If the USB device is connected via a USB hub, disconnect it and connect the
USB device directly to the unit.
BRAVIA Internet Video
Symptom Problems and solutions
The picture/sound is poor/certain programs display with a loss of detail, especially during fastmotion or dark scenes.
• Picture/sound quality may be poor depending on Internet content providers.
• Picture/sound quality may be improved by changing the connection speed.
Sony recommends a connection speed of at least 2.5 Mbps for standarddefinition video and 10 Mbps for high-definition video.
• Not all videos contain sound.
The picture is small.
• Press X to zoom in.
57
GB
58
GB
“BRAVIA” Sync ([Control for HDMI])
Symptom
The [Control for HDMI] function does not work
(“BRAVIA” Sync).
Problems and solutions
• Check that [Control for HDMI] is set to [On] (page 50).
• If you change the HDMI connection, turn the system off and on again.
• If power failure occurs, set [Control for HDMI] to [Off], then set [Control for
• Check the following and refer to the operating instructions supplied with the component.
– the connected component is compatible with the [Control for HDMI] function.
– the connected component’s setting for the [Control for HDMI] function is correct.
Network connection
Symptom Problems and solutions
The system cannot connect to the network.
• Check the network connection (page 19) and the network settings (page 51).
USB wireless LAN connection
Symptom
You cannot connect your PC to the Internet after [Wi-Fi
Protected Setup (WPS)] is performed.
You cannot connect the system to your wireless LAN router.
Problems and solutions
• The wireless settings of the router may change automatically if you use the
Wi-Fi Protected Setup function before adjusting the settings of the router. In this case, change the wireless settings of your PC accordingly.
• Check if the wireless LAN router is on.
• Depending on the usage environment, including the wall material, radio wave reception conditions, or obstacles between the system and the wireless LAN router, the possible communication distance may be shortened. Move the system and the wireless LAN router closer to each other.
• Devices that use a 2.4 GHz frequency band, such as a microwave, Bluetooth, or digital cordless device, may interrupt the communication. Move the unit away from such devices, or turn off such devices.
The desired wireless router is not detected even if [Scan] is performed.
• Press RETURN to return to the previous screen, and try [Scan] again. If the desired wireless router is still not detected, press RETURN to select [Manual registration].
The system cannot connect to the network or the network connection is unstable.
• The distance between the unit and the wireless LAN router is too far (page 19).
Playable Discs
Blu-ray Disc
DVD
3)
CD
3)
BD-ROM
1)
BD-R/BD-RE
2)
DVD-ROM
DVD-R/DVD-RW
DVD+R/DVD+RW
CD-DA (Music CD)
CD-ROM
CD-R/CD-RW
Super Audio CD
1)
Since the Blu-ray Disc specifications are new and evolving, some discs may not be playable depending on the disc type and the version. Also, the audio output differs depending on the source, connected output jack, and selected audio settings.
2)
BD-RE: Ver.2.1
BD-R: Ver.1.1, 1.2, 1.3 including organic pigment type BD-R (LTH type)
BD-Rs recorded on a PC cannot be played if postscripts are recordable.
3)
A CD or DVD disc will not play if it has not been correctly finalized. For more information, refer to the operating instructions supplied with the recording device.
Discs that cannot be played
• BDs with cartridge
• BDXLs
• DVD-RAMs
• HD DVDs
• DVD Audio discs
• PHOTO CDs
• Data part of CD-Extras
• Super VCDs
• Audio material side on DualDiscs
Notes on discs
This product is designed to play back discs that conform to the Compact Disc (CD) standard.
DualDiscs and some music discs encoded with copyright protection technologies do not conform to the Compact Disc (CD) standard.
Therefore, these discs may not be compatible with this product.
Note on playback operations of a
BD/DVD
Some playback operations of a BD/DVD may be intentionally set by software producers. Since this system plays a BD/DVD according to the disc contents the software producers designed, some playback features may not be available.
Note about double-layer BDs/
DVDs
The playback picture and sound may be momentarily interrupted when the layers switch.
Region code (BD-ROM/DVD
VIDEO only)
Your system has a region code printed on the rear of the unit and will only play a BD-ROM/
DVD VIDEO (playback only) labeled with identical region codes or
ALL
.
59
GB
60
GB
Playable Types of Files
Video
File format
MPEG-1 Video/PS
1)
MPEG-2 Video/PS, TS
1)
Extensions
“.mpg,” “.mpeg,” “.m2ts,”
“.mts”
Xvid
MPEG4/AVC
1)
“.avi”
“.mkv,” “.mp4,” “.m4v,”
“.m2ts,” “.mts”
WMV9
1)
AVCHD
“.wmv,” “.asf”
2)
Music
File format
MP3 (MPEG-1 Audio
Layer III)
AAC
1)3)
WMA9 Standard
1)3)
LPCM
Extensions
“.mp3”
“.m4a”
“.wma”
“.wav”
File format
JPEG
GIF
PNG
Extensions
“.jpg,” “.jpeg”
“.gif”
“.png”
1)
The system does not play files encoded with DRM.
2)
The system plays AVCHD-format files that are recorded via a digital video camera, etc. To watch
AVCHD-format files, the disc with AVCHD-format files on it must be finalized.
3)
The system does not play files encoded with
Lossless, etc.
• Some files may not play depending on the file format, the file encoding, or the recording condition.
• Some files edited on a PC may not play.
• The system can recognize the following files or folders in BDs, DVDs, CDs and USB devices:
– up to folders in the 3rd tree
– up to 500 files in a single tree
• Some USB devices may not work with this system.
• The system can recognize Mass Storage Class (MSC) devices (such as flash memory or an HDD), Still
Image Capture Devices (SICDs), and 101-key keyboards (front (USB) port only).
• To avoid data corruption or damage to USB memory or other devices, turn the system off before connecting or removing USB memory or other devices.
• The system may not play high bit rate video files from a DATA CD smoothly. It is recommended to play high bit rate video files using a DATA DVD.
Supported Audio Formats
Audio formats supported by this system are as follows.
Function
Format
LPCM 2ch LPCM 5.1ch
LPCM 7.1ch
Dolby Digital Dolby
TrueHD,
Dolby Digital
Plus
DTS
“BD/DVD”
“HDMI1”
“HDMI2”
“TV”
(DIGITAL IN)
a a a a: Supported format.
–: Unsupported format.
a
–
– a a a a
–
– a a a
DTS-ES
Discrete 6.1,
DTS-ES
Matrix 6.1,
DTS96/24
a
–
DTS-HD
High
Resolution
Audio
a
–
DTS-HD
Master
Audio
a
–
– – –
• HDMI (IN 1) and HDMI (IN 2) do not input sound in the case of an audio format that contains copy protections such as Super Audio CD or DVD-Audio.
• For the LPCM 2ch format, the supported sampling frequency of the digital signal is up to 96 kHz when using the
“HDMI1” or “HDMI2” function, and 48 kHz when using the “TV” function.
61
GB
62
GB
Specifications
Amplifier Section
POWER OUTPUT (rated)
Front L/Front R: 108 W + 108 W (at 3 ohms,
1 kHz, 1% THD)
POWER OUTPUT (reference)
Front L/Front R/Center/Surround L/Surround R:
167 W (per channel at
3 ohms, 1 kHz)
165 W (at 3 ohms, 80 Hz) Subwoofer:
Inputs (Analog)
AUDIO (AUDIO IN)
Inputs (Digital)
Sensitivity: 450/250 mV
TV (Audio Return Channel/OPTICAL)
Supported formats: LPCM
2CH (up to 48 kHz), Dolby
Digital, DTS
HDMI (IN 1)/HDMI (IN 2)
Supported formats: LPCM
2CH (up to 96 kHz), Dolby
Digital, DTS
Video Section
Outputs VIDEO: 1 Vp-p 75 ohms
HDMI Section
Connector Type A (19pin)
BD/DVD/Super Audio CD/CD System
Signal format system
U.S. and Canada models: NTSC
Other models: NTSC/PAL
USB Section
(USB) port: Type A (For connecting
USB memory, memory card reader, digital still camera, and digital video camera)
LAN Section
LAN (100) terminal 100BASE-TX Terminal
FM Tuner Section
System PLL quartz-locked digital synthesizer
Tuning range
U.S. and Canada models: 87.5 MHz - 108.0 MHz
(100 kHz step)
Other models: 87.5 MHz - 108.0 MHz (50 kHz step)
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals 75 ohms, unbalanced
Speakers
Front/Surround (SS-TSB105)
Dimensions (approx.) 85 mm × 220 mm × 95 mm
Mass (approx.)
(w/h/d)
Front: 0.5 kg
Surround: 0.6 kg
Center (SS-CTB102)
Dimensions (approx.)
Mass (approx.)
315 mm × 54 mm × 55 mm
(w/h/d)
0.4 kg
Subwoofer (SS-WSB103)
Dimensions (approx.)
Mass (approx.)
260 mm × 265 mm × 270 mm (w/h/d)
3.8 kg
General
Power requirements
Power consumption
Dimensions (approx.)
Mass (approx.)
220 V - 240 V AC,
50/60 Hz
On: 160 W
Standby: 0.3 W (at the
Power Saving mode)
400 mm × 65 mm × 315 mm (w/h/d) incl. projecting parts
3.3 kg
Design and specifications are subject to change without notice.
• Standby power consumption 0.3W.
• Over 85% power efficiency of amplifier block is achieved with the full digital amplifier, S-Master.
Language Code List
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Parental Control/Area Code List
63
GB
64
GB
Index
Numerics
A
B
C
D
E
F
H
I
Initialize Personal Information
Internet Video Parental Control
L
M
N
O
P
Q
R
S
T
U
W
The software of this system may be updated in the future. To find out details on any available updates, please visit the following URL.
For customers in Europe: http://support.sony-europe.com
For customers in Taiwan: http://www.sony-asia.com/support/tw
For customers in other countries/regions: http://www.sony-asia.com/support
(European and Russian models only)
©2011 Sony Corporation Printed in Malaysia (1)
* Your assessment is very important for improving the workof artificial intelligence, which forms the content of this project
