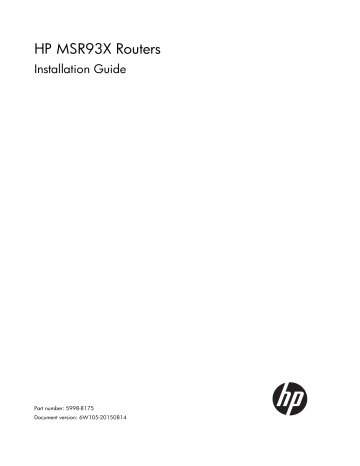

HP MSR93X Routers

Installation Guide

Part number: 5998-8175

Document version: 6W105-20150814

Legal and notice information

© Copyright 2015 Hewlett-Packard Development Company, L.P.

No part of this documentation may be reproduced or transmitted in any form or by any means without prior written consent of Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS

MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. i

Contents

Preparing for installation ············································································································································· 1

Safety recommendations ·················································································································································· 2

European Union Commission Regulation 1275/2008························································································ 2

Site requirements ······························································································································································· 2

ESD prevention ························································································································································· 3

EMI ············································································································································································· 3

Lightning protection ·················································································································································· 4

Installation accessories ····················································································································································· 4

Pre-installation checklist ···················································································································································· 4

Installing the router ······················································································································································· 6

Installation prerequisites ··················································································································································· 6

Installation flowchart ························································································································································· 6

Installing the router ···························································································································································· 7

Mounting the router on a workbench ····················································································································· 7

Installing the router on a wall ·································································································································· 8

Grounding the router ··············································································································································· 9

Installing a standard 3G SIM card ······················································································································ 10

Installing a 3G antenna ········································································································································ 12

Installing WLAN antennas ···································································································································· 14

Installing a standard 4G SIM card ······················································································································ 14

Installing a 4G antenna ········································································································································ 17

Installing a 3G/4G antenna extender cable to a 4G device ·········································································· 17

Installing a GPS antenna ······································································································································ 18

JG704A router antenna installation instructions ································································································ 18

Connecting interface cables ································································································································· 19

Connecting the console cable and setting terminal parameters ······································································ 20

Setting console terminal parameters ··················································································································· 20

Connecting the power adapter ···························································································································· 23

Verifying the installation ······································································································································· 24

Powering on the router ·················································································································································· 24

Startup process ······················································································································································ 24

Power-on check ······················································································································································ 25

Configuring basic settings for the router ············································································································· 26

Troubleshooting ·························································································································································· 27

Power supply failure ······················································································································································ 27

System configuration problems ····································································································································· 27

No terminal display ·············································································································································· 27

Garbled terminal display ······································································································································ 27

No response from the serial port ························································································································· 28

Password loss ································································································································································· 28

User password loss ··············································································································································· 28

Super password loss ············································································································································· 28

3G/4G SIM card and 3G/4G antenna failures ······································································································· 29

Restoring the factory settings ········································································································································ 29

Scenario 1 ······························································································································································ 29

Scenario 2 ······························································································································································ 30

Scenario 3 ······························································································································································ 30

Reset button usage guidelines ······························································································································ 30

i

Appendix A Chassis views and technical specifications ························································································ 31

Chassis views ································································································································································· 31

JG511A ·································································································································································· 31

JG511B ·································································································································································· 32

JG512A ·································································································································································· 32

JG512B ·································································································································································· 33

JH012A ·································································································································································· 34

JH012B ··································································································································································· 34

JG513A ·································································································································································· 35

JG513B ·································································································································································· 36

JG514A ·································································································································································· 36

JG514B ·································································································································································· 37

JG515A ·································································································································································· 38

JG515B ·································································································································································· 38

JG531A ·································································································································································· 39

JG531B ·································································································································································· 40

JG516A ·································································································································································· 40

JG516B ·································································································································································· 41

JG517A ·································································································································································· 42

JG517B ·································································································································································· 42

JG518A ·································································································································································· 43

JG518B ·································································································································································· 44

JG519A ·································································································································································· 44

JG519B ·································································································································································· 45

JH013A ·································································································································································· 46

JG520A ·································································································································································· 46

JG520B ·································································································································································· 47

JG596A ·································································································································································· 48

JG596B ·································································································································································· 48

JG665A ·································································································································································· 49

JG665B ·································································································································································· 50

JG704A ·································································································································································· 50

JG597A ·································································································································································· 51

JG597B ·································································································································································· 52

Technical specifications ················································································································································· 52

Antenna specifications ··················································································································································· 54

Appendix B LEDs ························································································································································ 56

LEDs ················································································································································································· 56

JG511A ·································································································································································· 56

JG511B ·································································································································································· 56

JG512A ·································································································································································· 57

JG512B ·································································································································································· 58

JH012A ·································································································································································· 58

JH012B ··································································································································································· 59

JG513A ·································································································································································· 60

JG513B ·································································································································································· 60

JG514A ·································································································································································· 61

JG514B ·································································································································································· 62

JG515A ·································································································································································· 62

JG515B ·································································································································································· 63

JG531A ·································································································································································· 64

JG531B ·································································································································································· 64

JG516A ·································································································································································· 65

JG516B ·································································································································································· 66

ii

JG517A ·································································································································································· 66

JG517B ·································································································································································· 67

JG518A ·································································································································································· 68

JG518B ·································································································································································· 68

JG519A ·································································································································································· 69

JG519B ·································································································································································· 70

JH013A ·································································································································································· 70

JG520A ·································································································································································· 71

JG520B ·································································································································································· 72

JG596A ·································································································································································· 72

JG596B ·································································································································································· 73

JG665A ·································································································································································· 74

JG665B ·································································································································································· 74

JG704A ·································································································································································· 75

JG597A ·································································································································································· 76

JG597B ·································································································································································· 76

LED description ······························································································································································· 77

Support and other resources ····································································································································· 80

Contacting HP ································································································································································ 80

Subscription service ·············································································································································· 80

Related information ························································································································································ 80

Documents ······························································································································································ 80

Websites ································································································································································· 80

Conventions ···································································································································································· 81

Index ··········································································································································································· 83

iii

Preparing for installation

Table 1 HP MSR93X router models

JG518A

JG518B

JG519A

JG519B

JG520A

JG520B

JG531A

JG531B

JG596A

JG596B

JG597A

JG597B

JG665A

Product code

JH012A

JH012B

JH013A

JG511A

JG511B

JG512A

JG512B

JG513A

JG513B

JG514A

JG514B

JG515A

JG515B

JG516A

JG516B

JG517A

JG517B

HP description

HP MSR930 Wireless Router (NA)

HP MSR930 Wireless Router (NA)

HP MSR935 Wireless Router (NA)

HP MSR930 Router

HP MSR930 Router

HP MSR930 Wireless Router

HP MSR930 Wireless Router

HP MSR930 3G Router

HP MSR930 3G Router

HP MSR931 Router

HP MSR931 Router

HP MSR931 3G Router

HP MSR931 3G Router

HP MSR933 Router

HP MSR933 Router

HP MSR933 3G Router

HP MSR933 3G Router

HP MSR935 Router

HP MSR935 Router

HP MSR935 Wireless Router

HP MSR935 Wireless Router

HP MSR935 3G Router

HP MSR935 3G Router

HP MSR931 Dual 3G Router

HP MSR931 Dual 3G Router

HP MSR930 4G LTE/3G CDMA Router

HP MSR930 4G LTE/3G CDMA Router

HP MSR936 Wireless Router

HP MSR936 Wireless Router

HP MSR930 4G LTE/3G WCDMA Router

1

BJNGA-BB0023

BJNGA-BB0023

BJNGA-BB0024

BJNGA-BB0024

BJNGA-BB0025

BJNGA-BB0025

BJNGA-BB0019

BJNGA-BB0019

BJNGA-BB0026

BJNGA-BB0026

BJNGA-BB0028

BJNGA-BB0028

BJNGA-BB0027

RMN

BJNGA-BB0020

BJNGA-BB0020

BJNGA-BB0024

BJNGA-BB0015

BJNGA-BB0015

BJNGA-BB0020

BJNGA-BB0020

BJNGA-BB0016

BJNGA-BB0016

BJNGA-BB0017

BJNGA-BB0017

BJNGA-BB0018

BJNGA-BB0018

BJNGA-BB0021

BJNGA-BB0021

BJNGA-BB0022

BJNGA-BB0022

Product code

JG665B

JG704A

HP description

HP MSR930 4G LTE/3G WCDMA Router

HP MSR930 4G LTE/3G WCDMA ATT Router

Safety recommendations

RMN

BJNGA-BB0027

BJNGA-BB0033

WARNING!

Before installation and operation, read all the safety instructions in the compliance and safety guide for your router.

Follow these general safety recommendations:

Turn off all power and remove all power cables before opening the chassis.

Unplug all power and external cables before moving the chassis.

Before installation, locate the emergency power switch so that you can shut off power immediately if necessary.

Always wear an ESD wrist strap when installing the router.

Do not stare into an open optical interface. The light can cause permanent eye damage.

Use a good grounding system. This is essential for reliable operation.

Confirm that the resistance between the chassis and the ground is less than 1 ohm.

European Union Commission Regulation 1275/2008

The power data for affected products—including the power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated—is provided in section P14, “Additional information,” of the product IT ECO Declaration available at http://www.hp.com/hpinfo/globalcitizenship/environment/productdata/iteconetworking.html

.

Site requirements

The router can only be used indoors.

This section provides information about temperature, humidity, cleanness, and air quality requirements, as well as rack-mounting requirements and protection against damage from lightning and EMI.

Table 2 Temperature and humidity requirements

0°C to 40°C (32°F to 104°F) 5% to 90%

Table 3 Dust concentration limit in the equipment room

Substance

Dust particles

Concentration limit (particles/m 3 )

≤ 3 x 10 4 (No visible dust on desk in three days)

2

Substance

NOTE:

Dust particle diameter ≥ 5 μm

Concentration limit (particles/m

Table 4 Harmful gas concentration limits

3 )

SO

2

0.2

H

2

S 0.006

NH

3

Cl

2

0.05

0.01

To prevent overheating:

Provide adequate clearance for air flow, including at least 10 cm (3.94 in) ventilation space around the router's air intake and outlet vents.

Make sure the site has an adequate cooling system.

ESD prevention

To prevent the electronic components from being damaged by ESD, follow these guidelines:

The equipment and floor are correctly grounded.

The equipment room is dust-controlled.

Wear an ESD wrist strap when inspecting or handling a circuit board.

To attach an ESD wrist strap:

1. Wear the wrist strap on your wrist.

No wrist strap is supplied with the router. Prepare it yourself.

2. Lock the wrist strap tight around your wrist to keep good contact with the skin.

3. Insert the ESD plug into the ESD socket in the chassis.

4. Attach the alligator to the chassis.

IMPORTANT:

Check the resistance of the ESD wrist strap for safety. The resistance reading should be in the range of

1 to 10 megohm (Mohm) between human body and the ground.

EMI

EMI from any source adversely affects the router.

To prevent EMI:

Use electromagnetic shielding when necessary.

Take measures against interference from the power grid.

Position the router as far as possible from any power source's grounding equipment or lightprevention equipment.

3

Position the router as far as possible from radio transmitters, radar, and all high-voltage or highfrequency equipment.

Lightning protection

To protect the router from lightning:

Make sure the grounding cable of the chassis is grounded correctly.

Make sure the grounding terminal of the AC power receptacle is grounded correctly.

Install a lightning arrester at the input end of the power supply.

Installation accessories

Figure 1

lists the installation accessories for the router.

Figure 1 Installation accessories

NOTE:

The type of the antenna that comes with the router depends on the router model.

Pre-installation checklist

Item Requirements

Installation site

Ventilation

• There is a minimum clearance of 10 cm (3.9 in) around the router chassis intake and exhaust vents for heat dissipation.

• The installation site ventilation system is adequate.

Yes No

4

Item Requirements

Temperature 0°C to 40°C (32°F to 104°F)

Safety precautions

Relative humidity 5% to 90% (noncondensing)

ESD prevention particles/m 3

• The equipment and floor are correctly grounded.

The equipment room is dust-controlled.

• Humidity and temperature are maintained at acceptable levels.

• Wear an ESD wrist strap when inspecting or handling a circuit board.

EMI prevention

Lightning protection

• Take measures to protect the power system from the power grid system.

• Keep the protection ground of the router as far away from the grounding device or lightning protection grounding device as possible.

Keep the router far away from radio transmitters, radar, and high-frequency or high-voltage devices.

• Use electromagnetic shielding when necessary.

The grounding cable of the chassis is grounded correctly.

• The grounding terminal of the AC power receptacle is grounded correctly.

A port lightning arrester is installed. (Optional.)

• A power lightning arrester is installed. (Optional.)

• A signal lightning arrester is installed at the input end of an external signal cable. (Optional.)

Electricity safety

• Install a UPS.

• In case of emergency during operation, switch off the external power switch.

Workbench

• The workbench is stable.

• The workbench is grounded correctly.

• The router is far away from any sources of heat or moisture.

• The emergency power switch in the equipment room is identified and accessible.

Installation accessories and tools

Installation accessories supplied with the router are ready.

User-supplied accessories and tools are ready.

Reference

• Documents shipped with the router are available.

• Online documents are available.

Yes No

5

Installing the router

WARNING!

To avoid injury, do not touch bare wires, terminals, or parts with high-voltage hazard signs.

IMPORTANT:

The barcode on the router chassis contains product information that must be provided to HP Support before you return a faulty router for service.

Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact HP for permission. Otherwise, HP shall not be liable for any consequence.

Installation prerequisites

You have read " Preparing for installation " carefully.

All requirements in "

Preparing for installation

" are met.

Installation flowchart

You can install the router on a workbench or on a wall. Select an installation method according to the

installation environment, and follow the installation flowchart shown in Figure 2 .

6

Figure 2 Installation flowchart

Start

Mount the router on a workbench

Check the workbench

Install the router

Ground the router

Install antennas

Connect interface cables

Connect the router to a console terminal

Connect the power adapter

Verify the installation

Power on the router

Install the router on a wall

Install wall-mounting screws

Troubleshoot the router

Operate correctly ?

Yes

End

Installing the router

Mounting the router on a workbench

No

Power off the router

IMPORTANT:

Ensure good ventilation and 10 cm (3.9 in) of clearance around the chassis for heat dissipation.

Avoid placing heavy objects on the router.

To mount the router on a workbench:

1. Make sure the workbench is clean, stable, and correctly grounded.

2. Place the router upside down on the workbench and attach the rubber feet to the four round holes in the chassis bottom.

7

Figure 3 Mounting the router on a workbench

Installing the router on a wall

CAUTION:

When mounting the router on a wall, position the router so the network interfaces face downwards,

and the sides with ventilation openings are perpendicular to the ground, as shown in Figure 4 .

To mount the router on a wall:

1. Mark the locations of the two mounting holes on the wall with the separations listed as follows:

Router model

JH012A, JH012B, JG511A, JG511B, JG512A, JG512B, JG513A,

JG513B, JG596A, JG596B, JG665A, JG665B, JG704A

Separation

180 mm (7.09 in)

JH013A, JG514A, JG514B, JG515A, JG515B, JG516A, JG516B,

JG517A, JG517B, JG518A, JG518B, JG519A, JG519B, JG520A,

JG520B, JG531A, JG531B, JG597A, JG597B

The holes must be level (on the same horizontal line).

2. Drill two holes in the wall.

240 mm (9.45 in)

3. Following the marks, drill the two holes at least 22 mm (0.87 in) deep.

Verify that the holes are level.

4. Insert an anchor into each hole so it is flush with the wall surface.

5. Drive a screw into each anchor, keeping the screw heads protruding at least 1.5 mm (0.06 in) from the wall.

6. Hang the router on the screws.

8

Figure 4 Wall-mounting the router

Wall Mounting

≥ 22 mm

(0.87in)

2

1

180mm(7.09in):JG511A, JG511B, JG512A,

JG512B, JH012A, JH012B, JG513A, JG513B, JG596A,

JG596B, JG665A, JG665B, JG704A

240mm(9.45in):JG514A, JG514B, JG515A, JG515B,

JG531A, JG531B, JG516A, JG516B, JG517A, JG517B,

JG518A, JG518B, JG519A, JG519B, JG520A, JG520B,

JG597A, JG597B, JH013A

3 4

≥ 1.5 mm

(0.06in)

5 6

Grounding the router

WARNING!

Connecting the router grounding cable correctly is crucial for protecting the router from lightning and

EMI.

Make sure the grounding resistance is less than 5 ohms.

You can ground the router with a grounding strip or to a buried grounding conductor.

Grounding the router with a grounding strip

1. Remove the grounding screw from the router chassis.

2. Put the ring terminal of the grounding cable on the grounding screw.

3. Use a screwdriver to fasten the grounding screw.

4. Attach the other end of the grounding cable to the grounding strip.

9

Figure 5 Connecting the grounding cable to the router

Grounding the router to a buried grounding conductor

If the installation site has no grounding strips but offers the option of grounding to earth, hammer a

0.5 m (1.64 ft) or longer angle iron or steel tube into the earth to serve as a grounding conductor, as shown in

Figure 6

.

Figure 6 Grounding to a conductor buried in the earth

Installing a standard 3G SIM card

CAUTION:

Do not install or remove a standard 3G SIM card when the router is powered on.

To avoid damage to the holder, do not use excessive strength when you install the standard 3G SIM card.

The HP MSR93X routers support the following frequency ranges:

3G—800/850/900/1900/2100 MHz WCDMA/HSDPA/HSUPA/HSPA+

2G—850/900/1800/1900 MHz GSM/GPRS/EGPRS

To install a standard 3G SIM card:

10

1. Use a screwdriver to loosen the screws on the 3G SIM card socket cover on the bottom of the chassis, and remove the cover.

Figure 7 Removing the 3G SIM card socket cover

2. Push the 3G SIM card holder in the direction marked "OPEN" so the holder projects upwards.

Do not directly insert the standard 3G SIM card into the holder, or lift the holder.

Figure 8 illustrates the wrong installation methods.

Figure 8 Wrong installation methods

3. Insert the standard 3G SIM card along the slide rails to the holder.

4. Put down the holder and push the holder in the direction marked "LOCK" to lock the card in position.

11

Figure 9 Installing the standard 3G SIM card

5. Position the socket cover and use a screwdriver to fasten the screws on the cover.

Figure 10 Installing the cover

Installing a 3G antenna

To install a 3G antenna:

1. Thread the male connector of the 3G cable through the hole on the bracket, and use screws

(from behind the bracket) to secure the male connector to the bracket.

2. Change the angle of the antenna orientation from vertical to horizontal.

3. Attach the antenna to the male connector of the cable.

4. Attach the female connector of the cable to the router.

12

Figure 11 Installing a 3G antenna

3G/4G antenna extension cable

M3

M6

1

Antenna extension cable bracket

M2.9

2

NOTE:

A 3G module is provided with a 3G antenna and a 3G extender cable. Connect the 3G antenna to the port marked "MAIN" by using the 3G extender cable. Ensure a minimum of 25 cm (9.84 in) distance between the 3G antenna and the chassis and between the 3G antenna and any other antenna installed on or connected to the router.

When a second 3G antenna is required, purchase the other 3G antenna and 3G extender cable yourself. Attach the second 3G antenna to the port marked "DIV" if no antennas are installed on the router or connect the second 3G antenna to the port marked "DIV" by using the 3G extender cable if the router has antennas installed. Ensure a minimum of 25 cm (9.84 in) distance between the 3G antenna (when the extender cable is used) and the chassis and between the 3G antenna and any other antenna installed on or connected to the router.

Table 5

lists HP extender cables. You can use HP extender cables, but HP is not liable for any consequences caused thereby.

Table 5 3G extender cables

J Number

JG522A

JG666A

Extender Cable

HP MSR 2.8m Extender Cable

HP MSR 6m Extender Cable

JG667A HP MSR 15m Extender Cable

On a dual-3G JG531A and JG531B router, the 3G SIM1 and 3G SIM2 cards are associated with the two antenna connectors on the front and rear panels, respectively. Make sure you install the antennas at the correct positions.

13

Figure 12 SIM card locations on a dual-3G JG531A and JG531B router

Figure 13 SIM cards and antenna connectors

Installing WLAN antennas

1. Change the angle of the antenna orientation from vertical to horizontal.

2. Attach the antenna to the router, as shown in

Figure 14

. Avoid over-tightening.

3. Install the other antenna in the same way.

Change the antenna orientation to vertical to achieve better signal coverage.

Figure 14 Installing WLAN antennas

Installing a standard 4G SIM card

CAUTION:

Do not install or remove a standard 4G SIM card when the router is powered on.

To avoid damage to the holder, do not use excessive strength when you install the standard 4G SIM card.

14

The JG596A router supports the following frequency ranges:

4G—700 MHz LTE

3G—800/1900 MHz CDMA

The JG704A router supports the following frequency ranges:

4G—700/1700/2100 MHz LTE

3G—800/850/1900/2100 MHz WCDMA/HSDPA/HSUPA/HSPA+/DC-HSPA+

2G—850/900/1800/1900 MHz GSM/GPRS/EDGE

The JG665A router supports the following frequency ranges:

4G—DD800/900/1800/2100/2600 MHz LTE

3G—900/2100 MHz WCDMA/HSDPA/HSUPA/HSPA+

2G—900/1800/1900 MHz GSM/GPRS/EDGE

To install a standard 4G SIM card:

1. Use a screwdriver to loosen the screws on the standard 4G SIM card socket cover on the bottom of the chassis, and remove the cover.

Figure 15 Removing the 4G SIM card socket cover

2. Push the 4G SIM card holder in the direction marked "OPEN" so the holder projects upwards.

Do not directly insert the standard 4G SIM card into the holder, or lift the holder.

Figure 16

illustrates the wrong installation methods.

15

Figure 16 Incorrect installation methods

3. Insert the standard 4G SIM card along the slide rails to the holder.

4. Put down the holder and push the holder in the direction marked "LOCK" to lock the standard

4G SIM card in position.

Figure 17 Installing the standard 4G SIM card

5. Position the socket cover and use a screwdriver to fasten the screws on the cover.

Figure 18 Installing the cover

16

Installing a 4G antenna

CAUTION:

When you install two 4G antennas on a JG704A router, connect one or both of the antennas to the router by using antenna extender cables.

To install a 4G antenna:

1. Change the angle of the antenna orientation from vertical to horizontal.

2. Attach the antenna to the router, as shown in

Figure 19

. Avoid over-tightening.

Change the antenna orientation to vertical to achieve better signal coverage.

Figure 19 Installing a 4G antenna

4G antenna

1 2

Installing a 3G/4G antenna extender cable to a 4G device

One 3G/4G antenna extender cable is provided with the JG704A router. No 3G/4G antenna extender cable is provided with other router models. Purchase 3G/4G antenna extender cables as required.

To install a 3G/4G antenna extender cable to a 4G device:

1. Thread the male connector of the cable through the hole on the bracket, and use screws (from behind the bracket) to secure the male connector to the bracket.

2. Change the angle of the antenna orientation from vertical to horizontal.

3. Attach the antenna to the male connector of the cable.

4. Attach the female connector of the cable to the router.

17

Figure 20 Installing the 3G/4G antenna extender cable to a 4G device

Installing a GPS antenna

1. Attach one end of the antenna to the GPS antenna connector on the router, as shown in

Figure

21

. Avoid over-tightening.

2. Attach the magnetic end of the antenna to a metal media near the router.

Figure 21 Installing a GPS antenna

JG704A router antenna installation instructions

When you install a 4G or GPS antenna to a JG704A router, follow these guidelines:

Ensure a minimum distance of 25 cm (9.84 in) between the antenna and any other antenna on the router.

Ensure a minimum distance of 25 cm (9.84 in) between the GPS antenna or the 4G antenna

(when an extender cable is used) and the router.

Only one 4G extender cable is provided with the router. Purchase another one yourself if you want to

install two 4G extender cables. Table 6

lists 4G extender cables provided by HP. You can also use

18

4G extender cables from other vendors, for any consequences resulting from which HP assumes no liabilities.

Table 6 HP 4G extender cables

J number

JG522A

HP 4G extender cable

HP MSR 2.8m Extender Cable

JG666A

JG667A

HP MSR 6m Extender Cable

HP MSR 15m Extender Cable

Figure 22 JG704A router antenna installation precautions

Connecting interface cables

This section uses the Ethernet cable for example.

Because fixed Ethernet ports support MDI/MDIX autosensing, you can use either a straight-through cable or a crossover cable for connection.

To connect an Ethernet cable:

1. Connect one end of the cable to an Ethernet port on the router.

2. Connect the other end of the cable to the peer device.

3.

Examine the port LED status. For more information, see " LED description ."

Figure 23 Connecting the router to a computer

19

Connecting the console cable and setting terminal parameters

Connecting the console cable

CAUTION:

When using a console cable to connect a PC to the router, first connect the DB-9 end of the console cable to the PC serial port, and then connect the RJ-45 connector of the console cable to the router console port.

To connect the console cable, as shown in

Figure 24

:

1. Select a console terminal, which can be an ASCII terminal with an RS232 serial port or a PC.

(A PC is more commonly used.)

2. Connect the DB-9 connector (female) of the console cable to the RS-232 serial port of the console terminal and the RJ-45 connector to the console port of the router.

Figure 24 Connecting the console cable

Setting console terminal parameters

1. Select Start > All Programs > Accessories > Communications > HyperTerminal.

The Connection Description dialog box appears.

2. Enter the name of the new connection in the Name field and click OK.

20

Figure 25 Connection description

3. Select the serial port to be used from the Connect using list, and click OK.

Figure 26 Setting the serial port used by the HyperTerminal connection

4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to

None, and click OK.

NOTE:

To restore the default settings, click Restore Defaults.

21

Figure 27 Setting the serial port parameters

5. Select File > Properties in the HyperTerminal window.

Figure 28 HyperTerminal window

6. On the Settings tab, set the emulation to VT100 or Auto Detect, and click OK.

22

Figure 29 Setting the terminal emulation parameters

Connecting the power adapter

The router's power adapter converts AC power to DC power, as follows:

AC rated voltage range: 100 VAC to 240 VAC @ 50 Hz to 60 Hz

DC Rated voltage: 12 VDC

To connect the power adapter, as shown in Figure 30

:

1. Make sure the router is correctly grounded. For more information, see "

Grounding the router ."

2. Using the adapter's AC power cord, connect the power adapter to an AC power source.

3. Connect the DC power cord connector on the power adapter to the DC power receptacle on the router's panel.

23

Figure 30 Connecting the power adapter

Verifying the installation

After you complete the installation, verify that:

There is enough space around the router for heat dissipation.

The router is mounted securely on the wall or on a sturdy workbench.

Antennas, USB devices, and interface modules are installed correctly.

The router and power module are grounded correctly.

The power supply meets requirements.

The router is connected correctly to the console terminal and other devices; parameters are configured correctly on the console terminal.

Before starting up the router, set up the console terminal as described in " Connecting the console cable and setting terminal parameters

." Then, power on the router and perform initial configuration

for the router.

Powering on the router

WARNING!

Before powering on the router, locate the power source switch so that you can cut off power promptly in case of an emergency.

Switch on the power source.

Turn on the power switch on the router.

Startup process

After power-on, the router initializes its memory, and then runs the extended BootWare. The console terminal screen displays the following information:

System is starting...

Do you want to check SDRAM? [Y/N]

Booting Normal Extend BootWare

24

The Extend BootWare is self-decompressing........................Done!

****************************************************************************

* *

* HP MSR931 BootWare, Version 1.01 *

* *

****************************************************************************

Copyright (c) 2010-2012 Hewlett-Packard Development Company, L.P.

Compiled Date : Sep 3 2012

CPU Type : P1016

CPU L1 Cache : 32KB

CPU L2 Cache : 256KB

CPU Clock Speed : 533MHz

Memory Type : DDR3 SDRAM

Memory Size : 256MB

Memory Speed : 667MHz

BootWare Size : 1024KB

Flash Size : 128MB

CPLD Version : 131.0

PCB Version : 3.0

BootWare Validating...

Press Ctrl+B to enter extended boot menu...

Starting to get the main application file--flash:/mainmsr93x.bin!...........

............................................................................

The main application file is self-decompressing.............................

............................................................................

........................Done!

System application is starting..................................................

User interface aux0 is available.

Press ENTER to get started.

Press Enter and the system displays the following prompt:

<HP>

This prompt indicates that the router has entered user view and is ready to configure.

Power-on check

After powering on the router, check the following items:

The LEDs on the front panel are normal, as described in "

LED description ."

The console terminal displays information correctly. You can see the startup window on the local console terminal. For more information, see "

Startup process

."

After completing the POST, the system prompts you to press Enter. When the command line prompt appears, the router is ready to configure.

25

Configuring basic settings for the router

After the router is powered on for the first time, configure basic settings for the router. For more information, see HP MSR Routers Fundamentals Configuration Guide and HP MSR Routers

Fundamentals Command Reference.

26

Troubleshooting

IMPORTANT:

The barcode on the router chassis contains product information that must be provided to HP Support before you return a faulty router for service.

Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact HP for permission. Otherwise, HP shall not be liable for any consequence.

Power supply failure

If the router cannot be powered on and LEDs on the front panel are off, it indicates that the power supply is faulty.

To troubleshoot the power supply:

1. Power off the router.

2. Verify that the router's power cords are connected firmly.

3. Verify that the power source is operating correctly.

4. Determine if the power cord is damaged.

If the problem persists, contact HP Support.

System configuration problems

If the configuration environment setup is correct, the console terminal displays boot information when the router is powered on. If the setup is incorrect, the console terminal displays nothing or garbled text.

No terminal display

If the console terminal displays nothing when the router is powered on, verify the following items:

The power supply system is operating correctly.

The console cable is connected correctly.

The console cable is connected to the serial port that is configured for the console terminal.

The console terminal properties are set to the following: Bits per second: 9600, Data bits: 8,

Parity: None, Stop bits: 1, Flow control: None, and Terminal Emulation: VT100.

The console cable is operating correctly.

Garbled terminal display

If terminal display is garbled, make sure the Data bits field for the console terminal is set to 8. If the

Data bits field is set to 5 or 6, the console terminal will display garbled characters.

27

No response from the serial port

If the serial port does not respond, verify that the serial cable is in good condition and the serial port settings are correct.

Password loss

User password loss

If you lose your password, you cannot enter the system. In this case, you can boot the system by ignoring the system configuration.

To solve the user password loss:

1. Enter the main BootWare menu, and select 6 to boot the system by ignoring the system configuration.

The system prompts the following:

Flag Set Success.

The output shows that the setting succeeded.

2. When the main BootWare menu appears again, and select 0 to reboot the system.

System is rebooting now.

System start booting...

Booting Normal Extend BootWare....

3. Set a new password in system view after the system reboots. The console port uses password authentication, and the password is set to 123456 and stored in plain text.

<HP> system-view

[HP] user-interface console 0

[HP-ui-console0] authentication-mode password

[HP-ui-console0] set authentication password simple 123456

When you set the password by using the set authentication password { cipher | simple }

password command, note the following:

{

If you specify the cipher keyword, the password is stored in cipher text. You cannot view the password by using the display current-configuration command.

{

If you specify the simple keyword, the password is stored in plain text. You can use the display current-configuration command to view the password in the current configuration.

4. After modifying the user password, save it by executing the save command. HP recommends that you save the modifications as the default configuration file.

[HP] save

After reboot, the system uses the initial default configuration, but keeps the original configuration file in storage. You can restore the original configuration by using the display saved-configuration command to display the configuration, and then copying and executing the configuration.

Super password loss

The super password provides access to four super levels, enabling you to perform higher-level operations.

28

To recover from super password loss:

1. On the main BootWare menu, select 8.

This setting (Clear Super Password) is valid only for the first reboot of the router. The super password is restored after the second reboot.

========================<EXTEND-BOOTWARE MENU>========================

|<1> Boot System |

|<2> Enter Serial SubMenu |

|<3> Enter Ethernet SubMenu |

|<4> File Control |

|<5> Modify BootWare Password |

|<6> Skip Current System Configuration |

|<7> BootWare Operation Menu |

|<8> Clear Super Password |

|<9> Storage Device Operation |

|<0> Reboot |

======================================================================

Enter your choice(0-9):8

The following output indicates that you have successfully cleared the super password.

Clear Application Password Success!

2. Exit the menu and reboot the router.

The super password is cleared. You can enter system view.

3G/4G SIM card and 3G/4G antenna failures

When the LEDs on the front panel indicate abnormal state of the 3G/4G SIM card and 3G/4G antenna, verify the following items:

The SIM card has been correctly installed and makes good contact with the card socket.

The SIM card matches the built-in module.

The antenna is correctly installed.

The SIM card, card socket, and antenna are in good condition.

The network provided by NSP is running correctly.

If the problem still exists, contact HP Support.

Restoring the factory settings

Scenario 1

Symptom

When you replace the router, the router password is lost. As a result, you cannot log in to the router and do not know the router configuration.

29

Solution

Because the router is replaced, you do not need to save the configuration of the router. In this case, you can press the Reset button for more than 4 seconds to reboot the router and restore the factory settings. Then, you can use the username and password shipped with the router to log in to the router.

When the router configuration must be saved and you have a console cable, you can log in to the

router from the BootWare menu. For more information, see " User password loss ."

Scenario 2

Symptom

After the configuration is modified, the network connectivity is lost. When you check the configuration, the configuration is very complicated and it is hard to locate the errors. In this case, you must configure the router again.

Solution

If you have not saved any configuration, you can reboot the router through pressing the Reset button for a short time or power off the router.

If you have saved the configuration, delete the configuration file at the CLI, and press the Reset button to restore the factory settings.

Scenario 3

Symptom

The router crashes.

Solution

Press the Reset button for a short time to reboot the router.

Reset button usage guidelines

The router provides the Reset button. You can use the button to reboot the system or restore the factory settings.

1. Press the Reset button for a short time to reboot the router.

2. Press the Reset button for more than 4 seconds to reboot the router and restore the factory settings.

30

Appendix A Chassis views and technical specifications

The MSR93X routers include the following models: JH012A, JH012B, JG511A, JG511B, JG512A,

JG512B, JG513A, JG513B, JG596A, JG596B, JG665A, JG665B, JG704A, JH013A, JG514A, JG514B,

JG515A, JG515B, JG516A, JG516B, JG517A, JG517B, JG518A, JG518B, JG519A, JG519B, JG520A,

JG520B, JG531A, JG531B, JG597A and JG597B.

Chassis views

The figures in this appendix are for illustration only.

JG511A

Figure 31 Front view

1

2

(1) USB port

Figure 32 Rear view

(2) Reset button

(1) Power adapter port

(4) Ethernet LAN ports (GE1 to GE4)

(2) Console/AUX port

(5) Grounding screw

(3) Ethernet WAN port (GE0)

31

JG511B

Figure 33 Front view

1 2

(2) Reset button (1) USB port

Figure 34 Rear view

(1) Power adapter port

(4) Ethernet LAN ports (GE1 to GE4)

JG512A

Figure 35 Front view

(2) Console/AUX port

(5) Grounding screw

(3) Ethernet WAN port (GE0)

(1) USB port (2) Reset button

32

Figure 36 Rear view

1 2 3 4 5 6

(1) WLAN antenna connector (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to GE4)

(7) Grounding screw

JG512B

Figure 37 Front view

7

(3) Console/AUX port

(6) WLAN antenna connector

(1) USB port

Figure 38 Rear view

1 2 3 4 5

(2) Reset button

6

(1) WLAN antenna connector (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to GE4)

(7) Grounding screw

7

(3) Console/AUX port

(6) WLAN antenna connector

33

JH012A

Figure 39 Front view

(1) USB port

Figure 40 Rear view

1 2 3 4 5

(2) Reset button

6

(1) WLAN antenna connector (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to GE4)

(7) Grounding screw

JH012B

Figure 41 Front view

7

(3) Console/AUX port

(6) WLAN antenna connector

(1) USB port (2) Reset button

34

Figure 42 Rear view

1 2 3 4 5 6

(1) WLAN antenna connector (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to GE4)

(7) Grounding screw

JG513A

Figure 43 Front view

1

7

(3) Console/AUX port

(6) WLAN antenna connector

2

(1) USB port

Figure 44 Rear view

(2) Reset button

(1) 3G antenna auxiliary connector (DIV) (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to

GE4 )

(7) Grounding screw

(3) Console/AUX port

(6) 3G antenna main connector (MAIN)

35

JG513B

Figure 45 Front view

1 2

(2) Reset button (1) USB port

Figure 46 Rear view

(1) 3G antenna auxiliary connector (DIV) (2) Power adapter port

(4) Ethernet WAN port (GE0) (5) Ethernet LAN ports (GE1 to

GE4 )

(7) Grounding screw

JG514A

Figure 47 Front view

1 2

(3) Console/AUX port

(6) 3G antenna main connector (MAIN)

(1) USB port (2) Reset button

36

Figure 48 Rear view

1 2 3 4

5 6

(1) Synchronous/asynchronous serial port (Serial0)

(4) Grounding screw

JG514B

Figure 49 Front view

(2) Ethernet WAN port (GE0) (3) Ethernet LAN ports (GE1 to

GE4)

(5) Power adapter port (6) Console/AUX port

1 2

(1) USB port

Figure 50 Rear view

1 2 3

(2) Reset button

4

5 6

(1) Synchronous/asynchronous serial port (Serial0)

(4) Grounding screw

(2) Ethernet WAN port (GE0) (3) Ethernet LAN ports (GE1 to

GE4)

(5) Power adapter port (6) Console/AUX port

37

JG515A

Figure 51 Front view

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

Figure 52 Rear view

1 2 3

(2) USB port

(4) 3G antenna main connector (MAIN)

4

5 6

(1) Synchronous/asynchronous serial port (Serial0)

(4) Grounding screw

JG515B

Figure 53 Front view

(2) Ethernet WAN port (GE0) (3) Ethernet LAN ports (GE1 to

GE4)

(5) Power adapter port (6) Console/AUX port

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

(2) USB port

(4) 3G antenna main connector (MAIN)

38

Figure 54 Rear view

1 2 3 4

5 6

(1) Synchronous/asynchronous serial port (Serial0)

(4) Grounding screw

JG531A

Figure 55 Front view

1

(2) Ethernet WAN port (GE0) (3) Ethernet LAN ports (GE1 to

GE4)

(5) Power adapter port (6) Console/AUX port

2 3 4

(1) 3G antenna auxiliary connector (DIV1)

(3) Reset button

Figure 56 Rear view

(2) USB port

(4) 3G antenna main connector (MAIN1)

(1) Synchronous/asynchronous serial port (Serial0)

(4) Ethernet LAN ports (GE1 to GE4)

(2) Ethernet WAN port (GE0) (3) 3G antenna auxiliary connector (DIV2)

(5) 3G antenna main connector (MAIN2)

(6) Grounding screw

(7) Power adapter port (8) Console/AUX port

39

JG531B

Figure 57 Front view

1 2 3 4

(1) 3G antenna auxiliary connector (DIV1)

(3) Reset button

Figure 58 Rear view

(2) USB port

(4) 3G antenna main connector (MAIN1)

(1) Synchronous/asynchronous serial port (Serial0)

(4) Ethernet LAN ports (GE1 to GE4) (5) 3G antenna main

(7) Power adapter port

(2) Ethernet WAN port (GE0) (3) 3G antenna auxiliary connector (DIV2)

(6) Grounding screw connector (MAIN2)

(8) Console/AUX port

JG516A

Figure 59 Front view

(1) USB port

40

(2) Reset button

Figure 60 Rear view

(1) G.SHDSL port 0

(4) Grounding screw

JG516B

Figure 61 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) USB port

Figure 62 Rear view

(2) Reset button

(1) G.SHDSL port 0

(4) Grounding screw

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

41

JG517A

Figure 63 Front view

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

Figure 64 Rear view

(2) USB port

(4) 3G antenna main connector (MAIN)

(1) G.SHDSL port 0

(4) Grounding screw

JG517B

Figure 65 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

(2) USB port

(4) 3G antenna main connector (MAIN)

42

Figure 66 Rear view

(1) G.SHDSL port 0

(4) Grounding screw

JG518A

Figure 67 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) USB port

Figure 68 Rear view

(2) Reset button

(1) ADSL port 0

(4) Grounding screw

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

43

JG518B

Figure 69 Front view

(1) USB port

Figure 70 Rear view

(2) Reset button

(1) ADSL port 0

(4) Grounding screw

JG519A

Figure 71 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) WLAN antenna connector

(3) Reset button

(2) USB port

(4) WLAN antenna connector

44

Figure 72 Rear view

(1) ADSL port 0

(4) Grounding screw

JG519B

Figure 73 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) WLAN antenna connector

(3) Reset button

Figure 74 Rear view

(2) USB port

(4) WLAN antenna connector

(1) ADSL port 0

(4) Grounding screw

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

45

JH013A

Figure 75 Front view

(1) WLAN antenna connector

(3) Reset button

Figure 76 Rear view

(2) USB port

(4) WLAN antenna connector

(1) ADSL port 0

(4) Grounding screw

JG520A

Figure 77 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

(2) USB port

(4) 3G antenna main connector (MAIN)

46

Figure 78 Rear view

(1) ADSL port 0

(4) Grounding screw

JG520B

Figure 79 Front view

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

(1) 3G antenna auxiliary connector (DIV)

(3) Reset button

Figure 80 Rear view

(2) USB port

(4) 3G antenna main connector (MAIN)

(1) ADSL port 0

(4) Grounding screw

(2) Ethernet WAN port (GE0)

(5) Power adapter port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Console/AUX port

47

JG596A

Figure 81 Front view

(1) USB port

Figure 82 Rear view

1 2 3 4

(2) Reset button

5

6

7 8

(1) 4G antenna connector M1 (2) Ethernet WAN port (GE0)

(4) GPS antenna connector

(7) Power adapter port

(5) 4G antenna connector M0

(8) Console/AUX port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Grounding screw

JG596B

Figure 83 Front view

(1) USB port

48

(2) Reset button

Figure 84 Rear view

1 2 3 4

5

6

7 8

(1) 4G antenna connector M1 (2) Ethernet WAN port (GE0)

(4) GPS antenna connector

(7) Power adapter port

(5) 4G antenna connector M0

(8) Console/AUX port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Grounding screw

JG665A

Figure 85 Front view

1

2

(1) USB port

Figure 86 Rear view

(2) Reset button

(1) 4G antenna connector M1 (2) Ethernet WAN port (GE0)

(4) GPS antenna connector

(7) Power adapter port

(5) 4G antenna connector M0

(8) Console/AUX port

49

(3) Ethernet LAN ports (GE1 to GE4)

(6) Grounding screw

JG665B

Figure 87 Front view

(1) USB port

Figure 88 Rear view

1 2

(2) Reset button

(1) 4G antenna connector M1 (2) Ethernet WAN port (GE0)

(4) GPS antenna connector (5) 4G antenna connector M0

(7) Power adapter port (8) Console/AUX port

JG704A

Figure 89 Front view

(3) Ethernet LAN ports (GE1 to GE4)

(6) Grounding screw

1 2

(1) USB port

50

(2) Reset button

Figure 90 Rear view

(1) 4G antenna connector M1 (2) Ethernet WAN port (GE0)

(4) GPS antenna connector

(7) Power adapter port

(5) 4G antenna connector M0

(8) Console/AUX port

(3) Ethernet LAN ports (GE1 to GE4)

(6) Grounding screw

JG597A

Figure 91 JG597A front view

(1) WLAN antenna connector

(3) Reset button

Figure 92 JG597A rear view

(2) USB port

(4) WLAN antenna connector

(1) ADSL port 0 (2) ISDN port BRIS/T0

(4) Ethernet LAN ports (GE1 to GE4) (5) Grounding screw

(7) Console/AUX port

51

(3) Ethernet WAN port (GE0)

(6) Power adapter port

JG597B

Figure 93 JG597A front view

(1) WLAN antenna connector

(3) Reset button

Figure 94 JG597A rear view

(2) USB port

(4) WLAN antenna connector

(1) ADSL port 0

(4) Ethernet LAN ports (GE1 to GE4)

(7) Console/AUX port

(2) ISDN port BRIS/T0

(5) Grounding screw

Technical specifications

(3) Ethernet WAN port (GE0)

(6) Power adapter port

Item

JG511

A/JG5

11B

JG512

A/JG5

12B/JH

012A/J

H012B

JG513

A/JG5

13B

JG514

A/JG5

14B

JG515

A/JG5

15B

JG531

A/JG5

31B

JG516

A/JG5

16B

JG517A

/JG517

B

Console/AUX port

USB port

GE WAN port

1

1

1

GE LAN port 4

Serial 1 1 N/A N/A port 1

52

Item

JG511

A/JG5

11B

JG512

A/JG5

12B/JH

012A/J

H012B

JG513

A/JG5

13B

JG514

A/JG5

14B

JG515

A/JG5

15B

JG531

A/JG5

31B

JG516

A/JG5

16B

JG517A

/JG517

B

Built-in 3G module

WLAN module

Memory

N/A N/A 1 N/A 1 2 N/A 1

N/A 1 N/A N/A N/A N/A N/A N/A

256 MB DDR III

MB

Dimensions (H

× W × D)

(excluding rubber feet and mounting brackets)

43.6 × 230 × 160 mm (1.72 ×

9.06 × 6.30 in)

44.2 × 300 × 200 mm (1.74 × 11.81 × 7.87 in)

Weight

1.0 kg

(2.20 lb)

1.1 kg

(2.43 lb)

1.1 kg

(2.43 lb)

1.6 kg

(3.53 lb)

1.6 kg

(3.53 lb)

1.6 kg

(3.53 lb)

1.6 kg

(3.53 lb)

1.6 kg

(3.53 lb)

AC power adapter

Max. AC power

Operating temperature

Relative humidity (noncondensing)

Rated input voltage: 100 VAC to 240 VAC @ 50 Hz or 60 Hz

24 W

0°C to 40°C (32°F to 104°F)

5% to 90%

Item

JG518A

/JG518

B

JG519A

/JG519

B/JH01

3A

JG520A

/JG520

B

JG597A

/JG597

B

JG596A

/JG596

B

JG665A

/JG665

B

JG704A

Console/AUX port 1

USB port

GE WAN port

1

1

GE LAN port

ADSL port

4

1 1 1 1 N/A N/A N/A

N/A N/A N/A 1 N/A N/A N/A

Built-in 3G module N/A N/A 1 N/A N/A N/A N/A

Built-in 4G module N/A

WLAN module N/A

N/A

1

N/A N/A 1 1 1

N/A 1 1 1 1

53

Item

JG518A

/JG518

B

JG519A

/JG519

B/JH01

3A

256 MB DDR III

JG520A

/JG520

B

JG597A

/JG597

B

JG596A

/JG596

B

JG665A

/JG665

B

JG704A

Memory

Flash

Dimensions (H × W

× D) (excluding rubber feet and mounting brackets)

Weight

128 MB

44.2 × 300 × 200 mm (1.74 × 11.81 × 7.87 in)

43.6 x 230 x 160 mm (1.72 x

9.06 x 6.30 in)

1.6 kg (3.53 lb) 1.1 kg (2.43 lb)

AC power adapter Rated input voltage: 100 VAC to 240 VAC @ 50 Hz or 60 Hz

Max. AC power 24 W

Operating temperature

Relative humidity

(non-condensing)

0°C to 40°C (32°F to 104°F)

5% to 90%

Antenna specifications

Table 7 4G antenna specifications

Item Specification

Frequency range 698-960 MHz to 1710-2170 MHz

Voltage standing wave ratio

(VSWR)

Input impedance

< 2.5

50 ohms

Max power consumption

Input interface

Length

5 W

TNC male

21.4 cm (8.43 in)

Color Black

Weight 50 g (1.76 oz)

Operating temperature

Table 8 3G antenna specifications

–40°C to +85°C (–40°F to +185°F)

Item Specification

Frequency range 806-960 MHz to 1710-2170 MHz

Voltage standing wave ratio

(VSWR)

Input impedance

< 2.5

50 ohms

54

Item Specification

Max power consumption

Input interface

25 W

TNC male

Length 254 mm (10 in)

Color Gray

Weight 45 g (1.59 oz)

Operating temperature –30°C to +70°C (–22°F to +158°F)

Table 9 WLAN antenna specifications

Item Specification

Frequency range 2.4 GHz to 2.5 GHz

Voltage standing wave ratio

(VSWR)

1.92:1

Input impedance 50 ohms

Max power consumption

Input interface

1 W

RSMA

Length 115 mm (4.53 in)

Color Black

Weight

Operating temperature

25 g (0.88 oz)

–10°C to +60°C (14°F to 140°F)

55

Appendix B LEDs

LEDs

JG511A

Figure 95 Front panel LEDs

(1) System status LED (SYS)

Figure 96 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow)

JG511B

Figure 97 Front panel LEDs

(2) GE port status LED (green)

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

56

Figure 98 Rear panel LEDs

(1) GE port status LED (yellow)

JG512A

Figure 99 Front panel LEDs

(2) GE port status LED (green)

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 100 Rear panel LEDs

1 2

1 2

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow) (2) GE port status LED (green)

57

JG512B

Figure 101 Front panel LEDs

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 102 Rear panel LEDs

1 2 1

2

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow)

JH012A

Figure 103 Front panel LEDs

1 2 3 4

(2) GE port status LED (green)

(1) System status LED (SYS)

(3) VPN status LED (VPN)

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

58

Figure 104 Rear panel LEDs

1 2

1 2

(1) GE port status LED (yellow)

JH012B

Figure 105 Front panel LEDs

1 2

3 4

(2) GE port status LED (green)

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 106 Rear panel LEDs

1

2 1 2

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow) (2) GE port status LED (green)

59

JG513A

Figure 107 Front panel LEDs

(1) System status LED (SYS)

(4) 3G status LED (WWAN)

Figure 108 Rear panel LEDs

1 2

1 2

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(5) Received 3G signal strength indication LED (RSSI)

(1) GE port status LED (yellow)

JG513B

Figure 109 Front panel LEDs

(2) GE port status LED (green)

(1) System status LED (SYS)

(4) 3G status LED (WWAN)

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(5) Received 3G signal strength indication LED (RSSI)

60

Figure 110 Rear panel LEDs

1 2

1 2

(1) GE port status LED (yellow)

JG514A

Figure 111 Front panel LEDs

1 2 3

(2) GE port status LED (green)

(1) System status LED (SYS)

Figure 112 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

61

JG514B

Figure 113 Front panel LEDs

1 2 3

(1) System status LED (SYS)

Figure 114 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

JG515A

Figure 115 Front panel LEDs

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

(1) System status LED (SYS)

(4) 3G status LED (WWAN)

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(5) Received 3G signal strength indication LED (RSSI)

62

Figure 116 Rear panel LEDs

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

JG515B

Figure 117 Front panel LEDs

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

(1) System status LED (SYS)

(4) 3G status LED (WWAN)

Figure 118 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(5) Received 3G signal strength indication LED (RSSI)

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

63

JG531A

Figure 119 Front panel LEDs

1 2 3 4 5 4 5

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED

(RSSI)

Figure 120 Rear panel LEDs

(3) VPN status LED (VPN)

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

JG531B

Figure 121 Front panel LEDs

1 2

3 4 5 4 5

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED

(RSSI)

(3) VPN status LED (VPN)

64

Figure 122 Rear panel LEDs

(1) GE port status LED (yellow)

(3) Serial port data transmission status LED (ACT)

JG516A

Figure 123 Front panel LEDs

(2) GE port status LED (green)

(4) Serial port link status LED (LINK)

(1) System status LED (SYS)

Figure 124 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow) (2) GE port status LED (green) (3) G.SHDSL port status LED

65

JG516B

Figure 125 Front panel LEDs

(1) System status LED (SYS)

Figure 126 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow)

JG517A

(2) GE port status LED (green)

Figure 127 Front panel LEDs

1

2 3 4 5

(3) G.SHDSL port status LED

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED (RSSI)

66

Figure 128 Rear panel LEDs

3 1 2 1 2

(1) GE port status LED (yellow)

JG517B

(2) GE port status LED (green)

Figure 129 Front panel LEDs

1 2 3 4 5

(3) G.SHDSL port status LED

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED (RSSI)

Figure 130 Rear panel LEDs

3 1 2 1 2

(1) GE port status LED (yellow) (2) GE port status LED (green) (3) G.SHDSL port status LED

67

JG518A

Figure 131 Front panel LEDs

(1) System status LED (SYS)

Figure 132 Rear panel LEDs

(2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(1) GE port status LED (yellow)

JG518B

Figure 133 Front panel LEDs

(2) GE port status LED (green) (3) ADSL port status LED

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

68

Figure 134 Rear panel LEDs

(1) GE port status LED (yellow)

JG519A

Figure 135 Front panel LEDs

(2) GE port status LED (green)

1 2 3 4

(3) ADSL port status LED

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 136 Rear panel LEDs

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow) (2) GE port status LED (green) (3) ADSL port status LED

69

JG519B

Figure 137 Front panel LEDs

1 2 3 4

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 138 Rear panel LEDs

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow)

JH013A

Figure 139 Front panel LEDs

(2) GE port status LED (green) (3) ADSL port status LED

(1) System status LED (SYS)

(3) VPN status LED (VPN)

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

70

Figure 140 Rear panel LEDs

(1) GE port status LED (yellow)

JG520A

Figure 141 Front panel LEDs

(2) GE port status LED (green) (3) ADSL port status LED

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED (RSSI)

Figure 142 Rear panel LEDs

(1) GE port status LED (yellow) (2) GE port status LED (green) (3) ADSL port status LED

71

JG520B

Figure 143 Front panel LEDs

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(4) 3G status LED (WWAN) (5) Received 3G signal strength indication LED (RSSI)

Figure 144 Rear panel LEDs

(1) GE port status LED (yellow)

JG596A

Figure 145 Front panel LEDs

(2) GE port status LED (green) (3) ADSL port status LED

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) GPS status LED (GPS) (5) 4G status LED (WWAN)

(3) VPN status LED (VPN)

(6) Received 4G signal strength indication LED (RSSI)

72

Figure 146 Rear panel LEDs

(1) GE port status LED (yellow)

JG596B

Figure 147 Front panel LEDs

(2) GE port status LED (green)

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) GPS status LED (GPS) (5) 4G status LED (WWAN)

Figure 148 Rear panel LEDs

(3) VPN status LED (VPN)

(6) Received 4G signal strength indication LED (RSSI)

(1) GE port status LED (yellow) (2) GE port status LED (green)

73

JG665A

Figure 149 Front panel LEDs

1 2

3 4

5

6

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) GPS status LED (GPS) (5) 4G status LED (WWAN)

Figure 150 Rear panel LEDs

(3) VPN status LED (VPN)

(6) Received 4G signal strength indication LED (RSSI)

(1) GE port status LED (yellow)

JG665B

Figure 151 Front panel LEDs

(2) GE port status LED (green)

1 2 3 4 5

6

(1) System status LED (SYS) (2) Network status LED (INTERNET)

(4) GPS status LED (GPS) (5) 4G status LED (WWAN)

(3) VPN status LED (VPN)

(6) Received 4G signal strength indication LED (RSSI)

74

Figure 152 Rear panel LEDs

(1) GE port status LED (yellow)

JG704A

Figure 153 Front panel LEDs

(2) GE port status LED (green)

(1) System status LED (SYS) (2) Network status LED (INTERNET) (3) VPN status LED (VPN)

(4) GPS status LED (GPS) (5) 4G status LED (WWAN) (6) Received 4G signal strength indication LED (RSSI)

Figure 154 Rear panel LEDs

(1) GE port status LED (yellow) (2) GE port status LED (green)

75

JG597A

Figure 155 Front panel LEDs

1 2 3 4

(1) System status LED (SYS)

(3) VPN status LED (VPN)

Figure 156 Rear panel LEDs

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

(1) GE port status LED (yellow)

(4) ISDN B1 channel link status LED

(B1)

JG597B

Figure 157 Front panel LEDs

1 2 3 4

(2) GE port status LED (green) (3) ISDN link status LED (ACT)

(5) ADSL port status LED (6) ISDN B2 channel link status LED

(B2)

(1) System status LED (SYS)

(3) VPN status LED (VPN)

(2) Network status LED (INTERNET)

(4) WLAN status LED (WLAN)

76

Figure 158 Rear panel LEDs

(1) GE port status LED (yellow)

(4) ISDN B1 channel link status LED

(B1)

LED description

(2) GE port status LED (green) (3) ISDN link status LED (ACT)

(5) ADSL port status LED (6) ISDN B2 channel link status LED

(B2)

System status

LED (SYS)

Front panel

Network status

LED (INTERNET) Front panel

VPN status LED

(VPN)

Front panel

3G status LED

(WWAN)

Front panel

Off

Steady green

Flashing green

(8 Hz)

Flashing green

(1 Hz)

Flashing yellow

(1 Hz)

Flashing yellow

(8 Hz)

Steady yellow

Off

Steady green

Off

Steady green

Off

No power input, or exceptions have occurred on the MPU.

The SDRAM is performing self-test.

The system software image is being copied and decompressed.

Comware has started with the configuration file and the router has booted up.

The SDRAM has failed the self-test.

The extended segment does not exist.

Steady green

Flashing green

(8 Hz)

Steady yellow

Flashing yellow

(8 Hz)

The system software image does not exist.

No PPP link is present.

A minimum of one PPP link is present.

No IPsec VPN tunnel is present.

A minimum of one IPsec VPN tunnel is present.

No link is present or no network is available.

The router has been connected to the wireless network and is operating in 3G mode.

Data is being received or transmitted. The router is operating in 3G mode.

The router has been connected to the wireless network and is operating in 2G mode.

Data is being received or transmitted. The router is operating in 2G mode.

77

Received 3G signal strength indication LED

(RSSI)

Front panel

4G status LED

(WWAN)

Received 4G signal strength indication LED

(RSSI)

WLAN status

LED (WLAN)

GE port status

LED

G.SHDSL port status LED

ADSL port status

LED

Front panel

Front panel

Front panel

Rear panel

Rear panel

Rear panel

Off

Steady green

Flashing green

(8 Hz)

Off

Steady green

Flashing green

(8 Hz)

Steady yellow

Flashing yellow

(8 Hz)

Off

Steady green

Flashing green

(8 Hz)

Weak or no signal.

Strong signal.

Off The link is idle.

Flashing green Data is being transmitted or received on the link.

Steady green

Off

Steady green

The WLAN-radio interface is up.

No link is present.

Flashing green

A 1000 Mbps link is present.

Data is being received or transmitted at 1000

Mbps.

Steady yellow

Flashing yellow

Off

Steady green

Flashing green

(8 Hz)

Middle or low signal.

No link is present or a 2G network is available.

The router has been connected to the wireless network and is operating in 4G mode.

Data is being received or transmitted. The router is operating in 4G mode.

The router has been connected to the wireless network and is operating in 3G mode.

Data is being received or transmitted. The router is operating in 3G mode.

Weak or no signal.

Strong signal.

Middle or low signal.

A 10/100 Mbps link is present.

Data is being received or transmitted at 10/100

Mbps.

No carrier signal is received.

A carrier signal has been received.

Data is being received or transmitted.

Flashing green

(1 Hz)

Off

Steady green

Flashing green

(8 Hz)

Flashing green

(4 Hz)

Link negotiation is in progress.

No ADSL link is present.

An ADSL link is present.

The ADSL link is in synchronization progress.

Data is being received or transmitted on the ADSL link.

78

ISDN link status

LED (ACT)

Rear panel

ISDN B1 channel link status LED (B1)

Rear panel

ISDN B2 channel link status LED (B2)

Rear panel

Serial port link status LED (LINK) Rear panel

Serial port data transmission status LED (ACT)

Rear panel

Steady green

Flashing green

(8 Hz)

The ISDN link has been activated.

The ISDN link is being activated.

Off

Flashing green

(8 Hz)

Off

Flashing green

(8 Hz)

Off

Off

Steady green

Off

The ISDN link is not activated or no ISDN link is present.

Data is being received or transmitted on the B1 channel.

No data is being received or transmitted on the B1 channel.

Data is being received or transmitted on the B2 channel.

No data is being received or transmitted on the B2 channel.

No link is present.

A link is present.

No data is being received or transmitted.

Flashing yellow Data is being received or transmitted.

79

Support and other resources

Contacting HP

For worldwide technical support information, see the HP support website: http://www.hp.com/support

Before contacting HP, collect the following information:

Product model names and numbers

Technical support registration number (if applicable)

Product serial numbers

Error messages

Operating system type and revision level

Detailed questions

Subscription service

HP recommends that you register your product at the Subscriber's Choice for Business website: http://www.hp.com/go/wwalerts

After registering, you will receive email notification of product enhancements, new driver versions, firmware updates, and other product resources.

Related information

Documents

To find related documents, browse to the Manuals page of the HP Business Support Center website: http://www.hp.com/support/manuals

For related documentation, navigate to the Networking section, and select a networking category.

For a complete list of acronyms and their definitions, see HP FlexNetwork Technology Acronyms.

Websites

HP.com http://www.hp.com

HP Networking http://www.hp.com/go/networking

HP manuals http://www.hp.com/support/manuals

HP download drivers and software http://www.hp.com/support/downloads

HP software depot http://www.software.hp.com

80

HP Education http://www.hp.com/learn

Conventions

This section describes the conventions used in this documentation set.

Command conventions

Convention Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ]

{ x | y | ... }

[ x | y | ... ]

{ x | y | ... } *

[ x | y | ... ] *

&<1-n>

Square brackets enclose syntax choices (keywords or arguments) that are optional.

Braces enclose a set of required syntax choices separated by vertical bars, from which you select one.

Square brackets enclose a set of optional syntax choices separated by vertical bars, from which you select one or none.

Asterisk-marked braces enclose a set of required syntax choices separated by vertical bars, from which you select at least one.

Asterisk-marked square brackets enclose optional syntax choices separated by vertical bars, from which you select one choice, multiple choices, or none.

The argument or keyword and argument combination before the ampersand (&) sign can be entered 1 to n times.

A line that starts with a pound (#) sign is comments. #

GUI conventions

Symbols

Convention Description

Boldface

Window names, button names, field names, and menu items are in bold text. For example, the New User window appears; click OK.

>

Multi-level menus are separated by angle brackets. For example, File > Create >

Folder.

Convention Description

WARNING

An alert that calls attention to important information that if not understood or followed can result in personal injury.

CAUTION

An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT

NOTE

An alert that calls attention to essential information.

An alert that contains additional or supplementary information.

TIP

An alert that provides helpful information.

81

Network topology icons

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.

Represents an access controller, a unified wired-WLAN module, or the switching engine on a unified wired-WLAN switch.

Represents an access point.

Represents a mesh access point.

Represents omnidirectional signals.

Represents directional signals.

Represents a security product, such as a firewall, UTM, multiservice security gateway, or load-balancing device.

Port numbering in examples

Represents a security card, such as a firewall, load-balancing, NetStream, SSL VPN,

IPS, or ACG card.

The port numbers in this document are for illustration only and might be unavailable on your device.

82

Index

Numerics

3G antenna technical specifications,

54

A

AC power adapter, 23

accessories (installation),

4

adapter

AC power,

23

DC power, 23

Appendix

A chassis views and technical specifications,

31

B LEDs, 56

C cable

connecting console cable, 20

connecting Ethernet cable,

19

installing interface cable,

19

troubleshooting no response from serial

port, 28

chassis views, 31

JG511A,

31

, 32

JG512A,

32

, 33

JG513A,

35

, 36

JG514A,

36

, 37

JG515A,

38 , 38

JG516A,

40

, 41

JG517A,

42 , 42

JG518A,

43

, 44

JG519A,

44

, 45

JG520A,

46

, 47

JG531A,

39

, 40

JG596A,

48 , 48

JG597A,

51

, 52

JG665A,

49

, 50

JH012A, 34 , 34

JH013A, 46

configuring

basic settings for router, 26

troubleshooting system problems,

27

connecting console cable,

20

Ethernet cable, 19

power adapter, 23

console connecting cable,

20

power-on check,

25

setting terminal parameters, 20

troubleshooting garbled terminal display,

27 troubleshooting no terminal display, 27

D

DC power adapter, 23

dust, 2

E electrical

connecting Ethernet cable, 19

connecting power adapter, 23

EMI prevention,

3

ESD prevention, 3

grounding router with buried grounding

conductor, 10

grounding router with grounding strip, 9 grounding the router, 9

lightning protection, 4

power supply failure, 27

powering on the router, 24

EMI (site requirements),

3

Ethernet connecting cable,

19

F factory settings restoring,

29

failure (power supply),

27

G garbled terminal display (troubleshooting),

27

grounding

buried grounding conductor, 10

83

grounding strip, 9 router, 9

H hardware grounding router with buried grounding conductor,

10

grounding router with grounding strip,

9

grounding the router,

9

installation flowchart, 6

installing 3G antenna, 12

installing 3G antenna extension cable to a 4G device,

17 installing 4G antenna, 17

installing GPS antenna,

18

installing standard 3G SIM card,

10

installing standard 4G SIM card,

14

installing WLAN antenna,

14

router installation, 6

,

7

router wall installation,

8

router workbench installation, 7

I

installation accessories, 4

installation flowchart, 6

installing

3G antenna, 12

3G antenna extension cable to a 4G device,

17

4G antenna, 17

GPS antenna,

18

interface cable,

19

pre-installation checklist, 4

router, 6

,

7

router on wall, 8

safety recommendations, 2

standard 3G SIM card,

10

standard 4G SIM card,

14

troubleshooting router installation, 27

verifying installation, 24

WLAN antenna,

14

interface

cable installation, 19

L

LED

JG511A,

56 , 56

JG512A, 57 ,

58

JG513A, 60 , 60

JG514A, 61 ,

62

JG515A, 62 ,

63

JG516A, 65 ,

66

JG517A, 66 ,

67

JG518A, 68 , 68

JG519A, 69 ,

70

JG520A, 71 ,

72

JG531A, 64 , 64

JG596A, 72 ,

73

JG597A, 76 , 76

JG665A, 74 , 74

JH012A,

58

,

59

JH013A,

70

LED description,

77

power-on check,

25

technical specifications,

56 , 56

lightning protection (site requirements),

4

M mounting router on workbench,

7

N network management router installation,

6

, 7

troubleshooting router installation,

27

no response from serial port (troubleshooting), 28

no terminal display (troubleshooting), 27

P

parameter (console terminal), 20

password loss troubleshooting,

28 troubleshooting super, 28

troubleshooting user,

28 port (troubleshooting no response), 28

power supply

connecting power adapter, 23

troubleshooting failure,

27

powering on (router), 24

power-on check, 25

pre-installation checklist, 4

preparing for installation,

1

procedure

84

configuring basic settings for router,

26

connecting console cable, 20

connecting Ethernet cable,

19

connecting power adapter,

23

grounding router with buried grounding conductor,

10

grounding router with grounding strip,

9

grounding the router,

9

installing 3G antenna, 12

installing 3G antenna extension cable to a 4G device,

17 installing 4G antenna, 17

installing GPS antenna,

18

installing interface cable,

19

installing router on wall,

8

installing standard 3G SIM card,

10

installing standard 4G SIM card,

14

installing the router,

6

, 7

installing WLAN antenna,

14

mounting router on workbench, 7

powering on the router,

24

restoring factory settings, 29

setting console terminal parameters,

20

startup process, 24

troubleshooting 3G/4G antenna failure,

29

troubleshooting 3G/4G SIM card and

3G/4G antenna failures, 29

troubleshooting 3G/4G SIM card failure,

29

troubleshooting garbled terminal display, 27

troubleshooting no response from serial

port, 28

troubleshooting no terminal display,

27

troubleshooting password loss,

28

troubleshooting power supply failure,

27

troubleshooting super password loss,

28 troubleshooting user password loss, 28

R reset button usage guidelines,

30

S safety

EMI prevention, 3

ESD prevention,

3

installation recommendations,

2

lightning protection, 4

setting console terminal parameters, 20

site requirements altitude,

2 dust, 2

EMI, 3

gases, 2

humidity,

2

lightning protection, 4

temperature, 2

startup process,

24

super password loss,

28

T technical specifications,

52

3G antenna specifications,

54

LED, 56 , 56

WLAN antenna specifications, 54

terminal setting console parameters,

20

system configuration problems,

27

troubleshooting garbled display,

27

troubleshooting no display,

27

troubleshooting

3G/4G antenna failure, 29

3G/4G SIM card failure, 29

garbled terminal display,

27

no response from serial port,

28

no terminal display, 27

password loss, 28

power supply failure, 27

reset button usage guidelines,

30

restoring factory settings,

29

router installation,

27

super password loss, 28

system configuration problems,

27

user password loss,

28

U usage guidelines reset button,

30

V verifying installation,

24

W

wall (router installation), 8

85

WLAN antenna installing WLAN antenna,

14

technical specifications,

54

workbench (router installation), 7

86

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement

Table of contents
