Refrigeration, Air Conditioning and Heat Pumps

Refrigeration, Air Conditioning and Heat Pumps

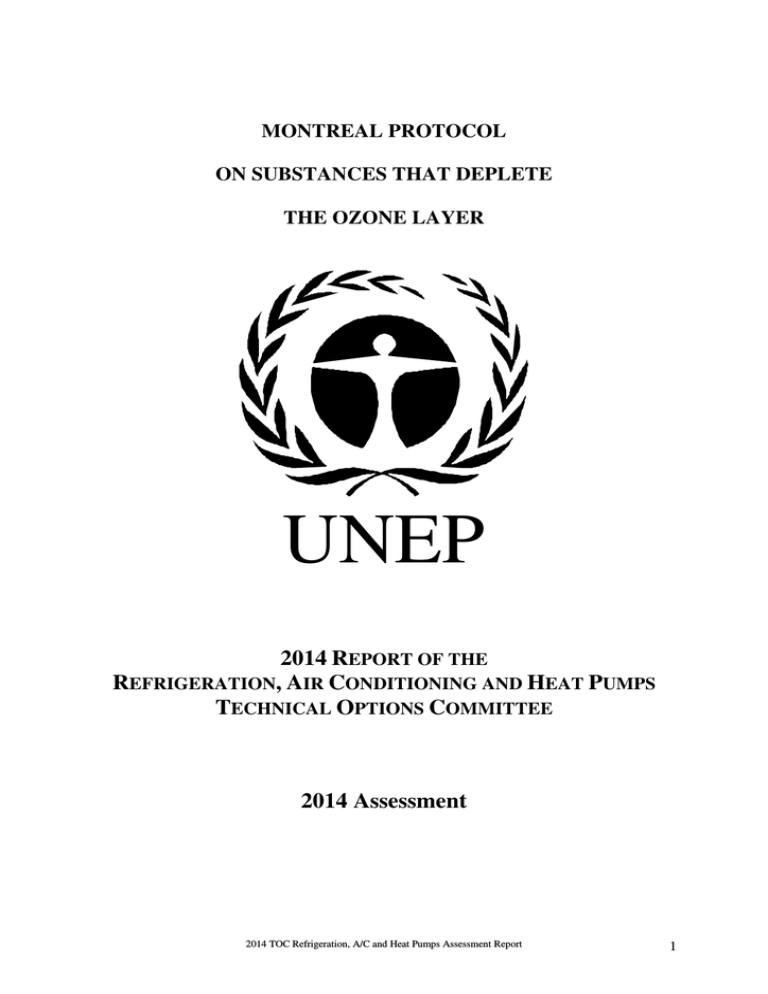

MONTREAL PROTOCOL
ON SUBSTANCES THAT DEPLETE
THE OZONE LAYER
UNEP
2014 REPORT OF THE
REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS
TECHNICAL OPTIONS COMMITTEE
2014 Assessment
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
1
UNEP
2014 REPORT OF THE
REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS
TECHNICAL OPTIONS COMMITTEE
2014 ASSESSMENT
2
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Montreal Protocol
On Substances that Deplete the Ozone Layer
UNEP
2014 REPORT OF THE
REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS
TECHNICAL OPTIONS COMMITTEE
2014 ASSESSMENT
The text of this report is composed in Times New Roman.
Co-ordination:
Refrigeration, Air Conditioning and Heat Pumps
Technical Options Committee
Composition:
Lambert Kuijpers and Roberto Peixoto (Co-chairs)
Formatting,
Reproduction:
RTOC co-chairs and UNEP Nairobi, Ozone Secretariat
Date:
February 2015
No copyright involved
Printed in Kenya, 2015
ISBN
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
3
DISCLAIMER
The United Nations Environment Programme (UNEP), the Technology and Economic Assessment Panel
(TEAP) co-chairs and members, the Refrigeration AC and Heat Pumps Technical Options Committee, cochairs and members, and the companies and organisations that employ them do not endorse the performance,
worker safety, or environmental acceptability of any of the technical options discussed. Every industrial
operation requires consideration of worker safety and proper disposal of contaminants and waste products.
Moreover, as work continues - including additional toxicity evaluation - more information on health,
environmental and safety effects of alternatives and replacements will become available for use in selecting
among the options discussed in this document.
UNEP, the TEAP co-chairs and members, the Refrigeration, AC and Heat Pumps Technical Options
Committee, co-chairs and members, in furnishing or distributing this information, do not make any warranty
or representation, either express or implied, with respect to the accuracy, completeness, or utility; nor do they
assume any liability of any kind whatsoever resulting from the use or reliance upon any information, material,
or procedure contained herein, including but not limited to any claims regarding health, safety, environmental
effect or fate, efficacy, or performance, made by the source of information.
Mention of any company, association, or product in this document is for information purposes only and does
not constitute a recommendation of any such company, association, or product, either express or implied by
UNEP, the Technology and Economic Assessment Panel co-chairs or members, the Refrigeration, AC and
Heat Pumps Technical Options Committee co-chairs or members, or the companies or organisations that
employ them.
ACKNOWLEDGEMENT
The UNEP Refrigeration, A/C and Heat Pumps Technical Options Committee acknowledges with thanks the
outstanding contributions from all of the individuals and organisations who provided technical support to
committee members. In developing this report, particularly the chapter lead authors were instrumental.
The names of chapter lead authors, co-authors and contributors are given at the start of each chapter. Addresses
and contact numbers of the chapter lead authors and all other authors of the UNEP TOC Refrigeration, A/C and
Heat Pumps can be found in the Annex.
The opinions expressed are those of the Committee and do not necessarily reflect the views of any sponsoring or
supporting organisations.
Gratitude is expressed to UNEP’s Ozone Secretariat, Nairobi, Kenya for the co-operation in formatting and
styling of the report and for the reproduction of this report.
4
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
UNEP
2014 REPORT OF THE
REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS
TECHNICAL OPTIONS COMMITTEE
2014 ASSESSMENT
Table of Contents
KEY MESSAGES ........................................................................................................................................ 11
REFRIGERANTS .......................................................................................................................................... 11
DOMESTIC APPLIANCES .............................................................................................................................. 11
COMMERCIAL REFRIGERATION................................................................................................................... 11
INDUSTRIAL SYSTEMS ................................................................................................................................ 12
TRANSPORT REFRIGERATION...................................................................................................................... 12
AIR-TO-AIR AIR CONDITIONERS AND HEAT PUMPS...................................................................................... 12
WATER HEATING HEAT PUMPS ................................................................................................................... 12
CHILLERS ................................................................................................................................................... 13
VEHICLE AIR CONDITIONING ...................................................................................................................... 13
SUSTAINABLE REFRIGERATION .................................................................................................................. 13
ABSTRACT EXECUTIVE SUMMARY ................................................................................................... 15
REFRIGERANTS .......................................................................................................................................... 15
DOMESTIC APPLIANCES .............................................................................................................................. 15
COMMERCIAL REFRIGERATION................................................................................................................... 16
INDUSTRIAL SYSTEMS ................................................................................................................................ 16
TRANSPORT REFRIGERATION...................................................................................................................... 17
AIR-TO-AIR AIR CONDITIONERS AND HEAT PUMPS...................................................................................... 17
WATER HEATING HEAT PUMPS ................................................................................................................... 18
VEHICLE AIR CONDITIONING ...................................................................................................................... 19
SUSTAINABLE REFRIGERATION .................................................................................................................. 20
EXECUTIVE SUMMARIES OF ALL CHAPTERS ................................................................................ 21
REFRIGERANTS .......................................................................................................................................... 21
DOMESTIC APPLIANCES .............................................................................................................................. 21
COMMERCIAL REFRIGERATION................................................................................................................... 22
INDUSTRIAL SYSTEMS ................................................................................................................................ 23
TRANSPORT REFRIGERATION...................................................................................................................... 23
AIR-TO-AIR AIR CONDITIONERS AND HEAT PUMPS...................................................................................... 24
WATER HEATING HEAT PUMPS ................................................................................................................... 25
CHILLERS ................................................................................................................................................... 26
VEHICLE AIR CONDITIONING ...................................................................................................................... 26
SUSTAINABLE REFRIGERATION .................................................................................................................. 28
1
INTRODUCTION .............................................................................................................................. 31
1.1 MONTREAL PROTOCOL DEVELOPMENTS ........................................................................................... 31
1.2 THE UNEP TECHNOLOGY AND ECONOMIC ASSESSMENT PANEL ..................................................... 32
1.3 THE TECHNICAL OPTIONS COMMITTEE REFRIGERATION, A/C AND HEAT PUMPS ............................ 35
1.4 REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS .................................................................... 37
1.4.1
General remarks..................................................................................................................... 37
1.4.2
Long term options and energy efficiency................................................................................ 38
1.4.3
Set up of the 2014 RTOC Refrigeration, A/C and Heat Pumps Assessment Report ............... 39
2
REFRIGERANTS .............................................................................................................................. 43
2.1 INTRODUCTION ................................................................................................................................. 43
2.1.1
Refrigerant progression ......................................................................................................... 43
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
5
2.1.2
Unsaturated hydrofluorochemicals ........................................................................................ 43
2.1.3
Recent assessment on current and future refrigerants and GWP ........................................... 44
2.1.4
Flammable refrigerants and Safety classification .................................................................. 44
2.1.5
Climate impact metrics for refrigerants ................................................................................. 45
2.1.6
ODP and GWP data for regulatory and reporting purposes ................................................. 46
2.1.7
Selection of refrigerant........................................................................................................... 48
2.1.8
HCFC-22 replacements.......................................................................................................... 49
2.2 REFRIGERANT DESCRIPTIONS ........................................................................................................... 49
2.3 DATA SUMMARY............................................................................................................................... 54
TABLE 2-9: DATA SUMMARY FOR AZEOTROPIC REFRIGERANT BLENDS .......................................................... 57
2.3.1
Data sources........................................................................................................................... 57
2.4 CONCLUDING REMARKS ................................................................................................................... 59
2.5 REFERENCES..................................................................................................................................... 59
ANNEX TO CHAPTER 2 - SAFETY STANDARDS AND REGULATIONS ....................................... 64
REFERENCES .............................................................................................................................................. 68
3
DOMESTIC APPLIANCES .............................................................................................................. 71
3.1 INTRODUCTION ................................................................................................................................. 71
3.2 OPTIONS FOR NEW EQUIPMENT ......................................................................................................... 72
3.2.1
Alternatives for domestic refrigerators .................................................................................. 72
3.2.2
Conversion of HFC-134a domestic refrigerators to low GWP alternatives .......................... 74
3.2.3
Alternatives for tumble dryers ................................................................................................ 75
3.2.4
Not-in-kind alternative technologies ...................................................................................... 76
3.2.5
Product energy efficiency improvement technologies for domestic refrigerators .................. 76
3.2.6
Product energy efficiency improvement technologies for tumble dryers ............................... 77
3.3 OPTIONS FOR EXISTING DOMESTIC REFRIGERATORS ......................................................................... 78
3.4 END-OF-LIFE DISPOSAL ..................................................................................................................... 79
3.5 CONCLUDING REMARKS ................................................................................................................... 79
3.6 REFERENCES..................................................................................................................................... 79
4
COMMERCIAL REFRIGERATION .............................................................................................. 85
4.1 INTRODUCTION ................................................................................................................................. 85
4.2 APPLICATIONS .................................................................................................................................. 85
4.3 OPTIONS FOR NEW EQUIPMENT ......................................................................................................... 86
4.3.1
Stand-alone equipment ........................................................................................................... 86
4.3.2
Condensing unit systems ........................................................................................................ 88
4.3.3
Centralized supermarket systems ........................................................................................... 89
4.4 OPTIONS FOR EXISTING EQUIPMENT.................................................................................................. 95
4.5 REFERENCES..................................................................................................................................... 96
5
INDUSTRIAL SYSTEMS ............................................................................................................... 101
5.1 INTRODUCTION ............................................................................................................................... 101
5.1.1
Background .......................................................................................................................... 101
5.1.2
Efficiency and sustainability ................................................................................................ 102
5.1.3
Refrigeration ........................................................................................................................ 102
5.1.4
Heat pumps........................................................................................................................... 104
5.1.5
Air conditioning ................................................................................................................... 104
5.1.6
Rankine cycle ...................................................................................................................... 104
5.2 APPLICATIONS ................................................................................................................................ 105
5.2.1
Food processing ................................................................................................................... 105
5.2.2
Cold storage ......................................................................................................................... 106
5.2.3
Industrial cooling in buildings, power plant and IT centres ................................................ 106
5.2.4
District cooling..................................................................................................................... 106
5.2.5
Industrial heat pumps and heat recovery ............................................................................. 107
5.2.6
Leisure .................................................................................................................................. 108
5.2.7
Process Refrigeration ........................................................................................................... 109
5.3 OPTIONS FOR NEW EQUIPMENT ....................................................................................................... 109
5.3.1
R-717 (Ammonia) ................................................................................................................. 109
5.3.2
Hydrofluorocarbons ............................................................................................................. 110
6
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
5.3.3
Hydrocarbons....................................................................................................................... 111
5.3.4
R-744 (Carbon dioxide) ....................................................................................................... 111
5.3.5
R-718 (Water)....................................................................................................................... 112
5.3.6
Absorption ............................................................................................................................ 112
5.4 OPTIONS FOR EXISTING EQUIPMENT................................................................................................ 112
5.4.1
Conversion to HFC blends ................................................................................................... 113
5.4.2
Conversion to R-744............................................................................................................. 113
5.4.3
Conversion to R-717............................................................................................................. 113
5.4.4
Conversion to hydrocarbon .................................................................................................. 113
5.5 SERVICE REQUIREMENTS ................................................................................................................ 114
5.6 CONCLUDING REMARKS ................................................................................................................. 114
5.7 REFERENCES................................................................................................................................... 114
6
TRANSPORT REFRIGERATION ................................................................................................ 119
6.1 INTRODUCTION ............................................................................................................................... 119
6.2 OPTIONS FOR NEW EQUIPMENT ....................................................................................................... 119
6.2.1
Intermodal containers and road vehicles ............................................................................. 119
6.2.2
Vessels .................................................................................................................................. 123
6.3 OPTIONS FOR EXISTING EQUIPMENT................................................................................................ 124
6.3.1
Road equipment and intermodal containers......................................................................... 124
6.3.2
Vessels .................................................................................................................................. 125
6.4 CONCLUDING REMARKS ................................................................................................................. 126
6.5 REFERENCES................................................................................................................................... 126
ANNEX TO CHAPTER 6 ......................................................................................................................... 129
A6.1
A6.2
A6.3
A6.4
A6.5
7
Requirements ........................................................................................................................ 129
Vessels .................................................................................................................................. 129
Trucks, trailers and rail cars................................................................................................ 130
Intermodal containers .......................................................................................................... 132
Temperature profiles ............................................................................................................ 133
AIR-TO-AIR AIR CONDITIONERS AND HEAT PUMPS ........................................................ 137
7.1 INTRODUCTION ............................................................................................................................... 137
7.2 EQUIPMENT TYPES .......................................................................................................................... 138
7.2.1
Small self-contained air conditioners................................................................................... 138
7.2.2
Split (non-ducted) residential and commercial air conditioners .......................................... 139
7.2.3
Multi-split air conditioners for commercial and residential ................................................ 140
7.2.4
Split ducted air conditioners (residential and commercial) ................................................. 140
7.2.5
Ducted commercial packaged (self-contained) air conditioners .......................................... 140
7.3 OPTIONS FOR NEW EQUIPMENT ....................................................................................................... 141
7.3.1
HFC-134a ............................................................................................................................ 142
7.3.2
R-407C ................................................................................................................................. 142
7.3.3
R-410A ................................................................................................................................. 143
7.3.4
HFC-32 ................................................................................................................................ 143
7.3.5
HFC-152a ............................................................................................................................ 144
7.3.6
HFC-161 .............................................................................................................................. 144
7.3.7
HFC-1234yf.......................................................................................................................... 144
7.3.8
HC-290 ................................................................................................................................. 145
7.3.9
HC-1270 ............................................................................................................................... 146
7.3.10
R-744 ............................................................................................................................... 146
7.3.11
R-446A and R-447A......................................................................................................... 147
7.3.12
R-444B............................................................................................................................. 147
7.3.13
Charge reduction ............................................................................................................. 148
7.3.14
Not-in-kind alternative technologies ............................................................................... 149
7.4 OPTIONS FOR EXISTING EQUIPMENT................................................................................................ 149
7.4.1
Replacement refrigerants only ............................................................................................. 150
7.4.2
Retrofit refrigerants ............................................................................................................. 151
7.4.3
Conversion to flammable refrigerants ................................................................................. 152
7.5 HIGH AMBIENT CONSIDERATIONS ................................................................................................... 152
7.5.1
Performance of alternatives under high ambient temperatures ........................................... 153
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
7
7.5.2
Measures to design and optimise air-conditioners for high ambient conditions.................. 156
7.6 CONCLUDING REMARKS ................................................................................................................. 157
7.7 REFERENCES................................................................................................................................... 157
8
WATER HEATING HEAT PUMPS .............................................................................................. 169
8.1 INTRODUCTION ............................................................................................................................... 169
8.2 HEAT PUMP TYPES, IMPLICATIONS AND TRENDS ............................................................................. 169
8.2.1
Heat pump types ................................................................................................................... 169
8.2.2
Heat pump implications and trends...................................................................................... 171
8.3 OPTIONS FOR NEW EQUIPMENT ....................................................................................................... 172
8.3.1
HFC-134a and HFC blends R-407C, R-417A and R-410A.................................................. 172
8.3.2
HFC-32 ................................................................................................................................ 173
8.3.3
HFC-1234yf and other low-GWP HFC blends .................................................................... 174
8.3.4
R-744 (carbon dioxide) ........................................................................................................ 174
8.3.5
Hydrocarbons....................................................................................................................... 175
8.3.6
R-717 (ammonia) ................................................................................................................. 175
8.4 REFRIGERANT CHARGE LEVELS ...................................................................................................... 176
8.5 OPTIONS FOR EXISTING SYSTEMS.................................................................................................... 176
8.6 CONCLUDING REMARKS ................................................................................................................. 176
8.7 REFERENCES................................................................................................................................... 177
9
CHILLERS ....................................................................................................................................... 181
9.1 INTRODUCTION ............................................................................................................................... 181
9.2
TYPES OF EQUIPMENT AND APPLICATIONS ................................................................................. 182
9.2.1
Mechanical vapour compression chillers ............................................................................ 182
9.2.2
Absorption chillers ............................................................................................................... 182
9.2.3
Chiller capacity ranges ........................................................................................................ 183
9.3 OPTIONS FOR NEW EQUIPMENT ....................................................................................................... 183
9.3.1
Evaluation of experimental refrigerants for vapour compression chillers........................... 183
9.3.2
Options for new vapour compression chillers ...................................................................... 185
9.4 OPTIONS FOR EXISTING CHILLER EQUIPMENT ................................................................................. 188
9.4.1
Positive displacement chillers .............................................................................................. 189
9.4.2
Centrifugal chillers ............................................................................................................ 189
9.4.3
Non-vapor compression chiller replacements – absorption ................................................ 189
9.5
ALTERNATIVES FOR HIGH AMBIENT CONDITIONS ....................................................................... 190
9.6 CONCLUDING REMARKS ................................................................................................................. 190
9.7 REFERENCES................................................................................................................................... 191
10
VEHICLE AIR CONDITIONING ................................................................................................. 197
10.1
10.2
INTRODUCTION .......................................................................................................................... 197
DESCRIPTION OF SYSTEMS AND CURRENT AND FUTURE APPLICATIONS OF MOBILE AIR CONDITIONING
SYSTEMS .................................................................................................................................................. 197
10.2.1
Refrigerant cost and recharge ......................................................................................... 198
10.2.2
Future Trends .................................................................................................................. 198
10.3
OPTIONS FOR NEW AND FUTURE MOBILE AIR CONDITIONING SYSTEMS ................................... 200
10.3.1
Passenger Car and Light Truck Air Conditioning\ ......................................................... 200
10.3.2
Bus and Rail Air Conditioning ........................................................................................ 208
10.4
OPTIONS FOR EXISTING SYSTEMS .............................................................................................. 209
10.4.1
Retrofit of CFC-12 systems ............................................................................................. 209
10.4.2
Hydrocarbon retrofits ...................................................................................................... 209
10.5
CONCLUDING REMARKS ............................................................................................................ 209
10.6
REFERENCES .............................................................................................................................. 210
ANNEX TO CHAPTER 10 ....................................................................................................................... 217
11
SUSTAINABLE REFRIGERATION ............................................................................................. 225
11.1
INTRODUCTION .......................................................................................................................... 225
11.2
SUSTAINABILITY APPLIED TO REFRIGERATION ........................................................................... 225
11.2.1
Sustainability principles .................................................................................................. 225
11.2.2
Environmental aspects..................................................................................................... 226
11.2.3
Social aspects .................................................................................................................. 226
8
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
11.2.4
Assessment tools .............................................................................................................. 226
11.2.5
Opportunities for improvement ....................................................................................... 227
11.3
DIRECT IMPACT OF REFRIGERANTS ............................................................................................ 228
11.3.1
Design criteria for charge minimization and leak tightness ............................................ 228
11.3.2
Reduction of emissions through installation, servicing and maintenance ....................... 230
11.3.3
Refrigerant recovery, recycling, reclamation and destruction ........................................ 230
11.4
INDIRECT IMPACTS DUE TO ENERGY USE .................................................................................... 233
11.4.1
Energy efficiency improvements ...................................................................................... 234
11.5
EQUIPMENT LIFE CYCLE CONSIDERATIONS: EQUIPMENT DESIGN, OPERATION, MAINTENANCE, AND ENDOF-LIFE 234
11.5.1
Equipment design ............................................................................................................ 235
ANNEX 1 - TEAP REFRIGERATION, AIR CONDITIONING AND HEAT PUMPS TECHNICAL
OPTIONS COMMITTEE (RTOC) - MEMBERSHIP STATUS 12/14 ................................................ 239
ANNEX 2 - CONTACT DETAILS FOR AUTHORS, CO-AUTHORS AND CONTRIBUTORS TO THE
2014 RTOC ASSESSMENT REPORT (TO BE COMPLETED) .......................................................... 241
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
9
10
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Key Messages
Refrigerants
Whatever refrigerant is chosen will always have to be a balance between several factors, the
availability and cost of the refrigerant (and the associated equipment), the system energy
efficiency, the safety and convenience of applicability, environmental issues and many more.
The perfect refrigerant does not exist, and is unlikely to come into existence. Choices will
therefore include the existing low GWP refrigerants (e.g. R-717, R-744 or HCs) and the newly
applied or developed chemicals. Many new alternatives are proposed which create a challenge
in finding the right refrigerant for each application. One aspect of particular importance is that
refrigerants with low direct impact on climate change are often flammable to some extent.
With new refrigerant characteristics comes the need for new technology development and
increased need for training.
21 refrigerants obtained standardized designations and safety classifications since the 2010
RTOC assessment report, including one new molecule: HCFC-1233zd(E). Approximately a
quarter of the new refrigerants are blends which are replacements for HCFC-22. Of the new
refrigerants twelve are blends of saturated HFCs and unsaturated HFCs (HFOs) of which
seven blends are with class 2L flammability.
Domestic appliances
Globally, new refrigerator production conversion from use of ODS was essentially
completed by 2008. HC-600a or HFC-134a continue to be the refrigerant option for new
production.
It is projected that by 2020 about 75% of new refrigerator production will use HC-600a
(possibly with a small share applying unsaturated HFC refrigerants) and the rest will use
HFC-134a.
Initial efforts to assess the use of HFC-1234yf in domestic refrigeration have begun, but
they are not being pursued with high priority, due to cost implications and flammability.
The heat pump clothe (laundry) dryer (HPCD) sales using HFC-134a are fastly growing in
the EU. HPCDs using R-407C and HC-290 have also been introduced. Alternative
refrigerant solutions that are being explored include R-744, HC-600a and low GWP HFCs.
Commercial refrigeration
In commercial refrigeration stand-alone equipment, hydrocarbons (HCs) and R-744 are
replacing HFC-134a and R-404A and represent a significant market share in Europe and in
Japan.
Because of their high GWP, R-404A and R-507 are seen as refrigerants in many non-Article 5
countries as refrigerants to be replaced and, depending on the refrigeration capacities,
hydrocarbons, R-744 or HFC refrigerant blends with lower GWP are the current chosen
options.
In supermarkets in Europe, two-stage CO2 systems are recognized as viable option especially
in moderate temperature countries. The technology is now spreading to other areas and
development of concepts for hot climates is ongoing.
Plug-in units with air and/or water cooled condensers are gaining market share. Particularly in
the USA, distributed systems (condensing units with water cooled condensers installed in the
sales area) are also installed in large numbers.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
11
Industrial systems
R-717 is widely used in industrial systems, but its adoption as a low GWP alternative to
HCFC-22 in Article 5 countries is not universal due to safety concerns. The key
requirements to facilitate this transition are education and training of designers and
operators.
Although HFCs are technically feasible for large industrial systems, the market sector is
extremely cost sensitive and more expensive refrigerants are not favoured due to the large
charge quantity required.
Transport refrigeration
Low-GWP candidates for transport refrigeration include R-744, hydrocarbons, and HFC
blends; however, various challenges are currently preventing them from widespread use.
Intermodal container applications are at the forefront of developments; here the R-744 based
system is available.
In the case of a regulation banning the use of refrigerants above a certain GWP level (as in the
EU), HFC blends will likely play a role in the 2020 timeframe as a retrofit to R-404A and
(possibly) HFC-134a: their GWP is significantly lower and performances are close.
Cryogenic and eutectic systems consist of potentially HFC-free stationary units and
periodically recharged vehicle systems; they can be used on some transport routes.
Air-to-air air conditioners and heat pumps
HCFC-22 is still widely used in new and existing systems in Article 5 countries and to some
extent in existing systems in non-Article 5 countries.
The majority of new systems using an alternative to HCFC-22 use R-410A; some others are
using R-407C, HFC-134a, HC-290 and HFC-32.
There are a growing number of alternatives which have a medium to low GWP and are
flammable that are being considered and evaluated by research entities and enterprises,
meaning there is some degree of uncertainty over future selection of alternatives.
Water heating heat pumps
12
For water heating heat pumps most systems commercialised today make use of R-410A, HFC134a, R-407C, HC-290, HC-600a, R-717 or R-744. The majority of new equipment uses R410A.
In some Article 5 countries HCFC-22 is used. There are no technical barriers for replacing
HCFC-22 by a non-ODS refrigerant in new systems. The main parameters in the selection of
alternatives when switching over from HCFC-22 are efficiency, cost effectiveness, economic
impact, safe use and easiness of use.
HFC-32 and other medium and low-GWP HFC blends are under way to become commercially
available. R-744 based water heating heat pumps have been mainly developed and
commercialised in Japan. However, the expansion of this technology to other countries is
limited by its high cost. R-717 has also been used in a small number of reversible heat pumps
and absorption heat pumps.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chillers
The phase-out of ozone depleting refrigerants in chillers is going well. The use of HCFC-22 in
chillers has been phased out in developed countries but use still continues in some Article 5
countries. The primary refrigerants currently used in chillers are HFC-134a, R-410A, and
HCFC-123. HC-290, R-717 and R-744 are used as refrigerants, however, to a lesser extent.
A number of new refrigerants with lower global warming potentials have been proposed for
use in chillers. Evaluations by manufacturers and other laboratories are underway, but it is not
clear which ones will be selected for commercialization. Tradeoffs are apparent among GWP,
energy efficiency, safety, and applied costs.
Climate effects from chillers are dominated by their energy use. Thus, the ultimate goal in
choosing new chiller refrigerant alternatives is to achieve the highest energy efficiency while
remaining viable to chiller manufacturers, regulators, and users.
Vehicle air conditioning
Now, at the end of 2014, it looks like as if more than one refrigerant will be used in the
coming years for new car and light truck air conditioning. HFC-134a will remain largely
adopted worldwide, HFC-1234yf will continue its growth in new models at least in the near
future, and R-744 is expected to be implemented by German OEMs starting in 2017.
New refrigerant options have GWPs enabling the GHG credits in US and are below the EU
threshold of 150; both can achieve fuel efficiency comparable to the existing HFC-134a
systems with appropriate hardware and control development.
The worldwide spread of the two new refrigerants (HFC-1234yf and R-744) will be governed
significantly by additional aspects like safety, costs, regulatory approval, system reliability,
heat pump capability (especially for electric driven vehicles) and servicing.
At the moment, it cannot be foreseen whether or not the old and new refrigerants will remain
parallel in the market for a long period of time. It is also unclear if the bus and train sector will
follow these trends. The use of hydrocarbons or blends of hydrocarbons has not received
support from vehicle manufacturers due to safety concerns.
Sustainable refrigeration
Refrigeration addresses fundamental human needs. In order to become more sustainable, the
industry may consider the enhancement of current practices to: minimize the extraction of
natural resources; avoid the emission of man-made substances such as refrigerants and
solvents; protect fertile ecosystems from mining, water usage, and landfill of waste; promote
education for sustainable production and consumption.
From the persepective of refrigeration, air conditioning, and heat pumps, sustainability mainly
refers to energy efficiency, use of renewable energy, and other options to reduce GHG
emissions and the use of natural resources. In aparticular, the responsible choice and
management of refrigerants are important sustainability aspects.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
13
14
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Abstract Executive Summary
Refrigerants
Current status
Whatever refrigerant is chosen will always have to be a balance between several factors, the
availability and cost of the refrigerant (and the associated equipment), the system energy efficiency,
the safety and convenience of applicability, environmental issues and many more. The refrigerant
options emerging today address the phase-out of ODS, especially HCFC-22, as well as concerns about
climate change. The perfect refrigerant does not exist and is unlikely to come into existence. Choices
will therefore include existing low GWP refrigerants (e.g. R-717, R-744 or HCs) and the newly
applied or developed chemicals. Many new alternatives are proposed, which create a challenge in
finding the right refrigerant for each application. One of the important aspects is that refrigerants with
a low direct impact on climate change are often flammable to some extent.
What is left to be achieved
The industry will keep searching for the right candidate for each application. In some cases this may
be as simple as changing the refrigerant, while in other cases this will require redesign of the system or
even a change of system topology. The search is a trade-off between cost, safety, energy efficiency,
while limiting the need for redesign. One particular concern is the acceptance of flammability in some
form or the other.
The way forward
There is a complex selection process ahead, where the market will need to find out which of the many
proposed new and old refrigerants will be used in each application. Part of the complexity is that the
market is unlikely to be able to support many different refrigerants for the same application.
This will result in a period in time, likely to last a couple of decades, where the industry will have to
work with both the currently established refrigerants as well as new refrigerants addressing ozone
depletion and/or climate change concerns. In the long run, the number of candidates is likely to fall,
but it is too early to tell which or even how many of the current refrigerant candidates will survive.
Domestic appliances
Current status
Globally, new refrigerator production conversion from the use of ODS was essentially completed
by 2008. HC-600a or HFC-134a continue to be the refrigerant options for new production. Initial
efforts to assess the use of HFC-1234yf in domestic refrigeration have begun, but it is not being
pursued with high priority, as in automotive applications, due to cost implications and
flammability.
The heat pump clothe (laundry) dryer (HPCD) using HFC-134a is fastly growing in the EU, with
manufacturers from both the EU and Japan. HPCDs using R-407C and HC-290 have also been
introduced.
What is left to be achieved
It is projected that, by 2020, about 75% of new refrigerator production will use HC-600a (possibly
with a small share applying unsaturated HFC refrigerants) and the rest will use HFC-134a.
Alternative low GWP refrigerant solutions are being explored for HPCDs. This includes R-744, HC600a and low GWP HFCs.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
15
The way forward
A number of improved energy efficiency design options are fully mature, and future improvements
of these options are expected to be evolutionary. Extension of these to an all-global domestic market
would yield significant benefit, but is generally constrained by the availability of capital funds and
related product cost implications.
Commercial refrigeration
Current status
Commercial refrigeration is one of the application sectors where the refrigerant demand is the highest
for servicing, due to the large emission level of refrigerants from supermarket systems. The phase-out
of HCFC-22, being the dominant refrigerant in Article 5 countries, is important for supermarkets,
where it can be replaced by high-GWP refrigerants such as R-404A or R-507A or lower GWP options
from the R-407 family (R-407A, C or F) or the low GWP options such as R-744 or HCs. For standalone equipment, large global companies have taken commitments to phase-out, where low GWP
HFCs, CO2, and hydrocarbons are the leading choices.
What is left to be achieved
In Article 5 countries, the phase-out of HCFC-22 in the case of condensing units and centralized
systems asks for rapid refrigerant choices. The current low-GWP options require a significant
technical background to implement, particularly for e.g., two-stage CO2 systems, this in high ambient
temperature conditions. So the HFC refrigerant blends, with GWPs ranging from 1500 to 2100 are
possible immediate options, rather than choosing R-404A or R-507A.
The way forward
Low environmental impact, energy efficiency, simple maintenance, low refrigerant emissions and
costs are the drivers for the next generation of refrigerants in commercial refrigeration. For the low
refrigeration capacities of stand-alone systems, many of those criteria are currently met by R-744 or
HCs. For large refrigeration capacities and for all climate conditions there are still a number of options
open. The phase-out of high GWP refrigerants is a certainty, the replacement options R-744 and
hydrocarbons are known, but the replacement low-GWP HFCs options are still not well known.
Industrial systems
Current status
Non-fluorinated refrigerants are widely used in industrial systems, particularly in Europe, Scandinavia
and North America. The most common refrigerant in these systems is R-717, used in a few cases in
cascade systems with R-744. Safety standards and regulations are well developed in these markets and
the incidence of serious injury and fatal accidents is extremely low. The HFC use in these markets is
confined to specialist niches.
What is left to be achieved
R-717 use is less common in some sub-sectors in Europe and North America, for example in France
and New Jersey, where regulations make it more difficult to construct new ammonia systems; as a
result, HCFC-22 was favoured in these jurisdictions. This matches the situation in many Article 5
countries where R-717 is not widely used, due to a lack of expertise in designing and operating
systems. There is no inexpensive and widely available low GWP alternative to HCFC-22 for industrial
systems in the currently available group of HFCs and unsaturated HFCs. The options for addressing
the HCFC phase-out in Article 5 countries are therefore to find ways to use R-717, to accept the higher
refrigerant cost for existing HFCs or to develop a suitable low GWP fluorinated refrigerant.
16
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The way forward
The main conclusion drawn from this survey is that greater training of designers, installers, operators
and maintenance crews is required to facilitate the move away from ozone depleting substances in all
subsectors of industrial systems. New fluids are unlikely to be developed for the majority of industrial
systems. The low GWP refrigerants R-717, R-744 and HCs are the dominant choices in several of the
applications covered, and this is expected to remain in the future. However, there are some niche
applications that use high GWP HFCs, which applications need to be addressed in the future.
Transport refrigeration
Current status
The vast majority of trucks, trailers, vans and intermodal containers uses the non ozone depleting
refrigerants R-404A and HFC-134a. While most new vessels use HFC refrigerants, new fishing
vessels increasingly use R-717 or R-744. However, the installed base at sea is still largely dominated
by HCFC-22. The industry has been focusing on numerous environmental issues, making progress in
reductions of engine pollution emissions, fuel consumption, noise levels and refrigerant charge. In
addition, some manufacturers have made commitments to replace the current refrigerants with R-744
or R-452A in some first applications.
What is left to be achieved
Refrigerated vessels using HCFC-22 will continue being retrofitted with R-417A, R-422D and R427A. In parallel, the industry will be looking for lower GWP alternatives in all sub-segments
including R-717 and R-744 in shipping vessels. Cooperation between governments and manufacturers
must continue in order to reflect the very specific transport refrigeration requirements. While
introducing lower GWP solutions, the industry must ensure the best trade-offs among GWP,
performance, indirect emissions, life cycle costs, etc., while safety and compliance are in no way
compromised.
The way forward
In the short term, the industry will progressively introduce lower GWP alternatives to R-404A such as
R-452A (GWP around 2000, it will be introduced in Europe for new production in 2015), R-448A and
R-449A (GWP around 1400), R-744. In a longer time frame, other HFC blends and -within certain
charge limits- possibly hydrocarbons or other flammable alternatives will be addressed. Lower GWP
refrigerants will also be gradually applied in vessels when their applications mature in other segments
and gain more confidence. Cryogenic and eutectic systems are proven solutions, and will continue
playing a role on road transport.
Air-to-air air conditioners and heat pumps
Current status
Air-to-air air conditioners and heat pumps: HCFC-22 remains the dominant refrigerant in use, where
the refrigerant bank for unitary air conditioners is estimated to be in excess of 1 million tonnes. In new
systems, HCFC-22 is only being used in Article 5 countries. The HFC blend R-410A is the most
common alternative, further, to a limited extent R-407C along with HFC-134a are used in regions with
high ambient temperatures. HC-290 is being used in split systems, window and portable air
conditioners. HFC-32 is being used in split systems and is being proposed for larger ducted and multisplit systems. These various alternatives have also been found to achieve performance approaching, as
good as or better than HCFC-22.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
17
What is left to be achieved
In general there is still a significant proportion of the sector throughout almost all Article 5 countries
that remains to be shifted from HCFC-22 to a zero ODP alternative. Because of the high GWP of R410A, investigations into medium and low GWP alternatives are continuing. In cooler climates, R-744
is available for commercially sized systems and the technology is further being explored. There are a
large number of new mixtures being considered for air conditioning systems primarily consisting of
HFCs and unsaturated HFCs, such as R-444B, R-446A and R-447A. Although there is concern over
the use of R-410A in high ambient temperatures, appropriate design measures can be used to help
remedy the relatively greater degradation in performance; nevertheless, work is underway to
investigate this and other refrigerants further.
The way forward
The forthcoming direction remains unclear in terms of which alternatives this sector, sub-sectors and
regions will settle upon. It is likely that different manufacturers and countries will opt for a variety of
alternatives before any single option is chosen (if at all). In the meantime, investigations will continue
into medium GWP flammable HFCs, HFC/unsaturated HFC blends and HCs for normal operating
conditions as well as high ambient temperature conditions.
Water heating heat pumps
Current status
Air-to-water and water-to-water heat pumps have experienced significant growth in Japan, Australia,
China, and Europe during the last ten years. HCFC-22 is still used in some Article 5 countries. The
HFC blends R-410A and R-407C are currently used in Europe and other countries. R-744 heat pump
water heaters were introduced to the market in Japan in 2001 and have seen a steady growth since then
due to strong government support. In the past, the number of HC-290 applications in Europe has
decreased, due to the Pressure Equipment Directive, however, recently a range of HC-290
compressors have become available. R-717 is mainly used for large capacity heat pump systems.
What is left to be achieved
Based on regulations in Europe, the water heating heat pump industry is looking to alternatives with a
lower GWP than the one for R-410A.
The main challenge is to come with an efficient, cost effective, safe and easy to use solution. It is
expected that other regions will follow the tendency to reduce the GWP value of refrigerants.
The way forward
For water heating heat pumps, HFC-32 or blends with unsaturated HFCs will be studied for future use
by taking into account the performance, costs and the necessary safety regulations in relation to their
lower flammability. R-744 systems will be optimised and used wherever possible, taking into account
costs that will apply. HC-290 and R-600a will be used where possible, taking into account the costs
involved and safety in regards to flammability.
Chillers
Current status
The phase-out of ozone-depleting refrigerants in chillers is moving along well. The CFCs have been
essentially phased out for new equipment and the CFC banks are decreasing in existing chillers. The
current generation of chillers using zero-ODP refrigerants had been introduced without a sacrifice in
18
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
reliability or energy efficiency. HC-290, R-717 and R-744 are also being used in chillers. Water as a
refrigerant is currently being used in absorption chillers and had been recently announced in vapour
compression based chillers. The use of HCFC-22 in new equipment has been phased out in developed
countries; many Article 5 countries also have stopped its use in new equipment. Limits set for HCFC22 production and its rising costs have contributed to the conversion of new and existing chillers to
zero ODP refrigerants.
What is left to be achieved?
The energy consumption of chillers dominates their environmental impact because the latest
generation of chillers has low leak rates and, therefore, low direct global warming impact. The issue,
then, is to determine which of the new refrigerants has high energy efficiency in chillers while being
safe to use and having acceptable application costs. Major efforts have been launched to propose and
test new lower-GWP refrigerants to replace the higher-GWP refrigerants currently in use.
The way forward
Testing of new, lower GWP refrigerants started several years ago and is continuing. At this juncture it
is not clear which refrigerants may be selected for commercialisation. Tradeoffs are apparent among
GWP, energy efficiency, safety, and applied cost. Refrigerants that are non-flammable with the A1
refrigerant safety classification generally have GWPs of 600 or more. Refrigerants with low GWP
(<150) generally are flammable. All flammable refrigerants require special safety considerations. A2L
refrigerants will not be widely used without changes to safety standards and building codes.
Vehicle air conditioning
Current status
Today the overwhelming majority of new AC equipped passenger cars world-wide use HFC-134a.
The transition from CFC-12 is complete for new systems, but there are still cars in use especially in
Article 5 countries. In order to meet the EU MAC Directive and to harvest potential US EPA CO2
credits, OEMs evaluated several refrigerant options for new car (and truck) air conditioning systems.
As a result, some car manufacturers have started to equip certain models with HFC-1234yf. Owing to
safety concerns regarding the A2L-refrigerant HFC-1234yf, other car manufacturers work on R-744
systems in order to introduce them into the market by the year 2017. Both options have GWPs
enabling the GHG credits in US, they are below the EU threshold of 150 and both can achieve fuel
efficiency comparable to the existing HFC-134a systems with appropriate hardware and control
development. Also owing to safety concerns the use of hydrocarbons or blends of hydrocarbons has
not received support from vehicle manufacturers. Most new bus or train air conditioning systems are
currently equipped with the refrigerants HFC-134a or R-407C; fleet tests of R-744 systems in buses
are on-going.
What is left to be achieved
At the end of 2014 it looks likely that more than one refrigerant will be used in the coming years for
car and light truck air conditioning. HFC-134a will remain largely adopted worldwide, HFC-1234yf
will continue its growth in new models at least in the near future, other new low GWP synthetic
refrigerants or refrigerant blends (e.g. R-445A) may be implemented, and R-744 is expected to be
implemented by German OEMs starting in 2017.
The way forward
Along with the Global Warming Potential issue the future spreading of the two refrigerants HFC1234yf and R-744 in the worldwide vehicle air conditioning market will be significantly governed by
additional considerations like safety, costs, regulatory approval, system reliability, heat pump
capability (especially for electric driven vehicles) and servicing. At the moment, it cannot be foreseen
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
19
whether or not the old and the new refrigerants will see parallel use in the market for a long period of
time. Without existing regulations it is also unclear whether the bus and train sector will follow these
trends.
Sustainable refrigeration
Current status
Refrigeration, air conditioning, and heat pump equipment are vital means to address the human
fundamental needs in areas such as food conservation, food security, health care, water heating, and
thermal comfort worldwide. There are however a number of negative environmental impacts from the
use of such equipment that need to be minimized through careful consideration of design, operation,
and end of life aspects of these equipment and the refrigerants they use.
What is left to be achieved?
Negative environmental impacts from refrigeration, air conditioning, and heat pump equipment must
be managed through careful and systematic assessment when choosing new refrigerants, by reducing
CO2 emissions along the equipment life cycle, and through environmentally sound and socially fair
end of life procedures.
The way forward
Enhancement towards sustainability demands proper national and regional regulation, expansion of
voluntary programs aiming higher levels of energy efficiency, adoption of state-of-the-art energy
management technologies, use of life cycle assessment tools, expansion of awareness and training
initiatives across the industry value chain.
20
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Executive Summaries of all Chapters
Refrigerants
The chapter discusses and provides tabular summaries for identifiers as well as physical, safety, and
environmental data for refrigerants and includes brief descriptions of refrigerants treated in this report.
Whatever refrigerant is chosen will always have to be a balance between several factors, the
availability and cost of the refrigerant (and the associated equipment), the system energy efficiency,
the safety and convenience of applicability, environmental issues and many more.
The perfect refrigerant does not exist, and is unlikely to come into existence. Choices will therefore
include existing very low GWP refrigerants (e.g. R-717, R-744 or HCs) and the newly applied or
developed chemicals. Many new alternatives are proposed which create a challenge of finding the
right refrigerant for each application. In some cases this may be as simple as changing the refrigerant,
while in most cases this will require redesign of the system or even change of system topology. The
search is a trade-off between cost, safety, energy efficiency, and limiting the need for redesign. One of
the important aspects is that refrigerants with low direct impact on climate change are often flammable
to some extent.
So far 21 refrigerants obtained standardized designations and safety classifications since the 2010
RTOC assessment report. One new molecule HCFC-1233zd(E) is in this group of new refrigerants and
is an unsaturated HCFC (also referred to as HCFO) with potential to replace HCFC-123.
Approximately one quarter of the new refrigerants are blends which are replacements for HCFC-22.
Of the new refrigerants twelve are blends of saturated HFCs and unsaturated HFCs (HFOs) of which
seven blends are with class 2L flammability.
The new refrigerants address climate concerns, and ozone depletion concerns with replacement
refrigerants for ozone-depleting substances.
Domestic appliances
Under the domestic appliance category, the domestic refrigeration sub-sector is the major
component and comprises appliances that are broadly used domestically, such as refrigerators,
freezers and combined refrigerator/freezer products. Small beverage dispensing machines are similar
products and are commonly included in domestic refrigeration, but represent a small fraction of total
units.
Globally, new refrigerator production conversion from the use of ODS was essentially completed by
2008. HC-600a or HFC-134a continue to be the refrigerant options for new production. No other
new refrigerant has matured to become an energy-efficient and cost-competitive alternative.
Refrigerant migration from HFC-134a to HC-600a is expected to continue, driven either by local
regulations on HFCs or by the desire for reduced global warming impact from potential emissions.
Excluding any influence from regulatory interventions, it is still projected that by 2020 about 75%
of new refrigerator production will use HC-600a (possibly with a small share by unsaturated HFC
refrigerants) and the rest will use HFC-134a.
According to some industrial sources, initial developments to assess the use of HFC-1234yf in
domestic refrigeration have begun, but it is not being pursued with high priority, as in automotive
applications. Given the cost disadvantage, flammability and investment requirements for product
development, HFC-1234yf suffers significant disadvantages. With the lack of activity by
manufacturers, HFC-1234yf is not likely to displace HC-600a or HFC-134a in the foreseeable future.
Alternative refrigeration technologies for domestic refrigeration continue to be pursued for
applications with unique drivers such as very low noise, portability or no access to the electrical
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
21
energy distribution network. In the absence of unique drivers, no identified technology is cost or
efficiency competitive with conventional vapour-compression technology for mass-produced domestic
refrigerators.
The other domestic appliance covered in this chapter is the heat pump clothe (laundry) dryer
(HPCD). It is included in this chapter for the first time and the title has been accordingly modified as
“Domestic Appliances” instead of “Domestic Refrigerators” used earlier. The market for HPCD is
fast growing in the EU with manufacturers from both the EU and Japan. The current market share of
HPCDs in Article 5 countries is insignificant. These dryers mostly use HFC-134a as a refrigerant and
refrigerant charge amounts vary from 200 to 400 g. HPCDs using R-407C and HC-290 have also
been just introduced. Alternative low GWP refrigerant solutions are being explored, including
R-744, HC-600a and low GWP HFCs.
Non-Article 5 countries completed conversions of new equipment production to non-ozone depleting
substances (ODSs) more than 15 years ago. Later, a few Article 5 countries also completed their
conversion, e.g., India by 2003. Therefore, most products containing ozone depleting refrigerants are
now approaching the end of their life cycle. Field conversion to non-ODS refrigerants has significantly
lagged original equipment conversion. The distributed and individual proprietor character of the
service industry is a barrier to co-ordinated efforts to convert from ODS refrigerants. Field service
procedures typically use originally specified refrigerants. Refrigerant blends developed specifically for
use as drop-in service alternatives have had limited success.
Both mandatory and voluntary energy efficiency regulation programs catalysed industry product
efficiency development efforts. A number of improved energy efficiency design options are fully
mature, and future improvements of these options are expected to be evolutionary. Extension of
these to an all-global domestic market would yield significant benefit, but is generally constrained
by availability of capital funds and related product cost implications.
Commercial refrigeration
Commercial refrigeration can be broadly classified as three different groups of systems: centralised
systems (refrigerant is field charged) installed in supermarkets, condensing units (refrigerant is field
charged) installed mainly in small shops and restaurants, and self-contained or stand-alone units
(refrigerant is factory charged). On a global basis, HCFC-22 continues to represent a large refrigerant
bank in commercial refrigeration and is used at all temperature levels. The most widely used HFC is
R-404A and this for all temperature levels. Over the last decade, HCs --for low refrigerant charge
systems-- and CO2 --for supermarkets-- have taken significant market share, especially in Europe. In
parallel, progress has been made to improve energy efficiency and leak tightness especially for
centralized systems. The progressive phase-out of HCFC-22 in developing countries requires making
informed choices on the best replacement options.
Stand-alone Equipment: Even if they have very different GWPs, HFC-134a and R-404A can be
expected to be phased-out progressively in developed countries. Lower GWP HFC and HFC blends,
hydrocarbons and CO2 are replacing R-404A and HFC-134a in new stand-alone equipment.
Minimum energy standards have been issued or updated in many countries making a new competition
between manufacturers in order to reach higher energy efficiency in stand-alone systems.
Condensing Units: Condensing units are designed for several capacities and are standardized
equipment; their cooling capacities vary from 5 to 20 kW with a refrigerant charge varying from 1 to 5
kg. HCFC-22 is still the most used refrigerant in all Article 5 countries. For new systems, R-404A is
still the leading choice, and intermediate blends such as R-407A or R-407F are proposed as immediate
options to replace R-404A. Global companies are now offering hydrocarbon condensing units for
smaller capacities.
22
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Supermarket systems: The size of centralised systems can vary from refrigerating capacities of about
20 kW to more than 1 MW relative to the size of the supermarket. Refrigerant charges range from 40
up to 3000 kg per installation. In Article 5 countries, HCFC-22 is still the dominant refrigerant used in
centralised systems. In Europe, new systems have been mainly charged with R-404A; R-744 is now
taking a significant market share with improved energy efficiency by using two-stage systems, options
well known from industrial refrigeration. For small and medium size supermarkets, the so-called
“booster system” has been designed to use CO2 at the low and the medium temperature levels. For
large supermarkets, the cascade system is preferred with CO2 at the low temperature level and CO2 or
HFC-134a at the medium temperature level. Distributed systems are also quite common, gaining
market share with improved energy efficiency, lower charge levels and lower emission rates. Indirect
systems are also popular in order to limit the refrigerant content by more than 50% and to drastically
lower refrigerant emission levels. For developing countries, the important issue remains the
replacement of HCFC-22, either for retrofit or for new installations. Blends such as R-407A or R-407F
constitute options offering significantly lower GWP than R-404A and R-507A.
Industrial systems
The majority of large industrial systems use R-717 as the refrigerant. When R-717 is not acceptable in
direct systems in these countries, options include R-744 or glycol in secondary systems or HCFCs or
HFCs in direct systems. In countries where R-717 has not been the preferred solution, or in market
segments with smaller systems, the transition from HCFC-22 is not straightforward. It requires
acceptance of higher cost fluorocarbons in systems similar to the types used with R-22 or the adoption
of more expensive systems with the cheaper refrigerants R-717 and R-744. This transition is slow and
is constrained by a lack of trained personnel and lack of experience of the local end-users. It has been
facilitated by corporate policy from multinational food and beverage manufacturers. The process of
moving from HCFCs to zero ODP, low GWP alternatives would be accelerated by a concerted
education and training programme including operational experience and lessons learned from existing
systems. This conclusion has been reinforced by several recent fatal accidents in Article 5 countries.
These accidents appear to be caused by the acceptance of low standards of safety that would not be
acceptable in more mature markets. Suitable safety standards already exist, for example those
published by the International Organisation for Standardization (ISO).
In markets where R-717 is accepted as the preferred refrigerant there is no indication of any likelihood
of new refrigerants gaining any significant market share. It is self-evident that if the current range of
HFC fluids that could be used in these applications are being avoided due to concerns about refrigerant
price and long term availability in bulk quantities then new fluids, which are expected to be even more
expensive than current HFCs will not be any more successful. There are a few exceptions to this
general rule. For example, HFC-1234ze(E) has been demonstrated in large district heating systems as
a possible replacement for HFC-134a, however its performance is not any better than HFC-134a which
is already limited in application and efficiency compared for example with R-717. HFC-1234ze(E) has
also been demonstrated in centrifugal chillers which could be used in process cooling or in district
cooling installations. This may be a key player in addressing the challenge of rapid market growth in
the Gulf Co-operation Countries over the next twenty years.
The industrial sectors covered by this chapter are too diverse to facilitate the level of development
expenditure required to bring a new fluid to market. It therefore follows that if any new development
gains market share in industrial systems, it will be a fluid developed for some other purpose, either as
a refrigerant in smaller mass-market systems or as a foam-blowing agent, solvent or other specialty
chemical. Apart from absorption systems there is no significant growth of other not-in-kind cooling or
heating solutions.
Transport refrigeration
Transport refrigeration is a small segment comprising delivery of chilled or frozen products by means
of trucks, trailers, vans, intermodal containers and boxes. It also includes the use of refrigeration and
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
23
air conditioning on merchant, naval and fishing vessels above 100 gross tonnes (GT) (over about 24 m
in length).
Since 2010, most development has taken place in the intermodal container industry. Although many of
the lessons are applicable to road transport, differences between containers and road vehicles should
not be neglected, and may lead to different system solutions and (possibly) to different refrigerant
choices.
For new systems, hydrocarbons offer high energy efficiency, but the safety risks in transport
refrigeration applications appear significant and must be mitigated. On the other hand, R-744 has been
tested in the field since 2011. Its non-flammable characteristics make R-744 attractive, but the gap in
efficiency in high ambient temperatures and the limited component supply base are limiting its
penetration into the market.
Recently there has been an initiative to consider the design and service best practices for flammable
and high pressure refrigerants which it is hoped will lead to a fast track ISO standard on how these
refrigerants can be applied to intermodal container refrigeration. The framework of this initiative has
not yet been set.
In the case of a regulation banning the use of refrigerants above a certain GWP level (as in the EU),
HFC blends are likely to play a role as a retrofit to R-404A and (possibly) HFC-134a systems: their
GWP is significantly lower than R-404A and performances are relatively close. Candidates include but
are not limited to R-407A, R-407F, R-448A, R-449A and R-452A.
One also sees “non-conventional” solutions such as open loop systems or eutectic systems. These
solutions offer specific advantages in some transport routes, furthermore, the fact that vehicles are
HFC free and that the supporting installation can be HFC free will continue making them attractive.
New information about vessel type and existing refrigerant charge is provided based on the 2012 IMO
study. It appears that the differences in type are large and that segmentation will be needed in future.
The designers must factor in specific safety requirements, space and reliability, but in general, they
closely follow developments in industrial and air-conditioning systems.
Based on research, the road vehicle fleet size previously estimated at 4 million --in the 2006 and 2010
RTOC Assessment Reports-- has been downsized to 2 million. This changes the overall picture in that
the refrigerant banks in vessels almost double the banks in other transport sub-segments.
The bottom line is that while CFCs and HCFCs can still be found in older equipment, virtually all new
transport refrigeration systems continue to utilize HFCs, with a prevalence of HFC-134a and R-404A.
Some systems aboard vessels utilize HCFC-22 in both non-Article 5 and Article 5 countries.
Air-to-air air conditioners and heat pumps
On a global basis, air conditioners for cooling and heating (including air-to-air heat pumps) ranging in
size primarily from 2.0 kW to 35 kW (although in some cases up to over 750 kW) comprise a
significant segment of the air conditioning market. Nearly all air conditioners and heat pumps
manufactured prior to 2000 used HCFC-22. Most Article 5 countries continue to utilise HCFC-22 as
the predominant refrigerant in air conditioning applications, although several major producing
countries within Asia, Middle East and South America are now initiating HCFC Phase-out
Management Plans (HPMPs) to introduce non-ODS alternatives.
R-410A is the dominant alternative to HCFC-22 in air-conditioners and is being used in manufacturing
in most non-Article 5 and several Article 5 countries. This particularly is the case in China, where
there is a large export market satisfying demand in non-Article 5 countries. However, R-410A units
are not widely sold in the domestic market because of their higher cost. Whilst the use of R-407C in
new product designs was common early on because it required minimal design changes, it is currently
24
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
decreasing although it is still preferred in for regions with high ambient temperatures. The other main
alternatives under consideration are HC-290, HFC-32, R-744, HFC-161 and a number of blends of
HFCs and unsaturated HFCs such as R-444B, R-446A and R-447A (but also many currently without
R-number designations).
Except for R-744, all of the medium and low GWP alternatives are flammable and should be applied
in accordance with appropriate regulations and/or safety standards (that are continuously under
development), considering refrigerant charge amount, risk measures and other special construction
requirements. Some safety standards limit the system charge quantity of any refrigerant within
occupied spaces; in some countries the application of such guidelines are voluntary although in some
they are mandatory, whilst flammable gas regulations take precedence. Where national regulations
place controls on the use of flammable substances, they normally require a risk-based approach and do
not impose arbitrary charge size limits (e.g., EU Atex directive). Most manufacturers apply the safety
standards. Some countries are introducing bans on imports of HFC-containing air conditioners.
HC-290 and HC-1270 are mainly considered for systems with smaller charge sizes, whilst the
operating pressures and capacities are similar to HCFC-22 and the efficiency is higher than HCFC-22.
Split air conditioning systems using HC-290 have been available in Europe and Australia, are in
production in India and HCFC-22 equipment production capacity is being converted to HC-290 in
China (however, with limited output at present). R-744 is considered to have limited applicability for
air conditioning appliances in Article 5 countries, due to the reduced efficiency when the ambient
temperature approaches or exceeds about 31°C. There is continuing research on cycle enhancements
and circuit components, which can help improve the efficiency under such conditions, although they
can be detrimental to system cost. HFC-161 is currently under evaluation for systems with smaller
charge sizes due to flammability. The operating pressure and capacity is similar to HCFC-22 and the
efficiency is at least as high as HCFC-22, although there is concern over its stability. HFC-32 is
currently on the market for various types of air conditioners and has recently been applied in split units
in several countries and some OEMs are also considering it for other types of systems. The operating
pressure and capacity are similar to R-410A and its efficiency is similar or better than that of R-410A.
There are various proprietary mixtures targeted for air conditioning applications, which comprise,
amongst others, HFC-32, HFC-125, HFC-134a, HFC-152a, HFC-161, HFC-1234yf, HFC-1234ze,
HC-600a, HC-600, H-1270 and HC-290. Some mixtures have been assigned R-numbers, such as R444B, R-446A and R-447A, whilst most are still under development. These mixtures tend to have
operating pressures and capacities similar to HCFC-22 or R-410A, with GWPs ranging from 150 to
around 1000 and flammability class 1 (for higher GWPs) and class 2L (medium GWPs). Currently,
most of these mixtures are not commercially available on a broad scale and adequate technical data is
not yet in the public domain. Other low GWP single component HFCs, such as HFC-1234yf and HFC152a, are unlikely to be used extensively as a replacement for HCFC-22 in air conditioners principally
because of their low volumetric refrigerating capacity.
A major concern in some regions is the efficacy of the various alternatives to HCFC-22 in high
ambient conditions (particularly R-410A). Whilst this problem for R-410A can be addressed through
design and selection, work has fairly recently been carried out on a number of other alternatives, such
as HC-290 and some of the new blends of HFCs and unsaturated HFCs, that show that performance
degradation with higher ambient temperatures is similar to or not notably worse than with HCFC-22.
Another issue is the possible impact on required refrigerant charge, where hotter regions can imply
greater heat loads, larger system capacity and thus larger refrigerant charge; limits on refrigerant
charge may be approached at smaller capacities, where additional (safety) measures would then have
to be applied to the equipment. Systems using low-GWP refrigerants are not currently available for
large capacity systems in high ambient temperature regions.
Water heating heat pumps
Within the category of water heating heat pumps there are heat pump water heaters, space heating heat
pumps and combined space and hot water heat pumps. The required warm water temperature affects
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
25
the selection of refrigerant. Heat pump systems are more efficient at lower sink temperatures, but each
product must fulfil the required operating temperature. The main use of heat pumps is to replace fossil
fuel water heating systems. This is done with the purpose of reducing life time cost and/or to reduce
the impact of greenhouse gas emissions. To compete with fossil fuel water heating systems, cost and
energy efficiency are the most important factors and have direct impacts on the selection of the
refrigerant.
Most heat pumps commercialised today make use of non-ODS refrigerants. Refrigerants used are
R-410A, HFC-134a, R-407C, HC-290, HC-600a, R-717 and R-744. The majority of new equipment
uses R-410A. In some Article 5 countries, HCFC-22 is being used due to its favourable
thermodynamic properties and high efficiency. There are no technical barriers in replacing HCFC-22
by a non-ODS. The technical and process changes related to pressure, lubrication and contamination
control are well known. Replacements are commercially available, technically proven and energy
efficient. All replacements have a similar or lower environmental impact. R-410A has a slightly higher
GWP but the required charge is less than HCFC-22. The issue of high ambient temperature conditions
is of minor or no importance for water heating heat pumps. The main parameters to select the
alternatives and the main issue to switch over from HFCF-22 are efficiency, cost effectiveness,
economic impact, safe use and easiness of use. Replacements such as HFC-32 and other low-GWP
HFC blends are under way to become commercially available.
HFC-134a, R-744 and HFC blends R-407C, R-417A and R-410A are commercially available solutions
that have the highest grade of safety and easiness to use. R-410A is most cost effective for small and
medium size systems, while for large systems HFC-134a is most efficient. R-407C and R-417A are
the easiest alternatives for HCFC-22 from a design point of view, but cannot compete with the other
HFC-solutions.
Chillers
Chillers have low emission rates and low direct global warming impact. The issue, then, is to
determine which of the new refrigerants has high energy efficiency in chillers while being safe to use
and having acceptable application costs. Though most HFCs in use today are considered to have
relatively high GWPs, this is not a governing factor for chillers because emissions are minimal.
The required global phase-out of HCFCs and the need to manage the lifetime operation of HCFCbased equipment, coupled with concerns to reduce global warming, continue to drive the transition
from ozone depleting substance (ODS) refrigerants. The refrigerants that were used in the transition
generally were HFCs with global warming potentials (GWPs) that are sufficiently high to cause
environmental concerns, so a second transition has begun. Major efforts have been launched to
propose and test new, lower GWP refrigerants to replace higher GWP refrigerants. A number of
candidates have been proposed and are in the early stages of testing as possible replacements for
higher-GWP HFCs.
The new candidates generally are unsaturated HFCs or blends which may contain HFCs, HCs, and/or
unsaturated HFCs. A number of the new candidates have an A2L safety rating which is associated
with flammability. They have a low flame velocity, distinguishing them from more flammable
chemicals such as propane (HC-290). It is too early to tell which lower-GWP refrigerants will be
successful as replacements for the higher GWP HFCs now in use. The parameters to be sorted out
require balancing energy efficiency, flammability (including application standards and regulations),
GWP values, cost, worldwide availability, retrofit considerations, and level of system design
complexity that is required to use the new candidates successfully.
Vehicle air conditioning
In spite of existing regulations in the US (supporting the use of low-GWP refrigerants) and legislation
in Europe (banning the use of refrigerants with GWP > 150), the overwhelming majority at present
26
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
(year 2014) of the newly sold passenger cars and light trucks worldwide are still equipped with air
conditioning systems, which use HFC-134a as refrigerant.
At the end of 2014 it looks likely that more than one refrigerant will be used in the coming years for
car and light truck air conditioning: HFC-134a will remain largely adopted worldwide, HFC-1234yf
will continue its growth in new models at least in the near future, other new low GWP synthetic
refrigerants or refrigerant blends (e.g. R-445A) may be implemented and R-744 is expected to be
implemented by 2017. All options have GWPs below the EU threshold and can achieve fuel
efficiencies comparable to modern HFC-134a systems. Currently it cannot be forecast whether or not
all these refrigerants will see parallel use in the market for a long period of time. It is also unclear
whether the bus and train sector will follow these trends.
The global warming impact is almost identical for the above mentioned refrigerant options when
considered on a global basis and in comparison to the CO2 tailpipe emissions. Adoption of any of the
refrigerant choices would therefore be of similar environmental benefit. The decision of which
refrigerant to choose will have to be made based on other considerations. Here, especially safety, cost,
and system reliability are important concerns, but also other aspects have to be taken into account, like
regulatory approval, heat pump capability, suitability for hybrid electric vehicles, servicing, and risk of
illegal use of high-GWP refrigerants in systems designed for low-GWP refrigerants. In the year 2012,
HFC-1234yf seemed to be the worldwide accepted alternative to HFC-134a. However, based on new
findings regarding the on-the-road flammability of HFC-1234yf (classified as A2L) most German
OEMs abandoned this option and decided to further develop and eventually use R-744 in their future
air conditioning systems. Further, one Japanese OEM decided to not use HFC-1234yf on the European
market. Similar to the 2012 acceptance of HFC-1234yf, these decisions are subject to change as the
OEMs continue their pursuit of alternative refrigerants to meet regulatory requirements and other
concerns mentioned above.
Owing to safety concerns hydrocarbons and their blends are not considered as viable refrigerant
options by OEMs. Although HFC-1234yf is also flammable, it has a lower heat of combustion,
burning velocity and minimum ignition energy compared to hydrocarbons, and has been the subject of
several safety assessments by OEMs and other research bodies. Today, some OEMs use HFC-1234yf
as refrigerant in some of their car models.
OEMs and suppliers do also work on future not-in-kind refrigeration concepts. However, the
development status of such refrigeration technologies, like sorption, thermoelectric or magneto caloric
systems, are still far away from serial production and presently show very poor price competitiveness
and poor system performance and efficiency. These concepts are briefly discussed in Annex C of this
report.
The increasingly rapid evolution of hybrid electric vehicles and electric vehicles with reversible air
conditioning and heat pump cycles, which use semi hermetic electrically driven compressors
introduces new challenges for any new alternative refrigerant.
At present, no regulations exists that control the use of fluorinated greenhouse gases as refrigerants for
MAC systems in buses and trains. It is likely that the choice of refrigerant of passenger car air
conditioning systems, as well as developments in the stationary heat pump market, will influence the
choice of refrigerant for air conditioning systems in buses and trains.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
27
Sustainable refrigeration
Refrigeration, air conditioning, and heat pump equipment are vital means for sustainability to
address the fundamental needs of humans in areas such as food conservation, food security,
healthcare, water heating, and thermal comfort worldwide. There are, however, a number of
negative environmental impacts from the use of this equipment that need to be minimized through
careful consideration of design, operation, and end of life aspects of these equipment and the
refrigerants they use.
The most relevant environmental impacts can be minimized by:
a. The use of assessment tools enabling manufacturers to plan for continual improvement of
the design and operation of their equipment. A number of available assessment tools are
referenced in this chapter.
b. The careful choice of refrigerants with lower environmental impact, both direct (due to
chemical composition) and indirect (such as use of energy and materials). The wide range
of gases already available in the market, as well as those in the development process,
stresses the need of conveying updated, unbiased information to both product designers,
service technicians, and users through initiatives fostered by local governments and
industry associations.
c. The proper management of the selected refrigerants in response to growing environmental,
regulatory, and economic concerns associated with refrigerant emissions, through:
Charge minimization through simple measures such as checking the amount of
refrigerant being charged, or by innovative technologies such as cascade systems and
secondary loops;
Improved design for leak tightness;
Care taken during manufacturing, installation, service, and maintenance;
Refrigerant conservation, using commercially available equipment for recovery,
recycling and recovery, as well as destruction of refrigerants at the end of life.
d. The reduction of CO2 emissions from energy use, achievable through:
Minimum energy efficiency performance standards applied through national
regulation;
The use of renewable energy sources; and
Better energy management related to smart grid technologies, waste energy analysis,
heat recovery, and anti-cyclical storage.
e. The adoption and enforcement of responsible national and regional policies, legal
requirements, and voluntary initiatives aiming to reduce refrigerant emissions through ban
on venting and other measures.
f. Environmentally sound end-of-life procedures in response to the growing demand of
national and regional regulations.
28
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 1
__________________________________________________________
Introduction
Chapter Lead Authors
Lambert Kuijpers
Roberto de A. Peixoto
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
29
30
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
1
Introduction
1.1
Montreal Protocol developments
In 1981, the United Nations Environment Programme (UNEP) began negotiations to develop
multilateral protection of the ozone layer. These negotiations resulted in the Vienna
Convention for the Protection of the Ozone Layer, adopted in March 1985. In September
1987, 24 nations, amongst which the United States, Japan, the Soviet Union, certain country
members of the European Community, the developing countries Egypt, Ghana, Kenya,
Mexico, Panama, Senegal, Togo and Venezuela, as well as the European Community, signed
the Montreal Protocol on Substances that Deplete the Ozone Layer. The Montreal Protocol
entered into force on January 1, 1989. This international environmental agreement originally
limited production of specified CFCs to 50 percent of the 1986 levels by the year 1998 and
called for a freeze in production of specified halons at 1986 levels starting in 1992. By April
1991, 68 nations had already ratified the Protocol: these countries represented over 90 percent
of the 1991 world production of CFCs and halons.
Shortly after the 1987 Protocol was negotiated, new scientific evidence conclusively linked
CFCs to the depletion of the ozone layer and indicated that depletion had already occurred.
Consequently, many countries called for further actions to protect the ozone layer by
expanding and strengthening the original control provisions of the Montreal Protocol, and
they decided that a first assessment should be carried out in the year 1989. Numerous
assessments followed.
The 23rd Meeting of the Parties, held in Montreal in Bali, Indonesia, November 2011,
considered the 2010 Assessment Reports, next to a large number of other issues. Parties
decided to request the Assessment Panels to update their 2010 reports in 2014 and submit
them to the Secretariat by 31 December 2014 for consideration by the Open-ended Working
Group and by the Twenty-Seventh Meeting of the Parties in 2015 (MOP-27). In the relevant
Decision (XXIII/11), the Parties also requested the TEAP (and its TOCs) in paragraph 6 to
consider potential areas of focus:
(a) The impact of the phase-out of ozone-depleting substances on sustainable development,
particularly in Parties operating under paragraph 1 of Article 5 and countries with
economies in transition;
(b) Technical progress in all sectors;
(c) Technically and economically feasible choices for the reduction and elimination of
ozone-depleting substances through the use of alternatives, taking into account their
impact on climate change and overall environmental performance;
(d) Technical progress on the recovery, reuse and destruction of ozone-depleting
substances;
(e) Accounting for: the production and use in various applications of ozone-depleting
substances; ozone-depleting substances in inventories; ozone depleting substances in
products; and the production and use in various applications of very short-lived
substances;
(f) Accounting of emissions of all relevant ozone-depleting substances with a view to
updating continuously use patterns and co-ordinating such data with the Scientific
Assessment Panel in order periodically to reconcile estimated emissions and
atmospheric concentrations.
Together with the Science and Environmental Effects Assessment reports, the 2014 TEAP
Assessment Report --together with the 2014 TOC Assessment Reports-- forms the direct
response to the above-mentioned decision.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
31
1.2
The UNEP Technology and Economic Assessment Panel
Four Assessment Panels were defined in the original Montreal Protocol as signed 1987, i.e.
Assessment Panels on (1) Science, and on (2) Environmental Effects, (3) a Technical
Assessment and (4) an Economics Assessment Panel. The Panels were established in 198889; their Terms of Reference can be found in the Meeting Report of the 1st Meeting of the
Parties, held in Helsinki in 1989. Under the Technical Assessment Panel five Subsidiary
Bodies, the so called Technical Options Committees were defined (see Meeting Report of the
First Meeting of the Parties in Helsinki). The Technical and Economics Assessment Panels
were merged after the Meeting in London in 1990 to the Technology and Economic
Assessment Panel. At the Meeting in Copenhagen, it was decided that each Assessment Panel
should have up to three co-chairs, with at least one from an Article 5 country. After the
discussions on methyl bromide held at the meeting in Copenhagen, the Methyl Bromide
Technical Options Committee was founded at The Hague in early 1993. From 1993 until
2001, the UNEP Technology and Economic Assessment Panel (TEAP) had 7 standing
Technical Options Committees (TOCs). In 2001, the Economics Options Committee was
disbanded, which resulted in a number of 6 Committees. In 2005, the Aerosols TOC and the
Solvents TOC were disbanded, and a new Medical TOC and a Chemicals TOC were formed
by merging certain parts of the Aerosols and the Solvents TOC, and replenishing the
membership with additional, new experts. Currently there are the following TOCs:
1. Chemicals Technical Options Committee
2. Flexible and Rigid Foams Technical Options Committee
3. Halons Technical Options Committee
4. Medical Technical Options Committee
5. Methyl Bromide Technical Options Committee
6. Refrigeration, A/C and Heat Pumps Technical Options Committee
Where, originally, the Panels were considered as the bodies that should carry out assessments
pursuant to Article 6 under the Montreal Protocol (at least every four years), it is particularly
the TEAP that has become a “standing advisory group” to the Parties on a large number of
Protocol issues. The evolving role of the TEAP -and its Technical Options Committees and
other temporary Subsidiary Bodies- can be explained by the fact that the focus of the
Montreal Protocol has shifted from introducing and strengthening control schedules (based
upon assessment reports) to the control of the use of controlled chemicals and to compliance
with the Protocol. This implies the study of equipment, of use patterns, of trade, imports and
exports etc. In the case of the Medical and the Methyl Bromide Technical Options
Committees, the emphasis of the work has largely shifted to the evaluation and
recommendation of certain essential (MTOC) and critical (MBTOC) use applications.
At the MOP-19 in Montreal an important Decision was taken on the accelerated phase-out of
HCFCs in Article 5 countries. In the decision, a reduction schedule for production and
consumption was defined for the period 2013-2030, with a freeze in 2013 and a servicing tail
until 2040. Apart from the specific percentages, the decision mentioned:
“….To encourage Parties to promote the selection of alternatives to HCFCs that minimize
environmental impacts, in particular impacts on climate, as well as meeting other health,
safety and economic considerations” and
“….To agree that the Executive Committee, when developing and applying funding criteria
for projects and programmes, and taking into account paragraph 6, give priority to costeffective projects and programmes which focus on, inter alia:
32
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
“Phasing-out first those HCFCs with higher ozone-depleting potential, taking into account
national circumstances”, and
“Substitutes and alternatives that minimize other impacts on the environment, including on
the climate, taking into account global-warming potential, energy use and other relevant
factors.”
In this decision it became clear that climate considerations, i.e., a focus on substitutes with an
overall low climate impact, became very important in the conversion away from HCFCs.
As a first consequence of Decision XIX/6, the Parties requested the TEAP and its RTOC in
Decision XIX/8, to report on the status of substitutes and alternatives to HCFCs under high
ambient conditions. The report was done by a Subcommittee of the RTOC, and submitted to
Parties in a preliminary form in 2009 and in its final form in 2010.
In 2008, Parties requested the TEAP and its committees, in Decision XX/8, to look at the
status of alternatives in the different sectors and subsectors, as covered by the six Technical
Options Committees. In a report by a Task Force, a large amount of material was
summarised; this report also contained updated information on banks and emissions from all
sectors, including refrigeration, AC and heat pumps as well as foams. In 2009, in Decision
XXI/9, on HCFCs and environmentally sound alternatives, Parties requested the TEAP to
update the information from the XX/8 report, and to report on the status of low GWP
alternatives for the replacement of HCFCs, and to report on the comparison of performances
of high and low GWP alternatives. TEAP established again a Task Force, which reported on
the definition of the term “low-GWP” and “high-GWP”, and particularly on the 2009/2010
status of (low GWP) substitutes and alternatives to HCFCs in all sectors and subsectors. In
2011, 2012, 2013, the Parties requested a number of Task Force reports under Decisions
XXIII/9, XXIV/7 and XXV/5. It should be noted that the request in Decision XXIII/9 was
made in parallel with the request for new assessment reports to be submitted by the end of
2014, requesting information on the costs of alternatives to HCFCs, on alternatives that were
technically proven, economically viable, environmentally benign, and which could be used in
high ambient temperature conditions.
The information requested for these Task Force reports was very much related to the
information requested on how to deal with a conversion from ODS (particularly HCFCs) to
environmentally sound alternatives (which definition includes low global warming
characteristics). For the report under Decision XXIV7, Parties requested to update
information on alternatives, but also to identify barriers and restrictions to the adoption of
environmentally sound alternatives, as well as an estimation of the approximate amount of
alternatives with negative environmental impacts that could be avoided. The Task Force
XXIV/7 report elaborated on the methodological approach, gave a long description of the
alternatives that would be environmentally sound, in particular for the RAC, foams, as well as
the fire protection and solvents sectors. It also determined amounts on alternatives with
negative environmental impacts that could be avoided (e.g. it was estimated that, integrated
over the period 2013-2020, 15% could be avoided in the RAC sector).As a result of this
XXIV/7 reporting, in 2013, the Parties requested a new report under Decision XXV/5. The
Terms of Reference mentioned that it should report on (1) alternatives that should be
commercially available, technically proven and environmentally sound, easy and safe to use
(also in high urban densities), alternatives that would be economically viable and cost
effective. It also mentioned to again report on the suitability of alternatives under high
ambient temperature conditions. The decision also requested to assess the economic costs,
implications and environmental benefits of various scenarios of avoiding high GWP
alternatives. The decision further asked to expand on the demand issue and to report on
scenarios for the current and future demand of alternatives.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
33
The XVV/5 reported in two steps, with a draft report for the OEWG in 2014 and a final report
for the MOP of the Parties in that same year. The report presented a long list of alternatives
available and alternatives that would become available, it listed GWPs and costs for
alternatives as far as information was available and mentioned information related to the
operation under high ambient conditions -- where available. It reported on alternatives and
future developments for the refrigeration, AC, foams, fire protection, medical uses and
solvents sectors.
The XXV/5 report also presented demand scenarios for the period up to 2030 for
environmentally sound alternatives to ODS for the sectors refrigeration and AC and foams.
BAU scenarios were defined for non-Article 5 and Article 5 Parties, and it was decided to
present two mitigation scenarios for the demand, based upon bans for certain refrigerant
(blowing agent) chemicals in certain years. In these scenarios it was shown that the demand in
the RAC sector was very much dominant over the demand in other sectors. The assumption of
two types of mitigation scenarios showed that the growth of high global warming alternatives
could be curbed. This would be possible with certain plausible (partly already ongoing)
measures in non-Article 5 countries. Furthermore, stringent (but still plausible) measures as of
2020-2030 could lead to a real reduction of the demand for non-environmentally benign
alternatives during the period 2020-2030 in Article 5 countries.
As an example, the XXV/5 Task Force reported that the first (MIT-1) scenario could
cumulatively deliver a saving of 3,000 Mtonnes CO2-eq. by 2030 and that the second (MIT-2)
could deliver 11,000 Mtonnes CO2-eq over that same time period.
As a result of the discussions concerning the information provided in the XXV/5 report,
Parties requested an update of the report via Decision XXVI/9. This report is expected to be
delivered by a TEAP Task Force in the course of 2015, that is, after that this 2014 Assessment
Report has been published. Amongst other information, the XXVI/9 report will use
information from the XXV/5 Task Force report and from the RTOC 2014 Assessment Report.
The information collected for the various Task Force reports mentioned above (XXIII/9,
XXIV/7 and XXV/5) has, of course, been used in the preparation of the 2014 TOC
Assessment Reports, in particular for the 2014 RTOC Assessment Report. The final versions
of the Task Force reports are available on the Internet (http://www.unep.org/ozone).
Where Terms of Reference for the TEAP and its TOCs had been drafted in 1996, Parties, in
Decision XXII/22, requested the TEAP to report on guidelines for nominations, on the
appropriate expertise when appointing members etc. The report by TEAP resulted in Decision
XXIII/10 (2011), which requested the Panel to update information on nominations and
operational procedures of the TEAP and its technical committees, also related to the duration
of appointments and various other procedures. Delivery of the TEAP XXIII/10 report resulted
in a new Decision XXIV/8 (2012), which gave –in an 8 page long description- (updated)
Terms of Reference, a code of conduct and disclosure and conflict of interest guidelines for
the TEAP and its technical options committees and temporary subsidiary bodies. Decision
XXV/6 requested information on issues such as the implementation as well as the proposed
configuration of the TOCs as of 1/1/2015; it also requested to streamline annual progress
reporting. In its future operations, after delivery of this 2014 Assessment report, the RTOC
will consider all elements that have been mentioned in these decisions, when deciding on the
organisation of the Refrigeration, AC and Heat Pumps Technical Options Committee, its size,
expertise and further operational procedures.
The 2014 Technical and Economic Assessment has been carried out by the Technology and
Economic Assessment Panel and its six Technical Options Committees. The six Committees
consisted of more than 120 experts from a large number of countries (for a list, see the annex
34
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
to the Technology and Economic Assessment Panel Report 2014). The 2014 Refrigeration,
AC and Heat Pumps Assessment forms an important part of all the 2014 Assessment efforts.
Most Technical Options Committee reports (including the 2014 Refrigeration, AC and Heat
Pumps Assessment Report) have been subject to a peer review before final release. The final
version of the reports will be distributed internationally by UNEP and will also be available
on the Internet (http://www.unep.org/ozone).
1.3
The Technical Options Committee Refrigeration, A/C and Heat Pumps
This Technical Options Committee Assessment Report on Refrigeration, A/C and Heat
Pumps (hereafter called “RTOC Assessment Report”) forms part of the UNEP review
pursuant to Article 6 of the Montreal Protocol.
It is part of the 2014 assessment work of the Technology and Economic Assessment Panel
(requested by the Parties in Montreal (Decision XXIII/11)). The information collected
(particularly in the form of the Executive Summaries) will also be part of the Technology and
Economic Assessment Report 2014, as well as the overall 2014 Synthesis Report composed
by the three Assessment Panel co-chairs, the beginning of 2015.
The 2014 RTOC Assessment Report has been drafted in the form of a number of chapters.
There are chapters on refrigerants and their properties, on the different R/AC application areas
and one chapter on sustainable refrigeration. The structure of the report was chosen more or
less similar to the structure of the 2010 RTOC Assessment Report.
Table 1-1: "Member countries" of UNEP's Refrigeration, A/C and Heat Pumps Technical
Options Committee
Belgium
Brazil
China
Croatia
Czech Republic
Denmark
Egypt
France
Germany
India
Jamaica
Japan
Lebanon
Netherlands
Norway
South Africa
United Kingdom
United States
Each of the chapters was developed by 2-6 experts in the specific sector, and the chapter was
chaired by a Chapter Lead Author - who did the larger part of the drafting and the coordination.
The 2014 RTOC included 40 representatives from Asian, European, Middle-East, Latin and
North American companies, universities and governments, as well as independent experts
(see Table 1-1). These representatives have been full (reporting) members; as resource
persons the RTOC also had a small number of reviewing members.
Affiliations of the members are listed in Table 1-2 (40 organisations (including consultancies)
were involved in the drafting of the report). The names and contact details of all members are
given as an appendix to this RTOC Assessment Report.
Several drafts of the report were made, reviewed by the separate chapters and discussed in
five RTOC meetings (outline August 2011, preliminary draft May 2013, a draft December
2013, a draft May 2014, a draft September 2014, the peer review draft October 2014 and a
final report December 2014).
A preliminary committee meeting was held in Prague (during the IIR congress), August 2011.
Drafting and reviewing meetings were held in France (Paris), May 2013, Canada (Montreal),
December 2013, Italy (Torino), May 2014, and Germany (Karlsruhe), December 2014.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
35
Table 1-2: Affiliations of the members of UNEP's Technical Options Committee on
Refrigeration, A/C and Heat Pumps
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
A/genT Consultancy (Tech. Univ., Eindhoven)
Alaa Olama Consultancy
Bassam Elassaad, Consultant
Bitzer Industries
Braunschweig University
Carrier Corporation
CRT Cambridge
Daikin Europe N.V.
Danfoss
Danish Technological Institute
Devotta Consultancy, Chennai
EREIE Consultancy, Palaiseau
Emerson
Fiat Ricerche Torino
GEA Industries, Consultant
General Electric, Consumer and Industrial
Indian Institute of Technology Delhi
Ingersoll Rand
James M. Calm, Engineering Consultant
Johnson Controls
Johnson Controls
JRAIA
Karlsruhe University of Applied Sciences
Maua Institute of Technology
Nelson Consultancy
Panasonic
Petra Industries
Ref-tech Engineering
Re/genT b.v.
Re-phridge Consultancy
Shanghai JiaoTong University
SINTEF Energy Research, Trondheim
Star Refrigeration
Sun Yat-sen University, Guangzhou
The Trane Company
University of Zagreb
U.S. Environmental Protection Agency
Vodianitskaia Hapy Consultancy
Zhejiang University, Hangzhou
Netherlands
Egypt
Lebanon
Brazil, U.S.A.
Germany
U.S.A.
UK
Belgium
Denmark
Denmark
India
France
U.S.A.
Italy
South Africa
U.S.A.
India
Czech Republic
U.S.A.
Denmark
U.S.A.
Japan
Germany
Brazil
Jamaica
Japan
Jordan
Germany
Netherlands
United Kingdom
P.R. China
Norway
United Kingdom
P.R. China
U.S.A.
Croatia
U.S.A
Brazil
P.R. China
The report has been peer reviewed by a number of institutions and associations, plus some
experts in their personal capacities, each of them reviewing the different chapters sections in a
co-ordinated effort in a tight timeframe, i.e., between the last week of October and the end of
November 2014 (see Table 1-3 for the organisations and experts involved, total 20). Peer
review comments were collected and sorted out, and subsequently sent to all RTOC members.
All peer review comments were studied and sorted for a study by the Chapter Lead Authors
before the RTOC Meeting in December 2014. The RTOC members in plenary decided on
36
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
whether or not to amend the text on the basis of the peer review comments during the RTOC
meeting in Karlsruhe, Germany, December 2014.
The RTOC greatly acknowledges the voluntary support given by the peer review institutions
and the experts in their personal capacities.
Table 1-3: Organisations that participated in the peer review of the UNEP RTOC
Assessment Report
AIRAH
AHRI
AREMA
CAR
CHEAA
CRAA
DKV
EIA
EPEE
Eurammon
JRAIA
IIR
IOR
Refrigerants Naturally
SAE
Shecco
WSC
Lundqvist
Polonara
Roke
Australian Institute of Refrigeration, Air Conditioning and Heating
Air Conditioning, Heating and Refrigeration Institute
AC and Refr Equipment Manufacturers Association of Australia
Chinese Association of Refrigeration
China Household Electric Appliances Association
Chinese Refrigeration and Air Conditioning Association
German Refrigeration Association
Environmental Investigation Agency
European Partnership for Environment and Energy
European Industry Association for Ammonia etc.
Japanese Refrigeration and Air-conditioning Industry Association
International Institute of Refrigeration
Institute of Refrigeration UK
A global not-for-profit initiative of companies to combat climate
change and ozone depletion (by substituting fluorocarbons)
Society of Automobile Engineers (via members Atkinson, Hill)
A Market Development Expert helping companies to bring their climate
friendly solutions faster to market
World Shipping Council
Personal Review (KTH Stockholm, Sweden)
Personal Review (Universita delle Marche, Italy)
Personal Review (Fisher and Paykel, New Zealand)
1.4
Refrigeration, air conditioning and heat pumps
1.4.1
General remarks
Refrigeration, air conditioning and heat pump applications represent more than 70% of the
ODS and replacement substances used; it is also one of the most important energy using
sectors in the present day society. Estimates are difficult to give but as an average for the
developed countries, its share in electricity use is thought to vary between 10 and 30%.
The economic impact of refrigeration technology is much more significant than generally
believed; 300 million tonnes of goods are continuously refrigerated. While the yearly
consumption of electricity may be huge, and where the investment in machinery and
equipment may approach US$100,000 million, the value of the products treated by
refrigeration either alone will be four times this amount. This is one of the reasons that
economic impacts of the phase-out of refrigerant chemicals (such as CFCs in the past, and
HCFCs in Article 5 countries in the foreseeable future) have been and still are difficult to
estimate.
Refrigeration and air conditioning applications vary enormously in size and temperature level.
A domestic refrigerator has an electrical input between 50-250 W and contains less than 30150 g of refrigerant (dependent on the type of refrigerant), whereas industrial refrigeration
and cold storage is characterised by temperatures between -10 C and -40 C, with electrical
inputs up to several MW and refrigerant contents of many hundred kilograms. Air
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
37
conditioning and heat pumps may show evaporation temperatures between 0 C and +10 C,
significantly different from refrigeration applications, and vary enormously in size and input.
In principle one can therefore discriminate between four main areas which each have
subsectors: (i) the food chain in all its aspects, from cold storage via transport to domestic
refrigeration, (ii) process air conditioning and refrigeration, (iii) comfort air conditioning,
from air cooled equipment to water chillers, including heat pumps, and (iv) mobile air
conditioning, with very specific, different aspects. This is one of the reasons that all the
equipment is considered in this report in a large number of separate chapters or sections.
Options and aspects for the refrigeration vapour compression cycle deserve most attention,
since it is unlikely that during the next 10-20 years other principles will take over a substantial
part of the market. In all application sectors described in the separate chapters in this report,
most of the attention is focused on the vapour compression cycle. As stated, this cycle has so
far provided the simplest (?), economic, efficient and reliable way for refrigeration (this
includes cycles using ammonia, fluorochemicals and hydrocarbons as refrigerants).
The process of selecting a refrigerant for the vapour compression cycle is rather complex,
since a large number of parameters need to be investigated concerning their suitability for
certain designs, including:
- thermodynamic and transport properties;
- temperature ranges
- pressure ratios
- compressor requirements;
- material and oil compatibility;
- health, safety and flammability aspects;
- environmental parameters such as ODP, GWP and atmospheric lifetime.
These selection criteria were elaborated upon in various chapters of various UNEP RTOC
Assessment Reports, and these selection criteria have not changed during the last years. Since
then, it is the emphasis on the emissions of greenhouse gases that has increased; this can be
directly translated to thermodynamic efficiency and quality of the equipment (leakage of
refrigerant).
The future of mankind, and his food supply in particular, depends on the availability of
sufficient energy and on the availability of efficient refrigeration methods. Of course, this
aspect must be more than balanced by a concern for the conservation of the biosphere,
including in particular the global warming effect. Energy efficiency, therefore, is one of the
most important aspects.
1.4.2
Long term options and energy efficiency
CFC production has been phased out since a decade in the developed countries, and the CFC
phase-out in the developing countries, which was scheduled for 2010, has been completed.
Where HCFCs have been largely phased out in the developed countries, the phase-out in the
Article 5 countries is now asking full attention. In both developed and developing countries,
HFCs have so far been important substitutes for CFCs and HCFCs. In many applications,
alternatives to HCFCs have become commercially available, as pure HFCs, as blends of
HFCs or as non-HFC alternatives. Therefore, HFCs have gained a large share of the
replacement market. In particular the necessary incentives remain to be provided to Article 5
countries to transition from HCFCs to non-HCFC refrigerants, which will include both HFCs
and non-fluorocarbon alternatives.
38
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
It should be noted, however, that the changing refrigerant options are only part of the driving
force for innovations in refrigeration and A/C equipment. Innovation is an ongoing
independent process, which has to take into account all the environmental issues involved.
In the long term, the role of non-vapour compression methods such as absorption, adsorption,
Stirling and air cycles etc. may become more important; however, vapour compression cycles
are thought to remain the most important candidates.
For the long term, there remain, in fact, only five important different refrigerant options for
the vapour compression cycle in all refrigeration and A/C sectors, listed alphabetically:
•
•
•
•
•
ammonia (R-717);
carbon dioxide (R-744);
hydrocarbons and blends (HCs, e.g. HC-290, HC-600a, HC-1270 etc.);
hydrofluorocarbons (unsaturated HFCs (HFOs) with a four digit number, HFCblends with 400 and 500 number)
water (R-718).
The five refrigerant options above are in different stages of development or
commercialisation. Although high GWP HFCs are (still) widely used in many sectors, low
GWP HFCs and low GWP HFC blends are now increasingly being applied. Ammonia and
hydrocarbons enjoy growth in sectors where they can be easily accommodated, and for certain
applications, CO2 equipment is being further developed and a large number of CO2
demonstration installations have been extensively tested on the market. It may well be that
CO2 will take a substantial part of the commercial refrigeration equipment market. Water is
used and may see some increase in use in limited applications. Work is being done by several
committees in developing standards to permit the application of new refrigerants, and it is the
intent of companies to reach world-wide accepted limits in those different standards.
Similarly, energy efficiency research is partly spurred by the role of energy production in
carbon dioxide emissions. Options for energy efficient operation of equipment form an
important issue in each of the chapters of this 2014 RTOC Assessment report.
1.4.3
Set up of the 2014 RTOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 2 presents refrigerants and all their aspects. It elaborates on Ozone Depleting
Potentials, and on ODP and GWP data for reporting purposes. It also investigates the status
and research needs for data, i.e., thermophysical, heat transfer, compatibility and safety data.
Chapters 3, 4, 5 and 6 deal with the food chain and investigate the technical feasibility of
options. They all consider non-ODP options and deal with aspects such as the use of nonfluorochemicals, the reduction of charges, energy efficiency improvements etc. Particularly
the energy efficiency aspect plays an important role in chapter 3 on domestic refrigeration.
Chapter 4 discusses the options for the 3 types of commercial refrigeration equipment.
Chapter 5 deals with industrial refrigeration and cold storage, chapter 6 with transport
refrigeration. Chapters 7 and 8 deal with air conditioning and heat pumps. Chapter 9 deals
with the various aspects of chillers, which includes important considerations on energy
efficiency. Chapter 10 describes the options for mobile air conditioning; in a first instance, it
deals extensively with HFC-134a, but it also evaluates the potential the options carbon
dioxide, hydrocarbons, the unsaturated HFCs (i.e., HFC (HFO)-1234yf) and other options will
have. Chapter 11 deals with sustainability issues in refrigeration.
All chapters have drafted an executive summary; these summaries were put together and are
presented in the first part of the report. The executive summaries are preceded by a shortened
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
39
(“abstract”) executive summary (e.g. for policy makers) which has been abstracted from the
separate executive summaries. This is again preceded by key messages derived from the
abstract executive summaries.
40
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 2
__________________________________________________________
Refrigerants
From June 2014:
Chapter Lead Author
Asbjørn Vonsild
Co-Authors
Denis Clodic
Daniel Colbourne
Until June 2014:
Chapter Lead Author
James M.Calm
Co-Authors
Glenn Hourahan (non-RTOC)
Asbjørn Vonsild
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
41
42
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
2
Refrigerants
2.1
Introduction
Since the 2010 assessment report 21 refrigerants obtained standardized designations and
safety classifications. One new molecule, HCFC-1233zd(E), can be found in this group of
new refrigerants; it is an unsaturated HCFC (HCFO) with potential to replace HCFC-123.
Approximately a quarter of the new refrigerants are blends which are replacements for
HCFC-22. Twelve of the new refrigerants are blends of high global warming potential (GWP)
saturated HFCs and low GWP unsaturated HFCs (HFOs), and seven of these blends are with
class 2L flammability.
The search for new refrigerants addresses both climate and ozone concerns, in particular by
reducing the GWP of the refrigerant and replacing ozone-depleting substances.
The search for new refrigerants addresses both climate concerns and ozone depletion
concerns, in particular by reducing the GWP of the refrigerants and replacing ozone-depleting
substances, such as HCFC-22.
2.1.1
Refrigerant progression
The historic progression of refrigerants encompasses four phases based on defining selection
criteria (Calm, 1997; Calm, 2012):
1830s-1930s – whatever worked: primarily familiar solvents and other volatile fluids
including ethers, ammonia (NH3, R-717), carbon dioxide (CO2, R-744), sulphur dioxide
(SO2, R-764), methyl formate (HCOOCH3, R-611), HCs, water (H2O, R-718), carbon
tetrachloride (CCl4, R-10), hydrochlorocarbons (HCCs), and others; many of them are
now regarded as “natural refrigerants” (more exactly non-fluorinated since nearly all
actually are synthesized, refined, or at least industrially purified).
1931-1990s – safety and durability: primarily chlorofluorocarbons (CFCs),
hydrochlorofluorocarbons (HCFCs), ammonia, and water (mostly used in absorption
cycles).
1990-2010s – stratospheric ozone protection: primarily HCFCs (for transition use),
hydrofluorocarbons (HFCs), ammonia, water, hydrocarbons, and carbon dioxide.
Beyond 2012 – global warming mitigation: to be determined, but likely to include
refrigerants with very low (< 10-3) or no ozone depletion potential (ODP), low global
warming potential (GWP), and high efficiency; likely to include, at least initially,
unsaturated hydrofluorocarbons (hydrofluoroolefins, HFOs discussed below), ammonia,
carbon dioxide, hydrocarbons and water.
2.1.2
Unsaturated hydrofluorochemicals
Facing regulatory pressures to eliminate refrigerants with high GWPs, the major refrigerant
manufacturers have pursued unsaturated fluorochemicals. They are chemicals consisting of
two or more carbon atoms with at least one double bond between two or more of them as well
as fluorine, hydrogen, and possibly also chlorine or other halogens. Unsaturated fluorocarbons
also are identified as fluoro-alkenes or fluoro-olefins. Double carbon-carbon bond(s) make(s)
the compounds more reactive. The result is short atmospheric lifetimes and, thereby, very low
ODPs and GWPs.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
43
The unsaturated HFC (also identified as hydrofluoro-alkene or hydrofluoro-olefin, HFO)
family is a focal example with varying extents of halogenation, in part, as a trade-off between
flammability associated with a lower degree of stability and high GWP associated with a
higher degree of stability. Chemical producers are pursuing alternatives for the most widely
used low-, medium-, and high-pressure refrigerants.
In the naming of unsaturated halocarbons the prefix for unsaturated HCFC, and unsaturated
HFC can alternatively be chosen to be HCFO and HFO respectively, where the O replaces the
carbon C (ISO 817:2014). In this report the prefix used is the default HCFC and HFC
respectively.
The extent of long- term acceptability of unsaturated HFCs or more broadly unsaturated
hydro-halochemicals is uncertain, though a number of initial studies looking at the
trifluoroacetic acid (TFA) build up resulting from the use of unsaturated HFCs in mobile airconditioning indicate manageable environmental impacts (Kajihara, 2010; Luecken, 2010;
Papasavva, 2009).
2.1.3
Recent assessment on current and future refrigerants and GWP
There are a number of studies providing assessments of a broad number of alternative
refrigerants.
For example, the AHRI Low-GWP Alternative Refrigerants Evaluation Program
(AHRI/AREP) phase 1 evaluated more than 30 new refrigerants (AHRI, 2013), most of them
blends and most of them based on unsaturated HFCs mixed with traditional HFCs. The
refrigerant categories and corresponding 100 year GWP values are given in Table 2-1
(calculated based on the GWP values of Table 2-7).
Table 2-1: 100 year GWPs for AHRI/AREP alternative refrigerants
Safety Class
A1
A2L
A3
Range of GWP for Alternatives to
HFC-134a
HCFC-22, R-404A,
R-407C, and R-507A
540 – 900
950 – 1600
≤ 110
200 – 970
14 – 20
1,8 – 5
R-410A
280 – 740
This table illustrates the relationship between the pressure and the flammability of a fluid,
although it can be argued that not all the proposed R-410A replacements have high enough
capacity to be considered replacements for R-410A. There is a clear trend that the higher the
pressure the higher the minimum GWP that is needed for pure compounds or blends to be
non-flammable. The above also gives a good estimate of which levels of GWP are to be
expected for various capacity/pressure levels for a given flammability class.
Another recent study (McLinden, 2014) started with a database of 100 000 000 chemicals,
screening the more than 56 000 small molecules and finding non ideal. The conclusion is that
the perfect cheap, energy efficient, non-toxic, non-flammable, and broadly applicable
refrigerant with negligible GWP does not exist, and is highly unlikely to come into existence.
2.1.4
Flammable refrigerants and Safety classification
ISO 817 (ISO 817:2014) and ASHRAE 34 (ASHRAE 34-2013) assigns a safety class for each
refrigerant, for instance “A2L”. The first letter of the safety class describes the toxicity, A for
lower level of toxicity and B for higher level of toxicity, while the second part is the
44
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
flammability of the refrigerant: 1 (no flame propagation), 2L (lower flammability), 2
(flammable), and 3 (higher flammability) (Table 2-2; see the annex to this chapter for addition
details).
Table 2-2: Safety classifications
Flammability
Toxicity
A
B
1
A1
B1
2L
A2L
B2L
2
A2
B2
3
A3
B3
As mentioned above, there is a trade-off between GWP and flammability. A low GWP can be
achieved by having the refrigerant break down quickly in the atmosphere, however this also
means that the refrigerant breaks down easier when subjected to ignition sources. For many
applications, flammability is a new aspect to take into account when designing systems.
Although safety standards are not strictly mandatory in most countries, they are one source
where the industry looks for guidance for handling the flammability. For instance, ISO 5149
(ISO 5149:2014) Part 1 describes limits to charge amount depending on system type, system
location, and accessibility by people unaccustomed with the safety procedures relating to the
system. Local legislation will also have an influence, for instance national legislation and
building codes. The requirements for flammable refrigerants are very similar across the
different flammability classes, the different flammability properties result in different risks
(probabilities) and consequences; therefore varying refrigerant charges and thereby system
designs for each refrigerant. Further discussion is included in the annex to this chapter.
It is still not clear for all applications whether flammability will be accepted for each level of
cooling or heating capacity needed, and how the various markets will split-up with regard to
the classes of flammability. The acceptance of flammable refrigerants and the appropriate
updates of standards and legislation is clearly a contemporary challenge for the refrigeration
air conditioning, and heat-pump industry.
2.1.5
Climate impact metrics for refrigerants
The most popular metric for indicating the climate impact of refrigerant emissions is 100 year
GWP, which is the integrated radiative forcing over a 100 year time horizon of 1 kg of
refrigerant emitted to the atmosphere. Some parties advocate use of GWP values for shorter
or longer integration time horizons or various instantaneous or sustained metrics such as the
global temperature potential (GTP) (Shine, 2005; Hodnebrog, 2013; see §8.7 of (IPCC, 2014)
for detailed discussions of instantaneous GTP and sustained GTP).
In this chapter both 20 year GWP and 100 year GWP values are listed. The advantage of 20
year GWP over 100 year GWP is that a 20 year time horizon seems more relevant when
discussing the climate change in the coming decades and it is also better at differentiating
between substances with short life times.
The advantage of using 100 year GWP is that it is more commonly used and the popularity of
a metric is important to the efficiency of communicating the climate impact. Also the 100
year GWP is better at differentiating between substances with longer lifetimes, although this
seldom applies to currently used non-ODS refrigerants. An example is PFC-116 and HFC143a; the difference in 20 year GWP is less than 20% while the difference in 100 year GWP
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
45
is more than a factor of 2. As long lived substances can be used in small amounts in blends
with short lived substances to create lower GWP blends, using 20 year GWP may lead to
decisions favouring the shorter term at the cost of the longer term.
A classification of 100 year GWP levels which is a slight modification of the proposal in the
previous RTOC report (UNEP, 2011) is given in Table 2-3. A complication of naming a
substance as low GWP or high GWP is that the climate impact is the product of the GWP and
the amount (in kg) emitted, so even though CO2 is classified in Table 2-3 as ultra-low GWP,
the amount emitted by the human civilization is large enough to give a significant climate
impact. Table 2-3 categorizes using “less than” or “more than” and this enables a refrigerant
such as HFC-1234yf to have ultra-low, very low, and Low GWP at the same time. Likewise a
refrigerant such as HFC-23 has ultra-high, very high, and high GWP. The purpose of this
feature is to allow simple references to all refrigerants below or above a given limits.
Table 2-3: Classification of 100 year GWP levels
100 Year GWP
Classification
< 30
Ultra-low or Negligible
< 100
Very low
< 300
Low
300-1000
Medium
> 1000
High
> 3000
Very high
> 10000
Ultra-high
For gases with lifetimes of a century or more the uncertainties are of the order of ±20% and
±30% for 20- and 100-year horizons. For shorter lived gases the uncertainties in GWPs will
be larger (IPCC, 2014). This is one reason why care must be taken when comparing the GWP
of refrigerants. For substances with very low GWP the picture is further complicated since,
for historical reasons, GWPs for hydrocarbons are indirect GWPs, which include breakdown
products such as CO2, as opposed to the GWPs for HCFCs, HFCs etc., which do not cover
breakdown products.
When comparing carbon emissions associated with the use of refrigerants, care must be
taken to also include a comparison of energy efficiency of the refrigerant in the given
application. Emissions from energy production may have a greater climate impact than the
refrigerant emissions only. For further discussion see chapter 11.
2.1.6
ODP and GWP data for regulatory and reporting purposes
The ODP and GWP data presented in this chapter are based on international scientific
assessments and reflect the latest consensus determinations on potential impacts. However,
the reduction requirements and allocations under the Montreal Protocol, emission reductions
and reporting pursuant to the Kyoto Protocol, and provisions in many national regulations
pursuant to them use older, adopted values.
Table 2-4 compares the latest consensus ODP data (WMO, 2014) and (WMO, 2011) to the
“regulatory” ODPs used in the Montreal Protocol (UNEP, 2012). Table 2-5 similarly contrasts
the latest consensus GWPs, for a 100 year integration, with those used for reporting and
emission reductions under the Kyoto Protocol from IPCC (1995).
46
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Table 2-4: Scientific and regulatory ODPs for selected BFC, BCFC, CFC, and HCFC
refrigerants
Refrigerant
ODP
(WMO, 2014)
(WMO, 2011)
Reporting
(UNEP, 2012)
CFC-11
1,0
1,0
1,0
CFC-12
0,73
0,82
1,0
BCFC-12B1
6,9
7,9
3,0
CFC-13
1,0
BFC-13B1
15,2
15,9
10,0
HCFC-22
0,034
0,04
0,055
CFC-113
0,81
0,85
0,8
CFC-114
0,50
0,58
1,0
CFC-115
0,26
0,57
0,6
0,01
0,02
HCFC-123
HCFC-141b
0,102
0,12
0,11
HCFC-142b
0,057
0,06
0,065
Table 2-5: Scientific and regulatory GWPs for 100 year integration for selected
refrigerants
Refrigerant
GWP
(WMO, 2014)
PFC-14
(IPCC, 2014)
(WMO, 2011)
Reporting
(IPCC, 1995)
6630
7 390
6 500
HFC-23
12 500
12 400
14 200
11 700
HFC-32
704
677
716
650
11 100
12 200
9 200
PFC-116
HFC-125
3 450
3 170
3 420
2 800
HFC-134a
1 360
1 300
1 370
1 300
HFC-143a
5 080
4 800
4 180
3 800
HFC-152a
148
138
133
140
8 900
8 830
7 000
3 350
3 580
2 900
HFC-236fa
8 060
9 820
6 300
PFC-C318
9 540
10 300
8 700
1
1
1
PFC-218
HFC-227ea
R-744 (CO2)
3 140
1
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
47
2.1.7
Selection of refrigerant
There are several factors that should be considered when selecting an alternative refrigerant
for refrigeration, air conditioning and heat pump systems and applications. These include:
Zero ODP
Climate Change impact (reduced direct and indirect emissions)
Performance (capacity and efficiency)
Safety, including flammability and toxicity
Impact on product cost
Availability and cost of the refrigerant
Skills and technology required to use
Recyclability
Stability
The selection of a refrigerant for a given application will be a compromise of the above
criteria. Other than zero ODP, the rest of the parameters will to be traded-off against one
another to arrive at the optimum for each type of system and application. In particular the
carbon emissions include both the “direct” and “indirect” contribution of the product over its
life time. A number of approaches have been documented in the literature including: Total
Equivalent Warming Impact (TEWI), Life Cycle Climate Performance (LCCP), Multilateral
Fund Climate Impact Indicator (MCII) and other methods.
For new refrigerants for existing systems, there are a number of criteria that should be
achieved in order for a suitable refrigerant to be selected. In summary, with respect to the
refrigerant being replaced, these are:
As close a volumetric refrigerating capacity over the range of normal operating
evaporator and condenser temperatures;
Does not lead to lower energy efficiency;
Does not exceed the condensing pressure at maximum condenser temperature;
As close a match to the temperature glide, or negligible temperature glide if the original
was a single component;
Similar oil solubility and miscibility gap;
Non-flammable or not higher flammability;
Lower toxicity or not higher toxicity;
Commercial availability of refrigerant (with reasonable cost).
There are a number of other parameters that should be considered. However, in practical
terms it is unlikely that any of the commercially available refrigerants can meet all of the
above criteria and therefore some compromise should be anticipated.
A refrigerant that is capable of replacing an existing refrigerant without changing any major
components, including the oil, is sometimes referred to as a drop-in refrigerant. The term
drop-in is somewhat misleading, as safety standards require the system to be upgraded to the
latest safety requirements for any change of refrigerant type, and the trade-offs mentioned
above may affect the performance and durability of the system.
48
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
2.1.8
HCFC-22 replacements
The challenge of reducing the use of HCFC-22 has led to the development of refrigerants
specifically designed to replace HCFC-22 in existing equipment or replace HCFC-22 in new
systems without the need for significant design changes.
A main differentiator between the HCFC-22 replacements is whether the refrigerant is
miscible with the mineral oil often used with HCFC-22.
The refrigerants which are more miscible with mineral oil typically contain a minute amount
(< 4%) of hydrocarbon to increase the miscibility and help the oil return to the compressor.
These refrigerants typically have safety classification A1 and include: R-417A, R-417B, R417C, R-422A, R-422B, R-422C, R-422D, R-422E, R-424A, R-425A, R-428A, R-434A, R438A, and R-442A.
The refrigerants that are designed to fit the thermodynamic properties of HCFC-22
refrigerants, but not to be used with the mineral oil often used with HCFC-22 includes: R404A, R-407A, R-407B, R-407C, R-407D, R-407E, R-407F, R-421A, R-421B, R-427A, R444B, and R-507A. While they typically have the safety classification A1, some of the more
recent HCFC-22-like blends (specifically R-444B) have the safety classification A2L.
When changing refrigerant in a system there is always recommended to check gaskets,
elastomeric seals, and other materials for compatibility with the new refrigerant, and there is a
risk that exposure to HCFC-22 has changed the properties of polymer materials to the point
where they will not function correctly or exasperate leakage after a refrigerant change. There
may also be a need for other system modifications to reach an acceptable energy efficiency
and capacity. See also the discussion in 2.1.7 on a general discussion about replacing one
refrigerant with another in existing systems.
For new systems, there are several other options for replacing HCFC-22 with system designs
adapted to e.g. R-717, R-744, HCs, HFCs, or other newly developed molecules.
2.2
Refrigerant descriptions
The most important refrigerants discussed in this report are described briefly below in Table
2-6. The list is in numerical order and is meant to serve as a quick reference as it does not
cover all aspects of the selected refrigerants.
The refrigerants are single component for refrigerant designation numbers below 400 and
from 600 and up, while designation numbers in the 400’s and 500’s are mixtures of two or
more components. The 400 series are blends with a temperature glide, known as zeotropes. If
the glide is large then exchangers need to be designed suitably to take this into account. The
500 series are blends, which are azeotropic at some condition, thus inferring with negligible
temperature glide and change in composition between the liquid and vapour phases.
The safety class according to ISO 817 (ISO 817: 2014) of each refrigerant is stated, and
where ISO 817 does not list the refrigerant, the safety class is taken from ASHRAE 34
(ASHRAE 34-2013). Where dual classification exists, the higher (i.e. more conservative)
class is given.
Table 2-6: Description of selected refrigerants
CFC-11
CFC-11 was introduced in 1932 as a replacement to flammable and or toxic
refrigerants used at the time and gained popularity in Centrifugal chillers
(Calm, 1997) and was widely used as a solvent and a blowing agent. CFC-11 is
classed as an A1 refrigerant and is the reference substance for ODP and has a
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
49
defined ODP of 1. It is a low pressure refrigerant, with similar pressure as
HCFC-123, and has often been replaced with this refrigerant.
CFC-12
CFC-12 was introduced in 1931 as a replacement to flammable and or toxic
refrigerants used at the time (Calm, 1997) and has been popular in both
refrigeration applications and chillers for air-conditioning. CFC-12 is classed as
an A1 refrigerant, and has high ODP, almost as high as CFC-11. The pressure
is similar to HFC-134a, which replaced it in many applications.
HCFC-22
HCFC-22 was originally used for low temperature refrigeration and later airconditioning, and is today the most popular HCFC refrigerant. It is classed as
an A1 refrigerant and is the most used refrigerant in the world for commercial
refrigeration, industrial processes, and mainly air-to-air air conditioning
systems. The HCFC-22 bank is estimated to be 1,6 million metric tonnes at the
global level. The energy efficiency of this refrigerant became a reference for
the validation of its substitutes: R-404A in commercial and industrial
refrigeration and R-407C and R-410A in air conditioning. HCFC-22 has a
medium pressure similar to R-404A and R-407C, and as seen in section 2.2.2
below, alternatives to HCFC-22 has been getting attention in the industry.
HFC-32
HFC-32 was originally used as a component of refrigerant blends such as R407C and R-410A. Pressure and capacity are around 1.5 times higher than
HCFC-22 and slightly higher than R-410A. It is classed as A2L. The efficiency
of HFC-32 systems are higher than R-410A but less than HCFC-22. Discharge
temperatures are higher than R-410A and HCFC-22 and thus some mitigation
device or controls may be necessary for handling the discharge temperature of
the compressor especially at high ambient temperatures.
HCFC-123
HCFC-123 is mainly used in centrifugal chillers and is classed as a B1
refrigerant. HCFC-123 is a low-GWP HCFC refrigerant, but since it is an ODS
it is being phased-out under the Montreal Protocol.
HFC-125
HFC-125 is used as a component of refrigerant blends such as R-404A and R410A to lower discharge temperature and reduce flammability from other
components.
HFC-134a
HFC-134a is used in a variety of equipment including heat pumps, chillers,
mobile air conditioning and domestic refrigeration and has a pressure lower
than HCFC-22 and similar to CFC-12. It is classed as an A1 refrigerant. Energy
efficiency is good, provided that pipes and heat exchangers are suitably sized.
HFC-152a
HFC-152a has performance characteristics similar to HFC-134a as well as 10%
lower vapour pressure and volumetric refrigeration capacity. It is classed as an
A2 refrigerant. HFC-152a is used as a component in several new blends.
HFC-161
HFC-161 has with zero ODP and very low GWP of 4 (IPCC, 2014) and it is
under evaluation to replace HCFC-22 in small air conditioning unit. It is not yet
classified in ISO 817 (ISO 817: 2014) or ASHRAE 34 (ASHRAE 34-2013) but
is likely to be classified A3. Performance is similar to HCFC-22 and HC-290.
The lower flammability limit is about 4 times higher than for HC-290 allowing
for a higher charge to be used and thereby higher cooling capacity to be
achieved compared with a system using HC-290.
HFC-245fa
HFC-245fa has found limited use in centrifugal chillers, high temperature heat
pumps, and organic Rankine cycle (ORC) power generation cycles and is
50
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
classified as B1. Because the high temperature heat pump and ORC are still
emerging markets the use may increase. It has operating pressures higher than
for HCFC-123 but lower than for HFC-134a.
HC-290
HC-290 has thermodynamic properties similar to HCFC-22, although slightly
lower pressure and capacity. It is classified as A3. Due to its excellent
thermophysical properties the efficiency is good under most conditions,
including high ambient, as well as having low discharge temperatures. It is the
most frequently used hydrocarbon refrigerant in air conditioning applications. It
is also used as a major component in many HC blends.
R-404A
R-404A is used widely in commercial refrigeration systems, and is classified as
A1. The efficiency is acceptable. A major advantage of R-404A is the low
discharge temperature, which makes it possible to have a high temperature lift
in a single stage system, hence it being the primary substitute for R-501. R404A is also used in industrial refrigeration, especially when R-717 is not
desired for safety or technical reasons. R-404A and R-507A are very similar in
composition and performance parameters.
R-407A
R-407A is a mixture of the same components of other 407 refrigerants but in
slightly different proportions. It was originally developed to replace HCFC-22
and is now used as a replacement for R-404A. It is classified as A1. The
efficiency is acceptable and better than R-404A. However, its moderate
temperature glide and higher discharge temperature needs to be taken into
account.
R-407C
R-407C is a mixture of the same components of other 407 refrigerants but in
slightly different proportions. It has been used widely in air conditioning,
chiller and heat pump systems, especially to help the transition from HCFC-22.
It is classed as A1. The efficiency is acceptable and better than R-404A.
However, its moderate temperature glide and higher discharge temperature
needs to be taken into account.
R-407F
R-407F is a mixture of the same components of other R-407 refrigerants but in
slightly different proportions. It is used as a replacement for R-404A. It is
classified as A1. The efficiency is acceptable and better than R-404A.
However, its moderate temperature glide and higher discharge temperature
needs to be taken into account.
R-410A
R-410A is used widely in air conditioning, chiller and heat pump systems and
is classified as A1. The pressure of R-410A is higher than HCFC-22, the R-407
series and R-404A. Generally the efficiency is equivalent to HCFC-22,
especially at lower temperatures, although efficiency and capacity deteriorates
at a greater rate at higher ambient temperatures.
R-417A
R-417A is mainly designed to replace HCFC-22 as a “drop-in” in airconditioning systems, but is also utilised in refrigeration and heat pump
applications in existing systems as well as in new equipment. It is classified A1
and has a higher GWP than HCFC-22.
R-444A
R-444A is a replacement for HFC-134a and is classified as A2L. It has
efficiency, capacity and operating pressures close to HFC-134a.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
51
R-444B
R-444B can replace HCFC-22 in new AC equipment without major
modifications as its pressures are similar. It is classified as A2L. R-444B
matches the capacity of HCFC-22 with a marginally lower efficiency although
relative performance can be better in high ambient climates.
R-445A
R-445A is a replacement for HFC-134a and is classified as A2L. It has been
tested in mobile air conditioning systems where its energy efficiency and
capacity are close to HFC-134a and HFC-1234yf. Its temperature glide is about
twice that of R-407C, which may influence system design.
R-446A
R-446A can replace R-410A in AC equipment and is classified as A2L.
Efficiency of R-446A systems is comparable to R-410A whilst the capacity is
lower than R-410A and discharge temperatures are slightly higher. Due to its
relative higher critical point compared to other refrigerants, R-446A performs
well at high ambient temperatures.
R-447A
R-447A can replace R-410A in AC equipment and is classified as A2L. The
efficiency of R-447A systems is at the same level as R-410A, the capacity is
slightly lower and discharge temperatures are slightly higher than R-410A. Due
to its relative higher critical point compared to other refrigerants, R-447A
performs well at high ambient temperatures.
R-448A
R-448A can replace R-404A in existing and new refrigeration equipment and is
classified as A1. This refrigerant has capacity and efficiency similar to R-404A.
However, its notable temperature glide may influence system design.
R-449A
R-449A can replace R-404A in new refrigeration equipment and is classified as
A1. This refrigerant has a capacity marginally higher than R-404A and a
slightly better efficiency.
R-450A
R-450A can replace HFC-134a in new equipment, where its lower volumetric
capacity can be addressed in the design of the equipment. It is classified as A1.
When used in reciprocating or scroll compressors, this refrigerant produces
efficiency levels comparable to HFC-134a, although the capacity is lower.
R-507A
R-507A is used widely in commercial refrigeration systems, and is classified as
A1. The efficiency is acceptable. A major advantage of R-507A is the low
discharge temperature, which makes it possible to have a high temperature lift
in a single stage system (thus being adopted as a replacement for R-502). It is
also used in industrial refrigeration, especially when R-717 is not desired for
safety or technical reasons. R-404A and R-507A are very similar in
composition and performance parameters.
HC-600a
HC-600a is a low pressure hydrocarbon refrigerant classified as A3. The
operating pressures and capacity is less than half that of HFC-134a, whilst
efficiency is good. It is used extensively for small refrigeration systems such as
domestic refrigeration and small commercial systems. It is also used as a
component in many HC blends.
R-717
R-717 (ammonia, NH3) is classified as B2L. In principle, it has thermophysical properties that lead to excellent efficiency. The vapour pressure and
refrigerating capacity is similar to HCFC-22. However, R-717 has a very high
discharge temperature, so for lower temperature applications two-stage-
52
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
compression is normally needed. It is not practically compatible with copper
and copper alloys, which limits the system to welded steel or aluminium
components and piping. The application of R-717 in small to large absorption
systems is also wide spread.
R-718
R-718 (Water, H2O) is used as refrigerant in vapour compression cycles at very
low pressures, high compression ratios and high volumetric flow rates, leading
to larger system sizes and a cost premium. It has also been tested for high
temperature heat pumps with promising results, especially when it can be
integrated in direct vapour compression cycles. It is also used in adsorption
chillers, coupled with widely available adsorbents such as silica gel and zeolite,
and in absorption systems either with LiBr as absorbent, or as absorbent of
ammonia.
R-744
R-744 (carbon dioxide, CO2) is classified as A1, and has thermo-physical
properties that lead to good efficiency for certain levels of temperatures (such
as for refrigeration range). The vapour pressure is several times greater than
usual refrigerants and the volumetric refrigerating capacity is correspondingly
higher for conditions below 25°C. However, with a very low critical
temperature, the cycle efficiency declines as the temperature before the
expansion device increases and other features are needed to achieve similar (to
HCFC-22) efficiency values at higher ambient conditions. Compared to a basic
cycle, 10–20% energy efficiency improvement can be achieved by applying an
ejector instead of an ordinary expansion device (Hafner, 2012) although using
an expander alone can bring the efficiency to within 10% of HCFC-22
(Subiantoro, 2013). Other features to help improve efficiency in high ambient
conditions include economiser (parallel compression), liquid-suction heat
exchange and mechanical subcooling. Also, discharge temperatures are very
high and therefore, where the high temperature cannot be utilised, technology
options such as additional compression stages and inter-cooling may be
adopted in the system design. These additional features add to the complexity
and cost of the system.
HCFC1233zd(E)
HCFC-1233zd(E) is an unsaturated HCFC and has similar pressure to that of
HCFC-123. It is classified as A1. When used with centrifugal compressors, this
refrigerant produces efficiency levels similar to HCFC-123, allowing the design
of systems with very high energy efficiency.
HFC1234yf
HFC-1234yf is an unsaturated HFC and can replace HFC-134a in same systems
since the pressure-temperature characteristics are almost identical, It is
classified as A2L. In general this refrigerant produces efficiency levels
comparable to HFC-134a although the theoretical COP is a few percent below
that of HFC-134a.
HFC1234ze(E)
HFC-1234ze(E) is an unsaturated HFC and can replace HFC-134a in new
equipment where its lower volumetric capacity can be addressed in the design
of the equipment. It is classified as A2L.
HC-1270
HC-1270 is an unsaturated hydrocarbon with a vapour pressure and capacity
almost identical to HCFC-22. It is classified as A3 and also has a distinctive
odour. Due to its excellent thermophysical properties the efficiency is good
under most conditions, including high ambient, as well as having low discharge
temperatures.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
53
2.3
Data summary
This section summarizes physical, safety, and environmental data for refrigerants with a
safety classification in ISO 817 (ISO 817:2014) or ASHRAE 34 (ASHRAE 34-2013).
Table 2-7 covers single component refrigerants; Table 2-8 is the summary for zeotropic
refrigerant blends, while Table 2-9 covers azeotropic refrigerant blends.
Table 2-7: Data summary for single component refrigerants
LFL (kg/m3)
Safety Class
Atmospheric
Lifetime (Years)
Radiative Efficiency
(W/m/ ppm)
GWP 100 Year
GWP 20 Year
NF
A1
52
0,26
5 160
7 090
0,088
NF
A1
102
0,32
10 300 10 800
ODP
ATEL/ODL (kg/m3)
Boiling Point (°C)
Molecular Weight
Chemical Name
Chemical Formula
Refrigerant
Designation
0,006 2
Methane series
CFC-11
CCl3F
CFC-12
CCl2F2
CFC-13
CClF3
BFC-13B1
CBrF3
PFC-14
CF4
HCFC-22
CHClF2
HFC-23
CHF3
HCC-30
CH2Cl2
HFC-32
CH2F2
HC-50
CH4
trichlorofluoromethane 137,4 24
dichlorodifluoromethane 120,9 -30
chlorotrifluoromethane 104,5 –81
ND
NF
A1
640
0,25
13 900 10 900
148,9 –58
ND
NF
A1
72
0,30
6 670
7 930
88,0 -128
0,40
NF
A1 50000
0,09
6 630
4 880
chlorodifluoromethane
86,5
-41
0,21
NF
A1
12
0,21
1 780
5 310
trifluoromethane
dichloromethane
(methylene chloride)
difluoromethane
(methylene fluoride)
70,0
-82
0,15
NF
A1
228
0,18
12 500 10 800
84,9
40
ND
NF
B1
0,4
0,03
9
33
52,0
-52
0,30
0,307 A2L
5,4
0,11
704
2 530
ND
0,032 A3
12,4 3,63e-4
30
85
bromotrifluoromethane
tetrafluoromethane
(carbon tetrafluoride)
methane
16,0 –161
1
0,73
1
15,2
0,034
Ethane series
CFC-113
CCl2FCClF2
CFC-114
CClF2CClF2
CFC-115
CClF2CF3
PFC-116
CF3CF3
HCFC-123
CHCl2CF3
HCFC-124
CHClFCF3
HFC-125
CHF2CF3
HFC-134a
CH2FCF3
HCFC-142b
CH3CClF2
1,1,2-trichloro-1,2,2187,4 48
trifluoroethane
1,2-dichloro-1,1,2,2170,9 4
tetrafluoroethane
chloropentafluoroethane 154,5 -39
hexafluoroethane
2,2-dichloro-1,1,1trifluoroethane
2-chloro-1,1,1,2tetrafluoroethane
pentafluoroethane
0,02
NF
A1
93
0,30
6 080
6 560
0,81
0,14
NF
A1
189
0,31
8 580
7 710
0,5
540
5 780
0,26
0,76
NF
A1
0,20
7 310
138,0 -78
0,68
NF
A1 10000
0,25
11 100 8 210
152,9
27
0,057
NF
B1
1,3
0,15
79
292
0,01
136,5 -12
0,056
NF
A1
5,9
0,20
527
1 870
0,02
120,0 -49
0,37
NF
A1
31
0,23
3 450
6 280
0,21
NF
A1
14
0,16
1 360
3 810
0,10
0,329 A2
18
0,19
2 070
5 140
0,48
0,282 A2L
51
0,16
5 080
7 050
0,14
0,130 A2
1,6
0,10
148
545
5,5
20
0,02
1
1
HFC-143a
CH3CF3
1,1,1,2-tetrafluoroethane 102,0 -26
1-chloro-1,1100,5 -10
difluoroethane
1,1,1-trifluoroethane
84,0 -47
HFC-152a
CH3CHF2
1,1-difluoroethane
66,1
-25
HC-170
CH3CH3
ethane
30,1
-89
CH3OCH3
methoxymethane
(dimethyl ether)
46,1
-25
0,079
188,0 -37
0,34
NF
A1
2600
0,28
8 900
6 640
170,0 -16
0,19
NF
A1
36
0,26
3 140
5 250
152,0
-1
0,34
NF
A1
242
0,24
8 060
6 940
134,0
15
0,19
NF
B1
7,9
0,24
882
2 980
0,038 A3
12,5
days
5
18
0,008 6 0,038 A3
Ethers
HE-E170
0,064 A3 0,015
Propane series
PFC-218
CF3CF2CF3
HFC-227ea
CF3CHFCF3
HFC-236fa
CF3CH2CF3
HFC-245fa
CHF2CH2CF3
HC-290
54
CH3CH2CH3
octafluoropropane
1,1,1,2,3,3,3heptafluoropropane
1,1,1,3,3,3hexafluroropropane
1,1,1,3,3pentafluoropropane
propane
44,1
-42
0,09
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
0,057
Cyclic organic compounds
PFC-C318
-(CF2)4-
octafluorocyclobutane
200,0
-6
58,1
0
0,65
NF
A1
3200
0,32
9 540
7 110
4
15
~20
74
~20
74
~20
74
1
1
3,7
14
0,04
1
5
0,02
<1
1
0,04
<1
4
1,8
6,6
Hydrocarbons
HC-600
HC-600a
HC-601
HC-601a
CH3CH2CH2CH3 butane
2-methylpropane
CH(CH3)2CH3
(isobutane)
CH3CH2CH2Pentane
CH2CH3
CH(CH3)2CH2- 2-methylbutane
(isopentane)
CH3
0,002 4 0,038 A3
58,1
-12
0,059
0,043 A3
72,2
36
0,0029 0,035 A3
72,2
27
0,0029 0,038 A3
6,0
days
3,4
days
3,4
days
Inorganic compounds
R-702
H2
Hydrogen
2,0
-253
R-704
He
Helium
4,0
-269
A3
R-717
NH3
Ammonia
17,0
-33 0,000 22 0,116 B2L
R-718
H2O
Water
18,0
100
NF
A1
R-720
Ne
Neon
20,2 -246
NF
A1
R-728
N2
Nitrogen
28,0 -196
NF
A1
R-740
Ar
Argon
39,9 -186
NF
A1
R-744
CO2
carbon dioxide
44,0 -78c
NF
A1
NF
0,072
A1
1,37e-5
Unsaturated organic compounds
HC-1150
HCFC1233zd(E)
CH2=CH2
ethene (ethylene)
28,1 –104
trans-1-chloro-3,3,3130,5 18,1
trifluoro-1-propene
2,3,3,3-tetrafluoro-1114,0 -29,4
propene
trans-1,3,3,3-tetrafluoro114,0 -19,0
1-propene
CF3CH=CHCl
HFC-1234yf CF3CF=CH2
HFC1234ze(E)
CF3CH=CHF
HC-1270
CH3CH=CH2
propene (propylene)
42,1
-48
ND
0,036 A3
26,0
0
NF A1
days
10,5
0,47 0,289 A2L
days
40,4
0,28 0,303 A2L
days
0,35
0,001 7 0,046 A3
days
0,000 34
Table 2-8: Data summary for zeotropic refrigerant blends
Refrigerant
Designation
Refrigerant
Composition
(Mass %)
Molecular
Weight
Bubble Point/
Dew Point (°C)
ATEL/ODL
(kg/m3)
LFL (kg/m3)
Safety Class
GWP 100 Year
GWP 20 Year
ODP
R-401A
R-22/152a/124 (53,0/13,0/34,0)
94,4
-34,4/-28,8
0,10
NF
A1
1 100
3 500
0,02
R-401B
R-22/152a/124 (61,0/11,0/28,0)
92,8
-35,7/-30,8
0,11
NF
A1
1 200
3 800
0,03
0,02
R-401C
R-22/152a/124 (33,0/15,0/52,0)
101
-30,5/-23,8
0,083
NF
A1
880
2 800
R-402A
R-125/290/22 (60,0/2,0/38,0)
101,5
-49,2/-47,0
0,27
NF
A1
2 700
5 800
0,01
R-402B
R-125/290/22 (38,0/2,0/60,0)
94,7
-47,2/-44,9
0,24
NF
A1
2 400
5 600
0,02
R-403A
R-290/22/218 (5,0/75,0/20,0)
92
-44,0/-42,3
0,24
0,480
A2
3 100
5 300
0,03
R-403B
R-290/22/218 (5,0/56,0/39,0)
103,3
-43,8/-42,3
0,29
NF
A1
4 500
5 600
0,02
R-404A
R-125/143a/134a (44,0/52,0/4,0)
97,6
-46,6/-45,8
0,52
NF
A1
4 200
6 600
R-406A
R-22/600a/142b (55,0/4,0/41,0)
89,9
-32,7/-23,5
0,14
0,302
A2
1 800
5 000
R-407A
R-32/125/134a (20,0/40,0/40,0)
90,1
-45,2/-38,7
0,31
NF
A1
2 100
4 500
R-407B
R-32/125/134a (10,0/70,0/20,0)
102,9
-46,8/-42,4
0,33
NF
A1
2 800
5 400
R-407C
R-32/125/134a (23,0/25,0/52,0)
86,2
-43,8/-36,7
0,29
NF
A1
1 700
4 100
R-407D
R-32/125/134a (15,0/15,0/70,0)
91
-39,4/-32,7
0,25
NF
A1
1 600
4 000
0,04
R-407E
R-32/125/134a (25,0/15,0/60,0)
83,8
-42,8/-35,6
0,27
NF
A1
1 500
3 900
R-407F
R-32/125/134a (30,0/30,0/40,0)
82,1
-46,1/-39,7
0,32
NF
A1
1 800
4 200
R-408A
R-125/143a/22 (7,0/46,0/47,0)
87
-45,5/-45,0
0,33
NF
A1
3 400
6 200
0,02
R-409A
R-22/124/142b (60,0/25,0/15,0)
97,4
-35,4/-27,5
0,12
NF
A1
1 500
4 400
0,03
R-409B
R-22/124/142b (65,0/25,0/10,0)
96,7
-36,5/-29,7
0,12
NF
A1
1 500
4 400
0,03
R-410A
R-32/125 (50,0/50,0)
72,6
-51,6/-51,5
0,42
NF
A1
2 100
4 400
R-410B
R-32/125 (45,0/55,0)
75,6
-51,5/-51,4
0,43
NF
A1
2 200
4 600
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
55
R-411A
R-1270/22/152a) (1,5/87,5/11,0)
82,4
-39,7/-37,2
0,074
0,186
A2
1 600
4 700
R-411B
R-1270/22/152a (3,0/94,0/3,0)
83,1
-41,6/-41,3
0,044
0,239
A2
1 700
5 000
0,03
R-412A
R-22/218/143b (70,0/5,0/25,0)
88,2
-36,4/-28,8
0,17
0,329
A2
3 000
5 800
0,02
R-413A
104
-29,3/-27,6
0,21
0,375
A2
2 000
4 000
96,9
-34,0/-25,8
0,10
NF
A1
1 400
4 100
0,03
R-414B
R-218/134a/600a (9,0/88,0/3,0)
R-22/124/600a/142b
(51,0/28,5/4,0/16,5)
R-22/124/600a/142b (50,0/39,0/1,5/9,5)
101,6
-34,4/-26,1
0,096
NF
A1
1 300
3 900
0,03
R-415A
R-22/152a (82,0/18,0)
81,9
-37,5/-34,7
0,19
0,188
A2
1 500
4 500
0,03
R-415B
R-22/152a (25,0/75,0)
70,2
-23,4/-21,8
0,15
0,13
A2
560
1 700
0,009
R-416A
R-134a/124/600 (59,0/39,5/1,5)
111,9
-23,4/-21,8
0,064
NF
A1
1 000
3 000
0,008
R-417A
R-125/134a/600 (46,6/50,0/3,4)
106,7
-38,0/-32,9
0,057
NF
A1
2 300
4 800
R-417B
R-125/134a/600 (79,0/18,3/2,7)
113,1
-44,9/-41.5
0,069
NF
A1
3 000
5 700
R-417C
R-125/134a/600 (19,5/78,8/1,7)
103,7
–32,7/–29,2
NF
A1
1 700
4 200
R-418A
R-290/22/152a (1,5/96,0/2,5)
84,6
-41,2/-40,1
0,20
0,31
A2
1 700
5 100
R-419A
R-125/134a/E170 (77,0/19,0/4,0)
109,3
-42,6/-36,0
0,31
0,25
A2
2 900
5 600
R-419B
R-125/134a/E170 (48,5/48,0/3,5)
105,2
–37,4/–31,5
A2
2 300
4 900
R-420A
R-134a/142b (88,0/12,0)
101,8
-25,0/-24,2
0,18
NF
A1
1 400
4 000
R-421A
R-125/134a (58,0/42,0)
111,7
-40,8/-35,5
0,28
NF
A1
2 600
5 200
R-421B
R-125/134a (85,0/15,0)
116,9
-45,7/-42,6
0,33
NF
A1
3 100
5 900
R-422A
R-125/134a/600a (85,1/11,5/3,4)
113,6
-46,5/-44,1
0,29
NF
A1
3 100
5 800
R-422B
R-125/134a/600a (55,0/42,0/3,0)
108,5
-40,5/-35,6
0,25
NF
A1
2 500
5 100
R-422C
R-125/134a/600a (82,0/15,0/3,0)
113,4
-45,3/-42,3
0,29
NF
A1
3 000
5 700
R-422D
R-125/134a/600a (65,1/31,5/3,4)
109,9
-43,2/-38,4
0,26
NF
A1
2 700
5 300
R-422E
R-125/134a/600a (58,0/39,3/2,7)
109,3
–41,8/–36,4
NF
A1
2 500
5 100
R-423A
134a/227ea (52,5/47,5)
R-125/134a/600a/600/601a
(50,5/47,0/0,9/1,0/0,6)
R-32/134a/227ea (18,5/69,5/12)
126
-24,2/-23,5
0,30
NF
A1
2 200
4 500
108,4
-39,1/-33,3
0,10
NF
A1
2 400
5 000
R-414A
R-424A
R-425A
R-426A
90,3
-38,1/-31,3
0,27
NF
A1
1 500
3 700
101,6
-28,5/-26,7
0,083
NF
A1
1 400
3 900
90,4
-43,0/-36,3
0,29
NF
A1
2 200
4 600
107,5
-48,3/-47,5
0,37
NF
A1
3 700
6 300
50,8
-26,0/-25.6
0,098
0,052
A3
21
77
64
-27,6/-27,4
0,10
0,084
A3
120
430
R-429A
R-125/134a/600/601a (5,1/93,0/1,3/0,6)
R-32/125/143a/134a
(15,0/25,0/10,0/50,0)
R-125/143a/290/600a
(77,5/20,0/0,6/1,9)
R-E170/152a/600a (60,0/10,0/30,0)
R-430A
R-152a/600a (76,0/24,0)
R-431A
R-290/152a (71,0/29,0)
48,8
-43,1/-43,1
0,10
0,044
A3
46
170
R-432A
R-1270/E170 (80,0/20,0)
42,8
-46,6/-45,6
0,002 1
0,039
A3
1,6
5,5
R-433A
R-1270/290 (30,0/70,0)
43,5
-44,6/-44,2
0,005 5
0,036
A3
4
15
R-433B
R-1270/290 (5,0/95,0)
44
-42,7/-42,5
0,025
0,025
A3
4,8
17
R-433C
43,6
-44,3/-43,9
0,006 6
0,032
A3
4,2
15
105,7
-45,0/-42,3
0,32
NF
A1
3 300
5 800
R-435A
R-1270/290 (25,0/75,0)
R-125/143a/134a/600a
(63,2/18,0/16,0/2,8)
R-E170/152a (80,0/20,0)
49
-26,1/-25,9
0,09
0,069
A3
30
110
R-436A
R-290/600a (56,0/44,0)
49,3
-34,3/-26,2
0,073
0,032
A3
12
43
R-436B
R-290/600a (52,0/48,0)
49,9
-33,4/-25,0
0,071
0,033
A3
12
45
R-437A
103,7
-32,9/-29,2
0,081
NF
A1
1 700
4 200
99,1
-43,0/-36,4
0,079
NF
A1
2 200
4 700
R-439A
R-125/134a/600/601 (19,5/78,5/1,4/0,6)
R-32/125/134a/600/601a
(8,5/45,0/44,2/1,7/0,6)
R-32/125/600a (50,0/47,0/3,0)
71,2
-52,0/-51,8
0,34
0,304
A2
2 000
4 200
R-440A
R-290/134a/152a (0,6/1,6/97,8)
66,2
-25,5/-24,3
0,14
0,124
A2
170
590
R-441A
48,3
-41,9/-20,4
0,006 3
0,032
A3
5,6
20
81,8
–46,5/–39,9
0,33
NF
A1
1 900
4 200
R-443A
R-170/290/600a/600 (3,1/54,8/6,0/36,1)
R-32/125/134a/152a/227ea
(31,0/31,0/30,0/3,0/5,0)
R-1270/290/600a (55,0/40,0/5,0)
43,5
–44,8/–41,2
A3
4
15
R-444A
R-32/152a/1234ze(E) (12,0/5,0/83,0)
96,7
–34,3/–24,3
A2L
93
330
1 100
R-427A
R-428A
R-434A
R-438A
R-442A
R-444B
R-32/1234ze(E)/152a (41,5/48,5/10)
72,8
–44,6/–34,9
A2L
310
R-445A
R-744/134a/1234ze(E) (6,0/9,0/85,0)
103,1
–50,3/–23,5
A2L
120
350
R-446A
R-32/1234ze(E)/600 (68,0/29,0/3,0)
62
–49,4/–44,0
A2L
480
1 700
56
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
0,03
0,03
0,007
R-447A
63
–49,3/–44,2
A2L
600
1 900
86,4
–45,9/–39,8
A1
1 400
3 100
R-449A
R-32/125/1234ze(E) (68,0/3,5/28,5)
R-32/125/1234yf/134a /1234ze(E)
(26/26/20/21/7)
R-134a/125/1234yf/32 (26/25/25/24)
87,4
–46,0/–39,9
A1
1 400
3 200
R-450A
R-1234ze(E)/134a (58/42)
108,7
–23,4/–22,8
A1
570
1 600
R-451A
R-1234yf/134a (89,8/10,2)
112,7
–30,8/–30,5
A2L
140
390
R-451B
R-1234yf/134a (88,8/11,2)
112,6
–31,0/–30,6
A2L
150
430
R-452A
R-1234yf/32/125 (30/11/59)
103,5
–47,0/–43,2
A1
2 100
4 000
R-448A
Table 2-9: Data summary for azeotropic refrigerant blends
Safety Class
GWP 100 Year
GWP 20 Year
ODP
99,3
-33,6/-33,6
0,12
NF
A1
7 600
8 100
0,5
R-22/12 (75,0/25,0)
93,1
-40,5/-40,3
0,21
NF
A1
3 900
6 700
0,2
R-502
R-22/115 (48,8/51,2)
111,6
-45,3/-45,0
0,33
NF
A1
4 600
5 600
0,1
ATEL/ODL
(kg/m3)
LFL (kg/m3)
Normal Boiling
Point (°C)
Refrigerant
Composition
(Mass % )
R-12/152a (73,8/26,2)
R-501
Molecular
Weight
Refrigerant
Designation
R-500
R-503
R-23/13 (40,1/59,9)
87,2
–88
ND
NF
A1
13 000 11 000
0,6
R-504
R-32/115 (48,2/51,8)
79,2
–57
0,45
NF
A1
4 100
4 200
0,1
R-507A
R-125/143a (50,0/50,0)
98,9
-47,1/-47,1
0,53
NF
A1
4 300
6 700
R-508A
R-23/116 (39,0/61,0)
100,1
-87,4/-87,4
0,23
NF
A1
12 000
9 200
R-508B
R-23/116 (46,0/54,0)
95,4
-87,4/-87,0
0,2
NF
A1
12 000
9 400
R-509A
R-22/218 (44,0/56,0)
124
-40,4/-40,4
0,38
NF
A1
5 800
6 100
R-510A
R-E170/600a (88,0/12,0)
47,2
-25,2/-25,2
0,087
0,056
A3
3,3
9,8
R-511A
R-290/152a (95,0/5,0)
44,8
-42,18/-42,1
0,092
0,038
A3
12
44
R-512A
R-134a/152a (5,0/95,0)
67,2
-24,0/-24,0
0,14
0,124
A2
210
710
R-513A
R-1234yf/134a (56/44)
108,4
-29,2
A1
600
1 700
2.3.1
2.3.1.1
Data sources
Data sources for Table 2-7
Chemical Formula, Chemical Name, and Boiling Point: ISO 817 (ISO 817:2014) is used
as first priority, ISO 5149 (ISO 5149:2014) as second priority and ASHRAE 34 (ASHRAE
34-2013) as third priority.
Molecular Weight: Calculated from the sum of atoms making up the molecule (based on the
chemical formula). The atomic weights are from IUPAC (Wieser, 2013).
ATEL/ODL and LFL: Taken from ISO 5149 (ISO 5149:2014).
Safety Class: ISO 817 (ISO 817:2014) is used as first priority, ISO 5149 (ISO 5149:2014) as
second priority and ASHRAE 34 (ASHRAE 34-2013) as third priority.
Atmospheric Lifetime: Values are taken from Table 5.1 and Table 5.3 in (WMO, 2014)
where available, (IPCC, 2014) is used as 2nd priority, (WMO, 2011) is used as 3rd priority, and
(IPCC, 2007) is used as 4th priority.
Radiative Efficiency: Values are taken from (IPCC, 2014) where available and (IPCC, 2007)
is used as 2nd priority. (WMO, 2014) and (WMO, 2011) do not give radiative efficiencies.
GWP 100 Year: Values are taken from (WMO, 2014) where available, Table 8.A.1 in
(IPCC, 2014) is used as 2nd priority, (WMO, 2011) as 3rd priority (HC-290), Table 2-14 and 2-
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
57
0,01
15 in (IPCC, 2007) as 4th priority (HE-E170 and hydrocarbons), and for the remaining
refrigerant (HC-600a, HC-601, HC-601a) the approximation of ~20 from (UNEP, 2011) is
reused. When considering the GWP values for other hydrocarbons, it seems ~20 is likely to be
a conservative number. GWPs are direct GWPs except for hydrocarbons, which are indirect
GWPs (e.g., including climate impact of breakdown product). Under UNFCCC accounting,
only direct GWP is used.
GWP 20 Year: Values are taken from (WMO, 2014) where available, Table 8.A.1 in (IPCC,
2014) is used as 2nd priority, (WMO, 2011) does not contain GWP 20 year numbers for the
remaining refrigerants therefor (IPCC, 2007) is used as 3rd priority. Where values are not
available from the above sources (HE-E170 and hydrocarbons, all with short atmospheric
lifetimes) the GWP 20 year will be calculated from GWP 100 year using the approximation
derived here:
Note that for substance x the GWP of time horizon y is GWPx(y) =aGWPx (y)/aGWPCO2(y),
and for substances with short atmospheric lifetimes note that a GWP (20 year) is close to a
GWP (100 year), since the substance will be practically removed from the atmosphere within
the first 20 years and no additional radiative forcing will be added between the 20th and the
100th year. This makes it possible to estimate GWP (20 year):
(eq. 2.1)
GWP for hydrocarbons includes breakdown products (as opposed to the GWP for HFCs), part
of the GWP will come from CO2, where the 20 year GWP is 1, so the above formula will give
GWP 20 values that are slightly too high. This is, however, the approach that has been chosen
here for these substances.
ODP: Values are taken from (WMO, 2014) where available, (WMO, 2011) is used as 2nd
priority (for HCFC-123), (WMO, 2007) as 3rd priority (for HCFC-124), and the Montreal
protocol as 4th priority (for CFC-13).
2.3.1.2
Data sources for Tables 2-8 and 2-9
Molecular weight, GWP 100 Year, GWP 20 Year, ODP: Calculated based on data for
single components given in Table 2-7. The resulting GWP values are rounded to 2 significant
digits, since, as mentioned in section 2.1.5, the uncertainty for the GWP values is on the order
of ±20% for very long lived gases and even larger for shorter lived gases.
Refrigerant Composition, Bubble Point/Dew Point (°C), Safety Class: ISO 817 (ISO
817:2014) 1st priority, ISO 5149 (ISO 5149:2014) in principle 2nd priority, ASHRAE 34
(ASHRAE 34-2013) 3rd priority. No information for these tables were simultaneously
available in ISO 5149 and not in ISO 817, which is why ISO 5149 is in principle only the
2nd priority. Where dual safety classes are given in the standards, the higher is used.
ATEL/ODL, LFL: Values are taken from ISO 5149 (ISO 5149:2014).
58
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
2.4
Concluding remarks
This chapter discussed and provided tabular summaries for identifiers as well as physical,
safety, and environmental data for refrigerants including the summary descriptions of
refrigerants discussed elsewhere in this report.
Whatever refrigerant is chosen will always have to be a balance between several factors, the
availability and cost of the refrigerant (and the associated equipment), the system energy
efficiency, the safety and convenience of applicability, environmental issues and many more.
The refrigerants which have emerged since the last assessment report in 2010 address climate
concerns, with climate impacts considerably lower than most of the currently used substances,
and ozone depletion concerns with the replacement refrigerants for ozone-depleting
substances. Among the new refrigerants are several blends based on unsaturated HFCs and a
new unsaturated HCFC molecule. Most of these are refrigerants with lower flammability
(2L), raising the question of how to handle flammability.
The perfect refrigerant does not exist, and is unlikely to come into existence. The choice will
therefore be a selection between the existing low GWP refrigerants (e.g. R-717, R-744 or
HCs) and the newly applied and developed chemicals. Many new alternatives are proposed
which create a challenge in finding the right refrigerant for each application. One of the
important aspects is that refrigerants with low direct impact on climate change are often
flammable to some extent.
There is a complex selection process ahead, where the industry will need to find out which of
the many proposed new or old refrigerants will be used in each application. In some cases this
may be as simple as changing the refrigerant, while in other cases this will require redesign of
the system or even change of system topology. The search is a trade-off between cost, safety,
energy efficiency, and limiting the need for redesign.
Part of the complexity is that the market is unlikely to be able to support many different
refrigerants for the same application. This will leave a period in time, likely to last a couple of
decades, where the industry will have to work with both the currently established refrigerants
and new refrigerants addressing ozone depletion and/or climate change concerns. In the long
run the number of candidates is likely to fall, but it is too early to tell which or even how
many of the refrigerant candidates will survive.
2.5
References
ASHRAE 34-2013
ANSI/ASHRAE, 2014. Standard 34- 2013 with addenda a to n,
Designation and Safety Classification of Refrigerants American
Society of Heating, Refrigerating, and Air-Conditioning Engineers
(ASHRAE), Atlanta, GA, USA
Calm, 2012
Calm, J. M., 2012. Refrigerant Transitions... Again. Moving Towards
Sustainability. Proc. ASHRAE/NIST Conf., American Society of
Heating Refrigerating, and Air-Conditioning Engineers (ASHRAE),
Atlanta, GA, USA
Calm, 1997
Calm, J. M., Didion, D. A. 1997. Trade-Offs in Refrigerant Selections
— Past, Present, and Future. Proc. ASHRAE/NIST Conf.
‘Refrigerants for the 21st Century’, American Society of Heating
Refrigerating, and Air-Conditioning Engineers (ASHRAE), Atlanta,
GA, USA
Chen, 2012
Chen, Z. H., 2012. Research on Rotary Compressors Based on R-290
Technology. Proc. UNEP conference on technologies for high
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
59
ambient conditions, Dubai, UAE
Hafner, 2012
Hafner, A., Försterling, S., Banasiak, K. 2012. “Multi-Ejektoren
Konzept für R-744 Supermarkt-Kälteanlagen”. Proc. DKV-Tagung,
AA III.06, Würzburg, Germany
Hodnebrog, 2013
Hodnebrog, Ø., Etminan, M., Fuglestvedt, J. S., Marston, G., Myhre,
G., Nielsen, C. J., Shine, K. P., Wallington, T. J., 2013. Global
Warming Potentials and Radiative Efficiencies of Halocarbons and
Related Compounds: A Comprehensive Review. Rev. Geophys., 51,
300–378, doi:10.1002/rog.20013
IPCC, 1995
Intergovernmental Panel on Climate Change (IPCC) of the World
Meteorological Organization (WMO) and the United Nations
Environment Programme (UNEP), 1996. Climate Change 1995 —
Contribution of Working Group I to the Second Assessment Report of
the Intergovernmental Panel on Climate Change. Edited by J. T.
Houghton, L. G. Meira Filho, B. A. Callander, N. Harris, A.
Kattenberg, and K. Maskell, Cambridge University Press, Cambridge,
UK
IPCC, 2007
Forster, P., V. Ramaswamy, P. Artaxo, T. Berntsen, R. Betts, D.W.
Fahey, J. Haywood, J. Lean, D.C. Lowe, G. Myhre, J. Nganga, R.
Prinn, G. Raga, M. Schulz and R. Van Dorland, 2007. Changes in
Atmospheric Constituents and in Radiative Forcing. In: Climate
Change 2007: The Physical Science Basis. Contribution of Working
Group I to the Fourth Assessment Report of the Intergovernmental
Panel on Climate Change [Solomon, S., D. Qin, M. Manning, Z.
Chen, M. Marquis, K.B. Averyt, M.Tignor and H.L. Miller (eds.)].
Cambridge University Press, Cambridge, United Kingdom and New
York, NY, USA
IPCC, 2014
Myhre, G., D. Shindell, F.-M. Bréon, W. Collins, J. Fuglestvedt, J.
Huang, D. Koch, J.-F. Lamarque, D. Lee, B. Mendoza, T. Nakajima,
A. Robock, G. Stephens, T. Takemura and H. Zhang, 2013.
Anthropogenic and Natural Radiative Forcing. In: Climate Change
2013: The Physical Science Basis. Contribution of Working Group I
to the Fifth Assessment Report of the Intergovernmental Panel on
Climate Change [Stocker, T.F., D. Qin, G.-K. Plattner, M. Tignor,
S.K. Allen, J. Boschung, A. Nauels, Y. Xia, V. Bex and P.M.
Midgley (eds.)]. Cambridge University Press, Cambridge, United
Kingdom and New York, NY, USA
ISO 817:2014
ISO 817: 2014. Refrigerants — Designation and safety classification.
International Organization for Standardization (ISO)
ISO 5149:2014
ISO 5149: 2014. Refrigerating systems and heat pumps — Safety and
environmental requirements. International Organization for
Standardization (ISO)
Kajihara, 2010
Kajihara, H., Inoue, K., Yoshida, K., Nagaosa, R., 2010. Estimation
of environmental concentrations and deposition fluxes of R-1234yf
and its decomposition products emitted from air conditioning
equipment to atmosphere. Proc. 2010 Int. Symposium on NextGeneration Air Conditioning and Refrigeration Technology, paper
noNS24, Tokyo, Japan
Luecken, 2010
Luecken, D. J., Waterland, R. L., Taddonio, N., Hutzell, W. T., Rugh,
J. P., Andersen, S. O., 2010. Ozone and TFA Impacts in North
60
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
America from Degradation of 2,3,3,3-Tetrafluoropropene (HFO1234yf), A Potential Greenhouse Gas Replacement. Environmental
Science and Technology, 44(1): 44,343–348
McLinden, 2014
McLinden, M. O., Kazakov, A. F., Brown, J. S., Domanski, P. A.
2014. A thermodynamic analysis of refrigerants: possibilities and
tradeoffs for low-GWP refrigerants. J. Refrigeration, Volume 38, pp.
80-92
Minor, 2014
Minor, B., Sulc, V., Berger, J. Kold, M., Hegar, M., 2014. R-404A
Alternative with Low Compressor Discharge Temperature. Proc. 15th
International Refrigeration and Air Conditioning Conference at
Purdue, IN, USA
Papasavva, 2009
Papasavva, S., Luecken, D. J., Waterland, R. L., Taddonio, K. N.,
Andersen, S. O., 2009. Estimated 2017 Refrigerant Emissions of
2,3,3,3-tetrafluoropropene (HFC-1234yf) in the United States
Resulting from Automobile Air Conditioning. Environmental Science
and Technology, 43(24):9252–9259
Rajadhyaksha, 2013
Rajadhyaksha, D., Colbourne, D., Sahu, A., Wadia, B. J., 2013. HC290 as an alternative refrigerant for split air conditioning systems in
high ambient temperatures. Proc. IIF-IIR Compressors, Papiernička,
Slovakia
Shine, 2005
Shine, K.P., Fuglestvedt, J.S., Hailemariam, K., Stuber, N., 2005.
Alternatives to the global warming potential for comparing climate
impacts of emissions of greenhouse gases. Climate Change, 68:281302
Subiantoroa, 2013
Subiantoroa, A., Ooi, K. T., 2013. Economic analysis of the
application of expanders in medium scale air-conditioners with
conventional refrigerants, R-1234yf and CO2. Int. J. Refrig., Vol. 36,
No. 5, pp. 1472–1482
Wieser, 2013
Wieser, M.E., Holden, N., Coplen, T.B., Böhlke, J. K., Berglund, M.,
Brand, W. A., De Bièvre, P., Gröning, M., Loss, R. D., Meija, J.,
Hirata, T., Prohaska, T., Schoenberg, R., O’Connor, G., Walczyk, T.,
Yoneda, S., Zhu, X.K., 2013. Atomic weights of the elements 2011
(IUPAC Technical Report). Pure and Applied Chemistry, Vol. 85,
Issue 5, pp. 1047-1078
WMO, 2007
National Oceanic and Atmospheric Administration (NOAA),
National Aeronautics and Space Administration (NASA), United
Nations Environment Programme (UNDP), World Meteorological
Organization (WMO), and European Commission, 2007. Report No.
50, Scientific Assessment of Ozone Depletion: 2006
WMO, 2011
National Oceanic and Atmospheric Administration (NOAA),
National Aeronautics and Space Administration (NASA), United
Nations Environment Programme (UNDP), World Meteorological
Organization (WMO), and European Commission, 2011. Report No.
52, Scientific Assessment of Ozone Depletion: 2010
WMO, 2014
World Meteorological Organization (WMO), 2014, Scientific
Assessment of Ozone Depletion: 2014, World Meteorological
Organization, Global Ozone Research and Monitoring Project—
Report No. 55.
UNEP, 2011
UNEP, 2011. 2010 Report of the Refrigeration, Air-Conditioning and
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
61
Heat Pumps Technical Options Committee, United Nations
Environment Programme (UNEP), Nairobi, Kenya
UNEP, 2012
UNEP, 2012. Handbook for the Montreal Protocol on Substances that
Deplete the Ozone Layer (Ninth Edition), United Nations
Environment Programme (UNEP), Ozone Secretariat, Nairobi, Kenya
Website
AHRI, 2013
62
Site for Low-GWP AREP Test reports: www.ahrinet.org/
resources/research tab - then AHRI Low-GWP Alternate Refrigerants
Evaluation Program for list of downloadable test reports
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
63
Annex to chapter 2 - safety standards and regulations
With the introduction and potentially wide use of refrigerants that are flammable, have higher
toxicity and/or operate at notably higher pressures than the conventional ODS refrigerants or
alternative non-flammable HFC refrigerants, consideration of safety matters has become more
important. Accordingly, more attention is presently being paid to the requirements of safety
standards and regulations that directly relate to refrigerants that exhibit these characteristics.
This section summarises the main implications.
Safety classification of refrigerants
The most widely used classification of substances under the UN, where so-called dangerous
goods receive a classification according to their main hazards.
Within the RAC industry, a different classification scheme is applied, where most refrigerants
are assigned a safety classification, which is a function of toxicity and flammability. The
classification scheme is adopted by such standards as, ISO 817 and draft EN 378. An
overview of this was given in section 2.1.4, see also Table 2-2.
The toxicity classification is based on whether toxicity has or has not been identified at
concentrations of less than 400 ppm by volume, based on data used to determine the threshold
limit value – time weighted average (TLV-TWA) or consistent indices. There are two toxicity
classes:
Class A: no chronic toxicity effects have been observed below 400 ppm
Class B: chronic toxicity effects have been observed below 400 ppm
The flammability classification depends upon whether or not the substances can be ignited in
standardised tests, and if so, what the lower flammability limit (LFL) and the heat of
combustion are. There are three flammability classes (values according to ISO 817):
Class 1: do not show flame propagation when tested in air at 60°C and standard
atmospheric pressure
Class 2L: as Class 2 but with a (laminar) burning velocity of less than 0.10 m/s
Class 2: exhibit flame propagation when tested at 60°C and atmospheric pressure, but
have a LFL higher than 3.5% by volume, and have a heat of combustion of less than
19,000 kJ/kg
Class 3: exhibit flame propagation when tested at 60°C and atmospheric pressure, but
have an LFL at or less than 3.5% by volume, or have a heat of combustion that is equal to
or greater than 19,000 kJ/kg
Class 2L is now included in ISO 817, ISO 5149 and proposed for inclusion in EN 378. It is
primarily intended to differentiate between HFC-152a and the remainder of class 2
refrigerants (such as R-717, HFC-32 and HFC-1234yf), which tend to be more difficult to
ignite and is less likely to evolve overpressures that could cause damage.
Typically, a “higher” the classification – that is toxicity Class B instead of Class A, and
flammability Class 3 instead of Class 1 – means that the refrigerating system has more
onerous design requirements associated with it, in order to handle the higher risk presented by
the refrigerant.
Lower Flammability Limit
The lower flammability limit (LFL) of flammable refrigerants is typically applied as a
constraint to the amount of refrigerant that can be released into a room or enclosure, as it
64
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
represents the smallest quantity that, when in the presence of an active source of ignition,
could sustain a flame.
Acute Toxicity Exposure Limit
The acute toxicity exposure limit (ATEL) of any refrigerant may also applied as a constraint
to the amount of refrigerant that can be released into a room or enclosure, as it represents the
smallest quantity that could impose adverse toxicological effects onto occupants.
Practical Limit
There is a further safety measure for the application of refrigerants, termed the practical
concentration limit (PL). This represents the highest concentrations level in an occupied space
which will not result in any escape impairing (i.e., acute) effects. Thus, it is principally, the
lowest “dangerous” concentration of a refrigerant, with a safety factor applied. The estimation
of PL is based on the lowest of the following:
Acute toxicity exposure limit (ATEL), based on mortality (in terms of LC50) and/or
cardiac sensitisation, and/or anaesthetic or central nervous system (CNS) effects
Oxygen deprivation limit (ODL)
20% of the lower flammability limit (or 25% in ASHRAE 34)
For class A1 (and A2L) and class B refrigerants, the PL is normally based on the ATEL,
whereas for A2 and A3 refrigerants it is normally dictated by the LFL. For some refrigerants
the PL is based on historical use experience.
Relevant safety standards
Unlike conventional refrigerants, almost all of the low GWP refrigerants have safety
characteristics, which demand greater attention, such as flammability, toxicity and higher
operating pressures. Safety standards (and industry codes of practice) provide guidance to
offset the additional risks posed by the more hazardous characteristics of the substances.
Safety standards are generated internationally (e.g., ISO, IEC), regionally (e.g., EN) and
nationally. Often there are parallels or alignment between standards of similar scope across
these different levels, although individual countries elect to adopt alternative requirements
than those at international level. The main international and regional standards that affect
design and construction of systems as a function of refrigerant selection are listed in Table
A2-1 and the scope according to the sections in this report is identified.
Table A2-1: Scope of different international and regional safety standards for AC&R
systems
Chapter/Sector
IEC
603352-24
3 / Domestic refrigeration
4 / Commercial refrigeration
5 / Industrial systems
6 / Transport refrigeration
IEC
603352-40
IEC
603352-89
ISO
5149
ISO
13043
EN 378
×
×
×
×
×
[×]
×
×
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
65
7 / Air-to-air air conditioners
and heat pumps
×
×
×
8 / Water heating heat pumps
×
×
×
9 / Chillers
×
×
×
10 / Vehicle air conditioning
×
The three important characteristics that differ amongst refrigerants that have a strong
influence over the design and construction requirements are pressure, flammability and
toxicity. Typically, the more severe these characteristics (i.e., higher pressure, higher
flammability, higher toxicity), the more onerous the requirements are. In principle, these more
onerous requirements are intended to offset the potentially worse consequences arising from
the more severe characteristics. Table A2-2 provides a summary of the main measures that
may require attention when adopting such refrigerants
Table A2-2: Main measures to be considered for substances with greater pressure, toxicity
and/or flammability
Greater pressure
Thicker materials/higher
pressure rating for pipes and
components
Additional use of pressure relief
devices and/or pressure limiting
devices
Higher competencies for
workers involved in construction
of components and assemblies
Greater toxicity
Greater flammability
Stricter limits on the quantity of
refrigerant in occupied spaces
Stricter limits on the quantity of
refrigerant in occupied spaces
Limited use in more densely
populated areas
Use of gas detection, alarms and
emergency ventilation
Use of gas detection, alarms and
emergency ventilation
Prohibition of items that could
act as sources of ignition
Provision of personal protective
equipment
Warnings/signage
One critical issue within the various standards, particularly for flammable and higher toxicity
refrigerants is the allowable and maximum refrigerant charge. Depending upon the type of
occupancy, different approaches are used to determine such values. Table A2-3 provides
some indicative charge limits (per refrigerant circuit) based on ISO 5149:2014 for selected
situations and a number of commonly discussed refrigerants.
Although these safety standards cover requirements for flammable refrigerants, it is important
to highlight that in many countries specific standards for equipment using flammable gases
are available and are generally linked to legislation. For example, in Europe products which
are placed on the market (except for those that are exempt) and that use flammable gases
(including refrigerants) must meet the essential health safety requirements (EHSRs) of the
Atex product directive (94/9/EC). By following the Atex harmonized standards, there is a
presumption of conformity. Since none of the AC&R safety standards are harmonized to
Atex, safety standards such as EN 1127-1 can be used for the evaluation of flammability
safety; provided that AC&R equipment meets the requirements of such standards then
deviations from the AC&R standards is acceptable if equivalent safety is demonstrated (for
example, where larger refrigerant charges are needed.) In addition to meeting the EHSRs, the
general approach prescribed by flammable gas standards and regulations is summarised:
66
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Identification of explosion hazards and determination of the likelihood of occurrence of a
hazardous atmosphere;
Identification of ignition hazards and determination of the likelihood of occurrence of
potential ignition sources;
Estimation of the possible effects of an explosion in case of ignition;
Evaluation of the risk and whether the intended level of protection has been achieved;
Consideration of and application of measures to reduce of the risks
Table A2-3 provides the result of calculations for determination of allowable and maximum
charge sizes (per refrigerant circuit) for a selection of commonly discussed refrigerants.
Table A2-3: Summary of PL and charge size limits for selected refrigerant and occupancies
according to ISO 5149
Max Charge in Open
Air or Machinery Room
Max Charge for a
Ventilated Enclosure
12 (60‡)
no limit
60
1.2 – 4.5
2.2
11 (56‡)
no limit
56
61
1.3-4.8
2.3
12 (59‡)
no limit
59
HFC-152a
27
0.5 – 1.7
1.0
3.4
no limit
17
HC-600a
11
0.1 – 0.4
0.3
1.5
no limit
5.6
HC-290
8
0.1 – 0.4
0.3
1.5
no limit
4.9
HC-1270
8
0.1 – 0.3
0.3
1.5
no limit
6.0
R-717
0.35
0.01
0.01
4.5
no limit
23
300
11.3
11.3
HFC-134a
250
9.4
9.4
R-404A
520
19.5
19.5
R-407C
310
11.6
11.6
R-410A
440
16.5
16.5
R-744
100
3.8
3.8
HFC-32
61
1.3 – 4.9
HFC-1234yf
58
HFC-1234ze
Max. Charge in an
Occupied Space
(Occupancy A)
B2L
2.3
Allowable Charge in a
15 m2 Occupied Space
(general)* (kg)
A3
no limit
Allowable Charge in a
15 m2 Occupied Space
(comfort)† (kg)
A2
no limit
Practical Limit (g/m3)
A2L
PL×RVᵟ
Example Refrigerant
Refrigerant Class
A1
HCFC-22
ᵟ For systems with multiple indoor heat exchangers a higher charge may be allowed depending on circumstances;
‡ For systems with multiple indoor heat exchangers; † Depending upon installation conditions; * 2.5 m high room
Note: Allowable and maximum charges are per individual refrigerant circuit
Note: The values provided within this table are indicative and determination of refrigerant charge size limits for
particular types of systems and installation locations requires the use of the standard and the values within this
table should not be taken as a substitute.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
67
References
EN 1127-1
EN 1127-1:2011, Explosive atmospheres – Explosion prevention and
protection. Part 1: Basic concepts and methodology
EN 378
EN 378-1:2008+A2:2012, EN 378-2:2008+A2:2012, EN 3783:2008+A1:2012. EN 378-4:2008+A1:2012, Refrigeration Systems
and Heat Pumps – Safety and Environmental Requirements
IEC 60335-2-24
IEC 60335-2-24:2010, Specification for safety of household and
similar electrical appliances. Particular requirements for refrigerating
appliances, ice-cream appliances and ice-makers
IEC 60335-2-40
IEC 60335-2-40:2003+A13:2012, Specification for safety of
household and similar electrical appliances. Safety. Particular
requirements for electrical heat pumps air-conditioners, and
dehumidifiers
IEC 60335-2-89
IEC 60335-2-89:2010, Specification for safety of household and
similar electrical appliances. Safety. Particular requirements for
commercial refrigerating appliances with an incorporated or remote
refrigerant condensing unit or compressor
ISO 13043
ISO 13043:2011, Road vehicles – Refrigerant systems used in mobile
air conditioning systems (MAC) – Safety requirements
ISO 817
ISO 817: 2014, Refrigerants — Designation and safety classification.
International Organization for Standardization (ISO)
ISO 5149
ISO 5149: 2014, Refrigerating systems and heat pumps — Safety and
environmental requirements. International Organization for
Standardization (ISO)
68
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 3
__________________________________________________________
Domestic Appliances
Chapter Lead Author
Sukumar Devotta
Co-Authors
Martien Janssen
Richard DeVos
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
69
70
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
3
3.1
Domestic appliances
Introduction
Under the domestic appliance category, the domestic refrigeration sub-sector is the major
component and comprises appliances that are broadly used domestically, such as refrigerators,
freezers and combined refrigerator/freezer products. Small beverage dispensing machines are
similar products and are commonly included in domestic refrigeration, but represent a small
fraction of total units. Domestic dehumidifiers have not been considered in this chapter. For
domestic wine coolers the same considerations as for domestic refrigerators apply.
Approximately 170 million domestic refrigerators and freezers are produced annually. The
vast majority are used for food storage in residential dwellings, with a significant minority
used in offices for domestic purposes and small businesses for commercial purposes. Typical
storage volumes range from 20 to 850 litres. Various fundamental design approaches and
consumer convenience features are included within the product offerings. A typical product
contains a factory-assembled, hermetically sealed, vapour-compression refrigeration system
employing a 50 to 250 W induction motor and containing 20 to 250 grammes of refrigerant.
Some topics discussed below have been covered in earlier reports of this committee. They are
briefly included here to provide a more comprehensive perspective. Niche market products in
some cases employ alternative technologies to vapour-compression refrigeration. The age
distribution of the global installed products is extremely broad (Weston, 1997) with median
age estimates ranging from 9 to 19 years at retirement. Long product life and high volume
annual production combine for an estimated 2000 to 2300 million unit global installed
inventory.
The other domestic appliance covered in this chapter is the heat pump clothe (laundry) dryer
(HPCD), which is emerging in the market as an energy efficient alternative to the electric
heater dryer. It is included in this chapter for the first time and the title has been accordingly
modified as “Domestic Appliances” instead of “Domestic Refrigerators” used earlier (UNEP,
2010). The market for HPCD is fast growing in the EU (while it is very limited in the US and
other parts of the world). There are manufacturers from EU and Japan. These dryers mostly
use HFC-134a as a refrigerant and charge amounts vary from 200 to 400 g, though the
continued use of HFC-134a is under discussion in several global regions. HPCDs using HC290 have been just introduced. The market share of heat pump clothe dryers in Europe was
about 4% in 2009 or about 200,000 shipments per year (out of 4.9 million total clothe dryer
sales). The largest market shares in EU are Austria, Germany, Italy and Switzerland. It is
projected that in EU, HPCDs would continue to gain market share in the next few years. The
total annual sale of heat pump tumble dryers in 2013 is estimated at 1.5 million. An American
study has concluded that HPCDs have positive economic benefits only for households with
high clothe dryer usage or with high electricity prices and moderately high utilization
(Meyers, 2010). The current market share in Article 5 countries for this product is almost
negligible.
The ozone depletion potential (ODP) and global warming potential (GWP) values of the
refrigerants mentioned in this chapter are given in chapter 2 of this report.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
71
3.2
Options for new equipment
Globally, new refrigerator production conversion from use of ODS was essentially completed
by 2008. HC-600a or HFC-134a continue to be the refrigerant options for new production. No
other new refrigerant has matured to become an energy-efficient and cost-competitive
alternative. Refrigerant migration from HFC-134a to HC-600a is expected to continue, driven
either by local regulations on HFCs or by the desire for reduced global warming impact from
potential emissions. Excluding any influence from regulatory interventions, it is still projected
that by 2020 about 75% of new refrigerator production will use HC-600a (possibly with a
small share by unsaturated HFC refrigerants) and the rest will use HFC-134a. This is further
discussed in section 3.2.2.
Besides the choice of alternative refrigerants, there are more aspects to consider with respect
to the environmental impact of the equipment, such as energy efficiency improvements (see
3.2.5), recycling and end of life issues (see 3.4).
Domestic heat pump clothe dryers have only recently entered the market using mostly HFC134a, R-407C and HC-290 to a small extent. They do not have any significant historical use
of CFCs or HCFCs. The refrigeration circuit differs from domestic refrigeration by its very
high evaporation temperature (typical 10 to 30oC) and high condensation temperature (up to
70oC). Rotary as well as reciprocating compressors are being employed.
3.2.1
Alternatives for domestic refrigerators
HC-600a: HC-600a is the main energy-efficient and cost-competitive alternative. Concerns with the
high flammability, which existed at the introduction of the refrigerant in 1994 in Europe have been
addressed with design features and safety standards, particularly as the charges required for
domestic refrigeration are below 150 g. When the safety requirements are met (e.g. IEC 60335-224) and adequate risk assessment to address the flammable nature of the refrigerant, HC-600a is the
ideal refrigerant for domestic refrigeration products, giving roughly 5 % higher efficiency than
HFC-134a while at the same time reducing noise level of the unit.
According to a recent study for a review of the European Regulation (EC) on fluorinated gases
(Schwarz et al., 2013), the investment cost for a manufacturing facility for domestic
refrigerators using HC-600a is 1.7% higher than for HFC-134a, which represents an incremental
product costs of around €7/unit, considering European averages. This is basically due to higher
production costs related to the requirements for safety systems. The report also mentions that
annual running costs and lifetime cost of HC-600a equipment are lower, resulting in an overall
negative life cycle cost differential in case of HC-600a.
In general there are no significant barriers to the use of HC-600a, illustrated by the existence of
over 500 million domestic fridges in the market to date. However, in the USA the use of HC600a is almost non-existent and this can be attributed to a number of factors. These include
general concerns regarding public safety (or the perception of), concerns about flammability
safety and accidents (which are reflected in the restrictive national standards) and the reluctance
to be one of the early movers in the region. However, during recent years this situation is
changing which is discussed in section 3.2.2.
HC-600a was the standard refrigerant for European domestic refrigerators and freezers
originally and proliferated into other regions, including Article 5 countries. Worldwide over 50
million appliances are produced annually with HC-600a. Increased energy efficiency and the
low GWP of the HC-600a refrigerant reduce the climate impact of household refrigerators, due
to mitigation of direct (refrigerant) and indirect (CO2 associated with electricity consumption)
GHG emissions, compared to HFC-134a.
72
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
In the past, where capital resources were constrained, the use of binary hydrocarbon blends
(HC-600a and HC-290) allowed matching the volumetric capacity of previously used
refrigerants to avoid investments required to modify compressor manufacturing tools. These
blends result in a reduction in thermodynamic efficiency versus pure HC-600a and most of
the productions using blends have migrated to the use of pure HC -600a. The use of HC
blends has become insignificant and is not further discussed in this chapter.
HFC-134a: HFC-134a was originally the predominant refrigerant for domestic refrigeration since
the phase-out of CFC-12. There are no significant safety implications concerning its use. Energy
efficiency is similar to that of CFC-12, although with continual optimization, the current HFC134a refrigeration units are considerably more efficient than those that used CFC-12.
HFC-1234yf: It is feasible to use HFC-1234yf in domestic refrigerators and freezers and its
application can be considered as some way between the use of HFC-134a and HC-600a, since
the pressure and capacity are slightly lower than for HFC-134a and it has lower flammability
characteristics than HC-600a. The lower flammability makes application easier for countries
like USA that have limitations with respect to the allowable refrigerant charge for HC-600a.
The experience with HC-600a has shown that design changes and investment can abate the
risk to an acceptable risk level given the lower flammability of HFC-1234yf.
According to some industrial sources, initial developments to assess the use of HFC-1234yf in
domestic refrigeration have begun, but it is not being pursued with high priority, as in
automotive applications (see Chapter 10). The preliminary assessment is that HFC-1234yf has
the potential for comparable efficiency to HFC-134a, although often slightly worse in
practice. Long term reliability tests for capillary tube restriction due to chemical degradation
have not been completed. As such, product costs are estimated to be 1% higher than for HFC134a technology due to the larger surface area of heat exchangers required (to account for
poorer energy performance) and an additional 1% due to the higher costs of the refrigerant.
Given the cost disadvantage, flammability and investment requirements for product
development, HFC-1234yf suffers significant disadvantages. With the lack of activity by
manufacturers, HFC-1234yf is not likely to displace HC-600a or HFC-134a in the foreseeable
future.
HFC-1234ze: This refrigerant is still in an early exploration phase (Karber, 2012, Leighton,
2011). The same considerations with respect to flammability as for HFC-1234yf hold. In
addition, compressor adaptations are required to match the reduced volumetric capacity
compared to HFC-134a. Therefore, also this refrigerant is not likely to displace HC-600a or
HFC-134a in the foreseeable future.
R-744: Currently, experience on the use of R-744 is available from a large number of bottle
coolers, which have been in use since many years, and are similar, low-charged applications. These
are further discussed in Chapter 4.
R-744 application implies an additional cost, which can be attributed to the greater mass of
materials necessary to achieve protection against the high pressure level, this in particular for
the compressor. Further concerns are the extremely small compressor swept volume
requirements and reduced thermal efficiency (Beek and Janssen, 2008). These concerns and
the fact that other low GWP alternatives are available make it unlikely that R-744 will
become commercialized. Moreover, no major domestic refrigerator manufacturer is actively
developing R-744 systems.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
73
3.2.2
Conversion of HFC-134a domestic refrigerators to low GWP alternatives
Current industry dynamics include increasing migration from HFC-134a to lower GWP
alternatives. Commercial conversion to date has been restricted to HC-600a. European
production of No-frost side by side refrigerators began conversion from HFC-134a to HC600a in the early 2000’s. Initial conversions of automatic defrost refrigerators in Japan from
HFC-134a to HC-600a were discussed in the 2006 report of this committee (UNEP, 2006).
This conversion, motivated by global warming considerations, has progressed to include more
than 90 % of refrigerator production in Japan.
The North American appliance market is dominated by HFC-134a while the conversion to
HC continues in the rest of the world. Several factors are uniquely weighted in the North
American market that has caused this delay including litigation costs, increased intensity by
the Consumer Product Safety Commission, local regulations requiring adherence to ASHRAE
15 and 34 standards, product cost differential for additional safety features, investment costs
to meet in plant OSHA safety requirements and the investment cost associated with
serviceability of a refrigerant that must be recovered. In the EU, protection is provided by the
EU Directive 2001/95/EC on general product safety. North American manufacturers have
consequently elected to develop additional costly safety requirements in addition to third
party standards prior to introduction of HC-600a to appliances.
Whilst legal concerns have so far limited the use of HC-600a in USA, a major U.S.
manufacturer introduced an auto-defrost refrigerators using HC-600a refrigerant to the U.S.
market in 2010. This introduction was a significant departure from prior North American
practices for domestic refrigeration. In 2011, US EPA approved HC-600a as acceptable
alternative under their Significant New Alternatives Policy Program (SNAP) for household and
small commercial refrigerators and freezers, subject to certain conditions. Conditions included
a limitation on charge to 57 g (note that substitution will be on an equal-molar basis, i.e. 100
grams of HFC-134a will be replaced by 57 g of HC-600a) and the requirement that products
comply with the revised UL 250. Concurrently, the number of HC-based refrigerator models
offered by manufacturers based in Central and South America are rising as well.
The trend of new production conversion to hydrocarbon refrigerants will continue. Excluding
any influence from government regulatory intervention, it is still projected that 75% of new
refrigerator production will use HC-600a or any other alternative low GWP refrigerants and
25% will use HFC-134a by 2020 (UNEP, 2010). This estimated migration is shown
schematically in Figure 3-1. Estimated conversion extents are based on the following
assumptions:
1. All current HC-600a applications will continue.
2. One-half of HFC-134a applications in geographic areas where forced convection, auto
defrost refrigerators are the typical configuration will convert to either HC-600a or a new
development alternative refrigerant such a low GWP unsaturated halocarbon refrigerants
such as HFC-1234yf, e.g. in cases where HC charge limitations are a factor.
3. Three-fourths of HFC-134a applications in geographic areas where natural convection
and/or manual defrost refrigerators are the typical configuration will convert to HC-600a
or to low GWP HFC alternatives. This is driven by the advantages of HC-600a versus
HFC-134a discussed earlier and production rationalization.
4. Use of low GWP unsaturated HFC refrigerants will require successful addressing of
numerous application criteria including: thermal stability, hermetic system chemical
compatibilities, process fluid compatibilities, contamination sensitivities, etc., in addition
to cost implications. Successful closure of any identified issues will be necessary to
permit proceeding with confidence for system reliability. Conversions will be influenced
by regional market or climate change policy choices. Government regulatory influence
was not considered.
74
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Figure 3-1: New production refrigerant conversion trend
Technologies to accomplish conversions are readily available, though it needs consideration
that conversion costs of the production facilities are significant. The rate and extent of
conversion will be influenced by premium product cost to maintain product safety with
introduction of flammable refrigerants. Premium costs are for modified electrical components,
increased use of reduced voltage to avoid electrical arcing and any other safety devices. Cost
pressures are more significant on models with lower profit margins. However, lower-end
models include fewer components requiring conversions tend to receive priority.
3.2.3
Alternatives for tumble dryers
These dryers typically use HFC-134a as a refrigerant and charge amounts vary from 200 to
400 g. Products using R-407C and HC-290 are also being placed on the market and can
potentially make use of the temperature glide, if heat exchangers are optimised for such
refrigerants mixtures. Though the continued use of HFCs is under discussion at several global
regions, it is also recognised that the use of heat pumps in a dryer lead to significant energy
savings of 50% or more and to a substantial reduction in global warming impact of countries
using fossil fuel for power generation. Alternative low GWP refrigerant solutions have not yet
been introduced in the market, but are being explored. This includes R-744, hydrocarbons and
low GWP HFCs.
Low GWP refrigerants currently explored are:
R-744 (CO2): The high temperature glide at the gas cooler side can effectively result in an
efficient drying process and possibly higher air exit temperatures than possible with
subcritical refrigerants. High costs of some components and the probable need of an
effective intercooler in order to reduce gas exit temperatures are the challenges currently
to be faced.
Hydrocarbons: In principle various hydrocarbons are suitable. Supply of suitable
compressors is currently very limited. Safety hazards due to the refrigerant flammability
need careful evaluation as the laundry dryers pose additional risks compared to domestic
refrigeration due to the high temperatures involved, the presence of dry textile materials,
mechanically moving objects (drum, motor etc.) and the presence of static charges.
Further charge minimisation may be needed, considering the relatively high amount of
refrigerant required
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
75
Low GWP HFCs: Due to the similar characteristics as HFC-134a, this category may offer
potential candidates. However, their flammability results in similar safety hazards as
listed for the hydrocarbons, though some of these hazards may be easier to deal with due
to the reduced flammability characteristic.
3.2.4
Not-in-kind alternative technologies
Alternative refrigeration technologies for domestic refrigeration continue to be pursued for
applications with unique drivers such as very low noise, portability or no access to the
electrical energy distribution network. Technologies of interest include Stirling cycle,
absorption and adsorption cycles, thermoelectric and magnetic. In the absence of unique
drivers such as the examples cited above, no identified technology is cost or efficiency
competitive with conventional vapour-compression technology for mass-produced domestic
refrigerators.
Absorption refrigeration equipment has been used in hotel mini-bar units due to low noise
levels and for mobile, off-network applications such as campers or mobile homes for many
years. Thermoelectric or Stirling cycle technologies are used for portable refrigerated chests
in applications such as medical transport. Thermoelectric is also used for hotel units and wine
storage units with moderate cooling temperature levels.
Magnetic refrigeration is one of the not-in-kind technologies with possible potential for
commercialization. Magnetic refrigeration does not use refrigerant and employs an active
magnetic regenerator, comprising magneto-caloric materials exposed to an intermittent
magnetic field. At lower cooling power, it possibly presents higher efficiency over
conventional vapour compression. To decrease the price of the technology, the use of an ironbased alloy to provide the magnetic charge has been considered as an alternative to the rareearth magnets such as gadolinium used originally.
The remaining specialty niche product areas cited above would each require high capital
investment to establish mass production capability. These product technologies will not be
further discussed in this report focused on options for mass produced markets.
Not-in-kind laundry dryer technologies are still in an early exploration stage.
3.2.5
Product energy efficiency improvement technologies for domestic refrigerators
The energy efficiency of domestic refrigeration products is a topic of active consumer and
regulatory interest. This topic is discussed at length in Chapter 11 of this report. This section
contains only a condensed discussion on energy efficiency. A more detailed discussion of
efficiency improvement options was included in the 2002 report of this committee (UNEP,
2002). Additional information can be found in various sources, amongst others the reports
under the Eco-Design Directive studies (Ecocold, 2006). These studies provided capability
background used for updating European Commission minimum energy efficiency standards
(EN-643, 2009).
Factors influencing refrigerant selection and product energy efficiency include local, regional
and national regulation, Eco-labelling, and third party standards. Globally labelling
requirements and minimum standards are reviewed and upgraded on a regular basis, driving
the product to reduced power consumption levels with corresponding reductions on global
warming impact. Such standards for measurement of product sustainability provide
transparency and credibility in the labelling of product impact on the environment, thus
driving a more informed decision for the consumer. One example is the recently developed
AHAM 7001-2012 Sustainability Standard for Household Refrigeration Appliances,
developed and endorsed by multiple stakeholders including environmental, industry,
government and consumers. Similar to the EU F-Gas legislation, this standard provides a
76
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
calculation for the net material GWP impact of a product as the mass weighted average GWP
of the product component materials.
Significant technology options to improve product energy efficiency have already
demonstrated mass production feasibility and robust, long-term reliability. Both mandatory
and voluntary energy efficiency regulation programs catalysed industry product efficiency
development efforts. Efforts to develop a universal energy test protocol are in almost
completed state (IEC-FDIS 62552-1, 2 and 3, 2014), at present each test procedure is unique
and the results from one should never be directly compared to results from another. A number
of improved energy efficiency design options are fully mature, and future improvements of
these options are expected to be evolutionary. Examples of these options include efficient
compressors, high efficiency heat exchangers, improved low thermal loss cabinet structures
and gaskets, and less variable manufacturing processes. Extension of these to all global
domestic refrigeration would yield significant benefit, but is generally constrained by
availability of capital funds and related product cost implications. Similarly, retooling
compressor manufacturing facilities facilitated the recovery of the minor efficiency penalties
incurred with the use of HC-600a/HC290 blends versus HC-600a.
Design options with less economic justification are sometimes introduced in premium-cost
models having incentive subsidies. This provides the opportunity to mature new efficiency
technologies and progress them through their individual cost/experience curves. This
increases the likelihood for migration of the efficiency technologies to more cost-sensitive
model line segments. Options that presently have limited or newly introduced application
include variable speed compressors; intelligent controls; system reconfigurations, such as dual
evaporators; advanced insulation systems; and Demand Side Management (DSM) initiatives
requiring interactive communication with energy providers in order to implement the Smart
Grid concept. The premium-cost of these options currently restrict their application to highend models and constrain their proliferation for general use. A further constraint is the fact
that not all energy saving measures results in a reduced energy value during tests according
the current test standards. The new universal test protocol mentioned earlier attempts to
improve this situation.
•
•
•
•
•
Variable capacity compressors avoid cycle losses and inertial losses through modulating
capacity and compressor speed. Use of higher efficiency permanent magnet or linear
motors is also enabled by electronic commutation controls.
Intelligent, adaptive controls allow variable control algorithms that avoid optimising at
seldom-experienced worst-case conditions (e.g. variable defrost algorithms).
Parallel dual evaporators can improve Carnot theoretical efficiency by effectively
reducing required pressure ratios of the higher temperature evaporator. Cost–effective,
reliable and stable system controls need to be demonstrated.
Advanced vacuum panel insulation concepts have been selectively used for several years
in Japan, Western Europe and the United States. Their premium cost has constrained
extension to general use.
Power line load management (Smart Grid) features of domestic refrigerators reduce
energy service provider’s peak load demands. Typically, such a feature on electronic
models responds to the power company request for reduced energy consumption.
Consequently, the appliances may postpone heated defrost, delay ice harvests or delay the
start of a compressor for short periods. The application of such load management features
to domestic refrigeration market is ramping up very slowly since the consumer benefit is
marginal.
3.2.6
Product energy efficiency improvement technologies for tumble dryers
For HPCDs the inclusion of a heat pump on itself is a major energy saving technology
compared to conventional laundry dryers. Current energy saving option is predominantly
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
77
related to optimisation of the refrigeration system in combination with the air circulation
system.
3.3
Options for existing domestic refrigerators
Non-Article 5 countries completed conversions of new equipment production to non-ozone
depleting substances (ODSs) more than 15 years ago. Later, a number of Article 5 countries
also completed their conversion, e.g. India by 2003. Therefore, most products containing
ozone depleting refrigerants are now approaching the end of their life cycle.
Field conversion to non-ODS refrigerants has significantly lagged original equipment
conversion. The distributed and individual proprietor character of the service industry is a
barrier to co-ordinated efforts to convert from ODS refrigerants. Field service procedures
typically use originally specified refrigerants. Refrigerant blends developed specifically for
use as drop-in service alternatives have had limited success. The interested reader is referred
to the 1998 report of this committee for an extended discussion of field repair and conversion
options (UNEP, 1998). Chapter 2 in this current report contains an updated listing of
refrigerant blend options.
Limited capital resources also favoured rebuilding service options in Article 5 countries
versus replacement by new equipment. Rebuilding has the accompanying consequence of
voiding the opportunity to significantly improve product energy efficiency and reduce stress
on the power distribution grid.
Field service conversion to non-ODS alternatives e.g. HFC-134a, and HFC and HC blends, is
not being done significantly. In some countries, the old units are bartered for new appliances
using non-ODS alternatives. The cost of extensive reconfiguration potentially required to
properly convert for use of alternative refrigerants is a significant deterrent to this approach.
In the case of conversion to HC blends, safety considerations require that any flammable fluid
accumulation within an enclosed volume must avoid the potential within that volume for an
electrical spark, electrical arc or surface temperature above the auto-ignition temperature of
the leaked gas in air. The extent of in-service product modification to assure this is dependent
upon the original product configuration. The original equipment manufacturer is most familiar
with the product construction and should be consulted for required modifications prior to
decision to proceed.
78
Cold-wall-evaporator constructions require leaking refrigerant to diffuse through the
refrigerator inner liner or flow by convection through apertures in the liner in order to
accumulate within the cooled volume. There is a low probability of significant gas
accumulation. Additionally, electrical components located within the cooled volume are
limited and consequently there is a low probability of an ignition source within the
enclosed volume. Economical drop-in conversion of this configuration is alleged to be
viable as per some reports, but procedure definition by the original manufacturer should
be sought prior to decision to proceed.
Thin-wall evaporators positioned within the cooled volume are a common construction
for automatic-defrost refrigerators. Leakage of refrigerant can accumulate within the
cooled volume and the risk of ignition is dependent on whether the rate of leakage is
sufficient to result in a combustible mixture within the cooled volume. Additionally,
electrical components are commonly located within the cooled volume, such as,
thermostats, convective fans, defrost heaters, lights, icemakers, etc., increasing the
probability of an ignition source being present. The viability of a drop-in conversion will
depend upon the extent of original construction modification required to achieve an
acceptable configuration. Again, conversion procedure definition by the original
manufacturer is prudent and should be sought prior to decision to proceed.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
3.4
End-of-life disposal
The small unit charge and the geographically dispersed location of these units complicate
commercial opportunities to promote recovery and recycling initiatives to manage emissions
from disposed units. Regulations for mandatory end-of-life refrigerant handling have existed
in many developed countries for several years and are being introduced in Article 5 countries.
Chapter 11 of this report addresses this and related conservation approaches. Interest in
conservation programmes is leveraged by the 1 to 2 kg of foam blowing agents typically
present in a domestic refrigerator.
For HPCDs, similar recovery and recycling technologies apply for refrigerant and lubricant as
for domestic refrigeration systems, although there is no adequate experience in this emerging
segment.
3.5
Concluding remarks
Conversion of new equipment production to non-ODS refrigerants in Article 5 countries
occurred over a span of five to seventeen years ago. Migration to second generation non-ODS
refrigerant from HFC-134a to HC-600a in new product production is occurring as a result of
the GWP difference between the two alternatives. This migration began in Japan several years
ago and is now occurring in Brazil, Mexico and the United States. No new technology is
required and the trend will likely proliferate. The rate and extent of proliferation will be
influenced by the relative cost for HFC-134a and HFC-600a products. Current estimates
indicate that additional cost results from design changes to allow the use of flammable
refrigerants in automatic defrost refrigerators.
3.6
References
Beek, 2008
van Beek, M and Janssen, M., “R-744 compared to R-290 in small freezer
applications,” 8th IIR Gustav Lorentzen Conference on National Working
Fluids, Copenhagen, 2008.
CEP, 2009
Domestic refrigeration refrigerant bank updated data through 2006.
Authors, CEP, Ecole des Mines, December 2009.
Ecocold, 2006
Eco-design requirements of EuP - Domestic Refrigerator and Freezer
Directive Studies, July 2006, http://www.ecocold-domestic.org.
Karber, 2012
Karber, K.M., Abdelaziz, O., Vineyard, E.A., Experimental Performance of
R-1234yf and R-1234ze as Drop-in Replacementsfor R-134a in Domestic
Refrigerators, International Refrigeration and Air Conditioning Conference
at Purdue, July 16-19, 2012
Leighton, 2011
Leighton, Investigation of household refrigerator with alternative low
global warming potential refirgerants, Thesis Faculty of the Graduate
School of the University of Maryland, College Park, USA, 2011
Meyers, 2010
Meyers, S., Franco, V.H., Lekov, A.B., Thompson, L., and Sturges, A.,
“Do Heat Pump Clothes Dryers Make Sense for the U.S. Market?”
Presented at 2010 ACEEE Summer Study on Energy Efficiency in
Buildings, August 2010.
Schwarz, 2012
Schwarz, W., Leisewitz, A., Gschrey, B., Herold, A., Gores, S., Papst, I.,
Usinger, J., Colbourne, D., Kauffeld, M., Pedersen, P.H., and Croiset, I.
“Preparatory study for a review of Regulation (EC) No 842/2006 on certain
fluorinated greenhouse gases - Annexes to the Final Report Prepared for the
European Commission in the context of Service Contract No
070307/2009/548866/SER/C4”, 2013.
UNEP, 1998
UNEP 1998 Report of the Refrigeration, Air Conditioning and Heat Pumps
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
79
Technical Options Committee, Chapter 3, Domestic Refrigeration (1998
Assessment).
UNEP, 2002
UNEP 2002 Report of the Refrigeration, Air Conditioning and Heat Pumps
Technical Options Committee, Chapter 3, Domestic Refrigeration (2002
Assessment).
UNEP, 2006
UNEP 2006 Report of the Refrigeration, Air Conditioning and Heat Pumps
Technical Options Committee, Chapter 3, Domestic Refrigeration (2006
Assessment).
UNEP, 2010
UNEP Technology and Economic Assessment Panel Task Force Decision
XXI/9 Report, “Assessment of HCFC’s and Environmentally Sound
Alternatives Paragraph 2C,” (May 2010).
Weston, 1997
Roy W. Weston Inc., Recycling Rate Determinant Study – Phase 1 Report,
Norcross, Georgia (1997).
80
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
81
82
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 4
Commercial Refrigeration
Chapter Lead Author
Denis Clodic
Lead Authors or Co-Authors
Martien Janssen
Michael Kauffeld
Petter Neksa
Per-Henrik Pedersen
Alessandro Silva
Rajan Rajandran
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
83
84
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
4
4.1
Commercial refrigeration
Introduction
Commercial refrigeration is characterised by storing and displaying food and beverages at
different levels of temperature within commercial stores with sales areas varying in size from
approximately 10 m2 to 20,000 m2. The refrigerating capacities of equipment vary from
hundreds of Watts to as high as 1.5 MW. Two main levels of temperatures are generated by
refrigeration systems from around 0 °C to 8 °C for the conservation of fresh food and
beverages, and around -18 °C for frozen food and ice cream.
Globally, HCFC-22 continues to represent the largest refrigerant bank in commercial
refrigeration and is used at all temperature levels. The most used HFC (blend) is R-404A for
all temperature levels.
For the past decade, HCs for low refrigerant charge systems, and CO2 for larger supermarket
applications are increasingly used in many developed nations.
In parallel, progress has been made to improve energy efficiency and leak tightness,
especially for centralized systems. The progressive phase-out of HCFC-22 in developing
countries requires making informed choices on the best replacement options.
AHRI launched a Low GWP Alternative Refrigerant Evaluation Program (AREP) in 2010
(AHRI, 2013). A number of new blends based on HFC-1234yf and HFC-1234ze(E) as well as
HFC-32 have been formulated to replace HFC-134a, HCFC-22, and R-404A. So, for the three
groups of commercial refrigeration equipment, comparisons are now being made in order to
select amongst the most energy efficient options with the smallest environmental impact due
to refrigerant emissions.
In commercial refrigeration, as in air-conditioning, high ambient applications require special
consideration in selecting and designing components and equipment. However, designers of
commercial refrigeration equipment choose components to design systems based on
delivering the cooling required at the highest ambient condition.
For moderate and cold climates it is an important option to recover heat from the refrigeration
plant for heating purposes in the cold season. Considering the supermarket as an energy
system for which energy use should be minimized may give considerable energy savings.
The ozone depleting potential (ODP) and global warming potential (GWP) values of the
alternates mentioned in this chapter are given in Chapter 2 of this report.
4.2
Applications
Stand-alone equipment are self-contained refrigeration systems and comprise a wide variety
of applications: ice-cream freezers, ice machines, beverage vending machines, and display
cases. These systems are found not only in large commercial stores but also restaurants,
convenience stores, mini supermarkets and gas stations. For developing countries, domestic
refrigerating equipment, refrigerators, and freezers can be found in small shops and used for
commercial purposes. Stand-alone equipment are increasingly used in developed countries in
medium-size supermarkets because of ease of maintenance of the fully-welded circuit. In
Europe, and lately in other markets, this choice is also often related with the use of
hydrocarbons or CO2.
Condensing units exhibit refrigerating capacities ranging typically from 1 kW to 20 kW. They
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
85
are composed of one (or two) compressor(s), one condenser, and one receiver assembled into
a so-called “condensing unit”, which is typically located external to the sales area. The
cooling equipment consists of one or more display case(s) in the sales area and/or a small cold
room. Condensing units are typically installed in specialty shops such as bakeries, butcher
shops, and convenience stores. In a number of supermarkets, one can find a large number of
condensing units (sometimes up to 20) installed side-by-side in a small machinery room. In
most of the A5 countries, the use of systems using condensing units is very extensive.
Condensing units are easily found in all countries through refrigeration equipment
distributors. The global market of condensing units has a strong consequence in terms of
refrigerant choices; they are developed based on the most used refrigerants: HCFC-22, R404A, and HFC-134a.
Centralised and Distributed systems are the preferred options in supermarkets. They operate
with racks of compressors installed in a machinery room as in the case of a centralized system
or several smaller racks installed in a machinery room or on the roof as in the case of a
distributed system. Distributed systems may be thought of as multiple smaller centralized
systems which lead to lower charge levels. A number of possible designs exist and will be
addressed in Section 4.3 3. Two main design options are used: direct and indirect systems.
Direct systems are the most widespread. The refrigerant circulates from the machinery room
to the sales area, where it evaporates in display-case heat exchangers, and then returns in
vapour phase to the suction headers of the compressor racks. The supermarket cold rooms are
cooled similarly. In the machinery room, racks of multiple compressors are installed; these
utilise common discharge lines to the air cooled condenser and common suction and liquid
lines to the refrigerated fixtures. Specific racks are dedicated to low temperature and others to
medium temperature. Each refrigerant circuit of each rack is independent. Supermarket
centralised systems with long piping circuits have led to large refrigerant charges (100 to
3,000 kg depending on the size of the supermarket) and consequently to large refrigerant
losses when ruptures occur. Studies have been conducted which show that low leak rates are
possible to achieve in supermarket applications to less than half the typical values, some as
low as 3.5% (EPA). Typical emission rates of small supermarkets vary between 15 and 25%
and those of large supermarkets between 20 and 35%. These figures represent, in general, the
situation of non-Article 5 countries. The emission rates for most of the Article 5 countries are
much higher.
Indirect systems are composed of primary heat exchangers where a heat transfer fluid - HTF
(also called secondary refrigerant) is cooled and pumped to the display cases where it absorbs
heat, and then returned to the primary heat exchanger. HTFs have been receiving interest
because indirect systems allow for lower primary refrigerant charge and facilitate the use of
flammable or toxic refrigerants when isolated from the sales area.
4.3
Options for new equipment
4.3.1
Stand-alone equipment
Several stand-alone equipment types are described in this section, in order to analyse the
trends for refrigerant choices depending on the cooling capacity, the refrigerant charge, and
the refrigerant circuit design. Many of stand-alone equipments are owned and installed by
global food companies. Those companies develop their own environmental policy and
choosing low-GWP refrigerants as well as energy-efficient systems are part of the green
positioning of those companies.
Bottle coolers
Glass-door bottle coolers can be found in nearly every supermarket, gas station, and kiosk.
The most common type is the one-door 400-liter type, but also bigger (2 or 3 glass doors) and
smaller types are on the market.
86
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Hydrocarbon (HC-290) bottle coolers as well as CO2 bottle coolers show good energy
performances and with R&D developments even better compared to the HFC-134a base line.
Hydrocarbon bottle coolers showed 28% reduced energy consumption compared to HFC134a bottle coolers, and for CO2 12% energy consumption reduction (Pedersen, 2008). The
choice of HC-290 is made by several European companies manufacturing those bottle
coolers, while CO2 is preferred by others, based on a different perception of safety risks.
Within the AHRI / AREP test program, laboratory tests have been performed in order to
evaluate the two low-GWP HFCs: HFC-1234yf and HFC-1234ze, and HFC-134a based
blends designed to replace HFC-134a at nearly the same performances. Tests indicate that
those low-GWP refrigerants are in the same range of performances and that refrigeration
system optimization is necessary and will be developed in the near future.
Ice-cream cabinets
R-404A and HFC-134a are the refrigerants used in ice-cream cabinets and are progressively
being replaced with HC-290 by large food companies. In 2014, the number of HC-290 icecream cabinets is expected to be more than one million units as assessed by a leading global
company (Refrigerants Naturally, 2014).
Vending machines
Vending machines for soft drinks require a significant cooling capacity to rapidly cool the soft
drink container. The usual refrigerant charge of HFC-134a varies between 0.5 and 1 kg
leading to the development of CO2 options to compete with hydrocarbons. High-efficiency
CO2 cassettes have been developed by a Japanese company and are sold to many OEM
companies for integration. The CO2 technology is compact and has passed the tests of energy
efficiency defined by soft drink companies. HC-290 vending machines have also been
developed to perform satisfactorily from an energy point of view. As for bottle coolers the
choice between CO2 and hydrocarbons is made based on conclusions drawn from the risk
analysis and the impact of possible incidents or accidents.
Water coolers
A large number of water coolers for both bottled water and tap water are installed worldwide.
The refrigeration capacity is small and the refrigeration circuit is fully brazed. Thus this
equipment looks like a small domestic refrigeration system. Many companies have switched
from HFC-134a to isobutane (HC-600a). The hydrocarbon charge could be as low as 20 g.
Ice machines
Ice machines are installed in restaurants, bars and hotels, and are dominantly found in North
America. Many different refrigeration capacities are found depending on the size of the
machine, as well as different technologies depending on the type of ices: cubes, pellets, flakes
etc. The usual R-404A charge can vary from 500 g to 2 kg. Within the AHRI/AREP program,
an ice-machine dispenser has been tested with a new low-GWP HFC-based blend with a
temperature glide of about 7 K at the evaporator. Report #2 indicates lower refrigeration
capacity of about 4% without any optimization being done (Schlosser, 2012). In Europe, and
in other regions, small ice machines now use HC-290 and are sold as a standard option. More
recently, several equipment manufacturers have started introducing ice machines using CO2
as the refrigerant (Shecco, 2014).
Supermarket plug-in display cases
The use of supermarket cabinets of the plug-in type is increasing in Europe, especially in
discounter stores. Many small- and medium-size supermarkets install such units instead of the
cabinet cooled by a remote refrigeration system. The plug-in cabinets have lower installed
cost, are more flexible and require less system maintenance, because of the fully brazed
circuit. Plug-in cabinets are significantly less energy efficient compared to display cases
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
87
cooled by condensing units or compressor racks, because small compressors have lower
energy efficiency than larger ones.
Moreover, the condenser heat is released into the supermarket sales area where the display
cases are installed. For high outdoor temperatures, the heat released in the sales area requires
higher cooling capacity for air conditioning. On the contrary, the heat released is a gain in
winter in moderate and cold climates. Some installations of stand-alone display cases are
designed with water cooled condensers allowing the release of heat outdoor, usually using a
small water chiller; in this specific design, energy efficiency can reach acceptable levels.
The refrigerant choice used to be R-404A. Since 2007, hydrocarbon display-cases using HC290 have been proposed as a standard option in Europe with an energy efficiency gain
ranging from 10 to 15% compared to R-404A. CO2 systems for display cases have also been
introduced by several key suppliers.
The first conclusions that can be drawn for standalone equipment are as follows:
- HFC-134a and R-404A will be phased-out progressively in developed countries. Due
to multinational companies this phase-out is also beginning in developing countries.
There are several low-GWP refrigerant options and hydrocarbons, CO2 and new lowGWP HFC-based blends can be used depending on commercial availability.
- Addition of glass doors and LED lighting to display cases can reduce the refrigeration
load thus enabling the use of flammable refrigerants for these display cabinets within
the allowable charge limits.
- Minimum energy standards have been issued or updated in the last years in North
America, in Europe and in many other countries, making a new competition between
manufacturers in order to reach higher energy efficiency stand-alone systems; the
CLASP report (Waide, 2014) estimates the possible gains for the different
standalone-equipment types between 30 and 40% compared to the current average
energy consumption.
- Eco-labelling taking into account all impacts during the life cycle of product (see
Chapter 11) will be soon issued for commercial refrigeration in Europe, energy
consumption being the main criterion to be addressed in order to lower significantly
the environmental impact of those equipment. In parallel, the amended F-gas
regulation will affect refrigerant choices in this equipment.
4.3.2
Condensing unit systems
Condensing units comprises one or several compressors, an air-cooled condenser (usually), a
receiver, and a liquid line to be connected to the refrigeration circuit. Condensing units are
designed for several capacities and are standardized equipment. Condensing units are
commonly used in commercial refrigeration worldwide and especially in developing
countries; they are sold by OEMs to installers. The design is as generic as possible and the
usual refrigerant is HCFC-22 in developing countries, HFC-134a, R-404A and, to a lesser
extent, R-410A in developed countries. HFC-134a is chosen for small capacities and
evaporation temperatures > -15°C. R-404A or R-410A are chosen for larger capacities for all
temperature levels. HFCs form the energy efficiency references for benchmarking all other
refrigerants.
Replacement HFC blends
For HCFC-22 replacement, a number of “intermediate” refrigerant blends are proposed, such
as R-407A, R-407F, R-448A, and R-449A and others have not yet received their ASHRAE
number. Their GWPs are ranging from about 1000 to 1700. They are designed to replace
HCFC-22 or R-404A and are used either as retrofit refrigerants or in new equipment. All of
them present temperature glides from 5 to 7 K which require special attention paid to the
selection and operation of components.
88
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
A new set of low-GWP R-404A and HCFC-22 replacement refrigerant blends is also being
introduced with GWPs ranging from less than 150 to 300; they are considered to be
commercially available before the end of 2016. Some have been tested and results are
available in (Schultz, 2013) showing a volumetric capacity either identical or in the range of
±5%, with a COP from 7 to 2% lower compared to HCFC-22. Many low-GWP HFC blends
contain HFC-32 and HFC-1234yf and/or HFC-1234ze(E), and they are all low-flammable
refrigerants classified as 2L in ASHRAE 34. For HCFC-22, HFC alternative-blend options
that are proposed show performances close to the benchmark reference. The results indicate
that soft optimization could lead to performances on the level of the baseline refrigerants.
Nevertheless, equipment manufacturers have to take into account in the new equipment
design that all these refrigerant blends have temperature glides varying from 4 to 7 K.
Ammonia
R-717 is not used much in these systems for cost and safety issues. However it is used in
cascade systems with CO2 in the low stage of the equipment.
CO2
New carbon dioxide-based condensing units are sold in Northern Europe and Japan. The
market penetration is low but increasing. R-744 condensing units require a double-stage
design if high ambient temperatures occur frequently. Single-stage systems are designed for
cold climates. The additional cost for a double-stage system is significant compared to usual
HFC reference condensing units. The cost remains the main barrier for these R-744
condensing units in certain regions, but with increasing production capacities and financial
incentives this barrier is expected to overcome soon.
Hydrocarbons
Several hundred indirect condensing units using HC-290 or HC-1270 are operating in Europe
with typical refrigerant charges varying from 1 to 20 kg, most of them on the lower charge
side, with good energy efficiency.
Direct expansion condensing units from 100 W to 10 kW (up to 1.4 kg charge) are
commercially available from major manufacturers operating with HC-600a and HC-290, and
for temperatures ranging from -40°C up to 0°C. Costs for these HC-based systems can be up
to 15% higher than HFC systems due to safety measures required for flammability mitigation.
4.3.3
Centralized supermarket systems
Centralized systems are the preferred option in medium to large supermarkets, because they
usually achieve better energy efficiency than plug-in cabinets and condensing units. This is
mainly due to compressor efficiencies being higher for larger compressors (in the range of 6070%) compared to smaller compressors (in the range of 40-50%) used in plug-in cabinets.
The sales area of supermarkets with centralized refrigeration systems varies from 400 m2 up
to 20,000 m2 for large supermarkets.
Generally, for large supermarkets, the reference design is a direct-expansion centralized
system with several racks of compressors operating at the two evaporation temperature levels
(-10 °C ± 4 K and -32 °C ± 4 K for example). Several refrigeration system designs exist for
medium to large supermarkets; these designs have an impact on refrigerant choices,
refrigerant inventories, and energy efficiency. Conventionally, they operate with racks of
parallel piped compressors installed in a machinery room, typically using HCFC or HFC in
direct expansion refrigeration systems. Typically the compound compressors operate with a
common condenser which provides a number of different evaporators with liquid refrigerant.
Places to be cooled by the system include refrigerated counters, refrigerated shelves, freezer
islands, medium and low temperature storage rooms. Because all cabinets/evaporators are
connected to all compressors in one compound system, HFC charges can be quite high – up to
3,000 kg for hypermarkets – with resulting high emissions in the case of component failure
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
89
like pipe rupture, e.g. due to excessive vibration. In addition, the numerous joints of large
systems are prone to frequent leakage (especially mechanical joints), hence such systems
often have refrigerant leakage rates in the order of 15 % (Schwarz et al, 2011) or higher,
typically 25%. In order to limit refrigerant emissions, some commercial companies have put
significant effort in order to limit their annual emissions; some successes have been reported
in Germany with reduction of annual emission rates lower than 10% (Kauffeld, 2013).
The different central multi-compressor refrigeration systems offered on the market can be
categorized according to
•
the choice of refrigerant(s),
o HCFC or HFC
o Hydrocarbon (HC)
o Ammonia (R-717)
o Carbon dioxide (R-744)
•
the type of refrigerant distribution
o direct expansion or
o indirect via a heat transfer fluid (HTF) – the HTF can be single phase liquid
(mainly used for MT), melting ice slurry (only MT) or evaporating carbon
dioxide (MT and LT), and
•
the kind of cooling of the condenser/gas cooler
o Ambient air cooled; in hot climates sometimes with evaporation of water in
order to reduce air temperature
o Water cooled; water cooling by ambient air
o Water based heat recovery; i.e. condenser is water cooled heating tap water or
store
o Air based heat recovery; heating store room air directly.
Most systems have separate MT and LT systems, but especially systems working with R-744
combine MT and LT in one compound system. Due to safety and technology reasons, not all
combinations make sense or are acceptable. For example ammonia by reason of its higher
toxicity is excluded from the costumer area and it will therefore never be used in direct
expansion systems in the sales area of a supermarket; but ammonia can be used safely as a
high-efficiency refrigerant in an indirect supermarket refrigeration system, see below.
The evaporator of direct expansion systems is located in the application (i.e., within the cold
room or cabinet). Condensers can be arranged in air-cooled machine rooms in the building or
outside of the building. Heat recovered from the condenser can be used for room or tap water
heating. Direct expansion systems are worldwide the dominating technology for
supermarkets. The direct expansion centralized system is therefore often used as the reference
for comparisons of energy performances and refrigerant charges.
The refrigerants for new systems are R-404A and R-744, especially in Europe. To a smaller
extent HFC-134a is used for medium temperature applications, as well as R-507A in some
countries, e.g. Norway. Direct expansion systems will always have refrigerant-carrying pipes
and components inside of the sales area which the public may enter. Therefore, the refrigerant
will normally be restricted to lower toxicity, non-flammable safety classification (i.e. class A1
according to EN-378).
For cost reasons and for technical simplicity, commercial centralized systems have usually
been designed with a single compression stage even for the low-temperature level (-35°C to 38°C). Two design options, cascade and boosters systems, which are common in industrial
refrigeration, have been introduced in commercial refrigeration in order to improve energy
efficiency, see Figure 4-1 and 4-2. They can be used for all refrigerants, but the development
has been especially made for R-744.
90
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Figure 4-1: Cascade system
Figure 4-2: Booster system
Cascade systems
The cascade system, as shown in Figure 4-1 connects the low-temperature compressor rack to
the medium-temperature level, via an evaporator-condenser where the heat released by the
low-temperature rack is absorbed by the evaporation of the medium-temperature refrigerant.
The refrigerants at the two levels of temperature can be either different or identical. In any
case two-stage systems are more efficient than single-stage ones; the energy gain is typically
of 15 to 20% and is more pronounced for high outdoor temperatures.
Booster systems
Another design, which is simpler and less costly, is also developed and installed now in
commercial refrigeration: the booster system presented in Figure 4-2. The low-temperature
compressor rack discharges its vapour directly in the suction line of the medium-temperature
rack where it is mixed with the medium-temperature vapour. In this design, the refrigerant is
the same for the low and medium-temperature levels. The booster system offers several levels
of pressure by using a flash tank and several expansion valves. A first expansion valve EV1
expands the refrigerant in the flash tank at a first intermediate pressure; the vapour generated
by this first expansion is directly sucked by the medium-temperature compressor rack, and the
pressure of the expanded vapour leaving the flash tank is controlled at the medium
evaporation pressure by EV2. For CO2 this design presents a great advantage because above
31°C in the condenser, there is no more condensation and the condenser becomes a gas
cooler. In the supercritical region, CO2 is in dense gas phase at pressure around 90 bars and
can be expanded in the flash tank at 40 bars for example, and so a part of the expanded CO2
changes to liquid phase and feeds both the medium-temperature display-cases via the
expansion valve TXV1 and the low-temperature display case via TXV2. For high outdoor
temperatures, the booster system offers a efficiency gain for CO2; however, energy loss for
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
91
CO2 systems due to supercritical operation can be overcome with additional design features
like ejectors, parallel compression or subcoolers.
These two designs are now installed in several thousands of stores; cascade systems – with
usually HFC-134a at the medium-temperature level – in large supermarkets and full CO2
booster systems in larger to smaller ones. These stores are currently mostly found in Europe,
but are increasing in adoption in the rest of the world.
Distributed systems
In the USA two designs coexist: the centralized and the distributed system. Distributed
Systems consist of a number of compact compressor systems / condensing units with –
typically - water-cooled condensers. The compressor systems are located in sound-proof
boxes, which can be installed in the sales area. Water pipes running through the store remove
the condenser heat. The design is compact and the refrigerant lines are short, which makes a
gain in terms of reliability and limits the pressure losses. The refrigerant inventory of a
distributed system is smaller by about 15% compared to a direct-expansion centralized system
while the energy efficiency is in the same range.
R-404A is usually used as the refrigerant of choice although HFC-134a is also feasible for
MT applications and HC-1270 is used in some water cooled condensing units (charge always
below 1.5 kg). The central chiller can use any kind of refrigerant, many systems use HC-290
or R-404A.
Indirect Systems
Indirect systems include a secondary cycle which transports the heat by means of a heat
transfer fluid (HTF) from the refrigerated cabinet to the evaporator of the primary
refrigeration system which can be located in a secured machine room or in the open air, i.e.
isolated with no public access, see Figure 4-3. During the last 20 years, indirect systems have
been developed, mostly for the medium-temperature level, enabling a reduction of the
refrigerant charge by at least 50%.
As shown in Figure 4-3, the low-temperature direct expansion system can release the
condensation heat to the HTF secondary loop, leading to better energy efficiency of the lowtemperature system and allowing also the use of CO2 in subcritical operation at the lowtemperature level. Some other designs are also possible where the condensation heat of the
low-temperature system is directly released to the atmosphere
92
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
.
Figure 4-3: Indirect system at the medium-temperature level and direct expansion at the lowtemperature level
The use of HTF with phase change offers an energy saving potential: ice slurry for medium
temperature or CO2 for medium and low temperatures (Møller, 2003). Through the selection
of the correct additive, ice slurry can also outperform a single-phase HTF (Hägg, 2005;
Lagrabette, 2005).
Indirect systems make the primary refrigeration system design very compact. One can use
prefabricated units and the assembly of systems can be simplified on site. Indirect systems
allow also for providing more stable temperatures and increased humidity at the points of
refrigeration (Rhiemeier et al., 2009). The pumping energy of heat transfer fluid, which can
be significant, has to be compared with the additional energy consumption due to pressure
losses of the long suction lines of direct expansion systems. In order to prevent the energy
consumption increase, it is also important to select the appropriate HTF based on liquid
viscosity and heat capacity. For indirect systems, the following characteristics have to be
mentioned: all piping needs to be insulated; HTF leaks are also possible and difficult to
diagnose.
Developing country aspects
In developing countries, supermarkets can be of very different sizes but also have a
centralized machinery room as in developed countries; depending on the leadership of
companies, one can find CO2 cascade and booster systems in a country such as Brazil. It has
to be taken into account that for cost reasons and ease of installation many small supermarkets
and convenience stores in developing countries will be using condensing units.
Refrigerants and systems
HCFCs and HFCs
The dominant refrigerant for centralized systems in the developing countries is HCFC-22
while R-404A is common in developed countries. In Japan R-407C is commonly used, and
some stores using R-404A have switched to R-410A in the last years. Now pure HFC-32 is
beginning to be used at the medium-temperature level and CO2 or HFC-32 are under
evaluation for the low-temperature level. The flammability of HFC-32 makes it difficult to be
used in large direct expansion systems outside of Japan. More recently, lower GWP R-404A
alternatives like R-448A, R-449A are undergoing field trials and starting production while
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
93
HFC-134a alternative blends like R-450A are also being evaluated. These and other similar
lower GWP HFC blends are important as replacements for existing systems that use R-404A
and HFC-134a.
HC-290 and HC-1270
Refrigerant changes have begun since the early 2000 in Europe, and especially in Germany,
where propylene (HC-1270) has been introduced in supermarkets, using a secondary loop,
HC-290 is now the preferred option. For all HCs, the machinery room is located outside of the
store. The number of these HC-systems is limited.
Ammonia
Due to its toxicity, ammonia is confined in a ventilated machinery room and ammonia
systems are always designed with secondary loops at each temperature level. Several large
supermarkets operate with ammonia especially in Luxembourg and Switzerland. Ammonia
can be used at the medium-temperature level, together with CO2 at the low-temperature level.
CO2 (R-744)
The real breakthroughs using CO2 as refrigerant began around 2005 with two major new
options: CO2 as the only refrigerant in booster systems and CO2 in cascade with HFCs or
other refrigerants.
For using CO2 as the only refrigerant in small, medium and large size supermarkets, CO2 has
been introduced in transcritical booster systems (Figure 4-2). The low-temperature rack
operates at -33°C ± 3°C evaporation temperature. The medium-temperature rack operates at 9°C ± 3°C evaporation temperature. The heat dissipation occurs up to 30°C depending on the
outdoor temperature, and above 27°C outdoor temperature, the operational mode becomes
transcritical. Up to now, more than 3000 transcritical CO2 systems are installed, mainly in
Europe (95%) (Chasserot, 2014).
CO2 systems operate also at the low-temperature level only. The condensation heat is released
to the secondary loop, usually at -10°C temperature level as shown in the cascade system
(Figure 4-1). The interest of keeping this low level of condensation temperature is to use usual
copper tubing designed for maximum pressure of 3 MPa. The medium-temperature
compressor rack works with HFC-134a or R-717, those systems are installed in about 2000
stores (Chasserot, 2013). In Brazil, due to the active policy of a European company, more
than 50 stores are now operating with CO2 cascade systems.
The energy efficiency of CO2 systems is better than that of comparable HFC-systems at
ambient temperatures below 22°C, about equal at temperatures between 22 and 26°C, and
lower at higher ambient temperatures (Finckh et al, 2011). It should be noted that using
electronic expansion valves and similar system enhancements used for CO2 systems will also
have beneficial effects on standard HFC systems. Installation of CO2 systems has also begun
in Asia, the Americas, and Australia. Shifting from HFCs to CO2 can reduce the carbon
footprint of supermarkets by 25% (EPA, 2010) but could be higher depending on the
refrigerant leakage and energy recovery utilization
For moderate and cold climates it is an important option to recover heat from the refrigeration
plant for heating purposes; e.g. for hot water heating and indoor air heating in the cold season.
CO2 systems are easily adapted to satisfy such demands. Considering the supermarket as an
energy system for which energy use should be minimized may give considerable energy
savings, e.g. 30% has been demonstrated (Hafner et al, 2014a).
With trials of new developments like booster systems, ejector systems, expander systems,
parallel compression and systems with auxiliary mechanical sub-cooling, the efficiency of
94
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
CO2 systems may, in the future, be improved to the extent that such systems will be more
energy efficient, even in warmer climates (Huff et al, 2012 and Hafner et al, 2014b).
Low-GWP HFCs and HFC blends for R-404A and HCFC-22 replacement
The AHRI/AREP Report # 21 (Shrestha, 2013) presents several low-GWP HFC blends (from
220 to 300) proposed to replace R-404A in condensing units that are the same as those
proposed for centralized systems. The refrigeration capacities of these blends are slightly
lower, energy efficiency slightly higher and temperature glides of 4 to 7 K are larger
compared to R-404A. The consequence of the temperature glide is a possible distillation of
the blend when a leak occurs. Servicing becomes more complex due to the composition
change of the refrigerant blend due to the different boiling points of the individual
components of the blend. Some contractors recommend the recovery of all the refrigerant
remaining in the installation to make a full new charge at the right blend formulation. Such
practice could add to running costs of systems due to the anticipated higher costs of low GWP
HFCs and associated destruction costs of the remaining refrigerant.
Some of the low-GWP-HFC blends are designed to replace HCFC-22. For the tested blends,
the cooling capacity is 2 to 7% lower and the efficiency is from 5 % lower to 10% better.
Some of the blends formulated to replace R-404A are the same as those formulated to replace
HCFC-22.
The results of the AHRI / AREP reports show that soft optimization of refrigeration systems
using those blends may lead to the same level of performances. Three issues are still to be
addressed: safety rules for low flammability refrigerants, servicing of refrigerant blends with
possible distillation due to leaks and commercial availability.
A new set of low-GWP R-404A refrigerant blends is also being introduced with GWP less
than 150.
Summary for centralized systems
In summary, for centralized systems a number of options are available and proven; some of
them require a higher technical training of contractors especially for two-stage CO2 systems.
The replacement of R-404A is underway and will lead to several families of technical options
with either CO2 at all temperature levels or low-GWP HFCs at the medium temperature
operating in cascade with CO2 at the low temperature. R-404A replacements that are non
flammable and lower than 2000 GWP will grow in use both in existing and new systems. Low
GWP and mildly flammable HFCs at all temperature levels will also be considered but
flammability concerns might limit the types of systems due to the current standards.
4.4
Options for existing equipment
This section covers the retrofit options for the installed base of equipment. For stand-alone
equipment, there is no real incentive to change the refrigerant because the refrigeration circuit
is totally brazed and hermetic, and this type of equipment will be changed based on its current
lifetime, if no heavy leaks occur. However, a few options for stand-alone equipment are: R448A or R-449A for R-404A and R-450A for HFC-134a. This list can be expected to grow as
more manufacturers release alternates for existing refrigerants and equipment.
The R-407 series of refrigerants like R-407A, R-407F and R-427A are now used in many
developed countries as retrofit refrigerants for R-404A depending on individual
manufacturers’ approvals. These refrigerants, including R-407C, are commercially available
and are also formulated to replace HCFC-22. Other HFC blends with GWP lower than 2000,
such as R-448A and R-449A (and others not yet assigned ASHRAE numbers) will be also
commercially available in 2015 and will be candidates to replace HCFC-22 and R-404A. In
fact, the most important issue for the replacement of HCFC-22 in developing countries will be
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
95
to find replacement options at acceptable costs; given the fact that developing countries will
lag the developed nations in adopting these changes, the cost of these changes can be
expected to be better when Article 5 countries are ready to make the change
Depending on the lifetime of refrigeration systems, the retrofit option is part of the refrigerant
management plan required to follow the phase-down schedule. Recovery and recycling of
existing refrigerants represent a strong option in order to smooth the transition from present
day refrigerants to a series of lower GWP options.
4.5
References
AHRI, 2013
Low GWP Alternative Refrigerant Evaluation Program
http://www.ahrinet.org/site/514/Resources/Research/AHRI-LowGWP-Alternative-Refrigerants-Evaluation
Chasserot, 2013
Natural Refrigerants Market Trends; Bangkok Technology conference
June 30, 2013
Dallinger, 2012
Dallinger, J.; Sheehan, J.: Supermarktkälteanlage mit CO2 als
Kälteträger – Fallstudie einer Anlage in Australien. DKV Tagung
2012, Würzburg, Germany
EPA, 2010b
US-EPA: Transitioning to low-GWP alternatives in commercial
refrigeration. Fact sheet, October 2010
EPA, 2014
http://www2.epa.gov/greenchill/reports-guidelines-and-tools
Finckh, 2011
Finckh, O.; Schrey, R.; Wozny, M.: Energy and efficiency
comparison between standardized HFC and CO2 transcritical systems
for supermarket applications. IIR Int. Congr. Refr. August 21 – 26,
2011, Prague, Czech Republic
Hägg, 2005
Hägg, C.: Ice Slurry as secondary fluid in refrigeration systems. KTH
Stockholm, Schweden, ISBN 91-7178-192-7
Huff, 2012
Huff, H.; Finckh, O.; Verma, P.; Liu H.: Viable solutions to increase
efficiencies of transcritical CO2 systems for commercial refrigeration.
IIR Gustav Lorentzen Conference, June 25-27, 2012, Delft, The
Netherlands
Hafner, 2014a
Hafner, A.; Claussen, I.C.; Schmidt, F; Olsson, R.; et al: Efficient and
integrated energy systems for supermarkets, Proceedings of the 11th
IIR-Gustav Lorentzen Conference on Natural Refrigerants, GL2014,
International Institute of Refrigeration, ISBN 978-2-36215-004-3.
Hafner, 2014b
Hafner, A.; Nekså, P.: System configurations for supermarkets in
warm climates applying R-744 refrigeration technologies. Case
studies for selected cities. International Special Issue 2014 - United
Nations Environment Programme, International Institute of
Refrigeration, Centro Studi Galileo, Associazione dei Tecnici del
Freddo, European Energy Centre, Casale M.to, Italy, 2014
Kauffeld, 2013
Trends and perspectives in supermarket refrigeration EC. Europa
Lagrabette, 2005
Lagrabette, O.: Kältetechnik im Einzelhandel – Carrefour setzt auf die
“grünen” Medien. KKA 1 (2005), S. 20 – 24
Møller, 2003
Møller, J.B. : CO2 is keeping Supermarkets Cool. The NEWS. 8. 12.
2003
Pedersen, 2008
Pedersen, P.H.; Christensen, B.: Development and test of Bottle
Coolers with Natural Refrigerants, 8th IIR Gustav Lorentzen
Conference on Natural Working Fluids, Copenhagen, 2008
96
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Refrigerants Naturally, 2014
http://www.refrigerantsnaturally.com/statements/unilever.htm
Rhiemeier, 2009
Rhiemeier, J.-M.; Harnisch, J.; Kauffeld, M.; Leisewitz, A.:
Comparative Assessment of the Climate Relevance of Supermarket
Refrigeration Systems and Equipment. Environmental Research of the
Federal Ministry of the Environment, Nature Conservation and
Nuclear Safety Research Report 206 44 300, UBA-FB 001180/e,
March 2009
Rivet, 2007
Rivet, P.: Move to HFC 410A in Refrigeration Applications. IIR 22.
Int. Congr. of Refr., Peking, China, 21. – 26. August 2007
Schlosser, 2012
Schlosser, C.: System drop-in Test of L-40, L-41a and N-40b in Ice
Machines. AHRI/AREP Test report, 2. Nov. 2012
Schultz, 2013
Schultz, K.; Kujak, S.: System drop-in Tests of R-22 Altermative
Fluids (ARM-32, DR-7, L-20, LTR4X, LTR6A, and D52Y in a 5-RT
Air-Cooled Water Chiller (Cooling Mode). AHRI/AREP Test report,
6. Jan. 2013
Schwarz, 2011
Schwarz, W.; Gschrey, B.; Leisewitz, A.; Herold, A.; Gores, S.; Papst,
I.; Usinger, J.; Oppelt, D.; Croiset, I.; Pedersen, P.H.; Colbourne, D.;
Kauffeld, M.; Kaar, K.; Lindborg, A.: Preparatory study for a review
of Regulation (EC) No 842/2006 on certain fluorinated greenhouse
gases. Final report, Sept. 2011
Shecco, 2014
http://www.r744.com/news/view/5816?utm_source=mailchimp&utm
_medium=email&utm_campaign=Power%20users
Shrestha, 2013
Shrestha, S.; Sharma, V.; Abdelaziz, O.: Compressor Calorimeter Test
of R-404A Alternatives ARM-31a, D2Y-65, L-40, and R-32/R-134a
(50/50). AHRI/AREP Test report #21. Aug. 2013
Waide, 2014
Waide P., Van der Sluis S., Michineau T., CLASP Commercial
refrigeration equipment: maping and benchmarking.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
97
98
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 5
___________________________________________________________
Industrial Systems
Chapter Lead Author
Andy Pearson
Co-Authors
Horace Nelson
Mohamed Alaa Olama
Alexander C. Pachai
Alessandro Silva
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
99
100
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
5
5.1
Industrial systems
Introduction
The industrial sector has not changed significantly since the publication of the last RTOC
report (UNEP, 2011). Ammonia continues to be the preferred solution in most markets and
new development refrigerants have not gained a significant market share in this period. There
have been several major accidents involving R-717 in article 5 countries since the last report,
resulting in multiple fatalities. These events have emphasised the need for system design to
conform to recognised safety standards as these levels of fatality are unprecedented in
traditional market sectors using ammonia and they have increased the emphasis on the
education of technicians and engineers. In all cases the accidents would have been avoided if
current international safety standards had been followed.
The chapter has been expanded to include more information on process cooling, industrial airconditioning and heat pumps. Several examples from different regions including many article
5 countries have been added. The ozone depletion potential (ODP) and global warming
potential (GWP) values of the refrigerants mentioned in this chapter are given in chapter 2 of
this report.
Industrial systems are characterised primarily by the size of the equipment (physical size and
heat transfer capability) and the temperature range covered by the sector. This chapter
includes discussion on Industrial Heat Pumps (heating systems similar in scale and
application to Industrial Refrigeration systems) and Industrial Air-Conditioning (systems for
controlling air temperature in production factories, computer centres and other process areas).
In addition to size of installation the distinguishing traits of Industrial Air-Conditioning
systems are that the cooling is not purely for human comfort, the load is not primarily
seasonal and the operation of the facility would be jeopardised by failure of the cooling
equipment. Such systems are sometimes called “Mission Critical” and have special design
requirements, including the need for uninterrupted service, which are not typically provided
by traditional HVAC practices (ASHRAE, 2009). Large chillers used for air cooling in
offices, hotels, convention centres and similar installations are not covered by this chapter.
Detailed information on those systems will be found in chapter 9 on chillers. A brief overview
of the use of HFCs in Rankine cycle electrical generation is also given.
5.1.1
Background
Thirty years ago chlorofluorocarbons were widely used in the industrial sector in many
European countries, particularly blends, such as R-502. The particular advantage of these
substances was their low index of compression which permitted single stage operation over a
wider pressure ratio than could be achieved with R-717 or even HCFC-22. Other countries,
notably the United States and Canada had not moved away from R-717 to the same extent as
some European countries. In the heat pump sector CFC-12, which has a critical temperature
of 112°C, was common for systems of all sizes. It is now replaced by HFC-134a for
temperatures up to about 75°C. R-717 is also used in some large systems up to about 85°C.
For higher temperatures up to about 120°C, and for ORC's, the market is still limited, but
HFC-245fa is being used. Industrial Air-Conditioning was less common at that time, and
tended to use standard chillers with CFC refrigerants. The move away from CFCs in the late
1980s prompted by the Montreal Protocol presented particular problems in the industrial
sector because the replacement fluids with lower or no ozone depleting potential were not as
suitable over the wide operating range required. In some places this resulted in a swift return
to R-717 technology, for example in the United Kingdom (Brown, 1992). In other countries
the re-adoption of R-717 was more widely resisted and the adoption of low ODP refrigerants
was coupled with widespread use of secondary refrigerant systems. For example R-502 had
been common in Japan. The industrial sector there responded to its removal by the
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
101
development of compact, low charge R-717 systems and the use of secondary systems with a
limited charge of the more expensive HFC fluids (Kawamura, 2009). In Article 5 countries
where R-717 was already used for refrigeration these systems were retained and extended
(Tarlea, 2013) (Gulanikar, 2013), but the designs used tended to be old-fashioned and not as
efficient or safe as the new Japanese or European innovations. In countries with no history of
R-717 use, or with no support infrastructure the solution was often to use large numbers of
smaller light commercial systems to satisfy a large cooling load (Pietrzak, 2011). This is
expensive to install and maintain, and it is also much less efficient in operation.
5.1.2
Efficiency and sustainability
With increased emphasis on climate change in recent years the importance of energy
efficiency is now far greater than before. This has led to a reappraisal of previous policies, for
example in the growing trend for central systems with R-717 rather than multiple commercial
systems with HCFCs. There is also a greater focus on integration of industrial heating and
cooling systems to make better use of waste heat recovery (Pearson, 2011).
In Europe regulation on the use of fluorinated gases has also encouraged users to consider R717 and other developments such as the use of R-744 in cascade systems, similar to those
shown in Figure 4-4. The motivation seems to be primarily based on concern about possible
restrictions on HFCs rather than the immediate effect of the current rules (CGF, 2010), which
are mainly aimed at commercial and mobile air-conditioning. In the industrial sector it is
likely that the adoption of R-717 and R-744 by users who previously deployed HCFC-22 and
HFC blends will reduce the energy-related global warming potential through increased
efficiency as well as eliminating the direct global warming potential caused by refrigerant
leakage. Further discussion of sustainable manufacture is provided in chapter 11.
5.1.3
Refrigeration
Industrial Refrigeration systems are characterised by heat extraction rates in the range 100
kW to 10 MW, typically at evaporating temperatures from –50°C to +20°C. There is some
overlap at the lower end of the capacity scale with commercial refrigeration for shops,
restaurants and institutions: industrial systems in this sub-sector are characterised by the
complexity of the design and the nature of the installation. The size of the industrial
refrigeration market is difficult to assess because it covers such a broad range of applications.
Some useful insights can be gained from consideration of the market for evaporative
condensers, as they are used for heat rejection in the majority of large installations. Data for
2009 was analysed for three global regions; Europe / Russia, North America and India /
China. It is assumed that the value of the condenser accounts for 5% of the selling price of the
refrigeration system – analysis of a wide range of projects showed that the value of the
condenser was in the range 3% - 7% of the total refrigeration contract value.
Table 5-1: Estimated market value (2009) for large industrial refrigeration installations
Total Condenser
Sales (US$m)
Estimated Total
Market (US$m)
Proportion of R-717 use
Europe/Russia
42
830
90%
North America
77
1,500
95%
India/China
45
900
90%
Evaporative condenser manufacturers also report that 90% of the condensers sold in Europe,
Russia, India and China are for R-717 systems. In North America the proportion is even
102
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
higher, at 95%. The balance that is used concerns HCFC-22, R-404A, R-507A or occasionally
HFC-134a. The results are shown in Table 5-1.
Smaller industrial systems more often use air-cooled condensers, and in these cases the
refrigerant is more likely to be a fluorocarbon, although air-cooled condensers with stainless
steel tubes are used in smaller R-717 systems. Table 5-2 shows the estimated value of the
refrigeration market for the same regions with the split between R-717, HCFC-22 and HFCs.
It should be noted however that there may be significant variations within the regions from
country to country or state to state due to legislation or tradition. For example the use of R717 in small industrial systems is quite common in Germany, but not in France, and is
virtually unknown in Canada and some states in the USA, such as New Jersey. Typically if
HCFC-22 is still permitted, for example in Article 5 countries, it will be used for these smaller
systems. If ozone depleting substances have already been prohibited then the likely
refrigerants will be R-404A and R-507A for low temperature systems and HFC-134a for high
temperature systems. Experience of accelerated ODS phase out in Europe showed that HCFC22 systems continue to be deployed right up to the phase-out deadline. The same pattern of
behaviour has been observed more recently in the United States which followed the Montreal
Protocol phase-out schedule.
Table 5-2: Estimated 2008 market value for small industrial refrigeration installations
Estimated Total
Market (US$m)
Proportion of R-717
use
Proportion of
HCFC-22 use
Proportion
of HFC use
Europe/Russia
200
25%
10%
65%
North America
300
10%
60%
30%
India/China
500
5%
90%
5%
This table shows that the transition in smaller industrial systems when HCFC-22 is removed
is mainly to HFC blends. For Article 5 countries it is possible that a different pattern will
emerge. Concern about a possible “phase-down” of HFCs and associated price increases
might result in a switch directly from HCFC-22 to R-717 for larger new systems provided
trained staff are available and the inherent fear of R-717 is overcome. In many ways this is
simpler than switching to HFCs and then to R-717 at a later date. For example the traditional
lubricants used with HCFC-22 can also be used with R-717, whereas alternatives (typically
polyol ester) are required for HFCs and are not compatible with R-717. The use of R-717 as a
replacement for HCFC-22 for small capacity systems will only be feasible if technician
training is prioritised and system designs incorporate low refrigerant charge. Uptake of R-717
in smaller systems would also be helped by the development of reliable semi-hermetic
compressors suitable for R-717.
In the Middle East, Saudi Arabia and Egypt have a relatively large bank of refrigerants in
industrial refrigeration applications. Saudi Arabia has an estimated bank of HCFC-22 of about
2,500 tonnes, in 2008. This constitutes 80% of the total refrigerant bank in Saudi Arabia for
industrial refrigeration applications. The remaining 20% is distributed between R-717, CFCs,
R-404A and HFC-134a. The phasing-out of R-502 and the harsh high ambient temperatures in
the region for a large part of the year coupled with the scarcity of water have resulted in the
use of small capacity air-cooled condensing units operating on HCFC-22 in many industrial
systems. R-717 systems are few and are used for large applications such as food processing
plants, large cold stores and large industrial cooling processes. CFC refrigeration systems are
still in operation although most are near the end of their operational life and need to be
replaced.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
103
In Southern Africa almost all large systems use R-717 and although R-744 has been trialled in
some supermarkets it has not been used in industrial applications. In smaller industrial
systems HCFC-22 is almost universally used, and the most common alternative is R-404A.
5.1.4
Heat pumps
The industrial heat pumps sector is growing quickly because it addresses several sustainability
issues simultaneously: energy savings, reduction of GHG emissions and increased use of
renewable energy. Industrial heat pump systems have heat delivery rates from 100 kW to over
100 MW, with the heat source usually at ambient temperature or the waste heat temperature
of an industrial process. These systems are usually required to deliver higher temperatures
than domestic or commercial heat pumps used for space or water heating as described in
chapters 8 and 9. Typical temperatures are in the range 60°C to 90°C, although if the
recovered heat is to be used for steam raising then it needs to be at least 120°C. Heat
recovered from large industrial systems is usually transferred to water or a heat transfer fluid
and used for process heating or for supply to district heating systems. Direct heating of air
from large systems is unusual because of the large volume of air that would be involved.
There is no single component of the system that can be identified and tracked to give an
indication of the overall market size, because the compressors could equally be used in other
industrial systems and the condenser will be a bespoke design suited to the heating application
– most probably a fluid heater such as a plate and frame heat exchanger or shell and tube
pressure vessel. The market is probably around 5% of the industrial refrigeration market in
Europe, and less in North America, India and China.
5.1.5
Air conditioning
Industrial air-conditioning systems cannot be differentiated from commercial systems on size
alone, as many commercial office buildings have large cooling loads. An industrial system
requires a higher level of reliability and is subject to year-round high loads. These systems
may provide human comfort in highly populated areas with large heat loads, for example in
trader rooms or dealer floors with a lot of computing equipment. Other industrial airconditioning systems are primarily required to maintain acceptable processing conditions for
equipment such as computer servers in data centres. In some cases the mission-critical part of
a total cooling load may be supplied in conjunction with a comfort cooling system, configured
so that, in the event of partial failure of the system, the mission-critical cooling is maintained
at the expense of the comfort of the occupants of the rest of the building. Often the chillers
used for industrial air-conditioning are the same type as described in Chapter 9 – the market
information and options for future change are described there. However many other industrial
systems are custom designed for the application.
5.1.6
Rankine cycle
A further use of HFCs not covered elsewhere in this report is in a closed evaporation and
condensation cycle for the generation of electrical power (or other useful work) from the
expansion of high pressure gas. The basic system, called the Rankine cycle, is similar to the
process used for power generation in steam turbines, but operates at lower temperatures
(dependent on the working fluid properties) and so can make use of heat from geothermal
sources or rejected from industrial processes. When HFCs are used as the working fluid these
systems are called Organic Rankine Cycles (ORC) (Zyhowski, 2003). The Rankine cycle uses
heat to evaporate the working fluid at relatively high pressure. The resultant gas is passed
through an expansion engine which does useful work, usually driving an alternator to produce
electrical power. The low pressure gas at the expander outlet is condensed, usually by
rejecting heat to atmosphere in a cooling tower, and the resultant liquid is pumped up to
evaporating pressure by a liquid pump. The conversion rate from thermal to electrical power
varies with the pressure differences and the expansion engine efficiency, but typically is
104
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
between 10% and 15%, including the electrical power required to drive fans and pumps in the
system (Leslie, 2009).
Some ORC systems use HFC-134a as the working fluid. It has the advantage of being
relatively cheap and available, but has a low critical temperature and so cannot take full
advantage of higher temperature heat sources. Other systems use HFC-245fa or HFC-236fa,
which have significantly higher critical temperatures. The GWP of HFC-245fa is
approximately 858, whereas for HFC-236fa it is approximately 8060, so it is likely that future
commercial systems will be based on HFC-245fa (unless severe restrictions are placed on all
high GWP HFCs). A fluorinated ketone, perfluoro-2-methyl-3-pentanone CF3CF2COCF
(CF3)2, has been used as an alternative (Brasz, 2008). It has zero ODP and near-zero GWP
(Hodnebrog, 2013) but less favourable thermodynamic properties than HFC-245fa. Other new
compounds have also recently been proposed, such as R-1336mzz (Z) (Kontomaris, 2014).
Rankine cycles have also been produced using R-744 (Persichilli, 2012), R-717 and
ammonia-water mixtures as the working fluid, although strictly speaking these cannot be
described as “organic”. The R-744 power generation systems either operate with the heat
input above the critical point (transcritical) or with both heat input and heat output above the
critical point (supercritical). The relatively high investment cost and relatively low rate of
return mean that these systems are generally limited to use in large process plants, although a
few systems have been installed in commercial buildings.
5.2
Applications
5.2.1
Food processing
Refrigeration is used for chilling and freezing food during processing, in order to prolong
shelf life, but it can also be used to make handling or processing easier. For example hams are
temporarily frozen to enable them to be sliced more thinly. Chilling also plays a part in the
pasteurising process where the product is rapidly cooled after heat treatment to minimise
spoilage. A wide variety of chilling and freezing techniques are used, including immersion in
liquid, air blast freezing in batches or in a continuous process and contact freezing on tables
or in blocks between metal plates. The choice of process depends on the form that the product
takes, whether it is wrapped or unwrapped, robust or fragile, processed or raw. Some fruits
and vegetables such as potatoes, apples and most soft fruit are notoriously difficult to freeze
as the expansion of water destroys the cell walls, leading to mushiness when thawed. Other
produce, such as peas, corn and beans, can be frozen in very small pieces using a fluidised
bed of air to allow each individual piece to freeze without agglomerating.
There is a negative public perception of frozen food, which is that thawed food will always be
inferior quality to fresh. In fact if good quality food is frozen professionally immediately after
harvest, catch or cooking it should offer increased shelflife and superior quality when thawed.
Spoilage rates could be substantially reduced if a greater proportion of food were frozen
before shipment. If the public perception of frozen food is improved then there could be a
significant increase in this sector of the market. Freezing food requires a lot of heat transfer
compared to storage, so refrigeration systems are large capacity and require a large power
input although the freezing chamber may be physically quite small. There is a trade-off
between the time required to complete freezing and the operating efficiency. Running the
system at very low temperature is less efficient but results in a shorter freezing time
Some food processes require careful control of humidity and temperature to ensure product
quality and in these cases a cooling system is not enough. Examples include bakeries
producing cakes and bread, fruit and vegetable storage and fruit ripening. The rate of fruit
ripening is controlled by maintaining low ethylene levels in the atmosphere through the use of
high rates of ventilation with fresh air. In periods of high ambient temperature the cooling
load for the incoming air can be substantially higher than the product cooling load. Failure of
the cooling system would cause the product to ripen too quickly resulting in a large loss of
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
105
product value before it reached the point of sale. In some cases the air-conditioning system is
connected to a central plant cooling system using R-717 or HFCs but in others a custom
designed stand alone system in an air-handling unit serves the humidity control requirement.
5.2.2
Cold storage
Cold storage facilities usually operate at two temperature levels, frozen (well below 0oC) and
chilled (above 0oC). Frozen produce must be stored below -18oC, and it is usual to maintain
the store between -22oC and -26oC to provide a factor of safety in the event of major
equipment failure. Some products require lower temperatures, for example ice-cream and
similar produce is stored between -26oC and -29oC, and some niche market products such as
some types of sushi must be kept significantly colder, even down to -60oC, in order to retain
product quality. Chilled produce is typically held between 0oC and 4oC, although fruit, bakery
products and vegetables are stored between 8oC and 12oC. Some stores offer long term
storage contracts, in order to stock produce until it is “out of season” and therefore more
valuable. Stock may be held for months in these warehouses. Other sites provide marshalling
facilities in order to restock supermarkets on a daily basis; in these plants the product is not
usually in the building for more than 24 hours. The cooling load on such a building is high
because of the amount of traffic through the temperature controlled chambers, although
product load is typically low because the residence time is not long enough for the air
temperature to have any appreciable effect on the product.
5.2.3
Industrial cooling in buildings, power plant and IT centres
Some production processes require tight control of the surrounding temperature, for example
microchip production, paint spraying or injection moulding. These loads are relatively
constant all year, and production output is affected if the chilling plant is inoperative, so both
the reliability and the efficiency of the equipment are more important than for office air
conditioning. This can sometimes lead to the specification of uniquely designed siteconstructed systems to deliver the cooling in order to provide the high level of reliability
required, or to achieve lower energy use. Where heat loads are too high to be handled by airor water-based cooling systems, for example in some high density data centres and other IT
cooling applications, other fluids including R-744 have been used in direct systems (Hutchins,
2005, Solemdal, 2014). Typical loads for these applications may be up to 2 kW per m2 in
comparison to a typical office load of 40 W per m2.
The industrial cooling load is typically almost entirely “sensible” cooling – reducing the air
temperature without reducing the moisture content, in contrast with a typical commercial air
conditioning load which is likely to involve more dehumidification, or “latent” cooling.
Latent cooling requires lower temperatures to bring the air to its dewpoint. If an industrial
cooling load is 100% sensible cooling, or if the cooling can be split into separate systems for
sensible and latent cooling, then the operating temperature for the sensible cooling can be
raised, making the system more efficient. In these cases it may also be possible to use indirect
evaporative cooling to reject some or all of the process heat load.
There is a significant benefit in pre-cooling the inlet air to gas-fired turbines in higher ambient
climates. For example reducing the air inlet temperature from 40°C to 8°C will increase
capacity by 28% (Kohlenberger, 1995). These systems usually use large chillers with R-22,
R-134a or R-717, cooling glycol.
5.2.4
District cooling
In the Middle East since the 1990’s district cooling applications have become common with
the rapid rate of economic development in the Gulf area. Those applications serve office
complexes, shopping malls, airports and call centres (Sarraf, 2012). Because of the high
ambient temperatures throughout most of the year, the uninterrupted operation of those
106
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
systems is “mission critical”. District cooling providers design multiple redundancies in their
systems, since stoppage will necessitate vacating those premises incurring heavy fines on the
operators.
There is an estimated district cooling installed capacity of about 13.2 GW in the Middle East.
The UAE have the largest share of this capacity at about 8.8 GW. Qatar is the second with the
single largest district cooling plant with an installed capacity of 420 MW. Saudi Arabia has
about 400 MW district cooling capacity and is the fastest growing market. All those systems
use vapour compression technology and predominantly HCFC and HFC refrigerants. In
Egypt, with an estimated 350 MW total installed capacity of district cooling, natural gas fired
absorption chillers are mostly used. Some older district cooling applications in the region still
use CFC-11 and CFC-12 but the majority of systems are now HCFC-22, HCFC-123 or HFC134a.
In the Gulf Cooperation Council countries (GCC), the total cooling demand is expected to
triple between 2010 and 2030 (when HCFC are phased-out) reaching approximately 350 GW.
This would be the equivalent to 60% additional power generation requirement in the region if
the same mix of cooling technologies were used. The additional power generation required for
this mix would consume the equivalent of 1.5 million barrels of oil per day so discussions are
undergoing to increase the use of district cooling to enable electric power peak shaving and
therefore reduce oil consumption for generating electricity. The potential for district cooling
in the GCC counties between 2010 and 2030 is over 100 GW, existing capacity in GCC
countries is 11.7 GW, and thus an increase of about nine folds of existing capacity is
expected. This increase between 2012 and 2030 is divided as shown in Table 5-3 (Olama,
2012)
Table 5-3: Estimated change of district cooling capacity in GCC countries, 2012 - 2030
Kingdom of Saudi Arabia
+44.75GW
United Arab Emirates
+31.12GW
Qatar
+10.18GW
Bahrain
+2.63GW
Kuwait
+10.95GW
Oman
+3.65GW
District cooling systems are not restricted to the extreme tropical climate of the Middle East.
Similar systems are installed in the United States serving business districts, hospitals and
university campuses, and such systems are becoming more common in Scandinavia where the
district heating network makes it easier to incorporate cooling into the existing infrastructure.
Helsinki for example has a 120 MW district cooling system (Vartiainen, 2011), which is
projected to grow to 280 MW by 2030. Several large systems have been installed in China,
including steam-driven absorption. Where absorption chillers are used the district cooling
system can be integrated with a combined heat and power plant, using the excess heat from
generators to drive the cooling system. In some coastal sites, for example in Hawaii and
Mauritius, deep seawater is being considered for district cooling offering a significant
reduction in demand on an electrical infrastructure which might already be overloaded.
5.2.5
Industrial heat pumps and heat recovery
Many industrial processes including brewing, dairies, food factories and chemical processes
require large amounts of heat in addition to a cooling load. Even if the primary use of heat, for
example for cooking food, cannot be achieved by heat pumps or recovery there may be many
uses for lower grade heat, such as pre-heating boiler feed water or heating wash water for the
production area. When the application is collecting and redirecting waste heat from a
refrigerating system it is called heat recovery. When it is performing a non-productive chilling
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
107
process on a source of heat, whether it is at ambient temperature or is the waste heat stream
from another process such as a cooker flue, it is a heat pump.
Large heat pumps have also been used for heating public buildings, for example in
Gardermoen Airport, Norway (8100 kW heating capacity) and Akershus hospital, Norway
(8000 kW heating capacity). These systems are custom-designed, using R-717 as the
refrigerant (Stene, 2008).
Even larger systems are used for district heating systems, with many examples in
Scandinavia. The smallest of these systems are about 5 000 kW. Most installations use HFC134a in centrifugal compressors, with some (up to 15 000 kW) using R-717. The largest is in
Stockholm, with a total capacity of 180 000 kW (180 MW) using HFC-134a in centrifugal
compressors. This system takes heat from sea water to provide the thermal source; other
similar installations have used waste water from the sewage system (Bailer, 2006).
Steam-fired absorption systems (as described in section 5.3.6) can be used to raise condenser
water temperature in power plants to provide heat to district heating networks and some
industrial processes. Absorption can also be used to boost the temperature of a proportion of a
medium temperature process stream by cooling the remainder of the stream. In this way a
small part of a stream at 70°C could be raised to 120°C by cooling the rest of the stream and
rejecting its heat to atmosphere at, say, 35°C.
5.2.6
Leisure
The principal use of refrigeration in the leisure market is for ice rinks, extended also to indoor
ski-slopes, ice climbing walls and other ice features. Many older ice rink systems used direct
CFC-12 or direct R-717. To change to an indirect system would require replacement of the
floor slab, which is a considerable capital expenditure. Some CFC-12 systems have been
converted to HCFC-22 despite the increased pressure. Similarly some R-717 systems in
Central Europe have been converted to R-744. A few very large systems have been installed
for bobsled and luge runs, typically associated with winter Olympics. These systems usually
use pumped R-717. A recently installed cross-country ski track in Finland used R-744 for the
track cooling, with circuits up to 1 km long.
108
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
5.2.7
Process Refrigeration
Cooling is used in a wide variety of process applications (in addition to food industry
applications covered in section 5.2.1). The cooling can be applied by a direct refrigeration
system with a coil in the process tank, or a jacket around the outside of a chemical reactor
vessel or storage tank. Alternatively, a secondary fluid such as water, brine solution or glycol
may be used. In these cases standard chillers as described in chapter 9 might be used,
although there may still be other reasons for requiring the chiller to be specially designed for
the project, for example location of the equipment within a hazardous area.
In refineries refrigeration is used to remove light hydrocarbons from the process stream. Such
systems can be extremely large and may use HCFC or HFC in centrifugal chillers. It is also
possible to use the feedstock, particularly ethylene or propylene as the refrigerant, either in a
closed-loop system or as part of the process flow. In very large systems, the use of HFC-134a
enables centrifugal compressors to be used whereas ethylene typically requires screw
compressors, which, at that size, are significantly more expensive.
Some specialist processes including plastic forming, paper milling and precision machining
require multiple small capacity systems and are typically constructed on site using HCFC or
HFC. The use of multiple flexible hoses to connect to the moving parts of these machines
presents a particular challenge due to high refrigerant leak rates.
Where processes produce high grade waste heat, for example flue gases from glass
production, power stations, steel mills, incinerators or cement factories, the heat can be used
to drive absorption chillers, either directly or by raising steam which is fed to the chiller. Such
systems require to be tailored to the application to ensure that the heat production and cooling
demand are well matched.
The cooling of deep mines presents another challenge because the operating conditions are
arduous and the available space is severely constrained. Typical systems used centrifugal
chillers underground. An alternative to the use of CFC-12 or HCFC-123 in centrifugal chillers
was to produce cooling at the surface, either as cooled ventilation air or as chilled water or
ice. However the depth to which surface cooling is effective is limited and for mines deeper
than about 2,000m some form of underground cooling is required to counter the effects of air
compression and the power required to transport the cooling effect from the surface to the
workface. There is currently no acceptable alternative to HCFC-123 for underground
applications to a depth of up to 4,500m (Calm, 2011). Some of the new fluid blends currently
under development for other applications (see for example chapter 2, chapter 4 and chapter 9)
may also be suitable for this application but it is unlikely that a fluid will be developed solely
for this use.
5.3
Options for new equipment
Where its use is still permitted in new systems, particularly in article 5 countries, HCFC-22 is
still common as an alternative to R-502. It has not been supplanted by HFC blends because it
is cheaper than any of the blends and usually offers better system efficiencies. The most
common alternative to HCFC-22 as a replacement for R-502 in new systems is R-404A,
although it has a significantly higher global warming potential and is less efficient.
5.3.1
R-717 (Ammonia)
The analysis of evaporative condenser use shown in Table 5-1 indicates that R-717 is by far
the most common refrigerant used in industrial systems. The major hazard presented by R717 is its acute toxicity, although its pungent odour ensures that low, relatively harmless
concentrations are obvious and provide an early warning of danger.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
109
R-717 is flammable in relatively high concentrations, but it is difficult to ignite and as a result
R-717 conflagrations are extremely rare. The products of combustion are nitrogen and water,
so there are no toxic consequences. The lower flammable limit is 16%; about 5,000 times
higher than the short term exposure limit, and almost 50,000 times higher than the lowest
level which can be detected by smell.
R-717 systems can be designed for very high efficiency, particularly with higher condensing
temperatures, so in recent years it has been used more often in smaller systems with air cooled
condensers, condensing at about 50 °C (IIR, 2008). Compression of R-717 produces relatively
high compressor discharge temperatures compared with most fluorocarbons, but if oil injected
screw compressors are used then the heat of compression can be removed by oil cooling. R717 also produces relatively high heat transfer coefficients and requires a low massflow due
to its high latent heat. The high critical temperature of 133°C makes R-717 very suitable for
high temperature heat pumps. It is at atmospheric pressure at -33°C, a relatively high
temperature for industrial freezers. This means that many freezers operate at sub-atmospheric
pressure, so air and moisture are drawn into the system if it is not pressure-tight on the low
pressure side. This unfortunate consequence is generally tolerated because the moisture is
soluble in ammonia liquid so does not immediately cause unreliability and because both air
and water can be relatively easily removed from the system while it is in operation. However
excessive water build up will eventually impair operating efficiency and therefore increase
electrical consumption, so system contamination should not be left uncorrected (Nielsen,
2000).
5.3.2
Hydrofluorocarbons
When the first HFC refrigerants, particularly HFC-134a, were introduced in the late 1980s to
replace CFC-12 there was no obvious successor to the most common CFC blend in the
industrial market, R-502. This had been introduced to enable single stage compression plants
to be used for low temperature applications without excessive discharge temperatures. When
it became clear that R-502 could no longer be used, because it contained CFC-115, most
system designers either used HCFC-22 or R-717, both of which produced higher discharge
temperatures and therefore required additional cooling or two compression stages for freezer
applications.
Saturated: Saturated hydrofluorocarbons include fluids such as HFC-134a and HFC-125 and
blends of fluids, mixed to provide specific advantages for particular applications. HFC-134a
is used in small high temperature systems; it is at atmospheric pressure at -26oC, and it
requires larger compressors than R-717. Sub-atmospheric operation is less common with
HFCs because traces of moisture are liable to freeze and block the expansion valve.
HFC-134a is also widely used in centrifugal compressors, including some very large systems
used for district heating. A trial system using unsaturated HFC-1234ze(E) as an alternative to
HFC-134a in district heating has been tested in Norway (Nørstebø, 2013).
There is no single fluid alternative to HCFC-22 for use in industrial systems. HFC-125 has
approximately the right pressure temperature relationship, but has an extremely low critical
temperature of 66oC, and would therefore be extremely inefficient if used in industrial
systems, unless the condensing temperature was very low. It is used as a component of
several of the most popular blended refrigerants, where the deficiencies in its physical
properties can be offset by careful selection of the other components of the blend. The most
common blends used in the industrial sector are R-404A and R-507A, which are primarily
mixtures of HFC-125 and HFC-143a; with the latter providing a higher critical temperature
and hence improved efficiency. Many industrial systems use flooded evaporators, where the
refrigerant boils in a pool. Zeotropic blends (with a temperature glide during evaporation) are
110
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
not suitable in these systems because the blend components may fractionate, so R-407C and
service replacement blends such as R-417A have not been much used in the industrial sector.
It is surprising that R-410A has not been more widely used in industrial systems because it
has a low boiling point at atmospheric pressure (-51.4 oC), very low glide (less than 0.2K at 40 oC) and the critical temperature is almost the same as R-404A. The compressor swept
volume required for R-410A is about 30% less than for R-404A, so equipment costs,
including installed pipework should be less, although operating pressures are higher. The
main barrier to its use is the high price of the refrigerant, particularly compared to R-717 and
R-744. When the refrigerant inventory in a system is in tonnes the cost of the charge may be a
significant part of the total cost of the installation. Typical installations are therefore low
capacity, low temperature, for example blood freezing and small pharmaceutical systems. The
introduction of rules and guidance for the use of flammability class 2L refrigerants (those that
have a burning velocity less than 10 cm s-1 and therefore do not explode) might result in an
increase in the use of HFC-32 as an alternative to R-717 in industrial systems.
Unsaturated: unsaturated hydrofluorocarbons such as HFC-1234yf and HFC-1243ze have not
to date been used in industrial systems. The low global warming potential may give the
impression that they could be a suitable alternative to R-717 and R-744, but it is very likely
that they will be even more expensive than R-410A, with the further disadvantage of being
flammable. It is therefore likely that none of this family of chemicals will achieve any
significant market penetration in the industrial sector, even if blended with other compounds
to reduce price or flammability. An exception may be found with centrifugal compressors for
industrial chillers and heat pumps where HFC-1234ze(E) might provide an alternative to
HFC-134a (Nørstebø, 2013). The unsaturated HFC-1336mzz(Z) and the unsaturated HCFC1233zd(E) may also prove to be suitable in heat pumps with centrifugal compressors,
particularly in very large systems.
5.3.3
Hydrocarbons
Hydrocarbons are not widely used in industrial refrigeration except where additional safety
measures to ensure that leaking refrigerant cannot be ignited are required anyway, for
example in a petrochemical plant. They offer excellent efficiency, and compatibility with
most materials and lubricants. However the precautions required to prevent ignition are
significantly more expensive than those required for R-717 systems, although the whole
system cost may be comparable. HC- 290 is generally similar in performance to HCFC-22
and R-717 in terms of operating temperatures and pressures, and requires similarly sized
compressors.
5.3.4
R-744 (Carbon dioxide)
R-744 cannot be used in exactly the same way as other industrial refrigerants. It needs to be
coupled with a higher temperature refrigerant in a cascade system due to the low critical
temperature of 31oC or else used in a transcritical system. Transcritical systems have been
used in commercial and small systems, but there are no compressors on the market to provide
the necessary high operating pressures to run an industrial R-744 system in this way. A
medium-sized distribution centre with an installed capacity of 1500kW has been operating in
Denmark since 2008, using multiple commercial-sized compressors (Madsen, 2009).
R-744 is particularly suitable for use in freezer systems because it is liquid at positive
pressure down to -56oC and the gas is extremely dense, giving very high rates of heat transfer.
The pressure drop characteristics are also very favourable at low temperatures, so R-744
freezer systems have been found to be significantly more efficient than any other alternative,
even R-717 (Pearson, 2009). In slightly higher temperature applications, such as cold storage,
R-744 cascade systems are likely to be slightly less efficient than two-stage R-717, but still on
a par with a single stage economised system, and more efficient than any system using a
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
111
secondary fluid due to the much lower pumping cost for R-744 compared to glycol, brine or
other heat transfer fluids (ASHRAE, 2010).
In Article 5 countries, Saudi Arabia has one cold store application where a cascade system
utilises R-744/R-717.
In higher temperature applications, for example IT cooling, R-744 is attractive as an
alternative to chilled water because it is electrically non-conductive, does not cause fabric
damage in the event of a small leak and enables smaller heat exchangers to be used. The
major challenge in these systems is that the operating pressure is approximately 50 bar.
5.3.5
R-718 (Water)
In general R-718 is not suitable for most industrial applications because the triple point is
very slightly above 0oC, and because, despite the very high latent heat, the swept volume
required for a typical cooling duty is extremely high. There are a few notable exceptions: R718 has been used for a few deep mine cooling projects where a vacuum system is used to
create a mix of solid and liquid water (ice slurry) at the triple point. Similar systems have
been used for large plastics moulding coolers, but these systems have not yet been fully
commercialised.
5.3.6
Absorption
Absorption systems using aqua-ammonia can be used for low temperature applications, easily
reaching cold storage temperatures. This is because the ammonia is used as the refrigerant,
with water as the absorbent. Water-lithium bromide (LiBr) systems can only be used above
freezing because the water is the refrigerant, and the LiBr is the absorbent. Absorption
systems are only effective if there is an abundant source of heat at high temperature to drive
the system. It is not normally economic to burn fossil fuel for the sole purpose of driving the
regenerator of an absorption system, particularly in low temperature systems, because the heat
rejection plant is significantly larger than for an equivalent duty, electrically driven vapour
compression system.
Absorption systems are primarily used for process cooling in food, beverage, chemical and
pharmaceutical plants where waste heat to drive the system is readily available. Countries
with a shortage or unreliable electric supply use direct fired chillers in industrial cooling.
Examples are in India, Pakistan, Bangladesh and China. Those units are generally fuel oil
fired or gas fired. There is an increase in the food industry, when local on-site power
generation is used, and provides a source of waste heat. This has been particularly noted in
developing countries such as India and China, where increased food production is being
achieved but the electrical infrastructure is still relatively unreliable. In these cases chilling is
normally achieved with a vapour compression plant, but with some absorption cooling
available to augment the cooling capacity when the generator is running. In countries where
natural gas downstream piping infrastructure exist and where gas prices are reasonable
compared to electricity, direct fired chillers are used to produce chilled water for industrial
applications. Those are normally double effect units.
Indirect fired absorption units are used primarily in applications where excess boiler capacity
is available in summer months and where steam or hot water are generated by a co-generation
application. Those units are normally single effect and are fired at water or steam
temperatures of 90 °C to 120 °C. The efficiency of those units is compared to those of vapour
absorption in chapter 9. The Lithium Bromide-water chillers are all water cooled.
5.4
Options for existing equipment
Systems using HCFC-22 have been converted to zero ODP refrigerants, but it is difficult to
replicate the operating conditions of HCFC-22 and so conversions often involve an element of
112
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
equipment replacement. Before committing to any large scale retrofit project consideration
should be given to the age of the plant, the cost of replacement with a modern, more efficient
system and the risks to continued operation of retrofit.
5.4.1
Conversion to HFC blends
There are numerous blends for the replacement of HCFC-22 in DX (superheat controlled)
systems, but there is none that replicates the pressure temperature relationship of HCFC-22
without significant glide, and so these blends are much less common in flooded systems
where fractionation of the blend is a concern. Where industrial systems are converted to a
blend it may also be necessary to change from mineral or alkyl benzene lubricant to a
synthetic ester. Some blends are formulated with hydrocarbons in the mix so that, although
still non-flammable, the lubricant is more miscible and less likely to accumulate in the
evaporator of the system. For a large flooded system it might be appropriate to convert the
compressors and condensers to an HFC blend, but convert the low pressure side to a
secondary fluid, or even R-744 as a volatile secondary. Retrofitting of HCFC-22 plant in
Article 5 countries is very uncommon to date.
5.4.2
Conversion to R-744
The high operating pressure of R-744 systems makes it highly unlikely that an existing
HCFC-22 system could be converted to operate on R-744. Conversion to a cascade system is
possible, greatly reducing the inventory of fluorocarbon refrigerant in the system. It may even
be possible to reuse the low pressure pipework and evaporators in the system if they are
suitably rated. A cold storage or freezing system operating as a cascade on R-744 could be
limited to an allowable pressure of 25 bar gauge, however this is a complex retrofit and it may
well be more economic to replace the whole plant, especially if it is already more than ten
years old.
5.4.3
Conversion to R-717
In a very few cases a pumped HCFC-22 plant has been converted to R-717 (Jensen, 1996). In
some cases the compressors and evaporative condensers are suitable for either refrigerant, and
pipework is probably welded steel in large applications. If the evaporators are copper tube
then they need to be replaced. It is imperative that the system is carefully cleaned during the
conversion because any residual traces of HCFC-22, for example in lubricant will react with
R-717 to produce a solid foam which can block all the internal components. Triple evacuation
with nitrogen purging is probably necessary – this is time-consuming and expensive and again
plant replacement should be considered. In the majority of cases, in all countries, equipment
using HCFC-22 is not suitable for this conversion.
5.4.4
Conversion to hydrocarbon
Unlike R-744 and R-717 it is technically feasible to remove HCFC-22 from existing systems
and replace it with HC-290, however it is highly likely that the resultant system will not
comply with safety codes on the use of hydrocarbons because the refrigerant quantity will not
comply with charge restrictions and the electrical infrastructure will not be suitably protected.
A conversion of this type is believed to have been responsible for a fatal accident in New
Zealand in 2008 (NZFS, 2008). A consequence of rapid phase out of HCFCs in Article 5
countries might be an increase of this type of conversion without adequate controls. There is
however a case for a controlled conversion from HCFC-22 to HC refrigerant (HC-290 or HC1270) where the system efficiency can be improved. In this case it is essential that suitable
safety measures are ensured.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
113
5.5
Service requirements
Given the difficulty of converting from HCFC-22 to zero ODP refrigerants, many users with
multiple systems have planned a replacement strategy to conserve their stock of refrigerant.
Setting priorities for which system to replace or convert first includes consideration of age of
the plant, likelihood of leakage and ease of conversion. Refrigerant which is recovered from
converted systems can be recycled and stored on site to be used in the remaining plants. In
Europe, where service with “virgin” HCFC-22 was prohibited from the beginning of 2010,
some users have banked additional refrigerant by overcharging their plants with new HCFC22 prior to the end of 2009 and then recovering the excess refrigerant, which is then classed as
recycled. This practice is not strictly outside the law, but it is not in the spirit of the
regulation. It probably accounted for some additional sales of HCFC in the two years leading
up to the prohibition, keeping sales artificially high at a time when many plants were being
converted or decommissioned. If other regions implement similar regulations for the phase
out of HCFCs they should consider ways to plug this loophole, for example by limiting the
time that recovered HCFC can be stored before it is used, and requiring it to be sent for
destruction or reprocessing if it is not used within the timeframe. This was done in Ireland,
and greatly improved the effectiveness of the restriction on virgin HCFC-22.
5.6
Concluding remarks
The majority of large industrial systems in some parts of the world use R-717 as the
refrigerant. When R-717 is not acceptable in direct systems in these countries, options include
R-744 or glycol in secondary systems or HCFCs or HFCs in direct systems. In countries
where R-717 has not been the preferred solution, or in market segments with smaller systems,
the transition from HCFC-22 is not straightforward. It requires acceptance of higher cost
fluorocarbons in systems similar to the types used with HCFC-22 or the adoption of more
expensive systems with the cheaper refrigerants R-717 and R-744. This transition is slow and
is constrained by a lack of trained personnel and lack of experience of the local end-users. It
has been facilitated by corporate policy from multinational food and beverage manufacturers
exemplified by the policy statement from the Consumer Goods Forum (CGF, 2010).
The industrial sectors covered by this chapter are too diverse to facilitate the level of
development expenditure required to bring a new fluid to market. It therefore follows that if
any new development gains market share in industrial systems it will be a fluid developed for
some other purpose, either as a refrigerant in smaller mass-market systems or as a foamblowing agent, solvent or other specialty chemical. Apart from absorption systems there is no
significant growth of other not-in-kind cooling or heating solutions.
5.7
References
ASHRAE, 2009
ASHRAE, 2009. Design Considerations for Datacom Equipment
Centers, Second Edition, ASHRAE TC9.9, Atlanta
ASHRAE, 2010
ASHRAE, 2010. “Refrigeration Handbook, chapter 3”, Atlanta
Bailer, 2006
Bailer, P. and Pietrucha, U., 2006. “Design and Application of
Ammonia Heat Pump Systems for Heating and Cooling of NonResidential Buildings” 10th International Symposium on District
Heating and Cooling, Hannover
Brasz, 2008
Brasz, J., 2008. “Assessment of C6F as a working fluid for Organic
Rankine Cycle Applications”, Int. Conf. on Refrigeration and AirConditioning, Purdue University
Brown, 1991
Brown, A. H., 1991. “Return to Ammonia?” Institute of
Refrigeration, London
114
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Calm, 2011
Calm, J.M., 2011. “Refrigerants for deep mine refrigeration”, Proc.
IIR Congress, Prague
CGF, 2010
Anonymous, 2010. “Resolution on Sustainable Refrigeration”, The
Consumer Goods Forum, Paris
CRAA, 2012
CRAA, 2012. Survey of Refrigerant consumption for Industrial
Refrigeration in China, CRAA, Beijing
Gulanikar, 2013
Gulanikar, A.D., 2013. “Energy Conservation in Ammonia
Refrigeration System Installed for Meat Processing Unit in India”
Proc 5th Ammonia Refrigeration Technology Conf., IIR, Ohrid
Hodnebrog, 2013
Hodnebrog, Ø., Etminan, M., Fuglestvedt, J. S., Marston, G., Myhre,
G., Nielsen, C. J., Shine, K. P., Wallington, T. J., 2013. “Global
Warming Potentials and Radiative Efficiencies of Halocarbons and
Related Compounds: A Comprehensive Review”, Rev. Geophys., 51,
300-378, Washington DC
Hutchins, 2005
Hutchins, G., 2005. “Mission Critical Cooling” Institute of
Refrigeration Annual Conference, London
IIR, 2008
International Institute of Refrigeration, 2008. “Ammonia as a
Refrigerant, 3rd Edition”, IIR, Paris
Jensen, 1996
Jensen, S.S., 1996. “Conversion from R22 to R717, Practical
Experiences from three Industrial Plants” Proc IIR Conf Applications
for Refrigerants, Aarhus
Kawamura, 2009
Kawamura, K., 2009. “Global Solutions for Ammonia Industrial
Refrigeration” ATMOSphere, Brussels
Kontomaris, 2014
Kontomaris, K., 2014. “HFO-1336mzz-Z: High Temperature
Chemical Stability and Use as a Working Fluid in Organic Rankine
Cycles”, 15th Int. Conf. on Refrigeration and Air-Conditioning,
Purdue University
Kohlenberger, 1995
Kohlenberger, C., 1995. “Gas Turbine Inlet Air Cooling and the
Effect on a Westinghouse 501D5 CT”, Proceedings of the
International Gas Turbine and Aeroengine Congress & Exposition,
Paper No. 95-GT-284, ASME, New York
Leslie, 2009
Leslie, N., Sweetser, R., Zimron, O. and Stovall, T., 2009.
“Recovered Energy Generation Using an Organic Rankine Cycle
System” ASHRAE Transactions Vol. 115 Part 1, Atlanta
Madsen, 2009
Madsen, K., 2009. “Living without HFCs: the Danish Experience”,
Institute of Refrigeration, London
Nielsen, 2000
Nielsen, P.S., 2000. “Effects of Water Contamination in Ammonia
Refrigeration Systems, Danfoss, Nordberg
Nørstebø, 2013
Nørstebø, A., 2013. “District Heating and Cooling based on large
Heat Pumps”, Proc. HPP Workshop, Oslo
NZFS, 2008
New Zealand Fire Service, 2008. Report No F128045 “Inquiry into
the Explosion and Fire at Icepak Coolstores, Tamahere, on 5 April
2008”, Wellington
Olama, 2011
Olama, M. A., 2011. “The National Survey for HCFC based
refrigerants for Refrigeration Systems in the Kingdom of Saudi
Arabia”, UNIDO
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
115
Pearson, 2009
Pearson, A.B., 2009. “Calculating Freezing Times in Blast and Plate
Freezers”, Proc Int. Institute of Ammonia Refrigeration Annual
Meeting, Dallas
Pearson, 2011
Pearson, A.B., 2011. “Opportunities for Combined Heating and
Cooling”, Proc 4th Ammonia Refrigeration Technology Conf., IIR,
Ohrid
Persichilli, 2012
Persichilli, M., Kacludis, A., Zdankiewicz, E and Held, T., 2012.
“Supercritical CO2 Power Cycle Developments and
Commercialization: Why sCO2 can Displace Steam”, Power-gen
India and Central Asia, New Delhi
Pietrzak, 2011
Pietrzak, J., 2011. “Economic Optimisation of Refrigeration Systems
at the Design Phase”, Proc 4th Ammonia Refrigeration Technology
Conf., IIR, Ohrid
Sarraf, 2012
Sarraf, G., Fayad, W., El Sayed, T., Monette, S-P., 2012. “Unlocking
the Potential of District Cooling – The Need for GCC Governments
to Take Action”, Booz and Co, Chicago
Solemdal, 2014
Solemdal, Y., Eikevik, T., Tolstorebrov, I. and Veiby, O., 2014.
“CO2 as a refrigerant for cooling of data-center: a case study”, Proc
GL2014, IIR, Hangzhou
Stene, 2008
Stene, J., 2008. Design and Application of Ammonia Heat Pump
Systems for Heating and Cooling of Non-Residential Buildings” Proc
GL2008, IIR, Copenhagen
Tarlea, 2013
Tarlea, G.M., 2013. “Romania – Ammonia Traditional User” Proc 5th
Ammonia Refrigeration Technology Conf., IIR, Ohrid
UNEP, 2011
UNEP, 2011. Report of the Refrigeration, Air Conditioning and Heat
Pumps Technical Options Committee (RTOC) 2010 Assessment.
Vartiainen, 2011
Vartiainen, J. and Salmi, J., 2011. “District Cooling in Helsinki”,
Helsingin Energia, Helsinki
Zyhowski, 2003
Zyhowski, G., 2003. “Opportunities for HFC-245fa Organic Rankine
Cycle Appended To Distributed Power Generation Systems”, Proc.
IIR Congress, Washington DC
116
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 6
Transport Refrigeration
Chapter Lead Author
Radim Čermák
Co-Authors
Michael Kauffeld
Holger König
Richard Lawton
Alexander C. Pachai
Giorgio Rusignuolo
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
117
118
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
6
6.1
Transport refrigeration
Introduction
Transport refrigeration is a small but vital segment comprising delivery of chilled or frozen
products by means of trucks, trailers, vans, intermodal containers and boxes. It also includes
the use of refrigeration and air conditioning on merchant, naval and fishing vessels above 100
gross tonnes (GT) (over about 24 m in length).
Most development has taken place in the intermodal container industry since 2010. Although
many of the lessons are applicable to road transport, differences between containers and road
vehicles should not be neglected, and may lead to different system solutions and (possibly) to
different refrigerant choices. The three top candidates in the container industry are R-744,
hydrocarbons and low-GWP HFCs.
In contrast to the 2010 report, more insight is provided on eutectic and cryogenic systems
which may be attractive for some types of transport routes. Porthole container ships, which do
not exist any longer, are omitted, as are dedicated railway systems where trailer units or
intermodal containers units are now utilized. The niche segment of airfreight containers is
added.
New information about vessels in terms of type and refrigerant charge is provided based on
the 2012 IMO study. It appears that the differences in type are large and segmentation is
needed in the future. Analyses on refrigerant options are limited in this chapter, and the reader
is advised to consult the chapters dealing with industrial and air-conditioning systems.
Based on research, the road vehicle fleet size previously estimated at 4 million in the 2006
and 2010 RTOC Reports has been downsized to 2 million. This changes the overall picture in
that the refrigerant banks in vessels almost double the banks in other transport sub-segments.
While CFCs and HCFCs can be found in older equipment, virtually all new transport
refrigeration systems continue to utilize HFCs, with a prevalence of HFC-134a and R-404A.
Some systems aboard vessels utilize HCFC-22 in both non-Article 5 and Article 5 countries.
R-717 and R-744 systems are being installed on fishing vessels.
Appendix A contains a general overview and technical progress information, further, the
ozone depletion potential (ODP) and global warming potential (GWP) values of the
refrigerants discussed in this chapter are given in chapter 2 of this report.
6.2
Options for new equipment
6.2.1
Intermodal containers and road vehicles
6.2.1.1
Hydrocarbons
While hydrocarbons offer superior thermodynamic properties which lead to high energy
efficiencies, the possible leakage of the refrigerant inside the box and other failure scenarios
present a safety challenge, since these refrigerants are flammable.
Due to the lack of specific safety standards applicable to transport refrigeration, the design
usually relies on safety standards for adjacent applications, such as ISO 5149 (ISO, 2014a) or
EN 378 (2008). For example, according to the scope, ISO 5149 (ISO, 2014a) covers transport
refrigeration but the detailed safe design and operation for all the mentioned applications are
not described (König, 2013a). Most standards rely on the concept of “lower flammability
limit” combined with a maximum charge and safety factor. In a traditional concept of a
transport refrigeration unit, even assuming a significant charge reduction compared to today’s
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
119
typical charge levels, leakage inside the box would inevitably lead to concentrations above the
flammability limit.
The use of higher amounts of refrigerant charge over the thresholds established by the
existing standards would require the adoption of provisions covering safe system design and
safe operations. These higher amounts can be permitted only when special measures are taken
to limit the refrigerant concentrations in case of leakage and the presence of sources of
ignition. To justify such special measures, a risk analysis shall be performed to include all
foreseeable uses (König, 2013a). All this may increase complexity and may introduce an
additional risk that manufacturers must consider.
Measures can include ventilation and shut-off valves, combined with refrigerant detectors and
alarm systems. Ventilation may be realized using explosion-proof fans, sensors, etc. Or, as
alternative, the flammable refrigerant maybe isolated in a separate circuit and placed outside
of the cargo box. A secondary fluid can be used to provide cooling inside the cargo box. The
above measures either do not eliminate completely the flammability risk, or make the system
very complex, or increase power consumption.
Refrigeration units with direct expansion using HC-290 and HC-1270 have been tested to date
in a small number of trucks in the UK and Germany. One European manufacturer has
developed a road vehicle system operating on HC-1270, the safety issues being addressed by
having a jointless evaporator and installing a detection system. However, this unit is not
commercially available. One intermodal container manufacturer (MCI, 2014) announced a
possible market introduction of a refrigeration system with HC’s in 2018-19 subject to the
boundaries of future legislation.
In summary, specific research on the use of flammable refrigerants in transport refrigeration
should continue but (as it is the case today) their use would most likely require the
implementation of safety measures that could increase the complexity of the system and/or, in
case of indirect system, could penalize their efficiency.
6.2.1.2
R-744
R-744 is a promising alternative to HFC refrigerants and its widespread use in transport
refrigeration will only come when systems using R-744 can exhibit efficiencies comparable to
the efficiencies that are obtained at present from systems using HFC refrigerants.
R-744 is undergoing a renaissance and the technology and learning curve in transport
refrigeration is at an early stage. All major manufacturers have displayed concepts of units
with R-744 at trade shows or have demonstrated an interest in R-744 solutions through
research publications. One manufacturer has been testing an intermodal container unit with
customers across the globe, and is now offering the unit. Since 2013, a supermarket chain in
the UK has been conducting a trial with an urban distribution trailer fitted with a modified
version of the intermodal container system.
The annual energy consumption and the efficiency depends on the ambient air temperature
and the cargo box air temperature (refer to appendix A 4.1 for details). Systems using R-744
are more efficient than systems using HFC refrigerants under low-medium ambient
temperature conditions. At the same ambient temperature, systems using R-744 are more
efficient for chilled cargo and less efficient for frozen cargo than systems using HFC
refrigerants.
Literature mainly published for commercial refrigeration and mobile air conditioning
application (see Table 6-1) show “crossover temperatures” (= ambient temperatures below
which R-744 is more efficient) ranging between 21°C and 40°C. Data for transport
refrigeration is limited.
120
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Table 6-1: Crossover temperature with regard to energy consumption/efficiency
Source
Segment
Shimada,
2011
Commercial refrigeration
Finckh,
2011
Hrnjak,
2013
Möhlenka
mp, 2014
Baseline
Refrigerant
R-404A
Tevap, °C
Tcrossover, °C
5
32
38 to 40
21 to 26
Commercial refrigeration
R-404A
-25
-5 to -7
Mobile air conditioning
(Summary of SAE MAC
program)
Transport refrigeration
HFC-134a
about 5
25 (on the road)
35 (idling)
R-410A
-20
25 to 40
comparable
Figure 6-1 shows a comparison between the R-744 reefer container unit and the incumbent
HFC-134a unit (with comparable technology level) in terms of efficiency. Data was provided
from a large manufacturer. Based on typical total cost of ownership of models used in the
industry, approx. 15% of the time is estimated to be spent in full load conditions, moderate high ambient (an ambient temperature of 38 °C is normally used to represent this condition),
while an estimate 85% of the time is spent at medium-low ambient, part load (an ambient
temperature of 25 °C). The results show a disadvantage of R-744 at the 38 °C full load point,
but an advantage at the 25 °C ambient point, with chilled cargo and in part load conditions.
Figure 6-1: Container refrigeration, comparison between HFC-134a and R-744 for typical
test conditions.
Note 1: The two systems have different optimization logic (the R-744 system is mostly optimized for part load
conditions, not full load conditions).
Note 2: At -18°C box temperature, the R-744 system has tighter air temperature control than the HFC-134a one.
R-744 in general requires dual stage compression. R-744 open shaft compressors have
technological challenges in the transport refrigeration pressure range, and are not available
today. On the other hand, semi-hermetic reciprocating compressors are available today, and
scroll compressors may become available in the future. This may, for the time being,
adversely impact the application of R-744 in sub-segments where open shaft compressor and
scroll technologies are being utilized (for example vehicle powered truck refrigeration
systems).
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
121
6.2.1.3
HFC refrigerants
Refrigerant manufacturers are developing low-GWP HFC alternatives of which several have
the potential to match the cooling capacity, power consumption and pull-down expected from
today’s standard R-404A or HFC-134a systems. The flammability of these refrigerants is one
of the major concerns for their use in transport refrigeration and the same principals of safety
have to be fulfilled in transport refrigeration as described above for use of hydrocarbons
(UNC, 2011). At the moment, there are no non-flammable very low-GWP HFC candidates
(below GWP 150).
Changes to refrigerant classification have been proposed to mitigate the flammability concern
of the medium and low-GWP HFC refrigerants. For example, ASHRAE Standard 34 (2013)
(since 2010 edition) and ISO 817 (ISO, 2014b) recognize subclass 2L (= 2 low) refrigerants
that are defined as class 2 refrigerants with a maximum burning velocity of =10 cm/s. The
most recent revision of standard ISO 5149 (ISO, 2014a) recognizes the fact that A2L and A3
refrigerants need to be treated differently, and proposes more relaxed charge limits for A2L
refrigerant when compared with A3. Still, even the more relaxed A2L limits appear not to be
compatible with the charge levels / volumes typical of transport refrigeration applications. In
addition, for transport refrigeration applications, due to the flammable nature of refrigerants
classified as A2L, A2 and A3, a risk assessment should be carried out to ensure compliance
with occupational health and safety requirements and other regional standards and
requirements.
A calculation assuming a release of 4 kg HFC-1234yf in a 25 m3 trailer box (80% loaded by
cargo) yields concentrations that are at best comparable to the refrigerant concentration limit
(RCL) of the ASHRAE Standard 34 (2013), and above the lower flammability limit, using the
recommended safety factor of 4. The opening of the box and the consequent leakage of oil or
other contaminants in presence of a source of ignition or self-ignition conditions could create
an ignition risk. On the other hand, in personal cars, a sudden leakage in case of collision is
usually associated with the collapse of the cabin and the consequent ventilation through the
broken windows; therefore it is considered a lower and acceptable safety risk for mobile air
conditioning systems.
A side-by-side “drop in” comparison of three state-of-the-art low-GWP 2L flammable fluids
(GWP ranging from 200 to 400) was conducted as part of AHRI Alternate Refrigerant
Evaluation Program (Kopecka, 2013). The evaluation showed that although these 2L
flammable fluids were not suitable for retrofit in the field (drop in), they did show potential
for increased efficiency and capacity with respect to R-404A.
System manufacturers are also testing low-GWP HFCs to assess the impact of other concerns
such as stability, risk of clogging valves and expansion devices and other aspects.
Recent studies identified various non-flammable blends that offer different combination of
GWP (ranging between 1300 and 2200), ease of retrofit, properties, performance and
consistency with R-404A. These blends have important benefits: they are non-flammable
(A1), and in some cases they can be retrofitted in the field. The main limitation is the GWP:
significantly lower than R-404A, but still higher than so-called natural or unsaturated HFC
(HFO) refrigerants.
The list includes and is not limited to R-407A, R-407F, R-448A, R-449A and R-452A (MotaBabiloni, 2014, Minor, 2014).
In this group of non-flammable blends, R-448A and R-449A stand out as lower GWP (both
approx. 1400) alternatives to R-404A, but have higher discharge temperatures, requiring
system changes such as liquid injection in order to achieve comparable capacity, efficiency
and reliability. This makes them especially suitable for new systems using liquid injection
122
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
devices. On the other hand, R-452A has the GWP of approx. 2100 and it stands out as easiest
direct drop, allowing it to achieve equivalent performance as R-404A without additional
system changes.
Overall, it is likely that each of these blends will have a role to play in the general move
towards more environmentally friendly alternatives.
While in transport refrigeration the majority of the attention is currently focused on R-404A
due to the higher GWP level, several non-flammable, lower GWP blends have also been
developed as alternative / retrofit to HFC-134a. Their GWP is in the 600-700 range,
approximately 50% lower than HFC-134a.
6.2.1.4
Cryogenic systems
Liquid nitrogen or carbon dioxide open cooling systems entail low noise levels and low
emissions of air pollutant due to the elimination of diesel powered refrigeration. This can
bring benefits at the local scale, in addition to lower greenhouse gas (GHG) emissions in the
use phase, and therefore of benefit for heavily populated areas. However, the energy required
to produce the liquefied gases is substantial and therefore, if fossil fuels are employed during
production, GHG emission would rise proportionally. Other options for reducing GHG
emissions might be using alternative energy sources in production of liquefied gases such as
off-peak nuclear or wind power or, in the case of nitrogen, ensuring that it is a by-product of
oxygen production.
Technologies currently under development include systems for recovering mechanical energy
from the expansion of liquid nitrogen, leading to a potentially low-GWP nitrogen economy.
Use of cryogenics systems will continue to be determined by the availability of liquefied gas
charging stations (see a parallel with liquefied natural gas, or LNG, in some regions). Where
available, cryogenic systems can provide an alternative to traditional diesel powered trucks
and trailers on a case by case basis.
6.2.1.5
Eutectic systems
There are a limited but important number of applications where eutectic systems represent,
and will continue representing, an option for the future: small vans, dedicated to a specific
cargo, and with a predictable and repetitive duty cycle. Also, eutectics will continue to be an
important solution in some applications in developing countries, where precision of
temperature control is less relevant compared to the overall fuel and system cost.
Eutectic systems generally require the use of a refrigerant to “freeze” the eutectic. Some
applications use an external system to freeze the eutectic, and the vehicle can be regarded as
“refrigerant free”. The external system has a different safety, space, etc. requirement and
allows for deployment of R-744 or flammable refrigerants that may otherwise have
constraints for application in vehicles.
Technology in eutectics is also moving ahead, and some manufacturers are developing new
“phase change” materials that offer high capacity/weight ratio.
6.2.2
Vessels
HFC-134a has been the most often used alternative to HCFC-22 in new vessels for provision
refrigeration. New ships may also use R-407C or R-407F for air-conditioning going forward,
as it is becoming widespread in other sectors. R-744 in cascade with R-717 is used for
freezing down to -50 °C (mainly with fish as the cargo).
Some shipyards utilize HCFC-22 for small fishing vessels in Article 5 countries, but not for
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
123
international commercial vessels.
Large industrial systems can use R-717 or R-744 where it makes sense. R-717 systems are
limited to ships that do not carry passengers but professional crew only (due to toxicity
consideration), and ships with a relatively high refrigeration capacity. This makes it suitable
for large fishing vessels.
R-744 has been used as a refrigerant with own compressors (second stage in a cascade) or a
secondary coolant being circulated by pumps. When used in the second stage, it can cover the
temperature range between -10 and -50 °C. HFCs or R-717 is used in the first stage. Further,
R-744 Refrigerated Sea Water (RSW) systems have been developed and may be used for
replacing HCFC-22 systems to be taken out of operation. Again, these systems are limited to
the fishing industry.
Cruise ships use chillers mostly with HFC-134a and it is foreseen that they will continue with
this as long as possible due to the safety of the refrigerant hence the passengers. In 2014, a
large manufacturer launched a 50 Hz water-cooled centrifugal chiller that utilizes HCFC1233zd(E) as an alternate technology to HFC-134a.
For commercial vessels and for the off-shore business there is a potential for HC-290 to be a
substitute for HCFCs and HFCs as most of the fleet already have Zone 1 or 2 onboard. HC290 can be used for air conditioning as well as for provision plants, but most systems will be
indirect secondary systems using a heat transfer fluid.
The classification companies have to approve a given refrigerant before it can be used
onboard ships. The procedure of approval takes time and costs money and therefore only
refrigerants requested by the owners are approved. This comes on top of the normal
procedures on land. This also slows down the process of changing from one refrigerant to
another.
6.3
Options for existing equipment
6.3.1
Road equipment and intermodal containers
The lifetime of road equipment and intermodal containers usually does not exceed 12 to 18
years, respectively. It is determined by their heavy duty and in Europe by the ATP scheme,
which has a 3-year recertification period after the first 6-year in operation. HCFC refrigerants,
if any are still in use, are being fast replaced by HFCs. Eutectic and cryogenics systems on
vehicles are not limited by safety, space and other requirements of transport application, and
so can use a variety of refrigerants in their stationary systems.
Of the HCFC and CFC containing fluids, R-502 was widely used in the road transport
industry after 1960, to overcome issues with HCFC-22. The retrofit options include R-408A,
R-402A (both contain HCFC-22), R-404A or R-507A which, however, require a component
change.
Testing of low-GWP alternatives (below GWP 150, usually containing unsaturated HFCs) to
the most widely used R-404A is in progress elsewhere. An AHRI AREP participant
conducted side-by-side “drop in” comparisons of three state-of-the-art low-GWP 2L
flammable fluids (Kopecka, 2013). The evaluation showed that these 2L flammable fluids
were not suitable for R-404A retrofit in the field.
Recent studies identified various non-flammable blends that offer different combination of
GWP (ranging between 1300 and 2200), ease of retrofit, properties, performance and
consistency with R-404A. These blends are safe, they have GWP significantly lower than R-
124
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
404A, and in some cases they can be directly dropped into existing units. This makes them a
likely solution for the R-404A installed population as well as new systems.
The list includes and is not limited to R-407A, R-407F, R-448A, R-449A and R-452A (MotaBabiloni, 2014, Minor, 2014).3
In this group of non-flammable blends, R-452A stands out as easy and direct drop in, able to
achieve equivalent performance as R-404A without additional system changes. The GWP is
at approx.2100. On the other hand, R-448A and R-449A stand out as lower GWP (approx.
1400) options, requiring system changes with various degree of complexity (typically addition
of liquid injection to limit discharge temperatures).
At present between 3.5 and 6% of the refrigerated ISO container fleet has been found to
contain counterfeit refrigerants, many containing chlorine with an ODP (Lawton, 2012). It is
assumed that refrigerant cost and limited availability put a pressure to adopt inexpensive
counterfeit refrigerants with the subsequent environmental damage. Taxing of existing HFCs
(for instance based on GWP) will likely increase the use of counterfeit refrigerants.
6.3.2
Vessels
The lifetime of vessels is considerably longer than that of the road equipment and intermodal
containers. Vessels are in operation for 30 years on average. Merchant and cruise ships are
among the newer equipment. The average age of a merchant vessel has been decreasing from
18.9 years in 2008 to 16.7 years in 2012 (ISL, 2012). The number of cruise ships and their
size has about doubled in the last decade (ISL, 2011).
HCFC-22 has been the dominant refrigerant in many marine applications. Now it is being
phased out gradually and many plants are retrofitted. R-417A, R-422D and R-427A have
mainly been used to retrofit HCFC-22 which remains the most common refrigerant in the
existing fleet. As discussed in previous chapters, retrofit with the zeotropic refrigerant may
not be possible where flooded evaporators are used.
In large passenger ships/cruise liners, large chillers are being used. The most used refrigerant
in new ships used to be HFC-134a but also R-410A has been used frequently. For retrofit of
existing AC systems other HFC alternatives such as R-407C and R-427A require
modifications to the equipment to reach a reasonable efficiency. HCFC-123 never became a
real option aboard ships, possibly because of higher toxicity.
It is anticipated that marine AC systems will follow the development of new solutions seen in
on-shore systems, perhaps with a small delay of some years due to the long expected life of
the systems onboard ships.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
125
6.4
Concluding remarks
It is clear that, in the transport refrigeration application, a unique, low-GWP or natural
solution which would be ideal for new and field retrofit applications does not exist.
In the case of a regulation banning the use of refrigerant above a certain GWP level as in the
EU, HFC blends will likely play a role as a retrofit to R-404A and (possibly) HFC-134a
systems in the installed base: their GWP is significantly lower than R-404A and performances
are relatively close. The level of system change in the field depends on the refrigerant choice.
For new systems, hydrocarbons offer high energy efficiency, but the safety risks in transport
refrigeration application appear significant, with possible exceptions. On the other hand, R744 has been tested in the field since the 2010 RTOC report. The non-flammable
characteristics make R-744 attractive, but the gap in efficiency in high ambient temperatures
and the limited component supply base are limiting its penetration into the market.
Recently there has been an initiative to consider the design and service best practices for
flammable and high pressure refrigerants which it is hoped will lead to a fast track ISO
standard on how these refrigerants can be applied to intermodal container refrigeration. The
framework of this initiative has not yet been set.
We are also seeing “non-conventional” systems such as cryogenic systems or eutectic
systems. These technologies offer specific advantages in specific applications, and the fact
that they are HFC free will continue making them attractive.
6.5
References
AHRI, 2013
AHRI Standard 1110, 2013, Performance rating of mechanical
transport refrigeration units, AHRI, Arlington, VA, USA
ATP, 2013
Agreement on the international carriage of perishable foodstuffs and
on the special equipment to be used for such carriage, 2013, United
Nations, ISBN 978-92-1-139147-3
ASHRAE, 2013
ASHRAE Standard 34, 2013, Safety Standard for Refrigeration
Systems and Designation and Classification of Refrigerants, Atlanta,
GA, USA
Cavalier, 2013
Cavalier and Devin, 2013, F-Gazes in transport refrigeration:
situation and perspectives, 15. European Conference, Latest
technologies in refrigeration and air conditioning, Milano, June 7-8
EN, 2008
EN 378, 2008, Refrigerating systems and heat pumps. Safety and
environmental requirements, CEN, Brussels, Belgium
Finckh, 2011
Finckh, O., Schrey, R., Wozny, M., 2011, Energy and efficiency
comparison between standardized HFC and CO2 transcritical system
for supermarket applications, 23rd IIR Int. Congress of Refrigeration,
August 21-26, Prague
Hrnjak, 2013
Hrnjak, P., 2013, Current and alternative refrigerants, 2nd IIR Int.
Conference on Sustainability and the Cold Chain, April 2-4, Paris
IHS, 2013
http://www.ihs.com/products/maritime-information/ships/seaweb.aspx, retrieved on 2013-10-19
IMO, 2012
Lloyd’s Register, 2012, Study on the treatment of Ozone Depleting
Substances used to service ships commissioned, report number
LDSO/ENG/Q12-02RMS/07/02 – REV 4
126
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
ISL, 2011
Shipping Statistics and Market Review, Volume 55, No 8 – 2011,
Institute of Shipping Economics and Logistics
ISL, 2012
Shipping Statistics and Market Review, Volume 56, No 1/2 – 2012,
Institute of Shipping Economics and Logistics
ISO, 2014a
ISO 5149, 2014, Refrigerating systems and heat pumps -- Safety and
environmental requirements, ISO, Geneva, Switzerland
ISO, 2014b
ISO 817, 2014, Refrigerants -- Designation and safety classification,
ISO, Geneva, Switzerland
Kopecka, 2013
Kopecka M., Hegar M., Sulc V. and J. Berge, 2013, System Drop-In
Tests of Refrigerant Blends L-40, DR-7 and ARM-30a in a Trailer
Refrigeration Unit Designed for R-404A, AHRI Low-GWP
Alternative Refrigerants Evaluation Program
König, 2013a
König, H., Enkemann, T., 2013, Risk assessment and standards
aurvey for use of flammable refrigerants in transport refrigeration
applications, 2nd IIR Int. Conference on Sustainability and the Cold
Chain, Paris, France, April 2-4
König, 2013b
König, H., Enkemann, T., 2013, Einsatz von brennbaren Kältemitteln
in der Containerkühlung, Stand der Normung und Risikobewertung,
DKV Jahrestagung November, Hannover
Lawton, 2012
Lawton and Cavalier, 2012, Risk Inherent in the Use of Counterfeit
Refrigerants, 23rd Informatory Note on Refrigeration Technologies,
IIR, November 2012.
MCI, 2014
Maersk Container Industry, EPA-HQ-OAR-2014-0198-0089,
http://www.regulations.gov, retrieved on 2014-12-15
Minor, 2014
Minor, B., Sulc, V., Berge, J., Kolda, M. and Hegar M., 2014, R404A Alternative with Low Compressor Discharge Temperature, 15th
Int. Refrigeration and Air Conditioning Conference at Purdue, July
14-17, paper #2175
Mota-Babiloni, 2014
Mota-Babiloni, A., Navarro-Esbrí, J, Barragán, Á., Molés, F., Peris,
B., 2014, Theoretical comparison of low GWP alternatives for
different refrigeration configurations taking R404A as baseline, Int.
Journal of Refrigeration, Vol. 44, August, pp. 81-90.
Möhlenkamp, 2014
Möhlenkamp, A., Lemke, N., Köhler, J., 2014, Comparison of
different refrigerants for a two-stage transport refrigeration system,
3rd IIR Int. Conf. on Sustainability and the Cold Chain, June 23-25,
London
Shimada, 2011
Shimada G., 2011, High Ambient Energy Efficient CO2 refrigeration
unit for supermarket and CVS, ATMOsphere Europe, October 11-12,
Brussels
TEAP, 2012
TEAP 2012 Progress Report, in response to Decision XXIII-7
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
127
128
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Annex to Chapter 6
The following sections describe technical progress and general characteristics of the transport
refrigeration sector. Differences from other sectors are discussed. Fleet size and refrigerant
charge estimates are provided in order to assess the relative importance and contribution of
the various sub-sectors to the refrigerant banks and emissions.
A6.1
Requirements
Technical requirements for transport refrigeration systems are extremely complex. The
equipment has to operate over a wide range of ambient temperatures and weather conditions
(wind, solar radiation, rain, sea water spray, etc.). The equipment has to be able to carry any
one of a wide range of cargoes with different temperature needs and even different
temperatures simultaneously in different compartments.
All transport refrigeration systems have to be very robust and reliable to withstand vibrations
and shocks. At the same time, the systems must be compact to maximise cargo space, and
lightweight to reduce the energy required to move the vehicle.
It is imperative that spare parts (including refrigerant) are available along transport routes
world-wide. Returning to a port can be a major issue for marine vessels in case of a
refrigeration plant breakdown. This must be considered when design changes and
improvements are made and introduced. Rigorous testing must be carried out so that only
proven reliable systems are commissioned for field use.
Despite these efforts, refrigerant leaks inevitably occur within the refrigeration systems
because of vibrations and shocks, and sometimes because of collisions with other objects. In
addition, the harsh environmental conditions tend to accelerate the equipment aging. The
equipment lifetime is usually between 10 and 15 years for road vehicles, railcars and
intermodal containers, or less than 10 years in case of intensive use, and 20 to 25 years for
merchant, naval and fishing vessels.
Safety is a number one priority in all transport refrigeration systems, because trained and
certified service personnel may not be available along transport routes. Safe operation is
particularly essential in the case of marine vessels, where evacuation is difficult or
impossible. Safety must be either inherent in the fluids, or must be ensured through a number
of technical measures.
A6.2
Vessels
It is assumed that nearly all vessels above 100 GT have refrigeration systems for their
provision rooms and air conditioning for the occupied cabin space. IHS Fairplay, the sole
global issuing body of the IMO Ship, Company and Registered Owner numbering system,
claims to register nearly 180,000 ships of 100 GT and above (IHS, 2013). Of those,
refrigeration is used more extensively for process or cargo cooling in several vessel types,
namely cruise ships, refrigerated cargo ships and fishing vessels. Refrigerated cargo ships
consist of specialized refrigerated ships (reefers), LPG carriers, nuclear fuel carriers and juice
carriers. According to Lloyds Register porthole ships no longer exist and they have removed
the survey requirements from their notation.
HCFC-22 has been the dominant refrigerant used aboard ships (estimated 80% of present
fleet). HFC-134a has been the most often used alternative to HCFC-22 in new vessels for both
air conditioning and refrigeration. R-404A and R-407C have been used mainly to retrofit
HCFC-22. New ships may also use R-410A going forward, as it is becoming widespread in
other sectors. HFC-23 is used for freezing at -60 °C and below (mainly fish as cargo). Natural
refrigerants have been used in a relatively few vessels; primarily larger fish trawlers.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
129
The typical charge size for different types of vessels is provided in Table A6-1 reprinted from
the 2012 Lloyd’s report (IMO, 2012). Although the refrigerant charge of cruise ships can be
as high as 4,000 kg or more, their fleet is small. In 2011, the total passenger and
passenger/roll-on roll-off cargo fleet for ships of 300 GT and over was composed of 4,131
ships, including only 426 and 35 large cruise ships and liners, respectively (ISL, 2011). The
number of reefers, LPG and LNG carriers, porthole container ships, nuclear fuel carriers and
juice carriers is also very low. The only growing sector may be the LPG carriers, while cargo
containerization has increased, this has removed cargo from reefer ships and which have
therefore declined, porthole containers and their ships have disappeared.
Table A6-1: Average refrigerant charge size in kg (IMO, 2012)
Cruise Ship
Air Conditioning
Provision Room
Cargo Cooling
Engine Control Room
Wheel House
Spare Refrigerant
Total
1800
300
0
12
0
700
2812
Refrigerated
Cargo
110
15
825
6
8
317
1281
Fishing
Vessel
60
10
1500
5
8
785
2368
Other
90
15
0
7
8
35
155
The ODS inventory is difficult to estimate. The 2012 Lloyd’s report quantified the inventory
of ozone depleting refrigerant for 41 flag administrations, which estimated stock was greater
than 100 t, at 17,696 t. Provided that these 41 countries made up over 82% of the estimated
ozone depleting potential refrigerants used in the marine sector as stated in the report, the total
inventory could be 21,580 t. Using a much less sophisticated approach, the 2012 TEAP
Progress Report (TEAP, 2012) arrived at the total inventory estimate of 27,650 t.
The 2012 Lloyd’s report provided also a type-specific estimate of refrigerant leakage rates.
The percentages were lower (5 to 15%) for cruise and refrigerated cargo ships, and higher (on
average 50%) for the fish factory and trawlers. Regardless of type, the 2012 Progress Report
provided an estimated leakage rate of 30% for HCFC-22. Based on the refrigerant charge size
and the fleet size, the annual usage quantity (leakage) was estimated at 4.858 t in the Lloyd’s
report and 8,420 t in the 2012 TEAP Progress Report.
The pieces of information collected so far on the estimated refrigerant charges, leakage rates
and fleet sizes suggest that the fishing sector shall be consulted for more details.
Refrigeration systems have to comply with legislation of the state whose flag they are entitled
to fly. In the case of servicing, refrigerant sales to vessels operating under a foreign flag are
generally considered national exports and imports, and hence restrictions may apply.
A6.3
Trucks, trailers and rail cars
The road refrigeration market comprises several vehicle segments: small trucks and vans with
a cargo volume below roughly 19 m3, large trucks with a volume between 20 and 59 m3, and
trailers and semi-trailers with a box volume up to more than 100 m3. Small trucks and vans
are used predominantly for distribution in urban and sub-urban areas, while long haul
transport favors large trucks and trailers.
It is common to state the maximum refrigeration capacity at two or three operating conditions
that represent frozen cargo and chilled (perishable) cargo. The exact rating conditions vary
slightly for different markets and countries: the North American market prefers to rate at box
temperatures of –17.8 ºC and 1.7 ºC at an ambient temperature of 37.8 ºC (AHRI, 2013),
while the countries committed to the ATP Agreement (ATP, 2013) prefer the box
temperatures of –20 ºC and 0 ºC at an ambient temperature of 30 ºC.
130
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The flexibility required by the carriers of perishable food has brought up the need for multi
temperature compartment box in all categories of vehicles, from small vans to the largest
trailer. Multi-temperature equipment has been developed for nearly two decades to optimize
different logistic scenarios. They allow the same vehicle with only one refrigeration unit to
carry products at different temperatures in 2 or 3 compartments. They represent 25% of the
French market (Cavalier, 2013) (25% is a weighted average of 9% vans, 44% trucks and 41%
trailers). Some operators purchase only the multi-temperature equipment even if they often
operate in mono-temperature mode.
If the exact rating conditions and the vehicle type are neglected, the maximum refrigeration
capacity ranges from less than 500 W up to 10 kW at the frozen cargo temperatures and from
less than 1 kW up to 20 kW at the chilled cargo temperatures. The refrigeration capacity
during transportation varies with the actual heat load. Most units are able to provide heating in
the cargo box, usually by means of hot gas (compressor discharge), electricity, or independent
gas heating equipment.
Majority of road and rail equipment utilizes the vapour compression cycle. The systems for
small trucks and vans are typically vehicle powered (direct drive). Large trucks and trailers
are self-powered; they contain a power source independent of the vehicle, usually a diesel
engine. So called multi temperature units can serve up to 3 compartments at different
temperature levels in one vehicle. Single temperature units are traditional and more frequent.
The total world fleet size is difficult to estimate. The new published data suggest that the total
fleet size is 2,000,000 vehicles and so is considerably smaller than anticipated previously in
RTOC reports. Cavalier and Devin (Cavalier, 2013) analyzed UNECE, IIR, EU and expert’s
figures and estimated the European Union fleet at some 1,100,000 vehicles. In China and
India, the fleet size was estimated at 100,000 and 6,000 vehicles, respectively.
Of the road transport equipment, about 25% are trailers, 25% are large trucks and 50% are
small trucks and vans (Cavalier, 2013). These data represent a shift if compared to the
estimates presented in the RTOC 2010 report, where it was assumed that trailers and trucks
represent, each, 30% of the fleet, and vans covered the remaining 40%. The portion may vary
from region to region.
The refrigerant charges ranged typically between several hundred grams and 10 kg, usually
less than 6 kg for small and large trucks. Micro-channel condenser technologies have become
available because of technical progress in the last few years. Innovation reduced the
refrigerant charge by approx. 30%: for example, in new trailer units, the charge has been
reduced from around 7.5 kg to 5 kg.
Refrigerants typically used are R-404A and HFC-134a, in some cases R-410A. Cavalier and
Devin reported that R-404A is present in more than 95% of equipment and HFC-134a in
about 4% of equipment in the European Union.
There is an ongoing effort in the industry to reduce the greenhouse gas emissions.
Technologies and designs applied today in vapour compression systems include: microchannel condensers to reduce refrigerant charge, hermetic solutions to reduce leak rates,
reduced number of joints and better process controls and leak testing for joint integrity. In
addition to the above, many solutions are being tested in a limited volume base such as
alternative propulsion systems (hybrid, electric, etc.) instead of diesel engines.
There are two systems other than the vapour compression cycle and diesel engine system that
are available in the market and used in road transport today. Their fleet size is currently,
however, small.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
131
Eutectic systems rely on the concept of latent heat. When the unit is plugged in, the eutectic
solution is frozen; in operation and delivery, the system is unplugged and the eutectic solution
changes state, absorbing heat and cooling the cargo. Eutectic systems have a fundamental
advantage: they do not require a diesel engine, so they are noiseless, produce no emissions
during operation, and need low maintenance. At the same time, some key limitations apply:
they operate at a single temperature (they are not thermostatically controlled), and they have
limited pull down, capacity and autonomy.
Cryogenic systems carry liquid nitrogen R-728 or carbon dioxide R-744 in an insulated tank.
When needed, the liquid is expanded in a heat exchanger, absorbing heat and cooling the
cargo, and then released to the atmosphere. Earlier technologies, where R-728 was supplied
directly to the cargo box are not used any longer. Cryogenic systems are noiseless, reliable
and offer fast pull down and high capacity regardless of the vehicle speed. On the other hand,
they require periodic refilling and infrastructure for liquefied gases. The carbon emissions
from liquefying the gas need be considered.
The principles of the cryogenic and eutectic systems are illustrated in Figure A6-1.
Figure A6-1: Schematic of a cryogenic system (left) and an eutectic system (right)
Refrigerated railcars have become very rare. There is a clear and definite trend to replace
them with intermodal refrigerated containers that can be placed on a flat car. There is a small
market of refrigeration systems built to handle severe rail and intermodal duty.
A6.4
Intermodal containers
The intermodal containers category includes refrigerated ISO containers (reefers), air freight
containers, and small containers and insulated boxes.
Refrigerated ISO containers generally come in 20 ft and 40 ft lengths. Non-standard sizes
exist as do swapbodies. The fleet size numbers are fairly accurate. It is estimated that, in
2013, there were approximately 100,000 units of 20 ft containers and 1,000,000 units of 40 ft
containers in use. There are about 100,000 new refrigerated containers built annually.
The vapour compression cycle has been the only technology used in refrigerated ISO
containers. Because the equipment lifetime is around 12-15 years (up to 18 years in new
equipment), and the last HCFC units were produced in 2000, only a few HCFC units may be
still in use in ocean traffic today. Current systems utilize HFC-134a or R-404A.
Approximately 60% of new units are fitted with hermetic scroll compressors, about 40% of
the units are equipped with reciprocating, single or 2-stage compressors. The current
technology features have resulted in reduced refrigerant charges and reduced emissions. The
typical charge is approximately 4.5 kg, some manufacturers reporting charge of 2.8 kg HFC134a.
All container units are electricity driven due to availability of electric grid on ships. When
used on land (trailers, flat railcars, etc.), electricity is supplied from the electric grid or from a
diesel engine generator set (gen-set) that is mounted on the unit front or the trailer.
132
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The refrigeration performances can be tested according to ISO 1496-2:2008. The maximum
refrigeration capacity is commonly stated at three operating conditions that represent frozen
cargo and chilled (perishable) cargo. The maximum refrigeration capacity is around 4 kW at a
box temperatures of –29 ºC, around 6 kW at a box temperatures of –18 ºC, and it is around 12
kW at a box temperatures of 2 ºC, all rated at the ambient temperature of 38 ºC. All units are
able to transport any type of cargo in any climates. This means that both refrigeration and
heating must be supplied.
Reducing energy consumption has been a continuing effort in reefer container industry.
Manufacturers have focused on compression technology, technologies to part load operation
of compressor (such as digital or variable speed by frequency inverters), and improving the
control logic, mainly looking for an optimized balance between air temperature control range
and energy consumption.
The safety requirements are most complex for intermodal equipment because of the various
modes of transport (ship, terminal, road, rail, public events), including air freight. Therefore
the reefer industry and operators have established a full operation control technology
reporting and documenting the different states of reefer container positions, locations,
forwarding information, as well as refrigeration system related information such as cargo
temperature.
Dry ice (solid carbon dioxide) and gel packs are the most common types of coolants used for
air freight transport. Dry ice is classified as “dangerous goods” and subject to IATA
regulations – mass is declared. A small number of air freight containers use HFC-134a in a
battery-powered vapour compression cycle. The cooling capacity as well as the refrigerant
charge is low.
Small containers and insulated boxes are usually used in road transport. They are refrigerated
mainly with dry ice, but also with eutectic plates, ice slurry or small vapour compression
units. Boxes are generally not reusable and refrigerated with eutectic sticks or solid carbon
dioxide. They are widely used for transport of pharmaceutical products and samples of food
products.
A6.5
Temperature profiles
Both ambient temperature and cargo temperature vary during the operation of a refrigerated
ISO container. Figure A6-2 presents the average annual ambient temperature profile collected
by Maersk Container Industry (König, 2013b). It covers random container operations in a
representative container fleet during a period of three years. The data include operations on
vessel (including systems using both water-cooled and air-cooled condensers), rail and road,
as well as operations in terminals. Temperatures between 17 and 33 °C represent 73% of the
time.
Although ambient temperature profiles may vary from shipping line to shipping line, they
peak most frequently between 21 and 33 °C. Temperatures around 29 °C are the most
frequent and close to the ATP rating temperature of 30 °C (ATP, 2013).
Most frequent cargo temperatures are as follows: -18 °C (41%, frozen), 0 °C (28%, chilled)
and 15 °C (17%, banana). The other temperatures represent 14% of the refrigerated ISO
container fleet operation (König, 2013b).
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
133
Figure A6-2: Average annual ambient temperature of reefer container fleet (König, 2013b)
134
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 7
_________________________________________________________________
Air-to-air air conditioners and heat pumps
Chapter Lead Author
Daniel Colbourne
Co-Authors
Sukumar Devotta
Samir Hamed
Fred Keller
Makoto Kaibara
Ting Xun Li
Rajan Rajandran
Tetsuji Okada
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
135
136
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
7
7.1
Air-to-air air conditioners and heat pumps
Introduction
On a global basis, air conditioners (ACs), including reversible air heating heat pumps
(generally defined as “reversible heat pumps”) ranging in size from 1 kW to 750 kW
comprise a vast majority of the air conditioning market (the majority are less than 70 kW). In
the remainder of this chapter the term air conditioning will be used to apply to both air
conditioners and air-to-air heat pumps that directly heat air. This broad category is sometimes
referred to as air-cooled or unitary equipment. These systems cool and/or heat enclosed
spaces ranging from single rooms to large exhibition halls. Essentially, most are electrically
driven vapour-compression systems using hermetic rotary, reciprocating or scroll compressors
for units with capacities up to about 100 kW, and single or multiple semi-hermetic
reciprocating, scroll or screw compressors for units with capacities up to 750 kW. Air in the
space is drawn over a coil containing evaporating refrigerant. Heat transfer occurs between
the air and the circulating refrigerant. With systems that provide heating and cooling, the role
of the evaporator and condenser can be reversed to provide either heating or cooling. In the
heating mode, air from the conditioned space passes over the same coil that contains
refrigerant undergoing condensation thereby transferring heat to the air.
Nearly all air conditioners manufactured prior to 2000 used HCFC-22. The transition away
from HCFC-22 is nearly complete in non-Article 5 countries. The phase-out of HCFC-22 in
the manufacturing and import of new products in the EU and Japan was completed between
2004 and 2010, whilst North America and Australia and New Zealand are now also
completing the process. However, it is important to note that technical options available at the
time of the phase-out in these countries were environmentally focused on the protection of the
ozone layer and not on the reduction of global warming potential (GWP). Some Non-Article 5
countries began the transition to non-ODP alternatives ahead of the Montreal Protocol
commitment dates (primarily within Europe and Japan). In addition, certain Article 5
countries such as South Korea also pursued an accelerated phase-out similar to non-Article 5
countries.
Globally, in 2014, the majority of the installed unit population currently uses HCFC-22 and
approximately around one half of the units produced globally use non-ODP refrigerants. An
estimated two-thirds of a billion HCFC-22 air conditioners were operating worldwide,
representing approximately one million metric-tonnes of HCFC-22.
The scope of this Chapter includes an overview of the common types of air conditioning
equipment, their characteristics and where they are normally applied. Sections also highlight
the alternatives refrigerants currently being used and anticipated for use, examining factors
such as safety, climate impact, performance, cost implications and lubricants and commercial
availability. In addition, issues related to refrigerant charge reduction and not-in-kind
technologies applied to air conditioners are also covered. Alternative refrigerants for existing
equipment, options for refrigerant replacement (only) and retrofit are summarised and
implication of refrigerant choice for new systems used in high ambient temperatures is also
addressed. The ozone depletion potential (ODP) and GWP values of the refrigerants
mentioned in this chapter are given in Chapter 2 of this report.
The main developments compared to the last assessment report is related the increased
substitution of HCFC-22 and the greater consideration of use of medium and low GWP
alternatives. Regarding the use of HCFC-22, in 2010 many non-Article 5 countries were
approaching the final phase-out of HCFC-22 in new systems; this has now been completed
and most major Article 5 countries have initiated their transition from HCFC-22. Previously,
medium and low GWP alternatives were not being given major consideration (except
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
137
hydrocarbons (HCs) such as HC-290) whereas now additional manufacturers are adopting
HCs and there is also uptake of HFC-32, whilst others are also considering the variety of new
HFC/unsaturated HFC blends. China has made a decision to convert some production lines to
HC-290 as part of their HPMP, whilst in India there is at least one plant where HC-290 air
conditioners are being produced. There are also new additions to information relating to
different alternatives performance under high ambient conditions.
7.2
Equipment types
Air conditioners generally fall into four distinct categories, based primarily on capacity or
application: small self-contained air conditioners (window-mounted and through-the-wall air
conditioners); non-ducted split residential and commercial air conditioners; ducted, split
residential air conditioners; and ducted commercial split, multi-split (including variable
refrigerant flow, VRF) and packaged air conditioners (commercial air cooled). In each of
these categories, the term “air conditioner” includes systems that directly cool or heat the
conditioned air.
Table 7-1 summarises the typical physical and installation characteristics of each type of air
conditioner.
Table 7-1: Typical configurations of air conditioner type
Type
Window
Portable
Through-thewall
Packaged
terminal
Split (non-ducted)
Small selfcontained
Primary configuration
System layout
Capacity range
(kW)
Small self-contained
Self-contained
1 – 10
HCFC-22
charge
range (kg)
0.3 – 3
Small self-contained
Self-contained
1 – 10
0.3 – 3
Small self-contained
Self-contained
1 – 10
0.3 – 3
Small self-contained
Self-contained
1 – 10
0.3 – 3
Non-ducted split
Remote
2 – 15
0.5 – 5
Multi-split
Non-ducted and ducted split
Remote
4 – 300
2 – 240
Split (ducted)
Ducted split
Remote
4 – 17.5
1–7
Packaged rooftop
Ducted commercial
Self-contained
7 – 750
5 – 200
Ducted commercial split
Ducted commercial
Remote
10 – 750
5 – 250
7.2.1
Small self-contained air conditioners
Small Self-Contained (SSC) air conditioners are small capacity units in which all of the
refrigeration system components are contained within a single package. These products have
cooling capacities typically ranging from 1.0 kW to 10 kW (having an average size of 2.7
kW). This category of products includes the following common configurations:
Window Mounted Room Air Conditioner,
Through-the-Wall Air Conditioner
Portable Air Conditioner 1
Packaged Terminal Air Conditioner (PTAC).
Small self-contained air conditioners are designed to heat or cool single spaces, such as bed1
Portable air conditioners are a special class of room air conditioners that can be rolled from room to
room. They exhaust their condenser air through a small flexible conduit, which can be placed in an
open window. Some portable air conditioners use a separate outdoor condenser, which connects, to the
indoor section with flexible refrigerant piping.
138
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
rooms, small shops, restaurants and offices. Small self-contained air conditioners, because of
their size and relatively low cost, have often been the first individual comfort electrically
driven vapour-compression systems to appear in emerging air conditioning markets.
However, duct-free, split type room air conditioners are being selected more frequently as the
first comfort air conditioning option in most countries resulting in a global decline in the
demand for window mounted and through-the-wall air conditioners.
These systems have average refrigerant charge levels of approximately 0.25 kg per kW of
cooling capacity, for example, 0.75 kg of HCFC-22. The majority use hermetic rotary
compressors, with the remainder employing reciprocating or scroll compressors.
Most small self-contained air conditioners historically used HCFC-22. As non-ODP
refrigerants have been applied to these products-the majority have used HFC blends, R-407C
and R-410A. A small proportion of units are using HC-290.
Globally there are about 17 million SSC air conditioners currently produced (Gloёl, 2014).
With service lives over 10 years, it is estimated that more than 170 million SSC air
conditioners remain in operation globally.
7.2.2
Split (non-ducted) residential and commercial air conditioners
In many parts of the world, residential and light commercial air-conditioning is done with
non-ducted split air conditioners. Non-ducted split air conditioners are widely applied in
commercial buildings, schools, apartments and freestanding residences and range in capacity
from 2.0 kW to 20 kW (average size of 3.8 kW).
They comprise a compressor/heat exchanger unit (condensing unit) installed outside the space
to be cooled or heated. The outdoor unit is connected via refrigerant piping to a fan-coil unit
located inside the conditioned space, generally on the wall but also can be ceiling or floor
mounted designs. Single splits often position the expansion device also within the
condensing/outdoor unit. Compressors are typically hermetic rotary, scroll or reciprocating
type; high energy saving potential comes from introducing inverter technology and
technology is currently used in about half of new units.
Reversible air conditioners (heat pumps) are gaining market acceptance in cool and cold
climates where they are used primarily for heating but also provide cooling during summer
operation. These units are designed to provide high efficiency and capacity at low ambient
temperatures; typically down to -30°C. Reversible air conditioners can reduce indirect CO2
emissions by providing an efficient and cost effective alternative to electric resistance and
fossil fuel heating. Heat pumps designed for cold climates utilize one or more technologies to
improve their low ambient performance. These technologies include, multi-stage or variable
speed compression, larger heat exchangers and enhanced control strategies.
The vast majority of mini-split residential and commercial air conditioners manufactured
prior to 2000 used HCFC-22 refrigerant. Mini-split air conditioners have average HCFC-22
charge levels of approximately 0.25 to 0.30 kg per kW of cooling capacity. The majority of
non-ODP refrigerants that have been applied to these products are HFC blends such as R410A and R-407C, whilst HFC-134a has been more dominant in regions that experience high
ambient conditions.
The current global market for these types of split systems is around 80 million units per year
(Gloёl et al, 2014).
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
139
7.2.3
Multi-split air conditioners for commercial and residential
A second type of products are multi-split; essentially the same as a single split (as described
above) but a single condensing unit may feed two or more indoor units, although 50 indoor
units can be used with 1 km of piping. Whilst dual indoor unit models may be used for
residential applications, this category of split systems is more often used in commercial
buildings. Specific refrigerant charges tend from around 0.3 kg/kW upwards, depending upon
the installation characteristics. As with single splits, non-ducted and ducted multi-splits also
offer reversible (heating) options.
Variable Refrigerant Flow (VRF) systems are a sub-category of the multi-split air
conditioning systems and are distinguished from regular multi-split systems by their ability to
modulate the refrigerant flow in response to the system demand. The outdoor air conditioning
unit can adjust the refrigerant flow in response to the demand from each indoor unit. In some
configurations, these systems can have independent cooling or heating functionality for each
indoor unit thus simultaneously heat and cool separate indoor spaces. The outdoor unit
modulates the total refrigerant flow using various compressor capacity control methodologies,
with compressor types generally being rotary or scroll type. VRF systems have capacities
ranging from 10 kW to over 150 kW. Although systems produced before 2000 tended to use
HCFC-22, there has since been a growing increase in the use of R-407C and R-410A even in
Article 5 countries, with typical charge levels of 0.30 – 0.70 kg/kW of cooling.
Cooling capacities range from about 4 kW to about 150 kW, with an average (module)
capacity of 20 kW (noting that modules are often multiplexed to provide greater capacities).
Approximately 1 million systems are produced each year (Gloёl et al, 2014).
7.2.4
Split ducted air conditioners (residential and commercial)
Ducted, split residential air conditioners are typically used where central forced-air heating
systems necessitate the installation of a duct system that supplies air to each room of a
residence or small zones within commercial or institutional buildings. A condensing unit
(compressor/heat exchanger), outside the conditioned space, supplies refrigerant to one or
more indoor coils (heat exchangers) installed within the duct system or air handler. Air in the
conditioned space is cooled or heated by passing over the coil and is distributed to the
conditioned spaces by the duct system. Systems can in principle be designed as reversible
types, although for this category of ducted air conditioners it is done less frequently.
Compressor types typically include hermetic rotary, reciprocating and scrolls. The most
common refrigerant in these systems was HCFC-22 until the period 2005 – 2010, although
over the past few years the majority has transferred to R-410A and R-407C. For residential
systems, capacities range from 5 kW to 17.5 kW (average size around 10 kW) and each has
an average HCFC-22 charge of 0.26 to 0.35 kg per kW of capacity. For commercial systems,
capacities range from 7 to 750 kW with a current annual output of about 10 million units
(Gloёl et al, 2014).
7.2.5
Ducted commercial packaged (self-contained) air conditioners
Ducted commercial packaged air conditioners and heat pumps are single self-contained units
which comprise an integral fan and heat exchanger assembly which is connected by means of
ducting to the air distribution system of the commercial structure. The other part of the
package is the condensing unit, normally with an air cooled condenser and compressors, which
are often hermetic scrolls, although hermetic and semi-hermetic reciprocating and screw
machines are sometimes employed.
140
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The majority of ducted commercial packaged air conditioners and heat pumps are mounted on
the roof or outside on the ground of offices, shops, restaurants or institutional facilities.
Multiple units containing one or more compressors are often used to condition the enclosed
space of low-rise shopping centres, shops, schools or other moderate size commercial
structures.
They are offered in a wide range of capacities from around 7 kW to over 700 kW and have
specific refrigerant charges of around 0.3 to 0.5 kg per kW of cooling capacity. Most ducted
systems historically used HCFC-22, whilst in non-Article 5 countries R-410A is mainly used
and to a lesser extent R-407C, which is used more frequently in regions with higher ambient
conditions. Annual market is currently about 1 million units (Gloёl et al, 2014).
7.3
Options for new equipment
As discussed in Chapter 2, there are several factors that should be considered when selecting
an alternative refrigerant. Accordingly, this section provides a summary of the most viable
HCFC-22 replacement candidates for new air-conditioners, based on the current information
available to the RTOC.
Several single component HFC refrigerants have been investigated as replacements for
HCFC-22, although previously, HFC-134a was the only single component HFC that has been
commercially used in air conditioning systems to a limited extent. Recently air conditioners
have become available with HC-290 and HFC-32 as single component refrigerants. A number
of HFC blends have emerged as replacements for HCFC-22 in air conditioning systems.
Various compositions of HFC-32, HFC-125, and HFC-134a are being offered as non-ODS
replacements for HCFC-22. The two most widely used HFC blends are R-407C and R-410A.
Both R-407C and R-410A have GWP values close to that of HCFC-22 (Table 2-7 and 2-8).
More recently, new low- and medium-GWP blends are being proposed, which comprise
unsaturated HFCs (such as HFC-1234yf, HFC-1234ze(E), HFC-1243zf, etc.) with other nonODP refrigerants such as HFC-32, HFC-134a and R-744. These blends are mixed in order to
more closely match the performance of the refrigerants currently being used in these products
such as HCFC-22 and R-410A (Minor, 2008, Spatz et al., 2010). Due to their compositions,
most of these blends exhibit various levels of temperature glide (being the difference in dewand bubble-point temperature at a given saturation pressure) and in most cases are flammable.
There are a large number of such blends proposed by manufacturers, but to date few have
been assigned an R-number (although this is expected to change in the next two to three
years).
Whenever an alternative refrigerant is selected, there must be a corresponding choice of
lubricant (i.e., the base oil and appropriate additives) and this choice is also affected by the
compressor technology and the anticipated range of operating conditions of the system. The
selection of the lubricant to be used with a particular HFC is generally made by the
compressor manufacturer which makes the selection after extensive material compatibility
and reliability testing.
Considering the various alternatives with medium and lower GWP, the majority of these are
flammable to some extent. If flammable refrigerants are selected they present hazards not
historically associated with safety concerns with air conditioners. In the event of ignition of a
refrigerant leak, possible consequences can result in overpressure and thermal radiation,
leading to further secondary consequence (secondary fire, fragments, high toxicity
decomposition products, etc.). Furthermore, the societal tolerance of consequences from
flammables tends to be lower than with other hazards. Therefore appropriate measures have to
be applied in order to mitigate the risk, for example, minimising the amount of refrigerant that
can leak into occupied spaces or removing the refrigerant from the occupied space entirely,
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
141
ensure that probability of ignition is greatly reduced through risk assessment and at a
minimum, meet the requirements of national regulations and/or appropriate safety standards
(where they exist); such rules are continuously under development.
7.3.1
HFC-134a
Whilst HFC-134a is a potential HCFC-22 replacement in air-cooled systems, it has not seen
broad use because manufacturers have been able to develop substantially lower cost aircooled air conditioning systems using HFC blends such as R-407C and R-410A.
To achieve the same capacity as an HCFC-22 system, the compressor displacement must be
increased approximately 40% to compensate for the lower volumetric refrigeration capacity
of HFC-134a. Similarly, significant equipment redesign is necessary to achieve efficiency and
capacity equivalent to HCFC-22 systems. These design changes include larger heat
exchangers, larger diameter interconnecting refrigerant tubing, larger compressors and resized compressor motors.
Although it is seldom a cost-effective alternative, it has been used widely in regions that
experience high ambient temperatures for a variety of different types of air-to-air systems.
7.3.2
R-407C
Since R-407C requires only modest modifications to existing HCFC-22 systems, it has been
used as a transitional refrigerant in equipment originally designed for HCFC-22. However,
since around 2004 many of the R-407C systems have been redesigned for R-410A to achieve
size and cost reductions. An exception is when the target market’s standard conditions are
high ambient temperatures, such as above 40-55°C.
There are currently R-407C air conditioning products available in Europe, Japan and other
parts of Asia. Because of its low saturated pressure, R-407C is chosen as an alternative to
HCFC-22 by some manufactures in the Middle East where ambient temperatures can be high.
R-407C has also seen some limited use in the North America, primarily in commercial
applications. Generally, R-407C has little chance to replace widely HCFC-22 in the air
conditioning sector in future, at least where standard temperatures apply.
Performance tests with R-407C indicate that in properly designed air conditioners, this
refrigerant will have capacities and efficiencies within ± 5% of equivalent HCFC-22 systems
(Li and Rajewski, 2000). Linton et al (2000) found that for a fixed capacity, R-407C resulted
in a 5-11% lower cooling COP.
As R-407C is a zeotropic blend, temperature glide is significant but has been manageable
through many years of use and experience. Counter flow design of heat exchangers can
mitigate the negative impact of refrigerant glide. However, with reversible heat pumps it is
difficult to employ counter flow heat exchanger designs because the refrigerant has opposite
flow directions in the heating and cooling modes unless complex reversible refrigerant heat
exchanger circuiting is employed.
Polyolester (POE) or polyvinylether (PVE) lubricants can be selected for R-407C. Of these,
POE is the most widely used lubricant in HFC refrigerant applications. A recent tendency is
for compressor manufacturers to use POE oils in compressors so the system manufacturers
can use the same compressor for both HCFC-22 and R-407C systems.
142
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
7.3.3
R-410A
R-410A can replace HCFC-22 in new equipment production, since the operating pressures are
around 50-60% higher than HCFC-22. Due to its thermophysical properties, the design of R410A units can be more compact than the HCFC-22 units they replace. In addition, R-410A
can have better performance in inverter type air conditioner than HCFC-22.
R-410A air conditioners are currently commercially available in the US, Asia and Europe. A
significant portion of the duct-free split products sold in Japan and Europe now use R-410A
as the preferred refrigerant.
System designers have addressed the higher operating pressures of R-410A through design
changes such as thicker walls in compressor shells, pressure vessels (accumulators, receivers,
filter driers etc.). In addition, the considerations for lubricant requirements are as described
for R-407C; POE or PVE have to be used.
As concerns over GWP have increased, with it high value, R-410A is becoming seen as a less
viable alternative for HCFC-22 in the longer term, although it currently remains the first
choice for new air conditioning equipment. Another concern is its low critical temperature
that can result in degradation of performance at high condensing temperatures (see Section
7.5.1).
7.3.4
HFC-32
HFC-32 is seen as a replacement for R-410A due to its medium GWP and slightly higher
capacity and similar efficiency. Due to lower density the specific refrigerant charge (per kW
of cooling capacity) is around 10-20% less (Piao et al, 2012, Yajima et al., 2000). R-410A
systems can be redesigned for HFC-32 with modifications and with additional safety
considerations given its class 2L flammability (see Annex to Chapter 2); appropriate design,
application and service changes will be required for it to be safely applied. Another factor that
must be considered with flammable refrigerants is refrigerant reclaim and recovery requirements
during servicing and at the end of the product’s life to protect those servicing or recycling the
product. The current POE and PVE lubricants used with R-410A have insufficient miscibility
with HFC-32 (Ota and Araki, 2010) and therefore modified oils are selected.
HFC-32 has comparable efficiency to that of R-410A and HCFC-22 in many mini-split ACs,
as shown recently by a number of performance evaluations. Barve and Cremaschi (2012)
tested HFC-32 in an R-410A reversible AC, with various optimization modes. In cooling
mode, the COP varied by 0% to -2%, but with up to +8% higher capacity. Pham and
Rajendran (2012) reported on tests with HFC-32 in an R-410A system gave about +3% higher
cooling capacity with -1% lower COP and in heating mode capacity was about 4% higher
with negligible change in COP. Three different R-410A units were tested with HFC-32 by
Guo et al. (2012). The capacity increased by about +5 to +6% whilst COP was -3% to 0%
lower. As part of the AHRI “low GWP AREP” programme, HFC-32 was tested against R410A in two reversible heat pump air conditioners (Crawford and Uselton, 2012). Depending
upon the conditions, the cooling capacity ranged from -1% to +3% of R-410A with cooling
COP and heating COP varying by -1% to +2% and -6% to +4%, respectively. In a subsequent
report (Li and By, 2012), HFC-32 was shown to have an increased cooling capacity ranging
from +2% to +4% and a COP of 1% to 2% higher. Piao et al (2012) showed in a split air
conditioner a 4% higher cooling COP and 1% higher heating COP compared to an R-410A
system. Yajima et al. (2000) reported 10% higher cooling COP and 7% higher heating COP in
a commercial split system.
In 2014, HFC-32 systems have been presented to the market in Japan, Europe, India and
Australia, amongst others. One Japanese manufacturer reported that although there are some
million split-type units installed there have been no incidents reported so far.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
143
7.3.5
HFC-152a
HFC-152a has performance characteristics similar to HFC-134a as well as 10% lower vapour
pressure and volumetric refrigeration capacity. As such, significant redesign of existing
HCFC-22 systems would be required, similar to that described for HFC-134a. Application of
HFC-152a demands that systems must be designed, constructed and installed with due
consideration of its class 2 flammability (see Annex to Chapter 2), as well as due
consideration to reclaim and recovery requirements during servicing and at end of life.
It is unlikely that HFC-152a will be commercialised in air conditioning systems primarily
because its low volumetric refrigerating capacity implies increased costs relative to an HCFC22 system, added to the considerations required to handle flammability.
7.3.6
HFC-161
HFC-161 is also being evaluated as a replacement for HCFC-22 in air conditioning systems.
It has similar thermodynamic properties to HCFC-22 and is flammable and therefore systems
have to be designed, constructed and installed accordingly (see Annex to Chapter 2), as well
as due consideration to reclaim and recovery requirements during servicing and at end of life.
One potential obstacle exists in that the toxicity classification has still not been assigned under
the relevant standards (see Annex to Chapter 2).
In terms of performance, the volumetric refrigerating capacity is close, around 5% lower, to
that of HCFC. Tests comparing the efficiency have found that the COP of HFC-161 is about
10% higher than HCFC-22 (Padalkar et al., 2011). Furthermore the refrigerant mass can be
decreased to about half of the HCFC-22 charge. Wu et al. (2012b) reported on tests in split air
conditioners, showing that both cooling and heating capacity was about 5% lower than
HCFC-22, whilst cooling and heating COP was between 5 – 10% higher. As the ambient
temperature increases (towards 48°C), the difference in cooling capacity reduced and the
improvement in COP increased. Discharge temperature was consistently about 5 K lower than
with HCFC-22. Han et al (2012) measured efficiencies of about 10 – 15% higher than R5410A and HFC-32.
Either mineral oil or POE can be used for HFC-161. There have also been some questions
raised regarding the thermal stability of HFC-161; one recent study has shown it can degrade
under elevated temperature and pressure conditions, forming acids and thus corrosion (Leck
and Hydutsky, 2013).
7.3.7
HFC-1234yf
Since the thermodynamic characteristics of HFC-1234yf are very similar to HFC-134a, the
same general observations about its applicability in air-to-air systems are as stated previously,
i.e., it has a much lower volumetric refrigerating capacity and cannot be used as a direct
replacement. Compressors would need a significantly larger displacement and experimental
studies indicate is should be 40% larger than HCFC-22 systems (Fujitaka et al., 2010; Hara et
al., 2010). Additional design changes include increased heat exchanger areas and larger
diameter interconnecting tubing. As with HFC-134a, HFC-1234yf is therefore likely to suffer
from cost issues, although possibly more so given the anticipated higher fluid costs. Although
it is unlikely that unitary air-conditioners using pure HFC-1234yf will be commercially viable
in most cases, there may be interest in some cases, such as for regions that experience high
ambient temperatures. However, HFC-1234yf is being successfully demonstrated as a
beneficial ingredient in refrigerant blends for use in air conditioning and refrigeration
applications.
Given the class 2L flammability classification, systems should be designed, constructed and
installed with due consideration of its flammability (see Annex to Chapter 2), as well as due
144
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
consideration to reclaim and recovery requirements during servicing and at end of life.
7.3.8
HC-290
HC systems are commercially available in low charge air conditioning applications, such as
small split, window and portable air conditioners. HC-290 is the most frequently used HC
refrigerant in air conditioning applications. When used to replace HCFC-22, HC-290 has
performance characteristics which tend to yield higher energy efficiency and slightly lower
cooling and heating capacity. In terms of improvements in system COP in split type and
window air conditioners with HC-290, values range from around -4% to +20%, such as: 4-7%
(Chinnaraj et al, 2010); up to 8% (Devotta et al, 2005b); 4-12% (Jin et al, 2012); 10-15% (Li
et al, 2010); 10-20% (Liu, 2007); up to 14% (Padalkar et al, 2010); up to 11% (Park et al,
2008); up to 2% (Park et al, 2007); 1-4% (Teng et al., 2012);12-19% (Wang et al, 2004); up to
12% (Xiao et al, 2006); up to 10% (Xiao et al, 2009); around 7% (Xu et al, 2011); up to 10%
(Yan, 1999); up to 12% (Zhang et al, 2002); up to 9% (Zhou and Zhang, 2010). Amongst
these studies, capacity varies within -10% to +10%.
Since HC-290 has lower density and higher specific heat, the charge quantity is about 45% of
HCFC-22; typically around 0.05 – 0.15 kg/kW of rated cooling capacity. In addition, HC-290
has reduced compressor discharge temperatures and improved heat transfer due to favourable
thermo-physical properties. Compressor manufacturers indicate that both mineral oil-based
and POE lubricants are being used in HC compressors (Chen and Gao, 2011, Suess, 2004,
Bitzer, 2012), however they should be optimised, for example with certain additives.
The main difficulty with HC-290 is its class 3 flammability, which creates safety concerns in
application, installation and field service. European and international standards limit the
charge of HC-290 (see Annex to Chapter 2). Such charge size limitations can constrain the
use of HC-290 to smaller capacity systems that need to achieve a certain efficiency level,
depending upon the specific heat load (i.e., kW/m2) of the application; in order to extend the
capacity range, charge reduction techniques can be applied. Charge reduction technologies
and correct oil selection can be used to minimise the amount of refrigerant, which can
increase the capacity range. Similarly, control strategies can be applied to restrict the amount
of refrigerant that can leak into the occupied space can be applied, which may prevent up to
80% of the charge being released (Colbourne et al., 2013). Furthermore, systems (such as
centralised/packaged) can use two or more independent refrigerant circuits or reboiler loop,
although this implies a cost increase.
Leak, ignition and fire tests demonstrated that even with catastrophic refrigerant leaks, only
sources of ignition present in the immediate vicinity of the indoor unit have the possibility to
ignite a leak of refrigerant and consequences are insufficient to damage doors or windows
(Zhang et al., 2013). Similar findings for developed concentrations were reported by Li
(2014a). Risk analyses on the use of HCs in air conditioners suggest that when the
requirements of safety standards are met, the probability of ignition during normal operation
is extremely low (Colbourne and Suen, 2004). A recent study demonstrated that the
flammability risk associated with split air conditioners is around 100 times lower than with
HC-600a domestic refrigerators (Colbourne, 2014). The situation leading to highest risk is
sudden leaks, refrigerant handling, and servicing activities, thus, installation and service
practices must be modified to avoid exposing occupants and field technicians to the additional
risks associated with flammable refrigerants.
Another factor that must be considered with flammable refrigerants is refrigerant reclaim and
recovery requirements during servicing and at the end of the product’s life to protect those
servicing or recycling the product. Current recovery and recycling practices depend largely upon
national or regional regulations. For example, in Europe waste legislation implies that HCs must
be recovered, whereas in many Article 5 countries, venting of HCs may be considered an
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
145
acceptable option, but should only be done subject to a risk assessment.
Some major Chinese and Indian manufacturers have had commercially available HC-290
products since 2012 and have been available in Europe and Australia for several years. To date,
whilst output is limited, conversion of production capacity from HCFC-22 to HC-290 of
approximately four million units per year has been completed in China (Zhou, 2014).
7.3.9
HC-1270
HC-1270 has favourable characteristics from the point of view of both thermodynamic and
transport properties, but is a class 3 flammable refrigerant. It has a similar cooling capacity to
HCFC-22 but higher (about 4%) efficiency (Lin et al., 2010). Wu et al. (2012a) measured the
performance of a split type air conditioner with HC-1270 and HC-290 whilst exchanging the
compressor to match the original HCFC-22 capacity. For both refrigerants, improvements of
1-5% in COP were observed. Chen et al. (2012) and Chen et al. (2011) compared HC-290 and
HC-1270 in a split air conditioner and found that despite a drop in cooling capacity of 8% and
4% respectively, COP was always higher than HCFC-22. Park et al. (2010) measured the
performance of a split type air conditioner in heating mode and results showed that the
capacity of HC-1270 was 3-10% higher than that of HCFC-22 and the COP was 3% higher.
HC-1270 also has a lower discharge temperature than HCFC-22.
The charge mass is about 40% of HCFC-22 and compared with HC-290, HC-1270 has a
larger capacity which is useful to reduce the specific charge. Similarly, the obstacles and
flammability risk for use of HC-1270 in air conditioners are similar to those of HC-290 (see
Annex to Chapter 2).
Some manufacturers of room air conditioners are developing products using HC-1270.
7.3.10
R-744
R-744 has a low critical temperature, which results in significant efficiency losses when it is
applied at the typical indoor and outdoor air temperatures of air-to-air air conditioning
applications. This is particularly the case in high ambient climates, which could result in
higher system costs (Elbel and Hrnjak, 2008; Hafner et al., 2008; Johansen, 2008). R-744 air
conditioning systems typically operate above the critical temperature of R-744 during heat
rejection.
R-744 air conditioners operating in warmer climates (design temperatures greater than 30°C)
could have efficiencies approaching best in class HFC based designs (Neksa et al, 2010);
tested prototypes at 36°C ambient had COPs between 6% and 21% lower than the best R-410A
models. However, a number of design enhancements can be made to improve their efficiency.
The efficiency of R-744 systems can be improved through multi-stage compression, addition
of oil separators, use of refrigerant ejectors and expanders, various inter-cycle heat
exchangers, and cross-counter-flow heat exchangers, which take advantage of the favourable
thermophysical properties of R-744 (Xie et al., 2008; Wang et al., 2008; Koyama et al., 2008;
Li and Groll, 2008; Peuker and Hrnjak, 2008; Kasayer et al., 2008). The addition of efficiency
enhancing components can improve the efficiency of R-744 systems, but will also increase
the cost of R-744 systems.
Gas cooler operating pressures for R-744 systems are high; typically up 50 140 bar, with a
mean system pressure near 50 bar (Ibrahim and Fleming, 2003). The required hydrostatic
burst strength of systems operating at these high pressures would have to be approximately
300 (Bosco and Weber, 2008) to 400 bar (see Annex to Chapter 2). The higher operating
pressures contribute to high specific cooling capacity, thus allowing the reduction of inner
diameters of tubes and lower compressor displacement or swept volume. The smaller
component diameters result in comparable wall thickness to address the high operating
146
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
pressures of R-744. Design changes required to address the burst pressure requirements of R744 systems may also result in manufacturing cost increases. The high cost of R-744 systems,
unless resolved, is expected to substantially hinder the adoption of R-744 technology in air-toair air conditioning applications.
Air-cooled R-744 air conditioners are available in capacities from about 3 to 300 kW.
Experimental results show that R-744 systems may compete in energy efficiency with high
efficiency R-410A systems for moderate climates in both cooling and heating mode; however,
improvements are needed to significantly increase the capacity, efficiency and reduce the
peak electrical power requirements during the cooling mode in high ambient conditions
(Jakobsen et al., 2007).
The solubility of R-744 in lubricant is relatively high at the crankcase operating pressures of
R-744 compressors (Dorin, 2001). The knowledge base of information on lubricant
compatibility in R-744 refrigeration systems is expanding as more researchers conduct studies
of R-744 compressors (Hubacher, 2002; Li et al., 2000; Youbi-Idrissi, 2003; Muller and
Eggers, 2008). Some of the lubricants being considered for R-744 systems are POEs, PAO,
and naphthenic mineral oil or alkyl benzene lubricants (Youbi-Idrissi, 2003; Seeton, 2006). It
is very likely that an oil separator will be needed in R-744 systems because of the large
detrimental impact oil circulation has on the heat transfer performance of R-744 (Muller and
Eggers, 2008).
7.3.11
R-446A and R-447A
The blends R-446A and R-447A have similar pressure and capacity characteristics to R-410A
and are feasible for use in most types of air conditioning. Since they have class 2L
flammability, the maximum charge is constrained for larger capacity systems (see Annex to
Chapter 2). As with other flammable refrigerants, systems should be designed, constructed
and installed with due consideration of its flammability, as well as due consideration to
reclaim and recovery requirements during servicing and at end of life.
The efficiency is comparable to that of R-410A for moderate ambient temperatures. Both R446A and R-447A have higher critical temperature of around 84°C and 83°C, respectively,
compared to 71°C for R-410A. This higher critical temperature enables them to have a higher
efficiency at high ambient temperature (Sethi, 2013).
The cost implications should be comparable to those of R-410A, although marginally greater
due to the higher refrigerant price at present.
Currently there is testing and trials on going and manufacturers in Japan, Korea, China and
New Zealand are developing prototypes.
7.3.12
R-444B
Use of the R-444B is feasible in split ACs, for example, where HCFC-22 or R-407C is
already used. Since it has class 2L flammability, the appropriate safety standards should be
followed (see Annex to Chapter 2). As with other flammable refrigerants, systems should be
designed, constructed and installed with due consideration of its flammability, as well as due
consideration to reclaim and recovery requirements during servicing and at end of life.
The efficiency is comparable to that of HCFC-22 and the liquid density indicates that the
charge should be about 10-15% lower than HCFC-22. R-444B has a critical temperature
similar to HCFC-22 and thus substantially higher than R-410A, which implies that it should
show performance at high ambient temperatures similar to HCFC-22. Preliminary test results
indicate that R-444B shows similar capacity and efficiency to HCFC-22 (Sethi et al, 2014).
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
147
The cost implications should be comparable to that of HCFC-22 although probably greater
due to the higher refrigerant price at present.
Currently there is testing and trials on going and manufacturers in Japan, Korea and China are
developing prototypes.
Table 7-2: Refrigerant options for existing HCFC-22 and new equipment
Options for new
equipment
Type
Window
Portable
R-410A, R-407C, HC-290,
HC-1270, HFC-32, R444B, R-446A, R-447A
Through-the-wall
Packaged terminal
Split (non-ducted) smaller
Split (ducted)
Split (non-ducted) larger
Multi-split
Packaged rooftop
R-410A, R-407C, HFC-32,
R-444B, R-446A, R-447A
Ducted commercial split
Options for existing equipment
Refrigerant replacement
Retrofit
(only)
R-417A
R-417B
R-422A
R-422B
R-422C
R-422D
R-424A
R-425A
R-428A
R-434A
R-438A
R-442A
R-407A
R-407B
R-407C
R-407D
R-407E
R-421A
R-421B
R-427A
NOTE: All the options are not universally applicable in the listed equipment types and this list is not exhaustive.
7.3.13
Charge reduction
In general, there is a tendency for an increase in specific refrigerant charge due to increasing
efficiency implications. When the design of a system remains principally the same (such as
heat exchanger configuration), an increase in system efficiency is typically coupled with a
greater specific charge due to the need of larger heat exchanger surfaces to reduce approach
temperature differences, thus larger internal volumes and refrigerant amount (ICF, 2006). As
an example, in the United States, the minimum efficiency of residential air conditioners that
can be manufactured was increased in 2006 from “10 SEER” (2.93 kWh/kWh) to “13 SEER”
(3.81 kWh/kWh), by approximately 30%. Products meeting the new minimum efficiency
levels have specific charges some 20 to 40% greater than the products meeting the prior
minimum efficiency levels (ICF, 2006).
Contrarily, the object of refrigerant charge reduction is becoming an increasingly important
consideration in the design of air conditioning systems. There are several reasons for this and
these mostly depend upon refrigerant types.
148
Cost reduction. A smaller refrigerant charge means less expenditure on refrigerant,
which is likely to be of greater importance as newer substances are likely to demand
much higher costs. Furthermore, since a lower charge often corresponds to smaller
component volumes, less expenditure of materials is implied.
Reduction in environmental impact. A smaller charge corresponds to a smaller
potential contained impact (in terms of mass × ODP or mass × GWP). Moreover, the
degradation of system performance arising from a loss of refrigerant is likely to be
observed sooner and remedial action can be taken to minimise further leakage.
Risk mitigation. For all refrigerants, but moreover for flammable substances, a
smaller quantity of refrigerant equates to a smaller risk (assuming no other
differences in conditions). So in situations where it is desirable to reduce the risk
associated with a particular refrigerant, a reduction in charge can bring the
interpretation of risk to a more acceptable level. Furthermore, certain safety standards
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
impose charge size limits for refrigerants in different situations (see Annex to Chapter
2) and through a process of charge reduction, the extent of use of a given refrigerant
in a particular situation can be extended.
A reduced refrigerant charge can have both positive and negative effects on system efficiency
(for a given capacity) (Poggia et al., 2008). In addition, a disadvantage of reducing the charge
size is that the performance of systems tends to be more sensitive to leakage, i.e., greater
degradation of efficiency and capacity can occur for the same amount of refrigerant lost. It is
important to carry out charge reduction commensurate with system performance optimisation,
also considering the impact on reverse mode operation and defrosting (if relevant).
Considerable research has and continues to be conducted into reducing refrigerant charge
levels (Fernado and Lundquist, 2005). Most large system manufacturers actively pursue
developments in charge reduction and there are regular IIR conferences on the topic.
In carrying out charge reduction, consideration of the typical refrigerant quantities within
different components can be useful to help identify target areas; for most air conditioners,
condenser, compressor, evaporator and liquid line should be approached. Techniques include
use of mini- or micro-channel heat exchangers, evaporative condensers, flat tube heat
exchangers and/or pipework, smaller tube diameters, oil selection for low solubility, small
internal volume compressors and avoidance or careful selection of liquid receivers and
accumulators (GIZ, 2010). Further discussion on this topic is in Chapter 11.
7.3.14
Not-in-kind alternative technologies
In past assessment reports, a number of potential new technologies were presented as options
that could have a positive impact on the phase-out of ODS refrigerants. Some of the
technologies presented in prior assessments were: absorption, desiccant cooling systems,
Stirling systems, thermoelectric and number of other thermodynamic cycles. However, a
search of the literature published since the previous assessment has continued to confirm that
most of these technologies have not progressed much closer to widespread commercial
viability for air-cooled air conditioning applications than they were at the time of the 1990
and the four subsequent assessment reports and will therefore not be discussed further.
7.4
Options for existing equipment
As the HCFC phase-out proceeds in non-Article 5 or Article 5 countries, there remains a need
to service the installed population of products until the end of their useful lives. When
servicing these products the treatment of refrigerant can fall into the following categories:
Use existing refrigerant
Refrigerant replacement only2
Retrofit (refrigerant change and system components)
Conversion (to flammable refrigerant)
Most of these categories are likely to be important for Article 5 countries because systems are
often repaired several times in order to extend their useful lives. There are a large number of
Low Volume Consuming (LVC) countries, which import rather than manufacture airconditioners where most of the HCFC consumption is used to service the installed base of airconditioners. In these countries, HCFC consumption can be reduced by the use of service
refrigerants or by retrofitting existing equipment to non-ODP refrigerants. An additional less
desirable option because of cost would be to replace the existing equipment before the end of
its useful life. In non-Article 5 countries, unit replacement is more common because the costs
2
Usually the term “drop-in” is used for this type of replacement. However, since there are no alternatives with
identical thermophysical, safety and chemical properties as the existing refrigerant (e.g., HCFC-22) then the phrase
“refrigerant replacement only” is used to substitute the term “drop-in”.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
149
associated with performing a major repair or retrofit can often be greater than the cost to
replace the product. The need for retrofit and replacement refrigerants will largely be
determined by the size of the installed population of HCFC-22 products, HCFC phase-out
schedule, allowed “service tail”3, the availability of HCFC-22 and the recovery and reclaim
practices in place leading up to the phase-out. The installed population of air conditioners and
heat pumps has an average service life in non-Article 5 countries of 15 to 20 years and may be
longer in Article 5 countries. Therefore, implementing recovery and reclaim programmes
coupled with the availability of replacement and retrofit refrigerants could help reduce the
demand for HCFC-22.
Using the existing refrigerant following a repair, one can follow normal practices using
virgin, recycled or reclaimed refrigerant (i.e., typically HCFC-22).
For refrigerant replacement only, HCFC is replaced with a blend, but without changing the
lubricant used in the original equipment or any other system component. Refrigerants used for
this activity are sometimes referred to as “service blends” or “drop-ins”. Such a change in
refrigerant in most cases results in a lower capacity and/or efficiency, different operating
pressures, temperatures and compressor power compared to HCFC.
Retrofit refers to not only changing the refrigerant, but also system components such as
lubricant (although not always necessary), filter dryer (if required) and more extensive
modifications which could include the replacement of the compressor, refrigerant, lubricant,
dryer, expansion device, and purging and flushing the system to remove all residual lubricant
from the system. Retrofitting can be substantially more costly than using existing refrigerant,
replacing the refrigerant without additional changes or even unit replacement; it is probably
not cost effective if either the compressor or heat exchangers have to be replaced.
Conversion is where the existing refrigerant is replaced with another without necessarily
having to address the refrigeration circuit components and lubricant in the same way as
retrofit, but because the replacement refrigerant is flammable, the external aspects of the
equipment, such as potential sources of ignition, have to be addressed. However, since this is
a complex process and can lead to unforeseen safety risks, it is not normally recommended.
Again, such a change in refrigerant can affect capacity and/or efficiency, operating pressures,
temperatures, lubricity, etc., to HCFC.
In the case of refrigerant replacement and retrofit in HCFC systems, the GWP of the new
should also be given consideration as many blends have a GWP higher than HCFC.
In all cases, before changing the refrigerant it is recommended that the system manufacturer
be consulted.
7.4.1
Replacement refrigerants only
There are several refrigerants currently introduced to replace HCFC-22 for servicing. They
generally combine two or more HFC refrigerants with a small amount of HC (or certain HFC
refrigerants, such a HFC-227ea), which are added to the blend to enable the refrigerant to
work with the naphthenic mineral-oil-based and alkyl benzene lubricants used in nearly all
HCFC-22 air conditioning systems. Thus these refrigerants attempt to mimic the performance
of HCFC-22. However, they seldom perform as well as HCFC-22; having either lower
capacity, efficiency or both. For example, in a split air conditioner Spatz and Richard (2002)
showed that R-417A exhibited a 10% drop in both capacity and COP at standard test
conditions, compared to HCFC-22. Calorimeter tests of Allgood et al. (2010) showed that R438A has a capacity and COP around 7% and 2% lower than HCFC-22, respectively. A study
3
The term ”service tail” is used to describe the time between when a refrigerant has been phased out for use in
new equipment and the date at which the refrigerant may no longer be produced.
150
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
by Messineo et al. (2012) found that none of the HFC blends, R-417A, R-407C and R-404A
performed better than HCFC-22 when measured in field trails in an air conditioning system.
Although not conventionally used for air conditioners, Bolaji (2011) compared R-404A and
R-507A against HCFC-22 in a window air conditioner. The average refrigeration capacities of
R-507A and R-404A were 4.7% higher and 8.4% lower than that of HCFC-22, respectively,
while the average COP were increased by 10.6% and reduced by 16.0%.
In addition to the performance and efficiency impacts the blends may not perform the same
for oil return. HCs are added to allow for the oil return, but it may not be as effective and
problems could result at lower loads and extreme operating point seen during high ambient
temperatures and heat pump operation.
A selection of the many commercially available HCFC-22 replacement blends is listed in
Table 7-2. Compressor and system manufacturers often carry out evaluations of such
refrigerant options and provide recommendations as to which they believe are suitable for use
in their equipment. Information on the application of these blends can be obtained from
manufacturers. It may also be recognised that since some HCFC-22 compressors are now
supplied with POE oils, R-407C or similar HFCs could in principle be used as a direct
replacement.
There are a number of criteria that should be achieved in order for a replacement only
refrigerant to be selected and these are discussed in Chapter 2.
7.4.2
Retrofit refrigerants
A number of the HFC blends proposed for alternatives to HCFC-22 in air conditioners, are
also deemed as suitable retrofit refrigerants for HCFC-22 systems; examples of such HFC
blends are listed in Table 7-2.
Whilst many of the proposed blends are seldom used, R-407C has been demonstrated to be an
acceptable retrofit refrigerant and has seen widespread use in some regions. This is especially
the case in regions with high ambient temperatures as the capacity drop at elevated
temperatures is relatively lower than that of R-410A, although there is some loss in capacity
and efficiency compared to HCFC 22. Devotta et al. (2005a) found a 2-8% drop in capacity
and 8-14% increase in COP when a window type HCFC-22 air conditioner was retrofitted
with R-407C. Conversely, a drop of about 7% in COP was observed by Raghavan and Pss
(2010). Gopalnarayanan and Rolotti (2000) tested a reversible split system in both cooling
and heating mode and found that in cooling mode R-407C capacity matched that of HCFC-22
and there was a marginal increase in COP when the oil was changed from a mineral to a POE
oil. However, in heating mode, there was a capacity and COP drop of less than 5%. Fathouh
et al. (2010) found that the cooling capacity and COP was around 8% and 6% lower,
respectively for R-407C. Judge et al (1995) tested two different units and showed that in one,
the cooling capacity was marginally lower than HCFC-22 with 10% loss in COP, whereas in
another unit there was a marginal increase in capacity and a 5% drop in COP.
As indicated, provided that the compressor already uses a mineral oil, a change from HCFC22 to R-407C requires that the existing naphthenic mineral oil or alkyl benzene synthetic oil
lubricant be replaced and filter driers that are able to absorb breakdown products from
synthetic lubricants should also be installed. The disadvantage of using high glide blends is
the need to remove and replace the entire charge during servicing to avoid substantial
composition shift. However, because R-407C has a moderate glide, laboratory and field
experience indicates R-407C can be serviced without replacing the entire refrigerant charge
with minimal impact on performance. The other HFC blends will tend to have similar
practical implications as R-407C.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
151
The criteria for selecting a suitable retrofit refrigerant are discussed in section Chapter 2.
7.4.3
Conversion to flammable refrigerants
HC refrigerants such as HC-290, HC-1270 and blends including these as well as HC-170 and
R-E170 (e.g., R-433A, R-433B, R-433C, R-441A and R-443A) are being used as conversion
replacements for HCFC-22 in some regions, typically in small systems (such as window and
single splits). Some countries are including this approach in their HCFC phase-out strategies,
whilst the practice is not legal in other countries (such as in USA). While these refrigerants
may provide capacity and efficiency close to HCFC-22 (see examples in section 7.3), this
practice can create a significant safety hazard because of the flammability of these
refrigerants. In general, HCs are not recommended for use in systems that have not been
specifically designed appropriately. If HCs are being considered then the applicable safety
standards and codes of practice should be strictly followed. The GIZ Handbook for
Hydrocarbon Safety (GIZ, 2010) is one source of information on the utilisation of these
refrigerants.
In addition to the above, there are also some other mixtures with class 3 flammability being
marketed, which in addition to HCs also comprise R-E170 (dimethyl ether) and HFC-152a.
For example, Park et al. (2009a) measured performance of R-431A and HCFC-22 under airconditioning and heat pumping conditions. Results showed that the COP of R-431A is 4%
higher than that of HCFC-22 while the capacity of R-431A is similar under both conditions.
Comparing the performance of R-432A and HCFC-22, Park et al. (2009b) showed that the
COP and capacity of R-432A are 9% and 2 – 6% higher for both conditions.
7.5
High ambient considerations
The objective of this section is to summarise the performance of the various HCFC-22 options
for high ambient air conditioning applications; “high ambient” is considered to be between
40°C and 55°C (which represents the maximum rating conditions for the Middle East region).
The governing thermodynamic properties and principles result in a declining capacity and
efficiency for all refrigerants as the heat-rejection (refrigerant condensing) temperature
increases, including HCFC-22. However, some of the HCFC-22 replacements exhibit greater
degradation in capacity and efficiency than HCFC-22 under high ambient conditions. Another
consideration is with regards to the possible impact on required refrigerant charge, where
hotter regions can imply greater head loads, larger system capacity and thus larger refrigerant
charge. Therefore where limits on refrigerant charge apply, those limits may be approached at
smaller capacities; in these cases additional (safety) measures may need to be applied to the
equipment.
Currently, the most widely applied replacements for HCFC-22 in these air conditioning
applications are HFC blends, primarily R-410A and R-407C. HCs are also being used in some
low refrigerant-charge applications. R-410A and R-407C both have lower critical
temperatures than HCFC-22 (refer to Chapter 2 for values) because HFC-125 (a component
of both R-407C and R-410A) has a comparatively low critical point temperature; this is an
important parameter since such refrigerants will exhibit a steeper decline in capacity with
increased ambient (outdoor) temperatures than refrigerants having higher critical
temperatures. This steeper decline in capacity is of particular importance in geographic
regions, which have condensing design temperatures approaching the critical temperature of
the refrigerant.
As well as the use of high efficiency components, the optimum selection of compressor,
airflow, condenser design (i.e., tube diameter, fin design, coil circuitry, etc.) and expansion
device can reduce the performance losses at high ambient temperatures (Bitzer, 2012). If the
curve is steep something must be done about the starting point. i.e., the reference efficiency
152
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
should be set at a higher level in order to compensate for the possibility of lower efficiency at
high ambient conditions. Thus for most refrigerants, by taking measures to appropriately
optimise the system, similar efficiencies to HCFC-22 can be achieved at higher ambient
temperatures.
Systems using low-GWP refrigerants are not currently available for large capacity systems in
most regions with high ambient temperatures.
7.5.1
Performance of alternatives under high ambient temperatures
Table 7-3A: Comparative theoretical cycle volumetric refrigerating capacity of selected
alternatives relative to HCFC-22
Condensing temperature
40°C
50°C
60°C
70°C
HCFC-22
100%
100%
100%
100%
HFC-32
100%
99%
99%
98%
HFC-134a
100%
98%
96%
94%
HFC-152a
100%
100%
101%
102%
HFC-161
100%
100%
101%
103%
HC-290
100%
98%
96%
93%
HFC-1234yf
100%
96%
91%
85%
HC-1270
100%
99%
97%
94%
R-407C
100%
98% (97%)
96% (94%)
92% (90%)
R-410A
100%
97%
93%
86%
R-444B
100%
99%
98% (97%)
96% (94%)
R-446A
100%
99%
97%
95% (94%)
R-447A
100%
99% (98%)
97% (96%)
94% (93%)
NOTE: Condenser subcooling = 5 K; evaporating temperature = +10°C; evaporator exit superheat = 5
K; suction line superheat = 0 K; volumetric efficiency = 100%; properties from Refprop9; reference
condition for blends: dew point and mid-point (in parentheses, if different)
Table 7-3B: Comparative theoretical cycle COP of selected alternatives relative to HCFC22
Condensing temperature
40°C
50°C
60°C
70°C
HCFC-22
100%
100%
100%
100%
HFC-32
100%
99%
97%
95%
HFC-134a
100%
99%
99%
97%
HFC-152a
100%
101%
102%
104%
HFC-161
100%
101%
102%
103%
HC-290
100%
99%
98%
95%
HFC-1234yf
100%
98%
94%
90%
HC-1270
100%
99%
98%
95%
R-407C
100%
99%
97%
94% (93%)
R-410A
100%
97%
93%
86%
R-444B
100%
100% (99%)
99% (98%)
97%
R-446A
100%
99%
97%
95% (94%)
R-447A
100%
99%
97%
94%
NOTE: Condenser subcooling = 5 K; evaporating temperature = +10°C; evaporator exit superheat = 5
K; suction line superheat = 0 K; global compressor efficiency = 100%; properties from Refprop9;
reference condition for blends: dew-point and mid-point (in parentheses, if different)
As an initial reference point, Table 7-3A and 7-3B provide the results of theoretical
refrigerant performance calculations for various alternative refrigerants at elevated
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
153
condensing temperatures, when compared against HCFC-22 at a reference condition of 40°C.4
Performance in real systems and measures to design and optimise systems for high ambient
conditions are discussed in the following sections.
R-410A
R-410A systems have been demonstrated to operate acceptably at ambient temperatures up to
52°C. The performance (capacity and efficiency) of R-410A air-conditioners falls off more
rapidly than HCFC-22 systems at high ambient temperatures (above 40°C). At a condensing
temperature of 70°C, both capacity and COP of R-410A degrades by around 14% relative to
HCFC-22, as shown in Table 7.3. Very few studies are available in the literature to illustrate
the extent of performance depredation in real systems. In one, Domanski and Payne (2002)
report on measurements of an air conditioner comparing HCFC-22 and R-410A but with two
different compressors. With one compressor, R-410A indicated a 7-8% reduction in capacity
at 52°C and around 14 – 20% drop in COP.
Even with optimised designs, systems that will operate a significant number of hours at high
ambient temperatures, the system designer should take into consideration the reduced high
ambient capacity when sizing the equipment. For cases where the base capacity of the unit
would need to be increased to meet the building load at extreme ambient temperatures the
cost impact can be approximated as proportional to the respective capacity degradation.
A few studies where made to enhance the performance of the R-410A refrigerant in high
ambient conditions. Chin and Spatz (1999) also conducted simulations comparing HCFC-22
against R-410A, showing a 6% and 7% drop in capacity and COP, respectively, at 52°C
ambient. Another study by Wang et al. (2009) for a two-stage heat pump system with special
vapour-injected scroll compressor showed an enhancement on the cooling capacity of R-410A
at high ambient conditions as high as 15% and an enhancement of the COP between 2 – 4%.
R-407C
R-407C systems will typically perform in nearly the same way as HCFC-22 systems at typical
ambient temperatures. At ambient temperatures above 40°C, R-407C systems show less
degradation of capacity and efficiency than R-410A systems. However, an R-407C system
will still exhibit a capacity approximately 8% less than an HCFC-22 system at a condensing
temperature of 70°C and 6% reduction in COP (Table 7-3).
Even though the R-407C is in most cases more preferable to be used in air conditioning
systems than HFC-32 and R-410A because the thermodynamic characteristic are much closer
to HCFC-22, the effect of the high temperature glide of R-407C only has a minor effect in the
new systems. As such R-407C can be considered better option than R-410A for high ambient
regions.
HFC-134a
HFC-134a has a relatively high critical temperature. However, theoretical cycle calculations
show that the performance degradation relative to HCFC-22 at high ambient temperature
shows 6% lower capacity and 3 % lower COP.
HC-290
4
(To put these values into context, it must be noted that the capacity of HCFC-22 falls by 25% and its
COP reduces by 60% as the condensing temperature rises from 40°C to 70°C. Thus, degradation of (for
example) 10% of one alternative relative to HCFC-22 represents only 2½% and 6% further absolute
reduction, respectively.)
154
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
HC-290 has performance characteristics similar to HCFC-22 and the characteristics are close
enough that the current products that employ HCFC-22 could be re-engineered to employ
HC-290. HC-290 has successfully been demonstrated as an HCFC-22 replacement in low
charge, room and portable air-conditioners applications (Devotta et al., 2005; Padalkar et al,
2014) for regions that experience high ambient conditions.
HC-290 shows a 4% reduction in capacity at 70°C based on theoretical calculations (Table 73). Some recent studies at ambient temperatures up to 54°C (Chen, 2012; Rajadhyaksha et al,
2013; Li, 2014b) showed the degradation of capacity and COP of HC-290 relative to HCFC22 at high ambient temperature to be within 3%. An intensive study by Wu et al. (2012a)
showed results at high ambient temperatures as similar to HCFC-22. The use of special design
heat exchangers like micro channel aluminium type showed favourable results and the
refrigerant charge can be reduced as low as 0.07 kg/kW or even less (Rajadhyaksha et al,
2014).
HC-1270
HC-1270 has performance characteristics similar to HCFC-22 and the characteristics are close
enough that the current products that employ HCFC-22 could be re-engineered to employ
HC-1270. Based on theoretical cycle calculations, HC-1270 shows a 7% reduction in capacity
at 70°C and a 3% reduction in COP relative to HCFC-22 (Table 7-3).
HFC-32
HFC-32 is being considered as an alternative to R-410A with a higher efficiency and capacity
at high ambient temperatures, although worse than HCFC-22, where the capacity is
approximately 2% less and COP 5% in theoretical cycle calculations (Table 7-3). Discharge
temperature can be from 5 K to 30 K higher than R-410A and HCFC-22. However, this can
be managed by injection technology or wet suction control, although this implies at a cost
and/or performance penalty to the AC. It can also be tackled by adjusting the viscosity of oil
(Piao et al., 2012), although this impacts reliability.
A performance comparison of R-410A and HFC-32 in vapour injection cycles (Xu et al.,
2012) shows HFC-32 is slightly better than R-410A at higher ambient conditions. In Piao et
al. (2012), HFC-32 achieves the same COP as HCFC-22 at 52°C if the COP of HFC-32 at
rating conditions is 9.4% higher than HCFC-22. Consistent with this, Chen (2012) showed
that HFC-32 has a small relative drop in capacity compared to HCFC-22, yet at 52°C it
exhibits a 10% relative reduction in COP. Again, as with other alternatives, this loss in
performance can be managed through system and/or compressor technology, which may or
may not incur cost implications. The use of an injection circuit (to reduce excessively high
discharge temperature, in excess of 137°C), whilst not affecting COP results in a 5% drop in
capacity relative to HCFC-22. The injection yields the benefit of reducing discharge
temperature to 115°C, although this is still about 5 K above both HCFC-22 and R-410A.
R-744
The desirable characteristics of R-744 are offset by the fact that it has a very low critical
temperature (31°C) and will operate above the critical point conditions in most airconditioning applications. Operation at these conditions results in a significant degradation in
both capacity and COP at high ambient temperatures. These losses can be partially offset by
the addition of internal cycle heat exchangers and expanders or ejectors. However, R-744
systems are not expected to provide a cost effective alternative to HCFC-22 or HFC
refrigerants when being applied in high temperature regions (> 40°C).
HFC-161
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
155
At a 70°C condensing temperature HFC-161 has a theoretical capacity and COP
approximately 3% greater than HCFC-22 (Table 7-3) and exhibits a considerably better high
ambient performance than R-410A. Practical measurements by Wu et al. (2012b) support
these theoretical characteristics, where the relative COP and capacity of HFC-161 improve
relative to HCFC-22 as the ambient temperature increases. As such, this implies interesting
possibilities for countries, which experience hot climates.
HFC-152a
HFC-152a has performance characteristics similar to HFC-134a. Although activities within
industry indicate little interest in this substance currently, HFC-152a has performance better
than that of HCFC-22, showing a 3% increase in capacity at 70°C and a 4% increase in COP
relative to HCFC-22 (Table 7-3).
HFC-1234yf
HFC-1234yf ordinarily has performance characteristics similar to HFC-134a. However,
considering behaviour at high ambient conditions, the degradation of performance is closer to
R-410A, where there is a 15% reduction in capacity at 70°C and a 10% reduction in COP
relative to HCFC-22 (Table 7-3) based on theoretical cycle calculations.
R-444B
R-444B systems are expected to perform similar to HCFC-22 systems at high ambient
temperatures; theoretical cycle performance indicates that the capacity and COP are about 5%
and 3% lower, respectively, relative to HCFC-22 (Table 7-3). Tests on a split air conditioner
(with modified capillary tube and evaporator circuitry to account for the temperature glide)
achieved identical capacity and COP as HCFC-22 at both 46°C and 52°C ambient (Sethi et al,
2014). The discharge temperature is also the same as with HCFC-22.
R-446A and R-447A
R-446A and R-447A systems are expected to perform slightly worse compared to HCFC-22
high ambient temperatures; theoretical cycle performance indicates that the performance is
around 5-7% lower relative to HCFC-22 (Table 7-3). Tests on a split air conditioner, showed
a degradation of both capacity and COP about 5% worse than R-410A at 46°C ambient from a
baseline of 35°C (Alabdulkarem et al, 2013).
7.5.2
Measures to design and optimise air-conditioners for high ambient conditions
There are several aspects that can be considered important when adapting equipment for use
in high ambient conditions.
The evaporator coil design should be reselected to adopt the new pressure and pressure drop
characteristics at high ambient conditions for the replacement refrigerants. Also the tube
diameter can be reduced to enhance the heat transfer for the evaporator coils; typically using
¼ inch OD tube diameters will enhance the performance and can bear higher pressures for
high pressure refrigerants like R-410A and HFC-32.
The condenser coil design should also be reselected to accommodate the new pressure drop
characteristics for the replacement refrigerants. Micro channel aluminium coils can be used in
order to enhance the heat transfer and to reduce the condensing temperature at high ambient
conditions, whilst larger condenser coils and special condenser fans also can be used to
reduce the condensing temperature at high ambient conditions. Controlling the subcooling by
using condensers with dedicated subcooling circuits is vital in high ambient conditions to
enhance the efficiency (Qureshi et al., 2012).
156
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Special types of compressors are needed for the high pressure refrigerants such R-744. While
normally the same compressor design can be used for R-407C and HC-290, larger
displacement compressors (~10%) can be used to compensate for the lower capacity resulting
from using these refrigerants. It should also be considered to add vapour and/or liquid
injection to an intermediate pressure area in the compressor to enhance the performance at
high ambient conditions. Additionally techniques can be applied to the compressor, such as
oil flooding or vapour injection, which can yield significant benefits (Bahman et al, 2014).
Another consideration is the use of a thermostatic expansion valve instead of a capillary tube.
In fact the use of capillary tubes for small air conditioners is not recommended, especially at
high ambient conditions (Chinnaraj et al, 2011; Zhou and Zhang, 2010). The wide range of
temperatures make the use of capillary tubes impossible for sufficiently accurate control of
superheat where subsequently compressor discharge temperatures will affect the performance
of the whole system (Chen et al, 2009) and is also useful to accurately control both suction
gas superheat, discharge temperature and subcooling in the circuit.
7.6
Concluding remarks
HCFC-22 remains the dominant refrigerant in use, where the refrigerant bank for unitary air
conditioners is estimated to be in excess of 1 million tonnes. In new systems, HCFC-22 is
only being used in Article 5 countries. The HFC blend R-410A is the most common
alternative and to a limited extent R-407C along with HFC-134a are used in regions with high
ambient temperatures. HC-290 is being used in split systems, window and portable air
conditioners. HFC-32 is being used in split systems and is being proposed for larger ducted
and multi-split systems. These various alternatives highlighted have also been found to
achieve performance approaching, as good as or better than HCFC-22.
In general there is still a significant proportion of the sector throughout almost all Article 5
countries that remains to be shifted from HCFC-22 to a zero ODP alternative. R-410A is
increasingly becoming considered unacceptable because its high GWP and so investigations
into medium and low GWP alternatives is continuing. In cooler climates, R-744 is available
for commercial sized systems and the technology is further being explored. There are a large
number of new mixtures being considered for air conditioning systems primarily consisting of
HFCs and unsaturated HFCs, such as R-444B, R-446A and R-447A. Although there is
concern over the use of R-410A in high ambient temperatures, appropriate design measures
can be used to help remedy the relatively greater degradation in performance; nevertheless,
work is underway to investigate this refrigerant and others further.
The forthcoming direction remains unclear in terms of which alternatives this sector, subsectors and regions will settle upon. It is likely that different manufacturers and countries will
opt for a variety of alternatives before any single option is chosen (if at all). In the meantime,
investigations will continue into medium GWP flammable HFCs, HFC/unsaturated HFC
blends and HCs for normal operating conditions as well as high ambient.
7.7
References
Alabdulkarem et al, 2013
Alabdulkarem, A., Hwang, Y., Radermacher, R., 2013. Test
Report #20 System Drop-In Tests of Refrigerants R-32, D2Y-60,
and L-41a in Air Source Heat Pump. Air-Conditioning, Heating,
and Refrigeration Institute (AHRI) Low-GWP Alternative
Refrigerants Evaluation Programme (Low-GWP AREP),
Arlington, USA.
Allgood and Lawson, 2010 Allgood, C. C., Lawson, C. C., 2010. Performance of R-438A in
R-22 Refrigeration and Air Conditioning Systems". Proc. Int.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
157
Refrig. and Air Condition. Conf. at Purdue, West Lafayette, IN,
USA.
Bahman et al, 2014
Bahman, A., Groll, E., Horton, T, Braun, J., 2014. Technologies
to Improve the Performance of A/C Systems in Hot Climate
Regions. Proc. Int. Refrig. And Air Condition. Conf. at Purdue,
West Lafayette, IN, USA.
Barve and Cremaschi, 2012 Barve, A., Cremaschi, L., 2012. Drop-in Performance of Low
GWP Refrigerants in a Heat Pump System for Residential
Applications. Proc. Int. Refrig. and Air Condition. Conf. at
Purdue, West Lafayette, IN, USA.
Biswas and Cremaschi,2012 Biswas, A., Cremaschi, L., 2012. Performance and Capacity
Comparison of Two New LGWP Refrigerants Alternative to R410A in Residential Air Conditioning Applications. Proc. Int.
Refrig. and Air Condition. Conf. at Purdue, West Lafayette, IN,
USA.
Bitzer, 2012
Bitzer, 2012. Refrigerant Report 17, A-501-17, BITZER
Kühlmaschinenbau GmbH, Eschenbrünnlestraße 15, 71065
Sindelfingen, Germany.
Bolaji, 2011
Bolaji, B.O., 2011. Performance investigation of ozone-friendly
R404A and R507 refrigerants as alternatives to R22 in a window
air-conditioner. Energy and Buildings 43 (11), pp. 3139-3143.
Bosco and Weber, 2008
Bosco, R., Weber, G., 2008. Challenges on the Development of
A CO2 Compressor Focusing on Structural Strength and
Reliability. Proc. 8th IIR Gustav Lorentzen Conference on
Natural Working Fluids, Copenhagen, Denmark.
Chen et al, 2011
Chen, J., Li, H., Ji, C., Xi, L., 2011. Performance of a split-type
air conditioner with natural refrigerant R1270 to replace R22.
Advanced Materials Research 243-249, 4979-4982.
Chen et al, 2012
Chen, J., Li, H., Xi, L., 2012. Performance of air cooled heat
pump Air Conditioner with Natural Refrigerant R1270 and R290
to Replace R22. Advanced Materials Research 374-377, 484487.
Chen et al, 2009
Chen, L., Chen, J., Liu, J., Chen, Z., 2009. Experimental
investigation on mass flow characteristics of electronic
expansion valves with R22, R410A and R407C. Energy Convers
Management, 50, 1033–9.
Chen and Gao, 2011
Chen, Z., Gao, B., 2011. Research of Lubrication Oil Appling to
R-290 Rotary Compressor. Proc. IIF-IIR Int. Congr. Rrefrig.
Prague, Czech Republic.
Chen, 2012
Chen, Z. H., 2012. Research on Rotary Compressors Based on
R-290 Technology. Proc. UNEP conference on technologies for
high ambient conditions, Dubai, UAE.
Chen et al, 2011
Chen, J., Min, K., Li, F., 2011. Comparison of performance
between R290 and R417A in heat pump air conditioning water
heater combination. Advanced Materials Research, 243-249,
4918-4922.
Chin and Spatz, 1999
Chin, L., Spatz, M. W., 1999. Issues Relating to the Adoption of
R-410A in Air Conditioning Systems. Proc. IIF-IIR Int. Congr.
Refrig., Sydney, Australia.
158
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chinnaraj et al, 2010
Chinnaraj, C., Govindarajan, P., Vijayan, R., 2010. Influence of
electronic expansion valve on the performance of small window
air conditioner retrofitted with R407C and R290. Thermal
Science, Supplement, Vol. 15, p383.
Colbourne et al, 2013
Colbourne, D., Hühren, R., Rajadhyaksha, D., De Souza, L.,
Sahu, A., 2013. Refrigerant leakage control for R-290 in split
type refrigeration and air conditioning systems. Proc. IIF-IIR,
Compressors 2013: 8th International Conference on
Compressors and Coolants, Papiernicka, Slovakia.
Colbourne and Suen, 2004 Colbourne, D., Suen, K. O., 2004. Appraising the Flammability
Hazards of Hydrocarbon Refrigerants using Quantitative Risk
Assessment Model. Part II: Model evaluation and analysis. Int. J.
Refrig., Vol. 27, 784 – 793.
Colbourne, 2014
Colbourne, D. 2014. Comparative Risk Assessment of
Hydrocarbon Refrigerant in a Refrigerator and Split Air
Conditioner. Proc. IIF-IIR Conf. on Natural Working Fluids,
Hangzhou, China.
Crawford and Uselton, 2012 Crawford, T., Uselton, D., 2012. Test Report #4 System Drop-in
Test of Refrigerant R-32 in Split System Heat Pump. AirConditioning, Heating, and Refrigeration Institute (AHRI) LowGWP Alternative Refrigerants Evaluation Programme (LowGWP AREP), Arlington, USA.
Devotta et al, 2005a
Devotta, S., Padalkar, A.S., Sane, N. K., 2005a. Performance
assessment of HCFC-22 window air conditioner retrofitted with
R-407C. Applied Thermal Engineering, Vol. 25, Issue 17–18,
2937–2949.
Devotta et al, 2005b
Devotta, S., Padalkar, A.S. and Sane, N. K., 2005b. Performance
assessment of HC-290 as a drop-in substitute to HCFC-22 in a
window air conditioner. Int. J. Refrig., 28, 594-604.
Domanski and Payne, 2002 Domanski, P.A., Payne, W. V., 2002. Properties and cycle
performance of refrigerant blends operating near and above the
refrigerant critical point. Task 2: Air conditioner system study,
Final report. ARTI-21CR/605-50010-01-Pt. 2.
Dorin, 2001
Dorin, C., 2001. CO2 Compressors and Equipment Use and
Availability. Proc. IX Convegno Europeo – Politecnico di
Milano, Italy.
Elbel and Hrnjak, 2008
Elbel, S., Hrnjak, P., 2008. Ejector Refrigeration: An Overview
of Historical and Present. Developments with and Emphasis on
Air-Conditioning Applications; Proc. Int. Refrig. and Air
Condition. Conf. at Purdue, West Lafayette, IN, USA.
Fernado and Lunquist, 2005 Fernado, P., Lunquist, P., 2005. Refrigeration systems with
minimized refrigerant charge: system design and performance. J.
Proc. of the Inst. of Mechanical Engineers, Part E: J. of Process
Mechanical Engineering, Issue Volume 219, Number 2.
Fujitaka et al, 2010
Fujitaka, A., Shimizu, T., Sato, S., Kawabe; Y., 2010.
Application of Low Global Warming Potential Refrigerants for
Room Air Conditioner. Proc. Int. Symposium on Next
Generation Air Conditioning and Refrigeration Technology,
Tokyo, Japan.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
159
Gloёl et al, 2014
Gloёl, J, Oppelt, D., Becker, C., Heubes, J. 2014. Market trends
in selected refrigeration and air conditioning subsectors.
Deutsche Gesellschaft für Internationale Zusammenarbeit (GIZ)
GmbH, Eschborn, Germany.
Gopalnarayanan and Rolotti, 2000
Gopalnarayanan, S., Rolotti, G. D., 2000.
Performance of R-407C with Miscible and Immiscible
Lubricants in Unitary Systems. Proc. Int. Refrig. and Air
Condition. Conf. at Purdue, West Lafayette, IN, USA.
GIZ, 2010
GIZ, 2010. Guidelines for the safe use of hydrocarbon
refrigerants, GTZ Proklima, Eschborn, Germany,
http://www.gtz.de/en/themen/umwelt-infrastruktur/28719.htm.
Guo et al, 2012
Guo, W., Ji, G. F., Zhan, H. H., Wang, D., 2012. R-32
Compressor for Air conditioning and Refrigeration applications
in China. Proc. Int. Refrig. and Air Condition. Conf. at Purdue,
West Lafayette, IN, USA.
Hafner, 2008
Hafner, A., Garski, D. J., Manzione, J., 2008. Air Reversing R744 Air Conditioning System; Proc. 8th IIF-IIR Gustav
Lorentzen Conference on Natural Working Fluids, Copenhagen,
Denmark.
Han et al, 2012
Han, X-H, Qiu, Y., Li, P., Xu, Y-J., Wang, Q., Chen, G-M.,
2012. Cycle performance studies on HFC-161 in a small-scale
refrigeration system as an alternative refrigerant to HFC-410A.
Energy and Buildings, Vol. 44, 33–38.
Hara et al, 2010
Hara, H., Ohno, M., Iwata, I., 2010. Experimental Study of Low
GWP Refrigerants for Room Air-Conditioners. Proc. Int. Symp.
on Next Generation Air Conditioning and Refrigeration
Technology, Tokyo, Japan, 2010.
Hubacher et al, 2002
Hubacher, B., Groll, E., Hoffinger, C., 2002. Performance
Measurements of a Semi-Hermetic Carbon Dioxide Compressor,
Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Ibrahim and Fleming, 2003 Ibrahim, A.G., Fleming, J.S., 2003. Performance Assessment of a
Transcritical CO2 Heat Pump using a Reciprocating Compressor.
Proc. IIF-IIR Int. Congr. Refrig., Washington, D.C., USA.
ICF, 2006
ICF International, 2006. Projected Servicing Needs in the U.S. AirConditioning and Refrigeration Sector, Prepared for the U.S. EPA,
Washington DC, USA.
Jakobsen et al, 2007
Jakobsen, A., Skiple, T., Nekså, P., Wachenfeldt, B. and Skaugen,
G., 2007. Development of a reversible CO2 residential air
conditioning system. Proc. IIF-IIR 22nd Int. Congr. Refrig.,
Beijing, China.
Jin, 2012
Jin, T. X., Tian, C. Q., Zheng, Z. Y., 2012. Experimental
investigation on R1270 as alternative refrigerant of R22 in
residential air conditioners. Proc. 10th IIF-IIR Gustav Lorentzen
Conf. on Nat. Working Fluids, Delft, The Netherlands.
Johansen, 2008
Johansen, B., 2008. Applications and Experience with Natural
Refrigerants Carbon Dioxide/ CO2 and Hydrocarbon R-1270.
Proc. 8th IIF-IIR Gustav Lorentzen Conference on Natural
Working Fluids, Copenhagen, Denmark.
160
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Judge et al, 1995
Judge, J.F., Hwang, Y., Radermacher, R., 1995. Experimental
results of two drop-in replacement refrigerants for HCFC22. Proc.
IIF-IIR 19th Int. Cong. Refrig., The Hague, The Netherlands.
Kasayer et al, 2008
Kasayer, E. Bou Lawz and Clodic, D., 2008. ID Analysis of CO2
Sub-Cooled/Supercritical Ejector Refrigeration Cycle:
Experimental Results. Proc. 8th IIF-IIR Gustav Lorentzen
Conference on Natural Working Fluids, Copenhagen, Denmark.
Kauffeld et al, 2008
Kauffeld, M., Harnisch, M. J., Rhiemeier, J.-M., 2008.
Environmental Impact of Various Alternative Supermarket
Refrigeration Systems. Proc. 8th IIF-IIR Gustav Lorentzen
Conference on Natural Working Fluids, Copenhagen, Denmark.
Kinab, 2008
Kinab, E., 2008. Seasonal Coefficient of Performance of Heat
Pumps; Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Koyama, 2008
Koyama, S. and Xue, J., Takata, N., Kuwahara K., 2008. An
Experimental Study of the Cooling Performance of a CO2 Cycle
with an Internal Heat Exchanger. Proc. 8th IIF-IIR Gustav
Lorentzen Conference on Natural Working Fluids, Copenhagen,
Denmark.
Leck and Hydutsky, 2013
Leck, T., Hydutsky, B., 2013. Laboratory Studies of Stability of
Low GWP Refrigerants. Proc. IIF-IIR Thermophysical and
Transport Properties Conference, Technical University of Delft,
The Netherlands.
Leck et al, 2012
Leck, T J, Young-huan, K, Ha, J., 2012. Performance of novel low
GWP refrigerants for AC and heating. Proc. Int. Conf. on Air
condition. and Refrig. (ICACR 2011), Yongpyong, Gangwon-Do,
Korea.
Leck, 2011
Leck, T., 2011. Property and performance measurements of low
GWP fluids for AC and heat pump applications. Proc. IIF-IIR Int.
Congr. Refrig., Prague, Czech Republic.
Li and Groll, 2000
Li, D., Groll, E. A., 2000. Performance of a Carbon Dioxide-Based
Environmental Control Unit (ECU) for the US Army. Proc. Int.
Refrig. and Air Condition. Conf. at Purdue, West Lafayette, IN,
USA.
Li and Rajewski, 2000
Li, H., and Rajewski, T. E., 2000. Experimental Study of
Lubrication Candidates for the CO2 Refrigeration System. Proc.
4th IIR–Gustav Lorentzen Conference on Natural Working Fluids,
Purdue University, West Lafayette, IN, USA.
Li, 2014a
Li, T. X., 2014a. Indoor leakage test for safety of R-290 split type
room air conditioner. Int. J. Refrig., Vol 40, 380–389.
Li, 2014b
Li, T. X. 2014b. R&D of R290 RAC in Midea. Proc. Proc. 11th
IIR–Gustav Lorentzen Conference on Natural Working Fluids,
Hangzhou, China.
Li et al, 2010
Li, T. X., Yang, J. M., Zeng Z. S., Zhang, Z., 2010. Experiment on
R290 substituting for R22 in a room air-conditioner. J. Refrig.
2010-04. [In Chinese]
Lin et al, 2010
Lin, K., Jin, T-X., Zhang, J., You, S-Y., Liu, Y., Zheng, Z-Y.,
2010. Experiment on performance of Residential Air Conditioner
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
161
with R-1270 to replace R-22. J. Refrig., Vol 31(3), 2010, 33-36. [In
Chinese]
Linton et al, 2000
Linton, J. W.; Snelson, W. K.; and Hearty, P. F., 2000.
Performance of R-22, R-407C and R-410A at Constant Cooling
Capacity in a 10.0 SEER 10.5 kW residential central heat pump.
Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Liu, 2007
Liu, L-G., 2007. Experimental study on replacement of R22 by
R290 in household air conditioner. J. Shunde Polytechnic; 200704.
Messineo et al, 2012
Messineo, A., Rocca, V.L., Panno, G., 2012 On-site experimental
study of HCFC-22 substitution with HFCs refrigerants. Energy
Procedia 14, pp. 32-38
Minor and Spatz, 2008
Minor, B., Spatz, M., 2008. HFO-1234yf Low GWP Refrigerant
Update; Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Muller and Eggers, 2008
Muller, R. and Eggers, R., 2008. Heat Transfer Characteristics of
CO2-Oil Mixtures. Proc. 8th IIF-IIR Gustav Lorentzen Conference
on Natural Working Fluids, Copenhagen, Denmark.
Nekså et al, 2010
Nekså, P., Walnum H. T., Hafner A., 2010. CO2 – A refrigerant
from the past with prospects of being one of the main refrigerants
in the future. Proc. 9th IIR Gustav Lorentzen Conference on
Natural Working Fluids, Sydney, Australia.
Ota and Araki, 2010
Ota, R., Araki, K., 2010, Properties of refrigerant/oil mixtures for
low GWP refrigerants. Proc. Int. Symposium on Next Generation
Air Conditioning and Refrigeration Technology, Tokyo, Japan.
Padalkar et al, 2011
Padalkar, A. S., Mali, K. V., Devotta S., 2011. Prospective of
HFC-161 as an Alternative to HCFC-22 in Air Conditioners. Proc.
IIF-IIR Int. Congr. Refrig., Prague, Czech Republic.
Padalkar et al, 2010
Padalkar, A. S., Mali, K. V., Rajadhyaksha, D. D., Wadia, B. J.,
Devotta, D., 2010. Performance assessment of air conditioners with
HC-290. IIF-IIR Bulletin 2010-4, Paris, France.
Padalkar et al, 2014
Padalkar, A. S., Mali, K. V., Devotta, S., 2014. Simulated and
experimental performance of split packaged air conditioner using
refrigerant HC-290 as a substitute for HCFC-22. Applied Thermal
Engineering, 62 – 1, 277-284.
Park et al, 2008
Park, K., Lee, C., Jung, D., 2008. Performance of R432A to
Replace HCFC22 in Residential Air-Conditioners and Heat Pumps.
Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Park et al, 2010
Park, K.-J., Lee, Y., Jung, D., 2010 Performance of R170/R1270
mixture under air-conditioning and heat pumping conditions.
Journal of Mechanical Science and Technology 24 (4), pp. 879885.
Park et al, 2007
Park, K.J., Seo, T. and Jung, D. S., 2007. Performance of
alternative refrigerants for residential air conditioning applications.
Applied Energy, Vol. 84, pp. 955-991.
162
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Park et al, 2009a
Park, K.-J., Shim, Y.-B., Jung, D., 2009a. A 'drop-in' refrigerant
R431A for replacing HCFC22 in residential air-conditioners and
heat pumps. Energy Conversion and Management 50 (7), pp. 16711675.
Park et al, 2009b
Park, K.-J., Shim, Y.-B., Jung, D., 2009b. Experimental
performance of R432A to replace R22 in residential airconditioners and heat pumps. Applied Thermal Engineering 29 (23), pp. 597-600.
Peuker and Hrnjak, 2008
Peuker, J., Hrnjak, P., 2008. Investigation to Improve Efficiency of
Transcritical R744 Two-Stage Vapour Compression Systems.
Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Pham and Rajendran, 2012
Pham, H., Rajendran, R., 2012. R-32 and HFOs as Low-GWP
Refrigerants for Air Conditioning. Proc. Int. Refrig. and Air
Condition. Conf. at Purdue, West Lafayette, IN, USA.
Piao et al, 2012
Piao, C-C, Taira, S., Moriwaki, M., Tanimoto, K., Mochizuki, K.,
Nakai, A., 2012. Alternatives to High GWP HFC Refrigerants:
Residential and Small Commercial Unitary Equipment. Proc. 2012
ASHRAE/NIST Refrigerants Conference, Gaithersberg, USA.
Poggia and Leducqa, 2008
Poggia, M-T., Leducqa, B., 2008. Refrigerant charge in
refrigerating systems and strategies of charge reduction. Int. J.
Refrig., Vol 31, Issue 3, 353-370.
Qureshi et al, 2012
Qureshi, B. A., Inam, M., Antar, M. A., Zubair, S. M. 2012.
Experimental energetic analysis of a vapour compression
refrigeration system with dedicated mechanical sub-cooling.
Applied Energy, Vol. 102, 1035–1041.
Raghavan and Pss, 2010
Raghavan, V., Pss, S., 2010. Experimental evaluation of internal
heat exchanger influence on R-22 window air conditioner
retrofitted with R-407C. Thermal Science, vol. 14, br. 1, str. 39-47.
Rajadhyaksha et al, 2013
Rajadhyaksha, D., Colbourne, D., Sahu, A., Wadia, B. J., 2013.
HC-290 as an alternative refrigerant for split air conditioning
systems in high ambient temperatures. Proc. IIF-IIR, Compressors
2013: 8th International Conference on Compressors and Coolants,
Papiernička, Slovakia.
Riviere, 2008
Riviere, P., 2008. Preparatory study on the environmental
performance of residential room conditioning appliances (airco and
ventilation) - Technical Analysis of Best Available Technology;
Contract TREN/D1/40-2005/LOT10/S07.5660.
Seeton, 2006
Seeton, C., 2006. Lubricants for CO2, USNC/IIR Short Course,
Purdue University, West Lafayette, IN, USA.
Sethi et al, 2014
Sethi, A., Yana Motta, S., Becerra, E. V., Spatz, M. W., 2014. Low
GWP Refrigerants for Air Conditioning Applications. Proc. Int.
Refrig. and Air Conditioning Conf. at Purdue, West Lafayette, IN,
USA.
Sethi, 2013
Sethi, A., 2013. Low GWP Replacements for R-410A in Air
Conditioning Applications. Proc. 2013 ASHRAE Summer
Meeting, Denver, CO, USA.
Spatz et al, 2010
Spatz, M. and Motta, S.Y., Becerra, E. V., 2010. Low Global
Warming Alternative Refrigerants for Stationary AC&R
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
163
Applications. Proc. Int. Symposium on Next-generation Air
Conditioning and Refrigeration Technology, Tokyo, Japan.
Spatz et al, 2002
Spatz, M. W. and Richard, R. G., 2002. Performance and Oil
Return Characteristics of HFC/HC Blends. Proc. Int. Refrig. and
Air Condition. Conf. at Purdue, West Lafayette, IN, USA.
Teng et al, 2012
Teng, T-P., Mo, H-E., Lin, H., Tseng, Y-H., Liu, R-H., Long, Y-F.,
2012. Retrofit assessment of window air conditioner. Applied
Thermal Engineering, Vol. 32, 100–107.
Wang et al, 2008
Wang, H., Ma, Y., Li, M. X., Zhao, L., 2008. Performance
Comparison of Transcritical CO2 Single Compression and Two
Stage Compression Cycle with Intercooler. Proc. 8th IIF-IIR
Gustav Lorentzen Conference on Natural Working Fluids,
Copenhagen, Denmark.
Wang et al, 2004
Wang, Q., Wu, T., Zhang, Y-F., Wang, J-S., 2004. Theory and
experiment research on substitute R22 with R290. J. Fluid
Machinery, 2004-07. [In Chinese]
Wang et al, 2009
Wang, X. D., Hwang, Y., Radermacher, R., 2009. Two-stage heat
pump system with vapour-injected scroll compressor using R410A
as a refrigerant. Int. J. Refrig. Vol. 32, Issue 6, 1442–1451.
Wu et al, 2012a
Wu, J.H., Yang, L.D., Hou, J., 2012a Experimental performance
study of a small wall room air conditioner retrofitted with R290
and R1270. Int. J. Refrig. 35 (7), 1860-1868.
Wu et al, 2012b
Wu, Y. Liang, X-F., Tu, X-P., Zhuang, R., 2012b. Study of R161
Refrigerant for Residential Air-conditioning Applications. Proc.
Int. Refrig. and Air Condition. Conf. at Purdue, West Lafayette,
IN, USA.
Xiao et al, 2006
Xiao, H-H., Zhang, T., Hu, Y., 2006. Experimental research on
performance of small room air conditioner with R290. J. Refrig.
2006-04 [In Chinese]
Xiao et al, 2009
Xiao, Y-Y., Liu, C., Guo, C-H., Li, B., 2009. Experimental
research on refrigeration system of air-conditioner which use of
natural refrigerant R290. J. Fluid Machinery. 2009-05. [In Chinese]
Xie and Sun, 2008
Xie, Y. B., Sun, G., 2008. Thermodynamic Analysis of CO2
Supercritical Two-Stage Compression Refrigeration Cycle. Proc.
Int. Refrig. and Air Condition. Conf. at Purdue, West Lafayette,
IN, USA.
Xu t al, 2011
Xu, B., Chen, J. P., Qi, Z. G., Li, F., 2011. Experimental study of
R290 enhanced system performance in residential air-conditioners
and heat pumps. Proc. IIF-IIR Int. Congr. Refrig., Prague, Czech
Republic.
Xu et al, 2012
Xu, X., Hwang, Y., Radermacher, R., Pham, H., 2012.
Performance measurement of R32 in vapour injection heat pump
system. Proc. Int. Refrig. and Air Condition. Conf. at Purdue, West
Lafayette, IN, USA.
Yajima et al, 2000
Yajima, R., Kita K., Taira S., Domyo N., 2000. R32 as a Solution
for Energy Conservation and Low Emission. Proc. Int. Refrig. and
Air Condition. Conf. at Purdue, West Lafayette, IN, USA.
164
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Yan, 1999
Yan, L., 1999. A study on substituting propane R 290 for R 22 in
household air conditioner. J. Nanjing University of Science and
Technology. 1999-02 [In Chinese]
Youbi-Idrissi et al, 2003
Youbi-Idrissi, M., Bonjour, J., Terrier, M., 2003. Solubility of CO2
in a Synthetic Oil. Proc. 21st IIF-IIR Int. Congr. Refrig.,
Washington D.C., USA.
Zhang et al, 2013
Zhang, W., Yang, Z., Li, J., Ren, C-X., Lv, D., Wang, J., Zhang,
X., Wu, W., 2013. Research on the flammability hazards of an air
conditioner using refrigerant R-290. Int. J. Refrig., Vol. 36, Issue 5,
1483-1494.
Zhang et al, 2002
Zhang. Z., Zhang, G., Wang, J-S., Zhang, Y-F., 2002. Comparative
analysis and experimental study of thermodynamic properties of
R22 and R290. J. Tianjin Urban Construction Institute. 2002-04 [In
Chinese]
Zhou and Zhang, 2010
Zhou, G., Zhang, Y., 2010 Performance of a split-type air
conditioner matched with coiled adiabatic capillary tubes using
HCFC22 and HC290. Applied Energy 87 (5), p1522-1528.
Zhou, 2014
Zhou, X. F., 2014. HCFC phase out progress report in RAC sector.
Proc. Int. Techn. Conf. Alternative Technology to HCFC-22 in
Room Air-conditioner Sector, China Household Electrical
Equipment Association (CHEAA), Ningbo, China.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
165
166
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 8
__________________________________________________________
Water Heating Heat Pumps
Chapter Lead Author
Martin Dieryckx
Co-Authors
Guangming Chen
Marino Grozdek
Makoto Kaibara
Petter Nekså
Tetsuji Okada
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
167
168
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
8
Water heating heat pumps
8.1
Introduction
Heat pumps are able to upgrade (“pump”) heat from a lower temperature to a useful higher
temperature level. The heat is used for space heating, service (including domestic) water
heating, and manufacturing process heating. The heat sources are generally ambient air, water
or ground-source heat. The heat sink can be air, water or a process fluid. This chapter covers
only systems where water is the sink (grey zone indicated in Table 8-1). The products for
industrial process heating, large capacity systems, typically MW capacity, are covered in
chapter 5 “Industrial systems”. Air-to-air heat pumps are the most widely used heat pumps.
Their construction and refrigerant use are similar to air conditioners; therefore they are
covered in chapter 7 “Air-to-air air conditioners and heat pumps”.
The temperature difference between the source and sink has a direct impact on the pressure
difference the compressor must meet for a specific refrigerant. In general, heat pump systems
will be less efficient under higher temperature difference condition. The required compressor
power input is a fraction of the total useful energy delivered. The required input power to the
heat pump is mainly dictated by the heating capacity required from the heat pump, the
temperature difference between the source and sink, the effectiveness of heat exchangers and
compressor/driver efficiency. Required power input to water pumps and fans must be
included to determine the power consumption of the total heat pump system. The heat pump
overall coefficient of performance (COP) is defined as the useful heat delivered divided by
the total power input. Recent standards and regulations are referring to a seasonal coefficient
of performance (SCOP) defined as the useful heat delivered during the heating season divided
by the corresponding power input.
Heat pumps are in most applications an alternative to fossil fuel gas or oil combustion boilers,
often resulting in a significant reduction in CO2 emission and primary energy consumption.
The cost of the equipment and efficiency are most important to compete with fossil fuel
solutions.
In 2012 the global air to water heat pump market increased by around 5.4 % to 1,37 million
units. Both Europe and China had an increase of respectively 7% and 11%, while Japan had a
drop of 12.8% (JARN, 2013/08).
The Ozone Depleting Potential (ODP) and Global Warming Potential (GWP) values of the
refrigerants mentioned in this chapter are given in chapter 2 of this report.
8.2
Heat pump types, implications and trends
8.2.1
Heat pump types
Heat pumps are classified by heat source (air, water, and ground) and heat sink (air, water),
resulting in the following naming of heat pumps used in this chapter as given in Table 8.1.
Table 8-1: Heat pump classification
Heat source (direct expansion or indirect expansion system)
Heat
sink
Air
Water
Water heater
Air
Water
Ground
Air to air
Water to air
Ground to air
Air to water
Water to water
Ground to water
Space heating
Combined
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
169
Air-source heat pumps are equipped with air-to-refrigerant evaporator coils and fans to obtain
heat from the ambient air. Water-source heat pumps are equipped with water-to-refrigerant
evaporators and a water circulation pump to obtain the heat from a water source. Ground
source heat pumps are generally equipped with a brine-to-refrigerant evaporator and brine to
ground tubes combined with a circulation pump or, refrigerant-to-ground evaporator tubes to
obtain heat from the ground. The tubes in the ground are installed horizontally one to a few
meters below ground level or installed in a vertical drilled hole, typically 50-150 m deep.
Most heat pumps are driven by electric motors, but gas engine drives are also used to a small
extent. Heat pumps may also be thermally driven, using a sorption or ejector concept.
It is also possible to classify heat pumps by types depending on the usage:
1) Heat pump water heaters (HPWH)
2) Space heating heat pumps
3) Combined water and space heating heat pumps
Heat Pump Water Heaters (HPWH)
Heat pump water heaters (HPWH) are a category of heat pumps designed to heat domestic
and other service hot water to temperatures between 50 and 90 °C. These operating
temperatures must be considered when selecting the refrigerant.
A HPWH basically consists of a water storage tank and a heat pump water heating unit and in
some designs an additional heat exchanger. In the heat pump unit, water supplied from the
storage tank or directly from the city water supply is heated by the condenser or, for transcritical cycles using R-744 the gas cooler of the refrigerant circuit or, for absorption cycles by
both condenser and absorber, and then returned to the storage tank or used directly for service.
Stored hot water is supplied to each tapping point, in response to the demand.
The basic components of the heat pump unit are: a compressor driven by an electric motor or
gas engine, a condenser or a gas cooler for heating water, an evaporator to absorb heat from
the heat source, refrigerant, a refrigerant expansion device, and a control unit. Heat pump
units that use R-744 as a refrigerant typically use an additional internal heat exchanger, and in
some cases, an ejector or expander to improve energy efficiency. Different from mechanical
compression type heat pumps, there is not any mechanical compressor for absorption types.
Instead one or two generators, one or two solution heat exchangers, one or two solution
valves and a solution pump are used.
Space Heating Heat Pumps
A space heating heat pump is optimised for comfort heating. Comfort heating heats the room
by heating water for distribution to an air handling unit, radiator or under floor panel. The
required water temperature depends on the types of emitter, low temperature application
ranging from 25 to 35°C for under floor heating, for moderate temperature application such as
air handling units around 45 °C, for high temperature application such as radiant heating 55 to
60 °C, and for very high temperature application, as high as 65 to 80 °C, such as for the fossil
fuel boiler replacement market. The required water temperature affects the selection of
refrigerant. Heat pump systems are more efficient at lower sink temperatures, but each
product must fulfil the required operating temperature.
A space heating heat pump using water for distribution generally consists of a heat pump unit
and often an additional heat exchanger unit and a water storage tank. Several different
configurations are used. The basic components of a heat pump space heating unit are similar
to those of heat pump water heaters.
170
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
In most cases air source heat pumps are used for space heating. Ground and water source heat
pumps are also used, especially in colder regions, but they represent a smaller segment of the
total heat pump market.
Combined Space and Hot Water Heat Pumps
Combined water heating and space heating heat pumps have two functions, supplying hot tap
water and providing space heating. Several configurations of combined space and water
heating heat pumps exist in order to optimise the seasonal energy efficiency for a specific
application. In most configurations a water storage tank is used to store the domestic hot
water and also to act as a small heat buffer for the space heating function.
In order to obtain high water temperatures at low outdoor ambient temperatures, air to water
heat pump systems can utilise a multistage compression system or a cascade refrigerating
system with different refrigerants for each stage in the cascade.
Capacity Ranges of Water and Space Heating Heat Pumps
Table 8-2 lists the most common heating capacity range offered by single units of each type
of heat pumps.
Table 8-2: Heat pump capacity ranges
Heat pump type
Capacity Range (kW)
Heat pump water heater
1.5 – 50
Space heating heat pump
4 – 400
Combined water and space heating heat pump
6 – 45
8.2.2
Heat pump implications and trends
Most of the space heating and water heating systems globally use fossil fuels. Since fossil fuel
burning systems generate CO2 during combustion, they contribute to global warming. Heat
pumps also contribute to global warming, but in a different way. The contribution to global
warming is only related to CO2 emissions in the generation of the electricity to drive the
compressor and possible direct contributions due to refrigerant emissions. Therefore, the heat
pumps energy efficiency is the primary environmental consideration. Efficient heat pumps
can reduce global warming impact compared with fossil fuel burning systems significantly,
typically in the range of 50-80% whilst inefficient heat pumps can lead to a significant
increase in global warming impact. The reduction depends on the efficiency level of the heat
pump and the carbon emission per kWh of the electricity generation.
The tendency of decarbonisation of electricity strengthens this positive effect. Also the
efficiency levels of heat pumps are being improved year by year. However, the investment in
a heat pump is in most cases more expensive than a fossil fuel system because they employ
complicated refrigerant circuits, compressors, larger heat exchangers and other special
features. The majority of purchasers have not yet accepted the significantly higher first costs
of heat pumps as a means to reduce running costs, compared to lower first cost fossil fuel
based space and water heating systems, especially in colder regions.
In 2013 the EU commission decided upon a common energy label (commission delegated
regulation No 811/2013) for hydronic heating systems comparing the primary energy
efficiency of all major heat generators. This may have a positive impact on the heat pump
applications in Europe. Minimum efficiency requirements are set separate for heat pumps.
Both the energy label and minimum efficiency requirements will have a major impact on the
refrigerant choice. Air source heat pumps have become the most popular heat pump type in
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
171
Europe. They have experienced strong growth over the last several years because of their
economic benefits and recognition as renewable energy source. The positive environmental
aspects and potential market growth of heat pumps must be taken into account when
refrigerant options and limitations are considered
In Japan, heat pump water heaters using the refrigerant R-744 have become very popular in
recent years under the trade name “Eco-cute” and are also introduced in Europe. These heat
pump water heaters were launched in 2001. Between 2008 and 2011, there were annual sales
of around 500,000 units (JARN, 2013/08). An evaluation method for defining the annual
performance factor of heat pump water heaters has been established in Japan. This method
considers the typical Japanese life style usage of hot tap water.
In the USA, commercial interest for combined water and space heating heat pumps resumed
in late 2009 and 2010. Three major and several additional manufacturers began marketing
newer, more efficient integral designs in 2010. These new products use either HFC-134a or
R-410A as the refrigerant, but the split between them is uncertain. Predicated on the new
efficiency standards and analyses used in development of national requirements, estimated
HPWH shipments in the USA are 10,000 units per year in 2010, 260,000 units per year by
2015, and - though somewhat speculative - 270,000 or more units per year by 2020.
The general trend when taking new building standards into account is that the relative
importance of tap water heating will increase compared to space heating. It is expected that
this will be reflected in future systems.
8.3
Options for new equipment
In most non-article 5 countries the transfer to non-ODS refrigerants was completed several
years ago. But, based on its favourable thermodynamic properties and high efficiency in heat
pump applications, HCFC-22 is still in use for high and moderate temperature water and
space heating heat pumps in the A5 countries.
When selecting refrigerants, both the direct and indirect climate impacts must be considered
(see chapter 2 and chapter 11). For heat pumps, the reduction in emission resulting from
replacing fossil fuel burning may be the most important factor regarding greenhouse gas
emissions.
Options for new heat pumps include HFC-32, HFC-134a, R-407C, R-410A, R-417A, HFC1234yf, new HFC blends, HC-290, HC-600a, R-744 and R-717.
Studies of new low-GWP fluorochemicals (notably unsaturated HFCs – see Chapter 2
“Refrigerants”) in heat pumps are ongoing, notably in several European countries, Japan and
the USA. Similar studies are underway to evaluate use or broader use of R-744 and
hydrocarbons as refrigerants in several types of heat pumps, though actual product
development and commercialization are limited to Europe and Japan at present.
8.3.1
HFC-134a and HFC blends R-407C, R-417A and R-410A
HFC-134a, R-407C and R-410A are used widely in heat pump systems and are well
commercialised globally. R-417A is used in heat pump application in existing systems as well
as in new equipment.
These refrigerants are being used in high to low temperature water and space heating heat
pumps, in countries where HCFC-22 consumption reduction started in advance of the
Montreal Protocol. These refrigerants are used mainly in Europe. In Japan R-410A is used
and HFC-134a and R-410A are used in Canada and USA and to a lesser extent in Mexico and
the Caribbean countries. R-407C has been used to mainly replace HCFC-22 in existing
172
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
product designs because minimal design changes are required. However, the use of R-407C is
declining in favour of the higher efficiency of R-410A and lower system cost. To use R-410A
design changes are necessary to address its higher operating pressures and to optimise the
system to its properties and thereby achieve a higher performance. Cascade heat pumps using
HFC-134a and R-410A are commercialised in high temperature combined space and hot
water heating heat pumps in Europe. These heat pumps have a relatively good performance
and can operate without auxiliary electrical heaters. The heat pump can supply water at
temperatures approaching 80 ºC.
Most new heat pump products are using refrigerant R-410A because it results in more
compact and efficient systems when they are optimised.
Air to water split cascade systems are put on the market using R-410A for the low
temperature and HFC-134a for the high temperature circuit. They guarantee high seasonal
COP for colder climates even at high water sink temperatures, while keeping the required
heating capacity without auxiliary electrical heaters. They are most used for combined space
and hot water heating to replace existing boiler systems.
Energy efficiency of R-407C systems is typically poorer than HCFC-22, although similar
COPs can be achieved if the system is carefully designed. R-407C shows a pronounced
temperature glide in practice, which can lead to operational difficulties.
R-417A has been used by some manufactures for heat pump water heaters. R-417A provides
lower capacity than HCFC-22 but has demonstrated its effectiveness at higher temperatures.
As the cost of the refrigerant itself is minor in the total system cost, limited differences in
refrigerant cost have a minor effect. The cost of components has a major impact. A more
compact design results in general in a lower cost. For larger systems the design pressure has a
larger impact on the cost than for small systems. For small and medium size systems R-410A
is the most cost effective, while for large systems HFC-134a is most effective.
There are no significant barriers to their use at the moment, but the high GWP of the
refrigerants may put them under pressure to changes for lower GWP fluids.
8.3.2
HFC-32
The use of HFC-32 in water heating heat pumps is not commercialized yet on a larger scale.
HFC-32 has a higher operating efficiency than HCFC-22 and R-410A (Shigehara, 2001). It
has saturation pressures slightly higher than R-410A which is approximately 60% higher than
HCFC-22. The system refrigerant charge can be up to 43% less than for HCFC-22 while the
energy efficiency is the same or higher (Yajima, 2000). It has better heat transfer and
transport properties than R-410A due to lower molar mass. Since it has higher discharge
temperatures than R-410A more accurate control of temperature is necessary especially for
high temperature water heating heat pumps and low temperature heat source.
The direct cost of the pure HFC-32 substance is lower than R-410A, but this has limited effect
on the system cost. Based on the refrigerant properties, the equipment is more compact and
consequently potentially cheaper, while mitigation devices for high discharge temperature
may add some cost.
The main barriers are related to the safe use of the lower flammable refrigerants (class 2L by
ISO 817); see chapter 2. Standard ISO-5149 is updated in 2014 and IEC-60335-2-40 is in
process of update to accommodate this new class. In general safety aspects during the
lifecycle of the equipment are limited. However, some building codes do not allow the use of
flammable refrigerants in certain type of buildings. If the refrigerant water heat exchanger is
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
173
located in outside occupancy, the safety issue is easier to solve but frost prevention becomes
an issue.
8.3.3
HFC-1234yf and other low-GWP HFC blends
HFC-1234yf is similar in thermophysical properties to HFC-134a.
A number of other unsaturated chemicals are being identified in the patent literature as
possible low-GWP refrigerants for heat pumps. Blends with HFC-32 or HFC-125 may make
it possible to approach the properties of HCFC-22 or R-410A, but it results in a higher GWP
than pure HFC-1234yf. As sample supply of these refrigerants is very limited, it is too early to
judge whether any of these chemicals will be commercialised and will show acceptable
performance and competitiveness in heat pump systems. Due to the price competitiveness
pure HFC-1234yf is not considered as a future solution.
For water heating and space heating heat pumps using HCFC-22, R-410A, R-407C,
significant design changes would be required to optimise for HFC-1234yf. Some of the
required changes include larger displacement compressors, larger diameter interconnecting
and heat exchanger tubing and additional heat exchanger surface to offset lower heat transfer
and higher flow resistance.
The heat transfer is expected to be lower than for R-410A systems because of its lower
saturation pressure. The relatively higher pressure drop in the refrigerant pipes and heat
exchanger will result in poor efficiency at high temperatures typical for heat pump water
heaters.
As a new molecule due to a different manufacturing process, the HFC-1234yf and other LowGWP HFC blend refrigerants has significant higher cost than that of HFC-134a. Components
cost will be similar to HFC-134a, but the flammability will have effect for larger systems due
to the pressure vessel codes.
The same restrictions as for HFC-32 apply (see Annex to Chapter 2).
8.3.4
R-744 (carbon dioxide)
In the past, R-744 was not used in water and space heating heat pumps because of its high
pressure characteristics (Fernandez, 2008).
Development of R-744 heat pumps started around 1990 (Nekså, 1998). R-744 heat pump
water heaters were introduced to the Japanese market in 2001, with heat pumps for heating of
bath or sanitary water as the main application. Space heating heat pumps that operate at lower
water temperatures in combination with hot water heating have also been developed, but the
numbers sold are less. R-744 operates at very high pressures; approximately 5 times higher
than HCFC-22 and 3.5 times higher than R-410A. This is an advantage enabling more
compact system designs. The low critical temperature of R-744 results in trans-critical
operation. R-744 refrigerant has been used primarily in storage type heat pump water heater
applications.
Continued growth of market for domestic hot water heat pumps is expected in Japan, Asia and
to some extent in Europe. Recently, R-744 heat pumps for domestic space heating application
have been developed in Europe for use in cold climates if combined with very high
temperature radiator type space heating. For commercial buildings with combined radiator
and air heating systems, R-744 is a very promising refrigerant (Nekså, 2002). This also holds
for new low energy buildings where the domestic hot water demand is large compared to the
space heating requirement. It is not known what level of market penetration R-744 space
heating heat pumps will experience. The ultimate market acceptance will be determined by
the system economics, energy labelling and minimum energy efficiency requirements.
174
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
R-744 as refrigerant enables domestic water heating up to temperatures as high as 90 ºC
without use of an auxiliary electrical heater. R-744 may give a high performance when it is
used with low temperature sources and high temperature sinks with a certain temperature
difference between inlet and outlet water temperature (Steene, 2008). This makes it well
suited for use in storage type heat pump water heaters in which low temperature inlet water is
heated to a high temperature for thermal storage of domestic hot water.
Compared to HFC refrigerants design modifications are required to get equivalent
performance with R-744 for space heating alone (Nekså, 2010). To obtain high efficiency for
domestic space heating application is challenging if the difference between the high and low
water temperature of the heat sink is low. System designs enabling a low water return
temperature are then required (Nekså, 2010) or introduction of work recovery components,
e.g. ejectors or expanders may overcome the energy efficiency barrier, but the cost for it may
make the product less competitive.
The cost of the working fluid is low. However, because of the high pressure, certain types of
systems require more robust designs for pressure safety which adds cost, while specific tube
dimensions are much smaller compared to current technology which gives the advantage of
compact tubing and insulation material.
The main barrier is cost of the system and energy efficiency in some applications.
8.3.5
Hydrocarbons
Hydrocarbons (HCs) include three main refrigerants, HC-290 (propane), HC-1270 (propene)
and HC-600a (iso-butane).
At present HC-290 systems are sold in a limited number of low charge level heat pump water
heater installations in Europe. While, for hydronic systems, with ventilated enclosures
configuration, larger refrigerant charges are allowed. Use in Europe has declined due to
introduction of the Pressure Equipment Directive (Palm, 2008) but some compressor
manufacturers are now offering compressors for HC-290 applications.
The efficiency of HC-290 and HC-1270 in heat pumps is known to be good (Palm, 2008).
The direct cost of the substance is favourable. Based on the refrigerant properties the
equipment cost is similar to HCFC-22 while mitigation devices for safety add some cost.
The main barriers are related to the safety. For systems with parts, which are located in
occupied spaces, the allowable charge quantity is limited, whereas for systems located
outside, there are no major restrictions. The necessity to ensure that technicians are
appropriately trained to handle the flammability of hydrocarbons is a main barrier. For
equipment manufacturers the liability aspects combined with the costs for safety measures are
the main barriers to extend the use of hydrocarbons.
8.3.6
R-717 (ammonia)
R-717 is used mainly for large capacity systems. It has also been used in a small number of
reversible heat pumps and sorption ones. It is not expected to be used in small capacity water
and space heating heat pumps.
The energy efficiency of R-717 heat pumps is known to be very good. Crucial problems in
commercial ammonia direct expansion system is oil return so as to achieve good heat transfer
in the evaporator. These problems can be solved by use of oil which is soluble in ammonia
(Palm, 2008).
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
175
The cost effectiveness is unfavourable for non-industrial process use due to equipment and/or
installations costs.
The main barriers are related to safety aspects (see Annex to Chapter 2) during the life cycle
of the equipment and the minimal capacity required for cost-effectiveness and certain national
regulations controlling installation, even though it has been shown that small capacity heat
pump systems can be designed to operate with very low charge of ammonia (100 g of
ammonia for 9 kW heating capacity (Palm, 2008).
The main obstacle for the commercialization of small capacity heat pump systems is the
limited supply of components. Particularly, there are no hermetic or semi-hermetic
compressors for ammonia available and ammonia is incompatible with copper.
8.4
Refrigerant charge Levels
Table 8-3 shows approximate charge levels for HPWHs and space heating heat pumps for
several typical refrigerants.
Charge levels may vary over a range of values for each refrigerant and type of heat pump
depending on capacity levels, target energy efficiency levels, types of heat exchangers used in
the system, etc.
Table 8-3: HPWH and space heating HP refrigerants; average charge levels given
Refrigerant
kg/kW
HCFC-22
0.30
HFC-134a
0.40
HFC blends R-410A and R-407C
0.30
Hydrocarbons
0.15
R-744
0.15
8.5
Options for existing systems
Replacing an ODS refrigerant, mostly HCFC-22, by a non-ODS refrigerant has similar
considerations as described in Chapter 7. As for most water heating heat pumps there is no
refrigerant field piping involved the option to replace the total unit is in many cases the better
economical solution. For larger units located in places where the replacement of the total unit
may be difficult, sometimes the option is taken to replace components such as the compressor,
expansion device, gaskets, safety devices and oil. For that purpose manufacturers of the
equipment sometimes provide special retrofit packages.
8.6
Concluding remarks
Most heat pumps commercialised today make use of non-ODS refrigerants. Refrigerants used
are R-410A, HFC-134a, R-407C, HC-290, HC-600a, R-717 and R-744. The majority of new
equipment use R-410A. In some Article 5 countries, HCFC-22 is being used as it has
favourable thermodynamic properties and high efficiency. To replace HCFC-22 by a nonODS there are no technical barriers. The technical and process changes related to pressure,
lubrication and contamination control are well known. Replacements are commercially
available, technically proven and energy efficient. All replacements have a similar or lower
environmental impact. R-410A has a slightly higher GWP but the required charge is less than
HCFC-22. The issue in high ambient is of less or no importance for water heating heat pumps.
The main parameters to select the alternatives and the main issue to switch over from HFCF22 are the efficiency, cost effectiveness, economic impact, safe use and easiness of use.
176
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Replacements such as HFC-32 and other low-GWP HFC blends are under way to become
commercial available.
HFC-134a, R-744 and HFC blends R-407C, R-417A and R-410A are commercial available
solutions that have the highest grade of safety and easiness to use. R-410A is most cost
effective for small and medium size systems, while for large systems HFC-134a is most
efficient. R-407C and R-417A are from design point of view the easiest alternatives for
HCFC-22, but cannot compete with the other HFC-solutions.
8.7
References
Fernandez N., 2008
N. Fernandez, Y. Hwang*, R. Radermacher, Center for
Environmental Energy Engineering, Department of Mechanical
Engineering, University of Maryland, PERFORMANCE OF CO2
HEAT PUMP WATER HEATERS ,8th IIR Gustav Lorentzen
Conference on Natural Working Fluids September 7-10, 2008
IPCC/TEAP, 2005
IPCC and TEAP, Special Report on Safeguarding the Ozone Layer
and the Global Climate System, Issues Related to
Hydrofluorocarbons and Perfluorocarbons, Intergovernmental Panel
on Climate Change Technology and Economic Assessment Panel,
2005.
JARN, 2013/08
The Japan Refrigeration and Air Conditioning Industry Association;
Heat Pumps overview, August, 2013
Neskå, 1998
Nekså, P., Rekstad, H., Zakeri, G.R. and Schiefloe, P.A.: CO2 – heat
pump water heater: characteristics, system design and experimental
results, Int. J. Refrig. Vol. 21, No. 3, pp.172-179, 1998
Neskå, 2002
Nekså, P: CO2 Heat Pumps, International Journal of Refrigeration,
Vol 25, Issue 4, June 2002, p 421-427, 2002
Neskå, 2010
Nekså, P., Walnum, H. and Hafner A.: CO2 - A refrigerant from the
past with prospects of being one of the main refrigerants in the future,
9th IIR Gustav Lorentzen Conference 2010, Sydney, April 12-14,
ISBN 978-2-913149-74-8, ISSN 0151-1637, 2010
Palm, 2008
Palm, B. (2008) Hydrocarbons as refrigerants in small heat pump
and refrigeration systems-a review, Int. J. of Refrigeration 31, 2008
Shigehara, 2001
T Shigeharu, Y Ryuzaburo, K Shigeru, (2001) The Performance
Evaluation of Room Air Conditioner using R32 In the Case of
Cooling and Heating Mode, Trans JSRAE, Vol.18; No.3.
Stene, 2008
J. Stene, SINTEF Energy Research, Department of Energy Processes,
Norway, CO2 Heat Pump System for Space Heating and Hot Water
Heating in Low-Energy Houses and Passive Houses, 8th IIR Gustav
Lorentzen Conference on Natural Working Fluids September 7-10,
2008
Yajima, 2000
R. Yajima, K. Kita, S. Taira, N. Domyo R32 as a solution for energy
conservation and low emission , IIR 2000 Purdue
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
177
178
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 9
__________________________________________________________
Chillers
Chapter Lead Author
Kenneth E. Hickman
Co-Authors
James M. Calm
Martin Dieryckx
Dennis Dorman
Mohamed Alaa Olama
Andy Pearson
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
179
180
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
9
9.1
Chillers
Introduction
Comfort air conditioning in large commercial buildings and building complexes is commonly
provided by chillers. The chillers that serve these systems cool water or other heat transfer
fluid that is pumped through heat exchangers in air handlers or fan-coil units for cooling and
dehumidifying the air. Chillers also are used for process cooling in commercial and industrial
facilities such as data processing and communication centers, electronics fabrication,
precision machining, molding, and mining (particularly in deep mines with high thermal
gradients). District cooling is another application that provides air conditioning to multiple
buildings through a large chilled water distribution system. Chapter 5 provides additional
information on chillers used in these applications.
Chillers commonly employ a vapour compression cycle using reciprocating, scroll, screw, or
turbo (centrifugal or mixed axial/centrifugal flow) compressors. Heat typically is rejected
through air-cooled or water-cooled heat exchangers. Evaporatively-cooled condensers and dry
coolers also can be used for heat rejection. Though less common, an absorption refrigeration
cycle is used in absorption chillers, especially where a low-cost source of hot water or steam
is available.
Chillers tend to stay in service for long periods in the range from 20 to 40 years. Even though
CFCs were phased out for new equipment in 2010, a significant number of CFC-11, CFC-12,
and HCFC-22 chillers are still operating. HCFC-123 also is used, but will be phased out in
2020. Article 5 countries may still use all these refrigerants. The change-over to zero ODP
refrigerants required a very high investment and was a lengthy process. However, the current
generation of chillers has proven to be highly reliable and has resulted in higher performance,
no small feat.
The zero ODP refrigerants used today generally have GWPs greater than 1000. Climate
change concerns are driving efforts to seek lower-GWP refrigerants to replace the refrigerants
currently in use, mainly HFC-134a and R-410a. Also, Article 5 countries are expressing
interest in “leap-frogging” to the next generation of refrigerants in order to avoid investing in
technology that may become obsolete.
While manufacturers, consumers, and regulators alike have an interest in low GWP
refrigerants, a number of things stand in the way. This chapter presents refrigerants under
consideration and factors affecting their success. In the end, the time and expense to change to
another generation of refrigerants likely will be required again.
All other considerations aside, to be acceptable, new refrigerants should result in products
with energy efficiencies that are equal to or better than the refrigerants replaced. This is
because the global warming effects from chillers are dominated by the energy-related
component from their power usage. Life Cycle Climate Performance (LCCP) models
typically show that more than 95% of the climate effect is due to energy consumption. The
direct global warming effects from refrigerant emissions are significantly smaller. Emissions
have been significantly reduced in recent years through lower charge systems, low-leak
designs, manufacturing and testing improvements, and improved service practices. At the
same time, chiller energy efficiency has been enhanced in today’s systems by adding features
such as variable speed drives, economizers, suction line heat exchangers, and increased
subcooling. The use of higher performing chillers is more important to climate change than
prematurely changing to another intermediate refrigerant solution.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
181
Fortunately, the consumer can make intelligent choices when alternatives are explored. The
annual energy consumption can be calculated with computer simulation programs using the
chiller(s) load profile, building loads, and weather data. For large and complex chiller
systems, extensive modeling can provide systems and chiller solutions that minimize total
energy consumption. However, smaller machines are commonly sold on the basis of full
and/or part load rating, a simplified representation of energy consumption. Rating standards
and rating certification programs exist in most countries. AHRI Standard 550/590 (AHRI
2011) and EN 14825 are among the rating standards in use.
Other methods used to describe the environmental effects of chiller operation are Total
Equivalent Warming Impact (TEWI) or Life Cycle Climate Performance (LCCP). These
methods are defined in Chapter 2, Refrigerants, and further discussed in Chapter 11,
Sustainable Refrigeration. The ozone depletion potential (ODP) and global warming potential
(GWP) of the refrigerants mentioned in this chapter are given in Chapter 2. Chapter 2
includes other refrigerant properties and a description of the issues associated with changing
refrigerants, including safety aspects.
9.2
Types of equipment and applications
9.2.1
Mechanical vapour compression chillers
Vapour-compression chillers use either centrifugal or positive displacement compressors. The
positive displacement category includes reciprocating piston, rotary, screw, and scroll
compressors. Not all refrigerants can be used in all compressor types because compressors
generally are designed for specific refrigerants and applications.
Water-cooled positive-displacement chillers below 700 kW commonly employ directexpansion (DX) shell-and-tube evaporators with chilled water on the shell side, or brazed
plate evaporators. Chillers above 700 kW typically use flooded/pool-boiler type, falling film,
or spray evaporators with the refrigerant on the shell side of the tubes. Similar to compressor
technology, heat exchangers are designed for particular refrigerants and applications.
For flooded evaporators or falling film evaporators there is a limit on refrigerant selection.
Zeotropic refrigerants such as R-407C with high temperature glide can fractionate during
evaporation and during condensation in shell-side condensers, creating significant
performance issues (see Section 9.3.1).
9.2.2
Absorption chillers
Absorption chillers utilize heat provided by a fuel-fired burner, steam, or hot water as the
main energy source. Electricity still is required for internal solution pumps and controls.
Large absorption systems commonly use water and lithium bromide. Small absorption chillers
may use an alternative fluid pair, R-717 and water where water is the absorbent. Other
working pairs are proposed and see very limited use. Chillers with lithium bromide and water
all are water-cooled. Chillers using R-717 and water can be water-cooled or air-cooled.
Absorption chillers are identified by the number of heat input levels they employ (e.g., singleeffect or double-effect), and whether they are direct-fired with a burning fuel, or use steam or
hot water as the heat source.
Single-effect absorption applications, with lower efficiency, typically are limited to sites that
can utilize waste heat in the form of recovered hot water or steam as the energy source, or
where boilers must be run year-round such as in hospitals. Other sites include co-generation
systems where waste engine heat or steam is available.
182
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Double-effect machines have an additional heat recovery heat exchanger and can be driven by
hot water or steam, or can be direct-fired. Double-effect absorption chillers can have primaryenergy-based efficiencies that are 35 – 45% of those of vapour-compression systems. For
example, double-effect absorption chillers can have a cooling coefficient of performance
(COP) of 0.9 to 1.2 on a seasonal basis based on source energy input. Electrical vapourcompression systems can have a COP as high as 7.8, which must, in the case of thermal
power plants, be multiplied by the heat-source-to-electricity delivery efficiency of the power
plant and distribution system - around 35% for heat-driven generators that are predominant.
Triple-effect machines have been commercialized but are not used widely. A fluid pair other
than water/lithium bromide must be used in the high stage generator.
9.2.3
Chiller capacity ranges
Table 9-1 lists the cooling capacity range offered by single units of each type of chiller. (Most
applications, particularly in larger capacities, use multiple chillers)
Table 9-1: Chiller capacity ranges
Chiller Type
Scroll, rotary, and reciprocating watercooled
Approximate Capacity Range
(kW)
10 - 1,200
Screw water-cooled
100 – 7,000
Screw, scroll, rotary, and reciprocating aircooled
10 – 1,800
Centrifugal water-cooled
200 - 21,000
Centrifugal air-cooled
200 – 7,000
Absorption (R-717-water, air or water
cooled)
Typical Refrigerants
R-410A,
HCFC-22, R-407C
Less commonly, HC-290
HFC-134a, HCFC-22
R-717
HFC-134a, R-410A,
HCFC-22, R-407C
HFC-134a,
HCFC-123
HFC-134a
17 – 85
R-717
Absorption (R-717-water, water cooled)
700 – 3500
R-717
Absorption (water-lithium bromide – shell
and tube)
140 -18,000
R-718
Absorption (water-lithium bromide – shell
and coil)
17 – 120
R-718
9.3
Options for new equipment
9.3.1
Evaluation of experimental refrigerants for vapour compression chillers.
Many of the refrigerants in Table 9-1 have GWPs greater than 1000, which is considered to be
undesirably high. Lower-GWP refrigerants have been tested and evaluated for several years.
With interest growing to find replacements for existing refrigerants, refrigerant manufacturers
are proposing new chemicals and blends with lower GWP. As stated in Chapter 2, the perfect,
inexpensive, energy efficient, non-toxic, non-flammable, and broadly applicable refrigerant
does not exist and is highly unlikely to come into existence. There is a complex selection
process ahead where the industry will need to find out which of the many proposed new
refrigerants are appropriate for each chiller system. The selection process is a trade-off among
GWP, energy efficiency, safety, applied cost, and limiting the need for redesign.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
183
In 2011 the U.S. Air-Conditioning, Heating, and Refrigeration Institute (AHRI) launched an
industry-wide cooperative research program to identify and evaluate promising alternative
refrigerants for major product categories including chillers (Johnson 2012). The program,
referred to as the Low-GWP Alternative Refrigerants Evaluation Program or Low-GWP
AREP, was desired by the industry to assess the research needs, accelerate industry's response
to environmental challenges raised by the use of high GWP refrigerants, and avoid duplicative
work. Many refrigerant blends as well as single-component refrigerants were candidates for
chiller applications. A number of the proposed alternatives have vapour compression cycle
characteristics that are close to those of the chiller refrigerant being replaced, namely HFC134a, R-410A, HCFC-22 (and R-407C), and HCFC-123.
Test results from the Low-GWP AREP program are available from an AHRI website (AHRI,
2013). Tests of alternative lower-GWP refrigerants also have been conducted in Japan under
the auspices of the Ministry of Economy, Trade and Industry (METI), and in China. Industry
has not yet selected any preferred candidates for commercialization from this work.
Additional information on non-fluorinated and low-GWP refrigerants for chillers is given in
Section 4 of the TEAP XXIV/7 Task Force Report (TEAP, 2013). The energy efficiency,
efficacy, costs, cost effectiveness, and extent of commercialization are presented for a number
of selected ODS refrigerant alternatives.
When evaluating a new refrigerant there are many characteristics to consider beyond
operating pressure levels, cooling capacities, and energy efficiencies. Chapter 2.1.7 presents
these characteristics. The Annex to Chapter 2 includes application and safety standards for
refrigerants and systems employing them. Flammable refrigerants, Class 2L, 2, and 3, are part
of the mix of potential choices, Class 2L is a new classification that was defined in 2010.
Timelines for introduction of A2L refrigerants will vary by country, and their application in
large chillers where system charges are unlimited likely will not come until experience is
gained in smaller limited-charge systems.
Several limitations for refrigerant selection, unique to chillers, are important to note. A
limitation on the application of blended non-azeotropic refrigerants exists in large chillers
with flooded evaporators and shell and tube condensers. “Glide” in heat exchangers is a
change in refrigerant temperature at constant pressure during evaporation. Flooded
evaporators used in larger chillers are essentially isothermal and isobaric, so the "glide"
tendency is exhibited as a composition change between the liquid and vapour phases in the
evaporator. Glide also occurs during condensation. Glide can be at least partially
accommodated in the traditional cross-flow air-side condenser heat exchangers of air-cooled
chillers. Refrigerants with little or no temperature glide (1 K or less) are required for use in
shell and tube heat exchangers with refrigerant on the shell side. Refrigerants with
temperature glides up to around 5.6 K can be used in DX systems, but designs must be
modified to account for glide which otherwise may handicap chiller efficiency and tends to
increase heat exchanger size. Zeotropic refrigerants with glide also require special
consideration of service practices that avoid composition changes resulting from separation
and differential leakage of blend components
Other unique refrigerant parameters that chiller designers must take into account in choosing a
refrigerant include heat transfer coefficients in large pool boiling evaporators and compressor
discharge temperatures, particularly at low suction temperature or high ambient conditions.
Heat recovery and heat pumping applications for chillers are increasing. A refrigerant’s
performance in these higher-temperature conditions will be important for these applications.
Another consideration is operating pressure level and the related need for pressure vessel code
redesign
184
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Unlike small systems that predominately use coils, refrigerant cost is an additional important
factor. Centrifugal chillers of an average size (e.g., 1400 kW) hold a refrigerant charge of the
order of 500 kg. Refrigerant cost may be affected favorably by increased production volumes
if a new low-GWP refrigerant can be used as a retrofit in existing chillers or if there are highvolume applications for a refrigerant such as use as a foaming agent.
9.3.2
9.3.2.1
Options for new vapour compression chillers
Fluorinated refrigerants
Options to replace HFC-134a in new chillers
HFC-134a is used in positive displacement chillers and centrifugal chillers. Heat exchangers
with refrigerants on the shell side vs. inside the tubes and plate heat exchangers with
refrigerant inside differ in their sensitivity to temperature glide which can occur with
zeotropic refrigerant blends (see section 9.3.1).
Zeotropic mixtures offer the greatest flexibility in blending refrigerants to approximate the
physical and thermodynamic properties of HFC-134a - particularly the general trend of the
pressure/temperature relationships. There are a number of A1 refrigerant candidates with low
glide and capacities close to HFC-134a with GWPs around 600. Candidates with low GWP
(150 or less) all are in safety classes A2L or A3.
Earlier studies based on thermodynamic properties suggest that the COP of chillers using one
candidate, unsaturated HFC-1234yf refrigerant, is not as good as for HFC-134a (Kontomaris,
2009) and (Leck, 2010). However, a recent study based on chiller measurements indicates that
the performance of R-513A, an azeotropic blend, is equivalent to HFC-134a (Kontomaris,
2013). Other evaluations of unsaturated HFCs for chillers have been done (Kontomaris,
2010a), (Kontomaris, 2010b), (Kontomaris, 2010c), and (Spatz, 2008).
In Europe chillers are on the market using unsaturated HFC-1234 ze(E) as the refrigerant. The
efficiency is found to be better than HFC-1234yf and equivalent to HFC-134a. Testing has
shown that HFC-1234ze(E) has a capacity reduction of approximately 25% compared to
HFC-134a (Schultz, 2012). The choice of refrigerant in Europe will be influenced by the Fgas regulation and the pressure equipment directive, amongst many other parameters such as
end user specifications.
It is not possible at this time to know which particular low-GWP refrigerants or blends will
find significant acceptance for use in chillers.
Options to replace R-410A in new chillers
R-410A is used primarily in positive-displacement water-cooled and air-cooled chillers.
Although it operates at higher pressure levels and lower volume flow rates, R-410A became
the successor to HCFC-22 in the capacity ranges where hermetic reciprocating and scroll
compressors commonly are used. Chillers with R-410A generally employ DX heat
exchangers, microchannel heat exchangers, or plate heat exchangers.
One of the alternatives tested as a possible successor to R-410A is HFC-32. This refrigerant is
used as a component in blends including R-410A. HFC-32 can be used in positive
displacement chillers by itself and as a component in blends with HC-600 (n-butane), HC600a (isobutane), and other low GWP components because it has a moderate GWP, good
energy efficiency, and high capacity in the vapour-compression cycle. Disadvantages include
flammability and operating pressure levels higher than for HCFC-22. HFC-32 is classed as an
A2L refrigerant. Chillers using HFC-32 (other than as a blend component) have not been
widely commercialized yet and will require changes to meet still-to be-developed safety codes
and building standards.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
185
Other alternatives identified during the Low-GWP AREP program are blends that have
similar or lower cooling capacities than R-410A. Several of the blends have temperature
glides of 5.6 K or less. All of the alternatives have higher estimated COPs than R-410A. None
of the alternatives have a GWP <150. All of the alternatives are in the A2L safety class.
Options to replace HCFC-22 in new chillers
HCFC-22 was favored for many years as a refrigerant for positive displacement chillers.
HCFC-22 also was used in some centrifugal chillers produced before 2000. It was phased out
in 2012 for use in new equipment in developed countries. HCFC-22 still is offered for chillers
in some Article 5 countries.
The zeotropic mixture R-407C served as a transition refrigerant. It allowed manufacturers to
offer chillers with a zero ODP refrigerant by making modest changes in their HCFC-22
products. R-407C has an appreciable temperature glide (5 K) so is not suitable for use in
flooded evaporators that predominate in larger chillers. R-407C still is used in Europe, on a
more limited basis in Japan as a replacement for HCFC-22, and elsewhere as one of a number
of zero-ODP aftermarket drop-in options for retrofits. The retrofit list includes R-421A, R422D, R-427A, R-438A, and others.
The low-GWP AREP program alternatives for HCFC-22 include five A1 refrigerants. Three
others are A2L refrigerants. The remaining candidates are A3, or in the case of R-717, B2L
A1 and A2L refrigerants have temperature glides so system designs optimized to use R-407C
are more appropriate than systems designed for HCFC-22. The COPs of the A1 and A2L
refrigerants are estimated to be lower than for equivalent HCFC-22 systems. Only one A2L
alternative has a GWP <150. The selection of a preferred candidate for further development in
chillers has not been made.
Refrigerant options for new centrifugal chillers
Centrifugal compressors are the most efficient technology in large units, those exceeding
1700 kW capacity. Water chillers employing these compressors are designed for specific
refrigerants.
HFC-134a is a popular choice for large centrifugal chillers. Two other refrigerants are also
used. These refrigerants have particularly high thermodynamic efficiency and operate at lower
pressure levels and higher volumetric flow rates than HFC-134a. They are HCFC-123 and
HFC-245fa. HCFC-123 is a low-GWP HCFC refrigerant which is subject to phase-out under
the Montreal Protocol in 2020. Large chillers using HCFC-123 likely will continue to be
produced in North America and China until the phase out occurs. HFC-245fa is an HFC
which has found limited use in centrifugal chillers, heat pumps, and organic Rankine cycle
(ORC) power generation cycles. HFC-245fa has operating pressures higher than for HCFC123 but lower than for HFC-134a. Chillers employing HCFC-1233zd(E) have recently been
introduced on the European market.
186
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
9.3.2.2
Non-fluorinated refrigerants
R-717
Chillers employing R-717 as a refrigerant have been available for many years and are widely
used in industrial and central chiller plant systems (see Chapter 5). There are a number of
installations in Europe, the Middle East, China, and the U.S.A. R-717 chillers are available
with open drive screw compressors in the capacity range 100-7000 kW. Chillers with open
drive reciprocating compressors are available in the capacity range 20-1600 kW.
R-717 chillers are manufactured in small quantities compared to HFC chillers of similar
capacity. Different materials of construction are used because R-717 causes rapid corrosion of
copper, the most widely used heat exchange surface in HFC chillers. Plate-and-frame steel
heat exchangers are common in R-717 systems.
R-717 is better suited to water-cooled chillers because of higher costs of air-cooled R-717
condenser coils. Information on R-717 chiller applications in building air conditioning is
given in (Pearson, 2008a), (Pearson, 2008b), and (Pearson, 2012).
R-717 is not a suitable refrigerant for centrifugal chillers because it requires four or more
compressor stages to produce the pressure rise (“lift” or “head”) required.
If the use of R-717 refrigerant in chillers is to expand in the capacity range served by positive
displacement compressors, particularly outside Europe, several impediments must be
addressed:
Chiller costs typically are higher than for HCFC and HFC chillers.
Safety concerns with R-717 in comfort cooling applications can increase
installation costs. Building codes in some countries heavily restrict applications.
None-the-less, the market for R-717 chillers is growing in regions where concerns about the
control of high-GWP refrigerants are strong.
Hydrocarbons
Hydrocarbon refrigerants all are flammable and are classified A3. A discussion of safety
aspects is given in the Annex to Chapter 2. Chillers employing hydrocarbons as a refrigerant
have been available for many years, though typically only in small capacities (up to 200 kW)
per refrigerant circuit and for outdoor applications. HC-290 s used in chillers in air
conditioning and industrial applications. HC-290 and another hydrocarbon, HC-1270, are
used in a limited number of small (<1200 kW) air-cooled chiller installations in Denmark,
Norway, the United Kingdom, Germany, Ireland, the U.S.A., and New Zealand. Some Article
5 countries such as Indonesia, Malaysia, and the Philippines are applying hydrocarbon chillers
to large space cooling needs. The current market for hydrocarbon chillers is larger than for R717 chillers on a global basis but still very small compared to the market for HCFC-22 and
HFC chillers.
Apart from safety considerations, HC-290 and HC-1270 have properties similar to those of
HCFC-22. This allows their use in new equipment of current design after appropriate
adjustments for safety aspects and different lubricants. Chillers employing hydrocarbon
refrigerants are somewhat higher in cost than HFC chillers though modification of equipment
originally designed for HCFC-22 is fairly straightforward.
All safety codes impose strict requirements on hydrocarbons in large refrigerant charges in
chillers, particularly for indoor chiller installations in machinery rooms. Accordingly,
hydrocarbon chillers have not been adopted in all regions. In regions supporting hydrocarbon
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
187
solutions the safety concerns have been addressed by engineering design, technician training,
and changes in building codes and safety standards. If experience is successful, the use of
hydrocarbon chillers may grow in the future. However, in countries such as the U.S.A.,
regulations, building codes, and legal environments make it unlikely that hydrocarbons will
be used in commercial chillers in the foreseeable future.
Hydrocarbon refrigerants are in limited use in centrifugal chillers in petrochemical plants
where a variety of very hazardous materials are routinely used and the staff is highly trained
in safety measures and emergency response (see Chapter 5). Hydrocarbon refrigerants have
not been used in centrifugal chillers for air conditioning due to safety code restrictions,
concerns with large charges of flammable refrigerants, liability, and insurance issues.
R-744
R-744 air-cooled chillers have been introduced in the northern European market. Both airand water-cooled gas cooler versions are available. Models with cooling capacities from 40 to
500 kW are offered. In climates where the dominant cooling requirement is at an average
ambient temperature of 150C or less, these systems can be equivalent in energy efficiency and
LCCP with systems employing HFCs, R-717, or HCs. R-744 chillers are less attractive at
higher ambient temperatures due to decreasing efficiency with increasing ambient
temperature.
There heat recovery to generate hot water at temperatures of 60oC or higher can be employed
in a total energy strategy for a building, R-744 chillers offer the advantage of being able to
use waste heat to raise water to higher temperatures with higher efficiency than other
refrigerants. Chilled water can be used to sub-cool the refrigerant before expansion. For this
application, R-744 heat recovery chillers provide good efficiency.
R-718
The very low pressures, high compression ratios, and high volumetric flow rates required in
water vapour compression systems require high volumetric flow axial compressor designs
that are uncommon in the chiller field. However, several research projects are active and
developmental companies have attempted their commercialization. A product was announced
in 2014 using water as the refrigerant. Applications for water as a refrigerant can chill water
or produce an ice slurry by direct evaporation from a pool of water. R-718 systems carry a
cost premium above conventional systems. The higher costs are inherent and are associated
with the large physical size of water vapour chillers and the complexity of the compressor
technology. Several developmental chillers and commercial vacuum ice makers have been
demonstrated in Europe, the Middle East, and South Africa including deep mine refrigeration
(Jahn, 1996), (Ophir, 2008), (Sheer, 2001), (Calm, 2011).
9.3.2.3 Alternatives to mechanical compression systems (absorption and adsorption
chillers)
Absorption water chillers are a viable alternative to the vapour-compression cycle for some
installations. Absorption chillers have been described in Section 9.2.2.
Adsorption chillers using water and zeolite also are an alternative (Boone, 2011).
9.4
Options for existing chiller equipment
When CFC and HCFC refrigerants are phased out (and in several countries that phased out
HFCs), the functions performed by chillers employing those refrigerants have to be supported
in one of the following ways:
188
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Retain/Contain: continued operation with stocked and/or reclaimed inventories in
conjunction with containment procedures and equipment modifications to reduce emissions.
Retrofit: modification to allow operation with alternative refrigerants (HFCs where
permitted) depending on applicable regulations.
Replace: early retirement/replacement with new chillers (preferably having higher efficiency
which reduces energy-related climate impact) using allowed refrigerants or not-in-kind
alternatives,
The retrofit options depend on the specific refrigerant for which the chiller was originally
designed. When any retrofit is performed, it is recommended that the machinery room be
upgraded to the requirements of the latest edition of safety standards such as ASHRAE 15
(ASHRAE, 2013), and EN 378 (EN, 2008) or international standards such as ISO 5149 (ISO,
2014). It is also recommended that the manufacturers of the equipment be consulted in any
retrofit program.
9.4.1
Positive displacement chillers
A positive displacement compressor inherently can be applied to handle a number of different
refrigerants and pressure ratios in a chiller if its motor has adequate power, the compressor,
tubing, heat exchangers, and other components can meet pressure codes and regulations with
the refrigerants, and the system materials and lubricant are compatible with the refrigerants.
Despite this flexibility, there remain a number of issues in retrofitting positive displacement
chillers to operate with new refrigerants. These issues were discussed in the 2010 RTOC
report.
9.4.2
Centrifugal chillers
Centrifugal compressors by nature must be designed specifically for a particular refrigerant
and a particular set of operating conditions for the refrigerant cycle in which they are used.
Direct refrigerant substitution in centrifugal chillers can be made only in cases where the
properties of the substitute refrigerant are nearly the same as those of the refrigerant for which
the equipment was designed, or when the impeller speed and/or impeller geometry can be
changed easily. In the past this has been accomplished by gear changes in open drive chillers
and with variable speed drives in both open and hermetic compressor chillers. The
compressor surge margin must be checked using the properties of the substitute refrigerant.
9.4.3
Non-vapor compression chiller replacements – absorption
The most common absorption chiller is the water-lithium bromide solution type, both direct
and indirect fired versions. When comparing the size of a mechanical vapour compression
chiller with an absorption chiller of similar capacity, the absorption chiller is about 25 to 50 %
bulkier. This factor may be crucial when retrofitting existing systems because of the size of
access ways and corridors. Another important factor is the cooling tower requirement of an
absorption chiller. Because absorption chillers require cooling for their condenser as well as
their absorbers where the mixing of the refrigerant and absorbent occurs, resulting in the
emission of heat of mixing and heat of solution that need to be removed, the cooling tower of
an absorption system can be 30 to 60 % larger than that of a mechanical vapour compression
system of a similar capacity.
On the other hand, the replacement of a mechanical vapour compression system with an
absorption system saves a portion of the electric consumption of the building. This reduces
the capacity requirements for the transformer, electric switchboards, and electric conduits.
Provision has to be made for suitable gas piping and train when a natural gas fired system is
used. Absorption systems do not require anti-vibration mounting since they have few moving
parts.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
189
9.5
Alternatives for high ambient conditions
Chiller rating points commonly involve ambient air temperatures of 35oC (95oF). However, in
very warm climates there is interest in knowing how chillers will perform when air
temperatures reach 47oC or even 52oC, and also, how the design of chillers can be modified to
improve high ambient operation.
This section focuses on air cooled chillers. The design of water cooled chillers for high
ambient conditions involves the same approaches as for air cooled chillers but is less
challenging because condensing temperatures are lower for a given ambient temperature.
Air-cooled chillers with positive displacement compressors (rotary, reciprocating, scroll,
screw) designed for an ambient of 35oC will operate at high ambient conditions but with
reductions in capacity and COP. An illustrative example is given for actual 3 ton residential
air conditioners in the May 2010 TEAP XX/8 Task Force Report. For HCFC-22, capacity was
reduced by 15% and COP was reduced by 35% when the ambient temperature increased from
35oC to 52oC. For R-410A the reductions were 18% and 40 % respectively. Design changes
that can improve chiller performance at high ambient temperatures include applying a
compressor with proper capacity and compression ratio for the ambient condition, adjusting
the compressor built-in volume ratio for scroll and screw compressors, increasing condenser
size, and providing a properly-sized expansion device. Features such as economizers are more
effective in high ambient conditions than for lower condensing temperatures. HFC-134a has
less performance degradation than R-410A, and HFC-32 (an A2L refrigerant) has even less
performance degradation. These refrigerants are not interchangeable because of their differing
capacities, pressure levels, and lubricant requirements. Chiller design must be tailored for the
specific refrigerant selected.
Chillers with centrifugal compressors require a different approach. Typically, additional
compressor stages may be required. If condensers cannot be water-cooled because water is
scarce or expensive, dry coolers are used. Air-cooled condensers with tubes and fins or
microchannel heat exchangers are not commonly used with centrifugal compressors because
they are sensitive to the increased pressure drop on the refrigerant side of these types of
condensers as compared to dry coolers. The refrigerants used in centrifugal chillers for high
ambient conditions typically are HFC-134a and HCFC-123.
HFC-32, an A2L refrigerant, is being considered as a lower-GWP alternative to R-410A or
HFC-134a for high ambient applications. R-444B has been shown to perform well at high
ambient conditions (Schultz 2014). It is too early to know whether or when other lower GWP
refrigerants will be available as alternatives to R-410A, HFC-134a, and HCFC-123 for
chillers operating in high ambient conditions.
9.6
Concluding remarks
This chapter shows that no “ideal” low-GWP replacements for HFC-134a, R-410A, and
HCFC-22 have been identified for chiller applications. An “ideal” refrigerant would
have nearly-zero ODP, a zero or low GWP, an A1 ASHRAE/ISO safety classification,
near-zero temperature glide, energy efficiency equivalent to or better than the
refrigerant being replaced, and acceptable cost for the quantity used in typical chillers.
Additionally, the cost of conversion of compressors and heat exchangers should not be
prohibitive to manufacturers.
Global warming effects from chillers are dominated by their energy use. There
continues to be consumer and regulatory pressure to improve full and part load or
seasonal energy consumption which will have a positive climate impact.
Direct global warming effects from refrigerant emissions from chillers are significantly
smaller than the climate effect from the energy consumed during the lifetime of
190
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
operation. Emissions have been significantly reduced in recent years through lower
charge systems, low-leak designs, manufacturing and testing improvements, and
improved service practices.
Thus, chemical producers and chiller manufacturers will continue to focus their efforts
on refrigerant candidates that provide energy efficiencies that are equal to or better than
the refrigerants being replaced.
A1 refrigerants with GWPs up to 675 offer performance and safety benefits for some
applications.
The ultimate goal is to choose alternative solutions that are the most energy efficient
while remaining viable to chiller manufacturers, regulators, and users.
9.7
References
AHRI, 2011
Standard 550/590-2011 with Addendum 1: Performance Rating of
Water-Chilling and Heat Pump Water-Heating Packages Using the
Vapor Compression Cycle, 2011. Air-Conditioning, Heating, and
Refrigeration Institute, Arlington VA, USA
ASHRAE, 2013
ANSI/ASHRAE Standard 15-2013, Safety Standard for Refrigeration
Systems, 2013. American Society of Heating, Refrigeration, and AirConditioning Engineers (ASHRAE), Atlanta, GA, USA
Boone, 2011
Boone, J., Adsorption Chiller, UNEP/IIR 14th European Conference
on Renewable Energy Applications in Heating and Cooling,
Edinburgh, 2011
Calm, 2011
Calm, J.M., Refrigerants for Deep Mine Refrigeration, Refrigerants
for Sustainable Development, Proceedings of the 23rd International
Congress of Refrigeration, Prague, Czech Republic, August 21-26,
2011; International Institute for Refrigeration, Paris, France, Paper
914
EN, 2008
EN378: 2008. Refrigerating Systems and Heat Pumps – Safety and
Environmental Requirements, 2008, A1 2012 Parts 1-4, Comite
Europeen de Normalisation, Brussels
ISO, 2014
ISO Standard 5149:2014. Mechanical Refrigeration Systems Used
for Heating and Cooling – Safety Requirements, International
Organization for Standardization, Geneva, Switzerland
Jahn, 1996
Jahn, E., Lausen, D., and Paul, J., 1996. Cooling of Mines with
Vacuum Ice, Proceedings of the FRIGA’96 Conference,
Johannesburg, South Africa
Johnson, 2012
Johnson, P.A., Wang, X., and Amrane, K., AHRI Low-GWP
Alternative Refrigerant Evaluation Program, ASHRAE/NIST
Refrigerants Conference, NIST, Gaithersburg, MD USA, American
Society of Heating, Refrigeration, and Air-Conditioning Engineers
(ASHRAE), Atlanta, GA, USA , October 29-30
Leck, 2010
Leck, T.J., Kontomaris, K., and Rinne, F., 2010. Development and
Evaluation of High Performance, Low GWP Refrigerants for AC and
Refrigeration, Conference on Sustainable Refrigeration and Heat
Pump Technology, Royal Institute of Technology (KTH), Stockholm,
Sweden, June 13-16
Kontomaris, 2009
Kontomaris, K., Leck, T.J., 2009. Low GWP Refrigerants for
Centrifugal Chillers, American Society of Heating, Refrigeration,
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
191
and Air-Conditioning Engineers (ASHRAE), 2009 Annual
Conference, Louisville, KY, USA, June 24
Kontomaris, 2010a
Kontomaris, K., and Leck, T.J., 2010. Low GWP Refrigerants for Air
Conditioning of Large Buildings, 10th REHVA World Congress,
Sustainable Energy Use in Buildings, Antalya, Turkey, May 9-12
Kontomaris, 2010b
Kontomaris, K., Leck, T.J., and Hughes, J., 2010. A NonFlammable, Reduced GWP, HFC-134a Replacement in Centrifugal
Chillers: DR-11, 13th International Refrigeration and AirConditioning Conference, Purdue University, Lafayette, IN, USA,
July 12-15
Kontomaris, 2010c
Kontomaris, K., 2010. A Low GWP Replacement for HCFC-123 in
Centrifugal Chillers: DR-2, American Society of Heating,
Refrigeration, and Air-Conditioning Engineers (ASHRAE) and
United Nations Environmental Programme (UNEP) Conference,
Road to Climate Friendly Chillers – Moving Beyond CFCs and
HCFCs, Cairo, Egypt, September 30-October 1
Kontomaris, 2013
Kontomaris, K., Kulankara, S., and Kauffman, J.P., A Reduced
Global Warming Potential Replacement for HFC-134a in Centrifugal
Chillers: XP-10 Measured Performance and Projected Climate
Impact, HVAC&R Research, 19(7) p. 857-864
Ophir, 2008
Ophir, A., 2008. Mechanical Heat Pumps Using Water as Refrigerant
for Ice Production and Air Conditioning, presentation, International
District Energy Association (IDEA), 99th Annual Convention in
Orlando, FL, Westborough, MA, USA
Pearson, 2008a
Pearson, A., 2008. Ammonia’s Future, ASHRAE Journal, American
Society of Heating, Refrigerating, and Air Conditioning Engineers
(ASHRAE), Atlanta, GA, USA, 50(2): 30-36
Pearson, 2008b
Pearson, A., 2008. Water Chillers with Ammonia for Building
Services, Natural Refrigerants – Sustainable Ozone and Climate
Friendly Alternatives to HCFCs, published by German Technical
Cooperation Programme Proklima, German Federal Ministry for
Economic Cooperation and Development, Bonn, Germany, July
Pearson, 2012
Pearson, A., 2012. Opportunities for Ammonia, ASHRAE/NIST
Refrigerants Conference, NIST, Gaithersburg, MD USA, American
Society of Heating, Refrigeration, and Air-Conditioning Engineers
(ASHRAE), Atlanta, GA, USA, October 29-30
Schuiltz, 2012
Schultz, K., Kujak, S., System Drop-In Tests of R-134a Alternative
Refrigerants (ARM-42a, N-13a, N-13b, R-1234ze(E), and Opteon
TM (XP10) in a 230-RT Water Cooled Water Chiller, AHRI LowGWP AREP Test Report #7, Nov. 19, 2012 (See website below for
access)
Schultz, 2014
Schultz, K., 2014. Performance of R-410A and R-22 Low GWP
Alternative Refrigerants at Elevated Temperatures, 15th International
Refrigeration and Air-Conditioning Conference, Purdue University,
Lafayette, IN, USA, July 14-17
Sheer, 2001
Sheer, T.J., Butterworth, M.D., and Ramsden, R., 2001. Ice as a
Coolant for Deep Mines, Chapter 52, Proceedings of the 7th
International Mine Ventilation Congress, Research and Development
Center for Electrical Engineering and Automation in Mining,
192
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Krakow, Poland, June
Spatz, 2008
Spatz, M.W., 2008. Latest Developments in Refrigerants for A/C&R
Applications, The International Symposium on New Refrigerants and
Environmental Technology 2008. Kobe, Japan, November 20-21
TEAP, 2013
Decision XXIV/7 Task Force Report, Additional Information on
Alternatives to ODS, 2013. Report of the UNEP Technology and
Economic Assessment Panel, UNEP Ozone Secretariat, Nairobi,
Kenya, September 2013
Website
AHRI 2013
Site for Low-GWP AREP Test reports:
www.ahrinet.org/resources/research tab - then AHRI Low-GWP
Alternate Refrigerants Evaluation Program for list of downloadable
test reports
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
193
194
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 10
__________________________________________________________
Vehicle Air Conditioning
Chapter Lead Author
Jürgen Köhler
Co-Authors
Radhey Agarwal
Radim Čermák
Jiangping Chen
Dave Godwin
Carloandrea Malvicino
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
195
196
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
10
10.1
Vehicle air conditioning
Introduction
Vehicles (cars, trucks, buses and trains – this chapter does not cover ship air conditioning)
built before the mid-1990’s used mostly CFC-12 as the refrigerant with some HCFC-22 use in
trains. Since then, in response to the Montreal Protocol, new vehicles with air conditioning
(AC) have been equipped with systems using HFC-134a. By the year 2000, the transition
from CFC-12 to HFC-134a as an Original Equipment Manufacturer (OEM) refrigerant, for
factory installed AC systems, was complete in all developed countries. The transition to HFC134a in developing countries was completed by approximately 2007. In addition, since the
mid-1990’s, development of alternatives to HFC-134a has been underway due to the high
Global Warming Potential [GWP] of HFC-134a.
In this chapter, mobile air conditioning systems are those used in passenger cars, light duty
trucks, buses and rail vehicles that are generally based on vapour compression cycles. This
chapter also addresses the heat pump mode of the air conditioning cycle, for example systems
used for heating battery-driven electric vehicles (BEVs). Annex C (Not-In-Kind Alternatives)
provides a brief overview of other refrigeration techniques which might become important for
vehicle air conditioning systems in the future (beyond 2020).
Chapter 10 covers the new developments in the field of mobile air conditioning systems since
the RTOC 2010 Report. For more details on the system design and the history of refrigerant
system development for these vehicles prior to 2010, see that and all preceding RTOC reports.
It should be mentioned that the development in this field is strongly driven by legal guidelines
and regulations (probably much stronger than in other fields). So, Annex B provides a partial
overview of the legal situation worldwide.
The ozone depletion potential (ODP) and global warming potential (GWP) values of the
refrigerants mentioned in this chapter are given in chapter 2 of this report.
10.2
Description of systems and current and future applications of mobile air
conditioning systems
Detailed descriptions of direct and indirect (secondary loop) systems can be found in the
2002, 2006, and 2010 RTOC Reports. As noted above, due to the transition from CFC to
HFC's in the mid-1990's, HFC-134a quickly became the refrigerant of choice for new
equipment as well as retrofits of CFC-12 designs. Most non-Article 5 countries phased in
HFC-134a in new vehicles similarly to the U.S., starting in the early 1990s and completing
this transition by the mid-1990s. Article 5 countries followed with some models offered
during the 1990s and full transition by the following decade.
HFC-134a systems have become increasingly more leak tight taking benefit in part from the
technology developed in the study of R-744 (carbon dioxide) and in part from regional leak
reduction programs, e.g., US light-duty vehicle regulations, the Improved Mobile Air
Conditioning (I-MAC) program, etc. Correspondingly, hose materials and coupling designs
for hoses have also been improved in a relevant way. In addition to that, compared to earlier
designs, HFC-134a systems today show improved energy efficiency and lower fuel
consumption to meet new regulatory requirements in the USA (USEPA, 2011b) and driven by
increased awareness of fuel consumption of mobile air conditioners (MACs) in the EU.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
197
10.2.1
Refrigerant cost and recharge
Passenger cars and light duty trucks have refrigerant charge amounts from 0.3 kg to 1.4 kg.
Bus and rail vehicles can have refrigerant charge amounts from 2 kg to 15 kg and some even
higher amounts.
The rise in counterfeiting is probably due to production and use restrictions on some
refrigerants in accordance with the 1987 Montreal Protocol and the 1997 Kyoto Protocol and
to the higher cost associated with more environmentally friendly refrigerants than what they
are replacing (Velders, 2009). Hence, counterfeited HFC-134a is infiltrating the refrigerant
bank in Asia, and affecting also other countries.
Today, even if the relative cost of HFC-134a is low, i.e. 5 US$/lb or 11 US$/kg (or even less),
counterfeit HFC-134a is still appearing in the automotive market. Counterfeit HFC-134a
containing multiple CFC, toxic, or corrosive components is a serious threat destroying
equipment and injuring end-users. It also has an increasing opportunity to enter the supply
chain. The issue is even more relevant in non-European countries (Coll, 2012).
So, in case that a drop-in or nearly drop-in but more expensive refrigerant will be chosen to
replace HFC-134a worldwide, the counterfeit risk will become even more relevant and this,
beside all the other impacts, could strongly reduce the expected environmental benefit.
The commercial expected price of HFC-1234yf (Weissler, 2013) is estimated at US$ 40-45/lb
or US$ 88-99/kg (retail prices could be 2 to 3 times higher). The expected price of R-445A
probably will be lower but there exist questions that have been raised on patent issues. Cost
and availability are crucial issues that have to be considered in identifying replacement(s) for
HFC-134a, currently widely adopted in car air conditioning systems.
10.2.2
Future Trends
The European Union and the United States already have in place regulations that influence
mobile air conditioning designs while the other countries with a high density of road vehicles
are rapidly moving in the same direction (for example Brazil, Inovar Auto, 2012).
This drives to more efficient on-board systems including MACs and to the replacement of
high GWP fluid with lower GWP substances.
Meanwhile the same regulations are leading to a progressive diffusion of hybrid vehicles in
the short-medium term (3 - 10 years) that in the medium-long term (5 - 15 years) will be
further integrated with fully electric vehicles. These vehicles require highly efficient mobile
air conditioning to minimise the impact on the pure electric range and, as additional evolution,
to be able to operate also as a heat pump. These challenges will be met by developing and
adopting technical solutions that will have to represent the best trade-off among economic and
environmental sustainability issues.
In this framework the thermal systems and especially the MAC systems have a relevant role
and will likely undergo a deep change where the system integration will represent a relevant
evolution guideline.
It is expected that the passenger cars and light duty vehicle domain will rapidly move toward
downsized turbocharged engines often coupled with different levels of hybridization to make
the overall powertrain more efficient and to reduce CO2 emissions, with effects on MACs as
described below. Increased levels of transmission gears are also occurring, moving vehicles
from 4/5/6 levels to 7/8/9 levels leading to a reduction of average compressor speeds so
implying AC capacity concerns at low speeds in some cases or to the increase of the
compressor displacement or finally to the adoption of electrically driven systems.
198
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
To answer to the increased demand of capacity and reduction of GHG emission, the car air
conditioning systems using HFC-134a have to become increasingly more leak tight and
efficient.
The adoption of improved components (compressor and heat exchangers) and the introduction
of internal heat exchangers as well as improved control strategies allowed a significant
increase of system efficiencies.
New sealing concepts and improved hose materials have also been developed to reduce
refrigerant direct emissions and to reduce the frequency of required maintenance or service.
The trend in the MACS service profiles over the last 10 years (2003-2013) indicates that with
reduced refrigerant emissions, the system is being serviced later in the vehicle’s life,
indicating more years of useful life from the system. With this extended lifetime, service is
more likely to be purchased by the vehicle’s second owner as compared to previous surveys
of earlier vehicles (Atkinson, 2014).
Stop & Start and Hybrid Vehicles
The diffusion of vehicles able to carry out part of their mission with the combustion engine
off (e.g. Stop & Start, extended Stop & Start, and hybrids) asks for new solutions for the air
conditioning system to guarantee the summer and winter thermal comfort in all the
operational conditions.
The majority of these vehicles will have 12 V to 48 V electric energy sources and only part of
them will have higher voltage network (e.g. up to 350 V), while all will have an additional onboard electric energy storage unit with a capacity ranging from 0.2 kWh (low voltage) up to 5
kWh (high voltage).
This implies that only a small portion of the future vehicles will have an electric compressor
while a large part will be equipped with mechanically driven compressors as today due to
energy balance and cost, so measures will be adopted to maintain the required comfort and
guarantee the safety performance (i.e. de-fogging), as for example:
•
cooling energy storage unit based on phase change materials
•
secondary loop system taking benefit from its thermal inertia to store cooling power
•
additional electric compressor, downsizing the belt-driven compressor
The increase of on-board electric power and the diffusion of turbocharged engines together
with the need to at least maintain the aerodynamic drag will presumably lead to a low
temperature cooling loop integrating the charge air cooler, air conditioning condenser, power
electronics and generator in the case of hybrid powertrain.
In synthesis, the evolution will produce a deeper integration of the on-board thermal systems
and the air conditioning will become part of it.
Plug-in Hybrids and Battery-driven Electric Vehicles
For Plug-in Hybrids (PHEV) and Battery-driven electric vehicles (BEV), vehicle air
conditioning systems for cooling as well as heat pump systems for heating need to have very
high energy efficiency to minimize the impact on the vehicle driving range.
MAC systems, when operating as a heat pump with HFC-refrigerants currently used can take
benefit of the on-board outdoor heat sources (battery, power electronics, etc.) to enhance their
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
199
effectiveness in case of very low ambient temperatures partially compensating for their low
efficiency and capacity. This can be achieved adopting a secondary loop that by collecting the
heat from the on-board electronics can raise the temperature of the heat source. In this
framework, dual loop systems (with liquid cooled condensers and liquid heated evaporators)
offer the highest flexibility level and at the same time allow the OEM to minimize the
refrigerant charge, the leak rate, and the risk of dispersion in case of an accident. However,
these secondary loop systems do increase the vehicle mass due to the additional coolant and
components which might adversely affect vehicle fuel economy at all times of vehicle usage.
For some applications the MAC system will be also used for battery thermal control as well as
power electronics (i.e. cooling and heating).
New Refrigeration Systems
The need to progressively increase the energy efficiency requires the exploitation of all
available waste energies, heat included. The application of heat driven refrigeration systems
(e.g. adsorption, absorption, etc.) can be foreseen for the heavy duty vehicle domain (e.g.
trucks and coaches) which often operate at near constant speed (highway) and where the
weight and packaging constraints are less severe than in the passenger cars field.
Waste Heat Recovery
The adoption of a Rankine Cycle to convert part of the combustion waste heat of a thermal
engine into mechanical or electric energy could allow manufacturers to increase dramatically
the vehicle energy efficiency (see section 5.1.6 of this report, and for example Horst et al.
2014 or Hartmann 2014).
These systems are under investigation for diesel heavy duty truck applications in Europe and
the US and for gasoline light trucks in the US.
As a working fluid, the Rankine cycle can use water, ethanol or a mixture of both, or an
organic fluid like HFC-245fa, hydrocarbons, or carbon dioxide.
The fluid HFC-245fa has good properties for the application but has a GWP of 1050, higher
than the threshold of the MAC Directive in Europe.
Studies are ongoing to evaluate the application of fluids with similar properties but with a
lower GWP, as for example HCFC-1233zd(E) and HFC-1336mzz(Z) (Kontomaris, 2014).
10.3
Options for New and Future Mobile Air Conditioning Systems
10.3.1
Passenger Car and Light Truck Air Conditioning\
As already mentioned in the introduction, this report concentrates on vapour compression
refrigeration cycle technology for vehicle air conditioning.
Improved HFC-134a Systems
With the introduction of the credit system in the USA, and also upcoming legislation in
Europe, more vehicle OEMs are introducing technologies to reduce energy consumption with
HFC-134a refrigerants. Many efficiency-improving technologies are now being used in
current production HFC-134a systems, for example, internal heat exchangers, oil separators in
compressors, increased use of externally controlled compressors, etc.
200
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
HFC-1234yf Systems
HFC-1234yf systems are able to reach the same system performance and fuel efficiency as
HFC-134a system if they use either an internal heat exchanger (IHX) or a condenser in which
the subcooling area is enlarged by about 10% while keeping the same total exchange area
(Zilio, 2009). In the latter case, HFC-1234yf charge amounts could increase by a maximum of
10% depending on the system layout. The addition of an IHX also generally increases charge
amount but some suppliers are reducing the liquid-side volume to minimize this and in some
cases there are issues with pressure drop on the liquid side of the IHX. Thus, manufacturers
are working now on ways to compensate for this and to reduce refrigerant charge further due
to the higher (i.e., more than 10 times expected) cost of HFC-1234yf as compared to HFC134a. Due to increased density of HFC-1234yf versus HFC-134a, it might be possible to
reduce the charge amount depending on the system layout.
HFC-1234yf is designated as an A2L refrigerant, meaning that it is flammable under
prescribed testing conditions but exhibits a lower burning velocity than other flammable
refrigerants designated as class 2 or 3 flammability refrigerants (ASHRAE, 2013). The
flammability potential has led to high scrutiny surrounding the safe use of the refrigerant and
possible ways to mitigate any risks.
The US EPA has studied the potential use of HFC-1234yf as a MAC refrigerant under the US
Clean Air Act’s Significant New Alternatives Policy (SNAP) Program and has SNAP-listed
HFC-1234yf as an acceptable refrigerant with the following additional use conditions
(USEPA, 2011a):
•
HFC-1234yf MAC systems must meet the requirements of the 2011 SAE J639
standard version („Safety Standards for Motor Vehicle Refrigerant Vapor
Compression Systems“), describing the safety requirements for the use of R-1234yf
in MAC systems.
•
Manufacturer for MAC systems and vehicles have to conduct and keep records of a
risk assessment and Failure Mode and Effects Analysis according to the SAE J1739
standard („Potential Failure Mode and Effects Analysis in Design (Design FMEA)
and Potential Failure Mode and Effects Analysis in Manufacturing and Assembly
Processes (Process FMEA) and Effects Analysis for Machinery (Machinery FMEA)“)
for at least three years from the date of creation
Further requirements outside the US are based on ISO 13043:2011.
Some car manufacturers currently have new vehicles equipped with the HFC-1234yf on the
European market (Mandrile, 2013) and in the United States (McAvoy, 2014 and
Moultanovsky, 2014). Atkinson, 2014 provides a list of 9 car types which use HFC-1234yf in
the US market.
A SAE Cooperative Research Project (CRP) set up to assess the HFC-1234yf systems safety
concluded that HFC-1234yf is acceptable for market without concentration limits. Even the
German VDA stated in a 2012 publication (Hammer, 2012) that flammability and toxicity of
the refrigerant or possible decomposition products do not lead to higher level of risks for
vehicle occupants or helpers at accidents, e.g. fire fighters, and cars using HFC-1234yf are as
safe as those using HFC-134a. SAE standards have been developed to cover service best
practices, safety practices, technician training, and refrigerant purity of HFC-1234yf (SAE
J2845, 2013).
Further analyses, however, have disputed these earlier findings that the flammability and
toxicity of HFC-1234yf do not lead to higher level of risks. A German car manufacturer
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
201
carried out a series of additional tests on HFC-1234yf as part of a new test scenario developed
in-house which goes above and beyond the legally prescribed requirements. Under these
conditions, described by the manufacturer as real-life, the reproducible test results
demonstrate that HFC-1234yf, which is otherwise difficult to ignite under laboratory
conditions, mixed with lubricant can indeed prove to be flammable in a hot engine
compartment. Similar tests of the current HFC-134a refrigerant and lubricant did not result in
ignition. Based on these new findings, the German car manufacturer concluded that HFC1234yf will not be used in its products (Daimler, 2012).
Some EU countries are starting to ask for additional safety evaluation and preventive safety
measures to assure the higher safety standards. Nevertheless, the EU, in agreement with the
Regulation that does not indicate any specific substance, decided to not change the regulation
or allow any delay or derogation.
In response and to address the safety concerns of the German car manufacturer, a new SAE
CRP (1234-4: SAE press rel., 2013) was formed and continued its process of carefully
reviewing the use of HFC-1234yf by using universally accepted engineering methods,
including analysis of recent OEM testing from actual vehicle crash data, on-vehicle
simulations, laboratory simulations, bench tests, and over 100 engine compartment refrigerant
releases. Based on this testing the CRP has found that the refrigerant is highly unlikely to
ignite and that ignition requires extremely idealized conditions, even when mixed with the
lubricant as normally happens in real world conditions. The SAE CRP team has also
identified that the refrigerant release testing completed by the German car manufacturer was
unrealistic by creating the extremely idealized conditions for ignition while ignoring actual
real world collision scenarios. These conditions include specific combinations of temperature,
amount and distribution of refrigerant, along with velocity, turbulence, and atomization,
which are highly improbable to simultaneously occur in real-world collisions. The SAE CRP
team included European (but no German), North American, and Asian OEMs (SAE, 2013).
According to a report (Reuters, 2013), the accuracy of which has been disputed, five German
OEMs and (only for the European market) one Japanese OEM made the decision
(temporarily) not to use HFC-1234yf in their cars but to use old type approval schemes for
extending the use of HFC-134a. This development is slowing down the introduction of HFC1234yf globally.
To review and address the safety concerns of the German car manufacturer, Germany's
Federal Motor Transport Authority (Kraftfahrt-Bundesamt, KBA) commissioned tests based
on a variation of the R94 crash test with standard cars equipped with HFC-134a and HFC1234yf air conditioning systems. The German Technischer Überwachungsverein (TÜV)
tested four cars on behalf of KBA. The general test condition employed were the following:
40 km/h, 40% vehicle off-set simulated crash, hot engine test, refrigerant leakage varied in the
various test stages:
• Stage 1: simulated 40% off-set, vehicle crash where components were checked for
refrigerant leakage
• Stage 2: non-leaking A/C parts that were damaged in simulated crash, were manually
made to leak refrigerant
• Stage 3: further changes made to A/C parts to change direction of refrigerant leakage
flow by turning lines and adding plate or fish mouth aperture.
Two realistic scenarios have been evaluated (stage 1 and 2). The second stage intended to
evaluate the dispersion of the refrigerant in the engine bay because of breaches that have not
been created during the crash test but that could be possible. In all of the situations no ignition
202
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
and no hydrogene fluoride (HF) production have been observed. A third scenario (stage 3) has
been considered where the components have been manually modified in order to simulate
further breaks and underhood situations that could be possible. For HFC-1234yf, Stage 3
showed higher hydrogene fluoride values. At that level a fire occurred in one of the four cars.
The test was repeated twice more; a fire occurred in one of those two tests. In the test where
the refrigerant ignited, peak HF concentrations of more than 3000 ppm were measured briefly
(a few seconds) in the engine compartment. No HF concentration was found at the
measurement point in the vehicle interior (at the sun visor near the driver’s head). In a
comparative test with HFC-134a under those same conditions (level 3 test of this one model)
no fire occurred. .
Based on these tests KBA found that compared to cars with HFC-134a air conditioning
systems the safety level of a car is decreasing if the car is equipped with a HFC-1234yf air
conditioning system. Based on this, KBA recommends further investigation and asks for a
specific legislation that defines tests for the type approval (KBA, 2013).
The Joint Research Centre (JRC) of the EU was holding discussions with relevant
stakeholders during the review of the safety of HFC-1234yf. This consultation process was
essential to provide for transparency and confidence in the process, but did not entail the
approval by the stakeholders of the JRC report. Therefore, on behalf of the European
Commission, DG ENTR and the JRC requested industry stakeholders and institutions which
have conducted relevant test procedures and risk assessments and could provide further
information useful for the process, to participate in this process and communicate the relevant
information available.
Following this consultation process, in March 2014 the JRC completed its final report with
the following conclusions (EU, 2014a and EU, 2014b):
1.
Regarding the general approach to the testing by KBA, the report acknowledges that
there is no "Standard" or "Regulatory" testing procedure available for the purpose.
Therefore the KBA has legitimately used the experts' judgments and engineering
judgments for selecting the test conditions.
2.
Regarding the pre-tests that the KBA carried out to determine the desired test
temperature for the refrigerant release tests, the testing of the vehicles followed the
objective to reach the highest possible temperatures. The derived scenarios were
extreme, but justifiable and reasonable ones, covering urban, extra-urban and
highway driving conditions, and fully justified within the scope of the vehicle
testing for the purpose of product safety investigations.
3.
Regarding the crash tests, the JRC considered that the approach taken by the KBA
was justified.
4.
Regarding the Level 1 and Level 2 tests, the KBA concluded that "results do not
provide sufficient supporting evidence of a serious risk within the meaning of the
Product Safety Act (ProdSG) with the vehicle types tested hereto warrant the taking
of any immediate measures by the KBA pursuant to that Act". The JRC underlined
that these tests showed no ignition of refrigerants and very low hydrogen fluoride
(HF) release despite the very high temperatures in the engine compartment.
Consequently the results as such with the vehicles tested under the conditions as
described provided no evidence of a serious risk. The JRC hence supports the
evaluation of the KBA that there were no grounds for the authorities to take
measures under the European general product safety legislation. Therefore,
according to this legislation, the products tested have to be considered safe products.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
203
5.
Finally, regarding the refrigerant release tests under Level 3, these were not taken
into account by KBA as relevant input "for the assessment of a possible risk within
the scope of the statutory tasks as product safety authority". This approach is
supported by the JRC. One driving force behind the tests carried out under Level 3
is exploring what could happen under assumed extreme conditions not yet covered
in Level 1 and Level 2 testing. The research character is also confirmed by going
beyond the boundaries and limitations set for Level 1 and Level 2 tests, to verify if
the worst case was chosen in the test setup, and considering in Level 3 also the
"development of engines which can be expected for the future". Whilst Level 1 and
Level 2 tests were realistic and were considered by KBA for their conclusions on
risks with respect to the product safety regulations, the Level 3 tests could not be
associated with the necessary concrete probability of occurrence, but serve as a
general appraisal of the risk. Compared to the scenarios for the realistic Level 1 and
Level 2 testing, the probability of Level 3 scenarios must be assumed to be far
lower, and not reflecting "normal or reasonably foreseeable conditions of use" under
which the General Product Safety Directive 2001/95/EC applies.
6.
Although not being part of the working group's mandate, during the meetings some
measures to further improve MAC safety were presented. Examples such as release
valves in MAC circuits, fire extinguisher, reduction of hot surfaces (thermal
insulation) and additional ventilation were discussed in different occasions during
the working group meetings.
As other methods to mitigate the flammability risks of HFC-1234yf MACs, studies are ongoing in industry on flame arrestors (Koban, 2013) and on the adoption of a liquid cooled
condenser.
Carbon Dioxide (R-744) Systems
R-744 refrigerant charge amounts are typically reduced by 20-30% as compared to HFC-134a
systems. The US EPA has studied the potential use of R-744 as a refrigerant under the US
Clean Air Act’s Significant New Alternatives Policy (SNAP) Program and has SNAP-listed
R-744 as an acceptable refrigerant with the following additional use conditions (USEPA,
2012a):
•
Engineering strategies and/or mitigation devices shall be incorporated such that in the
event of refrigerant leaks the resulting R-744 concentrations do not exceed the short
term exposure level. Vehicle manufacturers must keep records of the tests performed
for a minimum period of three years demonstrating that R-744 refrigerant levels do
not exceed the STEL (short-term exposure limit) of 3% averaged over 15 minutes in
the passenger free space, and the ceiling limit of 4% at any time in the breathing zone.
•
The use of R-744 in MAC systems must adhere to the standard conditions identified
in SAE J639 Standard.
Outside of the US, ISO Standard 13043:2011 may be employed which provides additional
exposure limits which deviate from the SNAP values listed in the first bullet: an acute toxicity
exposure limit (ATEL) of 4% averaged over 30 minutes, an acute toxicity exposure limit of
5.5% averaged over 5 minutes, and a peak limit of 9%.
SAE standards are being developed to cover service best practices, safety practices, and
refrigerant purity of R-744 (SAE J2845, 2013). However, many of the R-744 standards were
not completed and published due to the interest by the industry in HFC-1234yf. With the
renewed interest in R-744 the SAE ICCC is currently reviewing standards for its use.
204
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
R-744, with appropriate system design and control, has been shown to be comparable to HFC134a systems with respect to cooling performance and total equivalent CO2 emissions due to
MAC systems, and qualifies for use in the EU under the current regulation (Directive
2006/40/EC). In a generic study which does not depend on an actual state of development,
Strupp (2011) compared the required energy input (which is proportional to the CO2
emission) of typical R-744 air conditioning systems with low, medium and high energy
efficiencies to a typical HFC air conditioning system. With a high resolution, his comparison
takes into account the climatic region, the local population density, and the user behavior
(how many cars are at a particular time on a particular road). He did this comparison for the
typical climatic regions China, Europe, India, and USA, with the result that the differences
between the required annual energy inputs to drive the different air conditioning systems in a
particular climatic region are in a margin of plus/minus seven percent.
R-744 heat pumps are available from one German supplier as compact cooling and heating
systems for the particular application in hybrid and battery driven electric vehicles (Hinrichs,
2011). In comparison to electric resistance heaters (positive temperature coefficient (PTC)
heaters), which reduce significantly the vehicle fuel efficiency and hence driving range, R744 heat pumps operate at a substantial higher level of efficiency and offer the advantage of
reducing only moderately the vehicle fuel efficiency and hence driving range (Steiner, 2014).
Currently, technical hurdles (noise, vibration, harshness (NVH) reliability, and leakage) and
commercial challenges (infrastructure development, handling, aftermarket servicing,
additional costs, etc.) exist that will require resolution prior to the implementation of R-744 as
a general refrigerant for car air conditioning. As a consequence of the safety concerns of one
German OEM regarding HFC-1234yf, in March 2013, four additional German car
manufacturers proclaimed that they will also develop R-744 (see for example Volkswagen,
2013).
Together with suppliers the German OEMs are working seriously (several working groups,
standardization, etc.) to achieve the aim of serial-produced R-744-systems in the year 2017
(see for example Geyer, 2013; Pelsemaker 2013; and Leisenheimer, 2013).
Carbon dioxide has also the potential to be used as working fluid in future car Organic
Rankine Cycles (ORC) which could help improve the overall fuel efficiency of vehicles (see,
for example, Chen, 2010 as well as Mitri, 2013).
HFC-152a Systems
Because of its flammability, HFC-152a would require additional safety systems. Most
development activity has been focused on using this refrigerant in a secondary loop system
but more probably in a double secondary loop system as a means of assuring safe use.
Refrigerant charge amounts in a direct expansion system could be reduced by 25-30% in mass
as compared to HFC-134a and with a secondary loop system, typically 50%. Industry experts
have discussed using HFC-152a, but only in a secondary loop type system. A secondary loop
system uses glycol and water as the direct coolant in the passenger compartment with this
coolant being cooled under-hood by the refrigerant. A double secondary loop system uses
glycol and water as the direct coolant passenger compartment and another glycol and water
loop being used with the condenser. The use of two loops prevents refrigerant leaking into
passenger compartment or leaking during breach of condenser during an accident. Prototype
HFC-152a MACs and prototype vehicles using them have been demonstrated in the past years
(for example, Craig, T, 2007 or Lemke, 2014). The obstacles to the implementation due to the
additional cost, weight increases and size constraints are in part compensated by the
advantages in case of Stop & Start thanks to the additional inertia of the system and the
possibility to store cooling power.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
205
The US EPA has studied the potential use of HFC-152a as a refrigerant under the US Clean
Air Act’s Significant New Alternatives Policy (SNAP) Program and has SNAP-listed HFC152a as an acceptable refrigerant with the following additional use condition (USEPA, 2008):
•
Engineering strategies and/or devices shall be incorporated into the system such that
foreseeable leaks into the passenger compartment do not result in HFC-152a
concentrations of 3.7% v/v or above in any part of the free space inside the passenger
compartment for more than 15 seconds when the car ignition is on.
As already mentioned in the RTOC 2010 Report, HFC-152a in a secondary loop system has
been shown to be comparable to HFC-134a with respect to cooling performance and
equivalent CO2 emissions due to MAC systems and qualifies for use in the EU under the
aforementioned regulations.
At present, only one car manufacturer has expressed a certain interest in adoption HFC-152a
as the refrigerant for MAC serial production, due to NVH and cost (for dual evaporator
systems) advantages related to the secondary loop system (Andersen, 2013).
With many new vehicle designs, using a secondary loop system may have advantages for idle
stop, cooling batteries or on-board electronics cooling. It also reduces the amount of
refrigerant and leak rate for multi-evaporator installations since chilled coolant is circulated
throughout the vehicle not refrigerant.
An Italian and a German OEM jointly completed an EU financed project with a double loop
(liquid cooled condenser and chiller) whose concept has been presented on a light duty
commercial demo vehicle (Malvicino, 2012); the same concept has been proposed also for
hybrid and electric vehicles (Leighton, 2014).
In China, some of the vehicle companies are using R-415B as refrigerant, which was
developed as alternative refrigerant for CFC-12 and HFC-134a. It consists of 75% by mass
HFC-152a and 25% HCFC-22.
Unsaturated Fluorinated Hydrocarbons and Blends containing Unsaturated Fluorinated
Hydrocarbons
In addition to HFC-1234yf, some zeotropic blends are still considered as possible candidates
in vehicle air conditioning systems by many researchers. Two mildly flammable blends were
introduced by a large chemical company, which has a history that traces its roots to HFC-134a
and other fluorochemical production in England. This chemical company registered the lesser
flammable of the two blends at the January 2013 ASHRAE meeting with a nominal mass
composition of 6% (±1%) R-744, 9% (±1%) HFC-134a and 85% (±2%) HFC-1234ze(E). It is
designated R-445A. The other blend, designated R-444A, is 12% HFC-32, 5% HFC-152a and
83% HFC-1234ze(E) by mass and is also registered with ASHRAE. Presentations regarding
these two blends were made at the annual SAE symposiums in Scottsdale, AZ and Troy, MI
(see for example Peral-Antunez, 2011; Atkinson and Hope, 2012; Peral-Antunez, 2012; and
Peral-Antunez, 2013).
Both blends are below the European Community regulated global warming limit of 150. Both
blends exhibit some flammability, with a designated A2L safety rating under ASHRAE
Standard 34-2013. The blends are being evaluated by a Cooperative Research Program (CRP)
under SAE rules. The more flammable blend (R-444A) matches the LCCP (life cycle climate
performance, a measure of environmental impact) of HFC-1234yf, whereas the lesser
flammable blend (R-445A) needs some improvement in efficiency to reach LCCP equality.
However, engineering approaches to reach this point are believed to have been identified, and
206
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
if the significant temperature glide (20K and more) also proves to be manageable, R-445A
would be the preferred blend because of its lower potential flammability than HFC-1234yf.
The CRP reports said that the more flammable blend R-444A has a pressure-temperature
curve and cooling efficiency close to both HFC-134a and HFC-1234yf, that its flammability
is similar to HFC-1234yf, and that the glide is similar to zeotropic blends in stationary
cooling.
Atkinson and Hope (2012) as well as Peral-Antunez (2012, 2013) report of significant
different leakage rates of the three components which could lead to a concentration shift after
some operating time or due to servicing. However, the team around Peral-Antunez (2014)
encountered no significant leakage problems during a four month/50,000 km on-the-road test
of two new cars equipped with R-445A MAC systems. Compared to HFC-134a, R-445A has
a higher high-side pressure (about 2bar) and a higher compressor discharge temperature
(about 10K). Due to the high temperature glide it has the risk of ice formation in the
evaporator (Koehler et al. 2013, and Li 2013). Owing to the high temperature glide R-445A
has the potential to be used as a heat pump fluid. Overall toxicity was described in promising
terms for both blends and a preliminary toxicology estimate for the Occupational Exposure
Limit, assigned by the CRP, shows that both are higher than the 500 ppm of HFC-1234yf and
close to the 1000 ppm for HFC-134a.
Hydrocarbons and Blends containing Hydrocarbons
In Australia and the USA, hydrocarbon blends, sold under various trade names, have been
used as refrigerants to replace CFC-12 and to a lesser extent for HFC-134a. The retrofits with
HCs are legal in some Australian states and illegal in others and in the USA. US EPA has
forbidden the uses of HCs for retrofit but has considered the possible use of HCs for new
systems, but is awaiting proof that safety issues have been mitigated.
HCs or HC-blends, when correctly chosen, present suitable thermodynamic properties for the
vapour compression cycle and permit high energy efficiency to be achieved with welldesigned indirect systems (same systems as the secondary loop system presented above for
HFC-152a). Nevertheless, even with indirect systems, HCs are so far not seen by the largest
part of vehicle manufacturers as replacement fluids for mass-produced AC systems due to
safety concerns.
The combined needs of advanced thermal systems and air conditioning for hybrid and electric
vehicles and lower GHG emissions makes promising the introduction of a compact
refrigeration unit incorporating an electric compressor and fully sealed and pre-charged
design. The compact refrigeration unit being constituted by two liquid cooled exchangers
(chiller and condenser and where requested of an internal heat exchanger) is able to produce
hot or cold coolant, normally a water-glycol mixture, and to minimize the refrigerant charge
and leak.
With this perspective, the use of hydrocarbons or blends of them becomes once again
interesting, being such fluids are worldwide available, cheap and with a very low
environmental impact.
The use of a compact refrigeration unit with a double loop enables the opportunity to mitigate
the issue related to refrigerant leak allowing very low charge (-50%). Furthermore it enables
also the use of the air conditioner as heat pump without the need of a 4 way valve, making
easier the thermal management of the batteries and electronics. This approach is under
development in Italy and Germany and the components are already available from different
leading suppliers in Italy, France, as well as in Germany and US.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
207
Hydrocarbons have also the potential to be used as working fluid in future car Organic
Rankine Cycles which could help improve the overall fuel efficiency of cars (Preißinger, 2012
and Mitri, 2013).
10.3.2
Bus and Rail Air Conditioning
Mass transit vehicles involve buses, coaches and rail cars, which can further be segmented to
conventional trains, high speed trains, trams, subways, etc. As compared to passenger cars,
their air conditioning systems are larger in size, have a higher cooling capacity, and in general
use modified commercial components. They are usually packaged specifically for each
application.
The mass transit vehicle fleet is smaller than that of passenger cars. The latest statistical data
for the 27 European countries show that per 1000 inhabitants, there are approx. 1.6 buses and
coaches, 0.1 locomotives and rail cars, and 477 passenger cars (Statistical Handbook, 2012).
The number is assumed to be different elsewhere (in the North America and Japan, more
passenger cars than mass transit vehicles; in developing countries, the reverse). It may be
assumed that, on average, at least 50% of the current EU mass transit vehicle fleet is airconditioned. Both climate and economic conditions would determine the likelihood of air
conditioning in transit vehicles in other regions.
Today, most buses and coaches have the entire air-conditioning system mounted in the roof,
except for the compressor, which is driven from the vehicle engine. The air conditioning units
for rails cars can have a similar concept, especially if powered by diesel engines. But more
often, in about 75% of cases, the air conditioning systems in rail cars are self-contained and
electrically powered. The self-contained concept reduces both the charge and the leakage rate.
The predominant refrigerant used in new buses and coaches is HFC-134a. While several years
ago the refrigerant charge used to be in the excess of 10 kg per unit (Schwarz, 2007), the
introduction of microchannel condensers as well as component downsizing reduced the
current refrigerant charge below 5 kg in the new systems. The air conditioning units for rail
cars use HFC-134a and R-407C in about equal share. A small fraction of rail cars use R410A. The refrigerant charge is about 10 kg.
In China, heat pump systems are used for thousands of electric buses, which utilize the
refrigerant blends R-407C and R-410A. As train air conditioning units usually are hermetic
systems with hermetic or semi-hermetic compressors, their system design is based more on
stationary air conditioning than on mobile air conditioning. Here R-410A is preferred.
Older systems in developing countries still utilize HCFC-22. According to the European
statistics, the average age of a European bus or coach is 16.5 years. Although the rail car units
are designed to last for more than 30 years, technological progress and fleet upgrades
determine their lifetime to about 20 years. Even before a rail car reaches its end-of-life, a
major overhaul is often performed wherein the air conditioner is replaced.
Although limited by its volume, the mass transit vehicle industry follows closely the
developments in passenger cars and other fields. A large German manufacturer has on-going
fleet tests of R-744 systems in buses since 2003 (see for example Eberwein, 2011; Schirra,
2011; and Sonnekalb, 2012). In the year 2012 a Polish bus manufacturer started selling
battery-driven electric busses with reversible R-744 heat pump systems for heating and
cooling (Solaris, 2012). The significant potentials of energy efficiency improvements of R744 bus air conditioning systems, due to measures like cylinder bank shut-off controls,
ejectors, and two-speed planetary gearbox compressor drives, were investigated by Kossel
(2011) and Kaiser (2012).
208
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The Low-GWP Alternative Refrigerants Evaluation Program of AHRI investigated the use of
drop-in alternative refrigerant blends in bus air conditioning (N-13a [R-450A] and AC5 [R444A] as alternatives for HFC-134a, and L-20 [by mass 45% HFC-32/20% HFC-152a/35%
HFC-1234ze(E)] and D52Y [by mass 15% HFC-32/25% HFC-125/60% HFC-1234yf]as
alternatives for R-407C). They found mostly comparable or lower energy efficiencies for bus
air conditioning systems which used the alternative blends (Kopecka, 2013a and 2013b).
Environmental and fuel price concerns lead bus and coach manufacturers to pursue
development of hybrid and battery driven electric vehicles. The concept makes traditional
engine-driven compressors obsolete and favors self-contained hermetic systems, where the
refrigerant charge and leakage rate are lower. The electric power is supplied either from the
on-board sources, or engine-driven generators. These systems are not limited to electric
vehicles, but can be applied also in traditional buses and coaches. Installations can be found in
trolleybuses.
10.4
Options for existing Systems
10.4.1
Retrofit of CFC-12 systems
There are 12 blend refrigerants that are approved by the USEPA under the SNAP regulation
for retrofit of CFC-12 systems (USEPA, 2013); however, many of these have seen only
minimal use and some were never fully commercialized. Retrofit to HFC-134a was approved
by the OEMs and was more commonly used if a retrofit was deemed appropriate. In a 2013
MAC survey about 6% of all cars were still operating with CFC-12 and about 10% of all cars
had been retrofitted to HFC-134a (Atkinson, 2014). However, retrofitting of CFC-12 vehicles
has declined significantly primarily due to the declining fleet of vehicles with CFC-12 MACs
and in part due to the continued availability of reclaimed CFC-12. In the USA, the sale of
CFC-12 is restricted only to certified technicians.
10.4.2
Hydrocarbon retrofits
Retrofit of HFC-134a and CFC-12 systems to hydrocarbons is still occurring in various
regions, particularly in Australia and to some extent in North America even though vehicle
OEMs and some regulatory bodies do not approve of this process due to inadequate safety
mitigation
10.5
Concluding Remarks
Currently, more than one refrigerant are being used for car and light truck air conditioning:
HFC-134a will remain largely adopted worldwide, while HFC-1234yf is currently
implemented in some models and likely will be used in more models in the near future.
Development of R-744 continues and will also likely be used. Possibly some new low GWP
synthetic refrigerant or refrigerant blend (e.g. R-445A) will also be used. In existing systems
(designed for CFC-12 or HFC-134a), even hydrocarbons (e.g. HC-290) are used in some
regions (e.g. Australia).
At the moment, it cannot be foreseen whether or not all these refrigerants will remain for a
long period of time parallel in the market. If the bus and train sector will follow these trends is
also unclear.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
209
10.6
References
Andersen, 2013
Anderson, S.O., Baker J., Craig T., Kapoor S.H., 2013. The New
Business Case For Secondary Loop Mobile AC Systems In Climates
with High Fuel Prices and Long, Hot and Humid Cooling Seasons,
ATA Mobile Air Conditioning and Thermal System Workshop, Turin
2013.
ASHRAE 2013
ASHRAE Standard 34-2013. 2013. Designation and Safety
Classification of Refrigerants. American Society of Heating,
Refrigerating and Air-Conditioning Engineers, Inc.
Atkinson, 2012
Atkinson, W., Hope, B., 2012. Service Issues Related to Using Blend
Refrigerant in Mobile Air Conditioning Systems. SAE, TMSS,
Scottsdale 2012.
Atkinson, 2014
Atkinson, W., State of the Industry, MACS 2014 Event, New
Orleans, LA, USA, 2014.
Automot. News, 2013 Automotive News, 2013. Automakers’ switch to new refrigerant will
accelerate with EPA credits, European mandate.
http://www.autonews.com/article/20131230/OEM01/312309996/auto
makers-switch-to-new-refrigerant-will-accelerate-with-epa,
December 30, 2013.
Bassem, 2011
Bassem, M., Ueda, Y., Akisawa, A., 2011. Design and construction of
a traveling wave thermoacoustic refrigerator. International Journal of
Refrigeration. 34, 2011, pp.1125-1131.
Brakora, 2013
Brakora, J. L., 2013. MAC Fuel Economy Regulation & AC17 Test
Procedure Validation. SAE, TMSS, Troy, MI, USA, 2013.
Chen, 2010
Chen, Y., Pridasawas, W., and Lundqvist, P., 2010. Dynamic
simulation of a solar-driven carbon dioxide transcritical power system
for small scale combined heat and power production. Solar Energy,
Vol. 84, 2010, pp. 1103–1110.
Coll, 2012
Coll, P., 2012. Counterfeit Refrigerant Identification & R1234yf
Status, EAAC, Frankfurt, Germany, September, 2012.
Craig, 2007
Craig, T., 2007. Secondary Loop system for small cars - The
Perspective of an European Car Manufacturer, Turin, Italy, 2007.
Daimler, 2012
Daimler press release, 2012. New findings concerning the risks of the
new R1234yf refrigerant. Sindelfingen, Germany, September 25,
2012.
Eberwein, 2011
Eberwein, B., 2011. Zukunftsfähige Busklimatisierung. Berliner
Verkehrsbetriebe AöR, Fachgespräch, Berlin, Germany, March 15,
2011.
EU Directive, 2006
EU Directive, 2006. DIRECTIVE 2006/40/EC OF THE EUROPEAN
PARLIAMENT AND OF THE COUNCIL of 17 May 2006 relating
to emissions from air-conditioning systems in motor vehicles and
amending Council Directive 70/156/EEC.
EU Regulation, 2007
EU Regulation, 2007. REGULATION (EC) No 706/2007 of 21 June
2007 laying down, pursuant to Directive 2006/40/EC of the European
Parliament and of the Council, administrative provisions for the EC
type-approval of vehicles, and a harmonised test for measuring
leakages from certain air conditioning systems.
210
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
EU Directive, 2007
EU Directive, 2007. DIRECTIVE 2007/37/EC of 21 June 2007
amending Annexes I and III to Council Directive 70/156/EEC on the
approximation of the laws of the Member States relating to the type
approval of motor vehicles and their trailers.
EU Regulation, 2009
EU Regulation, 2009. REGULATION (EC) No 443/2009 OF THE
EUROPEAN PARLIAMENT AND OF THE COUNCIL of 23 April
2009 setting emission performance standards for new passenger cars
as part of the Community’s integrated approach to reduce CO2
emissions from light-duty vehicles.
EU Note DG, 2014a
EU Note to DG ENTR, 2014a. JRC technical and scientific support to
the research on safety aspects of the use of refrigerant R1234yf on
MAC systems. European Commission, Ref. Ares (2014) 573175 04/03/2014,
http://ec.europa.eu/DocsRoom/documents/4651/attachments/1/transla
tions/en/renditions/native, Brussels, Belgium, 4 March 2014.
EU press. rel., 2014b
EU press release, 2014b. MAC Directive: no evidence to support the
safety concerns. MEMO/14/168, European Commission,
http://europa.eu/rapid/press-release_MEMO-14-168_en.htm,
Brussels, Belgium, 7 March 2014.
GM press rel., 2010
General Motors press release, 2010. GM First to Market Greenhouse
Gas-Friendly Air Conditioning Refrigerant in U.S.
http://media.gm.com/media/us/en/gm/news.detail.html/content/Pages/
news/us/en/2010/July/0723_refrigerant.html, July 23, 2010.
Geyer, 2013
Geyer, S., Wertenbach, J., 2013. CO2-Klimaanlagen: Der
Integrationsaufwand ist erheblich. Interview, VDI Nachrichten, Nr.
45, November 8, 2013.
Hammer, 2012
Hammer, H., Lazaridis, I., Morgenstern, S., Wertenbach, J., and
Wöhrl, S., 2012. R1234yf – A new, safe and environmentally friendly
refrigerant for mobile air conditioning. VDA Publication, Berlin,
Germany, September 17, 2012.
Hartmann, 2014
Hartmann, A., 2014. Energie- und Wärmemanagement mit
thermischer Rekuperation für Personenkraftwagen. PhD Thesis,
University of Braunschweig, 2014.
Hinrichs, 2011
Hinrichs, J., 2011. Weniger Verbrauch, mehr Komfort: Effizientes
Heiz-/Kühlsystem für Elektrofahrzeuge. Conference „Prima Klima im
Auto: Wie wird die Klimaanlage zukunftsfähig?“, Berlin, Germany,
December 13, 2011.
Horst, 2013
Horst, T. A., Tegethoff, W., Eilts, P., and Koehler, J., 2013.
Prediction of dynamic Rankine Cycle waste heat recovery
performance and fuel saving potential in passenger car applications
considering interactions with vehicles´ energy management. Journal
of Energy Conversion and Management, Volume 78, Pages 438-451,
February 2014.
Inovar Auto, 2012
Lei nº 12.715 - INOVAR-AUTO
(http://abinfer.org.br/site/artigos/?id=5)
ISO 13043, 2011
ISO 13043:2011, 2011. Road vehicles – Refrigerant systems used in
mobile air condition systems (MAC) – Safety requirements.
International Organization for Standardization, Geneva, Switzerland,
2011.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
211
Kaiser, 2012
Kaiser, C., Tegethoff, W., Koehler, J., and Sonnekalb, M., 2012.
Verbrauchseffiziente Regelungs- und Verschaltungskonzepte für
Omnibusklimaanlagen. Deutsche Kälte-Klima-Tagung, DKV
Conference Proceedings, Würzburg, Germany, November 2012.
KBA, 2013
KBA, 2013. Projektbericht über Versuche mit Fahrzeugen zur
Entflammung und HF-Exposition mit Fahrzeugklimaanlagen bei
Verwendung von R1234yf. Kraftfahrt-Bundesamt, Flensburg,
Germany, October 8, 2013.
Koban, 2013
Koban, M. E., and Minor, B., 2013. HFO-1234yf Additional
Flammability Testing. SAE, TMSS, Troy, MI, USA, 2013.
Koehler, 2013
Koehler, J., Raabe, G., Schulze, C., and Tegethoff, W. J., 2013.
Transient Simulation of Mobile R-445A Air Conditioning Systems –
From the Molecules to the System. SAE, TMSS, Troy, MI, USA,
2013.
Kontomaris, 2014
Kontomaris, K., 2014. HFO-1336mzz-Z as a Low GWP Working
Fluid for Transcritical Organic Rankine Power Cycles, The Japan
Refrigeration and Air Conditioning Industry Association (JRAIA),
The International Symposium on New Refrigerants and
Environmental Technology, Kobe, Japan, Nov. 20-21, 2014.
Kopecka, 2013a
Kopecka, M., Hegar, M., Sulc, V. and Berge, J., 2013a. System DropIn Tests of Refrigerant Blends N-13a and AC5 in Bus AirConditioning Unit Designed for R-134a. Test Report #12, AirConditioning, Heating, and Refrigeration Institute (AHRI) Low-GWP
Alternative Refrigerants Evaluation Program (Low-GWP AREP),
Arlington, VA, USA, April 7, 2013.
Kopecka, 2013b
Kopecka M., Hegar, M., Sulc, V. and Berge, J., 2013b. System DropIn Tests of Refrigerant Blends L-20 and D52Y in Bus AirConditioning Unit Designed for R-407C. Test Report #13, AirConditioning, Heating, and Refrigeration Institute (AHRI) Low-GWP
Alternative Refrigerants Evaluation Program (Low-GWP AREP),
Arlington, VA, USA, April 7, 2013.
Kossel, 2011
Kossel, R., 2011. Hybride Simulation thermischer Systeme am
Beispiel eines Reisebusses. PhD Thesis. University of Braunschweig,
2011.
Leighton, 2014
Leighton D., Rugh J. P., EDV range improvement using a combined
fluid loop thermal management strategy, SAE,TMSS Thermal
Management Systems Symposium, Denver, CO, USA, September 22
–24, 2014.
Leisenheimer, 2013
Leisenheimer, B., 2013. CO2: Greenhouse Gas or Alternative Natural
Refrigerant? ATA Mobile Air Conditioning and Thermal System
Workshop, Turin, Italy, 2013.
Lemke, 2014
Lemke, J.,2014. Energetische Bewertung von
Pkw‐Klimaanlagensystemen mit Sekundärkreisläufen. PhD Thesis,
University of Braunschweig, 2014
Li, 2013
Li, X. Z., 2013. Optimization of heat transfer for high glide blend
refrigerants in MAC heat exchangers. SAE, TMSS, Troy, MI, USA,
2013.
Liebherr, 2010
The Next Generation Air Cycle Air Conditioning for Rail Vehicles.
Liebherr-Transportation Systems GmbH & Co KG, Korneuburg,
212
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Austria, http://www.liebherr.com/TS/en-GB/127475.wfw ,February
2010,
MACS, 2003
MACS 2003. A/C & Cooling Systems Specifications Reference
Manual, 2003-1994, by Mobile Air Conditioning Society (MACS)
Worldwide and subsequent editions. Lansdale, PA, USA.
Malvicino, 2012
Malvicino C., Seccardini R., Thermal Systems Integration for Fuel
Economy - TIFFE - Transport Research Arena - Europe 2012,
http://www.tiffe.eu/
Mandrile, 2013
Mandrile M, 2013. The Quest for a new Low-GWP Refrigerant - the
Reason behind an Industry Choice, XV Eu Conf., Milan, Italy, 2013.
McAvoy, 2014
McAvoy, A, 2014. R-1234yf Air Conditioning System, MACS 2014
Event, New Orleans, LA, USA.
Mitri, 2013
Mitri, M., Lavante, A., 2013. Device and Method for utilizing the
waste heat of an internal combustion engine, in particular for utilizing
the waste heat of a vehicle engine. International patent application,
WO2013/079218 A2, published June 6, 2013.
Moultanovsky, 2014
Moultanovsky, A. and Koban, M., 2014. Anticipated AirConditioning Refrigerant Changes. The Maintenance Council,
Nashville, TN, USA, March 2014.
Nelson, 2012
Nelson, B., 2012. A/C Credits in the 2017-2025 LD GHG
Regulations. SAE, TMSS, Scottsdale, AZ, USA, 2012.
Pelsemaeker de, 2013 de Pelsmaeker, G., 2013. R-744 refrigerant new Perspective, ATA
Mobile Air Conditioning and Thermal System Workshop, Turin,
Italy, 2013.
Peral-Antunez, 2011
Peral-Antunez, E., 2011. Recent Experiences in MAC System
Development, New Alternative Refrigerant Assessment. SAE, ARSS,
Scottsdale, AZ, USA, 2011.
Peral-Antunez, 2012
Peral-Antunez, E, 2012. MAC Refrigerant Blend Cooperative
Research Program Update. SAE, TMSS, Scottsdale, AZ, USA, 2012.
Peral-Antunez, 2013
Peral-Antunez, E, 2013. MAC Refrigerant Blend Cooperative
Research Program Phase III update & final conclusions. SAE, TMSS,
Troy, MI, USA, 2013.
Peral-Antunez, 2014
Peral-Antunez, E., Kikuchi, K., and Furumaya, T., 2014. Renault and
Nissan overview on R-445A (AC-6) as MAC refrigerant. SAE,
TMSS, Denver, CO, USA, 2014.
Preißinger, 2012
Preißinger, M., Heberle, F., Brüggemann, D., 2012. Thermodynamic
analysis of double-stage biomass fired Organic Rankine Cycle for
micro-cogeneration. Int. J. Energy Res. 2012, DOI: 10.1002/er.
Rott, 1980
Rott, N., 1980. Thermoacoustics. Advances in Applied Mechanics,
20, 1980, pp. 135–175.
Reuter, 2013
Reuters press release 2013. Auch Toyota rückt von umstrittenem
Kältemittel ab. Reuters, Munich, Germany, August 22, 2013.
SAE press rel., 2013
SAE press release 2013. SAE International's Cooperative Research
Program Continues to Study Safety of R1234yf Use in Automobiles.
Warrendale, PA, USA., February 11, 2013.
http://www.sae.org/servlets/pressRoom?OBJECT_TYPE=PressRelea
ses&PAGE=showRelease&RELEASE_ID=2181
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
213
http://www.sae.org/standardsdev/tsb/cooperative/crp_12344_report.pdf
http://www.sae.org/standardsdev/tsb/cooperative/crp_12344_attachments.pdf
SAE J2845, 2013
SAE J2845 R-1234yf [HFO-1234yf] and R-744 Technician Training
for Service and Containment of Refrigerants Used in Mobile A/C
Systems, February 21, 2013
Schirra, 2011
Schirra, P., 2011. Einsatz einer Klimaanlagen mit CO2 als Kältemittel
in einem Linienbus der Saar-Pfalz-Bus GmbH. Saar-Pfalz-Bus
GmbH, Fachgespräch, Berlin, Germany, March 15, 2011.
Schwarz, 2007
Schwarz, W., 2007. Establishment of Leakage Rates of Mobile Air
Conditioners in Heavy Duty Vehicles, Part 2 Buses and Coaches.
Final Report (ENV.C.1/SER/2005/0091r)
http://ec.europa.eu/clima/policies/fgas/docs/4_study_leakage_rates_buses_en.pdf
Sciullo, 2011
Sciullo, F. d., 2011. ICE Project: A magnetocaloric based mobile air
conditioning system. 4th European Workshop Mobile Air
Conditioning and Thermal Systems , Torino, Italy, December 2, 2011.
Sonnekalb, 2012
Sonnekalb, M., 2012. Energy-efficient heating and air-conditioning
on buses. Conference Smart Automotive Climate Control,
Wiesbaden, Germany, October 22-23, 2012.
Solaris, 2012
Solaris press relase 2012. Solaris Urbino electric: The Future of
Electric Public Transport is Now Available in Standard City Bus
Length. IAA Commercial Vehicles, Hannover, Germany, September
19, 2012.
Stat. Handbook, 2012 Statistical Handbook 2012. EU Transport in Figures, Statistical
Handbook 2012 http://bookshop.europa.eu/en/eu-transport-in-figurespbMIAA12001
Steiner, 2014
Steiner, A., 2014. Untersuchung von Konzepten zur
Innenraumkonditionierung von Fahrzeugen mit Elektroantrieben
unter Berücksichtigung des Energieverbrauchs., PhD Thesis,
University of Graz, 2014
Strupp, 2011
Strupp, N., C., 2011. Betriebsverhalten von Verflüssigern in
automobilen Kältekreisläufen. PhD Thesis. University of
Braunschweig, 2011.
Swift, 2002
Swift, G. W., 2002. Thermoacoustics: a unifying perspective for some
engines and refrigerators. New York, Melville, 2002, ISBN 0–7354–
0065–2.
Tamainot-Telto, 2009 Tamainot-Telto, Z., Metcalf, S. J., and Critoph, R. E., 2009. Novel
compact sorption generators for car air conditioning. International
Journal of Refrigeration, 32(4), 727–733.
doi:10.1016/j.ijrefrig.2008.11.010
USEPA, 2008
USEPA 2008. Protection of Stratospheric Ozone: Alternative for the
Motor Vehicle Air Conditioning Sector Under the Significant New
Alternatives Policy (SNAP) Program. Final rule published June 12,
2008 (73 FR 33304).
USEPA, 2011a
USEPA 2011. Protection of Stratospheric Ozone: Alternative for the
Motor Vehicle Air Conditioning Sector Under the Significant New
214
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Alternatives Policy (SNAP) Program. FR Doc. 2011–6268 Filed 3–
28–11, Final rule published March 29, 2011 (76 FR 17488).
USEPA, 2011b
Proposed Rulemaking for 2017-2025 Light-Duty Vehicle Greenhouse
Gas Emission Standards and Corporate Average Fuel Economy
Standards (4-6)
USEPA, 2012a
USEPA 2012a. Protection of Stratospheric Ozone: Alternative for the
Motor Vehicle Air Conditioning Sector Under the Significant New
Alternatives Policy (SNAP) Program. FR Doc. 2012–13657, Filed 6–
5–12, Final rule published June 6, 2012 (77 FR 33315).
USEPA, 2012b
USEPA, NHTSA (National Highway Traffic Safety Administration)
Joint Technical Support Document: Final Rulemaking for 2017-2025.
Light-Duty Vehicle Greenhouse Gas Emission Standards and
Corporate Average Fuel Economy Standards, EPA-420-R-12-901,
Washington, DC, USA, August 2012.
http://www.epa.gov/otaq/climate/documents/420r12901.pdf.
USEPA, 2013
USEPA 2013. Substitutes in Motor Vehicle Air Conditioners.
http://www.epa.gov/ozone/snap/refrigerants/lists/mvacs.html, last
updated June 24, 2013.
USEPA, 2014
USEPA 2014. Protection of Stratospheric Ozone: Change of Listing
Status for Certain Substitutes Under the Significant New Alternatives
Policy Program; Proposed Rule. http://www.gpo.gov/fdsys/pkg/FR2014-08-06/pdf/2014-18494.pdf, August 6, 2014 (79 FR 46126).
US President, 2013
US Executive Office of the President, 2013. The President’s Climate
Action Plan., June 2013.
http://www.whitehouse.gov/sites/default/files/image/president27sclim
ateactionplan.pdf
Vasile, 2005
Vasile, C., Muller, C., 2005. A new system for a
magnetocaloricrefrigerator. Proceedings of First International
Conference on Magnetic Refrigeration at Room Temperature,
Montreux, Switzerland, September27-30, 2005, International Institute
of Refrigeration, Paris, France, Conference Proceedings pp. 357-366
Vasta, 2012
Vasta S., Freni, A., Sapienza, A., Costa, F., Restuccia, G., 2012.
Development and lab-test of a mobile adsorption air-conditioner.
International Journal of Refrigeration, 35(3), 701–708.
doi:10.1016/j.ijrefrig.2011.03.013.
Velders, 2009
Velders, G., J., M., Fehey, D.,W., Daniel, J., S., McFarland, M.,
Andersen, S., O, 2009. Proceedings of the National Academy of
Sciences, 106, June 2009.VW press rel., 2013 Volkswagen press
release, 2013. Volkswagen to use CO2 as future refrigerant for air
conditioning systems. Wolfsburg, Germany,
https://www.volkswagen-mediaservices.com/medias_publish/ms/content/en/pressemitteilungen/2013/
03/08/volkswagen_to_use.standard.gid-oeffentlichkeit.html, March 8,
2013
Weissler, 2013
Weissler, P., 2013. A/C industry faces challenges from Daimler R1234yf issue, explores other options. SAE Vehicle Engineering
Online, SAE, February 25, 2013.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
215
Yu, 2010
Yu, B., Liu, M., Egolf, P. W., Kitanovski, A., 2010. A review of
magnetic refrigerator and heat pump prototypes built before the year
2010. International Journal of Refrigeration, 33, 2010, pp.1029-1060
Zilio, 2009
Zilio, C., 2009. A small vehicle MAC system exploited w/ R-1234yf:
bench results. 3rd MAC Workshop, Turin, Italy, 2009.
Zink, 2010
Zink, F., Vipperman, J. S., Schaefer, L. A., 2010. Environmental
motivation to switch to thermoacoustic refrigeration. Applied
Thermal Engineering, 30, 2010, pp. 119-126.
Zoontjens, 2005
Zoontjens, L., Howard, C., Zander, A., and Cazzolato, B., 2005.
Feasibility Study of an Automotive Thermoacoustic Refrigerator.
Proceedings of ACOUSTIC, November 9-11, 2005, Busselton,
Western Australia.
216
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Annex to Chapter 10
Annex B: Regulatory actions affecting vehicle air conditioning and refrigerants
This annex summarizes for several, but not all, different regions the legal situation for vehicle
air conditioning systems.
Light-Duty Cars and Trucks
Brazil and Latin America: No specific regulations are in place in Brazil regarding mobile air
conditioning. The current most important regulation (Resolução 267_00 CONAMA) states
that the current gas refrigerant has to comply with the Montreal Protocol and to have low
ozone depletion potential (ODP).
The refrigerant currently used not only in Brazil but in whole Latin America is HFC-134a.
China: In China, the refrigerant in Mobile Air Conditioning (MAC) systems had been
completely changed to HFC-134a since June 30, 2007. The consumption of HFC-134a in
MAC in 2012 can be estimated to be about 20,000 tons. The Chinese government also
realizes the importance of reducing the emission of greenhouse gas (GHG) since HFC-134a
has a high GWP value. For the refrigerant in the vehicle, the work of Chinese government is
mainly focused on refrigerant recovery and reducing the refrigerant charge amount since the
substitute of HFC-134a is still not so clear.
Europe: European Union (EU) regulations, which control MAC system direct emissions, fall
into two groups:
•
controlling leaks
•
phasing out high-GWP fluorinated GHG's.
Directive 2006/40/EC (EU Directive, 2006) applies to passenger cars and light commercial
(categories M1 and N1) and covers both the emissions from air-conditioning systems in motor
vehicles and the ban on use of refrigerants with a GWP greater than 150 in new type vehicles
from January 1, 2011 and all new vehicles from January 1, 2017.
Due to the shortage of the low-GWP refrigerant R-1234yf, which had apparently been chosen
by most if not all OEMs, the European Commission decided not to enforce the Directive until
the end of 2012. Although the MAC systems of new types of vehicles to be type approved had
to be compatible with MAC directive 2006/40/ EC requirements, manufacturers were allowed
to fill new type approved production vehicles with R-134a until 31 December 2012. The
European Commission (EC) has confirmed several times that this situation of refrigerant
shortage has been resolved to its satisfaction and therefore the MAC Directive has been in full
effect since 1 January 2013.
The type-approval authorities of the Member States are responsible for the monitoring of the
implementation of the measures above and for verifying the conformity of production after 31
December 2012.
EU Commission Regulation (EC) No 706/2007 (EU Regulation, 2007) includes a harmonized
test for measuring leakages from mobile air conditioning systems.
EU Commission Directive 2007/37/EC (EU Directive 2007) limits refrigerant emissions from
mobile air conditioning, using refrigerants with GWP>150, to 40 g/y for single evaporator
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
217
systems and 60 g/y for dual evaporator systems beginning with new type vehicles in June
2008 and all vehicles in June 2009.
The European Regulation (EC) No 443/2009 (EU Regulation 2009) sets emission
performance standards for new passenger cars as part of the Community’s integrated
approach to reduce CO2 emissions from light-duty vehicle. The Regulation limits CO2
emissions per kilometer to 130 gCO2/km from 2012 to 2019 and 95 gCO2/km from 2020
onwards. The regulation includes off-cycle credit for innovative technologies reducing the
fuel consumption, so-called eco-innovations (chapter 12 of the Regulation), but for mobile air
conditioning systems that will be regulated by a specific procedure. The EU is currently
cooperating with the stakeholders to develop this procedure.
It is possible that the Regulation will be extended to all the other motor vehicle categories
once the application transient on passenger cars and light commercial vehicles is completed
India: India has comprehensive Ozone Depleting Substances (Regulation and Control) Rules,
2000 which were put in place from July 19, 2000 under the Environment (Protection) Act
1986. These rules set the deadlines for phasing-out the ozone depleting substances. There is a
mandatory requirement of registration for ozone depleting substances producers, consumers,
importers, reclamation centers, destruction facilities, etc. with a designated authority. The
unique feature of these rules is banning of use of CFCs in manufacturing of new products and
equipment including refrigeration and air-conditioning equipment for cars, busses and trains
as early as January 1, 2003. This not only achieved the phase-out of CFCs earlier than the
Montreal Protocol schedule but also reduced the inventory of CFC based equipment which
resulted in the lowering of servicing requirements of CFCs. As a consequence of ozone
depleting substances rules in India all light-duty vehicle Mobile Air Conditioning
manufacturing was converted to HFC-134a from January 1, 2003 and all new manufacturing
capacities were put up with HFC-134a and same is continuing. The busses and trains use
either HFC-134a or HCFC-22. Most of the old MAC and train air-conditioning CFC based
systems were retrofitted to HFC-134a. The Ozone Depleting Substances (Regulation and
Control) Rules, 2000 have been amended from time to time to align with the Montreal
Protocol phase-out schedule and internal policies of the country. These rules have been
amended in 2014 to align with accelerated phase-out of HCFCs and amendment has been
notified as Ozone Depleting Substances (Regulation and Control) Amendment Rules, 2014.
Japan: In August 2009, Japanese government allowed the import of HFC-1234yf into Japan
without the limitation of usage amount, aspects and any special monitoring. This decision was
made after HFC-1234yf was examined by Japan’s Ministry of Health, Labor, and Welfare,
Japan's Ministry of Economics Trade and Japanese Ministry of the Environment based on
“Toxic Chemicals Control Law”.
USA: Motor Vehicle Air Conditioning refrigerants must be submitted to the U.S.
Environmental Protection Agency (USEPA) and found acceptable under its Significant New
Alternatives Policy (SNAP) Program. So far (2014), approximately 17 different refrigerants,
and 3 alternative technologies, have been found acceptable under the SNAP Program (USEPA
2013). The majority of these refrigerants were aimed primarily at the retrofit of CFC-12 cars
and found very little, if any, use. HFC-134a was until recently the only refrigerant accepted
by the OEMs and quickly became the only refrigerant used in new equipment, with a few
model year 1992 vehicle types using HFC-134a and all types by model year 1995 (MACS,
2003).
Three of the refrigerants found acceptable have GWPs less than 150: HFC-152a, HFC-1234yf
and R-744 (CO2). All are subject to certain use conditions (for details see the particular
sections covering these refrigerants). The use conditions that apply to all substitute mobile AC
218
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
refrigerants are required by the USEPA to reduce the flammability and/or toxicity risks from
these refrigerants as well as to avoid mixing of different refrigerants.
Joint regulations from the USEPA and the National Highway Traffic Safety Administration
set requirements for corporate average fuel economy (i.e., average miles per gallon or liters
per 100 kilometers) and tailpipe emissions (i.e., grams CO2-equivalent per mile or kilometer).
Although these regulations do not require specific choice of refrigerants, utilizing low-leak
designs and/or low-GWP refrigerants offer additional pathways to comply partially with the
requirements. In addition, credits were offered for (1) improvements in air conditioning
systems that reduce tailpipe CO2 through efficiency improvements, and (2) for reduced
refrigerant leakage through better components and/or use of alternative refrigerants with
lower global warming potential. These regulations were enacted first for model years 2012
through 2016. That rule allowed OEMs to achieve credits in advance of the regulations for
design changes in model years 2009 through 2011, a stipulation that helped spur more leaktight and fuel-efficient systems. The second set of regulations applies to model years 2017
through 2025. USEPA expects that the credits offered in this program will incentivize the
uptake of low-GWP refrigerants; USEPA estimated that uptake of HFC-1234yf would reach
20% in model year 2017 vehicles, rising linearly to 100% by model year 2021 vehicles
(USEPA and NHTSA, 2012b). One U.S. OEM committed to convert some models to HFC1234yf refrigerant by MY2013 (General Motors, 2010); one of these models has been sold in
the U.S. and elsewhere since 2012. A Japanese OEM also offered one MY2013 model with
HFC-1234yf, and other models are expected with MY2014 designs (Automotive News,
2013). Atkinson, 2014 provides a list of 9 car types which use HFC-1234yf in the US market.
In June, 2013, U.S. President Obama announced a Climate Change Action Plan. Amongst
other initiatives, the President committed the USEPA to “use its authority through the
Significant New Alternatives Policy Program to encourage private sector investment in lowemissions technology by identifying and approving climate-friendly chemicals while
prohibiting certain uses of the most harmful chemical alternatives” (US President, 2013). One
prohibition proposed by USEPA is to prohibit the use of HFC-134a in light-duty motor
vehicles beginning with MY 2021 (USEPA, 2014). This proposal has not been finalized as of
December 2014.
USEPA has a new drive schedule that is required to be run from 2016. Initially the credits are
determined strictly by a menu driven formula, but from 2017, the new AC17 test schedule
must be run and the resulting CO2 emissions must support the credit before it can be applied.
This drive schedule is a dynamic one with solar load applied in a test chamber. (Nelson, 2012
and Brakora, 2013).
Buses and Trains
There are no particular legal restrictions on Buses and Trains refrigerant, apart from those
discussed above. However, the bus industry follows closely the developments in passenger
cars and the trains industry has to date followed closely the development of hermetic and
semi-hermetic systems similar to the stationary air-conditioning market. Given possible safety
implications of the low-GWP alternatives, however, it may be that bus and train MAC
systems will eventually use a different set of refrigerants than those used in light-duty
vehicles.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
219
Annex C: Not-In-Kind Alternatives
The refrigeration technologies described in this annex are all far away from a serialproduction status. However, OEMs and suppliers do work on the development of these
systems because they have a certain potential to become interesting alternative options for a
time horizon which goes beyond 2020. For some even that seems unlikely considering the
long history of effort for them.
Air cycle (Brayton cycle): These systems have the advantage of using air as refrigerant which
is environmentally very benign. However, they have comparatively very low energy
efficiencies and cooling capacities (see Liebherr, 2010).
Thermoelectric heating and cooling: Thermoelectricity (TE) is one of the simplest
technologies applicable to energy conversion based on the properties of couples of materials
that can use electric energy to operate as heat pumps providing active cooling or heating.
Small pieces of thermoelectric material (TE elements) are connected to form a Peltier couple:
one element is of p-type, the other one of n-type; they are electrically connected in series (by
means of a copper plate) and thermally in parallel. A set of such couples forms a TE-module.
Cost and efficiency (maybe also capacity) are currently the main issues limiting the
application of thermoelectric heat pumps only to specific uses like, for example, the
automotive seats air conditioning.
Magneto caloric heating and cooling: Since 1975, many experimental prototypes of
magnetic refrigerators at room temperature have been developed with different configurations
and operating conditions (see for example Vasile, 2005, Yu, 2010, and Sciullo, 2011).
Recently relevant progresses have been achieved both for applications in the automotive
domain as well as for stationary application (e.g. vending machines and domestic
refrigerator).
The magneto caloric effect results in a temperature increase within a magneto caloric material
when a magnetic field is applied owing to a reversible energy transfer from the magnetic field
to the material; the material reaches the initial lower temperature once the magnetic field is
removed.
Thermo acoustic heating and cooling: Although the phenomenon that temperature gradients
along a tube can provoke (pressure) oscillations in gases has been known for more than 150
years, it was the work of Rott (1980) which brought about the breakthrough for further
investigations.
The corresponding thermodynamic cycles are the Brayton (standing wave machine) and
Stirling (travelling wave machine) cycle. As working fluid often helium is applied (Swift
2002).
The environmentally benign working fluid as well the possibility to use the waste heat from
the engine could lead to future applications of thermo acoustics in MAC systems (see for
example Zink, 2010, and Zoontjens, 2005). Although recent investigations show the
feasibility of these refrigerators (Bassem, 2011), significant further research and development
of this technique are necessary.
Sorption heating and cooling: Sorption cooling based on the re-use of waste heat (e.g.
exhaust gas or cooling jacket) has been evaluated within several projects in the last decade
(see for example Tamainot-Telto, 2009 and Vasta, 2012).
220
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
The heavy duty truck application has a higher potential due to higher waste heat amount and
less severe constraint in terms of weight and size.
In addition to that, sorption systems offer the opportunity of long-term thermal storage.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
221
222
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Chapter 11
_________________________________________________________
Sustainable Refrigeration
Chapter Lead Authors
Holger König
Paulo Vodianitskaia
Co-Authors
Radhey S. Agarwal
Bassam Elassaad
Dave Godwin
Contributors
Martien Janssen
Alexander C. Pachai
Andy Pearson
Richard DeVos
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
223
224
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
11
Sustainable refrigeration
11.1
Introduction
Sustainability of refrigeration and air conditioning systems is a major factor affecting the
choice of alternative refrigerants. In this chapter both equipment and systems from
concept to end-of-life are described. It includes sections on the direct and indirect impact
of refrigerants on emissions and the tools used to assess such impact; equipment lifetime
considerations and the regulations covering equipment design, installation, and operation;
as well as energy management considerations for systems, buildings, and processes.
By discussing all aspects of refrigeration systems affecting sustainability, the chapter
tackles aspects that affect the environment globally and hence have become crucial in the
search of alternative refrigerants. Care was taken to include examples from many
countries and regions since sustainability refers to the biosphere and human society as a
whole.
11.2
Sustainability applied to refrigeration
Refrigeration impacts the ability of global sustainability in many ways. Economic,
environmental and social impacts - some positive, other negative – are produced throughout
the life cycle of the refrigeration equipment, from the extraction of its raw materials until end
of life.
While keeping focus on possible environmental impacts of refrigeration treated throughout
the report - namely the depletion of the stratospheric ozone layer and global warming - a
wider range of relevant environmental, as well as social considerations, are briefly described
in this section, for consideration by decision makers.
Sustainable manufacture of systems is gradually becoming part of the decision making
process for manufacturers who used to base their design on cost grounds rather than for
environmental compliance leading to the acceptance of lower efficiency systems in some
cases. Designers today are faced with dilemma of designing smaller units for sustainability
reasons vs. larger ones for efficiency purposes. For example, a 15 to 20 K design temperature
difference used for air-cooled condensers results in, smaller heat exchangers which use less
material; however, it is possible to get improved efficiency by using larger heat exchangers
which use more raw material and are more expensive. There is no clear guidance on
optimizing these design decisions, even though there are today some best practices like the
use of recycled aluminium in heat exchangers, greater use of plastics and other synthetic
materials from renewable sources.
11.2.1
Sustainability principles
The most widely known definition for sustainable development is the one presented by the
Brundtland report: "to meet the needs of the present without compromising the ability of
future generations to meet their own needs" (Brundtland Commission, 1987). The same
overall goal can be expressed in more specific terms: four necessary and sufficient conditions
for a sustainable society were proposed (Holmberg, 1996), and submitted to extensive peer
review. These conditions are stated as follows:
"In a sustainable society, nature is not subject to systematically increasing of:
1. Concentrations of substances extracted from the Earth's crust
2. Concentrations of substances produced by society
3. Degradation by physical means, and, in that society...
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
225
4. People are not subject to conditions that systematically undermine their capacity to
meet their needs." (Ny, 2006)
These general principles are affected by environmental and social aspects.
11.2.2
Environmental aspects
Some ecological aspects related to refrigeration derived from the principles i, ii, and iii,
disclosed in section 11.2.1, are:
i.
Extraction of resources: energy from fossil fuels, mining of materials such as copper,
(used in tubing, heat exchangers, and winding of electric motors), zinc, fluorite
(European Commission, 2011) and other scarce materials (here understood as
proportional to the rate a substance is being extracted, relative to its natural
concentration in the environment), aluminum, iron, rare earth products, use of fossil
substances as raw materials for refrigerants (virtually all refrigerants except water and
ammonia), use of fossil fuels and mineral oil in compressors and other moving parts.
Despite of recycling efforts, the combined production levels of copper, zinc, and
fluorite reached 30.4 Mt in 2006, representing an increase of 20 % over the
production levels in 1999 (Lottermoser, 2010).
ii. Emission of man-made substances: emissions of refrigerants, solvents, paints & other
surface treatment materials, and the incineration of materials are a major part the
direct emissions of greenhouse gases. Indirect emissions related to the lifecycle of
refrigeration systems form the other part.
iii. Degradation of fertile ecosystems: Examples are food conservation, metals and nonmetals mining, water usage, oil extraction, landfill of waste materials.
11.2.3
Social aspects
Refrigeration and air conditioning relate mainly to the social need of physical and
psychological wellness, from health and safety conditions prevailing along the value chain,
including consumer safety, to the availability of healthy food and reduction of food waste by
appropriate refrigeration, thermal comfort and avoidance of thermal stress provided by air
conditioning.
However other social needs should also be considered when coupling the refrigeration
business to the sustainability imperative, such as:
11.2.4
Learning through: awareness, education, proper training of employees and
technicians; and
Equity and fairness, supported by: ethical conduction of business, fair trade, fair
marketing, low cost equipment coupled with high energy efficiency to the extent
commercially feasible.
Assessment tools
The following assessment tools treat of particular aspects related to sustainability:
Total Equivalent Warming impact (TEWI) is a measure of the global warming impact of
equipment based on the total related emissions of greenhouse gases during the operation of
the equipment and the disposal of the operating fluids at the end-of-life. TEWI takes into
account both direct fugitive emissions, and indirect emissions produced through the energy
consumed in operating the equipment. TEWI is measured in units of mass in kg of carbon
dioxide equivalent (CO2-eq.). The TEWI equation can be found in (EN, 2008) and (Fischer,
1991). It can be evaluated in conjunction with seasonal profiles of temperatures and capacity.
226
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Life Cycle Climate Performance (LCCP) is a concept that incorporates the TEWI
considerations and additionally includes direct and indirect greenhouse emissions from the
manufacture of the active substances. Active substances are components and the working
fluids such as the refrigerants (IPCC, 2005). Various studies of LCCP have included for
instance the fugitive emissions of a refrigerant from production until installation in
equipment, the embodied energy or GHG emissions associated with producing the refrigerant,
and the GHG emissions associated with extracting materials and producing components of an
air-conditioning or refrigeration system.
Both LCCP and TEWI include a measure of the efficiency of the product and give a better
indication than a simple GWP reference of what the greenhouse gas emissions associated with
the use of air-conditioning and refrigeration equipment will be. LCCP and TEWI calculations
provide more information on the sustainability of air-conditioning and refrigeration
equipment than GWP or energy efficiency alone; therefore, these methodologies should be
used when comparing products and systems.
Social and Socio-Economic Life Cycle Assessment (S-LCA) is a social impact (and
potential impact) assessment technique that aims to assess the social and socio-economic
aspects of products and their potential positive and negative impacts along their life cycle
encompassing extraction and processing of raw materials; manufacturing; distribution; use;
re-use; maintenance; recycling; and final disposal. S-LCA complements the more usual
environmental Life Cycle Assessment (E-LCA) with social and socio-economic aspects. It
can either be applied on its own or in combination with E-LCA. S-LCA assesses social and
socio-economic impacts found along the life cycle (supply chain, including the use phase and
disposal) with generic and site specific data. It differs from other social impact assessment
techniques by its objects: products and services, and its scope: the entire life cycle. Social and
socio- economic aspects assessed in S-LCA are those that may directly affect stakeholders
positively or negatively during the life cycle of a product. They may be linked to the
behaviour of enterprises, to socio-economic processes, or to impacts on social capital.
Depending on the scope of the study, indirect impacts on stakeholders may also be
considered. S-LCA provides information on social and socio-economic aspects for decision
making, instigating dialogue on the social and socio-economic aspects of production and
consumption, in the prospect to improve performance of organizations and ultimately the
well-being of stakeholders (UNEP, 2009).
Sustainability Life Cycle Assessment is a qualitative technique to determine the degree of
conformity of an actual product or system to sustainable conditions, through the identification
of gaps in knowledge or potential impact, which would need focused quantitative assessments
(NY, 2006).
11.2.5
Opportunities for improvement
Some relevant opportunities for the industry aiming to achieve sustainability improvements
along the lifecycle of a refrigeration system are:
Close progressively the production-consumption loop of materials manufactured from
minerals, especially scarce materials such as copper, zinc and fluorine;
Reduce the emissions of GHG while reducing the dependence on oil. This can be
achieved by focusing on energy efficiency, and by increasing the share of fossil-free
energy during life cycle;
Reduce progressively the use of virgin raw materials, minimize emissions, upcycle
waste, reuse water, and check responsible management of substances along the value
chain;
Manage and progressively phase out persistent, bio accumulative and other hazardous
substances to the environment and health from the materials inventory;
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
227
Establish codes of ethical conduct for suppliers along value chain and use them as
effective management tools;
Reduce the use of packaging materials;
Ensure refrigerant conservation.
Such improvements may be facilitated with:
Development of standards that measure and report the relative sustainability of
products and processes
Awareness raising through the value chain
Education on sustainability and its implications
Regulations and political actions defining technical conditions
Integration of social and environmental externalities into corporate governance and
reporting
Financial incentives to take account of environmental damage
11.3
Direct impact of refrigerants
Most of the halocarbon refrigerants including CFCs, HCFCs and HFCs are either ozone
depleting or global warming or both. Therefore, emissions of these refrigerants have direct
impact on the environment. Refrigerants are not only used in new equipment and appliances
but there is a recurring consumption in servicing during the useful working life of the
equipment. Consumption of refrigerants for servicing is more than what is being used in the
manufacturing of new equipment. In the worst cases, the entire refrigerant charged and used
for servicing over the useful working life of refrigeration and air-conditioning equipment is
gradually emitted to the environment. Efforts are being made to reduce the impact of these
refrigerants on the environment by refrigerant management and conservation techniques.
11.3.1
Design criteria for charge minimization and leak tightness
Charge minimization
Charge minimization is one important factor for conservation of refrigerant. Minimization of
the refrigerant charge would not only reduce the global consumption of refrigerants but it
would also reduce their impact on climate by reducing the quantity of possible emissions that
could be emitted during catastrophic leak events, during the working life of equipment and
end of life of equipment. Historically, little attention has been given to minimize charge
quantities. The charge amount is only specified for small equipment especially for capillary
fitted units where the performance of the unit is highly affected by the charge quantity. Other
systems are charged on the site and charge quantity is rarely pre-calculated or specified.
Recognizing the importance of the charge minimization, industry is paying attention to this
aspect by employing designs for lower storage of refrigerant. In case of unitary airconditioning systems with hermetic compressors, the majority of refrigerant is banked in the
compressor and heat exchangers, especially in the condenser. Systems are designed with mini
channel heat exchangers to reduce the internal volume of the condenser, and compressors are
designed for reduced oil. Significant efforts are also being made to design and develop
supermarket refrigeration equipment by using secondary loop and cascade systems that use a
much smaller refrigerant charge than traditional refrigeration system. It should be noted that
there may be negative effects of charge minimization: some systems may be sensitive to a
charge deficit leading to an increase in energy consumption and even a system failure.
Another typical trade-off situation is the choice between direct and indirect systems. The
latter systems tend to minimize the direct emissions of fluids, but might increase the indirect
emissions due to the increased losses. There is a balance to ensure good efficiency despite
minor leakage and reduced direct emissions.
228
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Overcharging of equipment is common, especially in systems with receivers, as the amount of
refrigerant contained in refrigerant receivers is not always known. Refrigerant receivers are
equipment components that contain excess refrigerant that migrates through the system as a
result of changes in ambient conditions. Therefore, refrigerant receivers should be designed or
selected in a proper way. On the other hand design criteria’s for varying ambient conditions
and operation parameters are often not commonly known. For such equipment, field charging
is often continued until the charge is considered satisfactory. Without the check of weighing
the charge, the circuit could be overfilled with two harmful consequences: (1) a potential
release of refrigerant, and (2) the possibility of transferring the entire charge into the receiver.
The receiver-filling ratio, therefore, has to be limited during nominal operation, and an
inspection tool (indicator, level, etc.) must be provided.
More detailed information has been published recently by IIR-IIF (IIR, 2014)
There is a trend in the market to move towards what is referred to a critically charged. In these
systems it is very important not to charge more on the system than it is designed for. This
helps not overcharging the system but it also requires more skills from the persons working
on the system.
Another trend from legislation side is the move from look more on the leak potentials rather
than look at the charge size. The potential leak can come from any connections, flanges,
valves, compressor and motor assemblies etc. The likelihood of a pipe or a vessel should
become leaky is minimal in a well-designed system. Leaks, however, tend to come when
valves or flanges have been serviced. The authorities like to look at potential leak and the
advantage is that you can deal with it already at the design phase. You can count the flanges
and you can calculated all sealings and connections and in this way determine what leak rate
you can have and where the leaks might be.
Reduction of emissions through leak tightness
Leak detection of the equipment in production or assembly is a basic element, both in
constructing and servicing of cooling equipment, as it makes it possible to measure and
improve conservation of refrigerant. Leak detection must take place at the end of construction
by the manufacturers, at the end of assembly in the field by contractors, and during regularly
scheduled maintenance of equipment by service technicians.
Beside other code of good practice and refrigeration standards covering requirements for leak
testing and tightness, there are three general types of leak detection methods:
1. Global methods indicate that a leak exists somewhere, but they do not locate the
leaks. They are useful at the end of construction and every time the system is opened
up for repair or retrofit;
2. Local methods pinpoint the location of the leak and are the usual methods used during
servicing;
3. Automated performance monitoring systems indicate that a leak exists by sensing
changes in equipment performance and alerting operators.
Industry both in developed and developing countries, in recent years, have improved design
for leak tightness in the air-conditioning and refrigeration equipment manufactured after the
Montreal Protocol. In addition existing equipment/appliances have often been modified with
new devices, such as high-efficiency purge devices for low-pressure chillers that have
significantly lowered refrigerant emissions. Design changes have been made with regard to
leak tightness in response to growing environmental, regulatory, and economic concerns
associated with refrigerant emissions.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
229
11.3.2
Reduction of emissions through installation, servicing and maintenance
The installation of refrigeration equipment plays a very important role in terms of equipment
life, energy consumption, trouble free operation, and refrigerant conservation. Use of proper
installation techniques should be followed to ensure joints that can withstand vibration,
temperature and thermal cycling stresses. Proper cleaning of joints and evacuation to remove
air and non-condensable gases will minimize the future service requirements. For nonhermetic equipment, the installer should ensure the proper charge is provided. The installer
should also seize the opportunity to find manufacturing defects before the system begins
operation.
The Montreal Protocol has globally sensitized the servicing community as well as the endusers to use good servicing practices and reduce the emissions of refrigerants through
awareness programmes. Servicing practices have improved especially in some of the sectors
mainly because of training of servicing personnel engaged in these sectors. Unsustainable
servicing practices—such as topping-up refrigerant without repairing leaks, or leak testing
with high-ODP or high-GWP refrigerants—are avoidable. Instead, refrigerant recovery,
recycling, reclamation and destruction, discussed below, should be practiced.
Technicians must study the service records to determine the history of leakage or malfunction
and energy consumption trends. Technicians should also measure performance parameters to
determine the operating condition of the cooling system. Fixing leaks and defects early will
help avoid catastrophic failures that may contaminate or release the entire refrigerant charge.
Technicians should determine the best location from which to recover the refrigerant and
assure that proper recovery equipment and recovery cylinders are available. Proper
maintenance documents like logbooks enable the user to monitor the frequency of repairs as
well as the amount of refrigerant recovered, added and emitted.
In addition, periodical cleaning of refrigeration equipment not only enhances the proper
operation of the system but also reduces the frequency of system failure.
Training of technicians is essential for the proper handling and conservation of refrigerants,
the optimized operation of the equipment, the control or reduction of energy consumption,
and avoids loss of stocked food when refrigerant and lubricant come in contact with it due to
improper handling. Such training should include information on the environmental and safety
hazards of refrigerants, the proper techniques for recovery, recycling, reclamation and leak
detection, and local legislation regarding refrigerant handling. The European standard EN
13313 describes the competence developments necessary for all levels, from system design to
commissioning and servicing.
11.3.3
Refrigerant recovery, recycling, reclamation and destruction
This section provides an overview of refrigerant conservation. Additional details can be found
in previous RTOC report (UNEP, 2011).
In the last few decades, there has been an increasing emphasis on conservation of refrigerants
and reduction of emissions that has led the industry to develop a specific terminology which
is used in this report (ISO, 1999):
Recover: to remove refrigerant in any condition from a system and store it in an external
container.
Recycle: to clean the extracted refrigerant using oil separation and single or multiple
passes through filter-driers which reduce moisture, acidity, and particulate matter.
Recycling normally takes place at the field job site.
230
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Reclaim: to reprocess used refrigerant to virgin product specifications. Reclamation
removes contaminants such as water, HCl and HF reaction products, other acids, high
boiling residue, particulates/solids, non-condensable gases, and impurities including other
refrigerants. Chemical analysis of the refrigerant is required to determine that appropriate
specifications are met. The identification of contaminants and required chemical analysis
are specified by reference to national or international standards for new product
specifications. Reclamation typically occurs at a reprocessing or manufacturing facility.
Destroy: to transform used refrigerant into other chemicals in an environmentally
responsible manner.
Refrigerant recovery
Recovery of refrigerant, especially CFC-12 and H-CFC-22, has become an integral part of
servicing practices in most of the countries, especially for systems having relatively large
charge quantities. The incentives for refrigerant recovery are the cost of refrigerants and
environmental protection. The regulatory framework is also a driving force for recovery of
refrigerant especially in non-Article 5 countries. In developing countries, the continuing
replacement of old CFC-based refrigerators in favour of new ones, many of them containing
HFC as refrigerant, and the rapidly growing market of HFC-based room air conditioners,
increases the importance of regulations aiming to avoid venting of refrigerants during
equipment repair.
Refrigerant recovery equipment reduces emissions by providing a means of temporary storage
of refrigerants that have been removed from systems undergoing service or disposal. Such
equipment is used to temporarily store recovered refrigerant until the system is ready to be
recharged. The recovered refrigerant may also be used in other equipment or sent for
destruction. Refrigerant recovery equipment may have the added capability of recycling of
refrigerants.
Refrigerant recovery equipment has been developed and is available with a wide range of
features and prices. Some equipment with protected potential sources of ignition also exists
for recovery of flammable refrigerant. Although liquid recovery is the most efficient, vapour
recovery methods may be used alone to remove the entire refrigerant charge; however, in
order to reach the vacuum levels that are required in some countries for larger systems,
vapour recovery is used after liquid recovery (Clodic, 1994). Testing standards have been
developed to measure equipment performance for automotive (SAE, 1990) and nonautomotive (ISO, 1999) applications. Such standards, as a part of common service procedures,
should be adopted by regulating authorities.
Refrigerant recycling
Refrigerant recycling conserves refrigerant during the service, maintenance, repair, or
disposal of refrigeration and air-conditioning equipment. Refrigerant recovery and recycling
equipment should be made available to service technicians in every sector. The logistic
process should be easy to understand and cover all players from point of sales to the customer,
and back to point of return. It may be noted that due to incompatibility issues and the array of
refrigerants used that refrigerant recovery/recycling equipment intended for use with one
refrigerant and/or type of air-conditioning system may not be adequate to service other
refrigerants or sectors.
Recycling reduces oil, acid, particulate, moisture, and non-condensable (air) contaminants
from used refrigerants. The recycling performances can be measured on standardized
contaminated refrigerant samples according to test methods (AHRI, 2012). Since the quality
of recycled refrigerant cannot be proven by analysis, restrictions are imposed on the use of
recycled refrigerants.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
231
Currently, the automotive air-conditioning industry typically reuses recycled refrigerant
without reclamation in a different owner’s system. Acceptance in other sectors depends on
national regulation, recommendation of the system manufacturers, existence of reclamation
services, variety and type of systems, and the preference of the service contractor and owner.
Reuse of recovered refrigerant requires strict adherence to good practices including
identifying the refrigerant type. Mixed refrigerants are often costly to separate which may
result in the sale of cross-contaminated refrigerants. For most refrigerants there is a lack of
inexpensive field instruments available to measure the contaminant levels of recycled
refrigerant after processing; hence in countries where access to qualified laboratories is
limited and shipping costs are prohibitive, caution is required to prevent unintentional mixing
of refrigerants.
Refrigerant reclamation
Recovery and reclamation of used refrigerants can, to a certain extent in some countries, meet
the servicing requirements as well as conserve refrigerant and reduce emissions to the
environment. Reclamation is the processing of used recovered refrigerant back to almost
virgin specifications. Reclamation also extends the lifespan of the refrigerant as well as the
equipment and decreases the dependency on virgin refrigerant by placing it back into service.
Reclaimed refrigerants are tested and verified to meet specifications that are similar to newly
produced refrigerants product specifications, such as those provided in (AHRI, 2012). The
reclaimed refrigerants can be repacked and sold to new users.
Reclamation is essentially a market-driven industry. If there is no demand for a particular
refrigerant, the costs to send recovered refrigerant to reclamation facilities will be a
disincentive to reclaim. Efforts must be initiated early with refrigerant supply companies to
take back refrigerant for reclamation. Many service establishments will not be able to afford
storage for recovered refrigerants yet the cost of sending small quantities of recovered
refrigerant to reclamation facilities is also a disincentive to reclamation efforts. Such
disincentives promote venting or reuse of stockpiled refrigerant. Care should be taken by
policy makers to eliminate parallel (and potentially illegal) routes to market. Such avoidance
of improperly reclaimed used refrigerants requires strict auditing of the refrigerant distribution
chain. Enforcement is required to insure that these refrigerants do not contain incompatible
components such as R-40, methylchloride. Documented refrigerant control through its life
cycle can avoid illegal trade of counterfeit refrigerants.
Small capacity portable refrigerant reclamation equipment have also been developed and are
available with varying features. Such equipment is capable of reclaiming about 80 kg of
refrigerant per hour.
The use of reclaimed refrigerant has the advantage of avoiding possible system breakdowns,
as a direct result of contaminated refrigerant, which might lead to refrigerant emissions. As
reclaimed refrigerant meets new product specifications, it may have the support of equipment
manufacturers who maintain warranties on their equipment. Another advantage is that the
quantification of refrigerant recovered are easily obtained. However, reclamation does require
a costly infrastructure, which may only prove viable when the potential for financial return of
recovered refrigerant is sufficient to overcome the initial investment of the enterprise
performing reclamation.
Refrigerant destruction
There is worldwide recognition of the need for destruction of unwanted ODS refrigerants
because of ozone and climate benefits from the avoided emissions of ODS. The destruction of
ODS banks has the potential to earn carbon credits through global carbon markets, broadly
divided into the compliance market and the voluntary market. The compliance market for
GHGs is based on a legal requirement where, at an international (e.g., Clean Development
232
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Mechanism) or national and regional level (e.g., European Union Emission Trading Scheme),
those participants must demonstrate that they hold the carbon credit equivalents to the amount
of GHGs that they have emitted in order to meet their GHG reduction obligations. In some of
these markets, the carbon credits resulting from ODS destruction are not considered for
compliance generally because ODS are not included in the Kyoto Protocol and are being
phased out.
The voluntary markets have also been in operation where individual organisations voluntarily
commit to actions and projects to offset their GHG emissions. The voluntary carbon market
also established standards for ODS destruction as carbon offset projects. Standards such as
The Climate Action Reserve (CAR) and the Verified Carbon Standard (VCS) provide carbon
credits for ODS destruction (CAR, 2013; VCS, 2014). Since 2010, there has been a relatively
low demand for carbon credits in the voluntary markets.
Normal conditions where recovery, recycling, and reclamation under a good logistical system
are prevalent should lead to fairly low requests for destruction in the refrigeration industry.
This is especially the case where the demand for ODS remains high. A need for destruction
facilities may be created in instances where regulations forbid the service use or export of
ODS. The general method of destruction is based on incineration of refrigerants and on
scrubbing combustion products that contain particularly aggressive acids, especially
hydrofluoric acid. Mainly, their resistance to hydrofluoric acid limits the number of usable
incinerators. CFCs and more particularly halons, burn very poorly. In order to be incinerated,
they must be mixed with fuels in specific proportions.
The Parties to the Montreal Protocol, recognizing the benefits of destruction of unwanted
ODS in an environment friendly manner, approved processes, through decision IV/11 as early
as in 1992. Since then, the list of approved destruction processes has been updated a number
of times. Presently, there are 16 destruction processes approved.
There are a number of destruction facilities based on the approved destruction processes by
the Montreal Protocol, especially in non-Article 5 Parties and in some Article 5 Parties.
Currently, there are limited facilities to destroy unwanted ODS refrigerants in most
developing countries.
11.4
Indirect impacts due to energy use
By its very nature, the use of energy to accomplish refrigeration draws a valuable resource as
the power generation systems consume fuel and, in many cases emit CO2 and other pollutants.
The refrigerant selection impacts the energy consumption of the refrigeration system due to its
thermodynamic nature in many ways. The indirect emissions operating the refrigeration
systems during its lifetime contribute in many cases far more compared to the direct impact.
The more important is the participation of renewable sources to the power grid, the less
prevalent is the indirect impacts from energy use.
Designing and efficiently maintaining HVAC&R systems contributes by a large factor to the
reduction of GHG related to the air conditioning and refrigeration industry through cutting
“indirect emissions”. Consequently, using measurement for the global warming effect of
refrigerants that take into consideration indirect emissions is a more representative way for
selecting environment friendly refrigerants than a simple comparison by direct emissions
alone. Also the introduction of minimum energy performance standards (MEPS) has helped
drive energy efficiency to higher levels than if those standards had not been applied, and that
the cost of not complying with those standards will have an adverse effect on cutting GHG
emissions.
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
233
Energy efficiency is the measure of the amount of energy input to a machine to deliver a
required output. It is measured in units of energy output or work done by the machine vs. the
power input to the machine. However, energy efficiency for the HVAC industry can be
measured at different levels: individual components, cooling and heating systems, or a
building as a whole. The efficiency at each level contributes to that of the other level up and
depends on the proper design and application of components at the particular level.
Energy efficiency parameters are measured at certain conditions at which the machine is
working and will have different readings if those conditions change. For most air-source air
conditioning machines, this includes the ambient air conditions and the room temperature that
the machine is expected to deliver. An air conditioner operating in a high ambient temperature
condition will generally be less efficient than one working in an outside temperature of 35°C
or below.
11.4.1
Energy efficiency improvements
The discussion around energy efficiency is closely related to the one on alternative
refrigerants. The guidelines from paragraph 15 of Decision XIX/6 require countries benefiting
from investment projects, to implement conversion technologies that minimise the effects on
climate. By converting to more energy efficient products, countries will minimise the
consumption of electric power leading to a reduction in the carbon emissions from power
plants. Emissions of CO2 in grams per kWh of electric power generated vary by fuel type or
amount of renewable energy as well as plant design; emission factors are approximately 443
for natural gas, 778 for oil and 960 for coal. Depending on the sources of electric power in a
particular country, each kWh saved will contribute to a reduction of up to a kilogram of CO2.
An analysis by the European Commission on residential air conditioners reckons that "most of
the environmental impacts (and life cycle costs - LCC) are attributable to the use-phase."
(European Commission, 2009b). This shows the importance of understanding energy
efficiency in any discussion about climate impact of air-conditioning and refrigeration
equipment. Moreover, it is important to note that climate impact may also be reduced by the
use of renewable energy sources; however, this does not mean that countries with low-carbon
electric grids do not have to keep the pressure on higher energy efficiency standards
especially when electric grids are regionally interconnected.
11.5
Equipment life cycle considerations: equipment design, operation,
maintenance, and end-of-life
Concepts and selection criteria for alternative refrigerants in various applications for each
sector of the HVAC&R industry are presented in other chapters of this Assessment Report.
The common criteria among the different sectors are the necessity to design, operate, and
maintain efficient systems that operates with minimized emissions, both direct and indirect.
For refrigeration and air-conditioning systems, the most important design criteria in an
optimized operation is reducing indirect emissions due to energy efficiency measures over the
lifetime of the equipment. In the design phase, the optimization process is a result of product
innovation (such as part load design considerations of compressors, heat exchangers, and
components), integration of the refrigeration equipment into the heating system for heat
recovery, and utilization of power grid based controls. Those technical design criteria are
linked to regulations and standards as well as voluntary agreements by industry.
In U.S. buildings, space cooling and refrigeration accounted for 13.7% of the site and 21.3%
of the primary energy use, in 2010 (USDOE, 2011). Additional energy is consumed for
heating via reversible heat pumps, primarily in the residential sector. 16% in Germany have
been reported (Arnemann, 2013), while the EU estimates that 55% of the primary energy in
used by heating (Hudson, 2014). Buildings account for 40% of the world’s energy use with
the resulting carbon emissions substantially more than those in the transportation sector
234
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
(WBSCD, 2009). Estimated energy saving potential with available state-of-the-art technology
is around 35-40% (FKT, 2009) per annum. A study by the German Research Council shows
that it will be technically possible to achieve potential energy savings of 40% until 2020, if
accompanying political measures are taken (FKT, 2012). In emerging markets like Brazil,
RAC sales rocketed from 1 million units in 2003 to 3.3 million units in 2012 (Eletrobras
Procel, 2013).
As examples, the following energy savings achieved by voluntary agreements have been
documented:
- Supermarket refrigeration: 5.5%/year (period 2004-2012 (Heinbokel, 2011)
- Domestic refrigeration: 27% over 10 years (Preuß, 2011); 40 % over 7 years (Silva, 2003)
- Refrigeration in air conditioning systems: 2%/year (Brinkmann, 2009)
In the position paper (FKT, 2012) by the German Research Council it is stated that
considerable energy savings can be achieved through the optimum design of a system rather
than just optimizing the design of components. Other savings can be obtained from the
control, operation, and maintenance of the system.
The same study found that savings up to 40% can be achieved through:
- Efficient control, operation and design of systems (around 10%)
- Reduction of effective temperature differences on heat exchangers (around 12%)
- Use of efficient drives (around 3%)
- Reducing cooling / heating demand (around 7%)
- System improvement by designing in compliance with the annual temperature profile, use
of heat recovery, thermal storage (around 8%)
In Europe, the successful implementation of energy savings through commitments by the
industry and by Eco-Design Requirements (European Commission, 2009b) in relation to the
foreseeable requirements from the legislature led to a significant competitive advantage for
manufacturers undertaking those voluntary commitments.
As for the direct effect of the refrigerants used, here too there are opportunities to improve the
life-cycle sustainability of refrigeration systems. As discussed in Section 11.6, if a refrigerant
with poor environmental properties is used, careful management of that refrigerant is
necessary throughout the lifecycle of the equipment. This entails designing equipment for low
leaks, maintaining and operating equipment to prevent emissions, and finally properly
recovering the refrigerant when the equipment is disposed or replaced.
11.5.1
Equipment design
From an engineering point of view, the design of components such as compressors or
electrical drives has a possibility for limited improvement of a few percentage points in terms
of efficiency compared to ideal theoretical efficiency. Main improvements can be made
through controls and smart electronic integration, minimized heat exchanger temperature
differences and other measures described above. To address the direct effect, equipment can
be designed to use alternative low-GWP refrigerants and/or to reduce emissions. These types
of improvements are either driven by cost, product innovation or by enforced standards
requirements.
Environmental sustainability, including efficiency and refrigerant management
considerations, can be achieved at different levels in the design phase by taking the following
technical and regulatory criteria into consideration:
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
235
Technical considerations:
Meeting customer design requirements, including the proper specification of annual
cooling/heating demands;
Minimizing refrigerant usage and choosing alternative refrigerants that meet energy
efficiency requirements;
Integrating the technical design of equipment into larger system or whole-building design;
Eliminating competing targets in the decision making process: low first cost versus high
efficiency.
Regulatory considerations:
Refrigerant regulations specifically for those refrigerants targeted for a phase-down, for
example the European Union F-Gas (European Union, 2012) regulations;
Agreements for achieving high energy efficiency and/or low consumption and emissions
of refrigerants, for example the German agreement VDMA 24247 for energy efficiency
in supermarket refrigerating systems” (VDMA, 2011);
Equipment energy efficiency ratings, for example “eco design” Directive 2009/125/EC,
“establishing a framework for the setting of ecodesign requirements for energy-related
products (European Union, 2009);
Standards provided by global organizations or industry associations, for example
International Standards Organization (ISO), European Committee for Standardization
(CEN) or the American Society of Heating, Refrigerating, and Air Conditioning
Engineers (ASHRAE)5.
The decision of which equipment to use during the design stage is often faced by competing
targets: low first cost investment versus high energy efficiency affecting the cost of energy
over the lifetime of the system and the GHG emission. To resolve this conflict between low
first cost, operating cost and refrigerant emissions, new financing methods and evaluation
criteria for the technical operation of systems in terms of their contribution to the environment
are being developed. These financial mechanisms can contribute significantly to the reduction
of energy consumption and refrigerant emissions and thus to system design. To be really
relevant, these mechanisms must be able to account for an adequate balance between life
cycle cost and LCCP.
Refrigerant selection
Sustainability aspects are being included as regulatory requirements (EU F-gas law) and third
party standards such as the US AHAM Refrigerator Sustainability Standard (AHAM, 2012).
A lifecycle approach is typically used to provide a complete analysis of the impact on the
environment over the expected lifetime of the product containing refrigerant.
Many of the factors that influence energy efficiency are included in Table 11-1 “Refrigerant
Selection Criteria”. The efficiency of components, as well as efficiency losses such as
pressure drops, have a large effect on the overall energy efficiency of the application. Energy
efficiency in turn has a significant impact on the Total Equivalent Warming Impact (TEWI),
the mass of refrigerant needed, the use of resources such as fuel, and end of life disposal
requirements. Energy consumption is greatly affected by the selection of refrigerants,
especially considering the lifetime of the equipment.
For example, a typical 10 kW cooling capacity system with a SEER of 13 in the USA will use
over 44000 kWh over its lifetime based on the life cycle cost estimator proposed by the U.S.
Energy Star Program (Energy Star, 2014). This system will typically have 2 kg of refrigerant
charge. The CO2 emissions due to the energy consumption of 44000 kWh are 30.3 metric
5
www.iso.org and www.ashrae.org
236
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
tonnes of CO2, based on the USA power grid, which is 45 % coal-based. The equivalent CO2
emissions due to the direct release of the refrigerant charge are 2.7 metric tonnes, which is
less than 10 % of the lifetime CO2 emissions.
Design considerations for safety can sometimes counter the design for energy efficiency and
lead to more CO2 emissions. For example, isolating heat exchangers for sake of safety or
toxicity can affect the heat transfer efficiency either positively or negatively.
Refrigerant criteria and properties provide a basis for the selection of a refrigerant in an
application in support of the intermediate factors. Properties and selection criteria of
significance are shown in Table 11-1.
Table 11-1: Refrigerant selection criteria
Selection criteria
Factors / Properties and
Impact
refrigeration systems
contribute to global warming
by energy consumption and
emissions of refrigerants
More than 80% of emissions
are related to operation
(depending upon the
conditions).
Climate impact
Energy efficiency
Refrigerant Cost
Commercial availability
Cost and design factor
Market penetration driven by
local demand
Technological level
Increase of energy optimized
operation, leak reduction, safe
handling and use, education
and training
Design factor and operation
requirement, reduction in
energy efficiency related to
refrigerant critical temperature
High ambient
temperature fitness
Safety
Flammability
Related to adjustments of the
technical design of products
and to user know-how.
Cost and design factors.
Lack of local regulation
Risks associated with the use
of flammable refrigerants are
due to the concurrent existence
of: 1. leakage, 2. flammable
concentration and 3. Source of
Ignition (SOI). In general these
risks can be reduced to
acceptable levels by means of
Expected development
higher acceptance for products and
technologies with lower TEWI;
stronger regulations might lead to phase
out of high GWP fluids
Higher full load and annualized
efficiency requirements resulting in
stricter regulations and
better adjustment to local requirements
and conditions. Industry transition from
prescriptive full-load efficiency to a
systemic approach.
Market price reduction
availability globally is limited by local
phase-out regulations;
global manufacturer will develop local
solutions with different refrigerants
Development of “smart” products
which requires less know-how by
operators
system adjustment to ambient
conditions (larger HX, refrigerants with
low compressor discharge
temperatures),
optimization for annual operation or
local conditions by "intelligent" design
Increasing “intelligence” of the
technical system including handling of
risks and operation, result to increase of
safety level as lower safety might not be
accepted by society.
Increase of flammable refrigerants’
market share and know how to use them
Due to flammable nature of new
(unsaturated HFC) and known
refrigerants (such as HFC-32, HFC152a, HC-290, HC-600a, NH3) it is
expected that the application, design
know-how, service practices and
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
237
technical adjustments which
might result in higher costs.
Lack of local regulation.
procedures, education, training, as well
as adoption of technical standards for
safe use of these flammable refrigerants
will be developed within the next 3-5
years6.
6
Safety requirements for flammable refrigerants classified as A2L, A2, and A3 are described in chapter
2 of this report
238
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Annex 1 - TEAP Refrigeration, Air Conditioning and Heat Pumps
Technical Options Committee (RTOC) - Membership status 12/14
Co-chairs
Lambert Kuijpers
Roberto de A. Peixoto
Affiliation
A/genT Consultancy (TU Eindhoven)
Maua Institute of Technology, Sao Paulo
Country
The Netherlands
Brazil
Members
Radhey S. Agarwal
James M. Calm
Radim Cermak
Guangming Chen
Jiangpin Chen
Denis Clodic
Daniel Colbourne
Richard DeVos
Sukumar Devotta
Martin Dieryckx
Dennis Dorman
Bassam Elassaad
Dave Godwin
Marino Grozdek
Samir Hamed
Kenneth E. Hickman
Martien Janssen
Makoto Kaibara
Michael Kauffeld
Jürgen Köhler
Holger König
Richard Lawton
Tingxun Li
Petter Nekså
Horace Nelson
Carloandrea Malvicino
Tetsuji Okada
Alaa A. Olama
Alexander C. Pachai
Andy Pearson
Per Henrik Pedersen
Rajan Rajendran
Giorgio Rusignuolo
Alessandro Silva
Paulo Vodianitskaia
Asbjorn Vonsild
Affiliation
IIT New Delhi
Engineering Consultant
Ingersoll Rand
Zhejiang University, Hangzhou
Shanghai University
EREIE Consultancy
Consultant
General Electric
Consultant
Daikin Europe N.V.
Trane
Consultant
U.S. EPA
University of Zagreb
Petra Industries
Consultant
Re/genT
Consultant
Fachhochschule Karlsruhe
University of Braunschweig
Consultant
CRT
Guangzhou San Yat Sen University
SINTEF Energy Research
Consultant, University Kingston
Fiat Ricerche
JRAIA
Consultant
Johnson Controls
Star Refrigeration Glasgow
Danish Technological Institute
Emerson
Carrier Transicold
Bitzer
Consultant
Danfoss
Country
India
USA
Czech Republic
China
China
France
UK
USA
India
Belgium
USA
Lebanon
USA
Croatia
Jordan
USA
The Netherlands
Japan
Germany
Germany
Germany
UK
China
Norway
Jamaica
Italy
Japan
Egypt
Denmark
UK
Denmark
USA
USA
USA
Brazil
Denmark
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
239
240
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Annex 2 - Contact details for authors, co-authors and contributors to
the 2014 RTOC Assessment Report (to be completed)
Dr. Radhey S. AGARWAL
Professor, Mechanical Engineering
Department, IIT Delhi,
Senior Advisor and Co-ordinator
Sector Phase out Plan Unit (SPPU)
Ozone Cell, Core-4B, 2nd Floor
India Habitat Centre, Lodhi Road
New Delhi- 110 003
India
Mobile : +91 981 136 1865
Email: [email protected],
[email protected]
Mr. Nigel AMSCHWAND
Engineering Consultant
GEA Refrigeration Africa (Pty) Ltd
PO Box 36815
Chempet 7442
South Africa
Tel.: +27 (0)21 555 9000
E-mail: [email protected]
Mr. James M. CALM, P.E.
Engineering Consultant
10887 Woodleaf Lane
Great Falls, VA 22066-3003
USA
Tel: +1 703 636 9500
E-mail: [email protected]
Dr. Radim ČERMÁK
Ingersoll Rand, IR Engineering and
Technology Center Prague
Florianova 2460
253 01 Hostivice
Czech Republic
Tel.: +420 257 109 597
Fax: +420 251 562 187
E-mail: [email protected]
Prof. Jiangping CHEN
Shanghai Jiaotong University
Dongchuan Road, 800
Shanghai
P.R. China
Tel: +86 3420 6775
Fax: +86 3420 6087
Email: [email protected];
[email protected]
E-mail: [email protected]
Prof. Guangming CHEN
Institute of Refrigeration and Cryogenics
Zhejiang University
Hangzhou 310027, Zhejiang
P.R. China
Tel.: +86 571 8795 1680
E-mail: [email protected]
Dr. Denis CLODIC
Emeritus Research Director
President of innov. company ERIE
CEP Mines-ParisTech
13, Rue du Pies
91120 Palaiseau
France
Tel.: + 33 1 8038 4132
E-mail : [email protected]
Dr. Daniel COLBOURNE
PO Box 4745
Stratford-upon-Avon
CV37 1FE
United Kingdom
Tel: +44 1789 268 285
E-mail: [email protected]
Mr. Richard DEVOS
Technical Director
GE Appliances
11822 Springmeadow Ln
Goshen, Ky 40026
USA
Tel.: +1 502 314 4530
E-mail: [email protected]
Dr. Sukumar DEVOTTA
T2/301 Skycity
Vanagaram Ambattur Road
Vanagaram
Chennai 600095
India
Mobile: +91 44 26530830
Tel.: +91 44 2653 0830
Email: [email protected]
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
241
Mr. Martin DIERYCKX
Daikin Europe N.V.
Zandvoordestraat 300
Oostende 8400
Belgium
Tel: +32 59 55 86 14
E-mail: [email protected]
Mr. Dennis DORMAN
Director
Compressor Technology and Development
The Trane Company
Ingersoll Rand
3600 Pammel Creek Road
La Crosse, WI 54601
USA
Tel.: +1- 608 787 1829
E-mail: [email protected]
Mr. Bassam ELASAAD
P.O. Box 70494
Antelias
Lebanon
Tel.: +961 7692 6086
E-mail: [email protected]
Mr. Dave GODWIN
Environmental Protection Specialist
Stratospheric Protection Division
U.S. Enviromental Protection Agency
1200 Pennsylvania Avenue, NW
Mail Code 6205-T
Washington, DC 20460
USA
Tel.: +1 202-343-9324
E-mail: [email protected]
Asst. Prof. Dr. Marino GROZDEK
University of Zagreb
Faculty of Mechanical Engineering and
Naval Architecture
Ivana Lucica 5
10000 Zagreb
Croatia
Tel.: +385 1 6168 564 /Fax: +385 1 6168512
E-mail: [email protected]
242
Mr. Samir HAMED
Petra Engineering Industries Company
Research and development manager
Amman
Jordan
Tel.: +962 795 601358
Fax: +962 640 51086
E-mail: [email protected],
[email protected]
Mr. Kenneth E. HICKMAN
Building Efficiency Group
Johnson Controls
631 S. Richland Ave.
York, PA 17403
USA
Tel.: +1- 717 771 7459
E-mail: [email protected]
Mr. Martien JANSSEN
Re/genT BV
Lagedijk 22
5705BZ Helmond
The Netherlands
Tel.: +31 492 476365
E-mail: [email protected]
Web: www.re-gent.nl
Mr. Makoto KAIBARA
5-17-16 Tsukinova
Otsu-Shi Shiga
520-2152 Japan
Tel.: +81-77-543-0585
E-mail: [email protected]
Prof. Dr. Michael KAUFFELD
Institute of Refrigeration,
Air Conditioning and Environmental
Engineering
Karlsruhe University of Applied Sciences
Moltkestrasse 30
76133 Karlsruhe
Germany
Tel.: +49 721 925 1843
Fax: +49 721 925 1915
E-mail: [email protected]
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
Prof. Dr.-Ing. Jürgen KŐHLER
Institut für Thermodynamik (IfT)
Institute of Technology
University of Braunschweig
Hans-Sommer-Str. 5
38106 Braunschweig
Germany
Tel.: +49 531 391 2625
Website: www.ift.tu-bs.de
E-mail: [email protected],
[email protected]
Dipl. Ing. Holger KŐNIG
ref-tech engineering
Director
Berger Halde 26
88079 Kressbronn
Germany
Tel.: +49 7543-9134-72
Mobile: +49 175 520 4942
E-mail: [email protected]
Dr. Lambert KUIJPERS
(co-chair RTOC)
(Technical University
POB 513, Eindhoven)
A/genT Consultancy
Mgr. Boermansstraat 15
5911BA Venlo
The Netherlands
Tel.: +31 77 354 6742
E-mail: [email protected]
Dr. Richard LAWTON
Cambrigde Refrgeration Technology
140 Newmarket road
Cambrigde
U.K.
E-mail: [email protected]
Mr. Tingxun LI
Engineering School
Sun Yat-sen University
No.135 Xingang Xi Road, Guangzhou,
510725,
P.R.China
Fax: +86 2633 1115
Mobile: +86 135 3350 9330
E-mail: [email protected]
Mr. Carloandrea MALVICINO
FCA Italy S.p.A.
C.so Settembrini, 40 – Gate 8 - Building 6 –
1st floor – B5aS
10135 Torino
Italy
Tel.: +39 011 003 8811
Mobile: +39 33 5130 3416
E-mail:
[email protected]
Prof. Dr. Ing. Petter NEKSÅ
SINTEF Energy Research
Energy Processes
P.O.Box 4761 Sluppen
7465 Trondheim
Norway
Mobile: +47 92 60 65 19
E-mail: [email protected]
Mr. Horace NELSON
Technical Consultant- Univ. of Technology
24 Arnold Road
Kingston 4
Jamaica, W.I.
Tel.: +1 876 328 6167 / 429-7994
E-mail : [email protected]
Mr. Tetsuji OKADA
Japan Refrigeration and Air conditioning
Industry Association
President
3-5-8 Shibakoen, Minato-ku, Tokyo, Japan
Tel.: +81 3-3432-1671
E-mail: [email protected]
Dr. M. Alaa OLAMA
Ref & AC consultant
6 Refaa Beck Street, Khalifa Mamoun
Heliopolis, Cairo
P.C. 11341
Egypt
Tel: +20 10060 99950
E-mail: [email protected]
Mr. Alexander Cohr PACHAI
Johnson Controls Denmark
Christian D.X's Vej 201
8270 Hoejbjerg
Denmark
Tel.: office +45 87 36 70 00
Mobile: +45 29 22 71 59
E-mail.: [email protected]
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
243
Dr. Andy PEARSON
Star Refrigeration Ltd
Thornliebank Ind. Estate, Nitshill Road
Glasgow G46 8JW
United Kingdom
Tel.: +44 141 638 7916
E-mail: [email protected]
Mr. Per Henrik PEDERSEN
Danish Technological Institute
Center for Refrigeration and
Heat Pump Technology
2630 Taastrup
Denmark
Tel.: +45 72 20 25 13
E-mail: [email protected]
Prof. Dr. Roberto de Aguiar PEIXOTO
(co-chair RTOC)
Maua Institute of Technology
Department of Mechanical Engineering
Praça Mauá 01
Sao Caetano do Sul
Sao Paulo - 09580-900
Brazil
Tel.: +55 11 4239 3021
E-mail: [email protected]
Mr. Rajan RAJENDRAN
Vice President,
Systems Innovation Centre and
Sustainability
Emerson Climate Technologies
1675, West Campbell Road
Sidney, Ohio 45365
USA
Tel.: +1 937 498 3580
E-mail: [email protected]
244
Mr. Giorgio RUSIGNUOLO
Vice President Engineering Refrigeration
Carrier Corporation
Carrier Parkway, Building TR20
Syracuse, New York 13221
USA
Tel.: +1 315 432 7062
E-mail: [email protected]
Mr. Alessandro SILVA
BITZER Scroll, Inc.
6055 Court Street Road
Syracuse, New York 13206
USA
Tel.: +1 315 433 2439
E-mail: [email protected],
[email protected]
Mr. Paulo VODIANITSKAIA
HAPI Consultancy
Rua João Colin, 1285 s.3
89204-001 Joinville SC
Brazil
Tel.: +55 47 34 22 15 02
E-mail: [email protected]
Mr. Asbjørn VONSILD
Refrigerants and Standards
Danfoss A/S
Automatic Controls
Albuen 29
6000 Kolding
Denmark
Tel.: +45 2372 5559
E-mail: [email protected]
2014 TOC Refrigeration, A/C and Heat Pumps Assessment Report
