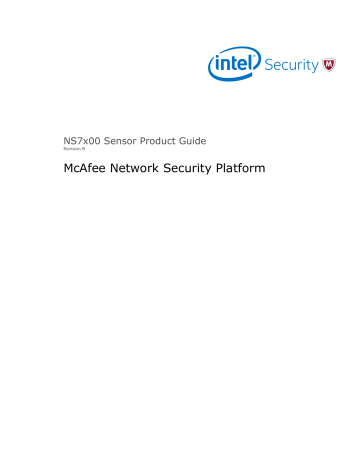

NS7x00 Sensor Product Guide
Revision B
McAfee Network Security Platform
COPYRIGHT
Copyright © 2014 McAfee, Inc., 2821 Mission College Boulevard, Santa Clara, CA 95054, 1.888.847.8766, www.intelsecurity.com
TRADEMARK ATTRIBUTIONS
Intel and the Intel logo are registered trademarks of the Intel Corporation in the US and/or other countries. McAfee and the McAfee logo, McAfee Active
Protection, McAfee DeepSAFE, ePolicy Orchestrator, McAfee ePO, McAfee EMM, McAfee Evader, Foundscore, Foundstone, Global Threat Intelligence,
McAfee LiveSafe, Policy Lab, McAfee QuickClean, Safe Eyes, McAfee SECURE, McAfee Shredder, SiteAdvisor, McAfee Stinger, McAfee TechMaster, McAfee
Total Protection, TrustedSource, VirusScan are registered trademarks or trademarks of McAfee, Inc. or its subsidiaries in the US and other countries.
Other marks and brands may be claimed as the property of others.
LICENSE INFORMATION
License Agreement
NOTICE TO ALL USERS: CAREFULLY READ THE APPROPRIATE LEGAL AGREEMENT CORRESPONDING TO THE LICENSE YOU PURCHASED, WHICH SETS
FORTH THE GENERAL TERMS AND CONDITIONS FOR THE USE OF THE LICENSED SOFTWARE. IF YOU DO NOT KNOW WHICH TYPE OF LICENSE YOU
HAVE ACQUIRED, PLEASE CONSULT THE SALES AND OTHER RELATED LICENSE GRANT OR PURCHASE ORDER DOCUMENTS THAT ACCOMPANY YOUR
SOFTWARE PACKAGING OR THAT YOU HAVE RECEIVED SEPARATELY AS PART OF THE PURCHASE (AS A BOOKLET, A FILE ON THE PRODUCT CD, OR A
FILE AVAILABLE ON THE WEBSITE FROM WHICH YOU DOWNLOADED THE SOFTWARE PACKAGE). IF YOU DO NOT AGREE TO ALL OF THE TERMS SET
FORTH IN THE AGREEMENT, DO NOT INSTALL THE SOFTWARE. IF APPLICABLE, YOU MAY RETURN THE PRODUCT TO MCAFEE OR THE PLACE OF
PURCHASE FOR A FULL REFUND.
2
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Contents
1
Preface
5
About this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audience . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Find product documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
5
5
6
About Network Security Sensors
7
Functions of an NS-series Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Deployment of an NS-series Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2
NS7x00 Sensor physical description
11
Components of an NS7x00 Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Sensor LEDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3
Before you install
15
Usage restrictions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety measures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
About fiber-optic ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of the box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Unpack the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Setting up the Sensor
19
Setup overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
How to position the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install the slide rails and rack-mount the Sensor . . . . . . . . . . . . . . . . . . . . .
Redundant power supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install a new power supply . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove the power supply . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
NS7x00 Network Interface modules
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
.
Small form-factor pluggable transceiver modules
25
26
26
27
27
27
27
28
28
31
SFP transceiver modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SFP+ transceiver modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Install a transceiver module . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Remove a transceiver module . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
McAfee Network Security Platform
19
19
20
23
23
23
25
4-port 10/1 GigE SM 8.5 µm with internal fail-open Network Interface Module . .
4-port 10/1 GigE MM 50 µm with internal fail-open Network Interface Module . .
4-port 10/1 GigE MM 62.5 µm with internal fail-open Network Interface Module .
6-port RJ-45 10/100/1000 Mbps with internal fail-open Network Interface module
8-port SFP/SFP+ 1/10 Gigabit Network Interface module . . . . . . . . . .
Installation of the interface module . . . . . . . . . . . . . . . . . . .
Install the interface module during a fresh installation of the Sensor . . .
Install the interface module on an up and running Sensor . . . . . . .
Remove an interface module . . . . . . . . . . . . . . . . . . . . . .
6
15
15
16
17
17
32
32
33
33
NS7x00 Sensor Product Guide
3
Contents
7
Attaching cables to the Sensor
35
Connect the cable to the Console port . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the cable to the Auxiliary port . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the cable to the Response port . . . . . . . . . . . . . . . . . . . . . . . . .
Connect the cable to the Management port . . . . . . . . . . . . . . . . . . . . . . .
About connecting cables to the Monitoring ports . . . . . . . . . . . . . . . . . . . . .
How to use peer ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cable types for routers switches hubs and computers . . . . . . . . . . . . . . . .
Connect the cables for in-line mode . . . . . . . . . . . . . . . . . . . . . . .
Connect the cables for tap mode . . . . . . . . . . . . . . . . . . . . . . . .
Connect the cables for SPAN or hub mode . . . . . . . . . . . . . . . . . . . . .
Connect the cables for Sensor Fail-Open . . . . . . . . . . . . . . . . . . . . .
Connect the cable for Sensor failover . . . . . . . . . . . . . . . . . . . . . . .
Turning the Sensor on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
35
36
36
37
37
38
38
38
39
39
39
40
41
8
Troubleshooting the Sensor
43
9
Sensor technical specifications
45
Index
47
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Preface
This guide provides the information you need to work with your McAfee product.
Contents
About this guide
Find product documentation
About this guide
This information describes the guide's target audience, the typographical conventions and icons used
in this guide, and how the guide is organized.
Audience
McAfee documentation is carefully researched and written for the target audience.
The information in this guide is intended primarily for:
•
Administrators — People who implement and enforce the company's security program.
•
Users — People who use the computer where the software is running and can access some or all of
its features.
Conventions
This guide uses these typographical conventions and icons.
Book title, term,
emphasis
Title of a book, chapter, or topic; a new term; emphasis.
Bold
Text that is strongly emphasized.
User input, code,
message
Commands and other text that the user types; a code sample; a displayed
message.
Interface text
Words from the product interface like options, menus, buttons, and dialog
boxes.
Hypertext blue
A link to a topic or to an external website.
Note: Additional information, like an alternate method of accessing an
option.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
5
Preface
Find product documentation
Tip: Suggestions and recommendations.
Important/Caution: Valuable advice to protect your computer system,
software installation, network, business, or data.
Warning: Critical advice to prevent bodily harm when using a hardware
product.
Find product documentation
After a product is released, information about the product is entered into the McAfee online Knowledge
Center.
Task
1
2
6
Go to the Knowledge Center tab of the McAfee ServicePortal at http://support.mcafee.com.
In the Support Content pane:
•
Click Product Documentation to find user documentation.
•
Click Technical Articles to find KnowledgeBase articles.
3
Select Do not clear my filters.
4
Enter a product, select a version, then click Search to display a list of documents.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
1
About Network Security Sensors
McAfee Network Security Sensor (Sensor) (Sensors) are high-performance, scalable, and flexible
content processing appliances built for the accurate detection and prevention of:
•
Network intrusions
•
Network misuse
•
Distributed Denial-of-Service (DDoS) attacks
Sensors are specifically designed to handle traffic at wire speed, efficiently inspect and detect
intrusions with a high degree of accuracy, and flexible enough to adapt to the security needs of any
enterprise environment. When deployed at key network access points, the Sensor provides real-time
traffic monitoring to detect malicious activity and respond to the malicious activity as configured by
the administrator.
After you deploy a Sensor successfully, you configure and manage it using the McAfee® Network
Security Manager (Manager). The process of configuring a Sensor and establishing communication
with the Manager is described in the subsequent chapters of this guide. For the details about the
Manager, see the McAfee Network Security Platform Manager Administration Guide.
Contents
Functions of an NS-series Sensor
Deployment of an NS-series Sensor
Functions of an NS-series Sensor
The NS-series Sensors are a third-generation hardware platform for McAfee® Network Security Sensor
(Sensor) designed for high bandwidth links, to provide Next Generation IPS (NGIPS) capability,
providing high aggregate throughput across various Sensor models. The following models are
supported.
•
NS7300 - The NS7300 Sensor is a 1RU unit, providing an aggregate throughput of 5 Gbps
•
NS7200 - The NS7200 Sensor is a 1RU unit providing an aggregate throughput of 3 Gbps
•
NS7100 - The NS7100 Sensor is a 1RU unit providing an aggregate throughput of 1.5 Gbps
McAfee Network Security Platform
NS7x00 Sensor Product Guide
7
1
About Network Security Sensors
Deployment of an NS-series Sensor
The primary function of a Sensor is to analyze traffic on selected network segments and to respond
when an attack is detected. The Sensor examines the header and data portion of every network
packet, looking for patterns and behavior in the network traffic that indicate malicious activity. The
Sensor examines packets according to user-configured policies, or rule sets, which determine what
attacks to watch for, and how to respond with countermeasures if an attack is detected.
If an attack is detected, a Sensor responds according to its configured policy. Sensor can perform
many types of attack responses, including generating alerts and packet logs, resetting TCP
connections, "scrubbing" malicious packets, and even blocking attack packets entirely before they
reach the intended target.
Deployment of an NS-series Sensor
Deployment of a Sensor requires knowledge of your network to help determine the level of
configuration and the number of installed Sensors. You also need to determine the number of McAfee®
ePolicy Orchestrator® (McAfee ePO™) servers required to protect your network. The Sensor is
purpose-built for the monitoring of traffic across one or more network segments.
8
McAfee Network Security Platform
NS7x00 Sensor Product Guide
About Network Security Sensors
Deployment of an NS-series Sensor
1
Following is an example of a network topology using Gigabit Ethernet throughput. In the illustration,
McAfee® Network Security Platform (formerly McAfee® IntruShield®) provides IPS protection to
outsourced servers. High port-density and virtualization provides a highly scalable solution, while
Network Security Platform protects against Web and eCommerce mail server exploits.
Figure 1-1 A sample Network Security Platform deployment
McAfee Network Security Platform
NS7x00 Sensor Product Guide
9
1
About Network Security Sensors
Deployment of an NS-series Sensor
10
McAfee Network Security Platform
NS7x00 Sensor Product Guide
2
NS7x00 Sensor physical description
The high-port density NS-series Sensor is designed for high bandwidth links. This section gives a
physical description of the NS7x00 Sensors.
The NS7300, NS7200, and NS7100 Sensor models are a mid-range offering that provide 5 Gbps, 3
Gbps, and 1.5 Gbps throughput respectively.
Contents
Components of an NS7x00 Sensor
Sensor LEDs
Components of an NS7x00 Sensor
The NS7x00 front and rear panel details are described below.
The NS7100/NS7200/NS7300 Sensor model
Figure 2-1 Sensor front panel
1
Console port (1)
2
RJ-11 port (1) for fail-open control of two built-in SFP+ ports in slot G0. The RJ-11 port supports 1
Gbps (SFP) copper or fiber and 10 Gbps (SFP+) (SR and LR)
3
SFP+ 1/10 Gigabit Ethernet ports (2)
The RJ-11 port controls only this SFP+ 1/10 port pair in passive fail-open mode.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
11
2
NS7x00 Sensor physical description
Components of an NS7x00 Sensor
4
5
Two slots for I/O modules (Any combination of the interface modules can be used.)
•
SFP/SFP+ 1/10 Gigabit Ethernet Monitoring ports (8)
•
RJ-45 10/100/1000 Mbps with internal fail-open Ethernet Monitoring ports (6)
•
10/1 GigE SM 8.5 micron with internal fail-open Monitoring ports (4)
•
10/1 GigE MM 50 micron with internal fail-open Monitoring ports (4)
•
10/1 GigE MM 62.5 micron with internal fail-open Monitoring ports (4)
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports (8)
The supported transceiver modules are SFP+ (MM and SM), SFP Fiber (MM and SM) and SFP Copper.
Figure 2-2 Sensor rear panel
1
Auxiliary port (1)
2
USB ports (2)
3
Power supply inlet (2)
The NS7x00 Sensors are shipped with one power supply unit. Second power supply (optional) is
supported to enable redundancy.
4
RJ-45 10/100/1000 Response port (R1) (1)
5
RJ-45 10/100/1000 Management port (Mgmt) (1)
The NS7x00 Sensors have five fan units on the top.
Figure 2-3 Fan units-NS7100/NS7200/NS7300
The fan units and power supplies are field replaceable.
The following table gives the details of the supported ports.
12
McAfee Network Security Platform
NS7x00 Sensor Product Guide
NS7x00 Sensor physical description
Sensor LEDs
2
Ports
NS7100/NS7200/NS7300
Fixed Gigabit Ethernet—Copper ports
(internal fail-open)
8
Fixed 10 GigE/1 GigE (SFP+) ports
2
Network I/O slots
2
Network I/O modules
4-port 10/1 GigE SM 8.5 micron with internal fail-open
4-port 10/1 GigE MM 50 micron with internal fail-open
4-port 10/1 GigE MM 62.5 micron with internal
fail-open
6-port RJ-45 1 GigE with internal fail-open
8-port (SFP+/SFP) 10/1 GigE
10 Gigabit Ethernet
Modular up to 18
Dedicated Response ports (RJ-45)
1 (1G/100M/10M)
Dedicated Management ports (RJ-45)
1 (1G/100M/10M)
Dedicated Auxiliary port (DB9)
1
USB ports
2
•
Console port — Use to set up and configure the Sensor using the CLI.
•
RJ-11 port — Controls the SFP+ 1/10 Gigabit Ethernet port pair in passive fail-open mode.
•
SFP/SFP+ 1/10 Gigabit Ethernet ports — Enables to monitor two SPAN ports, two segments
in-line, or a combination.
•
RJ-45 10/100/1000 Mbps Ethernet Monitoring ports — Enables to monitor eight SPAN ports,
four segments in-line, or a combination.
•
DB9 Auxiliary port — Use to dial in remotely to set up and configure the Sensor.
•
External USB ports — Use these in troubleshooting situations for system recovery purposes. You
need to restart the Sensor through the USB storage device.
•
RJ-45 10/100/1000 Management port— Use for communication with the Manager server. You
can assign an IP address to this port during installation.
•
RJ-45 10/100/1000 Response port — When you're operating in SPAN or tap mode, enables
you to inject response packets back through a switch or router.
•
Power Supply — Power supply is included with an NS7x00 Sensor. The supply uses a standard IEC
port (IEC320-C13). McAfee provides a standard, 2m NEMA 5-15P (US) power cable (3 wire).
International customers must procure a country-appropriate power cable.
The NS-series Sensor does not have internal taps; you must use it with a third-party external tap to
run it in tapped mode.
Sensor LEDs
The front and rear panel LEDs provide status information for the health of the Sensor and the activity
on its ports. The following table describes the NS-series LEDs.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
13
2
NS7x00 Sensor physical description
Sensor LEDs
Front panel LEDs
LED
Status Description
Status
Green
Sensor is operating in good health. Also indicates system bad health.
Amber Sensor is booting up. (It could also indicate a system failure.)
Fan
Green
All the fans are operating.
Amber One or more of the fans has failed.
Temp
Green
Inlet air temperature measured inside the chassis is normal. (Chassis
temperature
OK.)
Amber
Inlet air temperature measured inside the chassis is too high. (Chassis
temperature too hot.)
Gigabit Ports Act Amber Data is received or transmitted.
Off
No data is being transferred.
Gigabit Ports
Link
Green
The link is up.
Off
The link is down.
Normal/Bypass
Green
The port pair is in Inline Fail-Open/Inline Fail-Close/Span/Tap Mode.
Amber The Port Pair is in the Bypass Mode.
Rear panel LEDs
LED
Status Description
Power
Green
Power supply has power feed and is functioning.
Amber
Power Supply is not functioning or the unit has no power feed.
Green
The port speed is 1000 Mbps.
Amber
The port speed is 100 Mbps.
Off
The port speed is 10 Mbps.
Green
The link is up.
Off
The link is down.
Green
The port speed is 1000 Mbps.
Amber
The port speed is 100 Mbps.
Off
The port speed is 10 Mbps.
Green
The link is up.
Off
The link is down.
Management Port Speed
Management Port Link
Response Port Speed
Response Port Link
14
McAfee Network Security Platform
NS7x00 Sensor Product Guide
3
Before you install
This chapter describes the best practices for deployment of Sensors in your network. Topics include
the safety considerations for handling the Sensor, usage restrictions that apply to the Sensor model,
and the contents that are shipped along with the Sensor.
Contents
Usage restrictions
Safety measures
About fiber-optic ports
Contents of the box
Unpack the Sensor
Usage restrictions
The following restrictions apply to the use and operation of a Sensor:
•
You should not remove the outer shell of the Sensor. If you do so, this will invalidate your warranty.
•
The Sensor appliance is not a general purpose workstation.
•
McAfee prohibits the use of the Sensor appliance for anything other than operating Network
Security Platform.
•
McAfee prohibits the modification or installation of any hardware or software on the Sensor
appliance that is not part of the normal operation of Network Security Platform.
Safety measures
Please read the following warnings before you install the Sensor. These safety measures apply to all
Sensor models unless otherwise noted. Failure to observe these safety warnings could result in serious
physical injury.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
15
3
Before you install
About fiber-optic ports
Warnings:
•
Read the installation instructions before you connect the system to its power source.
•
To remove all power from the Sensor, unplug all power cords, including the redundant power cord.
•
Only trained and qualified personnel should be allowed to install, replace, or service this
equipment.
•
Before working on the equipment that is connected to power lines, remove all jewelry including
rings, necklaces, and watches. Metal objects will heat up when connected to power and ground,
and can cause serious burns or weld the metal object to the terminals.
•
This equipment is intended to be grounded. Ensure that the host is connected to earth ground
during normal use.
•
Do not remove the outer shell of the Sensor. Doing so will invalidate your warranty.
•
Do not operate the system unless all cards, faceplates, front covers, and rear covers are in place.
Blank faceplates and cover panels prevent exposure to hazardous voltages and currents inside the
chassis, contain electromagnetic interference (EMI) that might disrupt other equipment and direct
the flow of cooling air through the chassis.
•
To avoid electric shock, do not connect safety extra-low voltage (SELV) circuits to
telephone-network voltage (TNV) circuits. LAN ports contain SELV circuits, and WAN ports contain
TNV circuits. Some LAN and WAN ports both use RJ-45 connectors. Use caution when connecting
cables.
•
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in
accordance with the instruction manual, might cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the users will be required to correct the interference at their own expense.
•
Refer to the Appendix for information on regulatory, compliance, and other safety requirements.
About fiber-optic ports
The Sensor uses fiber-optic connectors for its Monitoring ports. The connector type is an SFP/SFP+
fiber optic connector that is LC-duplex compatible.
Note the following:
•
Fiber-optic ports (for example, SFP/SFP+, FDDI, OC-3, OC-12, OC-48, ATM, GBIC, and 100BaseFX)
are considered Class 1 laser or Class 1 LED ports.
•
These products have been tested and found to comply with Class 1 limits of IEC 60825-1, IEC
60825-2, EN 60825-1, EN 60825-2, and 21CFR1040.
To avoid exposure to radiation, do not stare into the aperture of a fiber-optic port. Invisible radiation
could be emitted from the aperture of the port when no fiber cable is connected.
•
16
Only FDA registered, EN 60825-1 and IEC 60825-1 certified Class 1 SFP/SFP+/ laser transceivers
are acceptable for use with the Sensor.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Before you install
Contents of the box
3
Contents of the box
The following accessories are shipped in the NS-series Sensor crate:
•
Sensor
•
Power cords. McAfee provides a standard and international power cables.
•
Set of rack mounting rails
•
Printed Quick Start Guide
Unpack the Sensor
1
Open the crate.
2
Remove the first accessory box.
3
Verify you have received all parts.
These parts are listed on the packing list and in the Contents of the box section.
4
Remove the Sensor.
5
Place the Sensor box as close to the installation site as possible.
6
Position the box with the text upright.
7
Open the top flaps of the box.
8
Remove the accessory box within the Sensor box.
9
Verify you have received all parts.
These parts are listed on the packing list and in the Contents of the box section.
10 Remove the Slide Rail Kit.
11 Pull out the packing material surrounding the Sensor.
12 Remove the Sensor from the antistatic bag.
13 Save the box and packing materials for later use in case you need to move or ship the Sensor.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
17
3
Before you install
Unpack the Sensor
18
McAfee Network Security Platform
NS7x00 Sensor Product Guide
4
Setting up the Sensor
This chapter describes how to set up the Sensor for you to configure it.
Contents
Setup overview
How to position the Sensor
Install the slide rails and rack-mount the Sensor
Redundant power supply
Setup overview
Setting up a Sensor involves these steps:
1
Position the Sensor.
2
Install interface modules (SFP and SFP+).
3
Attach power, network, and monitoring cables.
4
Turn on the Sensor.
5
Configure the Sensor after you have set up and turned it on.
How to position the Sensor
Place the Sensor in a physically secure location, close to the switches or routers it will be monitoring.
Ideally, the Sensor should be located within a standard communications rack. To mount the Sensor on
a rack, you will attach two mounting rails to the Sensor as described in the subsequent sections of this
guide.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
19
4
Setting up the Sensor
Install the slide rails and rack-mount the Sensor
Install the slide rails and rack-mount the Sensor
McAfee recommends rack-mounting your Sensor. For maintenance purposes, you must have access to
the front and rear of the Sensor.
Before you mount the Sensor on the rack, make sure that the power is off. Remove the power cable and
all network interface cables from the Sensor.
Due to the weight of the appliance, McAfee recommends that two people place the chassis into the rail
cabinet.
Task
1
20
Disassemble the inner slide rail members from the cabinet sections.
a
Pull the inner member out until it comes to a lock position.
b
Depress the QD latch to fully disconnect the inner members.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Setting up the Sensor
Install the slide rails and rack-mount the Sensor
2
3
4
Mount the inner members to the chassis unit.
a
Place each inner member on both sides of the chassis unit. Position the bottom mounting holes
of the inner member with matching mounting holes on chassis unit.
b
Use screws to secure inner members in place. Apply to both sides of chassis unit.
Mount the slide cabinet sections to the rack.
a
Install the front end of each slide cabinet section to the rack using the slide tool-less features.
The tool-less latch rotates when the bracket is pressed up against the rack rails.
b
Align, adjust, and attach the rear brackets to the rack rail.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
21
4
Setting up the Sensor
Install the slide rails and rack-mount the Sensor
4
5
22
Mount the chassis unit into the mounted cabinet sections.
a
Guide the chassis unit into the pre-installed cabinet sections. Allow the pre-installed inner
members to slide into the outer members until they lock in place.
b
Depress the QD latch on both sides and continue to push the chassis unit in until fully closed.
Secure the chassis unit through the rack rails.
a
With the chassis unit in a fully closed position, secure using two truss head screws.
b
Drive the screws through the inner member flange and through the rack rails. The screws
thread directly to the cabinet slide members. Tighten the screws.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Setting up the Sensor
Redundant power supply
4
Redundant power supply
A basic configuration of the Sensor includes one hot-swappable power supply. You can install a second
hot-swappable power supply for redundancy. You will have to purchase this redundant power supply
separately from McAfee. Each of these modules have one handle for insertion or extraction from the
unit as well as a release latch.
Figure 4-1 Power supply units
Tasks
•
Install a new power supply on page 23
•
Remove the power supply on page 23
Install a new power supply
Task
1
Unpack the power supply from its shipping carton.
2
Remove the faceplate panel covering the power supply slot.
The faceplate panel must remain in place unless a power supply is in the power supply slot. Do not
operate the Sensor without the faceplate panel in place.
3
Place the power supply in the slot with the cable outlet facing front and on the left side of the
faceplate.
4
Slide in the power supply until it makes contact with the backplane, then push firmly to mate the
connectors solidly with the backplane.
For true redundant operation with the optional redundant power supply, McAfee recommends that
you plug each supply into a different power circuit. For optimal protection, use uninterruptible power
sources.
Remove the power supply
Perform this task if you want to remove the power supply to the Sensor.
Task
1
Unplug the power cable from its power source and remove the power cable from the power supply.
2
Push the release latch sideways toward the handle.
3
Center the handle of the power supply and pull on it to remove the power supply.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
23
4
Setting up the Sensor
Redundant power supply
4
Use faceplate panels to protect unused slots from dust and to reduce electromagnetic radiation.
5
Replace the mounting bracket.
To avoid data interruption, do not turn off both power supplies on an in-line Sensor, or the Sensor
shuts down and all Sensor function stops. Turn off only the power supply you are replacing.
To remove all power from the Sensor, unplug all power cords.
24
McAfee Network Security Platform
NS7x00 Sensor Product Guide
5
NS7x00 Network Interface modules
The NS7x00 Sensors support the 4-port, 6-port, and 8-port Network Interface modules. These
modules need to be installed in the respective slots on the Sensor.
For more information, see the Network Security Platform NS-series Interface Modules Reference
Guide.
Contents
4-port 10/1 GigE SM 8.5 µm with internal fail-open Network Interface Module
4-port 10/1 GigE MM 50 µm with internal fail-open Network Interface Module
4-port 10/1 GigE MM 62.5 µm with internal fail-open Network Interface Module
6-port RJ-45 10/100/1000 Mbps with internal fail-open Network Interface module
8-port SFP/SFP+ 1/10 Gigabit Network Interface module
Installation of the interface module
Remove an interface module
4-port 10/1 GigE SM 8.5 µm with internal fail-open Network
Interface Module
The 4-port SM 8.5 µm Network Interface Module provides internal fail-open capability with 10/1
Gigabit Ethernet performance on each port.
Figure 5-1
4-port 10/1 GigE SM 8.5 µm with internal fail-open interface module
McAfee Network Security Platform
NS7x00 Sensor Product Guide
25
5
NS7x00 Network Interface modules
4-port 10/1 GigE MM 50 µm with internal fail-open Network Interface Module
4-port 10/1 GigE MM 50 µm with internal fail-open Network
Interface Module
The 4-port MM 50 µm Network Interface Module provides internal fail-open capability with 10/1
Gigabit Ethernet performance on each port.
Figure 5-2
4-port 10/1 GigE SM 50 µm with internal fail-open interface module
4-port 10/1 GigE MM 62.5 µm with internal fail-open Network
Interface Module
The 4-port MM 62.5 µm Network Interface Module provides internal fail-open capability with 10/1
Gigabit Ethernet performance on each port.
Figure 5-3
26
4-port 10/1 GigE SM 62.5 µm with internal fail-open interface module
McAfee Network Security Platform
NS7x00 Sensor Product Guide
NS7x00 Network Interface modules
6-port RJ-45 10/100/1000 Mbps with internal fail-open Network Interface module
5
6-port RJ-45 10/100/1000 Mbps with internal fail-open
Network Interface module
The 6-port RJ‑45 with internal fail-open Network Interface Module provides 10/100/1000 Mbps
Ethernet performance on each port.
Figure 5-4 6-port RJ-45 10/100/1000 Mbps with internal fail-open interface module
8-port SFP/SFP+ 1/10 Gigabit Network Interface module
The 8‑Port SFP/SFP+ (Small Form‑Factor Pluggable Plus) Network Interface Module provides 1/10
Gigabit Ethernet performance on each port.
Figure 5-5 8-Port SFP+/SFP 10/1G Gigabit interface module
Installation of the interface module
This section provides instructions on how to install the interface module based on the following
scenarios:
•
Install the interface module during a fresh installation of the Sensor.
•
Install the interface module on an up and running Sensor.
Install the interface module during a fresh installation of the
Sensor
This section provides the steps to install the interface module for a fresh installation of Manager and
Sensor.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
27
5
NS7x00 Network Interface modules
Remove an interface module
Task
1
Remove the module from its protective packaging.
It is assumed that the Sensor is yet to be powered on, and trust between the Sensor and the
Manager has not been established.
2
Grip the sides of the module with your thumb and forefinger and insert the module into the slot.
Figure 5-6 Install an interface module
3
Drive in the screws fixed on the sides of the module to attach it to the Sensor.
4
Turn on the Sensor.
5
Establish trust between the Sensor and the Manager.
Install the interface module on an up and running Sensor
This section provides the steps to install the interface module on a Sensor which is up and running.
Task
1
Power on the Sensor without inserting the pluggable module(s) into the slot(s).
2
Establish trust between the Sensor and the Manager.
3
Grip the sides of the module with your thumb and forefinger and insert the module into the slot.
4
Wait for 5 minutes.
5
Reboot the Sensor from the CLI.
Remove an interface module
Perform these steps if you need to remove an interface module.
28
McAfee Network Security Platform
NS7x00 Sensor Product Guide
NS7x00 Network Interface modules
Remove an interface module
5
Task
1
Disconnect the network fiber optic cable from the module.
2
Remove the transceivers from the module.
3
Unscrew the interface modules to detach them from the Sensor.
4
Place the module into its protective packaging.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
29
5
NS7x00 Network Interface modules
Remove an interface module
30
McAfee Network Security Platform
NS7x00 Sensor Product Guide
6
Small form-factor pluggable transceiver
modules
The NS7x00 Sensors use two types of small form-factor pluggable modules as shown in the following
table. For more information, see Network Security Platform NS-series Transceiver Modules Reference
Guide.
Type
Performance
SFP
1 Gbps (copper)
1 Gbps (fiber optic)
SFP+
10 Gbps (fiber optic)
Each module is a hot-swappable input/output device that plugs into an LC-type Gigabit Ethernet port,
linking the module port with a copper or fiber-optic network. SFP optical interfaces are less than half
the size of GBIC interfaces.
To ensure compatibility, McAfee supports only those SFP and SFP+ modules purchased through McAfee
or from a McAfee-approved vendor. For a list of approved vendors, locate the relevant KnowledgeBase
article at http://mysupport.mcafee.com/Eservice/. Click Search the KnowledgeBase.
These installation instructions provide information for installing SFP and SFP+ modules that use a bail
clasp for securing the module in place in the Sensor. Your module might be slightly different. Check
the module manufacturer's installation instructions for more details. For ease of installation, insert the
module in the Sensor while it is turned off and before placing it on a rack.
To prevent eye damage, do not stare into open laser apertures.
Contents
SFP transceiver modules
SFP+ transceiver modules
Install a transceiver module
Remove a transceiver module
McAfee Network Security Platform
NS7x00 Sensor Product Guide
31
6
Small form-factor pluggable transceiver modules
SFP transceiver modules
SFP transceiver modules
An SFP module is a hot-swappable, protocol-independant, compact, optical receiver, which allows for
greater port density than the standard GBIC. This module operates at varying speeds for up to 1
gigabit per second on SONET/SDH, Fibre Channel, Gigabit Ethernet and other applications. An SFP
module operates in multimode. Additionally, this module transmits on a 850-nanometer wavelength on
short reach (SR).
Figure 6-1 An SFP module
SFP+ transceiver modules
The enhanced small form-factor pluggable ( SFP+ ) is an enhanced version of the SFP that
supports data rates up to 10 Gbps. 850nm SFP+ and 1310nm SFP+ transceiver modules are
supported.
Figure 6-2 850nm SFP+ transceiver module
32
McAfee Network Security Platform
Figure 6-3 1310nm SFP+ transceiver module
NS7x00 Sensor Product Guide
Small form-factor pluggable transceiver modules
Install a transceiver module
6
Install a transceiver module
Task
1
Remove the module from its protective packaging.
2
Locate the label on the module and make sure that the alignment groove is down.
3
Grip the sides of the module with your thumb and forefinger and insert the module into the module
socket.
Modules are keyed to prevent incorrect insertion.
Figure 6-4 Insert a transceiver module
Remove a transceiver module
Perform these tasks if you need to remove a module.
Task
1
Disconnect the network fiber-optic cable from the module.
2
Release the module from the slot by pulling the bail clasp out of its locked position.
3
Slide the module out of the slot.
4
Insert the module plug into the module optical bore for protection.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
33
6
Small form-factor pluggable transceiver modules
Remove a transceiver module
34
McAfee Network Security Platform
NS7x00 Sensor Product Guide
7
Attaching cables to the Sensor
Follow the steps outlined in this chapter to connect the cables to the various ports of your Sensor.
Contents
Connect the cable to the Console port
Connect the cable to the Auxiliary port
Connect the cable to the Response port
Connect the cable to the Management port
About connecting cables to the Monitoring ports
Turning the Sensor on and off
Connect the cable to the Console port
The Console port on the NS7x00 Sensor is used for setup and configuration of the Sensor.
Task
1
For console connections, plug the DB9 Console cable supplied by McAfee into the Console port on
the Sensor.
This port is labeled Console in the Sensor front panel.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
35
7
Attaching cables to the Sensor
Connect the cable to the Auxiliary port
2
Connect the other end of the Console port cable directly to a COM port of the computer or terminal
server you will use to configure the Sensor, for example, a computer running correctly configured
Windows HyperTerminal software.
You must connect directly to the console for initial configuration, you cannot configure the Sensor
remotely. Terminal servers are provided for console access. Required settings for HyperTerminal
are:
3
Name
Setting
Baud rate
115200
Number of bits
8
Parity
None
Stop bits
1
Flow control
None
Turn on the Sensor.
Connect the cable to the Auxiliary port
You can use the Auxiliary port as well for modem access to the Sensor for setup and configuration. You
cannot use a modem the first time you configure a Sensor.
Task
1
For modem connections, plug a straight-through modem cable into the Auxiliary port on the
NS-series Sensor.
This port is labeled Aux in the Sensor rear panel.
2
Connect a modem to the Aux port.
3
Connect a telephone line to the modem.
Required settings for the Aux port are:
Name
Setting
Baud rate
115200
Number of bits
8
Parity
None
Stop bits
1
Flow control
None
Connect the cable to the Response port
When operating in tap or SPAN mode, the Sensor uses its Response port to respond to attacks. When
deployed in tap mode, the Sensor does not inject response packets through the tap but uses the
Response port.
Task
1
Plug a Cat-5e Ethernet cable into the Response port.
This port is labeled R1 on the Sensor rear panel.
36
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Attaching cables to the Sensor
Connect the cable to the Management port
2
7
Connect the other end of the cable to the network device such as a hub, switch, or a router,
through which you want to respond to attacks.
Connect the cable to the Management port
The Sensor communicates with the Manager using the Management port.
Task
1
Plug a Category 5e Ethernet cable into the Management port.
This port is labeled Mgmt in the rear panel of the NS7x00 Sensor.
2
Plug the other end of the cable into the network device connected to your Manager server.
To isolate and protect your management traffic,McAfee strongly recommends you to use a separate,
dedicated management subnet to interconnect the Sensors and the Manager.
About connecting cables to the Monitoring ports
Connect to the network devices that you want to monitor through the Sensor monitoring ports. You
can deploy Sensors in the following operating modes:
•
In-line mode (fail-close)
•
In-line mode (fail-open)
•
External tap mode
•
SPAN or hub mode
Tasks
•
Connect the cables for in-line mode on page 38
•
Connect the cables for tap mode on page 39
•
Connect the cables for SPAN or hub mode on page 39
•
Connect the cables for Sensor Fail-Open on page 39
•
Connect the cable for Sensor failover on page 40
McAfee Network Security Platform
NS7x00 Sensor Product Guide
37
7
Attaching cables to the Sensor
About connecting cables to the Monitoring ports
How to use peer ports
You must use two peer Monitoring ports of the Sensor to deploy it full duplex mode. On the Sensor,
the numbered ports are wired in pairs to accommodate the traffic.
•
On NS7100, NS7200 and NS7300 Sensors, G0 and G3 indicate the fixed port slots. G1
and G2 indicate the slots for interface modules.
•
In the following table, it is assumed that G1 is a 6-port RJ-45 10/100/1000 Mbps
interface module and G2 is the 8-Port SFP+/SFP 1/10G interface module. These interface
modules can be interchanged.
The following Ethernet ports are coupled and must be used together.
Port Pairs
Sensor
G0/1 and G0/2
NS7300/NS7200/NS7100
G1/1 and G1/2
NS7300/NS7200/NS7100
G1/3 and G1/4
NS7300/NS7200/NS7100
G1/5 and G1/6
NS7300/NS7200/NS7100
G2/1 and G2/2
NS7300/NS7200/NS7100
G2/3 and G2/4
NS7300/NS7200/NS7100
G2/5 and G2/6
NS7300/NS7200/NS7100
G2/7 and G2/8
NS7300/NS7200/NS7100
G3/1 and G3/2
NS7300/NS7200/NS7100
G3/3 and G3/4
NS7300/NS7200/NS7100
G3/5 and G3/6
NS7300/NS7200/NS7100
G3/7 and G3/8
NS7300/NS7200/NS7100
Cable types for routers switches hubs and computers
This section lists the types of cables that you require to connect the Sensor to other network devices:
•
Use a crossover Ethernet RJ-45 cable to connect a router port to the SFP/SFP+ monitoring ports.
•
Use a straight-through Ethernet RJ-45 cable to connect a switch or a hub port to SFP/SFP+
monitoring ports.
•
Use a crossover Ethernet RJ-45 cable to connect a router port to computer to the Sensor
Management port.
•
Use a crossover Ethernet RJ-45 cable to connect a computer to the Sensor monitoring port.
Connect the cables for in-line mode
In-line Gigabit Ethernet ports can be configured as fail-open or fail-closed. The RJ-45 monitoring ports
are built-in and have a fail-open function built-in as well.
All other monitoring ports require the use of external active fail-open (AFO) kits for In-Line Fail-Open
Active configuration.
Gigabit Ethernet ports fail-close, means the flow of traffic will stop if the Sensor fails. To allow traffic to
flow uninterrupted, you must use special hardware, and cable the Sensor to external active fail-open
kits. For instructions, see the subsequent sections of this chapter.
38
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Attaching cables to the Sensor
About connecting cables to the Monitoring ports
7
This section provides the steps to connect the Sensor's Gigabit Ethernet ports so they fail-close.
Task
1
Plug the cable appropriate for use with your transceiver module into one of the Monitoring ports,
for example G1/1.
2
Plug the cable appropriate for use with your transceiver module into one of the Monitoring ports,
for example G1/2.
3
Connect the other end of each cable to the network devices that you want to monitor.
For example, if you plan to monitor traffic between a switch and a router, connect the cable
connected to 1 to the router and the one connected to 2 to the switch.
Connect the cables for tap mode
To deploy the Sensor in tap mode, you must use a Sensor's Gigabit Ethernet Monitoring port pair with
a third-party external tap.
For a list of McAfee-approved third party vendors, see the KnowledgeBase at http://
mysupport.mcafee.com/Eservice/. Click Search the KnowledgeBase and locate the relevant KnowledgeBase
article.
Task
1
Plug the cable appropriate for use with your transceiver module into one of the Monitoring ports,
for example, G1/1.
2
Plug the cable appropriate for use with your transceiver module into one of the Monitoring ports
labeled G1/2.
3
Connect the other end of each cable to the tap.
4
Connect the network devices that you want to monitor to the tap.
Connect the cables for SPAN or hub mode
For the Sensor, monitoring in SPAN or hub mode occurs in in-line fail-open mode. When you monitor in
SPAN or hub mode, you use only single ports.
To connect an Sensor to a SPAN port or hub, plug an LC fiber-optic or 45 cable into one of the modules
and connect the other end of the cable to the SPAN port or the hub.
Connect the cables for Sensor Fail-Open
The Fail-Open Kits minimize the potential risks of in-line Sensor failure on critical network links. You
need to purchase these kits separately. Both copper and optical versions of the kit are available for the
one-gigabit ports. The standard Gigabit Fail-Open Kits and 10 Gigabit Fail-Open Kits are available for
the 1 and 10 gigabit ports respectively.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
39
7
Attaching cables to the Sensor
About connecting cables to the Monitoring ports
The Monitoring ports of the Sensors can be fail-close; thus, if the Sensor is deployed in-line fail-close,
a hardware failure results in network downtime. Except the built-in RJ-45 ports which have the
fail-open function built-in as well, for the Monitoring ports to fail-open, you use the optional external
bypass switch provided in an Active Fail-Open Kit.
While the Sensor is operating, the Active Fail-Open(AFO) kit is in-line and routes all traffic directly
through the Sensor. When the Sensor fails, the switch automatically shifts to a bypass state; in-line
traffic continues to flow through the network link but is no longer routed through the Sensor. After the
Sensor resumes normal operation, the switch returns to the "inline" state, once again enabling in-line
monitoring. The port pairs with AFO kits resume inline mode after a Sensor resumes normal operation
or is in good health.
•
G0 supports passive fail-open mode with RJ-11 port control
G0 also supports active fail-open using a Copper and Fiber 1/10 Gigabit AFO kit.
•
G1 and G2 supports built-in fail-open and active fail-open mode for these interface modules:
•
4-port 10 GigE/1 GigE LR Optical with internal fail-open
•
4-port 10 GigE/1 GigE SR Optical 50 micron with internal fail-open
•
4-port 10 GigE/1 GigE SR Optical 62.5 micron with internal fail-open
•
6-port RJ-45 1 GigE with internal fail-open
All RJ-45 ports support active fail-open using only a Copper AFO kit.
•
8-port SFP/SFP+ 1/10 Gigabit
The 8-port module supports active fail-open using a Copper and Fiber 1/10 Gigabit AFO kit.
•
G3 supports both internal fail-open and active fail-open mode when connected to an Active
Fail-Open (AFO) kit
Sensor outage breaks the link connecting the devices on either side of the Sensor for a brief moment
and requires the renegotiation of the network link between the two peer devices connected to the
Sensor. Depending on the network equipment, this disruption introduced by the renegotiation of the link
layer between the two peer devices might range from a couple of seconds to more than a minute with
certain vendors' devices.
A very brief link disruption might also occur while the links between the Sensor and each of the peer
devices are renegotiated to place the Sensor back in in-line mode. This outage, again, varies depending
on the device, and can range from a few seconds to more than a minute. The performance of the
switchover from in-line to bypass and vice versa varies depending on the vendor.
You can find the installation and troubleshooting instructions for the kit in the guide that accompanies
the kit. For example, for more information on the Optical kits, see the 1 Gigabit Optical Active
Fail-Open Bypass Kit Guide and 10 Gigabit Optical Active Fail-Open Bypass Kit Guide.
Connect the cable for Sensor failover
For Sensor failover, connect two NS7x00 Sensors using the appropriate cables. These two Sensors
must be running the same software version.
Purchase a 10G SFP+ and use the proper fiber cable. Failover cables are additional hardware required
to support failover communication between two NS7x00 Sensors.
McAfee does not ship the transceiver modules and cables with the NS7x00 Sensors. Please purchase the
same separately for failover setup.
40
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Attaching cables to the Sensor
Turning the Sensor on and off
7
Refer to the following table before you configure a failover pair:
Sensor Model
Port to connect the failover
pair
NS7300/NS7200/NS7100 G0/1
Cable requirements for failover
1 10G SFP+ and appropriate fiber cable
Task
1
Plug the cable appropriate for use with your SFP+ module into port G0/1 of the active NS7x00
Sensor.
2
Connect the other end of the cable into port G0/1 of the standby NS7x00 Sensor.
Turning the Sensor on and off
Before you begin
Do not attempt to turn on the Sensor until you have installed the Sensor in a rack and
made all the necessary network connections.
Task
1
Connect the power cable to the Sensor power inlet.
2
Connect the power cable to a power source.
If you are installing a redundant power supply, you should install it as described in Install the power
supply. For true redundant operation with the optional redundant power supply, McAfee
recommends that you plug each supply into a different power circuit.
The Sensor has no power switch. The Sensor turns on as soon as one of its power cables is
connected to a power source.
McAfee recommends that you use the shutdown CLI command to halt the Sensor before turning it
off. For more information on CLI commands, see CLI Guide.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
41
7
Attaching cables to the Sensor
Turning the Sensor on and off
42
McAfee Network Security Platform
NS7x00 Sensor Product Guide
8
Troubleshooting the Sensor
This section lists some common installation problems, the possible causes, and the corresponding
solutions.
Problem
Possible Cause
Solution
LED is off.
The Sensor is turned off.
Restore Sensor power.
LED is off.
The Sensor port cable is
disconnected.
Check the Sensor cable connections.
Sensor is operational but
is not monitoring traffic.
Network device cables have Check the cables and make sure they are
been disconnected.
properly connected to both the network
devices and the bypass switch.
Sensor is operational but
is not monitoring traffic.
The Sensor ports have not
been enabled in the
Manager.
The Sensor will not monitor traffic on the
ports unless the ports are enabled in the
Manager. Ports are disabled in case of
Sensor failure; you must re-enable them for
Sensor monitoring to resume.
Network or link problems. Improper cabling or port
configuration.
Make sure that the transmitting and
receiving cables are properly connected to
the bypass switch.
Runts or giants errors on
switch and routers.
Improper cabling or port
configuration.
Make sure that the transmitting and
receiving cables are properly connected to
the bypass switch.
The system fault "Switch
absent" appears in the
Manager Status page.
The Active Fail-Open Kit is
disconnected.
Check the Active Fail-Open Kit and make
sure it is properly connected to the Sensor.
McAfee Network Security Platform
NS7x00 Sensor Product Guide
43
8
Troubleshooting the Sensor
44
McAfee Network Security Platform
NS7x00 Sensor Product Guide
9
Sensor technical specifications
The following table lists the specifications of an NS7x00 Sensor:
Sensor Specifics
NS7300
Dimensions
17.5” (W) x 1.69” (H) x 17.5” (W) x 1.69” (H) x 17.5” (W) x 1.69” (H) x
28.9” (D)
28.9” (D)
28.9” (D)
Weight
31 lbs
31 lbs
29 lbs
Storage
Solid State 160 GB
Solid State 160 GB
Solid State 160 GB
Maximum Power
Consumption
350 W
350 W
250 W
Redundant Power
Supply
Optional
Optional
Optional
Power
100-240 VAC (50/60Hz)
Temperature
Operating: 0°-35° C , Non-operating: - 40°-70° C
Relative humidity
(non-condensing)
Operational: 10% -90%, Non-operational: 5% -95%
Altitude
0 to 10,000 feet
Safety Certification
UL 1950, CSA-C22.2 No. 950, EN-60950, IEC 950, EN 60825, 21CFR1040
CB license and report covering all national country deviations.
EMI Certification
FCC Part 15, Class A (CFR 47) (USA) ICES-003 Class A (Canada),
EN55022 Class A (Europe), CISPR22 Class A (Int’l)
McAfee Network Security Platform
NS7200
NS7100
NS7x00 Sensor Product Guide
45
9
Sensor technical specifications
46
McAfee Network Security Platform
NS7x00 Sensor Product Guide
Index
A
M
about this guide 5
McAfee ServicePortal, accessing 6
C
S
conventions and icons used in this guide 5
ServicePortal, finding product documentation 6
D
T
documentation
audience for this guide 5
product-specific, finding 6
typographical conventions and icons 5
technical support, finding product information 6
McAfee Network Security Platform
NS7x00 Sensor Product Guide
47
0B00
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
