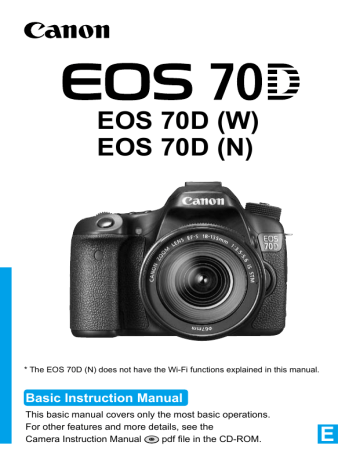

Basic Instruction Manual
This basic manual covers only the most basic operations.
For other features and more details, see the
Camera Instruction Manual
pdf file in the CD-ROM.
E
Introduction
The EOS 70D (W/N) is a high-performance, digital single-lens reflex
camera featuring a fine-detail CMOS sensor with approx. 20.2 effective
megapixels, DIGIC 5+, high-precision and high-speed 19-point AF (all
cross-type focusing), approx. 7.0 fps continuous shooting, Live View
shooting, Full High-Definition (Full HD) movie shooting, and Wi-Fi
function*.
The camera is highly responsive to any shooting situation at any time,
provides many features for demanding shots, and expands shooting
possibilities with various system accessories.
* The EOS 70D (N) does not have the Wi-Fi function.
Refer to This Manual while Using the Camera to Further
Familiarize Yourself with the Camera
With a digital camera, you can immediately view the image you have
captured. While reading this manual, take a few test shots and see how
they come out. You can then better understand the camera.
To avoid botched pictures and accidents, first read the “Safety
Warnings” (p.159-161) and “Handling Precautions” (p.14, 15).
C
Y
P
O
Testing the Camera Before Use and Liability
After shooting, play images back and check whether they have been
properly recorded. If the camera or memory card is faulty and the
images cannot be recorded or downloaded to a computer, Canon
cannot be held liable for any loss or inconvenience caused.
Copyrights
Copyright laws in your country may prohibit the use of your recorded
images or copyrighted music and images with music in the memory
card for anything other than private enjoyment. Also be aware that
certain public performances, exhibitions, etc., may prohibit photography
even for private enjoyment.
2
Compatible Cards
The camera can use the following cards regardless of capacity:
• SD memory cards
• SDHC memory cards*
• SDXC memory cards*
* UHS-I cards supported.
Cards that Can Record Movies
When shooting movies, use a large-capacity card with a fast reading/
writing speed as shown in the table.
Compression Method (p.137)
Card
IPB
6 MB/sec. or faster
ALL-I (I-only)
20 MB/sec. or faster
Y
P
O
If you use a slow-writing card when shooting movies, the movie may
not be recorded properly. Also, if you play back a movie on a card
with a slow reading speed, the movie may not play back properly.
If you want to shoot still photos while shooting a movie, you will need
an even faster card.
To check the card’s reading/writing speed, refer to the card
manufacturer’s Web site.
C
In this manual, “card” refers to SD memory cards, SDHC memory
cards, and SDXC memory cards.
* The camera does not come with a card for recording images/
movies. Please purchase it separately.
3
Item Check List
Before starting, check that all the following items have been included
with your camera. If anything is missing, contact your dealer.
Battery Pack
LP-E6
(with protective cover)
Camera
(with body cap)
Wide Strap
EW-EOS70D
C
Battery Charger
LC-E6/LC-E6E*
Y
P
O
Interface Cable
* Battery Charger LC-E6 or LC-E6E is provided. (The LC-E6E comes with a
power cord.)
The Instruction Manuals and CD-ROMs provided are listed on the next page.
If you purchased a Lens Kit, check that the lenses are included.
Depending on the Lens Kit type, a lens instruction manual may also be
included.
Be careful not to lose any of the above items.
4
Instruction Manual and CD-ROMs
The instruction manual consists of booklets and electronic manuals
(PDF files on the CD-ROM). Basic operations are explained in the
booklets. For detailed instructions on all functions and operations,
see the detailed version manuals on the CD-ROM.
Camera Basic
Instruction Manual
(this booklet)
Quick Reference Guide
Wi-Fi Function
Instruction Manual*
(Basic)
Y
P
O
Wi-Fi Cautions*
* Not provided with the EOS 70D (N).
C
The Basic Instruction Manual explains the basic procedures and features.
For detailed instructions, see the Camera Instruction Manual CD-ROM.
Camera Instruction Manual CD-ROM
Contains the following manuals in PDF:
• Camera Instruction Manual (Detailed version)
• Wi-Fi Function Instruction Manual (Detailed version)
• Quick Reference Guide
Instructions for viewing the Camera Instruction Manual
CD-ROM are on page 150.
Software CD-ROM (EOS DIGITAL Solution Disk)
Contains various software. For outlines and installation
procedure of the software, see pages 154-156.
Software Instruction Manual CD-ROM
Contains software manuals in PDF. Instructions for viewing
the Software Instruction Manual CD-ROM are on page 157.
5
Quick Start Guide
Insert the battery (p.26).
1
To charge the battery, see page 24.
Insert a card (p.27).
2
3
4
5
With the card’s label facing
toward the back of the
camera, insert it into the
card slot.
White index
Red index
Y
P
O
Attach the lens (p.36).
C
Align the lens’ white or red mount
index with the camera’s mount
index of the same color.
Set the lens focus mode switch
to <f> (p.36).
Set the power switch to <1>,
then set the Mode Dial to <A>
(Scene Intelligent Auto) (p.66).
Turn the Mode Dial while holding down
the lock release button at the center.
All the necessary camera settings
will be set automatically.
6
Quick Start Guide
6
Flip out the LCD monitor (p.30).
7
Focus the subject (p.41).
8
9
When the LCD monitor displays the
date/time/zone setting screens, see
page 33.
Look through the viewfinder and
aim the viewfinder center over the
subject.
Press the shutter button halfway.
The camera will focus the subject.
If necessary, the built-in flash will be
raised.
Y
P
O
Take the picture (p.41).
C
Press the shutter button completely
to take the picture.
Review the picture (p.56).
The captured image will be
displayed for 2 sec. on the LCD
monitor.
To display the image again, press
the <x> button (p.140).
To shoot while looking at the LCD monitor, see “Live View
Shooting” (p.119).
To view the images captured so far, see “Image Playback” (p.140).
To delete an image, see “Erasing Images” (p.147).
7
Conventions Used in this Manual
Icons in this Manual
<6>
<5>
<9> <V> <U>
<0>
0, 9, 7, 8
: Indicates the Main Dial.
: Indicates the Quick Control Dial.
: Indicates the Multi-controller and the push
direction.
: Indicates the Setting button.
: Indicates that the corresponding function
remains active for 4 sec., 6 sec., 10 sec., or 16
sec. respectively after you let go of the button.
* In this manual, the icons and markings indicating the camera’s buttons, dials,
and settings correspond to the icons and markings on the camera and on the
LCD monitor.
3
: Indicates a function that can be changed by pressing the
<M> button and changing the setting.
M
: When shown on the upper right of a page, it indicates that
the function is available only in the Creative Zone modes
(p.20).
(p.**)
: Reference page numbers for more information.
C
Y
P
O
: Warning to prevent shooting problems.
: Supplemental information.
: Tips or advice for better shooting.
: Problem-solving advice.
Basic Assumptions
All operations explained in this manual assume that the power switch
is set to <1> and the <R> switch is set down (Multi function
lock released) (p.31, 44).
It is assumed that all the menu settings and Custom Functions are
set to their defaults.
The illustrations in this manual show the camera attached with the
EF-S18-135mm f/3.5-5.6 IS STM lens as an example.
8
Chapters
For first-time DSLR users, Chapters 1 and 2 explain the camera’s
basic operations and shooting procedures.
Introduction
2
1
Getting Started
23
2
Basic Shooting
65
3
Setting the AF and Drive Modes
87
4
Image Settings
97
5
Advanced Operations
109
6
Shooting with the LCD Monitor (Live View Shooting)
119
7
Shooting Movies
133
8
Image Playback
139
9
Viewing the CD-ROM Instruction Manuals /
Downloading Images to Your Computer
149
C
Y
P
O
9
Contents
Introduction
2
Compatible Cards............................................................................. 3
Item Check List................................................................................. 4
Instruction Manual and CD-ROMs ................................................... 5
Quick Start Guide ............................................................................. 6
Conventions Used in this Manual ..................................................... 8
Chapters........................................................................................... 9
Handling Precautions ..................................................................... 14
Nomenclature ................................................................................. 16
1
Getting Started
Y
P
O
23
Charging the Battery ...................................................................... 24
Installing and Removing the Battery............................................... 26
C
Installing and Removing the Card .................................................. 27
Using the LCD Monitor ................................................................... 30
Turning on the Power ..................................................................... 31
Setting the Date, Time, and Zone .................................................. 33
Selecting the Interface Language................................................... 35
Attaching and Detaching a Lens .................................................... 36
Lens Image Stabilizer..................................................................... 39
Basic Operation.............................................................................. 40
Q Quick Control for Shooting Functions ....................................... 46
3 Menu Operations.................................................................. 48
d Using the Touch Screen............................................................. 50
Before You Start............................................................................. 53
Displaying the Grid ......................................................................... 58
Q Displaying the Electronic Level............................................... 59
Feature Guide and Help ................................................................. 63
10
Contents
2
Basic Shooting
65
A Fully Automatic Shooting (Scene Intelligent Auto) ................... 66
A Full Auto Techniques (Scene Intelligent Auto) ......................... 69
7 Disabling Flash ......................................................................... 71
C Creative Auto Shooting............................................................. 72
8: Special Scene Mode ............................................................. 75
2 Shooting Portraits ...................................................................... 76
3 Shooting Landscapes ............................................................... 77
4 Shooting Close-ups.................................................................... 78
5 Shooting Moving Subjects ........................................................ 79
6 Shooting Night Portraits (With a Tripod) .................................... 80
Y
P
O
F Shooting Night Scenes (Handheld)............................................ 81
G Shooting Backlit Scenes............................................................ 82
C
Q Quick Control............................................................................. 84
3
Setting the AF and Drive Modes
87
f: Selecting the AF Operation ..................................................... 88
S Selecting the AF Area............................................................... 91
MF: Manual Focus .......................................................................... 94
i Selecting the Drive Mode.......................................................... 95
j Using the Self-timer ................................................................... 96
11
Contents
4
Image Settings
97
Setting the Image-Recording Quality ............................................. 98
i: Setting the ISO Speed ......................................................... 100
A Selecting a Picture Style ...................................................... 101
Setting the White Balance ............................................................ 102
Auto Correction of Brightness and Contrast ................................. 103
Setting Noise Reduction............................................................... 104
Highlight Tone Priority .................................................................. 106
Lens Peripheral Illumination / Chromatic Aberration Correction .. 107
5
Advanced Operations
Y
P
O
109
d: Program AE ............................................................................ 110
s: Shutter-Priority AE................................................................ 111
C
f: Aperture-Priority AE ............................................................. 112
a: Manual Exposure ................................................................... 113
Setting Exposure Compensation .................................................. 114
h Auto Exposure Bracketing (AEB)........................................... 115
A AE Lock................................................................................... 116
D Using the Built-in Flash............................................................. 117
6
Shooting with the LCD Monitor (Live View Shooting) 119
A Shooting with the LCD Monitor .............................................. 120
Using AF to Focus (AF Method) ................................................... 123
x Shooting with the Touch Shutter ............................................ 129
MF: Focusing Manually ................................................................ 130
12
Contents
7
Shooting Movies
133
k Shooting Movies ..................................................................... 134
Setting the Movie Recording Size................................................. 137
8
Image Playback
139
x Image Playback ...................................................................... 140
H Searching for Images Quickly ................................................. 141
u/y Magnified View ................................................................... 142
d Playing Back with the Touch Screen ........................................ 143
k Playing Movies........................................................................ 145
L Erasing Images ........................................................................ 147
9
Y
P
O
Viewing the CD-ROM Instruction Manuals /
Downloading Images to Your Computer
C
149
Viewing the Camera Instruction Manual CD-ROM ....................... 150
Downloading Images to a Computer............................................. 152
Software Overview........................................................................ 154
Installing the Software................................................................... 156
Software Instruction Manual ......................................................... 157
Certification Logo
Select [54: Certification Logo Display] and press <0> to display some
of the logos of the camera’s certifications. Other certification logos can be
found in this Instruction Manual, on the camera body, and on the camera’s
package.
13
Handling Precautions
Camera Care
This camera is a precision instrument. Do not drop it or subject it to physical shock.
The camera is not waterproof and cannot be used underwater. If you
accidentally drop the camera into water, promptly consult the nearest Canon
Service Center. Wipe off any water droplets with a dry and clean cloth. If the
camera has been exposed to salty air, wipe it with a well-wrung wet cloth.
Never leave the camera near anything having a strong magnetic field such
as a magnet or electric motor. Also avoid using or leaving the camera near
anything emitting strong radio waves, such as a large antenna. Strong
magnetic fields can cause camera misoperation or destroy image data.
Do not leave the camera in excessive heat, such as in a car in direct
sunlight. High temperatures can cause the camera to malfunction.
The camera contains precision electronic circuitry. Never attempt to
disassemble the camera yourself.
Do not block the mirror operation with your finger, etc. Doing so may cause a
malfunction.
Use a blower to blow away dust on the lens, viewfinder, reflex mirror, and
focusing screen. Do not use cleaners that contain organic solvents to clean
the camera body or lens. For stubborn dirt, take the camera to the nearest
Canon Service Center.
Do not touch the camera’s electrical contacts with your fingers. This is to
prevent the contacts from corroding. Corroded contacts can cause camera
misoperation.
If the camera is suddenly brought in from the cold into a warm room,
condensation may form on the camera and internal parts. To prevent
condensation, first put the camera in a sealed plastic bag and let it adjust to
the warmer temperature before taking it out of the bag.
If condensation forms on the camera, do not use the camera. This is to avoid
damaging the camera. If there is condensation, remove the lens, card and
battery from the camera, and wait until condensation has evaporated before
using the camera.
If the camera will not be used for an extended period, remove the battery
and store the camera in a cool, dry, well-ventilated location. Even while the
camera is in storage, press the shutter button a few times once in a while to
check that the camera is still working.
Avoid storing the camera where there are chemicals that result in rust and
corrosion such as in a chemical lab.
C
14
Y
P
O
Handling Precautions
If the camera has not been used for an extended period, test all its functions
before using it. If you have not used the camera for some time or if there is
an important shoot such as a foreign trip coming up, have the camera
checked by your Canon dealer or check the camera yourself and make sure
it is working properly.
If you use continuous shooting, Live View shooting, or movie shooting for a
prolonged period, the camera may become hot. This is not a malfunction.
LCD Panel and LCD Monitor
Although the LCD monitor is manufactured with very high precision
technology with over 99.99% effective pixels, there may be a few dead pixels
displaying only black or red, etc. among the remaining 0.01% or less pixels.
Dead pixels are not a malfunction. They do not affect the images recorded.
If the LCD monitor is left on for a prolonged period, screen burn-in may occur
where you see remnants of what was displayed. However, this is only
temporary and will disappear when the camera is left unused for a few days.
The LCD monitor display may seem slow in low temperatures, or look black
in high temperatures. It will return to normal at room temperature.
Cards
Y
P
O
To protect the card and its recorded data, note the following:
Do not drop, bend, or wet the card. Do not subject it to excessive force,
physical shock, or vibration.
Do not touch the card’s electronic contacts with your fingers or anything
metallic.
Do not affix any stickers, etc., on the card.
Do not store or use the card near anything having a strong magnetic field,
such as a TV set, speakers, or magnet. Also avoid places prone to having
static electricity.
Do not leave the card in direct sunlight or near a heat source.
Store the card in a case.
Do not store the card in hot, dusty, or humid locations.
C
Lens
After detaching the lens from the camera, put down the
lens with the rear end up and attach the lens caps to avoid
scratching the lens surface and electrical contacts.
Contacts
15
Nomenclature
LCD panel (p.18)
<R> Drive mode selection button (p.95)
<f> AF mode selection button (p.88)
<i> ISO speed
setting button (p.100)
EF lens mount index (p.36)
<q> Metering mode
selection button
Built-in flash/AF-assist beam
(p.117)
<B> AF area
selection mode button
(p.92)
Flash sync contacts
Hot shoe
<D> Flash button (p.117)
<6> Main Dial
(p.42)
Microphone
<U> LCD panel
illumination button
(p.45)
Mode Dial lock-release
button (p.42)
Mode Dial (p.20)
Shutter button
(p.41)
Red-eye
reduction/
Self-timer lamp
(p.96)
Remote control
sensor
C
Grip
(Battery
compartment)
Y
P
O
DC coupler cord hole
Lens lock pin
Depth-of-field preview button
Lens mount
Mirror
Contacts (p.15)
<Y> External microphone IN terminal
<F> Remote control terminal
<D>
HDMI mini OUT terminal
Body cap (p.36)
16
<q/C>
Audio/video OUT/Digital terminal
(p.152)
Strap mount
(p.23)
Speaker
(p.145)
Lens release
button (p.37)
Nomenclature
<V> Focal plane mark
<p> AF start button
(p.41, 88)
<A/k> Live View shooting/
Movie shooting switch (p.119/133)
<0> Start/Stop button (p.120, 134)
<A> AE lock/FE lock button/
<y> Index/Reduce button
(p.116/141, 142)
Dioptric adjustment knob
Eyecup
<S> AF point selection/
<u> Magnify button
(p.93/142)
Viewfinder eyepiece
Access lamp (p.29)
Power switch (p.31)
Strap mount
(p.23)
<M> Menu
button (p.48)
<B>
Info button
(p.45, 59, 64,
122, 136, 140)
C
Y
P
O
Card slot
cover (p.27)
Battery
compartment
cover release
lever (p.26)
LCD monitor (p.48)
Tripod socket
Battery compartment
cover (p.26)
<Q> Quick Control button (p.46)
<5> Quick Control Dial (p.43)
<x> Playback button (p.140)
<9> <V> <U> Multi-controller (p.44)
Multi function lock switch (p.44)
<0> Setting button (p.48)
<L> Erase button (p.147)
Card slot (p.27)
17
Nomenclature
LCD panel
Drive mode (p.95)
u Single shooting
o High-speed continuous shooting
i Low-speed continuous shooting
B Silent single shooting
M Silent continuous shooting
Q Self-timer: 10 sec./remote control
k Self-timer: 2 sec./remote control
AF operation (p.88)
X
One-Shot AF
9
AI Focus AF
Z
AI Servo AF
4L
Manual focus
<M>
Multi Shot
Noise Reduction
(p.104)
<w>
HDR shooting
C
<P> Multiple-exposure
shooting
Shutter speed
FE lock (FEL)
Busy (buSY)
Built-in flash recycling (buSY)
Multi function lock warning (L)
No card warning (Card)
Card full warning (FuLL)
Error code (Err)
Cleaning image sensor (CLn)
<A> Highlight tone priority (p.106)
<g> ISO speed (p.100)
ISO speed (p.100)
Possible shots
Self-timer countdown
Bulb exposure time
Error number/Error code (Err)
Remaining images to record
Y
P
O
Metering mode
q Evaluative metering
w Partial metering
r Spot metering
e Center-weighted
average metering
Wi-Fi function*
<k/l>
12
Battery check (p.32)
<h> AEB (p.115)
Exposure level indicator
Exposure compensation amount
(p.114)
AEB range (p.115)
Aperture
AF point selection
([ -- -- -- ] AF, SEL [ ], SEL AF)
* The EOS 70D (N) does not have the Wi-Fi function (Not Displayed).
* The display will show only the settings currently applied.
18
Nomenclature
Viewfinder Information
Spot metering circle
Zone AF (Manual zone selection) (p.91)
Single-point AF (Manual selection)
(p.91)
Zone AF points (p.91)
19-point automatic selection AF (p.91)
AF points (p.91)
Focusing screen
Grid (p.58)
Electronic level
(p.60)
<z>
Battery check
(p.32)
<A> AE lock (p.116) /
AEB in-progress
(p.115)
C
<D> Flash-ready (p.117)
Improper FE lock
warning
<d> FE lock /
FEB in-progress
<e> High-speed sync
<y> Flash exposure
compensation
Shutter speed (p.111)
FE lock (FEL)
Busy (buSY)
Built-in flash recycling (buSY)
Multi function lock warning (L)
No card/card error warning (Card)
Card full warning (FuLL)
Error code (Err)
Y
P
O
Warning symbol
<g> ISO speed
(p.100)
<o> Focus confirmation
light (p.67)
Max. burst
Number of remaining
multiple exposures
ISO speed (p.100)
<A> Highlight tone priority (p.106)
Exposure level indicator
Exposure compensation amount (p.114)
AEB range (p.115)
Red-eye reduction lamp-on indicator
AF point selection
([ -- -- -- ] AF, SEL [ ], SEL AF)
Aperture (p.112)
The display will show only the settings currently applied.
19
Nomenclature
Mode Dial
Turn the Mode Dial while holding down the Mode Dial center (Mode Dial
lock release button).
Creative Zone
These modes give you more
control for shooting various
subjects.
d : Program AE (p.110)
s : Shutter-priority AE (p.111)
f : Aperture-priority AE (p.112)
a : Manual exposure (p.113)
F : Bulb
Y
P
O
Basic Zone
Custom shooting mode
You can register the
shooting mode (d/s/
f/a/F), AF operation,
menu settings, etc., to w
and shoot.
All you do is press the shutter button.
The camera sets everything to suit
the subject or scene.
C
A : Scene Intelligent Auto (p.66)
7 : Flash Off (p.71)
C : Creative Auto (p.72)
8 : Special scene (p.75)
2 : Portrait (p.76)
3 : Landscape (p.77)
4 : Close-up (p.78)
5 : Sports (p.79)
6 : Night Portrait (p.80)
F : Handheld Night Scene (p.81)
G : HDR Backlight Control (p.82)
20
Nomenclature
Lens
Lens without a distance scale
Focusing ring (p.94, 130)
Focus mode switch (p.36)
Hood mount (p.38)
Zoom position index
Filter thread
(front of lens)
Zoom ring (p.37)
Y
P
O
Image Stabilizer switch (p.39)
Contacts (p.15)
Lens mount index (p.36)
C
21
Nomenclature
Battery Charger LC-E6
Charger for Battery Pack LP-E6 (p.24).
Power plug
Battery pack slot
Charge Lamp
Y
P
O
IMPORTANT SAFETY INSTRUCTIONS-SAVE THESE INSTRUCTIONS.
DANGER-TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
CAREFULLY FOLLOW THESE INSTRUCTIONS.
For connection to a supply not in the U.S.A., use an attachment plug adapter
of the proper configuration for the power outlet, if needed.
C
Battery Charger LC-E6E
Charger for Battery Pack LP-E6 (p.24).
Power cord
Charge lamp
Battery pack slot
Power cord socket
22
Getting Started
Y
P
O
This chapter explains preparatory steps before you start
shooting and basic camera operations.
C
Attaching the Strap
Pass the end of the strap through
the camera’s strap mount eyelet
from the bottom. Then pass it
through the strap’s buckle as shown
in the illustration. Pull the strap to
take up any slack and make sure
the strap will not loosen from the
buckle.
The eyepiece cover is also
attached to the strap.
Eyepiece cover
23
Charging the Battery
1
Remove the protective cover.
Detach the protective cover provided
with the battery.
the battery.
2 Attach
As shown in the illustration, attach the
battery securely to the charger.
To detach the battery, follow the
above procedure in reverse.
LC-E6
the battery.
3 Recharge
For LC-E6
Y
P
O
As shown by the arrow, flip out the
battery charger’s prongs and insert
the prongs into a power outlet.
C
For LC-E6E
LC-E6E
Charge Level
0-49%
50-74%
75% or higher
Fully charged
Connect the power cord to the
charger and insert the plug into a
power outlet.
X Recharging starts automatically and
the charge lamp blinks in orange.
Color
Orange
Green
Charge Lamp
Display
Blinks once per second
Blinks twice per second
Blinks three times per second
Lights up
It takes approx. 2.5 hours to fully recharge a completely exhausted battery at room
temperature (23°C / 73°F). The time required to recharge the battery will vary greatly
depending on the ambient temperature and the battery’s remaining capacity.
For safety reasons, recharging in low temperatures (5°C - 10°C /
41°F - 50°F) will take longer (up to approx. 4 hours).
24
Charging the Battery
Tips for Using the Battery and Charger
Upon purchase, the battery is not fully charged.
Charge the battery before use.
Recharge the battery on the day before or on the day it is to be used.
Even during storage, a charged battery will gradually drain and lose its capacity.
After recharging the battery, detach it and disconnect the
charger from the power outlet.
You can attach the cover in a different
orientation to indicate whether the battery
has been recharged or not.
If the battery has been recharged, attach the
cover so that the battery-shaped hole <
> is
aligned over the blue sticker on the battery. If the battery is
exhausted, attach the cover in the opposite orientation.
Y
P
O
When not using the camera, remove the battery.
If the battery is left in the camera for a prolonged period, a small amount
of power current is released, resulting in excess discharge and shorter
battery life. Store the battery with the protective cover attached. Storing
the battery when it is fully charged may lower the battery’s performance.
C
The battery charger can also be used in foreign countries.
The battery charger is compatible with a 100 V AC to 240 V AC 50/60 Hz
power source. If necessary, attach a commercially-available plug adapter for
the respective country or region. Do not attach any portable voltage
transformer to the battery charger. Doing so can damage the battery charger.
If the battery becomes exhausted quickly even after being fully
charged, the battery has reached the end of its service life.
Check the battery’s recharge performance and purchase a new
battery.
After disconnecting the charger’s power plug, do not touch the prongs for approx. 10 sec.
If the battery’s remaining capacity is 94% or higher, the battery will not be
recharged.
The charger cannot charge any battery other than Battery Pack LP-E6.
25
Installing and Removing the Battery
Load a fully charged Battery Pack LP-E6 into the camera. The camera’s
viewfinder becomes bright when a battery is installed, and darkens
when the battery is removed.
Installing the Battery
1
Open the cover.
Slide the lever as shown by the
arrows and open the cover.
the battery.
2 Insert
Insert the end with the battery
contacts.
Insert the battery until it locks in
place.
3
Y
P
O
Close the cover.
C
Press the cover until it snaps shut.
Only Battery Pack LP-E6 can be used.
Removing the Battery
Open the cover and remove the
battery.
Press the battery lock lever as shown
by the arrow and remove the battery.
To prevent short circuiting of the
battery contacts, be sure to attach the
provided protective cover (p.24) to
the battery.
26
Installing and Removing the Card
The camera can use an SD, SDHC, or SDXC memory card (sold
separately). An UHS-I Speed Class SDHC or SDXC memory card can
also be used. The captured images are recorded onto the card.
Make sure the card’s write-protect switch is set upward to
enable writing/erasing.
Installing the Card
1
Write-protect switch
Open the cover.
Slide the cover as shown by the
arrows to open it.
the card.
2 Insert
As shown by the illustration, face
Y
P
O
the card’s label side toward you
and insert it until it clicks in place.
C3
Close the cover.
Close the cover and slide it in the
direction shown by the arrows until it
snaps shut.
When you set the power switch to
<1>, the number of possible shots
will be displayed on the LCD panel.
Possible shots
27
Installing and Removing the Card
The number of possible shots depends on the remaining capacity of the
card, image-recording quality, ISO speed, etc.
Setting [z1: Release shutter without card] to [Disable] will prevent
you from forgetting to insert a card.
Removing the Card
Access lamp
1
Open the cover.
Set the power switch to <2>.
Make sure the access lamp is off,
then open the cover.
If [Recording...] is displayed, close
the cover.
Y
P
O
the card.
2 Remove
To eject the card, gently push it in and
then let go.
Pull the card straight out, then close
the cover.
C
28
Installing and Removing the Card
When the access lamp is lit or blinking, it indicates that images are
being written to or read by the card, being erased, or data is being
transferred. Do not open the card slot cover during this time. Also,
never do any of the following while the access lamp is lit or
blinking. Otherwise, it can damage the image data, card, or camera.
• Removing the card.
• Removing the battery.
• Shaking or banging the camera around.
If the card already contains recorded images, the image number may not
start from 0001.
If a card-related error message is displayed on the LCD monitor, remove
and reinsert the card. If the error persists, use a different card.
If you can transfer all the images on the card to a computer, transfer all
the images and then format the card with the camera (p.53). The card
may then return to normal.
Do not touch the card’s contacts with your fingers or metal objects.
Multimedia cards (MMC) cannot be used (card error will be displayed).
C
Y
P
O
29
Using the LCD Monitor
After you flip out the LCD monitor, you can set menu functions, use Live
View shooting, shoot movies, and play back images and movies. You
can change the direction and angle of the LCD monitor.
1
Flip out the LCD monitor.
the LCD monitor.
2 Rotate
When the LCD monitor is swung out,
180°
90°
175°
you can rotate it up or down or face it
forward toward the subject.
The indicated angles are only
approximate.
Y
P
O
it toward you.
3 Face
Normally, face the LCD monitor
C
toward you.
Be careful not to force and break the hinge when rotating the LCD monitor.
When not using the camera, close the LCD monitor with the screen
facing inward. This will protect the screen.
During Live View shooting or movie shooting, facing the LCD monitor
toward the subject will display a mirror image on the screen.
30
Turning on the Power
If you turn on the power switch and the date/time/zone setting
screen appears, see page 33 to set the date/time/zone.
<1> : The camera turns on.
<2> : The camera is turned off and
does not operate. Set to this
position when not using the
camera.
Automatic Sensor Cleaning
Whenever you set the power switch
to <1> or <2>, sensor
cleaning will be executed
automatically. (A small sound may be
heard.) During the sensor cleaning,
the LCD monitor will display <f>.
You can still shoot during sensor
cleaning by pressing the shutter
button halfway (p.41) to stop the
sensor cleaning and take a picture.
If you repeatedly turn the power switch <1>/<2> at a short
interval, the <f> icon may not be displayed. This is normal and
not a malfunction.
C
Y
P
O
3 Auto Power Off
To save battery power, the camera turns off automatically after 1
minute of non-operation. To turn on the camera again, just press the
shutter button halfway (p.41).
You can set the auto power off time with [52: Auto power off]
(p.55).
If you set the power switch to <2> while an image is being recorded to
the card, [Recording...] will be displayed and the power will turn off after the
card finishes recording the image.
31
Turning on the Power
z Checking the Battery Level
When the power switch is set to <1>, the battery level will be
indicated in one of six levels. A blinking battery icon (b) indicates
that the battery will be exhausted soon.
Display
Level (%) 100 - 70 69 - 50 49 - 20 19 - 10
Number of Possible Shots
9-1
0
[Approx. number of shots]
Temperature
Room Temperature
(23°C / 73°F)
Low Temperatures
(0°C / 32°F)
No Flash
1300
1200
50% Flash Use
920
850
Y
P
O
The figures above are based on a fully-charged Battery Pack LP-E6, no Live View
shooting, and CIPA (Camera & Imaging Products Association) testing standards.
Possible shots with Battery Grip BG-E14
• With LP-E6 x 2: approx. twice the shots without the battery grip.
• With size-AA/LR6 alkaline batteries at room temperature (23°C / 73°F):
approx. 490 shots with no flash, approx. 320 shots with 50% flash use.
C
The number of possible shots will decrease with any of the following
operations:
• Pressing the shutter button halfway for a prolonged period.
• Activating the AF frequently without taking a picture.
• Using the lens Image Stabilizer.
• Using the LCD monitor often.
The number of possible shots may decrease depending on the actual
shooting conditions.
The lens operation is powered by the camera’s battery. Depending on
the lens used, the number of possible shots may be lower.
For the number of possible shots with Live View shooting, see page 121.
See [54: Battery info.] to check the battery’s condition in detail.
If size-AA/LR6 batteries are used in Battery Grip BG-E14, a four-level
indicator will be displayed. ([x/m] will not be displayed.)
32
3 Setting the Date, Time, and Zone
When you turn on the power for the first time or if the date/time/zone
have been reset, the date/time/zone setting screen will appear. Follow
the steps below to set the time zone first. If you set the camera to the
correct time zone for where you currently live, when you travel to
another time zone you can simply set the camera to the correct time
zone for your destination to update the camera’s date/time
automatically.
Note that the date/time appended to recorded images will be based
on this date/time setting. Be sure to set the correct date/time.
1
Display the menu screen.
Press the <M> button to display
the menu screen.
Y
P
O
the [52] tab, select [Date/
2 Under
Time/Zone].
C
Press the <U> key to select the
[52] tab.
Press the <V> key to select [Date/
Time/Zone], then press <0>.
the time zone.
3 Set[London]
is set by default.
Press the <U> key to select the
time zone box.
Press <0> so <r> is displayed.
Press the <V> key to select the time
zone, then press <0>. (Returns to
<s>.)
The menu setting procedure is explained on pages 48-49.
In step 3, the time displayed on the upper right of the screen is the time
difference compared with Coordinated Universal Time (UTC). If you do
not see your time zone, set the time zone while referring to the difference
with UTC.
33
3 Setting the Date, Time, and Zone
the date and time.
4 SetPress
the <U> key to select the
number.
Press <0> so <r> is displayed.
Press the <V> key to set the
number, then press <0>. (Returns
to <s>.)
saving time.
5 SetSettheit ifdaylight
necessary.
Press the <U> key to select [Y].
Press <0> so <r> is displayed.
Press the <V> key to select [Z],
then press <0>.
When the daylight saving time is set
to [Z], the time set in step 4 will
advance by 1 hour. If [Y] is set, the
daylight saving time will be canceled
and the time will go back by 1 hour.
C
Y
P
O
the setting.
6 ExitPress
the <U> key to select [OK],
then press <0>.
X The date/time/zone and daylight
saving time will be set and the menu
will reappear.
If you store the camera without the battery or if the camera’s battery
becomes exhausted, the date/time/zone may be reset. If this happens, set
the time zone and date/time again.
The date/time that was set will start from when you press <0> in step 6.
After changing the time zone, check that the correct date/time has been
set.
34
3 Selecting the Interface Language
1
Display the menu screen.
Press the <M> button to display
the menu screen.
the [52] tab, select
2 Under
[LanguageK].
Press the <U> key to select the
[52] tab.
Press the <V> key to select
[LanguageK], then press <0>.
C3
Y
P
O
Set the desired language.
Press the <V> <U> keys to
select the language, then press
<0>.
X The interface language will change.
35
Attaching and Detaching a Lens
The camera is compatible with all Canon EF and EF-S lenses. The
camera cannot be used with EF-M lenses.
Attaching a Lens
1
Remove the caps.
Remove the rear lens cap and the
body cap by turning them as shown
by the arrows.
the lens.
2 Attach
Align the lens’ red or white mount
White index
index with the camera’s mount index
of the same color. Turn the lens as
shown by the arrow until it clicks in
place.
Red index
C
Y
P
O
the lens focus mode switch to
3 Set
<AF>.
<AF> stands for autofocus.
If it is set to <MF> (manual focus),
autofocus will not operate.
4 Remove the front lens cap.
Minimizing Dust
When changing lenses, do it quickly in a place with minimal dust.
When storing the camera without a lens attached, be sure to attach the
body cap to the camera.
Remove dust on the body cap before attaching it.
36
Attaching and Detaching a Lens
Zooming
Turn the zoom ring on the lens
with your fingers.
If you want to zoom, do it before
focusing. Turning the zoom ring after
achieving focus may throw off the
focus.
Detaching the Lens
While pressing the lens release
button, turn the lens as shown by
the arrows.
C
Y
P
O
Turn the lens until it stops, then
detach it.
Attach the rear lens cap to the
detached lens.
To owners of the EF-S18-200mm f/3.5-5.6 IS lens:
You can prevent the lens from extending
out while you are carrying it around. Set
the zoom ring to the 18mm wide-angle
end, then slide the zoom ring lock lever
to <LOCK>. The zoom ring can be
locked only at the wide-angle end.
Do not look at the sun directly through any lens. Doing so may cause
loss of vision.
When attaching or detaching a lens, set the camera’s power switch to
<2>.
If the front part (focusing ring) of the lens rotates during autofocusing, do
not touch the rotating part.
37
Attaching and Detaching a Lens
Image Conversion Factor
Since the image sensor size is
smaller than the 35mm film
format, it will look like the lens
focal length is increased by
approx. 1.6x.
Image sensor size (Approx.)
(22.5 x 15.0 mm / 0.88 x 0.59 in.)
35mm image size
(36 x 24 mm / 1.42 x 0.94 in.)
Attaching a Lens Hood
A lens hood can block unwanted light and diminish rain, snow, dust etc.
adhering to the front of the lens. Before storing the lens in a bag, etc.,
you can attach the hood in reverse.
If the Lens and the Lens Hood Have a Mount Index
1
Y
P
O
Align the red dots on the hood
and lens edges, then turn the
hood as shown by the arrow.
C
the hood as shown in the
2 Turn
illustration.
Turn the hood clockwise until it
attaches securely.
If you do not attach the hood properly, it may obstruct the image’s
periphery, making it look dark.
When attaching or detaching the hood, grasp the base of the hood when
turning it. Grasping the hood’s edges when turning it may deform the
hood, resulting in failure to turn.
38
Lens Image Stabilizer
When you use the IS lens’ built-in Image Stabilizer, camera shake is
corrected to obtain a sharper shot. The procedure explained here is
based on the EF-S18-135mm f/3.5-5.6 IS STM lens as an example.
* IS stands for Image Stabilizer.
1
Set the IS switch to <1>.
Also set the camera’s power switch to
<1>.
the shutter button halfway.
2 Press
X The Image Stabilizer will operate.
the picture.
3 TakeWhen
the picture looks steady in the
viewfinder, press the shutter button
completely to take the picture.
C
Y
P
O
The Image Stabilizer cannot correct “subject blur”, when the subject
moves at the time of exposure.
For bulb exposures, set the IS switch to <2>. If <1> is set, Image
Stabilizer misoperation may occur.
The Image Stabilizer may not be effective for excessive shaking such as
on a rocking boat.
The Image Stabilizer can operate with the lens focus mode switch set to
either <AF> or <MF>.
When using a tripod, you can still shoot with the IS switch set to <1>
with no problem. However, to save battery power, setting the IS switch to
<2> is recommended.
The Image Stabilizer is effective even when the camera is mounted on a
monopod.
Some IS lenses enable you to switch the IS mode manually to suit the
shooting conditions. However, the following lenses switch the IS mode
automatically:
• EF-S18-55mm f/3.5-5.6 IS STM • EF-S18-135mm f/3.5-5.6 IS STM
• EF-S18-200mm f/3.5-5.6 IS
39
Basic Operation
Adjusting the Viewfinder Clarity
Turn the dioptric adjustment
knob.
Turn the knob left or right so that the
AF points in the viewfinder look sharp.
If the knob is difficult to turn, remove
the eyecup.
If the camera dioptric adjustment still cannot provide a sharp viewfinder
image, using E-series Dioptric Adjustment Lenses (sold separately) is
recommended.
Holding the Camera
Y
P
O
To obtain sharp images, hold the camera still to minimize camera shake.
C
Horizontal shooting
Vertical shooting
1. Wrap your right hand around the camera grip firmly.
2. Hold the lens bottom with your left hand.
3. Rest your hand’s right index finger lightly on the shutter button.
4. Press your arms and elbows lightly against the front of your body.
5. To maintain a stable stance, place one foot slightly ahead of the other.
6. Press the camera against your face and look through the viewfinder.
To shoot while looking at the LCD monitor, see pages 70 and 119.
40
Basic Operation
Shutter Button
The shutter button has two steps. You can press the shutter button
halfway. Then you can further press the shutter button completely.
Pressing halfway
This activates autofocusing and the
automatic exposure system that sets the
shutter speed and aperture.
The exposure setting (shutter speed and
aperture) is displayed in the viewfinder
and on the LCD panel (0).
Pressing completely
This releases the shutter and takes the
picture.
C
Y
P
O
Preventing Camera Shake
Hand-held camera movement during the moment of exposure is called
camera shake. It can cause blurred pictures. To prevent camera shake,
note the following:
• Hold and steady the camera as shown on the preceding page.
• Press the shutter button halfway to autofocus, then slowly press the
shutter button completely.
In Creative Zone modes, pressing the <p> button is the same as
pressing the shutter button halfway.
If you press the shutter button completely without pressing it halfway first,
or if you press the shutter button halfway and then press it completely
immediately, the camera will take a moment before it takes the picture.
Even during menu display, image playback, or image recording, you can
instantly go back to shooting-ready by pressing the shutter button
halfway.
41
Basic Operation
Mode Dial
Turn the dial while holding down
the lock release button at the
center of the dial.
6 Main Dial
(1) After pressing a button, turn the
<6> dial.
When you press a button such as <f>
<R> <i> <q>, the respective
function remains selected for the
duration of the timer (9). During this
time, you can turn the <6> dial to set
the desired setting.
When the function selection ends or if
you press the shutter button halfway, the
camera will be ready to shoot.
Use this dial to select or set the AF
operation, drive mode, ISO speed,
metering mode, AF point selection,
etc.
C
Y
P
O
(2) Turn the <6> dial only.
While looking at the viewfinder or LCD
panel, turn the <6> dial to set the
desired setting.
Use this dial to set the shutter speed,
aperture, etc.
The operations in (1) are possible even while the <R> switch is set
upward (Multi function lock, p.44).
42
Basic Operation
5 Quick Control Dial
(1) After pressing a button, turn the
<5> dial.
When you press a button such as <f>
<R> <i> <q>, the respective
function remains selected for the
duration of the timer (9). During this
time, you can turn the <5> dial to set
the desired setting.
When the function selection ends or if
you press the shutter button halfway, the
camera will be ready to shoot.
Use this dial to select or set the AF
operation, drive mode, ISO speed,
metering mode, AF point selection,
etc.
C
Y
P
O
(2) Turn the <5> dial only.
While looking at the viewfinder or LCD
panel, turn the <5> dial to set the
desired setting.
Use this dial to set the exposure
compensation amount, the aperture
setting for manual exposures, etc.
The operations in (1) are possible even while the <R> switch is set
upward (Multi function lock, p.44).
43
Basic Operation
9 Multi-controller
The Multi-controller <9> has eight keys that tilt in the directions shown
by the arrows.
Use the eight keys to select the AF
point, correct the white balance,
move the AF point or magnifying
frame during Live View shooting,
scroll around magnified images
during playback, etc.
For menus and the Quick Control, the
Multi-controller works only in the
vertical and horizontal directions
<V> <U>. It does not work in
diagonal directions.
R Multi function Lock
C
Y
P
O
With [8C.Fn III-2: Multi function lock] set and the <R> switch
set upward, it prevents the Main Dial, Quick Control Dial, and Multicontroller from moving and changing a setting inadvertently.
<R> switch set downward:
Lock released
<R> switch set upward:
Lock engaged
If the <R> switch is set upward and you try to use one of the locked
camera controls, <L> will be displayed in the viewfinder and on the LCD
panel. On the shooting function settings display (p.45), [LOCK] will be
displayed.
44
Basic Operation
U LCD Panel Illumination
Turn on (9)/off the LCD panel
illumination by pressing the <U> button.
During a bulb exposure, pressing the
shutter button completely will turn off the
LCD panel illumination.
Displaying Shooting Function Settings
After you press the <B> button a number of times, the shooting
function settings will be displayed.
With the shooting function settings displayed, you can turn the Mode
Dial to see the settings for each shooting mode.
Pressing the <Q> button enables Quick Control of the shooting
function settings (p.46).
Press the <B> button again to turn off the display.
C
Y
P
O
45
Q Quick Control for Shooting Functions
You can directly select and set the shooting functions displayed on the
LCD monitor. This is called Quick Control.
1
Press the <Q> button. (7)
X The Quick Control screen will appear.
the desired functions.
2 SetPress
the <V> <U> keys to
select a function.
X The setting of the selected function is
displayed.
Turn the <6> or <5> dial to
change the setting.
Basic Zone modes
Y
P
O
Creative Zone modes
C
the picture.
3 TakePress
the shutter button completely to
take the picture.
X The captured image will be displayed.
For the functions settable in Basic Zone modes and the setting
procedure, see page 85.
In steps 1 and 2, you can also use the LCD monitor’s touch screen
(p.50).
46
Q Quick Control for Shooting Functions
Settable Functions on Quick Control Screen
Aperture (p.112)
Shutter speed (p.111)
Shooting mode*1 (p.20)
Flash exposure compensation
AE lock*2 (p.116)
Highlight tone priority*2 (p.106)
Exposure
compensation/
AEB setting
(p.114/115)
ISO speed (p.100)
Wi-Fi function*3
Picture Style (p.101)
Custom Controls
AF operation (p.88)
Image-recording quality
(p.98)
Return
White balance (p.102)
Auto Lighting Optimizer (p.103)
AF area selection mode (p.92)
White balance correction
Drive mode (p.95)
Y
P
O
Metering mode
White balance bracketing
*1: This function cannot be set with the Quick Control screen when the
Mode Dial is set to other than <8>.
*2: These functions cannot be set with the Quick Control screen.
*3: Refer to the Wi-Fi Function Instruction Manual.
C
Function Setting Screen
Ð <0>
Select the desired function and press <0>.
The function’s setting screen will appear.
Turn the <6> or <5> dial or press the
<U> key to change the settings. There are
also some functions that are set by pressing
the <B>, <B>, or <L> button.
Press <0> to finalize the setting and
return to the Quick Control screen.
When you select <
> or < >
(p.91) and press the <M> button,
the shooting function settings display
will reappear.
47
3 Menu Operations
You can set various settings with the menus such as the imagerecording quality, date/time, etc. While looking at the LCD monitor, use
the <M> button, <V> <U> keys, and <0> button on the
camera back.
<M> button
<0> button
LCD monitor
<V> <U>
keys
Menus in Basic Zone Modes
C
Y
P
O
* Some menu tabs and menu items are not displayed in Basic Zone modes.
Menus in Creative Zone Modes
3 Playback
A Live View shooting
z Shooting
5 Set-up
8 Custom Functions
9 My Menu
Tab
Menu items
48
Menu settings
3 Menu Operations
Menu Setting Procedure
1
Display the menu screen.
Press the <M> button to display
the menu screen.
a tab.
2 Select
Press the <U> key to select a
menu tab.
For example, in this manual, “the [z4]
tab” refers to the screen displayed
when the forth z (Shooting) tab from
the left [ ] is selected.
the desired item.
3 Select
Press the <V> key to select the
Y
P
O
item, then press <0>.
4
Select the setting.
C
Press the <V> <U> keys to select
the desired setting. (Some settings
require you to press either the <V>
<U> keys to select them.)
The current setting is indicated in blue.
the setting.
5 Adjust
Press <0> to finalize your changes.
the setting.
6 ExitPress
the <M> button to return to
the shooting function settings display.
In step 2, you can also turn the <6> dial to select a menu tab. In step
4, you can also turn the <5> dial to select certain settings.
In steps 2 to 5, you can also use the LCD monitor’s touch screen (p.50).
The explanation of menu functions hereinafter assumes that you have
pressed the <M> button to display the menu screen.
To cancel the operation, press the <M> button.
49
d Using the Touch Screen
The LCD monitor is a touch-sensitive panel that you can operate with
your fingers.
Tap
Quick Control (Sample display)
Use your finger to tap (touch briefly
and then remove your finger from) the
LCD monitor.
By tapping, you can select menus,
icons, etc., displayed on the LCD
monitor.
When touch-screen operation is
possible, a frame will appear around
the icon (except on menu screens).
For example, when you tap [Q], the
Quick Control screen appears. By
tapping [2], you can return to the
preceding screen.
C
Y
P
O
Operations possible by tapping the screen
Setting menu functions after pressing the <M> button
Quick Control
Setting functions after pressing the <f>, <R>, <i>, <q>,
<S>, or <B> button
Touch shutter during Live View shooting
Setting functions during Live View shooting
Setting functions during movie shooting
Playback operations
50
d Using the Touch Screen
Drag
Menu screen (Sample display)
Slide your finger while touching the
LCD monitor.
Scale display (Sample display)
C
Y
P
O
Operations possible by dragging your finger on the screen
Selecting a menu tab or item after pressing the <M> button
Setting a scale control
Quick Control
Setting functions during Live View shooting
Setting functions during movie shooting
Playback operations
3 Silencing the Beep during Touch Operations
If [z1: Beep] is set to [Touch to
beep will not sound during touch
operations.
], the
51
d Using the Touch Screen
3 Touch Control Settings
1
Select [Touch control].
Under the [53] tab, select [Touch
control], then press <0>.
the touch control setting.
2 SetSelect
the desired setting, then press
<0>.
[Standard] is the normal setting.
[Sensitive] provides a better touch
response than [Standard]. Try using
both settings and select the one you
prefer.
To disable touch-screen operations,
select [Disable].
C
Y
P
O
Cautions for Touch Screen Operations
Since the LCD monitor is not pressure sensitive, do not use any sharp
objects, such as your fingernail or a ballpoint pen, for touch operations.
Do not use wet fingers for touch screen operations.
If the LCD monitor has any moisture or if your fingers are wet, the touch
screen may not respond or misoperation may occur. In such a case, turn
off the power and wipe the LCD monitor with a cloth.
Do not attach any protective sheet (commercially available) or sticker on
the LCD monitor. It may make the touch operation response slow.
If you quickly perform touch operation when [Sensitive] is set, the touch
response may be slower.
52
Before You Start
3 Formatting the Card
If the card is new or was previously formatted by another camera or
computer, format the card with the camera.
When the card is formatted, all images and data on the card
will be erased. Even protected images will be erased, so make
sure there is nothing you need to keep. If necessary, transfer
the images and data to a computer, etc., before formatting the
card.
1
Select [Format card].
Under the [51] tab, select [Format
card], then press <0>.
Y
P
O
the card.
2 Format
Select [OK], then press <0>.
C
X The card will be formatted.
X When the formatting is completed,
the menu will reappear.
For low-level formatting, press the
<L> button to append [Low level
format] with a checkmark <X>, then
select [OK].
53
Before You Start
Format the card in the following cases:
The card is new.
The card was formatted by a different camera or a computer.
The card is full with images or data.
A card-related error is displayed.
Low-level Formatting
Perform low-level formatting if the card’s recording or reading speed seems
slow or if you want to erase all data on the card.
Since low-level formatting will format all recordable sectors on the card, the
formatting will take slightly longer than normal formatting.
You can stop the low-level formatting by selecting [Cancel]. Even in this
case, normal formatting will be completed and you can use the card as
usual.
C
Y
P
O
When the card is formatted or data is erased, only the file management
information is changed. The actual data is not completely erased. Be
aware of this when selling or discarding the card. When discarding the
card, execute low-level formatting or destroy the card physically to
prevent the personal data from being leaked.
Before using a new Eye-Fi card, the software on the card must be
installed in your computer. Then format the card with the camera.
The card capacity displayed on the card format screen may be smaller
than the capacity indicated on the card.
This device incorporates exFAT technology licensed from Microsoft.
54
Before You Start
3 Disabling the Beeper
You can prevent the beeper from sounding when focus is achieved,
during self-timer operation, and during touch screen operations.
1
Select [Beep].
Under the [z1] tab, select [Beep],
then press <0>.
[Disable].
2 Select
Select [Disable], then press <0>.
X The beeper will not sound for any
operation.
If [Touch to ] is selected, the
beeper will be silent for touch screen
operations only.
Y
P
O
3 Setting the Power-off Time/Auto Power Off
C
To save battery power, the camera turns off automatically after a set
time of idle operation elapses. If you do not want the camera to turn off
automatically, set this to [Disable]. After the power turns off, you can
turn on the camera again by pressing the shutter button or other
buttons.
1
Select [Auto power off].
Under the [52] tab, select [Auto
power off], then press <0>.
the desired time.
2 SetSelect
the desired setting, then press
<0>.
Even if [Disable] is set, the LCD monitor will turn off automatically after 30
min. to save power. (The camera’s power does not turn off.)
55
Before You Start
3 Setting the Image Review Time
You can set how long the image is displayed on the LCD monitor
immediately after capture. To keep the image displayed, set [Hold]. To
not have the image displayed, set [Off].
1
Select [Image review].
Under the [z1] tab, select [Image
review], then press <0>.
the desired time.
2 SetSelect
the desired setting, then press
<0>.
If [Hold] is set, the image will be displayed until the auto power off time
elapses.
Y
P
O
3 Turning the LCD Monitor Off/On
C
1
The shooting function settings screen (p.45) can be set to display or
turn off when you press the shutter button halfway.
Select [LCD off/on btn].
Under the [52] tab, select [LCD off/
on btn], then press <0>.
the desired setting.
2 SetSelect
the desired setting, then press
<0>.
[Remains on]: Display remains on even when you press the shutter
button halfway. To turn off the display, press the
<B> button.
[Shutter btn.]: When you press the shutter button halfway, the
display will turn off. When you let go of the shutter
button, the display will turn on.
56
Before You Start
3 Reverting the Camera to the Default SettingsN
The camera’s shooting function settings and menu settings can be
reverted to their defaults.
1
Select [Clear all camera settings].
Under the [54] tab, select [Clear all
camera settings], then press <0>.
[OK].
2 Select
Select [OK], then press <0>.
C
Y
P
O
57
Displaying the Grid
You can display a grid in the viewfinder to help you straighten or
compose the shot.
1
Select [VF grid display].
Under the [z1] tab, select [VF grid
display], then press <0>.
[Enable].
2 Select
Select [Enable], then press <0>.
Y
P
O
X When you exit the menu, the grid will
appear in the viewfinder.
C
58
Q Displaying the Electronic Level
You can display the electronic level on the LCD monitor and in the
viewfinder to help correct camera tilt. Note that you can check only the
horizontal tilt and not the forward/backward tilt.
Displaying the Electronic Level on the LCD Monitor
1
Press the <B> button.
Each time you press the <B>
button, the screen display will
change.
Display the electronic level.
If the electronic level does not
appear, set [53: z button
display options] so that the
electronic level can be displayed.
Y
P
C2 O
Check the camera’s tilt.
Horizontal level
The horizontal tilt is displayed in 1°
increments. The tilt scale is marked in
5° increments.
When the red line turns green, it
indicates that the tilt is almost
corrected.
59
Q Displaying the Electronic Level
3 Displaying the Electronic Level in the Viewfinder
During Shooting
A simple electronic level using a camera icon can be displayed in the
viewfinder at the center bottom. Since this can be displayed while you
shoot, you can correct any tilt during handheld shooting.
1
Select [Viewfinder level].
Under the [z1] tab, select
[Viewfinder level], then press <0>.
[Show].
2 Select
Select [Show], then press <0>.
C
Y
P
O
the shutter button halfway.
3 Press
X The electronic level will appear as
shown in the illustration.
Horizontal
Tilt 1°
Electronic level
Tilt 2° or higher
This also works with vertical shooting.
60
Q Displaying the Electronic Level
3 Displaying the Electronic Level in the Viewfinder
Before ShootingN
The viewfinder can display an electronic level and grid using the AF
points. This is convenient to correct any camera tilt before shooting with
a tripod.
1
Select Custom Functions III.
Under the [8] tab, select [C.Fn III:
Operation/Others], then press
<0>.
C.Fn III -4 [Custom
2 Select
Controls].
Y
P
O
Press the <U> key to select [4:
Custom Controls], then press <0>.
C3
Select [e].
Select [e: DOF preview button],
then press <0>.
[Q].
4 Select
Select [Q: VF electronic level],
then press <0>.
Press the <M> button to exit the
menu.
61
Q Displaying the Electronic Level
the electronic level.
5 Display
Press the Depth-of-field preview
button.
X The viewfinder will display an
electronic level and grid using the AF
points.
C
Y
P
O
1°
6° Over
62
Feature Guide and Help
The Feature guide and Help display information about camera features.
Feature Guide
The Feature guide appears when you change the shooting mode or set
a shooting function, Live View shooting, movie shooting, or Quick
Control for playback, and displays a brief description of that mode,
function or option. It also displays a description when you select a
function or option on the Quick Control screen. When you proceed with
the operation, the Feature guide will disappear.
Shooting mode (Sample)
C
Quick Control (Sample)
Shooting function settings
Y
P
O
Live View shooting
Playback
3 Disabling the Feature Guide
Select [Feature guide].
Under the [53] tab, select [Feature
guide], then press <0>.
Select [Disable], then press <0>.
63
Feature Guide and Help
Help
When [zHelp] is displayed at the bottom of the menu screen,
pressing the <B> button displays the function’s description (Help). If
the Help fills more than one screen, a scroll bar will appear on the right
edge. You can turn the <5> dial or press the <V> key to scroll.
Example: [z4: Long exp. noise reduction]
B
Î
Y
P
O
Example: [8C.Fn I-1: Exposure level increments]
C
B
Î
Example: [8C.Fn II-1: Tracking sensitivity]
B
Î
64
Scroll bar
Basic Shooting
Y
P
O
This chapter explains how to use the Basic Zone modes
on the Mode Dial for best results.
C
ne ne
With Basic Zone modes, all you do is point and shoot while the
camera sets everything automatically (p.85). Also, to prevent
botched pictures due to mistaken operations, advanced
shooting function settings cannot be changed.
Zo
ic o
Basic Z
s
Ba
When you set the Mode Dial to <8> while the LCD monitor is
turned off, press the <Q> button (p.75) or <B> button to
check which shooting mode is set before shooting.
65
A Fully Automatic Shooting (Scene Intelligent Auto)
<A> is a fully automatic mode. The camera analyzes the scene
and sets the optimum settings automatically. It also adjusts focus
automatically by detecting whether the subject is still or moving (p.69).
1
Area AF frame
Set the Mode Dial to <A>.
Turn the Mode Dial while holding
down the lock release button at the
center.
the Area AF frame over the
2 Aim
subject.
All the AF points will be used to focus,
and generally the closest object will
be focused.
Aiming the center of the Area AF
frame over the subject will make
focusing easier.
3
C
Focus confirmation light
66
Y
P
O
Focus the subject.
Press the shutter button halfway. The
lens focusing ring will rotate to focus.
X The AF point(s) that achieve(s) focus
will be displayed. At the same time,
the beeper will sound and the focus
confirmation light <o> in the
viewfinder will light up.
X In low light, the AF point(s) will light
up briefly in red.
X If necessary, the built-in flash will be
raised automatically.
A Fully Automatic Shooting (Scene Intelligent Auto)
the picture.
4 TakePress
the shutter button completely to
take the picture.
X The captured image will be displayed
for 2 sec. on the LCD monitor.
After you finish shooting, push down
the built-in flash with your fingers.
The <A> mode makes the colors look more impressive in nature, outdoor,
and sunset scenes. If the desired color tone is not obtained, use a Creative
Zone mode and select a Picture Style other than <D> and shoot (p.101).
FAQ
Y
P
O
The focus confirmation light <o> blinks and focus is not
achieved.
Aim the Area AF frame over an area with good contrast, then press
the shutter button halfway (p.41). If you are too close to the subject,
move away and try again.
C
Multiple AF points light up simultaneously.
Focus has been achieved at all those points. As long as the AF point
covering the desired subject lights up, you can take the picture.
The beeper continues to beep softly. (The focus confirmation
light <o> does not light up.)
It indicates that the camera is focusing continuously on a moving
subject. (The focus confirmation light <o> does not light up.) You
can take sharp pictures of a moving subject.
Note that focus lock (p.69) will not work in this case.
Pressing the shutter button halfway does not focus the subject.
If the focus mode switch on the lens is set to <MF> (manual focus),
set it to <AF> (autofocus).
67
A Fully Automatic Shooting (Scene Intelligent Auto)
The flash fired even though it was daylight.
For a backlit subject, the flash may fire to help lighten the subject’s
dark areas. If you do not want the flash to fire, use the Quick Control
to set [Flash firing] to [b] (p.84) or set the <7> (Flash Off) mode
and shoot (p.71).
The flash fired and the picture came out extremely bright.
Move further from the subject and shoot. When shooting flash
photography, if the subject is too close to the camera, the picture
may come out extremely bright (overexposure).
In low light, the built-in flash fired a series of flashes.
Pressing the shutter button halfway may trigger the built-in flash to
fire a series of flashes to assist autofocusing. This is called the AFassist beam. Its effective range is approx. 4 meters/13.1 feet.
Y
P
O
When flash was used, the bottom part of the picture came out
unnaturally dark.
The shadow of the lens barrel was captured in the picture because
the subject was too close to the camera. Move further from the
subject and shoot. If a hood is attached to the lens, remove it before
taking the flash picture.
C
68
A Full Auto Techniques (Scene Intelligent Auto)
Recomposing the Shot
Depending on the scene, position the subject toward the left or right to
create a balanced background and good perspective.
In the <A> mode, while you press the shutter button halfway to focus
a still subject, the focus will be locked. You can then recompose the
shot and press the shutter button completely to take the picture. This is
called “focus lock”. Focus lock is also possible in other Basic Zone
modes (except <5>).
C
Y
P
O
Shooting a Moving Subject
In the <A> mode, if the subject moves (distance to camera changes)
while or after you focus, AI Servo AF will take effect to focus the subject
continuously. (The beeper will continue beeping softly.) As long as you
keep aiming the Area AF frame on the subject while pressing the
shutter button halfway, the focusing will be continuous. When you want
to take the picture, press the shutter button completely.
69
A Full Auto Techniques (Scene Intelligent Auto)
A Live View Shooting
You can shoot while viewing the image on the LCD monitor. This is
called “Live View shooting”. For details, see page 119.
the Live View shooting/Movie
1 Set
shooting switch to <A>.
the Live View image on
2 Display
the LCD monitor.
Press the <0> button.
X The Live View image will appear on the LCD monitor.
the subject.
3 Focus
Press the shutter button halfway to
focus.
X When focus is achieved, the AF point
will turn green and the beeper will
sound.
C
Y
P
O
the picture.
4 TakePress
the shutter button completely.
X The picture will be taken and the captured
image is displayed on the LCD monitor.
X After the image review ends, the
camera will return to Live View
shooting automatically.
Press the <0> button to end the
Live View shooting.
You can also rotate the LCD monitor in different directions (p.30).
Normal angle
70
Low angle
High angle
7 Disabling Flash
<7> is a fully-automatic shooting mode that does not use flash. It is
useful in museums, aquariums, and other places where flash is
prohibited. This mode is also effective for capturing the particular
ambience of a scene, such as candlelight scenes.
Shooting Tips
C
Y
P
O
Prevent camera shake if the numeric display in the viewfinder
blinks.
Under low light when camera shake is prone to occur, the
viewfinder’s shutter speed display will blink. Hold the camera steady
or use a tripod. When using a zoom lens, use the wide-angle end to
reduce blur caused by camera shake even while handholding the
camera.
Take portraits without flash.
In low-light conditions, tell the subject to keep still until the picture is
taken. Any movement by the subject during shooting may result in
the subject being blurred in the picture.
71
C Creative Auto Shooting
In the <C> mode, you can easily blur the background and change the
drive mode and flash firing. You can also choose the ambience you
want to convey in your images. The default settings are the same as the
<A> mode.
* CA stands for Creative Auto.
1
Set the Mode Dial to <C>.
the <Q> button. (7)
2 Press
X The Quick Control screen will appear.
Y
P
O
the desired function.
3 SetPress
the <V> <U> keys to
select a function.
X The selected function and Feature
guide (p.63) will appear.
For the setting procedure and details
on each function, see pages 73-74.
C
the picture.
4 TakePress
the shutter button completely to
take the picture.
72
C Creative Auto Shooting
Shutter speed
Aperture
ISO speed
(1)
(2)
(4)
(3)
Battery check
Possible shots
Image-recording quality
Pressing the <Q> button enables you to set the following:
Y
P
O
(1) Ambience-based shots
You can choose the ambience you want to convey in your images.
Turn the <6> or <5> dial to select the desired ambience. You
can also select it from a list by pressing <0>.
C
(2) Blurring/sharpening the background
If you move the index mark toward the left, the background will look
more blurred. If you move it toward the right, the background will
look more in focus. Set it by pressing the <U> key. You can also
turn the <6> or <5> dial to move the mark. If you want to blur the
background, see “Shooting Portraits” on page 76.
Depending on the lens and shooting conditions, the background
may not look so blurred. This function cannot be set (grayed out)
while the built-in flash is raised in the <a> or <D> mode. If flash is
used, this setting will not be applied.
73
C Creative Auto Shooting
(3) Drive mode: Turn the <6> or <5> dial to select the desired drive
mode. You can also select it from a list by pressing <0>.
<u> Single shooting:
Shoot one image at a time.
<o> High-speed continuous shooting:
While you hold down the shutter button completely, shots
will be taken continuously. You can shoot up to approx. 7.0
shots per second.
<i> Low-speed continuous shooting:
While you hold down the shutter button completely, shots
will be taken continuously. You can shoot up to approx. 3.0
shots per second.
<B> Silent single shooting:
Single shooting with less shooting sound than <u>.
<M> Silent continuous shooting:
Continuous shooting (max. approx. 3.0 shots per second)
with less shooting sound than <i>.
< > Self-timer: 10 sec./remote control:
<
> Self-timer: 2 sec./remote control:
The picture is taken 10 seconds or 2 seconds after you
press the shutter button. A remote controller can also be
used.
C
Y
P
O
(4) Flash firing: Turn the <6> or <5> dial to select the desired
setting. You can also select it from a list by pressing <0>.
<a> Auto flash : The flash fires automatically when necessary.
<I>
Flash on : The flash fires at all times.
<b> Flash off : The flash is disabled.
74
8: Special Scene Mode
The camera will automatically choose the appropriate settings when
you select a shooting mode for your subject or scene.
1
Set the Mode Dial to <8>.
the <Q> button. (7)
2 Press
X The Quick Control screen will appear.
a shooting mode.
3 Select
Press the <V> <U> keys to
Y
P
O
select a shooting mode icon.
Turn the <6> or <5> dial to select
a shooting mode.
C
You can also select the shooting
mode icon and press <0> to display
a list of shooting modes from which
you can select one.
Available Shooting Modes in the <8> Mode
Shooting Mode
2
Portrait
Page
p.76
3
Landscape
4
Close-up
5
Sports
p.79
Shooting Mode
6
Night Portrait
Page
p.80
p.77
F
Handheld Night Scene
p.81
p.78
G
HDR Backlight Control
p.82
75
2 Shooting Portraits
The <2> (Portrait) mode blurs the background to make the human
subject stand out. It also makes skin tones and hair look softer.
Shooting Tips
C
Y
P
O
The further the distance between the subject and background,
the better.
The further the distance between the subject and background, the
more blurred the background will look. The subject will also stand
out better against an uncluttered dark background.
Use a telephoto lens.
If you have a zoom lens, use the telephoto end to fill the frame with
the subject from the waist up. Move in closer if necessary.
Focus the face.
Check that the AF point covering the face flashes. For close-ups of
the face, focus on the eyes.
The default setting is <i> (low-speed continuous shooting). If you hold
down the shutter button, you can shoot continuously to capture subtle
changes in the subject’s pose and facial expression (max. approx. 3.0 shots/
sec.).
76
3 Shooting Landscapes
Use the <3> (Landscape) mode for wide scenery or to have
everything in focus from near to far. For vivid blues and greens, and
very sharp and crisp images.
Shooting Tips
C
Y
P
O
With a zoom lens, use the wide-angle end.
When using the wide-angle end of a zoom lens, objects near and far
will be in focus better than at the telephoto end. It also adds breadth
to landscapes.
Shooting night scenes.
The <3> mode is also good for night scenes because it disables
the built-in flash. When shooting night scenes, use a tripod to
prevent camera shake.
The built-in flash will not fire even in backlit or low-light conditions.
If you are using an external Speedlite, the Speedlite will fire.
77
4 Shooting Close-ups
When you want to shoot flowers or small things up close, use the <4>
(Close-up) mode. To make small things appear much larger, use a
macro lens (sold separately).
Shooting Tips
C
Y
P
O
Use a simple background.
A simple background makes small objects such as flowers stand out
better.
Move as close as possible to the subject.
Check the lens for its minimum focusing distance. Some lenses
have indications such as <MACRO 0.39m/1.3ft> on them. The lens
minimum focusing distance is measured from the <V> (focal
plane) mark on the top of the camera to the subject. If you are too
close to the subject, the focus confirmation light <o> will blink.
If you use flash and the bottom of the picture looks unusually dark,
move away from the subject.
With a zoom lens, use the telephoto end.
If you have a zoom lens, using the telephoto end will make the
subject look larger.
78
5 Shooting Moving Subjects
Use the <5> (Sports) mode to shoot a moving subject, such as a
running child or a moving vehicle.
Shooting Tips
Y
P
O
Use a telephoto lens.
The use of a telephoto lens is recommended for shooting from a
distance.
C
Track the subject with the Area AF frame.
Aim the center AF point over the subject, then press the shutter
button halfway to start autofocusing in Area AF frame. During
autofocusing, the beeper will continue beeping softly. If focus cannot
be achieved, the focus confirmation light <o> will blink.
The default setting is <o> (high-speed continuous shooting).
When you want to take the picture, press the shutter button
completely. If you hold down the shutter button, you will be able to
maintain autofocusing during continuous shooting of the subject’s
movement (max. approx. 7.0 shots per sec.).
Under low light when camera shake is prone to occur, the viewfinder’s
shutter speed display on the bottom left will blink. Hold the camera
steady and shoot.
If you are using an external Speedlite, the Speedlite will fire.
79
6 Shooting Night Portraits (With a Tripod)
To shoot people at night and obtain a natural-looking night scene in the
background, use the <6> (Night Portrait) mode. Using a tripod is
recommended.
Shooting Tips
Y
P
O
Use a wide-angle lens and a tripod.
When using a zoom lens, use the wide-angle end to obtain a wide
night view. Also, use a tripod to prevent camera shake.
C
Check the subject’s brightness.
Under low light, the built-in flash will fire automatically to obtain a
good exposure of the subject.
It is recommended to play back the image after the shooting to
check the image brightness. If the subject looks dark, move nearer
and shoot again.
Also shoot in another shooting modes.
Since camera shake is prone to occur with night shots, shooting also
with <A> and <F> is recommended.
Tell the subject to keep still even after the flash fires.
If you use the self-timer together with flash, the self-timer lamp will light
up briefly after the picture is taken.
See the cautions on page 83.
80
F Shooting Night Scenes (Handheld)
Using a tripod for shooting a night scene yields the best results.
However, with the <F> (Handheld Night Scene) mode, you can shoot
night scenes while handholding the camera. In this mode, four shots are
taken continuously for each picture, and a resulting bright image with
reduced camera shake is recorded.
Shooting Tips
C
Y
P
O
Hold the camera firmly.
While shooting, hold the camera firmly and steadily. In this mode,
four shots are aligned and merged into a single image. However, if
there is significant misalignment in any of the four shots due to
camera shake, they may not align properly in the final image.
For shots of people, turn on the flash.
If you will include people in the picture, press the <Q> button and
set <D> (Flash on). To take a nice portrait, the first shot will use
flash. Tell the subject not to move until all four continuous shots are
taken.
See the cautions on page 83.
81
G Shooting Backlit Scenes
When shooting a scene having both bright and dark areas, use the
<G> (HDR Backlight Control) mode. When you take one picture in this
mode, three continuous shots are taken at different exposures. This
results in one image, with a wide tonal range, that has minimized the
blocked-up shadows caused by backlighting.
Shooting Tips
C
Y
P
O
Hold the camera firmly.
While shooting, hold the camera firmly and steadily. In this mode,
three shots are aligned and merged into a single image. However, if
there is significant misalignment in any of the three shots due to
camera shake, they may not align properly in the final image.
Flash shooting is not possible. In low light, the AF-assist beam may be
emitted (p.90).
See the cautions on pages 83-84.
HDR stands for High Dynamic Range.
82
Cautions for <6> Night Portrait and <F> Handheld Night Scene
During Live View shooting, it may be difficult to focus dots of light such as
in a night scene. In such a case, set the lens’ focus mode switch to <MF>
and focus manually.
Cautions for <F> Handheld Night Scene and <G> HDR Backlight Control
Compared with other shooting modes, the shooting area will be smaller.
You cannot select RAW or RAW+JPEG. If RAW is set, the image will be
recorded in the 73 quality. Also, if RAW+JPEG is set, the image will be
recorded in the set JPEG quality.
If you shoot a moving subject, the subject’s movement may leave
afterimages or the surrounding area of the subject may become dark.
The image alignment may not work properly with repetitive patterns
(lattice, stripes, etc.), flat or single-tone images, or images significantly
misaligned due to camera shake.
Recording the image to the card will take longer than with normal
shooting. During the processing of the images, “buSY” will be displayed
in the viewfinder and on the LCD panel and you cannot take another
picture until the processing is completed.
If the shooting mode is set to <F> or <G>, direct printing is not
possible.
Cautions for <6> Night Portrait
During Live View shooting, it may be difficult to focus when the face of
the subject looks dark. In such a case, set the lens’ focus mode switch to
<MF> and focus manually.
Cautions for <F> Handheld Night Scene
When shooting flash photography, if the subject is too close to the
camera, the picture may come out extremely bright (overexposure).
If you use flash to shoot a night scene with few lights, the shots may not
align correctly. This can result in a blurry photo.
If you use flash and the human subject is close to the background that is
also illuminated by the flash, the shots may not align correctly. This can
result in a blurry photo. Unnatural shadows and unsuitable colors may
also appear.
External Speedlite flash coverage
• When using a Speedlite with automatic flash coverage setting, the
zoom position will be fixed to the wide end, regardless of the lens’
zoom position.
• When using a Speedlite requiring manual flash coverage setting, set
the flash head to the wide (normal) position.
C
Y
P
O
83
Q Quick Control
Cautions for <G> HDR Backlight Control
Note that the image may not be rendered with a smooth gradation and
may look irregular or have significant noise.
HDR Backlight Control may not be effective for excessively backlit
scenes or extremely high-contrast scenes.
Q Quick Control
In Basic Zone modes when the shooting function settings screen is
displayed, you can press the <Q> button to display the Quick Control
screen. The table on the next page shows the functions that can be set
with the Quick Control screen in each Basic Zone mode.
Y
P
O
the Mode Dial to a Basic Zone
1 Set
mode.
the <Q> button. (7)
2 Press
X The Quick Control screen will appear.
C
Example: Portrait mode
the desired functions.
3 SetPress
the <V> <U> keys to
select a function.
X The selected function and Feature
guide (p.63) will appear.
Functions can also be selected with
the <6> or <5> dial.
84
Q Quick Control
Settable Functions in Basic Zone Modes
o: Default setting k: User selectable
: Not selectable
Function
A
7
C
u: Single shooting
o: High-speed continuous shooting
i: Low-speed continuous shooting
Drive
B: Silent single shooting
mode
M: Silent continuous shooting
Q
Self-timer (p.96)
k
a: Automatic firing
Flash
D: Flash on (Fires at all times)
firing
b: Flash off
Ambience-based shots
Light/scene-based shots
Blurring/sharpening the background (p.73)
o
k
k
k
k
k
k
o
k
k
o
k
k
k
k
k
k
o
k
k
k
k
k
k
o
k
k
k
Function
C
Y
P
O
4
o
k
k
k
k
k
k
o
k
k
k
k
o
8
2
3
k
o
k
k
o
k
k
k
k
k
k
k
k
k
o
k
k
o
k
k
k
k
k
5
k
o
k
k
k
k
k
8
6
o
k
k
k
k
k
k
o
F
G
u: Single shooting
o
o
k
k
o: High-speed continuous shooting
k
k
i: Low-speed continuous shooting
Drive
k
k
B: Silent single shooting
mode
M: Silent continuous shooting
k
k
k
k
Q
Self-timer (p.96)
k
k
k
a: Automatic firing
Flash
D: Flash on (Fires at all times)
k
firing
b: Flash off
o
o
o
Ambience-based shots
k
k
k
Light/scene-based shots
k
Blurring/sharpening the background (p.73)
* If you change the shooting mode or set the power switch to <2>, it will revert
to the default settings (except the self-timer).
85
MEMO
C
86
Y
P
O
Setting the AF and
Drive Modes
Y
P
O
The 19 AF points in the viewfinder
make AF shooting suitable for a
wide variety of subjects and
scenes.
C
You can also select the AF operation and drive mode
that best match the shooting conditions and subject.
The M icon at the upper right of the page title indicates that
the function is available only in Creative Zone modes (d/
s/f/a/F).
In Basic Zone modes, the AF operation and AF point (AF
area selection mode) are set automatically.
<AF> stands for autofocus. <MF> stands for manual focus.
87
f: Selecting the AF OperationN
You can select the AF operation characteristics to suit the shooting
conditions or subject. In Basic Zone modes, the optimum AF operation
is set automatically for the respective shooting mode.
1
Set the lens focus mode switch to
<AF>.
the Mode Dial to a Creative
2 Turn
Zone mode.
3 Press the <f> button. (9)
Y
P
O
the AF operation.
4 Select
While looking at the LCD panel, turn
C
the <6> or <5> dial.
X : One-Shot AF
9 : AI Focus AF
Z : AI Servo AF
88
f: Selecting the AF OperationN
One-Shot AF for Still Subjects
Suited for still subjects. When you
press the shutter button halfway, the
camera will focus only once.
When focus is achieved, the AF point
that achieved focus will be displayed,
and the focus confirmation light <o>
in the viewfinder will also light up.
With evaluative metering, the
AF point
exposure setting will be set at the
Focus confirmation light
same time focus is achieved.
While you hold down the shutter button halfway, the focus will be
locked. You can then recompose the shot if desired.
Y
P
O
AI Servo AF for Moving Subjects
This AF operation is suited for moving subjects when the focusing
distance keeps changing. While you hold down the shutter button
halfway, the subject will be focused continuously.
The exposure is set at the moment the picture is taken.
When the AF area selection mode is set to 19-point automatic
selection AF (p.91), the camera first uses the manually-selected AF
point to focus. During autofocusing, if the subject moves away from
the manually-selected AF point, focus tracking continues as long as
the subject is covered by the Area AF frame.
C
89
f: Selecting the AF OperationN
AI Focus AF for Switching the AF Operation Automatically
AI Focus AF switches the AF operation from One-Shot AF to AI
Servo AF automatically if a still subject starts moving.
After the subject is focused in One-Shot AF, if the subject starts
moving, the camera will detect the movement, change the AF
operation automatically to AI Servo AF, and keep tracking the
moving subject.
AF-Assist Beam with the Built-in Flash
Under low-light conditions, when you press the shutter button halfway,
the built-in flash may fire a brief burst of flashes. It illuminates the
subject to enable easier autofocusing.
C
90
Y
P
O
S Selecting the AF AreaN
19 AF points are provided for AF. You can select the AF point(s) suiting
the scene or subject.
AF Area Selection Mode
You can select one of three AF area selection modes. See the next
page for the selection procedure.
: Single-point AF (Manual
selection)
Select one AF point to focus.
: Zone AF (Manual zone
selection)
Y
P
O
The 19 AF points are divided into five
zones for focusing.
C
: 19-point automatic selection
AF
All the AF points are used to focus. This
mode is set automatically in Basic
Zone modes.
91
S Selecting the AF AreaN
Selecting the AF Area Selection Mode
1
Press the <S> or <B> button.
(9)
Look through the viewfinder and
press the <S> or <B> button.
the <B> button.
2 Press
Each time you press the <B>
AF area selection mode
button, the AF area selection mode
changes.
The AF area selection mode currently
set is indicated on the top of the
viewfinder.
: Single-point AF
(Manual selection)
: Zone AF
(Manual zone selection)
: 19-point automatic selection
AF
C
92
Y
P
O
S Selecting the AF AreaN
Selecting the AF Point Manually
You can manually select the AF point or zone. If 19-point automatic
selection AF + AI Servo AF has been set, you can select any position
where AI Servo AF is to start.
1
Press the <S> or <B> button.
(9)
X The AF points will be displayed in the
viewfinder.
In the Zone AF mode, the selected
zone will be displayed.
an AF point.
2 Select
The AF point selection will change in
Y
P
O
the direction you tilt <9>. If you
press <0>, the center AF point (or
center zone) will be selected.
C
You can also select a horizontal AF
point by turning the <6> dial and
select a vertical AF point by turning
the <5> dial.
In the Zone AF mode, turning the
<6> or <5> dial will change the
zone in a looping sequence.
93
MF: Manual Focus
1
Set the lens focus mode switch to
<MF>.
X <4 L> will be displayed on the
LCD panel.
Focusing ring
the subject.
2 Focus
Focus by turning the lens focusing
ring until the subject looks sharp in
the viewfinder.
C
94
Y
P
O
i Selecting the Drive Mode
Single and continuous drive modes are provided.
1
Press the <R> button. (9)
the drive mode.
2 Select
While looking at the LCD panel, turn
the <6> or <5> dial.
u : Single shooting
When you press the shutter button completely, only one shot will
be taken.
Y
P
O
o : High-speed continuous shooting (Max. approx. 7.0 shots/sec.)
i : Low-speed continuous shooting (Max. approx. 3.0 shots/sec.)
While you hold down the shutter button completely, shots will be
taken continuously.
C
B : Silent single shooting
Single shooting with less shooting sound than <u>.
M : Silent continuous shooting (Max. approx. 3.0 shots/sec.)
Continuous shooting with less shooting sound than <i>.
Q : 10-sec. self-timer/remote control
k : 2-sec. self-timer/remote control
For self-timer shooting, see page 96.
95
j Using the Self-timer
Use the self-timer when you want to be in the picture.
1 Press the <R> button. (9)
the self-timer.
2 Select
While looking at the LCD panel, turn
the <6> or <5> dial to select the
self-timer delay.
Q : 10-sec. self-timer
k : 2-sec. self-timer
picture.
3 TakeLookthethrough
the viewfinder, focus
Y
P
O
the subject, then press the shutter
button completely.
X You can check the self-timer
operation with the self-timer lamp,
beeper, and countdown display (in
seconds) on the LCD panel.
X Two seconds before the picture is
taken, the self-timer lamp will light up
and the beeper will sound faster.
C
96
Image Settings
Y
P
O
This chapter explains image-related function settings:
Image-recording quality, ISO speed, Picture Style, white
balance, Auto Lighting Optimizer, lens peripheral
illumination correction, chromatic aberration correction,
and other functions.
C
The M icon at the upper right of the page title indicates that
the function is available only in Creative Zone modes (d/
s/f/a/F).
97
3 Setting the Image-Recording Quality
You can select the pixel count and the image quality. There are eight
JPEG image-recording quality settings: 73, 83, 74, 84, 7a,
8a, b, c. There are three RAW image quality settings: 1, 41,
61.
1
Select [Image quality].
Under the [z1] tab, select [Image
quality], then press <0>.
the image-recording quality.
2 Select
To select a RAW setting, turn the
<6> dial. To select a JPEG setting,
press the <U> key.
On the upper right of the screen,
“***M (megapixels) **** x ****”
indicates the recorded pixel count,
and [***] is the number of possible
shots (displayed up to 999).
Press <0> to set it.
C
Y
P
O
Image-recording Quality Setting Examples
73 only
1+73
98
1 only
61+74
3 Setting the Image-Recording Quality
Guide to Image-Recording Quality Settings (Approx.)
Quality
Pixels
Recorded
Printing
Size
20M
A2
8.9M
A3
5.0M
A4
b*1
2.5M
9x13 cm
1.3
4990
4990 (4990)
c*2
0.3M
-
0.3
19380
19380 (19380)
1
15 (16)
73
83
74
JPEG
84
7a
8a
File Size
(MB)
Possible
Shots
Maximum
Burst
6.6
1000
40 (65)
3.5
1920
130 (1920)
3.6
1840
100 (1840)
1.8
3410
3410 (3410)
2.3
2790
430 (2790)
1.2
5200
5200 (5200)
20M
A2
24.0
260
RAW 41
11M
A3
19.3
370
9 (10)
61
5.0M
A4
13.3
470
11 (13)
1
73
20M
20M
A2
A2
24.0+6.6
200
8 (8)
11M
20M
A3
A2
19.3+6.6
270
8 (8)
13.3+6.6
320
8 (8)
RAW
41
+
73
JPEG
61
73
5.0M
20M
C
A4
A2
Y
P
O
*1: b is suitable for playing the images on a digital photo frame.
*2: c is suitable for emailing the image or using it on a Web site.
b and c will be in 7 (Fine) quality.
The file size, possible shots, and maximum burst during continuous shooting
are based on Canon’s testing standards (3:2 aspect ratio, ISO 100 and
Standard Picture Style) using an 8 GB card. These figures will vary
depending on the subject, card brand, aspect ratio, ISO speed, Picture
Style, Custom Functions, and other settings.
The maximum burst applies to <o> high-speed continuous shooting.
Figures in parentheses apply to an UHS-I class 8 GB card based on Canon’s
testing standards.
99
i: Setting the ISO SpeedN
Set the ISO speed (image sensor’s sensitivity to light) to suit the
ambient light level. In Basic Zone modes, the ISO speed is set
automatically.
1
Press the <i> button. (9)
the ISO speed.
2 SetWhile
looking at the LCD panel or the
viewfinder, turn the <6> or <5>
dial.
ISO speed can be set within ISO 100
- ISO 12800 in 1/3-stop increments.
“A” indicates Auto ISO. The ISO
speed will be set automatically.
When the screen shown on the left is
displayed, you can press the <B>
button to set it to “AUTO”.
C
Y
P
O
ISO Speed Guide
ISO Speed
Shooting Situation
(No flash)
ISO 100 - ISO 400
Sunny outdoors
ISO 400 - ISO 1600
Overcast skies or evening time
ISO 1600 ISO 12800, H
Dark indoors or night
* High ISO speeds will result in grainier images.
100
Flash Range
The higher the ISO
speed, the farther the
flash range will be.
A Selecting a Picture StyleN
By selecting a Picture Style, you can obtain image characteristics
matching your photographic expression or the subject.
In Basic Zone modes, <D> (Auto) is set automatically.
1
Select [Picture Style].
Under the [z4] tab, select [Picture
Style], then press <0>.
X The Picture Style selection screen will
appear.
a Picture Style.
2 Select
Press the <V> key to select a
Picture Style, then press <0>.
X The Picture Style will be set.
C
Y
P
O
101
3 Setting the White BalanceN
White balance (WB) is for making the white areas look white. Normally,
the <Q> (Auto) setting will obtain the correct white balance. If naturallooking colors cannot be obtained with <Q>, you can select the white
balance to match the light source or set it manually by shooting a white
object.
In Basic Zone modes, <Q> is set automatically.
1
Select [White balance].
Under the [z3] tab, select [White
balance], then press <0>.
a white balance setting.
2 Select
Select the desired setting, then press
<0>.
C
102
Y
P
O
3 Auto Correction of Brightness and ContrastN
If the image comes out dark or the contrast is low, the brightness and
contrast can be corrected automatically. This function is called Auto
Lighting Optimizer. The default setting is [Standard]. With JPEG
images, the correction is applied when the image is captured.
In Basic Zone modes, [Standard] is set automatically.
1
Select [Auto Lighting Optimizer].
Under the [z3] tab, select [Auto
Lighting Optimizer], then press
<0>.
the setting.
2 Select
Select the desired setting, then press
Y
P
O
<0>.
3
Take the picture.
C
The image will be recorded with the
brightness and contrast corrected if
necessary.
103
3 Setting Noise ReductionN
High ISO Speed Noise Reduction
This function reduces the noise generated in the image. Although noise
reduction is applied at all ISO speeds, it is particularly effective at high
ISO speeds. At low ISO speeds, the noise in the darker parts of the
image (shadow areas) is further reduced.
1
Select [High ISO speed NR].
Under the [z4] tab, select [High ISO
speed NR], then press <0>.
the level.
2 SetSelect
the desired noise reduction
Y
P
O
level, then press <0>.
C
M: Multi Shot Noise Reduction
This applies noise reduction with higher image quality than [High].
For a single photo, four shots are taken continuously and aligned
and merged automatically into a single JPEG image.
picture.
3 TakeThetheimage
will be recorded with noise
reduction applied.
104
3 Setting Noise ReductionN
Long Exposure Noise Reduction
Noise reduction is possible with images exposed for 1 sec. or longer.
1
Select [Long exp. noise
reduction].
Under the [z4] tab, select [Long
exp. noise reduction], then press
<0>.
the desired setting.
2 SetSelect
the desired setting, then press
<0>.
Y
P
O
Auto
For exposures of 1 sec. or longer, noise reduction is performed
automatically if noise typical of long exposures is detected. This
[Auto] setting is effective in most cases.
C
Enable
Noise reduction is performed for all exposures of 1 sec. or longer.
The [Enable] setting can reduce noise that cannot be detected with
the [Auto] setting.
picture.
3 TakeThetheimage
will be recorded with noise
reduction applied.
105
3 Highlight Tone PriorityN
You can minimize overexposed highlight areas.
1
Select [Highlight tone priority].
Under the [z4] tab, select
[Highlight tone priority], then press
<0>.
[Enable].
2 Select
Select [Enable], then press <0>.
Highlight details are improved. The
dynamic range is expanded from the
standard 18% gray to bright
highlights. The gradation between the
grays and highlights becomes
smoother.
Y
P
O
picture.
3 TakeThetheimage
will be recorded with
C
highlight tone priority applied.
106
3 Lens Peripheral Illumination / Chromatic Aberration Correction
Peripheral light fall-off is a phenomenon that makes the image corners
look darker due to the lens characteristics. Color fringing along subject
outlines is called chromatic aberration. Both lens aberrations can be
corrected. The default settings are [Enable] for both corrections.
Peripheral Illumination Correction
1
Select [Lens aberration
correction].
Under the [z2] tab, select [Lens
aberration correction], then press
<0>.
Y
P
O
the setting.
2 Select
Check that [Correction data
C
available] is displayed for the
attached lens.
Select [Peripheral illumin.], then
press <0>.
Select [Enable], then press <0>.
If [Correction data not available] is
displayed, see “Lens Correction Data”
on page 108.
picture.
3 TakeThetheimage
will be recorded with the
peripheral illumination corrected.
107
3 Lens Peripheral Illumination / Chromatic Aberration Correction
Chromatic Aberration Correction
1
Select the setting.
Check that [Correction data
available] is displayed for the
attached lens.
Select [Chromatic aberration], then
press <0>.
Select [Enable], then press <0>.
If [Correction data not available] is
displayed, see “Lens Correction Data”
below.
picture.
2 TakeThetheimage
will be recorded with the
Y
P
O
chromatic aberration corrected.
Lens Correction Data
C
The camera already contains lens peripheral illumination correction
data and chromatic aberration correction data for approx. 25 lenses. If
you select [Enable], the peripheral illumination correction and
chromatic aberration correction will be applied automatically for any
lens whose correction data is registered in the camera.
With EOS Utility (provided software), you can check which lenses have
their correction data registered in the camera. You can also register the
correction data for unregistered lenses. For details, refer to the EOS
Utility Instruction Manual (p.157) on the Software Instruction Manual
CD-ROM.
108
Advanced Operations
Y
P
O
In Creative Zone modes, you
can set the shutter speed and/
or aperture to set the exposure
as desired. By changing the
camera settings, you can
obtain various results.
C
The M icon at the upper right of the page title indicates that
the function is available only in Creative Zone modes (d/
s/f/a/F).
After you press the shutter button halfway and let go, the
exposure values will remain displayed in the viewfinder and
on the LCD panel for 4 sec. (0).
Set the <R> switch downward.
109
d: Program AE
The camera automatically sets the shutter speed and aperture to suit
the subject’s brightness. This is called Program AE.
* <d> stands for Program.
* AE stands for Auto Exposure.
1
Set the Mode Dial to <d>.
the subject.
2 Focus
Look through the viewfinder and aim
the AF point over the subject. Then
press the shutter button halfway.
X When focus is achieved, the focus
confirmation light <o> on the
viewfinder’s bottom right will light up
(when in One-Shot AF mode).
X The shutter speed and aperture will
be set automatically and displayed in
the viewfinder and on the LCD panel.
C
Y
P
O
the display.
3 Check
A standard exposure will be obtained
as long as the shutter speed and
aperture display do not blink.
the picture.
4 TakeCompose
the shot and press the
shutter button completely.
110
s: Shutter-Priority AE
In this mode, you set the shutter speed and the camera automatically
sets the aperture to obtain the standard exposure suiting the brightness
of the subject. This is called shutter-priority AE. A faster shutter speed
can freeze the action or a moving subject. A slower shutter speed can
create a blurred effect, giving the impression of motion.
* <s> stands for Time value.
Blurred motion
(Slow shutter speed: 1/30 sec.)
1
Frozen action
(Fast shutter speed: 1/2000 sec.)
Y
P
O
Set the Mode Dial to <s>.
C2
Set the desired shutter speed.
While looking at the LCD panel, turn
the <6> dial.
the subject.
3 Focus
Press the shutter button halfway.
X The aperture is set automatically.
the viewfinder display and
4 Check
shoot.
As long as the aperture is not
blinking, a standard exposure will be
obtained.
111
f: Aperture-Priority AE
In this mode, you set the desired aperture and the camera sets the
shutter speed automatically to obtain the standard exposure suiting the
subject brightness. This is called aperture-priority AE. A higher f/
number (smaller aperture hole) will make more of the foreground and
background fall within acceptable focus. On the other hand, a lower f/
number (larger aperture hole) will make less of the foreground and
background fall within acceptable focus.
* <f> stands for Aperture value (aperture opening).
Blurred background
(With a low aperture f/number: f/5.6)
C
1
Y
P
O
Sharp foreground and background
(With a high aperture f/number: f/32)
Set the Mode Dial to <f>.
the desired aperture.
2 SetWhile
looking at the LCD panel, turn
the <6> dial.
the subject.
3 Focus
Press the shutter button halfway.
X The shutter speed is set
automatically.
the viewfinder display and shoot.
4 Check
As long as the shutter speed is not blinking,
a standard exposure will be obtained.
112
a: Manual Exposure
In this mode, you set both the shutter speed and aperture as desired. To
determine the exposure, refer to the exposure level indicator in the
viewfinder or use a commercially-available exposure meter. This
method is called manual exposure.
* <a> stands for Manual.
1 Set the Mode Dial to <a>.
2 Set the ISO speed (p.100).
speed and aperture.
3 SetTothesetshutter
the shutter speed, turn the
<6> dial.
To set the aperture, turn the <5> dial.
If it cannot be set, set the <R>
switch downward, then turn the
<6> or <5> dial.
Standard exposure index
Exposure level mark
Y
P
4O
C
Focus the subject.
Press the shutter button halfway.
X The exposure setting will be displayed
in the viewfinder and on the LCD panel.
The exposure level mark <h>
indicates how far the current
exposure level is from the standard
exposure level.
the exposure and take the
5 Set
picture.
Check the exposure level indicator
and set the desired shutter speed and
aperture.
If the exposure level exceeds ±3
stops from the standard exposure,
the end of the exposure level
indicator will display <I> or <J>.
113
Setting Exposure CompensationN
Exposure compensation can brighten (increased exposure) or darken
(decreased exposure) the standard exposure set by the camera.
Exposure compensation can be set in the d/s/f shooting modes.
Although you can set the exposure compensation up to ±5 stops in 1/3stop increments, the exposure compensation indicator in the viewfinder
and on the LCD panel can only display the setting up to ±3 stops. If you
want to set the exposure compensation setting beyond ±3 stops, use the
Quick Control (p.46) or follow the instructions for [z3: Expo.comp./
AEB] on the next page.
1
Increased exposure for a
brighter image
Check the exposure level indicator.
Press the shutter button halfway
(0) and check the exposure level
indicator.
Y
P
O
the exposure compensation
2 Set
amount.
While looking at the viewfinder or
LCD panel, turn the <5> dial.
If it cannot be set, set the <R>
switch downward, then turn the <5>
dial.
C
Decreased exposure for a
darker image
the picture.
3 TakeTo cancel
the exposure
compensation, set the exposure
compensation amount back to <E>.
114
h Auto Exposure Bracketing (AEB)N
By changing the shutter speed or aperture automatically, the camera
brackets the exposure up to ±3 stops in 1/3-stop increments for three
successive shots. This is called AEB.
* AEB stands for Auto Exposure Bracketing.
1
Select [Expo.comp./AEB].
Under the [z3] tab, select
[Expo.comp./AEB], then press
<0>.
the AEB range.
2 SetTurn
the <6> dial to set the AEB
AEB range
range. Press the <U> key to set
the exposure compensation amount.
Press <0> to set it.
X When you exit the menu, <h> and
the AEB range will be displayed on
the LCD panel.
C3
Y
P
O
Take the picture.
The three bracketed shots will be
taken according to the drive mode set
in this sequence: Standard exposure,
decreased exposure, and increased
exposure.
AEB will not be automatically
canceled. To cancel AEB, follow step
2 to turn off the AEB range display.
115
A AE LockN
Use AE lock when the area of focus is to be different from the exposure
metering area or when you want to take multiple shots at the same
exposure setting. Press the <A> button to lock the exposure, then
recompose and take the shot. This is called AE lock. It is effective for
backlit subjects.
1
Focus the subject.
Press the shutter button halfway.
X The exposure setting will be
displayed.
the <A> button. (0)
2 Press
X The <A> icon lights up in the
viewfinder to indicate that the
exposure setting is locked (AE lock).
Each time you press the <A> button,
the current autoexposure setting is
locked.
C
Y
P
O
and take the picture.
3 Recompose
If you want to maintain the AE lock
while taking more shots, hold down
the <A> button and press the shutter
button to take another shot.
116
D Using the Built-in Flash
In Creative Zone modes, just press the
<D> button to raise the built-in flash for
flash photography. To retract the built-in
flash, push it back down with your fingers.
In Basic Zone modes (except <7> <3>
<5> <G> modes), the built-in flash will
be raised and fire automatically in low-light and backlit conditions.
In the <A> <C> <2> <4> <F> modes, you have the option to fire
the flash or not.
The table below shows the shutter speed and aperture settings that will
be used with flash.
Shooting Mode
Shutter Speed
A C 2 4 6 F Automatically set
d
Y
P
O
Aperture
Automatically set
Automatically set (1/250 sec. - 1/60 sec.) Automatically set
s
Manually set (1/250 sec. - 30 sec.)
f
Automatically set (1/250 sec. - 30 sec.) Manually set
a
Manually set (1/250 sec. - 30 sec.)
Manually set
F
The exposure will continue while you
hold down the shutter button.
Manually set
C
Automatically set
117
D Using the Built-in Flash
Effective Range of Built-in Flash
ISO Speed
Wide Angle: f/3.5
Telephoto: f/5.6
100
1-3.4/3.3-11.2
1-2.1/3.3-7.0
200
1-4.8/3.3-15.9
1-3.0/3.3-9.9
400
1-6.9/3.3-22.5
1-4.3/3.3-14.1
800
1.2-9.7/4.0-31.8
1-6.1/3.3-19.9
1600
1.7-13.7/5.6-45.0
1.1-8.6/3.5-28.1
3200
2.4-19.4/8.0-63.6
1.5-12.1/5.0-39.8
6400
3.4-27.4/11.2-90.0
2.1-17.1/7.0-56.2
12800
4.8-38.8/15.9-127.3
H (25600)
6.9-54.9/22.5-180.0
C
118
[Approx. in meters/feet]
EF-S18-55mm f/3.5-5.6 IS STM
EF-S18-135mm f/3.5-5.6 IS STM
EF-S18-200mm f/3.5-5.6 IS
3.0-24.2/9.9-79.5
Y
P
O
4.3-34.3/14.1-112.5
Shooting with the LCD Monitor
(Live View Shooting)
Y
P
O
You can shoot while viewing the
picture on the camera’s LCD
monitor. This is called “Live View
shooting”.
Live View shooting is enabled by
setting the Live View shooting/
Movie shooting switch to <A>.
C
If you handhold the camera and shoot while viewing the
LCD monitor, camera shake can cause blurred images.
Using a tripod is recommended.
To shoot while handholding the camera, see page 70.
119
A Shooting with the LCD Monitor
1
Set the Live View shooting/Movie
shooting switch to <A>.
the Live View image.
2 Display
Press the <0> button.
X The Live View image will appear on
the LCD monitor.
The Live View image will closely
reflect the brightness level of the
actual image you capture.
Y
P
O
the subject.
3 Focus
When you press the shutter button
halfway, the camera will focus with
the current AF method (p.123).
C
the picture.
4 TakePress
the shutter button completely.
X The picture will be taken and the
captured image is displayed on the
LCD monitor.
X After the image review ends, the
camera will return to Live View
shooting automatically.
Press the <0> button to exit Live
View shooting.
120
A Shooting with the LCD Monitor
Enabling Live View Shooting
Set [A1: Live View shoot.] to
[Enable].
Number of Possible Shots with Live View Shooting
[Approx. number of shots]
Temperature
Room Temperature
(23°C / 73°F)
Low Temperatures
(0°C / 32°F)
No Flash
230
210
50% Flash Use
210
200
The figures above are based on a fully-charged Battery Pack LP-E6 and CIPA
(Camera & Imaging Products Association) testing standards.
With a fully-charged Battery Pack LP-E6, continuous Live View shooting is
possible for approx. 1 hr. 50 min. at room temperature (23°C / 73°F).
C
Y
P
O
Do not hold the camera in the same position for long periods of time.
Even if the camera does not feel too hot, prolonged contact with the same
body part may cause skin redness, blistering or low-temperature contact
burns. The use of a tripod is recommended for people with circulation
problems or very sensitive skin, or when using the camera in very hot
places.
121
A Shooting with the LCD Monitor
Information Display
Each time you press the <B> button, the information display will
change.
AF method
•c : u+Tracking
•o : FlexiZone - Multi
•d : FlexiZone - Single
•f : Quick mode
Possible shots
Maximum burst/Number of remaining multiple exposures
Battery check
AF point (FlexiZone - Single)
Histogram
Quick control
White balance
Shooting mode
Drive mode
Picture Style
Metering mode
Auto Lighting
Optimizer
Image-recording
quality
HDR shooting/
Multiple exposures/
Multi Shot Noise
Reduction
Switch to auto
selection
(AF point)
C
Touch shutter
Wi-Fi function
Exposure
simulation
Magnified view
AEB/FEB
ISO speed
AE lock
Flash ready/Flash off
Shutter speed
Flash exposure
compensation
Aperture
Eye-Fi card transmission status
122
Y
P
O
Creative filters
Highlight tone priority
Wi-Fi transmission status
GPS connection indicator
Exposure level indicator/AEB range
Digital compass
Using AF to Focus (AF Method)
Changes in AF Speed Depending On the AF Control Method
If the AF method is set to [u+Tracking], [FlexiZone - Multi], or [FlexiZone
- Single] for Live View shooting or movie shooting, the AF control method
(phase-difference detection with the image sensor or contrast detection) will
switch automatically depending on the lens used and functions selected, such
as movie digital zoom or magnified view. This can greatly affect the AF speed
and the camera may take a longer time to focus (phase-difference detection
generally allows faster AF focusing). For details, refer to Canon Web site.
Selecting the AF Method
You can select an AF method to suit the shooting conditions and your
subject. The following AF methods are provided: [u(face)+Tracking],
[FlexiZone - Multi] (p.125), [FlexiZone - Single] (p.126), and [Quick
mode] (p.127).
If you want to achieve precise focus, set the lens focus mode switch to
<MF>, magnify the image, and focus manually (p.130).
C
Y
P
O
Select the AF method.
Under the [A1] tab, select [AF
method].
Select the desired AF method, then
press <0>.
While the Live View image is
displayed, you can also press the
<f> button to select the AF method
on the setting screen.
u(face)+Tracking:c
The camera detects and focuses human faces. If a face moves, the AF
point <p> also moves to track the face.
1
Display the Live View image.
Press the <0> button.
X The Live View image will appear on
the LCD monitor.
123
Using AF to Focus (AF Method)
an AF point.
2 Select
When a face is detected, the <p>
frame will appear over the face to be
focused.
If multiple faces are detected, <q>
will be displayed. Use <9> to move
the <q> frame over the face you
want to focus on.
You can also tap the LCD monitor
screen to select the face or subject. If
the subject is not a face, < > will be
displayed.
If no faces can be detected, or if you
tap the LCD monitor but do not select
any face or subject, the camera will
switch to [FlexiZone - Multi] with
automatic selection (p.125).
C
Y
P
O
the subject.
3 Focus
Press the shutter button halfway to
focus.
X When focus is achieved, the AF point
will turn green and the beeper will
sound.
X If focus is not achieved, the AF point
will turn orange.
the picture.
4 TakeCheck
the focus and exposure, then
press the shutter button completely to
take the picture (p.120).
124
Using AF to Focus (AF Method)
FlexiZone - Multi:o
You can focus over a wide area with up to 31 AF points (automatic
selection). This wide area can also be divided into 9 zones for focusing
(zone selection).
1
Display the Live View image.
Press the <0> button.
X The Live View image will appear on
the LCD monitor.
the AF point. N
2 Select
Pressing <0> or the <L> button
Area frame
C
will toggle between automatic
selection and zone selection. In Basic
Zone modes, automatic selection is
set automatically.
Use <9> to select the zone. To
return to the center zone, press
<0> or the <L> button again.
You can also tap the LCD monitor
screen to select a zone.
Y
P
O
the subject.
3 Focus
Aim the AF point over the subject and
press the shutter button halfway.
X When focus is achieved, the AF point will
turn green and the beeper will sound.
X If focus is not achieved, the area
frame will turn orange.
the picture.
4 TakeCheck
the focus and exposure, then
press the shutter button completely to
take the picture (p.120).
125
Using AF to Focus (AF Method)
FlexiZone - Single: d
The camera focuses with a single AF point. This is effective when you
want to focus a particular subject.
the Live View image.
1 Display
Press the <0> button.
AF point
X The Live View image will appear on
the LCD monitor.
X The AF point < > will appear.
During movie shooting, if [Movie
Servo AF] is set to [Enable], the AF
point will be displayed in a larger size.
the AF point.
2 Move
Use <9> to move the AF point to
Y
P
O
where you want to focus. (It cannot
be moved to the edge of the screen.)
To return the AF point to the center,
press <0> or <L> button.
You can also tap the LCD monitor
screen to move the AF point.
C
the subject.
3 Focus
Aim the AF point over the subject and
press the shutter button halfway.
X When focus is achieved, the AF point will
turn green and the beeper will sound.
X If focus is not achieved, the AF point
will turn orange.
the picture.
4 TakeCheck
the focus and exposure, then
press the shutter button completely to
take the picture (p.120).
126
Using AF to Focus (AF Method)
Quick Mode: f
The dedicated AF sensor is used to focus in One-Shot AF mode (p.88),
using the same AF method as with viewfinder shooting.
Although you can focus the target area quickly, the Live View image
will be interrupted momentarily during the AF operation.
In AF area selection modes other than 19-point automatic selection AF,
you can manually select the AF point. In Basic Zone modes, 19-point
automatic selection AF is set automatically.
Area AF frame
1
Display the Live View image.
Press the <0> button.
X The Live View image will appear on
the LCD monitor.
If the AF area selection mode is set to
19-point automatic selection AF, the
Area AF frame will be displayed.
With FlexiZone - Single (manual
selection), the AF point will be
displayed as a small frame.
With Zone AF (manual zone
selection), the frame indicating the
zone is displayed.
C
Y
P
O
the AF area selection
2 Select
mode and AF point. N
Press the <B> button to display the
current AF area selection mode.
Each time you press the <B> button,
the AF area selection mode changes.
When the AF area selection mode is
FlexiZone - Single (manual selection)
or Zone AF (manual zone selection),
you can select the AF point (or zone).
127
Using AF to Focus (AF Method)
The AF point (or zone) selection will
change in the direction you tilt <9>.
If you press <0>, the center AF
point (or center Zone) will be
selected.
You can also use the <6> and
<5> dials to select the AF point.
the subject.
3 Focus
Aim the AF point over the subject and
press the shutter button halfway.
X The Live View image will turn off, the
reflex mirror will go back down, and
AF will be executed. (No picture is
taken.)
X When focus is achieved, the beeper
will sound and the Live View image
will reappear.
X The AF point used to focus will light
up in green.
X If focus is not achieved, the AF point
will blink in orange.
C
Y
P
O
the picture.
4 TakeCheck
the focus and exposure, then
press the shutter button completely to
take the picture (p.120).
128
x Shooting with the Touch Shutter
Just by tapping the LCD monitor screen, you can focus and take the
picture automatically. This works in all shooting modes.
1
Display the Live View image.
Press the <0> button.
X The Live View image will appear on
the LCD monitor.
the touch shutter.
2 Enable
Tap [y] on the screen’s bottom left.
C3
Each time you tap the icon, it will
toggle between [y] and [x].
[x] (Touch shutter: Enable)
You can focus and shoot by tapping
the screen.
[y] (Touch shutter: Disable)
You can select where you want to
focus by tapping the screen. Then
you press the shutter button
completely to take the picture.
Y
P
O
Tap the screen to shoot.
Tap the face or subject on the screen.
X At the point you tap, the camera will
focus in the AF method that was set
(p.123-128).
X When focus is achieved, the AF point
turns green and the picture is taken
automatically.
If focus is not achieved, the AF point
will turn orange. Tap the face or
subject on the screen again.
129
MF: Focusing Manually
You can magnify the image and focus precisely with manual focus.
1
Set the lens focus mode switch to
<MF>.
Turn the lens focusing ring to focus
roughly.
the magnifying frame.
2 Display
Press the <u> button.
X The magnifying frame will appear.
You can also tap [u] on the screen to
magnify the image.
Magnifying frame
Y
P
O
the magnifying frame.
3 Move
Press <9> to move the magnifying
C
frame to the position where you want
to focus. You can also tap it to move
it.
To return the magnifying frame to the
center, press <0> or <L> button.
the image.
4 Magnify
Each time you press the <u> button,
the magnification within the frame will
change as follows:
1x 9 5x 9 10x 9 Normal view
AE lock
Magnified area position
Magnification
130
While in magnified view, you can use
<9> to scroll around in magnified
view.
MF: Focusing Manually
manually.
5 Focus
While looking at the magnified image,
turn the lens focusing ring to focus.
After achieving focus, press the <u>
button to return to the normal view.
the picture.
6 TakeCheck
the focus and exposure, then
press the shutter button completely to
take the picture (p.120).
C
Y
P
O
131
MEMO
C
132
Y
P
O
Shooting Movies
Y
P
O
Movie shooting is enabled by
setting the Live View shooting/
Movie shooting switch to <k>.
The movie recording format will
be MOV.
C
For cards that can record movies, see page 3.
If you handhold the camera and shoot movies, camera
shake can cause blurred movies. Using a tripod is
recommended.
To shoot while handholding the camera, see page 70.
If [53: Wi-Fi] is set to [Enable], movie shooting is not possible.
Before shooting movies, set [Wi-Fi] to [Disable].
133
k Shooting Movies
Autoexposure Shooting
When the shooting mode is set to other than <a>, autoexposure
control will take effect to suit the scene’s current brightness.
the shooting mode to a mode
1 Set
other than <a>.
the Live View shooting/Movie
2 Set
shooting switch to <k>.
X The reflex mirror will make a sound,
then the image will appear on the
LCD monitor.
the subject.
3 Focus
Before shooting a movie, focus with
Y
P
O
AF or manual focus (p.123-131).
When you press the shutter button
halfway, the camera will focus with
the current AF method.
C
the movie.
4 Shoot
Press the <0> button to start
Recording movies
Microphone
134
shooting a movie.
X While the movie is being shot, the
“o” mark will be displayed on the
upper right of the screen.
To stop shooting the movie, press the
<0> button again.
k Shooting Movies
Manual Exposure Shooting
You can manually set the shutter speed, aperture, and ISO speed for
movie shooting. Using manual exposure to shoot movies is for
advanced users.
1 Set the Mode Dial to <a>.
the Live View shooting/Movie
2 Set
shooting switch to <k>.
the ISO speed.
3 SetPress
the <i> button.
X The ISO speed setting screen will
appear on the LCD monitor.
Turn the <6> dial to set the ISO
speed.
Y
P
4O
C
Set the shutter speed and
aperture.
Shutter speed
Aperture
Press the shutter button halfway and
check the exposure level indicator.
To set the shutter speed, turn the
<6> dial. The settable shutter speeds
depend on the frame rate <9>.
•6 5 4 : 1/4000 sec. - 1/30 sec.
•8 7
: 1/4000 sec. - 1/60 sec.
To set the aperture, turn the <5> dial.
If it cannot be set, set the <R>
switch downward, then turn the
<6> or <5> dial.
and shoot the movie.
5 Focus
The procedure is the same as steps 3
and 4 for “Autoexposure Shooting”
(p.134).
135
k Shooting Movies
Information Display
Each time you press the <B> button, the information display will
change.
AF method
•c : u + Tracking
•o: FlexiZone - Multi
•d : FlexiZone - Single
Movie shooting mode
: Autoexposure
(Basic Zone modes)
: Autoexposure
(Creative Zone
modes)
: Manual exposure
Drive mode
Possible shots
Maximum burst
Movie shooting remaining time*/
Elapsed time
Battery check
AF point (FlexiZone - Single)
Auto Lighting Optimizer
Quick Control
White balance
Movie recording size
Compression method
Digital zoom
Recording level:
Manual
Movie Servo AF
Frame rate
C
AE lock
LED light
Shutter speed
Image-recording quality
Level meter
Eye-Fi card transmission status
Aperture
Digital compass
* Applies to a single movie clip.
136
Picture Style
Y
P
O
Video snapshot
Wi-Fi transmission
status
Exposure mode
L: Autoexposure
K: Manual
exposure
Magnify/Digital zoom
Attenuator
ISO speed
Highlight tone priority
Wind filter
Wi-Fi function
Exposure level indicator
GPS connection indicator
3 Setting the Movie Recording Size
With [Z2: Movie rec. size], you can
set the movie’s image size, frame rate
per second, and compression method.
The frame rate switches automatically
depending on the [53: Video system]
setting.
Image Size
A [1920x1080] : Full High-Definition (Full HD) recording quality.
The aspect ratio will be 16:9.
B [1280x720] : High-Definition (HD) recording quality. The
aspect ratio will be 16:9.
C [640x480]
: Standard-definition recording quality. The aspect
ratio will be 4:3.
Y
P
O
Frame Rate (fps: frames per second)
6/8 : For areas where the TV format is NTSC (North America,
Japan, Korea, Mexico, etc.).
5/7 : For areas where the TV format is PAL (Europe, Russia,
China, Australia, etc.).
4
: Mainly for motion pictures.
C
Compression Method
X IPB
: Compresses multiple frames at a time efficiently
for recording. Since the file size will be smaller
than with ALL-I, you can shoot longer.
W ALL-I (I-only) : Compresses one frame at a time for recording.
Although the file size will be larger than with
IPB, the movie will be more suited for editing.
137
3 Setting the Movie Recording Size
Total Movie Recording Time and File Size Per Minute
Movie Recording
Size
Total Recording Time (approx.)
File Size
(approx.)
4 GB Card
8 GB Card
16 GB Card
654 X
16 min.
32 min.
1 hr. 4 min.
235 MB/min.
654 W
5 min.
11 min.
22 min.
685 MB/min.
87
X
18 min.
37 min.
1 hr. 14 min.
205 MB/min.
87
W
6 min.
12 min.
25 min.
610 MB/min.
C 65
X
48 min.
A
B
1 hr. 37 min. 3 hr. 14 min.
78 MB/min.
Movie Files Exceeding 4 GB
Even if you shoot a movie exceeding 4 GB, you can keep shooting
without interruption.
During movie shooting, approx. 30 sec. before the movie reaches
the 4 GB file size, the elapsed shooting time or time code displayed
in the movie-shooting image will start blinking. If you keep shooting
until the movie file size exceeds 4 GB, a new movie file will be
created automatically and the elapsed shooting time or time code
will stop blinking.
When you play back the movie, you will have to play each movie file
individually. Movie files cannot play back consecutively
automatically. After the movie playback ends, select the next movie
to be played.
C
Y
P
O
Movie Shooting Time Limit
The maximum recording time of one movie clip is 29 min. 59 sec. If
the movie shooting time reaches 29 min. 59 sec., the movie shooting
will stop automatically. You can start shooting a movie again by
pressing the <0> button. (A new movie file starts being recorded.)
Do not hold the camera in the same position for long periods of time.
Even if the camera does not feel too hot, prolonged contact with the same
body part may cause skin redness, blistering or low-temperature contact
burns. The use of a tripod is recommended for people with circulation
problems or very sensitive skin, or when using the camera in very hot
places.
138
Image Playback
Y
P
O
This chapter explains basic procedures to play back
images and movies.
C
Images shot and saved with another device
The camera may not be able to properly display images captured
with a different camera, edited with a computer, or that have had their
file names changed.
139
x Image Playback
Single-Image Display
1
Play back the image.
Press the <x> button.
X The last captured image or last image
played back will appear.
an image.
2 Select
To play back images starting with the
last image, turn the <5> dial
counterclockwise. To play back
images starting with the first captured
image, turn the dial clockwise.
Each time you press the <B>
button, the display format will change.
C
Y
P
O
No information
With basic information
Histogram
Shooting information display
the image playback.
3 ExitPress
the <x> button to exit the
image playback and return to
shooting-ready state.
140
x Searching for Images Quickly
H Display Multiple Images on One Screen (Index Display)
Search for images quickly with the index display showing four or nine
images on one screen.
1
Î
Switch to the index display.
During image playback, press the
<I> button.
X The 4-image index display will
appear. The selected image is
highlighted in an orange frame.
Press the <I> button again to
switch to the 9-image display.
Pressing the <u> button will switch
the display from 9 images to 4 images
and then to 1 image.
C
Y
P
O
Î
an image.
2 Select
Turn the <5> dial to move the
orange frame and select the image.
You can also press the <V> <U>
keys to select the image.
Turning the <6> dial will display
image(s) on the next or previous
screen.
Press <0> in the index display to
display the selected image as a
single image.
141
u/y Magnified View
You can magnify a captured image by approx. 1.5x to 10x on the LCD
monitor.
1
Magnify the image.
Press the <u> button during image
playback.
X The image will be magnified.
If you hold down the <u> button, the
image will be magnified until it
reaches the maximum magnification.
Press the <I> button to reduce
the magnification. If you hold down
the button, the magnification will be
reduced to the single-image display.
Magnified area position
Y
P
O
around the image.
2 Scroll
Use <9> to scroll around the
C
magnified image.
To exit magnified view, press the
<x> button and the single-image
display will reappear.
142
d Playing Back with the Touch Screen
The LCD monitor is a touch-sensitive panel that you can touch with your
fingers for various playback operations. First, press the <x> button
to play back images.
Browsing Images
Swipe with one finger.
C
With single-image display, touch the
LCD monitor with one finger. You
can browse to the next or previous
image by swiping your finger to the
left or right. Swipe left to see the next
(newer) images or swipe right to see
previous (older) images.
With index display, also touch the
LCD monitor with one finger. You
can browse to the next or previous
screen by swiping your finger up or
down.
Swipe up to see the next (newer)
images or swipe down to see the
previous (older) images.
When you select an image, the
orange frame will appear. Tap the
image again to display it as a single
image.
Y
P
O
Jumping through Images (Jump Display)
Swipe with two fingers.
Touch the LCD monitor with two fingers.
When you swipe two fingers to the left
or right, you can jump through images
with the method set in [Image jump w/
6] under the [x2] tab.
143
d Playing Back with the Touch Screen
Reducing Image (Index Display)
Pinch two fingers.
Touch the screen with two fingers spread
apart, then pinch your fingers together
on the screen.
Each time you pinch your fingers, the
screen changes from a single-image
display to a 4-image index display
and 9-image index display. If you
spread your fingers, the image
display will change in the reverse
order.
When you select an image, the
orange frame will appear. Tap the
image again to display it as a single
image.
Magnifying Image
C
Y
P
O
Spread two fingers apart.
Touch the screen with two fingers
together, then spread your fingers apart
on the screen.
As you spread your fingers, the
image will be magnified.
The image can be magnified up to
10x.
You can scroll around the image by
dragging your finger.
To reduce the image, pinch your
fingers together on the screen.
Tapping the [2] icon will return to the
single-image display.
144
k Playing Movies
1
Play back the image.
Press the <x> button to display an
image.
a movie.
2 Select
Turn the <5> dial to select the
movie to be played.
In the single-image display, the
<s1> icon displayed on the
upper left of the screen indicates a
movie. If the movie is a video
snapshot, <
> will be displayed.
In the index display, perforations at
the left edge of a thumbnail indicate a
movie. As movies cannot be played
from the index display, press <0>
to switch to the single-image
display.
Y
P
C3 O
In the single-image display, press
<0>.
X The movie playback panel will appear
at the bottom of the screen.
back the movie.
4 PlaySelect
[7] (Play), then press <0>.
Speaker
X The movie will start playing.
You can pause the movie playback by
pressing <0>.
You can adjust the sound volume by
turning the <6> dial even during
movie playback.
For more details on the playback
procedure, see the next page.
145
k Playing Movies
Movie Playback Panel
Operation
Playback Description
7 Play
Pressing <0> toggles between play and stop.
8 Slow motion
Adjust the slow motion speed by pressing the <U> key.
The slow motion speed is indicated at the upper right of the
screen.
5 First frame
Displays the movie’s first frame.
3 Previous
frame
Each time you press <0>, the previous frame is
displayed. If you hold down <0>, it will rewind the movie.
6 Next frame
Each time you press <0>, the movie will play frame-byframe. If you hold down <0>, it will fast forward the movie.
4 Last frame
Displays the movie’s last frame.
Background
music*
Plays back a movie with the selected background music.
X Edit
Displays the editing screen.
Y
P
O
Playback position
mm’ ss”
Playback time (minutes:seconds with [Movie play count:
Rec time] set)
C
hh:mm:ss.ff (DF) Time code (hours:minutes:seconds:frames with [Movie
hh:mm:ss:ff (NDF) play count: Time code] set)
9 Volume
You can adjust the built-in speaker’s (p.145) volume by
turning the <6> dial.
32
Pressing the <M> button returns to the single-image
display.
* When background music is set, the movie’s sound will not be played.
146
L Erasing Images
You can either select and erase unnecessary images one by one or
erase them in one batch. Protected images will not be erased.
Once an image is erased, it cannot be recovered. Make sure
you no longer need the image before erasing it. To prevent
important images from being erased accidentally, protect
them. Erasing a RAW+JPEG image will erase both the RAW
and JPEG images.
Erasing a Single Image
1 Play back the image to be erased.
the <L> button.
2 Press
X The Erase menu will appear at the
Y
P
O
bottom of the screen.
the image.
3 Erase
Select [Erase], then press <0>. The
C
image displayed will be erased.
147
MEMO
C
148
Y
P
O
Viewing the CD-ROM Instruction Manuals /
Downloading Images to Your Computer
Y
P
O
This chapter explains how to install the Camera
Instruction Manual CD-ROM to your computer,
download images from the camera to your computer,
gives an overview of the software in the EOS DIGITAL
Solution Disk (CD-ROM), and explains how to install the
software on your computer. It also explains how to view
the PDF files on the Software Instruction Manual CDROM.
C
Camera
Instruction Manual
EOS DIGITAL
Solution Disk
(Software)
Software
Instruction Manual
149
Viewing the Camera Instruction Manual CD-ROM
The Camera Instruction Manual CD-ROM contains the
following electronic manuals (PDF):
Camera Instruction Manual
Explains all the camera functions and procedures, including basic
content.
Wi-Fi Function Instruction Manual
Explains all the Wi-Fi functions and procedures, including basic
content.
Quick Reference Guide
Simple and portable guide covering basic function settings, shooting
instructions, and playback instructions.
Y
P
O
Viewing the Camera Instruction Manual on the CD-ROM
C
To view the instruction manuals (PDF files), Adobe Reader 6.0 or higher
must be installed in your computer. Adobe Reader can be downloaded
free from the Internet. After installing Adobe Reader, follow the
procedure below.
the “CAMERA INSTRUCTION
1 Insert
MANUAL” CD-ROM into your computer.
the CD-ROM icon.
2 Double-click
With Windows, double-click on the CD-ROM icon in
[(My) Computer]. With Macintosh, double-click on
the CD-ROM icon on the desktop.
The icon displayed will differ depending on your
computer’s operating system.
150
Viewing the Camera Instruction Manual CD-ROM
the START file.
3 Double-click
X The screen shown in step 4 will appear.
The icon displayed will differ depending on your
computer’s operating system.
4 Select the language.
EOS 70D (W) / EOS 70D (N)
日本語
English
Français
Español
© CANON INC. 2013
Y
P
O
5 Click on the manual you want to view.
EOS 70D (W) / EOS 70D (N)
C
Camera Instruction Manual
Wi-Fi Function Instruction Manual
Quick Reference Guide
If the Instruction Manual does not open when you click on the manual
name, open the “PDF” folder, the “English” folder, and then the
Instruction Manual PDF file.
X The instruction manual in your language will be
displayed.
You can save the PDF file to your computer.
All the instruction manuals (PDF files) have page links to make it quick to
find the desired page. Click on a page number in the Contents or Index
and that page will appear.
To learn how to use Adobe Reader, refer to Adobe Reader’s Help
section.
151
Downloading Images to a Computer
You can use the provided software to download the images in the
camera to your computer. There are two ways to do this.
Downloading by Connecting the Camera to the Computer
1
Install the software (p.156).
the provided interface cable
2 Use
to connect the camera to your
computer.
Y
P
O
Use the interface cable provided with
the camera.
Connect the cable to the camera’s
<C> terminal with the cable
plug’s <D> icon facing the front of
the camera.
Connect the cord’s plug to the
computer’s USB terminal.
C
EOS Utility to transfer the
3 Use
images.
For details, refer to the Software
Instruction Manual on the CD-ROM
(p.157).
If [53: Wi-Fi] is set to [Enable], the images cannot be downloaded to a
computer. Set it to [Disable], then connect the interface cable.
152
Downloading Images to a Computer
Downloading Images with a Card Reader
You can use a card reader to download images/movies to a computer.
Install the software (p.156).
1
the card into the card
2 Insert
reader.
Y
P
O
Canon software to download
3 Use
the images.
X Use Digital Photo Professional.
X Use ImageBrowser EX.
For details, refer to the Software
Instruction Manual on the CD-ROM
(p.157).
C
When downloading images from the camera to your computer, with a card
reader without using Canon software, copy the DCIM folder on the card to
your computer.
153
Software Overview
EOS DIGITAL Solution Disk
This disk contains various software for EOS DIGITAL
cameras.
EOS Utility
With the camera connected to a computer, EOS Utility enables you to
transfer still photos and movies shot with the camera to the computer.
You can also use this software to set various camera settings and shoot
remotely with the computer connected to the camera. Also, you can
copy background music tracks, such as EOS Sample Music*, to the
card.
Y
P
O
* Background music can be used when you play a video snapshot album or slide
show on your camera.
Digital Photo Professional
C
This software is recommended for users who mainly shoot RAW
images. You can quickly view, edit, process and print RAW images. You
can also edit JPEG images while retaining the original images.
ImageBrowser EX
This software is recommended for users who mainly shoot JPEG
images. You can easily view and play still photos, movies, and video
snapshot albums and also print JPEG images. Add-on features such as
EOS Video Snapshot Task can also be downloaded from the Internet.
Note that the software ZoomBrowser EX/ImageBrowser provided with
previous cameras does not support still photos and movie files shot with this
camera (it is not compatible). Use ImageBrowser EX provided with this
camera.
154
Software Overview
Picture Style Editor
You can edit Picture Styles and create and save original Picture Style
files. This software is aimed at advanced users who are experienced in
processing images.
C
Y
P
O
155
Installing the Software
Do not connect the camera to your computer before you install the
software. The software will not be installed correctly.
Even if your computer already has ImageBrowser EX installed, install
ImageBrowser EX included on the CD-ROM that came with this camera.
It is the latest version with features optimized for your camera. You can
also use the auto update feature to add the latest functions.
Even for software other than ImageBrowser EX, if a previous version is
installed, update it by following the steps below to install the software that
came with the camera. (The newer version will overwrite the previous
version.)
1
Insert EOS DIGITAL Solution Disk (CD-ROM).
For Macintosh, double-click to open the CD-ROM icon displayed
on the desktop, then double-click on [Canon EOS Digital
Installer].
When a screen to select where you live or a language appears,
follow the on-screen instructions.
Y
P
O
2 Click [Easy Installation] and follow the on-screen
C
instructions to install.
For Macintosh, click [Install].
If install screen for “Microsoft Silverlight” is displayed during
installation, install “Microsoft Silverlight”.
3 Click [Restart] and remove the CD-ROM after the
computer restarts.
When the computer has restarted, the installation is complete.
156
Software Instruction Manual
Contains the Software Instruction Manuals.
Copying and Viewing the Software Instruction Manual PDFs
1
Insert the [Software INSTRUCTION MANUAL] CD-ROM
into your computer.
2 Double-click the CD-ROM icon.
For Windows, the icon is displayed in [(My) Computer].
For Macintosh, the icon is displayed on the desktop.
3 Copy the [English] folder to your computer.
Y
P
O
Instruction Manual PDFs with the names below are copied.
EOS Utility
C
Digital Photo Professional
ImageBrowser EX
Picture Style Editor
Windows
Macintosh
EUx.xW_E_xx
EUx.xM_E_xx
DPPx.xW_E_xx
DPPx.xM_E_xx
IBXx.x_E_xx
PSEx.xW_E_xx
PSEx.xM_E_xx
4 Double-click the copied PDF file.
Adobe Reader (most recent version recommended) must be
installed on your computer.
Adobe Reader can be downloaded free from the Internet.
157
Trademarks
Adobe is a trademark of Adobe Systems Incorporated.
Microsoft and Windows are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
Macintosh and Mac OS are trademarks of Apple Inc., registered in the U.S. and
other countries.
SDXC logo is a trademark of SD-3C, LLC.
HDMI, HDMI logo, and High-Definition Multimedia Interface are trademarks or
registered trademarks of HDMI Licensing LLC.
All other trademarks are the property of their respective owners.
About MPEG-4 Licensing
“This product is licensed under AT&T patents for the MPEG-4 standard and may be
used for encoding MPEG-4 compliant video and/or decoding MPEG-4 compliant video
that was encoded only (1) for a personal and non-commercial purpose or (2) by a
video provider licensed under the AT&T patents to provide MPEG-4 compliant video.
No license is granted or implied for any other use for MPEG-4 standard.”
* Notice displayed in English as required.
C
Y
P
O
Use of Genuine Canon Accessories Is Recommended
This product is designed to achieve excellent performance when used with
genuine Canon accessories.
Canon shall not be liable for any damage to this product and/or accidents such
as fire, etc., caused by the malfunction of non-genuine Canon accessories
(e.g., a leakage and/or explosion of a battery pack). Please note that this
warranty does not apply to repairs arising out of the malfunction of non-genuine
Canon accessories, although you may request such repairs on a chargeable
basis.
Battery Pack LP-E6 is dedicated to Canon products only. Using it with an
incompatible battery charger or product may result in malfunction or
accidents for which Canon cannot be held liable.
158
Safety Warnings
Follow these safeguards and use the equipment properly to prevent injury, death,
and material damage.
Preventing Serious Injury or Death
• To prevent fire, excessive heat, chemical leakage, and explosions, follow the
safeguards below:
- Do not use any batteries, power sources, and accessories not specified in this
booklet. Do not use any home-made or modified batteries.
- Do not short-circuit, disassemble, or modify the battery pack or back-up battery. Do
not apply heat or apply solder to the battery pack or back-up battery. Do not expose
the battery pack or back-up battery to fire or water. And do not subject the battery
pack or back-up battery to strong physical shock.
- Do not install the battery pack or back-up battery in reversed polarity (+ –). Do not
mix new and old or different types of batteries.
- Do not recharge the battery pack outside the allowable ambient temperature range
of 0°C - 40°C (32°F - 104°F). Also, do not exceed the recharging time.
- Do not insert any foreign metallic objects into the electrical contacts of the camera,
accessories, connecting cables, etc.
• Keep the back-up battery away from children. If a child swallows the battery, consult a
physician immediately. (Battery chemicals may harm the stomach and intestines.)
• When disposing of a battery pack or back-up battery, insulate the electrical contacts
with tape to prevent contact with other metallic objects or batteries. This is to prevent
fire or an explosion.
• If excessive heat, smoke, or fumes are emitted during battery pack recharging,
immediately unplug the battery charger from the power outlet to stop the recharging
and prevent a fire.
• If the battery pack or back-up battery leaks, changes color, deforms, or emits smoke or
fumes, remove it immediately. Be careful not to get burned in the process.
• Prevent any battery leakage from contacting your eyes, skin, and clothing. It can
cause blindness or skin problems. If the battery leakage contacts your eyes, skin, or
clothing, flush the affected area with lots of clean water without rubbing it. See a
physician immediately.
• During the recharging, keep the equipment away from the reach of children. The cord
can accidentally choke the child or give an electrical shock.
• Do not leave any cords near a heat source. It can deform the cord or melt the
insulation and cause a fire or electrical shock.
• Do not hold the camera in the same position for long periods of time. Even if the
camera does not feel too hot, prolonged contact with the same body part may cause
skin redness, blistering or low-temperature contact burns. The use of a tripod is
recommended for people with circulation problems or very sensitive skin, or when
using the camera in very hot places.
• Do not fire the flash at someone driving a car. It may cause an accident.
• Do not fire the flash near a person’s eyes. It may impair the person’s vision. When
using flash to photograph an infant, keep at least 1 meter/3.3 feet away.
C
Y
P
O
159
• Before storing the camera or accessory when not in use, remove the battery pack and
disconnect the power plug. This is to prevent electrical shock, heat generation, and
fire.
• Do not use the equipment where there is flammable gas. This is to prevent an
explosion or fire.
• If you drop the equipment and the casing breaks open to expose the internal parts, do
not touch the internal parts due to the possibility of electrical shock.
• Do not disassemble or modify the equipment. High-voltage internal parts can cause
electrical shock.
• Do not look at the sun or an extremely bright light source through the camera or lens.
Doing so may damage your vision.
• Keep the camera from the reach of small children. The neck strap can accidentally
choke the child.
• Do not store the equipment in dusty or humid places. This is to prevent fire and
electrical shock.
• Before using the camera inside an airplane or hospital, check if it is allowed.
Electromagnetic waves emitted by the camera may interfere with the plane’s
instruments or the hospital’s medical equipment.
• To prevent fire and electrical shock, follow the safeguards below:
- Always insert the power plug all the way in.
- Do not handle a power plug with wet hands.
- When unplugging a power plug, grasp and pull the plug instead of the cord.
- Do not scratch, cut, or excessively bend the cord or put a heavy object on the cord.
Also do not twist or tie the cords.
- Do not connect too many power plugs to the same power outlet.
- Do not use a cord whose insulation has been damaged.
• Occasionally unplug the power plug and use a dry cloth to clean off the dust around
the power outlet. If the surrounding is dusty, humid, or oily, the dust on the power outlet
may become moist and short-circuit the outlet to cause a fire.
C
160
Y
P
O
Preventing Injury or Equipment Damage
• Do not leave equipment inside a car under the hot sun or near a heat source. The
equipment may become hot and cause skin burns.
• Do not carry the camera around while it is attached to a tripod. Doing so may cause
injury. Also make sure the tripod is sturdy enough to support the camera and lens.
• Do not leave a lens or lens-attached camera under the sun without the lens cap
attached. Otherwise, the lens may concentrate the sun’s rays and cause a fire.
• Do not cover or wrap the battery-recharging apparatus with a cloth. Doing so may trap
heat within and cause the casing to deform or catch fire.
• If you drop the camera in water or if water or metal fragments enter inside the camera,
promptly remove the battery pack and back-up battery. This is to prevent fire and
electrical shock.
• Do not use or leave the battery pack or back-up battery in a hot environment. Doing so
may cause battery leakage or a shorter battery life. The battery pack or back-up
battery can also become hot and cause skin burns.
• Do not use paint thinner, benzene, or other organic solvents to clean the equipment.
Doing so may cause fire or a health hazard.
Y
P
O
If the product does not work properly or requires repair, contact
your dealer or your nearest Canon Service Center.
C
161
Digital Camera Model DS126411 / DS126412 Systems
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference,
and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for
class B digital devices, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the following
measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
The cable with the ferrite core provided with the digital camera must be used
with this equipment in order to comply with Class B limits in Subpart B of Part
15 of the FCC rules.
Do not make any changes or modifications to the equipment unless otherwise
specified in the manual. If such changes or modifications should be made, you
could be required to stop operation of the equipment.
Canon U.S.A. Inc.
One Canon Plaza, Lake Success, NY 11042, U.S.A.
Tel No. (516)328-5600
C
Y
P
O
This Class B digital apparatus complies with Canadian ICES-003.
When connecting to and using a household power outlet, use only AC
Adapter Kit ACK-E6 (rated input: 100-240 V AC 50/60 Hz, rated output:
8.0 V DC). Using anything else can cause fire, overheating, or
electrical shock.
162
IMPORTANT SAFETY INSTRUCTIONS
1. SAVE THESE INSTRUCTIONS — This manual contains important safety
and operating instructions for Battery Charger LC-E6 & LC-E6E.
2. Before using the charger, read all instructions and cautionary remarks on
(1) the charger, (2) the battery pack, and (3) the product using the battery
pack.
3. CAUTION — To reduce risk of injury, charge only the Battery Pack LP-E6.
Other types of batteries may burst, causing personal injury and other
damage.
4. Do not expose the charger to rain or snow.
5. Use of an attachment not recommended or sold by Canon may result in
fire, electric shock, or personal injury.
6. To reduce risk of damage to electric plug and cord, pull by plug rather than
by cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. Do not operate the charger with damaged cord or plug - replace them
immediately.
9. Do not operate the charger if it has received a sharp blow, been dropped,
or otherwise damaged in any way; take it to a qualified serviceman.
10. Do not disassemble the charger; take it to a qualified serviceman when
service or repair is required. Incorrect reassembly may result in a risk of
electric shock or fire.
11. To reduce risk of electric shock, unplug charger from outlet before
attempting any maintenance or cleaning.
C
Y
P
O
MAINTENANCE INSTRUCTION
Unless otherwise stated in this manual, there are no user serviceable parts
inside. Refer servicing to qualified serviceman.
USA and Canada only:
The Lithium ion/polymer battery that powers the product is
recyclable. Please call 1-800-8-BATTERY for information on
how to recycle this battery.
For CA, USA only
Included lithium battery contains Perchlorate Material – special handling may apply.
See www.dtsc.ca.gov/hazardouswaste/perchlorate/ for details.
CAUTION
RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE.
DISPOSE OF USED BATTERIES ACCORDING TO LOCAL REGULATION.
163
CANON INC. 30-2, Shimomaruko 3-chome, Ohta-ku, Tokyo 146-8501, Japan
U.S.A. CANON U.S.A. INC.
http://www.usa.canon.com/eos
http://www.usa.canon.com/support
For all inquires concerning this product, call toll free in the U.S.
1-800-OK-CANON
CANADA CANON CANADA INC. HEADQUARTERS
6390 Dixie Road, Mississauga, Ontario L5T 1P7, Canada
CANON CANADA INC. MONTREAL BRANCH
5990, Côte-de-Liesse, Montréal Québec H4T 1V7, Canada
CANON CANADA INC. CALGARY OFFICE
2828, 16th Street, N.E. Calgary, Alberta T2E 7K7, Canada
For all inquiries concerning this product, call toll free in Canada
1-800-OK-CANON
EUROPE, AFRICA & MIDDLE EAST CANON EUROPA N.V.
Bovenkerkerweg 59, 1185 XB Amstelveen, The Netherlands
CANON FRANCE S.A.S.
17, Quai du Président Paul Doumer, 92414 Courbevoie Cedex, France
CANON UK LTD.
Woodhatch Reigate, Surrey RH2 8BF, United Kingdom
CANON DEUTSCHLAND GmbH
Europark Fichtenhain A10, 47807 Krefeld, Germany
CANON ITALIA S.p.A.
Via Milano 8, 20097 San Donato Milanese, (MI), Italy
CANON Schweiz A.G.
Industriestrasse 12, 8305 Dietlikon, Switzerland
Canon GmbH
Zetschegasse 11, A-1230 Vienna, Austria
CANON España, S.A.
Av. De Europa, 6 Alcobendas 28108 Madrid, Spain
CANON Portugal S.A.
Rua Alfredo da Silva,14 Alfragide 2610-016 Amadora, Portugal
C
Y
P
O
CANON LATIN AMERICA, INC.
CENTRAL & SOUTH AMERICA http://www.cla.canon.com
ASIA
CANON (China) Co., LTD.
15F Jinbao Building No.89 Jinbao Street, Dongcheng District, Beijing 100005, China
CANON HONGKONG CO., LTD.
19/F., The Metropolis Tower, 10 Metropolis Drive, Hunghom, Kowloon, Hong Kong
CANON SINGAPORE PTE. LTD.
1 Harbour Front Avenue, #04-01 Keppel Bay Tower, Singapore 098632
CANON KOREA CONSUMER IMAGING INC.
Canon BS Tower 5F, #168-12 Samseong-dong, Gangnam-gu, Seoul, Korea
OCEANIA CANON AUSTRALIA PTY. LTD.
1 Thomas Holt Drive, North Ryde, Sydney N.S.W. 2113, Australia
CANON NEW ZEALAND LTD.
Akoranga Business Park, Akoranga Drive, Northcote, Auckland, New Zealand
JAPAN CANON MARKETING JAPAN INC.
16-6, Kohnan 2-chome, Minato-ku, Tokyo 108-8011, Japan
The lenses and accessories mentioned in this Instruction Manual are current as
of April 2013. For information on the camera’s compatibility with any lenses and
accessories introduced after this date, contact any Canon Service Center.
CPH-E059-000
© CANON INC. 2013
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
