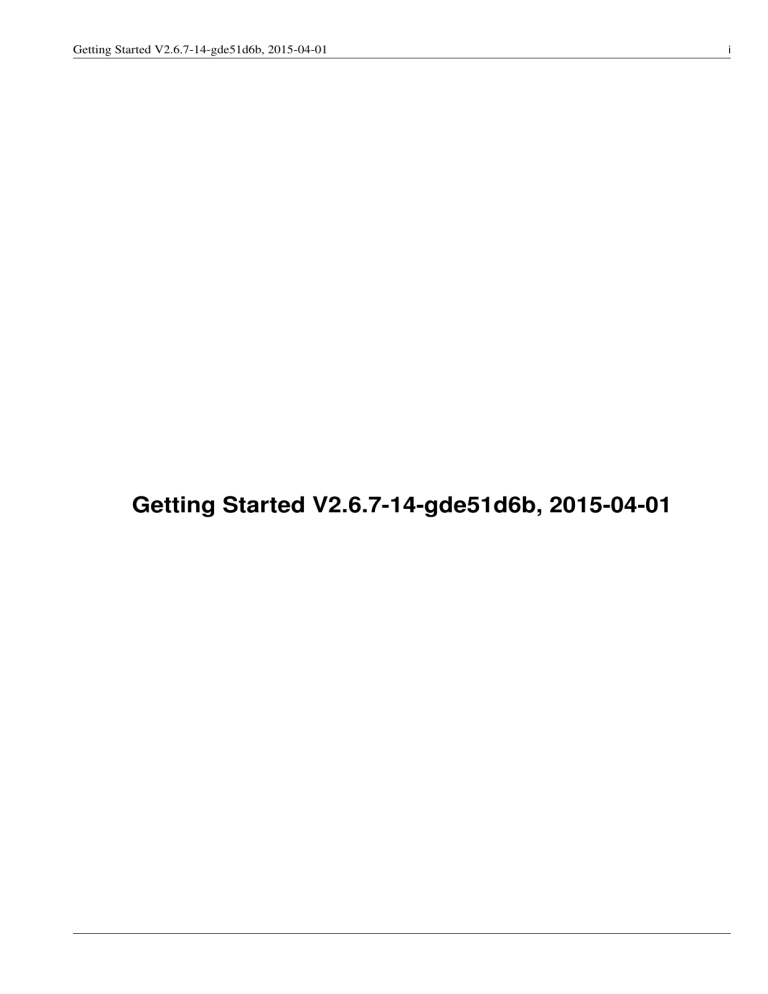

Getting Started V2.6.7-14-gde51d6b, 2015-04-01

Getting Started V2.6.7-14-gde51d6b, 2015-04-01
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
i
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
ii
Contents
I
Getting Started
1
1
System Requirements
2
1.1
Minimum Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
1.2
Problematic Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
1.2.1
Laptops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
1.2.2
Video Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2
2
About LinuxCNC
3
2.1
The Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
2.2
The Operating System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
2.3
Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
2.3.1
IRC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
2.3.2
Mailing List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
2.3.3
LinuxCNC Wiki . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Getting LinuxCNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.4.1
Normal Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.4.2
Multi-session Download . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5
2.4.3
Burning the CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.4.4
Testing LinuxCNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6
2.4.5
Installing LinuxCNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.4.6
Updates to LinuxCNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.4.7
Install Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7
2.4
3
Updating LinuxCNC
8
3.1
Updating from 2.5.x to 2.6.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8
3.2
Updating from 2.4.x to 2.5.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
3.3
3.2.1
On Ubuntu Lucid 10.04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
3.2.2
On Ubuntu Hardy 8.04 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Config changes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
4
5
3.4
Upgrading from 2.3.x to 2.4.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3.5
Changes between 2.3.x and 2.4.x . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.1
emc.nml changes (2.3.x to 2.4.x) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.2
tool table changes (2.3.x to 2.4.x) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3.5.3
hostmot2 firmware images (2.3.x to 2.4.x) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Stepper Quickstart
13
4.1
Latency Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.2
Sherline . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3
Xylotex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.4
Machine Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.5
Pinout Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
4.6
Mechanical Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Stepper Configuration Wizard
16
5.1
Entry Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.2
Basic Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5.3
Latency Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5.4
Parallel Port Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5
Axis Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
5.5.1
5.6
6
iii
Test This Axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.5.1.1
Finding Maximum Velocity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
5.5.1.2
Finding Maximum Acceleration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Spindle Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.6.1
Spindle Speed Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.6.2
Spindle-synchronized motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.6.3
Determining Spindle Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
5.7
Advanced Configuration Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.8
Machine Configuration Complete . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.9
Axis Travel, Home Location, and Home Switch Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.9.1
Operating without Limit Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.9.2
Operating without Home Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
5.9.3
Home and Limit Switch wiring options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Mesa Configuration Wizard
30
6.1
Create or Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
6.2
Basic Machine Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
6.3
External Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
6.4
GUI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
6.5
Mesa Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
iv
6.6
Mesa I/O Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.7
Parport configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
6.8
Axis Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.9
Spindle Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
6.10 Advanced Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
6.11 HAL Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
6.12 Advanced Usage Of PNCconf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
7
8
Running LinuxCNC
7.1
Invoking LinuxCNC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.2
Configuration Selector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
7.3
Next steps in configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Linux FAQ
60
8.1
Automatic Login . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.2
Automatic Startup
8.3
Man Pages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.4
List Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.5
Editing a Root File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.6
8.7
8.8
8.9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
8.5.1
The Command Line Way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.5.2
The GUI Way . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.5.3
Root Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Terminal Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.6.1
Working Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
8.6.2
Changing Directories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8.6.3
Listing files in a directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8.6.4
Finding a File . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8.6.5
Searching for Text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
8.6.6
Bootup Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Convenience Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
8.7.1
9
58
Terminal Launcher . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Hardware Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
8.8.1
Hardware Info . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
8.8.2
Monitor Resolution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Paths . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Legal Section
64
9.1
Copyright Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
9.2
GNU Free Documentation License . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
10 Index
68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
v
The LinuxCNC Team
This handbook is a work in progress. If you are able to help with writing, editing, or graphic preparation please contact any
member of the writing team or join and send an email to [email protected]
Copyright © 2000-2012 LinuxCNC.org
Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License,
Version 1.1 or any later version published by the Free Software Foundation; with no Invariant Sections, no Front-Cover Texts,
and one Back-Cover Text: This LinuxCNC Handbook is the product of several authors writing for linuxCNC.org. As you find it
to be of value in your work, we invite you to contribute to its revision and growth. A copy of the license is included in the section
entitled GNU Free Documentation License. If you do not find the license you may order a copy from Free Software Foundation,
Inc. 59 Temple Place, Suite 330 Boston, MA 02111-1307
LINUX® is the registered trademark of Linus Torvalds in the U.S. and other countries. The registered trademark Linux® is used
pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a world-wide basis.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
1 / 68
Part I
Getting Started
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
2 / 68
Chapter 1
System Requirements
1.1
Minimum Requirements
The minimum system to run LinuxCNC and Ubuntu may vary depending on the exact usage. Stepper systems in general require
faster threads to generate step pulses than servo systems. Using the Live-CD you can test the software before committing a
computer. Keep in mind that the Latency Test numbers are more important than the processor speed for software step generation.
More information on the Latency Test is here.
Additional information is on the LinuxCNC Wiki site:
Wiki.LinuxCNC.org, Hardware_Requirements
LinuxCNC and Ubuntu should run reasonably well on a computer with the following minimum hardware specification. These
numbers are not the absolute minimum but will give reasonable performance for most stepper systems.
• 700 MHz x86 processor (1.2 GHz x86 processor recommended)
• 384 MB of RAM (512 MB up to 1 GB recommended)
• 8 GB hard disk
• Graphics card capable of at least 1024x768 resolution, which is not using the NVidia or ATI fglrx proprietary drivers, and
which is not an onboard video chipset that shares main memory with the CPU
• A network or Internet connection (not strictly needed, but very useful for updates and for communicating with the LinuxCNC
community)
Minimum hardware requirements change as Ubuntu evolves so check the Ubuntu web site for details on the LiveCD you’re using.
Older hardware may benefit from selecting an older version of the LiveCD when available.
1.2
1.2.1
Problematic Hardware
Laptops
Laptops are not generally suited to real time software step generation. Again a Latency Test run for an extended time will give
you the info you need to determine suitability.
1.2.2
Video Cards
If your installation pops up with 800 x 600 screen resolution then most likely Ubuntu does not recognize your video card or
monitor. Onboard video many times causes bad real time performance.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
3 / 68
Chapter 2
About LinuxCNC
2.1
The Software
• LinuxCNC (the Enhanced Machine Control) is a software system for computer control of machine tools such as milling
machines and lathes, robots such as puma and scara and other computer controlled machines up to 9 axes.
• LinuxCNC is free software with open source code. Current versions of LinuxCNC are entirely licensed under the GNU General
Public License and Lesser GNU General Public License (GPL and LGPL)
• LinuxCNC provides:
– a graphical user interface (actually several interfaces to choose from)
– an interpreter for G-code (the RS-274 machine tool programming language)
– a realtime motion planning system with look-ahead
– operation of low-level machine electronics such as sensors and motor drives
– an easy to use breadboard layer for quickly creating a unique configuration for your machine
– a software PLC programmable with ladder diagrams
– easy installation with a Live-CD
• It does not provide drawing (CAD - Computer Aided Design) or G-code generation from the drawing (CAM - Computer
Automated Manufacturing) functions.
• It can simultaneously move up to 9 axes and supports a variety of interfaces.
• The control can operate true servos (analog or PWM) with the feedback loop closed by the LinuxCNC software at the computer,
or open loop with step-servos or stepper motors.
• Motion control features include: cutter radius and length compensation, path deviation limited to a specified tolerance, lathe
threading, synchronized axis motion, adaptive feedrate, operator feed override, and constant velocity control.
• Support for non-Cartesian motion systems is provided via custom kinematics modules. Available architectures include hexapods
(Stewart platforms and similar concepts) and systems with rotary joints to provide motion such as PUMA or SCARA robots.
• LinuxCNC runs on Linux using real time extensions.
2.2
The Operating System
Ubuntu has been chosen because it fits perfectly into the Open Source views of LinuxCNC:
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
4 / 68
• Ubuntu will always be free of charge, and there is no extra fee for the enterprise edition, we make our very best work available
to everyone on the same Free terms.
• LinuxCNC is paired with the LTS versions of Ubuntu which provide support and security fixes from the Ubuntu team for 3 - 5
years.
• Ubuntu uses the very best in translations and accessibility infrastructure that the Free Software community has to offer, to make
Ubuntu usable for as many people as possible.
• The Ubuntu community is entirely committed to the principles of free software development; we encourage people to use open
source software, improve it and pass it on.
2.3
2.3.1
Getting Help
IRC
IRC stands for Internet Relay Chat. It is a live connection to other LinuxCNC users. The LinuxCNC IRC channel is #linuxcnc
on freenode.
The simplest way to get on the IRC is to use the embedded java client on this page.
Some IRC etiquette
• Ask specific questions. . . Avoid questions like "Can someone help me?".
• If you’re really new to all this, think a bit about your question before typing it. Make sure you give enough information
so someone can solve your question.
• Have some patience when waiting for an answer, sometimes it takes a while to formulate an answer or everyone might
be busy working or something.
• Set up your IRC account with your unique name so people will know who you are. If you use the java client, use the
same name every time you log in. This helps people remember who you are and if you have been on before many will
remember the past discussions which saves time on both ends.
Sharing Files
The most common way to share files on the IRC is to upload the file to one of the following or a similar service and paste
the link:
• For text - http://pastebin.com/ , http://pastie.org/, https://gist.github.com/
• For pictures - http://imagebin.org/ , http://imgur.com/ , http://bayimg.com/
• For files - https://filedropper.com/ , http://filefactory.com/ , http://1fichier.com/
2.3.2
Mailing List
An Internet Mailing List is a way to put questions out for everyone on that list to see and answer at their convenience. You get
better exposure to your questions on a mailing list than on the IRC but answers take longer. In a nutshell you e-mail a message
to the list and either get daily digests or individual replies back depending on how you set up your account.
The emc-users mailing list
2.3.3
LinuxCNC Wiki
A Wiki site is a user maintained web site that anyone can add to or edit.
The user maintained LinuxCNC Wiki site contains a wealth of information and tips at:
http://wiki.linuxcnc.org
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
2.4
2.4.1
5 / 68
Getting LinuxCNC
Normal Download
Download the Live CD from:
the LinuxCNC homepage at www.linuxcnc.org
and follow the Download link.
2.4.2
Multi-session Download
If the file is too large to download in one session because of a bad or slow Internet connection, use wget to allow resuming after
an interrupted download.
Wget Linux
Open a terminal window. In Ubuntu it is Applications/Accessories/Terminal. Use cd to change to the directory where you
would like to store the ISO. Use mkdir to create a new directory if needed.
Note that actual file names may change so you might have to go to http://www.linuxcnc.org/ and follow the Download link
to get the actual file name. In most browsers you can right click on the link and select Copy Link Location or similar, then
paste the link into the terminal window with a right mouse click and select Paste.
Debian Wheezy and LinuxCNC fresh install
The Debian image is a "hybrid" iso, which means you can use the same iso file for a USB stick or a DVD.
To get the Debian Wheezy LinuxCNC Live CD using wget copy one of this in a terminal window and press enter:
wget http://linuxcnc.org/binary.hybrid.iso
The md5sum of the above file is: b515c872335336ccfc96471d66b687d8
To continue a partial download that was interrupted add the -c option to wget:
wget -c http://linuxcnc.org/binary.hybrid.iso
To stop a download use Ctrl-C or close the terminal window.
Ubuntu 8.04 Hardy Heron and LinuxCNC (older)
For more information on other versions of LinuxCNC visit the linuxcnc.org download page.
http://linuxcnc.org/index.php/english/download
After the download is complete you will find the ISO file in the directory that you selected. Next we will burn the CD.
Wget Windows
The wget program is also available for Windows from:
http://gnuwin32.sourceforge.net/packages/wget.htm
Follow the instructions on the web page for downloading and installing the windows version of the wget program.
To run wget open a command prompt window.
In most Windows it is Programs/Accessories/Command Prompt
First you have to change to the directory where wget is installed in.
Typically it is in C:\Program Files\GnuWin32\bin so in the Command Prompt window type:
cd C:\Program Files\GnuWin32\bin
and the prompt should change to: C:\Program Files\GnuWin32\bin>
Type the wget command into the window and press enter as above.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
2.4.3
6 / 68
Burning the CD
LinuxCNC is distributed as CD image files, called ISOs. To install LinuxCNC, you first need to burn the ISO file onto a CD. You
need a working CD/DVD burner and an 80 minute (700 Mb) CD for this. If the CD writing fails, try writing at a slower burn
speed.
Verify md5sum in Linux
Before burning a CD, it is highly recommended that you verify the md5sum (hash) of the .iso file.
Open a terminal window. In Ubuntu it is Applications/Accessories/Terminal.
Change to the directory where the ISO was downloaded to.
cd download_directory
Then run the md5sum command with the file name you saved.
md5sum -b binary.hybrid.iso
The md5sum should print out a single line after calculating the hash. On slower computers this might take a minute or two.
b515c872335336ccfc96471d66b687d8 *binary.hybrid.iso
Now compare it to the md5sum value that it should be.
Burning the ISO in Linux
1. Insert a blank CD into your burner. A CD/DVD Creator or Choose Disc Type window will pop up. Close this, as we
will not be using it.
2. Browse to the downloaded ISO image in the file browser.
3. Right click on the ISO image file and choose Write to Disc.
4. Select the write speed. If you are burning a Ubuntu Live CD, it is recommended that you write at the lowest possible
speed.
5. Start the burning process.
6. If a choose a file name for the disc image window pops up, just pick OK.
Verify md5sum with Windows
Before burning a CD, it is highly recommended that you verify the md5 sum (hash) of the .iso file, to ensure that you got
a good download.
Windows does not come with a md5sum program. You will have to download and install one to check the md5sum. More
information can be found at:
https://help.ubuntu.com/community/HowToMD5SUM
Burning the ISO in Windows
1. Download and install Infra Recorder, a free and open source image burning program: http://infrarecorder.org/
2. Insert a blank CD in the drive and select Do nothing or Cancel if an auto-run dialog pops up.
3. Open Infra Recorder, and select the Actions menu, then Burn image.
2.4.4
Testing LinuxCNC
With the Live CD in the CD/DVD drive shut down the computer then turn the computer back on. This will boot the computer
from the Live CD. Once the computer has booted up you can try out LinuxCNC without installing it. You can not create custom
configurations or modify most system settings like screen resolution unless you install LinuxCNC.
To try out LinuxCNC from the Applications/CNC menu pick LinuxCNC. Then select a sim configuration to try out.
To see if your computer is suitable for software step pulse generation run the Latency Test as shown here.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
2.4.5
7 / 68
Installing LinuxCNC
To install LinuxCNC from the LiveCD select ’Install (Graphical) at bootup.
2.4.6
Updates to LinuxCNC
With the normal install the Update Manager will notify you of updates to LinuxCNC when you go on line and allow you to easily
upgrade with no Linux knowledge needed. If you want to upgrade to Debian Wheezy from 10.04 or 8.04 a clean install from the
Live-CD is recommended. It is OK to upgrade everything except the operating system when asked to.
Warning: Do not upgrade the operating system if promped to do so.
2.4.7
Install Problems
In rare cases you might have to reset the BIOS to default settings if during the Live CD install it cannot recognize the hard drive
during the boot up.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
Chapter 3
Updating LinuxCNC
3.1
Updating from 2.5.x to 2.6.x
First you need to tell your computer where to find the new LinuxCNC software:
Click on the System menu in the top panel and select Administration->Software Sources.
Select the Other Software tab.
Disable or delete all the old linuxcnc.org entries.
Add a new Apt line that looks like this:
deb http://linuxcnc.org/ lucid base 2.6
8 / 68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
9 / 68
When you add that line, Software Sources will pop up a window informing you that the information about available software is
out-of-date. Click the Reload button.
Now your computer knows about the new software, next we need to tell it to install it:
• Click on the System menu in the top panel and select Administration->Synaptic Package Manager
• In the Quick Search bar at the top, type linuxcnc.
• Click the check box to mark the new linuxcnc package for installation.
• Click the Apply button, and let your computer install the new package. The old linuxcnc 2.5 package will be automatically
upgraded to the new linuxcnc 2.6 package.
3.2
Updating from 2.4.x to 2.5.x
As of version 2.5.0, the name of the project has changed from EMC2 to LinuxCNC. All programs with "emc" in the name have
been changed to "linuxcnc" instead. All documentation has been updated.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
10 / 68
Additionally, the name of the debian package containing the software has changed. Unfortunately this breaks automatic upgrades.
To upgrade from emc2 2.4.X to linuxcnc 2.5.X, do the following:
3.2.1
On Ubuntu Lucid 10.04
First you need to tell your computer where to find the new LinuxCNC software:
• Click on the System menu in the top panel and select Administration->Software Sources.
• Select the Other Software tab.
• Select the entry that says
http://linuxcnc.org/lucid lucid base emc2.4
or
http://linuxcnc.org/lucid lucid base emc2.4-sim
and click the Edit button.
• In the Components field, change emc2.4 to linuxcnc2.5, or change emc2.4-sim to linuxcnc2.5-sim.
• Click the OK button.
• Back in the Software Sources window, Other Software tab, click the Close button.
• It will pop up a window informing you that the information about available software is out-of-date. Click the Reload button.
Now your computer knows about the new software, next we need to tell it to install it:
• Click on the System menu in the top panel and select Administration->Synaptic Package Manager
• In the Quick Search bar at the top, type linuxcnc.
• Click the check box to mark the new linuxcnc package for installation.
• Click the Apply button, and let your computer install the new package. The old emc 2.4 package will be automatically removed
to make room for the new LinuxCNC 2.5 package.
3.2.2
On Ubuntu Hardy 8.04
First you need to tell your computer where to find the new LinuxCNC software:
• Click on the System menu in the top panel and select Administration->Synaptic Package Manager
• Go to Settings->Repositories.
• Select the "Third-Party Software" tab.
• Select the entry that says
http://linuxcnc.org/hardy hard emc2.4
or
http://linuxcnc.org/hardy hardy emc2.4-sim
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
11 / 68
and click the Edit button.
• In the Components field, change emc2.4 to linuxcnc2.5 or emc2.4-sim to linuxcnc2.5-sim.
• Click the OK button.
• Back in the Software Sources window, click the Close button.
• Back in the Synaptic Package Manager window, click the Reload button.
Now your computer knows about the new software, next we need to tell it to install it:
• In the Synaptic Package Manager, click the Search button.
• In the Find dialog window that pops up, type linuxcnc and click the Search button.
• Click the check-box to mark the linuxcnc package for installation.
• Click the Apply button, and let your computer install the new package. The old emc 2.4 package will be automatically removed
to make room for the new LinuxCNC 2.5 package.
3.3
Config changes
The user configs moved from $HOME/emc2 to $HOME/linuxcnc, so you will need to rename your directory, or move your files
to the new place.
The hostmot2 watchdog in LinuxCNC 2.5 does not start running until the HAL threads start running. This means it now tolerates
a timeout on the order of the servo thread period, instead of requiring a timeout that’s on the order of the time between loading
the driver and starting the HAL threads. This typically means a few milliseconds (a few times the servo thread period) instead of
many hundreds of milliseconds. The default has been lowered from 1 second to 5 milliseconds. You generally don’t need to set
the hm2 watchdog timeout any more, unless you’ve changed your servo thread period.
The old driver for the Mesa 5i20, hal_m5i20, has been removed after being deprecated in favor of hostmot2 since early 2009
(version 2.3.) If you are still using this driver, you will need to build a new configuration using the hostmot2 driver. Pncconf may
help you do this, and we have some sample configs (hm2-servo and hm2-stepper) that act as examples.
3.4
Upgrading from 2.3.x to 2.4.x
The following instructions only apply to Ubuntu 8.04 "Hardy Heron". LinuxCNC 2.4 is not available for older releases of Ubuntu.
Because there are several minor incompatibilities between 2.3.5 and 2.4.x, your existing install will not automatically be updated
to 2.4.x. If you want to run 2.4.x, change to the LinuxCNC-2.4 repository by following these instructions:
run System/Administration/Synaptic Package Manager
go to Settings/Repositories
In the list of Third-Party software there should be at least two lines for linuxcnc.org.
For each of them:
• Select the line and click Edit
• On the Components line, change emc2.3 to emc2.4
• Click OK
• Close the Software Preferences window
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
12 / 68
• Click Reload as instructed
• Click Mark All Upgrades
Mesa card and hostmot2 users:
If you use a mesa card, find the proper hostmot2-firmware package for your card and mark it for installation. Hint: do a
search for hostmot2-firmware in the synaptic package manager.
• Click Apply
3.5
Changes between 2.3.x and 2.4.x
Once you have done the upgrade, update any custom configurations by following these instructions:
3.5.1
emc.nml changes (2.3.x to 2.4.x)
For configurations that have not customized emc.nml, remove or comment out the inifile line NML_FILE = emc.nml. This will
cause the most up to date version of emc.nml to be used.
For configurations that have customized emc.nml, a change similar to this one is required.
Failure to do this can cause an error like this one:
libnml/buffer/physmem.cc 143: PHYSMEM_HANDLE:
Can’t write 10748 bytes at offset 60 from buffer of size 10208.
3.5.2
tool table changes (2.3.x to 2.4.x)
The format of the tool table has been changed incompatibly. The documentation shows the new format. The tool table will
automatically be converted to the new format.
3.5.3
hostmot2 firmware images (2.3.x to 2.4.x)
The hostmot2 firmware images are now a separate package. You can:
• Continue using an already-installed emc2-firmware-mesa-* 2.3.x package
• Install the new packages from the synaptic package manager. The new packages are named hostmot2-firmware-*
• Download the firmware images as tar files from http://emergent.unpy.net/01267622561 and install them manually
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
13 / 68
Chapter 4
Stepper Quickstart
This section assumes you have done a standard install from the Live CD. After installation it is recommended that you connect
the computer to the Internet and wait for the update manager to pop up and get the latest updates for LinuxCNC and Ubuntu
before continuing. For more complex installations see the Integrator Manual.
4.1
Latency Test
The Latency Test determines how late your computer processor is in responding to a request. Some hardware can interrupt the
processing which could cause missed steps when running a CNC machine. This is the first thing you need to do. Follow the
instructions here to run the latency test.
4.2
Sherline
If you have a Sherline several predefined configurations are provided. This is on the main menu CNC/EMC then pick the Sherline
configuration that matches yours and save a copy.
4.3
Xylotex
If you have a Xylotex you can skip the following sections and go straight to the Stepper Config Wizard. LinuxCNC has provided
quick setup for the Xylotex machines.
4.4
Machine Information
Gather the information about each axis of your machine.
Drive timing is in nano seconds. If you’re unsure about the timing many popular drives are included in the stepper configuration
wizard. Note some newer Gecko drives have different timing than the original one. A list is also on the user maintained
LinuxCNC wiki site of more drives.
Axis
X
Y
Z
Drive Type
Step Time ns
Step Space ns
Dir. Hold ns
Dir. Setup ns
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
4.5
14 / 68
Pinout Information
Gather the information about the connections from your machine to the PC parallel port.
Output Pin
1
2
3
4
5
6
7
8
9
14
16
17
Typ. Function
E-Stop Out
X Step
X Direction
Y Step
Y Direction
Z Step
Z Direction
A Step
A Direction
Spindle CW
Spindle PWM
Amplifier Enable
If Different
Input Pin
10
11
12
13
15
Typ. Function
X Limit/Home
Y Limit/Home
Z Limit/Home
A Limit/Home
Probe In
If Different
Note any pins not used should be set to Unused in the drop down box. These can always be changed later by running Stepconf
again.
4.6
Mechanical Information
Gather information on steps and gearing. The result of this is steps per user unit which is used for SCALE in the .ini file.
Axis
Steps/Rev.
Micro Steps
Motor Teeth
Leadscrew
Teeth
Leadscrew Pitch
X
Y
Z
• Steps per revolution - is how many stepper-motor-steps it takes to turn the stepper motor one revolution. Typical is 200.
• Micro Steps - is how many steps the drive needs to move the stepper motor one full step. If microstepping is not used, this
number will be 1. If microstepping is used the value will depend on the stepper drive hardware.
• Motor Teeth and Leadscrew Teeth - is if you have some reduction (gears, chain, timing belt, etc.) between the motor and the
leadscrew. If not, then set these both to 1.
• Leadscrew Pitch - is how much movement occurs (in user units) in one leadscrew turn. If you’re setting up in inches then it is
inches per turn. If you’re setting up in millimeters then it is millimeters per turn.
The net result you’re looking for is how many CNC-output-steps it takes to move one user unit (inches or mm).
Example 4.1 Units inches
Stepper
=
Drive
=
Motor Teeth
=
Leadscrew Teeth =
Leadscrew Pitch =
200 steps per revolution
10 micro steps per step
20
40
0.2000 inches per turn
From the above information, the leadscrew moves 0.200 inches per turn. - The motor turns 2.000 times per 1 leadscrew turn. The drive takes 10 microstep inputs to make the stepper step once. - The drive needs 2000 steps to turn the stepper one revolution.
So the scale needed is:
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
15 / 68
Example 4.2 Units mm
Stepper
Drive
Motor Teeth
Leadscrew Teeth
Leadscrew Pitch
= 200 steps per revolution
=
8 micro steps per step
= 30
= 90
=
5.00 mm per turn
From the above information: - The leadscrew moves 5.00 mm per turn. - The motor turns 3.000 times per 1 leadscrew turn. The drive takes 8 microstep inputs to make the stepper step once. - The drive needs 1600 steps to turn the stepper one revolution.
So the scale needed is:
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
16 / 68
Chapter 5
Stepper Configuration Wizard
LinuxCNC is capable of controlling a wide range of machinery using many different hardware interfaces.
Stepconf is a program that generates configuration files for LinuxCNC for a specific class of CNC machine: those that are
controlled via a standard parallel port, and controlled by signals of type step & direction.
Stepconf is installed when you install LinuxCNC and is in the CNC menu.
Stepconf places a file in the linuxcnc/config directory to store the choices for each configuration you create. When you change
something, you need to pick the file that matches your configuration name. The file extension is .stepconf.
The Stepconf Wizard needs at least 800 x 600 screen resolution to see the buttons on the bottom of the pages.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
17 / 68
Step by Step Instructions
5.1
Entry Page
Figure 5.1: Entry Page
• Create New - Creates a fresh configuration.
• Modify - Modify an existing configuration. After selecting this a file picker pops up so you can select the .stepconf file for
modification. If you made any modifications to the main .hal or the .ini file these will be lost. Modifications to custom.hal and
custom_postgui.hal will not be changed by the Stepconf Wizard.
• Create Desktop Shortcut - This will place a link on your desktop to the files.
• Create Desktop Launcher - This will place a launcher on your desktop to start your application.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.2
Basic Information
Figure 5.2: Basic Information Page
• Machine Name - Choose a name for your machine. Use only uppercase letters, lowercase letters, digits, - and _.
• Axis Configuration - Choose XYZ (Mill), XYZA (4-axis mill) or XZ (Lathe).
18 / 68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
19 / 68
• Machine Units - Choose Inch or mm. All subsequent entries will be in the chosen units
• Driver Type - If you have one of the stepper drivers listed in the pull down box, choose it. Otherwise, select Other and find the
timing values in your driver’s data sheet and enter them as nano seconds in the Driver Timing Settings. If the data sheet gives
a value in microseconds, multiply by 1000. For example, enter 4.5us as 4500ns.
A list of some popular drives, along with their timing values, is on the LinuxCNC.org Wiki under Stepper Drive Timing.
Additional signal conditioning or isolation such as optocouplers and RC filters on break out boards can impose timing constraints
of their own, in addition to those of the driver. You may find it necessary to add some time to the drive requirements to allow for
this.
The LinuxCNC Configuration Selector has configs for Sherline already configured.
• Step Time - How long the step pulse is on in nano seconds. If your not sure about this setting a value of 20,000 will work with
most drives.
• Step Space - Minimum time between step pulses in nano seconds. If your not sure about this setting a value of 20,000 will
work with most drives.
• Direction Hold - How long the direction pin is held after a change of direction in nanoseconds. If your not sure about this
setting a value of 20,000 will work with most drives.
• Direction Setup - How long before a direction change after the last step pulse in nanoseconds. If your not sure about this setting
a value of 20,000 will work with most drives.
• First Parport - Usually the default of 0x378 is correct.
• Second Parport - If you need to specify additional parallel ports enter the address and the type. For information on finding the
address of PCI parallel ports see the Port Address in the Integrator Manual. (Try 0x278 or 0x3BC first.)
• Base Period Maximum Jitter - Enter the result of the Latency Test here. To run a latency test press the Test Base Period Jitter
button. See the Latency Test section for more details.
• Max Step Rate -Stepconf automatically calculates the Max Step Rate based on the driver characteristics entered and the latency
test result.
• Min Base Period - Stepconf automatically determines the Min Base Period based on the driver characteristics entered and
latency test result.
• Onscreen Prompt For Tool Change - If this box is checked, LinuxCNC will pause and prompt you to change the tool when M6
is encountered. This feature is usually only useful if you have presettable tools.
5.3
Latency Test
While the test is running, you should abuse the computer. Move windows around on the screen. Surf the web. Copy some large
files around on the disk. Play some music. Run an OpenGL program such as glxgears. The idea is to put the PC through its paces
while the latency test checks to see what the worst case numbers are. Run the test at least a few minutes. The longer you run the
test the better it will be at catching events that might occour at less frequent intervals. This is a test for your computer only, so no
hardware needs to be connected to run the test.
Warning
Do not attempt run LinuxCNC while the latency test is running.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
20 / 68
Figure 5.3: Latency Test
Latency is how long it takes the PC to stop what it is doing and respond to an external request. In our case, the request is the
periodic heartbeat that serves as a timing reference for the step pulses. The lower the latency, the faster you can run the heartbeat,
and the faster and smoother the step pulses will be.
Latency is far more important than CPU speed. The CPU isn’t the only factor in determining latency. Motherboards, video cards,
USB ports, SMI issues, and a number of other things can hurt the latency.
Troubleshooting SMI Issues (LinuxCNC.org Wiki)
Fixing Realtime problems caused by SMI on Ubuntu
http://wiki.linuxcnc.org/cgi-bin/wiki.pl?FixingSMIIssues
The important numbers are the max jitter. In the example above 9075 nanoseconds, or 9.075 microseconds, is the highest jitter.
Record this number, and enter it in the Base Period Maximum Jitter box.
If your Max Jitter number is less than about 15-20 microseconds (15000-20000 nanoseconds), the computer should give very
nice results with software stepping. If the max latency is more like 30-50 microseconds, you can still get good results, but your
maximum step rate might be a little disappointing, especially if you use microstepping or have very fine pitch leadscrews. If
the numbers are 100 us or more (100,000 nanoseconds), then the PC is not a good candidate for software stepping. Numbers
over 1 millisecond (1,000,000 nanoseconds) mean the PC is not a good candidate for LinuxCNC, regardless of whether you use
software stepping or not.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.4
21 / 68
Parallel Port Setup
Figure 5.4: Parallel Port Setup Page
For each pin, choose the signal which matches your parallel port pinout. Turn on the invert check box if the signal is inverted
(0V for true/active, 5V for false/inactive).
• Output pinout presets - Automatically set pins 2 through 9 according to the Sherline standard (Direction on pins 2, 4, 6, 8) or
the Xylotex standard (Direction on pins 3, 5, 7, 9).
• Inputs and Outputs - If the input or output is not used set the option to Unused.
• External E Stop - This can be selected from an input pin drop down box. A typical E Stop chain uses all normally closed
contacts.
• Homing & Limit Switches - These can be selected from an input pin drop down box for most configurations.
• Charge Pump - If your driver board requires a charge pump signal select Charge Pump from the drop down list for the output
pin you wish to connect to your charge pump input. The charge pump output is connected to the base thread by Stepconf. The
charge pump output will be about 1/2 of the maximum step rate shown on the Basic Machine Configuration page.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.5
22 / 68
Axis Configuration
Figure 5.5: Axis Configuration Page
• Motor Steps Per Revolution - The number of full steps per motor revolution. If you know how many degrees per step the motor
is (e.g., 1.8 degree), then divide 360 by the degrees per step to find the number of steps per motor revolution.
• Driver Microstepping - The amount of microstepping performed by the driver. Enter 2 for half-stepping.
• Pulley Ratio - If your machine has pulleys between the motor and leadscrew, enter the ratio here. If not, enter 1:1.
• Leadscrew Pitch - Enter the pitch of the leadscrew here. If you chose Inch units, enter the number of threads per inch If you
chose mm units, enter the number of millimeters per revolution (e.g., enter 2 for 2mm/rev). If the machine travels in the wrong
direction, enter a negative number here instead of a positive number, or invert the direction pin for the axis.
• Maximum Velocity -Enter the maximum velocity for the axis in units per second.
• Maximum Acceleration - The correct values for these items can only be determined through experimentation. See Finding
Maximum Velocity to set the speed and Finding Maximum Acceleration to set the acceleration.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
23 / 68
• Home Location - The position the machine moves to after completing the homing procedure for this axis. For machines
without home switches, this is the location the operator manually moves the machine to before pressing the Home button. If
you combine the home and limit switches you must move off of the switch to the home position or you will get a joint limit
error.
• Table Travel - The range of travel for that axis based on the machine origin. The home location must be inside the Table Travel
and not equal to one of the Table Travel values.
• Home Switch Location - The location at which the home switch trips or releases reletive to the machine origin. This item
and the two below only appear when Home Switches were chosen in the Parallel Port Pinout. If you combine home and limit
switches the home switch location can not be the same as the home position or you will get a joint limit error.
• Home Search Velocity - The velocity to use when searching for the home switch. If the switch is near the end of travel, this
velocity must be chosen so that the axis can decelerate to a stop before hitting the end of travel. If the switch is only closed
for a short range of travel (instead of being closed from its trip point to one end of travel), this velocity must be chosen so that
the axis can decelerate to a stop before the switch opens again, and homing must always be started from the same side of the
switch. If the machine moves the wrong direction at the beginning of the homing procedure, negate the value of Home Search
Velocity.
• Home Latch Direction - Choose Same to have the axis back off the switch, then approach it again at a very low speed. The
second time the switch closes, the home position is set. Choose Opposite to have the axis back off the switch and when the
switch opens, the home position is set.
• Time to accelerate to max speed - Time to reach maximum speed calculated from Max Acceleration and Max Velocity.
• Distance to accelerate to max speed - Distance to reach maximum speed from a standstill.
• Pulse rate at max speed - Information computed based on the values entered above. The greatest Pulse rate at max speed
determines the BASE_PERIOD. Values above 20000Hz may lead to slow response time or even lockups (the fastest usable
pulse rate varies from computer to computer)
• Axis SCALE - The number that will be used in the ini file [SCALE] setting. This is how many steps per user unit.
• Test this axis - This will open a window to allow testing for each axis. This can be used after filling out all the information for
this axis.
5.5.1
Test This Axis
Figure 5.6: Test This Axis
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
24 / 68
Test this axis is a basic tester that only outputs step and direction signals to try different values for acceleration and velocity.
Important
In order to use test this axis you have to manually enable the axis if this is required. If your driver has a charge pump
you will have to bypass it. Test this axis does not react to limit switch inputs. Use with caution.
5.5.1.1
Finding Maximum Velocity
Begin with a low Acceleration (for example, 2 inches/s2 or 50 mm/s2 ) and the velocity you hope to attain. Using the
buttons provided, jog the axis to near the center of travel. Take care because with a low acceleration value, it can take a surprising
distance for the axis to decelerate to a stop.
After gaging the amount of travel available, enter a safe distance in Test Area, keeping in mind that after a stall the motor may
next start to move in an unexpected direction. Then click Run. The machine will begin to move back and forth along this axis.
In this test, it is important that the combination of Acceleration and Test Area allow the machine to reach the selected Velocity
and cruise for at least a short distance — the more distance, the better this test is. The formula d =0.5 * v * v/a gives the
minimum distance required to reach the specified velocity with the given acceleration. If it is convenient and safe to do so, push
the table against the direction of motion to simulate cutting forces. If the machine stalls, reduce the speed and start the test again.
If the machine did not obviously stall, click the Run button off. The axis now returns to the position where it started. If the
position is incorrect, then the axis stalled or lost steps during the test. Reduce Velocity and start the test again.
If the machine doesn’t move, stalls, or loses steps, no matter how low you turn Velocity, verify the following:
• Correct step waveform timings
• Correct pinout, including Invert on step pins
• Correct, well-shielded cabling
• Physical problems with the motor, motor coupling, leadscrew, etc.
Once you have found a speed at which the axis does not stall or lose steps during this testing procedure, reduce it by 10% and
use that as the axis Maximum Velocity.
5.5.1.2
Finding Maximum Acceleration
With the Maximum Velocity you found in the previous step, enter the acceleration value to test. Using the same procedure as
above, adjust the Acceleration value up or down as necessary. In this test, it is important that the combination of Acceleration
and Test Area allow the machine to reach the selected Velocity. Once you have found a value at which the axis does not stall or
lose steps during this testing procedure, reduce it by 10% and use that as the axis Maximum Acceleration.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.6
25 / 68
Spindle Configuration
Figure 5.7: Spindle Configuration Page
This page only appears when Spindle PWM is chosen in the Parallel Port Pinout page for one of the outputs.
5.6.1
Spindle Speed Control
If Spindle PWM appears on the pinout, the following information should be entered:
• PWM Rate - The carrier frequency of the PWM signal to the spindle. Enter 0 for PDM mode, which is useful for generating
an analog control voltage. Refer to the documentation for your spindle controller for the appropriate value.
• Speed 1 and 2, PWM 1 and 2 - The generated configuration file uses a simple linear relationship to determine the PWM value
for a given RPM value. If the values are not known, they can be determined. For more information see Determining Spindle
Calibration.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.6.2
26 / 68
Spindle-synchronized motion
When the appropriate signals from a spindle encoder are connected to LinuxCNC via HAL, LinuxCNC supports lathe threading.
These signals are:
• Spindle Index - Is a pulse that occurs once per revolution of the spindle.
• Spindle Phase A - This is a pulse that occurs in multiple equally-spaced locations as the spindle turns.
• Spindle Phase B (optional) - This is a second pulse that occurs, but with an offset from Spindle Phase A. The advantages to
using both A and B are direction sensing, increased noise immunity, and increased resolution.
If Spindle Phase A and Spindle Index appear on the pinout, the following information should be entered:
• Cycles per revolution - The number of cycles of the Spindle A signal during one revolution of the spindle. This option is only
enabled when an input has been set to Spindle Phase A
• Maximum speed in thread - The maximum spindle speed used in threading. For a high spindle RPM or a spindle encoder with
high resolution, a low value of BASE_PERIOD is required.
5.6.3
Determining Spindle Calibration
Enter the following values in the Spindle Configuration page:
Speed 1:
Speed 2:
0
1000
PWM 1:
PWM 2:
0
1
Finish the remaining steps of the configuration process, then launch LinuxCNC with your configuration. Turn the machine on and
select the MDI tab. Start the spindle turning by entering: M3 S100. Change the spindle speed by entering a different S-number:
S800. Valid numbers (at this point) range from 1 to 1000.
For two different S-numbers, measure the actual spindle speed in RPM. Record the S-numbers and actual spindle speeds. Run
Stepconf again. For Speed enter the measured speed, and for PWM enter the S-number divided by 1000.
Because most spindle drivers are somewhat nonlinear in their response curves, it is best to:
• Make sure the two calibration speeds are not too close together in RPM
• Make sure the two calibration speeds are in the range of speeds you will typically use while milling
For instance, if your spindle will go from 0 RPM to 8000 RPM, but you generally use speeds from 400 RPM (10%) to 4000 RPM
(100%), then find the PWM values that give 1600 RPM (40%) and 2800 RPM (70%).
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.7
27 / 68
Advanced Configuration Options
Figure 5.8: Advanced Configuration
• Include Halui - This will add the Halui user interface component. See the Integrator Manual for more information on Halui.
• Include pyVCP - This option adds the pyVCP panel base file or a sample file to work on. See the Integrator Manual for more
information on pyVCP.
• Include ClassicLadder PLC - This option will add the ClassicLadder PLC (Programmable Logic Controller). See the Integrator
Manual for more information on ClassicLadder.
5.8
Machine Configuration Complete
Click Apply to write the configuration files. Later, you can re-run this program and tweak the settings you entered before.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
5.9
28 / 68
Axis Travel, Home Location, and Home Switch Location
For each axis, there is a limited range of travel. The physical end of travel is called the hard stop.
Before the hard stop there is a limit switch. If the limit switch is encountered during normal operation, LinuxCNC shuts down
the motor amplifier. The distance between the hard stop and limit switch must be long enough to allow an unpowered motor to
coast to a stop.
Before the limit switch there is a soft limit. This is a limit enforced in software after homing. If a MDI command or g code
program would pass the soft limit, it is not executed. If a jog would pass the soft limit, it is terminated at the soft limit.
The home switch can be placed anywhere within the travel (between hard stops). As long as external hardware does not deactivate
the motor amplifiers when the limit switch is reached, one of the limit switches can be used as a home switch.
The zero position is the location on the axis that is 0 in the machine coordinate system. Usually the zero position will be within
the soft limits. On lathes, constant surface speed mode requires that machine X=0 correspond to the center of spindle rotation
when no tool offset is in effect.
The home position is the location within travel that the axis will be moved to at the end of the homing sequence. This value must
be within the soft limits. In particular, the home position should never be exactly equal to a soft limit.
5.9.1
Operating without Limit Switches
A machine can be operated without limit switches. In this case, only the soft limits stop the machine from reaching the hard stop.
Soft limits only operate after the machine has been homed.
5.9.2
Operating without Home Switches
A machine can be operated without home switches. If the machine has limit switches, but no home switches, it is best to use a
limit switch as the home switch (e.g., choose Minimum Limit + Home X in the pinout). If the machine has no switches at all,
or the limit switches cannot be used as home switches for another reason, then the machine must be homed by eye or by using
match marks. Homing by eye is not as repeatable as homing to switches, but it still allows the soft limits to be useful.
5.9.3
Home and Limit Switch wiring options
The ideal wiring for external switches would be one input per switch. However, the PC parallel port only offers a total of 5
inputs, while there are as many as 9 switches on a 3-axis machine. Instead, multiple switches are wired together in various ways
so that a smaller number of inputs are required.
The figures below show the general idea of wiring multiple switches to a single input pin. In each case, when one switch is
actuated, the value seen on INPUT goes from logic HIGH to LOW. However, LinuxCNC expects a TRUE value when a switch
is closed, so the corresponding Invert box must be checked on the pinout configuration page. The pull up resistor show in the
diagrams pulls the input high until the connection to ground is made and then the input goes low. Otherwise the input might float
between on and off when the circuit is open. Typically for a parallel port you might use 47k.
Normally Closed Switches Wiring N/C switches in series (simplified diagram)
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
Normally Open Switches Wiring N/O switches in parallel (simplified diagram)
The following combinations of switches are permitted in Stepconf:
• Combine home switches for all axes
• Combine limit switches for all axes
• Combine both limit switches for one axis
• Combine both limit switches and the home switch for one axis
• Combine one limit switch and the home switch for one axis
29 / 68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
30 / 68
Chapter 6
Mesa Configuration Wizard
PNCconf is made to help build configurations that utilize specific Mesa Anything I/O products.
It can configure closed loop servo systems or hardware stepper systems. It uses a similar wizard approach as Stepconf (used for
software stepping, parallel port driven systems).
PNCconf is still in a development stage (Beta) so there are some bugs and lacking features. Please report bugs and suggestions
to the LinuxCNC forum page or mail-list.
There are two trains of thought when using PNCconf:
One is to use PNCconf to always configure your system - if you decide to change options, reload PNCconf and allow it to
configure the new options. This will work well if your machine is fairly standard and you can use custom files to add non
standard features. PNCconf tries to work with you in this regard.
The other is to use PNCconf to build a config that is close to what you want and then hand edit everything to tailor it to your
needs. This would be the choice if you need extensive modifications beyond PNCconf’s scope or just want to tinker with / learn
about LinuxCNC
You navigate the wizard pages with the forward, back, and cancel buttons there is also a help button that gives some help
information about the pages, diagrams and an output page.
Tip
PNCconf’s help page should have the most up to date info and has additional details.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
31 / 68
Step by Step Instructions
Figure 6.1: PnCConf Splash
6.1
Create or Edit
This allows you to select a previously saved configuration or create a new one. If you pick Modify a configuration and then press
next a file selection box will show. Pncconf preselects your last saved file. Choose the the config you wish to edit. It also allows
you to select desktop shortcut / launcher options. A desktop shortcut will place a folder icon on the desktop that points to your
new configuration files. Otherwise you would have to look in your home folder under emc2/configs.
A Desktop launcher will add an icon to the desktop for starting your config directly. You can also launch it under Applications/cnc/emc2 and selecting your config name.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.2
32 / 68
Basic Machine Information
Figure 6.2: PnCConf Basic
Machine Basics
If you use a name with spaces PNCconf will replace the spaces with underscore (as a loose rule Linux doesn’t like spaces
in names) Pick an axis configuration - this selects what type of machine you are building and what axes are available. The
Machine units selector allows data entry of metric or imperial units in the following pages.
Tip
Defaults are not converted when using metric so make sure they are sane values!
Computer Response Time
The servo period sets the heart beat of the system. Latency refers to the amount of time the computer can be longer then
that period. Just like a railroad, LinuxCNC requires everything on a very tight and consistent time line or bad things
happen. LinuxCNC requires and uses a real time operating system, which just means it has a low latency ( lateness )
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
33 / 68
response time when LinuxCNC requires its calculations and when doing LinuxCNCs calculations it cannot be interrupted
by lower priority requests (such as user input to screen buttons or drawing etc).
Testing the latency is very important and a key thing to check early. Luckily by using the Mesa card to do the work that
requires the fastest response time (encoder counting and PWM generation) we can endure a lot more latency then if we
used the parallel port for these things. The standard test in LinuxCNC is checking the BASE period latency (even though
we are not using a base period). If you press the test base period jitter button, this launches the latency test window ( you
can also load this directly from the applications/cnc panel ). The test mentions to run it for a few minutes but the longer the
better. consider 15 minutes a bare minimum and overnight even better. At this time use the computer to load things, use
the net, use USB etc we want to know the worst case latency and to find out if any particular activity hurts our latency. We
need to look at base period jitter. Anything under 20000 is excellent - you could even do fast software stepping with the
machine 20000 - 50000 is still good for software stepping and fine for us. 50000 - 100000 is really not that great but could
still be used with hardware cards doing the fast response stuff. So anything under 100000 is useable to us. If the latency is
disappointing or you get a bad hiccup periodically you may still be able to improve it.
Tip
There is a user compiled list of equipment and the latency obtained on the LinuxCNC wiki : http://wiki.linuxcnc.org/cgi-bin/wiki.pl?Latency-Test Please consider adding your info to the list. Also on that page are links to info about fixing some latency
problems.
Now we are happy with the latency and must pick a servo period. In most cases a servo period of 1000000 ns is fine ( that
gives a 1 kHz servo calculation rate - 1000 calculations a second) if you are building a closed loop servo system that controls
torque (current) rather then velocity (voltage) a faster rate would be better - something like 200000 (5 kHz calculation rate). The
problem with lowering the servo rate is that it leaves less time available for the computer to do other things besides LinuxCNC’s
calculations. Typically the display (GUI) becomes less responsive. You must decide on a balance. Keep in mind that if you tune
your closed loop servo system then change the servo period you probably will need to tune them again.
I/O Control Ports/Boards
PNCconf is capable of configuring machines that have up to two Mesa boards and three parallel ports. Parallel ports can
only be used for simple low speed (servo rate) I/O.
Mesa
You must choose at least one Mesa board as PNCconf will not configure the parallel ports to count encoders or output
step or PWM signals. The mesa cards available in the selection box are based on what PNCconf finds for firmware on the
systems. There are options to add custom firmware and/or blacklist (ignore) some firmware or boards using a preference
file. If no firmware is found PNCconf will show a warning and use internal sample firmware - no testing will be possible.
One point to note is that if you choose two PCI Mesa cards there currently is no way to predict which card is 0 and which is
1 - you must test - moving the cards could change their order. If you configure with two cards both cards must be installed
for tests to function.
Parallel Port
Up to 3 parallel ports (referred to as parports) can be used as simple I/O. You must set the address of the parport. You can
either enter the Linux parallel port numbering system (0,1,or 2) or enter the actual address. The address for an on board
parport is often 0x0278 or 0x0378 (written in hexadecimal) but can be found in the BIOS page. The BIOS page is found
when you first start your computer you must press a key to enter it (such as F2). On the BIOS page you can find the parallel
port address and set the mode such as SPP, EPP, etc on some computers this info is displayed for a few seconds during start
up. For PCI parallel port cards the address can be found by pressing the parport address search button. This pops up the
help output page with a list of all the PCI devices that can be found. In there should be a reference to a parallel port device
with a list of addresses. One of those addresses should work. Not all PCI parallel ports work properly. Either type can be
selected as in (maximum amount of input pins) or out (maximum amount of output pins)
GUI Frontend list
This specifies the graphical display screens LinuxCNC will use. Each one has different option.
AXIS
• fully supports lathes.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
• is the most developed and used frontend
• is designed to be used with mouse and keyboard
• is tkinter based so integrates PYVCP (python based virtual control panels) naturally.
• has a 3D graphical window.
• allows VCP integrated on the side or in center tab
TOUCHY
• Touchy was designed to be used with a touchscreen, some minimal physical switches and a MPG wheel.
• requires cycle-start, abort, and single-step signals and buttons
• It also requires shared axis MPG jogging to be selected.
• is GTK based so integrates GLADE VCP (virtual control panels) naturally.
• allows VCP panels integrated in the center Tab
• has no graphical window
• look can be changed with custom themes
MINI
• standard on OEM Sherline machines
• does not use Estop
• no VCP integration
TkLinuxCNC
• hi contrast bright blue screen
• separate graphics window
• no VCP integration
6.3
External Configuration
This page allows you to select external controls such as for jogging or overrides.
34 / 68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
35 / 68
Figure 6.3: GUI External
If you select a Joystick for jogging, You will need it always connected for LinuxCNC to load. To use the analog sticks for useful
jogging you probably need to add some custom HAL code. MPG jogging requires a pulse generator connected to a MESA
encoder counter. Override controls can either use a pulse generator (MPG) or switches (such as a rotary dial). External buttons
might be used with a switch based OEM joystick.
Joystick jogging
Requires a custom device rule to be installed in the system. This is a file that LinuxCNC uses to connect to LINUX’s
device list. PNCconf will help to make this file.
Search for device rule will search the system for rules, you can use this to find the name of devices you have already built
with PNCconf.
Add a device rule will allow you to configure a new device by following the prompts. You will need your device available.
test device allows you to load a device, see its pin names and check its functions with halmeter.
joystick jogging uses HALUI and hal_input components.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
36 / 68
External buttons
allows jogging the axis with simple buttons at a specified jog rate. Probably best for rapid jogging.
MPG Jogging
Allows you to use a Manual Pulse Generator to jog the machine’s axis.
MPG’s are often found on commercial grade machines. They output quadrature pulses that can be counted with a MESA
encoder counter. PNCconf allows for an MPG per axis or one MPG shared with all axis. It allows for selection of jog
speeds using switches or a single speed.
The selectable increments option uses the mux16 component. This component has options such as debounce and gray code
to help filter the raw switch input.
Overrides
PNCconf allows overrides of feedrates and/or spindle speed using a pulse generator (MPG) or switches (eg. rotary).
6.4
GUI Configuration
Here you can set defaults for the display screens, add virtual control panels (VCP), and set some LinuxCNC options..
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
37 / 68
Figure 6.4: GUI Configuration
Frontend GUI Options
The default options allows general defaults to be chosen for any display screen.
AXIS defaults are options specific to AXIS. If you choose size , position or force maximize options then PNCconf will
ask if it’s alright to overwrite a preference file (.axisrc). Unless you have manually added commands to this file it is fine to
allow it. Position and force max can be used to move AXIS to a second monitor if the system is capable.
Touchy defaults are options specific to Touchy. Most of Touchy’s options can be changed while Touchy is running using
the preference page. Touchy uses GTK to draw its screen, and GTK supports themes. Themes controls the basic look and
feel of a program. You can download themes from the net or edit them yourself. There are a list of the current themes on
the computer that you can pick from. To help some of the text to stand out PNCconf allows you to override the Themes’s
defaults. The position and force max options can be used to move Touchy to a second monitor if the system is capable.
VCP options
Virtual Control Panels allow one to add custom controls and displays to the screen. AXIS and Touchy can integrate these
controls inside the screen in designated positions. There are two kinds of VCPs - pyVCP which uses Tkinter to draw the
screen and GLADE VCP that uses GTK to draw the screen.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
38 / 68
PyVCP
PyVCPs screen XML file can only be hand built. PyVCPs fit naturally in with AXIS as they both use TKinter.
HAL pins are created for the user to connect to inside their custom HAL file. There is a sample spindle display panel for
the user to use as-is or build on. You may select a blank file that you can later add your controls widgets to or select a
spindle display sample that will display spindle speed and indicate if the spindle is at requested speed.
PNCconf will connect the proper spindle display HAL pins for you. If you are using AXIS then the panel will be integrated
on the right side. If not using AXIS then the panel will be separate stand-alone from the frontend screen.
You can use the geometry options to size and move the panel, for instance to move it to a second screen if the system is
capable. If you press the Display sample panel button the size and placement options will be honoured.
GLADE VCP
GLADE VCPs fit naturally inside of TOUCHY screen as they both use GTK to draw them, but by changing GLADE
VCP’s theme it can be made to blend pretty well in AXIS. (try Redmond)
It uses a graphical editor to build its XML files. HAL pins are created for the user to connect to, inside of their custom
HAL file.
GLADE VCP also allows much more sophisticated (and complicated) programming interaction, which PNCconf currently
doesn’t leverage. (see GLADE VCP in the manual)
PNCconf has sample panels for the user to use as-is or build on. With GLADE VCP PNCconf will allow you to select
different options on your sample display.
Under sample options select which ones you would like. The zero buttons use HALUI commands which you could edit
later in the HALUI section.
Auto Z touch-off also requires the classicladder touch-off program and a probe input selected. It requires a conductive
touch-off plate and a grounded conductive tool. For an idea on how it works see:
http://wiki.linuxcnc.org/cgi-bin/wiki.pl?ClassicLadderExamples#Single_button_probe_touchoff
Under Display Options, size, position, and force max can be used on a stand-alone panel for such things as placing the
screen on a second monitor if the system is capable.
You can select a GTK theme which sets the basic look and feel of the panel. You Usually want this to match the frontend
screen. These options will be used if you press the Display sample button. With GLADE VCP depending on the frontend
screen, you can select where the panel will display.
You can force it to be stand-alone or with AXIS it can be in the center or on the right side, with Touchy it can be in the
center.
Defaults and Options
• Require homing before MDI / Running
– If you want to be able to move the machine before homing uncheck this checkbox.
• Popup Tool Prompt
– Choose between an on screen prompt for tool changes or export standard signal names for a User supplied custom
tool changer Hal file
• Leave spindle on during tool change:
– Used for lathes
• Force individual manual homing
• Move spindle up before tool change
• Restore joint position after shutdown
– Used for non-trivial kinematics machines
• Random position toolchangers
– Used for toolchangers that do not return the tool to the same pocket. You will need to add custom HAL code to support
toolchangers.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.5
39 / 68
Mesa Configuration
The Mesa configuration pages allow one to utilize different firmwares. On the basic page you selected a Mesa card here you pick
the available firmware and select what and how many components are available.
Figure 6.5: Mesa Configuration
Parport address is used only with Mesa parport card, the 7i43. An onboard parallel port usually uses 0x278 or 0x378 though you
should be able to find the address from the BIOS page. The 7i43 requires the parallel port to use the EPP mode, again set in the
BIOS page. If using a PCI parallel port the address can be searched for by using the search button on the basic page.
Note
Many PCI cards do not support the EPP protocol properly.
PDM PWM and 3PWM base frequency sets the balance between ripple and linearity. If using Mesa daughter boards the docs for
the board should give recommendations
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
40 / 68
Important
It’s important to follow these to avoid damage and get the best performance.
The
The
The
The
The
7i33
7i29
7i30
7i40
7i48
requires
requires
requires
requires
requires
PDM
PWM
PWM
PWM
UDM
and
and
and
and
and
a
a
a
a
a
PDM
PWM
PWM
PWM
PWM
base
base
base
base
base
frequency
frequency
frequency
frequency
frequency
of
of
of
of
of
6 mHz
20 Khz
20 Khz
50 Khz
24 Khz
Watchdog time out is used to set how long the MESA board will wait before killing outputs if communication is interrupted from
the computer. Please remember Mesa uses active low outputs meaning that when the output pin is on, it is low (approx 0 volts)
and if it’s off the output in high (approx 5 volts) make sure your equipment is safe when in the off (watchdog bitten) state.
You may choose the number of available components by deselecting unused ones. Not all component types are available with all
firmware.
Choosing less then the maximum number of components allows one to gain more GPIO pins. If using daughter boards keep in
mind you must not deselect pins that the card uses. For instance some firmware supports two 7i33 cards, If you only have one you
may deselect enough components to utilize the connector that supported the second 7i33. Components are deselected numerically
by the highest number first then down with out skipping a number. If by doing this the components are not where you want them
then you must use a different firmware. The firmware dictates where, what and the max amounts of the components. Custom
firmware is possible, ask nicely when contacting the LinuxCNC developers and Mesa. Using custom firmware in PNCconf
requires special procedures and is not always possible - Though I try to make PNCconf as flexible as possible.
After choosing all these options press the Accept Component Changes button and PNCconf will update the I/O setup pages. Only
I/O tabs will be shown for available connectors, depending on the Mesa board.
6.6
Mesa I/O Setup
The tabs are used to configure the input and output pins of the Mesa boards. PNCconf allows one to create custom signal names
for use in custom HAL files.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
41 / 68
Figure 6.6: Mesa I/O C2
On this tab with this firmware the components are setup for a 7i33 daughter board, usually used with closed loop servos. Note
the component numbers of the encoder counters and PWM drivers are not in numerical order. This follows the daughter board
requirements.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
42 / 68
Figure 6.7: Mesa I/O C3
On this tab all the pins are GPIO. Note the 3 digit numbers - they will match the HAL pin number. GPIO pins can be selected as
input or output and can be inverted.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
43 / 68
Figure 6.8: Mesa I/O C4
On this tab there are a mix of step generators and GPIO. Step generators output and direction pins can be inverted. Note that
inverting a Step Gen-A pin (the step output pin) changes the step timing. It should match what your controller expects.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.7
Parport configuration
The parallel port can be used for simple I/O similar to Mesa’s GPIO pins.
44 / 68
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.8
45 / 68
Axis Configuration
Figure 6.9: Axis Drive Configuration
This page allows configuring and testing of the motor and/or encoder combination . If using a servo motor an open loop test is
available, if using a stepper a tuning test is available.
Open Loop Test
An open loop test is important as it confirms the direction of the motor and encoder. The motor should move the axis in the
positive direction when the positive button is pushed and also the encoder should count in the postie direction. The axis
movement should follow the Machinery’s Handbook 1 standards or AXIS graphical display will not make much sense.
Hopefully the help page and diagrams can help figure this out. Note that axis directions are based on TOOL movement not
table movement. There is no acceleration ramping with the open loop test so start with lower DAC numbers. By moving
the axis a known distance one can confirm the encoder scaling. The encoder should count even without the amp enabled
depending on how power is supplied to the encoder.
1
"axis nomenclature" in the chapter "Numerical Control" in the "Machinery’s Handbook" published by Industrial Press.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
46 / 68
Warning
If the motor and encoder do not agree on counting direction then the servo will run away when using PID control.
Since at the moment PID settings can not be tested in PNCconf the settings are really for when you re-edit a config - enter
your tested PID settings.
DAC scaling, max output and offset are used to tailor the DAC output.
Compute DAC
These two values are the scale and offset factors for the axis output to the motor amplifiers. The second value (offset) is
subtracted from the computed output (in volts), and divided by the first value (scale factor), before being written to the
D/A converters. The units on the scale value are in true volts per DAC output volts. The units on the offset value are in
volts. These can be used to linearize a DAC.
Specifically, when writing outputs, the LinuxCNC first converts the desired output in quasi-SI units to raw actuator values,
e.g., volts for an amplifier DAC. This scaling looks like: The value for scale can be obtained analytically by doing a unit
analysis, i.e., units are [output SI units]/[actuator units]. For example, on a machine with a velocity mode amplifier such
that 1 volt results in 250 mm/sec velocity, Note that the units of the offset are in machine units, e.g., mm/sec, and they are
pre-subtracted from the sensor readings. The value for this offset is obtained by finding the value of your output which
yields 0.0 for the actuator output. If the DAC is linearized, this offset is normally 0.0.
The scale and offset can be used to linearize the DAC as well, resulting in values that reflect the combined effects of
amplifier gain, DAC non-linearity, DAC units, etc. To do this, follow this procedure:
• Build a calibration table for the output, driving the DAC with a desired voltage and measuring the result:
Table 6.1: Output Voltage Measurements
Raw
-10
-9
0
1
9
10
Measured
-9.93
-8.83
-0.96
-0.03
9.87
10.07
• Do a least-squares linear fit to get coefficients a, b such that meas=a*raw+b
• Note that we want raw output such that our measured result is identical to the commanded output. This means
– cmd=a*raw+b
– raw=(cmd-b)/a
• As a result, the a and b coefficients from the linear fit can be used as the scale and offset for the controller directly.
MAX OUTPUT: The maximum value for the output of the PID compensation that is written to the motor amplifier, in volts.
The computed output value is clamped to this limit. The limit is applied before scaling to raw output units. The value is applied
symmetrically to both the plus and the minus side.
Tuning Test The tuning test unfortunately only works with stepper based systems. Again confirm the directions on the axis is
correct. Then test the system by running the axis back and forth, If the acceleration or max speed is too high you will lose steps.
While jogging, Keep in mind it can take a while for an axis with low acceleration to stop. Limit switches are not functional
during this test. You can set a pause time so each end of the test movement. This would allow you to set up and read a dial
indicator to see if you are loosing steps.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
47 / 68
Stepper Timing Stepper timing needs to be tailored to the step controller’s requirements. Pncconf supplies some default controller timing or allows custom timing settings . See http://wiki.linuxcnc.org/cgi-bin/wiki.pl?Stepper_Drive_Timing for some
more known timing numbers (feel free to add ones you have figured out). If in doubt use large numbers such as 5000 this will
only limit max speed.
Brushless Motor Control These options are used to allow low level control of brushless motors using special firmware and
daughter boards. It also allows conversion of HALL sensors from one manufacturer to another. It is only partially supported and
will require one to finish the HAL connections. Contact the mail-list or forum for more help.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
48 / 68
Figure 6.10: Axis Scale Calculation
The scale settings can be directly entered or one can use the calculate scale button to assist. Use the check boxes to select
appropriate calculations. Note that pulley teeth requires the number of teeth not the gear ratio. Worm turn ratio is just the
opposite it requires the gear ratio. If your happy with the scale press apply otherwise push cancel and enter the scale directly.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
49 / 68
Figure 6.11: Axis Configuration
Also refer to the diagram tab for two examples of home and limit switches. These are two examples of many different ways to
set homing and limits.
Important
It is very important to start with the axis moving in the right direction or else getting homing right is very difficult!
Remember positive and negative directions refer to the TOOL not the table as per the Machinists handbook.
O N A TYPICAL KNEE OR BED MILL
• when the TABLE moves out that is the positive Y direction
• when the TABLE moves left that is the positive X direction
• when the TABLE moves down that is the positive Z direction
• when the HEAD moves up that is the positive Z direction
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
50 / 68
O N A TYPICAL LATHE
• when the TOOL moves right, away from the chuck
• that is the positive Z direction
• when the TOOL moves toward the operator
• that is the positive X direction. Some lathes have X
• opposite (eg tool on back side), that will work fine but
• AXIS graphical display can not be made to reflect this.
When using homing and / or limit switches LinuxCNC expects the HAL signals to be true when the switch is being pressed /
tripped. If the signal is wrong for a limit switch then LinuxCNC will think the machine is on end of limit all the time. If the
home switch search logic is wrong LinuxCNC will seem to home in the wrong direction. What it actually is doing is trying to
BACK off the home switch.
Decide on limit switch location.
Limit switches are the back up for software limits in case something electrical goes wrong eg. servo runaway. Limit switches
should be placed so that the machine does not hit the physical end of the axis movement. Remember the axis will coast past the
contact point if moving fast. Limit switches should be active low on the machine. eg. power runs through the switches all the
time - a loss of power (open switch) trips. While one could wire them the other way, this is fail safe. This may need to be inverted
so that the HAL signal in LinuxCNC in active high - a TRUE means the switch was tripped. When starting LinuxCNC if you
get an on-limit warning, and axis is NOT tripping the switch, inverting the signal is probably the solution. (use HALMETER to
check the corresponding HAL signal eg. axis.0.pos-lim-sw-in X axis positive limit switch)
Decide on the home switch location.
If you are using limit switches You may as well use one as a home switch. A separate home switch is useful if you have a long
axis that in use is usually a long way from the limit switches or moving the axis to the ends presents problems of interference
with material. eg a long shaft in a lathe makes it hard to home to limits with out the tool hitting the shaft, so a separate home
switch closer to the middle may be better. If you have an encoder with index then the home switch acts as a course home and the
index will be the actual home location.
Decide on the MACHINE ORIGIN position.
MACHINE ORIGIN is what LinuxCNC uses to reference all user coordinate systems from. I can think of little reason it would
need to be in any particular spot. There are only a few G codes that can access the MACHINE COORDINATE system.( G53, G30
and G28 ) If using tool-change-at-G30 option having the Origin at the tool change position may be convenient. By convention, it
may be easiest to have the ORIGIN at the home switch.
Decide on the (final) HOME POSITION.
this just places the carriage at a consistent and convenient position after LinuxCNC figures out where the ORIGIN is.
Measure / calculate the positive / negative axis travel distances.
Move the axis to the origin. Mark a reference on the movable slide and the non-moveable support (so they are in line) move the
machine to the end of limits. Measure between the marks that is one of the travel distances. Move the table to the other end of
travel. Measure the marks again. That is the other travel distance. If the ORIGIN is at one of the limits then that travel distance
will be zero.
(machine) ORIGIN
The Origin is the MACHINE zero point. (not the zero point you set your cutter / material at). LinuxCNC uses this point
to reference everything else from. It should be inside the software limits. LinuxCNC uses the home switch location to
calculate the origin position (when using home switches or must be manually set if not using home switches.
Travel distance
This is the maximum distance the axis can travel in each direction. This may or may not be able to be measured directly
from origin to limit switch. The positive and negative travel distances should add up to the total travel distance.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
51 / 68
POSITIVE TRAVEL DISTANCE
This is the distance the Axis travels from the Origin to the positive travel distance or the total travel minus the negative
travel distance. You would set this to zero if the origin is positioned at the positive limit. The will always be zero or a
positive number.
NEGATIVE TRAVEL DISTANCE
This is the distance the Axis travels from the Origin to the negative travel distance. or the total travel minus the positive
travel distance. You would set this to zero if the origin is positioned at the negative limit. This will always be zero or a
negative number. If you forget to make this negative PNCconf will do it internally.
(Final) HOME POSITION
This is the position the home sequence will finish at. It is referenced from the Origin so can be negative or positive
depending on what side of the Origin it is located. When at the (final) home position if you must move in the Positive
direction to get to the Origin, then the number will be negative.
HOME SWITCH LOCATION
This is the distance from the home switch to the Origin. It could be negative or positive depending on what side of the
Origin it is located. When at the home switch location if you must move in the Positive direction to get to the Origin, then
the number will be negative. If you set this to zero then the Origin will be at the location of the limit switch (plus distance
to find index if used)
Home Search Velocity
Course home search velocity in units per minute.
Home Search Direction
Sets the home switch search direction either negative (ie. towards negative limit switch) or positive (ie. towards positive
limit switch)
Home Latch Velocity
Fine Home search velocity in units per minute
Home Final Velocity
Velocity used from latch position to (final) home position in units per minute. Set to 0 for max rapid speed
Home latch Direction
Allows setting of the latch direction to the same or opposite of the search direction.
Use Encoder Index For Home
LinuxCNC will search for an encoder index pulse while in the latch stage of homing.
Use Compensation File
Allows specifying a Comp filename and type. Allows sophisticated compensation. See Manual.
Use Backlash Compensation
Allows setting of simple backlash compensation. Can not be used with Compensation File. See Manual.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
52 / 68
Figure 6.12: AXIS Help Diagram
The diagrams should help to demonstrate an example of limit switches and standard axis movement directions. In this example
the Z axis was two limit switches, the positive switch is shared as a home switch. The MACHINE ORIGIN (zero point) is located
at the negative limit. The left edge of the carriage is the negative trip pin and the right the positive trip pin. We wish the FINAL
HOME POSITION to be 4 inches away from the ORIGIN on the positive side. If the carriage was moved to the positive limit we
would measure 10 inches between the negative limit and the negative trip pin.
6.9
Spindle Configuration
If you select spindle signals then this page is available to configure spindle control.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
53 / 68
Tip
Many of the option on this page will not show unless the proper option was selected on previous pages!
Figure 6.13: Spindle Configuration
This page is similar to the axis motor configuration page.
There are some differences:
• Unless one has chosen a stepper driven spindle there is no acceleration or velocity limiting.
• There is no support for gear changes or ranges.
• If you picked a VCP spindle display option then spindle-at-speed scale and filter settings may be shown.
• Spindle-at-speed allows LinuxCNC to wait till the spindle is at the requested speed before moving the axis. This is particularly
handy on lathes with constant surface feed and large speed diameter changes. It requires either encoder feedback or a digital
spindle-at-speed signal typically connected to a VFD drive.
• If using encoder feedback, you may select a spindle-at-speed scale setting that specifies how close the actual speed must be to
the requested speed to be considered at-speed.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
54 / 68
• If using encoder feedback, the VCP speed display can be erratic - the filter setting can be used to smooth out the display. The
encoder scale must be set for the encoder count / gearing used.
• If you are using a single input for a spindle encoder you must add the line: setp hm2_7i43.0.encoder.00.counter-mode 1
(changing the board name and encoder number to your requirements) into a custom HAL file. See the Hostmot2 section on
encoders for more info about counter mode.
6.10
Advanced Options
This allows setting of HALUI commands and loading of classicladder and sample ladder programs. If you selected GLADE
VCP options such as for zeroing axis, there will be commands showing. See the manual about info on HALUI for using custom
halcmds. There are several ladder program options. The Estop program allows an external ESTOP switch or the GUI frontend
to throw an Estop. It also has a timed lube pump signal. The Z auto touch-off is with a touch-off plate, the GLADE VCP
touch-off button and special HALUI commands to set the current user origin to zero and rapid clear. The serial modbus program
is basically a blank template program that sets up classicladder for serial modbus. See the classicladder section in the manual.
Figure 6.14: Advanced Options
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.11
55 / 68
HAL Components
On this page you can add additional HAL components you might need for custom HAL files. In this way one should not have to
hand edit the main HAL file, while still allowing user needed components.
Figure 6.15: HAL Components
The first selection is components that pncconf uses internally. You may configure pncconf to load extra instances of the components for your custom HAL file.
Select the number of instances your custom file will need, pncconf will add what it needs after them.
Meaning if you need 2 and pncconf needs 1 pncconf will load 3 instances and use the last one.
Custom Component Commands
This selection will allow you to load HAL components that pncconf does not use. Add the loadrt or loadusr command,
under the heading loading command Add the addf command under the heading Thread command. The components will be
added to the thread between reading of inputs and writing of outputs, in the order you write them in the thread command.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
6.12
56 / 68
Advanced Usage Of PNCconf
PNCconf does its best to allow flexible customization by the user. PNCconf has support for custom signal names, custom loading
of components, custom HAL files and custom firmware.
There are also signal names that PNCconf always provides regardless of options selected, for user’s custom HAL files With some
thought most customizations should work regardless if you later select different options in PNCconf.
Eventually if the customizations are beyond the scope of PNCconf’s frame work you can use PNCconf to build a base config or
use one of LinuxCNC’s sample configurations and just hand edit it to what ever you want.
Custom Signal Names
If you wish to connect a component to something in a custom HAL file write a unique signal name in the combo entry box.
Certain components will add endings to your custom signal name:
Encoders will add < customname > +:
• position
• count
• velocity
• index-enable
• reset
Steppers add:
• enable
• counts
• position-cmd
• position-fb
• velocity-fb
PWM add:
• enable
• value
GPIO pins will just have the entered signal name connected to it
In this way one can connect to these signals in the custom HAL files and still have the option to move them around later.
Custom Signal Names
The Hal Components page can be used to load components needed by a user for customization.
Loading Custom Firmware
PNCconf searches for firmware on the system and then looks for the XML file that it can convert to what it understands.
These XML files are only supplied for officially released firmware from the LinuxCNC team. To utilize custom firmware
one must convert it to an array that PNCconf understands and add its filepath to PNCconf’s preference file. By default this
path searches the desktop for a folder named custom_firmware and a file named firmware.py.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
57 / 68
The hidden preference file is in the user’s home file, is named .pncconf-preferences and require one to select show hidden files to
see and edit it. The contents of this file can be seen when you first load PNCconf - press the help button and look at the output
page.
Ask on the LinuxCNC mail-list or forum for info about converting custom firmware. Not all firmware can be utilized with
PNCconf.
Custom HAL Files
There are four custom files that you can use to add HAL commands to:
• custom.hal is for HAL commands that don’t have to be run after the GUI frontend loads. It is run after the configurationnamed HAL file.
• custom_postgui.hal is for commands that must be run after AXIS loads or a standalone PYVCP display loads.
• custom_gvcp.hal is for commands that must be run after glade VCP is loaded.
• shutdown.hal is for commands to run when LinuxCNC shuts down in a controlled manner.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
58 / 68
Chapter 7
Running LinuxCNC
7.1
Invoking LinuxCNC
After installation, LinuxCNC starts just like any other Linux program: run it from the terminal by issuing the command emc, or
select it in the Applications - CNC menu.
7.2
Configuration Selector
By default, the Configuration Selector dialog is shown when you first run LinuxCNC. Your own personalized configurations are
shown at the top of the list, followed by sample configurations. Because each sample configuration is for a different type of
hardware interface, almost all will not run without the hardware installed. The configurations listed under the category sim run
entirely without attached hardware.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
59 / 68
Figure 7.1: LinuxCNC Configuration Selector
Click any of the listed configurations to display specific information about it. Double-click a configuration or click OK to start
the configuration. Select Create Desktop Shortcut and then click OK to add an icon on the Ubuntu desktop to directly launch this
configuration without showing the Configuration Selector screen.
When you select a configuration from the Sample Configurations section, it will automaticly place a copy of that config in the
emc/configs directory.
7.3
Next steps in configuration
After finding the sample configuration that uses the same interface hardware as your machine, and saving a copy to your home
directory, you can customize it according to the details of your machine. Refer to the Integrator Manual for topics on configuration.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
60 / 68
Chapter 8
Linux FAQ
These are some basic Linux commands and techniques for new to Linux users. More complete information can be found on the
web or by using the man pages.
8.1
Automatic Login
When you install LinuxCNC with the Ubuntu LiveCD the default is to have to log in each time you turn the computer on. To
enable automatic login go to System > Administration > Login Window. If it is a fresh install the Login Window might take a
second or three to pop up. You will have to have your password that you used for the install to gain access to the Login Window
Preferences window. In the Security tab check off Enable Automatic Login and pick a user name from the list (that would be
you).
8.2
Automatic Startup
To have LinuxCNC start automatically with your config after turning on the computer go to System > Preferences > Sessions >
Startup Applications, click Add. Browse to your config and select the .ini file. When the file picker dialog closes, add emc and a
space in front of the path to your .ini file.
Example:
emc /home/mill/emc2/config/mill/mill.ini
8.3
Man Pages
Man pages are automatically generated manual pages in most cases. Man pages are usually available for most programs and
commands in Linux.
To view a man page open up a terminal window by going to Applications > Accessories > Terminal. For example if you wanted
to find out something about the find command in the terminal window type:
man find
Use the Page Up and Page Down keys to view the man page and the Q key to quit viewing.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
8.4
61 / 68
List Modules
Sometimes when troubleshooting you need to get a list of modules that are loaded. In a terminal window type:
lsmod
If you want to send the output from lsmod to a text file in a terminal window type:
lsmod > mymod.txt
The resulting text file will be located in the home directory if you did not change directories when you opened up the terminal
window and it will be named mymod.txt or what ever you named it.
8.5
Editing a Root File
When you open the file browser and you see the Owner of the file is root you must do extra steps to edit that file. Editing some
root files can have bad results. Be careful when editing root files. Generally, you can open and view most root files, but they will
open in read only mode.
8.5.1
The Command Line Way
Open up Applications > Accessories > Terminal.
In the terminal window type
sudo gedit
Open the file with File > Open > Edit
8.5.2
The GUI Way
1. Right click on the desktop and select Create Launcher
2. Type a name in like sudo edit
3. Type gksudo "gnome-open %u" as the command and save the launcher to your desktop
4. Drag a file onto your launcher to open and edit
8.5.3
Root Access
In Ubuntu you can become root by typing in "sudo -i" in a terminal window then typing in your password. Be careful, because
you can really foul things up as root if you don’t know what you’re doing.
8.6
8.6.1
Terminal Commands
Working Directory
To find out the path to the present working directory in the terminal window type:
pwd
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
8.6.2
62 / 68
Changing Directories
To move up one level in the terminal window type:
cd ..
To move up two levels in the terminal window type:
cd ../..
To move down to the emc2/configs subdirectory in the terminal window type:
cd emc2/configs
8.6.3
Listing files in a directory
To view a list of all the files and subdirectories in the terminal window type:
dir
or
ls
8.6.4
Finding a File
The find command can be a bit confusing to a new Linux user. The basic syntax is:
find starting-directory parameters actions
For example to find all the .ini files in your emc2 directory you first need to use the pwd command to find out the directory.
Open a new terminal window and type:
pwd
And pwd might return the following result:
/home/joe
With this information put the command together like this:
find /home/joe/linuxcnc -name \*.ini -print
The -name is the name of the file your looking for and the -print tells it to print out the result to the terminal window. The \*.ini
tells find to return all files that have the .ini extension. The backslash is needed to escape the shell meta-characters. See the find
man page for more information on find.
8.6.5
Searching for Text
grep -irl ’text to search for’ *
This will find all the files that contain the text to search for in the current directory and all the subdirectories below it, while
ignoring the case. The -i is for ignore case and the -r is for recursive (include all subdirectories in the search). The -l option will
return a list of the file names, if you leave the -l off you will also get the text where each occourance of the "text to search for" is
found. The * is a wild card for search all files. See the grep man page for more information.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
8.6.6
63 / 68
Bootup Messages
To view the bootup messages use "dmesg" from the command window. To save the bootup messages to a file use the redirection
operator, like this:
dmesg > bootmsg.txt
The contents of this file can be copied and pasted on line to share with people trying to help you diagnose your problem.
To clear the message buffer type this:
sudo dmesg -c
This can be helpful to do just before launching LinuxCNC, so that there will only be a record of information related to the current
launch of LinuxCNC.
To find the built in parallel port address use grep to filter the information out of dmesg.
After boot up open a terminal and type:
dmesg|grep parport
8.7
8.7.1
Convenience Items
Terminal Launcher
If you want to add a terminal launcher to the panel bar on top of the screen you typically can right click on the panel at the top of
the screen and select "Add to Panel". Select Custom Application Launcher and Add. Give it a name and put gnome-terminal in
the command box.
8.8
8.8.1
Hardware Problems
Hardware Info
To find out what hardware is connected to your motherboard in a terminal window type:
lspci -v
8.8.2
Monitor Resolution
During installation Ubuntu attempts to detect the monitor settings. If this fails you are left with a generic monitor with a maximum
resolution of 800x600.
Instructions for fixing this are located here:
https://help.ubuntu.com/community/FixVideoResolutionHowto
8.9
Paths
Relative Paths Relative paths are based on the startup directory which is the directory containing the ini file. Using relative paths
can facilitate relocation of configurations but requires a good understanding of linux path specifiers.
./f0
../f1
../../f2
../../../f3
is the same as f0, e.g., a file named f0 in the startup directory
refers to a file f1 in the parent directory
refers to a file f2 in the parent of the parent directory
etc.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
64 / 68
Chapter 9
Legal Section
9.1
Copyright Terms
Copyright (c) 2000-2013 LinuxCNC.org
Permission is granted to copy, distribute and/or modify this document under the terms of the GNU Free Documentation License,
Version 1.1 or any later version published by the Free Software Foundation; with no Invariant Sections, no Front-Cover Texts,
and one Back-Cover Text: "This LinuxCNC Handbook is the product of several authors writing for linuxCNC.org. As you find
it to be of value in your work, we invite you to contribute to its revision and growth." A copy of the license is included in the
section entitled "GNU Free Documentation License". If you do not find the license you may order a copy from Free Software
Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307
9.2
GNU Free Documentation License
GNU Free Documentation License Version 1.1, March 2000
Copyright © 2000 Free Software Foundation, Inc. 59 Temple Place, Suite 330, Boston, MA 02111-1307 USA Everyone is
permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.
0. PREAMBLE
The purpose of this License is to make a manual, textbook, or other written document "free" in the sense of freedom: to assure
everyone the effective freedom to copy and redistribute it, with or without modifying it, either commercially or noncommercially.
Secondarily, this License preserves for the author and publisher a way to get credit for their work, while not being considered
responsible for modifications made by others.
This License is a kind of "copyleft", which means that derivative works of the document must themselves be free in the same
sense. It complements the GNU General Public License, which is a copyleft license designed for free software.
We have designed this License in order to use it for manuals for free software, because free software needs free documentation:
a free program should come with manuals providing the same freedoms that the software does. But this License is not limited to
software manuals; it can be used for any textual work, regardless of subject matter or whether it is published as a printed book.
We recommend this License principally for works whose purpose is instruction or reference.
1. APPLICABILITY AND DEFINITIONS
This License applies to any manual or other work that contains a notice placed by the copyright holder saying it can be distributed
under the terms of this License. The "Document", below, refers to any such manual or work. Any member of the public is a
licensee, and is addressed as "you".
A "Modified Version" of the Document means any work containing the Document or a portion of it, either copied verbatim, or
with modifications and/or translated into another language.
A "Secondary Section" is a named appendix or a front-matter section of the Document that deals exclusively with the relationship
of the publishers or authors of the Document to the Document’s overall subject (or to related matters) and contains nothing that
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
65 / 68
could fall directly within that overall subject. (For example, if the Document is in part a textbook of mathematics, a Secondary
Section may not explain any mathematics.) The relationship could be a matter of historical connection with the subject or with
related matters, or of legal, commercial, philosophical, ethical or political position regarding them.
The "Invariant Sections" are certain Secondary Sections whose titles are designated, as being those of Invariant Sections, in the
notice that says that the Document is released under this License.
The "Cover Texts" are certain short passages of text that are listed, as Front-Cover Texts or Back-Cover Texts, in the notice that
says that the Document is released under this License.
A "Transparent" copy of the Document means a machine-readable copy, represented in a format whose specification is available
to the general public, whose contents can be viewed and edited directly and straightforwardly with generic text editors or (for
images composed of pixels) generic paint programs or (for drawings) some widely available drawing editor, and that is suitable
for input to text formatters or for automatic translation to a variety of formats suitable for input to text formatters. A copy made
in an otherwise Transparent file format whose markup has been designed to thwart or discourage subsequent modification by
readers is not Transparent. A copy that is not "Transparent" is called "Opaque".
Examples of suitable formats for Transparent copies include plain ASCII without markup, Texinfo input format, LaTeX input
format, SGML or XML using a publicly available DTD, and standard-conforming simple HTML designed for human modification. Opaque formats include PostScript, PDF, proprietary formats that can be read and edited only by proprietary word
processors, SGML or XML for which the DTD and/or processing tools are not generally available, and the machine-generated
HTML produced by some word processors for output purposes only.
The "Title Page" means, for a printed book, the title page itself, plus such following pages as are needed to hold, legibly, the
material this License requires to appear in the title page. For works in formats which do not have any title page as such, "Title
Page" means the text near the most prominent appearance of the work’s title, preceding the beginning of the body of the text.
2. VERBATIM COPYING
You may copy and distribute the Document in any medium, either commercially or noncommercially, provided that this License,
the copyright notices, and the license notice saying this License applies to the Document are reproduced in all copies, and that
you add no other conditions whatsoever to those of this License. You may not use technical measures to obstruct or control the
reading or further copying of the copies you make or distribute. However, you may accept compensation in exchange for copies.
If you distribute a large enough number of copies you must also follow the conditions in section 3.
You may also lend copies, under the same conditions stated above, and you may publicly display copies.
3. COPYING IN QUANTITY
If you publish printed copies of the Document numbering more than 100, and the Document’s license notice requires Cover
Texts, you must enclose the copies in covers that carry, clearly and legibly, all these Cover Texts: Front-Cover Texts on the front
cover, and Back-Cover Texts on the back cover. Both covers must also clearly and legibly identify you as the publisher of these
copies. The front cover must present the full title with all words of the title equally prominent and visible. You may add other
material on the covers in addition. Copying with changes limited to the covers, as long as they preserve the title of the Document
and satisfy these conditions, can be treated as verbatim copying in other respects.
If the required texts for either cover are too voluminous to fit legibly, you should put the first ones listed (as many as fit reasonably)
on the actual cover, and continue the rest onto adjacent pages.
If you publish or distribute Opaque copies of the Document numbering more than 100, you must either include a machinereadable Transparent copy along with each Opaque copy, or state in or with each Opaque copy a publicly-accessible computernetwork location containing a complete Transparent copy of the Document, free of added material, which the general networkusing public has access to download anonymously at no charge using public-standard network protocols. If you use the latter
option, you must take reasonably prudent steps, when you begin distribution of Opaque copies in quantity, to ensure that this
Transparent copy will remain thus accessible at the stated location until at least one year after the last time you distribute an
Opaque copy (directly or through your agents or retailers) of that edition to the public.
It is requested, but not required, that you contact the authors of the Document well before redistributing any large number of
copies, to give them a chance to provide you with an updated version of the Document.
4. MODIFICATIONS
You may copy and distribute a Modified Version of the Document under the conditions of sections 2 and 3 above, provided that
you release the Modified Version under precisely this License, with the Modified Version filling the role of the Document, thus
licensing distribution and modification of the Modified Version to whoever possesses a copy of it. In addition, you must do these
things in the Modified Version:
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
66 / 68
A. Use in the Title Page (and on the covers, if any) a title distinct from that of the Document, and from those of previous
versions (which should, if there were any, be listed in the History section of the Document). You may use the same title as
a previous version if the original publisher of that version gives permission. B. List on the Title Page, as authors, one or
more persons or entities responsible for authorship of the modifications in the Modified Version, together with at least five
of the principal authors of the Document (all of its principal authors, if it has less than five). C. State on the Title page the
name of the publisher of the Modified Version, as the publisher. D. Preserve all the copyright notices of the Document. E.
Add an appropriate copyright notice for your modifications adjacent to the other copyright notices. F. Include, immediately
after the copyright notices, a license notice giving the public permission to use the Modified Version under the terms of this
License, in the form shown in the Addendum below. G. Preserve in that license notice the full lists of Invariant Sections
and required Cover Texts given in the Document’s license notice. H. Include an unaltered copy of this License. I. Preserve
the section entitled "History", and its title, and add to it an item stating at least the title, year, new authors, and publisher of
the Modified Version as given on the Title Page. If there is no section entitled "History" in the Document, create one stating
the title, year, authors, and publisher of the Document as given on its Title Page, then add an item describing the Modified
Version as stated in the previous sentence. J. Preserve the network location, if any, given in the Document for public
access to a Transparent copy of the Document, and likewise the network locations given in the Document for previous
versions it was based on. These may be placed in the "History" section. You may omit a network location for a work that
was published at least four years before the Document itself, or if the original publisher of the version it refers to gives
permission. K. In any section entitled "Acknowledgements" or "Dedications", preserve the section’s title, and preserve
in the section all the substance and tone of each of the contributor acknowledgements and/or dedications given therein.
L. Preserve all the Invariant Sections of the Document, unaltered in their text and in their titles. Section numbers or the
equivalent are not considered part of the section titles. M. Delete any section entitled "Endorsements". Such a section may
not be included in the Modified Version. N. Do not retitle any existing section as "Endorsements" or to conflict in title with
any Invariant Section.
If the Modified Version includes new front-matter sections or appendices that qualify as Secondary Sections and contain no
material copied from the Document, you may at your option designate some or all of these sections as invariant. To do this, add
their titles to the list of Invariant Sections in the Modified Version’s license notice. These titles must be distinct from any other
section titles.
You may add a section entitled "Endorsements", provided it contains nothing but endorsements of your Modified Version by
various parties—for example, statements of peer review or that the text has been approved by an organization as the authoritative
definition of a standard.
You may add a passage of up to five words as a Front-Cover Text, and a passage of up to 25 words as a Back-Cover Text, to the
end of the list of Cover Texts in the Modified Version. Only one passage of Front-Cover Text and one of Back-Cover Text may
be added by (or through arrangements made by) any one entity. If the Document already includes a cover text for the same cover,
previously added by you or by arrangement made by the same entity you are acting on behalf of, you may not add another; but
you may replace the old one, on explicit permission from the previous publisher that added the old one.
The author(s) and publisher(s) of the Document do not by this License give permission to use their names for publicity for or to
assert or imply endorsement of any Modified Version.
5. COMBINING DOCUMENTS
You may combine the Document with other documents released under this License, under the terms defined in section 4 above
for modified versions, provided that you include in the combination all of the Invariant Sections of all of the original documents,
unmodified, and list them all as Invariant Sections of your combined work in its license notice.
The combined work need only contain one copy of this License, and multiple identical Invariant Sections may be replaced with
a single copy. If there are multiple Invariant Sections with the same name but different contents, make the title of each such
section unique by adding at the end of it, in parentheses, the name of the original author or publisher of that section if known, or
else a unique number. Make the same adjustment to the section titles in the list of Invariant Sections in the license notice of the
combined work.
In the combination, you must combine any sections entitled "History" in the various original documents, forming one section
entitled "History"; likewise combine any sections entitled "Acknowledgements", and any sections entitled "Dedications". You
must delete all sections entitled "Endorsements."
6. COLLECTIONS OF DOCUMENTS
You may make a collection consisting of the Document and other documents released under this License, and replace the individual copies of this License in the various documents with a single copy that is included in the collection, provided that you
follow the rules of this License for verbatim copying of each of the documents in all other respects.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
67 / 68
You may extract a single document from such a collection, and distribute it individually under this License, provided you insert
a copy of this License into the extracted document, and follow this License in all other respects regarding verbatim copying of
that document.
7. AGGREGATION WITH INDEPENDENT WORKS
A compilation of the Document or its derivatives with other separate and independent documents or works, in or on a volume of
a storage or distribution medium, does not as a whole count as a Modified Version of the Document, provided no compilation
copyright is claimed for the compilation. Such a compilation is called an "aggregate", and this License does not apply to the
other self-contained works thus compiled with the Document, on account of their being thus compiled, if they are not themselves
derivative works of the Document.
If the Cover Text requirement of section 3 is applicable to these copies of the Document, then if the Document is less than one
quarter of the entire aggregate, the Document’s Cover Texts may be placed on covers that surround only the Document within
the aggregate. Otherwise they must appear on covers around the whole aggregate.
8. TRANSLATION
Translation is considered a kind of modification, so you may distribute translations of the Document under the terms of section
4. Replacing Invariant Sections with translations requires special permission from their copyright holders, but you may include
translations of some or all Invariant Sections in addition to the original versions of these Invariant Sections. You may include a
translation of this License provided that you also include the original English version of this License. In case of a disagreement
between the translation and the original English version of this License, the original English version will prevail.
9. TERMINATION
You may not copy, modify, sublicense, or distribute the Document except as expressly provided for under this License. Any
other attempt to copy, modify, sublicense or distribute the Document is void, and will automatically terminate your rights under
this License. However, parties who have received copies, or rights, from you under this License will not have their licenses
terminated so long as such parties remain in full compliance.
10. FUTURE REVISIONS OF THIS LICENSE
The Free Software Foundation may publish new, revised versions of the GNU Free Documentation License from time to time.
Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns.
See http://www.gnu.org/copyleft/.
Each version of the License is given a distinguishing version number. If the Document specifies that a particular numbered
version of this License "or any later version" applies to it, you have the option of following the terms and conditions either of
that specified version or of any later version that has been published (not as a draft) by the Free Software Foundation. If the
Document does not specify a version number of this License, you may choose any version ever published (not as a draft) by the
Free Software Foundation.
ADDENDUM: How to use this License for your documents
To use this License in a document you have written, include a copy of the License in the document and put the following copyright
and license notices just after the title page:
Copyright (c) YEAR YOUR NAME. Permission is granted to copy, distribute and/or modify this document under the terms of
the GNU Free Documentation License, Version 1.1 or any later version published by the Free Software Foundation; with the
Invariant Sections being LIST THEIR TITLES, with the Front-Cover Texts being LIST, and with the Back-Cover Texts being
LIST. A copy of the license is included in the section entitled "GNU Free Documentation License".
If you have no Invariant Sections, write "with no Invariant Sections" instead of saying which ones are invariant. If you have no
Front-Cover Texts, write "no Front-Cover Texts" instead of "Front-Cover Texts being LIST"; likewise for Back-Cover Texts.
If your document contains nontrivial examples of program code, we recommend releasing these examples in parallel under your
choice of free software license, such as the GNU General Public License, to permit their use in free software.
Getting Started V2.6.7-14-gde51d6b, 2015-04-01
68 / 68
Chapter 10
Index
A
Advanced Configuration Options, 27
Automatic Login, 60
Automatic Startup, 60
Axis Configuration, 22
Axis Travel, 28
C
cd, 62
Changing Directories, 62
D
Determining Spindle Calibration, 26
dir, 62
E
Editing a Root File, 61
F
find, 62
Finding a File, 62
Finding Maximum Acceleration, 24
Finding Maximum Velocity, 24
G
gksudo, 61
grep, 62
H
Home and Limit Switch wiring options, 28
Home Location, 28
Home Switch Location, 28
L
Latency Test, 19
Lathe Threading, 26
Linux FAQ, 60
Listing files in a directory, 62
ls, 62
M
Man Pages, 60
Mesa Configuration Wizard, 30
Minimum Requirements, 2
Multi-session Download, 5
O
Operating without Home Switches, 28
Operating without Limit Switches, 28
P
Parallel Port Setup, 21
Point n Click Configuration Wizard, 30
pwd, 61
R
Running LinuxCNC, 58
S
Searching for Text, 62
Sherline, 13
Spindle Configuration, 25
spindle speed control, 25
Spindle-synchronized motion, 26
Stepconf Wizard, 16
Stepper Quickstart, 13
sudo gedit, 61
System Requirements, 2
T
Terminal Commands, 61
U
Updates to LinuxCNC, 7
W
Wget Linux, 5
Wget Windows, 5
Working Directory, 61
X
Xylotex, 13
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
