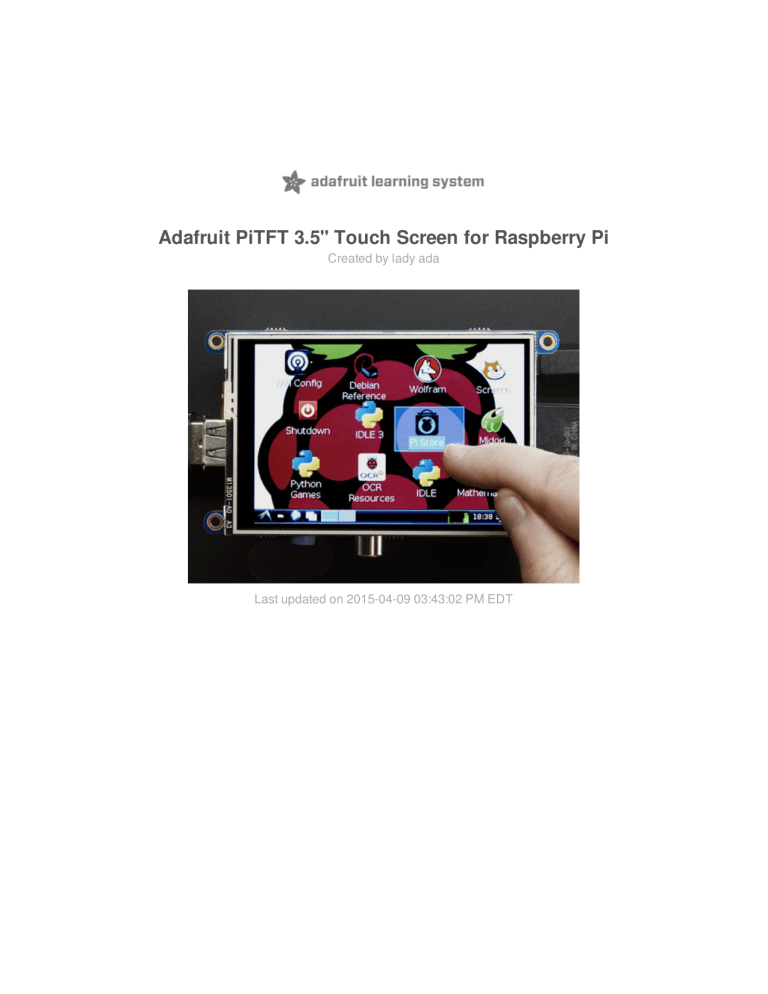

Adafruit PiTFT 3.5" Touch Screen for Raspberry Pi

Adafruit PiTFT 3.5" Touch Screen for Raspberry Pi
Adafruit PiTFT 3.5" Touch Screen for Raspberry Pi
Created by lady ada
Last updated on 2015-04-09 03:43:02 PM EDT
Guide Contents
Guide Contents
Easy Install
Ready to go image
DIY Installer script
Detailed Install
Before you start
Download & Install Kernel
Detailed Calibration
Setting up the Touchscreen
AutoMagic Calibration Script
Manual Calibration
X Calibration
Detailed Console Use
Turn off Console Blanking
Displaying Images
On / Off Using STMPE GPIO
PWM Backlight Control with GPIO 18
More Tips
Making it easier to click icons in X
Gesture Input
© Adafruit Industries
Page 2 of 49
Is this not the cutest, little display for the Raspberry Pi? It features a 3.5" display with 480x320 16bit color pixels and a resistive touch overlay, but is only slightly larger than our popular
original ( The plate uses the high speed SPI interface on the Pi and can use the
mini display as a console, X window port, displaying images or video etc. Best of all it plugs right in
on top!
© Adafruit Industries
Page 3 of 49
It's designed to fit nicely onto the Pi Model A or B but also works perfectly fine with the Model B+ as
long as you don't mind the PCB overhangs the USB ports by 5mm.
© Adafruit Industries
Page 4 of 49
Uses the hardware SPI pins (SCK, MOSI, MISO, CE0, CE1) as well as GPIO #25 and #24. GPIO
#18 can be used to PWM dim the backlight if you like. All other GPIO are unused. There's a 2x13
header on the bottom, you can connect a standard Pi GPIO cable to it to use any of the other pins
ask you like
© Adafruit Industries
Page 5 of 49
Best of all, it comes fully assembled and ready to plug into your Pi! You can use this as a display
for running the X interface, or pygame. You can also have an HDMI display seperately connected.
© Adafruit Industries
Page 6 of 49
Easy Install
The PiTFT requires kernel support and a couple other things to make it a nice stand-alone display.
We have a detailed step-by-step setup for hackers who want to tweak, customize or understand the
PiTFT setup. If you just want to get going, check out the following for easy-install instructions!
Ready to go image
If you want to start with a fresh image, we have one for Raspbian - click here to download it and
install into a new SD card. Unzip and follow the classic SD card burning tutorials
Download PiTFT 3.5" Resistive Image
for Pi 1 and Pi 2 (March 12, 2015)
This image is customized for the RESISTIVE touch 3.5" TFT, also known as PID #2097! Not
for PID #1601 or #1983
Older Images:
Raspbian 2014/09/09-based image (
DIY Installer script
If you don't want to download an image, you can run our installation package helper from inside
your existing Raspbian install. It will download the kernel add-ons, and configure your Pi for PiTFT
The helper is available for perusal here ( if you are interested in how it works
To download and run it, simply run the following commands:
curl -SLs | sudo bash
sudo apt-get install -y adafruit-pitft-helper
The first command adds to your repository list, so you can grab code directly from
adafruit's servers
© Adafruit Industries
Page 7 of 49
The second does the actual download and installation, it'll take a while because there's a lot of
software to replace for PiTFT support
© Adafruit Industries
Page 8 of 49
© Adafruit Industries
Page 9 of 49
It's normal for the Pi to pause at this step for up to 20 minutes, theres a lot of kernel software
to replace
OK now the kernel is installed, all you have to do is run the helper which will configure the kernel
device tree overlays and add the few configurations to make the console show up, etc.
sudo adafruit-pitft-helper -t 35r
This will install the "3.5 inch Resistive" type of PiTFT into the current install.
At the end you will be prompted on whether you want the text console to appear on the PiTFT.
Answer Y or N depending on your personal desires!
© Adafruit Industries
Page 10 of 49
Thats it!
Run sudo reboot to try out your fancy new PiTFT :)
© Adafruit Industries
Page 11 of 49
Detailed Install
If you've grabbed our Easy Install image, or use the script, this step is not required, it's already
done! This is just for advanced users who are curious on how to configure and customize the
kernel install
In the next few steps we'll cover the detailed installation procedure. Chances are, you should grab
the Easy Install image or script. If you have some interest in the details of how we install the PiTFT
setup, read on!
In order to add support for the 3.5" TFT and touchscreen, we'll need to install a new Linux Kernel.
Lucky for you, we created a kernel package that you can simply install over your current Raspbian
(or Raspbian-derived) install instead of needing a whole new image. This makes it easier to keep
your install up-to-date.
To use our kernel .deb files you must be using Raspbian or derivative. This wont work with Arch or
other Linux flavors. As Raspbian is the official OS for the Pi, that's the only Linux we will support!
© Adafruit Industries
Page 12 of 49
Others can recompile their own kernel using our github commits ( we have
no tutorial or support or plans for such.
Before you start
You'll need a working install of Raspbian with network access. If you need help getting that far,
check out our collection of Pi tutorials (
We'll be doing this from a console cable connection, but you can just as easily do it from the direct
HDMI/TV console or by SSH'ing in. Whatever gets you to a shell will work!
Also, run sudo apt-get update !
To run these all the setup and config commands you'll need to be logged into a proper
Terminal - use ssh, a console cable, or the main text console (on a TV). The WebIDE console
may not work.
Download & Install Kernel
The only way we're distributing the PiTFT kernel packages right now is thru so
you'll still need to run:
curl -SLs | sudo bash
To add to your list of software sources
© Adafruit Industries
Page 13 of 49
Then install the kernel with
© Adafruit Industries
Page 14 of 49
© Adafruit Industries
Page 15 of 49
OK since you're not going to run the helper, lets add the device tree overlay manually. Edit
/boot/config with
sudo nano /boot/config
and add the following lines at the end:
© Adafruit Industries
Page 16 of 49
The rotate= variable tells the driver to rotate the screen 0 90 180 or 270 degrees.
0 is portrait, with the bottom near theUSB jacks
90 is landscape, with the bottom of the screen near the headphone jack
180 is portrait, with the top near the USB jacks
270 is landscape, with the top of the screen near the headphone jack.
You can change this file with nano and reboot to make the change stick.
The speed= variable tells the driver how to fast to drive the display. 42MHz (42000000) is a good
place to start but if your screen is acting funny, try taking it down to 16MHz (16000000) especially if
you're doing something like using a GPIO extender to put the screen away from the Pi.
Save the file. Now we'll just reboot to let it all sink in.
sudo shutdown -h now (if you don't have the TFT installed, shutdown, place the TFT on
the Pi and re-power)
sudo reboot (if you have the TFT plate installed already)
When the Pi restarts, the attached PiTFT should start out all white and then turn black. That means
the kernel found the display and cleared the screen. If the screen did not turn black, that means that
© Adafruit Industries
Page 17 of 49
likely there's something up with your connection or kernel install. Solder anything that needs
Now that you're rebooted, log back in on the console/TV/SSH. There's nothing displayed on the
screen yet, we'll do a test to make sure everything is perfect first!
Run the following commands to startx on the /dev/fb1 framebuffer, a.k.a PiTFT screen:
sudo mv /usr/share/X11/xorg.conf.d/99-fbturbo.conf ~
export FRAMEBUFFER=/dev/fb1
You should see the Pi desktop show up on the TFT! Congrats, you've completed the first test
Hit Control-C in the console to quit the X server so we can continue configuration
© Adafruit Industries
Page 18 of 49
Next up we'll add support for the touch screen automatically on boot. Edit the module list with
sudo nano /etc/modules
and add stmpe-ts on a line at the end
Save the file and reboot the Pi with sudo reboot and look at the console output (or run dmesg in
the console window after logging in) you will see the modules install. Look in particular for the
STMPE610 detection and the HX5387D screen frequency as highlighted here
© Adafruit Industries
Page 19 of 49
We can set up the touchscreen for rotate=90 configuration by doing the following (for more delicate
calibration or for other rotate=XX values, see the next section)
Create the directory and new calibration configuration file:
sudo mkdir /etc/X11/xorg.conf.d
sudo nano /etc/X11/xorg.conf.d/99-calibration.conf
and enter in the following lines, then save.
Section "InputClass"
MatchProduct "stmpe-ts"
Option "Calibration" "3800 120 200 3900"
Option "SwapAxes"
You can now try to run X again with
FRAMEBUFFER=/dev/fb1 startx
© Adafruit Industries
Page 20 of 49
Type Control-C to quit X
If you don't ever want to have to type FRAMEBUFFER=/dev/fb1 before startx, you can make it a
default state by editing your profile file: sudo nano ~/.profile and adding
export FRAMEBUFFER=/dev/fb1
near the top and saving the file. Then reboot to reload the profile file. It will now always assume you
want to use /dev/fb1
© Adafruit Industries
Page 21 of 49
Detailed Calibration
If you've grabbed our Easy Install image, or use the script, this step is not required, it's already
done! This is just for advanced users who are curious on how to configure and customize the
Setting up the Touchscreen
Now that the screen is working nicely, we'll take care of the touchscreen. There's just a bit of
calibration to do, but it isn't hard at all.
Before we start, we'll make a udev rule for the touchscreen. That's because the eventX name of
the device will change a lot and its annoying to figure out what its called depending on whether you
have a keyboard or other mouse installed.
© Adafruit Industries
Page 22 of 49
sudo nano /etc/udev/rules.d/95-stmpe.rules
to create a new udev file and copy & paste the following line in:
SUBSYSTEM=="input", ATTRS{name}=="stmpe-ts", ENV{DEVNAME}=="*event*",
Remove and re-install the touchscreen with
sudo rmmod stmpe_ts; sudo modprobe stmpe_ts
Then type ls -l /dev/input/touchscreen
It should point to eventX where X is some number, that number will be different on different setups
since other keyboards/mice/USB devices will take up an event slot
© Adafruit Industries
Page 23 of 49
There are some tools we can use to calibrate & debug the touchscreen. Install the "event test" and
"touchscreen library" packages with
sudo apt-get install evtest tslib libts-bin
Now you can use some tools such as sudo evtest /dev/input/touchscreen which will let you see
touchscreen events in real time, press on the touchscreen to see the reports.
© Adafruit Industries
Page 24 of 49
AutoMagic Calibration Script
© Adafruit Industries
Page 25 of 49
If you rotate the display you need to recalibrate the touchscreen to work with the new screen
orientation. You can manually run the calibration processes in the next section, or you can run a
small Python script which will automatically set a default touchscreen calibration based on the
screen orientation.
This helper is automatically installed for you but if you'd like you can check it out here on
github (
Run it at the command line with sudo adafruit-pitft-touch-cal
it will try to figure out what display you have installed and the rotation it's set up for
By default the script will attempt to read the screen orientation by examining the PiTFT module
configuration with modprobe. If the script can read the orientation it will print out the current
orientation, the current touchscreen calibration values, and the new touchscreen calibration values
baesd on the current orientation. Before updating the calibration the script will ask you to confirm
that you'd like to make the change. Press y and enter to confirm.
© Adafruit Industries
Page 26 of 49
Try using this default calibration script to easily calibrate your touchscreen display. Note that the
calibration values might not be exactly right for your display, but they should be close enough for
most needs. If you need the most accurate touchscreen calibration, follow the steps in the next
section to manually calibrate the touchscreen.
Manual Calibration
If you rotate the display you have some other setup where you need to carefully calibrate you can
do it 'manually'
You will want to calibrate the screen once but shouldn't have to do it more than that. We'll begin by
calibrating on the command line by running
sudo TSLIB_FBDEVICE=/dev/fb1 TSLIB_TSDEVICE=/dev/input/touchscreen
follow the directions on the screen, touching each point. Using a stylus is suggested so you get a
precise touch. Don't use something metal, plastic only!
© Adafruit Industries
Page 27 of 49
You should see five crosshair targets. If you see less than that, the touchscreen probably
generated multiple signals for a single touch, and you should try calibrating again.
Next you can run sudo TSLIB_FBDEVICE=/dev/fb1 TSLIB_TSDEVICE=/dev/input/touchscreen
ts_test which will let you draw-test the touch screen. Go back and re-calibrate if you feel the screen
isn't precise enough!
© Adafruit Industries
Page 28 of 49
X Calibration
You can also calibrate the X input system but you have to use a different program called
You can do this if the calibration on the screen isnt to your liking or any time you change the
rotate=XX module settings for the screen. Since the screen and touch driver are completely
separated, the touchscreen doesn't auto-rotate
Normally you'd have to compile it but we have a ready to go package for you so run:
sudo dpkg -i -B xinput-calibrator_0.7.5-1_armhf.deb
Before you start the xinput_calibrator you will need to delete the old calibration data so run
sudo rm /etc/X11/xorg.conf.d/99-calibration.conf
Before running startx and the calibrator - otherwise it gets really confused!
Now you'll have to run the xcalibrator while also running X. You can do this by startx and then
opening up the terminal program and running the xinput_calibrator command (which is
challenging to do on such a small screen) OR you can do what we do which is run startx in a
SSH/Terminal shell and then run the xinput_calibrator from the same shell, which requires the
following command order:
FRAMEBUFFER=/dev/fb1 startx &
DISPLAY=:0.0 xinput_calibrator
© Adafruit Industries
Page 29 of 49
Follow the directions on screen
Once complete you'll get something like:
Run sudo nano /etc/X11/xorg.conf.d/99-calibration.conf and copy the
Section "InputClass"
MatchProduct "stmpe-ts"
Option "Calibration" "119 3736 3850 174"
Option "SwapAxes"
© Adafruit Industries
Page 30 of 49
or whatever you got, into there. You can quit X if you want by typing fg to bring that command into
the foreground, and then Control-C to quit.
Depending on the 'rotation' of the screen, when you do this calibration, you may need to
comment out the SwapAxes part with a # and/or swap the numbers around so looks like:
Option "Calibration" "119 3736 3850 174"
Option "Calibration" "3736 119 174 3850"
Your touchscreen is now super calibrated, hurrah!
© Adafruit Industries
Page 31 of 49
Detailed Console Use
If you've grabbed our Easy Install image, or use the script, this step is not required, it's already
done! This is just for advanced users who are curious on how to configure and customize the
One fun thing you can do with the display is have it as your main console instead of the HDMI/TV
output. Even though it is small, with a good font you can get 40 x 60 of text. For more details, check
out (
First up, we'll update the boot configuration file to use the TFT framebuffer /dev/fb1 instead of the
HDMI/TV framebuffer /dev/fb0
sudo nano /boot/cmdline.txt
you can also edit it by putting the SD card into a computer and opening the same file.
At the end of the line, find the text that says rootwait and right after that, enter in:
fbcon=map:10 fbcon=font:VGA8x8 then save the file.
On the next boot, it will bring up the console.
© Adafruit Industries
Page 32 of 49
Note that the kernel has to load up the display driver module before it can display anything
on it so you won't get the rainbow screen, a NooBs prompt, or a big chunk of the kernel
details since the module is loaded fairly late in the boot process.
I think the VGA8x8 font is a bit chunky, you probably want 12x6 which is what is shown in the photo
above. To change the font, run sudo dpkg-reconfigure console-setup and go thru to select
Terminus 6x12
© Adafruit Industries
Page 33 of 49
© Adafruit Industries
Page 34 of 49
Turn off Console Blanking
You may notice the console goes black after 30 minutes, this is a sort of 'power saving' or
'screensaver' feature. You can disable this by editing /etc/kbd/configand setting the blank time to 0
(which turns it off)
© Adafruit Industries
Page 35 of 49
Displaying Images
You can display every day images such as GIFs, JPGs, BMPs, etc on the screen. To do this we'll
install fbi which is the frame buffer image viewer (not to be confused with the FBI agency!)
sudo apt-get install fbi will install it
Grab our lovely wallpaper with
© Adafruit Industries
Page 36 of 49
wget (
and view it with
sudo fbi -T 2 -d /dev/fb1 -noverbose -a adapiluv480x320.png
That's it!
© Adafruit Industries
Page 37 of 49
The backlight of the 3.5" display has 6 LEDs in a row, and we use a boost converter to get the 5V
from the Pi up to the ~20V needed to light up all the LEDs. By default, the backlight's on...but you
can control it in two ways.
On / Off Using STMPE GPIO
First option is to just turn it on and off using the extra GPIO created by the touchscreen driver
Start by getting access to the GPIO by making a device link
sudo sh -c "echo 508 > /sys/class/gpio/export"
ls -l /sys/class/gpio
Once you verify that you see GPIO #508, then you can set it to an output, this will turn off the
display since it will output 0 by default
sudo sh -c "echo 'out' > /sys/class/gpio/gpio508/direction"
Then turn the display back on with
sudo sh -c "echo '1' > /sys/class/gpio/gpio508/value"
or back off
sudo sh -c "echo '0' > /sys/class/gpio/gpio508/value"
© Adafruit Industries
Page 38 of 49
PWM Backlight Control with GPIO 18
If you want more precise control, you can use the PWM output on GPIO 18. There's python code for
controlling the PWM but you can also just use the kernel module and shell commands.
If you did the above commands, you'll need to turn off the STMPE GPIO which overrides the PWM
output. You only have to run this if you set GPIO508 to an output in the previous option
sudo sh -c "echo 'in' > /sys/class/gpio/gpio508/direction"
OK now you can set the GPIO #18 pin to PWM mode using WiringPi's gpio command
With these basic shell commands, you can set the GPIO #18 pin to PWM mode with 1000 Hz
frequency, set the output to 100 (out of 1023, so dim!), set the output to 1023 (out of 1023, nearly
all the way on) and 0 (off)
gpio -g mode 18 pwm
gpio pwmc 1000
gpio -g pwm 18 100
gpio -g pwm 18 1023
gpio -g pwm 18 0
Try other numbers, from 0 (off) to 1023 (all the way on)!
© Adafruit Industries
Page 39 of 49
© Adafruit Industries
Page 40 of 49
More Tips
Making it easier to click icons in X
If you want to double-click on icons to launch something in X you may find it annoying to get it to
work right. In LXDE you can simply set it up so that you only need to single click instead of double.
From LXDE launch the file manager (sorry these pix are grayscale and from the 2.8" TFT, still
figuring out how to screenshot the framebuffer!)
Then under the Edit menu, select Preferences
Then select Open files with single click and close the window (you'll need to drag it over to get to
the X button
© Adafruit Industries
Page 41 of 49
© Adafruit Industries
Page 42 of 49
Gesture Input
You can use the same tutorial we have for the 2.8" TFT if you'd like to use gesture
input! (
© Adafruit Industries
Page 43 of 49
How do I automatically boot to X windows on the PiTFT?
Check out the 2.8" resistive PiTFT FAQ ( for an answer to this common
How can I bring up X on the HDMI/TV monitor?
Use the fb0 framebuffer when you want to display stuff on the HDMI/TV display, for example:
FRAMEBUFFER=/dev/fb0 startx
will use the HDMI/TV framebuffer for X windows instead of the PiTFT
That doesn't work! I can't get X on HDMI!
If both
FRAMEBUFFER=/dev/fb0 startx &
FRAMEBUFFER=/dev/fb1 startx &
wind up showing the GUI on your PiTFT, enter the following instruction from the command line:
sudo mv /usr/share/X11/xorg.conf.d/99-fbturbo.conf ~
I'm tring to run startx and I get FATAL: Module g2d_23 not found.
don't forget you have to remove the turbo file!
sudo mv /usr/share/X11/xorg.conf.d/99-fbturbo.conf ~
I want better performance and faster updates!
You can also change the SPI frequency (overclock the display) by editing
/etc/modprobe.d/adafruit.conf and changing the options line to:
options fbtft_device name=adafruitrt35 rotate=90 frequency=64000000 fps=30
here's the thing, the Pi only supports a fixed number of SPI frequencies. So tweaking the number
a little won't do anything. The kernel will round the number to the closest value. You will always
get frequencies that are 250MHz divided by an even number. Here's the only SPI frequencies
this kernel supports
© Adafruit Industries
(a.k.a 16000000 = 16 MHz)
(a.k.a. 18000000 = 18 MHz)
(a.k.a 21000000 = 21 MHz)
(= 25 MHz)
(a.k.a 32000000 = 32MHz)
(a.k.a 42000000 = 42MHz)
(a.k.a 62000000 = 62MHz)
Page 44 of 49
So if you put in 48000000 for the speed, you won't actually get 48MHz, you'll actually only get
about 42MHz because it gets rounded down. We tested this display nicely with 32MHz and we
suggest that, but you can put in 42MHz and it will update a bit faster
You can tweak fps (frames per second) from 20 to 60 and frequency up to 42MHz for tradeoffs
in performance and speed. Reboot after each edit to make sure the settings are loaded properly.
There's a trade off that if you ask for higher FPS you're going to load the kernel more because
it's trying to keep the display updated. You can try 62MHz SPI but you may find the image
corrupted so, again, tradeoffs! :)
How can I take screenshots of the display?
We took the screenshots for this tutorial with
( ( (
wget (
tar -zxvf fbgrab*gz
cd fbgrab/
./fbgrab screenshot.png
© Adafruit Industries
Page 45 of 49
© Adafruit Industries
Page 46 of 49
The latest kernel fork that adds all the TFT, touchscreen, and other addons is here on
github (
Datasheet for the controller chip (
Datasheet for the 'raw' 3.5" TFT display (
© Adafruit Industries
Page 47 of 49
© Adafruit Industries
Page 48 of 49
© Adafruit Industries
Last Updated: 2015-04-09 03:43:04 PM EDT
Page 49 of 49
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF
