LG 42LB5600 Owner's manual

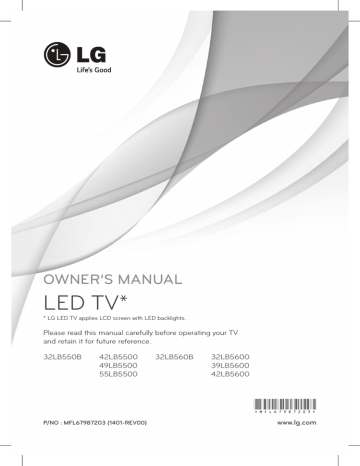

OWNER’S MANUAL LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your TV and retain it for future reference. 32LB550B 42LB5500 49LB5500 55LB5500 32LB560B 32LB5600 39LB5600 42LB5600 *MFL67987203* P/NO : MFL67987203 (1401-REV00) www.lg.com 2 IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS Always comply with the following precautions to avoid dangerous situations and ensure peak performance of your product. WARNING/CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN Read these instructions. Keep these instructions. Follow all instructions. Heed all warnings. ENGLISH TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL. ••Do not allow the television to become wet. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. ••Clean only with a dry cloth. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING/CAUTION - TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. ••Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. ••Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. WARNING If you ignore the warning message, you may be seriously injured or there is a possibility of accident or death. CAUTION If you ignore the caution message, you may be slightly injured or the product may be damaged. NOTE The note helps you understand and use the product safely. Please read the note carefully before using the product. ••Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet (Can differ by country). ••Do not press strongly upon the panel with a hand or a sharp object such as a nail, pencil or pen, or make a scratch on it. IMPORTANT SAFETY INSTRUCTIONS ••Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. ••Only use attachments/accessories specified by the manufacturer. ••Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. ••Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. ••Do not stick metal objects or any other conductive material into the power cord. Do not touch the end of the power cord while it is plugged in. ••Keep the packing anti-moisture material or vinyl packing out of the reach of children. Anti-moisture material is harmful if swallowed. If swallowed by mistake, induce vomiting and go to the nearest hospital. Additionally, vinyl packing can cause suffocation. Keep it out of the reach of children. ••CAUTION concerning the Power Cord (Can differ by country): It is recommended that appliances be placed upon a dedicated circuit; that is, a single outlet circuit which powers only that appliance and has no additional outlets or branch circuits. Check the specification page of this owner’s manual to be certain. Do not connect too many appliances to the same AC power outlet as this could result in fire or electric shock. Do not overload wall outlets. Overloaded wall outlets, loose or damaged wall outlets, extension cords, frayed power cords, or damaged or cracked wire insulation are dangerous. Any of these conditions could result in electric shock or fire. Periodically examine the cord of your appliance, and if its appearance indicates damage or deterioration, unplug it, discontinue use of the appliance, and have the cord replaced with an exact replacement part by an authorized service. Protect the power cord from physical or mechanical abuse, such as being twisted, kinked, pinched, closed in a door, or walked upon. Pay particular attention to plugs, wall outlets, and the point where the cord exits the appliance. Do not move the TV with the power cord plugged in. Do not use a damaged or loose power cord. Be sure do grasp the plug when unplugging the power cord. Do not pull on the power cord to unplug the TV. ••Warning - To reduce the risk of fire or electrical shock, do not expose this product to rain, moisture or other liquids. Do not touch the TV with wet hands. Do not install this product near flammable objects such as gasoline or candles, or expose the TV to direct air conditioning. ••Do not expose to dripping or splashing and do not place objects filled with liquids, such as vases, cups, etc. on or over the apparatus (e.g. on shelves above the unit). ENGLISH ••Unplug this apparatus during lightning storms or when unused for long periods of time. 3 4 IMPORTANT SAFETY INSTRUCTIONS ••Grounding (Except for devices which are not grounded.) Ensure that you connect the earth ground wire to prevent possible electric shock (i.e. a TV with a three-prong grounded AC plug must be connected to a three-prong grounded AC outlet). If grounding methods are not possible, have a qualified electrician install a separate circuit breaker. Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes. Short-circuit Breaker Power Supply ENGLISH ••As long as this unit is connected to the AC wall outlet, it is not disconnected from the AC power source even if the unit is turned off. ••Do not attempt to modify this product in any way without written authorization from LG Electronics. Unauthorized modification could void the user’s authority to operate this product. ••Outdoor Antenna Grounding (Can differ by country): If an outdoor antenna is installed, follow the precautions below. An outdoor antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can come in contact with such power lines or circuits as death or serious injury can occur. Be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Section 810 of the National Electrical Code (NEC) in the U.S.A. provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes and requirements for the grounding electrode. Antenna grounding according to the National Electrical Code, ANSI/NFPA 70 Antenna Lead in Wire Antenna Discharge Unit (NEC Section 810-20) Ground Clamp Electric Service Equipment Grounding Conductor (NEC Section 810-21) Ground Clamp NEC: National Electrical Code Power Service Grounding Electrode System (NEC Art 250, Part H) ••Cleaning When cleaning, unplug the power cord and wipe gently with a soft cloth to prevent scratching. Do not spray water or other liquids directly on the TV as electric shock may occur. Do not clean with chemicals such as alcohol, thinners, or benzine. ••Moving Make sure the product is turned off, unplugged, and all cables have been removed. It may take 2 or more people to carry larger TVs. Do not press or put stress on the front panel of the TV. ••Ventilation Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. Do not cover the product with cloth or other materials while plugged. Do not install in excessively dusty places. ••If you smell smoke or other odors coming from the TV, unplug the power cord and contact an authorized service center. ••Keep the product away from direct sunlight. ••Never touch this apparatus or antenna during a lightning storm. ••When mounting a TV on the wall, make sure not to install the TV by hanging the power and signal cables on the back of the TV. ••Do not allow an impact shock, any objects to fall into the product, and do not drop anything onto the screen. ••DISCONNECTING DEVICE FROM THE MAIN POWER Mains plug is the disconnecting device. The plug must remain readily operable. ••Store the accessories (battery, etc.) in a safe location out of the reach of children. ••This apparatus uses batteries. In your community there might be regulations that require you to dispose of these batteries properly due to environmental considerations. Please contact your local authorities for disposal or recycling information. ••Do not dispose of batteries in a fire. ••Do not short circuit, disassemble, or allow the batteries to overheat. IMPORTANT SAFETY INSTRUCTIONS Preventing image burn or burn-in on your TV screen ••If a fixed image displays on the TV screen for a long period of time, it will be imprinted and become a permanent disfigurement on the screen. This is image burn or burn-in and not covered by the warranty. ••If the aspect ratio of the TV is set to 4:3 for a long period of time, image burn may occur on the letterboxed area of the screen. ••Avoid displaying a fixed image on the TV screen for a long period of time (2 or more hours for LCD, 1 or more hours for the Plasma TV) to prevent image burn. ENGLISH ••Dot Defect The panel is a high technology product with resolution of two million to six million pixels. In a very few cases, you could see fine dots on the screen while you’re viewing the TV. Those dots are deactivated pixels and do not affect the performance and reliability of the TV. ••Generated Sound Cracking noise: A cracking noise that occurs when watching or turning off the TV is generated by plastic thermal contraction due to temperature and humidity. This noise is common for products where thermal deformation is required. Electrical circuit humming/panel buzzing: A low level noise is generated from a high-speed switching circuit, which supplies a large amount of current to operate a product. It varies depending upon the product. This generated sound does not affect the performance and reliability of the product. ••Take care not to touch the ventilation openings. When watching the TV for a long period, the ventilation openings may become hot. This does not affect the performance of the product or cause defects in the product. ••Do not install this product on a wall if it could be exposed to oil or oil mist. This may damage the product and cause it to fall. ••If the TV feels cold to the touch, there may be a small flicker when it is turned on. This is normal; there is nothing wrong with TV. Some minute dot defects may be visible on the screen, appearing as tiny red, green, or blue spots. However, they have no adverse effect on the TV’s performance. Avoid touching the LCD screen or holding your finger(s) against it for long periods of time. Doing so may produce some temporary distortion effects on the screen. 5 6 IMPORTANT SAFETY INSTRUCTIONS For USA and Canada FCC NOTICE ENGLISH This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and the receiver. - Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation of the device. Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE TO CABLE/TV INSTALLER This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical. LICENSES / OPEN SOURCE SOFTWARE NOTICE 7 LICENSES Supported licenses may differ by model. For more information about licenses, visit www.lg.com. Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries. OPEN SOURCE SOFTWARE NOTICE NOTE ••Image shown may differ from your TV. ••Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual. ••The available menus and options may differ from the input source or product model that you are using. ••New features may be added to this TV in the future. ENGLISH To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product, please visit http://opensource.lge.com. In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping and handling) upon email request to [email protected] This offer is valid for three (3) years from the date on which you purchased the product. 8 ASSEMBLING AND PREPARING ASSEMBLING AND PREPARING Unpacking Check your product box for the following items. If there are any missing accessories, contact the local dealer where you purchased your product. The illustrations in this manual may differ from the actual product and item. Remote Control, Batteries (AAA) ENGLISH Stand Base Owner’s Manual Power Cord (For 32LB550B, 32LB560B, 32LB5600) (For 42/49/55LB5500, 39/42LB5600) Stand Screws 4 EA, M4 x L20 Stand Screws 4 EA, M4 x L14 (For 42LB5500, 42LB5600) Cable Holder Stand Holder 2 EA Wall Mount Inner Spacers 2 EA 9 ASSEMBLING AND PREPARING CAUTION ••Do not use any unapproved items to ensure the safety and product’s lifespan. ••Any damages or injuries by using unapproved items are not covered by the warranty. ••Some models appear to have a thin film on the screen. It is actually part of the screen; do not remove it. NOTE ••The items supplied with your product may vary depending upon the model. ••Product specifications or contents of this manual may be changed without prior notice due to upgrade of product functions. ••For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm (0.39 inches) thick and 18 mm (0.7 inches) width. ••Use an extension cable that supports USB 2.0 if the USB cable or USB flash drive does not fit into your TV’s USB port. B B A A *A 10 mm (0.39 inches) *B 18 mm (0.7 inches) ENGLISH 10 ASSEMBLING AND PREPARING Parts and buttons Screen NOTE • Joystick button is located below the screen of TV. Joystick Button Power Indicator Remote Control Sensor Speakers ENGLISH Using the joystick button You can operate the TV by pressing the button or moving the joystick left, right, up, or down. Basic functions Power On When the TV is turned off, place your finger on the joystick button, press it once and release it. Power Off When the TV is turned on, place your finger on the joystick button, press it once for a few seconds and release it. (However, if the menu button is on the screen, pressing and holding the joystick button will let you exit the menu.) Volume Control If you place your finger over the joystick button, move it left or right, you can adjust the volume level you want. Channels Control If you place your finger over the joystick button, move it up or down, you can scroll through the saved channels you want. NOTE • With your finger over the joystick button, move it up, down, left, or right, be careful not to press the joystick button. If you press the joystick button first, you can not adjust the volume level and/or scroll through saved channels. Adjusting the menu When the TV is turned on, press the joystick button one time. You can adjust the menu items ( , , , ) moving the joystick button up, down, left, or right. TV Off Settings Close Input List Turns the power off. Accesses the main menu. Clears on-screen displays and returns to TV viewing. Changes the input source. ASSEMBLING AND PREPARING Lifting and moving the TV When moving or lifting the TV, read the following to prevent the TV from being scratched or damaged and for safe transportation regardless of its type and size. CAUTION ••Avoid touching the screen at all times, as this may result in damage to the screen. ••Do not place the product on the floor with its front facing down without padding. Failure to do so may result in damage to the screen. Setting up the TV Attaching the stand CAUTION ••When attaching the stand to the TV set, place the screen facing down on a cushioned table or flat surface to protect the screen from scratches. 1 ••It is recommended to move the TV in the box or packing material that the TV originally came in. ••Before moving or lifting the TV, disconnect the power cord and all cables. A Stand Base ENGLISH ••When holding the TV, the screen should face away from you to avoid damage. ••Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. B Stand Base 2 (For 32LB550B, 32LB560B, 32LB5600) ••Use at least two people to move a large TV. ••When transporting the TV by hand, hold the TV as shown in the following illustration. ••When transporting the TV, do not expose the TV to jolts or excessive vibration. ••When transporting the TV, keep the TV upright; never turn the TV on its side or tilt towards the left or right. 11 4 EA M4 x L20 (For 42/49/55LB5500, 39/42LB5600) 4 EA M4 x L14 12 ASSEMBLING AND PREPARING Mounting on a table 1 Securing the TV to a wall (optional) Lift and tilt the TV into its upright position on a table. - Leave a 10 cm (4 inches) (minimum) space from the wall for proper ventilation. (Depending upon model) 10 cm (4 inches) 10 cm 10 cm m 10 c 1 ENGLISH 2 Connect the power cord to a wall outlet. CAUTION ••Do not place the TV near or on sources of heat, as this may result in fire or other damage. Insert and tighten the eye-bolts, or TV brackets and bolts on the back of the TV. - If there are bolts inserted at the eye-bolts position, remove the bolts first. 2 Mount the wall brackets with the bolts to the wall. Match the location of the wall bracket and the eye-bolts on the rear of the TV. 3 Connect the eye-bolts and wall brackets tightly with a sturdy rope or cable. Make sure to keep the rope parallel to the flat surface. CAUTION ••Make sure that children do not climb on or hang on the TV. NOTE ••Use a platform or cabinet that is strong and large enough to support the TV securely. ••Brackets, bolts, and ropes are optional. You can obtain additional accessories from your local dealer. ASSEMBLING AND PREPARING Mounting on a wall An optional wall mount can be used with your LG Television. Consult with your local dealer for a wall mount that supports the VESA standard used by your TV model. Carefully attach the wall mount bracket at the rear of the TV. Install the wall mount bracket on a solid wall perpendicular to the floor. If you are attaching the TV to other building materials, please contact qualified personnel to install the wall mount. Detailed instructions will be included with the wall mount. We recommend that you use an LG brand wall mount. 13 Make sure to use screws and wall mounts that meet the VESA standard. Standard dimensions for the wall mount kits are described in the following table. 32LB550B 32LB560B 32LB5600 39LB5600 42LB5500 49LB5500 55LB5500 42LB5600 200 x 200 400 x 400 Standard screw M6 M6 Number of screws 4 4 Model VESA (A x B) A B Wall mount bracket LSW240B (optional) MSW240 LSW440B MSW240 10 cm (4 inches) 10 cm 10 cm ENGLISH 10 cm 14 ASSEMBLING AND PREPARING CAUTION ••Disconnect the power before moving or installing the TV. Otherwise electric shock may occur. ••If you install the TV on a ceiling or slanted wall, it may fall and result in severe injury. Use an authorized LG wall mount and contact the local dealer or qualified personnel. When using a third-party wall mount, it is not covered by the warranty. ••Do not over tighten the screws as this may cause damage to the TV and void your warranty. ••Use the screws and wall mounts that meet the VESA standard. Any damages or injuries by misuse or using an improper accessory are not covered by the warranty. NOTE ••Use the screws that are listed in the VESA standard screw specifications. ••The wall mount kit includes an installation manual and necessary parts. ••The wall mount bracket is optional. You can obtain additional accessories from your local dealer. ••The length of screws may differ depending upon the wall mount. Make sure to use the proper length. ••For more information, refer to the manual supplied with the wall mount. ••(For 42LB5500, 42LB5600) When attaching a third-party wall mounting bracket to the TV, insert the wall mount inner spacers into the TV wall mount holes to move your TV in vertical angle. Please make sure not to use the spacers for LG wall mounting bracket. Wall Mount Inner Spacers ENGLISH MAKING CONNECTIONS 15 MAKING CONNECTIONS ••This section uses illustrations of the LB5600 series. You can connect various external devices to the TV. Supported external devices are: HD receivers, DVD players, VCRs, audio systems, USB storage devices, PC, gaming devices, and other external devices. For more information on external device’s connection, refer to the manual provided with each device. NOTE ••If you record a TV program on a DVD recorder or VCR, make sure to connect the TV signal input cable to the TV through a DVD recorder or VCR. For more information about recording, refer to the manual provided with the connected device. ••The external device connections shown may differ slightly from illustrations in this manual. ••Connect external devices to the TV regardless about the order of the TV port. ••If you connect a gaming device to the TV, use the cable supplied with the gaming device. ••Refer to the external equipment’s manual for operating instructions. Connecting to an antenna or cable Connect an antenna, cable, or cable box to watch TV. The illustrations may differ from the actual items and an RF cable is optional. UHF Antenna Antenna Coaxial (75Ω) (*Not provided) Terminal CAUTION ••Make sure not to bend the copper wire of the RF cable. Copper wire NOTE ••Complete all connections between devices, and then connect the power cord to the power outlet to prevent damage to your TV. ••Use a signal splitter to use 2 TVs or more. ••DTV Audio Supported Codec: MPEG, Dolby Digital ENGLISH VHF Antenna 16 MAKING CONNECTIONS Other connections Connect your TV to external devices. For the best picture and audio quality, connect the external device and the TV with the HDMI cable as shown. Depending upon the model, a cable may be provided. Digital Audio System Blu-Ray / HD Cable Box / HD STB / DVD / PC OPTICAL AUDIO IN HDMI USB IN ENGLISH ANTENNA / CABLE IN OPTICAL DIGITAL AUDIO OUT MHL Cable RED L WHITE VIDEO PR YELLOW PB RED WHITE Y RED BLUE GREEN (For 42/49/55 LB5500, 32/39/42 LB5600) SERVICE ONLY VIDEO/Y PB PR L/MONO AUDIO R COMPONENT IN / AV IN IN 2 (MHL) 1 USB Mobile phone R AUDIO VIDEO L/MONO AUDIO R Blu-Ray / HD Cable Box / DVD / VCR HDMI Blu-Ray / HD Cable Box / HD STB / DVD REMOTE CONTROL 17 REMOTE CONTROL The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. To install batteries, open the battery cover, replace batteries (1.5 V AAA) matching the and ends to the label inside the compartment, and close the battery cover. Failure to match the correct polarities of the battery may cause the battery to burst or leak, resulting in fire, personal injury, or ambient pollution. To remove the batteries, perform the installation actions in reverse. CAUTION ••Do not mix old and new batteries, as this may damage the remote control. This remote uses infrared light. When in use, it should be pointed in the direction of the TV’s remote sensor. (POWER) Turns the TV on or off. TV Returns to the last TV channel. CAPTION Activates or deactivates the subtitles. AV MODE Selects an AV mode. RATIO Resizes an image. - (Dash) Inserts a dash between numbers such as 2-1 and 2-2. LIST Accesses the saved channel list. FLASHBK Alternates between the two last channels selected (pressing repeatedly). FLASHBK VOL Adjusts the volume level. FAV Accesses your favorite channel list. AUDIO AUDIO D igital signal: Changes the audio language. Analog signal: Changes the MTS sound. MUTE Mutes all sounds. CH Scrolls through the saved channels. PAGE Moves to the previous or next screen. PICTURE Changes the image mode. INFO Shows information on the current program. SOUND Changes the sound mode. SETTINGS Accesses the main menu. Q.MENU Accesses the quick menu. Navigation buttons (up/down/left/right) Scrolls through menus or options. OK Selects menus or options and confirms your input. BACK Returns to the previous screen. EXIT Clears all on-screen displays and returns to TV viewing. Not functional. SLEEP Sets the length of time until the TV to turns off. Control buttons ( , , , , ) Controls the compatible devices (USB). These access special functions in some menus. ENGLISH INPUT Changes the input source. Turns the TV on if it is off. Number button Enters numbers. 18 SETTINGS SETTINGS To set up the channels automatically SETTINGS ➾ CHANNEL ➙ Auto Tuning Memorizes automatically the channels being broadcast. ••The channels will not be memorized properly if the antenna/cable is not installed correctly. ••Auto Tuning memorizes the channels that are currently being broadcast. ••If Lock System is turned on, a pop-up window will appear asking for password. To select Picture Mode ENGLISH SETTINGS ➾ PICTURE ➙ Picture Mode Select the picture mode optimized for the viewing environment or the program. ••Vivid Heightens contrast, brightness and sharpness to display vivid images. ••Standard Displays images in standard levels of contrast, brightness and sharpness. ••Eco The Energy Saver feature changes settings on the TV to reduce power consumption. ••Cinema / Game Displays the optimum picture for movie, game. ••Expert Menu for adjusting picture quality that allows experts and amateurs to enjoy the best TV viewing. This menu for adjustment is provided for ISF-certified picture tuning professionals. (ISF logo can only be used on ISF-certified TVs.) ISFccc: Imaging Science Foundation Certified Calibration Control ••Depending upon input signal, available range of picture modes may differ. ••Expert mode is for picture tuning professionals to control and fine-tune using a specific image. For normal images, the effects may not be drastic. To set advanced control SETTINGS ➾ PICTURE ➙ Picture Mode ➙ Advanced Control / Expert Control For each picture mode, screen can be calibrated; or for a special screen, picture settings can be adjusted. Select the desired Picture Mode. ••Dynamic Contrast Adjusts the contrast to the optimal level according to the image’s brightness. ••Dynamic Color Adjusts colors to make the image appear in more natural colors. ••Skin Color Skin color spectrum can be separately set to implement the skin color as defined by the user. ••Grass Color Natural color spectrum (meadows, hills, etc.) can be separately set. ••Sky Color Sky color is set separately. ••Gamma Sets the gradation curve according to the output of picture signal in relation to the input signal. ••Color Gamut Selects the range of colors that can be expressed. ••Edge Enhancer Shows clearer and distinctive yet natural edges of the video. ••Color Filter Filters a specific color spectrum in RGB colors to fine-tune color saturation and hue accurately. ••Color Temperature Adjusts the overall tone of the screen as desired. In Expert mode, detailed fine-tuning can be set via Gamma method, etc. ••Color Management System This system is used by experts to adjust color with a test pattern. They can select from six color areas (Red/ Green/Blue/ Cyan/Magenta/Yellow) without affecting other colors. For normal images, adjustments may not result in noticeable color changes. ••Depending upon input signal or other picture settings, the range of detailed items for adjustment may differ. SETTINGS To set additional picture options SETTINGS ➾ PICTURE ➙ Picture Mode ➙ Picture Option Adjusts detailed setting for images. ••Noise Reduction Eliminates noise in the picture. ••MPEG Noise Reduction Eliminates noise generated while creating digital picture signals. ••Black Level Adjusts the brightness and contrast of the screen to suit the black level. ••Real Cinema Optimizes the screen for movie viewing. ••Motion Eye Care [Depending upon model] Saves power consumption by adjusting the brightness corresponding to the movement of the image on the screen. ••Depending upon input signal or other picture settings, the range of detailed items for adjustment may differ. SETTINGS ➾ PICTURE ➙ Energy Saving Saves electric power by adjusting screen brightness. ••Off Turns off the Energy Saving. ••Minimum / Medium / Maximum Applies the pre-set Energy Saving. ••Screen Off Screen is turned off and only sound is played. Press any button on the remote control to turn the screen back on. To use TV speaker SETTINGS ➾ AUDIO ➙ TV Speaker Sound is output through the TV speaker. To set the password SETTINGS ➾ LOCK ➙ Set Password Set or change the TV password. ••The initial password is set to 0000. To set the caption SETTINGS ➾ OPTION ➙ Caption View captions when the TV station provides captioned programming. Program captions work only on digital/analog broadcasts or external input. Change Caption to On and select caption settings. ••Mode CC 1-4 (Closed Captioning) / Text 1-4: Displays the audio portion of a TV program as text on the TV screen. CC1 is the most common mode in use. Field 1 data channels: two Captions (CC1, CC2), two Text (T1, T2). Field 2 data channels: two Captions (CC3, CC4), two Text (T3, T4). Service 1-6: This is only available for the digital broadcasting system. ••Digital Option: Set up the size and color of the captions on Digital Option. Please select Set By Program or Custom. Select Custom to adjust minute options such as the captions’ size and color. ENGLISH To use Energy Saving feature 19 20 SETTINGS To return to initial settings SETTINGS ➾ OPTION ➙ Initial Setting Returns to initial default mode by deleting all optional setup. Once initialization is completed, the TV will turn off and on by itself. ••When Lock System is in place, a pop-up window appears and asks for password. ••Do not turn off the power during initialization. To remove the USB device Q.MENU ➾ Eject USB Once the message that the USB device was removed is displayed, remove the device from the TV. ••After selecting to remove USB device, the USB storage device cannot be read. Remove the USB storage device and then reconnect it. Warning when using USB storage devices ENGLISH ••USB storage devices with a built-in auto recognition program or its own driver may not work. ••Some USB storage devices may not work or may work improperly. ••Use only those USB storage devices formatted with FAT32 or NTFS File System provided by Windows. ••For external USB HDD, use devices with less than 5V-rated voltages and 500 mA-rated current. ••It is recommended to use USB flash drive with 32 GB or less and USB HDD with 2 TB or less. ••If a USB HDD with power-saving function does not work properly, turn the power off and on. For more information, refer to the user manual of USB HDD. ••Data in the USB storage device can be damaged so back up important files in other devices. Data maintenance is the user’s responsibility. The manufacturer is not responsible for data loss. SETTINGS / TO SEE THE WEB MANUAL Supported Photo Formats ••Category: jpeg, jpg [Available file type] SOF0: Baseline, SOF1: Extend Sequential, SOF2: Progressive [Photo size] Minimum: 64 x 64, Maximum: Normal Type: 15,360 (W) x 8,640 (H), Progressive Type: 1,024 (W) x 768 (H) Supported Audio Formats ••File type: mp3 [Bit rate] 32 Kbps - 320 Kbps [Sample freq.] 32 kHz - 48 kHz [Support] MPEG-1, MPEG-2, MPEG-2.5, Layer2, Layer3 21 TO SEE THE WEB MANUAL Web manual allows you to easily access detailed TV information. Go to http://www.lg.com. ENGLISH 22 SPECIFICATIONS SPECIFICATIONS Product specifications may be changed without prior notice due to upgrade of product functions. Power requirement AC 100 - 240 V ~ 50 / 60 Hz Television System ATSC, NTSC-M, 64 & 256 QAM Program Coverage VHF 2-13, UHF 14-69, DTV 2-69, CATV 1-135, CADTV 1-135 External Antenna Impedance 75 Ω Environment condition Operating Temperature 0 °C to 40 °C (32 °F to 104 °F) Operating Humidity Less than 80 % Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F) Storage Humidity Less than 85 % MODELS Dimensions (W x H x D) ENGLISH Weight With stand 731 x 480 x 208 (mm) 959 x 611 x 218 (mm) 28.7 x 18.8 x 8.1 (inches) 37.7 x 24.0 x 8.5 (inches) 731 x 437 x 56.5 (mm) 959 x 570 x 56.2 (mm) 37.7 x 22.4 x 8.5 (inches) With stand 5.9 kg (13.0 lbs) 9.5 kg (20.9 lbs) Without stand 5.7 kg (12.5 lbs) 9.2 kg (20.2 lbs) 1.1 A / 65 W 1.0 A / 100 W 49LB5500 (49LB5500-UC/UZ) 55LB5500 (55LB5500-UC/UZ) MODELS Weight 42LB5500 (42LB5500-UC/UZ) 28.7 x 17.2 x 2.2 (inches) Without stand Current Value / Power consumption Dimensions (W x H x D) 32LB550B (32LB550B-UC/UZ) With stand 1,105 x 694 x 247 (mm) 1,241 x 769 x 247 (mm) 43.5 x 27.3 x 9.7 (inches) 48.8 x 30.2 x 9.7 (inches) 1,105 x 652 x 56.5 (mm) 1,241 x 724 x 57.5 (mm) 43.5 x 25.6 x 2.2 (inches) 48.8 x 28.5 x 2.2 (inches) With stand 13.6 kg (29.9 lbs) 18.2 kg (40.1 lbs) Without stand 13.2 kg (29.1 lbs) 17.8 kg (39.2 lbs) 1.1 A / 110 W 1.3 A / 130 W Without stand Current Value / Power consumption SPECIFICATIONS MODELS Dimensions (W x H x D) Weight With stand 732 x 481 x 207 (mm) 885 x 567 x 218 (mm) 28.8 x 18.9 x 8.1 (inches) 34.8 x 22.3 x 8.5 (inches) 732 x 431 x 55.5 (mm) 885 x 524 x 55.5 (mm) 34.8 x 20.6 x 2.1 (inches) With stand 6.2 kg (13.6 lbs) 8.3 kg (18.2 lbs) Without stand 6.0 kg (13.2 lbs) 8 kg (17.6 lbs) 1.1 A / 65 W 0.9 A / 90 W MODELS Weight 39LB5600 (39LB5600-UH/UZ) 32LB5600 (32LB5600-UH/UZ) 28.8 x 16.9 x 2.1 (inches) Without stand Current Value / Power consumption Dimensions (W x H x D) 32LB560B (32LB560B-UH/UZ) With stand Without stand 42LB5600 (42LB5600-UH/UZ) 961 x 610 x 218 (mm) 37.8 x 24.0 x 8.5 (inches) 961 x 567 x 55.5 (mm) 37.8 x 22.3 x 2.1 (inches) With stand 9.5 kg (20.9 lbs) Without stand 9.2 kg (20.2 lbs) 1.0 A / 100 W ENGLISH Current Value / Power consumption 23 24 SPECIFICATIONS HDMI (PC) supported mode Resolution Horizontal Frequency (kHz) Component supported mode Vertical Frequency (Hz) 640 x 350 31.468 70.09 720 x 400 31.469 70.08 640 x 480 31.469 59.94 800 x 600 37.879 60.31 1024 x 768 48.363 60.00 1360 x 768 47.712 60.015 1152 x 864 54.348 60.053 1280 x 1024 63.981 60.02 1920 x 1080 67.50 60.00 Resolution 720 x 480i 720 x 480p 1280 x 720p 1920 x 1080i For 42/49/55LB5500, 32/39/42LB5600 1920 x 1080p HDMI (DTV) supported mode Resolution ENGLISH 720 x 480p 1280 x 720p 1920 x 1080i 1920 x 1080p Horizontal Frequency (kHz) Vertical Frequency (Hz) 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 26.97 23.976 27.00 24.00 33.71 29.97 33.75 30.00 67.432 59.94 67.50 60.00 Component port connecting information Component ports on the TV Video output ports on DVD player Y PB PR Y PB PR Y B-Y R-Y Y Cb Cr Y Pb Pr Horizontal Frequency (kHz) Vertical Frequency (Hz) 15.73 59.94 15.73 60.00 31.47 59.94 31.50 60.00 44.96 59.94 45.00 60.00 33.72 59.94 33.75 60.00 26.97 23.94 27.00 24.00 33.71 29.97 33.75 30.00 67.432 59.94 67.50 60.00 MAINTENANCE 25 MAINTENANCE Cleaning your TV Clean your TV regularly to keep it at peak performance and to extend the product’s lifespan. CAUTION ••Before cleaning, turn the power off and disconnect the power cord and all other cables. ••When the TV is left unattended or unused for a long time, disconnect the power cord from the wall outlet to prevent possible damage from lightning or power surges. Screen, frame, cabinet, and stand To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth. To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then wipe immediately with a dry cloth. Power cord Remove the accumulated dust or dirt on the power cord regularly. ENGLISH CAUTION ••Do not push, rub, or hit the surface with your fingernail or a sharp object, as this may result in scratches on the screen and image distortions. ••Do not use any chemicals, such as waxes, benzene, alcohol, thinners, insecticides, air fresheners, or lubricants, as these may damage the screen’s finish and cause discoloration. ••Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction. 26 TROUBLESHOOTING / EXTERNAL CONTROL DEVICE SETUP TROUBLESHOOTING Problem Solution ••Check if anything such as tape has been placed over the receiver. Cannot control the TV with ••Check if there is any obstacle between the product and the remote the remote control. control. ••Replace the batteries with new fresh ones. ••Check if the product is turned on. No image display and no ••Check if the power cord is connected to a wall outlet. sound is produced. ••Check if there is a problem in the wall outlet by connecting other products. ••Check the power control settings. The power supply may be interrupted. ••Check if the Off Time / Sleep Timer feature is activated in the TIME The TV turns off suddenly. settings. ••If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes of inactivity. ENGLISH EXTERNAL CONTROL DEVICE SETUP To obtain the external control device setup information, please visit www.lg.com. LG Customer Information Center For inquires or comments, visit www.lg.com or call; 1-888-542-2623 CANADA 1-800-243-0000 USA, Consumer User 1-888-865-3026 USA, Commercial User Register your product Online! www.lg.com The model and serial numbers of the TV are located on the back and on one side of the TV. Record them below should you ever need service. MODEL SERIAL This product qualifies for ENERGY STAR in the factory default (Home Use) setting. Changing the factory default settings or enabling other features may increase power consumption that could exceed the limits necessary to quality for ENERGY STAR.
