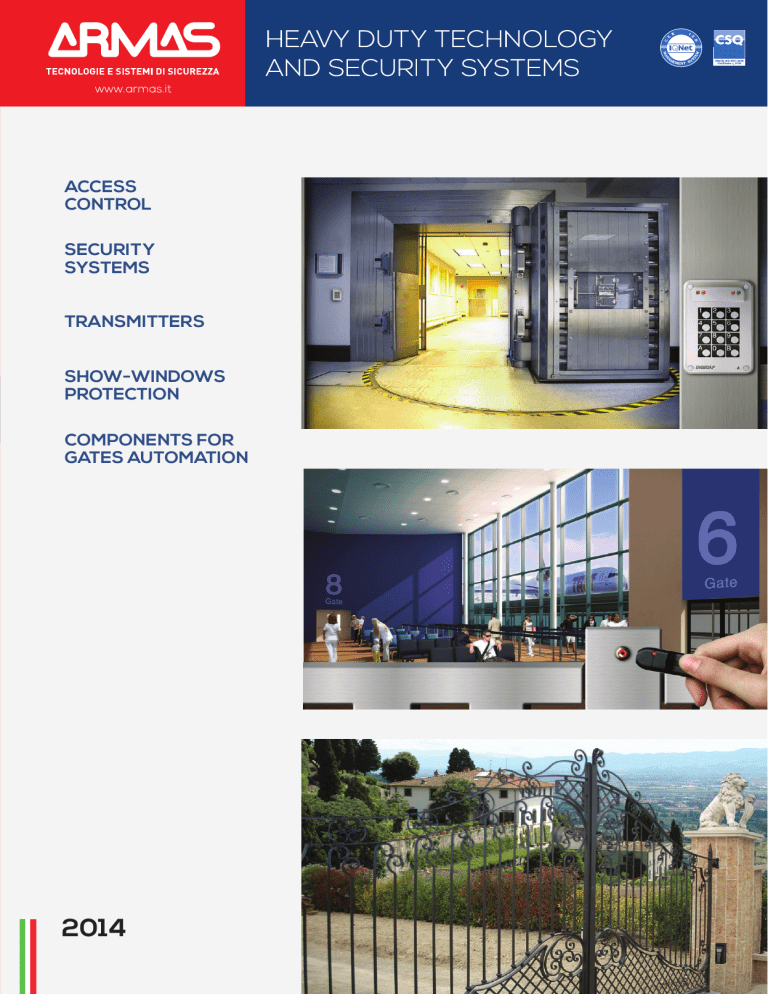

access control security systems transmitters components for gates

access control security systems transmitters components for gates
Each single keypad is made from a block of anticorodal aluminium that practically makes it chemical-proof and gives it a
mechanical strength without comparisons.
IP 67
Technical features:
IP 67
Anti-vandalism stand-alone keypad
Strong case made in anodised aluminium
2 channels, 120 codes
Code length: from 1 to 8 digits
Single code erasing
Two-colours LED free for the user
Plugs for fixing screws
Anti-tamper microswitch (device)
Easy to install
IP 65 or IP 67 version
12 ÷ 24 V ac/dc
Size: 142 x 42 x 23 mm
Technical features:
Anti-vandalism keypad
Strong case made in anodised aluminium
1 LED free for the user
Plugs for fixing screws
Easy to install
Electronic control-boxes with 1 or 2
relays: C408 and C409
Electronic circuit fully potted IP 67
12 ÷ 24 V ac/dc
Size: 126 x 42 x 20 mm
C409 two channels control-box
Technical features:
Anti-vandalism keypad
Strong aluminium anodised case
Light group provided
1 or 2 channels remote controllers, C408
and C409
Size: 120 x 80 x 16 mm
IP 67
Technical features:
Proximity reader that works together with
proximity tags and cards at 125 Khz
Stand-alone unit with 1 relay, for alarm
systems and access control
Power-supply: from 12 to 24 V ac/dc
Protection rating: IP 67
Memory up to 60 tags and cards, random
Addressed erasing and other functions
programmables by POLITOOL device
Anti-vandalism ergonomic case made in
Protection for the fixing screws
Easy to install
Dimensions : 116 x 42 x 20 mm
IP 67
Technical features:
Proximity reader that works together with
control-boxes : C408 and C409
Frequency: 125 KHz
Reading range: 5 cm
Transmission distance between reader
and control-box: up to 200 metres
1 LED multifunction
Electronic under resin, rating IP 67
Plugs for fixing screws
Power-supply: 12 - 24 V ac/dc
Dimensions : mm 92 x 23 x 15
Available also in WIEGAND protocol
Technical features:
Technical features:
Proximity tag with key ring
32 bit code
Ø 36 mm
Available on request custom colors
Proximity card with 32 bit code without
magnetic stripe.
85 x 55 mm
Active modulated infrared photocells, suitable for all types of automatic closing devices, civil and industrial.
The interruption of the infrared beam between the transmitter and the receiver activates a relay contact.
They are available in different materials, colors, size and power-supply to satisfy every possible use.
FTC 911M
FTC 920M-FTC 960M
Technical features:
Technical features:
Small size infrared photocells
with metal casing in zama
Range: 10 mt
90°orientable optic
Power supply: 12 - 24 V ac/dc
IP55 rating
dim. 25x22x130 mm
Photocell for industrial use with floor and
covering of die-cast aluminium
180x orientable optics on the horizontal axis.
Presse-cable on the lower part or
passe-rubber cable with pre-hole on the rear
Power supply: 12 V ac 24 V ac/dc
Current drain: 108mA at 24 V ac
LED of alignment signalling on the RX
Antimisting resistances in TX and Rx (only
with 24V power supply)
Emission to the infrared with continue
modulation : 1,33 Khz
Length of emission wave: 950 nM
Maxim commutable power 1A 24V ac
Dim. 130x60x52 mm
IP 66 rating
In compliance with the rules EN12453, EN
954, RoHS
Available in the versions:
FTC920M 12/24V ac/dc range 20 mt
FTC960M 12/24V ac/dc range 40 mt
FTC 981 M
Technical features:
Anti-vandalism photocells for industrial
use with cast aluminum casing
Adjustable optical 180 ° horizontally and
30 ° vertically
Very robust and resistant for heavy duty
Power supply: 12 ÷ 24 V ac / dc
Range 15 meters
Double rubber seal
Double hole for cable entry
Protection degree: IP55
Comply with EN12453, EN 954, RoHS
Dimensions: 100x45x45 mm
Available also in the version with
battery FTC 981MB
Rx power-supply: 12/24 V ac/dc
Tx power-supply: 6 V battery
Battery avarage life: 18 months
We design and manufacture security systems to protect show-windows, display cases and drawers values, following
requests customer specifications. Operating logic approved by important groups of insurance.
Technical features:
Technical features:
Alarm control-box for show-windows
It works with electronic keys and proximity
Incorporated powerful siren, 110 dB
It controls the activation of electromagnetic
locks for the opening and closing of the
shutters of the show-window
Pre-alarm open-shutter, raising tones
Relays outputs for remote alarm
key inhibitor for temporary suppression alert
Double reed contact output for the
12 V dc version on request
Wiring kit with AMP connector for
Electromagnetic lock for locking
of drawers and show-windows
Suitable for working together with
GS4, GSY and C 409 VET
Power supply 12 V dc
Dimensions 57x22x22 mm
NO TOUCH 1 Safety Protection
Photocells replacing mechanical edges that complie with EN 12453 - EN 12445
Technical features:
NO TOUCH is the first photocell
designed to replace the edges
from the bottom of sectional
doors and rolling doors and
avoid the impact of the door
with people and things!
Safety device to prevent contact for industrial
sectional doors and rolling-shutters
Patented tilting mechanism with built-in
photocell that applied in the lower part
prevents the contact with any obstacle in
accordance with new European standards
UNI-EN 12453 and UNI-EN 12445
Infrared system conforms to EN 12978
Device: Aautotest electronic control unit for No
Touch1 system check
Technical features:
Technical features:
High brightness LED flashing light 24 V ac.
Low consumption
IP 55 rating
dim. 25x22x130 mm
Miniaturized high brightness LED flashing light 24
V ac power-supply
Yellow signalling LED, orange or transparent cover
Low consumption
IP 54 rating
Dimensions: 100 x 25 x 17,5 mm
Available versions:
XLL24 STILO, with 3 different programmable
XLL24 LF, fixed light
XLD 22024L
Technical features:
Electronic flashing lights, provided with 14 LED
5 mm, yellow light, high-brightness
360 ° visibility
Power supply: 220 V ac and 24 V ac / dc on the
same circuit
Low power consumption
Selectable fixed or flashing light on the circuit
Equipped with a bracket for wall mounting in vertical position
Polycarbonate shock-proof cover
Cover color: yellow standard, on request orange or transparent
Dimensions 110x80x80mm
Technical features:
Armas/Ferport, after a
twenty-year experience in the
radio transmitters production is
strongly able to offer a very
complete range of transmitters
and receivers to meet any
Transmitters can be fitted to the
specific demands and customized with silk-screen print to
several colours.
Infra-code, codify via dip-switch or programmer, transmitters from 2 to 24 channels.
Range: 200 mt
433,92 Mhz outdoor receivers superetherodine for transmitters serie TAC KR
Monostable, bistable or timed operation working
Stainless steel antenna
IP 55
dim. 90x85x38 mm
Tuned antenna stainless steel, available in case of poor signal transmission
with bracket and RG 58 cable (4 mt)
Ferport/Armas has over 30 years been synonymous with
technology, reliability and experience in the electronics
world. Leader in the field, gather with the constant search
for innovation with a strong vocation a wide range of high
performance products designed for professional
application in the areas of access control, automation and
advanced electronics.
Since 1978, the experience and professionalism of Ferport
are the best guarantee on the products in terms of high
standards of quality, reliability, design and easy
installation, fast and without problems.
We also project photocells, control-boxes and flashing
lights for the automation of gates, industrial doors, garage
doors and so on, with several applications in security fields.
We are available to project and manufacture custom
products, according to the requests of the customers,
thanks to our technical staff and modern production line.
