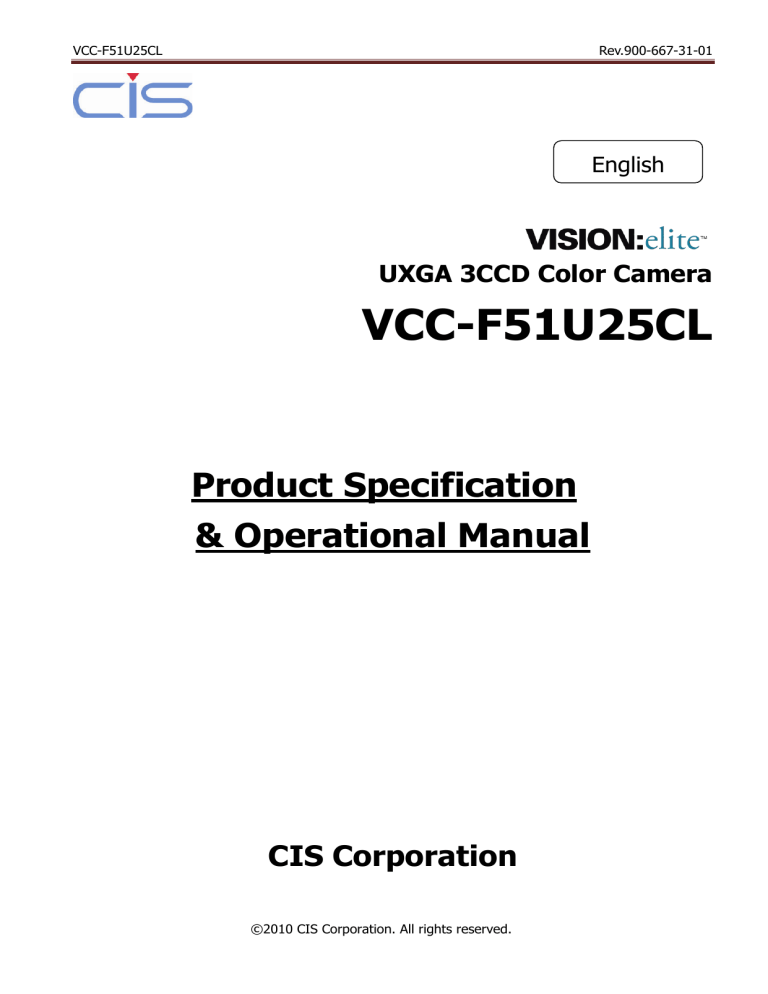

VCC-F51U25CL Rev.900-667-31-01

English

UXGA 3CCD Color Camera

VCC-F51U25CL

Product Specification

& Operational Manual

CIS Corporation

©2010 CIS Corporation. All rights reserved.

VCC-F51U25CL Rev.900-667-31-01

Table of Contents

PAGE

1.

Scope of Application ..................................................................................................................... 3

2. Handling Precautions .................................................................................................................... 3

3. Product Outline ............................................................................................................................ 5

4. Specification ................................................................................................................................ 6

4.1. General Specification .............................................................................................................. 6

4.2. Camera Output Signal Specification ........................................................................................ 8

4.3. CCD Spectral Response (Representative Value) ......................................................................... 9

4.3.1. CCD (ICX274AL) Spectral Response ...................................................................................... 9

4.3.2. Prism Spectral Transmission Characteristics ........................................................................... 9

5. Function Settings ........................................................................................................................ 10

6.

External Connector Pin Assignment .............................................................................................. 12

6.1.

12 pins Circular Connector HR10-10R-12PA (HIROSE) ............................................................. 12

6.2.

Camera Link Connector 12226-1100-00PL (SUMITOMO 3M) ................................................... 12

7.

Timing Chart ............................................................................................................................... 13

7.1.

Horizontal Synchronous Signals Timing .................................................................................. 13

7.2.

Vertical Synchronous Signals Timing ...................................................................................... 13

7.3.

Fixed Trigger Shutter Mode ................................................................................................... 14

7.4.

Pulse Width Trigger Shutter Mode .......................................................................................... 15

8.

Partial Scan Mode Details ........................................................................................................... 16

9.

Remote Interface Function ......................................................................................................... 17

10.

Initial Settings ........................................................................................................................... 18

11.

CCD Optical Axis Accuracy ......................................................................................................... 19

12.

Dimensions ............................................................................................................................... 20

13.

Cases for Indemnity (Limited Warranty) ...................................................................................... 21

14. CCD Pixel Defect........................................................................................................................ 21

15. Product Support ........................................................................................................................ 21

©2010 CIS Corporation. All rights reserved.

2

VCC-F51U25CL Rev.900-667-31-01

1. Scope of Application

This is to describe VCC-F51U25CL, 3 CCD Color Camera. All specifications contained herein are subject to change without prior notice. Reproduction in whole or in part is prohibited.

2. Handling Precautions

The camera must not be used for any nuclear equipments or aerospace equipments with which mechanical failure or malfunction could result in serious bodily injury or loss of human life. Our warranty does not apply to damages or defects caused by irregular and/or abnormal use of the product.

Please observe all warnings and cautions stated below.

Our warranty does not apply to damages or malfunctions caused by neglecting these precautions.

 Do not use or store the camera in the following extreme conditions:

 Extremely dusty or humid places.

 Extremely hot or cold places (operating temperature –5℃ to +40℃)

 Close to generators of powerful electromagnetic radiation such as radio or TV transmitters.

 Places subject to fluorescent light reflections.

 Places subject to unstable (flickering, etc.) lighting conditions.

 Places subject to strong vibration.

 Remove dust or dirt on the surface of the lens with a blower.

 Do not apply excessive force or static electricity that could damage the camera.

 Do not shoot direct images that are extremely bright (e.g., light source, sun, etc.), and when camera

is not in use, put the lens cap on.

 Follow the instructions typeapter 6, “External connector pin assignment” for connecting the camera.

Improper connection may cause damages not only to the camera but also to the connected devices.

 Confirm the mutual ground potential carefully and then connect the camera to monitors or computers. AC leaks from the connected devices may cause damages or destroy the camera.

 Do not apply excessive voltage. (Use only the specified voltage.) Unstable or improper power supply voltage may cause damages or malfunction of the camera.

©2010 CIS Corporation. All rights reserved.

3

VCC-F51U25CL Rev.900-667-31-01

 The voltage ripple of camera power DC +12V±10% shall be within ±50mV.

Improper power supply voltage may cause noises on the video signals.

 The rising time of camera power supply voltage shall be less than +10V, Max 60ms.

Please avoid noises like chattering when rising.

9

8

7

12

11

10

10 20 30 40

Voltage Rising Time [ ms]

50 60 70

In case of abnormal operation, contact the distributor from whom you purchased the product.

©2010 CIS Corporation. All rights reserved.

4

VCC-F51U25CL Rev.900-667-31-01

3. Product Outline

VCC-F51U25CL is a camera link interfaced, 3CCD high-resolution industrial color video camera module utilizing a 1/1.8 type PS IT CCD. 2M pixels CCD image sensor with on-chip micro-lenses realizes high sensitivity and high resolution. Entire pixels can be read out within approx. 1/15s.

Features

Shutter speed can be set from 1/15sec ~ 1/27,000sec by fixed switch shutter trigger, and

Pulse width trigger.

Frame rates are as follows both at normal operation and trigger operation.

15 fps at full frame scan mode

15fps ~ 43fps at partial scan mode

Trigger operation is CLK synchronized V-Sync Reset type. Delay time between capturing the trigger pulse in the camera and starting exposure is approx. 1.92μ sec (69CLK).

At trigger operation, the new trigger input can be accepted even when outputting image signals for the prior trigger input. However, the new trigger input during the exposure shall be ignored.

Please refer to the timing chart for the details.

RGB 24bit/30bit/36 bits are selectable.

Bundled Items

Camera

CIS Control Panel Software (For evaluation and demonstration purpose). ※

Please ask for the details or download it from our web.

©2010 CIS Corporation. All rights reserved.

5

VCC-F51U25CL Rev.900-667-31-01

4. Specification

4.1. General Specification

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

(9)

Item Specifications

Device Type 1/1.8 type Interline Transfer Color CCD, SONY ICX274AL

Effective Pixel Number 1628(H) × 1236(V)

Pickup device

Video output frequency

Unit Cell Size

Chip Size

Pixel Clock

Horizontal Frequency

4.40μm(H) × 4.40μm(V)

8.50mm(H) × 6.80mm(V)

36 MHz

18.750 KHz Pixel Clock: 1920 CLK

Vertical Frequency Full Frame

Scan Mode

Scanning

Lines

1252 H

14.976 Hz

Internal Sync. System

Camera Link(Base Configuration or Medium Configuration)

Sync. system

Video output standard

Resolution

Resolving power

1200TV lines

RGB 24bit(Base Configuration) or RGB 30bit/36bit (Medium Configuration) selectable

Sensitivity F8.0 2000lx (Shutter speed 1/15s(OFF), Gain 0dB)

Minimum illumination F1.4 40lx (Shutter speed 1/15s(OFF), Gain +12dB)

Dust or stains in optical system

No dust or stain shall be detected on the testing screen with setting the camera aperture at F16.

(10)

Power requirements DC+12V±10% (Max voltage not to exceed 15V.)

(11)

Power consumption

5.0W (At DC+12V IN, normal mode, and full frame scan.)

5.5W (At DC+12V IN, normal mode, and partial scan mode.)

(12)

Dimension

(13)

Mass

Refer to overall dimension drawing (Clause 12)

H:55mm W:55mm D:60mm (excluding projection)

Approx. 210g

(14)

(15)

(16)

(17)

Lens mount

White balance

C mount (Refer to overall dimension drawing )

Optical axis accuracy Refer to drawing for CCD Optical Axis Accuracy (Clause 11)

Gain variable range

0dB~+12dB (Guaranteed range)

2800K~9000K (Guaranteed range) adjustment guaranteed range

(18)

Shutter speed variable range

Fixed Shutter: 1/15(Off), 1/30, 1/60, 1/90, 1/120, 1/200, 1/250, 1/500, 1/750,

1/1,000, 1/1,500, 1/2,500, 1/5,000, 1/10,000, 1/27,000s

Pulse Width: 1/7.5~1/9,000s (Trigger input pulse width: 2504H (max)~2H (min))

Manual Shutter: 1/15(Off)~1/27000s

(19)

Trigger shutter mode ・Fixed Trigger Shutter Mode ・Pulse Width Trigger Mode

©2010 CIS Corporation. All rights reserved.

6

VCC-F51U25CL Rev.900-667-31-01

Item Specifications

(20)

(21)

(22)

Safety/Quality standards

Durability

Operation environment

(23)

Storage environment

UL: Conform to UL Standard including materials and others.

RoHS: Conform to RoHS

CE: Conform to EN55022:2006 (Class A) for Emission

EN61000-6-2:2005 for Immunity

FCC: To be applied

Conform to FCC Class A digital Device

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Acceleration : 21.6m/s

2

(2.2G)

Vibration

Frequency

: 7~30 Hz (Frequency varies every 5 minutes.

It shall be tested 15 minutes each for 3 directions.)

Shock

Direction : X,Y,Z 3 directions

Testing time : 15 min for each direction

No malfunction shall be occurred with 490m/s

2

(50G) for X, Y, Z direction. (without package)

Performance guaranteed: 0℃~+40℃

Temperature

Operation guaranteed: -5℃~+45℃

Spec ifications specified in this manual are guaranteed under performance guaranteed temperature.

Humidity

Camera functions can operate normally under operation guaranteed temperature.

RH 20~80% with no condensation

Temperature -25℃ ~ +60℃

Humidity

RH 20~80% with no condensation

©2010 CIS Corporation. All rights reserved.

7

VCC-F51U25CL Rev.900-667-31-01

4.2. Camera Output Signal Specification

Item Specifications

(1) Video output data Video out

(2) Sync. Signal I/O

1624(H) × 1224(V) At Full Frame Scan Mode

HD(LVAL)

VD(FVAL)

6 pin

7 pin

WEN(DVAL)

10pin

EXP(Exposure) :9 pin

12pins circular connector (TTL Output)

HR10-10R-12PA (HIROSE)

LVAL

FVAL

Camera Link Output (LVDS)

12226-1100-00PL(SUMITOMO 3M)

DVAL

SP(Exposure)

Polarity Positive/Negative Selectable

(3) Trigger input

(4) Serial communication

(5) Video output signal

Trigger Input

11pin

12pins circular connector (TTL Input)

CC1 Camera Link Input (LVDS)

SerTC (Serial to camera) Camera Link Input (LVDS)

Camera Link Output (LVDS) SerTFG (Serial to frame grabber)

White Clip Level

Setup Level

Dark Shading

At Digital 8bit : FFh

At Digital 8bit : 08h

At Digital 8bit

: Under 08h±04h for both horizontal and vertical.

(Conditions: Gain 0dB)

5 seconds shall be waited after turning on power to get proper camera operation.

+5.0V(VCC)

HD74LV1GT32ACME

(RENESA)

Voh:3.8V(Min)

Vol:0.55V(Max)

HD74LV1GT14ACME

(RENESAS)

Vt-:0.5(Min)

Vt+:1.9V(Max)

100Ω

100Ω

12pins circular connector at rear, GPIO Interface

TTL Output

TTL Input

©2010 CIS Corporation. All rights reserved.

8

VCC-F51U25CL Rev.900-667-31-01

4.3 . CCD Spectral Response (Representative Value)

4.3.1. CCD (ICX274AL) Spectral Response

Lens characteristics, IR cut filter, and luminous source characteristics are not considered.

4.3.2. Prism Spectral Transmission Characteristics

©2010 CIS Corporation. All rights reserved.

9

VCC-F51U25CL Rev.900-667-31-01

5. Function Settings

Camera functions can be set with serial data communications.

Functions

Gain

E-Shutter

White Balance

Trigger Mode

Manual Shutter Control

Trigger Polarity

Trigger Input

Address Data

001 0: 0 dB : Analog Fixed Gain

1: + 3 dB : Analog Fixed Gain

2: + 6 dB : Analog Fixed Gain

3: + 12 dB : Analog Fixed Gain

4: Manual Gain : over 0dB~+12dB (Refer to address 005&006.)

002

0: 1/15s(Off)

1: 1/30s

2: 1/60s

3: 1/90s

4: 1/120s

5: 1/150s

6: 1/200s

7: 1/250s

8: 1/500s

9: 1/750s

10: 1/1000s

11: 1/1500s

12: 1/2500s

13: 1/5000s

14: 1/10000s

15: 1/27000s

16: Manual Shutter (Refer to address 009&010.)

003 0: THUR

1: 3200K

2: THUR

3: THUR

4: Manual White Balance : Adjustment guaranteed range: over 2800K

9000K (Refer to address 156&157, and 158&159)

004 0: Normal Shutter Mode (Trigger Off)

1: Fixed Trigger Shutter Mode

(Shutter speed can be set with address 002.)

2: Pulse Width Trigger Shutter Mode

(Shutter speed can be set with trigger pulse width.)

009&010 0~1251: 1/15s(Off) ~ 1/27,000s

Set the data of address 002 to 016.

Address 009 MSB and address 010 LSB makes 16bit in total.

011

012

Shutter speed = (1251 - (009&010))×53.33μ s+37.06μ s

Max Data = 1251

0: Positive Input

1: Negative Input

0: Camera Link (CC1) Input

1: 12pin Connector(11pin) Input

©2010 CIS Corporation. All rights reserved.

10

VCC-F51U25CL Rev.900-667-31-01

Functions

Output Data Select

Gamma Mode

Address Data

0: RGB 24bit Output Data

013

014

1: RGB 30bit Output Data

2: RGB 36bit Output Data

0: Gamma Off(1.0)

1: Gamma On (Option)

Partial Scan Mode

Manual White Balance R

Manual White Balance B

Data Save

015

Partial Scan Start Position 016&017

156&157

158&159

255

0: Full Frame Scan Mode

1: Partial Scan Mode

0~407:

Set the data of address 015 to 001.

Address 016 MSB and address 017 LSB makes 16bit in total.

Partial Scan Effective Line 019&020

Partial Scan Total Line

Manual Analog Gain

Digital Gain G

Start Position:3 H/step Min Data:0(0 H) / Max Data:407(1221 H)

Start Position(016&017) + Effective Line(019&020) <= 407

0~407:

Set the data of address 015 to 001.

Address 019 MSB and address 020 LSB makes 16bit in total.

Effective Line:3 H/step Min Data:0(3 H) / Max Data:407(1224 H)

021&022

Start Position(016&017) + Effective Line(019&020) <= 407

0~1251:

Read Only

Total line numbers at Partial Scan Mode or at Full Frame Scan Mode minus 1H will be set.

030&031 0~512:

0:0dB ~ 512: over +12dB (Log Linear)

Set the data of address 001 to 004.

128&129 256~512:

256:×1(0dB) ~ 512:×2(+6dB)

256~1024: 256:×1(0dB) ~ 1024:×4(+12dB)

Set the data of address 003 to 004.

256~1024: 256:×1(0dB) ~ 1024:×4(+12dB)

Set the data of address 003 to 004.

Input 083 or 053 to save the data to EEP-ROM.

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

©2010 CIS Corporation. All rights reserved.

11

VCC-F51U25CL

6. External Connector Pin Assignment

6.1. 12 pins Circular Connector HR10-10R-12PA (HIROSE)

Pin No.

1

2

3

4

5

6

7

8

GND

Power In DC +12V

GND

NC

GND

HD(LVAL) Output

VD(FVAL) Output

GND

9 EXP(Exposure) Output

10 WEN(DVAL) Output

11 Trigger Input

12 GND

6.2. Camera Link Connector 12226-1100-00PL (SUMITOMO 3M)

13

CL

1

26

14

RGB 24bit Output

(Base Configuration)

RGB 30bit/36bit

(Medium Configuration)

Pin No.

1

2

3

4

9

10

11

5

6

7

8

12

13

GND

X0-

X1-

X2-

Xclk-

X3-

SerTC+

SerTFG-

CC1-

CC2+

CC3-

CC4+

GND

Pin No.

14

15

16

17

18

19

20

21

22

23

24

25

26

GND

X0+

X1+

X2+

Xclk+

X3+

SerTC-

SerTFG+

CC1+

CC2-

CC3+

CC4-

GND

©2010 CIS Corporation. All rights reserved.

12

Rev.900-667-31-01

VCC-F51U25CL

7. Timing Chart

7.1. Horizontal Synchronous Signals Timing

Video Output

LVAL Output

DVAL Output

FVAL Output

296 CLK

296 CLK

1 CLK

7.2. Vertical Synchronous Signals Timing

Full Frame Scan Mode

1920 CLK

1624 CLK

Video Output

CLK 36MHz

Rev.900-667-31-01

(CCD Read Out Signal)

LVAL Output

12

51

12

52 1 2 3 4 5 6 7 8 9 10 11 12 28 29 30 31 32 33 34 35 36 37 38 39 40

12

19

12

20

12

21

12

22

12

23

12

24

12

25

12

26

12

27

12

28

12

29

12

51

12

52 1 2 3

DVAL Output

FVAL Output

9H(V Sync)

28H

19H(Back proch)

24H

(Active Line Margin)

Total = 1252H

1200H

(Active Line)

©2010 CIS Corporation. All rights reserved.

13

VCC-F51U25CL

7.3. Fixed Trigger Shutter Mode

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 1.92μ s .

Trigger input can be accepted even when the camera is outputting video signals.

However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, cannot be worked. To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

Trigger input during the execution of exposure (exposure time) shall be ignored.

(Refer to the “G” below.)

(Trigger Input)

19H

1224H

Video Output

LVAL Output

DVAL Output

FVAL Output

(CCD Read out signal)

1 9

(Trigger Input)

29

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output

Delay(Fixed)

(Exposure Signal)

1243H b Exposure Time

1252

Rev.900-667-31-01 a b

1.92μ s nHD × 53.33μ s + 37.06μ s

(E) (F)

Trigger invalid

(G)

(Trigger Input )

SP Output

(Exposure Signal)

Video Output

Exposure Time ( Register Set Value)

(E)

Exposure Time

(F)

(Register Set Value)

( Exposure Time )

(B)

(B)

(F)

DVAL Output

©2010 CIS Corporation. All rights reserved.

14

VCC-F51U25CL Rev.900-667-31-01

7.4. Pulse Width Trigger Shutter Mode

Trigger operation is CLK sync, V-Sync Reset.

Delay time, from detecting the trigger edge to starting exposure, is 1.92μ s .

Delay time, from detecting the trigger edge to completing exposure, is 29.13μ s.

Trigger input can be accepted even when the camera is outputting video signals.

However, a shutter timing, to start the next video output before completion of transferring video output for the prior signals, cannot be worked. Please refer to the “C” below.

To input trigger signals when the camera is outputting video signals for the prior signals, it shall be synchronized with the down edge of camera LVAL output.

(Trigger Input)

Video Output

LVAL Output

DVAL Output

FVAL Output

(CCD Read

Out Signal)

1 9

(Trigger Input)

19H

(Sub Pulse)

(CCD Read Out Signal)

3

CLK

66

CLK a

SP Output

Delay(Fixed)

(Exposure Signal)

29

1224H

1243H

Exposure Time

953

CLK b

450

CLK

Delay(Fixed)

1252 a b

1.92μ s

38.97μ s

(A)

(B)

Trigger invalid

(C) (D)

(Trigger Input)

SP Output

(Exposure Signal)

(Exposure Time)

Exposure Time

(Pulse Width)

( Pulse Width )

Exposure Time

(Pulse Width)

(B)

(Video Output (C))

(A) (B)

(D)

Video Output

DVAL Output

©2010 CIS Corporation. All rights reserved.

15

VCC-F51U25CL

8. Partial Scan Mode Details

Capturing start position and capturing width can be set by 3H via LAN.

1252 H

1224 H

Video Output

( Normal Scan )

19 H

FVAL Output

( Normal Scan )

9 H

Rev.900-667-31-01

VIDEO Output

( Partial Scan )

High Speed

Transmit Term

19 H +

Y Offset

(

Starting Position

Address & 017 )

Effective Line

( Address 019 & 020 ) × 3 + 3 H

High Speed

Transmit Term

FVAL Output

( Partial Scan )

9 H

Total Line ( Address 021 & 022 ) + 1 H

Reading out position register (Address 016&017) : 0(0 H)~407(1221 H) 3 H/step

Effective line register (Address 019&020) : 0(3 H)~407(1224 H) 3 H/step

Total line register (Address 021&022) : 435 H + (Effective Line register × 2) + 2 (Read Only)

Note: Reading out position and effective lines shall meet the following condition.

Reading out position register + Effective line register =< 407

Otherwise, the value, 407 – reading out position register, will be set to the effective line register.

<Example 1> Conditions: Reading out position register (Address 016 & 017) = 000

Effective line register

(Address 019&020)

Effective Lines Total Line register

+ 1H

Frame rate

255

341

0

159

407

3 H

480 H

768 H

1026 H

1224

438 H

756 H

948 H

1120 H

1252 H

43 fps

25 fps・

20 fps

17 fps

15 fps

©2010 CIS Corporation. All rights reserved.

16

VCC-F51U25CL Rev.900-667-31-01

9. Remote Interface Function

Through serial port of camera link connector, the camera can be controlled.

(1) The settings for RS-232C

Baud rate

Data

Stop bit

Parity

XOn/XOff

: 9600bps

: 8bit

: 1bit

: None

: Not controlled

(2) Control code

The total control code is 14 bits, which conforms to ASCII code.

The control code consists of camera No. process code, remote controller address, remote controller data, and CR. Execute Read/Write through PC, and the camera will reply the data.

1 2 3 4 5 6

Camera No.

7th Byte

Process code

000000: fixed “R” Read mode

“W” Write mode

“C” Camera mode

8 9 10

Remote controller address

Please refer to the address table of

Section 5., Function

Settings.

11 12 13 14

Remote controller data CR

000~255

0 Dh

Camera No. is fixed with 6 bite numerical strings, “000000”.

Process code

Input any one of R, W, or C to the process code.

R (read mode) is to read the data of remote controller address.

Please be noted to set any dummy data (000~255) to 11 th

~13 th

, since a command shall consists of 14 bytes.

W (write mode) is to write the data to the remote controller address.

Please be noted that the data cannot be saved into EEPROM of the camera.

(Reboot the camera, and the data is reset to the initial setting.)

To save the data into EEPROM, please refer to Section 5., Function Settings.

C is the code to send the data back from the camera.

Note: Do not set code C when sending the data from PC side.

©2010 CIS Corporation. All rights reserved.

17

VCC-F51U25CL Rev.900-667-31-01

Remote controller address

Note: Do not write the data into the address other than specified, since it may cause the damages or malfunction of the camera.

Remote controller data

Set the decimal number (000~255) for the remote controller data. Please be noted to set any dummy data at read control mode.

CR

Be sure to input “CR” to confirm the end of the command.

Note: When setting the data with 2 Byte, High Byte shall be set first, then Low Byte to the next.

The camera rewrites the internal resister when receiving Low Byte.

10. Initial Settings

Function

Gain

E-Shutter

White Balance

Trigger Mode

Trigger Polarity

Trigger Input

Output Data Select

Gamma Mode

Partial Scan Mode

Partial Scan Total Line

Address Data

001

002

003

004

011

0: 0 dB

0: 1/15s(Off)

1: 3200K

0: Normal Shutter Mode (Trigger Off)

0: Positive Input

012

013

014

015

0: Camera Link (CC1) Input

0: 24bit RGB Output Data

0: Gamma OFF (1.0)

0: Full Frame Scan Mode

021&022 1251: Read Only

©2010 CIS Corporation. All rights reserved.

18

VCC-F51U25CL Rev.900-667-31-01

11. CCD Optical Axis Accuracy

Datum Plane B

55

1.5

Inclination of optical axis

to datum plane B

90

°±

0.

± r

.5

U

Inclination of optical

axis to datum plane A

Datum Plane A

The center of effective pixels shall be within 0.6 phai to the center of lens mount.

= ta he

T

±

0.

Inclination of effective pixels theta to datum plane A.

Theta shall be under ±0.5°

Datum Plane A

*)Dimensions from datum plane A to the center of the lens mount

60

910-010-00-00

(Unit:mm)

6.3

©2010 CIS Corporation. All rights reserved.

19

VCC-F51U25CL

12. Dimensions

Rev.900-667-31-01

4-M3

Depth 4

55

28

±0.1

C M ou nt (

*)

0 -0

1.5

60

3 CCD

2 MEGA PIXEL

6.3

4-M3

Depth 4

4.5

±0.1

52

Product Name

Label Position

CL1

CL2

DC IN

*) C Mount screws comply with ANSI/ASME B1.1, 1-32U (2B).

*) Screw length from C mount lens surface shall be under 4.5mm. And protruding portion shall be less than 4.5mm.

999-502-00-02

(Unit :mm)

©2010 CIS Corporation. All rights reserved.

20

VCC-F51U25CL Rev.900-667-31-01

13. Cases for Indemnity (Limited Warranty)

We shall be exempted from taking responsibility and held harmless for damage or losses incurred by the user in the following cases.

 In case damage or losses are caused by fire, earthquake, or other acts of God, acts by third party, deliberate or accidental misuse by the user, or use under extreme operating conditions.

 In case indirect, additional, consequential damages (loss of business interests, suspension of business activities) are incurred as result of malfunction or non-function of the equipment, we shall be exempted from responsibility for such damages.

 In case damage or losses are caused by failure to observe the information contained in the instructions in this product specification & operation manual.

 In case damage or losses are caused by use contrary to the instructions in this product specification & operation manual.

 In case damage or losses are caused by malfunction or other problems resulting from use of equipment or software that is not specified.

 In case damage or losses are caused by repair or modification conducted by the customer or any unauthorized third party (such as an unauthorized service representative).

 Expenses we bear on this product shall be limited to the individual price of the product.

14. CCD Pixel Defect

CCD pixel defects might be noted with time of usage of the products.

Cause of the CCD pixel defects is the characteristic phenomenon of CCD itself and CIS is exempted from taking any responsibilities for them.

15. Product Support

When defects or malfunction of our products occur, and if you would like us to investigate on the cause and repair, please contact your distributors you purchased from to consult and coordinate.

©2010 CIS Corporation. All rights reserved.

21

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
