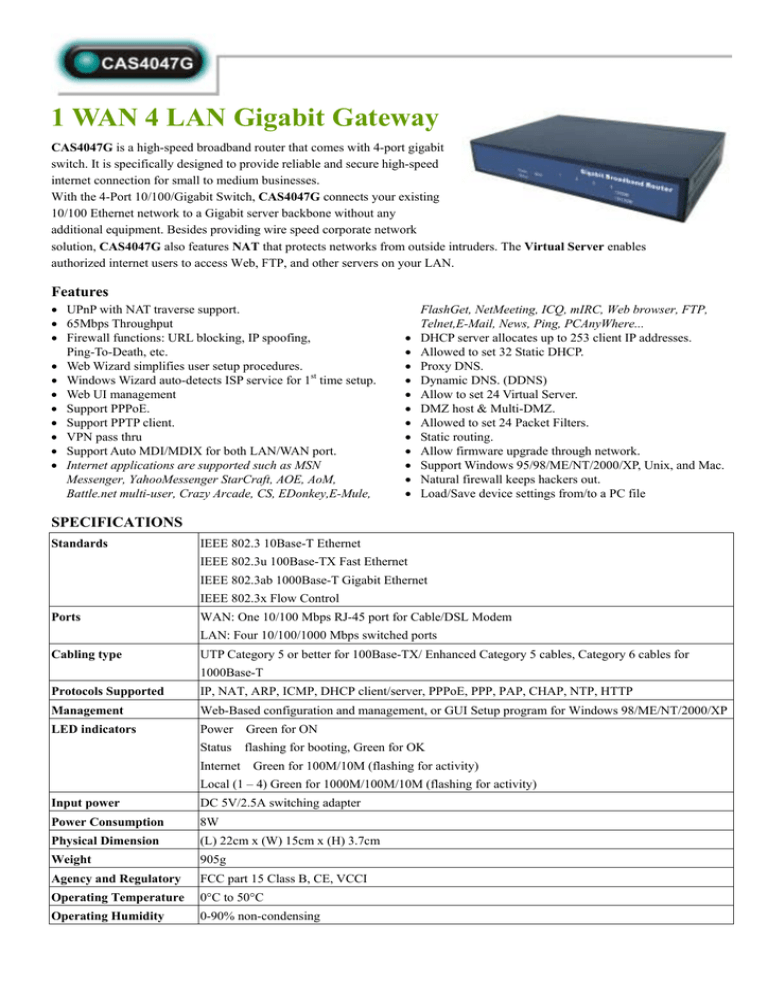

1 WAN 4 LAN Gigabit Gateway
CAS4047G is a high-speed broadband router that comes with 4-port gigabit
switch. It is specifically designed to provide reliable and secure high-speed
internet connection for small to medium businesses.
With the 4-Port 10/100/Gigabit Switch, CAS4047G connects your existing
10/100 Ethernet network to a Gigabit server backbone without any
additional equipment. Besides providing wire speed corporate network
solution, CAS4047G also features NAT that protects networks from outside intruders. The Virtual Server enables
authorized internet users to access Web, FTP, and other servers on your LAN.
Features
• UPnP with NAT traverse support.
• 65Mbps Throughput
• Firewall functions: URL blocking, IP spoofing,
Ping-To-Death, etc.
• Web Wizard simplifies user setup procedures.
• Windows Wizard auto-detects ISP service for 1st time setup.
• Web UI management
• Support PPPoE.
• Support PPTP client.
• VPN pass thru
• Support Auto MDI/MDIX for both LAN/WAN port.
• Internet applications are supported such as MSN
Messenger, YahooMessenger StarCraft, AOE, AoM,
Battle.net multi-user, Crazy Arcade, CS, EDonkey,E-Mule,
•
•
•
•
•
•
•
•
•
•
•
•
FlashGet, NetMeeting, ICQ, mIRC, Web browser, FTP,
Telnet,E-Mail, News, Ping, PCAnyWhere...
DHCP server allocates up to 253 client IP addresses.
Allowed to set 32 Static DHCP.
Proxy DNS.
Dynamic DNS. (DDNS)
Allow to set 24 Virtual Server.
DMZ host & Multi-DMZ.
Allowed to set 24 Packet Filters.
Static routing.
Allow firmware upgrade through network.
Support Windows 95/98/ME/NT/2000/XP, Unix, and Mac.
Natural firewall keeps hackers out.
Load/Save device settings from/to a PC file
SPECIFICATIONS
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
IEEE 802.3x Flow Control
Ports
WAN: One 10/100 Mbps RJ-45 port for Cable/DSL Modem
LAN: Four 10/100/1000 Mbps switched ports
Cabling type
UTP Category 5 or better for 100Base-TX/ Enhanced Category 5 cables, Category 6 cables for
1000Base-T
Protocols Supported
IP, NAT, ARP, ICMP, DHCP client/server, PPPoE, PPP, PAP, CHAP, NTP, HTTP
Management
Web-Based configuration and management, or GUI Setup program for Windows 98/ME/NT/2000/XP
LED indicators
Power Green for ON
Status
flashing for booting, Green for OK
Internet Green for 100M/10M (flashing for activity)
Local (1 – 4) Green for 1000M/100M/10M (flashing for activity)
Input power
DC 5V/2.5A switching adapter
Power Consumption
8W
Physical Dimension
(L) 22cm x (W) 15cm x (H) 3.7cm
Weight
905g
Agency and Regulatory
FCC part 15 Class B, CE, VCCI
Operating Temperature
0°C to 50°C
Operating Humidity
0-90% non-condensing
