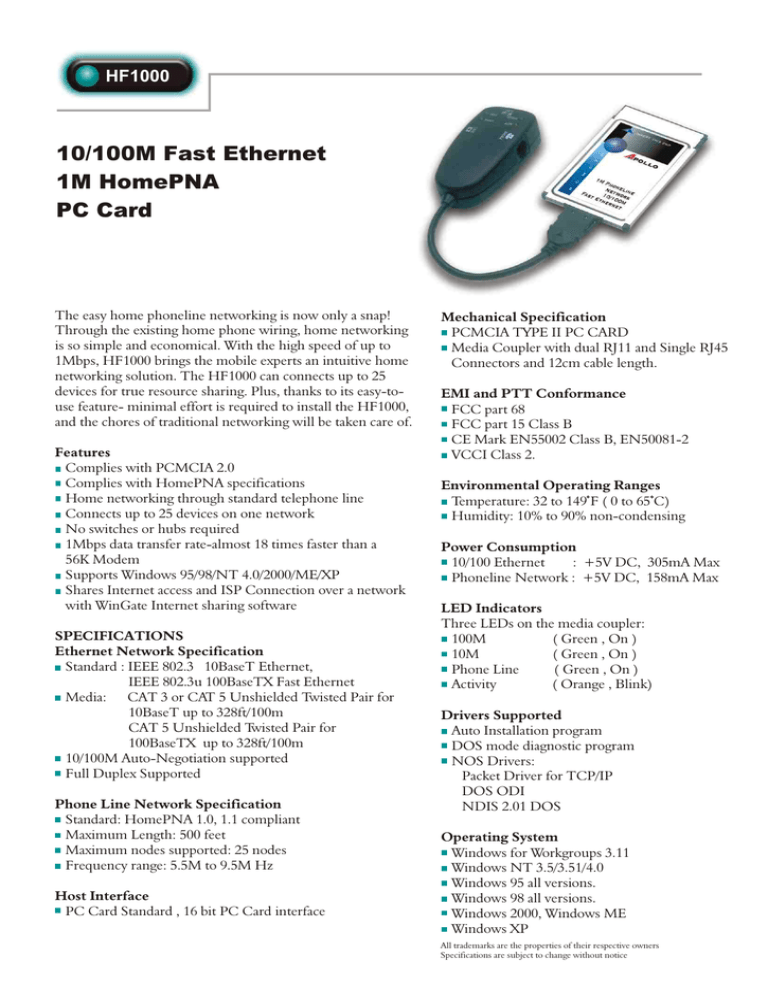

HF1000
10/100M Fast Ethernet
1M HomePNA
PC Card
The easy home phoneline networking is now only a snap!
Through the existing home phone wiring, home networking
is so simple and economical. With the high speed of up to
1Mbps, HF1000 brings the mobile experts an intuitive home
networking solution. The HF1000 can connects up to 25
devices for true resource sharing. Plus, thanks to its easy-touse feature- minimal effort is required to install the HF1000,
and the chores of traditional networking will be taken care of.
Features
Complies with PCMCIA 2.0
Complies with HomePNA specifications
Home networking through standard telephone line
Connects up to 25 devices on one network
No switches or hubs required
1Mbps data transfer rate-almost 18 times faster than a
56K Modem
Supports Windows 95/98/NT 4.0/2000/ME/XP
Shares Internet access and ISP Connection over a network
with WinGate Internet sharing software
SPECIFICATIONS
Ethernet Network Specification
Standard : IEEE 802.3 10BaseT Ethernet,
IEEE 802.3u 100BaseTX Fast Ethernet
Media: CAT 3 or CAT 5 Unshielded Twisted Pair for
10BaseT up to 328ft/100m
CAT 5 Unshielded Twisted Pair for
100BaseTX up to 328ft/100m
10/100M Auto-Negotiation supported
Full Duplex Supported
Phone Line Network Specification
Standard: HomePNA 1.0, 1.1 compliant
Maximum Length: 500 feet
Maximum nodes supported: 25 nodes
Frequency range: 5.5M to 9.5M Hz
Host Interface
PC Card Standard , 16 bit PC Card interface
Mechanical Specification
PCMCIA TYPE II PC CARD
Media Coupler with dual RJ11 and Single RJ45
Connectors and 12cm cable length.
EMI and PTT Conformance
FCC part 68
FCC part 15 Class B
CE Mark EN55002 Class B, EN50081-2
VCCI Class 2.
Environmental Operating Ranges
Temperature: 32 to 149 F ( 0 to 65 C)
Humidity: 10% to 90% non-condensing
Power Consumption
10/100 Ethernet
: +5V DC, 305mA Max
Phoneline Network : +5V DC, 158mA Max
LED Indicators
Three LEDs on the media coupler:
100M
( Green , On )
10M
( Green , On )
Phone Line
( Green , On )
Activity
( Orange , Blink)
Drivers Supported
Auto Installation program
DOS mode diagnostic program
NOS Drivers:
Packet Driver for TCP/IP
DOS ODI
NDIS 2.01 DOS
Operating System
Windows for Workgroups 3.11
Windows NT 3.5/3.51/4.0
Windows 95 all versions.
Windows 98 all versions.
Windows 2000, Windows ME
Windows XP
All trademarks are the properties of their respective owners
Specifications are subject to change without notice
