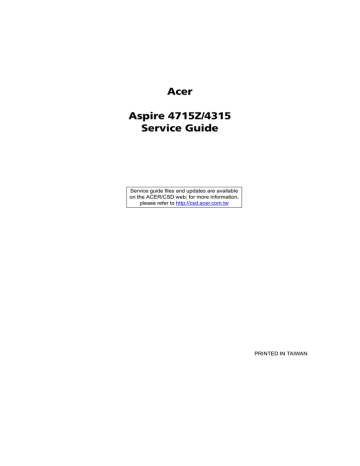

Acer
Aspire 4715Z/4315
Service Guide
Service guide files and updates are available
on the ACER/CSD web; for more information,
please refer to http://csd.acer.com.tw
PRINTED IN TAIWAN
Revision History
Please refer to the table below for the updates made on Travelmate 4715Z/4315 service guide.
Date
ii
Chapter
Updates
Copyright
Copyright © 2007 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.
iii
Disclaimer
The information in this guide is subject to change without notice.
Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.
Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Celeron is a registered trademark of Intel Corporation.
Core Duo and Core 2 Duo are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.
iv
Conventions
The following conventions are used in this manual:
SCREEN
MESSAGES
Denotes actual messages that appear on screen.
NOTE
Gives bits and pieces of additional information related to the current topic.
WARNING
Alerts you to any damage that might result from doing or not doing specific
actions.
CAUTION
Gives precautionary measures to avoid possible hardware or software
problems.
IMPORTANT
Reminds you to do specific actions relevant to the accomplishment of
procedures.
v
Preface
Before using this information and the product it supports, please read the following general information.
vi
1.
This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.
2.
Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.
Table of Contents
System Specification
Features
Your Acer Notebook Tour
Front View
Closed Front View
Left View
Right View
Rear Panel
Bottom Panel
Indicators
Easy-launch Buttons
Touchpad
Touchpad Basics
Using the Keyboard
Lock Keys and Embedded Numeric Keypad
Windows Keys
Hotkeys
Special Keys
Using the System Utilities
Acer Empowering Technology
Empowering Technology Password
Acer eNet Management
Acer ePower Management
Acer ePresentation Management
Acer eDataSecurity Management (for selected models)
Acer eLock Management
Acer eRecovery Management
Acer eSettings Management
Windows Mobility Center
Acer GridVista (dual-display compatible)
Launch Manager
Norton Internet Security
Hardware Specifications and Configurations
System Utilities
BIOS Setup Utility
Entering BIOS Setup
BIOS Setup Primary Menus
BIOS Setup Navigation Keys
Information Menu
Main Menu
Security Menu
Clearing the Supervisor or User Password
Boot Menu
Exit Menu
BIOS Recovery
Machine Disassembly and Replacement
Disassembly Requirements
General Information
Pre-disassembly Instructions
Disassembly Process
1
1
3
3
4
4
5
5
6
7
8
9
9
11
11
12
13
14
15
15
15
16
18
20
21
22
23
24
25
26
27
27
28
35
35
35
35
35
36
37
38
39
41
42
43
45
45
46
46
47
vii
External Module Disassembly Process
External Modules Disassembly Flowchart
Removing the Battery Pack
Removing the Express Dummy Card
Removing the Lower Cover
Removing the DIMM
Removing the WLAN Board Module
Removing the Hard Disk Drive Module
Removing the Optical Drive Module
Main Unit Disassembly Process
Main Unit Disassembly Flowchart
Removing the CPU Heatsink Module
Removing the CPU
Removing the Keyboard
Removing the Middle Cover
Removing the LCD Module
Separating the Upper Case from the Lower Case
Removing the Speaker Modules
Removing the Launch Board Bracket
Removing the Touchpad Board Module
Removing the Audio Board
Removing the USB Board
Removing the Mainboard
Removing the Modem Board
Removing the RTC Battery
LCD Module Disassembly Process
LCD Module Disassembly Flowchart
Removing the LCD Bezel
Removing the Camera Board
Removing the Inverter Board
Removing the LCD with Brackets
Removing the LCD Brackets
Removing the LCD Module Hinges
Removing the Antenna
Removing the Microphone
Troubleshooting
System Check Procedures
External CD/DVD-ROM Drive Check
Keyboard or Auxiliary Input Device Check
Memory Check
Power System Check
Touchpad Check
Power-On Self-Test (POST) Error Message
Index of Error Messages
Phoenix BIOS Beep Codes
Index of Symptom-to-FRU Error Message
Intermittent Problems
Undetermined Problems
System Block Diagram and Connector Locations
System Block Diagram
Board Layout
Top View
Bottom View
viii
48
48
49
49
50
51
52
53
54
56
56
57
58
59
60
61
63
65
66
67
68
70
71
72
74
76
76
77
78
79
80
83
83
84
85
87
88
88
88
88
89
90
91
92
94
98
102
103
105
105
106
106
107
Hardware Gap Setting
108
FRU (Field Replaceable Unit) List 109
Aspire 4715Z/4315 Exploded Diagram
Aspire 4715Z FRU List (No: LX.AL40C.013)
Aspire 4715Z FRU List (No: LX.AL10Y.001/003/015)
Aspire 4315 FRU List (No: LX.AKZ0C.007)
Model Definition and Configuration
Aspire 4715Z/4315
Test Compatible Components
Microsoft® Windows® Vista™ Compatibility Test
Online Support Information
110
111
119
127
136
136
137
138
143
ix
x
Chapter 1
System Specification
Features
Below is a brief summary of the computer’s many feature:
Platform
T
T
Intel® Pentium® processor T2310/T2330 (1 MB L2 cache, 1.46/1.60 GHz, 533 MHz FSB) or
Celeron® processor 530/540/550 (1 MB L2 cache, 1.73/1.86/2 GHz, 533 MHz FSB) supporting
Intel 64 architecture
Mobile Intel GL960 Express chipset
Display and Graphics
T
14.1" WXGA high brightness (200-nits) Acer CrystalBrite™ TFT LCD, 1280 x 800 pixel resolution, 16 ms
response time, supporting simultaneous multi-window viewing via Acer GridVista™
T
Mobile Intel GL960 Express Chipset with integrated 3D graphics, featuring Intel Graphics Media
Accelerator (GMA) X3100 with up to 358 MB of Intel Dynamic Video Memory Technology 4.0 (8 MB of
dedicated system memory, up to 350 MB of shared system memory), supporting Microsoft DirectX® 9
and DirectX 10
T
Dual independent display support
T
16.7 million colors
T
MEPG-2/DVD hardware-assisted capability (acceleration)
T
S-video/TV-out (NTSC/PAL) support
T
Acer Arcade™ featuring Acer CinemaVision™ and Acer ClearVision™ technologies
Storage Subsystem
T
80/120/160 GB or larger hard disk drive
T
DVD-Super Multi double-layer drive or DVD/CD-RW combo drive
Audio
T
Two built-in Acer 3D Sonic stereo speakers
T
Intel High Definition Audio support
T
MS-Sound compatible
T
Built-in microphone
Input Devices
T
88-/89-/93-key keyboard, with inverted "T" cursor layout; 2.5 mm (minimum) key travel
T
Seamless touchpad
T
T
Chapter 1
12 function keys, four cursor keys, two Windows® keys, hotkey controls, embedded numeric keypad,
international language support, independent US and Euro dollar sign keys, media control keys
Easy-launch buttons: Empowering key, WLAN
1
Communication
T
T
Integrated Acer Crystal Eye webcam supporting Acer PrimaLite™ technology (for selected models)
WLAN: Acer InviLink™ 802.11b/g Wi-Fi CERTIFIED® solution, supporting Acer SignalUp™ wireless
technology
T
LAN: Fast Ethernet; Wake-on-LAN ready
T
Modem: 56K ITU V.92 with PTT approval; Wake-on-Ring ready
I/O Interface
T
ExpressCard™/54 slot
T
Three USB 2.0 ports
T
External display (VGA) port
T
S-video/TV-out (NTSC/PAL) port
T
Headphones/speaker/line-out jack
T
Microphone-in jack
T
Ethernet (RJ-45) port
T
Modem (RJ-11) port
T
DC-in jack for AC adapter
Power Subsystem
T
ACPI 3.0 CPU power management standard: supports Standby and Hibernation power-saving modes
T
44.4 W 4000 mAh Li-ion battery pack (6-cell)
T
3-pin 65 W AC adapter
t
2.5-hour rapid charge system-off
t
3.5-hour charge-in-use
Dimensions and weight
T
Width: 344 mm (13.5 inches)
T
Depth: 246 mm (9.7 inches)
T
Height: 37/42 mm (1.45/1.65 inches)
T
Weight (approximately, with 6-cell battery): 2.6 kg (5.73 lbs.)
Environment
T
T
2
Temperature:
t
Operating: 5 to 35 ° C
t
Non-operating: -20 to 65 ° C
Humidity (non-condensing):
t
Operating: 20 to 80%
t
Non-operating: 20 to 80%
Chapter 1
Your Acer Notebook Tour
After knowing the computer features, let us show you around the new Aspire computer.
Front View
#
Item
Description
1
Microphone
Internal microphone for sound recording.
2
Display screen
Also called Liquid-Crystal Display (LCD), displays computer output.
3
Power button
Turns the computer on and off.
4
Status indicators
Light-Emitting Diodes (LEDs) that light up to show the status of the
computer's functions and components.
5
Empowering key
Launch Acer Empowering Technology.
6
Easy-launch buttons
Buttons for launching frequently used programs.
7
Palmrest
Comfortable support area for your hands when you use the computer.
8
Status indicators
Light-Emitting Diodes (LEDs) that light up to show the status of the
computer's functions and components.
9
Click buttons
(left and right)
The left and right buttons function like the left and right mouse buttons.
10
Touchpad
Touch-sensitive pointing device which functions like a computer mouse.
11
Keyboard
For entering data into your computer.
12
Speakers
Left and right speakers deliver stereo audio output.
13
Acer Crystal Eye
Web camera for video communication (for selected models).
Chapter 1
3
Closed Front View
#
Icon
Item
Description
1
Latch
Locks and releases the lid.
2
Microphone jack
Accepts inputs from external microphones.
3
Headphones/speaker/
line-out jack
Connects to audio line-out devices (e.g., speakers,
headphones)
Left View
#
4
Icon
Item
Description
1
Kensington lock slot
Connects to a Kensington-compatible computer security lock.
2
External display
(VGA) port
Connects to a display device
(e.g., external monitor, LCD projector).
3
Modem (RJ-11) port
Connects to a phone line.
4
Ethernet (RJ-45) port
Connects to an Ethernet 10/100/1000-based network.
5
S-video/TV-out
(NTSC/PAL) port
Connects to a television or display device with S-video input.
6
USB 2.0 port
Connect to USB 2.0 devices (e.g., USB mouse, USB camera).
7
ExpressCard/54 slot
Accepts one ExpressCard/54 module.
Chapter 1
Right View
#
Icon
Item
Description
1
Optical drive
Internal optical drive; accepts CDs or DVDs.
2
Optical disk access
indicator
Lights up when the optical drive is active.
3
Optical drive eject button
Ejects the optical disk from the drive.
4
Emergency eject hole
Ejects the optical drive tray when the computer is turned off.
5
USB 2.0 ports
Connect to USB 2.0 devices (e.g., USB mouse, USB
camera).
6
DC-in jack
Connects to an AC adapter.
Rear Panel
#
Item
Description
1
Ventilation slots
Enable the computer to stay cool, even after prolonged use.
Chapter 1
5
Bottom Panel
#
6
Icon
Item
Description
1
Battery bay
Houses the computer's battery pack.
2
Battery release latch
Releases the battery for removal.
3
Battery lock
Locks the battery in position.
4
Memory compartment
Houses the computer's main memory.
5
Hard disk bay
Houses the computer’s hard disk (secured with screws)
6
Ventilation slots and
cooling fan
Enable the computer to stay cool, even after prolonged use.
Note: Do not cover or obstruct the opening of the fan.
Chapter 1
Indicators
The computer has four easy-to-read status indicators:
The front panel indicators are visible even when the computer cover is closed up.
Icon
Function
Description
HDD
Indicates when the hard disk drive is active.
Num lock
Lights up when Num Lock is activated.
Caps lock
Lights up when Caps Lock is activated.
Power
Indicates the computer's power status.
Battery
Indicates the computer's batttery status.
NOTE: Battery LED status during charging:
• Amber: Charging.
• Green: Charging complete.
Chapter 1
7
Easy-launch Buttons
There are several conveniently located easy-launch buttons. They are: mail, Web browser, Empowering Key
<
> and one user-programmable button.
Press <
> to run the Acer Empowering Technology. The mail and Web browser buttons are pre-set to email
and Internet programs, but can be reset by users. To set the Web browser, mail and programmable buttons,
run the Acer Launch Manager.
Icon
8
Function
Description
Empowering Technology
Launch Acer Empowering Technology.
(user-programmable)
Wireless communication
button/indicator
Enables/disables the wireless function. Indicates the status of
wireless LAN communication.
Chapter 1
Touchpad
The built-in seamless touchpad is a pointing device that senses movement on its surface. This means the
cursor responds as you move your finger across the surface of the touchpad. The central location on the
palmrest provides optimum comfort and support.
Touchpad Basics
The following teaches you how to use the touchpad:
T
Move your finger across the touchpad (2) to move the cursor.
T
Press the left (1) and right (3) buttons located beneath the touchpad to perform selection and execution
functions. These two buttons are similar to the left and right buttons on a mouse. Tapping on the
touchpad is the same as clicking the left button.
Chapter 1
9
Right Button
(4)
Function
Left Button (1)
Execute
Click twice quickly.
Tap twice (at the same speed as doubleclicking the mouse button).
Select
Click once.
Tap once.
Drag
Click and hold, then use
finger to drag the cursor
on the touchpad
Tap twice (at the same speed as doubleclicking a mouse button) then hold finger
to the touchpad on the second tap to
drag the cursor.
Access context
menu
Main touchpad (2)
Click once
Scroll
NOTE: When using the touchpad, keep it - and your fingers - dry and clean. The touchpad is sensitive to finger
movement; hence, the lighter the touch, the better the response. Tapping too hard will not increase the
touchpad’s responsiveness.
NOTE: By default, vertical and horizontal scrolling is enabled on your touchpad. It can be disabled under
Mouse settings in Windows Control Panel.
10
Chapter 1
Using the Keyboard
The keyboard has full-sized keys and an embedded keypad, separate cursor keys, two Windows keys and
twelve function keys, and two special keys.
Lock Keys and Embedded Numeric Keypad
The keyboard has three lock keys which you can toggle on and off.
Lock Key
Description
Caps Lock
When Caps Lock is on, all alphabetic characters typed are in uppercase.
Num Lock
<Fn> + <F11>
When Num Lock is on, the embedded keypad is in numeric mode. The keys function as a
calculator (complete with the arithmetic operators +, -, *, and /). Use this mode when you
need to do a lot of numeric data entry. A better solution would be to connect an external
keypad.
Scroll Lock
<Fn> + <F12>
When Scroll Lock is on, the screen moves one line up or down when you press the up or
down arrow keys respectively. Scroll Lock does not work with some applications.
The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.
Desired Access
Num Lock On
Num Lock Off
Number keys on embedded
keypad.
Type numbers in a normal
manner.
N/A
Cursor-control keys on embedded
keypad
Hold <Shift> while using cursorcontrol keys.
Hold <Fn> while using cursorcontrol keys.
Main keyboard keys
Hold <Fn> while typing letters on
embedded keypad.
Type the letters in a normal
manner.
Chapter 1
11
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
Key
Windows key
Icon
Description
Pressed alone, this key has the same effect as clicking on the Windows Start
button; it launches the Start menu.
It can also be used with other keys to provide a variety of functions:
<
> : Open or close the Start menu
<
> + <D>: Display the desktop
<
> + <E>: Open Windows Explore
<
> + <F>: Search for a file or folder
<
> + <G>: Cycle through Sidebar gadgets
<
> + <L>: Lock your computer (if you are connected to a network
domain), or switch users (if you're not connected to a
network domain)
<
> + <M>: Minimizes all windows
<
> + <R>: Open the Run dialog box
<
> + <T>: Cycle through programs on the taskbar
<
> + <U>: Open Ease of Access Center
<
> + <X>: Open Windows Mobility Center
<
> + <BREAK>: Display the System Properties dialog box
<
> + <SHIFT+M>: Restore minimized windows to the desktop
<
> + <TAB>: Cycle through programs on the taskbar by using
Windows Flip 3-D
<
> + <SPACEBAR>: Bring all gadgets to the front and select
Windows Sidebar
<CTRL> + <
> + <F>: Search for computers (if you are on a network)
<CTRL> + <
> + <TAB>: Use the arrow keys to cycle through
programs on the taskbar by using Windows
Flip 3-D
Note: Depending on your edition of Windows Vista, some shortcuts may not
function as described.
Application key
12
This key has the same effect as clicking the right mouse button; it opens the
application's context menu.
Chapter 1
Hotkeys
The computer employs hotkeys or key combinations to access most of the computer's controls like screen
brightness, volume output and the BIOS utility.
To activate hotkeys, press and hold the <Fn> key before pressing the other key in the hotkey combination.
Hot Key
Function
Description
<Fn> + <F1>
Hot key help
Displays help on hot keys.
<Fn> + <F2>
Acer eSettings
Launches the Acer eSettings in Acer eManager.
<Fn> + <F3>
Acer ePower
Management
Launches the Acer ePowerManagement in Acer
eManager.
<Fn> + <F4>
Sleep
Puts the computer in Sleep mode.
<Fn> + <F5>
Display toggle
Switches display output between the display screen,
external monitor (if connected) and both.
<Fn> + <F6>
Screen blank
Turns the display screen backlight off to save power.
Press any key to return.
<Fn> + <F7>
Touchpad toggle
Turns the internal touchpad on and off.
<Fn> + <F8>
Speaker toggle
Turns the speakers on and off.
<Fn> + <
>
Brightness up
Increases the screen brightness.
<Fn> + <
>
Brightness down
Decreases the screen brightness
<Fn> + <
>
Volume up
Increases the sound volume.
<Fn> + <
>
Volume down
Decreases the sound volume.
Chapter 1
Icon
13
Special Keys
You can locate the Euro symbol and the US dollar sign at the upper-center and/or bottom-right of your
keyboard.
The Euro symbol
1.
Open a text editor or word processor.
2.
Either press < > at the bottom-right of the keyboard, or hold <Alt Gr> and then press the <5> key at the
upper-center of the keyboard.
NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/
typography/faq/faq12.htm for more information.
The US dollar sign
1.
Open a text editor or word processor.
2.
Either press < > at the bottom-right of the keyboard, or hold <Shift> and then press the <4> key at the
upper-center of the keyboard.
NOTE: This function varies according to the language settings.
14
Chapter 1
Using the System Utilities
Acer Empowering Technology
NOTE: Models shipped with Windows Vista Starter Edition only support Acer eRecovery Management.
The Empowering Technology toolbar makes it easy for you to access frequently used functions and manage
your new Acer system. Displayed by default in the upper half of your screen, it provides access to the following
utilities:
T
Acer eNet Management hooks up to location-based networks intelligently.
T
Acer ePower Management optimizes battery usage via customizable power plans.
T
Acer ePresentation Management connects to a projector and adjusts display settings.
T
Acer eDataSecurity Management protects data with passwords and encryption.
T
Acer eLock Management limits access to external storage media.
T
Acer eRecovery Management backs up and recovers data flexibly, reliably
and completely.
T
Acer eSettings Management accesses system information and adjusts settings easily.
For more information, right click on the Empowering Technology toolbar, then select the "Help" or "Tutorial"
function.
Empowering Technology Password
Before using Acer eLock Management and Acer eRecovery Management, you must initialize the Empowering
Technology password. Right-click on the Empowering Technology toolbar and select "Password Setup" to do
so. If you have not initialized the Empowering Technology password and run Acer eLock Management or Acer
eRecovery Management, you will be asked to create it.
NOTE: If you lose the Empowering Technology password, there is no way to reset it except by reformatting
your system. Make sure to remember or write down your password!
Chapter 1
15
Acer eNet Management
Acer eNet Management helps you quickly connect to both wired and wireless networks in a variety of
locations. To access this utility, select "Acer eNet Management" from the Empowering Technology toolbar or
run the program from the Acer Empowering Technology program group in Start menu. You can also set Acer
eNet Management to start automatically when you boot up your PC.
Acer eNet Management automatically detects the best settings for a new location, while offering you the option
to manually adjust the settings to match your needs.
16
Chapter 1
Acer eNet Management can save network settings for a location to a profile, and automatically switch to the
appropriate profile when you move from one location to another. Settings stored include network connection
settings (IP and DNS settings, wireless AP details, etc.), as well as default printer settings. Security and safety
concerns mean that Acer eNet Management does not store username and password information.
Chapter 1
17
Acer ePower Management
Acer ePower Management features a straightforward user interface for configuring your power management
options. To access this utility, select "Acer ePower Management" from the Empowering Technology toolbar,
run the program from the Acer Empowering Technology program group in Start menu, or right-click the
Windows power icon in the system tray and select "Acer ePower Management".
Using Power Plans
Acer ePower Management comes with three predefined power plans: Balanced, High performance and Power
saver. You can also create customized power plans. You can create, switch between, edit, delete and restore
power plans, as described below.
View and adjust settings for On Battery and Plugged In modes by clicking the appropriate tabs. You can open
Windows power options by clicking "More Power Options".
NOTE: You cannot delete the predefined power plans.
To create a new power plan:
Creating customized power plans allows you to save and quickly switch to a personalized set of power
options.
1.
Click the Create Power Plan icon.
2.
Enter a name for your new power plan.
3.
Choose a predefined power plan to base your customized plan on.
4.
If necessary, change the display and sleep settings you want your computer to use.
5.
Click "OK" to save your new power plan.
To switch between power plans:
1.
Select the power plan you wish to switch to from the drop-down list.
2.
Click "Apply".
To edit a power plan:
Editing a power plan allows you to adjust system settings like LCD brightness and CPU speed. You can also
turn on/off system components to extend battery life.
1.
Switch to the power plan you wish to edit
2.
Adjust settings as required.
3.
Click "Apply" to save your new settings.
To delete a power plan:
You cannot delete the power plan you are currently using. If you want to delete the active power plan, switch to
another one first.
18
1.
Select the power plan you wish to delete from the drop-down list.
2.
Click the Delete Power Plan icon.
Chapter 1
Battery status
For real-time battery life estimates based on current usage, refer to the panel in the upper half of the window.
Click the
Chapter 1
to view estimated battery life in sleep and hibernate modes.
19
Acer ePresentation Management
Acer ePresentation Management lets you project your computer's display to an external display device or
projector using the hotkey: <Fn> + <F5>. If auto-detection hardware is implemented in the system and the
external display supports it, your system display will be automatically switched out when an external display is
connected to the system. For projectors and external devices that are not auto-detected, launch Acer
ePresentation Management to choose an appropriate display setting.
NOTE: If the restored resolution is not correct after disconnecting a projector, or you need to use an external
resolution that is not supported by Acer ePresentation Management, adjust your display settings using
Display Properties or the utility provided by the graphics vendor.
20
Chapter 1
Acer eDataSecurity Management
(for selected models)
Acer eDataSecurity Management is an encryption utility that protects your files from being accessed by
unauthorized persons. It is conveniently integrated with Windows Explorer as a shell extension for quick data
encryption/decryption and also supports on-the-fly file encryption for Lotus Notes and Microsoft Outlook.
The Acer eDataSecurity Management setup wizard will prompt you for a supervisor password and default
encryption password. This password will be used to encrypt files by default, or you can choose to enter your
own password when encrypting a file.
NOTE: The password used to encrypt a file is the unique key that the system needs to decrypt it. If you lose
the password, the supervisor password is the only other key capable of decrypting the file. If you lose
both passwords, there will be no way to decrypt your encrypted file! Be sure to safeguard all related
passwords!
Chapter 1
21
Acer eLock Management
Acer eLock Management is simple yet effective utility that allows you to lock removable storage, optical and
floppy drive devices to ensure that data can't be stolen while your system is unattended.
T
Removable Storage Devices — includes USB disk drives, USB pen drives, USB flash drives, USB MP3
drives, USB memory card readers, IEEE 1394 disk drives, and any other removable storage devices
that can be mounted as a file system when plugged into the system.
T
Optical Drive Devices — includes any kind of CD-ROM, DVD-ROM, HD-DVD or Blu-ray drive devices.
T
Floppy Drive Devices — 3.5-inch floppy drives only.
To use Acer eLock Management, the Empowering Technology password must be set first. Once set, you can
apply locks to any of the devices types. Lock(s) will immediately be set without any reboot necessary, and will
remain after rebooting, until removed.
NOTE: If you lose the Empowering Technology password, there is no method to reset it except by reformatting
your system. Make sure to remember or write down your password.
22
Chapter 1
Acer eRecovery Management
Acer eRecovery Management is a versatile backup utility. It allows you to create full or incremental backups,
burn the factory default image to optical disc, and restore from previously created backups or reinstall
applications and drivers. By default, user-created backups are stored to the D:\ drive.
Acer eRecovery Management provides you with:
T
Password protection (Empowering Technology password)
T
Full and incremental backups to hard disk or optical disc
T
Creation of backups:
T
t
Factory default image
t
User backup image
t
Current system configuration
t
Application backup
Restore and recovery:
t
Factory default image
t
User backup image
t
From previously-created CD/DVD
t
Reinstall applications/drivers
NOTE: If your computer did not come with a Recovery CD or System CD, please use Acer eRecovery
Management's "System backup to optical disc" feature to burn a backup image to CD or DVD. To
ensure the best results when recovering your system using a CD or Acer eRecovery Management,
detach all peripherals (except the external Acer ODD, if your computer has one), including your Acer
ezDock.
Chapter 1
23
Acer eSettings Management
Acer eSettings Management allows you to inspect hardware specifications, set BIOS passwords and modify
boot options.
Acer eSettings Management also:
24
T
Provides a simple graphical user interface for navigation.
T
Prints and saves hardware specifications.
T
Lets you set an asset tag for your system.
Chapter 1
Windows Mobility Center
The Windows Mobility Center collects key mobile-related system settings in one easy-to-find place, so you can
quickly configure your Acer system to fit the situation as you change locations, networks or activities. Settings
include display brightness, power plan, volume, wireless networking on/off, external display settings, display
orientation and synchronization status.
Windows Mobility Center also includes Acer-specific settings like Bluetooth Add Device (if applicable), sharing
folders overview/sharing service on or off, and a shortcut to the Acer user guide, drivers and utilities.
To launch Windows Mobility Center:
T
Use the shortcut key <
T
Start Windows Mobility Center from the Control panel
T
Start Windows Mobility Center from the Accessories program group in the Start menu
Chapter 1
> + <X>
25
Acer GridVista (dual-display compatible)
To enable the dual display feature of your notebook, first ensure that a second display is connected, then,
open the Display Settings properties box using the Control Panel or by right-clicking the Windows desktop
and selecting Personalize. Select the secondary monitor (2) icon in the display box and then click the check
box Extend the desktop onto this monitor. Finally, click Apply to confirm the new settings and click OK to
complete the process.
Acer GridVista is a handy utility that offers four pre-defined display settings so you can view multiple windows
on the same screen. To access this function, please go to Start, All Programs and click on Acer GridVista.
You may choose any one of the four display settings indicated below:
1
2
1
2
1
3
2
3
1
3
2
4
Double (vertical), Triple (primary at left), Triple (primary at right), or Quad
Acer Gridvista is dual-display compatible, allowing two displays to be partitioned independently.
Acer GridVista is simple to set up:
1.
Run Acer GridVista and select your preferred screen configuration for each display from the taskbar.
2.
Drag and drop each window into the appropriate grid.
3.
Enjoy the convenience of a well-organized desktop.
NOTE: Please ensure that the resolution setting of your second monitor is set to the manufacturer's
recommended value.
26
Chapter 1
Launch Manager
Launch Manager allows you to set the four easy-launch buttons located above the keyboard.
You can access the Launch Manager by clicking on Start, All Programs, and then Launch Manager to start
the application.
Norton Internet Security
Norton Internet Security is an anti-virus utility that can protect against viruses, keeping your data safe and
secure.
How do I check for viruses?
1.
Double-click the Norton Internet Security icon on the Windows desktop.
2.
Select Tasks & Scans.
3.
Select Run Scan to scan your system.
4. When the scan is complete, review the results of the scan.
NOTE: For optimal security, run a Full System Scan when scanning your computer for the first time.
You can schedule customized virus scans that run unattended on specific dates and times or at periodic
intervals. If you are using the computer when the scheduled scan begins, it runs in the background so that you
do not have to stop working.
For more information refer to the Norton Internet Security help files.
Chapter 1
27
Hardware Specifications and Configurations
Processor
Item
Specification
CPU type
Intel Pentium
Dual-Core
T2310 Mobile
Processor
Intel Pentium
Dual Core
T2330 Mobile
Processor
Intel Celeron M
530 Mobile
Processor
Intel Celeron M
540 Mobile
Processor
Intel Celeron M
550 Mobile
Processor
Clock
Speeds
1.46 GHz
1.60 GHz
1.73 GHz
1.86 GHz
2.0 GHz
L2 Cache
1 MB
Front Side
Bus
533 MHz
System Board Major Chips
Item
Specification
System core logic
Intel GL960 Express chipset + Intel ICH8-M chipset
HDD controller
Intel ICH8-M chipset
Memory controller
Intel GL960 Express chipset
Video controller
Intel GL960 Express chipset
Audio controller
Codec ALC268 chipset
PCMCIA controller
Intel ICH8-M chipset
LAN controller
Marvell Yukon 88E8039 PCI-E Fast Ethernet Controller
Modem controller
Intel ICH8-M chipset
Keyboard controller
Winbond WPC8763L chipset
Hard Disk Drive Interface
28
Item
Specification
Product
Toshiba
Model Name
MK8
037
GSX
MK1
237
GSX
Capacity (GB)
80
120
Form factor and
Interface type
2.5 inch Serial ATA
Bytes per sector
512
N/A
512
512
Data heads
4
N/A
3
4
Data disks
2
N/A
2
2
Spindle speed
(RPM)
5400
5400
5400
5400
Western Digital
Seagate
Hitachi Travelstar
5K160
MK1
637
GSX
WD8
00B
EVS
WD1
200B
EVS
WD1
600B
EVS
ST9
8081
1AS
ST9
1208
22A
S
ST9
1608
21A
S
HTS
5416
80J9
SA0
0
HTS
5425
80K9
SA0
0
HTS
5416
12J9
SA0
0
HTS
5416
16J9
SA0
0
160
80
120
160
80
120
160
80
120
160
Chapter 1
Hard Disk Drive Interface
Item
Specification
Buffer size (MB)
8.192
8
8
8
Media transfer
rate (Mbytes/s,
max)
300
600
N/A
540
Interface transfer
rate (Mbytes/s,
max)
N/A
150 MB/s
150 MB/s
150 MB/s
Voltage
tolerance
5V(DC) +/- 5%
5V(DC) +/- 5%
5V(DC) +/- 5%
5V(DC) +/- 5%
BIOS
Item
Specification
BIOS vendor
Phoenix
BIOS Version
v0.09
Supported protocols
ACPI 1.0b/2.0/3.0 compliance, PCI 2.2, System/HDD Password Security
Control, INT 13h Extenstions, PnP BIOS 1.0a, SMBIOS 2.4, BIOS Boot
Specification, Simple Boot Flag 1.0, Boot Block, PCI Bus Power Management
Interface Specification, USB Specification 1.1/2.0, IEEE 1394 1.0, USB/1394
CD-ROM Boot Up support, PC Card Standard 1995 (PCMCIA 3.0 Compliant
Device), IrDA 1.0, HD audio, WfM 2.0, Preboot Execution Environment 2.1,
Boot Integrity Service Application Program Interface (BIS) 1.0, PC2002/2005
compliant, Intel Enhanced SpeedStep Technology, Intel DPST support, ASF
2.0, TPM v1.2, AHCI support, iAMT 2.5
System Memory
Item
Specification
Memory controller
Intel GL960 Express chipset
DIMM socket number
2 sockets
Supports maximum
memory size
2 GB (1GB for each socket; GL960 chipset supporting to 1GB maximum)
Vendor
Samsung
Hynix
Nanya
Infineon
Model name
M470T6554EZ3CE6
M470T2953EZ3CE6
M470T2864DZ3CE6
HYMP125S64CP8Y5
HYMP512S64CP8Y5
HYMP112S64CP6Y5
HYMP125S64CP8Y5
NT512T64UH8B0
FN-3C
NT1GT64U8HB0B
N-3C
HYS64T128021E
DL-3S
DIMM type
DDR2 Synchronous DRAM
DIMM speed (MHz)
667
DIMM size
512 MB, 1GB
512 MB, 1 GB
1 GB
Chapter 1
512 MB, 1GB,
29
Video
Item
Specification
VGA controller
Intel GL960 Express chipset with integrated 3D graphics
Features
Intel GMA X3100 with up to 358 MB of Intel Dynamic Video Memory
Technology 4.0 (8 MB of dedicated system memory, up to 350 MB of
shared system memory) supporting Microsoft DirectX 9 and PCI
Express
VGA resolution
1280 x 800
VRAM size
128 MB
Audio
Item
Specification
Audio controller
Realtek ALC268 Codec chipset
Features
Two built-in Acer 3D Sonic stereo speakers, Supports high definition
audio, Built-in microphone, MS-sound compatible
PCMCIA Port
Item
Specification
PCMCIA controller
Intel ICH8-M chipset
Card type support
Type-II
Number of slot
One
LAN
Item
Specification
LAN controller
Marvell Yukon 88E8039 PCI-E Fast Ethernet Controller
Supports LAN protocol
10/100Mbps
LAN connector type
RJ45
Features
Onboard Fast Ethernet, Wake on LAN ready
Wireless LAN module
Item
Specification
Vendor
Atheros Communications
Foxconn
Model name
REV06
Broadcom 4311
Protocol
802.11b/g
Interface
PCI bus (mini PCI socket for wireless module)
XB63
Modem
30
Item
Specification
Modem controller
Intel ICH8-M chipset
Vendor
Agere
Foxconn
Model name
Delphi AM3 B85244300G
MDC 1.5 T60M955.00
Baud rate
56 K
Modem connector type
RJ11
Chapter 1
Keyboard and Input Devices
Item
Specification
Keyboard controller
Winbond WPC8763L chipset
Vendor
Darfon
Model name
NSK-H3V1D, NSK-H3V0U
Features
5-degree curve, 88-/89-/93- key, inverted “T” cursor layout, 2.5 mm (minimum)
key travel, seamless touchpad, 12 function keys, four cursor keys, two
Windows keys, hotkey controls, embedded numeric keypad, international
language support, independent US and Euro dollar sign keys, media control
keys, and two easy-launch buttons
Combo Drive Interface
Item
Specification
Vendor
Sony
Philips BenQ
Toshiba
Model name
CRX880A
DS-24CZP
TS-L462D
Drive type
Internal Slim CD-RW/DVD combo drive
Data transfer rate
Write:
Read:
•
CD-R: 24X
•
DVD-ROM: 8X
•
CD-RW: 24X
•
CD-ROM: 24X
Buffer Memory
2 MB
Interface
IDE
Applicable disc format
CD-R, CD-RW (Multi speed, High speed, Ultra-speed and Ultra-speed plus)
CD-DA, CD-ROM (mode 1), CD-ROM XA (Mode 2, Form 1, Form 2), CD-I,
CD-i Bridge, Video-CD, Karaoke CD, Photo CD, Enhanced CD, CD Plus, CD
Extra, i-trax CD, CD-Text DVD-ROM, DVD-Video, DVD-Audio, SACD
(Hybrid), UDF DVD, DVD-R/RW, DVD+R/RW, DVD+/-R DL, DVD-RAM V1.0/
V2.1
Power supply
5 V DC
Chapter 1
N/A
31
DVD Drive Interface
Item
Specification
Vendor
Sony
Pioneer
Philips BenQ
Panasonic
Model name
AD-7560A
DVR-K17RS
DS-8A1P
UJ-850UAA1-A
Drive type
Internal Slim DVD/CD writer
Data transfer rate
Write:
Write:
N/A
Write:
•
CD-R: 24X
CAV
•
CD-R: 24X
•
CD-R: 24X
•
CD-RW: 24X
•
CD-RW: 16X
CD-RW: 24X
CAV
•
DVD-RW: 6X
•
DVD-R: 8X
DVD+RW/RW (single
layer): 8X, 6X
ZCLV
•
DVD-R/+R/
+RW: 8X
•
DVD-RW: 4X
•
DVD-RAM: 5X
Read:
•
DVD+R(DL):
2.4X
DVD-R/+R
(single layer):
8X CAV
•
DVD+R: 8X
•
DVD+RW: 4X
•
DVD-R/+R
(double layer):
4X ZCLV
•
CD-R/RW/
ROM: 24X
•
DVD-RAM: 5X
ZCLV
•
DVD-R/RW/
ROM: 8X
•
•
•
•
DVD-RAM: 5X
Read:
Read:
32
•
CD-R/RW/
ROM: 24X
Max
•
DVD-ROM
(single layer):
8X CAV
•
DVD-ROM
(double layer):
6X CAV
•
DVD-RAM: 5X
ZCLV
•
DVD-R/+R/
+RW/-RW
(single layer):
8X CAV
•
DVD-R/+R
(double layer):
6X CAV
Buffer Memory
2 MB
Interface
Enhanced IDE(ATAPI) compatible
Applicable disc format
DVD-RAM, DVD-R/RW, DVD+R (SL, DL)/RW, CD-R/RW, DVD-ROM, DVDRAM, DVD-R, DVD-RW, DVD+R (SL, DL), DVD+RW; CD-R, CD-RW, CDROM, CD-ROM XA, CD-DA, CD-I, CD-Extra, CD-Text, Photo CD, Video CD
Power supply
5V DC
Chapter 1
Battery
Item
Specification
Vendor
Panasonic
Sanyo
Sony
Simplo
Battery Type
Li-ion
Li-ion
Li-ion
Li-ion
Pack capacity
6 cell, 2.0 mAh
6 cell, 2.0 mAh
6 cell, 2.0 mAh
6 cell, 2.0 mAh
LCD
Item
Specification
Vendor
CMO
LG Philips
AUO
Samsung
Model name
N141I1-L03
(Non-glare)
LP141WX3TLB1(Glare)
B141EW04-V4
(Glare)
LTN141W3-L01J (Glare)
N141I3-L02
(Glare)
LP141WX3-TLB1
(Glare) (OKI driver
IC:01OKL-0123A)
Screen diagonal (mm)
14.1” WXGA
Display resolution (pixels)
1280 x 800
1280 x 800
1280 x 800
1280 x 800
Aspect ratio
N/A
16:10
16:10
N/A
Active area (mm)
N/A
303.7x189.8
303.36 x 189.6
303.4 x 189.6
Pixel pitch (mm)
N/A
0.2373 (107)
0.237
0.237
Mode
N/A
N/A
TN
N/A
Number of colors
262 K
262,144 (6 bit)
262 K
262 K
Color saturation (NTSC%)
N/A
45
45
N/A
Brightness (nits)
200
200
200
200
220
Contrast ratio
300:1
400:1
400:1
500:1
Response time (optical rise
time + fall time) (msec)
16
16
16
16
Power consumption (watt)
5.3
N/A
5.1
N/A
Supply voltage (v)
N/A
N/A
3.3
N/A
Backlight
N/A
N/A
1 CCFL
N/A
Outline dimensions (mm)
319.5 x 205 .5
x 5.2
319.5x205.5
319.5 x 205.5 x
5.2
319.5 x205.5 x
5.5
Weight (g)
400
390
400
390
LCD Inverter Board
Item
Specification
Vendor
YEC
Foxconn
RoHS
Model name
YNV-W06
T62I240.02
VK.21189.406
Chapter 1
33
AC Adapter
Item
Specification
Vendor
Delta
Lite-On
Lishin
Hipro
Model Name
SADP-65KB DFA
PA-1650-02 AC
SLS0335A19A54
HP-Ok065B13
Output rating
19 V/3.42 A, 65 W
19 V/3.42 A, 65 W
19 V/3.42 A, 65 W
19 V/3.42 A, 65 W
Input (Vac)
90 ~ 270
100 ~ 240
90 ~ 265
90 ~ 264
System Power Management
ACPI mode
Power Management
Off
•
Mech. Off (G3): All devices in the system are turned off
completely.
•
Soft Off (G2/S5): OS initiated shutdown. All devices in the system
are turned off completely.
•
Working (G0/S0): Individual devices such as the CPU and hard
disc may be power managed in this state.
•
Suspend to RAM (S3): CPU set power down, VGA Suspend,
PCMCIA Suspend, Audio Power Down, Hard Disk Power Down,
CD-ROM Power Down, and Super I/O Low Power mode.
•
Save to Disk (S4): Also called Hibernation Mode. System saves
all system states and data onto the disc prior to system shutdown.
On
34
Chapter 1
Chapter 2
System Utilities
BIOS Setup Utility
The BIOS Setup Utility is a hardware configuration program built into your system’s BIOS (Basic Input/Output
System). Since most systems are already properly configured and optimized, there is no need to run this utility.
The BIOS setup utility stores basic settings for your system. You will need to run this utility if you encounter
configuration problems. Refer to Chapter 4 Troubleshooting when problem arises.
Entering BIOS Setup
Power on the system to start the system POST process. During bootup, press F2 to enter the BIOS setup
screen.
NOTE: You must press F2 while the system is booting. This key does not work during any other time.
BIOS Setup Primary Menus
There are several tabs on the setup screen corresponding to the six primiary BIOS menus.
T
T
T
T
T
Information
Main
Security
Boot
Exit
In the descriptive table following each of the screen illustrations, settings in boldface are the default and
suggested parameter settings.
BIOS Setup Navigation Keys
Note the following reminders when moving around the Setup utility.
Use the Left and Right arrow keys to move to the next page or to return to the previous screen.
Use the Up and Down arrow keys to select an item.
T
Use the + and - keys to select an option.
NOTE: You can configure a parameter that is enclosed in square brackets. Grayed-out items have fixed
settings and are not user-configurable.
T
T
Use the Enter key to display a submenu screen.
NOTE: When a parameter is preceeded by an arrow or (>), it means that a submenu screen is available.
T
Press F1 for General Help using the BIOS setup.
Press F9 to load the default configuration.
T
Press F10 to save changes and close the BIOS setup.
T
Press Esc to close the BIOSe setup.
NOTE: The parameters on the screens shown in this Guide display default system values. These values may
not be the same as those in the system. System information is subject to different models.
T
T
Chapter 2
35
Information Menu
Parameter
Description
CPU Type
Type of processor currently installed in the system.
CPU Speed
Speed of the processor currently installed in the system.
IDE0 Model Name
Model name of HDD installed on the primary IDE channel.
IDE0 Serial Number
Serial number of HDD installed on the primary IDE channel.
ATAPI Model Name
Model name of the ATAPI CD/DVD-ROM drive installed in the system.
System BIOS Version
Version number of the BIOS setup utility.
VGA BIOS Version
Version number of the VGA firmware.
KBC Version
Version number of the keyboard controller.
Serial Number
Serial number of the system.
Asset Tag Number
Asset tag number of the system.
Product Name
Product name of the system.
Manufacturer Name
Name of the manufacturer of this system.
UUID
Visible only when an internal LAN device is present.
UUID=32bytes
NOTE: The system configuration information varies in different models.
36
Chapter 2
Main Menu
Parameter
Description
Format/Option
System Time
Set the system time following the hour-minute-second format.
Format: HH:MM:SS
(hour:minute:second)
System Date
Set the date following the weekday-month-day-year format.
Format MM/DD/YYYY
(month/day/year)
System Memory
Total size of system memory detected during POST.
Extended Memory
Total size of extended memory during POST.
Video Memory
Total size of VGA memory.
Quiet Boot
When Enabled, the BIOS splash screen is displayed during
startup.
Enabled
Disabled
Network Boot
When Enabled, the system can be booted from another PC on
your LAN, such as a remote server.
Disabled
F12 Boot Menu
When Enabled, pressing the F12 key during POST brings up a
menu of devices that you can select to boot.
D2D Recovery
Enables or disables disk-to-disk recovery. D2D recovery is a
method of restoring the system to factory configurations without
using recovery CDs.
Chapter 2
Enabled
Disabled
Enabled
Enabled
Disabled
37
Security Menu
Parameter
Description
Option
Supervisor Password Is
Indicates whether a supervisor password has been
assigned.
Clear or Set
User Password Is
Indicates whether a user password has been
assigned.
Clear or Set
HDD Password Is
Indicates whether a hard disk drive password has
been assigned.
Clear or HDD Password Set
Set Supervisor Password
Press Enter to configure the supervisor password.
Set User Password
Press Enter to configure the user password.
Set HDD Password
Press Enter to configure the hard disk drive
password.
Password on Boot
Enables or disables security check during POST.
Disabled or Enabled
NOTE: Refer to the “Removing a System Password” on page 39 for more information on how to remove a
password.
38
Chapter 2
Setting a System Password
1.
Use the up/down keys to select a password parameter, then press Enter. A Password box appears.
2.
Type a password then press Enter.
The password may consist of up to six alphanumeric characters (A-Z, a-z, 0-9).
3.
Retype the password to verify the first entry then press Enter again. You will be prompted to save the new
password.
4.
Press Enter.
5.
Press F10 to save the password and close the Setup Utility.
Changing a System Password
1.
Use the up/down keys to select a password parameter , then press Enter.
2.
Type the original password then press Enter.
3.
Type a new password then press Enter.
4.
Retype the password to verify the first entry then press Enter.
5.
Press Enter.
6.
Press F10 to save the new password and close the Setup Utility.
Removing a System Password
1.
Use the up/down keys to select a password parameter, then press Enter.
2.
Enter the original password then press Enter.
3.
Press Enter twice without entering anything in the new and confirm password fields.
4.
Press Enter. After doing this, the system automatically sets the related password parameter to Clear.
5.
Press F10 to save the new password and close the Setup Utility.
Clearing the Supervisor or User Password
If the Password on Boot field have been enabled and you forgot the BIOS password (supervisor/user
password), you will not be able to boot up the system. You need to clear the lost password by shorting the
hardware gap located near the DIMM slot.
1.
Power off the system.
2.
Unplug the adapter and power cable.
3.
Remove the battery pack. See “Removing the Battery Pack” on page 49.
4.
Remove the lower cover. See “Removing the Lower Cover” on page 50.
5.
If necessary, remove the memory module. See “Removing the DIMM” on page 51.
Chapter 2
39
6.
Locate the hardware gap. The gap is highlighted in the illustration below.
Hardware gap
Default setting
Operation Description
G67
Open (Normal)
Short to clear supervisor and user password.
7.
Using an electrical conductivity tool, short the two contacts on the hardware gap together.
8.
While resting the tool on the two contacts, plug one end of the AC adapter into the DC-in jack and plug
one end to an electrical outlet.
9.
Press the power button to turn on the system.
10. After BIOS POST message, remove the tool from the hardware gap.
11. Reinstall the memory modules and lower cover.
12. Restart the system and press <F2> during the bootup to enter the BIOS setup screen.
13. Repeat above procedure if the BIOS password is not cleared.
40
Chapter 2
Boot Menu
This menu allows you to set the drive priority during system boot-up. The system will attempt to boot from the
first device on the list. If the first device is not available, it will continue down the list until it reaches an available
device. BIOS setup will display an error message if the drive(s) specified is not bootable.
Chapter 2
41
Exit Menu
42
Parameter
Description
Exit Saving Changes
Save changes made and close the BIOS setup.
Exit Discarding Changes
Discards changes made and close the BIOS setup.
Load Setup Defaults
Loads the default settings for all BIOS setup parameters. Setup Defaults are quite
demanding in terms of resources consumption. If you are using low-speed memory chips or
other kinds of low-performance components and you choose to load these settings, the
system might not function properly.
Discard Changes
Discards all changes made in the BIOS setup.
Save Changes
Saves changes made in the BIOS setup.
Chapter 2
BIOS Recovery
If BIOS flash procedure fails in your system, perform a BIOS recovery procedure by using the crisis recovery
diskette. During this procedure, the system will force BIOS to load and execute a special BIOS block (also
called boot block) to restore the BIOS code from the crisis recovery diskette.
Note the following when restoring the BIOS settings:
T
T
Use the <Fn> + <Esc> hotkey to enable BIOS recovery during BIOS POST.
Important: When using the <Fn> + <Esc> hotkey to enable BIOS recovery, we strongly recommend the
following:
t
Make sure the battery pack is installed to the system.
t
Make sure the adapter is connected to the system and plugged into a wall outlet.
A crisis recovery diskette should be prepared in Windows XP/Vista.
Perform the following procedure to restore BIOS:
1.
Power off the system.
2.
Connect a USB floppy drive to the system.
3.
Insert the Crisis Disk to the floppy drive.
4.
Press and hold <Fn> + <Esc> keys, then press the power button.
The system initializes the BIOS recovery process. The boot block BIOS starts to restore the failed BIOS
code from the crisis recovery diskette. Once the process is completed, the system will restart.
After a successful BIOS recovery procedure. RD/CSD can update the BIOS by regular BIOS flashing
procedure.
Chapter 2
43
44
Chapter 2
Chapter 3
Machine Disassembly and Replacement
This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.
Disassembly Requirements
To disassemble the computer, you need the following tools:
T
Wrist grounding strap and conductive mat for preventing electrostatic discharge
T
Flat-blade screwdriver
T
Philips screwdriver
T
Hex screwdriver
T
Plastic flat-blade screwdriver
Plastic tweezers
NOTE: The screws for the different components vary in size. During the disassembly process, group the
screws with the corresponding components to avoid mismatch when putting back the components.
T
Chapter 3
45
General Information
Pre-disassembly Instructions
Before proceeding with the disassembly procedure, make sure that you do the following:
46
1.
Turn off the power to the system and all peripherals.
2.
Unplug the AC adapter and all power and signal cables from the system.
3.
Place the system on a flat, stable surface.
4.
Remove the battery pack. See “Removing the Battery Pack” on page 49.
Chapter 3
Disassembly Process
The disassembly process is divided into the following stages:
T
External module disassembly
T
Main unit disassembly
T
LCD module disassembly
The flowcharts provided in the succeeding disassembly sections illustrate the entire disassembly sequence.
Observe the order of the sequence to avoid damage to any of the hardware components. For example, if you
want to remove the mainboard, you must first remove the keyboard, then disassemble the inside assembly
frame in that order.
Main Screw List
Item
Screw Size
Color
Part No.
A
M2 x L4
Black/Silver
86.00F24.724
B
M3 x L4
Silver
86.9A554.4R0
C
M2 x L6
Black
86.00F58.726
D
M2 x L8
E
M2 x L2.5
Silver
86.00D75.220
86.00F22.722
Black
86.00E34.738
F
M2.5 x L8
G
M2.5 x L6
H
M2 x L3
Silver
86.00C07.220
I
N/A
Black
86.00E92.724
Chapter 3
86.00E33.736
47
External Module Disassembly Process
External Modules Disassembly Flowchart
The flowchart below gives you a graphic representation on the entire disassembly sequence and instructs you
on the components that need to be removed during servicing. For example, if you want to remove the
mainboard, you must first remove the keyboard, then disassemble the inside assembly frame in that order.
Screw List
48
Item
Screw size
Part No.
A
M2 x L4
86.00F24.724
B
M3 x L4
86.9A554.4R0
C
M2 x L6
86.00F58.726
E
M2 x L2.5
86.00F22.722
Chapter 3
Removing the Battery Pack
1.
Turn base unit over.
2.
Slide the battery lock/unlock latch to the unlock position.
3.
Slide and hold the battery release latch to the release position, then remove the battery from the main
unit.
Removing the Express Dummy Card
1.
See “Removing the Battery Pack” on page 49.
2.
Push against the card,as if you were pushing it further into the slot, letting the card spring out.
Chapter 3
49
3.
Remove the card from the slot.
Removing the Lower Cover
50
1.
See “Removing the Battery Pack” on page 49.
2.
Turn the base unit over, then loosen the eight screws on the lower cover.
3.
Use a plastic flat-blade screwdriver to pry open the lower cover.
Chapter 3
4.
Remove the lower cover from the lower case.
Removing the DIMM
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Push out the latches on both sides of the DIMM socket to release the DIMM.
4.
Remove the DIMM module.
Chapter 3
51
Removing the WLAN Board Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Disconnect the antenna cable from the WLAN board, then move the antenna away from the board.
4.
Remove the two screws (A) on the WLAN board to release the WLAN board.
5.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L4 (2)
Black
1.6 kgf-cm
Detach the WLAN board from the WLAN socket.
NOTE: When attaching the antennas back to the WLAN board, make sure the cable is routed properly.
52
Chapter 3
Removing the Hard Disk Drive Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Remove the screw (A) securing the HDD assembly to the unit.
4.
Step
Size (Quantity)
Color
Torque
1
M2 x L4 (1)
Silver
1.6 kgf-cm
Pull the HDD module out by pulling on the mylar attached to it (1), gently slide-out the HDD module from
its bay (2).
NOTE: To prevent damage to device, avoid pressing down on it or placing heavy objects on top of it.
5.
Remove the two screws (B) on the HDD bracket.
Chapter 3
Step
Size (Quantity)
Color
Torque
1~2
M3 x L4 (2)
Silver
3.0 kgf-cm
53
6.
Remove the hard disk drive.
Removing the Optical Drive Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Remove the screw (C) on the bottom side of the unit, as shown.
4.
54
Step
Size (Quantity)
Color
Torque
1
M2 x L6 (1)
Black
2.0 kgf-cm
Using the flat-blade screwdriver, press the end of the module forward, then slide out the optical drive
module from the main unit.
Chapter 3
5.
Remove the two screws (E) securing the optical bracket and remove the locker bracket from the optical
disk drive module.
Chapter 3
Step
Size (Quantity)
Color
Torque
1-2
M2 x L2.5 (2)
Silver
1.6 kgf-cm
55
Main Unit Disassembly Process
Main Unit Disassembly Flowchart
56
Chapter 3
Screw List
Screw Size
Part No.
A
M2 x L4
86.00F24.724
C
M2 x L6
86.00F58.726
D
M2 x L8
86.00D75.220
F
M2.5 X L8
86.00E34.738
I
N/A
86.00E92.724
Removing the CPU Heatsink Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
Detach the heatsink cable from the mainboard.
4.
Loosen the four spring-loaded screws on the heatsink in the order shown.
Chapter 3
57
5.
Remove the heatsink module.
Removing the CPU
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the CPU Heatsink Module” on page 57.
4.
Using a flat-blade screwdriver, turn the CPU socket latch to the unlock position by aligning the latch to the
unlock symbol, then remove the CPU.
NOTE: When installing the CPU, make sure to install the CPU with PIN 1 at the corner as shown.
58
Chapter 3
Removing the Keyboard
1.
See “Removing the Battery Pack” on page 49.
2.
Press the plastic flat-blade screwdriver to the notches, shown below, to disengage the keyboard from the
main unit.
3.
Carefully pry up and out the keyboard and turn it over.
4.
Disconnect the keyboard cable from the mainboard to remove the keyboard.
Chapter 3
59
Removing the Middle Cover
60
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Keyboard” on page 59.
3.
Open the LCD screen all the way to facilitate the easy removal of the middle cover.
4.
Carefully insert the flat-blade screwdriver between the middle cover and lower case and gently pry up the
middle cover.
5.
Continue prying the middle cover until the full length of the cover releases from the main unit, then remove
the cover.
Chapter 3
Removing the LCD Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the WLAN Board Module” on page 52.
4.
See “Removing the Keyboard” on page 59.
5.
See “Removing the Middle Cover” on page 60.
6.
Disconnect the microphone cable from the mainboard.
7.
Disconnect the LCD coaxial cable from the mainboard.
8.
Detach the mylar tape from the antenna cable and pull out the cable as shown.
Chapter 3
61
9.
Turn the system over and remove the two screws (F) from the base of the unit.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L8 (2)
Black
4.0 kgf-cm
10. Remove the two screws (F) from the left and right hinge of the LCD module.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L8 (2)
Black
4.0 kgf-cm
11. Carefully remove the LCD module from the base unit.
NOTE: Make sure the cables are routed well before connecting the cables back to the unit.
62
Chapter 3
Separating the Upper Case from the Lower Case
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. Remove the three screws (A) on the upper case.
Step
Size (Quantity)
Color
Torque
1~3
M2 x L4 (3)
Black
1.6 kgf-cm
14. Disconnect the speaker cable from the mainboard.
Chapter 3
63
15. Detach the touchpad cable from the mainboard.
16. Turn the system over and remove the eleven screws (C, D) on the lower case.
Step
Size (Quantity)
Color
Torque
1~10
M2 x L6 (10)
Black
3.0 kgf-cm
11
M2 x L8 (1)
Black
3.0 kgf-cm
17. Gently detach the upper case from the lower case.
64
Chapter 3
Removing the Speaker Modules
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. Remove the four screws on the speaker modules.
Step
Size (Quantity)
Color
Torque
1~4
N/A
Silver
1.6 kgf-cm
15. Remove the speakers.
Chapter 3
65
Removing the Launch Board Bracket
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. Remove the two screws (A) from the launch board bracket.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L4 (2)
Black
1.6 kgf-cm
15. Remove the bracket.
66
Chapter 3
Removing the Touchpad Board Module
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. Remove the two screws (A) on the touchpad bracket.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L4 (2)
Black
1.6 kgf-cm
15. Remove the touchpad bracket from the upper case.
Chapter 3
67
16. Carefully insert the flat-bladescrewdriver under the side of the touchpad board and gently pry up the
board.
17. Continue prying the board until it releases from the upper case, then remove the board.
Removing the Audio Board
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
68
Chapter 3
14. Disconnect the audio board cable from the mainboard.
15. Remove the two screws (A) on the audio board.
Step
Size (Quantity)
Color
Torque
1~2
M2 x L4 (2)
Black
1.6 kgf-cm
16. Remove the audio board.
Chapter 3
69
Removing the USB Board
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. Disconnect the USB FFC (flat flexible cable) from the mainboard.
15. Pull out the AC input cable and move away from the USB board.
70
Chapter 3
16. Remove the screw (A) on the USB board.
Step
Size (Quantity)
Color
Torque
1
M2 x L4 (1)
Black
1.6 kgf-cm
17. Remove the USB board.
Removing the Mainboard
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Audio Board” on page 68.
15. See “Removing the USB Board” on page 70.
Chapter 3
71
16. Remove the screw (A) holding the mainboard to the lower case.
Step
Size (Quantity)
Color
Torque
1
M2 x L4 (1)
Black
1.6 kgf-cm
17. Carefully detach the mainboard from the lower case.
Removing the Modem Board
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Audio Board” on page 68.
15. See “Removing the USB Board” on page 70.
16. See “Removing the Mainboard” on page 71.
72
Chapter 3
17. Disconnect the modem cable from the mainboard.
18. Detach the masking tape from the mainboard.
19. Remove the two screws (I) on the modem board.
Chapter 3
Step
Size (Quantity)
Color
Torque
1~2
N/A
Black
1.6 kgf-cm
73
20. Detach the modem board from the mainboard.
Removing the RTC Battery
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Express Dummy Card” on page 49.
3.
See “Removing the Lower Cover” on page 50.
4.
See “Removing the DIMM” on page 51.
5.
See “Removing the WLAN Board Module” on page 52.
6.
See “Removing the Hard Disk Drive Module” on page 53.
7.
See “Removing the Optical Drive Module” on page 54.
8.
See “Removing the CPU Heatsink Module” on page 57.
9.
See “Removing the CPU” on page 58.
10. See “Removing the Keyboard” on page 59.
11. See “Removing the Middle Cover” on page 60.
12. See “Removing the LCD Module” on page 61.
13. See “Separating the Upper Case from the Lower Case” on page 63.
14. See “Removing the Audio Board” on page 68.
15. See “Removing the USB Board” on page 70.
16. See “Removing the Mainboard” on page 71.
17. Detach the battery cable from the mainboard.
74
Chapter 3
18. Carefully detach the RTC battery from the SD card slot.
Chapter 3
75
LCD Module Disassembly Process
LCD Module Disassembly Flowchart
Main Screw List
76
Item
Screw Size
Part No.
G
M2.5 x L6
86.00E33.736
H
M2 x L3
86.00C07.220
Chapter 3
Removing the LCD Bezel
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. Remove the six rounded screw caps as shown.
13. Remove the six screws (G) on the LCD module.
Chapter 3
Step
Size (Quantity)
Color
Torque
1~4
M2.5 x L6 (6)
Black
3.0 kgf-cm
77
14. Carefully pry open the LCD bezel and remove the bezel from the LCD module.
Removing the Camera Board
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. Disconnect the camera cable from the camera board.
78
Chapter 3
14. Remove the camera board.
Removing the Inverter Board
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. See “Removing the Camera Board” on page 78.
14. Remove the screw (G) that holds the inverter board to the panel.
Chapter 3
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L6 (2)
Black
3 kgf-cm
79
15. Turn the inverter board over.
16. Disconnect the 2P cable from the inverter board, then disconnect the inverter board cable from its
connector.
17. Remove the inverter board.
Removing the LCD with Brackets
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. See “Removing the Camera Board” on page 78.
14. See “Removing the Inverter Board” on page 79.
80
Chapter 3
15. Remove the two screws (G) securing the left and right LCD brackets to the LCD back cover.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L6 (2)
Silver
2.5 kgf-cm
16. Detach the LCD with the brackets from the back cover, then turn it over.
17. Detach the acetic tapes holding the FPC and camera cables to the back panel.
Chapter 3
81
18. Detach the acetic tapes holding the FPC cable to the edge of the LCD panel.
19. Detach the acetic tape holding the camera cable to the LCD panel.
20. Detach the acetic tape securing the FPC connector, then .disconnect the FPC cable from the LCD panel.
82
Chapter 3
Removing the LCD Brackets
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. See “Removing the Camera Board” on page 78.
14. See “Removing the Inverter Board” on page 79.
15. See “Removing the LCD with Brackets” on page 80.
16. Remove the four screws (H) securing the left and right LCD brackets to remove the brackets.
Step
Size (Quantity)
Color
Torque
1~4
M2 x L3 (4)
Silver
1.6 kgf-cm
Removing the LCD Module Hinges
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. See “Removing the Camera Board” on page 78.
Chapter 3
83
14. See “Removing the Inverter Board” on page 79.
15. See “Removing the LCD with Brackets” on page 80.
16. See “Removing the LCD Brackets” on page 83.
17. Remove the two screws (G) securing the left and right LCD module hinges.
Step
Size (Quantity)
Color
Torque
1~2
M2.5 x L6 (2)
Black
3.0 kgf-cm
18. Remove the left and right hinges from the LCD back cover.
Removing the Antenna
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
13. See “Removing the Camera Board” on page 78.
14. See “Removing the Inverter Board” on page 79.
15. See “Removing the LCD with Brackets” on page 80.
84
Chapter 3
16. Detach the gasket tape holding the antenna in place, remove the antenna bracket, then carefully remove
the antenna.
Removing the Microphone
1.
See “Removing the Battery Pack” on page 49.
2.
See “Removing the Lower Cover” on page 50.
3.
See “Removing the DIMM” on page 51.
4.
See “Removing the WLAN Board Module” on page 52.
5.
See “Removing the Hard Disk Drive Module” on page 53.
6.
See “Removing the Optical Drive Module” on page 54.
7.
See “Removing the CPU Heatsink Module” on page 57.
8.
See “Removing the CPU” on page 58.
9.
See “Removing the Keyboard” on page 59.
10. See “Removing the Middle Cover” on page 60.
11. See “Removing the LCD Module” on page 61.
12. See “Removing the LCD Bezel” on page 77.
Chapter 3
85
13. Carefully detach the masking tape and remove the microphone cable from underneath the adhesive
aluminum foil.
14. Remove the microphone.
86
Chapter 3
Chapter 4
Troubleshooting
Use the following procedure as a guide for computer problems.
NOTE: The diagnostic tests are intended to test only Acer products. Non-Acer products, prototype cards, or
modified options can give false errors and invalid system responses.
1.
Obtain the failing symptoms in as much detail as possible.
2.
Verify the symptoms by attempting to recreate the failure by running the diagnostic tests or repeating the
same operation.
3.
Do not use any power sources when performing an assembly or disassembly procedures.
4.
If any problems occur, you can perform the following visual inspection before you continue.
Chapter 4
T
Power cords are properly connected and secured.
T
There are no obvious shorts or opens.
T
There are no burned or heated components.
T
All components appear normal.
87
System Check Procedures
External CD/DVD-ROM Drive Check
Perform the following procedures to isolate the possible problem a controller, drive, or CD-ROM.
NOTE: Make sure that the CD-ROM does not have any label attached to it. The label may damage the drive or
cause drive failure.
1.
Boot from the diagnostic disc and start the diagnostic programs.
2.
See if CD-ROM Test is passed when the program runs the CD-ROM Test.
3.
Follow onscreen instructions.
If an error occurs, reconnect the drive to the connector on the mainboard. If the error persists, do the following:
1.
Reconnect the CD/DVD-ROM drive.
2.
Replace the CD/DVD-ROM drive.
3.
Replace the mainboard.
Keyboard or Auxiliary Input Device Check
Remove the external keyboard if the internal keyboard is to be tested.
If the internal keyboard does not work or an unexpected error occurs, make sure that the flexible cable
extending from the internal keyboard is correctly connected to the mainboard. If the keyboard cable
connection is correct, run the Keyboard Test.
If the tests detect a keyboard problem, do the following procedures in sequence to correct the problems. Do
not replace a non-defective FRU:
1.
Reconnect the keyboard cable.
2.
Replace the keyboard.
3.
Replace the mainboard.
The following auxiliary input devices are supported by this computer:
T
Numeric keypad
T
External keyboard
If any of these devices do not function, reconnect the cable and repeat above procedures.
Memory Check
NOTE: Make sure that the DIMM is properly installed into the connector. A loose connection can cause an
error.
Do the following:
88
1.
Boot from the diagnostic diskette and start the diagnostic program.
2.
Go to the diagnostic memory in the test items.
3.
Press F2 in the test items.
4.
Follow onscreen instructions.
Chapter 4
Power System Check
Do the following:
1.
Remove the battery pack.
2.
Connect the power adapter and check the power supply.
3.
Disconnect the power adapter and install the battery pack; then check that power supply.
If you suspect a power problem, see the appropriate power supply check in the following list:
T
“Check the Power Adapter” on page 89
T
“Check the Battery Pack” on page 89
Check the Power Adapter
Unplug the power adapter cable from the system and measure the output voltage at the plug of the power
adapter cable.
1.
If the voltage is not correct, replace the power adapter.
2.
If the voltage is within range, do the following:
a.
Replace the System board.
b.
If the problem is not resolved, see “Undetermined Problems” on page 103.
c. If the voltage is not correct, go to the next step.
NOTE: An audible noise from the power adapter does not always indicate a defect.
3.
If the power-on indicator does not light up, check if the adapter’s power cord is properly connected to the
system.
4.
If the operational charge does not work, see “Check the Battery Pack” on page 89.
Check the Battery Pack
Do the following:
Using the software to identify whether a problem occurs while the battery pack during recharge or discharge:
1.
Open Power Management in the Control Panel.
2.
In Power Meter, confirm if the parameters for Current Power Source and Total Battery Power Remaining
are correct.
3.
Repeat the steps 1 and 2 for both battery and adapter.
Using the hardware to identify whether you should replace the battery pack or not:
1.
Power off the system.
2.
Remove the battery pack and measure the voltage between terminals one (+) and seven (-). There are
seven terminals totally.
3.
If the voltage is still less than 7.5 Vdc after recharging, replace the battery.
If the battery status indicator does not light up, remove the battery pack . If the charge indicator still does not
light up, replace the AC/DC charger board.
Chapter 4
89
Touchpad Check
If the touchpad doesn’t work, do the following procedures in sequence to correct the problem. Do not replace
a non-defective FRU:
1.
After rebooting, run Tracking Pad PS2 Mode Driver. For example Syn touch driver.
2.
Run utility with the PS/2 mouse function and check if the mouse is working.
3.
If the PS/2 mouse does not work, then click if the main board to switch board FPC is connected properly.
4.
If the main board to switch board FPC is connected correctly, then check if the FFC on the touch pad PCB
is connected properly.
5.
If the FFC on the touch pad PCB is connected correctly, check if LS851 JP1 Pin6 = 5V are pules. If yes,
then replace switch board. If not, then go to the next step.
6.
Replace the touch pad PCB.
7.
If the touch pad still does not work, then replace the FPC on Track Pad PCB.
After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement
will occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware
problem. No actions are necessary to be taken if the pointer movement stops in a short period of time.
90
Chapter 4
Power-On Self-Test (POST) Error Message
The POST error message index lists the error message and their possible causes.
NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU
replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.
The error messages are listed in the coming pages to indicate the BIOS signals on the screen and the error
symptoms classified by functions. If the symptom is not included on the list, please refer to “Undetermined
Problems”.
NOTE: Most of the error messages occur during POST. Some of them display information about a hardware
device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the
way it has been configured.
NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter
Setup and install Setup defaults or correct the error.
Chapter 4
91
Index of Error Messages
Error Message List
Error Messages
Check or do the following in sequence:
Stuck Key
See “Keyboard or Auxiliary Input Device Check” on page 88.
System CMOS checksum bad - Default
configuration used
T
Real time clock error
T
T
T
T
Previous boot incomplete - Default
configuration used
T
T
T
Invalid System Configuration Data
T
T
Operating system not found
T
T
T
T
Power-on indicator turns off and LCD is
blank.
T
T
T
T
Power-on indicator turns on and LCD
is blank.
T
T
T
T
T
T
T
Power-on indicator turns on and LCD
is blank. But you can see POST on an
external CRT.
T
T
T
T
T
Power-on indicator turns on and a
blinking cursor shown on LCD during
POST.
T
Failure Fixed Disk
T
T
T
T
T
92
RTC battery.
Run the BIOS Setup Utility to reconfigure the system time,
then reboot system.
RTC battery
Run the BIOS Setup Utility to reconfigure system time, then
reboot system.
Mainboard
Run “Load Setup Defaults” in BIOS Setup Utility.
RTC battery
Mainboard
Run “Load Setup Defaults” in BIOS Setup Utility.
Mainboard
Run the BIOS Setup Utility to check if the fixed disk and drive
A are properly identified.
CD/DVD-ROM drive
Hard disk drive
Mainboard
Power source (battery pack and power adapter.) See “Power
System Check” on page 89.
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM
Mainboard
Power source (battery pack and power adapter.) See “Power
System Check” on page 89.
Reconnect the LCD connector
Hard disk drive
LCD cable
LCD inverter board
LCD
Mainboard
Reconnect the LCD connectors.
LCD cable
LCD inverter board
LCD
Mainboard
Ensure every connector is connected tightly and correctly.
Mainboard
Reconnect the hard disk drive connector.
Run “Load Setup Defaults” in BIOS Setup Utility.
Hard disk drive
Mainboard
Chapter 4
Error Message List
Error Messages
No beep, power-on indicator turns off and
LCD is blank.
Check or do the following in sequence:
T
T
T
T
T
No beep, power-on indicator turns on and
LCD is blank.
T
T
T
T
T
T
T
T
No beep, power-on indicator turns on and
LCD is blank. But you can see POST on an
external CRT.
T
T
T
T
T
T
No beep, power-on indicator turns on and a
blinking cursor shown on LCD during
POST.
T
No beep during POST but system runs
correctly.
T
Chapter 4
T
T
Power source (battery pack and power adapter). See “Power
System Check” on page 89.
Ensure every connector is connected tightly and correctly.
Reconnect the DIMM.
LED board
Mainboard
Power source (battery pack and power adapter). See “Power
System Check” on page 89.
Reconnect the LCD connector
Hard disk drive
LCD inverter ID
LCD cable
LCD Inverter board
LCD
Mainboard
Reconnect the LCD connectors.
LCD inverter ID
LCD cable
LCD inverter board
LCD
Mainboard
Ensure every connector is connected tightly and correctly.
Mainboard
Speaker
Mainboard
93
Phoenix BIOS Beep Codes
Code
Beeps
02h
Verify Real Mode
03h
Disable Non-Maskable Interrupt (NMI)
04h
Get CPU type
06h
Initialize system hardware
08h
Initialize chipset with initial POST values
09h
Set IN POST flag
0Ah
Initialize CPU registers
0Bh
Enable CPU cache
0Ch
Initialize caches to initial POST values
0Eh
Initialize I/O component
0Fh
Initialize the local bus IDE
10h
Initialize Power Management
11h
Load alternate registers with initial POST values
12h
Restore CPU control word during warm boot
13h
Initialize PCI Bus Mastering devices
14h
Initialize keyboard controller
16h
1-2-2-3
17h
BIOS ROM checksum
Initialize cache before memory autosize
18h
8254 timer initialization
1Ah
8237 DMA controller initialization
1Ch
Reset Programmable Interrupt Controller
20h
1-3-1-1
Test DRAM refresh
22h
1-3-1-3
Test 8742 Keyboard Controller
24h
Set ES segment register to 4 GB
26h
Enable A20 line
28h
Autosize DRAM
29h
Initialize POST Memory Manager
2Ah
Clear 215 KB base RAM
2Ch
1-3-4-1
RAM failure on address line xxxx*
2Eh
1-3-4-3
RAM failure on data bits xxxx* of low byte of memory bus
1-4-1-1
RAM failure on data bits xxxx* of high byte of memory bus
2Fh
30h
94
POST Routine Description
Enable cache before system BIOS shadow
32h
Test CPU bus-clock frequency
33h
Initialize Phoenix Dispatch Manager
36h
Warm start shut down
38h
Shadow system BIOS ROM
3Ah
Autosize cache
3Ch
Advanced configuration of chipset registers
3Dh
Load alternate registers with CMOS values
42h
Initialize interrupt vectors
45h
POST device initialization
Chapter 4
Code
46h
Beeps
2-1-2-3
48h
POST Routine Description
Check ROM copyright notice
Check video configuration against CMOS
49h
Initialize PCI bus and devices
4Ah
Initialize all video adapters in system
4Bh
QuietBoot start (optional)
4Ch
Shadow video BIOS ROM
4Eh
Display BIOS copyright notice
50h
Display CPU type and speed
51h
Initialize EISA board
52h
Test keyboard
54h
58h
Set key click if enabled
2-2-3-1
Test for unexpected interrupts
59h
Initialize POST display service
5Ah
Display prompt “Press F2 to enter SETUP”
5Bh
Disable CPU cache
5Ch
Test RAM between 512 and 640 KB
60h
Test extended memory
62h
Test extended memory address lines
64h
Jump to User Patch1
66h
Configure advanced cache registers
67h
Initialize Multi Processor APIC
68h
Enable external and CPU caches
69h
Setup System Management Mode (SMM) area
6Ah
Display external L2 cache size
6Bh
Load custom defaults (optional)
6Ch
Display shadow-area message
6Eh
Display possible high address for UMB recovery
70h
Display error messages
72h
Check for configuration errors
76h
Check for keyboard errors
7Ch
Set up hardware interrupt vectors
7Eh
Initialize coprocessor if present
80h
Disable onboard Super I/O ports and IRQs
81h
Late POST device initialization
82h
Detect and install external RS232 ports
83h
Configure non-MCD IDE controllers
84h
Detect and install external parallel ports
85h
Initialize PC-compatible PnP ISA devices
86h
Re-initialize onboard I/O ports
87h
Configure Motherboard Configurable Devices (optional)
88h
Initialize BIOS Data Area
89h
Enable Non-Maskable Interrupts (NMIs)
Chapter 4
95
Code
Beeps
8Ah
Initialize Extended BIOS Data Area
8Bh
Test and initialize PS/2 mouse
8Ch
Initialize floppy controller
8Fh
Determine number of ATA drives (optional)
90h
Initialize hard-disk controllers
91h
Initialize local-bus hard-disk controllers
92h
Jump to UserPatch2
93h
Build MPTABLE for multi-processor boards
95h
Install CD-ROM for boot
96h
Clear huge ES segment register
97h
98h
Fixup Multiprocessor table
1-2
Search for option ROMs. One long, two short beeps on checksum
failure.
99h
Check for SMART drive (optional)
9Ah
Shadow option ROMs
9Ch
Set up Power Management
9Dh
Initialize security engine (optional)
9Eh
Enable hardware interrupts
9Fh
Determine number of ATA and SCSI drives
A0h
Set time of day
A2h
Check key lock
A4h
Initialize Typematic rate
A8h
Erase F2 prompt
AAh
Scan for F2 key stroke
ACh
Enter SETUP
AEh
Clear Boot flag
B0h
Check for errors
B2h
POST done- prepare to boot operating system
B4h
96
POST Routine Description
1
One short beep before boot
B5h
Terminate QuietBoot (optional)
B6h
Check password (optional)
B9h
Prepare Boot
BAh
Initialize DMI parameters
BBh
Initialize PnP Option ROMs
BCh
Clear parity checkers
BDh
Display MultiBoot menu
BEh
Clear screen (optional)
BFh
Check virus and backup reminders
C0h
Try to boot with INT 19
C1h
Initialize POST Error Manager (PEM)
C2h
Initialize error logging
C3h
Initialize error display function
Chapter 4
Code
Beeps
POST Routine Description
C4h
Initialize system error handler
C5h
PnPnd dual CMOS (optional)
C6h
Initialize notebook docking (optional)
C7h
Initialize notebook docking late
C8h
Force check (optional)
C9h
Extended checksum (optional)
D2h
Unknown interrupt
* If the BIOS detects error 2C, 2E, or 3O (base 512K RAM error), it displays an additional word-bitmap (xxxx) indicating
the address line or bits that failed. For example, "2C 0002" means address line 1 (bit one set) has failed. "2E 1020"
means data bits 12 and 5 (bits 12 and 5 set) have failed in the lower 16 bits. Note that error 30 cannot occur on 386SX
systems because they have a 16 rather than 32-bit bus. The BIOS also sends the bitmap to the port-80 LED display. It
first displays the check point code, followed by a delay, the high-order byte, another delay, and then the low-order byte
of the error. It repeats this sequence continuously.
BIOS Beep Codes for Boot Block in Flash ROM
Code
Beeps
For Boot Block in Flash ROM
E0h
Initialize the chipset
E1h
Initialize the bridge
E2h
Initialize the CPU
E3h
Initialize the system timer
E4h
Initialize system I/O
E5h
Check force recovery boot
E6h
Checksum BIOS ROM
E7h
Go to BIOS
E8h
Set Huge Segment
E9h
Initialize Multiprocessor
EAh
Initialize OEM special code
EBh
Initialize PIC and DMA
ECh
Initialize Memory type
EDh
Initialize Memory size
EEh
Shadow Boot Block
EFh
System memory test
F0h
Initialize interrupt vectors
F1h
Initialize Run Time Clock
F2h
Initialize video
F3h
Initialize System Management Mode
F4h
1
Output one beep before boot
F5h
Boot to Mini DOS
F6h
Clear Huge Segment
F7h
Boot to Full DOS
Chapter 4
97
Index of Symptom-to-FRU Error Message
LCD-Related Symptoms
Symptom / Error
LCD backlight doesn't work
LCD is too dark
LCD brightness cannot be adjusted
LCD contrast cannot be adjusted
Check or do the following in sequence
T
T
T
T
T
T
T
T
Unreadable LCD screen
Missing pels in characters
Abnormal screen
Wrong color displayed
T
T
T
T
T
T
LCD has extra horizontal or vertical lines
displayed.
T
T
T
T
T
Run “Load Setup Defaults” in BIOS Setup Utility, then reboot
system.
Reconnect the LCD connectors.
Keyboard (if contrast and brightness function key doesn't
work).
LCD inverter ID
LCD cable
LCD inverter board
LCD
Mainboard
Reconnect the LCD connector
LCD inverter ID
LCD cable
LCD inverter board
LCD
Mainboard
LCD inverter ID
LCD inverter board
LCD cable
LCD
Mainboard
Indicator-Related Symptoms
Symptom / Error
Indicator incorrectly remains off or on, but
system runs correctly
Check or do the following in sequence
T
T
Reconnect the LCD inverter board.
Mainboard
Power-Related Symptoms
Symptom / Error
Power shuts down during operation
Check or do the following in sequence
T
T
T
T
T
The system doesn’t power-on.
T
T
T
T
T
98
Power source (battery pack and power adapter). See “Power
System Check” on page 89.
Battery pack
Power adapter
Hard disk drive & battery connection board
Mainboard
Power source (battery pack and power adapter). See “Power
System Check” on page 89.
Battery pack
Power adapter
Hard disk drive & battery connection board
Mainboard
Chapter 4
Power-Related Symptoms
Symptom / Error
The system doesn’t power-off.
Check or do the following in sequence
T
T
T
Battery can’t be charged
T
T
T
Power source (battery pack and power adapter). See “Power
System Check” on page 89.
Hold and press the power switch for more than 4 seconds.
Mainboard
See “Check the Battery Pack” on page 89.
Battery pack
Mainboard
PCMCIA-Related Symptoms
Symptom / Error
Check or do the following in sequence
PCMCIA slot assembly
Mainboard
System cannot detect the PC Card
(PCMCIA)
T
PCMCIA slot pin is damaged.
PCMCIA slot assembly
T
Memory-Related Symptoms
Symptom / Error
Memory count (size) appears different from
actual size.
Check or do the following in sequence
T
T
T
Run “Load Setup Defaults” in BIOS Setup Utility, then reboot
system.
DIMM
Mainboard
Speaker-Related Symptoms
Symptom / Error
In Windows, multimedia programs, no
sound comes from the computer.
Check or do the following in sequence
T
T
T
Internal speakers make noise or emit no
sound.
T
T
Audio driver
Speaker
Mainboard
Speaker
Mainboard
Power Management-Related Symptoms
Symptom / Error
The system will not enter hibernation
Check or do the following in sequence
T
T
T
T
The system doesn't enter hibernation mode
and four short beeps every minute.
T
T
T
T
T
T
The system doesn’t enter standby mode
after closing the LCD
Chapter 4
T
T
See “Save to Disk (S4) on page 34.
Keyboard (if control is from the keyboard)
Hard disk drive
Mainboard
Press Fn+o and see if the computer enters hibernation
mode.
Touchpad
Keyboard
Hard disk connection board
Hard disk drive
Mainboard
See “Save to Disk (S4) on page 34.
Mainboard
99
Power Management-Related Symptoms
Symptom / Error
The system doesn't resume from
hibernation mode.
Check or do the following in sequence
T
T
T
T
The system doesn't resume from standby
mode after opening the LCD.
T
Battery fuel gauge in Windows doesn’t go
higher than 90%.
T
T
T
T
T
System hangs intermittently.
T
T
T
See “Save to Disk (S4) on page 34.
Hard disk connection board
Hard disk drive
Mainboard
See “Save to Disk (S4) on page 34.
Mainboard
Remove battery pack and let it cool for 2 hours.
Refresh battery (continue use battery until power off, then
charge battery).
Battery pack
Mainboard
Reconnect hard disk/CD-ROM drives.
Hard disk connection board
Mainboard
Peripheral-Related Symptoms
Symptom / Error
System configuration does not match the
installed devices.
Check or do the following in sequence
T
T
Run “Load Setup Defaults” in BIOS Setup Utility, then reboot
system.
Reconnect hard disk/CD-ROM/diskette drives.
T
Press Fn+F5 to switch to LCD or CRT
Mainboard
USB does not work correctly
T
Mainboard
Print problems.
T
Run printer self-test.
Printer driver
Printer cable
Printer
Mainboard
External display does not work correctly.
T
T
T
T
T
Keyboard/Touchpad-Related Symptoms
Symptom / Error
Keyboard (one or more keys) does not
work.
Check or do the following in sequence
T
T
T
Touchpad does not work.
T
T
T
100
Reconnect the keyboard cable.
Keyboard
Mainboard
Reconnect touchpad cable.
Touchpad board
Mainboard
Chapter 4
Modem-Related Symptoms
Symptom / Error
Internal modem does not work correctly.
Check or do the following in sequence
T
T
T
Modem phone port
Modem combo board
Mainboard
NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined
Problems” on page 103.
Chapter 4
101
Intermittent Problems
Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.
When analyzing an intermittent problem, do the following:
102
1.
Run the advanced diagnostic test for the mainboard in loop mode at least 10 times.
2.
If no error is detected, do not replace any FRU.
3.
If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.
Chapter 4
Undetermined Problems
The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.
NOTE: Verify that all attached devices are supported by the computer.
NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power
System Check” on page 89.)
Follow procedures below to isolate the failing FRU. Do not isolate non-defective FRU.
1.
Power off the computer.
2.
Visually check them for damage. If any problems are found, replace the FRU.
3.
Remove or disconnect all of the following devices:
T
Non-Acer devices
T
Printer, mouse, and other external devices
T
Battery pack
T
Hard disk drive
T
DIMM
T
CD/DVD-ROM drive
T
PC cards
4.
Power on the computer.
5.
Determine if the problem has been resolved.
6.
If the problem does not recur, reconnect the removed devices one at a time until you find the failed FRU.
7.
If the problem persists, replace the following FRU one at a time. Do not replace a non-defective FRU.
Chapter 4
T
System board
T
LCD assembly
103
104
Chapter 4
Chapter 5
System Block Diagram and Connector Locations
System Block Diagram
Chapter 5
105
Board Layout
Top View
106
#
Item
#
Item
1
LCD connector
5
ExpressCard/54 slot
2
Internal microphone cable connector
6
USB board cable connector
3
Speaker cable connector
7
Touchpad cable connector
4
ICH8-M chipset (south bridge)
8
Keyboard cable connector
Chapter 5
Bottom View
#
Item
#
Item
1
Intel GL960 Express chipset (north bridge)
8
RTC battery cable connector
2
Battery cable connector
9
Modem board connector
3
AC-in jack
10
USB port
4
CPU socket
11
S-video port
5
DIMM socket
12
RJ11+RJ45 port
6
ODD connector
13
CRT port
7
HDD connector
Chapter 5
107
Hardware Gap Setting
The system has a hardware gap for clearing system passwords. Refer to “Removing a System Password” on
page 39 for instructions on how to clear passwords.
Short G67 gap to clear password.
108
Chapter 5
Chapter 6
FRU (Field Replaceable Unit) List
This chapter offers the FRU (Field Replaceable Unit) list in global configuration of Aspire 4715Z/4315. Refer to
this chapter whenever ordering the parts to repair or for RMA (Return Merchandise Authorization).
NOTE: When ordering FRU parts, check the most up-to-date information available on your regional web or
channel. For whatever reasons a part number is changed, it will NOT be noted on the printed Service
Guide. For Acer authorized service providers, your Acer office may have a different part number code
from those given in the FRU list of this printed Service Guide. You MUST use the local FRU list provided
by your regional Acer office to order FRU parts for service.
NOTE: To scrap or to return the defective parts, follow the local government ordinance or regulations on how
to dispose it properly, or follow the rules set by your regional Acer office on how to return it.
Chapter 6
109
Aspire 4715Z/4315 Exploded Diagram
110
Chapter 6
Aspire 4715Z FRU List (No: LX.AL40C.013)
Category
Part Name
Description
Acer Part No.
Adapter
Adapter 65W Delta ADP-65KB
DFA LF
ADT 65W SADP-65KB DFA LF
Delta
AP.06501.013
Adapter 65W Liteon PA-165002AC LF
ADT 65W PA-1650-02AC LF
AP.06503.016
Adapter 65W LISHIN SLS0335A
19A54LF
ADT 65W LISHIN SLS0335A
19A54LF
AP.06506.003
Adapter 65W 3P HPOK065B13LF
ADP 65W 3P HPOK065B13LF
AP.0650A.010
Battery Pack Li+6 cell 2.0mAh
Sanyo
BTY Pack Li+6C 2.0Ah Sanyo
BT.00603.036
Battery Pack Li-ion 6 cell
2.0mAh Sony
BTY Pack Li+6C 2.0Ah Sony
BT.00604.022
Battery Pack Li-Mn 6 cell
2.0mAh Panasonic
BTY Pack Li+6C 2.0Ah PANA
BT.00605.018
Battery Pack Li-Mn 6 cell 2.0
Simplo
BTY Pack Li+6C 2.0Ah SMP
BT.00607.013
Mainboard AS4315/
AS4715Z_UMA(C) w/ RTC
battery, PCMCIA slot, modem
and modem cable
Volvi2 MB 07220-1M MP Dual
core
MB.AKZ01.001
Modem board Liteon DelphiAM3 3.3V ONLY B85244300G
Agere
Modem MDC003 A8B
B85244300G
FX.22500.011
Modem board Foxconn MC4Z
MDC1.5_3 3.3V T60M955.00
Modem MDC1.5 T60M955.00
3.3V
FX.22500.009
WLAN 802.11BG Atheros
WLAN 802.11BG Atheros
Rev06
NI.23600.007
Wireless LAN board 802.11BG
WLAN 802.11BG XB63
Minicard
NI.23600.028
Wireless LAN board 802.11BG
Foxconn BCM4311 Minicard
WLAN 802.11BG BCM4311
WW SKU
54.AEFV1.001
Audio board
Volvi2 07551-1 Audio BD 6L
(D)
55.AL401.001
Battery
Mainboard
Boards
Wireless LAN board
Audio board
Chapter 6
111
Category
Part Name
Description
Acer Part No.
USB board
USB board
Volvi2 USB-BD 07570-1 (D)
55.AL401.002
Touchpad board Synaptics
TM00450-001
Touchpad Synaptics TM00450001
56.AGV01.001
Touchpad board Synaptics
TM00450-000
Touchpad Synaptics TM00450000
56.AHP01.001
Audio cable
Audio FFC Volvi960
50.AL401.001
Audio cable
Audio FFC Volvi960#2
50.AL401.001
DC-in cable
C.A. DC-in 65W HL Volvi960
50.AL401.002
DC-in cable
C.A. DC-in 65W HL Volvi960
MEC
50.AL401.002
Touchpad board
Cables
112
Modem cable
C.A. MDC HL Tahoe
50.AHR01.002
Modem cable
C.A. MDC MEC Tahoe
50.AHQ01.001
Modem cable
C.A. MDC HL Tahoe HT
50.AHQ01.001
Touchpad cable
C.A. T/P FFC TR Tahoe
50.AHP01.005
Touchpad cable
C.A. T/P FFC Tahoe
50.AHP01.005
Touchpad cable
J.H. T/P FFC Tahoe
50.AHP01.005
USB cable HL
C.A. USB HL Tahoe
50.AHP01.001
USB cable MEC
C.A. USB MEC Tahoe
50.AHP01.001
USB cable
C.A. USB HL Tahoe HT
50.AHP01.001
Power cord 3A 250V 3-pin UK
Code UK 3A 250V 3P BK
27.01518.541
Power cord 5A 250V 3-pin UK
BK
Code 5A 250V 3P UK BK
27.03118.001
Power cord 10A 3-pin BK
Denmark
Code Denmark 10A 3P BK
27.01518.561
Power cord 10A 250V 3-pin
Denmark BK
Code 10A 250V 3P Denmark
BK
27.01518.671
Power cord 10A 250V 3-pin
South Africa
Code South Africa 10A 250V
BK
27.01518.571
Power cord 16A 250V South
Africa BK
Code 16A 250V South Africa
BK
27.01518.681
Power cord 10A 250V Swiss
Code Swiss Power 10A 250V
BK
27.01518.581
Power cord 10A 250V 3-pin
Swiss BK
Code 10A 250V 3P Swiss Bk
27.01518.691
Power cable 16A 250V 3-pin
EUR BK
Cord 16A 250V 3P EUR BK
27.01518.731
Power cord 220V 3-pin EUR
Cord EUR 220V 3P BK
27.T30V1.004
Power cord 10A 250V 3-pin Italy
Cord Italy 10A 250V 3P BK
27.01518.611
Power cord 10A 250V 3-pin Italy
BK
Cord 10A 250V 3P Italy BK
27.01518.711
Chapter 6
Category
Cables (cont.)
Part Name
Description
Acer Part No.
Power cord 2.5A 250V South
Africa BK (India)
Cord 2.5A 250V South Africa
Bk
27.01518.631
Power cord 10A 250V South
Africa BK (India)
Cord 10A 250V South Africa
BK
27.01518.721
Power cord 10A 125V 3-pin US
BK
Code 10A 125V 3P US BK
27.01518.641
Power cord 10A 125V US
Code US 10A 125V BK
27.T30V1.001
Power cord 10A 250V 3-pin
China
Cord China 10A 250V 3P
27.01518.591
Power cord 10A 250V 3-pin
China BK
Cord 10A 250V 3P China BK
27.01518.701
Power cord 250V 10A 3-pin
Israel
Cord 250V 10~16A 3P Israel
27.01518.761
Power cord 2.5A 125V USA
Code USA/W CNS 2.5A 125V
8121
27.01518.781
Power cord ACA/ACNZ
Power cord ACA/ACNZ Annie
27.03218.021
Touchpad bracket
TP bracket ASSY Volvi960
33.AL401.001
Support bracket left
Support L ASSY Volvi960
33.AL401.002
Dummy card
Card dummy Volvi
42.AHV01.001
Middle cover
Middle cover Volvi960
42.AL401.001
Unitload cover
ASSY big door Tahoe
42.AHP01.002
Lowercase
ASSY L-Case Volvi960
60.AL401.001
Upper case w/ speaker
ASSY U-Case Volvi960
60.AL401.002
PCMCIA slot
Conn Card Bus 4P 10057913-
22.AHP01.001
SODIMM 1GB DDRII667 Hynix
HYMP512S64CP8-Y5 LF
SODIMM 1G
HYMP512S64CP8-Y5 AB
KN.1GB0G.006
SODIMM 1GB DDRII667 Nanya
NT1GT64U8HB0BN-3C LF
(0.09U)
SODIMM 1G
NT1GT64U8HB0BN-3C
KN.1GB03.014
SODIMM 1GB DDRII667
DDRII667 Samsung
M470T2953EZ3-CE6 LF
SODIMM 1G M470T2953EZ3CE6
KN.1GB0B.011
SODIMM 1GB DDRII667
Samsung M470T2864DZ3-CE6
SODIMM 1G M470T2864DZ3CE6
KN.1GB0B.014
System case/cover/bracket/assembly
Memory
Chapter 6
113
Category
Memory (cont.)
Part Name
Description
Acer Part No.
SODIMM 1GB DDRII667 Hynix
HYMP112S64CP6-Y5 LF
SODIMM 1G
HYMP112S64CP6-Y5
KN.1GB0G.012
SODIMM 1GB DDRII667
Infineon HYS64T128021EDL-3S
LF
SODIMM1G
HYS64T128021EDL-3S-B2
KN.1GB02.036
SODIMM 2GB DDRII667 Hynix
HYMP125S64CP8-Y5 LF
SODIMM 2G
HYMP125S64CP8-Y5
KN.2GB0G.004
SODIMM 512MB DDRII667
Nanya NT512T64UH8B0FN-3C
LF
SODIMM 512M
NT512T64UH8B0FN-3C
KN.51203.032
SODIMM 512MB DDRII667
Hynix HYMP564S64CP6-Y5 LF
SODIMM512M
HYMP564S64CP6-Y5 AB
KN.5120G.019
SODIMM 512MB DDRII667
Samsung M470T6554EZ3-CE6
LF
SODIMM 512M
M470T6554EZ3-CE6
KN.5120B.023
Assembly Combo module 24X
ODD CB24X combo for
Volvi960
6M.AL401.001
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Combo bezel
ASSY ODD bezel combo
Tahoe
42.AGV01.004
Combo module 24X Philips DS24CZP w/o bezel
Combo 24X PDBS DS-24CZP
KO.02409.029
Combo module 24X Sony
CRX880A LF w/o bezel
Combo 24X Sony/CRX880A
Myall2
KO.0240E.005
Combo module 24X Toshiba TSL462D LF w/o bezel
DVD Combo TSST/TS-L462D
Biwa
KO.02401.004
Assembly Super Multi module
8X
ODD SM8X Super-multi drive
6M.AL401.002
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Super Multi bezel
ASSY ODD bezel S-Multi
Tahoe
42.AGV01.005
DVD-RW drive 8X Super Mult
Pioneer DVR-K17RS LF w/o
bezel
S-Mult 8X PIO/DVR-K17RS
Morar3
KU.00805.038
DVD-RW drive 8X Super Mult
Panasonic UJ-850UAA1-A w/o
bezel
S-Mult PAN/UJ-850UAA1-A
Dellen
KU.00807.055
DVD-RW drive 8X Super Multi
Philips DS-8A1P LF w/o bezel
8X S-Multi PDBS/DS-8A1P
Myallm
KU.00809.010
DVD-RW drive 8X Super Mult
Sony AD-7560A LF w/o bezel
8X S-Mult Sony/AD-7560A
Tahoe
KU.0080E.005
Combo module
DVD module
114
Chapter 6
Category
Part Name
Description
Acer Part No.
HDD/Hard Disk Drive
HDD bracket
ASSY HDD bracket Tahoe
33.AHP01.005
HDD module 80G 5400RPM
SATA
HDD N80GB5.4KS for
Volvi960
HDD 80GB SATA Hitachi
HTS541680J9SA00
HDD 80GB SATA
HTS541680J9SA00
KH.08007.021
HDD 80GB 5400RPM SATA II
HGST HTS542580K9SA00
HDD 80GB HGST
HTS542580K9SA00
KH.08007.025
HDD 80GB 5400RPM SATA
Seagate ST980811AS Venus LF
F/W:3.ALD
HDD 80GB SGT ST980811AS
KH.08001.030
HDD 80GB 5400RPM SATA
Toshiba MK8037GSX Gemini
BS LF F/W:DL230
HDD 80GB Toshiba
MK8037GSX
KH.08004.010
HDD 80GB 5400RPM SATA WD
WD800BEVS-22RST0 ML80 LF
F/W:04.01G04
HDD 80GB WD WD800BEVS22RST0
KH.08008.033
HDD module 120G 5400RPM
SATA
HDD 120GB5.4KS for Volvi960
G2.HDAHQ.002
HDD 120GB 5400RPM SATA
Hitachi HTS541612J9SA00 LF
F/W:C70P
HDD 120GB SATA
HTS541612J9SA00
KH.12007.010
HDD 120GB 5400RPM SATA
Seagate ST9120822AS LF F/
W:3.ALD
HDD 120GB SGT
ST9120822AS
KH.12001.031
HDD 120GB 5400RPM SATA
Toshiba MK1237GSX Gemini
BS LF F/W:DL130J
HDD 120GB Toshiba
MK1237GSX
KH.12004.006
HDD 120GB 5400RPM SATA
WD WD1200BEVS-22UST0
ML125 LF F/W:01.01A01
HDD WD 2.5" 5400RPM
120GB WD1200BEVS-22U
KH.12008.019
HDD module 160G 5400RPM
SATA
HDD N160GB5.4KS for
Volvi960
HDD 160GB 5400RPM SATA
Hitachi HTS541616J9SA00 LF
F/W:C70P
HDD 160GB HGST
HTS541616J9SA00
KH.16007.011
HDD 160GB 5400RPM SATA
Seagate ST9160821AS LF F/
W:3.ALD
HDD 160GB SGT
ST9160821AS
KH.16001.026
HDD 160GB 5400RPM SATA
Toshiba MK1637GSX Gemini
BS LF F/W:DL030J
HDD 160GB Toshiba
MK1637GSX
KH.16004.001
HDD 160GB 5400RPM SATA
WD WD1600BEVS-22RST0 LF
F/W:04.01G04
HDD 160GB WD
WD1600BEVS-22RST0
KH.16008.019
CPU Heatsink
Chapter 6
CPU heatsink
ASSY Thermal UMA Foxconn
60.AHR01.001
CPU heatsink
ASSY Thermal UMA Forcecon
60.AHR01.001
115
Category
Part Name
Description
Acer Part No.
CPU/Processor
CPU Merom T2310 1.46G Intel
IC CPU Merom T2310 1.46G
PGA
KC.23101.DTP
CPU Merom T2330 1.6GHz
IC CPU Merom T2330 1.6G
PGA
KC.23301.DTP
Keyboard 14_15KB-FV2 88KS
White US International
KB Darfon NSK-H3V1D UI USIN88
KB.INT00.036
Keyboard 14_15KB-FV2 88KS
White Traditional Chinese
KB Darfon NSK-H3V02 TW
Taiwa88
KB.INT00.065
Keyboard 14_15KB-FV2 88KS
White Thailand
KB Darfon NSK-H3V03 TI
Thai88
KB.INT00.040
Keyboard 14_15KB-FV2 88KS
White Arabic/English
KB Darfon NSK-H3V0A AR
Arabi88
KB.INT00.069
Keyboard 14_15KB-FV2 88KS
White US International Hebrew
KB Darfon NSK-H3V0H HB
Hebre88
KB.INT00.037
Keyboard 14_15KB-FV2 88KS
White Korean
KB Darfon NSK-H3V0K KO
Korea88
KB.INT00.052
Keyboard 14_15KB-FV2 88KS
White Greek
KB Darfon NSK-H3V0L GK
Greek88
KB.INT00.058
Keyboard 14_15KB-FV2 88KS
White Russian
KB Darfon NSK-H3V0R RU
Russi88
KB.INT00.047
Keyboard 14_15KB-FV2 89KS
White Portuguese
KB Darfon NSK-H3V06 PO
Portu89
KB.INT00.048
Keyboard 14_15KB-FV2 89KS
White Czech
KB Darfon NSK-H3V0C CZ
Czech89
KB.INT00.064
Keyboard 14_15KB-FV2 89KS
White Danish
KB Darfon NSK-H3V0D DM
Danis89
KB.INT00.063
Keyboard 14_15KB-FV2 89KS
White Italian
KB Darfon NSK-H3V0E IT
Itali89
KB.INT00.054
Keyboard 14_15KB-FV2 89KS
White French
KB Darfon NSK-H3V0F FR
Rehcn89
KB.INT00.060
Keyboard 14_15KB-FV2 89KS
White German
KB Darfon NSK-H3V0G GR
Germa89
KB.INT00.059
Keyboard 14_15KB-FV2 89KS
White Swiss/G
KB Darfon NSK-H3V00 SW
Swiss89
KB.INT00.041
Keyboard 14_15KB-FV2 89KS
White Canadian French
KB Darfon NSK-H3V0M CF
FR.CA89
KB.INT00.066
Keyboard 14_15KB-FV2 89KS
White Norwegian
KB Darfon NSK-H3V0N NW
Norwe89
KB.INT00.050
Keyboard 14_15KB-FV2 89KS
White Hungarian
KB Darfon NSK-H3V0Q HG
Huga89
KB.INT00.057
Keyboard 14_15KB-FV2 89KS
White Spanish
KB Darfon NSK-H3V0S SP
Spani89
KB.INT00.043
Keyboard 14_15KB-FV2 89KS
White Turkish
KB Darfon NSK-H3V0T TR
Turki89
KB.INT00.039
Keyboard 14_15KB-FV2 89KS
White UK
KB Darfon NSK-H3V0U UK
UK89
KB.INT00.038
Keyboard
116
Chapter 6
Category
Keyboard (cont.)
Part Name
Description
Acer Part No.
Keyboard 14_15KB-FV2 89KS
White Swedish
KB Darfon NSK-H3V0W SD
Swedi89
KB.INT00.042
Keyboard 14_15KB-FV2 89KS
White Belgium
KB Darfon NSK-H3V1A BE
BELGI89
KB.INT00.068
Keyboard 14_15KB-FV2 89KS
White Brazilian Portuguese
KB Darfon NSK-H3V1B BP
BR-PO89
KB.INT00.067
Keyboard 14_15KB-FV2 89KS
White Slovenian
KB Darfon NSK-H3V1F SK
Slove89
KB.INT00.044
Keyboard 14_15KB-FV2 93KS
White Japanese
KB Darfon NSK-H3V0J JA
Japan92
KB.INT00.053
Assembly LCD module 14.1”
WXGA glare w/ antenna and
camera
LCD 14.1WXGAG w/ Camera/
WLAN
6M.AL401.003
Inverter board 17" FOXCONN
T62I240.02 V.00
Inverter 17” T62I240.02 V.00
19.TK501.001
Inverter board 17” YEC YNVW06
Inverter 17” YNV-W06S
19.TK501.002
Inverter board 17” ROHS
VK.21189.406
Inverter 17” ROHS
VK.21189.406
19.TCBV1.001
LCD/Camera cable
C.A. LCD WXGA HL Tahoe
50.AHP01.008
Camera CMOS 0.3M Suyin
CN0314-OV03 UVC
Camera CMOS 0.3M CN0314OV03 U
57.TK901.001
Camera CMOS 0.3M Bison
BN30V4O717310
Camera CMOS 0.3M
BN30V4O717310
57.TK501.001
LCD bracket right
BRKT LCD R Tahoe
33.AHP01.006
LCD bracket left
BRKT LCD L Tahoe
33.AHP01.007
LCD bezel 14.1” for CCD
ASSY bezel Volvi2
60.AL401.003
LCD cover 14.1” w/ hinge, mic
and camera
ASSY LCD panel Volvi960
60.AL401.004
Wireless antenna
Antenna WLAN Volvi960
25.AL401.001
LCD 14.1” WXGA AU
B141EW04-V4 LF glare 200 nits
16ms
LCD 14.1” WXGA AU
B141EW04-V4 G
LK.14105.018
LCD 14.1” WXGA LG
LP141WX3-TLB1glare 200 nits
16ms
LCD 14.1” WXGA LG
LP141EWX3-TLB1
LK.14108.010
LCD 14.1” WXGA LG
LP141WX3-TLB1 glare LF (OKI
DRIVER IC: 01OKL-0123A)
LCD 14.1” WXGA LG
LP141WX3-TLB1
LK.14108.012
LCD 14.1" WXGA CMO N141I3L02 LF glare 200 nits 16ms
LCD 14.1"WXGA CMO
N141I3-L02 G
LK.1410D.016
LCD 14.1" WCXGA CMO
N141I1-L03 non-glare
LCD 14.1" CMO N141I1-L03
NG
LK.1410D.014
LCD 14.1” WXGA glare
Samsung LTN141W3-L01-J L6
LF 200 nits 16ms
LCD 14.1” WXGA Samsung
LTN141W3-L01-J G
LK.14106.014
Microphone
Microphone cable FORG
Volvi960
23.AL401.002
LCD module
Chapter 6
117
Category
LCD module
(cont.)
Part Name
Description
Acer Part No.
Microphone
Microphone cable SHAN
Volvi960
23.AL401.002
Speaker set
Speaker Volvi960
23.AL401.001
Speaker set
Speaker Volvi960#2
23.AL401.001
RTC battery LI 3V 200 mAh
Battery 3V CR2032
BBBCR2032BX
23.TCZV1.004
CONN Cardbus 4P 10057913-
21.H0153.001
Speaker
RTC Battery
PCMCIA slot/PC card slot
PCMCIA slot
Miscellaneous
LCD screw rubber
Rub circle LCD Volvi
47.AHQ01.001
Name plate AS4715Z
Name plate 4715 U-CASE
Volvi960
40.4X111.001
Screw
Screw M2xL3 (white)
86.00C07.220
Screw
Screw M2.5xL6 nylok CR3+
86.00E33.736
Screw
Screw M2.5xL8 nylok CR3+
86.00E34.738
Screw
Screw M2.5xL8 non-nylok
86.00D75.220
Screw
Screw M2x2.5 nylok
86.00F22.722
Screw
Screw M2x4 nylok H0.3
86.00F24.724
Screw
Screw 2x6 nylok
86.TK501.003
Screw
Screw wafer nylok Ni M2xL3
86.9A552.3R0
Screws
118
Screw
Screw Ni M2x6L
86.9A552.6R0
Screw
Screw Mach Wafer M3xL4 Ni
86.9A554.4R0
Screw M2.5*L5 black ZN+nylok
M2.5*L5 black ZN+nylok
86.TK501.001
Chapter 6
Aspire 4715Z FRU List (No: LX.AL10Y.001/003/015)
Category
Part Name
Description
Acer Part No.
Adapter
Adapter 65W Delta ADP-65KB
DFA LF
ADT 65W SADP-65KB DFA LF
Delta
AP.06501.013
Adapter 65W Liteon PA-165002AC LF
ADT 65W PA-1650-02AC LF
AP.06503.016
Adapter 65W LISHIN SLS0335A
19A54LF
ADT 65W LISHIN SLS0335A
19A54LF
AP.06506.003
Adapter 65W 3P HPOK065B13LF
ADP 65W 3P HPOK065B13LF
AP.0650A.010
Battery Pack Li+6 cell 2.0mAh
Sanyo
BTY Pack Li+6C 2.0Ah Sanyo
BT.00603.036
Battery Pack Li-ion 6 cell
2.0mAh Sony
BTY Pack Li+6C 2.0Ah Sony
BT.00604.022
Battery Pack Li-Mn 6 cell
2.0mAh Panasonic
BTY Pack Li+6C 2.0Ah PANA
BT.00605.018
Battery Pack Li-Mn 6 cell 2.0
Simplo
BTY Pack Li+6C 2.0Ah SMP
BT.00607.013
Mainboard AS4315/
AS4715Z_UMA(C) w/ RTC
battery, PCMCIA slot, modem
and modem cable
Volvi2 MB 07220-1M MP Dual
core
MB.AKZ01.001
Modem board Liteon DelphiAM3 3.3V ONLY B85244300G
Agere
Modem MDC003 A8B
B85244300G
FX.22500.011
Modem board Foxconn MC4Z
MDC1.5_3 3.3V T60M955.00
Modem MDC1.5 T60M955.00
3.3V
FX.22500.009
WLAN 802.11BG Atheros
WLAN 802.11BG Atheros
Rev06
NI.23600.007
Wireless LAN board 802.11BG
WLAN 802.11BG XB63
Minicard
NI.23600.028
Wireless LAN board 802.11BG
Foxconn BCM4311 Minicard
WLAN 802.11BG BCM4311
WW SKU
54.AEFV1.001
Audio board
Volvi2 07551-1 Audio BD 6L
(D)
55.AL401.001
Battery
Mainboard
Boards
Wireless LAN board
Audio board
Chapter 6
119
Category
Part Name
Description
Acer Part No.
USB board
USB board
Volvi2 USB-BD 07570-1 (D)
55.AL401.002
Touchpad board Synaptics
TM00450-001
Touchpad Synaptics TM00450001
56.AGV01.001
Touchpad board Synaptics
TM00450-000
Touchpad Synaptics TM00450000
56.AHP01.001
Audio cable
Audio FFC Volvi960
50.AL401.001
Audio cable
Audio FFC Volvi960#2
50.AL401.001
DC-in cable
C.A. DC-in 65W HL Volvi960
50.AL401.002
DC-in cable
C.A. DC-in 65W HL Volvi960
MEC
50.AL401.002
Touchpad board
Cables
120
Modem cable
C.A. MDC HL Tahoe
50.AHR01.002
Modem cable
C.A. MDC MEC Tahoe
50.AHQ01.001
Modem cable
C.A. MDC HL Tahoe HT
50.AHQ01.001
Touchpad cable
C.A. T/P FFC TR Tahoe
50.AHP01.005
Touchpad cable
C.A. T/P FFC Tahoe
50.AHP01.005
Touchpad cable
J.H. T/P FFC Tahoe
50.AHP01.005
USB cable HL
C.A. USB HL Tahoe
50.AHP01.001
USB cable MEC
C.A. USB MEC Tahoe
50.AHP01.001
USB cable
C.A. USB HL Tahoe HT
50.AHP01.001
Power cord 3A 250V 3-pin UK
Code UK 3A 250V 3P BK
27.01518.541
Power cord 5A 250V 3-pin UK
BK
Code 5A 250V 3P UK BK
27.03118.001
Power cord 10A 3-pin BK
Denmark
Code Denmark 10A 3P BK
27.01518.561
Power cord 10A 250V 3-pin
Denmark BK
Code 10A 250V 3P Denmark
BK
27.01518.671
Power cord 10A 250V 3-pin
South Africa
Code South Africa 10A 250V
BK
27.01518.571
Power cord 16A 250V South
Africa BK
Code 16A 250V South Africa
BK
27.01518.681
Power cord 10A 250V Swiss
Code Swiss Power 10A 250V
BK
27.01518.581
Power cord 10A 250V 3-pin
Swiss BK
Code 10A 250V 3P Swiss Bk
27.01518.691
Power cable 16A 250V 3-pin
EUR BK
Cord 16A 250V 3P EUR BK
27.01518.731
Power cord 220V 3-pin EUR
Cord EUR 220V 3P BK
27.T30V1.004
Power cord 10A 250V 3-pin Italy
Cord Italy 10A 250V 3P BK
27.01518.611
Power cord 10A 250V 3-pin Italy
BK
Cord 10A 250V 3P Italy BK
27.01518.711
Chapter 6
Category
Cables (cont.)
Part Name
Description
Acer Part No.
Power cord 2.5A 250V South
Africa BK (India)
Cord 2.5A 250V South Africa
Bk
27.01518.631
Power cord 10A 250V South
Africa BK (India)
Cord 10A 250V South Africa
BK
27.01518.721
Power cord 10A 125V 3-pin US
BK
Code 10A 125V 3P US BK
27.01518.641
Power cord 10A 125V US
Code US 10A 125V BK
27.T30V1.001
Power cord 10A 250V 3-pin
China
Cord China 10A 250V 3P
27.01518.591
Power cord 10A 250V 3-pin
China BK
Cord 10A 250V 3P China BK
27.01518.701
Power cord 250V 10A 3-pin
Israel
Cord 250V 10~16A 3P Israel
27.01518.761
Power cord 2.5A 125V USA
Code USA/W CNS 2.5A 125V
8121
27.01518.781
Power cord ACA/ACNZ
Power cord ACA/ACNZ Annie
27.03218.021
Touchpad bracket
TP bracket ASSY Volvi960
33.AL401.001
Support bracket left
Support L ASSY Volvi960
33.AL401.002
Dummy card
Card dummy Volvi
42.AHV01.001
Middle cover
Middle cover Volvi960
42.AL401.001
Unitload cover
ASSY big door Tahoe
42.AHP01.002
Lowercase
ASSY L-Case Volvi960
60.AL401.001
Upper case w/ speaker
ASSY U-Case Volvi960
60.AL401.002
PCMCIA slot
Conn Card Bus 4P 10057913-
22.AHP01.001
SODIMM 1GB DDRII667 Hynix
HYMP512S64CP8-Y5 LF
SODIMM 1G
HYMP512S64CP8-Y5 AB
KN.1GB0G.006
SODIMM 1GB DDRII667 Nanya
NT1GT64U8HB0BN-3C LF
(0.09U)
SODIMM 1G
NT1GT64U8HB0BN-3C
KN.1GB03.014
SODIMM 1GB DDRII667
DDRII667 Samsung
M470T2953EZ3-CE6 LF
SODIMM 1G M470T2953EZ3CE6
KN.1GB0B.011
SODIMM 1GB DDRII667
Samsung M470T2864DZ3-CE6
SODIMM 1G M470T2864DZ3CE6
KN.1GB0B.014
System case/cover/bracket/assembly
Memory
Chapter 6
121
Category
Memory (cont.)
Part Name
Description
Acer Part No.
SODIMM 1GB DDRII667 Hynix
HYMP112S64CP6-Y5 LF
SODIMM 1G
HYMP112S64CP6-Y5
KN.1GB0G.012
SODIMM 1GB DDRII667
Infineon HYS64T128021EDL-3S
LF
SODIMM1G
HYS64T128021EDL-3S-B2
KN.1GB02.036
SODIMM 2GB DDRII667 Hynix
HYMP125S64CP8-Y5 LF
SODIMM 2G
HYMP125S64CP8-Y5
KN.2GB0G.004
SODIMM 512MB DDRII667
Nanya NT512T64UH8B0FN-3C
LF
SODIMM 512M
NT512T64UH8B0FN-3C
KN.51203.032
SODIMM 512MB DDRII667
Hynix HYMP564S64CP6-Y5 LF
SODIMM512M
HYMP564S64CP6-Y5 AB
KN.5120G.019
SODIMM 512MB DDRII667
Samsung M470T6554EZ3-CE6
LF
SODIMM 512M
M470T6554EZ3-CE6
KN.5120B.023
Assembly Combo module 24X
ODD CB24X combo for
Volvi960
6M.AL401.001
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Combo bezel
ASSY ODD bezel combo
Tahoe
42.AGV01.004
Combo module 24X Philips DS24CZP w/o bezel
Combo 24X PDBS DS-24CZP
KO.02409.029
Combo module 24X Sony
CRX880A LF w/o bezel
Combo 24X Sony/CRX880A
Myall2
KO.0240E.005
Combo module 24X Toshiba TSL462D LF w/o bezel
DVD Combo TSST/TS-L462D
Biwa
KO.02401.004
Assembly Super Multi module
8X
ODD SM8X Super-multi drive
6M.AL401.002
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Super Multi bezel
ASSY ODD bezel S-Multi
Tahoe
42.AGV01.005
DVD-RW drive 8X Super Mult
Pioneer DVR-K17RS LF w/o
bezel
S-Mult 8X PIO/DVR-K17RS
Morar3
KU.00805.038
DVD-RW drive 8X Super Mult
Panasonic UJ-850UAA1-A w/o
bezel
S-Mult PAN/UJ-850UAA1-A
Dellen
KU.00807.055
DVD-RW drive 8X Super Multi
Philips DS-8A1P LF w/o bezel
8X S-Multi PDBS/DS-8A1P
Myallm
KU.00809.010
DVD-RW drive 8X Super Mult
Sony AD-7560A LF w/o bezel
8X S-Mult Sony/AD-7560A
Tahoe
KU.0080E.005
Combo module
DVD module
122
Chapter 6
Category
Part Name
Description
Acer Part No.
HDD/Hard Disk Drive
HDD bracket
ASSY HDD bracket Tahoe
33.AHP01.005
HDD module 80G 5400RPM
SATA
HDD N80GB5.4KS for
Volvi960
HDD 80GB SATA Hitachi
HTS541680J9SA00
HDD 80GB SATA
HTS541680J9SA00
KH.08007.021
HDD 80GB 5400RPM SATA II
HGST HTS542580K9SA00
HDD 80GB HGST
HTS542580K9SA00
KH.08007.025
HDD 80GB 5400RPM SATA
Seagate ST980811AS Venus LF
F/W:3.ALD
HDD 80GB SGT ST980811AS
KH.08001.030
HDD 80GB 5400RPM SATA
Toshiba MK8037GSX Gemini
BS LF F/W:DL230
HDD 80GB Toshiba
MK8037GSX
KH.08004.010
HDD 80GB 5400RPM SATA WD
WD800BEVS-22RST0 ML80 LF
F/W:04.01G04
HDD 80GB WD WD800BEVS22RST0
KH.08008.033
HDD module 120G 5400RPM
SATA
HDD 120GB5.4KS for Volvi960
G2.HDAHQ.002
HDD 120GB 5400RPM SATA
Hitachi HTS541612J9SA00 LF
F/W:C70P
HDD 120GB SATA
HTS541612J9SA00
KH.12007.010
HDD 120GB 5400RPM SATA
Seagate ST9120822AS LF F/
W:3.ALD
HDD 120GB SGT
ST9120822AS
KH.12001.031
HDD 120GB 5400RPM SATA
Toshiba MK1237GSX Gemini
BS LF F/W:DL130J
HDD 120GB Toshiba
MK1237GSX
KH.12004.006
HDD 120GB 5400RPM SATA
WD WD1200BEVS-22UST0
ML125 LF F/W:01.01A01
HDD WD 2.5" 5400RPM
120GB WD1200BEVS-22U
KH.12008.019
HDD module 160G 5400RPM
SATA
HDD N160GB5.4KS for
Volvi960
HDD 160GB 5400RPM SATA
Hitachi HTS541616J9SA00 LF
F/W:C70P
HDD 160GB HGST
HTS541616J9SA00
KH.16007.011
HDD 160GB 5400RPM SATA
Seagate ST9160821AS LF F/
W:3.ALD
HDD 160GB SGT
ST9160821AS
KH.16001.026
HDD 160GB 5400RPM SATA
Toshiba MK1637GSX Gemini
BS LF F/W:DL030J
HDD 160GB Toshiba
MK1637GSX
KH.16004.001
HDD 160GB 5400RPM SATA
WD WD1600BEVS-22RST0 LF
F/W:04.01G04
HDD 160GB WD
WD1600BEVS-22RST0
KH.16008.019
CPU Heatsink
Chapter 6
CPU heatsink
ASSY Thermal UMA Foxconn
60.AHR01.001
CPU heatsink
ASSY Thermal UMA Forcecon
60.AHR01.001
123
Category
Part Name
Description
Acer Part No.
CPU/Processor
CPU Merom T2310 1.46G Intel
IC CPU Merom T2310 1.46G
PGA
KC.23101.DTP
CPU Merom T2330 1.6GHz
IC CPU Merom T2330 1.6G
PGA
KC.23301.DTP
Keyboard 14_15KB-FV2 88KS
White US International
KB Darfon NSK-H3V1D UI USIN88
KB.INT00.036
Keyboard 14_15KB-FV2 88KS
White Traditional Chinese
KB Darfon NSK-H3V02 TW
Taiwa88
KB.INT00.065
Keyboard 14_15KB-FV2 88KS
White Thailand
KB Darfon NSK-H3V03 TI
Thai88
KB.INT00.040
Keyboard 14_15KB-FV2 88KS
White Arabic/English
KB Darfon NSK-H3V0A AR
Arabi88
KB.INT00.069
Keyboard 14_15KB-FV2 88KS
White US International Hebrew
KB Darfon NSK-H3V0H HB
Hebre88
KB.INT00.037
Keyboard 14_15KB-FV2 88KS
White Korean
KB Darfon NSK-H3V0K KO
Korea88
KB.INT00.052
Keyboard 14_15KB-FV2 88KS
White Greek
KB Darfon NSK-H3V0L GK
Greek88
KB.INT00.058
Keyboard 14_15KB-FV2 88KS
White Russian
KB Darfon NSK-H3V0R RU
Russi88
KB.INT00.047
Keyboard 14_15KB-FV2 89KS
White Portuguese
KB Darfon NSK-H3V06 PO
Portu89
KB.INT00.048
Keyboard 14_15KB-FV2 89KS
White Czech
KB Darfon NSK-H3V0C CZ
Czech89
KB.INT00.064
Keyboard 14_15KB-FV2 89KS
White Danish
KB Darfon NSK-H3V0D DM
Danis89
KB.INT00.063
Keyboard 14_15KB-FV2 89KS
White Italian
KB Darfon NSK-H3V0E IT
Itali89
KB.INT00.054
Keyboard 14_15KB-FV2 89KS
White French
KB Darfon NSK-H3V0F FR
Rehcn89
KB.INT00.060
Keyboard 14_15KB-FV2 89KS
White German
KB Darfon NSK-H3V0G GR
Germa89
KB.INT00.059
Keyboard 14_15KB-FV2 89KS
White Swiss/G
KB Darfon NSK-H3V00 SW
Swiss89
KB.INT00.041
Keyboard 14_15KB-FV2 89KS
White Canadian French
KB Darfon NSK-H3V0M CF
FR.CA89
KB.INT00.066
Keyboard 14_15KB-FV2 89KS
White Norwegian
KB Darfon NSK-H3V0N NW
Norwe89
KB.INT00.050
Keyboard 14_15KB-FV2 89KS
White Hungarian
KB Darfon NSK-H3V0Q HG
Huga89
KB.INT00.057
Keyboard 14_15KB-FV2 89KS
White Spanish
KB Darfon NSK-H3V0S SP
Spani89
KB.INT00.043
Keyboard 14_15KB-FV2 89KS
White Turkish
KB Darfon NSK-H3V0T TR
Turki89
KB.INT00.039
Keyboard 14_15KB-FV2 89KS
White UK
KB Darfon NSK-H3V0U UK
UK89
KB.INT00.038
Keyboard
124
Chapter 6
Category
Keyboard (cont.)
Part Name
Description
Acer Part No.
Keyboard 14_15KB-FV2 89KS
White Swedish
KB Darfon NSK-H3V0W SD
Swedi89
KB.INT00.042
Keyboard 14_15KB-FV2 89KS
White Belgium
KB Darfon NSK-H3V1A BE
BELGI89
KB.INT00.068
Keyboard 14_15KB-FV2 89KS
White Brazilian Portuguese
KB Darfon NSK-H3V1B BP
BR-PO89
KB.INT00.067
Keyboard 14_15KB-FV2 89KS
White Slovenian
KB Darfon NSK-H3V1F SK
Slove89
KB.INT00.044
Keyboard 14_15KB-FV2 93KS
White Japanese
KB Darfon NSK-H3V0J JA
Japan92
KB.INT00.053
Assembly LCD module 14.1”
WXGA glare w/o camera
LCD 14.1WXGAG no camera
w/ WL
6M.AL401.001
Inverter board 17" FOXCONN
T62I240.02 V.00
Inverter 17” T62I240.02 V.00
19.TK501.001
Inverter board 17” YEC YNVW06
Inverter 17” YNV-W06S
19.TK501.002
Inverter board 17” ROHS
VK.21189.406
Inverter 17” ROHS
VK.21189.406
19.TCBV1.001
LCD cable 14.1” w/o camera
WXGA non CCD HL Volvi
50.AHW01.001
LCD bracket right
BRKT LCD R Tahoe
33.AHP01.006
LCD bracket left
BRKT LCD L Tahoe
33.AHP01.007
LCD bezel 14.1” for non CCD
ASSY bezel non CCD Volvi960
60.AL101.001
Wireless antenna
Antenna WLAN Volvi960
25.AL401.001
LCD 14.1” WXGA AU
B141EW04-V4 LF glare 200 nits
16ms
LCD 14.1” WXGA AU
B141EW04-V4 G
LK.14105.018
LCD 14.1” WXGA LG
LP141WX3-TLB1glare 200 nits
16ms
LCD 14.1” WXGA LG
LP141EWX3-TLB1
LK.14108.010
LCD 14.1” WXGA LG
LP141WX3-TLB1 glare LF (OKI
DRIVER IC: 01OKL-0123A)
LCD 14.1” WXGA LG
LP141WX3-TLB1
LK.14108.012
LCD 14.1" WXGA CMO N141I3L02 LF glare 200 nits 16ms
LCD 14.1"WXGA CMO
N141I3-L02 G
LK.1410D.016
LCD 14.1" WCXGA CMO
N141I1-L03 non-glare
LCD 14.1" CMO N141I1-L03
NG
LK.1410D.014
LCD 14.1” WXGA glare
Samsung LTN141W3-L01-J L6
LF 200 nits 16ms
LCD 14.1” WXGA Samsung
LTN141W3-L01-J G
LK.14106.014
Microphone
Microphone cable FORG
Volvi960
23.AL401.002
Microphone
Microphone cable SHAN
Volvi960
23.AL401.002
Speaker set
Speaker Volvi960
23.AL401.001
Speaker set
Speaker Volvi960#2
23.AL401.001
LCD module
Speaker
Chapter 6
125
Category
Part Name
Description
Acer Part No.
RTC Battery
RTC battery LI 3V 200 mAh
Battery 3V CR2032
BBBCR2032BX
23.TCZV1.004
CONN Cardbus 4P 10057913-
21.H0153.001
PCMCIA slot/PC card slot
PCMCIA slot
Miscellaneous
LCD screw rubber
Rub circle LCD Volvi
47.AHQ01.001
Name plate AS4715Z
Name plate 4715 U-CASE
Volvi960
40.4X111.001
Screw
Screw M2xL3 (white)
86.00C07.220
Screw
Screw M2.5xL6 nylok CR3+
86.00E33.736
Screw
Screw M2.5xL8 nylok CR3+
86.00E34.738
Screw
Screw M2.5xL8 non-nylok
86.00D75.220
Screw
Screw M2x2.5 nylok
86.00F22.722
Screw
Screw M2x4 nylok H0.3
86.00F24.724
Screw
Screw 2x6 nylok
86.TK501.003
Screw
Screw wafer nylok Ni M2xL3
86.9A552.3R0
Screws
126
Screw
Screw Ni M2x6L
86.9A552.6R0
Screw
Screw Mach Wafer M3xL4 Ni
86.9A554.4R0
Screw M2.5*L5 black ZN+nylok
M2.5*L5 black ZN+nylok
86.TK501.001
Chapter 6
Aspire 4315 FRU List (No: LX.AKZ0C.007)
Category
Part Name
Description
Acer Part No.
Adapter
Adapter 65W Delta ADP-65KB
DFA LF
ADT 65W SADP-65KB DFA LF
Delta
AP.06501.013
Adapter 65W Liteon PA-165002AC LF
ADT 65W PA-1650-02AC LF
AP.06503.016
Adapter 65W LISHIN SLS0335A
19A54LF
ADT 65W LISHIN SLS0335A
19A54LF
AP.06506.003
Adapter 65W 3P HPOK065B13LF
ADP 65W 3P HPOK065B13LF
AP.0650A.010
Battery Pack Li+6 cell 2.0mAh
Sanyo
BTY Pack Li+6C 2.0Ah Sanyo
BT.00603.036
Battery Pack Li-ion 6 cell
2.0mAh Sony
BTY Pack Li+6C 2.0Ah Sony
BT.00604.022
Battery Pack Li-Mn 6 cell
2.0mAh Panasonic
BTY Pack Li+6C 2.0Ah PANA
BT.00605.018
Battery Pack Li-Mn 6 cell 2.0
Simplo
BTY Pack Li+6C 2.0Ah SMP
BT.00607.013
Mainboard AS4315/
AS4715Z_UMA(C) w/ RTC
battery, PCMCIA slot, modem
and modem cable
Volvi2 MB 07220-1M MP Dual
core
MB.AKZ01.001
Modem board Liteon DelphiAM3 3.3V ONLY B85244300G
Agere
Modem MDC003 A8B
B85244300G
FX.22500.011
Modem board Foxconn MC4Z
MDC1.5_3 3.3V T60M955.00
Modem MDC1.5 T60M955.00
3.3V
FX.22500.009
WLAN 802.11BG Atheros
WLAN 802.11BG Atheros
Rev06
NI.23600.007
Wireless LAN board 802.11BG
WLAN 802.11BG XB63
Minicard
NI.23600.028
Wireless LAN board 802.11BG
Foxconn BCM4311 Minicard
WLAN 802.11BG BCM4311
WW SKU
54.AEFV1.001
Audio board
Volvi2 07551-1 Audio BD 6L
(D)
55.AL401.001
Battery
Mainboard
Boards
Wireless LAN board
Audio board
Chapter 6
127
Category
Part Name
Description
Acer Part No.
USB board
USB board
Volvi2 USB-BD 07570-1 (D)
55.AL401.002
Touchpad board Synaptics
TM00450-001
Touchpad Synaptics TM00450001
56.AGV01.001
Touchpad board Synaptics
TM00450-000
Touchpad Synaptics TM00450000
56.AHP01.001
Audio cable
Audio FFC Volvi960
50.AL401.001
Audio cable
Audio FFC Volvi960#2
50.AL401.001
DC-in cable
C.A. DC-in 65W HL Volvi960
50.AL401.002
DC-in cable
C.A. DC-in 65W HL Volvi960
MEC
50.AL401.002
Touchpad board
Cables
128
Modem cable
C.A. MDC HL Tahoe
50.AHR01.002
Modem cable
C.A. MDC MEC Tahoe
50.AHQ01.001
Modem cable
C.A. MDC HL Tahoe HT
50.AHQ01.001
Touchpad cable
C.A. T/P FFC TR Tahoe
50.AHP01.005
Touchpad cable
C.A. T/P FFC Tahoe
50.AHP01.005
Touchpad cable
J.H. T/P FFC Tahoe
50.AHP01.005
USB cable HL
C.A. USB HL Tahoe
50.AHP01.001
USB cable MEC
C.A. USB MEC Tahoe
50.AHP01.001
USB cable
C.A. USB HL Tahoe HT
50.AHP01.001
Power cord 3A 250V 3-pin UK
Code UK 3A 250V 3P BK
27.01518.541
Power cord 5A 250V 3-pin UK
BK
Code 5A 250V 3P UK BK
27.03118.001
Power cord 10A 3-pin BK
Denmark
Code Denmark 10A 3P BK
27.01518.561
Power cord 10A 250V 3-pin
Denmark BK
Code 10A 250V 3P Denmark
BK
27.01518.671
Power cord 10A 250V 3-pin
South Africa
Code South Africa 10A 250V
BK
27.01518.571
Power cord 16A 250V South
Africa BK
Code 16A 250V South Africa
BK
27.01518.681
Power cord 10A 250V Swiss
Code Swiss Power 10A 250V
BK
27.01518.581
Power cord 10A 250V 3-pin
Swiss BK
Code 10A 250V 3P Swiss Bk
27.01518.691
Power cable 16A 250V 3-pin
EUR BK
Cord 16A 250V 3P EUR BK
27.01518.731
Power cord 220V 3-pin EUR
Cord EUR 220V 3P BK
27.T30V1.004
Power cord 10A 250V 3-pin Italy
Cord Italy 10A 250V 3P BK
27.01518.611
Power cord 10A 250V 3-pin Italy
BK
Cord 10A 250V 3P Italy BK
27.01518.711
Chapter 6
Category
Cables (cont.)
Part Name
Description
Acer Part No.
Power cord 2.5A 250V South
Africa BK (India)
Cord 2.5A 250V South Africa
Bk
27.01518.631
Power cord 10A 250V South
Africa BK (India)
Cord 10A 250V South Africa
BK
27.01518.721
Power cord 10A 125V 3-pin US
BK
Code 10A 125V 3P US BK
27.01518.641
Power cord 10A 125V US
Code US 10A 125V BK
27.T30V1.001
Power cord 10A 250V 3-pin
China
Cord China 10A 250V 3P
27.01518.591
Power cord 10A 250V 3-pin
China BK
Cord 10A 250V 3P China BK
27.01518.701
Power cord 250V 10A 3-pin
Israel
Cord 250V 10~16A 3P Israel
27.01518.761
Power cord 2.5A 125V USA
Code USA/W CNS 2.5A 125V
8121
27.01518.781
Power cord ACA/ACNZ
Power cord ACA/ACNZ Annie
27.03218.021
Touchpad bracket
TP bracket ASSY Volvi960
33.AL401.001
Support bracket left
Support L ASSY Volvi960
33.AL401.002
Dummy card
Card dummy Volvi
42.AHV01.001
Middle cover
Middle cover Volvi960
42.AL401.001
Unitload cover
ASSY big door Tahoe
42.AHP01.002
Lowercase
ASSY L-Case Volvi960
60.AL401.001
Upper case w/ speaker
ASSY U-Case Volvi960
60.AL401.002
PCMCIA slot
Conn Card Bus 4P 10057913-
22.AHP01.001
SODIMM 1GB DDRII667 Hynix
HYMP512S64CP8-Y5 LF
SODIMM 1G
HYMP512S64CP8-Y5 AB
KN.1GB0G.006
SODIMM 1GB DDRII667 Nanya
NT1GT64U8HB0BN-3C LF
(0.09U)
SODIMM 1G
NT1GT64U8HB0BN-3C
KN.1GB03.014
SODIMM 1GB DDRII667
DDRII667 Samsung
M470T2953EZ3-CE6 LF
SODIMM 1G M470T2953EZ3CE6
KN.1GB0B.011
SODIMM 1GB DDRII667
Samsung M470T2864DZ3-CE6
SODIMM 1G M470T2864DZ3CE6
KN.1GB0B.014
System case/cover/bracket/assembly
Memory
Chapter 6
129
Category
Memory (cont.)
Part Name
Description
Acer Part No.
SODIMM 1GB DDRII667 Hynix
HYMP112S64CP6-Y5 LF
SODIMM 1G
HYMP112S64CP6-Y5
KN.1GB0G.012
SODIMM 1GB DDRII667
Infineon HYS64T128021EDL-3S
LF
SODIMM1G
HYS64T128021EDL-3S-B2
KN.1GB02.036
SODIMM 2GB DDRII667 Hynix
HYMP125S64CP8-Y5 LF
SODIMM 2G
HYMP125S64CP8-Y5
KN.2GB0G.004
SODIMM 512MB DDRII667
Nanya NT512T64UH8B0FN-3C
LF
SODIMM 512M
NT512T64UH8B0FN-3C
KN.51203.032
SODIMM 512MB DDRII667
Hynix HYMP564S64CP6-Y5 LF
SODIMM512M
HYMP564S64CP6-Y5 AB
KN.5120G.019
SODIMM 512MB DDRII667
Samsung M470T6554EZ3-CE6
LF
SODIMM 512M
M470T6554EZ3-CE6
KN.5120B.023
Assembly Combo module 24X
ODD CB24X combo for
Volvi960
6M.AL401.001
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Combo bezel
ASSY ODD bezel combo
Tahoe
42.AGV01.004
Combo module 24X Philips DS24CZP w/o bezel
Combo 24X PDBS DS-24CZP
KO.02409.029
Combo module 24X Sony
CRX880A LF w/o bezel
Combo 24X Sony/CRX880A
Myall2
KO.0240E.005
Combo module 24X Toshiba TSL462D LF w/o bezel
DVD Combo TSST/TS-L462D
Biwa
KO.02401.004
Assembly Super Multi module
8X
ODD SM8X Super-multi drive
6M.AL401.002
Optical bracket
BRKT ODD Tahoe
33.AHP01.004
Super Multi bezel
ASSY ODD bezel S-Multi
Tahoe
42.AGV01.005
DVD-RW drive 8X Super Mult
Pioneer DVR-K17RS LF w/o
bezel
S-Mult 8X PIO/DVR-K17RS
Morar3
KU.00805.038
DVD-RW drive 8X Super Mult
Panasonic UJ-850UAA1-A w/o
bezel
S-Mult PAN/UJ-850UAA1-A
Dellen
KU.00807.055
DVD-RW drive 8X Super Multi
Philips DS-8A1P LF w/o bezel
8X S-Multi PDBS/DS-8A1P
Myallm
KU.00809.010
DVD-RW drive 8X Super Mult
Sony AD-7560A LF w/o bezel
8X S-Mult Sony/AD-7560A
Tahoe
KU.0080E.005
Combo module
DVD module
130
Chapter 6
Category
Part Name
Description
Acer Part No.
HDD/Hard Disk Drive
HDD bracket
ASSY HDD bracket Tahoe
33.AHP01.005
HDD module 80G 5400RPM
SATA
HDD N80GB5.4KS for
Volvi960
HDD 80GB SATA Hitachi
HTS541680J9SA00
HDD 80GB SATA
HTS541680J9SA00
KH.08007.021
HDD 80GB 5400RPM SATA II
HGST HTS542580K9SA00
HDD 80GB HGST
HTS542580K9SA00
KH.08007.025
HDD 80GB 5400RPM SATA
Seagate ST980811AS Venus LF
F/W:3.ALD
HDD 80GB SGT ST980811AS
KH.08001.030
HDD 80GB 5400RPM SATA
Toshiba MK8037GSX Gemini
BS LF F/W:DL230
HDD 80GB Toshiba
MK8037GSX
KH.08004.010
HDD 80GB 5400RPM SATA WD
WD800BEVS-22RST0 ML80 LF
F/W:04.01G04
HDD 80GB WD WD800BEVS22RST0
KH.08008.033
HDD module 120G 5400RPM
SATA
HDD 120GB5.4KS for Volvi960
G2.HDAHQ.002
HDD 120GB 5400RPM SATA
Hitachi HTS541612J9SA00 LF
F/W:C70P
HDD 120GB SATA
HTS541612J9SA00
KH.12007.010
HDD 120GB 5400RPM SATA
Seagate ST9120822AS LF F/
W:3.ALD
HDD 120GB SGT
ST9120822AS
KH.12001.031
HDD 120GB 5400RPM SATA
Toshiba MK1237GSX Gemini
BS LF F/W:DL130J
HDD 120GB Toshiba
MK1237GSX
KH.12004.006
HDD 120GB 5400RPM SATA
WD WD1200BEVS-22UST0
ML125 LF F/W:01.01A01
HDD WD 2.5" 5400RPM
120GB WD1200BEVS-22U
KH.12008.019
HDD module 160G 5400RPM
SATA
HDD N160GB5.4KS for
Volvi960
HDD 160GB 5400RPM SATA
Hitachi HTS541616J9SA00 LF
F/W:C70P
HDD 160GB HGST
HTS541616J9SA00
KH.16007.011
HDD 160GB 5400RPM SATA
Seagate ST9160821AS LF F/
W:3.ALD
HDD 160GB SGT
ST9160821AS
KH.16001.026
HDD 160GB 5400RPM SATA
Toshiba MK1637GSX Gemini
BS LF F/W:DL030J
HDD 160GB Toshiba
MK1637GSX
KH.16004.001
HDD 160GB 5400RPM SATA
WD WD1600BEVS-22RST0 LF
F/W:04.01G04
HDD 160GB WD
WD1600BEVS-22RST0
KH.16008.019
CPU Heatsink
Chapter 6
CPU heatsink
ASSY Thermal UMA Foxconn
60.AHR01.001
CPU heatsink
ASSY Thermal UMA Forcecon
60.AHR01.001
131
Category
Part Name
Description
Acer Part No.
CPU/Processor
CPU Merom Cel-M 530 1.73G
1M FSB533 A-1
IC CPU Merom Cel-M 530
1.73G
KC.NSR01.530
CPU Merom Merom Cel-M 540
1.86G Intel
IC CPU Merom Cel-M 540
1.86G
KC.N0001.540
CPU Merom Cel-M 550 2.0G
IC CPU Merom Cel-M 550
2.0G
KC.N0001.550
Keyboard 14_15KB-FV2 88KS
White US International
KB Darfon NSK-H3V1D UI USIN88
KB.INT00.036
Keyboard 14_15KB-FV2 88KS
White Traditional Chinese
KB Darfon NSK-H3V02 TW
Taiwa88
KB.INT00.065
Keyboard 14_15KB-FV2 88KS
White Thailand
KB Darfon NSK-H3V03 TI
Thai88
KB.INT00.040
Keyboard 14_15KB-FV2 88KS
White Arabic/English
KB Darfon NSK-H3V0A AR
Arabi88
KB.INT00.069
Keyboard 14_15KB-FV2 88KS
White US International Hebrew
KB Darfon NSK-H3V0H HB
Hebre88
KB.INT00.037
Keyboard 14_15KB-FV2 88KS
White Korean
KB Darfon NSK-H3V0K KO
Korea88
KB.INT00.052
Keyboard 14_15KB-FV2 88KS
White Greek
KB Darfon NSK-H3V0L GK
Greek88
KB.INT00.058
Keyboard 14_15KB-FV2 88KS
White Russian
KB Darfon NSK-H3V0R RU
Russi88
KB.INT00.047
Keyboard 14_15KB-FV2 89KS
White Portuguese
KB Darfon NSK-H3V06 PO
Portu89
KB.INT00.048
Keyboard 14_15KB-FV2 89KS
White Czech
KB Darfon NSK-H3V0C CZ
Czech89
KB.INT00.064
Keyboard 14_15KB-FV2 89KS
White Danish
KB Darfon NSK-H3V0D DM
Danis89
KB.INT00.063
Keyboard 14_15KB-FV2 89KS
White Italian
KB Darfon NSK-H3V0E IT
Itali89
KB.INT00.054
Keyboard 14_15KB-FV2 89KS
White French
KB Darfon NSK-H3V0F FR
Rehcn89
KB.INT00.060
Keyboard 14_15KB-FV2 89KS
White German
KB Darfon NSK-H3V0G GR
Germa89
KB.INT00.059
Keyboard 14_15KB-FV2 89KS
White Swiss/G
KB Darfon NSK-H3V00 SW
Swiss89
KB.INT00.041
Keyboard 14_15KB-FV2 89KS
White Canadian French
KB Darfon NSK-H3V0M CF
FR.CA89
KB.INT00.066
Keyboard 14_15KB-FV2 89KS
White Norwegian
KB Darfon NSK-H3V0N NW
Norwe89
KB.INT00.050
Keyboard 14_15KB-FV2 89KS
White Hungarian
KB Darfon NSK-H3V0Q HG
Huga89
KB.INT00.057
Keyboard 14_15KB-FV2 89KS
White Spanish
KB Darfon NSK-H3V0S SP
Spani89
KB.INT00.043
Keyboard 14_15KB-FV2 89KS
White Turkish
KB Darfon NSK-H3V0T TR
Turki89
KB.INT00.039
Keyboard
132
Chapter 6
Category
Keyboard (cont.)
Part Name
Description
Acer Part No.
Keyboard 14_15KB-FV2 89KS
White UK
KB Darfon NSK-H3V0U UK
UK89
KB.INT00.038
Keyboard 14_15KB-FV2 89KS
White Swedish
KB Darfon NSK-H3V0W SD
Swedi89
KB.INT00.042
Keyboard 14_15KB-FV2 89KS
White Belgium
KB Darfon NSK-H3V1A BE
BELGI89
KB.INT00.068
Keyboard 14_15KB-FV2 89KS
White Brazilian Portuguese
KB Darfon NSK-H3V1B BP
BR-PO89
KB.INT00.067
Keyboard 14_15KB-FV2 89KS
White Slovenian
KB Darfon NSK-H3V1F SK
Slove89
KB.INT00.044
Keyboard 14_15KB-FV2 93KS
White Japanese
KB Darfon NSK-H3V0J JA
Japan92
KB.INT00.053
Assembly LCD module 14.1”
WXGA glare w/o camera
LCD 14.1WXGAG no camera
w/WL
6M.AL101.001
Inverter board 17" FOXCONN
T62I240.02 V.00
Inverter 17” T62I240.02 V.00
19.TK501.001
Inverter board 17” YEC YNVW06
Inverter 17” YNV-W06S
19.TK501.002
Inverter board 17” ROHS
VK.21189.406
Inverter 17” ROHS
VK.21189.406
19.TCBV1.001
LCD cable 14.1” w/o camera
C.A. WXGA non CCD HL Volvi
50.AHW01.001
Camera CMOS 0.3M Suyin
CN0314-OV03 UVC
Camera CMOS 0.3M CN0314OV03 U
57.TK901.001
Camera CMOS 0.3M Bison
BN30V4O717310
Camera CMOS 0.3M
BN30V4O717310
57.TK501.001
LCD module
Chapter 6
LCD bracket right
BRKT LCD R Tahoe
33.AHP01.006
LCD bracket left
BRKT LCD L Tahoe
33.AHP01.007
LCD bezel 14.1” for non CCD
ASSY bezel non CCD Volvi960
60.AL101.001
LCD cover 14.1” w/ hinge, mic
and camera
ASSY LCD panel Volvi960
60.AL401.004
Wireless antenna
Antenna WLAN Volvi960
25.AL401.001
LCD 14.1” WXGA AU
B141EW04-V4 LF glare 200 nits
16ms
LCD 14.1” WXGA AU
B141EW04-V4 G
LK.14105.018
LCD 14.1” WXGA LG
LP141WX3-TLB1glare 200 nits
16ms
LCD 14.1” WXGA LG
LP141EWX3-TLB1
LK.14108.010
LCD 14.1” WXGA LG
LP141WX3-TLB1 glare LF (OKI
DRIVER IC: 01OKL-0123A)
LCD 14.1” WXGA LG
LP141WX3-TLB1
LK.14108.012
LCD 14.1" WXGA CMO N141I3L02 LF glare 200 nits 16ms
LCD 14.1"WXGA CMO
N141I3-L02 G
LK.1410D.016
LCD 14.1" WCXGA CMO
N141I1-L03 non-glare
LCD 14.1" CMO N141I1-L03
NG
LK.1410D.014
LCD 14.1” WXGA glare
Samsung LTN141W3-L01-J L6
LF 200 nits 16ms
LCD 14.1” WXGA Samsung
LTN141W3-L01-J G
LK.14106.014
133
Category
LCD module
(cont.)
Part Name
Description
Acer Part No.
Microphone
Microphone cable FORG
Volvi960
23.AL401.002
Microphone
Microphone cable SHAN
Volvi960
23.AL401.002
Speaker set
Speaker Volvi960
23.AL401.001
Speaker set
Speaker Volvi960#2
23.AL401.001
RTC battery LI 3V 200 mAh
Battery 3V CR2032
BBBCR2032BX
23.TCZV1.004
PCMCIA slot
CONN Cardbus 4P 10057913-
21.H0153.001
LCD screw rubber
Rub circle LCD Volvi
47.AHQ01.001
Name plate AS4315
Name plate 4315 U-CASE
Volvi960
40.AKZ01.001
Screw
Screw M2xL3 (white)
86.00C07.220
Screw
Screw M2.5xL6 nylok CR3+
86.00E33.736
Screw
Screw M2.5xL8 nylok CR3+
86.00E34.738
Screw
Screw M2.5xL8 non-nylok
86.00D75.220
Screw
Screw M2x2.5 nylok
86.00F22.722
Screw
Screw M2x4 nylok H0.3
86.00F24.724
Screw
Screw 2x6 nylok
86.TK501.003
Screw
Screw wafer nylok Ni M2xL3
86.9A552.3R0
Screw
Screw Ni M2x6L
86.9A552.6R0
Screw
Screw Mach Wafer M3xL4 Ni
86.9A554.4R0
Screw M2.5*L5 black ZN+nylok
M2.5*L5 black ZN+nylok
86.TK501.001
Speaker
RTC Battery
PCMCIA slot/PC card slot
Miscellaneous
Screws
134
Chapter 6
Chapter 6
135
Appendix A
Model Definition and Configuration
Aspire 4715Z/4315
NOTE: This document will be updated as more information becomes available.
Appendix A
136
Appendix B
Test Compatible Components
This computer’s compatibility is tested and verified by Acer’s internal testing department. All of its system
functions are tested under Windows® Vista™ Business, Vista Home Premium, and Vista Home Basic
environment.
Refer to the following lists for components, adapter cards, and peripherals which have passed these tests.
Regarding configuration, combination and test procedures, please refer to the Aspire 4715Z/4315 Vista
Compatibility Test Report released by the Acer Mobile System Testing Department.
Appendix B
137
Microsoft® Windows® Vista™ Compatibility Test
I/O Peripheral Compatibility Test
Vendor
Device Description
Result
External CRT
Acer
211c21”
N/A
ViewSonic
G220F
P
PF790 19”
P
Sony
TV Trinitron (S-video)
N/A
External LCD
Acer
FP751 17” TFT LCD
P
1
15” LCD Monitor (DVI) Model: AL1521
17” LCD Monitor (DVI) Model:
AL17211
N/A
P
ViewSonic
20” LCD VD201b(DVI-I), (DVI-D),
Westinghouse
W37G (HDMI)
N/A
HP
LP2065 20” TFT Monitor (DVI)
N/A
S9500 19” Monitor (DVI)
N/A
3300MP projector
P
Microsoft
Natural keyboard Pro
P
Logicool
USB mouse (OWCM-USB)
P
Logitech
USB wheel mouse
P
First wheel mouse
P
(D-sub)1
P
Projector
DELL
USB keyboard or mouse
DELL
HP
Belkin
USB keyboard
P
Dell by Logitech
P
Internet navigator keyboard
P
Smart card keyboard
P
USB optical Austin mouse
P
HP USB optical mouse (RB129AA)
P
Miniglow optical USB mouse
P
USB printer/scanner
Canon
Canon Scanner D1250 (USB 2.0) (JP OS only)
N/A
HP
450wbt deskjet printer (USB/Bluetooth)
P
2400 Scanjet (USB 1.1)
N/A
Aiwa
Multimedia digital speaker (SC-UC78)
P
Logitech
WingMan RumblePad (G-UA3)
N/A
USB speaker/joystick
Peripheral
Dolby Headphone 5.1 channel
N/A
Panasonic
USB speaker EAB-MPC57USB
P
JS
iFun USB speaker
N/A
Intel
Easy PC Camera (A20953-001)
P
Orange
Micro USB 2.0 Web Cam
P
USB camera
138
Appendix B
I/O Peripheral Compatibility Test
Vendor
Device Description
Result
USB storage device
Iomega
USB zip 250MB
P
Fujitsu
MO-1300 1.3G USB 2.0
N/A
Transcend
80GB HDD USB 2.0+IEEE 1394
P
PQI
6-in-1 Flash card reader/writer 2
N/A
Plextor
DVD+R/RW USB 2.0
P
Galileo
Mass storage 2.5 travel kit with 1394
N/A
LG
DVD+R/RW 16X USB 2.0+IEEE 1394
P
Sony
DVD+R/RW 16X USB 2.0+IEEE 1394
P
Sony
Memory key 128MB
P
Micro Bault Pro USD-5G 5GB USB flash
P
Apacer
Handy drive the USB flash drive
P
IBM
128MB USB 2.0 memory key
N/A
512MB USB 2.0 memory key
P
A TEN
4 port hub USB 2.0 UH-204
P
IOGEAR
4 port hub USB 2.0
P
Corega
Wireless LAN USB stick 11 USB 1.1 CG-WLUSBST11
P
CD-RW + DVD-ROM combo USB interface
P
USB flash drive
USB hub and others
USB ODD
Logitech
LG
DVD+R/RW 16X USB 2.0+IEEE 1394
P
Sony
DVD+R/RW 16X USB 2.0+IEEE 1394
P
2.5” portable 80GB hard disk
P
DVD+R/RW 16X USB 2.0+IEEE 1394
P
Sony
DVD+R/RW 16X USB 2.0+IEEE 1394
P
Transcend
2.5” portable 80GB hard disk
P
DV
P
FireWire expansion hub 6-port IEEE 1394 hub FH-600
P
Cisco
Aironet 12301
N/A
NEC
AP500
P
Building networks people WiFi certified a/b/g wireless 108AG
P
Abcom
5-in-1 adapter express card reader
P
GigaLAN express card
P
Sunix
ECF2400 2 ports 1394A express card
P
Serial ATA External SATAII express card
P
IK Kouwell IEEE1394+USB2.0 express card
P
USB HDD
Transcend
1394 storage drive
LG
1394 camera
Sony
1394 hub
Aten
Access point 802.11b
Access point 802.11g
D-Link
Express card
IK Kouwell
Appendix B
139
I/O Peripheral Compatibility Test
Vendor
SIIG
Device Description
Result
SIIG express card 11-in R/W easily add a memory card reader/writer to
express card equipped systems
P
1 If system support s DVI, a D-sub interface supplemental test is required.
2 PQI 6-in-1 flash card reader/writer is not compatible with USB 2.0 systems.
Game Test
Vendor
Item Description
Result
Blizzard
WarCraft III CD-04-062
N/A
WarCraft III- Frozen Throne (DX8.1) Patch 1.18 or later
P
Atari
Neverwinter Nights + Patch v1.62 CD-04-220/WKS
N/A
Unreal Tournament 2004 CD-04-194
N/A
ID Software
Quake III Arena CD-04-057
N/A
Quake III CD-04-197
N/A
Activision
Call of Duty 2 CD-04-203
N/A
EA
Doom3 (DX9.0)
P
Star Wars Jedi Knight: Jedi Army CD-04-192
N/A
Battlefield 1942 CD-04-107/WKS
N/A
Battlefield 2 Patch 1.01 (DX9.0)
P
Command & Conquer Generals CD-04-222/WKS
N/A
Madden NFL 2006 CD-04-216
N/A
Nascar Thunder 2004 CD-04-113
N/A
Nascar SimRacing CD-04-228
N/A
NBA Live 2006 CD-02-214
N/A
Tiger Woods PGA Tour 2006 CD-04-199
N/A
Medal of Honor Allied Assault Spearhead Expansion Pack CD-04-122-1
N/A
FIFA World Cup
P
Sports FIFA 2006 Soccer
P
Flight Simulator 2004 A Century of Flight CD-04-074
N/A
HALO CD-04-078
N/A
Rise of Nations 1.0 CD-04-079/WKS
N/A
Sierra
Half-Life 2 CD-04-237
P
Crytek
Far Cry CD-04-154
N/A
Microsoft
Interwise
Silent Hunter III CD-04-226
N/A
Ubisoft
Tom Clancy’s Splinter Cell: Chaos Theory CD-04-230
N/A
EA games
Need for Speed - Under Ground II
N/A
Online game
Lineage II: Chronicle 3
N/A
World of WarCraft
N/A
RF Online
P
SW Utility and Application Test
Item Description
140
Result
PowerDVD
N/A
Windows DVD Maker
P
NTI-CD Maker
P
Appendix B
SW Utility and Application Test
Item Description
Result
NIS
P
Launch Manager
P
Wireless AP
P
Bluetooth AP
N/A
Acrobat Reader
P
Office
P
Appendix B
141
142
Appendix B
Appendix C
Online Support Information
This section describes online technical support services available to help you repair your Acer Systems.
If you are a distributor, dealer, ASP or TPM, please refer your technical queries to your local Acer branch
office. Acer Branch Offices and Regional Business Units may access our website. However some information
sources will require a user i.d. and password. These can be obtained directly from Acer CSD Taiwan.
Acer's Website offers you convenient and valuable support resources whenever you need them.
In the Technical Information section you can download information on all of Acer's Notebook, Desktop and
Server models including:
T
Service guides for all models
T
User's manuals
T
Training materials
T
BIOS updates
T
Software utilities
T
Spare parts lists
T
TABs (Technical Announcement Bulletin)
For these purposes, we have included an Acrobat File to facilitate the problem-free downloading of our
technical material.
Also contained on this website are:
T
Detailed information on Acer's International Traveler's Warranty (ITW)
T
Returned material authorization procedures
T
An overview of all the support services we offer, accompanied by a list of telephone, fax and email
contacts for all your technical queries.
We are always looking for ways to optimize and improve our services, so if you have any suggestions or
comments, please do not hesitate to communicate these to us.
Appendix C
143
144
Appendix C
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
