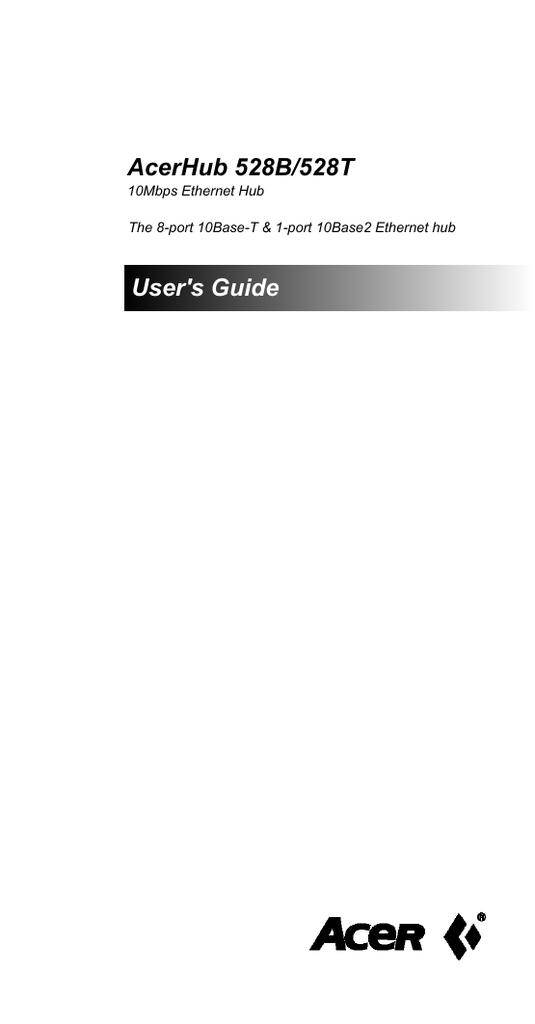

AcerHub 528B/528T
10Mbps Ethernet Hub
The 8-port 10Base-T & 1-port 10Base2 Ethernet hub
User's Guide
Federal Communications Commission Statement
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. This
equipment has been tested and found to comply with the limits for a
class A computing device, pursuant to Part 15 of the FCC rules. These
limits are designed to provide reasonable protection against harmful
interference when operated in a commercial environment. Operation of
this equipment in a residential area is likely to cause interference, in
which case the user, at his own expense, will be required to take
whatever measures are necessary to correct the interference.
CE Declaration of conformity :
This equipment complies with the requirements relating to
electromagnetic compatibility, EN 55022 class A for ITE and EN 500821, the essential protection requirements of Council Directive 89/336/EEC
on the approximation of the laws of the Member States relating to
electromagnetic compatibility.
Introduction
This series products are compact size 10Mbps Ethernet hubs,
there are two models In this series:
AcerHub 528B: 8-port 10Base-T (RT-45 connectors) and
1-port 10Base2 (BNC connector).
Model number is ALH-528B.
AcerHub 528T: 8-port 10Base-T (RT-45 connectors).
Model number is ALH-528T.
Note: The model name / model number is shown on the label
at the bottom side of the hub.
This user guide describes the features, installation and operating
instructions of this mini hub.
Package Contents
The AcerHub 528B/528T package contains the following items:
• One AcerHub 528B or 528T Hub
• One AC Power Adapter, output is DC 7.5V, 1000mA
• One BNC T-Connector (only for AcerHub 528B)
• This User’s Guide
• Four Pieces of Rubber Foot
• Two Pieces of Tapping Screw
• Two Pieces of Nylon Screw Anchor
2
Features of AcerHub 528B/528T
• Comply with IEEE 802.3 Ethernet 10BASE-T and 10BASE2 standards
• Compact size for desktop or wall mounting
• Plug and play, no configuration required
• 8 10Base-T (RJ-45) normal port for connection to workstations
• 1 uplink port for easy expanding to another hub or LAN switch
• 1 BNC port for trunk connection
• Per port Link and Partition LEDs for easy diagnostics
The AcerHub 528 Front Panel
The following diagram illustrates the front panel of AcerHub 528. To distinguish model 528B or 528T, please see the label on the bottom side of
the hub.
1. PWR, the power (Green) Indicator
When the power LED is lit it indicates that the hub’s power is on.
2. Collision (ORANGE) Indicator
This LED indicator blinks when the hub detects a collision on the
network.
3. Link (GREEN) Indicators
These LEDs indicate the state of the data link of each port. The
LED will be
“ON” when the connection of that port is successful, and the LED
will be blinking when data is being received at that port.
4. Partition (ORANGE) Indicators
The LEDs will be “ON” when ports on the hub are been partitioned.
A port is partitioned if it experiences consecutive collisions. The
partitioned port is automatically isolated by the hub. The port will be
automatically recovered when the faulty condition disappeared.
When the port recovers, the partition LED returns to normal status
(“OFF”).
3
refer to following figure for an illustration of such a connection.
4. Take caution that you need to attach a 50ohm terminator on both
ends of the BNC cable.
Note: If port1 (BNC PORT) does not connect to the coaxial cable
after power is applied to the hub, port1 (BNC PORT) Partition LED
will be blinking. The port1 Partition LED will be OFF after
connecting the coaxial cable to port1.
The following diagram illustrates 10BASE-T and 10BASE2 network
connections.
Cascading Hubs by using 10Base-T port
When your 10BASE-T network needs to grow to more than eight
connections, you should consider to purchase an additional hub and
cascading it to the original hub.
The AcerHub 528B features a cascade enabling switch to allow port No.
9 to cascade to next hub.
The following diagram illustrates 10BASE-T cascading. In IEEE 802.3
standard, It allows in maximum 4 hubs being cascaded by using
10Base-T port.
5
Specifications of AcerHub 528B/528T :
6
Product Limited Warranty
Acer Netxus Incorporated (ANI) warrants its product to be free from
defects in materials and workmanship, under normal use and service,
for the following lengths of time from the date of purchase from ANI or
its Authorized Resellers.
Network adapter card
Unmanaged hub
Switch and managed hub
Limited Lifetime
*Limited Lifetime
*3 year
* Power supply/adapter and fans in these devices provide One year warranty
All products with limited lifetime warranty have a standard five-year
warranty. This warranty does not cover the product if it is damaged by
abuse, accident, misuse, improper installation, or improper testing. If a
product does not operate as warranted during the applicable warranty
period, ANI shall, at its option and expense, either repair the defective
product or part returned to ANI, or deliver to customer an equivalent
product or part to replace the defective item. Definitely, all products that
are replaced will become the property of ANI. Replacement products
may be new or reconditioned. Any replacement or repaired product or
part has a ninety days warranty or the remainder of the initial warranty
period, whichever is longer. ANI shall not be responsible for any
software, firmware, information, or memory data of customer contained
in, stored on, or integrated with any products returned to ANI pursuant to
any warranty. Before you obtain warranty service, you must request an
RMA (Return Materials Authorization) number by calling, faxing or
writing ANI’s Customer Service Department at the numbers listed
below. You must use the original container (or the equivalent) and pay
the shipping charge.
ANI SHALL NOT BE HELD LIABLE FOR INCIDENTAL,
CONSEQUENTIAL, INDIRECT, SPECIAL OR RUNTIME DAMAGES OF
ANY KIND; OR FOR LOSS OF REVENUE, LOSS OF BUSINESS, OR
OTHER FINANCIAL LOSS ARISING OUT OF OR IN CONNECTION
WITH THE SALE, INSTALLATION, MAINTENANCE, USE,
PERFORMANCE, FAILURE, OR INTERRUPTION OF ITS PRODUCTS,
EVEN IF ANI OR ITS AUTHORIZED DEALER HAS BEEN ADVISED
OF THE POSSIBILITY OF SUCH DAMAGES.
Model Name
Series No. (S/N)
Purchase Date
( Authorized distributors' or Resellers' Stamp )
/
/
If you purchased this product in the UNITEDSTATES, some states do
not allow the limitation or exclusion of liability for incidental
consequential damages, so the above limitation may not apply to you.
Contact us:
Acer Computer International Ltd.
Taiwan Branch
Tel: 886-2-2713 9099 ext.7293
Fax: 886-2-2718 4895
http://www.aci.acer.com.tw
Acer America Corporation
Tel: 1-408-432 6200
Fax:1-408-922 2993
http://www.acer.com/aac
Distribution/Information
Hotline: 1-800-369 6736
Fax: 1-408-432 0496
http://www.acer.com/aac/aod
Acer Latin America Inc.
Tel: 1-305-392 7200
Fax:1-305-392 7216
Acer Japan Corporation
Tel: 81-4-8290 1819
Fax: 81-4-8290 1820
Acer UK Limited
Tel: 44-1628-533422
Fax: 44-1628-524071
http://www.aceruk.co.uk
Acer Computer France S.A.R.L.
Tel: 33-1-4817 4040
Fax: 33-1-4817 4089
Acer Computer GmbH
Tel: 49-4102-488-0
Fax: 49-4102-488-101
Dealers' Information
Hotline: Germany 0180-3234781
End users' Information
Hotline: Germany 0190-885554
Acer Computer Iberica, S.A.
Tel: 34-3-499-0303
Fax: 34-3-499-0483
Acer Italy/Texas Instruments
Tel: 39-2-2692-2565
Fax: 39-2-2692-1021
Acer Computer B.V.
Tel: 31-73-645 9645
Fax: 31-73-645 9599
Acer Netxus Incorporated
A communications company of Acer
7F, 82, Sec. 1 Hsin Tai Wu Road
Hsichih, Taipei Hsien, 221, Taiwan
Tel: 886-2-2696 4288 Fax: 886-2-8691 2372
Customer Service: 886-2-8691 2332
http://www.acernetxus.com.tw
