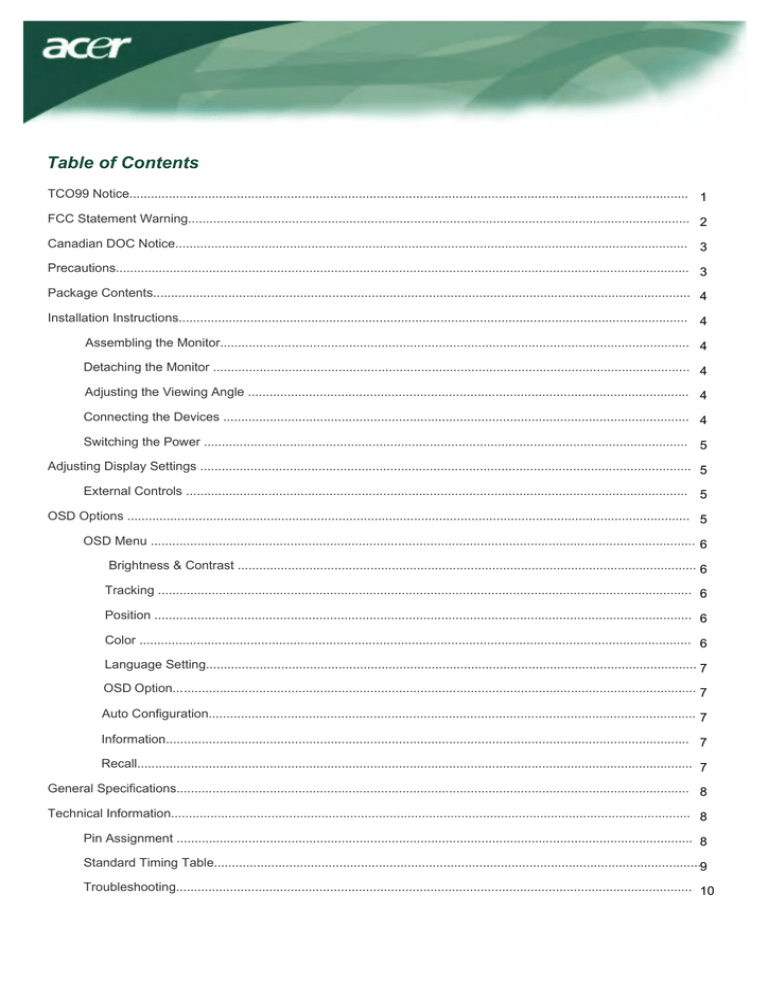

Table of Contents

TCO99 Notice............................................................................................................................................................

1

FCC Statement Warning............................................................................................................................................

2

Canadian DOC Notice...............................................................................................................................................

3

Precautions................................................................................................................................................................

3

Package Contents......................................................................................................................................................

4

Installation Instructions..............................................................................................................................................

4

Assembling the Monitor...................................................................................................................................

4

Detaching the Monitor .....................................................................................................................................

4

Adjusting the Viewing Angle ...........................................................................................................................

4

Connecting the Devices ..................................................................................................................................

4

Switching the Power .......................................................................................................................................

5

Adjusting Display Settings .........................................................................................................................................

5

External Controls ............................................................................................................................................

5

OSD Options .............................................................................................................................................................

5

OSD Menu ........................................................................................................................................................

6

Brightness & Contrast ................................................................................................................................

6

Tracking .....................................................................................................................................................

6

Position ......................................................................................................................................................

6

Color ..........................................................................................................................................................

6

Language Setting.........................................................................................................................................

7

OSD Option..................................................................................................................................................

7

Auto Configuration........................................................................................................................................

7

7

Recall...........................................................................................................................................................

7

General Specifications...............................................................................................................................................

8

Technical Information.................................................................................................................................................

8

Pin Assignment ................................................................................................................................................

8

Standard Timing Table........................................................................................................................................

9

Troubleshooting................................................................................................................................................

10

Page1-2 stands for TCO'99 model only.

Please see back label for model distinction.

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture.

Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme, which provides for international and environmental labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish

Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature

Conservation) and Statens Energimyndighet (The Swedish National Energy Administration). Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of electric and magnetic fields, energy consumption and electrical and fire safety. The environmental demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user. Labelled products must meet strict environmental demands, for example, in respect of the reduction of electric and magnetic fields, physical and visual ergonomics and good usability. On the Back page of this folder, you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): [email protected] Current information regarding TCO'99 approved and labeled products may also be obtained via the Internet, using the address :

http://www.tco-info.com/

Environmental Requirements

Flame Retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative* processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. The elevant TCO'99 demand requires that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays.

Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries, the color-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury. It also demands that mercury is not present in any of the electrical or electronics components associated with the labelled unit.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which accumulate within living organisms

** Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

FCC Statement Warning

is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruction, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

.Reorient or relocate the receiving antenna.

. Increase the separation between the equipment and the receiver.

. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

. Consult the dealer or an experienced radio/TV technician for help.

Any changes or modifications not expressly approved by the manufacturers may void the user's authority to operate this equipment.

WEEE Disposal Instructions

Do not throw this electronic device into the municipal trash bin when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle it. For more information about the collection

of WEEE welcome to visit our homepage at www.acer.com under environment.

Lamp Disposal

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND MUST BE RECYCLED OR DISPOSED OF

ACCORDING TO LOCAL, STATE OR FEDERAL LAWS. FOR MORE INFORMATION, CONTACT THE ELECTRONIC

INDUSTRIES ALLIANCE AT WWW.ELAE.ORG. FOR LAMP SPECIFIC DISPOSAL INFORMATION CHECK WWW.

LAAMPRECYCLE.ORG.

NOTE

A shielded-type signal cord is required in order to meet the FCC emission limits and also to prevent interference to the radio and television reception. It is essential that only the supplied signal cord be used.

Canadian DOC Notice

This Class B digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

Cet appareil numerique de la classe B repecte toutes les exigences du Reglement sur le materiel brouilleur du Canada.

Preface

This manual is designed to assist users in setting up and using the LCD Monitor. Information in his document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. This document contains proprietary information protected by copyright. All rights are reserved. No part of this manual may be reproduced by any mechanical, electronic or other means, in any form, without prior written permission of the manufacturer.

Important Safety Instructions

1. To clean LCD Monitor screen;Power off LCD Monitor and unplug the AC Cord.

Spray a non-solvent cleaning solution onto a rag and clean the screen gently.

2. Do not place the LCD Monitor near a window. Exposing the monitor to rain

water, moisture or sunlight can severely damage it. ter, moisture or sunlight can

severely damage it.

3. Do not place the LCD Monitor near a window. Exposing the monitor to rain

water, moisture or sunlight can severely damage it. ter, moisture or sunlight can

severely damage it.

4. Do not remove the cover or attempt to service this unit by yourself. Servicing of any

nature should be performed by an authorized technician.

5. Store LCD Monitor in a room with a room temperature of-20°C ~ 60°C (or -4°F ~

140°F).Storing the LCD Monitor outside this range could result in permanent damage.

technician.

* Monitor to PC signal cable is frayed or damaged.

* Liquid spilled into LCD Monitor or the monitor has been exposed to rain.

* LCD Monitor or the case is damaged.

3

Package Contents

LCD Monitor Power Cord Audio cable

User manual (CD) Quick start guide

Assembling the Monitor

1. Position the monitor on top of the stand.

VGA cable

2.Connect the stand into the neck of monitor along the track.

Detaching the Monitor

Important

First, find a clean, flat surface to place the monitor after removing it from the stand. Place a clean dry cloth under the monitor to protect it further. Pull the monitor slightly up and away from the stand.

Adjusting the Viewing Angle

The viewing angle of the monitor ranges from forward to backward 15°.

Caution:

Do not force the LCD Monitor over its maximum viewing angle settings as stated above. Attempting this will result in damaging the Monitor and Monitor stand.

Connecting the Devices

Please shut down the power of computer and monitor before you do the connection..

(1)

(2)

(3)

Power Cord

Audio cable

VGA Cable

Attach the monitor to the power cord which should then be inserted into a properly grounded electric socket.

Connect the signal cable to the VGA output socket of the graphics card on the computer. Then tighten the thumbscrews on the connector

WARNING: The D-Sub 15 pin plug of the VGA cable is trapezoid in shape. Make sure the shape of the plug matches the shape of the socket it is inserted into, and tha t none of the pins are bent or otherwise damaged.

Operating Your Monitor

First, switch the power on to the monitor, then switch the power on to the computer. When you see the LED on the power button go green, this indicates the computer is ready for use. Allow about 10 seconds for the video signal to appear. If you do not see the green light on the power button or a video signal, check the connections .

1

2

4

Power

If OSD is active, press to exit. If OSD is inactive, press and the monitor will automatically optimize the display position, clock and phase of your display.

If OSD is active, press to select or adjust OSD options.

If OSD is active, press to select or adjust OSD options.

Press to view OSD. Press again to exit.

Power on/off

Green: power on

Orange: in sleep mode

OSD Options

Please refer to "External Controls " on Page 5. To adjust the OSD settings :

1. Press the MENU button to open the OSD menu.

2. Use the buttons marked < or >, to highlight a control, then press the MENU button to enter

3. Use the buttons marked < or >, to adjust the control to the desired level.

4. When you have finished making all selections, press the MENU button to exit the O S D. (Or the adjustment

will auto-save a fter 45 seconds.)

OSD Menu

Brightness & Contrast

BRIGHTNESS:

This adjusts the brightness of the picture on the screen.Adjustable range from the value of 0 to 100.

CONTRAST:

This adjusts dark and light shades of color relative to each other to achieve a comfortable contrast. Adjustablerange from the value of 0 to 100.

Tracking

FOCUS:

This removes any horizontal distortion and makes the picture clear and sharp .

CLOCK:

If there are any vertical stripes seen on the background of the screen this renders them less noticeable by minimizing their size. It also changes the size of horizontal screen.

Position

V-Position:

This removes any horizontal distortion and makes the picture clear and sharp.

H-Position:

This adjusts the horizontal.

Color Temperature

There are three ways of adjusting color temperature:

WARM:

Set the color temperature as CIE coordinate 6500°K.

COOL:

Set the color temperature as CIE coordinate 9300°K.

User defined:

You can adjust the colors red, green and blue to the intensity you desire.

Language

Select the OSD menu language from English, German, French, Traditional Chinese,

Simplify Chinese, Japanese, Italian and Spanish.

OSD Position

AUTO Configuration

This changes the position of the OSD window on the screen.

TIMEOUT function allow user define the OSD appearing period from 10 seconds to

60 seconds.

Adjust the monitor parameter automatically.

Information

This shows brief information on the screen.

Recall

Recall to factory default settings

General Specification

Item Specification

Display 19-inch Flat panel active-matrix TFT LCD

Max Resolution

1280 x 1024 @75Hz

Pixel Pitch

Color

0.294 mm X 0.294 mm

16. 2M

Brightness 300nits ( Typical)

Contrast Ratio 700:1 (Typical)

Response Time 8ms (Typical)

View Angle of Horizontal 140°

View Angle of Vertical 140°

Speaker

Power Button ON/ OFF

Control Buttons Auto, MENU, <, >

Video In

Sync

Plug & Play

Analog 0.7V

TTL (+/ -)

DDC2B

UL(USA); CBC(B-Mark)(Poland); PSB(Singapore); TUV(Germany);

CB: BSMI (Taiwan); CCC (China); PSE (Japan); FCC(USA);

EMI and Safety

Power Source

C-tick (Australia); CE(Europe); VCCI (Japan); TCO'99; ISO13406-2;

TUV/GS; TUV/Ergo; WHQL(Microsoft)

100~240V AC, 50/60 Hz

Power Consumption During

Active off Operation

Normal Operation

Power Consumption During

<40W

< 5W

Dimension (W_H_D) 422.2x433x175.8mm (base included)

Weight (Net/ Gross) 5.6Kg/ 6.6Kg

8

Technical Information

Pin Assignment Signal Signal

PIN Description PIN Description

1 Red 9 +5V

2 Green 10 N.C.

3 Blue 11 N.C.

4 N.C. 12 DDC_SDA

5 GND 13 HSYNC

6 Red_GND 14 VSYNC.

7 Green_GND 15 DDC_SCL

8 Blue_GND

Standard Timing Table

If the selected timing is NO T included in table below, this LCD monitor will go into the sleep mode.

Mode Resolution Total

VESA MODES

Horizontal Vertical

Nominal

Frequency

+/-0.5KHz

Sync

Polarity

Nominal

Frequency

+/-1Hz

Sync

Polarity

VGA

SVGA

XGA

SXGA

640*480@60Hz

640*480@72Hz

640*480@75Hz

800*600@56Hz

800*600@60Hz

800*600@72Hz

800*600@75Hz

1024*768@60Hz

1024*768@70Hz

1024*768@75Hz

1280*1024@60Hz

1280*1024@75Hz

800*525

832*520

840*500

1024*625

1056*628

1040*666

1056*625

1344*806

1328*806

1312*800

1688*1066

1688*1066

31.469

37.861

37.500

35.156

37.879

48.077

46.875

48.363

56.476

60.023

63.981

79.976

P

P

N

P

P

P

N

P

P

N

N

N

59.940

72.809

75.000

56.250

60.317

72.188

75.000

60.004

70.069

75.029

60.020

75.025

P

P

N

P

P

P

N

P

P

N

N

N

Nominal

Pixel

Clock

(MHz)

25.175

31.500

31.500

36.000

40.000

50.000

49.500

65.000

75.000

78.750

108.000

135.000

EGA

640*350@70Hz

720x400@70Hz

SVGA

XGA

XGA

832*624@75Hz

1024*768@60Hz

1024*768@75Hz

800*449

900*449

1152*667

1312*813

1328*804

31.469

31.469

49.728

48.780

60.241

P

N

N

N

N

70.086

0.087

74.551

0.001

74.927

N

N

N

P

N

N

25.175

28.322

57.284

57.284

64.000

80.000

9

Troubleshooting

This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA cardis selected.

Attention

This LCD Monitor Supports Multiple VGA Modes. Refer to the Standard Timing Table for a listing of modes supported by this LCD Monitor.

PROBLEM Picture is unclear and unstable

The picture is unclear and unstable, please perform the following steps :

1. Enter PC to "Shut Down Windows" status while you're in MS-Windows environment.

2. Check the screen to see if there's any black vertical stripes appear. If there are,take advantage of the "Clock"

function in OSD menu and adjust (by increment or decrement numbers)until those bars disappear.

3. Move to "FOCUS" function in OSD menu again and adjust the monitor screen to its most clear display.

4. Click "No" on "Shut Down Windows" and back to the normal PC operating environment.

PROBLEM There is no picture on LCD Monitor

If there's no picture on the LCD Monitor, please perform the following steps:

1. Make sure the power indicator on the LCD Monitor is ON, all connections are secured,and the system is running

on the correct timing. Refer to Chapter 3 for information on timing.

2. Turn off the LCD Monitor and then turn it back on again. If there is still no picture,press the Adjustment Control

button several times.

3. If step 2 doesn't work, connect your PC system to another external CRT.If your PC system Functions properly with

a CRT Monitor but it does not function with the LCD Monitor,the output timing of the VGA card may be out of the

LCD's synchronous range.

Please change to an alternative mode listed in the Standard Timing Table or replace the VGA card,and then repeat

steps 1 and 2.

PROBLEM There is no picture on LCD Monitor

If you have chosen an output timing that is outside of the LCD Monitor's synchronous range (Horizontal: 24 ~ 80 KHz and Vertical:56 ~ 75 Hz), the OSD will display a "Out of Range" message. Choose a mode that is supported by your

LCD Monitor. Also, if the signal cable is not connected to LCD monitor at all or properly, the monitor screen will display a message "No Input Signal" .

Caution:

Do not attempt to service the monitor yourself or open the computer yourself.

Please refer all servicing to qualified service personnel if the problems cannot be solved in "Troubleshooting" section.

advertisement

Related manuals

advertisement
