QuickSpecs
HP Compaq dc7900 Business PC
Overview
HP recommends
Windows Vista® Business

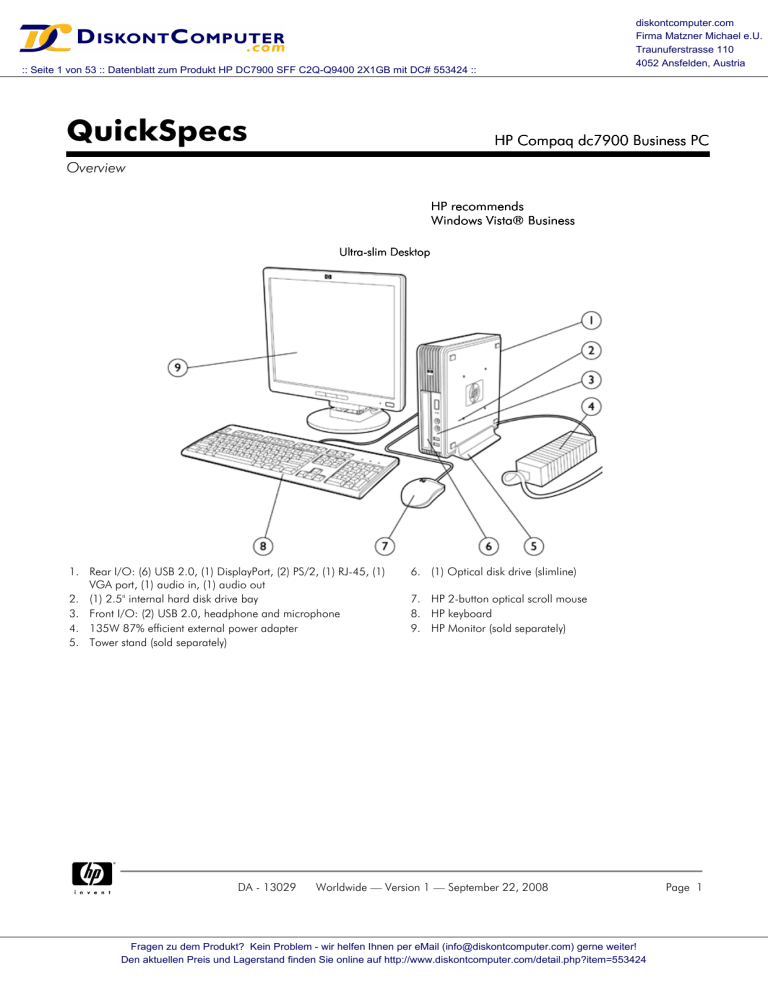

Ultra-slim Desktop
1. Rear I/O: (6) USB 2.0, (1) DisplayPort, (2) PS/2, (1) RJ-45, (1)
VGA port, (1) audio in, (1) audio out
2. (1) 2.5" internal hard disk drive bay
3. Front I/O: (2) USB 2.0, headphone and microphone
4. 135W 87% efficient external power adapter
5. Tower stand (sold separately)
DA - 13029
6. (1) Optical disk drive (slimline)
7. HP 2-button optical scroll mouse
8. HP keyboard
9. HP Monitor (sold separately)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 1
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 2 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Overview
Small Form Factor
1. HP Monitor (sold separately)
6.
2. Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45, (1) 7.
VGA port, (1) DisplayPort, (1) audio in, (1) audio out
HP keyboard
(1) Media card reader or Floppy disk drive
Optional: 2nd serial port, (1) parallel port, (1) eSATA port
3. (1) low profile PCI slot, (1) low profile PCI Express x1 slot, (2) 8.
(1) Optical disk drive
low profile PCI Express x16 slots
(NOTE:
NOTE: 2nd x16 slot has x4 connectivity.)
4. Front I/O: (2) USB 2.0, headphone and microphone
9.
(1) 3.5" internal hard disk drive
5. HP 2-button optical scroll mouse
10. 240-watt standard efficiency power supply
Optional: 85% efficient energy saving power supply
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 2
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 3 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Overview
Convertible Minitower
1. (2) Optical disk drives
(2) 3.5" internal hard disk drive bays
2. 365-watt standard efficiency power supply, Active Power
Factor Correction (PFC)
6.
Front I/O: (2) USB 2.0, headphone and microphone
7.
(3) full-height PCI slots, (1) full-height PCI Express x1 slot, (2)
full-height PCI Express x16 slots
(NOTE:
NOTE: 2nd x16 slot has x4 connectivity.)
Optional: 85% efficient energy saving power supply
3. (1) 5.25" removable media drive bay
8.
4. Rear I/O: (6) USB 2.0, (1) serial port, (2) PS/2, (1) RJ-45, (1) 9.
VGA, (1) DisplayPort, (1) audio in, (1) audio out
Optional: 2nd serial port, (1) parallel port, (1) eSATA port
5. Media card reader or Floppy disk drive
DA - 13029
HP 2-button optical scroll mouse
HP keyboard
10. HP Monitor (sold separately)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 3
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 4 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Overview
At A Glance
Designed for long-term deployment within commercial and institutional organizations
Guaranteed lengthy purchase lifecycles and image stability
Created using industry leading Design for Environment standards
Optional 85% efficient power supplies
dc7900e models qualify for ENERGY STAR
Intel® Q45 Express chipset featuring Intel's Graphics Media Accelerator 4500
Supports industry standard management protocols including DASH, Intel Standard Manageability, and Intel Core 2 Processor
with vPro Technology (on select models)
Integrated dual monitor support via both a VGA and DisplayPort monitor interface
Software image fully compatible across all models and form factors
BIOS developed and engineered by HP for better security, manageability and software image stability
Selected configurations with global availability easily set up and ordered through HP.com Business to Business portals
(http://h10019.www1.hp.com/business-site/index.html)
Tailored HP Factory Express deployment and lifecycle services available
(http://h71028.www7.hp.com/enterprise/cache/97688-0-0-225-121.aspx)
Protected by HP Services, including standard warranties up to 5-5-5 (terms and conditions vary by country; certain restrictions
and exclusions apply)
Tool-less serviceability features for easier upgrades and repairs
Choice of professional chassis form factors to accommodate the desired mix between expandability and size
* TPM module and cryptographic software disabled where use is restricted by law; for example, Russia and China.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 4
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 5 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Configurable Components - Select Models (localized by Regions)
Model Key and Example
NOTE: This diagram is an example that illustrates how to read the model number. It is not intended to give every available
configuration choice specified in the body of this document and may include references to modules that are out of date and no
longer available.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 5
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 6 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Operating System One of the following
Preinstalled
Genuine Windows Vista Business 32*
Genuine Windows Vista Business 64*
Genuine Windows Vista Home Basic 32*
Genuine Windows Vista Business with downgrade to Windows XP
Professional custom installed *+
FreeDOS†
Supported
Genuine Windows XP Home Edition
Genuine Windows XP Professional
* Certain Windows Vista product features require advanced or additional hardware. See:
www.microsoft.com/windowsvista/getready/hardwarereqs.mspx and
www.microsoft.com/windowsvista/getready/capable.mspx for details. WindowsVista Upgrade Advisor
can help you determine which features of Windows Vista will run on your computer. To download the
tool, visit: www.windowsvista.com/upgradeadvisor.
+ Windows Vista Business disk may be included for future upgrade if desired. To qualify for this
downgrade an end user must be a business (including governmental or educational institutions) and is
expected to order at least 25 customer systems with the same custom image.
† The following features are not supported by FreeDOS:
HP 22-in-1 Media Card Reader
Intel PRO/1000 CT Network Connection
Broadcom NetXtreme Gigabit PCIe NIC
HP 802.11b/g/n Wireless PCIe x1 Card
Mini PCIe wireless
NVIDIA Quadro NVS 290 256MB dual head graphics adapter
HP USB Smartcard Keyboard
HP 2nd Serial Port
HP FireWire / IEEE 1394 PCI Card
Value-added Software
HP ProtectTools Security Suite†
HP Software Management Agent
(included with all models; HP Backup and Recovery Manager
PDF Complete
not included with
HP Insight Diagnostics
Computrace for Desktops (in the HP BIOS)*
FreeDOS)
† Not included on models configured with less than 1 GB system memory.
* Computrace agent is in HP BIOS. For tracking and tracing services, available in select countries,
separate software and purchase of a subscription is required.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 6
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 7 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Value-added Software
Computer Setup Utility
(included with select
McAfee Total Protection Anti-Virus†*
models; not included with
Sonic/Roxio DigitalMedia Plus 7.2
FreeDOS)
(select models)
or
Easy Media Creator 9 (select models)
Microsoft Office 2007 Personal
Microsoft Office 2007 Professional
Microsoft Office 2007 Small Business
HP Power Manager v2.0
Microsoft Works 8.5
HP Total Care Advisor†
Firefox-HP Virtual Browser
Microsoft Office 2007 Basic
InterVideo WinDVD 5.0 (select models)
† Not included on models configured with less than 1 GB system memory.
* 60 day trial period for McAfee Total Protection for Small Business software. Internet access required to
receive updates. First update included. Subscription required for updates thereafter.
HP Client Management
Solutions
(available for free
download from the Web
http://www.hp.com/go/
easydeploy)
HP Client Configuration Manager Basic Edition
HP Client Manager for Altiris
HP SoftPaq Download Manager
HP Client Catalog for Microsoft SMS
HP Out-of-Band Management Console
(for Intel management technology enabled models)
Altiris Out-of_Band Management Solution (for Intel
AMT enabled models)
HP Systems Software Manager
Value-added Services and HP Stable Platform Program
Factory Express Deployment and Lifecycle Services
Features
Business-to-Business Portals
Intel Standard Manageability
HP Global Series Services
Intel Core 2 processor with vPro Technology
TPM 1.2 security module*
* TPM module disabled where use is restricted by law; for example, Russia.
Service and Support
Dimensions
Chassis Dimensions
(H x W x D)
Optional Tower Stand
Dimensions (H x W x D)
On-site Warranty and Service1: This three-year (3-3-3), limited warranty and service offering delivers
three years of parts, labor and on-site repair. Response time is next business-day2 and includes free
telephone support3 24 x 7. Global coverage2 ensures that any product purchased in one country and
transferred to another non-restricted country will remain fully covered under the original warranty and
service offering. Some countries/regions do not offer one year onsite and labor.
1 Terms and conditions may vary by country. Certain restrictions and exclusions apply.
2 On-site service may be provided pursuant to a service contract between HP and an authorized HP
third-party provider, and is not available in certain countries. Global service response times are based on
commercially reasonable best effort and may vary by country.
3 Technical telephone support applies only to HP-configured, HP and HP-qualified, third-party hardware
and software. Toll-free calling and 24 x 7 support may not be available in some countries.
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
2.60 x 9.90 x 10 in
(66.0 x 251.5 x 254 mm)
1.26 x 4.82 x 6.69 in
(32.0 x122.3 x 170.0 mm)
3.95 x 13.3 x 14.9 in
(100.3 x 337.8 x 378.5)
1.05 x 6.95 x 7.83 in
(26.75 x 176.46 x 198.87 mm)
17.63 x 7.0 x 17.8 in
(447.8 x 177.8 x 452.12 mm)
N/A
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 7
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 8 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
System weight*
7.0 lb (3.18 kg)
18.75 lb (8.50 kg)
26.2 lb (11.89 kg)
System volume
4.21 liters
13 liters
36 liters
Shipping weight*
14.34 lb (6.52 kg)
26.10 lb (11.86 kg)
34.60 lb (15.72 kg)
Maximum supported
77.1 lb (35 kg)
77.1 lb (35 kg)
77.1 lb (35 kg)
weight (desktop orientation)
Shipping box dimensions
8.60 x 15.68 x 19.68 in
9.00 x 19.68 x 23.38 in
24.25 x 12.33 x 22.13 in
(H x W x D)
(218.4 x 398.3 x 499.9 mm)
(228.6 x 499.9 x 593.85 mm)
(616.0 x 313.2 x 562.1 mm)
* Configured with 1 hard drive, 1 optical drive, no diskette drive, and no PCI card.
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
Standard Efficiency Power
N/A
240W active PFC
365W active PFC
Supply
Energy Efficient Power
135W active PFC
240W active PFC
365W active PFC
Supply
87% efficient
85% efficient
85% efficient
External power supply dimensions:
6.7 x 2.6 x 1.5 in
Total length of external power
supply and power cord:
12 feet 8 inches
Ports
USB 2.0
(8) Total
(2) front, (6) rear
Serial
N/A
(1) Standard
Optional 2nd port available
Parallel
N/A
Optional (1)
eSATA
N/A
Optional (1)
PS/2
(1) keyboard; (1) mouse
Video
(1) VGA; (1) DisplayPort
DVI output
available via optional DisplayPort to DVI adapter
Support for Multi-Monitor
Dual monitor support standard; > 2 via optional graphics cards
Audio
Front - mic and headphone
Rear - input (supports microphone or line input), line out
NIC (RJ-45)
Integrated Intel 82567LM GbE Network Connection
Slots
Type and quantity
(1) mini PCI Express
(1) PCI
(3) PCI
(1) PCI Express x1
(1) PCI Express x1
(2) PCI Express x16
(2) PCI Express x16
Slot specifications
Accommodates low profile
Accommodates full height
cards only
cards
Graphics slots support 35W
1st graphics slot supports
cards
75W card; 2nd graphics
2nd PCIe x16 slot functions
slot support 35W card
electrically as a x4
2nd PCIe x16 slot functions
electrically as a x4
Chipset
Intel Q45 Express chipset featuring Intel GMA 4500 DirectX 10 graphics
DA - 13029
USDT
X
SFF
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
CMT
X
Page 8
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 9 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Processor and Speed*
Speed
One of the following
Intel Celeron Processors:
Intel Celeron 440 processor
2.0 GHz, 512 KB L2 cache, 800 MHz FSB
Intel Celeron Dual-Core Processors:
Intel Celeron dual-core E1200 processor
1.6 GHz, 512 KB L2 cache, 800 MHz FSB
Intel Celeron dual-core E1400 processor
2.0 GHz, 512 KB L2 cache, 800 MHz FSB
Intel Pentium dual-core Processors:
Intel Pentium dual-core E2200 processor
2.2 GHz, 1 MB L2 cache, 800 MHz FSB
Intel Pentium dual-core E2220 processor
2.4 GHz, 1 MB L2 cache, 800 MHz FSB
Intel Pentium dual-core E5200 processor
2.5 GHz, 2 MB L2 cache, 800 MHz FSB
Intel Core 2 Duo Processors:
Intel Core 2 Duo E7200 processor
2.53 GHz, 3 MB L2 cache, 1066 MHz FSB
Intel Core 2 Duo E7300 processor
2.66 GHz, 3 MB L2 cache, 1066 MHz FSB
Intel Core 2 Duo E8300 processor
2.83 GHz, 6 MB L2 cache, 1333 MHz FSB
Intel Core 2 Duo E8400 processor
3.0 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Duo E8500 processor
3.16 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Duo E8600 processor
3.33 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Intel Core 2 Quad Q9550 processor
2.66 GHz, 12 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
X
X
Intel Core 2 Quad Q9650 processor
2.83 GHz, 12 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
X
X
X
X
Intel Core 2 Quad Processors:
Intel Core 2 Quad Q8200 processor
2.33 GHz, 4 MB L2 cache, 1333 MHz FSB
Intel Core 2 Quad Q9400 processor
2.50 GHz, 6 MB L2 cache, 1333 MHz FSB
Featuring Core 2 Processor with vPro Technology
Intel Core 2 Processor
with vPro Technology
All dc7900 Series models featuring this technology include processors which are
part of the Intel 2008 Stable Image Platform Program (SIPP) designed to ensure
DA - 13029
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 9
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 10 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
the stability promise inherent in the value proposition of the HP Compaq dc7900
Series business desktop, thus making these model the most stable, secure, and
manageable platforms available to enterprises today.
The 2008 SIPP processors are:
Core 2 Duo E8400, E8500, E8600
Core 2 Quad Q9400, Q9550, Q9650
Intel's Core 2 Processor with vPro Technology suite of features includes:
Intel Advanced Management Technology (AMT) v5.0
an advanced set of remote management features and functionality which
provides network administrators the latest and most effective tools to
remotely discover, heal, and protect networked client systems regardless of
the system's health or power state. AMT 5.0 includes all features described
as part of Intel Standard Manageability plus the following advanced
management functions:
Fast Call for Help - a client inside or outside the firewall may initiate
a call for help via BIOS screen, periodic connections, or alert
triggered connection
Remote Scheduled Maintenance - pre-schedule when the PC
connects to the IT or service provider console for maintenance.
Remote PCs can get required patches, be inventoried, etc by
connecting to their IT console or Service Provider when it's convenient
Remote Alerts - automatically alert IT or service provider if issues
arise
Access Monitor - Provides oversight into Intel® AMT actions to
support security requirements
Microsoft NAP Support
Allows AMT 5.0 to gain access to a Microsoft NAP enabled 802.1x network
OOB to enable OOB SW updates, inventories, remote diagnostics, etc.
NAP is a new platform and solution that controls access to network
resources based on a client computer's identity and compliance with
corporate governance policy. NAP allows network administrators to define
granular levels of network access based on who a client is, the groups to
which the client belongs, and the degree to which that client is compliant
with corporate governance policy. If a client is not compliant, NAP provides
a mechanism to automatically bring the client back into compliance and
then dynamically increase its level of network access.
When a client attempts to access the network or communicate on the
network, it must present its system health state or proof of health
compliance. If a client cannot prove it is compliant with system health
requirements (for example, that it has the latest operating system and
antivirus updates installed), its access to the network or communication on
the network can be limited to a restricted network containing server
resources so that health compliance issues can be remedied. After the
updates are installed, the client requests access to the network or attempts
the communication again. If compliant, the client is granted unlimited
access to the network or the communication is allowed.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 10
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 11 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Memory
DDR2 SYNCH DRAM NON-ECC MEMORY
Memory upgrades are accomplished by adding single or multiple DIMMs of the same or varied sizes.
This chart does not represent all possible memory configurations. The HP Compaq dc7900 business
desktop supports non-ECC DDR2 PC2-5300 (667-MHz) and PC2-6400 (800-MHz) memory.
CAUTION: You must shut down the computer and disconnect the power cord before adding or
removing memory modules. Regardless of the power-on state, voltage is always supplied to the memory
modules as long as the computer is plugged in to an active AC outlet. Adding or removing memory
modules while voltage is present may cause irreparable damage to the memory modules or system
board.
HP recommends dual-channel symmetric configurations for maximum performance.
For best performance, add the same amount of total memory to each channel and do not mix speeds.
For dual-channel symmetric performance, the total amount of memory in each channel must be equal. If
speeds are mixed, speed will default to the slowest DIMM.
Ultra-slim Desktop
Maximum Memory*
Memory
Supports up to 8 GB of DDR2 SYNCH DRAM using SO-DIMM modules. Slot 1 is black and must always
be populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements.
SO-DIMM Size
Slot
Channel A
Channel B
1 (black)
2 (white)
512-MB
512-MB
1-GB
1-GB
2-GB (dual-channel symmetric)
1-GB
1-GB
4-GB (dual channel symmetric)
2-GB
2-GB
8-GB maximum (dual channel symmetric)
4-GB
4-GB
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.
Management Engine memory is shared with system memory. If the PC contains a single SO-DIMM, 16 MB of memory is preallocated for it at system startup. If the PC contains two SO-DIMMs, 32 MB of memory is pre-allocated. This memory is not made
available to the operating system, just as pre-allocated video memory is not available.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 11
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 12 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Small Form Factor and Convertible Minitower
Maximum Memory*
Memory
Supports up to 16 GB of DDR2 SYNCH DRAM using DIMM modules. Slot 1 is black and must
always be populated. Not all memory configurations possible are represented below.
NOTE: For systems configured with more than 3 GB of memory and a 32-bit operating system, all
memory may not be available due to system resource requirements. Addressing memory above 4
GB requires a 64-bit operating system.
DIMM Size
Slot
Channel A
1 (black)
512-MB
1-GB
1-GB
Channel B
2 (white)
3 (white)
4 (white)
512-MB
1-GB
2-GB (dual-channel
1-GB
symmetric)
4-GB (dual-channel
1-GB
1-GB
1-GB
1-GB
symmetric)
8-GB (dual-channel
2-GB
2-GB
2-GB
2-GB
symmetric)
16-GB maximum
4-GB
4-GB
4-GB
4-GB
(dual-channel symmetric)
* The Intel Q45 Express chipset includes a built-in Management Engine (ME), which allocates memory for manageability functions.
Management Engine memory is shared with system memory. If the PC contains a single DIMM, 16 MB of memory is pre-allocated for
it at system startup. If the PC contains two DIMMs, 32 MB of memory is pre-allocated. This memory is not made available to the
operating system, just as pre-allocated video memory is not available.
Memory Configurations - 512-MB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 512)
One of the following
1-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 1GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (1 x 2GB)
2-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 1GB)
3-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (3 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 1GB)
4-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (2 x 2GB)
8-GB DDR2 Synch Dram PC2-6400 (800-MHz) Non ECC (4 x 2GB)
16-GB DDR2 Synch Dram PC2-6400 (800-Mhz) Non ECC (4 x 4GB)
DA - 13029
USDT
X
X
SFF
X
X
CMT
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 12
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 13 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Expandability
PCI slots
USDT
N/A
Max power per slot
PCI Express x16 slot
Max power per slot
N/A
N/A
N/A
SFF
(1) LP (2.5"), length (6.6")
standard;
(2) FH (4.2"), length (6.875") via
optional riser card.
NOTE: With optional riser card,
PCIe x1 and PCIe x16 slots are
not accessible.
25W
(1) LP (2.5"), length (6.6")
35W
PCI Express x1 slot
Max power per slot
External Bays
3.5"
5.25"
N/A
N/A
(1) Total
N/A
N/A
(2) LP (2.5"), length (6.6")
10W
(2) Total
(1)
(1) 8.189" length
CMT
(3) FH (4.2"), length (10.5")
25W
(2) FH (4.2"), full-length
75W max if 1 16x slot,
35W each if both PCIe 16 slots
(1) FH (4.2"), full-length
10W
(4) Total
(1)
(2) 8.189" length
(1) 5.71" length
N/A
N/A
(2)
Slimline
128w x 127d x 12.7h mm
N/A
Internal 2.5" HDD Bays
(1)
N/A
Internal 3.5" HDD Bays
N/A
(1)
Hard Drive Controller (PCI)
Serial ATA
Supported
support for SATA 1.5-Gb/s and 3.0-Gb/s hard drives
Hard Drive and Optical
(1) Serial ATA interface
(3) Serial ATA interfaces
(4) Serial ATA interfaces
SATA Interfaces Supported
(1) Serial ATA for eSATA
(1) Serial ATA for eSATA
Host Controller for SATA
Advanced Host Controller Interface (AHCI) Revision 1.2. The specification includes a description of the
hardware/software interface between system software and the host controller hardware.
Ultra-slim Desktop
Small Form Factor
DA - 13029
Convertible Minitower
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 13
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 14 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Storage - Drive Support
Quantity Supported
Position Supported
Controller
USDT
Slimline 2.5" Hard
Optical Disk Drive
Drives
or Solid
State Drive
(right
angle, no
cable)
1
1
SATA
SATA
DA - 13029
Diskette
Drive or
Media
Card
Reader
1
Diskette
Controller
or
USB
header on
PCA
SFF
5.25"
Optical
Drives
CMT
3.5" Hard
Disk Drives
Diskette
Drive
Media
Card
Reader
5.25"
Optical
Drives
3.5" Hard
Disk Drives
1
2
1
1
2
2
SATA
,
SATA
,
SATA
,
SATA
,
Diskette
USB
Controller header on
PCA
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 14
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 15 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Hard Drives (SATA)
SFF
CMT
80 GB Hard Drive (3.5")
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
80 GB Hard Drive (3.5")
16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III
80 GB Hard Drive (3.5" removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
X
X
160 GB Hard Drive (3.5")
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
160 GB Hard Drive (3.5")
16MB cache, 10,000 RPM, 3.0 GB/s, NCQ, Smart III
160 GB Hard Drive (3.5" removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
X
X
250 GB Hard Drive (3.5")
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
250 GB Hard Drive (3.5" removable)
8MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
500 GB Hard Drive (3.5")
16MB cache, 7,200 RPM, 3.0 GB/s, NCQ, Smart IV
X
X
X
X
X
X
X
X
80 GB Hard Drive (2.5")
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
160 GB Hard Drive (2.5")
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
250 GB Hard Drive (2.5")
8MB cache, 7200 RPM, 3.0 GB/s, NCQ, Smart IV
Removable Storage One or more of the
following depending on
form factor (see Storage Drive Support section
above)
USDT
X
X
X
Diskette Drives
1.44-MB Diskette Drive
5.25" Optical Drives (SATA)
DVD-ROM Drive
SuperMulti LightScribe DVD Writer Drive1,2,3
Slimline Optical Drives (SATA)
DVD-ROM Drive1
SuperMulti LightScribe DVD Writer Drive1,2,3
1 For playing DVDs, InterVideo WinDVD 5
2 For writing CDs, choice of Sonic/Roxio DigitalMedia Plus 7.2 (Windows XP only)
or
Easy Media Creator 9 (Windows Vista and Windows XP)
3 For writing CDs and DVDs, video editing and authoring DVDs, choice of
Sonic/Roxio
DigitalMedia Plus 7.2 (Windows XP only) or
DA - 13029
X
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 15
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 16 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Easy Media Creator 9 (Windows Vista and Windows XP)
Media Card Reader One of the following
HP 22-in-1 Media Card Reader
HP 22-in-1 Media Card Reader with 1394 port
Security
TPM 1.2 TPM Security Chip*
TPM Pre-Boot Authentication (via BIOS)
Smartcard Pre-boot Authentication (via BIOS)
Stringent Security** (via BIOS)
SATA port disablement (via BIOS)
Drive Lock
HP ProtectTools Embedded Security Software
Serial, Parallel, USB Enable/Disable (via BIOS)
Removable Media Write/Boot Control
Power-On Password (via BIOS)
Setup Password (via BIOS)
Solenoid Hood Lock / Sensor
HP Security Lock Kit
* TPM module disabled where use is restricted by law; for example, Russia.
** This setting is defaulted to disable, but when enabled, the PW jumper will not
clear the BIOS pre-boot authentication passwords.
NIC
Intel 82567LM GbE Network Connection (integrated on system board)
Intel PRO/1000 CT Network Connection*
NOTE: The integrated network connection is required to support the vPro
technology features.
* Available after initial product release; use of this network card disables the vPro
technology features.
Wireless
HP 802.11 b/g/n PCIe x1 Wireless card
HP 802.11n Mini-PCI Wireless adapter
NOTE: These wireless network solutions disable the vPro technology features.
Modem
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
Agere 2006 PCI 56K International SoftModem
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 16
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 17 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Standard Features and Configurable Components
Graphics
Intel Graphics Media Accelerator 4500 (integrated on chipset)
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
HP FireWire (IEEE 1394) PCI Card
PCI riser card for SFF - adds 2 full-height PCI slots
NOTE: Low profile slots are unusable with riser card installed.
Serial port adapter
X
X
X
X
X
Parallel port adapter
eSATA port adapter
Tower stand
Configure dc7900 CMT in desktop orientation
X
X
X
X
X
ATI Radeon 3470 256MB SH PCIe x16 graphics card
ATI Radeon HD 2400XT 256MB DH PCIe x16 graphics card
ATI Radeon HD 3650 512MB DH PCIe x16 graphics card
NVIDIA Quadro NVS 290 256MB DH PCIe x16 graphics card
Audio
Integrated HD audio with AD1884A codec (all ports are stereo)
Microphone and Headphone front ports
Line-out and Line-In rear ports*
Multistreaming capable*
Internal Speaker (standard)
HP Thin USB Powered Speakers
* Rear audio input ports are re-taskable as Line-in or Microphone-in. External
speakers must be powered externally. Multistreaming can be enabled in the ADI
control panel to allow independent audio streams to be sent to/from the front and
rear jacks. This allows for different audio applications to use separate audio ports
on the system. For example, the front jacks could be used with a headset for a
communications application while the rear jacks are being used with external
speakers and a multimedia application.
Input Devices
Keyboard
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Smartcard Keyboard
Mouse - One of the following
HP PS/2 2-button Optical Scroll Mouse
HP USB 2-button Optical Scroll Mouse
HP USB 2-Button Laser Scroll Mouse
Miscellaneous
Rear Port Control Cover
DA - 13029
X
X
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 17
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 18 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
After-Market Options (availability may vary by region)
USDT
Communications
Graphics
CMT
Wireless
HP Wireless 802.11 b/g/n PCIe x1
X
X
NICs
Broadcom NetXtreme GbE PCIe x1
X
X
Intel PRO/1000 CT Network Connection*
X
X
Modem
LSI PCIe x1 Hi-Speed 56K International SoftModem
X
X
HP RJ11 Modem Adapter Kit
X
X
* Available after initial product release
NOTE: The use of a PCI Express network card (wired or wireless) will disable the vPro
technology features.
Single head solutions
ATI Radeon 3470 256MB SH PCIe x16
Multi head solutions
ATI Radeon HD 2400XT 256MB DH PCIe x16
ATI Radeon HD 3650 512MB DH PCIe x16
NVIDIA Quadro NVS 290 256MB DH PCIe x16
Hard Disk Drives
SFF
After-Market
Options Part
Number
FH971AA
TBD
FH969AA
FH970AA
DC131C#xxx
X
X
FH972AA
X
X
X
X
X
KD060AA
KS505AA
KG748AA
Serial ATA Hard Drives
HP 80-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
HP 160-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
HP 250-GB SATA (NCQ/Smart IV) 3.0-Gb/s HDD
X
X
X
X
X
X
PY276AA
PY277AA
PY278AA
HP 320-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD
HP 500-GB SATA (NCQ/Smart IV) 3.0-GB/s HDD
HP eSATA Adapter
HP Removable SATA Hard Drive Enclosure (Frame & Carrier)
HP Removable SATA Hard Drive Enclosure (Carrier Only)
X
X
X
X
X
X
X
X
X
X
FH963AA
KW347AA
FH966AA
RY102AA
RY103AA
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 18
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 19 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
After-Market Options (availability may vary by region)
Input/Output Devices
Memory (non-ECC)
Monitors*
Monitors
Keyboards
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
HP USB Gray Keyboard
Pointing Devices
X
X
X
X
X
X
X
X
X
DT527A
DT528A
DT529A
HP PS/2 2-Button Optical Scroll Mouse
HP USB 2-Button Optical Scroll Mouse
HP USB 2-Button Laser Mouse
X
X
X
X
X
X
X
X
X
EY703AA
DC172B
GW405AA
X
X
X
X
X
X
AH058AA
AH060AA
FH977AA
PC2-6400 (DDR2, 800 MHz) DIMM
HP 1 GB PC2-6400 (DDR2 800 MHz) DIMM
HP 2 GB PC2-6400 (DDR2 800 MHz) DIMM
HP 4 GB PC2-6400 (DDR2 800) DIMM
PC2-6400 (DDR2, 800 MHz) SODIMM
HP 1 GB PC2-6400 (DDR2 800 MHz) SODIMM
HP 2 GB PC2-6400 (DDR2 800 MHz) SODIMM
HP 4 GB PC2-6400 (DDR2 800 MHz) SODIMM
TFTs
HP L1506 15 TFT Flat Panel Monitor - Analog only
HP L1706 17 TFT Flat Panel Monitor - Analog only
HP L1740 17 LCD Flat Panel Display - Analog/Digital
HP L1745 17 TFT Flat Panel Display - Analog/Digital
HP L1906 19 TFT Flat Panel Display -- Analog only
HP L1940T 19 TFT Flat Panel Display - Analog/Digital
HP LP1965 19 TFT Flat Panel Display - Analog/Digital
HP L2045w TFT Flat Panel Display - Analog/Digital
HP L2065 20 TFT Flat Panel Display - Analog/Digital
HP LP2465 24 TFT Widescreen Flat Panel Display Analog/Digital
HP LP3045 30 TFT Flat Panel Display - Digital
HP w19 Wide LCD Display - Analog/Digital
CRTs
X
X
X
GM254AA
GV576AA
FH978AA
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
X
PX848AA#ABA
PX849AA#ABA
PL766AA#ABA
GE178AA#ABA
PX850AA#ABA
EM869AA#ABA
RA373AA#ABA
RD125AA#ABA
EF227A4#ABA
EF224A4#ABA
X
X
X
X
X
X
EZ320A8#ABA
EM885AA#ABA
HP s7540 17 (16.0 vis) CRT Monitor
X
X
X
* This is only representative, not an exhaustive list. All HP Monitors are supported
except the 30-inch model. The 30-inch model can be added, but it requires a special
graphics card.
Multimedia
HP Thin USB Powered Speakers
DA - 13029
X
X
PF997AA#ABA
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
KK912AA
Page 19
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 20 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
After-Market Options (availability may vary by region)
Slimline Optical Drives
DVD-ROM Drive
HP Slim 8X SATA DVD-ROM Drive
Combo Drive
HP Slim 24X SATA CD-RW/DVD-ROM Combo Drive
DVD Writer
HP Slim 8X SATA SuperMulti LightScribe Drive
Standard Optical Drives
Removable Storage
Security
Software
X
FH967AA
X
KV842AA
X
KV843AA
DVD-ROM Drive
HP SATA DVD-ROM Drive
DVD Writer
HP SATA SuperMulti LightScribe DVD Writer Drive
Diskette and Digital Drives
HP 1.44-MB External USB Diskette Drive
HP 1.44-MB Standard Internal Diskette Drive
Multimedia
HP 22-in-1 Media Card Reader
HP 22-in-1 Media Card Reader with FireWire (IEEE 1394)
X
X
X
AH047AA
X
X
GF343AA
X
X
X
X
DC141B
AH053AA
X
X
X
X
FX273AA
KN518AA
X
X
X
X
X
X
PC766A
PV606AA
GJ121AA
GF344AA
FH974AA
ED707AA
Kensington Lock
HP Business PC Security Lock
HP Rear Port Controller Cover (USDT)
HP 2008 Wall Mount/Security Sleeve (SFF)
HP ProtectTools Version 4.0 (1 User)
HP USB Smartcard Keyboard
X
X
X
X
X
X
X
X
HP Client Configuration Manager, Premium Edition
X
X
X
Altiris Client Management Suite Level 1
Includes:
Altiris Deployment Solution
Altiris Inventory Solution
Altiris Application Metering Solution
Altiris Carbon Copy Solution
Altiris Software Delivery Solution
Altiris Application Management Solution
Altiris Patch Management Solution
X
X
X
DA - 13029
T3488AA
(use T3489AA for
1000 licenses)
DR605A
(use DR606A for
1000+ licenses)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 20
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 21 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
After-Market Options (availability may vary by region)
Brackets/Stands
Miscellaneous
Accessories
Graphics - Cables
HP Compaq Integrated Work Center Stand
X
GN783AA
HP Tower Stand for USDT
HP Tower Stand for SFF
X
GJ117AA
GJ118AA
X
HP Serial Port adapter kit
X
X
PA716A
HP Parallel Port Adapter
HP 5.25" Blank Bezel Kit (50 pack)
HP PCI Riser Card for SFF
HP FireWire (IEEE 1394) PCI Card
X
X
X
X
X
X
X
KD061AA
DC177B
GJ115AA
PA997A
HP DMS59 DVI Dual-head Connector Cable
HP DVI to DVI Cable
HP DisplayPort To DVI-D Adapter
X
X
X
X
X
X
DL139A
DC198A
FH973AA
DA - 13029
X
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 21
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 22 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
Unit Environment and
Operating Conditions
General Unit Operating Guidelines
Ultra-slim Desktop
Small Form Factor
Convertible Minitower
Keep the computer away from excessive moisture, direct moisture and the extremes of heat and cold, to ensure that unit is
operated within the specified operating range.
Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
Never restrict airflow into the computer by blocking any vents or air intakes.
Do not stack computers on top of each other or place computers so near each other that they are subject to each other's recirculated or preheated air.
Occasionally clean the air vents on the front, back, and any other vented side of the computer. Lint, dust and other foreign
matter can block the vents and limit the airflow.
If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the
enclosure, and the same operating guidelines listed above will still apply.
Temperature Range
Operating: 50° to 95° F (10° to 35° C)*
Non-operating: -22° to 140° F(-30° to 60° C)
Relative Humidity
Operating: 10% to 90% (non-condensing at ambient)
Non-operating: 5% to 95% (non-condensing at ambient)
Maximum Altitude
Operating: 10,000 ft (3048 m)
(unpressurized)
Non-operating: 30,000 ft (9144 m)
* Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained
sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Power Supply
Standard Efficiency
Ultra-slim Desktop
N/A
Energy Efficient
135W 87% efficient
active PFC
(external)
90 - 264 VAC
100 - 240 VAC
50/60 Hz
47 - 63 Hz
N/A
1.5A
Operating Voltage Range
Rated Voltage Range
Rated Line Frequency
Operating Line Frequency Range
Rated Input Current
Rated Input Current with Energy
Efficient* Power Supply
Current Leakage
(NFPA 99)
System Heat Dissipation
System Heat Dissipation
with Energy Efficient* Power
Supply
Power Supply Fan
Small Form Factor
240W standard efficiency
active PFC
240W 85% efficient
active PFC
Convertible Minitower
365W standard efficiency
active PFC
365W 85% efficient
active PFC
90 - 264 VAC
100 - 240 VAC
50/60 Hz
47 - 63 Hz
4A
3.5A
90 - 264 VAC
100 - 240 VAC
50/60 Hz
47 - 63 Hz
6A
5A
< 275 µA
< 275 µA
< 450 µA
N/A
Typical 198 btu/hr
(50 kg-cal/hr)
Maximum 1260 btu/hr
(318 kg-cal/hr
Typical 150 btu/hr
(38 kg-cal/hr)
Maximum 1024 btu/hr
(258 kg-cal/hr)
Small Form Factor
80mm variable speed
Typical 222 btu/hr
(56 kg-cal/hr)
Maximum 1916 btu/hr
(483 kg-cal/hr)
Typical 171 btu/hr
(43 kg-cal/hr)
Maximum 1557 btu/hr
(392 kg-cal/hr)
Convertible Minitower
92mm variable speed
Typical 133 btu/hr
(33.5 kg-cal/hr)
Maximum 549 btu/hr
(132 kg-cal/hr)
Ultra-slim Desktop
N/A
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 22
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 23 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
FEMP Standby Power Compliant
X
X
X
(<2W in S5 - Power Off)*
Power Consumption in ES Mode
< 2.7W
< 2.7W
< 2.7W
- Suspend to RAM (S3) (Instantly
Available PC)
* Energy efficient power supply is a requirement for ENERGY STAR qualification in conjunction with a select range of processors and
modules; ENERGY STAR models branded HP Compaq dc7900e
ROM BIOS Information
Key features of the HP BIOS in the dc7900 include:
Deployment and manageability - HP BIOS provides several technologies that help integrate the HP Business desktop computer
into the enterprise, such as PXE, remote configuration, remote control, and F10 Setup support for 12 languages.
Select models feature either Intel Standard Manageability or Core 2 processor with vPro Technology.
Stability - HP BIOS supports the HP stable product roadmap by releasing only critical BIOS changes to the factory and
advanced change notification.
Security - HP BIOS Configuration for ProtectTools offers a robust and flexible set of security features to help the system
administrator secure their systems from removal of sensitive data, and help prevent access by unauthorized users.
Computrace agent - For tracking and tracing services, available in select countries, separate software and purchase of a
subscription is required.
Thermal and power management - The HP BIOS provides and enables thermal and power management technologies so
component temperatures are managed for high reliability and to assist in operating the HP Business Desktop computer in any
enterprise environment.
Acoustic performance - Industry leading acoustic emissions across the range of operating conditions.
Serviceability - HP BIOS provides diagnostic and detailed service information.
Upgrades and recovery - HP BIOS provides numerous ways to upgrade HP Business Desktop computers, including BIOS
updates from within DOS (Flashbin), BIOS updates from within Windows (HPQFlash, SSM), HP Client Manager, and fail-safe
recovery. In addition, the HP Business Desktop BIOS Utilities tool enables replicated BIOS setup throughout the Enterprise; it is
available from within the BIOS software and from the support website.
Additional HP BIOS Features
Power-On password - Helps prevent an unauthorized user from powering on the system. After a TPM Basic User password is
established in windows, the user or admin can require TPM hardware based authentication during the power-on process.
Administrator password - Also known as the setup password, this helps prevent unauthorized changes to the system
configuration. If the administrator password is not known, the BIOS version cannot be changed and changes cannot be made
to BIOS settings using F10 setup or under the OS.
Advanced Configuration and Power Interface (ACPI) - Represents a significant innovation in power and configuration
management, allowing operating systems and applications to manage power based on activity and usage. HP Compaq
dc7900 models use ACPI to provide power conservation features.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 23
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 24 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
Other Features
ACPI-Ready Hardware
Description
Advanced Configuration and Power Management Interface (ACPI).
Allows the system to wake from a low power mode.
Controls system power consumption, making it possible to place individual cards and
peripherals in a low-power or powered-off state without affecting other elements of the
system.
SMBIOS Ver. 2.5
System Management BIOS, for system management information
Wired for Management Support Intel-driven, industry-wide initiative to make Intel architecture-based PCs, servers and mobile
computers more inherently manageable right out of the box and over the network
Dual-State Power Button
Power button acts as both an on/off button and suspend-to-sleep button
Serviceability Features of System
Dual Color Power LED on Front of Computer (Indicates Normal Operations and Fault Conditions)
Diagnostic LED Explanation Table
Number of 1-second red LED blinks followed by 2-second pause, then repeats:
2-processor thermal protection activated
3-processor not installed
4-power supply failure
5-memory error
6-video error
7-PCA failure (ROM detected failure prior to video)
8-invalid ROM, bootblock recover mode
System/Emergency ROM
Flash ROM
CMOS Battery Holder for easy
Replacement
Flash Recovery with Video
5 Aux Power LED on System PCA
Processor ZIF Socket for easy
Configuration Record SW
Upgrade
Over-Temp Warning on Screen
Clear Password Jumper
DIMM Connectors for easy Upgrade
(Requires IM Agents)
HP Backup and Recovery Manager
Clear CMOS Button
NIC LEDs (integrated) (Green &
Amber)
Serviceability Features of Chassis
Dual Color Power and HD LED - To
Indicate Normal Operations and
Fault Conditions
Front power switch
Color coordinated cables and
connectors
Tool-less Hood Removal
System memory can be upgraded
without removing the system board or
any internal components
Tool-less Hard Drive, CD & Diskette
Removal
Green Pull Tabs, and Quick Release
Latches for easy Identification
NOTE: Thumb screw release mechanism is used with the Ultra-slim Desktop chassis cover.
Additional Features
Intel Standard Manageability
Description
Select models feature Intel's Standard Manageability technology including the following:
NOTE: Requires the utilization of the
integrated network connection.
DASH 1.0
DASH compliance for support of industry standards. Support for profile updates.
Host VPN*
VPN
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 24
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 25 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
Support for local management VPN tunneling
Select models feature Intel's Core 2 Processor with vPro Technology including the
following:
Intel Core 2 Processor with vPro
Technology
NOTE: Requires the utilization of the
integrated network connection.
Intel Advanced Management Technology (AMT) 5.0
All Intel Standard Manageability technologies
Fast call for help - client outside the firewall may initiate a call for help via BIOS
screen, periodic connections, or alert triggered connection
Audit Logs - policy based log of AMT actions to deter rogue administrator actions
Microsoft NAP Support - allows AMT to gain access to a Microsoft NAP enabled
802.1x network OOB to enable OOB SW updates, inventories, remote
diagnostics, etc.
DASH 1.0 support (Desktop and Mobile
A standards initiative for representing out-of-band management capability for computer
Architecture for System Hardware)
systems. It is a secure, web-services based successor to ASF.
ASF 2.0 support (Alert Standard Format)
Industry-standard specification for network alerting in operating system-absent
environments
TXT (Trusted Execution Technology) and VTTXT allows for secure management (via TPM) and measured launch of VMM, as
d (Virtualized devices)
well as teardown of secrets in unexpected reset case. TXT support provided in
select Intel processors.
VT-d is a chipset technology that virtualizes directed I/O
Together, TXT and VT-d may be used to support verified launch of a known trusted VMM
that also may protect VMs from accessing each other's memory.
Computrace
Computrace agent support standard
Tower
Product can be oriented as a tower (in addition to desktop orientation)
Drive Lock
Implementation of the industry standard ATA Security feature set. When enabled, it
prevents software access to user data on the drive until one or two user-defined
passwords are provided.
Drive Self Tests (DPS)*
Drive Protection System
A diagnostic hard drive self test. It scans critical physical components and every
sector of the hard drive for physical faults and then reports any faults to the user.
Running independently of the operating system, it can be accessed through a
Windows-based diagnostics utility or through the computer's setup procedure. It
produces an evaluation on whether the hard drive is the source of the problem
DPS Access through F10 Setup during Boot
and needs to be replaced.
The system expands on the Self-Monitoring, Analysis, and Reporting Technology
(SMART), a continuously running systems diagnostic that alerts the user to certain
types of failures.
SMART Technology*
Allows hard drives to monitor their own health and to raise flags if imminent failures
(Self-Monitoring, Analysis and Reporting
were predicted
Technology)
Predicts failures before they occur. Tracks fault prediction and failure indication
SMART I - Drive Failure Prediction
parameters such as re-allocated sector count, spin retry count, calibration retry
count
SMART II - Off-Line Data Collection
By avoiding actual hard drive failures, SMART hard drives act as "insurance"
against unplanned user downtime and potential data loss from hard drive failure
SMART III - Off-Line Read Scanning with
IOEDC: I/O Error Detection Circuitry
Defect Reallocation
Detects errors in Read/Write buffers on HDD cache RAM
Interface in F10 setup for all dc7900 platforms provides confirmation of SMART
SMART IV - End-to-End CRC for hard drives
IV support.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 25
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 26 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications
* This feature is inoperable when a RAID (Redundant Array of Independent Disks) configuration is enabled.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 26
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 27 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Audio
High Definition Audio
Type
High Definition Stereo
Codec
Audio Jacks
Integrated
Yes - ADI 4-channel ADI 1884 codec
Front microphone-In (150-K ohm Input Impedance)
Rear Line-In/Microphone input (150-K ohm Input Impedance, function is
configurable by audio driver)
Rear Line-Out * (190 ohms Output Impedance, expects at least a 10-K ohm
load)
Front Headphone-Out (0.5 Ohm Output Impedance, expects at least a 32
ohm load)
* Internal Speaker Amplifier is for Internal Speaker only. External Speakers need to be powered
externally. Rear Line in audio port is re-taskable as Line-in or Microphone-in.
Multistreaming Capable Multistreaming can be enabled in the ADI control panel to allow
independent audio streams to be sent to/from the front and rear jacks.
8 kHz - 192 kHz
Sampling
Yes - Uses OS soft wavetable
Wavetable Syntheses
(software)
Yes
Analog Audio
Number of Channels on Stereo (Left & Right channels)
Line-Out
(mono/stereo)
1.5 W
Internal Audio Speaker
Power Rating
Yes
Internal Speaker
Yes
External Speaker Jack
(Line-Out)
HP Thin USB Powered
Speakers
On/Off/Volume Controls Right side of right speaker
Front of right speaker (green)
Power LED
Frequency response
Watts
Dimensions (H x W x D)
FO to 20kHz
2/3 watt (normal/maximum)
Speakers: 5.72 x 3.74 x 0.96 in (14.52 x 9.50 x 2.45 cm) per speaker
Net weight
Environmental
(all conditions
non-condensing)
0.68 lbs (0.31kg)
Temperature (operating)
Relative Humidity
(operating)
Speaker cable length
Input cord: 5.91 ft (1800mm±35mm)
L-channel cord: 3.28 ft (1000mm±35mm)
USB cord: 5.91 ft (1800mm±35mm)
HP Carbonite
Color
DA - 13029
14° to 104° F (-10° to 40° C)
40% to 90%
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 27
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 28 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Integrated Intel 82567LM Connector
Gigabit Network
Controller
Connection
Memory
Data rates supported
Compliance
Bus architecture
Data transfer mode
RJ-45
Intel 82567LM Gigabit platform LAN Connect Networking Controller
Integrated 96KbB on chip buffer memory
10/100/1000 Mbps
IEEE 802.1P, 802.1Q, 802.2, 802.3, 802.3 ab and 802.3u compliant
GLCI, LCI interface. Intel specific MAC to PHY interface
At gigabit GLCI (802.3 serdes) is for Data, LCI (parallel bus) for MDIO, at
10/100 LCI for both data and MDIO, GLCI is idle.
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
Require 3.3Vaux,1.8V and 1.0V or just 3.3V with integrated regulators
Power consumption 1.16 Watts for 82566, whole LOM 2.53 Watts
ACBS
Intel Auto Connect Battery Saving feature
Boot ROM support
Yes
Network transfer mode
Full-duplex
Half-duplex (not available for the 1000BASE-T transceiver)
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
To 70° C for external regulator
85% at 131° F (55° C)
Operating humidity
Management capabilities WOL, auto MDI crossover, PXE, Muti-port teaming, RSS, Advanced cable
diagnostic.
Alerting
ASF 2.0 support, AMT 3.0 support
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 28
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 29 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Intel PRO/1000 CT
Network Connection
Connector
Controller
Memory
Data rates supported
Compliance
RJ-45
Intel WG82574L Gigabit Ethernet Controller
Integrated Dual 48K configurable transmit receive FIFO Buffers
10/100/1000 Mbps
IEEE 802.1P, 802,1Q, 802.2, 802.3, 802.3AB and 802.3u compliant,
802.3x flow control
Bus architecture
PCI-E 1.0a
Data path width
X1, 250 MB/s, Bi-directional interface
Data transfer mode
Bus-master DMA
Hardware certifications
FCC, B, CE, TUV- cTUVus Mark Canada and United States, TUV- GS Mark
for European Union
Power requirement
Aux 3.3V, 3.0 Watts in 1000base-T and 2.0 Watts in 100Base-T
Boot ROM support
Yes
Network transfer rate
10BASE-T (half-duplex) 10 Mbps
10BASE-T (full-duplex) 20 Mbps
100BASE-TX (half-duplex) 100 Mbps
100BASE-TX (full-duplex) 200 Mbps
1000BASE-T (full-duplex) 2000 Mbps (actual rate limited by PCI Bus)
Environmental
32° to 131°F (0° to 55° C)
Operating temperature
85% at 131° F (55° C)
Operating humidity
Dimensions
4.75 x 2.25 x 0.8 in (12.1 x 5.7 x 2.0 cm)
Management capabilities WOL, PXE, DMI, WFM 2.0
HP 802.11 b/g/n
Wireless PCIe x1 card
HP 802.11 n Wireless
Mini PCI card
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 29
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 30 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Communications
Agere 2006 PCI 56K
Technology speeds: 56,000 Kbps maximum downstream data, controllerless
Data Transmission
International SoftModem NOTE: 56 Kbps technology refers to download speeds only and requires compatible modems at server
sites. Other conditions may limit modem speed. FCC limitations allow a maximum of 53 Kbps during
download transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/
Data Speeds
16,800/14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
Data Standards
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Power
Chipset
Dimensions (L X H)
Connection
Other Features
Safety
EMC
Telecom
Health
Other
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL - Integrated PCI interface with 5-V tolerant buffers
and CardBus support
Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 30
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 31 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Integrated Graphics
Media Accelerator 4500
ATI Radeon HD 2400XT
(256MB DH) PCIe
Graphics Card
Bus type
PCI Express (x16 lanes)
Maximum vertical refresh rate 85 Hz
Integrated 400 MHz RAMDAC
Display support
1900 x 1200 digital, 2048 x 1536 analog
Display max resolution
ATI Radeon HD 2400XT (256MB DH) PCIe Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Maximum Refresh Rate (Hz)
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
60
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections
Board display options
Supports two displays via included DMS-59 to dual VGA cable or 2 DVI
monitors via optional DMS-59 to dual DVI cable kit part number:
DL139A. 4-pin mini-DIN S-video connector for TV output
Board configuration
Specification
Graphics Chip
Core clock
Memory clock
Frame buffer
Languages supported
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
Core power
Compliance standards
21 W
EMC Emissions:
Description
RV610
650 MHz
500 MHz
256 MB DDR2, 128 bit wide
a. FCC Part 15, Subpart B - Unintentional Radiators, Class B
Computing Devices for Home & Office Use
b.
DA - 13029
Worldwide — Version 1 — September 22, 2008
c.
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 31
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 32 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
a.
Technical Specifications - Graphics
b. CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information
Technology Equipment
c. Canadian Standard ICES-003 is equivalent to CISPR22
d. Taiwanese Standard BSMI
e. Japanese VCCI
f. Australian C-Tick
g. Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment Immunity Characteristics - Limits and Methods of Measurement.
ATI Radeon HD
PCI Express (x16 lanes)
Bus type
3470 (256MB SH) Maximum vertical
85 Hz
PCIe x16 Graphics refresh rate
Card
Display support
Integrated 400 MHz RAMDAC
Display max resolution 2560x1600 digital, 2048 x 1536 analog
ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Maximum Refresh Rate (Hz)
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
60
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections
Board display options
Board configuration
Supports two displays via the DisplayPort and DVI connectors
Description
Specification
Graphics Chip
RV620
Core clock
Memory clock
Frame buffer
DA - 13029
750 MHz
500 MHz
256 MB DDR2, 64 bit wide
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 32
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 33 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Languages supported
Operating systems
support
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek, Hebrew,
Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian,
Spanish, Swedish, Thai, Turkish
Windows Vista Business 64*, Windows Vista Business 32*, Windows Vista Home Basic
32*, Windows XP Professional or Windows XP Home 32*.
* Certain Windows Vista product features require advanced or additional hardware.
Windows Vista Upgrade Advisor can help you determine which features of Windows
Vista will run on your computer. To download the tool, visit:
http://www.windowsvista.com/upgradeadvisor. For Windows Vista system
requirements, visit: http://www.windowsvista.com/systemrequirements.
Linux x86 and x86_64 distributions using XFree86 or X.Org**.
** Linux drivers are available from ATI's website and may be available in a Linux
distribution. Refer to the Open Source and Linux from HP website:
http://www.hp.com/wwsolutions/linux/products/clients/ for support information.
Core power
22 W (max)
Dimensions (H x D)
2.71 in x 6.60 in (68.90 mm x 167.65 mm)
Weight
0.30 lb (134.3 g)
Option kit contents
ATI Radeon HD 3470 (256MB SH) PCIe x16 Graphics Card with full height
bracket attached
DVI to VGA adapter
Software CD with graphics drivers
Low profile bracket to convert the card for using in a low profile chassis
Warranty documentation
Compliance standards EMC Emissions:
a. FCC Part 15, Subpart B - Unintentional Radiators, Class B Computing Devices
for Home & Office Use
b. CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information Technology
Equipment
c. Canadian Standard ICES-003 is equivalent to CISPR22
d. Taiwanese Standard BSMI
e. Japanese VCCI
f. Australian C-Tick
g. Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment - Immunity
Characteristics - Limits and Methods of Measurement.
ATI Radeon HD 3650
(512MB DH) PCIe x16
Graphics Card
Bus type
Maximum vertical refresh rate
Display support
Display max resolution
DA - 13029
PCI Express (x16 lanes)
85 Hz
Integrated 400 MHz RAMDAC
2560 x 1600 digital, 1920 x 1440 analog
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 33
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 34 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
ATI Radeon HD 3650 (512MB DH) PCIe x16 Graphics Card display resolutions and refresh rates
NOTE: Other resolutions may be available but are not recommended as the may not have been tested and qualified by HP
Maximum Refresh Rate (Hz)
Resolution
Analog Connection
Digital Connection
640x480
85
60
800x600
85
60
1024x768
85
60
1280x720
85
60
1280x1024
85
60
1440x900
75
60
1600x1200
85
60
1680x1050
75
60
1920x1080
85
60-R
1920x1200
85
60-R
1920x1440
85
N/A
2048x1536
75
N/A
2560x1600
N/A
60*
60
* Only supported when using a dual-link DVI or DP connection
NOTE: 60-R denotes reduced blanking timings are used on single-link DVI connections and may be used with other digital
connections
Board display options
Board configuration
Languages supported
Core power
Compliance standards
Supports two displays via included two DisplayPort and one Dual Link DVII
connectors.
Specification
Description
Graphics Chip
RV635
Core clock
600 MHz
Memory clock
500 MHz
Frame buffer
512 MB DDR2, 128 bit wide
24 languages: English, Arabic, Chinese Simplified, Chinese Traditional,
Czechoslovakian, Danish, Dutch, Finnish, French, German, Greek,
Hebrew, Hungarian, Italian, Japanese, Korean, Norwegian, Polish,
Portuguese, Russian, Spanish, Swedish, Thai, Turkish
56 W
EMC Emissions:
a. FCC Part 15, Subpart B - Unintentional Radiators, Class B
Computing Devices for Home & Office Use
b. CISPR22: 1997/EN 55022:1998 - Class B - Limits and methods of
measurement of radio disturbance characteristics of Information
Technology Equipment
c. Canadian Standard ICES-003 is equivalent to CISPR22
d. Taiwanese Standard BSMI
e. Japanese VCCI
f. Australian C-Tick
g. Korean (MIC)
EMC Immunity:
CISPR 24:1997/EN 55024:1998 - Information Technology Equipment -
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 34
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 35 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
g.
HP Compaq dc7900 Business PC
Technical Specifications - Graphics
Immunity Characteristics - Limits and Methods of Measurement.
NVIDIA Quadro NVS 290 Form Factor
256MB PCIe Dual Head Bus Type
Low Profile
PCIe x16
Memory
256 MB 400MHz DDR2 SDRAM unified frame buffer, Z-buffer and Texture
storage
Connector
DMS-59, includes DMS-59 to Dual DVI-I cable. DMS-59 to Dual VGA cable
available as an option.
Display resolution support Dual integrated analog display controllers supporting up to two analog
displays at 2048x1536 @ 85Hz on both displays or dual digital displays at
1920x1200 (single-link).
NVIEW advanced multi-display desktop and application management
seamlessly integrated into Microsoft Windows
RAMDAC
Integrated dual 400MHz
Color planes
32-bit color buffer
Overlay planes
Hardware supported
nView architecture
Advanced multi-display desktop & application management seamlessly
integrated into Microsoft Windows.
Multi-Monitor support
Dual monitor support
DVI support
DMS-59 (to dual DVI-SL)
High-definition Video
Full-screen, full-frame video playback of HDTV and DVD content
Processor (HDVP)
DVD-ready motion compensation for MPEG-2
Independent hardware color controls for video overlay
Hardware color-space conversion (YUV 4:2:2 and 4:2:0)
IDCT motion compensation
5-tap horizontal by 3-tap vertical filtering
8:1 up/down scaling
Supported graphics APIs OGL 2.1 & DX10 Support; Shader Model 4.0
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 35
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 36 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
2.5" 7200 RPM Serial
ATA Hard Drives
250 GB
Capacity
Height (Nominal)
250,059,350,016 bytes
0.374 in (9.5 mm)
Width (Nominal)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Cache
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
12 ms
overhead, including
Full-Stroke
22 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
160 GB
80 GB
7,200 rpm
488,397,168
41° to 131° F (5° to 55° C)
Capacity
Height (Nominal)
Width (Nominal)
160,041,885,696 bytes
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Cache
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
12 ms
overhead, including
Full-Stroke
22 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
7,200 rpm
312,581,808
41° to 131° F (5° to 55° C)
Capacity
Height (Nominal)
Width (Nominal)
80,026,361,856 bytes
0.374 in (9.5 mm)
Media diameter: 2.5 in (63.5 mm)
Physical size: 2.75 in (70 mm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
Cache
DA - 13029
8 MB
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 36
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 37 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
3.5" 7200 RPM Serial
ATA Hard Drives
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Single Track
2.0 ms
Average
12 ms
Full-Stroke
22 ms
Operating Temperature
41° to 131° F (5° to 55° C)
500 GB
Capacity
Height
Width
250 GB
Capacity
Height
Width
160 GB
Capacity
Height
Width
7,200 rpm
156,301,488
500,107,862,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
16 MB
Buffer
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
11 ms
overhead, including
Full-Stroke
21 ms
settling)
7,200 RPM
Rotational Speed
976,773,168
Logical Blocks
41° to 131° F (5° to 55° C)
Operating Temperature
250,059,350,016 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Buffer
1.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
8.5 ms
overhead, including
Full-Stroke
18 ms
settling)
7,200 RPM
Rotational Speed
488,397,168
Logical Blocks
41° to 131° F (5° to 55° C)
Operating Temperature
DA - 13029
160,041,885,696 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 37
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 38 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
Interface
Synchronous Transfer Rate
(Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
80 GB
10,000 RPM Serial ATA
Hard Drives
160 GB
Serial ATA (3.0 Gb/s)
Up to 3 Gb/s
8 MB
Single Track
0.9 ms
Average
9.3 ms
Full-Stroke
18 ms
7,200 RPM
312,581,808
41° to 131° F (5° to 55° C)
Capacity
Height
Width
80,026,361,856 bytes
1 in (2.54 cm)
Media diameter: 3.5 in (8.89 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (3.0 Gb/s)
Synchronous Transfer Rate Up to 3 Gb/s
(Maximum)
8 MB
Buffer
2.0 ms
Seek Time (typical reads, Single Track
includes controller
Average
9.3 ms
overhead, including
Full-Stroke
21 ms
settling)
Rotational Speed
Logical Blocks
Operating Temperature
7,200 RPM
156,301,488
41° to 131° F (5° to 55° C)
Capacity
Height
160,041,885,696 bytes
1 in (2.54 cm)
Width
Media diameter: 3.0 in (7.62 cm)
Physical size: 4 in (10.2 cm)
Serial ATA (1.5 Gb/s), Native Command Queuing
enabled
Up to 3.0 Gb/s
Interface
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 13029
16 Mbytes
Single Track
0.3 ms
Average
4.6 ms
Full-Stroke
10.2 ms
10,000 RPM
312,581,808
41° to 131° F (5° to 55° C)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 38
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 39 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Hard Drives
80 GB
Capacity
Height
Width
80,026,361,856 bytes
1 in (2.54 cm)
Media diameter: 3.0 in (7.62 cm)
Physical size: 4 in (10.2 cm)
Interface
Serial ATA (1.5 Gb/s), Native Command Queuing
enabled
Up to 3.0 Gb/s
Synchronous Transfer
Rate (Maximum)
Cache
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
DA - 13029
16 Mbytes
Single Track
0.3 ms
Average
4.6 ms
Full-Stroke
10.2 ms
10,000 RPM
156,301,488
41° to 131° F (5° to 55° C)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 39
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 40 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
USB Standard Keyboard
Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Power consumption
System interface
ESD
EMI - RFI
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Microsoft® PC 99 - 2001 Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
Operating temperature
50° to 122° F (10° to 50° C)
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
Electrical
Mechanical
Environmental
Non-operating shock
Operating vibration
Non-operating vibration
Approvals
Ergonomic compliance
Kit contents
DA - 13029
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Keyboard, installation guide, warranty card, safety and comfort guide
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 40
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 41 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
PS/2 Standard Keyboard Physical
characteristics
Keys
Dimensions (L x W x H)
Weight
Operating voltage
Electrical
104, 105, 106, 107, 109 layout (depending
upon country)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
Power consumption
System interface
ESD
EMI - RFI
50-mA maximum (with three LEDs ON)
PS/2 6-pin mini din connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Microsoft PC 99 - 2001 Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
Mechanical
Environmental
Approvals
Ergonomic compliance
HP USB Smartcard
Keyboard
Physical
characteristics
Drop (out of box)
26 in (66 cm) on carpet, six-drop sequence
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
Keys
Form factor
Colors
Dimensions (H x W x D)
Weight
Electrical
DA - 13029
Operating voltage
104, 105, 106, 107, 109 layout (depending
upon country)
USB basic Smart Card keyboard
Carbonite/Silver
18.2 x 6.3 x 1.3 in (46.3 x 16.1 x 3.3 cm)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 41
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 42 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Power consumption
System interface
ESD
EMI - RFI
Mechanical
Environmental
SMARTCARD function
DA - 13029
100-mA maximum (with four LEDs ON)
USB Type A plug connector
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Microsoft PC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Functionally compliant
30+ available
Low-profile design
55 g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
Non-operating
-22° to 140° F (-30° to 60° C)
temperature
10% to 90% (non-condensing at ambient)
Operating humidity
Non-operating humidity 20% to 80% (non-condensing at ambient)
40 g, six surfaces
Operating shock
80 g, six surfaces
Non-operating shock
2-g peak acceleration
Operating vibration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
All ISO 7816 smart cards
Support
Reads from and writes to all ISO7816-1, 2, 3, 4
Interface
memory and microprocessor smart cards (T=0,
T=1)
SCM STCII
Chipset
Standard APIs supported PC/SC, EMV2000, SET
USB Port
Power
Short circuit detection (protects smart card and
reader)
Power supply compliant with ISO7816 and EMV
(5V, 60 mA)
Supports 3-V and 5-V cards
250-mA maximum draw (50 mA for the
Power consumption
keyboard with three LEDs ON and 200-mA
maximum startup current using a high-current,
60-mA smart card)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 42
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 43 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Communication
From card
Landing mechanism
From computer
Contact device
Programmable from
9,600 baud to
115,200 baud
Up to 38,400 baud
Friction contact
Card insertions rating
Interface modes
Reader performance
interface
Electro-magnetic
standards
HP USB Gray Keyboard
Physical
characteristics
Electrical
Mechanical
Environmental
DA - 13029
Up to 100,000
insertion cycles
USB communications through USB port
SCM protocol
Automatic card insertion/removal detection
USB connection
Europe
USA
89/336/CEE guideline
USAFCC part 15
Keys
104, 105, 106, 107, 109 layout (depending
upon country)
Dimensions (L x W x H)
18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2. 5 cm)
Weight
2 lb (0.9 kg) minimum
Operating voltage
+ 5VDC ± 5%
Power consumption
50-mA maximum (with three LEDs ON)
System interface
USB Type A plug connector
ESD
CE level 4, 15-kV air discharge
EMI - RFI
Conforms to FCC rules for a Class B computing
device
Microsoft PC 99 - 2001 Functionally compliant
Languages
38 available
Keycaps
Low-profile design
Switch actuation
55-g nominal peak force with tactile feedback
Switch life
20 million keystrokes (using Hasco modified
tester)
Switch type
Contamination-resistant switch membrane
Key-leveling mechanisms For all double-wide and greater-length keys
Cable length
6 ft (1.8 m)
Microsoft PC 99 - 2001 Mechanically compliant
Acoustics
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
Operating temperature
-22° to 140° F (-30° to 60° C)
Non-operating
temperature
Operating humidity
Non-operating humidity
Operating shock
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
Non-operating shock
80 g, six surfaces
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 43
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 44 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Approvals
Ergonomic compliance
Kit contents
HP PS/2 Optical Scroll
Mouse
Dimensions (H x L x W)
Weight
Environmental
Electrical
Mechanical
Scroll wheel
DA - 13029
Operating vibration
2-g peak acceleration
Non-operating vibration 4-g peak acceleration
26 in (66 cm) on carpet, six-drop sequence
Drop (out of box)
42 in (107 cm) on concrete, 16-drop sequence
Drop (in box)
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC, BG
Prufzert Mark
ANSI HFS 100, ISO 9241-4, and TUVGS
Keyboard, installation guide, warranty card, safety and comfort guide
3.95 x 6.21 x 11.7 cm (1.56 x 2.44 x 4.61 in)
4.44 oz (126 g)
-32° to 104°F (0° to 40° C)
Operating temperature
-4° to 140°F ( -20° to 60° C)
Non-operating
temperature
10% to 90% (non condensing at ambient)
Operating humidity
Non-operating humidity 10% to 90% non condensing
40 g, 6 surfaces
Operating shock
80 g, 6 surfaces
Non-operating shock
2 g peak acceleration
Operating vibration
Non-operating vibration 4 g peak acceleration
80 cm height onto asphalt tile over concrete or
Drop (out of box)
equivalent, 5-drop in 5 direction except the cable
face
5 VDC ± 10%
Operating voltage
100mA
Power consumption
PS/2 mini-din connector
System consumption
CE level 4, 15 kV air discharge
ESD
Conforms to FCC rules for a Class B computing
EMI-RFI
device
Microsoft PC99 - 2001
Resolution
Tracking speed
Acceleration
Switch actuation
Functionally compliant
400 ± 20% DPI
10 in/s (25.4 cm/s) maximum
100 in/s/s (2.54 m/s/s)
61 g nominal peak force
Switch life
Switch type
Tracking mechanism life
3,000,000 operations (using Hasco modified
tester)
Low force micro-switches
155 mi (250 km) at average speed of 10 in/s
Cable length
Microsoft PC99 - 2001
Width
6 ft (1.8 m)
Mechanically compliant
8 mm
Diameter
1.01 in (25.6 mm)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 44
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 45 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Input/Output Devices
Maximum rotation speed
Switch type
Switch life
Mechanical life
Compliant
Regulatory approvals
HP USB Optical Scroll
Mouse
Dimensions (H x L x W)
Weight
Cable length
System requirements
DA - 13029
48 rats/sec
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI,
BSMI, C-Tick, MIC
1.5 x 4.5 x 2.5 in (3.8 x 11.6 x 6.3 cm)
0.27 lb (0.12 kg)
72.8 in (185 cm)
Microsoft Windows 95, 98, 2000, Me, XP and Vista
Available USB port
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 45
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 46 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
HP SATA SuperMulti
LightScribe DVD Writer
Drive
Height
Orientation
5.25-inch, half-height, tray-load
Either horizontal or vertical
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speeds
SATA/ATAPI
8.5 GB DL or 4.7 GB standard
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 12X
DVD-RAM
Up to 16X
DVD+R
Up to 8X
DVD+RW
Up to 8X
DVD+R DL
Up to 8X
DVD-R DL
Up to 16X
DVD-R
Up to 6X
DVD-RW
Up to 48X
CD-R
Up to 32X
CD-RW
Up to 12X
DVD-RAM
Up to 8X
DVD+RW, DVD-RW,
DVD+R DL, DVD-R DL
Up to 8X
DVD-ROM DL
Up to 16X
DVD-ROM, DVD+R,
DVD-R
CD-ROM, CD-R
Up to 48X
Up to 32X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
Read speeds
Access time
(typical reads, including
settling)
Power
Source
DC Power Requirement
DC Current
Environmental conditions Temperature
(operating - nonRelative Humidity
condensing)
Maximum Wet Bulb
Temperature
SATA DVD-ROM Drive
Height
Orientation
Interface type
DA - 13029
SATA DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
5.25-inch, half-height, tray-load
Either horizontal or vertical
SATA/ATAPI
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 46
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 47 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
Disc capacity
Dimensions (W x H x D)
Weight (max)
Read speeds
Removable Storage Media Compatibility DVD-ROM
Access times
(typical reads, including
setting)
Power
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
Double layer: Up to 8.5 GB (12 times capacity of CD-ROM)
5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
2.6 lb (1.2 kg)
Up to 8X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 16X
DVD-ROM
Up to 4X
DVD-RAM
Up to 48X
CD-ROM, CD-R
Up to 32X
CD-RW
Media
Read
Write
Yes
No
CD-ROM
Yes
No
CD-R
Yes
No
CD-RW
Yes
No
DVD-ROM
Yes
No
DVD-ROM DL
Yes
No
DVD-RAM
Yes
No
DVD+R
Yes
No
DVD+R DL
Yes
No
DVD+RW
Yes
No
DVD-R
Yes
No
DVD-RW
Yes
No
DVD-R DL
DVD: < 140 ms (typical), CD: < 125 ms
Random
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
Full Stroke
2 MB (minimum)
Cache Buffer
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
Data Transfer Modes
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s -default)
SATA DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
12 VDC ± 5%-200 mV ripple p-p
DC Current
SATA Slim SuperMulti
Environmental
(all conditions
non-condensing)
Temperature
Relative Humidity
Height
12.7mm height
DA - 13029
Maximum Wet Bulb
Temperature
5 VDC - <1000 mA typical, < 1600 mA
maximum
12 VDC -< 600 mA typical, < 1400 mA
maximum
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 47
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 48 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
LightScribe DVD Writer
Drive
Orientation
Interface type
Disc recording capacity
Dimensions (W x H x D)
Either horizontal or vertical
SATA/ATAPI
Up to 8.5 GB DL or 4.7 GB standard
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
Weight (max)
Write speeds
0.42 lb (190 g)
DVD-RAM
DVD-R DL
DVD+R
DVD+RW
DVD+R DL
DVD-R
DVD-RW
CD-R
CD-RW
DVD-RAM
DVD-RW, DVD+RW
DVD-R DL, DVD+R DL
DVD+R, DVD-R
DVD-ROM DL, DVDROM
CD-ROM, CD-R
CD-RW
Random
Read speeds
Access time
(typical reads, including
settling)
Power
Full Stroke
Stop Time
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
Audio output
DA - 13029
Up to 5X
Up to 4X
Up to 8X
Up to 4X
Up to 4X
Up to 8X
Up to 6X
Up to 24X
Up to 16X
Up to 5X
Up to 8X
Up to 6X
Up to 8X
Up to 8X
Up to 24X
Up to 24X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA Mode
3 (44.4 MB/s - default)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
Total Drive Power
(standby mode)
Line-Out
Signal-to-Noise Ratio
< 2.5 Watt
Channel Separation
65 dB
0.7 VRMS
74 dB
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 48
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 49 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
Environmental conditions Temperature
(operating - nonRelative Humidity
condensing)
Maximum Wet Bulb
Temperature
SATA CD-RW/DVD-ROM Height
Combo Slim Drive
Orientation
Interface type
Disc capacity
Dimensions (W x H x D)
Weight (max)
Write speeds
Read speeds
Access time
(typical reads, including
settling)
Power
Audio output level
Environmental (all
conditions noncondensing)
DA - 13029
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
12.7mm height slim CD-RW
Either horizontal or vertical
SATA/ATAPI
Single layer: Up to 4.7 GB (6 times capacity of CD-ROM)
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
0.42 lb (190 g)
Up to 24X
CD-R
Up to 24X
CD-RW
Up to 4X
DVD+R/-R/+RW/
-RW/+R DL /-R DL
Up to 8X
DVD-ROM
Up to 24X
CD-ROM, CD-R
Up to 24X
CD-RW
DVD: < 140 ms (typical), CD: < 125 ms
Random DVD
(typical)
DVD: < 250 ms (typical), CD: < 210 ms
Random CD
(typical)
2 MB (minimum)
Cache Buffer
ATA PIO mode 4); ATA Multi-word DMA mode
Data Transfer Modes
2; ATA UltraDMA mode 0; ATA UltraDMA mode
1, mode 2; ATA UltraDMA Mode 3 (default)
Four-pin, DC power receptacle
Source
5 VDC ± 5%-100 mV ripple p-p
DC Power Requirement
5 VDC (< 1000 mA typical, < 1600 mA
DC Current
maximum)
< 2.5 Watt
Total Drive Power
(standby mode)
0.7 Vrms (typical)
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature (operating)
41° to 122° F (5° to 50° C)
5% to 85%
86° F (30° C)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 49
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 50 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Optical Storage
SATA DVD-ROM Slim
Drive
Height
Orientation
Interface type
Dimensions (W x H x D)
Weight (max)
12.7mm
Read speeds
DVD+R/-R/+RW/
-RW/+R DL /-R DL
DVD-ROM
CD-ROM, CD-R
CD-RW
Random DVD
Access time
(typical reads, including
settling)
Power
Either horizontal or vertical
SATA/ATAPI
5.0 x 0.5 x 5.0 in (128 x 13.6 x 129 mm)
0.42 lb (190 g)
Random CD
Data Transfer Modes
Source
DC Power Requirement
DC Current
Audio output
Environmental (all
conditions noncondensing)
DA - 13029
Total Drive Power
(standby mode)
Line-Out
Signal-to-Noise Ratio
Channel Separation
Temperature
Relative Humidity
Maximum Wet Bulb
Temperature (operating)
Up to 4X
Up to 8X
Up to 24X
Up to 24X
DVD: < 140 ms (typical), CD: < 125 ms
(typical)
DVD: < 250 ms (seek), CD: < 210 ms (seek)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
5 VDC - <1000 mA typical, < 1600 mA
maximum
< 2.5 Watt
0.7 VRMS
74 dB
65 dB
41° to 122° F (5° to 50° C)
5% to 85%
86° F (30° C)
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 50
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 51 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Removable Storage
HP 22-in-1 (with 1394)
Media Card Reader
USB Interface
USB 2.0 High-speed interface
NOTE: Requires the USB cable to be connected to the internal USB 2.0 port
or a USB 2.0 PCI card.
1394 Interface
Two IEEE-1394a external ports; 1 IEEE-1394a internal port (connects to the
pass through cable on the media card reader)
Advance protocol support
Supports hardware ECC (Error Correction Code) function
Supports hardware CRC (Cyclic Redundancy Check) function
Supports MS 4-bit parallel transfer mode
Supports MS-PRO 4-bit parallel transfer mode
Supports MS PRO-HG Duo 4-bit parallel transfer mode
Supports SD 4-bit parallel transfer mode
Supports high-speed 50Mhz SD 4-bit card (version 2.0)
Supports high-speed 52Mhz MMC 8-bit card (version 4.2)
Supports CF v4.0 with PIO mode 6 and Ultra DMA mode
Supported media type
CompactFlash Type I
CompactFlash Type II
Microdrive
MultiMediaCard (MMC)
Reduced Size MultiMediaCard (RS MMC)
MultiMediaCard 4.2 (MMC Plus, including MMC Plus HC)
Reduced Size MultiMediaCard 4.2 (MMC Mobile, including MMC
Mobile HC)
Secure Digital Card (SD)
Secure Digital High Capacity (SDHC)
miniSD
miniSD High Capacity
Micro SD (T-Flash)
Micro SD HC
Memory Stick
Memory Stick Select
Memory Stick Duo (MS Duo)
Memory Stick PRO (MS PRO)
Memory Stick PRO Duo (MS PRO Duo)
Memory Stick PRO-HG Duo
MagicGate Memory Stick (MG)
MagicGate Memory Stick Duo
xD-Picture Card
Memory Stick Micro (M2)
Supported media type
with card adapter
MMC Micro
Environmental
Test Parameters/Conditions - Power applied, unit
Operational
Environmental Extremes operating on system ±5%
nominal supply voltage.
10°C 10% R.H. ? 24 hours
10°C 90% R.H. ? 24 hours
20°C 90% R.H. ? 24 hours
30°C 90% R.H. ? 24 hours
40°C 90% R.H. ? 24 hours
50°C 90% R.H. ? 24 hours
50°C 10% R.H. ? 24 hours
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 51
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 52 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Removable Storage
Storage Environmental
Extremes
Approvals
DA - 13029
Test Parameters/Conditions
140°F (60°C) @ 80% R.H. for 96 hours
-22°F (-30°C) @ 20% R.H. for 48 hours
No power applied
Delta °C < 1.0°C/min
Delta % R.H. < 1.5% R.H./min
USB-IF, WHQL, Compliant with USB Mass Storage Class Bulk only Transport
Specification Rev. 1.0, Compliant Intel Front Panel I/O Connectivity Design
Guide V. 1.3
FCC, CE, BSMI, C-Tick, VCCI, MIC, cUL, TUV-T
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 52
diskontcomputer.com
Firma Matzner Michael e.U.
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 53 von 53 :: Datenblatt zum Produkt HP DC7900 SFF C2Q-Q9400 2X1GB mit DC# 553424 ::
QuickSpecs
HP Compaq dc7900 Business PC
Technical Specifications - Environmental Data
Eco-Label Certifications
and declarations
This product has received or is in the process of being certified to the following approvals and may be
labeled with one or more of these marks:
© Copyright 2008 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of
Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not
be liable for technical or editorial errors or omissions contained herein.
DA - 13029
Worldwide — Version 1 — September 22, 2008
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=553424
Page 53
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
