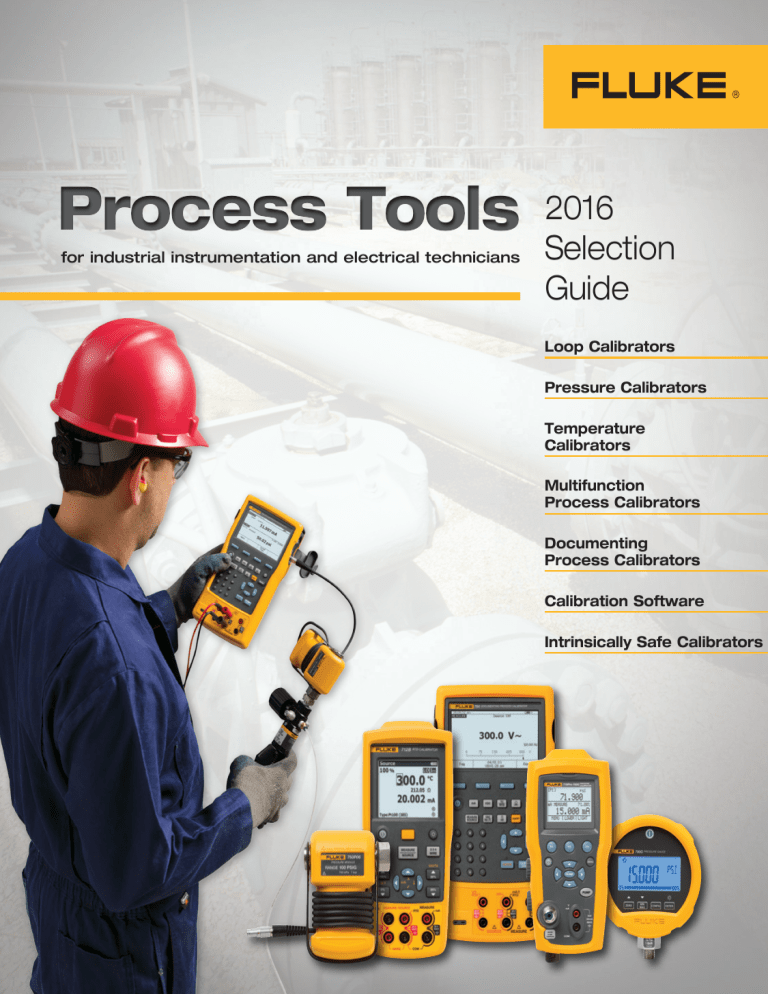

Process Tools

2016

Selection

for industrial instrumentation and electrical technicians

Guide

Loop Calibrators

Pressure Calibrators

Temperature

Calibrators

Multifunction

Process Calibrators

Documenting

Process Calibrators

Calibration Software

Intrinsically Safe Calibrators

Precision loop calibrators

(709H only)

Fluke 709/709H

www.fluke.com/709H

Best-in-class accuracy, 0.01 % of reading

Fluke 709/709H Precision Current Loop Calibrators

HART Communication (709H only) communicate with and test HART smart instruments

• Compact rugged design

Intuitive user interface with quickset knob for fast setup, easy to use

24 V dc loop power with mA measure mode

Resolution of 1 μA on mA ranges

Built in selectable 250 Ω resistor for

HART communications

Simple two wire connection for all measurements

Valve test (source and simulate defined mA values with % keys)

Upload logged mA measurements and HART device data using the

709H with optional 709H/TRACK software

HART communication

The Fluke 709H offers a built-in HART modem for communication capability to perform the following commands working with HART devices:

• Read and modify message

Read and modify tag descriptor

• Read sensor PV information

Read PV output information

• Read long tag and calibration date

Write PV ranges (upper and lower)

• Write PV units

Enter/exit fixed current mode

• Set zero offset

Trim DAC zero (4 mA and 20 mA)

Trim DAC gain (mA output 20 mA)

The Fluke 709H also offers ability to store up to twenty HART device configuration files for uploading via

709H/TRACK software. Configurations can be stored as .csv or .txt files. This allows the end user to document plant HART devices easily

Specifications for Fluke 709 and 709H

Functions

Ranges

Resolution

Accuracy

Operating temperature range

Humidity range

Stability

Display

Power

Battery life

Loop compliance voltage

Over-voltage protection

Overload current protection

EMC

Dimensions (LxWxD)

Weight

Included accessories

Warranty mA source, mA simulate, mA measure, mA measure/loop power, and volts measure mA (0 to 24 mA) and volts (0 to 30 V dc)

1uA on mA ranges and 1 mV on voltage range

0.01 % ± 2 counts all ranges (@ 23° ± 5 °C)

-10 °C to 55 °C (14 °F to 131 °F)

10 % to 95 % non-condensing

20 ppm of F.S. /°C from -10 °C to 18 °C and 28 °C to 55 °C

128 x 64 pixels, LCD Graphic w/backlight, .34 in high digits

6 AAA alkaline

≥ 40 hours continuous use (measure mode using alkaline)

24 V dc @ 20 mA

240 V ac

28 mA dc

EN61326 Annex A (Portable Instruments)

15 cm x 9 cm x 3 cm (6 in x 3.6 in x 1.3 in)

0.3 kg (9.5 oz)

Traceable calibration certificate with data, batteries, test leads, and manual

Three-year

For full specifications, more product highlights and ordering information visit www.fluke.com/709H

ProcessMeter

test tools

789 787

(789 only)

(789, 787 has CAT III

1000 V only)

Multimeter and Loop Calibrator—all in one

Fluke 789 ProcessMeter

Test Tool

The Fluke 789 has a display that’s twice as large as the 787 and adds a 24 V loop power supply that the 787 does not include.

• Unique, new wireless data logging capabilities with Fluke Connect™

24 V loop power supply

• 20 mA drive into 1200 W

0 % to 100 % mA Span Check buttons to toggle from 4 mA to 20 mA

• Infrared I/O serial port compatible with FlukeView

®

Software

PLUS all the proven 787 features below

Fluke 787 ProcessMeter

Test Too

l

• Simultaneous mA and % of scale readout on mA output

25 % manual step plus auto step and auto ramp on mA output

• CAT III, 1000 V safety rated DMM

Measure volts, amps, resistance, and frequency

www.fluke.com/processmeter

Specifications for Fluke 789 and 787 (18 °C to 28 °C, 1 year)

Measurement function

V dc

V ac (true-rms) to 500

Hz mA dc

A dc

A ac

Resistance

Frequency

Diode test

Continuity

Output function

DC current output

DC current simulate

(ext. 24 V loop supply)

24 V loop supply

Best accuracy range and resolution

400.0 mV, 4.000 V, 40.00 V

400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V

30.000 mA

1.000 A (0.440 A continuous)

1.000 A (0.440 A continuous)

400.0 W, 4.000 k, 40.00 k

199.99 Hz, 1999.9 Hz, 19.999 kHz

789: 2.000 V (shows diode voltage drop)

787: 2.400 V (shows diode voltage drop)

Beeps for resistance < approx. 100 W

Range and resolution

0.000 mA to 20.000 mA or 4.000 mA to 20.000 mA

(selectable at power-up) Over-range to 24.000 mA

0.000 mA, to 20.000 mA or 4.000 mA, to 20.000 mA,

(selectable at power-up) Over-range to 24.000 mA

789: minimum 24 V

787: not available

(% of reading + count)

0.1 % + 1

0.7 % + 2

.05 % + 2

0.2 % + 2

1 % + 2

0.2 % + 1

.005 % +1 (0.5 Hz to 20 kHz)

2 % + 1

Drive capability

789: 24 V compliance or,

1200 Ω @ 20 mA

787: 12 V compliance or, 500 Ω @ 24 mA

789: 15 V to 48 V

787: 15 V to 30 V

≥ 24 V @ 24 mA, 1200 Ω

(789 only)

Accuracy (% of span)

.05 %

.05 %

3

For full specifications, more product highlights and ordering information visit www.fluke.com/processmeter

Loop calibrators, milliamp process clamp meters

Fluke 705 Fluke 707

www.fluke.com/loop

Fluke 715 Fluke 773

Fluke 705, 707 and 715 mA Loop Calibrators

Simultaneous mA and % readout for quick, easy, readings

Push button 25 % steps for fast, linearity checks

• Output ramp and step modes

24 V internal loop supply

Fluke 707 mA Loop Calibrators adds

• Quick click front panel selector for fast, one-hand operation

Fluke 715 Volt/mA Calibrator adds

Source voltage to 200 mV or 20 V

• Measure loop current with 0.010 % accuracy and

0.001 mA resolution

Fluke 771 Milliamp Process Clamp Meter

Measure mA signals for PLC and control system analog I/O

Measure 4-20 mA output signals from transmitters without breaking the loop

Resolution and sensitivity to 0.01 mA, accuracy 0.2 %

• Dual backlit display with both mA measurement and percent of span

• Measurement spotlight illuminates hard to see wires in dark enclosures

• Detachable clamp with one meter cable

Fluke 772 Milliamp Process Clamp Meter adds

• mA source, simulate and 24 V loop power

Test mA input devices and troubleshoot 4-20 mA loops

Fluke 773 Milliamp Process Clamp Meter adds

DC voltage source and measure

• Test voltage input devices and measure 24 V loop power supplies

• Advanced troubleshooting functions

4

Model

Measure

V dc mA dc

Source/Simulate

V dc mA dc/% scale

Loop Calibrator

705

28 V

24 mA

707/707Ex 715

28 V

24 mA

25 V

24 mA



Process Milliamp Clamp Meter

771

99.9 mA mA source; auto step, auto ramp

Record

Hold

Features

24 mA

24 mA

20 V

24 mA





24 mA

24 V loop supply

Intrinsically safe (ATEX)

• •

707Ex





Traceable certification

• • •



Accessories 1 C C A/B

1

Accessories: A. Compatible with LockPak B. Compatible with ToolPak C. Accepts hanging straps from ToolPak

772

99.9 mA

24 mA





773

30 V

99.9 mA

10 V

24 mA

For full specifications, more product highlights and ordering information visit www.fluke.com/loopcalibrators

Pressure calibrators

Pressure

Enabled

717 718

www.fluke.com/pressure

719 Pro

Fluke 719 and 719PRO Electric Pressure Calibrators

Electric pump enables one-handed pressure pumping and makes pressure calibration quicker and easier

Best in class 0.025 % pressure measurement accuracy

Programmable pump limit settings

719: Two ranges, 30 psi and 100 psi

719PRO: Three ranges 30, 150 and 300 psi

719PRO: Precision temperature measurement with optional

720RTD Probe

Models

717-1G

718-1G

717-15G

717-30G, 718-30G,

719-30G, 719Pro-30G

717-100G

718-100G

719Pro 150G

717-300G, 718-300G,

719-100G, 719Pro 300G

717-500G

717-1000G

717-1500G

717-3000G

717-5000G

717-10000G

Pressure accuracy mA measurement

Loop power

Fluke 718 Pressure Calibrators

1, 30, 100 and 300 psi ranges available

Pump to 300 psi, 20 bar with internal pump

(718-300G)

718-1G has special low volume pump, high measurement resolution for low pressure

Fluke 717 Pressure Calibrators

Measure up to 10,000 psi/690 bar sensor

Compatible with non-corrosive gases and liquids on 500 psi and higher ranges

718 and 719

Precision vernier for fine pressure adjustment

Variable release rate bleed valve for controlled pressure release

717, 718 and 719 common features

Pressure switch test makes a difficult task easy, captures set, reset and deadband values of a pressure switch

717, 718 and 719 measure pressure to 0.025 % of full scale

Measure mA with 0.015 % accuracy, while sourcing 24 V loop power

Range Resolution Comment

+0.0001 psi, 0.0001 kPa,

0.001 inH2O

-12 to 15 psi, -83 to 103 kPa 0.001 ps1, 0.01 kPa

-12 to + 30 psi,

(-83 to 207 kPa)

0.001 psi, 0.01 kPa

-12 to + 100 psi,

(-83 to 690 kPa)

0.01 psi, 0.01 kPa

Dry air only. Fluke 718 includes on board pump.

Dry air only.

Dry air only. Fluke 718 and Fluke 719 include on board pump.

Dry air only. Fluke 718 includes on board pump. 717-100G compatible with non-corrosive gases and fluids.

-12 to 150 psi

-12 to +300 psi,

(-83 to +2070 kPa)

0-500 psi, 0-3450 kPa

0-1000 psi, 0-6900 kPa

0-1500 psi, 0-10342 kPa

0-3000 psi, 0-20700 kPa

0-5000 psi, 0-34500 kPa

0.01 psi, 0.01 kPa

0.01 psi, 0.1 kPa

0.01 psi, 0.1 kPa

0.01 psi, 0.1 kPa

0.1 psi, 1 kPa

0.1 psi, 1 kPa

0.1 psi, 1 kPa

Fluke 719Pro dry air only and includes on board pump.

Fluke 718, 719 and 719Pro dry air only include on board pump. 717 compatible with non-corrosive gases and fluids.

Compatible with non-corrosive gases and fluids

Compatible with non-corrosive gases and fluids

Compatible with non-corrosive gases and fluids

Compatible with non-corrosive gases and fluids

Compatible with non-corrosive gases and fluids

0-10000 psi, 0-69000 kPa 1 psi, 1 kPa Compatible with non-corrosive gases and fluids

0.035 % of range, one year. 0.025 % for six months, 717 and 718-1G: 0.05 % one year, 718 and

717-300G 0.035 % six months, 0.05 % one year

0-24 mA range 0.001 mA resolution Accuracy: ± 0.015 % + 1 count

24 V dc Accuracy: ± 10 %

5

For full specifications, more product highlights and ordering information visit www.fluke.com/pressurecalibrators

Precision pressure test gauges

Fluke 700G

www.fluke.com/700G

Intrinsically safe, pressure gauge calibrator for fast and accurate calibration test results.

Fluke 700G Series Precision Pressure Gauge

Precision pressure measurement from ± 10 inH2O/20 mbar to

Absolute pressure measurement ranges 15, 30, 100, 300 psia

• Accuracy to 0.05 % of full scale

Reference class gauge accuracies to 0.04 % of reading

• Easy to use, rugged construction for reliable performance

CSA; Class 1, Div 2, Groups A-D rating

• ATEX rating: II 3 G Ex nA IIB T6

Combine with the 700PTPK2 or 700HTPK2 pump kits for a complete pressure testing solution for up to 600 psi (40 bar) with the PTP-1 pneumatic pump and up to 10,000 psi (690 bar) with the HTP-2 hydraulic pump

Log up to 8,493 pressure measurements to memory (requires 700G/

TRACK software)

Three-year warranty

6

Fluke-700PTPK2

Pneumatic Test Kit

Fluke-700HTPK2

Hydraulic Test Kit

700G/TRACK

Logging Software

Model

Fluke-700G01

Fluke-700G02

Fluke-700G04

Fluke-700G05

Fluke-700G06

Fluke-700G27

Fluke-700G07

Fluke-700G08

Fluke-700G10

Fluke-700G29

Fluke-700G30

Fluke-700G31

Fluke-700GA4

Fluke-700GA5

Fluke-700GA6

Fluke-700GA27

Fluke-700RG05

Range

-10 to +10 inH2O

-1 psi to +1 psi

-14 psi to 15 psi

-14 psi to 30 psi

-12 psi to 100 psi

-12 psi to 300 psi

-12 psi to 500 psi

-14 psi to 1000 psi

-14 to 2000 psi

-14 psi to 3000 psi

-14 psi to 5000 psi

-14 psi to 10000 psi

0 psia to 15 psia

0 psia to 30 psia

0 psia to 100 psia

0 psia to 300 psia

-14 psi to +30 psi

Resolution

0.001 inH20

0.0001 psi

0.001 psi

0.001 psi

0.01 psi

0.01 psi

0.01 psi

0.1 psi

0.1 psi

0.1 psi

0.1 psi

1 psi

0.001 psi

0.001 psi

0.01 psi

0.01 psi

0.001 psi

Accuracy

Positive pressure

± 0.1 % of range, Vacuum ± 0.1 % of range

Positive pressure

± 0.05 % FS

Vacuum

± 0.1 % FS

± 0.05 % of range

Positive pressure,

± 0.04 % of reading +.01 % of range,

Vacuum ± 0.05 % of range

Fluke-700RG06

Fluke-700RG07

Fluke-700RG08

Fluke-700RG29

Fluke-700RG30

Fluke-700RG31

-12 psi to 100 psi

-12 psi to 500 psi

-14 psi to 1000 psi

-14 psi to 3000 psi

-14 psi to 5000 psi

-14 psi to 10000 psi

0.001 psi

0.01 psi

0.01 psi

0.1 psi

0.1 psi

1 psi

Positive pressure,

± 0.04 % of reading

+.01 % of range, Vacuum

± 0.1 % of range

700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy.

For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C

Media compatibility

10 inH20, 1, 15, 30 psi: any clean dry non-corrosive gas

7

For full specifications, more product highlights and ordering information visit www.fluke.com/700G

Pressure calibrator

8

Fluke 721

Fluke 721Ex

3130

Pressure

Enabled

Fluke 721 and 721Ex Precision Pressure Calibrators

Ideal tool for gas custody transfer applications

Intrinsically Safe (721Ex version only)—IECEx and Atex Ex ia IIB T3 Gb (Zone 1)

Take simultaneous static and differential pressure measurements

Best in class accuracy of 0.025 %

Pt100 RTD input for precision temperature measurement (probe optional)

Measures 4 to 20 mA signals and provides 24 V loop power (721 models only)

Measure up to 30 V dc to check 24 V loop power supplies (721 models only)

Extend pressure measurement range with 750P Series Pressure Modules (50 ranges)

(721 models only)

Model

Fluke-721-1601

Fluke-721-1603

Fluke-721-1605

Fluke-721-1610

Fluke-721-1615

Fluke-721-1630

Fluke-721-1650

Fluke-721-3601

Fluke-721-3603

Fluke-721-3605

Fluke-721-3610

Fluke-721-3615

Fluke-721-3630

Fluke-721-3650

Ex available

Yes

Low pressure sensor

Range sensor 1

Resolution sensor 1

-14 psi to

+16 psi

-14 psi to

+36 psi

0.001 psi,

High pressure sensor

Accuracy sensor 1

Range sensor 2

-12 psi to +100 psi

-12 psi to +300 psi

-12 psi to +500 psi

0 psi to +1000 psi

0 psi to +1500 psi

0 psi to +3000 psi

Resolution sensor 2

0.01 psi

0.1 psi

0.025 % of full scale

0 psi to +5000 psi

-12 to +100 psi

-12 psi to +300 psi

-12 psi to +500 psi

0 psi to +1000 psi

0 psi to +1500 psi

0 psi to +3000 psi

0 psi to +5000 psi

0.01 psi

0.1 psi

Accuracy sensor 2

0.025 % of full scale

0.035 % of full scale

0.025 % of full scale

0.035 % of full scale

Each of the above models also available with an Ex rating

Media compatibility: liquids or gases compatible with 316 stainless steel

3130 Portable Pressure Calibrator

Measure and generate pressures from vacuum to 300 psi.

Internal pump can generate vacuum to -12 psi or pressure to 300 psi

Supply pressure connection allowing the use of external gas supply up to 300 psi

Measure or generate 4 to 20 mA

Parameter

Pressure mA

Volts

Range

-80 kPa to 2 MPa (-12 to 300 psi, -0.8 to 20 bar)

0 to 20 mA

0 to 30.000 V dc

Total uncertainty 1-year

0.025 % of reading

± 0.01 % FS

0.015 % of reading

± 0.002 mA

0.015 % of reading

± 0.002 V

Comment

Compatible with

750P modules

4-20 mA and loop power

Switch testing

Model

Fluke-721-1601

Fluke-721-1603

Fluke-721-1605

Fluke-721-1610

Fluke-721-1615

Fluke-721-1630

Fluke-721-1650

Fluke-721-3601

Fluke-721-3603

Fluke-721-3605

Fluke-721-3610

Fluke-721-3615

Fluke-721-3630

Fluke-721-3650

Ex available

Yes

Low pressure sensor

Range sensor 1

Resolution sensor 1

-14 psi to

+16 psi

-14 psi to

+36 psi

0.001 psi,

High pressure sensor

Accuracy sensor 1

Range sensor 2

-12 psi to +100 psi

-12 psi to +300 psi

-12 psi to +500 psi

0 psi to +1000 psi

0 psi to +1500 psi

0 psi to +3000 psi

Resolution sensor 2

0.01 psi

0.1 psi

0.025 % of full scale

0 psi to +5000 psi

-12 to +100 psi

-12 psi to +300 psi

-12 psi to +500 psi

0 psi to +1000 psi

0 psi to +1500 psi

0 psi to +3000 psi

0 psi to +5000 psi

0.01 psi

0.1 psi

Accuracy sensor 2

0.025 % of full scale

0.035 % of full scale

0.025 % of full scale

0.035 % of full scale

Deadweight testers

P3000 P3100/P3200

www.flukecal.com/benchDWT

P3115

P3116

P3123

P3124

P3125

P3211

P3213

P3214

P3223

P3224

P3830

P3840

P3860

P3023

P3025

P3031

P3032

P3111

P3112

P3113

P3114

Model

P3011

P3012

P3013

P3014

P3015

P3022

*(Liquid lubricated)

Water

Water

Water

Oil

Oil

Oil

Oil

Oil

Oil

Oil

Oil

Water

Water

Oil

Oil

Oil

Oil

Gas

Gas*

Gas*

Gas

Media

Gas

Gas

Gas

Gas

Gas

Gas

Single

Single

Dual

Dual

Dual

Single

Single

Single

Dual

Dual

Single

Single

Single

Dual

Dual

Single

Single

Single

Single

Single

Single

Number of ranges

Single

Single

Single

Single

Single

Dual

Max range

-30 inHg (-100 kPa)

400 inH2O (100 kPa)

800 inH2O (200 kPa)

150 psi (1 MPa)

500 psi (3.5 MPa)

400 inH2O (100 kPa)

800 inH2O (200 kPa)

500 psi (3.5 MPa)

1000 psi (7 MPa)

2000 psi (14 MPa)

500 psi (3.5 MPa)

2000 psi (14 MPa)

5000 psi (35 MPa)

10000 psi (70 MPa)

16000 psi (110 MPa)

20000 psi (140 MPa)

5000 psi (35 MPa)

10000 psi (70 MPa)

16000 psi (110 MPa)

500 psi (3.5 MPa)

5000 psi (35 MPa)

10000 psi (70 MPa)

5000 psi (35 MPa)

10000 psi (70 MPa)

30000 psi (200 MPa)

40000 psi (260 MPa)

60000 psi (400 MPa)

0.008

0.008

0.008

0.015

0.015

0.015

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

0.008

Improved accuracy

(% Rdg)

0.008

0.008

0.008

0.008

0.008

0.008

0.015

0.015

0.015

0.02

0.02

0.02

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

0.015

Standard accuracy

(%Rdg)

0.015

0.015

0.015

0.015

0.015

0.015

Highly accurate, robust and flexible pressure measurement standards capable of calibrating a wide range of instruments.

P3000 Pneumatic Deadweight

Testers

Pressure ranges from vacuum through

2,000 psi (140 bar)

Accuracy better than 0.015 % of reading. (0.008 % optional)

Gas operated with optional hand pumps

Dual vacuum/pressure models available

Psi, bar, kgf/cm

2

, kPa and MPa ranges available

Piston/cylinder design provides stability and repeatability

P3100 Hydraulic Deadweight

Testers

• Pressure ranges to 20,000 psi

(1400 bar)

• 0.015 % of reading accuracy standard

(0.008 % optional)

• Single or dual piston formats

Built-in hand pumps standard

• Mounted spirit level with adjustable feet

• Units can be trimmed to local gravity

FOC

P3200 Water Deadweight

Testers

Water operation for improved media compatibility

Pressure ranges to 10,000 psi

(700 bar)

0.015 % of reading accuracy standard

(0.008 % optional)

Single or dual piston formats

• Built-in hand pumps standard

Mounted spirit level with adjustable feet

Units can be trimmed to local gravity

FOC

9

Benchtop pressure calibrators

10

P5510

P5514

P5515 6532

www.flukecal.com/comparisonpumps www.flukecal.com/edwt

Models Media Range (psig) Range (MPa) Uncertainty

6531-7M

6531-14M

6531-20M oil or water 100 to 1,000 oil or water 200 to 2,000 oil or water 300 to 3,000

0.7 to 7

1.4 to 14

2 to 20

± 0.02 % rdg

± 0.02 % rdg

± 0.02 % rdg

6531-40M

6531-70M

6531-140M

6531-200M

6532-70M oil or water 600 to 6,000 4 to 40 oil or water 1,000 to 10,000 7 to 70 oil or water 2,000 to 20,000 14 to 140 oil or water 3,000 to 30,000 20 to 200 oil or water 100 to 10,000 0.7 to 70

± 0.02 % rdg

± 0.02 % rdg

± 0.02 % rdg

± 0.02 % rdg

± 0.02 % rdg

6532-140M

6532-200M

P5510-2M

P5513-20M oil or water 200 to 20,000 oil or water 300 to 30,000 gas gas vacuum to 300

P5514-70M oil or water 0 to 10000

P5514-70M-EP oil or water 0 to 10000

1.4 to 140

2 to 200 vacuum to 2 ** vacuum to 3,000 vacuum to 20 **

0 to 70

0 to 70

± 0.02 % rdg

± 0.02 % rdg

**

**

P5515-140M oil or water 0 to 20000

P5515-140M-EP oil or water 0 to 20000

0 to 140

0 to 140

**

**

P3800C oil 0 to 60000 0 to 400 **

**reference pressure gauge not included-compatible with Fluke 700G (p6)

Precise generation and control for testing pressure measuring instruments against master devices.

P5510 Gas Comparison Test Pump

Dual pressure/vacuum capability

• Bench mount design

Built-in hand pump as pressure/vacuum source

• High quality needle valve for fine control

Test port adapters that require no PTFE tape or wrenches

P5513 Gas Comparison Test Pump

• High pressure pneumatic operation

Screw press for fine pressure adjustments

• High quality needle valves for fine control

Test port adapters which require no PTFE tape or wrenches

Sturdy carrying case with lid

P5514 Hydraulic Comparison Test Pump

Generates pressures to 10,000 psi (700 bar)

• Bench mounted design

Operational with a wide range of fluids

• Screw press for fine pressure adjustments

P5515 Hydraulic Comparison Test Pump

• Generates pressures to 20,000 psi (1400 bar)

Operational with a wide range of fluids

• Built-in hand pump for system priming and large volume applications

• High quality screw press for fine pressure control

Acrylic reservoir for visibility of fluid level and quality

6531 Electronic Deadweight Tester

A digital alternative to the traditional deadweight tester

• 0.02 % of reading from 10 % to 100 % of instrument range (10:1 turndown)

• Ranges from 1000 psi (7 MPa) to 30,000 psi (200 MPa)

Integrated hydraulic pressure generation and control

• Compatible with water and a wide range of oils and other fluids

• Onboard test routines, data storage, and other advanced features

6532 Extended Range Electronic Deadweight

Tester

All the features of model 6531 with extended pressure range for maximum workload coverage

0.0 % of reading from 1 % to 100 % of instrument range (100:1 turndown)

Models with full scale ranges from 10,000 psi (70 MPa) to 30,000 psi (200 MPa)

Precision temperature/ pressure process calibrator

Pressure

Enabled

7526A

www.flukecal.com/7526A

DC Voltage, Output

Range Absolute uncertainty,

± (ppm of output + µV), 1-yr

0 to 100 mV 30 3

Resolution

0 to 1 V

0 to 10 V

0 to 100 V 30

DC Voltage, Isolated Input

Range

0 to 10 V

30

30

10

100

1 mV

Absolute uncertainty,

± (ppm of reading + mV), 1-yr

50 0.2

1 µV

10 µV

100 µV

1 mV

Resolution

10 V to

100 V

50

DC current, output

2.0

Range

[1]

Absolute uncertainty,

± (ppm of reading + µA), 1-yr

0 to 100 mA 50 1

100 µV

1 mV

Resolution

1 µA

[1]

For line voltages less than 95 V, ±100 ppm of reading

DC current, isolated input

Range

0 mA to

50 mA

Absolute uncertainty,

± (ppm of reading + mV), 1-yr

100

Resistance, output

Range Absolute uncertainty, tcal ± 5 °C,

± Ω, 1-yr

1

Resolution

Resolution

0.1 µA

Nominal current

5 Ω to 400 Ω 0.015

5 Ω to 4 kΩ 0.3

0.001 Ω

0.01 Ω

1 to 3 mA

100 µA to 1 mA

Versatility, precision and value, combined into a single benchtop process calibration tool.

7526A Precision Process Calibrator

The Fluke Calibration 7526A Precision Process Calibrator offers the best balance of economy and accuracy for benchtop calibration of temperature and pressure process instrumentation.

Easily calibrate RTD and thermocouple readouts, pressure gauges, temperature transmitters, digital process simulators, data loggers, multimeters and more.

Sources and measures dc voltage, current, resistance, RTDs and thermocouples

Precision pressure measurement using Fluke 750P or 525A-P series pressure modules

Includes 24 V dc transmitter loop power supply

Measures 4-20 mA loop current

Includes automated switch-test function

Accepts ITS-90 coefficients for accurate SPRT measurements

Compatible with MET/CAL

®

Calibration Software

Resistance, Input

Range Absolute uncertainty,

± (ppm of reading + Ω), 1-yr

0 Ω to 400 Ω 20 0.004

K –100 °C 800 °C

Resolution

0.001 Ω

0 Ω to 4 kΩ 20 0.04

0.01 Ω

Sample thermocouple, input/output (does not include all available TC types)

[1]

TC type Min Max Absolute uncertainty, tcal

±5 °C, ± (°C), 1-yr

0.1

[1]

See extended specifications for all TC types

(B,C,E,J,K,L,N,R,S,T,U,XK,BP)

Sample RTD, output (does not include all available RTD types)

[1]

RTD Type Temperature Range (°C)

Min Max

Absolute uncertainty, tcal

±5 °C, ± (°C), 1-yr

Pt 385,

100 Ω

–200 630 0.05

[1]

See extended specifications for all RTD types: Pt-100 (385, 3926,

3916), Pt-200, Pt-500, Pt-1000, Ni-120, Cu-427, SPRT

Sample RTD, Intput (does not include all available RTD types)

[1]

RTD Type Min Max Absolute uncertainty, tcal ±5 °C,

± (°C), 1-yr

0.020

Pt 385,

100 Ω

–80 °C

100 °C

100 °C

300 °C 0.024

[1]

See extended specifications for all RTD types: Pt-100 (385, 3926,

3916), Pt-200, Pt-500, Pt-1000, Ni-120, Cu-427, SPRT

11

Field temperature sources

12

9142 6102

www.flukecal.com/914X www.flukecal.com/micro-baths

9142/9143/9144 Field Metrology Wells

High performance for industrial process environment

Fast, lightweight, and portable

• Three models covering a temperature range from -25 °C to 660 °C

Stability to ± 0.01 °C

• Built-in two-channel readout for PRT, RTD, thermocouple, 4-20 mA current

• Optional built-in reference thermometer readout

6102/7102/7103 Micro-Baths

World’s smallest portable calibration baths

• Calibrate a variety of probe diameters - no sleeves required

Three models covering a temperature range from -30 °C to 200 °C

• Stability to ± 0.015 °C

Pair these temperarure calibrators with the 75X Documenting

Process Calibrators for a field temperature documenting solution.

Range

Display accuracy

Stability

Heating time

Cooling time

Immersion depth

Size

(H x W x D)

Weight

Calibration included

Field Metrology Well

9142

-25 °C to 150 °C

(-13 °F to 302 °F)

± 0.2 °C entire range

± 0.01 °C entire range

9143

33 °C to 350 °C

(91 °F to 662 °F)

9144

50 °C to 660 °C

(122 °F to 1220 °F)

Micro-Bath

6102

35 °C to 200 °C

(95 °F to 392 °F)

7102

-5 °C to 125 °C

(23 °F to 257 °F)

7103

-30 °C to 125 °C

(-22 °F to 257 °F)

± 0.2 °C entire range

± 0.5 °C at 660 °C ± 0.25 °C ± 0.25 °C ± 0.25 °C

± 0.03 °C at 350 °C ± 0.05 °C at 660 °C ± 0.03 °C at 200 °C ± 0.015 °C at -5 °C ± 0.03 °C at -25 °C

25 min:

-25 °C to 150 °C

15 min:

23 °C to -25 °C

150 mm (5.9 in)

290 x 185 x

295 mm

(11.4 x 7.3 x 11.6 in)

8.16 kg (18 lb)

NVLAP accredited

5 min:

33 °C to 350 °C

32 min:

350 °C to 33 °C

150 mm (5.9 in)

290 x 185 x

295 mm

(11.4 x 7.3 x 11.6 in)

7.3 kg (16 lb)

NVLAP accredited

15 min:

50 °C to 660 °C

35 min:

660 °C to 50 °C

150 mm (5.9 in)

290 x 185 x

295 mm

(11.4 x 7.3 x 11.6 in)

7.7 kg (17 lb)

NVLAP accredited

40 min:

25 °C to 200 °C

35 min:

200 °C to 100 °C

140 mm (5.5 in)

140 x 260 x

200 mm

(5.5 x 10.38 x 8 in)

4.5 kg (10 lb)

Traceable certification

30 min:

25 °C to 100 °C

30 min:

25 °C to 0 °C

140 mm (5.5 in)

180 x 310 x 240 mm

(7.2 x 12 x 9.5 in)

6.8 kg (15 lb)

Traceable certification

35 min:

25 °C to 100 °C

45 min:

25 °C to -25 °C

140 mm (5.5 in)

230 x 340 x

260 mm

(9 x 13.2 x 10.5 in)

9.8 kg (22 lb)

Traceable certification

Temperature calibrators

712B 714B

www.fluke.com/tempcal

724

712B RTD Calibrator

• Complete RTD calibration tool

Measure temperature like a thermometer with RTD sensor

• Simulate RTD outputs

Rosemount pulsed RTD transmitter compatible

• Fourteen types of RTDs supported

Auto step and auto ramp output function

• Measure mA while sourcing temperature

714B Thermocouple Calibrator

• Full-featured thermocouple calibration tool

Measure temperature like a thermometer with a TC sensor

• Simulate TC outputs

Seventeen types of thermocouples supported

• Auto step and auto ramp output function

Calibrate linear TC transmitter with mV source function

• Measure mA while sourcing temperature

724 Temperature Calibrator

• Expertly test all the temperature sensors and transmitters in your plant

Source and measure TCs and RTDs

• Easy-to-read measure/source back lit screens let you view input and output simultaneously

• Perform fast linearity tests with auto step and auto ramp features

Power transmitters with internal loop supply

• Store frequently-used test setups for later use

Model

Measure

V dc

Resistance

A dc

Temperature: RTDs

Temperature: TCs

Source/Simulate





Temperature Calibrators

712B

4000 Ω

 24 mA

14 types

V dc

Resistance

Temperature: RTDs

Temperature: TCs



4000 Ω



14 types

Features

24 V loop supply

Traceable certification

Accessories 1 A/B

1

Accessories: A. Compatible with LockPak B. Compatible with ToolPak

714B

-10 mV to 75 mV

24 mA

17 types

17 types

A/B

724

30 V

3200 Ω

24 mA

7 types

12 types

10 V

3200 Ω

7 types

12 types

A/B

For full specifications, more product highlights and ordering information visit www.fluke.com/temperaturecalibrators

13

Multifunction process calibrators

14

725 726

www.fluke.com/mfc

Pressure

Enabled

Fluke 725 and 726 Multifunction

Process Calibrator

The Fluke 725 and 726 Multifunction Calibrators are versatile, easy-to-use field calibrators. Use them to test and calibrate almost anything.

• Dual measure/source backlit screens let you view input and output simultaneously

• Perform fast linearity tests with auto-step and ramp

Power transmitters with internal loop supply

• Store frequently-used test setups for later use

725EX intrinsically safe version available

• Measure and source frequency to test sensors and flow transmitters

• Source/simulate mA, TCs and RTDs to calibrate temperature transmitters

• Source and measure pressure using any of the Fluke pressure modules for testing transmitters and gauges

• Source mA with pressure measurement to test valves and I/Ps

Model

Measure

V dc

Resistance

A dc

Frequency

Pressure

Temperature: RTDs

Multifunction Process Calibrator

725/725Ex

30 V

3200 Ω

24 mA

10 kHz

50 ranges 1

7 types

Temperature: TCs

Source/Simulate

V dc

Resistance

12 types

10 V

3200 Ω mA dc/% scale 24 mA mA source; auto step, auto ramp

Frequency totalizer

Temperature: RTDs

Temperature: TCs

Record

7 types

12 types

726

30 V

4000 Ω

24 mA

15 kHz

50 ranges

8 types

13 types

20 V

4000 Ω

24 mA

15 kHz

8 types

13 types

1

Calibration results

Remote operation

Features

24 V loop supply



725

Manual

Traceable certification

Accessories 2

A/B

A/B

1

Fluke 750 Pressure Modules required

2

Accessories: A. Compatible with LockPak B. Compatible with ToolPak

Fluke 726 Precision Multifunction

Process Calibrator

The Fluke 726 Precision Multifunction Process Calibrator has all the features of the 725 plus twice the accuracy for unsurpassed calibration power.

Precise measurement and calibration source performance, accuracies of 0.01 %

Voltage input protection design for improved reliability and reduced cost of ownership

Transmitter error % calculation, interpret calibration results without a calculator

Memory storage for up to eight calibration results, return stored calibration data from the field

Frequency totalizer and frequency pulse train source mode for enhanced flowmeter testing

HART mode inserts 250 ohm resistor in mA measure with loop power and source

Integrated pressure switch test captures the set, reset and deadband of a switch

Custom RTD curves, add calibration constants for certified RTD probes for enhanced temperature measurement

For full specifications, more product highlights and ordering information visit www.fluke.com/multifunctioncalibrators

Documenting process calibrators

753

www.fluke.com/dpc

754

Pressure

Enabled

Fluke 750 Series Documenting Process

Calibrators

If you like the Fluke 740 Series Calibrators you will love these new calibrators. The nearly identical user interface and improved display makes these new calibrators a winner for those familiar with the 740 series family.

Improvements include a new brighter and bigger display,

HART connectability through the mA terminals, improved test lead set, Li-ion battery, improved accuracy and more.

Added bonus, the 750 series DPCs include the innovative new C799 Field Softcase.

Fluke 753 Documenting Process Calibrator

The 753 Documenting Process Calibrator automates calibration procedures and captures your data. Use the PC interface for downloading procedures, lists, and instructions to the 753 and for uploading data for printing, archiving and analysis.

Combine the 750 Series calibrators with DPCTrack2 software for a complete paperless calibration solution.

Features of the Fluke 753 and 754:

• Measure volts, mA, RTDs, thermocouples, frequency, and ohms to test sensors, transmitters and other instruments

Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters

Power transmitters during test using loop supply with simultaneous mA measurement

Measure/source pressure using any of 50 Fluke pressure modules

Measure and source simultaneously with one compact, rugged, reliable tool

Create and run automated as-found/as-left procedures to satisfy quality programs or regulations. Record and document results

• Use many features like autostep, custom units, user entered values during test, one-point and two-point switch testing, square root DP flow testing, programmable measurement delay etc

• Handling of fast pulsed RTD transmitters and PLCs, with 1 ms response time

• English, French, German, Italian, Spanish, Brazilian

Portuguese, Simplified Chinese, Korean and Russian languages

Three-year warranty

Fluke 754 Documenting Process Calibrator

The 754 includes integrated HART communication capability. This rugged, reliable tool is ideal for calibrating, maintaining, and troubleshooting HART and other instrumentation. Additional 754 features:

• Monitor, control and calibrate HART instrumentation

Interrogate HART devices to determine type, manufacturer, model and tag-ID

Read HART PV, smart transmitter digital output

• Make field adjustments to ranging, damping and more

Change/assign the HART transmitter tag

• Re-configure HART temperature sensor (e.g., TC to RTD)

Perform HART sensor trim and output trim

• Perform HART loop test

Control selected Fluke Calibration Metrology Wells

The 754 supports these classes of HART instructions:

• Universal commands—such as “read manufacturer and device type,” “read primary variable (PV),” or “read current output and percent of span”

Common practice commands—such as “read multiple variables,” “set damping time,” or “loop test”

Device-specific commands on supported transmitters— functions unique to a particular field device, like

“sensor trim”

15

For full specifications, more product highlights and ordering information on the 753 and 754 visit www.fluke.com/documentingprocesscalibrators

750 Series Pressure

Calibration Modules

Pressure

Enabled www.fluke.com/pmod

16

Model

Differential

750P00

Parameter/Range

750P3IN

750P5IN

750P01

750P02

6

0 to 1 in H

2

O (0 to 2.5 mBar)

0 to 3 Inch H

0 to 5 Inch H

0 to 10 in H

2

2

O (0 to 7.5 mBar)

2

O (0 to 12.5 mBar)

O (0 to 25 mBar)

0 to 1 psi (0 to 70 mBar)

0 to 1 psi (0 to 70 mBar)

0 to 5 psi (0 to 350 mBar)

750P22

750P03

750P23

750P04

0 to 5 psi (0 to 350 mBar)

0 to 15 psi (0 to 1 bar)

0 to 15 psi (0 to 1 bar) 750P24

6

Gage

750P05

750P06

750P27

6

750P07

750P08

750P09

6

6

6

0 to 30 psi (0 to 2 bar)

0 to 100 psi (0 to 7 bar)

0 to 300 psi (0 to 20 bar)

0 to 500 psi (0 to 35 bar)

0 to 1000 psi (0 to 70 bar)

0 to 1500 psi (0 to 100 bar)

750P2000 0 to 2000 psi (0 to 140 bar)

High

750P29

6

750P30

750P31

0 to 3000 psi (0 to 200 bar)

0 to 5000 psi(0 to 340 bar)

0 to 10000 psi (0 to 700 bar)

Fluke pressure modules

Now with more measurement ranges, improved accuracy and easy pressure connectivity.

Fluke offers 50 different pressure modules for use with its pressure, multifunction and documenting process calibrators. Fluke process calibrators in this guide marked with the “Pressure Enabled” symbol display readings from these

Precision 750 Series Pressure Modules. Each pressure module includes traceable certification, metric adapter and instruction sheet. A full range of differential, gage, absolute, vacuum, dual and intrinsically safe pressure modules are available, from -15 psi (-103 kPa) to 10,000 psi (69 MPa).

Hi Side

Media

2

Lo Side

Media

2

Reference

Uncertainty

4

Total Uncertainty

1-year (15-35 �C)

Total

Uncertainty

1-year

1

Total Uncertainty

6-month (15-35 �C)

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

316 SS

Dry Air

316 SS

Dry Air

316 SS

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

Dry Air

± 0.15 %

± 0.15 %

± 0.15 %

± 0.1 %

± 0.050 %

± 0.050 %

± 0.02 %

± 0.02 %

± 0.0175 %

± 0.0175 %

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.0175 %

± 0.3 %

± 0.3 %

± 0.3 %

± 0.2 %

± 0.1 %

± 0.1 %

± 0.04 %

± 0.04 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.35 %

± 0.35 %

± 0.35 %

± 0.3 %

± 0.15 %

± 0.15 %

± 0.05 %

± 0.05 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.25 %

± 0.25 %

± 0.25 %

± 0.15 %

± 0.075 %

± 0.075 %

± 0.035 %

± 0.035 %

± 0.03 %

± 0.03 %

Pressure

Enabled

Fluke Process Calibrators in this guide displaying this symbol are

Pressure Enabled units and display readings from these Precision 750

Series Pressure Modules. Each pressure module includes traceable certification, metric NPT and M20 adapter and instruction sheet.

For full specifications, more product highlights and ordering information visit www.fluke.com/pressure

Model

Absolute

750PA3

750PA4

6

750PA5

750PA6

750PA27

750PA7

750PA8

750PA9

Vacuum

750PV3

750PV4

Parameter/Range

0 to 5 psia (0 to 350 mBar)

0 to 15 psia (0 to 1 bar)

0 to 30 psia (0 to 2 bar)

0 to 100 psia (0 to 7 bar)

0 to 300 psia (0 to 20 bar)

0 to 500 psia (0 to 35 bar)

0 to 1000 psia (0 to 70 bar)

0 to 1500 psia (0 to 100 bar)

Hi Side

Media

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

2

Lo Side

Media

N/A

N/A

N/A

N/A

N/A

N/A

N/A

N/A

2

Reference

Uncertainty

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

4

Total Uncertainty

1-year (15 �C to

35 �C)

± 0.06 %

± 0.06 %

± 0.06 %

± 0.06 %

± 0.06 %

± 0.06 %

± 0.06 %

± 0.06 %

Total

Uncertainty

1-year

1

± 0.07 %

± 0.07 %

± 0.07 %

± 0.07 %

± 0.07 %

± 0.07 %

± 0.07 %

± 0.07 %

Total Uncertainty

6-month

(15 �C to 35 �C)

± 0.05 %

± 0.05 %

± 0.05 %

± 0.05 %

± 0.05 %

± 0.05 %

± 0.05 %

± 0.05 %

-5 psi (-350 mBar)

-15 psi (-1 bar)

316 SS

316 SS

Dry Air ± 0.03 %

Dry Air ± 0.03 %

± 0.06 %

± 0.06 %

± 0.07 %

± 0.07 %

± 0.05 %

± 0.05 %

Dual

750PD2

750PD3

750PD10

750PD4

750PD5

750PD50

750PD6

-1 to 1 psi (-70 to 70 mBar)

-5 to 5 psi (-350 to 350 mBar)

-10 to 10 psi (-700 to 700 mBar)

-15 to 15 psi (-1 to 1 bar)

-15 to 30 psi (-1 to 2 bar)

-15 to 50 psi (-1 to 3.5 bar)

-15 to 100 psi (-1 to 7 bar)

-15 to 200 psi (-1 to 14 bar)

-15 to 300 psi (-1 to 20 bar)

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

316 SS

Dry Air ± 0.05 %

Dry Air ± 0.03 %

Dry Air ± 0.025 %

Dry Air ± 0.0175 %

N/A ± 0.0175 %

N/A

N/A

± 0.0175 %

± 0.0175 %

N/A

N/A

± 0.0175 %

± 0.0175 %

± 0.1 %

± 0.06 %

± 0.05 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.035 %

± 0.15 %

± 0.07 %

± 0.07 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.045 %

± 0.075 %

± 0.05 %

± 0.04 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

± 0.03 %

750PD7

750PD27

Reference

750R04

5

750R06

750R27

750R07

5

0 to 15 psi (0 to 1 bar)

0 to 100 psi (0 to 7 bar)

0 to 300 psi (0 to 20 bar)

0 to 500 psi (0 to 35 bar)

Dry Air

316 SS

316 SS

316 SS

Dry Air ± 0.01 % of FS

N/A

N/A

N/A

± 0.01 % of FS

± 0.01 % of FS

± 0.01 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.04 % of FS ± 0.015 % of FS

± 0.04 % of FS ± 0.015 % of FS

± 0.04 % of FS ± 0.015 % of FS

± 0.04 % of FS ± 0.015 % of FS

750R08

750R29

750R30

750R31

5

750RD5

750RD6

5

5

0 to 1000 psi (0 to 70 bar)

0 to 3000 psi (0 to 200 bar)

0 to 5000 psi (0 to 340 bar)

0 to 10000 psi (0 to 700 bar)

-15 to 30 psi (-1 to 2 bar)

-12 to 100 psi (-1 to 7 bar)

316 SS

316 SS

316 SS

316 SS

Dry Air

316 SS

N/A

N/A

N/A

N/A

N/A

N/A

± 0.01 % of FS

± 0.01 % of FS

± 0.01 % of FS

± 0.01 % of FS

± 0.01 % of FS

± 0.01 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.02 % of FS

± 0.04 % of FS

± 0.04 % of FS

± 0.04 % of FS

± 0.04 % of FS

± 0.015 % of FS

± 0.015 % of FS

± 0.015 % of FS

± 0.015 % of FS

± 0.04 % of FS ± 0.015 % of FS

± 0.04 % of FS ± 0.015 % of FS

750RD27 -12 to 300 psi (-0.8 to 20 bar) 316 SS N/A ± 0.01 % of FS ± 0.02 % of FS ± 0.04 % of FS ± 0.015 % of FS

1. Total uncertainty, % of full span for temperature range 0 °C to +50 °C, one year interval. Total uncertainty, 1.0% of full span for temperature range -10 °C to 0 °C, one year interval. No 6 month specification available for range -10 °C to 0 °C.

2. “NONCORROSIVE GASSES” indicates dry air or non-corrosive gas as compatible media. “Stainless Steel 316-SS” indicates media compatible with

Type 316 Stainless Steel.

3. Specifications % of Full Span unless otherwise noted.

4. Reference Uncertainty is the specification for as left data for 24 hours.

5. When reference class modules are used with fixed resolution products (717, 718, 719 series, 725 and 726) calibrators add ± 1 count to the overall accuracy specification.

6. Intrinsically Safe pressure module available in this pressure range.

17

Intrinsically safe products

18

Fluke 700G Series

Pressure Gauge

(see page 6)

Fluke 750PEx

Pressure Modules

Fluke 707Ex mA Calibrator

Fluke 718Ex

Pressure

Calibrator

Fluke 721Ex

Pressure

Calibrator

Model

Measure

V dc

Resistance

A dc

Frequency

Pressure

Temperature: RTDs

Temperature: TCs

Source/Simulate

V dc

Resistance mA dc/% scale mA source; auto step, auto ramp

Frequency

750PEx 707Ex

28 V

24 mA

24 mA

718Ex

24 mA

30 psi to 300 psi 1

721Ex

24 mA

14 ranges

PT100 385

Temperature: RTDs

Temperature: TCs

Record

Min/Max

Hold

Features

Loop supply

24 V

Integrated hand pressure pump

Traceable certification

Intrinsically safe certifications

ATEX

IECEx

II 1 G Ex ia IIC T4 II 2 G Ex ia IIC T4 II 1 G Ex ia IIC T4

II 2 G Ex ia IIB T3 Gb

(Ta= -10… +45 °C)

II 2 G Ex ia IIB T3 Gb

(Ta= -10… +45 °C)

North American Certification

CSA 221839, I.S. Class

I, Div 1,Groups A-D T4

FM Approved, N.I. Class

I, Div 2, Groups A-D T4

I.S. Class I, Div 1, Groups A-D T4

1

Either the internal sensor or a Fluke 750PEx Pressure Module may be used

2

Fluke 750PEx Pressure Module required

For full specifications, more product highlights and ordering information visit www.fluke.com/ex





Fluke 725Ex

Multifunction

Calibrator

725Ex

30 V

3200 Ω

24 mA

10 kHz

8 ranges 2

7 types

12 types

10 V

3200 Ω

24 mA

10 kHz

7 types

12 types

12 V



II 1 G Ex ia IIB 171 °C

I.S. Class I, Div 1,

Groups B-D, 171 °C

750SW DPCTrack2

Software

Fluke DPCTrack 2™ is an easy-to-use, single-user, entry-level instrumentation manager. For more sophisticated software, you may wish to investigate products from one of Fluke’s software partners below.

Meridium

www.fluke.com/dpctrack

750SW DPCTrack2 Software

DPCTrack2 Software is a specialized database that can help you manage your instrumentation and address the documentation requirements of quality programs and regulations. With DPCTrack2™ and a 753/754 DPC you can:

Manage your inventory of tags and instruments, schedule for calibration

Create tag specific procedures with instructions and comment

Load those procedures to your DPC, and later upload the results to your PC

Select and execute automated as found/as left procedures in the field, automatically capturing results

Examine the calibration histories of your tags and instruments and print reports

Import and export instrument data and procedures as

ASCII text

Import legacy DPC/TRACK data

The 753 and 754 includes DPCTrack2™

60-day trial software.

Special offer

The DPCTrack2 and Fluke 754 have been combined to provide a complete paperless calibration solution. The Fluke-754/750SW BU, bundle is now available for great savings.

PRM (Plant Resource

Manager) from Yokogawa

Electric Corporation.

AMS from Emerson Process

Management,

(formerly Fisher-Rosemount).

On Time

Support

These Fluke Process Calibration software partners provide differentiated solutions with connectability to Fluke 753 and

754 Documenting Process Calibrators.

For full specifications, more product highlights and ordering information visit www.fluke.com/process_software

19

Pressure accessories, batteries

20

700HTP-2 700PTP-1 700LTP-1 700PTPK2 C799 Soft Field Case 700TTH5K

20

Fluke Fluke 700HTP-2 Hydraulic Test Pump

The Fluke Fluke 700HTP-2 is designed to generate pressures up to 10,000 psi/ 700 bar. Use the Fluke

700PRV-1 adjustable relief valves to limit pressures from 1360 psi to 5450 psi. Use the Fluke 700HTP-2 test hose to connect from the pump to the device under test.

Fluke 700PTP-1 Pneumatic Test Pump

The Fluke 700PTP-1 is a handheld pressure pump designed to generate either vacuum to -11.6 psi/-0.8 bar or pressure to 600 psi/40 bar.

Fluke-700LTP-1 Low Pressure Test Pump

Hand operated pressure pump designed to generate either vacuum to -13 psi/-.90 bar or pressures to

100 psi/6.9 bar.

BP7240 Li-ion Battery

Spare battery for 75X calibrators. Have the power to easily run the calibrator for a full day’s work. (for

74X calibrators use BP7235 NiMH Battery)

C799 Soft Field Case

Large fabric carrying case. Cutouts to hold one documenting process calibrator, one Fluke Pressure

Module, one BC7240 Battery Charger, one spare

BP7240 Battery Pack, and test leads.

700ILF In Line Filter

Trap fine particles from atmospheric air, compressed air, and instrument air. It is used with the Fluke 717, or 718 or 719 Pressure Calibrators up to 300 psi.

700PTPK2 Premium Pneumatic

Test Pump Kit

Adds premium hose kits to the standard 700PTPK.

Includes “finger tight” no tools required connectors to connect both a gauge and connection to a transmitter.

For full specifications, more product highlights and ordering information visit www.fluke.com/process_acc

700HTPK2 Premium Hydraulic Test Pump Kit

Adds premium hose kits to the standard 700HTPK.

Includes “finger tight” no tools required connectors to connect both a gauge or pressure module and connection to a transmitter.

700TTH5K and 700TTH10K

Premium

Transmitter Test hose kits.

5,000 and 10,000 psi models. Included 1/4” NPT connection for permanent mount to test pump and no tools required 1/4” NPT male connector for connection to a transmitter.

700M20TH Premium Transmitter Test hose kit

5,000 psi rating. Includes 1/8” NPT connection for permanent mount to a calibrator or test pump and male no tools required connector for connection to Female

M20 connections.

700MTH Premium Transmitter Test hose kit

5,000 psi rating. Includes 1/8” NPT connection for permanent mount to a calibrator or test pump and no tools required male 1/4” metric, BSP connector.

Fluke.

Keeping your world up and running.

®

Fluke Corporation

PO Box 9090,

Everett, WA 98206 U.S.A.

Fluke Europe B.V.

PO Box 1186, 5602 BD

Eindhoven, The Netherlands

For more information call:

In the U.S.A. (800) 443-5853 or Fax (425) 446-5116

In Europe/M-East/Africa +31 (0)40 267 5100 or Fax +31 (0)40 267 5222

In Canada (800)-36-FLUKE or Fax (905) 890-6866

From other countries +1 (425) 446-5500 or Fax +1 (425) 446-5116

Web access: http://www.fluke.com

©1994-2015 Fluke Corporation. Specifications subject to change without notice.

PRM is a trademark of Yokogawa Electric Corporation. Specifications subject to change without notice. Printed in U.S.A. 12/2015 1264563u_en

Modification of this document is not permitted without written permission from

Fluke Corporation.

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
