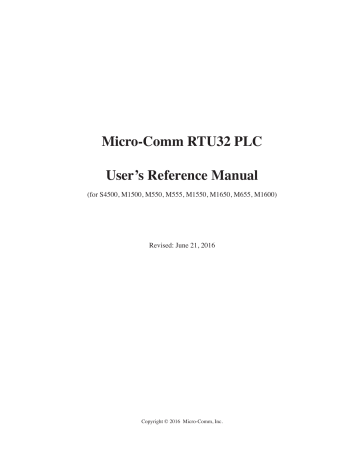

Micro-Comm RTU32 PLC
User’s Reference Manual
(for S4500, M1500, M550, M555, M1550, M1650, M655, M1600)
Revised: June 21, 2016
Copyright © 2016 Micro-Comm, Inc.
Table of Contents
S4500 PLC......................................................................................................................................................3
S4500 Specifications and Sales Information............................................................................................. 4
M1500 PLC.....................................................................................................................................................6
M1500 Specifications and Sales Information........................................................................................... 7
M550 PLC.......................................................................................................................................................9
M550 Specifications and Sales Information........................................................................................... 10
M555 PLC..................................................................................................................................................... 11
M555 Specifications and Sales Information........................................................................................... 12
M555 Installation Requirements.............................................................................................................14
M555 Lithium Battery Replacement......................................................................................................15
M1550 PLC...................................................................................................................................................16
M1550 Specifications and Sales Information......................................................................................... 17
M1550 Installation Requirements...........................................................................................................19
M1550 Lithium Battery Replacement....................................................................................................20
M1650, M655 and M1600 PLC....................................................................................................................21
M1650 Specifications and Sales Information......................................................................................... 22
M655 Specifications and Sales Information........................................................................................... 24
M1600 Specifications and Sales Information......................................................................................... 26
Expansion I/O Module Setup........................................................................................................................28
Communication Port Pinouts........................................................................................................................ 29
Display Module Operation............................................................................................................................30
RTU32 Protocol I/O Mapping...................................................................................................................... 31
Allen-Bradley DF1 and Modbus Protocol Support......................................................................................33
Allen-Bradley Ethernet/IP and Modbus/TCP Protocol Support................................................................... 34
RTU Configuration 32...................................................................................................................................35
Program Installation................................................................................................................................ 35
RTU Information Screen......................................................................................................................... 36
Configuration Parameters........................................................................................................................37
Analog Labels and Scaling Factors......................................................................................................... 41
Output Timer Labels...............................................................................................................................42
Stop/Start Setpoint Labels....................................................................................................................... 43
X Variable Labels.................................................................................................................................... 44
Discrete I/O Labels.................................................................................................................................45
User Memory Screens............................................................................................................................. 46
User Memory Table................................................................................................................................ 47
RTU Script Language Editor.................................................................................................................. 48
Commented Script / Revision Editor...................................................................................................... 49
Data Table Viewer...................................................................................................................................50
Display Module Emulator....................................................................................................................... 51
Debug Terminal....................................................................................................................................... 52
S4500 PLC
The S4500 is a fourth-generation Micro-Comm RTU/PLC built on the S4000 motherboard utilizing a new
daughterboard with a faster 32bit microprocessor and more RAM and FLASH memory. As a result, the
S4500 software has the following enhanced features:
Changes and Enhanced Features:
• Setup requires the newer “RTU Configuration 32” program
• New data table and user memory viewing options in RTU Configuration 32
• New Micro-Comm RTU32 protocol
• New personality module required with 1MB of serial flash (yellow label)
• User Memory is now 9000 words of non-volatile RAM
• User NV Memory is now 65000 words of personality module FLASH
• User Memory screens added to Micro-Comm display module for custom variables/parameters
• Much larger communication buffers for relaying and programming
• Additional protocols on all COM ports (DF1 Half-Duplex Master, DF1 Full-Duplex, Modbus/TCP etc.)
• Modbus and DF1 Half-Duplex Store & Forward (SFTABLE function) on COM1
• PID for up to 16 analog outputs can now all be running at the same time
• Increased maximum script and subroutine size (16KB for main, 2KB for each subroutine)
• Added more subroutines SUB5()-SUB20() and increased # of parameters to 16 (L1-L16)
• Additional pulse inputs (50Hz max) using DI1-DI16 are now available - PI3-PI18
• New script variables for runtimes and cycle counts for DI1-DI16 and DO1-DO8
• Added the RESPOND() script function that can define up to 128 more addresses
• Added the LISTEN() script function that can listen to up to 128 other RTU replies and save the data
• New script functions: TOTALIZE(),MCOPY(),MFILL(),MAVG(),OSR(),PITOAI(), XCOPY()
• SCALE() function no longer changes the given variable, it just returns the scaled value
• New script variables M0-M8999 to make access to user memory locations much easier
• Added the GROUP() and CGLEVEL() functions to define and automate control groups for SCADAview 32
• New CTU32 protocol option on COM2 and COM3 for use with SCADAview 32
• Added COM2 baud rate and PTT time options for data radio support
• DF1 Radio Modem protocol for all COM ports along with Store & Forward option on COM1
• Revision notes / commented script can now be stored in the personality module (up to 64K bytes)
• A compressed PC file can now be stored in the personality module (up to 256K bytes)
I/O capabilities:
(8)
(8)
(16)
(8)
(8)
(2) (2)
(1)
(12)
Relay outputs with confirmation read-back inputs
Open-collector outputs
Discrete inputs (contact closure) / low speed pulse inputs (up to 50Hz)
12-bit analog inputs (0-20mA or 0-5volt dip switch selectable)
additional 12-bit analog inputs
(4) 0-5volt analogs AI9-AI12 on the terminal blocks
(4) internal signals: RTU temperature (0.25 to 4.75v = -50C to +150C = -58F to +302F),
Battery Voltage (0 to 5v = 0 to 25.5 volts from battery),
Battery Current (0 to 5v = -10 to +10 amps from battery) plus an input on COM1 25pin port
Pulse inputs - high speed (2.5kHz/500Hz)
RS-232 communication ports
- COM1 is the radio (COM1B=9pin monitor port, COM1A=25pin for radio cable)
- COM2 is a 9pin port normally used for the display module and programming
RS-485 communication port
- COM3 is a 4-wire RS-485 port for I/O modules or for PLC communication
Address input switches
-3-
S4500 Specifications and Sales Information
Programmable logic controller
(Plc)
model s4500
fully Programmable with
Plug-in memory module
micro-comm rtu, modbus
rtu & allen-bradley df1
Protocols
oPtional front Panel
disPlay & exPandable i/o
radio, Phone line, & fiber
oPtic communications
simultaneous rtu-rtu &
ctu-rtu communications
Plug-in terminal blocks
t
he S4500 PLC is a reliable, full-featured Progammable Logic Controller.
It is a “smart” unit providing both
programmability and interchangeability through a plug-in memory module. As
an integrated component of a Supervisory
Control and Data Acquisition System (SCADA),
the S4500 provides input and output (I/O)
monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, dedicated
line, phone line, and fiber optic communication
media.
aPPlications
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
features
I/O
• 8 Form C Relay Outputs,
• 8 Open Collector Outputs,
• 16 Optically Isolated Discrete Inputs,
• 2 Optically Isolated High Speed Pulse Input,
• 1 Pulse Amplification Circuit for Direct
Connection to Flow Meter
• 12 Analog Inputs, 0-5V or 0-20mA
• 4 Additional On-Board Sensor Analog Inputs
Box Temperature, Battery Current,
System Voltage, Receive Signal Strength
Communications
• COM-1A, Radio Port
25pin Sub-D Male, RS-232 and RF signals
• COM-2, Front Panel Display
9pin Sub-D Male RS-232 w/flow control
lines
• COM-3, RS-485
• Plug In RF MODEM
0-300, 600, 1200 BAUD
-4-
Power Source and Supplies
• 120/240 VAC Power Input Isolation transformer
• SOLAR charging circuit
• Battery charging and backup circuit
• 13.8VDC @ 8A Switching Power supply
• 12 to 24VDC @ 200mA
Sensor Excitation power supply
micro-comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place
your order or to speak to a sales and service representative. Or, visit us online at
www.micro-comm-inc.com
s4500 Plc
i/o
• 8 Form C Relay Outputs, 5A @ 250VAC
• 8 Open Collector Outputs, 100mA @ 12VDC
• 16 Optically Isolated Discrete Inputs, Dry
Contact or Pulse Inputs
• 2 Optically Isolated High Speed Pulse Inputs
• 1 Pulse Amplification Circuit for Direct
Connection to Flow Meter
• 12 Analog Inputs
8ch, 12bit, 0-5V or 0-20mA
4ch, 12bit, 0-5V
• 1 Analog Amplifier Circuit
• 4 Additional On-Board Sensor Analog Inputs
Box Temperature, -50 to 150°C
Battery Current, ±10A
System Voltage
Receive Signal Strength
Power source and suPPlies
• 120/240 VAC Power Input isolation
transformer and surge suppression
• SOLAR charging circuit
• Battery charging and backup circuit
• 13.8VDC @ 8A Switching Power supply
• 12 to 24VDC @ 200mA
Sensor Excitation power supply
L15F-L17A
cPu and memory
• 32bit MCU running @ 16MHz
• 1MB FLASH EPROM, Application Program
• 512K RAM, Data
• 1MB Serial FLASH, Configuration
communications
• COM-1A, Radio Port
25pin Sub-D Male, RS-232 and RF signals
• COM-1B, Radio Monitor Port
9pin Sub-D Male TxD, RxD, RTS, GND
• COM-2, Front Panel Display
9pin Sub-D Male RS-232 w/flow control lines
• COM-3, RS-485, 1200–9600 BAUD remote I/O
• Plug In RF MODEM
0-300, 600, 1200 BAUD
order information
L15F-xxxx
Modem:
0 - none (110-19200 baud RS-232)
L17 - 0-300 baud radio modem
L17A - 0-600 baud radio modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
-5-
M1500 PLC
The M1500 is a fourth-generation Micro-Comm controller built with the processor daughterboard from the
S4500 (32bit microprocessor). The M1500 is physically much smaller than the S4500, having the reduced
I/O count listed below:
I/O capabilities:
(4)
(4)
(8)
(4)
(2)
(2)
(2)
(1)
Relay outputs
Open-collector outputs (COM1 pins used for radio switching)
Discrete inputs (contact closure), (2) high speed pulse, (6) low speed pulse
Analog Inputs (12bit, 0-20mA or 0-5volt dip switch selectable)
additional 12bit analog inputs
Temperature (0.25 to 4.75v = -50C to +150C = -58F to +302F),
System Voltage (0 to 5v = 0 to 25.5 volts)
Analog Outputs (0-20mA)
RS-232 communication ports
- COM1 25pin port for radio cable
- COM2 9pin port normally used for the display module and programming
RS-485 communication port
- COM3 is a 4-wire RS-485 port for I/O modules or for PLC communication
-6-
M1500 Specifications and Sales Information
programmable logiC Controller
(plC)
model m1500
fully programmable with
plug-in memory module
miCro-Comm, modbus rtu
and allen-bradley df1
protoCols
optional front panel
display & expandable i/o
radio, phone line, & fiber
optiC CommuniCations
simultaneous rtu-rtu &
Ctu-rtu CommuniCations
plug-in terminal bloCks
t
he M1500 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M1500 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, dedicated
line, phone line, and fiber optic communication
media.
appliCations
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
features
I/O
• 4 Form C Relay Outputs
• 4 Open Collector Outputs
• 8 Optically Isolated Discrete Inputs
(2 are also High Speed Pulse Inputs)
• 4 Analog Inputs, 0-5V or 0-20mA
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, System Voltage
• 2 Analog Outputs, 0-20mA
Communications
• COM1, Radio Port
25pin Sub-D Male, RS-232 and RF signals
• COM2, Front Panel Display, Programming
9pin Sub-D Male RS-232 w/flow control
lines for optional 2nd data radio
• COM3, RS-485, Expansion I/O
• Plug In RF MODEM
0-300, 600, 1200 BAUD
-7-
Power Source and Supplies
• 12 VDC Power Input
• 24VDC @ 200mA
Sensor Excitation power supply
micro-Comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place
your order or to speak to a sales and service representative. Or, visit us online at
www.micro-comm-inc.com
m1500 plC
i/o
• 4 Form C Relay Outputs, 10A @ 250VAC (10A @ 30VDC Resistive)
Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
• 8 Optically Isolated Discrete Inputs, Dry Contact or Pulse Inputs
Discrete Input optical isolation 5300Vrms
2 High Speed Pulse Inputs (discrete inputs 7 and 8)
0-1kHz, 50% duty cycle, contact closure or
open collector to GND
6 Low Speed pulse inputs (discrete inputs 1-6)
0-50Hz, 50% duty cycle, contact closure or
open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient, +/- 24V over voltage
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 2.5% accuracy
900 ohm maximum loop resistance
Cpu and memory
• 32-bit MCU running 16MHz
• 1MB FLASH, Application Program
• 512K RAM, Data
• 1MB Serial FLASH, Configuration
dimensions
CommuniCations
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
• COM1, Radio Port
DB25M, RS-232 and RF signals
• COM2, Front Panel Display, Programming
DB9M RS-232 w/flow control lines
• COM3, RS-485 4 wire, 110–19200 BAUD
• Plug In RF MODEM
FSK 0-300, 600, 1200 BAUD
order information:
L51-xxxx
power sourCe and supplies
Modem:
0 - none (110-19200 baud RS-232)
L17 - 0-300 baud radio modem
L17A - 0-600 baud radio modem
L17B - 1200 baud radio modem
• 10.5-15 VDC Power Input, 10A
• 24VDC @ 100mA each output, 200mA total
Sensor Excitation power supply
• COM1 (pins 9,10,20) 4A
• COM2 (pin 4) 2.5A
• COM3 (12V) 2.5A
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
-8-
M550 PLC
The M550 is a fourth-generation Micro-Comm controller built with the processor daughterboard from the
S4500 (32bit microprocessor). The M550E is a version of the M550 with an Ethernet port in place of the
COM2 serial port.
The M550 is physically much smaller than the S4500, having the reduced I/O count listed below:
I/O capabilities:
(4)
(2)
(3)
Open-collector outputs (COM1 pins used for radio switching)
On-board 12bit analog inputs
Temperature (0.25 to 4.75v = -50C to +150C = -58F to +302F),
System Voltage (0 to 5v = 0 to 25.5 volts)
Communication ports
- COM1 25pin port for radio cable
- COM2 9pin port used for the display module and programming
(Note: The M550E has an Ethernet 10baseT port for COM2)
- COM3 can be configured as an RS-485 port for I/O modules or as an RS-232 port with PTT supprt
-9-
M550 Specifications and Sales Information
programmable logiC Controller
(plC)
model m550
fully programmable with plug-in
memory module
miCro-Comm, modbus rtu and
allen-bradley df1 protoCols
optional front panel display &
expandable i/o
radio, phone line, & fiber optiC
CommuniCations
simultaneous rtu-rtu & Ctu-rtu
CommuniCations
t
he M550 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M550 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, dedicated
line, phone line, and fiber optic communication
media. The M550 can also be ordered with an
Ethernet controller in place of the RS-232 on
COM2 (Model M550E).
features
order information
I/O
• 4 Open Collector Outputs (COM1 radio
switching)
Part #
Communications
• COM1, Radio Port
25pin Sub-D Male, RS-232 and RF signals
• COM2, Front Panel Display, Programming
9pin Sub-D Male RS-232 w/flow control
lines for data radio or Ethernet (10baseT)
• COM3, RS-485 Expansion I/O or RS-232
w/flow control lines for data radio
• Internal RF MODEM, 0-600 BAUD
appliCations
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
CPU and Memory
• 32-bit MCU running 16MHz
• 1MB FLASH, Application Program
• 512K RAM, Data
• 1MB Serial FLASH, Configuration
L52
L52A
L52E
L52AE
0-300 baud FSK modem, COM2 RS-232
600 baud FSK modem, COM2 RS-232
0-300 baud FSK modem, COM2 Ethernet
600 baud FSK Modem, COM2 Ethernet
micro-Comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place
your order or to speak to a sales and service representative. Or, visit us online at
www.micro-comm-inc.com
Power Source
• 12 VDC Power Input
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 10 -
M555 PLC
The M555 is a fifth-generation Micro-Comm controller similar to the M550E PLC, but with a faster
processor, more memory, faster ethernet port and 2 additional communication ports.
I/O capabilities:
(4)
(2)
(3)
Open-collector outputs (COM1 pins used for radio switching)
On-board 12bit analog inputs
Temperature (0.25 to 4.75v = -50C to +150C = -58F to +302F),
System Voltage (0 to 5v = 0 to 25.5 volts)
Communication ports
- COM1 25pin port for radio cable
- COM2 9pin port used for the display module and programming
- COM3 9pin can be configured as an RS-485 port for I/O modules or as an RS-232 port with PTT supprt
- COM4 9pin can be configured as RS-485/RS-232
- COM5 is an Ethernet 100baseT (RJ-45) port
- 11 -
M555 Specifications and Sales Information
programmable logiC Controller
(plC)
model m555
fully programmable with plug-in
memory module
miCro-Comm, modbus rtu and
allen-bradley df1 protoCols
optional front panel display &
expandable i/o
radio, phone line, ethernet & fiber
optiC CommuniCations
simultaneous rtu-rtu & Ctu-rtu
CommuniCations
t
he M555 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M555 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, dedicated
line, phone line, and fiber optic communication
media.
appliCations
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
features
order information
I/O
• 4 Open Collector Outputs (COM1 radio
switching)
Part #
L55
L55A
0-300 baud FSK modem
600 baud FSK modem
Communications
• COM1, Radio Port,
25pin Sub-D Male, RS-232 and RF signals
• COM2, RS-232, 9pin Sub-D Male
• COM3, RS-485 / RS-232, 9pin Sub-D Male
• COM4, RS-485 / RS-232, 9pin Sub-D Male
• COM5, Ethernet 100baseT
• Internal RF MODEM, 0-600 BAUD
CPU and Memory
• 32-bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
Power Source
• 12 VDC Power Input
- 12 -
micro-Comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place your
order or to speak to a sales and service
representative. Or, visit us online at www.
micro-comm-inc.com
m555 plC
i/o
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V, Used only for antenna switching, not
field wire-able
• 2 On-Board Sensor Analog Inputs, 12bit, 0.1% accuracy
Box Temperature, 0-150°F
System Voltage, 0-25.5V
Cpu and memory
• 32-bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
CommuniCations
• COM1, Radio Port
DB25M, RS-232 and RF signals
• COM2, Front Panel Display, Programming
DB9M RS-232 w/flow control lines
• COM3, RS-232/RS-485, DB9M
• COM4, RS-232/RS-485, DB9M
• COM5, Ethernet, 100Base-TX, RJ-45
• Plug In RF MODEM
FSK 0-300, 600, or 1200 BAUD
dimensions
• Height 6.45”
• Width 4.10”
• Depth 4.80” (with personality module)
• Weight 1.25 lb
power sourCe and supplies
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14AWG Supply Connections
• Power Input 10.5-15 VDC, 12VDC Nominal, 8.0A
• Quiescent Current 85mA
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A, Self Resetting Fuse
• COM2 (pin 4) 10.5-15VDC, 2.0A, Self Resetting Fuse
• COM3 (pin 4) 10.5-15VDC, 2.0A, Self Resetting Fuse
• COM4 (pin 4) 10.5-15VDC, 2.0A, Self Resetting Fuse
• The sum of the load currents must be 7.5A or less
• Temperature Range -40 to 50 degC (-40 to 122 degF)
Surrounding Air Temperature
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Real-Time Clock and NVRAM)
• Field Wiring - Use Copper Conductors Only, 60°C
Wire Range, 12-26 AWG
Wire Strip Length, 0.310”
Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
order information:
L55x
Modem:
L55 - 0-300 baud FSK modem
L55A - 0-600 baud FSK modem
L55B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 13 -
M555 Installation Requirements
The installation of the M555 shall comply with all local and national fire and electrical codes, i.e. NFPA
70, National Electric Code. In order to provide proper fire and electrical shock protection, the M555
shall be powered from an isolated power source, use 14 AWG supply wiring provided with an 8A over
current protection fuse. The fuse shall be located at the secondary of the source to properly protect the
power supply secondary conductors. Field wiring shall use 60°C copper conductors. The wire should be
stripped 0.310” and the terminal block tightened to the recommended torque, 0.79 N-m (7.0 lb-in.) DC
control signals should be segregated from AC power and AC control wiring by using separate wire ducts
and separate conduit.
The M555 is an open type device that requires an appropriate enclosure, suitable to the installation site.
The surrounding air temperature of the M555 should not exceed 50°C (122°F).
- 14 -
M555 Lithium Battery Replacement
The internal lithium battery is a technician replaceable item.
Caution: the lithium battery used in this device may present a fire or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic,
Part No. BR-2/3A or Micro-Comm Part No. BAT-004-3 only. Use of another battery may present a risk of
fire or explosion.
To replace the battery, remove power to the unit. Un-plug all of the terminal blocks and communications
cables. Un-mount the unit and place it on a clean working surface. Remove the eight screws on the sides
of the unit and lift the top cover from the mounting base. The battery is clipped into the battery holder
labeled J8. Use a small blade screwdriver to pry the battery clip to the side and up. Then pry on the other
side to fully remove the battery clip. At this point the battery is held in place by the battery holder contact
spring force and it is simple to remove the battery with your fingers. Place a new battery in the battery
holder, matching the orientation of the “+” and “-“ markings on the battery to the battery holder. Replace
the battery clip by pressing it into place. Mate the top cover to the mounting base and re-install the eight
screws. Re-mount the unit and plug all of the cables back into the unit.
Dispose of the battery properly. Keep away from children. Do not disassemble and do not dispose of in
fire.
- 15 -
M1550 PLC
The M1550 is a fifth-generation Micro-Comm controller similar to the M1500 PLC, but with a faster
processor, more memory, ethernet port and an additional COM4 port.
I/O capabilities:
(4)
(4)
(8)
(4)
(2)
(2)
(3)
(1)
(1)
Form C Relay Outputs
Open-collector outputs (COM1 pins used for radio switching)
Discrete inputs (contact closure), (2) high speed pulse, (6) low speed pulse
Analog Inputs (12bit, 0-20mA or 0-5volt dip switch selectable)
Additional 12bit analog inputs, Temperature, System Voltage
Analog Outputs (0-20mA)
RS-232 / RS-485 communication ports
- COM1 25pin port for radio cable
- COM2 9pin port normally used for the display module and programming
- COM4 9pin port RS-232/RS-485
Ethernet 10/100baseT (RJ-45) port
RS-485 communication port
- COM3 is a 4-wire RS-485 port for I/O modules or PLC communication
- 16 -
M1550 Specifications and Sales Information
programmable logiC Controller
(plC)
model m1550
fully programmable with
plug-in memory module
miCro-Comm, modbus rtu
and allen-bradley df1
protoCols
optional front panel
display & expandable i/o
radio, phone line, & fiber
optiC CommuniCations
simultaneous rtu-rtu &
Ctu-rtu CommuniCations
plug-in terminal bloCks
t
he M1550 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M1550 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, Ethernet,
dedicated line, phone line, and fiber optic communication media.
appliCations
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
features
order information
I/O
• 4 Form C Relay Outputs
• 4 Open Collector Outputs
• 8 Optically Isolated Discrete Inputs
(2 are also High Speed Pulse Inputs)
• 4 Analog Inputs, 0-5V or 0-20mA
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, System Voltage
• 2 Analog Outputs, 0-20mA
• 2 High-Speed pulse inputs (uses DI7/DI8)
Part#
L61-L17
L61-L17A
L61-L17B
Communications
• COM1, Radio Port, RS-232 and RF signals
• COM2, Display,/Programming, RS-232
• COM3, RS-485, Expansion I/O
• COM4, RS-232/RS-485
• COM5, Ethernet, 100Base-TX
• RF MODEM, 0-300, 600, or 1200 BAUD
Power Source
• 12 VDC Power Input
- 17 -
0-300 baud FSK modem
600 baud FSK modem
1200 baud FSK modem
micro-Comm Automation has
been providing process control solutions
for more than 30 years.
Call us at (913) 390-4500 to place
your order or to speak to a sales and service representative. Or, visit us online at
www.micro-comm-inc.com
m1550 plC
i/o
• 4 Form C Relay Outputs, 4A @ 250VAC General Use (4A @ 30VDC Resistive)
B300 Pilot Duty, Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V
• 8 Optically Isolated Discrete Inputs, Dry Contact or Open Collector to GND,
Optically Isolated, 4mA Wetting Current, 12VDC Wetting Voltage
2 High Speed Pulse Inputs (inputs DI7 and DI8)
0-1000Hz, 50% duty cycle, contact closure or open collector to GND
6 Low Speed pulse inputs (inputs DI1-DI6)
0-50Hz, 50% duty cycle, contact closure or open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient,
+/- 24V over voltage on any one Analog Input
• 2 Additional On-Board Sensor Analog Inputs, 12bit
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 12 bit, 0.25% accuracy
900 ohm maximum loop resistance
Cpu and memory
• 32bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
dimensions
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
CommuniCations
• COM1, DB25M, RS-232 and RF signals
• COM2, DB9M, RS-232 w/flow control lines
• COM3, RS-485 4 wire, Pluggable Terminal Block
• COM4, RS-232/RS-485, 9pin Sub-D
• COM5, Ethernet, 100Base-TX, RJ-45
• Plug In RF MODEM
FSK 0-300, 600, or 1200 BAUD
field wiring
• Use Copper Conductors Only, 60°C
• Wire Range, 12-26 AWG
• Wire Strip Length, 0.310”
• Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
power sourCe and supplies
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14 AWG Supply Connections
• Power Input 10.5-15VDC, 12VDC Nominal, 8.0A
• Resistive Loads Only, DC Use
• The sum of the load currents must be 7.5A or less
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A
• COM2 (pin 4) 10.5-15VDC, 2.0A
• COM3 (12V) 10.5-15VDC, 2.0A
• COM4 (pin 4) 10.5-15VDC, 2.0A
• 24VDC @ 20mA per Terminal, Sensor Excitation power supply
• Temperature Range -40 to 50 degC (-40 to 122 degF) Surrounding Air Temp
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Real-Time Clock and NVRAM)
order information:
L61-xxxx
Modem:
L17 - 0-300 baud FSK modem
L17A - 0-600 baud FSK modem
L17B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 18 -
M1550 Installation Requirements
The installation of the M1550 shall comply with all local and national fire and electrical codes, i.e. NFPA
70, National Electric Code. In order to provide proper fire and electrical shock protection, the M1550
shall be powered from an isolated power source, use 14 AWG supply wiring provided with an 8A over
current protection fuse. The fuse shall be located at the secondary of the source to properly protect the
power supply secondary conductors.
Field wiring should use 60°C copper conductors. The pluggable terminal blocks will accept 12-26 AWG
wire. The wire should be stripped 0.310” and the terminal block tightened to the recommended torque,
0.79 N-m (7.0 lb-in.) Use appropriate gauge wire for the control circuit loads. Minimum 22 AWG wire is
recommended for the Discrete Inputs. Minimum 22 AWG, twisted, shielded wire is recommended for the
Analog Inputs and Analog Outputs. 14 AWG wire is recommended for the Discrete (Relay) Outputs. DC
control signals should be segregated from AC power and AC control wiring by using separate wire ducts
and separate conduit.
The M1550 is an open type device that requires an appropriate enclosure, suitable to the installation site.
The surrounding air temperature of the M1550 should not exceed 50°C (122°F).
- 19 -
M1550 Lithium Battery Replacement
The internal lithium battery is a technician replaceable item.
Caution: the lithium battery used in this device may present a fire or chemical burn hazard if mistreated.
Do not recharge, disassemble, heat above 100°C (212°F) or incinerate. Replace battery with Panasonic,
Part No. BR-2/3A or Micro-Comm Part No. BAT-004-3 only. Use of another battery may present a risk of
fire or explosion.
To replace the battery, remove all power to the unit. Caution – power to the relay contacts may be supplied from other equipment. Un-plug all of the terminal blocks and communications cables. Un-mount
the unit and remove the four screws on the sides of the unit. Place the unit on a clean working surface and
lift the mounting base from the face plate. The battery is located in the center of the face plate, clipped
into the battery holder labeled J15. Use a small blade screwdriver to pry the battery clip to the side and
up. Then pry on the other side to fully remove the battery clip. At this point the battery is held in place
by the battery holder contact spring force and it is simple to remove the battery with your fingers. Place a
new battery in the battery holder, matching the orientation of the “+” and “-“ markings on the battery to
the battery holder. Replace the battery clip by pressing it into place. Mate the mounting base to the face
plate and re-install the four screws. Re-mount the unit and plug all of the cables back into the unit.
Dispose of the battery properly. Keep away from children. Do not disassemble and do not dispose of in
fire.
- 20 -
M1650, M655 and M1600 PLC
The M1650 and M655 are sixth-generation Micro-Comm controllers similar to the M1550/M555 PLCs,
but with the additional of a built-in Ethernet coprocessor (uLynx) in place of the COM5 Ethernet found
in the older PLCs. The new uLynx Ethernet module provides simultaneous master connections to other
controllers as well as multiple slave connections utilitizing Micro-Comm CTU32, Modbus/TCP and
Ethernet/IP protocols. It also includes a built-in web server for diagnostics.
The M1600 is identical to the M1650 except the Ethernet connection and coprocessor is not included.
- 21 -
M1650 Specifications and Sales Information
PROGRAMMABLE LOGIC CONTROLLER
(PLC)
MODEL M1650
FULLY PROGRAMMABLE WITH
PLUG-IN MEMORY MODULE
MICRO-COMM, MODBUS RTU
AND ALLEN-BRADLEY DF1
PROTOCOLS
OPTIONAL FRONT PANEL
DISPLAY & EXPANDABLE I/O
SERIAL AND ETHERNET
COMMUNICATIONS
SIMULTANEOUS RTU-RTU &
CTU-RTU COMMUNICATIONS
PLUG-IN TERMINAL BLOCKS
T
he M1650 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M1650 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, serial and
Ethernet communication media.
APPLICATIONS
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
FEATURES
ORDER INFORMATION
I/O
• 4 Form C Relay Outputs
• 4 Open Collector Outputs
• 8 Optically Isolated Discrete Inputs
(2 are also High Speed Pulse Inputs)
• 4 Analog Inputs, 0-5V or 0-20mA
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, System Voltage
• 2 Analog Outputs, 0-20mA
• 2 High-Speed pulse inputs
Part#
548-001-L17
548-001-L17A
548-001-L17B
Communications
• COM1, Radio Port, RS-232
Optional RF MODEM, 0-600 or 1200 baud
• COM2, Display,/Programming, RS-232
• COM3, RS-485, Expansion I/O
• COM4, RS-232/RS-485
• Ethernet, 100Base-TX
Power Source
• 12 VDC Power Input
- 22 -
0-300 baud FSK modem
600 baud FSK modem
1200 baud FSK modem
Micro-Comm has been providing
process control solutions for more than
30 years.
Call us at (913) 390-4500 or visit us
online at www.micro-comm-inc.com
M1650 PLC
I/O
• 4 Form C Relay Outputs, 4A @ 250VAC General Use (4A @ 30VDC Resistive)
B300 Pilot Duty, Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V
• 8 Optically Isolated Discrete Inputs, Dry Contact or Open Collector to GND,
Optically Isolated, 4mA Wetting Current, 12VDC Wetting Voltage
2 High Speed Pulse Inputs (inputs DI7 / DI8)
0-1000Hz, 50% duty cycle, contact closure or open collector to GND
6 Low Speed pulse inputs (inputs DI1-DI6)
0-50Hz, 50% duty cycle, contact closure or open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient,
+/- 24V over voltage on any one Analog Input
• 2 Additional On-Board Sensor Analog Inputs, 12bit
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 12 bit, 0.25% accuracy
900 ohm maximum loop resistance
• Expandable to 256 external modules
CPU AND MEMORY
• 32bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
• Realtime Clock with Lithium Battery Backup
DIMENSIONS
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
• Ethernet coprocessor: 32-bit running 147.5MHz
with 8MB SDRAM, 2MB FLASH
COMMUNICATIONS
• COM1, DB25M, RS-232
Optional RF MODEM FSK 0-300, 600, or 1200 baud (Bell 202)
•
•
•
•
FIELD WIRING
COM2, DB9M, RS-232 w/flow control lines
COM3, RS-485 4 wire, Pluggable Terminal Block
COM4, RS-232/RS-485, 9pin Sub-D
Ethernet, 100Base-TX, RJ-45
POWER SOURCE AND SUPPLIES
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14 or 16 AWG Supply Connections
• Power Input 10.5-15VDC, 12VDC Nominal 0.5A, 8.0A Max with external loads
• Use Copper Conductors Only, 60°C
• Wire Range, 12-26 AWG
• Wire Strip Length, 0.310”
• Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
ORDER INFORMATION
• Quiescent Current 200mA @ 13.8VDC
• Resistive Loads Only, DC Use
• The sum of the load currents must be 7.5A or less
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A Combined
• COM2 (pin 4) 10.5-15VDC, 1.0A
• COM3 (12V) 10.5-15VDC, 1.0A
• COM4 (pin 4) 10.5-15VDC, 1.0A
• 24VDC @ 20mA per Terminal, Sensor Excitation power supply
• Temperature Range -40 to 50 degC (-40 to 122 degF) Surrounding Air Temp
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Realtime Clock and NVRAM)
548-001-XXXX
Modem:
L17 - 0-300 baud FSK modem
L17A - 0-600 baud FSK modem
L17B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 23 -
M655 Specifications and Sales Information
PROGRAMMABLE LOGIC CONTROLLER
(PLC)
MODEL M655
FULLY PROGRAMMABLE WITH PLUG-IN
MEMORY MODULE
MICRO-COMM, MODBUS RTU AND
ALLEN-BRADLEY DF1 PROTOCOLS
OPTIONAL FRONT PANEL DISPLAY &
EXPANDABLE I/O
SERIAL AND ETHERNET
COMMUNICATIONS
SIMULTANEOUS RTU-RTU & CTU-RTU
COMMUNICATIONS
T
he M655 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M655 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio, serial and
Ethernet communication media.
FEATURES
ORDER INFORMATION
I/O
• 4 Open Collector Outputs (COM1 radio
switching)
Part #
548-002-L17
548-002-L17A
548-002-L17B
0-300 baud FSK modem
600 baud FSK modem
1200 baud FSK modem
Communications
• COM1, Radio Port,
25pin Sub-D Male, RS-232
Optional RF MODEM, 0-600 or 1200 baud
• COM2, RS-232, 9pin Sub-D Male
• COM3, RS-485 / RS-232, 9pin Sub-D Male
• COM4, RS-485 / RS-232, 9pin Sub-D Male
• Ethernet, 100base-TX
APPLICATIONS
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
CPU and Memory
• 32-bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
Power Source
• 12 VDC Power Input
- 24 -
Micro-Comm has been providing
process control solutions for more than
30 years.
Call us at (913) 390-4500 or visit us
online at www.micro-comm-inc.com
M655 PLC
I/O
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V, Used only for antenna switching, not
field wire-able
• 2 On-Board Sensor Analog Inputs, 12bit, 0.1% accuracy
Box Temperature, 0-150°F
System Voltage, 0-25.5V
CPU AND MEMORY
• 32-bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
• Realtime Clock with Lithium Battery Backup
• Ethernet coprocessor: 32-bit running 147.5MHz
with 8MB SDRAM, 2MB FLASH
COMMUNICATIONS
• COM1, Radio Port DB25M, RS-232
Optional RF MODEM FSK 0-300, 600, or 1200 baud (Bell 202)
• COM2, Front Panel Display, Programming
DB9M RS-232 w/flow control lines
• COM3, RS-232/RS-485, DB9M
• COM4, RS-232/RS-485, DB9M
• Ethernet, 100Base-TX, RJ-45
DIMENSIONS
• Height 6.45”
• Width 4.10”
• Depth 4.80” (with personality module)
• Weight 1.25 lb
POWER SOURCE AND SUPPLIES
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14AWG Supply Connections
• Power Input 10.5-15 VDC, 12VDC Nominal 0.5A, 8.0A Max with
external loads
• Quiescent Current 200mA @ 13.8VDC
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A, Self Resetting Fuse
• COM2 (pin 4) 10.5-15VDC, 1.0A, Self Resetting Fuse
• COM3 (pin 4) 10.5-15VDC, 1.0A, Self Resetting Fuse
• COM4 (pin 4) 10.5-15VDC, 1.0A, Self Resetting Fuse
• The sum of the load currents must be 7.5A or less
• Temperature Range -40 to 50 degC (-40 to 122 degF)
Surrounding Air Temperature
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Real-Time Clock and NVRAM)
• Field Wiring - Use Copper Conductors Only, 60°C
Wire Range, 12-26 AWG
Wire Strip Length, 0.310”
Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
ORDER INFORMATION
548-002-XXXX
Modem:
L17 - 0-300 baud FSK modem
L17A - 0-600 baud FSK modem
L17B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 25 -
M1600 Specifications and Sales Information
PROGRAMMABLE LOGIC CONTROLLER
(PLC)
MODEL M1600
FULLY PROGRAMMABLE WITH
PLUG-IN MEMORY MODULE
MICRO-COMM, MODBUS RTU
AND ALLEN-BRADLEY DF1
PROTOCOLS
OPTIONAL FRONT PANEL
DISPLAY & EXPANDABLE I/O
SIMULTANEOUS RTU-RTU &
CTU-RTU COMMUNICATIONS
PLUG-IN TERMINAL BLOCKS
T
he M1600 PLC is a reliable, fullfeatured Programmable Logic
Controller. It is a “smart” unit
providing both programmability and
interchangeability through a plug-in memory
module. As an integrated component of a
Supervisory Control and Data Acquisition System
(SCADA), the M1600 provides input and output
(I/O) monitoring and control with simultaneous
“distributed” (RTU to RTU) and “central” (CTU
to RTU) type control operations. Its universal
communications interface can provide robust
control and data transfer via radio and serial
communication media.
APPLICATIONS
SCADA Systems:
Water Distribution Control and Management
Waste Water Control and Monitoring
Golf Course Irrigation
Agricultural Irrigation
Gas and Oil Monitoring
Electrical Distribution Monitoring
Local Control:
Water Booster Pump Stations
Sewage Lift Stations
Constant and Variable Speed Pump Stations
Metering Stations
Water and Waste Water Treatment Plants
FEATURES
ORDER INFORMATION
I/O
• 4 Form C Relay Outputs
• 4 Open Collector Outputs
• 8 Optically Isolated Discrete Inputs
(2 are also High Speed Pulse Inputs)
• 4 Analog Inputs, 0-5V or 0-20mA
• 2 Additional On-Board Sensor Analog Inputs
Box Temperature, System Voltage
• 2 Analog Outputs, 0-20mA
• 2 High-Speed pulse inputs
Part#
M1600-L17
M1600-L17A
M1600-L17B
Communications
• COM1, Radio Port, RS-232
Optional RF MODEM, 0-600 or 1200 baud
• COM2, Display,/Programming, RS-232
• COM3, RS-485, Expansion I/O
• COM4, RS-232/RS-485
Power Source
• 12 VDC Power Input
- 26 -
0-300 baud FSK modem
600 baud FSK modem
1200 baud FSK modem
Micro-Comm has been providing
process control solutions for more than
30 years.
Call us at (913) 390-4500 or visit us
online at www.micro-comm-inc.com
M1600 PLC
I/O
• 4 Form C Relay Outputs, 4A @ 250VAC General Use (4A @ 30VDC Resistive)
B300 Pilot Duty, Relay contact to coil isolation 4000Vrms
• 4 Open Collector Outputs, 100mA @ 12VDC (COM1 pins)
Internal clamping diode to 12V
• 8 Optically Isolated Discrete Inputs, Dry Contact or Open Collector to GND,
Optically Isolated, 4mA Wetting Current, 12VDC Wetting Voltage
2 High Speed Pulse Inputs (inputs DI7 / DI8)
0-1000Hz, 50% duty cycle, contact closure or open collector to GND
6 Low Speed pulse inputs (inputs DI1-DI6)
0-50Hz, 50% duty cycle, contact closure or open collector to GND
• 4 Analog Inputs, 12bit, 0-5V or 0-20mA, 0.1% accuracy,
0.001%/degC temp. coefficient,
+/- 24V over voltage on any one Analog Input
• 2 Additional On-Board Sensor Analog Inputs, 12bit
Box Temperature, 0-150°F
System Voltage, 0-25.5V
• 2 Analog Outputs, 0-20mA, 12 bit, 0.25% accuracy
900 ohm maximum loop resistance
• Expandable to 256 external modules
CPU AND MEMORY
• 32bit MCU running 25MHz
• 1MB FLASH, Application Program
• 1MB RAM, Data
• 9MB Serial FLASH, Configuration
• Realtime Clock with Lithium Battery Backup
DIMENSIONS
• Height 9.75”
• Width 6.85”
• Depth 3.35” (with personality module)
• Weight 2.3 lb
COMMUNICATIONS
• COM1, DB25M, RS-232
Optional RF MODEM FSK 0-300, 600, or 1200 baud (Bell 202)
FIELD WIRING
• COM2, DB9M, RS-232 w/flow control lines
• COM3, RS-485 4 wire, Pluggable Terminal Block
• COM4, RS-232/RS-485, 9pin Sub-D
• Use Copper Conductors Only, 60°C
• Wire Range, 12-26 AWG
• Wire Strip Length, 0.310”
• Recommended Tightening Torque, 0.79 N-m / 7.0 lb-in.
POWER SOURCE AND SUPPLIES
• Power Supply 12VDC Isolated Source with 8A Fuse,
Use 14 or 16 AWG Supply Connections
• Power Input 10.5-15VDC, 12VDC Nominal 0.5A, 8.0A Max with external loads
ORDER INFORMATION
• Quiescent Current 200mA @ 13.8VDC
• Resistive Loads Only, DC Use
• The sum of the load currents must be 7.5A or less
• COM1 (pins 9,10,11) 10.5-15VDC, 4.0A Combined
• COM2 (pin 4) 10.5-15VDC, 1.0A
• COM3 (12V) 10.5-15VDC, 1.0A
• COM4 (pin 4) 10.5-15VDC, 1.0A
• 24VDC @ 20mA per Terminal, Sensor Excitation power supply
• Temperature Range -40 to 50 degC (-40 to 122 degF) Surrounding Air Temp
• Internal Battery Lithium 3V, 1200mAh, 2/3A Size
(Realtime Clock and NVRAM)
M1600 - XXXX
Modem:
L17 - 0-300 baud FSK modem
L17A - 0-600 baud FSK modem
L17B - 1200 baud FSK modem
Micro-Comm, Inc. • 15895 S Pflumm Rd • Olathe, KS 66062 • (913) 390-4500 • fax: (913) 390-4550 • www.micro-comm-inc.com
- 27 -
Expansion I/O Module Setup
(EAI8 Module)
The EDI16, EDO16, EDO6R, EAI8 and EAO4 modules allow an
RTU to have additional discrete or analog inputs/outputs. These
modules are normally connected to the RTU using the COM3
terminal block or 9-pin port. Both power and communication lines
are provided by the RTU.
I/O Module
RTU (Master)
TX+
TX+
TX-
TX-
RX+
RX+
RX-
RX-
SGND
SGND
+12V
GND
+12V
GND
Dip switches set both the address of the module and the baud rate
used by the RS-485 connection to the RTU.
ON
1 2 3 4 5 6 7 8
Switches 1-7 set the address:
Module #1 = switches 1-7 off
Module #2 = switch 1 on, 2-7 off
etc.
The baud rate is set using switch 8:
9600 baud = switch 8 off
19200 baud = switch 8 on
The default baud rate used by the RTU is 9600 baud. This can be changed in the RTU Configuration 32
program if necessary. The normal COM3 Mirco-Comm I/O polling loop will take around 2.6 seconds to
update all modules at 9600 or around 0.7 seconds at 19200 baud. Micro-Comm I/O protocol on COM3
currently supports (4) EDI16, (4) EDO16, (4) EAO4 and (2) EAI8 modules.
All modules use Modbus RTU protocol and will be communicated with automatically using the “MicroComm I/O” protocol or can be communicated with manually using the MESSAGE() or MIOMSG()
functions in script.
Note:
The Micro-Comm I/O polling loop was originally designed to extend the on-board physical I/O of an
S4500. It starts with locations that are outside the range of the S4500 on-board I/O: writing DO17-DO80,
AO1-AO16 and reading DI17-DI80, AI17-AI32.
- 28 -
Communication Port Pinouts
COM1 (25 pin Male RS-232 and Radio)
1 - GND
2 - TXD
3 - RXD
4 - RTS
5 - CTS
6 - DSR
7 - GND
8 - DCD
9 - 12VDC (4A)
10 - 12VDC (4A)
12 - Gain Set A
13 - Gain Set B
14 - TXA
16 - RXA
18 - PTT
19 - /PTT
20 - DTR (12VDC) Note: The M555 and M655 use the RS-232 driver output for this pin (not 12VDC).
21 - DO1 (open collector outputs - not available on the S4500)
22 - DO2
23 - DO3
24 - DO4
25 - GND
Other COM Ports (9 pin Male RS-232)
2 - RXD
3 - TXD
4 - DTR
5 - GND
7 - RTS
8 - CTS
Other COM Ports (9 pin Male using RS-485 Mode)
2 - RX(-)
3 - TX(-)
5 - GND
7 - TX(+)
8 - RX(+)
- 29 -
Display Module Operation
The Micro-Comm display module allows the operator to view up to 32 analog levels, 32 discrete input
conditions, 32 discrete output conditions, change up to 32 stop/start setpoints, change all 8 output timer
settings (both on and off delays) , view/change the user variables (X1-X32) and view/change user
memory with up to 128 screens. In addition to these options there is a debug mode available that will let
the operator turn on and off outputs, check inputs and view communications.
TOWER LEVEL
DISCHARGE
12.9 FT
120 PSI
1
2
3
4
5
6
7
8
9
YES
NO
.
0
SPACE
BKSP
ENTER
General Instructions:
• Use the Up/Down arrows to move between categories (analog level displays, discrete inputs and
outputs, timer settings, stop/start setpoints, user variables and user memory screens)
• Use the Right/Left arrows to move between items (which analog screen, timer output etc.)
• Press ENTER to start entering a value for timers or setpoints.
• Use the number keys to enter values. Use BKSP if you need to backspace.
• Press ENTER when done with each entry.
Special Modes:
• Type .123 to get into the debug mode. Then hit the ENTER key to see a menu of choices.
• Type .456 to get into the view communications screen. All radio communication data will then appear
on the display. Press the up arrow to get out of this mode.
• Type .741 to temporarily go from CTU32 mode to display mode. Note: This will only work if
“hankshake” is disabled ahead of time since the RTS line will normally be off - see setup below.
NOTE: The display communicates with the RTU using a serial cable (9 pin to RJ-11). The protocol
options should be set to 9600 baud, 8 data bits, none parity, echo disabled. These are the factory
defaults. To set a display back to factory defaults, hold down the PERIOD, ZERO and F1 keys during
power up and then press the F1 key to load the defaults. The default for “handshake” is “enabled”
(this will need to be disabled if you plan to use the temporary display mode described above).
To change these parameters, press the PERIOD, ZERO and F1 keys any time after power up. If the
handshake was enabled you will need to temporary provide that (CTS input pin high) in order to get
into the setup menu.
- 30 -
RTU32 Protocol I/O Mapping
The new RTU32 protocol is currently available only by using Message() commands from another RTU32
PLC. When being polled from a C2000 or Card Rack CTU, the older “Enhanced Control Card” protocol
will be used. The table below shows how the physical I/O in the S4500 is mapped for both protocols:
RTU32 Protocol Layout
S4500
Relay outputs DO1-DO8
Discrete inputs DI1-DI16
EDI Modules 1,2 DI17-DI48
Analog inputs AI1-AI8
M8030-M8033
M8012
M8013,M8014
Station Address #1
Discrete outputs 1-8
Discrete inputs 1-16
Expansion inputs 1-32
Analog inputs 1-8
Analog Outputs 1-4
Flow Rate (16bit)
Flow Total (32bit)
S4500
Open Collector DO9-DO16
EDI Module 3 DI49-DI64
EDI Modules 4,5 DI65-DI96
Analog inputs AI9-AI16
M8130-M8133
M8112
M8113, M8114
Station Address #2
Discrete outputs 1-8
Discrete inputs 1-16
Expansion inputs 1-32
Analog inputs 1-8
Analog Outputs 1-4
Flow Rate (16bit)
Flow Total (32bit)
Old RTU Protocol Layout
S4500
Relay outputs DO1-DO6
Discrete inputs DI1-DI6
Discrete inputs DI9-DI16
EDI Module #1 (DI17-DI32)
DO9-DO16 status
Low 8-bits of analogs AI1-AI6
Pulse Input PI1
M8030-M8031
S4500
Open Collector DO9-DO14
Discrete Inputs DI7-DI8
EDI Module #4 (DI65-DI68)
EDI Module #2 (DI33-DI48)
Relays Dones (DO1TD-DO8TD)
DO9-DO16 status
Low 8-bits of analogs AI7-AI12
Pulse Input PI2
M8130-M8131
Enhanced Control Card #1
Discrete outputs 1-6
Discrete inputs 1-6
Input Expansion Module inputs 1-8
Input Expansion Module inputs 9-24
Input Expansion Module inputs 25-32
Analog inputs A,B,C,D,E,F
Pulse Input
Analog Outputs 1-2 (8 bit)
Enhanced Control Card #2
Discrete outputs 1-6
Discrete inputs 1-2
Discrete inputs 3-6
Input Expansion Module inputs 1-16
Input Expansion Module inputs 17-24
Input Expansion Module inputs 25-32
Analog inputs A,B,C,D,E,F
Pulse Input
Analog Outputs 1-2 (8 bit)
- 31 -
The table below shows how the physical I/O on the M1500 or M1550 is mapped for both protocols:
RTU32 Protocol Layout
M1500Station Address #1
Relay outputs DO1-DO4
Discrete outputs 1-4
Discrete inputs DI1-DI8
Discrete inputs 1-8
EDI Modules 1,2 DI17-DI48
Expansion inputs 1-32
Analog inputs AI1-AI4
Analog inputs 1-4
Analog outputs AO1,AO2
Analog outputs 1-2
M8030-M8033
Analog outputs 3-4
M8012
Flow Rate (16bit)
M8013,M8014
Flow Total (32bit)
M1500Station Address #2
Script DO9-DO16
Discrete outputs 1-8
EDI Module 3 DI49-DI64
Discrete inputs 1-16
EDI Modules 4,5 DI65-DI96
Expansion inputs 1-32
M8130-M8133
Analog Outputs 1-4
M8112
Flow Rate (16bit)
M8113,M8114
Flow Total (32bit)
Old RTU Protocol Layout
M1500Enhanced Control Card #1
Relay outputs DO1-DO4
Discrete outputs 1-4
Discrete inputs DI1-DI6
Discrete inputs 1-6
Script DI9-DI16
Input Expansion Module inputs 1-8
EDI Module #1 (DI17-DI32) Input Expansion Module inputs 9-24
Script DO9-DO16 status
Input Expansion Module inputs 25-32
Low 8-bits of analogs AI1-AI4 Analog inputs A,B,C,D
Pulse Input PI1 (DI7)
Pulse Input
M8030-M8031
Analog Outputs 1-2 (8bit)
M1500Enhanced Control Card #2
Script DO9-DO14
Discrete outputs 1-6
Discrete Inputs DI7-DI8
Discrete inputs 1-2
EDI Module #4 (DI65-DI68)
Discrete inputs 3-6
EDI Module #2 (DI33-DI48)
Input Expansion Module inputs 1-16
Relay Dones (DO1TD-DO8TD)
Input Expansion Module inputs 17-24
Script DO9-DO16 status
Input Expansion Module inputs 25-32
Low 8-bits of Script AI7-AI12
Analog inputs A,B,C,D,E,F
Pulse Input PI2 (DI8)
Pulse Input
M8130-M8131
Analog Outputs 1-2 (8bit)
- 32 -
Allen-Bradley DF1 and Modbus Protocol Support
All RTU32 PLCs can use Allen-Bradley DF1 or Modbus RTU protocols. The information below describes what protocol
options are supported and how the data is mapped to physical I/O or memory locations in the PLC:
DF1 Specifications
Data Link Layer Protocol:DF1 Half-Duplex Master/Slave, DF1 Full-Duplex or DF1 Radio Modem
Error Checking:
CRC-16
Message Packet Formats:
SLC-500 Protected Typed Logical Reads/Writes
PLC-5 Word Range Read/Write
PLC-2 Physical Read/Write
Basic Command Set - Unprotected Read/Write
Modbus Specifications
Protocol Mode:
Modbus RTU Master/Slave and Modbus/TCP
Error Checking:
CRC-16
Function Codes Supported:
1-Read Coil Status, 2-Read Input Status, 3-Read Holding Registers,
4-Read Input Registers, 5/15-Force Single/Multiple Coils,
6/16-Preset Single/Multiple Registers
DF1 SLC-500 File
N9:0
N9:1
N9:2
N9:3
N9:4
N9:5
N9:6
N9:7
N9:8
N9:9
Modbus 4x Reg
Modbus I/O
PLC I/O and Memory Registers
r
r
r
r
r
r
r
r
r
r
4x0001
4x0002
4x0003
4x0004
4x0005
4x0006
4x0007
4x0008
4x0009
4x0010
r
r
r
r
r
r
r
r
r
r
10001-10016
10017-10032
10033-10048
10049-10064
10065-10080
10081-10096
10097-10112
10113-10128
10129-10144
10145-10160
r
r
r
r
r
r
r
r
r
r
N10:0
N10:1
N10:2
N10:3
N10:4
N10:5
N10:6
N10:7
N10:8
N10:9
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
4x0011
4x0012
4x0013
4x0014
4x0015
4x0016
4x0017
4x0018
4x0019
4x0020
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
00001-00016
00017-00032
00033-00048
00049-00064
00065-00080
00081-00096
00097-00112
00113-00128
00129-00144
00145-00160
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
r/w
N11:0 – N11:4
r/w
N12:0 - N12:63
r/w
N13:0 - N13:63
r
N14:0 - N14:31
Discrete Inputs DI1-DI16
EDI #1 Discrete Inputs DI17-DI32
EDI #2 Discrete Inputs DI33-DI48
EDI #3 Discrete Inputs DI49-DI64
EDI #4 Discrete Inputs DI65-DI80
DI81-DI96
DI97-DI112
DI113-DI128
DI129-DI144
DI145-DI160
Discrete Outputs DO1-DO16
EDO #1 Discrete Outputs DO17-DO32
EDO #2 Discrete Outputs DO33-DO48
EDO #3 Discrete Outputs DO49-DO64
EDO #4 Discrete Outputs DO65-DO80
DO81-DO96
DO97-DO112
DO113-DO128
DO129-DO144
DO145-DO160
DO81-DO160
4x0021-4x0084 r/w
30001-30064
r
AO1-AO64
4x0085-4x0148
r
30065-30128
r
AI1-AI64
r/w
4x0149-4x0180 r/w
30129-30160
r
PI1-PI32
N15:0 - N15:63
r/w
4x0601-4x0664 r/w
Stop/Starts 1-32 STOP1,START1,STOP2,START2 etc.
N16:0 - N16:191
r/w
4x0201-4x0424 r/w
X Variables X1-X224 (16 bit words)
4x0701-4x0764
Timer Variables TSEC1-TSEC64 (16 bit @ 1sec/bit)
N17:0 - N17:63
r
N19:0 - N19:15
r/w
N20:0 - N20:99
N21:0 - N21:99
N22:0 - N22:99
…
N109:0 - N109:99
r/w
r/w
r/w
r/w
r
4x1201-4x1216 r/w
4x3000-4x3099
4x3100-4x3199
4x3200-4x3299
…
4x11900-4x11999
ON/OFF Timer Settings (ON1,OFF1,ON2,OFF2 etc.)
r/w
r/w
r/w
User Memory Locations 0-99 (16 bit words)
User Memory Locations 100-199
User Memory Locations 200-299
…
User Memory Locations 8900-8999
r/w
- 33 -
Allen-Bradley Ethernet/IP and Modbus/TCP Protocol Support
When RTU32 PLCs are connected using the µLynx Ethernet Coprocessor (or then have an internal µLynx like the M1650 or
M655), they can be communicated with using Allen-Bradley SLC PCCC, CIP Data Table Messages, Generic CIP Messages or
Modbus /TCP protocol. The information below describes what protocol options are supported and how the data is mapped to
physical I/O or memory locations in the PLC:
Note: Both unconnected and connected Ethernet/IP explicit message styles are supported.
SLC PCCC
N9:0
N9:1
N9:2
N9:3
r
r
r
r
N10:0
N10:1
N10:2
N10:3
Modbus/TCP
Modbus/TCP
4x0001
4x0002
4x0003
4x0004
r
r
r
r
10001-10016
10017-10032
10033-10048
10049-10064
r
r
r
r
r
r
r
r
4x0011
4x0012
4x0013
4x0014
r
r
r
r
00001-00016
00017-00032
00033-00048
00049-00064
N12:0 - N12:15
r
4x0021-4x0036
r
N13:0 - N13:15
r
4x0085-4x0100
N14:0 - N14:15
r
N20:0 - N20:99
N21:0 - N21:99
N22:0 - N22:99
…
r/w
r/w
r/w
CIP (Class,Inst,Attrib)
M1650 I/O and Memory Registers
(108, 1, 1-16)
(108, 1, 17-32)
(108, 1, 33-48)
(108, 1, 49-64)
r
r
r
r
Discrete Inputs DI1-DI16
Discrete Inputs DI17-DI32
Discrete Inputs DI33-DI48
Discrete Inputs DI49-DI64
r
r
r
r
(111, 1, 1-16)
(111, 1, 17-32)
(111, 1, 33-48)
(111, 1, 49-64)
r
r
r
r
Discrete Outputs DO1-DO16
Discrete Outputs DO17-DO32
Discrete Outputs DO33-DO48
Discrete Outputs DO49-DO64
30001-30016
r
(112, 1, 1-16)
r
AO1-AO16
r
30065-30080
r
(109, 1, 1-16)
r
AI1-AI16
4x0149-4x0164
r
30129-30144
r
(110, 1, 1-16)
r
PI1-PI16
4x3000-4x3099
4x3100-4x3199
4x3200-4x3299
…
r/w
r/w
r/w
CIP Data Table Support
STATION_xx
GROUP_xxx
PLC_STATUS
Mx
Ix
Fx
Dx
(40, 1, 0-99)
(40, 1, 100-199)
(40, 1, 200-255)
r/w
r/w
r/w
User Memory Locations 0-99 (16 bit words)
User Memory Locations 100-199
User Memory Locations 200-299
…
Stations HH through WW (station data structure format - 100 words max)
Groups 001-255 (group data structure format - 50 words max)
(same format as control logix add-on instruction)
User Memory - 1 word INT starting at word offset x
User Memory - 1 word INT starting at word offset x
User Memory - 2 word FLOAT starting at word offset x
User Memory - 2 word DINT starting at word offset x
- 34 -
RTU Configuration 32
Program Installation
A new version of RTU Configuration is required for programming the S4500 and later 32 bit PLCs. For
lack of a better name, this new program is called “RTU Configuration 32”. Throughout this manual the
program will be called “RTU Configuration 32” or “RTU Config”.
RTU Configuration 32 currently runs on Windows 7 Pro and later, Linux and Mac OS X 10.7 and later.
To Install the Windows version, follow the steps below:
When upgrading to a new version of the program, go to the Control Panels in Windows and double-click
on Add/Remove Programs. Look through the list and remove any old versions of RTU Configuration.
1) Insert the CD into the CD-ROM Drive or download the setup program.
2) RUN the SETUP program located on the CD-ROM.
3) Follow the prompts and do a typical install.
4) After installation, the program icon will appear in the Start menu’s Program list.
When running the configuration program for the first time you will need to look at the serial port setup
screen to make sure you have the correct COM port number selected. The port setup is located in the
program’s “Edit - Preferences...” menu. Connection to the PLC is by means of a Null-modem cable from
the computer’s RS-232 port to the PLC’s COM2 port (display port).
- 35 -
RTU Information Screen
The RTU Information screen contains version, date, checksums, user information, address switch settings
as well as a picture of the RTU. This information about the RTU will be available after the user has read
the Personality Module. The Job Name and Site Name fields can be changed if necessary and the User
Name and Last Programmed will reflect who made the most recent change. All the “User” information is
sent to the RTU whenever the personality data is programmed.
- 36 -
Configuration Parameters
The screen below shows a sample RTU Configuration dialog box. This screen is where all the operational
parameters stored in the Personality Module can be changed (radio communications parameters, output
timer settings, automote control settings and stop/start setpoints).
To retrieve the personality data from an RTU, click on the blue down arrow icon or select Read
Personality Data from the Transfer menu. After making changes, click the blue up arrow icon or select
Program Personality Data from the Transfer menu.
- 37 -
RTU Configuration Parameters
Model Number
The model of the RTU being configured is selected and shown here.
Protocol
The protocol selection for the radio communications port (COM1). Options include Micro-Comm
RTU32, DF1 Half-Duplex Slave, DF1 Half-Duplex Master, DF1 Full-Duplex, DF1 Radio Modem,
Modbus RTU Slave, Modbus RTU Master or Modbus/TCP.
Baud Rate
This selects the speed for the radio communications port (COM1). 110, 300, 600, 1200, 2400, 4800,
9600, 19200, 38400, 57600 and 115200 bps are supported.
Parity
Parity checking mode (Even, Odd or None).
Data Bits
The number of data bits used by the radio port (5, 6, 7 or 8).
Stop Bits
The number of stop bits used by the radio port (1 or 2).
PTT
Time in milliseconds that will occur after the radio is keyed and before the data is sent out the radio port.
This should normally be set to 250 msec or more for Micro-Comm RTU communications using conventional radios. Data radios will allow for much lower PTT times (50 msec or less).
Enable Modem
When this option is checked, the RTU will turn on the internal 600 (or 110) baud radio modem. Leave
this box un-checked when using an external radio modem. Note: The S4500 and M1500 RTUs do not
have hardware support for this option. Only M550 and later RTUs.
Ant. Outputs
The range of 8 discrete outputs to use when a remote is doing Antenna/Radio switching. RTU32 protocol can only specify an 8 bit mask so this selection allows it to be applied to outputs 1-8 or 9-16.
Ant. Default
Discrete ouput number to leave on for Radio #1 when doing Antenna/Radio switching at a remote.
Station #
For use with Modbus or DF1 protocols ONLY. This sets the station # for this RTU as used by the protocol on all of the communication ports.
SCode
For use with Micro-Comm RTU32 protocols ONLY. This sets the “System Code” for this RTU that the
central must use in order to communicate with us. The central system code is selected in the message
function (MSB of station address = 1-8). This can help to isolate systems on the same frequency from
each other. Usually this will be set to “None”.
COM2 Protocol
Communication protocol used on COM2. This can be Micro-Comm Display, Micro-Comm RTU32,
Micro-Comm CTU32, DF1 Half-Duplex Slave or Master, DF1 Full-Duplex, DF1 Radio Modem,
Modbus RTU Slave or Master, Modbus/TCP or Web Server.
COM2 Baud
This selects the speed for the COM2 port.
The default is 9600 baud for compatibility with the Micro-Comm Display Module.
COM2 PTT
Time in msecs that will pass after RTS is turned on and before data is sent out COM2.
The default is 0 which will leave the RTS turned on all the time.
COM3 Protocol
Communication protocol used on COM3. This can be Micro-Comm I/O, DF1 Half-Duplex Slave or
Master, DF1 Full-Duplex, DF1 Radio Modem, Modbus RTU Slave or Master, Modbus/TCP, MicroComm Display, Micro-Comm RTU32 or Micro-Comm CTU32.
COM3 Baud
Communications speed for the Micro-Comm I/O modules or for Modbus RTU / DF1 communication.
The default is 9600 baud.
- 38 -
COM4 Settings
The options for the M555 and M1550 COM4 port are similar to that of COM1 with the additional “Mode” option. There is also
an additional protocol option for use with the uLynx Ethernet coprocessor.
Other Tabs
Timer Settings
The timer settings control how long the RTU will wait to energize or de-energize a relay output when it has been told to come
on or go off. These timers will always be used regardless of the mode of operation - Micro-Comm CTU control, Script Language, Modbus or DF1.
Stop/Start Setpoints 1-32
These setpoints can be labeled and accessed from the Micro-Comm Display module and then used in script for control.
Stop and Start setpoints are scaled using the analog selected in the Stop/Start Labels screen.
Use 8-bit Remote Setpoints
This option will force the remote setpoint protocol (used by SCADAview) to use 8-bit (LSB) values. This may be required if
the central is a C2000 or earlier.
Misc.
Pulse Dividers
These sets the number of pulses that must occur before the pulse input counter is incremented.
Normally this will be set to 1.
Expanded Data Station
When this is checked, the primary address will respond with local expanded data when using CTU32 protocol.
- 39 -
Ethernet (COM5) Settings
The options for the M555 and M1550 ethernet port are configured with the screen shown below:
Protocol
The protocol selection for the Ethernet Port (COM5). Options include Micro-Comm RTU32, DF1 HalfDuplex Slave, DF1 Half-Duplex Master, DF1 Full-Duplex, DF1 Radio Modem, Modbus RTU Slave,
Modbus RTU Master, Modbus/TCP, Micro-Comm CTU32, Web Server, EtherNet/IP SLC and EtherNet/
IP CLX (compact logix).
Mode
This selects whether COM5 will be a TCP Server, TCP Client or UDP Mode (client/server). Changing
this selection will change what other options are visible.
IP Address
TCP/IP Address of the M1550 PLC on the network.
Subnet Mask
Selects the class of the local network (usually either 255.255.255.0 or 255.255.0.0)
Gateway
The address of the local network router (if any).
Reverse-Poll
Enabling reverse-poll when using CTU32 protocol will allow multiple computers (up to 4 using client
mode) to receive status updates.
Local TCP Port
Port number used when we are a TCP Server. Our default is 4001. It will be forced to 44818 when
using EtherNet/IP. It should also be changed to 502 when using Modbus/TCP protocol.
Max. Connect
The maximum number of clients that can connect to us when we are a TCP Server (1 - 4).
Destination IPs
If the mode is a TCP Client, these are the addresses and port numbers that the PLC will connect to.
Local Listen Port
Port number on which we will receive data from the other PLCs when using UDP Mode. This can be
the same port as used for transmitting data. (4001 is our default).
UDP Ranges
When using UDP Mode, these ranges of IP addresses and port numbers will all be sent data when the
PLC transmits. Note: Do not include the PLC’s own IP Address in these ranges.
The “Network Search” button will scan the local network for Micro-Comm PLCs.
- 40 -
Analog Labels and Scaling Factors
To change analog labels and scaling factors, click on the blue water tower icon or select “Display Labels”
from the View menu. The labels and scales are retrieved/sent to the RTU during reading/writing of the
personality module configuation data.
Up to 32 analog levels can be displayed and they will always appear in the order entered in the setup
screen. If an analog label is left blank it will not show up on the display.
When analog levels are displayed, the offset is first added to the raw analog value and the result is then
multiplied by the range value. (This matches the Micro-Comm SCADAview program). A Range/Preset
calculator (shown below) can be displayed by right-clicking and selecting the menu option.
- 41 -
Output Timer Labels
To change the 20 character output timer display labels, click on the toolbar clock icon or select “Display
Labels” from the View menu. The labels are retrieved/sent to the RTU during reading/writing of the
configuration data. These labels are normally used for pumps and provide both ON and OFF delays
entered on the Micro-Comm Display Module.
Note: Lines where the label is left blank will not be accessible from the Display Module.
- 42 -
Stop/Start Setpoint Labels
Stop/Start labels are used on the Display Module to allow the operator to change operational parameters
such as Pump Stop/Start setpoints, High/Low alarms and Pump Restore/Cutoffs. Along with the 20
character label is a selection for what type of setpoint (Stop/Start, High/Low etc.) and which analog input
# will be used for scaling and units.
Note: Lines where the label is left blank will not be accessible from the Display Module.
- 43 -
X Variable Labels
User variables are the 16-bit unsigned integer X1-X32 script language variables that can be used for any
purpose. By entering a label in the User Variable Labels setup screen, the current value will be shown and
can be changed on the Display Module.
- 44 -
Discrete I/O Labels
Labels for both 32 discrete inputs and 32 discrete outputs are user defined. These labels may be used to
display pump calls, pump runs, valve positions, alarms etc. A 12-character label is used to name the input
or output along with a 6-character ON label and a 6-character OFF label to describe the on or off state. If
the input or output name is left blank it will not appear on the display and if no discretes are labeled the
display will just skip over the entire section (inputs or outputs).
Note: Two special ON labels are reserved for the discrete outputs: “CRF” or “CRFD” will display the
current state of a pump output as “CALL”,”RUN”,”FAIL” or “CALL”,”RUN”,”FAIL”,”DSBL”.
- 45 -
User Memory Screens
User memory screens allow for display and entry of data stored in user memory (locations 0-8999). The
raw data type can be a 16-bit unsigned integer (1 user memory location), a 32-bit unsigned integer (2
consecutive user memory locations) or a 32-bit floating point number. This data can then be displayed as
numeric values, discrete labels or binary numbers given various parameters.
The user memory screens are accessed by arrowing all the way down to the bottom row of the MicroComm display. The left and right arrows will then select the desired user memory screen.
- 46 -
User Memory Table
The User Memory Table screen provides the capability of reading and updating all user memory locations
as well as saving and loading a comma seperated (.CSV) database file. This file could then be used for
data logging/trending or saving a backup copy of important data such as flow totals, runtimes etc. The
screen shown below is accessed from either the Utilities menu or by clicking on spreadsheet looking icon
on the toolbar. Data is updated “live” unless the Pause button is depressed. An panel located on the right
side of this window shows all information about the selected memory location.
Special color coding and help text is used to show stations, groups, other message types and user memory
variables. (green=groups, blue=stations, purple=user memory variables and yellow=other messages)
Right-clicking on this screen will bring up a menu with options to “Find...”, “Read User Memory”,
“Program User Memory”, “Save CSV File...” and “Load CSV File...” etc. Double-clicking on a cell will
put it into edit mode and a new values can be entered (press Enter to send).
NVRAM Database
In addition to the User Memory Table, there is also a very similar NVRAM Table window which can
be used to download and save data from the RTU’s personality module. This could be used for longterm data logging since it currently supports 65000 words of data. The script commands NVREAD(),
NVWRITE() and NVCOPY() are used to manage this data.
- 47 -
RTU Script Language Editor
To enter or edit the Script Language Code, click on the script icon in the tool palette or select “Script
Editor” from the View menu.
Script language can be retrieved from the RTU by clicking the Read button shown at the bottom of the
editor window or by selecting Read RTU Script from the Transfer menu.
Lines starting with a single quote character are comments and do not get sent to the RTU when
programming. Comments are only saved in the .S5C configuration file.
After entering lines of code the user can click the Check button to make sure the syntax looks ok and to
see how many bytes of code have been used. Currently the main script code can’t be larger than 16895
bytes.
The code is then programmed into the RTU’s personality module by clicking the Program button or by
selecting “Program Script” in the Transfer menu.
Script subroutines are edited by selecting the subroutine number from the list in the lower-left corner of
the screen. Each subroutine can be read, programmed and checked separately using this editor. Currently
each subroutine can be up to 2110 bytes.
- 48 -
Commented Script / Revision Editor
If the option “Use Commented Script for Revision Notes” is turned on in the preferences, this screen will
be filled in with the current commented script including all subroutines. It can then be programmed into
the personality module with the “Program” button. The user will also then be asked if the commented
script should be programmed whenever the configuration or compiled script is programmed. Commented
scripts can be read back from an RTU and imported into the actual script by right-clicking and selecting
the “Import Commented Script” menu option.
If the option “Use Commented Script for Revision Notes” is not turned on in the preferences, this screen
can be used to edit general purpose Revision Notes for the RTU. The Read and Program buttons are
used to retreive or store the notes into the personality module. Revision notes are also saved in the .S5C
configuration file.
- 49 -
Data Table Viewer
The Data Table Viewer screen allows the operator to see and change I/O variables, User variables and
the Stop/Start setpoints in real-time when connected to an RTU. This screen can be very useful when
debugging script language code. The User Memory data table can display all user memory (a range of 64
locations at a time) and will allow for changing these values.
Analog inputs and Stop/Start setpoints are displayed as raw 12-bit numbers (0-4095) or can optionally be
scaled based on the range/offset values entered in the analog setup screen. Pressing the “S” key on this
display will toggle scaling on and off. Discrete inputs and outputs are shown as either 1 or 0 (on or off).
When the “Force I/O” option is selected, the I/O variables shown in red may be changed to the desired
value by clicking on the readout box, typing a new value and pressing enter. When the “Disable Script”
option is also checked, the script will stop running and any I/O that it was controlling can then be forced.
- 50 -
Display Module Emulator
The display module is an optional hardware component to a Micro-Comm RTU which allows an operator
to see levels and change setpoints. While programming with RTU Configuration 32 software, the operator
can use the Display Module Emulator screen to see what the display module would show. This can be
very useful since both the display module and the programming software may be using the same com port
on the RTU.
- 51 -
Debug Terminal
The Debug Terminal screen allows the user to interact directly with the RTU over the programming port
(COM2-COM5) or with other third-party serial equipment. It will display incoming data using ASCII,
Modbus or DF1 mode based on the “Display Mode” selection in the lower-left hand corner of the screen.
Protocol analysis of master messages (requests) can be done by selecting “RTU32-Decode”, “ModbusDecode” or “DF1-Decode”.
Data logging can also be done by clicking on the “Log Data...” button and typing in a file name.
Communications on COM 1-5 can be monitored by clicking the appropriate button.
The “Debug” button will enter a hardware debugging mode where outputs can be turned on and off,
inputs can be read, the clock can be set etc. Press the Enter key when in this mode to get a help menu.
- 52 -
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
