802-VLZ3 8-Channel Premium Mic/Line Mixer

802-VLZ3 8-Channel Premium Mic/Line Mixer
Specifications
Common Mode Rejection Ratio (CMRR)
Main Mix Noise
1 kHz: (20 Hz–20 kHz bandwidth, channels 1–3 gain @ unity gain,
channel EQ flat, all channels assigned to main mix,
channel 1 panned left, 2 panned right, 3–8 centered.)
Maximum Levels
(Mic in to insert send out, max gain.)
Main mix knob down, channel level knobs down:
XLR:
–95 dBu
TRS:
–101 dBu
Main mix knob unity, channel level knobs down:
XLR:
–90 dBu
TRS:
–96 dBu
Main mix knob @ unity, channel level knobs @ unity:
XLR:
–84 dBu
TRS:
–90 dBu
better than –60 dB
Mic in: +21 dBu
Tape in: +22 dBu
All other inputs: +22 dBu
Main mix XLR out: +28 dBu
All other outputs: +22 dBu
Impedances
Mic in: 3.4 kilohms
Channel insert return: 5 kilohms
All other inputs: 20 kilohms or greater
(1 kHz @ 35 dB gain, 20 Hz–20 kHz bandwidth)
Tape out: 1 kilohms
Mic pre @ insert: Phones out:
60 ohms
All other outputs: 120 ohms
Total Harmonic Distortion (THD)
0.001%
Attenuation (Crosstalk)
(1 kHz relative to 0 dBu, 20 Hz–20 kHz bandwidth,
line in, 1⁄4" main out, gain @ unity.)
EQ
High Shelving ±15 dB @ 12 kHz
Main mix knob down: –75 dBu
Mid Peaking
±15 dB @ 2.5 kHz
Channel Alt / Mute switch engaged: –100 dBu
Low Shelving ±15 dB @ 80 Hz
Channel level knob down: –100 dBu
Frequency Response
Power Consumption
(30 Hz to 30 kHz, mic input to any output, @ 60 dB gain.)
+0 dB/–1 dB
(10 Hz to 100 kHz, mic input to any output, @ unity gain.)
+0 dB/–3 dB
Equivalent Input Noise (EIN)
(20 Hz–20 kHz, mic input to insert send out, max gain.)
150 ohm termination:
–129.5 dBu
1.8 in/
47 mm

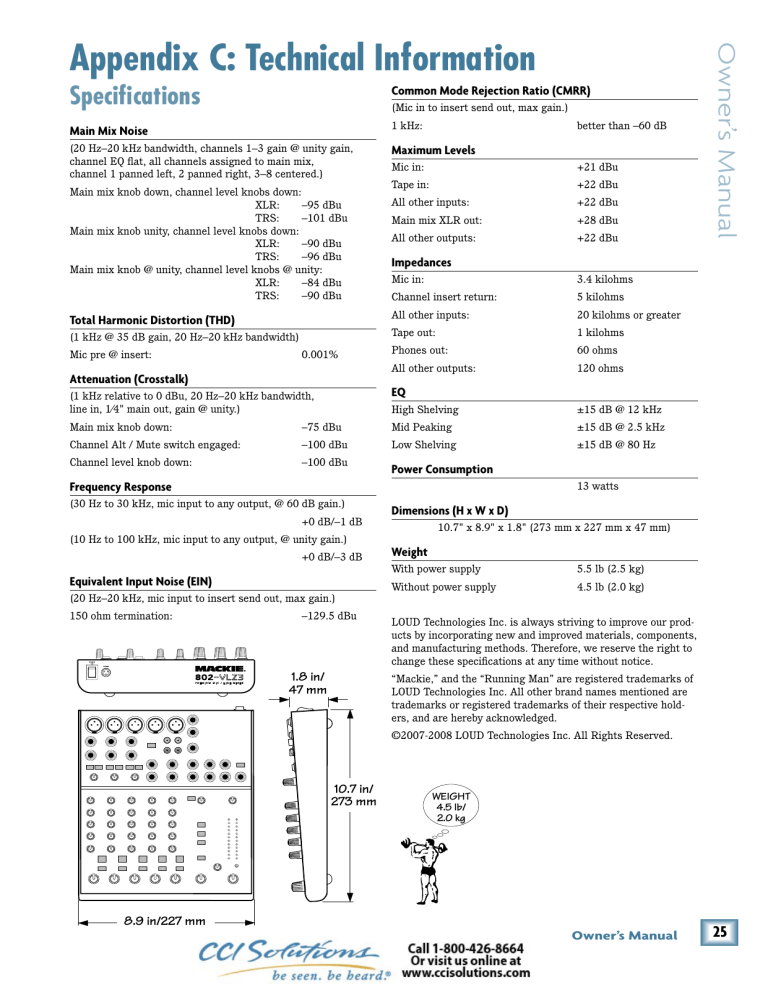

Owner’s Manual
Appendix C: Technical Information
13 watts
Dimensions (H x W x D)
10.7" x 8.9" x 1.8" (273 mm x 227 mm x 47 mm)
Weight
With power supply
5.5 lb (2.5 kg)
Without power supply
4.5 lb (2.0 kg)
LOUD Technologies Inc. is always striving to improve our products by incorporating new and improved materials, components,
and manufacturing methods. Therefore, we reserve the right to
change these specifications at any time without notice.
“Mackie,” and the “Running Man” are registered trademarks of
LOUD Technologies Inc. All other brand names mentioned are
trademarks or registered trademarks of their respective holders, and are hereby acknowledged.
©2007-2008 LOUD Technologies Inc. All Rights Reserved.
10.7 in/
273 mm
8.9 in/227 mm
WEIGHT
4.5 lb/
2.0 kg
Owner’s Manual
holes for
25
802-VLZ3
HPF
bypass
Low Cut
Gain
-
+
Mic: 0 ~ +60dB
Line: -15 ~ +45dB
2.5K
80
12K
HI
12K
HI
MID
2.5K
MID
2.5K
LO
80
LO
80
12K
HI
12K
HI
3-Band EQ
MID
2.5K
80
LO
MID
LO
Rev 300 10/01/07
80
LO
2.5K
MID
12K
HI
48V
3-Band EQ
Global phantom
power
phantom
3-Band EQ
HPF
bypass
Low Cut
Insert (Ch1-2 only)
NOTE: Switches are shown in the default (out) position.
R
Stereo Return
L
R
L
R
L
Hybrid
channel 3/4
Hi-Z
phantom
Stereo channels
5/6 and 7/8
Mic: 0 ~ +60dB
-
+
phantom
Line
Mic
Mono Channels
Ch 1/2
solo
Level
solo
Level
Pan
Pan
Aux sends
Main L/R
Alt 3/4
Aux sends
Main L/R
Alt 3/4
Aux sends
Level
solo
Level
Pan
Main L/R
Alt 3/4
L
R Main
L/3
R/4 Alt
aux 1 (pre)
aux 1 (post)
solo(pfl)
logic
L
Main R
L/3
Alt R/4
aux 1 (pre)
aux 1 (post)
solo (pfl)
logic
26
pre
post
Aux 1
solo sum
R
CD/Tape in
L
Alt R/4 sum
Alt L/3
sum
R sum
L sum
Aux 1 sum
off
C/R to Main
Main
RUDE
SOLO
LED
solo logic
C/R
R
C/R L
C/R Source
CD/Tape
Alt3/4
Main level
Aux 1 level
Phones
level
Control
Room
level
Meter
+4dBu
Mic level
Main
out
Left
Aux 1 out
Phones
Right
Control Room out
Left
Right/4
Left/3
Alt out
Right
Tape
Line
Bal
Bal
Line
Tape
802-VLZ3
Block Diagram
