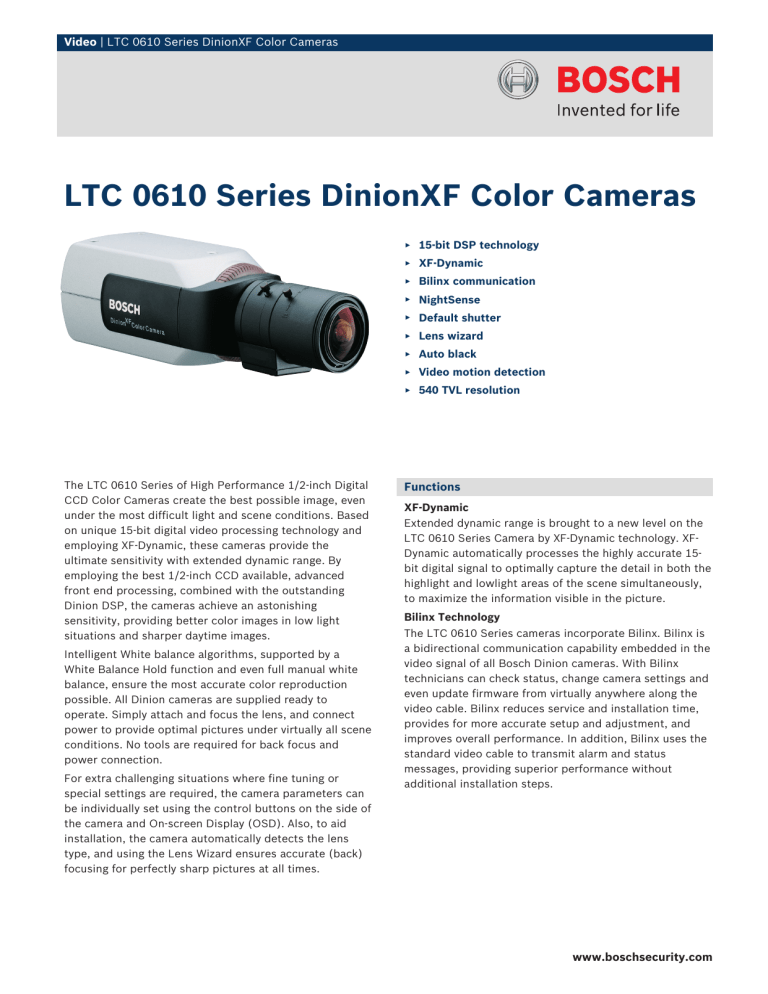

LTC 0610 Series DinionXF Color Cameras

LTC 0610 Series DinionXF Color Cameras
Video | LTC 0610 Series DinionXF Color Cameras
LTC 0610 Series DinionXF Color Cameras
▶ 15-bit DSP technology
▶ XF-Dynamic
▶ Bilinx communication
▶ NightSense
▶ Default shutter
▶ Lens wizard
▶ Auto black
▶ Video motion detection
▶ 540 TVL resolution
The LTC 0610 Series of High Performance 1/2-inch Digital
CCD Color Cameras create the best possible image, even
under the most difficult light and scene conditions. Based
on unique 15-bit digital video processing technology and
employing XF-Dynamic, these cameras provide the
ultimate sensitivity with extended dynamic range. By
employing the best 1/2-inch CCD available, advanced
front end processing, combined with the outstanding
Dinion DSP, the cameras achieve an astonishing
sensitivity, providing better color images in low light
situations and sharper daytime images.
Intelligent White balance algorithms, supported by a
White Balance Hold function and even full manual white
balance, ensure the most accurate color reproduction
possible. All Dinion cameras are supplied ready to
operate. Simply attach and focus the lens, and connect
power to provide optimal pictures under virtually all scene
conditions. No tools are required for back focus and
power connection.
For extra challenging situations where fine tuning or
special settings are required, the camera parameters can
be individually set using the control buttons on the side of
the camera and On-screen Display (OSD). Also, to aid
installation, the camera automatically detects the lens
type, and using the Lens Wizard ensures accurate (back)
focusing for perfectly sharp pictures at all times.
Functions
XF-Dynamic
Extended dynamic range is brought to a new level on the
LTC 0610 Series Camera by XF-Dynamic technology. XFDynamic automatically processes the highly accurate 15bit digital signal to optimally capture the detail in both the
highlight and lowlight areas of the scene simultaneously,
to maximize the information visible in the picture.
Bilinx Technology
The LTC 0610 Series cameras incorporate Bilinx. Bilinx is
a bidirectional communication capability embedded in the
video signal of all Bosch Dinion cameras. With Bilinx
technicians can check status, change camera settings and
even update firmware from virtually anywhere along the
video cable. Bilinx reduces service and installation time,
provides for more accurate setup and adjustment, and
improves overall performance. In addition, Bilinx uses the
standard video cable to transmit alarm and status
messages, providing superior performance without
additional installation steps.
www.boschsecurity.com
2 | LTC 0610 Series DinionXF Color Cameras
Video Motion Detection
The built-in video motion detector allows you to select up
to four fully programmable areas with individual
thresholds. The global scene change detector minimizes
false alarms caused by sudden lighting condition changes,
such as switching on or off the indoor or security lighting.
When motion is detected alarms may be displayed in the
video signal, the output relay can be closed in addition to
alarm message transmission on Bilinx.
Auto Black
The automatic black level feature, enhances contrast by
removing veiling glare from the picture or when contrast is
reduced by fog or mist.
Default Shutter
When viewing moving objects a fast shutter speed is
required. When using a fast shutter speed the lens
opening or gain control needs to be increased to maintain
the video signal. The camera sensitivity is limited by the
fast shutter speed. The default shutter setting of the
LTC 0610 offers the best of all worlds, fast shutter speed
as long as there is sufficient light, however as the light
level falls, when other adjustments have been exhausted,
the shutter reverts to the standard setting maintaining the
cameras excellent sensitivity.
Certifications and Approvals
Region
Certification
Europe
CE
Declaration of Conformity
USA
FCC
Declaration of Conformity
Electro Magnetic Compatibility
Emission
EN55022 class B, FCC class B part 15
Immunity
EN50130-4 Alarm Systems, Part 4
Vibration
Camera with 500 gr (1.1 lbs) lens according to
IEC60068-2-27
Safety
LTC 0610/11 and LTC 0610/51: EN60065
LTC 0610/21 and LTC 0610/61: UL6500, cUL CAN/CSA E60065-00
Installation/Configuration Notes
Back Light Compensation (BLC)
Offering a fully programmable BLC area of interest, and a
variable BLC level, the camera can be easily set up for
even the most challenging entrance applications.
Lens Wizard
The LTC 0610 Series automatically detects the type of
lens installed. The Lens Wizard will focus the lens at the
maximum lens opening, to ensure that focus is maintained
throughout the entire 24-hour day/night cycle. No special
tools or filters are required.
Dimensions in mm (inches)
Programmable Modes
The camera supports three independent operating modes.
The 3 modes are preprogrammed for typical applications,
but are fully programmable for individual situations.
Switching between modes is easy via Bilinx or the external
alarm input.
NightSense
The LTC 0610 cameras feature NightSense. With
NightSense the sensitivity is increased by 9 dB in
monochrome mode. NightSense can be automatically
activated in low light situations, or remotely using Bilinx.
SensUp
By increasing the integration time on the CCD up to 10
times, the effective sensitivity is dramatically enhanced,
especially useful where there is no artificial lighting and
you rely on the moon, stars and scattered radiation.
Parts Included
Quantity Components
1
LTC 0610 Series DinionXF Color Camera
1
Spare male 4–pin lens connector
Lens not included
LTC 0610 Series DinionXF Color Cameras | 3
Technical Specifications
Sensitivity (3200 k)
Electrical
Alarm Output Relay
Max. 30 VAC or +40 VDC, max. 0.5 A continuous,
10 VA
External Synchronal
Input
75 Ohm or High Impedance selectable
Cable Compensation
Up to 1000 m (3000 ft) coax without external
amplifiers (automatic setup in combination with
coaxial communication)
Camera ID
16 character editable string, position selectable
Lens Types
Manual, DC- and Video-iris auto-detect with override DC-iris drive: max 50mA continuous
Model No.
LTC 0610/11
RatedVoltage
12–28 VAC
45–65 Hz
11–39 VDC
LTC 0610/21
12–28 VAC
45–65 Hz
11–39 VDC
LTC 0610/51
85–265 VAC
45–65 Hz
LTC 0610/61
85–265 VAC
45–65 Hz
Power Consumption
4W
Imager
Interline CCD type, ½-in. image format
Active Pixels
Video-iris: 11.5 ± 0.5 VDC, max. 50 mA continuous
Remote Control
Bi-directional coaxial communication
1) F/1.2, 89% reflection, SensUp off
PAL Models
752 H x 582 V
NTSC Models
768 H x 492 V
Mechanical
Dimensions (H x W x L) 59 x 67 x 122 mm (2.28 x 2.6 x 4.8 in.) without
lens
Sensitivity (3200 k)
Sensitivity (full video)1)
1.4 lx (0.14 fc)
Sensitivity 50 IRE1)
0.35 lux / 0.14 lux (NightSense)
(0.035 fc / 0.014 fc (NightSense))
Minimum
Illumination1)
0.18 lux / 0.08 lux (NightSense)
(0.018 fc / 0.008 fc (NightSense))
Minimum Illumination 0.018 lux / 0.008 lux (NightSense)
with SensUp
(0.0018 fc / 0.0008 fc (NightSense))
Horizontal Resolution 540 TVL
Signal-to-Noise-Ratio > 50dB
Video Output
1Vpp, 75 Ohm
Y/C Output
Y: 1 Vpp / C: 0.3 Vpp
Synchronization
Internal, Line Lock, HV-lock and Genlock (Burst
lock) selectable
Shutter
Auto (1/60 (1/50) to 1/500000), fixed, flickerless, default
Night Sense
Auto, forced, off
Sensitivity up
Off, automatic continuous up to 10x
Auto Black
On, off selectable
Dynamic Range
32x dynamic range enhancement
Dynamic Noise Reduc- Auto, off selectable
tion
Contour
Sharpness enhancement level selectable
BLC
Off, area and level selectable
Gain
Auto (maximum level selectable to 28 dB) or fixed
level selectable
Lens Mount
C and CS
White Balance
ATW (2500–10000 K), AWB hold, manual WB selectable
VMD
4 area, sensitivity selectable
Alarm Output
VMD or Bilinx
Alarm Input (TTL)
Profile switching, +5 V nominal, +40 VDC max.
Weight
450 g (0.99 lbs) without lens
Tripod Mount
Bottom (isolated) and top 1/4-inch 20 UNC
Controls
OSD with softkey operation
Environmental
Operating Temperature
-20 °C to +50 °C (-4 °F to +122 °F)
Storage Temperature
-25 °C to +70 °C (-13 °F to +158 °F)
Operating Humidity
20% to 93% Relative humidity
Storage Humidity
up to 98% Relative humidity
Ordering Information
LTC 0610/11 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, PAL,
DSP, 12 – 28 VAC/11 – 39 VDC, 50 Hz
LTC0610/11
LTC 0610/21 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, NTSC,
DSP, 12 – 28 VAC/11 – 39 VDC, 60 Hz
LTC0610/21
LTC 0610/51 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, PAL,
DSP, 85 – 265 VAC, 50 Hz
LTC0610/51
LTC 0610/61 DinionXF Color Camera
1/2-inch, high performance, 540 TVL, NTSC,
DSP, 85 – 265 VAC, 60 Hz
LTC0610/61
Accessories
LTC 3264/30 Varifocal Lens
1/2-inch, 4.5 – 10 mm, DC-iris, CS-mount
F1.6-360, 4-pin
LTC3264/30
LTC 3274/41 Varifocal Lens
1/2-inch, 7.5 – 75 mm, DC-iris, C-mount,
F1.7-360, 4-pin
LTC3274/41
LTC 3283/20 Zoom Lens
1/2-inch, 8.0 – 48 mm, Video-iris, CS-mount
F1.4-360, 4-pin
LTC3283/20
www.boschsecurity.com
4 | LTC 0610 Series DinionXF Color Cameras
Ordering Information
TC120PS Power Supply Unit
110-120 VAC/15 VDC, 50/60 Hz, 300 mA
TC120PS
TC220PS Power Supply Unit
230 VAC/12 VDC, 50 Hz, 10 VA
TC220PS
TC220PSX‑24 Power Supply Unit
230 VAC/20 VAC, 50 Hz, 20 VA
TC220PSX-24
TC1334 Power Supply Unit
120 VAC/24 VAC, 60 Hz, 30 VA
TC1334
Software Options
VP‑CFGSFT Configuration Software
for cameras using Bilinx, includes VP-USB
Adaptor
