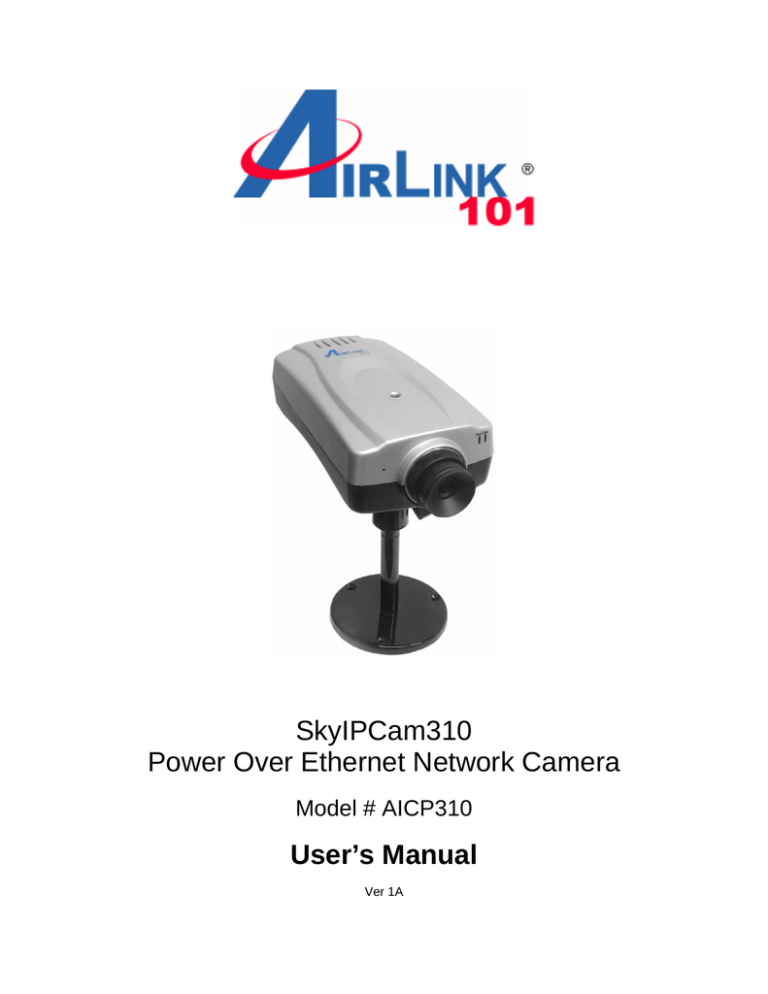

SkyIPCam310
Power Over Ethernet Network Camera
Model # AICP310
User’s Manual
Ver 1A
Table of Contents
ABOUT THIS GUIDE...................................................................................................................2
1. INTRODUCTION......................................................................................................................3
1.1 FEATURES AND BENEFITS .......................................................................................................3
1.2 UNPACKING THE PACKAGE .....................................................................................................4
1.3 SYSTEM REQUIREMENTS .........................................................................................................5
1.4 PHYSICAL DESCRIPTION ..........................................................................................................5
2. HARDWARE INSTALLATION..............................................................................................8
2.1 ATTACHING THE CAMERA TO THE STAND ...............................................................................8
2.2 CONNECTING THE ETHERNET CABLE .......................................................................................8
2.3 ATTACHING THE POWER SUPPLY ............................................................................................8
2.4 SETTING UP THE CAMERA .......................................................................................................9
3. SECURITY...............................................................................................................................17
4. APPLICATION OF THE SKYIPCAM310...........................................................................18
5. USING THE CAMERA ..........................................................................................................20
5.1 WEB CONFIGURATION UTILITY.............................................................................................20
5.2 SYSTEM ADMINISTRATION ....................................................................................................21
5.3 VIEW IMAGE – ACTIVEX MODE ............................................................................................32
6. IPVIEW PRO ...........................................................................................................................36
6.1 INSTALLATION ......................................................................................................................36
6.2 GETTING STARTED ................................................................................................................39
6.3 USING IPVIEW PRO ...............................................................................................................41
6.4 CONFIGURING THE SYSTEM ...................................................................................................44
7. APPENDIX...............................................................................................................................54
7.1 FREQUENTLY ASKED QUESTIONS..........................................................................................54
7.2 PING YOUR IP ADDRESS ......................................................................................................55
7.3 TROUBLESHOOTING ..............................................................................................................55
7.4 ADJUST SKYIPCAM310 FOCUS .............................................................................................57
7.5 I/O TERMINAL APPLICATION.................................................................................................58
7.6 SPECIFICATIONS ....................................................................................................................60
TECHNICAL SUPPORT............................................................................................................62
1
0 About This Guide
This manual provides instructions and illustrations on how to use your SkyIPCam310 PoE
Network Camera, includes:
z
Chapter 1, Introduction, provides the general information on the camera.
z
Chapter 2, Installation, describes the hardware and software installation procedure for the
SkyIPCam310.
z
Chapter 3, Security, explains the security feature of the camera.
z
Chapter 4, Application of the Camera, provides the illustrations of the camera’s
applications.
z
Chapter 5, Using the Camera, guides you through the configuration using the web
browser.
z
Chapter 6, IPView Pro, helps you to install and use the software.
z
Chapter 7, Appendix.
Please note that the illustrations or setting values in this manual are FOR YOUR REFERENCE
ONLY. The actual settings and values depend on your system and network. If you are not sure
about the respective information, please ask your network administrator or MIS staff for help.
1
2
1 1. Introduction
Thank you for purchasing the SkyIPCam310 PoE Network Camera, a camera device that can
be connected directly to an Ethernet or Fast Ethernet network. Compared to the conventional
PC Camera, the SkyIPCam310 features a built-in CPU and web-based solutions that can
provide a cost-effective solution to transmit real-time high-quality video images and sounds for
monitoring. It can be managed remotely, accessed and controlled from any PC/Notebook over
the Intranet or Internet via a web browser.
The simple installation procedures and web-based interface allow you to integrate it into your
network easily. The camera features Power over Ethernet (PoE) technology, allowing you to
install and use it in an environment where is without power supply. In addition, with
comprehensive applications supported, the SkyIPCam310 is your best solution for remote
monitor, high quality, and high performance video images.
1.1 Features and Benefits
Simple To Use
The SkyIPCam310 is a standalone system with built-in CPU requiring no special hardware or
software such as PC frame grabber cards. The SkyIPCam310 supports both ActiveX mode (for
Internet Explorer users) and Java mode (for Internet Explorer and Netscape Navigator users).
Therefore, all that is required is a web browser software such as Internet Explorer 5.0 or above
or Netscape 6.0 or above. Just plug and view the picture from your SkyIPCam310 with a valid
IP Address.
Next-Generation PoE Technology
Power-over-Ethernet (PoE, IEEE 802.3af standard) eliminates the need of 110/220 AC power
for the wired LAN devices. With this innovative technology, the network manager can deploy
these Ethernet-powered devices using only a single CAT5 Ethernet cable that carries both
power and data to each device. This enables the user to build a network with greater flexibility
in the Small Office/Home Office (SOHO) environments.
Support Variety of Platforms
The SkyIPCam310 supports TCP/IP networking, SMTP e-mail, HTTP and other Internet related
protocols, and can be utilized in a mixed operating system environment such as Windows, Unix,
and Mac. It can be integrated easily into other www/Intranet applications.
Web Configuration
Applying a standard web browser, the administrator can configure and manage the
SkyIPCam310 directly from its own web page via the Intranet or Internet. Up to 32 username s
and passwords are permitted with privilege setting controlled by the administrator.
RS-485 Support
The pin 1 & 2 of the I/O connectors are used for RS-485 data transmission. You can connect a
special featured device (such as an external camera stand with rotation function) to meet you
3
needs. When the external device is connected, you could configure the settings and control the
device from the RS485 window of Web Configuration Utility.
Remote Utility
The powerful IPView Pro application assigns the administrator with a pre-defined user ID and
password, allowing the administrator to modify the camera settings from the remote site via
Intranet or Internet. When new firmware is available, you can also upgrade remotely over the
network for added convenience. Users are also allowed to monitor the image, and take
snapshots.
Broad Range of Applications
With today’s high-speed Internet services, the SkyIPCam310 can provide the ideal solution for
live video images over the Intranet and Internet for remote monitoring. It allows remote access
from a web browser for live image viewing and allows administrator to manage and control the
SkyIPCam310 anywhere and any time in the world. Apply the SkyIPCam310 to monitor various
objects and places such as homes, offices, banks, hospitals, child-care centers, amusement
parks and other varieties of industrial and public monitoring. It can also be used for intruder
detection; in addition, it can capture still images for archiving and many more applications.
1.2 Unpacking the Package
Unpack the package and check all the items carefully. In addition to this User’s Guide, be
certain that you have:
„ One SkyIPCam310 PoE Network Camera
„ One Installation CD-ROM
„ One Quick Installation Guide
„ One AC power adapter suitable for your country’s electric power
„ One Camera Stand
„ One RJ-45 Ethernet Cable
If any item contained is damaged or missing, please contact your local dealer immediately. Also,
keep the box and packing materials in case you need to ship the unit in the future.
4
1.3 System Requirements
Networking
„ 10Base-T Ethernet or 100Base-TX Fast Ethernet.
Accessing the Camera
For Web Browser Users
„
„
„
„
„
Operating System: Microsoft® Windows® 98SE/ME/2000/XP/Vista
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is preferred)
Memory Size: 128MB or above
Resolution: 800x600 or above
Microsoft® Internet Explorer 5.0 or above
For IPView Pro Application Users
„
„
„
„
Operating System: Microsoft® Windows® 2000/XP/Vista.
CPU: Intel Celeron 1.1GHz or above (Intel Pentium 4 is preferred)
Memory Size: 128 MB or above
Resolution: 800x600 or above
1.4 Physical Description
This section describes the externally visible features of the SkyIPCam310.
Front Panel
1. Link LED
The Link LED is positioned on the right side of the camera’s lens while facing the camera. It is
located to the left of the Power LED
A steady ORANGE light confirms that the camera has good connection to LAN connectivity.
Dependent on the data traffic the LED will begin to flash to indicate that the camera is
receiving/sending data from/to the network.
2. Power LED
The Power LED is positioned on the right side of the camera’s lens while facing the camera.
A steady BLUE light confirms that the camera is powered on.
5
3. Internal MIC
The built-in omni-directional microphone allows the camera to receive sound and voice.
Rear Panel
2. Reset Button
1. Network Cable Connector
3. I/O Connector
4. DC Power Connector
1. Network Cable Connector
The SkyIPCam310’s rear panel features an RJ-45 connector for connections to 10Base-T
Ethernet cabling or 100Base-TX Fast Ethernet cabling (which should be Category 5 twisted-pair
cable). The port supports the N-Way protocol and “Auto-MDIX” function, allowing the
SkyIPCam310 to automatically detect or negotiate the transmission speed of the network.
2. Reset Button
Reset will be initiated when the reset button is pressed once, and Power LED begins to flash.
Factory Reset will be initiated when the reset button is pressed continuously for three seconds
or when Power LED begins to light up. Release the reset button and the Power LED will begin
to flash, indicating the SkyIPCam310 is changing to factory reset. The IP address will return to
the default setting as 192.168.1.240.
3. I/O Connector
The camera provides the I/O connectors on the rear panel (pin 1/2 are for RS485, pin 3/4 are for
input, pin 5/6 are for output), which provide the physical interface to send and receive digital
signals to a variety of external alarm devices. For more information, refer to 7.4 I/O Terminal
Application.
4. DC Power Connector
The DC power input connector is located on the SkyIPCam310’s rear panel, and is labeled
DC5V with a single jack socket to supply power to the SkyIPCam310. Power will be generated
when the power supply is connected to a wall outlet.
6
Top/Bottom Panel
Top Panel
Screw Hole
Bottom Panel
Screw Hole
Screw Hole
Located on the top/bottom panel of the camera, the screw hole is used to connect the camera
stand onto the camera by attaching the screw head on the camera stand into the screw hole of
the camera.
7
2 2. Hardware Installation
2.1 Attaching the Camera to the Stand
The SkyIPCam310 comes with a camera stand (optional), which is
equipped with a swivel ball screw head that can be attached to the
camera's bottom screw hole. Attach the camera stand to the
camera and station it for your application. There are three holes
located in the base of the camera stand allowing the SkyIPCam310
to be mounted on the ceiling or any wall securely.
2.2 Connecting the Ethernet cable
Connect an Ethernet cable to the network cable connector located
on the camera’s rear panel, and then attach it to the network.
2.3 Attaching the Power Supply
Attach the external power supply to the DC power input connector
located on camera’s rear panel, and then connect it to your local
power supply.
TIP: You can confirm power source is supplied from the LED indicators label Power on the
SkyIPCam310 is illuminated.
8
2.4 Setting up the Camera
Installing the Setup Wizard
Step 1 Insert the provided CD and wait for the autorun screen to appear.
Step 2 Click on Install Setup Wizard.
Note: If the autorun screen does not appear automatically, go to Start, Run, type D:\Wizard\Setup.exe
(where D is the letter of your CD drive) and click OK.
Step 3 Click Next.
9
Step 4 Click Yes to accept the License Agreement.
Step 5 Click Next to accept the default Destination Folder.
Step 6 Click Finish to complete the installation.
10
Using the Setup Wizard
Step 1 Go to Start > (All) Programs > AirLink101 IP Camera Setup Wizard > AirLink101 IP Camera
Setup Wizard.
Step 2 Select the IP Camera you want to configure from the list and click on the Wizard button.
11
Step 3 If the Camera’s default IP address is on a different subnet, the following message will appear.
Click Yes to continue. If you do not receive this message, skip to Step 6.
Step 4 Enter admin for both the Admin ID and Password and click OK.
12
Step 5 The Wizard will automatically generate an IP address for the camera, if this address is not in use
by any other device in your local network, click OK. Otherwise, enter an available IP address (ex.
192.168.x.240) and click OK.
Step 6 Enter admin for both the Admin ID and Password field and click Next. Optionally, you can
change the password by checking on the Change box and entering the new password.
Step 7 If you need to change the Camera’s IP address because another network device is already using
the same address, you can assign a new address here and click Next.
13
Step 8 Verify that all the fields are correct and click Restart to save the settings and reboot the camera.
Viewing Images
Step 1 At the Setup Wizard, select the desired camera from the list and click on the Web Config button.
14
Step 2 Enter the username and password for the network camera. The default username and password
are both “admin”.
Step 3 The web based viewing page will appear. You can view live video by selecting either the ActiveX
Mode (Internet Explorer only) or the Java Mode (Internet Explorer and Netscape).
15
Step 4 If you select ActiveX Mode, you may be prompt to install the ActiveX Control. Click on the yellow
bar to on the top of the screen and click on Install ActiveX Control.
Step 5 Click on Install.
16
Step 6 You can focus the camera by turning the camera’s lens clockwise or counter-clockwise.
Note: ActiveX and/or Java Applet must be installed and enabled on your Web Browser (Internet Explorer
or Netscape) before you can view the live videos. For more information please refer to the User’s Manual
in the provided CD.
Step 7 If you need to install Java Virtual Machine on your computer, do not follow the on-screen browser
instructions for installing. Instead, go to http://www.java.com/en/download/manual.jsp and follow the
instructions there for installing Java.
3 3. Security
To ensure the highest security and prevent unauthorized usage of the SkyIPCam310 the
Administrator has the exclusive privilege to access the System Administration for settings and
control requirements to allow users the level of entry and authorize the privileges for all users.
The SkyIPCam310 supports multi-level password protection and access to the SkyIPCam310 is
strictly restricted to define the user who has a “User Name” and “User Password” that is
assigned by the Administrator.
The administrator can release a public user name and password so when remote users access
the SkyIPCam310 they will have the right to view the image transmitted by the SkyIPCam310.
NOTE: Since the default settings are Null String, it is highly recommended to set the "Admin ID"
17
and "Admin Password" when you are the first time to use the SkyIPCam310. Once the ID and
Password are defined, only the administrator has the access to management the SkyIPCam310.
This procedure should be done as soon as possible since the security features with the
SkyIPCam310 will not be enabled until the "Admin ID" and "Admin Password" is defined.
4
5
6
7 4. Application of the SkyIPCam310
The SkyIPCam310 can be applied in wide variety of applications. With the built-in CPU, it can
work as a standalone system that provides a web-based solution transmitting high quality video
images and sounds for monitoring purposes. It can be managed remotely, accessed and
controlled from any PC desktop over the Intranet or Internet via a web browser. With the easy
installation procedure, real-time live images will be available. In addition, once the
SkyIPCam310 is installed coupled with the IPView Pro application, you can further expand the
scope of it.
The following section will provide the typical applications for the SkyIPCam310 along with the
IPView Pro application, and also includes some basic knowledge to assist in the installation and
configuration.
z
Monitoring of local and remote places and objects such as construction sites, hospitals,
amusement parks, schools and day-care centers through the use of a web browser.
z
Capture single frame images from the IPView Pro application.
z
Configure the camera to upload image or send mail messages with a single frame image.
18
Home Applications Diagram
SOHO
Internet Camera
SOHO Wireless
Internet Camera
SOHO Applications Diagram
SOHO
19
8 5. Using the Camera
You can access and manage the SkyIPCam310 through: 1) a web browser, and 2) the enclosed
software IPView Pro. This chapter describes the Web Configuration Utility, and provides the
instructions on using the camera with a web browser.
5.1 Web Configuration Utility
The SkyIPCam310 must be configured through its built-in Web-based Configuration. (Extensive
knowledge of LAN will be helpful in setting up the SkyIPCam310.)
From the web browser, enter the default IP address 192.168.1.240 in the Address bar and then
press [Enter] to access the Welcome screen of the Configuration Utility. The Welcome screen is
shown on the next page.
NOTE: The computer’s IP address must correspond with the camera’s IP address in the same
segment for the two devices to communicate.
Pre-view area
Welcome Screen of the Configuration Utility
In the Welcome screen, there are three options to choose to set-up and view your
SkyIPCam310, including:
z View Image – ActiveX Mode
z View Image – Java Mode
z System Administration
20
Click System Administration to prompt a login dialog
window, and type the default username/ password
(admin/admin) in the corresponding boxes. Then, click OK
to enter the Configuration Utility.
5.2 System Administration
The Configuration Utility contains eleven options in the top menu bar, including: System,
Date/Time, Video/Audio, Network, Users, Trigger, Upload, RS485, Information, Tools, and
Home.
TIP: Once you have changed the settings in each option, click Save to store the settings, or
Cancel to abandon, or Refresh to reload the status. During the configuration, whenever you click
Home in the top menu bar will make you return to the Welcome window.
System
The System window contains the settings for identifying the camera, including Camera Name
and Location.
Camera Name
This field is used for entering a descriptive name for the device.
Location
This field is used for entering a descriptive name for the location used by the camera.
Date/Time
The Date/Time window contains commands to set up the camera's time and date, providing
correct information to the remote users who might be thousands of miles away from the
camera’s location.
21
Date & Time
-
-
Server’s Time: Display the current date/time settings of the camera.
TimeZone: Select the time zone for the region from the pull-down menu. (Please refer to the
Appendix for the time zone selection table.)
Synchronized with Time Server: Select this option and the time will be based on GMT
setting. When selecting the option, you have to enter the required information in the
following fields:
• IP Address - Enter the IP Address of the Time Server in this field.
• Protocol – Select proper protocol: NTP or TIME.
Set Manually: This option allows the system administrator to set date/time manually. Select
the Change the server’s time and date as below item to enter Date and Time in the
respective field manually, or select the Synchronize with this PC item to set up date/time
according to the connected PC’s configuration.
Video/Audio
The Video/Audio window contains commands to control the image and audio settings of the
camera.
22
Environment
Select Outdoor or Indoor according to the installation location of the camera.
Light Frequency
Select 60HZ or 50HZ.
Video Resolution
Select the desired video resolution from three formats: 160x120, 320x240, and 640x480. The
higher setting can obtain better quality; however, it will use more resource within your network.
Compression Rate
Select the desired compression rate from five levels: Lowest, Low, Medium, High, and
Highest. The higher compression rate can increase the data transmission speed over the
network; however, it will provide poorer image quality.
Frame Rate
Select the optimal setting depending on your network status. Please note that the higher setting
can obtain better quality; however, it will use more resource within your network. The available
settings are 1, 3, 7, 12, 15, 25 and 30.
Flip Image
Select Horizontal to display the image in a horizontal mirror mode. Select Vertical to display
the image in a vertical mirror mode
Audio
Select the audio format as PCM or ADPCM. Then, you can also adjust the Volume of the
camera.
In addition, clicking Adjust Image will bring up the following window, which allows you to adjust
the image settings:
23
-
Brightness: Adjust the brightness level ranging from -64 to +64.
Saturation: Adjust the colors level ranging from -64 to +64.
Contrast: Adjust the contrast level ranging from -64 to +64.
Sharpness: Adjust the sharpness level ranging from -6 to +6.
Network
The Network window contains commands that allow you to set up networking configuration of
the camera.
24
IP Assignment
-
-
-
Use Static IP Address: You can select this option and enter the IP address directly. The
default settings are:
• IP Address – 192.168.1.240
• Subnet Mask – 255.255.255.0
• Default Gateway – 192.168.1.1
Obtain IP address automatically via DHCP: If your network uses the DHCP server, select
this option. According to this setting, the camera will be assigned an IP address from the
DHCP server automatically. Every time when the camera starts up, please make sure that
the DHCP server is set to assign a static IP address to your camera.
Obtain IP address automatically via PPPoE: If your application requires a direct
connection from an ADSL modem through the camera’s RJ-45 LAN port, click this option
and enter the User ID and Password into the respective boxes. (Note: You should have an
ISP PPPoE account.) The camera will get an IP address from the ISP as starting up. You
will receive an email automatically regarding to your camera’s IP address. Please kindly
note that the email will be sent according to “Receiver e-mail” you filled from Trigger web
page. Moreover, this feature only applied to PPPoE mode.
DNS IP Address
DNS (Domain Name System) server is an Internet service that translates domain names into IP
addresses. Enter at least one DNS IP address.
Dynamic DNS
Check the Enable Dynamic DNS item to enable the Dynamic DNS function, which allows you
to run your domain over a changing IP address. Select one Dynamic DNS provider from the
pull-down menu, and then enter the required information in the following fields, including the
Domain Name, User Name, and Password.
Http port
The default HTTP Port is 80.
Users
The Users window contains commands that allow the system administrator to assign legal
users who are permitted to monitor the camera from the remote site.
25
Administrator
This field is used for entering the administrator password to access the settings. Enter the
password in the Admin Password box, and then enter the same one again in the Confirm
Password box to confirm the password.
The default setting for Admin is blank space (Null String). For security purpose, you are strongly
recommended to set the Admin Password (a maximum of 16 characters) as soon as possible to
enable security function for the camera.
Add User
-
User Name: Enter the user name in this field (a maximum of 32 characters, printable ASCII
code).
A maximum of 32 users names are allowed; however, each users name must be different.
Each user name can be used as a group given the password. For example, if the User
Name is “Guest” and the User Password is “Guest”, anyone can access the camera with
these details used as a group of users under the User Name “Guest”.
Delete User
Select the user you want to delete from the pull-down menu, and then click Delete.
26
Trigger
The Trigger window contains the control settings for external device through the I/O port, and
the settings required for e-mail.
Enable Trigger Email
-
SMTP Server Address: To use the e-mail alert function, you must enter the mail server
address in the field.
Sender e-mail Address: Enter the e-mail Address of sender.
Receiver e-mail Address 1/2: Enter the e-mail Address of receiver(s).
User Name: Enter the user name in this field to login sender’s mail server.
Password: Enter the user password in this field.
Sending Interval: Enter the time interval to send next e-mail; the unit is by second.
Sending Times: Enter the sending times for every e-mail alert.
Send a test e-mail: When completed, you can do a test to confirm the related settings by
checking this option.
Trigger Output
Check the item to enable the camera to receive the signal from specified detection area, and
then enter the proper settings in the Time Interval field.
27
Access Control
Click the Access Control button to bring up a dialog
window that contains list of users, allowing the
administrator to assign legal users who are permitted to
control the trigger output.
Upload
To upload the image to FTP server, you need to configure the related settings in the Upload
window.
FTP Server
This field contains the following five basic settings for your FTP server.
- Host Address: The IP Address of the target FTP server.
- Port Number: The standard port number for the FTP server is Port 21, and it’s also the
default setting. If the FTP server uses a specific port, please confirm the IT manager.
- User Name: Enter the user name in this field.
- Password: Enter the user password in this field to login the FTP server.
28
-
Directory Path: Enter an existing folder name in this field, and the images will be uploaded
to the given folder.
Operation
To enable the FTP upload function, check the Enable upload video to FTP server option, and
then configure the following settings according to your necessary.
- Always: Allows you to upload the video to FTP server continuously.
- Schedule: Allows you to manage the uploading task. In the Schedule option, you can set
the Day and Time Period option.
• Image Frequency: There are two ways to set the video frequency: 1.) Set the frame(s)
per second, or 2.) Set the time for every frame.
• Base File Name: Enter the file name to make sure that the images could be saved as
the base file name.
• File: Since you may not upload only one image to the FTP server, you can choose the
filing rule, including Overwrite, Date/Time Suffix, and set up the Sequence Number.
RS485
The RS485 window contains the control settings for external device through the I/O port. You
have to configure the respective settings in this window.
29
Check the Enable item to enable the function of your camera, and configure the related settings
in the following fields.
NOTE: When RS485 function is enabled, the system will provide the additional control buttons on
the View Image screen (ActiveX mode and Java mode). See the illustrations on page 44and 47.
Port setting
Select the proper protocol setting from the two options: Popular protocol command
setting or Custom protocol setting.
-
Popular protocol command setting: Select the proper protocol from the pull-down menu.
Click the Preset Position button to bring up a control window, which allows you to control
the camera with more options.
Arrow buttons
•
•
•
-
Arrow buttons: Use these buttons to move the camera’s lens to your desired position.
Click the center button to return to the default home position.
Current Position: When you move the camera’s lens to your desired position, assign
the position by entering a name (a maximum of 16 characters) in this box, then click Add.
The position will be saved in the Preset Position with a number.
Preset Position: When you have saved position(s) in the camera, select the position
number from the pull-down list; the camera’s lens will move to the position immediately.
You can use the Add and the Delete buttons to add/remove the preset position(s). You
can save up to 8 positions.
Custom protocol setting: Selecting this field allows you to configure the commands
protocol manually. You can click Test to test each command that you have assigned.
In the Name and Command String boxes, you can customize more buttons for your needs.
Please note that the setting values in the Command String boxes should be from the
connected external device (please refer to the manual of connected device).
30
Information
The Information window provides general information of the camera, including the Model name,
Firmware Version, Mac Address, and IP Address.
Model
The camera’s model name will be display here.
Firmware Version
The field displays the firmware version of the camera.
MAC Address
This field displays the MAC Address of the camera.
IP Address
This field displays the IP Address of the camera.
Tools
The Tools window contains commands for restarting the camera and upgrading firmware.
31
Reboot
Do you really want to reboot this device? Click YES from this option, and you can restart the
camera just like turning the device off and on and saved settings are retained.
Factory Reset
Do you really want to factory reset this device? Click YES from this option, and you can resume
all factory default settings for the camera.
NOTE: You have to configure the network settings again after a Factory Reset.
LED Control
The LED control allows user to setup the LED illumination as desired. This feature provides the
flexibility when surveillance activity is ON. There are three options: Normal, ON, and OFF.
Update Firmware
This option allows you to update the firmware of the camera once you obtained a latest version
of firmware. Click Browse to find the firmware file saved in your computer, and then click
Update.
NOTE: It will take a few minutes to update firmware. Please wait to complete the procedure; you
can then reboot the camera.
Once the configuration is completed, click Home to return to the Welcome screen and select the
desired View Video option either through ActiveX Mode or Java Mode as described in the next
section.
Then, position the camera to the desired location appropriately for your purpose. Followed by
adjustment of the camera focus, done manually by turning the lens clockwise or anti-clockwise
to the desire image quality. Please refer to Appendix E for detailed instruction.
5.3 View Image – ActiveX Mode
To view video images from the browser, click View Image -ActiveX Mode from the Welcome
screen to access the video images from Internet Explorer as illustrated below:
32
Camera Name/Location: The Camera name and location will be displayed when the Camera
Name/Location fields are entered in the Web Configuration Utility.
Video/Audio: You can enable/disable the video and audio function by clicking the desired
selection.
Trigger Out: you can turn on/off the output device manually by clicking the OFF button.
Browse/Capture: Allow you to capture and save the video image.
At Active X mode: the “Browse” function can select path. The
"Capture" function can capture and save image into the selected path, and the file name is
given automatically.
When you enable RS485 function of the camera, the system will provide the additional control
buttons on the screen (as show below).
You can use the Up, Down, Left, and Right buttons to move the camera’s lens to your desired
position. Click the Home button to return to the default home position.
33
When you select Popular protocol command setting in RS485 configuration window (see
page37), you can use the Preset Position pull-down menu to select one position, then click Go
To to move the camera’s lens to your desired position.
If you select Custom protocol setting in RS485 configuration window (see page37), you can
use the Custom Command pull-down menu to select one position, then click Go To to move
the camera’s lens to your desired position.
NOTE: In the View Image screen (ActiveX mode and Java mode), Preset Position will be
unavailable when you select to use Custom Command.
5.4 View Image – Java Mode
To view video images from the browser, click View Image – Java Mode from the Welcome
screen to access the video images from Internet Explorer or Netscape browser as illustrated
below:
Camera Name/Location: The Camera name and location will be displayed when the Camera
Name/Location fields are entered in the Web Configuration Utility.
Video/Audio: You can enable/disable the video and audio function by clicking the desired
selection.
Trigger: you can turn on/off the output device manually by clicking the OFF button.
Browse/Capture: Allow you to capture and save the video image.
At Java mode: the "Browse" function includes path selection and file name input. And the
"Capture" function includes path selection, file name input and image capture and save.
When you enable RS485 function of the camera, the system will provide the additional control
buttons on the screen (as show below).
34
The function of these control buttons are the same as they are in ActiveX mode screen (see
page 44).
35
9 6. IPView Pro
This chapter describes IPView Pro, which is a powerful software application designed with a
user-friendly interface for ease of control and navigation requirements.
6.1 Installation
Step 1 Insert the CD-ROM into the CD-ROM drive to initiate the auto-run program. The menu
screen will appear as below:
Step 2 Click the IPView Pro item to activate the InstallShield Wizard. Click Next in the welcome
screen.
36
Step 3 Read and accept the License Agreement; then, click Yes.
Step 4 Choose the destination location. If no specific requirement, leave the default setting and
click Next.
Step 5 The InstallShield Wizard starts to install the software, and the progress bar indicates the
installation is proceeding.
37
Step 6 Click Finish to complete the installation.
38
6.2 Getting Started
This section describes the User Interface of IPView Pro, with detailed procedures for using the
application.
To launch IPView Pro, click Start > Programs > IPView Pro > IPView Pro. The main screen
will appear as below:
NOTE: IPView Pro requires the system’s resolution setting up to 1024x768. Please configure the
resolution to 1024x768 or higher; otherwise, it may shows incomplete screen when launching the
program.
Item Feature
NO.
1
Item
Date/Time
2
Status Mode Window
Description
Show current date/time.
Show the camera’s status in this window.
Click the Change Status Mode button (
of the window to change the display mode:
Camera list mode
Camera information mode
3
View Window
Show the camera’s view in this window.
4
Connect/
Disconnect
Click to connect/disconnect the camera.
39
) on the right lower corner
5
Rotate image
angle
Click to rotate the image shown in the View Window.
6
Snapshot
Click to capture a still image from the View Window.
7
Audio ON/OFF
Click to turn on/off the camera’s audio.
8
Zoom Mode
Click to zoom in/out the image in the View Window.
9
View Mode Buttons
Select the view mode from these buttons.
Show one camera in View Window.
Show four cameras in View Window.
Show six cameras in View Window with the first one as the
major view.
Show eight cameras in View Window with the first one as
the major view.
Show nine cameras in View Window.
Show ten cameras in View Window with the first two as the
major views.
Show thirteen cameras in View Window with the first one as
the major view.
Show sixteen cameras in View Window.
Show the selected camera in full screen view.
Enable displaying the video views in circles.
10
Key Lock Button
Click to lock/unlock the camera. When locked, the user cannot operate
any camera.
11
Power Button
Click to exit or minimize IPView Pro.
12
Record Button
Record video clip of the selected camera and save it in the computer.
The storage position can be configured in System Configuration. When
you click the button, you can select Manual Record, Schedule
Record, or Motion Record.
13
Play Button
Play the recorded video file in the computer.
14
System Configuration
Click to enter the System Configuration.
40
6.3 Using IPView Pro
Adding a Camera
To add a camera:
1. Click the System Configuration button to enter the System Configuration.
If you are not sure of the camera’s IP address, you can click Search to search the available
camera(s) within the network.
2. Select the camera you want by highlighting it, and then click Add Camera.
The camera is added.
Click the Add
Camera button.
The camera found
within the network.
41
3. Click Save, and then click the System Configuration button to return to View Window. The
selected camera’s video will be displayed now. You can click Save as to save the selected
cameras into the desired path and the selected cameras can be reloaded by load button.
Alternately, you can add a camera by entering the its IP address directly:
4. Select the Input IP tab.
The camera is added.
Click the Add
Camera button.
Enter the camera’s
IP address and Port.
5. Enter the camera’s IP address (you can get this from the AirLink101 camera setup wizard
application) and Port (default: 80), and then click Add Camera.
6. Click Save, and then click the System Configuration button to return to View Window. The
selected camera’s video will be displayed now.
Removing a Camera
To remove the camera from the list:
1. Select the camera you want to remove.
2. Click Delete Camera.
42
Viewing a Camera
From the View Modes of the panel, you can select one-camera mode or other modes to
display your video. IPView Pro allows a maximum of 16 cameras for viewing.
For example, if you use only one camera, select one-camera mode (
), and the View
Window will display the view as figure 1.
), and the View Window will
If there are four cameras, select four-camera mode (
display the view as figure 2.
Figure 1
Figure 2
Recording Video
IPView Pro allows you to record the video clip and save it in your computer through the
following methods: Manual Record, Schedule Record, and Motion Record.
When you click the Record button and select Manual Record, it will start recording. Click the
button again to stop. If you select Schedule Record or Motion Record, the system will record
the video clip according to the settings in System Configuration.
43
Playing Recorded Video
The recorded video clips are saved in your computer, and can be played using Windows Media
Player. To start playback, simply click the Play button on the panel, and the following dialog
screen will appear, allowing you to select the file to playback.
Select one file
to playback.
The folder that stores
the recorded file.
Select the recorded file in the computer, and then click OK.
6.4 Configuring the System
Clicking the System Configuration button on the panel allows you to configure the system
settings, and the System Configuration Screen will appear in the View Window as shown
below. Once configured, click Save to save the settings, and then click the System
Configuration button again to exit configuration.
System Configuration Screen
44
Camera Configuration
In this field, you can add/delete the camera (as described in the previous section). Also, you can
configure the following settings:
Web Configuration
In the left column, selecting the Web Configuration item will launch the Web Configuration
Utility in View Window.
You can configure these settings according to the description in Chapter 5, Using the Camera.
Click Back to exit the Web Configuration Utility.
Motion Configuration-1
The Motion Configuration-1 item provides the commands for motion detection control. Before
configuring, you should select one camera from the pull-down menu.
45
Select one camera.
Select Custom region.
Region 1.
Region 2.
-
-
Detect Region:
• Full picture – When you select this option, the camera will monitor the whole area.
• Custom region – Click Add Region, and then use mouse to draw an area in the
view screen; when some motion detected within the area, the camera starts
recording automatically. You can set multiple areas in the view screen. Click Delete
Region to remove the area selected. Click Clear All Region to remove all areas in
the view screen.
Sensitivity Level: Move the slide bar to adjust the sensitivity level for detecting motion
to record video.
Motion Configuration-2
The Motion Configuration-2 item allows you to configure to the alarm and e-mail setting.
46
-
Invoke Alarm: Select this option to enable alarm when some motion detected by the
system.
Send e-mail: When this option is checked, click the Mailing Configuration in the left
column to enter the required information (see the following section).
Play music: You can use the music file to alert the event. Click Browse music file to
select the desired music, and set the Interval time.
Trigger1 active: You can check this option to set the Trigger-On holding time.
Tools
The Tools item allows you to configure to the alarm and e-mail setting.
-
Reset: Restore the original setting of your camera. Do you really want to reset this
device? Click Yes in the pop-up dialog box to confirm.
47
-
Factory Reset: Restore the factory default settings of the camera. Do you really want to
factory reset this device? Click Yes in the pop-up dialog box to confirm.
Update Firmware: When new firmware is available, you can upgrade it using this option.
Click Browse to find the firmware file, and then click Update.
Mailing Configuration
When Motion Detection function is enabled and the Send e-mail option is checked, you should
enter the required information in the respective fields.
-
Mail Server: Enter the mail server address that is used to send your e-mail.
Mail From/To: Enter the sender’s/receiver’s e-mail address.
Subject: Enter the title of the e-mail.
User Name/Password: Enter the user name/password to login the mail server.
Interval Time: Enter a number in this box to setup the time (in second) to send e-mail
regularly.
Proxy Server
Check the Proxy Server option and enter the required settings in the Address and Port boxes
to enable and use the Proxy Server function.
48
Recording Configuration
In this field, you can configure the storage settings.
-
Log Storage:
• Reserved HDD Space For MS-Windows OS – You can reserve 500 MB to 10000 MB
hard disk space for the program.
• Each Recording File Size – If the recorded video files reach the file size limit, video
images will be recorded into another file automatically. The available settings are from
10 MB to 50 MB.
• Storage List – The destination folder to save the recorded video file can be specified
here. Click Modify to change the current path setting; click Add to add a new destination
49
-
folder; click Delete to remove a selected path setting. Please note that you are not
allowed to delete a path setting if there is only one setting in the list.
Recycle: You can check this option to clear the files when the unreserved space of your
hard disk is filled. The available settings are from 200 MB to 50000 MB.
Resume last time’s state of recording: You can check this option to store the recording
state, and resume the recording state on the next time you record.
Schedule-Recording Configuration
This recording function will work after you have enabled respective settings in the Schedule
mode. The recording schedule can be defined by Date Mode or Week Mode.
-
Date Mode: First, select the camera desired from the pull-down menu. Then, setup the time
in the Start/Stop fields. Click Add to add the recording schedule to the list. Click Save to
save the settings.
Weekday buttons.
50
-
Week Mode: First, select the camera desired from the pull-down menu. Then, setup the
time in the Start/Stop fields, and select the weekday from the buttons. Click Add to add the
recording schedule to the list. Click Save to save the settings.
Others
When multiple cameras connected, this option allows the system to display these views as the
main view in circles according to your time settings. The range of Time interval of scan is from
1 to 20 seconds.
51
Log List
This filed displays the user(s) information, which include the Date, MAC address, and the brief
description of events.
Account
This filed allows you to set the Admin ID and Admin Password. You can also check the Login
password check option to secure your camera by checking the login password.
52
About
This filed provides information of the software application.
53
10 7. Appendix
7.1 Frequently Asked Questions
SkyIPCam310 Features
Q: What is a Network Camera?
A: The Network Camera (Internet Camera) is a standalone system connecting directly to an
Ethernet or Fast Ethernet network. It is different from the conventional PC camera, the
SkyIPCam310 is an all-in-one system with built-in CPU and web-based solutions providing a
low cost solution that can transmit high quality video images for monitoring. The SkyIPCam310
can be managed remotely, accessed and controlled from any PC/Notebook over the Intranet or
Internet via a web browser.
Q: What is the maximum number of users that can be allowed to access the SkyIPCam310
simultaneously?
A: Maximum number of users that can log onto the SkyIPCam310 at the same time is 64.
Please keep in mind the overall performance of the transmission speed will slow down when
many users are logged on.
Q: What algorithm is used to compress the digital image?
A: The SkyIPCam310 utilizes the JPEG image compression technology providing high quality
images for users. JPEG is adopted since it is a standard for image compression and can be
applied to various web browser and application software without the need to install extra
software.
SkyIPCam310 Installation
Q: Can the SkyIPCam310 be used out-doors?
A: The SkyIPCam310 is not weatherproof. It needs to be equipped with a weatherproof case to
be used outdoors and it is not recommended.
Q: What network cabling is required for the SkyIPCam310?
A: The SkyIPCam310 uses Category 5 UTP cable allowing 10 Base-T and 100 Base-T
networking.
Q: Can the SkyIPCam310 be setup as a PC-cam on the computer?
A: No, the SkyIPCam310 is a network camera used only on Ethernet and Fast Ethernet
network.
Q: Can the SkyIPCam310 be connected on the network if it consists of only private IP
addresses?
A: The SkyIPCam310 can be connected to LAN with private IP addresses.
Q: Can the SkyIPCam310 be installed and work if a firewall exists on the network?
A: If a firewall exists on the network, port 80 is open for ordinary data communication.
However, since the SkyIPCam310 transmits image data, the default port 8481 is also required.
54
Therefore, it is necessary to open port 8481 of the network for remote users to access the
camera.
7.2 PING Your IP Address
The PING (Packet Internet Groper) command can determine whether a specific IP address is
accessible by sending a packet to the specific address and waiting for a reply. It can also
provide a very useful tool to confirm if the IP address conflicts with the camera over the network.
Follow the step-by-step procedure below to utilize the PING command. However, you must
disconnect the camera from the network first.
Start a DOS window.
Type ping x.x.x.x, where x.x.x.x is the IP address of the camera.
The succeeding replies as illustrated below will provide useful explanation to the cause of the
problem with the SkyIPCam310 IP address.
7.3 Troubleshooting
Q: I cannot access the SkyIPCam310 from a web browser.
A1: The possible cause might be the IP Address for the SkyIPCam310 is already being used by
another device. To correct the possible problem, you need to first disconnect the SkyIPCam310
from the network. Then run the PING utility (follow the instructions in Appendix B - PING Your
IP Address).
A2: Another possible reason is the IP Address is located on a different subnet. To fix the
problem, run the PING utility (follow the instructions in Appendix B - PING Your IP Address). If
the utility returns “no response” or similar, the finding is probably correct, then you should
proceed as follows:
In Windows 98 / 2000 / XP / Vista and Windows NT, double check the IP Address of the
SkyIPCam310 is within the same subnet as your workstation.
Click “Start”, “Setting”, “Control Panel”, and the “Network” icon. Select TCP/IP from the
“Network” dialog box and from the “TCP/IP Properties” dialog box click “Specify an IP address”.
If the camera0 is situated on a different subnet than your workstation, you will not be able to set
the IP address from this workstation. To verify make sure the first 3 sections of the IP address
of the camera corresponds to the first 3 sections of the workstation. Therefore the IP address of
the SkyIPCam310 must be set from a workstation on the same subnet.
A3: Other possible problems might be due to the network cable. Try replacing your network
cable. Test the network interface of the product by connecting a local computer to the unit,
utilizing a standard Crossover (hub to hub) Cable. If the problem is not solved the camera might
be faulty.
55
Q: Why does the Power LED not light up constantly?
A: The power supply used might be at fault. Confirm that you are using the provided power
supply DC 5V for the SkyIPCam310 and verify that the power supply is well connected.
Q: Why does the Link LED not light up properly?
A1: There might be a problem with the network cable. To confirm that the cables are working,
PING the address of a know device on the network. If the cabling is OK and your network is
reachable, you should receive a reply similar to the following (…bytes = 32 time = 2 ms).
Q: Why does the SkyIPCam310 work locally but not externally?
A1: Might be caused from the firewall protection. Need to check the Internet firewall with your
system administrator.
A2: The default router setting might be a possible reason.
configuration of the default router settings is required.
Need to double check if the
Q: Why does a series of broad vertical white line appears through out the image?
A: A likely issue is that the CMOS sensor becomes overloaded when the light source is too
bright such as direct exposure to sunlight or halogen light. You need to reposition the
SkyIPCam310 into a more shaded area immediately as this will damage the CMOS sensor.
Q: There is bad focus on the SkyIPCam310, what should be done?
A1: The focus might not be correctly adjusted for the line of sight. You need to adjust the
SkyIPCam310 focus manually as described in Adjust SkyIPCam310 Focus.
A2: There is no adaptor fitted with your C-type lens. If you have previously changed the
supplied CS-type lens, you may have unintentionally installed a C-type lens without fitting the
adaptor first.
Q: Noisy images occur how can I solve the problem?
A: The video images might be noisy if the SkyIPCam310 is used is a very low light environment.
To solve this issue you need more lighting.
Q: There is poor image quality, how can I improve the image?
A1: A probable cause might be the incorrect display properties configuration for your desktop.
You need to open the Display Properties on your desktop and configure your display to show at
least 65’000 colors for example at least 16-bit.
NOTE: Applying only 16 or 256 colors on your computer will produce dithering artifacts in the image.
A2: The configuration on the SkyIPCam310 image display is incorrect. Through the Web
Configuration Image section you need to adjust the image related parameter for improve images
such as brightness, contrast, hue and light frequency. Please refer to the Web Configuration
section for detail information.
Q: There are no images available through the web browser?
A: The ActiveX might be disabled. If you are viewing the images from Internet Explorer make
sure ActiveX has been enabled in the Internet Options menu. Alternatively, you can use the
Java Applet for viewing the required images.
56
7.4 Adjust SkyIPCam310 Focus
To adjust the focus of the lens, you need to turn the lens slowly in either clockwise or anticlockwise direction until the desired image appears. DO NOT over turn the lens in either of the
directions, as it will be out of focus.
NOTE: You can further adjust the SkyIPCam310's image quality through System Administration –
Image of Web Configuration. Please refer to Web Configuration section for further details.
Warning
Direct exposure to sunlight may cause permanent damage to the CMOS sensor. Therefore do not expose the
SkyIPCam310’s lens directly to sunlight. When operation is required in glaring light environment, it is
recommended to use an iris lens.
The SkyIPCam310 is designed for indoor usage and if your application requires prolong exposure to sunlight, a
sun visor is recommended to protect the SkyIPCam310.
57
7.5 I/O Terminal Application
Typically used in association with programming scripts for developing applications for motion
detection, event triggering, alarm notification via e-mail, and a variety of external control
functions. The 6-pin I/O Terminal Block is located on the rear panel and provides the interface
to: a photo-coupled switch output, a photo-coupled input, and RS-485 interface. The RS-485 is
typically used for pan/tilt/zoom control.
Connector Pin Assignment
PIN No.
1
2
3
4
5
6
FUNCTION
RS-485 (+) or (A)
RS-485 (-) or (B)
Photo-Relay INPUT (+)
Photo-Relay INPUT (-)
Photo-Relay OUTPUT
(Normal Open)
Photo-Relay OUTPUT
(Common)
SPECIFICATION
Compliant to RS-485
Active High voltage 9~40VDC
Dropout voltage 0 VDC
Close circuit current maximum
70 mAAC, or 100 mADC.
Output resistance 30 Ohm.
Open circuit voltage maximum
240VAC or 350VDC
Monitoring and Controlling
By entering http requests in your browser’s URL field, you can:
‧ Monitor the status of digital input
‧ Drive the output switch on or off
‧ Control the speed/position of pan/tilt/zoom motors in a swivel stand or a speed dome
camera.
Interface Schematic
1. Input device (active control device) has independent power supply.
3
4
2. Output device (load) is driven by external power supply.
5
AC/
DC
6
Load
3. RS485 Interface
58
1
2
PTZ Camera
59
7.6 Specifications
Video specification
Resolution:
Sensor:
Lens:
Gain control:
Exposure:
White Balance:
640 x 480 pixel
Color CMOS sensor
f: 6.0 mm, F: 1.8
Automatic
Automatic
Automatic
Image (Video Setting)
Compression:
Image frame rate:
Compression rate:
Frame rate:
Video resolution:
M-JPEG
CIF, QCIF, VGA @ 30fps
Support different frame rate for different connections depending
on connection bandwidth: Lowest/Low/ Medium/High /Highest
Auto/20/15/10/7/4/1
160x120/320x240/640x480
Outdoor/Indoor/50Hz/60Hz
Audio
MIC Input:
Compression:
Internal MIC (mono)
ADPCM/PCM
Hardware Interface
LAN Connector:
Communication protocol:
CPU:
RAM:
Flash ROM:
Power Supply:
Power consumption:
LED Indicator:
I/O port pin assignment:
Input:
Output:
RS-485:
One RJ-45 port, 10/100M auto-sensed, Auto-MDIX
HTTP, FTP, TCP/IP, UDP, ARP, ICMP, DHCP, PPPoE, DDNS,
SMTP, UPnP
ADMtek 5120
16MB
4MB
5VDC/2.5A, 100~240VAC, 50/60Hz
6 Watt max.
Power LED (Blue)
Activity LED (Orange)
1 set, 2-pin (photo relay; Active High: 9~40VDC; Dropout: 0 VDC)
1 set, 2-pin (photo relay, Close circuit current: 70mA or 100mA;
30Ohm; Open circuit voltage: 240 VAC or 350VDC)
Half duplex (to control external pan/tilt device)
Software
Browser:
Application Software:
Internet Explorer 5.0 or above;
Netscape 6.0 or above
IPView Pro
60
Operating environment
Operating temperature:
Storage temperature:
Humidity:
5OC ~ 40OC
-25OC ~ 50OC
5% ~ 95%, non-condensing
EMI
FCC and CE
61
11
12
13
Technical Support
E-mail: [email protected]
Toll Free: 1-888-746-3238
Web Site: www.airlink101.com
* Actual data throughput will vary. Network conditions and environmental factors lower actual data throughput rate. Specifications
are subject to change without notice. All products and trademarks are the property of their respective owners. Copyright ©2007
AirLink101®
62
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
