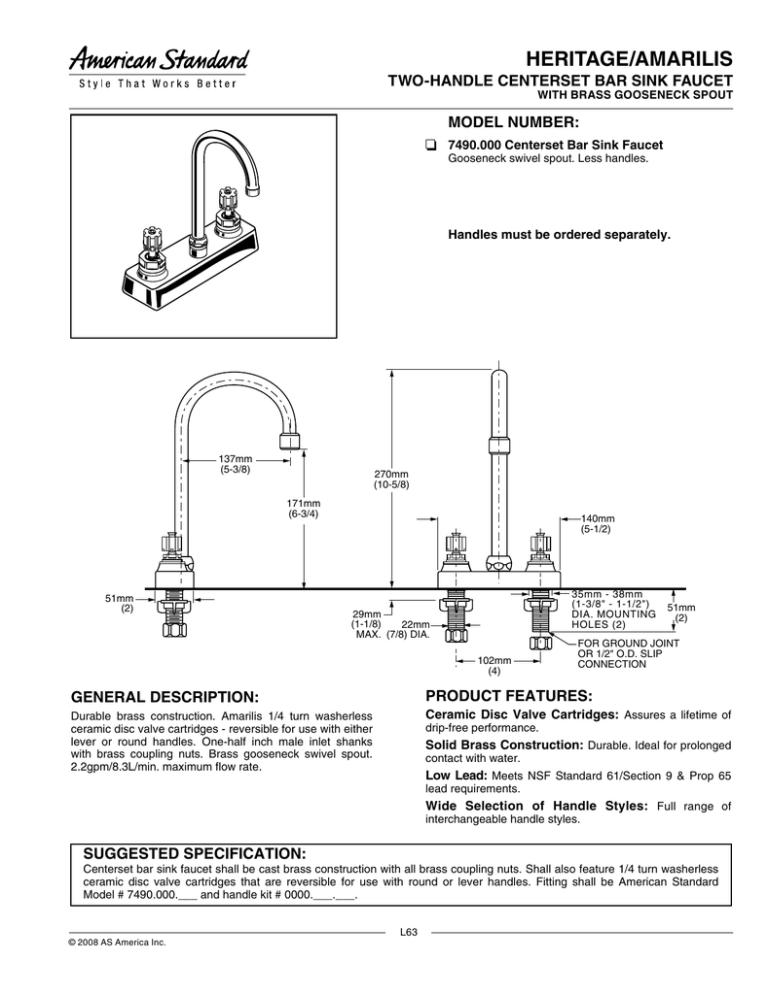

HERITAGE/AMARILIS TWO-HANDLE CENTERSET BAR SINK FAUCET WITH BRASS GOOSENECK SPOUT MODEL NUMBER: 7490.000 Centerset Bar Sink Faucet Gooseneck swivel spout. Less handles. Handles must be ordered separately. 137mm (5-3/8) 270mm (10-5/8) 171mm (6-3/4) 51mm (2) 140mm (5-1/2) 35mm - 38mm (1-3/8" - 1-1/2") DIA. MOUNTING HOLES (2) 29mm (1-1/8) 22mm MAX. (7/8) DIA. 102mm (4) 51mm (2) FOR GROUND JOINT OR 1/2" O.D. SLIP CONNECTION GENERAL DESCRIPTION: PRODUCT FEATURES: Durable brass construction. Amarilis 1/4 turn washerless ceramic disc valve cartridges - reversible for use with either lever or round handles. One-half inch male inlet shanks with brass coupling nuts. Brass gooseneck swivel spout. 2.2gpm/8.3L/min. maximum flow rate. Ceramic Disc Valve Cartridges: Assures a lifetime of drip-free performance. Solid Brass Construction: Durable. Ideal for prolonged contact with water. Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead requirements. Wide Selection of Handle Styles: Full range of interchangeable handle styles. SUGGESTED SPECIFICATION: Centerset bar sink faucet shall be cast brass construction with all brass coupling nuts. Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with round or lever handles. Fitting shall be American Standard Model # 7490.000.___ and handle kit # 0000.___.___. © 2008 AS America Inc. L63 HERITAGE/AMARILIS TWO-HANDLE CENTERSET BAR SINK FAUCET WITH BRASS GOOSENECK SPOUT CODES AND STANDARDS FLOW RATE* 3.0 GALLONS PER MINUTE These products meet or exceed the following codes and standards: ASME A112.18.1 CSA B 125 NSF 61/Section 9 2.5 2.0 1.5 1.0 0.5 0.0 20 40 60 80 100 INLET PRESSURE (PSI) *Flow rates shown are for mixed hot and cold. Finish Polished Chrome Product Number Description 7490.000 002 Bar Sink faucet. Less handles. Handles must be ordered separately. To order Less Handles - Specify: 4 digit style number followed by three zeros and 3 digit finish number. Example 7490.000.002 = Bar Sink faucet in Polished Chrome finish. The above fittings will accept the following Amarilis-Series handles. Metal Lever Perfume Bottle Metal Cross Metal Lever Wrist Blade Lever Lexington 442 432 552 542 372H 372V 342H 342V 902 912 Meets the American Disabilities Act Guidelines and ANSI A117.1 Requirements for the physically challenged. © 2008 AS America Inc. L64
