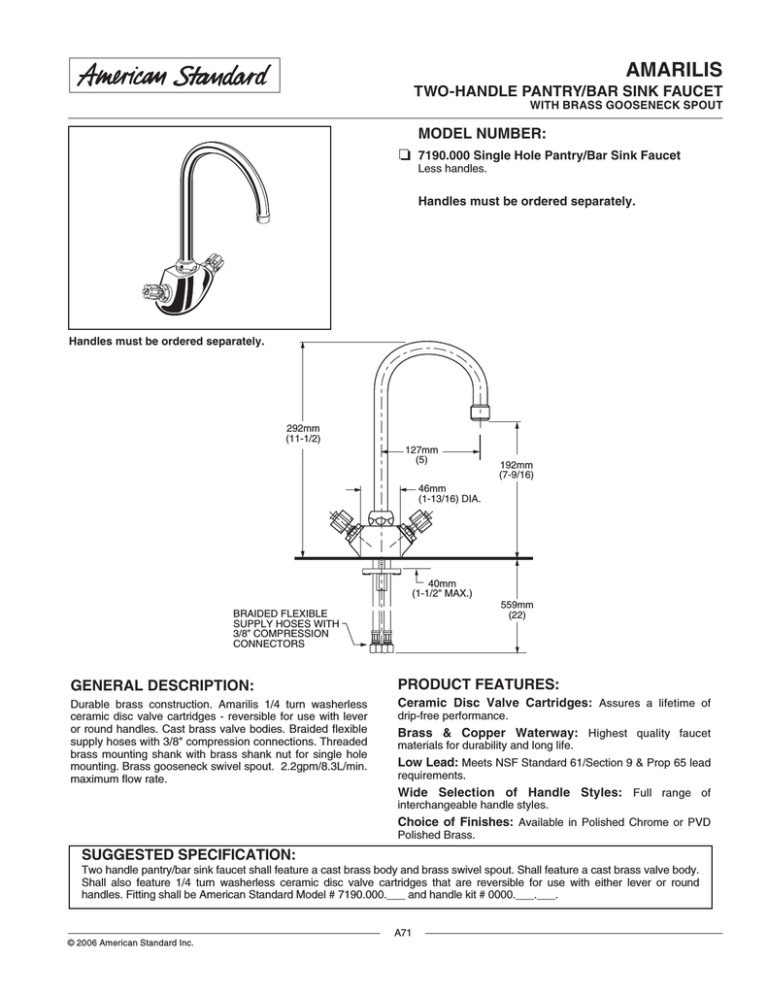

AMARILIS
TWO-HANDLE PANTRY/BAR SINK FAUCET
WITH BRASS GOOSENECK SPOUT
MODEL NUMBER:
7190.000 Single Hole Pantry/Bar Sink Faucet
Less handles.
Handles must be ordered separately.
Handles must be ordered separately.
292mm
(11-1/2)
127mm
(5)
192mm
(7-9/16)
46mm
(1-13/16) DIA.
40mm
(1-1/2" MAX.)
559mm
(22)
BRAIDED FLEXIBLE
SUPPLY HOSES WITH
3/8” COMPRESSION
CONNECTORS
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Durable brass construction. Amarilis 1/4 turn washerless
ceramic disc valve cartridges - reversible for use with lever
or round handles. Cast brass valve bodies. Braided flexible
supply hoses with 3/8" compression connections. Threaded
brass mounting shank with brass shank nut for single hole
mounting. Brass gooseneck swivel spout. 2.2gpm/8.3L/min.
maximum flow rate.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Brass & Copper Waterway: Highest quality faucet
materials for durability and long life.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Wide Selection of Handle Styles: Full range of
interchangeable handle styles.
Choice of Finishes: Available in Polished Chrome or PVD
Polished Brass.
SUGGESTED SPECIFICATION:
Two handle pantry/bar sink faucet shall feature a cast brass body and brass swivel spout. Shall feature a cast brass valve body.
Shall also feature 1/4 turn washerless ceramic disc valve cartridges that are reversible for use with either lever or round
handles. Fitting shall be American Standard Model # 7190.000.___ and handle kit # 0000.___.___.
A71
© 2006 American Standard Inc.
AMARILIS
TWO-HANDLE PANTRY/BAR SINK FAUCET
WITH BRASS GOOSENECK SPOUT
CODES AND STANDARDS
FLOW RATE*
3.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ASME A112.18.1
CSA B 125
NSF 61/Section 9
2.5
2.0
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options*
Product
Number
PVD
Polished Polished
Chrome
Brass
002
099
Description
7190.000
Bar Sink faucet. Less handles.
Handles must be ordered separately.
To order Less Handles - Specify: 4 digit style number followed by three zeros and 3 digit finish number.
Example 7190.000.002 = Bar Sink faucet in Polished Chrome finish.
The above fittings will accept the following Amarilis-Series handles.
4-Arm
Lever
Lever
Crown
Acrylic
Lexington
252H
242H
102H
102V
112H
902
912
Triune
Cross
862
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
*EverClean™ Finish:
• Offered on Polished Chrome (002) and Polished Brass (099) finishes.
• One wipe effortlessly removes spots.
• Eliminates the need for cleaners and scrubbing.
A72
© 2006 American Standard Inc.
