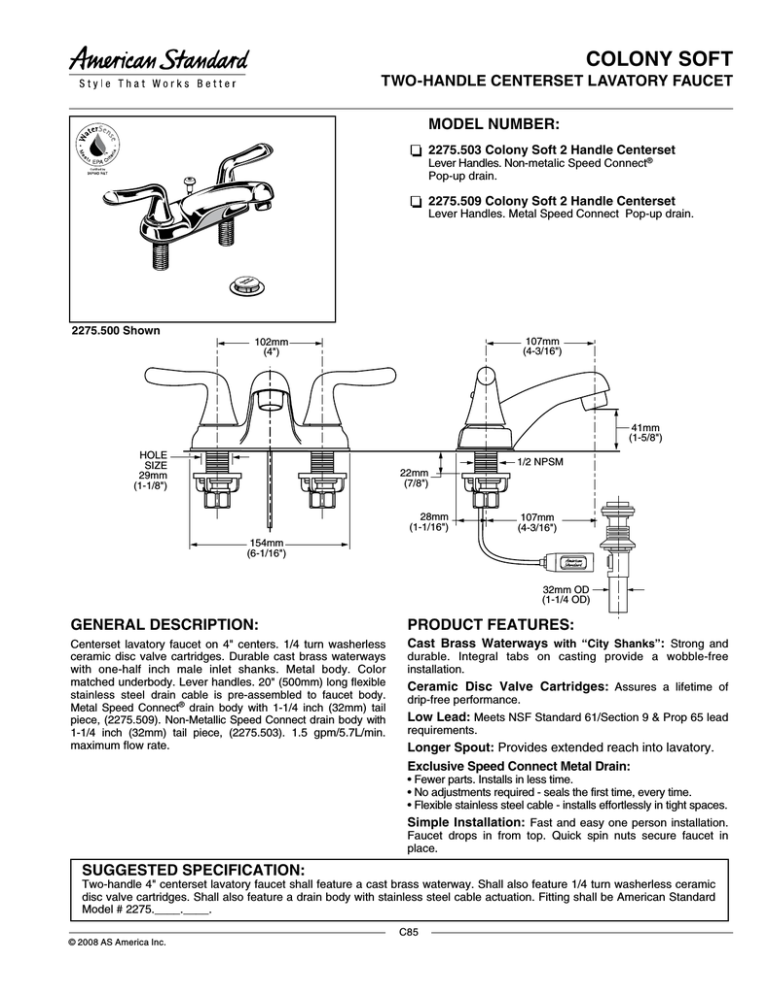

COLONY SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
2275.503 Colony Soft 2 Handle Centerset
Lever Handles. Non-metalic Speed Connect®
Pop-up drain.
2275.509 Colony Soft 2 Handle Centerset
Lever Handles. Metal Speed Connect Pop-up drain.
2275.500 Shown
107mm
(4-3/16")
102mm
(4")
41mm
(1-5/8")
HOLE
SIZE
29mm
(1-1/8")
22mm
(7/8")
28mm
(1-1/16")
1/2 NPSM
107mm
(4-3/16")
154mm
(6-1/16")
32mm OD
(1-1/4 OD)
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass waterways
with one-half inch male inlet shanks. Metal body. Color
matched underbody. Lever handles. 20" (500mm) long flexible
stainless steel drain cable is pre-assembled to faucet body.
Metal Speed Connect® drain body with 1-1/4 inch (32mm) tail
piece, (2275.509). Non-Metallic Speed Connect drain body with
1-1/4 inch (32mm) tail piece, (2275.503). 1.5 gpm/5.7L/min.
maximum flow rate.
Cast Brass Waterways with “City Shanks”: Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65 lead
requirements.
Longer Spout: Provides extended reach into lavatory.
Exclusive Speed Connect Metal Drain:
• Fewer parts. Installs in less time.
• No adjustments required - seals the first time, every time.
• Flexible stainless steel cable - installs effortlessly in tight spaces.
Simple Installation: Fast and easy one person installation.
Faucet drops in from top. Quick spin nuts secure faucet in
place.
SUGGESTED SPECIFICATION:
Two-handle 4" centerset lavatory faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a drain body with stainless steel cable actuation. Fitting shall be American Standard
Model # 2275.____.____.
© 2008 AS America Inc.
C85
COLONY SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
2275.503
Colony Soft 2 Handle Centerset. Lever Handles.
Non-metalic Speed Connect® Pop-up drain..
2275.509
Colony Soft 2 Handle Centerset. Lever Handles.
Metal Speed Connect Pop-up drain.
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America Inc.
C86
Polished
Chrome
PVD
Satin
Nickel
002
295
COLONY SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
MODEL NUMBER:
2275.500 Centerset Lavatory Faucet
Lever Handles. 50/50 Pop-up drain.
2275.505 Centerset Lavatory Faucet
Lever Handles. Less drain. With pop-up hole, plug button
and rod.
2275.500 Shown
107mm
(4-3/16")
102mm
(4")
41mm
(1-5/8")
HOLE
SIZE
29mm
(1-1/8")
22mm
(7/8")
28mm
(1-1/16")
1/2 NPSM
107mm
(4-3/16")
154mm
(6-1/16")
GENERAL DESCRIPTION:
PRODUCT FEATURES:
Centerset lavatory faucet on 4" centers. 1/4 turn washerless
ceramic disc valve cartridges. Durable cast brass waterways
with one-half inch male inlet shanks. Metal body. Color
matched underbody. Lever handles. 1.5 gpm/5.7L/min.
maximum flow rate.
Cast Brass Waterways with “City Shanks”: Strong and
durable. Integral tabs on casting provide a wobble-free
installation.
Ceramic Disc Valve Cartridges: Assures a lifetime of
drip-free performance.
Low Lead: Meets NSF Standard 61/Section 9 & Prop 65
lead requirements.
Longer Spout: Provides extended reach into lavatory.
Simple Installation: Fast and easy one person
installation. Faucet drops in from top. Quick spin nuts secure
faucet in place.
SUGGESTED SPECIFICATION:
Two-handle 4" centerset lavatory faucet shall feature a cast brass waterway. Shall also feature 1/4 turn washerless ceramic
disc valve cartridges. Shall also feature a metal drain body with stainless steel cable actuation. Fitting shall be American
Standard Model # 2275.____.____.
© 2008 AS America Inc.
C87
COLONY SOFT
TWO-HANDLE CENTERSET LAVATORY FAUCET
CODES AND STANDARDS
FLOW RATE*
2.0
GALLONS PER MINUTE
These products meet or exceed the following
codes and standards:
ANSI A117.1
ASME A112.18.1
CSA B125
NSF 61/Section 9
1.5
1.0
0.5
0.0
20
40
60
80
100
INLET PRESSURE (PSI)
*Flow rates shown are for mixed hot and cold.
Finish Options
Product
Number
Description
2275.500
Centerset lavatory. Lever Handles.
50/50 Pop-up drain.
2275.505
Centerset lavatory. Lever Handles. Less drain.
With pop-up hole and rod.
N/A = NOT AVAILABLE
Meets the American Disabilities Act Guidelines
and ANSI A117.1 Requirements for the
physically challenged.
© 2008 AS America Inc.
C88
Polished
Chrome
PVD
Satin
Nickel
002
295
N/A
