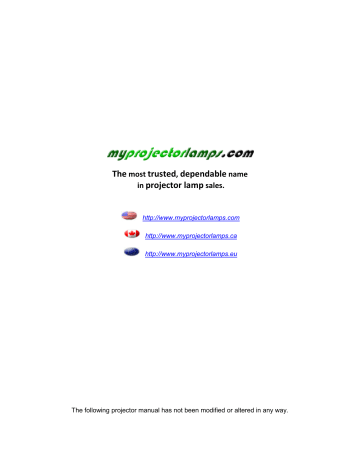

The most trusted, dependable name in projector lamp sales.

The most trusted, dependable name in projector lamp sales.

The

most trusted

, dependable

name

in projector lamp

sales.

http://www.myprojectorlamps.com

http://www.myprojectorlamps.ca

http://www.myprojectorlamps.eu

The following projector manual has not been modified or altered in any way.

SP-M205 SP-M225 SP-M255 SP-M275 SP-M305

LCD Projector

Owner’s Instructions

The color and the appearance of the product may differ from the illustrations in this manual. The specifications are subject to change without prior notice to improve performance.

Table Of Contents

MAJOR SAFETY PRECAUTIONS

Before You Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3

INSTALLATION AND CONNECTION

Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1

Installing the Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Leveling with Adjustable Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

Zoom and Focus Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Screen Size and Projection Distance . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Rear Side . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-7

Supported Display Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-8

Connecting the Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-9

Connecting with a PC and Setting up the PC . . . . . . . . . . . . . . . . . . 2-10

Connecting a PC using an HDMI/DVI cable . . . . . . . . . . . . . . . . . . . . 2-11

Connecting an HDMI-Compatible Device . . . . . . . . . . . . . . . . . . . . . . 2-12

Connecting an AV device using a D-Sub cable . . . . . . . . . . . . . . . . . 2-13

Connecting an AV device with Component output . . . . . . . . . . . . . . 2-14

Connecting using a Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-15

Connecting an External Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-16

Connecting to a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-17

Kensington Lock slot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-18

USING

Product Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1

Front, Upper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-3

LED Indications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-4

Using the Screen Adjustment Menu (OSD: On Screen Display) . . . . 3-5

Network Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

MEDIA PLAY FUNCTION

Connecting a USB Storage Device and Precautions . . . . . . . . . . . . . 4-1

Documents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Photo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-3

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

Movie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

Supported File Formats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

TROUBLESHOOTING

Before Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1

MORE INFORMATION

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-1

RS232C Command Table . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-2

Contact SAMSUNG WORLDWIDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-3

Correct Disposal - Europe only . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-4

1 Major Safety Precautions

1-1 Before You Start

Icons used in this manual

ICON NAME

Caution

MEANING

Indicates cases where the function may not work or the setting may be canceled.

Note Indicates a hint or tip to operate a function.

Using this Manual

• Make yourself fully aware of the safety precautions before using this product.

• The contents of this manual are subject to change without prior notice for performance improvement.

• If a problem occurs, refer to the 'Troubleshooting' section.

Copyright Notice

Copyright © 2010 Samsung Electronics Co., Ltd. All rights reserved.

The copyright of this manual is reserved by Samsung Electronics, Co., Ltd.

The contents of this manual may not be partially or in whole reproduced, distributed or used in any form without the written permission of Samsung Electronics, Co., Ltd.

Major Safety Precautions 1-1

1-2 Care and Maintenance

Cleaning the Surface and the Lens

Clean the projector using a soft dry cloth.

• Avoid cleaning the product with a flammable substance such as benzene or thinner.

• Avoid scratching the lens with your fingernails or a sharp object.

This may result in scratches or damage to the product.

• Avoid cleaning the product with a wet cloth or by directly spraying water onto the product.

If water enters the product, it may result in fire, electric shock, or a problem with the product.

• A white stain may appear on the surface of the projector if water gets on it.

The appearance and the color may differ depending on the model.

Cleaning Inside the Projector

For cleaning the interior of the projector, contact an authorized

Samsung Service Center.

• Contact a Service Center if dust or other substances are inside the projector.

1-2 Major Safety Precautions

1-3 Safety Precautions

Icons used for safety precautions

ICON NAME

Warning

Caution

MEANING

Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality.

Failing to follow the precautions marked with this sign may result in a personal injury or property damage.

Meaning of Signs

Do not perform.

Do not disassemble.

Do not touch.

Must be followed.

The power plug must be unplugged from the wall outlet.

Must be grounded to prevent electric shock.

Power Related

The following images are for your reference and may differ depending on models and countries.

The appearance and the color may differ depending on models.

Warning

Plug the power plug in firmly.

• Otherwise, it may result in fire.

Avoid using a damaged power cord or plug or a loose power outlet.

• Otherwise, it may result in electric shock or fire.

Avoid plugging in or unplugging the power supply with wet hands.

• Otherwise, it may result in electric shock.

Avoid connecting multiple electric appliances to a single wall outlet.

• Otherwise, it may result in fire due to overheating of the wall outlet.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

• Otherwise, it may result in electric shock or fire due to a damaged power cord.

To move the product, turn the power off and unplug the power cord and any other wires connected to the product.

• Otherwise, it may result in electric shock or fire due to the damaged power cord.

Major Safety Precautions 1-3

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

• Otherwise, it may result in electric shock or injury.

Caution

When unplugging the power plug from the wall outlet, make sure to hold the power plug by the plug and not by the cord.

• Failing to do so may result in electric shock or fire.

Unplug the power plug before cleaning the product.

• There is a danger of electric shock or fire.

Connect the power plug to a wall outlet that can be easily reached.

• When a problem occurs with the product, you must unplug the power plug to cut the power off completely.

You cannot cut the power off completely using only the power button on the product.

Installation Related

Warning

Avoid installing the product in a location exposed to direct sunlight and installing the product near a heat source such as a fire or heater.

• This may shorten the product life cycle or cause fire.

When installing the product in a cabinet or shelf, take care so that the front end of the product is completely supported by the cabinet or shelf.

• Failing to do so may result in the product falling and resulting in damage to the product or injury.

• Make sure to use a cabinet or shelf suitable to the size of the product.

Keep the power cord away from heaters.

• The coating of the power cord may melt and cause electric shock or fire.

1-3

Do not turn the product on or off by plugging or unplugging the power plug. (Do not use the power plug as a power switch.)

Keep the power cord away from sources of heat.

Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet.

• Otherwise, it may result in fire due to internal overheating.

When installing the product on a console or shelf, make sure that the front of the product does not protrude out of the console or shelf.

• Otherwise, this may cause the product to fall off and result in a malfunction or injury.

When thunder or lighting occurs, unplug the power cord.

• Failing to do so may result in electric shock or fire.

Major Safety Precautions

Do not install the product in a location exposed to dust, moisture (sauna), oil, smoke or water (rain drops) and do not install it in a vehicle.

• This may result in electric shock or fire.

Caution

Take care not to block the vent with a table cloth or curtain.

• Otherwise, it may result in fire due to internal overheating.

When putting the product down, place it gently.

• Failing to do so may result in a problem with the product or injury.

Usage Related

Avoid inserting metal objects such as chopsticks, coins or hairpins, or inflammable objects into the product (the vents, ports, etc).

• If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.

• Otherwise, it may result in a problem with the product, electric shock or fire.

Do not disassemble, or attempt to fix or modify the product.

• When the product requires repairs, contact a Service Center.

Avoid using or placing inflammable spray or objects near the product.

• This may result in an explosion or fire.

Avoid placing a liquid container such as a vase, flowerpot, beverage, cosmetics or drugs, or a metal object over the product.

• If water or an alien substance enters the product, turn the power off, unplug the power cord and contact a service center.

• Otherwise, it may result in a problem with the product, electric shock or fire.

Major Safety Precautions

Do not install the product in areas with heavy dust.

Do not let the product drop while moving it.

• This may result in a problem with the product or injury.

Do not install the product at a height where children may reach it.

• If a child touches the product, the product may fall and this may result in injury.

Do not let children place objects such as toys or cookies on the product.

• If a child tries to reach for any of these objects, the product may fall and cause harm.

Do not look directly at the light of the lamp nor project the picture into someone's eyes.

• This is dangerous, especially for children.

When you remove batteries from the remote, be careful that they are not swallowed by children. Keep batteries out of the reach of children.

• If swallowed, see a doctor immediately.

1-3

1-3

Caution

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service center.

• Failing to do so may result in electric shock or fire.

If the power plug pin or jack is exposed to dust, water or alien substances, clean it thoroughly.

• There is a danger of electric shock or fire.

When cleaning the product, disconnect the power cord and clean the product with a soft dry cloth.

• Avoid using chemicals such as wax, benzene, alcohol, thinner, mosquitorepellent, fragrance, lubrication or cleansing agent when cleaning the product.

This may result in the exterior being deformed or the print being removed.

When not using the product for a long time, such as leaving your home, unplug the power cord from the wall outlet.

• Otherwise, it may cause dust accumulation and result in fire caused by overheating or a short circuit or result in an electric shock.

If the product is installed in a location where the operating conditions vary considerably, a serious quality problem may occur due to the surrounding environment.

In this case, install the product only after consulting our Call Center.

• Places exposed to microscopic dust, chemicals, too high or low temperature, high humidity, such as airports or stations where the product is continuously used for a long time etc..

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service center.

• Failing to do so may result in fire or electric shock.

Make sure to place your remote control on a table or desk.

• If you step on the remote control, you may fall and hurt yourself or the product may be damaged.

If water or a foreign substance enters the product, turn the product off, unplug the power cord from a wall outlet, and contact a Service Center.

Do not use the product while it indicates a malfunction, such as no sound or no picture.

• Turn the product off immediately, unplug the power cord from a wall outlet, and contact a Service Center.

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

• A spark may result in an explosion or fire.

• During a thunder or lighting storm, do not touch the power cord or antenna cable

Do not touch the lens on the product.

• This may cause damage to the lens.

Do not touch any outer part of the product with tools such as a knife or a hammer.

To clean dirt or stains on the front projection lens, use spray or a wet cloth dampened with neutral detergent and water.

Ask a Service Center to clean the interior of the projector at least once per year.

Major Safety Precautions

To avoid burning yourself, do not touch the vents or lamp cover while operating or right after turning off the product.

Do not open any cover on the product.

• This would prove hazardous because of high-voltage current inside the product.

Be careful not to touch the ventilation hole while the projector is on as hot air comes out.

Do not place objects vulnerable to heat near the projector.

Take care not to lose the lens cover of the product.

The lens could get damaged.

Do not clean the product using water spray or a wet cloth. Avoid using any chemicals such as detergents, industrial or automotive polish, abrasive, wax, benzene, alcohol on any plastic part of the product such as projector case, since this may cause damage.

Do not use any undesignated battery.

The ventilation hole is hot for some time though the projector is turned off. Keep you hands or body off the ventilation hole.

Be careful to keep your body away from the projector lamp. The lamp is hot.

(Children and those who have sensitive skin should be more careful.)

The lens cover protects the lens and should be used when the projector is turned off.

• To hide the screen while the projector is turned on, use the BLANK feature.

Major Safety Precautions 1-3

2 Installation and Connection

2-1 Package Contents

• Unpack the product and check if all of the contents listed below have been included.

• Store the packaging box in case you need to move the product at a later date.

Projector

CONTENTS

Quick Setup Guide Warranty Card (Not available in all locations)

User Manual

Remote Control / 2 Battery

( Not available in all locations)

Cleaning Cloth D-Sub Cable

Power Cord

Lens cover

4 Screws

(For ceiling mount bracket.)

Projector case

A ceiling mount is not included and must be purchased separately. Use the included screws to attach the projector to the ceiling mount bracket.

2-1 Installation and Connection

2-2 Installing the Projector

Install the projector so that the beam from the projector is perpendicular to the screen.

• Place the projector so that the lens aims at the center of the screen. If the screen is not vertical, the picture on the screen may not appear rectangular.

• Do not install the screen in bright surroundings. If the surroundings are too bright, the picture on the screen will be washed out and not display clearly.

• When using the projector in bright surroundings, use curtains to block the light.

• You can install the projector in the following locations relative to the screen : <Front-Floor> / <Front-Ceiling> / <Rear-

Floor> / <Rear-Ceiling>. To view the installation position settings, see below.

To adjust the picture when you install the projector behind the screen

Installing behind a semi-transparent screen.

When you install the projector behind a semi-transparent screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you've located the projector, rearfloor (or low) or rear-ceiling.

1.

For rear-floor, press :

Menu > Setup > Install > Rear-Floor

2.

For rear-ceiling, press :

Menu > Setup > Install > Rear-Ceiling

To adjust the picture when you install the projector in the front of the screen

Installing the projector in front of the screen.

When you install the projector in front of a screen, you can use the menu to adjust the picture so that it displays correctly, depending on where you’ve located the projector, front-floor (or low) or front-ceiling.

1.

For front-floor, press :

Menu > Setup > Install > Front-Floor

2.

For front-ceiling, press :

Menu > Setup > Install > Front-Ceiling

Installation and Connection 2-2

2-3 Leveling with Adjustable Feet

Press the PUSH buttons, as shown, to adjust the legs and level the projector.

The projector can be adjusted to a height of up to 1.18 inches (30mm, about 12 °) from the reference point.

If <Auto Keystone> is set to <On>, <V-Keystone> is adjusted automatically.

If fine tuning is required after auto-adjustment, use <V-Keystone>.

2-3 Installation and Connection

2-4 Zoom and Focus Adjustment

Zoom Knob You can adjust the size of the image within the zoom range by manipulating the Zoom Knob.

Focus Ring Focus the picture on the screen using the Focus Ring.

The size of your screen determines the distance you set your projector from the screen.

If you do not install your projector at the projection distance specified in the Screen Size and Projection Distance table in

Section 2-5, you will not be able to adjust the focus correctly.

Installation and Connection 2-4

2-5 Screen Size and Projection Distance

A. Screen / Z. Throw Distance / Y’. Distance from Lens Center to Image Bottom

Install the projector on a flat, even surface and level the projector using the adjustable feet to obtain optimal picture quality.

If images are not clear, adjust them using the Zoom Knob or Focus Ring, or move the projector forward and backward.

M (DIAGONAL)

INCHES

140

150

160

170

100

110

120

130

60

70

80

90

30

40

50

180

190

200

210

220

230

CM

254.0

279.4

304.8

330.2

355.6

381.0

406.4

431.8

76.2

101.6

127.0

152.4

177.8

203.2

228.6

457.2

482.6

508.0

533.4

558.8

584.2

SCREEN SIZE

X (HORIZONTAL) Y (VERTICAL)

INCHES

84

90

96

102

60

66

72

78

36

42

48

54

18

24

30

108

114

120

126

132

138

INCHES CM

48

56

64

72

24

32

40

80

88

203.2

223.5

96 243.8

104 264.2

112 284.5

120 304.8

128

136

325.1

345.4

60.9

81.3

101.6

121.9

142.2

162.6

182.9

144 365.8

152 386.1

160 406.4

168 426.7

176 447.0

184 467.4

CM

152.4

167.6

182.9

198.1

213.4

228.6

243.8

259.1

45.7

61.0

76.2

91.4

106.7

121.9

137.2

274.3

289.6

304.8

320.0

335.3

350.5

THROW DISTANCE

Z (TELE) Z (WIDE)

INCHES CM

256.3

270.6

284.8

299.0

313.3

327.5

142.4

156.6

170.9

185.1

199.4

213.6

227.8

242.1

42.7

108.4

57.0 144.7

71.2 180.8

85.4

99.7

113.9

128.2

217.0

253.1

289.4

325.6

361.7

397.8

434.0

470.3

506.4

542.5

578.7

614.8

651.1

687.3

723.4

759.5

795.7

832.0

INCHES

118.4

130.2

142.1

153.9

165.8

177.6

189.4

201.3

35.5

47.4

59.2

71.0

82.9

94.7

106.6

213.1

225.0

236.8

248.6

260.5

272.3

CM

300.7

330.8

360.8

391.0

421.1

451.1

481.1

511.2

90.1

120.3

150.4

180.4

210.5

240.6

270.7

541.4

571.4

601.5

631.5

661.6

691.8

OFFSET

Y'

INCHES CM

11.6

12.4

13.2

14.1

8.3

9.1

9.9

10.8

5.0

5.8

6.6

7.4

2.6

3.3

4.1

14.9

15.7

16.5

17.4

18.2

19.0

29.4

31.5

33.6

35.7

21.0

23.1

25.2

27.3

6.3

8.4

10.5

12.6

14.7

16.8

18.9

37.8

39.9

42.0

44.1

46.2

48.3

2-5 Installation and Connection

SCREEN SIZE

X (HORIZONTAL)

THROW DISTANCE

Z (TELE) Z (WIDE)

OFFSET

Y' M (DIAGONAL) Y (VERTICAL)

CM

812.8

838.2

863.6

889.0

914.4

939.8

965.2

990.6

1016.0

609.6

635.0

660.4

685.8

711.2

736.6

762.0

787.4

INCHES

360

370

380

390

400

320

330

340

350

280

290

300

310

240

250

260

270

INCHES CM

288

296

304

312

320

256

264

272

280

224

232

240

248

192 487.7

200 508.0

208

216

528.3

548.6

569.0

589.3

609.6

629.9

650.2

670.5

690.8

711.1

731.4

751.7

772.0

792.3

812.6

INCHES

216

222

228

234

240

192

198

204

210

168

174

180

186

144

150

156

162

CM

487.6

502.8

518.0

533.2

548.4

563.6

578.8

594.0

609.2

365.8

381.0

396.2

411.5

426.7

442.0

457.2

472.4

This projector is designed to show images optimally on a 80 ~ 120 inch sized screen.

INCHES

455.7

469.9

484.2

498.4

512.6

526.9

541.1

555.4

569.6

341.8

356.0

370.2

384.5

398.7

413.0

427.2

441.4

CM INCHES

868.1

904.2

940.4

976.5

1012.8

1049.0

1085.1

1121.2

1157.4 378.9

1193.5

390.7

1229.6

1265.8

402.6

414.4

1301.9

1338.0

1374.2

1410.3

1446.4

426.2

438.1

449.9

461.8

473.6

284.2

296.0

307.8

319.7

331.5

343.4

355.2

367.0

CM

962.3

992.3

1022.4

1052.4

1082.5

1112.5

1142.6

1172.6

1202.6

721.8

751.8

781.9

811.9

842.1

872.2

902.2

932.3

INCHES CM

29.8

30.6

31.4

32.3

33.1

26.5

27.3

28.1

29.0

23.2

24.0

24.8

25.6

19.9

20.7

21.5

22.3

75.6

77.7

79.8

81.9

84.0

67.2

69.3

71.4

73.5

58.8

60.9

63.0

65.1

50.4

52.5

54.6

56.7

Installation and Connection 2-5

2-6 Lamp Replacement

Cautions on Lamp Replacement

• The projector lamp is an expendable item. For best operating performance, replace the lamp according to the usage time.

You can view the lamp usage time in the Information Display (INFO button).

• Replace the lamp with the one specified below only.

Model

SP-M205 / SP-M225 SP-M255 / SP-M275 / SP-M305

Lamp Model Name

DPL3311U DPL3321U

- For inquiries on lamp purchase, please see 'Contact SAMSUNG WORLDWIDE' in section 6-3.

• Check that the power cord is unplugged before replacing the lamp.

• Because the lamp is a high temperature and high voltage product, wait at least one hour from the time you disconnect the power cord before replacing the lamp.

• The projector lamp is on the top of the projector.

• Do not leave the old lamp near flammable items or in reach of children. There is a danger of fire, burns, or injury.

• Remove dirt or foreign material around or inside the lamp unit using a proper vacuum device.

• When handling the lamp, avoid touching any part of it except for the handles. If you handle the lamp incorrectly, you can shorten the lamp’s lifetime and affect picture quality.

• When you change the lamp, put the projector on a flat surface.

• The projector has been designed so that the projector does not work if the lamp cover is not completely assembled after a lamp replacement. If the projector does not work properly, please check the operating status of the indicator LED.

Lamp contains Mercury. Dispose According to Local, State or Federal Laws.

Lamp Replacement Procedure

• Because the lamp is a high temperature and high voltage product, wait at least one hour from the time that the power cord is disconnected before replacing it.

• The projector lamp is on the top of the projector.

1.

Remove the screw shown in the figure below, and then open the cover.

2.

Wtih the cover open, remove the three (3) screws on the top of the projector as shown in the figure below.

3.

To remove the lamp, hold and then pull the lamp handle as shown in the figure below.

2-6 Installation and Connection

Install a new lamp in the reverse order of removal.

Replacing and Cleaning the Filter

Precautions when replacing the projector filter:

• The filter is on the side of the projector.

• Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.

Otherwise, its parts may be damaged due to internal heat.

• When you replace the filter, you may release some dust.

• For inquiries on replacement filter purchase, please see 'Contact SAMSUNG WORLDWIDE' in Chapter 6.

To replace or clean the filter, follow these steps:

1.

Turn off the power of the projector, and then disconnect the power cord after the projector has cooled sufficiently.

2.

Open the filter cover.

3.

Replace or clean the filter.

• When cleaning the filter, use a small vacuum cleaner designed for computers and small electronics products, or wash it under running water.

• After washing the filter under running water, make sure to dry it completely. The moisture may cause the filter to corrode.

• If dust cannot be separated from the filter or the filter is torn, it must be replaced.

• After cleaning or replacing the filter, run <Reset> > <Reset Filter Time> in the <Setup> menu.

Ventilation openings

For the location of the ventilation openings, see the picture below:

• Do not block the ventilation openings. Blocking the ventilation openings can cause your projector to overheat and may cause it to fail.

Installation and Connection 2-6

Air outtake vent

Air intake vent

2-6 Installation and Connection

2-7 Rear Side

ICON NAME

Kensington Lock slot

PC IN port

VIDEO IN port

AUDIO IN (L-AUDIO-R) port

HDMI/DVI IN port

Remote Control Signal Receiver

Power Input port

AUDIO OUT/

port

RS232C port

LAN port

USB port

Installation and Connection 2-7

FORMAT

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

MAC

VESA

IBM

IBM

IBM

VESA

MAC

VESA

VESA

VESA

2-8 Supported Display Modes

2-8-1. PC Timing (D-Sub/HDMI)

RESOLUTION

1024 x 768

1024 x 768

1024 x 768

1152 x 864

1152 x 864

1152 x 864

1152 x 864

1280 x 720

1280 x 720

1280 x 720

1280 x 720

1280 x 768

720 x 576

800 x 600

800 x 600

800 x 600

800 x 600

800 x 600

832 x 624

1024 x 768

640 x 350

640 x 480

720 x 400

640 x 480

640 x 480

640 x 480

640 x 480

640 x 480

1280 x 768

1280 x 800

1280 x 800

1280 x 960

1280 x 960

75Hz

60Hz

70Hz

72Hz

75Hz

60Hz

70Hz

72Hz

75Hz

60Hz

70Hz

72Hz

75Hz

60Hz

75Hz

60Hz

70Hz

60Hz

56Hz

60Hz

70Hz

72Hz

75Hz

75Hz

60Hz

70Hz

60Hz

70Hz

60Hz

67Hz

70Hz

72Hz

75Hz

VERTICAL

FREQUENCY

(HZ)

75.000

59.855

70.000

72.000

74.777

59.870

70.069

72.000

75.029

59.959

70.000

72.000

59.950

56.250

60.317

70.000

72.188

75.000

74.551

60.004

70.086

59.940

70.087

59.940

66.667

70.000

72.809

75.000

74.893

59.810

74.934

60.000

70.000

HORIZONTAL

FREQUENCY

(KHZ)

67.500

44.772

52.500

54.072

56.456

47.776

56.476

57.672

60.023

53.783

63.000

64.872

35.910

35.156

37.879

43.750

48.077

46.875

49.726

48.363

31.469

31.469

31.469

31.469

35.000

35.000

37.861

37.500

60.289

49.702

62.795

60.000

69.930

PIXEL

FREQUENCY

(MHZ)

108.000

74.500

89.040

91.706

95.750

79.500

75.000

78.434

78.750

81.750

96.768

99.643

32.750

36.000

40.000

45.500

50.000

49.500

57.284

65.000

25.175

25.175

28.322

25.175

30.240

28.560

31.500

31.500

102.250

83.500

106.500

108.000

120.839

2-8 Installation and Connection

FORMAT

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

VESA

RESOLUTION

1280 x 960

1280 x 960

1280 x 1024

1280 x 1024

1280 x 1024

1280 x 1024

1400 x 1050

1440 x 900

1440 x 900

1600 x 1200

72Hz

75Hz

60Hz

70Hz

72Hz

75Hz

60Hz

60Hz

75Hz

60Hz

HORIZONTAL

FREQUENCY

(KHZ)

72.072

75.231

63.981

74.620

76.824

79.976

65.317

55.935

70.635

75.000

VERTICAL

FREQUENCY

(HZ)

72.000

74.857

60.020

70.000

72.000

75.025

59.978

59.887

74.984

60.000

All resolutions higher or lower than 1024x768 are converted to 1024x768 by the Scaler chip inside the projector. If the resolution of the signal output by the PC matches the real resolution (1024x768) of the projector, the screen quality is optimal.

PIXEL

FREQUENCY

(MHZ)

124.540

130.000

108.000

128.943

132.752

135.000

121.750

106.500

136.750

162.000

2-8-2. AV Timing (D-Sub)

FORMAT

BT.601 SMPTE 267M

BT.1358 SMPTE 293M

BT.601

BT.1358

SMPTE 296M

BT.709 SMPTE 274M

480i

480p

576i

576p

720p

720p

1080i

1080i

RESOLUTION

59.94Hz

59.94Hz

50Hz

50Hz

59.94Hz/60Hz

50Hz

59.94Hz/60Hz

50Hz

SCAN

Interlaced

Progressive

Interlaced

Progressive

Progressive

Progressive

Interlaced

Interlaced

2-8-3. AV Timing (HDMI)

EIA-861

EIA-861

EIA-861

EIA-861

EIA-861

EIA-861

EIA-861

FORMAT

Format1

Format1

Format2,3

Format2,3

Format4

Format4

Format5

RESOLUTION

640 x 480

640 x 480

720 x 480

720 x 480

1280 x 720

1280 x 720

1920 x 1080

SCAN

Progressive

Progressive

Progressive

Progressive

Progressive

Progressive

Interlaced

HORIZONTAL

FREQUENCY

(KHZ)

59.940

60.000

59.940

60.000

59.939

60.000

59.939

VERTICAL

FREQUENCY

(HZ)

31.469

31.500

31.469

31.500

44.955

45.000

33.716

PIXEL

FREQUENCY

(MHZ)

25.175

25.200

27.000

27.027

74.175

74.250

74.175

Installation and Connection 2-8

FORMAT RESOLUTION

EIA-861

EIA-861

EIA-861

EIA-861

Format5

Format17,18

Format19

Format20

1920 x 1080

720 x 576

1280 x 720

1920 x 1080

SCAN

Interlaced

Progressive

Progressive

Interlaced

HORIZONTAL

FREQUENCY

(KHZ)

60.000

50.000

50.000

50.000

VERTICAL

FREQUENCY

(HZ)

33.750

31.250

37.500

28.125

PIXEL

FREQUENCY

(MHZ)

74.250

27.000

74.250

74.250

2-8-4. AV Timing (VIDEO)

NTSC, NTSC 4.43, PAL, PAL60, PAL-N, PAL-M, SECAM

Your projector supports the standard video formats listed above through its video inputs. No adjustments are necessary.

2-8 Installation and Connection

2-9 Connecting the Power

1.

Plug the power cord into the power terminal on the rear side of the projector.

Installation and Connection 2-9

2-10 Connecting with a PC and Setting up the PC

2-10-1. Setting up the PC Environment

Check the following items before connecting your PC to your projector.

1.

Click the right mouse button on the Windows desktop, and then click [Properties].

The <Display Properties> dialog appears.

2.

Click the [Settings] tab, and then set the <Screen resolution>. The optimal resolution for the projector is 1024 x 768. For other resolutions supported by the projector, see the PC Timing Display Mode table in section 2-8.

You do not have to change the <Color quality> setup.

3.

Press the [Advanced] button. Another property window appears.

4.

Click the [Monitor] tab and set the <Screen refresh rate>. For the refresh rate that matches the resolution you’ve chosen, see the refresh rate (60 Hz, 70 Hz, etc.) next to your selected resolution in the PC Timing Display Mode table in section 2-8.

Setting the refresh rate sets both the vertical and horizontal frequencies.

2-10 Installation and Connection

5.

Click the [OK] button to close the window, and then click the [OK] button on the <Display Properties> window to close that window.

6.

Shut down the PC and connect it to the projector.

The setup process might vary depending on your type of computer or version of Windows.

(For example, [Properties] appears instead of [Properties (R)] as shown in 1.)

This projector supports 32 bit color quality (per pixel) when it is used as a PC monitor.

Projected images may differ from the images on your monitor depending on the monitor manufacturer or Windows version.

When connecting the projector to a PC, make sure that the PC setup complies with the display settings supported by this projector. If it does not, you may have signal problems.

2-10-2. Connecting with a PC

Make sure that your PC and projector are turned off.

1.

Connect the [PC IN] port on the rear side of the projector to the PC video out (D-sub) port of the PC using a PC video cable.

2.

Plug in the power cords of the projector and the PC.

This product supports plug and play. If you use Windows XP, you do not need to set up the driver on your PC.

Using the Projector

1.

Turn on the projector, and then press the [SOURCE] button to select <PC>.

If the <PC> Mode is not available, make sure the PC video cable is properly connected.

2.

Turn on the PC, and then set the PC Environment (screen resolution, etc.) if necessary.

3.

Adjust the screen.

Installation and Connection 2-10

2-11 Connecting a PC using an HDMI/DVI cable

Make sure that your PC and projector are turned off.

1.

Connect the [HDMI/DVI IN] terminal of the projector to the HDMI or DVI terminal of your PC using a HDMI/HDMI or HDMI/DVI cable (Not supplied).

- If you are connecting to the HDMI terminal of your PC, use an HDMI/HDMI cable (Not supplied).

- For the supported resolutions and refresh rates, see PC Timing (D-Sub/HDMI) in Section 2-8, "Supported Display Modes".

2-11 Installation and Connection

2-12 Connecting an HDMI-Compatible Device

Make sure that the AV device and your projector are turned off.

1.

Connect the [HDMI/DVI IN] terminal at the back of the projector to the HDMI or HDMI/DVI output terminal of the digital output device using an HDMI/DVI or HDMI/HDMI cable.

- If you are connecting to the HDMI output terminal on the digital output device, use an HDMI/HDMI cable.

- For supported input signal formats, resolutions, and frequencies, see AV Timing(HDMI) in Section 2-8, "Supported Display

Modes".

2.

If you connected using a HDMI/DVI cable, connect the [

AUDIO IN (L-AUDIO-R)

] terminal on the projector to the Audio out terminal on your digital output device using an audio cable (Not supplied).

- If you connected with a HDMI/HDMI cable, you do not need an audio cable.

Installation and Connection 2-12

2-13 Connecting an AV device using a D-Sub cable

Make sure that the AV device and your projector are turned off.

1.

Connect the [PC IN] terminal at the back of the projector to the D-Sub terminal of your AV device using a D-Sub cable.

- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display

Modes".

2.

Connect the [

AUDIO IN (L-AUDIO-R)

] terminal at the back of the projector to the Audio out terminal of your AV device using an audio cable (Not supplied).

2-13 Installation and Connection

2-14 Connecting an AV device with Component output

Make sure that the AV device and your projector are turned off.

1.

Connect the [PC IN] terminal on the back of the projector to the Component terminal on your AV device using a D-Sub to

Component cable (Not supplied). This cable has a D-Sub connector on one end and three RCA jacks on the other.

- For supported input signal formats, resolutions, and frequencies, see AV Timing (D-Sub) in Section 2-8, "Supported Display

Modes".

2.

Connect the [

AUDIO IN (L-AUDIO-R)

] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

Installation and Connection 2-14

2-15 Connecting using a Video cable

Make sure that the AV device and your projector are turned off.

1.

Connect the AV device to the

[VIDEO IN]

port using a VIDEO cable (not supplied).

- For supported input signal formats, see AV Timing (VIDEO) in section 2-8, "Supported Display Modes".

2.

Connect the [ AUDIO IN (L-AUDIO-R) ] terminal on the back of the projector and the Audio out terminal on your AV device using an audio cable (Not supplied).

2-15 Installation and Connection

2-16 Connecting an External Speaker

You can hear sound through an external speaker instead of the internal speakers built into the projector.

1.

Obtain an audio cable (Not supplied) suitable for your external speaker.

2.

Connect the [AUDIO OUT/ ] terminal of the projector to the external speaker using an audio cable.

- When using an external speaker, the internal speaker does not operate but you can adjust the volume of the external speaker using the Volume button or the remote control of the projector.

- The [AUDIO OUT/ ] terminal can output all audio signals.

Installation and Connection 2-16

2-17 Connecting to a Network

This product can use network functions. Refer to the following Network connection method.

2-17-1. Connecting to a Dynamic IP (DHCP) Network

You can attach the projector to your network through a modem that uses DHCP (Dynamic Host Configuration Protocol). When you use a DHCP modem, the modem automatically provides the IP address, subnet mask, and gateway values that the projector needs to access the network.

To connect to a DHCP network, follow these steps :

1.

Connect the modem cable between the modem port on the wall and the external modem.

2.

Connect a LAN cable between the external modem and the wired or wireless IP router.

3.

Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.

4.

Turn the projector on and press the [MENU] button.

5.

Select <Setup> → <Network> → <IP Setting> → <Automatic>.

6.

The projector automatically acquires the IP address, Subnet mask and Gateway.

• To use the network function, <Network> must be set to <On>.

• If the IP address allotment from the DHCP server fails, turn off the external modem for more than 10 seconds, restart the modem, and then retry the connection.

• For instructions on the setup and connection of the external modem and router, refer to the user manual for each product.

• You can connect the LAN cable from the modem directly to the projector, You do not need a router.

• You can not use a manual connection-type ADSL modem because it is not a DHCP-type device. Make sure to use an automatic connection DHCP ADSL modem.

2-17 Installation and Connection

2-17-2. Connecting to a Static IP Network

You can attach the projector to a network that uses a Static IP address, which corresponds to using a dedicated lease line. If your network uses Static IP addresses, you must get the IP address, subnet mask, and gateway values from your Internet Service

Provider (ISP), turn on the Network function in the projector's Menu, and then enter the values into the Network function manually.

To connect to a Static IP address network, follow these steps :

1.

Connect a LAN cable between the LAN port on the wall and a wired or wireless IP router.

2.

Connect a LAN cable between the [LAN] port on the back of the projector and the wired or wireless IP router.

3.

Turn on the projector, and then press the [MENU] button.

4.

Select <Setup> → <Network> → <IP Setting> → <Manual>.

5.

Select <IP Address> and press the [ ] button. Use the / buttons to navigate between each IP Address entry field and the

/ buttons to enter values.

6.

When done entering all the values for IP Address, press the [ ] button and then repeat the steps for Subnet mask and

Gateway.

7.

When all values have been filled in, press the [MENU] or [RETURN] button to exit the setup menu.

• To use the network function, <Network> must be set to <On>.

• If you use a static IP, your ISP will inform you of your IP address, subnet mask and gateway. These values must be entered to complete your network setup. If you do not know your static IP address, consult your network administrator.

• For instructions on the setup and connection of the router, refer to the router’s user manual.

• You can connect the LAN cable directly to the projector without using a router.

• If you use an IP Router which supports the DHCP function, you can set the router to either DHCP or static IP.

• For instructions on the use of a static IP, consult your Internet service provider.

Installation and Connection 2-17

2-18 Kensington Lock slot

The Kensington Lock slot allows you to lock your projector, providing a sense of security when you use it in a public place.

Because the shape and usage of the lock may differ depending on the model and the manufacturer, see the User Manual supplied with the locking device for more information.

Locking the product

1.

Loop the Kensington lock cable around an immovable part of desk or heavy object as directed in the Kensington lock user manual.

2.

Insert the locking part of the locking device into the Kensington lock hole in the projector.

3.

Insert the Kensington lock key into the locking mechanism and turn it in the locking direction.

You can purchase a locking device from an electronics store or an online shop.

2-18 Installation and Connection

3 Using

3-1 Product Features

1.

An optical engine adopting new LCD technology

• 1024 x 768 resolution.

• 3P-LCD panel.

• SP-M205 : Provides a bright, 2000

ANSI lumen screen.

• SP-M225 : Provides a bright, 2200

ANSI lumen screen.

• SP-M255 : Provides a bright, 2500

ANSI lumen screen.

• SP-M275 : Provides a bright, 2700

ANSI lumen screen.

• SP-M305 : Provides a bright, 3000

ANSI lumen screen.

2.

Minimized fan noise

• Minimizes fan noise through optimized internal air flow and the fan installation structure.

3.

Multiple input terminals

• Increases the connectivity to peripheral devices such as D-Sub 15P, Video, HDMI(DVI PC signal, supported), etc.

4.

Audio Output

• Equipped with an internal 7W (mono) speaker.

5.

User adjustments

• Allows adjustment of each input port.

• Equipped with an internal Test Pattern that can be used to install and adjust the projector.

• Compact size, lightweight, and portable.

6.

Convenient Network Function

• The projector can be monitored and controlled from a PC using the network function.

7.

Multimedia Function

• You can enjoy video, photos, and music, and view documents stored on a USB device, without connecting to a PC.

8.

Security Function

• Security password can be set to prevent unauthorized adjustments and access to the projector.

Using 3-1

3-2 Front, Upper

ICON

Indicators

Volume

MENU button

NAME

button

SOURCE button

POWER button

Zoom Knob

Focus Ring

Lens

Remote Control Signal Receiver

Hole for attaching lens cap string

DESCRIPTION

- STAND BY (Blue LED)

- LAMP (Blue LED)

- STATUS (Green/Red/Yellow LED)

Refer to the LED Indications.

/ : Use to move or to select an item within a menu.

: Use to adjust the volume.

Use to display the Menu Screen.

Use to select the external device signal.

Use to turn the projector on or off.

Use to enlarge or reduce image size.

Use for Focus Adjustment.

3-2 Using

3-3 Remote Control

Using your projector with another remote control device nearby may result in improper functioning due to remote control code (frequency) interference.

POWER (

) Button

Use this button to turn the projector on and off.

P.MODE

Button

Use to select Picture Mode.

P.SIZE

Button

Use to adjust the size of picture screen.

Rewind Button

Rewind video in <Media Play> mode.

Play button

Play video in <Media Play> mode.

KEYSTONE

VOL

(

MENU (

button

Correct a tilted image.

Pause button

Pause video in <Media Play> mode.

) Button

Use to control the volume.

) Button

Use to display the Menu Screen.

MEDIA.P

Button

Go directly to <Media Play> mode.

Display the menu items while in <Media Play> mode.

HELP

Button

Display the button information menu at the bottom of the screen when a document is being viewed in <Media Play> mode.

Move ( )/ ( ) Buttons

Used to move to or select each menu item.

QUICK

Button

Use to quickly return to the last menu used.

AUTO

Automatically adjust the screen. (Only enabled in <PC> mode.)

BLANK

Button

Use to turn off the screen and sound temporarily.

The video and audio will come back on when any button other than the

[POWER] button is pressed.

Fast forward button

Fast forward video in <Media Play> mode.

Stop button

Stop video in <Media Play> mode.

DOCU. ZOOM

button

Enlarge or reduce a document in the

<Document> menu under <Media

Play> mode.

MUTE

( ) Button

Press to mute the sound temporarily.

Press the MUTE button again or the

[VOL] button ( ) when the sound is muted to hear sound again.

PAGE

Button ( )

Use to move to the previous or next page, one page at a time.

SOURCE

Button

Switch the external input signal.

USB SAFELY REMOVE

Button

Use to remove a [USB] device safely.

RETURN (

Returns to the previous menu.

EXIT

pear.

(

Button

) Button

) Button

Use to make the Menu Screen disap-

STILL

Button

Use to see still images.

INFO

Button

Use to check source signals, picture setup, PC screen adjustment, and lamp lifespan.

Colored buttons (Only available in <Media Play>)

Red : Use to view subtitle while playing a video file.

Green : Use to set <SlideShow Settings> while playing a photo file.

Yellow : Use to set <Zoom> in document view.

Blue : Use to move pages using <Page Navigation> Menu in document view.

INSTALL

Button

Use to adjust the image so that it is appropriate for the projector's installation location (In front of the screen and hanging from the ceiling, behind the screen and hanging from the ceiling, etc.)

Using 3-3

• Make sure to place your remote control on a table or desk.

- If you step on the remote control, you may fall and hurt yourself or damage the remote.

• You can use the remote control up to a distance of about 32.8 feet (10 m) from the product.

Installing Batteries in the Remote Control

1.

Lift the cover at the back of the remote control upward as shown in the figure.

2.

Insert two AAA size batteries.

3.

Close the cover.

3-3 Using

3-4 LED Indications

LED Indications

:Light is On :Light is Blinking :Light is Off

STATUS LAMP STAND BY STATUS

If you press the [POWER] button on the remote control or projector, the screen appears within 30 seconds.

The projector is operating normally.

The projector is preparing an operation after the [POWER] button on the projector or the remote control has been pressed.

The [POWER] button has been pressed to turn off the projector, and the cooling system is in operation to cool off the inside of the projector. (Operates for about 3 seconds.)

The cooling fan inside the projector is not operating normally. Refer to Action 1 in Clearing Indicator Problems below.

The lamp cover protecting the lamp unit is not closed properly. Refer to Action 2 in Clearing Indicator Problems below.

The projector has changed to Cooling mode because its internal temperature has increased beyond the maintenance limit.

Refer to Action 3 in Clearing Indicator Problems below.

The projector has turned itself off automatically because its internal temperature has increased beyond the maintenance limit. Refer to Action 4 in Clearing

Indicator Problems below.

A problem has occurred with the operation of the lamp. Refer to Action 5 below.

Using 3-4

Clearing Indicator Problems

CLASSIFICA

TION

Action 1

Action 2

Action 3

Action 4

Action 5

STATE MEASURES

The cooling fan system is not operating normally.

The lamp cover protecting the lamp unit is not properly closed or the sensor system is not operating normally.

The projector has changed to the Cooling mode because the internal temperature of the projector has increased beyond the maintenance limit.

The internal temperature of the projector has risen higher than the limit, and the projector has turned off automatically.

If the symptom remains even after disconnecting and then reconnecting the power cord and turning the projector on again, contact your product provider or our service center.

Check if the screws on the side of the projector are securely tightened. If they are and the indicators are still lit, contact your product distributor or our service center.

If the internal temperature of the projector has increased beyond the maintenance limit, the projector changes to the Cooling mode before turning off automatically.

In Cooling mode, the fan speed is increased and the projector’s lamp is changed to <ECO> mode.

Check whether the ventilation hole of the projector is blocked.

Check the air filter and clean if blocked.

Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.

Cool the projector sufficiently and operate it again.

Check whether the ventilation hole of the projector is blocked.

Check the air filter and clean if blocked.

Check whether the surrounding temperature of the projector is higher than the standard temperature range of the projector.

Cool the projector sufficiently and operate it again.

If the same problem occurs continually, contact your product distributor or service center.

The lamp has malfunctioned after power turns off abnormally or after the projector is powered on right after turning off.

Turn the power off, wait for a sufficient amount of cooling time and then turn the power on to operate. If the same problem occurs continually, cont act a Samsung service center.

This Projector uses a cooling fan system to keep the unit from overheating. Operation of the cooling fan may produce noise,

This does not affect product performance and is part of normal operation.

3-4 Using

3-5 Using the Screen Adjustment Menu (OSD: On Screen Display)

The Screen Adjustment Menu (OSD: On Screen Display) Structure

To access the Menu, press the Menu button on the product or on the remote. To move in the menu, press the arrow buttons.

Menu selections with an arrow on the far right have sub-menus. Press the right arrow button to access the sub-menu. Directions for navigating and selecting items in a menu are at the bottom of each menu screen.

MENU SUB-MENU

Input


Setup

Option

Source List

Mode

Overscan

Install

Test Pattern

Language

Sleep Timer

Edit Name

Size

Film Mode

Lamp Mode

Video Type

Menu Option

Melody

Position

PC

Auto Keystone

Caption

Sound

Security

Digital NR

Zoom

V-Keystone

Network

Filter Check

Time

Panel Lock

Black Level

Background

Reset

Auto Power On

Information

3-5-1. Input

MENU

Source List

Edit Name

DESCRIPTION

You can select a device connected to the projector to display.

• <PC>-<AV>-<HDMI>

- <

Media Play >

You can edit the names of devices connected to the projector.

• <VCR>-<DVD>-<Cable STB>-<Satellite STB>-<PVR STB>-<AV Receiver>-<Game>-

<Camcorder>-<PC>-<DVI Devices>-<TV>-<IPTV>-<Blu-ray>-<HD DVD>-<DMA>

3-5-2. Picture

Using 3-5

3-5

MENU

Mode

Size

DESCRIPTION

Select a screen mode to match the environment, the kind of images you are projecting, or select a customized mode you have created based on your requirements.

<Mode>

• <Dynamic> : Selects the picture for increased definition in a bright room.

• <Standard> : Selects the picture for the optimum display in a normal environment.

• <Presentation> : This mode is suitable for presentations.

• <Text> : This mode is suitable for text work.

• <Movie> : This mode is suitable for viewing a movie.

• <Game> : This picture mode is optimized for playing games.

In <Game> mode, the text in still pictures will appear unnatural.

• <User> : This is a customized mode you create using the <Mode>→<Save> function.

The <Presentation> and <Text> modes are only enabled when the input signal is PC Timing(D-

Sub/HDMI) or <Media Play>.

<Contrast> : Used to adjust the contrast between the object and the background.

<Brightness> : Used to adjust the brightness of the entire picture.

<Sharpness> : Used to adjust the sharpness of the picture.

<Sharpness> is disabled when the input signal is PC Timing(D-Sub/HDMI) or <Media Play>.

<Color> : Used to adjust color lighter or darker.

<Color> is disabled when the input signal is PC Timing(D-Sub/HDMI) or <Media Play>.

<Tint> : Used to obtain more natural color by enhancing the amount of green or red in images.

<Tint> is disabled when the input signal is PC Timing (D-Sub/HDMI) , AV Timing(VIDEO)'s

PAL and SECAM signal, or <Media Play> modes.

<Color

Tone

> : The tone of the color can be changed.

• Factory defaults:

<

Cool2

>, <

Cool1

>, <

Warm1

>, <

Warm2

>

• You can select the color temperature for the items below according to your preferences.

<R-Gain>, <G-Gain>, <B-Gain> : Adjusts the color temperature of the White level.

<R-Offset>, <G-Offset>, <B-Offset> : Adjusts the color temperature of the Black level.

• <Color

Tone

>-<R-Gain>-<G-Gain>-<B-Gain>-<R-Offset>-<G-Offset>-<B-Offset>

<Gamma> : Changes the brightness characteristic for each color tone of an image.

• The larger (+) the value, the greater the contrast of the bright and dark parts.

The smaller (-) the value, the darker the dark parts.

• Adjustable range: -3 to +3

<Save> : You can save the status of a screen you adjusted according to your preferences using the

<Mode>→<User> OSD.

<Reset> : Restores the mode settings to the factory defaults.

Using this function, you select a screen size.

<Zoom1> and <Zoom2> are disabled when the input signal is PC Timing(D-Sub/HDMI) or

<Media Play>.

• <Normal>-<Zoom1>-<Zoom2>-<16 : 9>

Using

Using

MENU

Position

Digital NR

Black Level

Overscan

Film Mode

PC

Zoom

DESCRIPTION

Using this function, you can adjust the screen position if it is not aligned.

To adjust, select the direction you want to move the screen, and then press the arrow button pointing in that direction repeatedly.

This function does not work in <Media Play> mode.

If dotted lines appear in an image or the screen shakes, enabling Digital NR (Noise Reduction) can improve the quality of the picture.

When the input signal is a PC Timing (D-Sub/HDMI) signal, <Digital NR> does not operate.

If the black level is unsuitable for the input signal, the dark parts of an image may look unclear or dim.

Using this function, you can select a black level that can improve the visibility of the dark parts.

The <Black level> can only be set for the [AV], 480i and 576i in AV Timing (D-Sub), and RGB signals in the [HDMI] input.

For [AV], and the 480i and 576i signals of AV Timing (D-Sub).

• <0 IRE> : Sets the black level to <0 IRE>.

• <7.5 IRE> : Sets the black level to <7.5 IRE>.

For the RGB signal of <HDMI> mode.

• <Normal> : Used in a normal environment.

• <Low> : Used when the dark parts of an image are too bright.

Using this function, you can cut off edge of the a picture when unnecessary information or images appear on the edge of the picture.

• Disabled in <AV> and <Media Play> modes.

• Overscan is supported only when the input signal is an AV Timing (D-Sub) or AV Timing

(HDMI) signal.

• If <Overscan> is turned off, unnecessary extra parts at the edges of an image may be shown. In this case, turn <Overscan> on.

Using this function, you can set the display mode so that it is optimized for playing movies.

• <Off>-<Auto>

• <Film Mode> is only be supported for the [AV], 480i and 576i of AV Timing (D-Sub) signals.

• This function does not work in <Media Play> mode.

For PC signals, the four PC functions eliminate or reduce noise that can cause unstable screen quality, such as screen shaking. If the noise is not removed using Fine Adjustment, adjust the frequency to the maximum and then perform Fine Adjustment again.

• These functions are only enabled for the PC Timing (D-Sub/HDMI) input of the D-Sub terminal.

• Refer to PC Timing (D-Sub/HDMI).

• <Auto Adjustment> : Used to adjust the frequency and phase of PC screen automatically.

• <Coarse> : Used to adjust the frequency when vertical lines appear on the PC screen.

• <Fine> : Used to fine tune the PC screen.

• <Reset> : Using this function, you can reset the PC menu settings to the factory default settings.

You can magnify the screen to a size you want.

• <x1> - <x2> - <x4> - <x8>

This function is only enabled when the input signal is a PC Timing (D-Sub/HDMI) signal.

3-5

3-5-3. Setup

3-5

MENU

Install

Lamp Mode

Auto Keystone

V-Keystone

Background

Test Pattern

DESCRIPTION

To tailor the picture to the installation location, (for example, behind a semi-transparent screen, hanging from the ceiling), you can invert the projected images vertically / horizontally.

• <Front-Floor> : Normal Image

• <Front-Ceiling> : Horizontal/Vertical Reversed Image

• <Rear-Floor> : Horizontally Reversed Image

• <Rear-Ceiling> : Vertically Reversed Image

Using this function, you can set the image brightness by adjusting the amount of light generated by the lamp.

• <Eco> : This mode is optimized for screens smaller than 100 inches.

This mode decreases the lamp brightness and power consumption in order to extend the lamp lifetime and reduce noise and power consumption.

• <Bright> : This mode maximizes the lamp brightness when the ambient illumination is bright. As the brightness of the lamp increases, the lamp lifetime may be reduced and the noise and power consumption may increase.

If video scenes are distorted or tilted, you can compensate for this by setting the <Auto Keystone> function to <On> so that the <V-Keystone> function automatically starts.

• <Off>-<On>

If video scenes are distorted or tilted, you can compensate for this using the vertical Keystone function.

• The sound output of your projector is temporarily stopped while the keystone is being changed.

• Keystone does not compensate for distortion in the On Screen Display (OSD) menu.

You can selec t an image or screen which will appear when there is no signal from the external device connected to the projector.

<Logo>-< Custom Logo >-<Blue>-<Black>

The recommended resolution for a picture to be set as the user logo is 600x300.

A default test pattern built into the projector. You can use it as a reference picture to optimize the installation of the projector and to optimize images.

• <Crosshatch> : You can check whether the picture is distorted or not.

• <Screen Size> : You can reference and display picture format sizes such as 1.33 : 1 or 1.78 : 1.

Using

Using

MENU

Video Type

Caption

DESCRIPTION

If the screen quality is abnormal as a result of the projector not identifying the input signal type automatically in <PC> or <HDMI> mode, Video Type lets you manually set the input signal.

This function does not work in <Media Play> mode.

• In <PC> mode, the menu is only enabled for AV Timing (D-Sub) input signals. For separate H/V sync, it is only enabled for a 1280 x 720p 59.94Hz/60Hz signal.

• <Auto>-<RGB(PC)>-<RGB(AV)>-<YPbPr(AV)>

• In <HDMI> mode, <Video Type> is only enabled for the 640x480p 59.94Hz/60 Hz and 1280x720p

59.94Hz/60 Hz signals.

• <Auto>-<PC>-<AV>

Usage

Color,

Sharpness,

Tint

kšˆ‰“Œ‹

PC menu

l•ˆ‰“Œ‹ yniOwjP yniOh}P

€w‰w™Oh}P wj

~Œ•GŠ–••ŒŠ›•ŽG›ŒGyniG–œ›—œ›G–GˆG wjG›–G›ŒGkTzœ‰G›Œ™”•ˆ“G

~Œ•GŠ–••ŒŠ›•ŽG›ŒGyniG–œ›—œ›G–G

ˆ•Gh}G‹ŒŠŒGOz{iSGk}kSGŒ›ŠˎPG›–G›ŒG kTzœ‰G›Œ™”•ˆ“G

~Œ•GŠ–••ŒŠ›•ŽG›ŒG€w‰w™G–œ›—œ›G–G

ˆ•Gh}G‹ŒŠŒGOz{iSGk}kSGŒ›ŠˎPG›–G›ŒG kTzœ‰G›Œ™”•ˆ“G

~Œ•GŠ–••ŒŠ›•ŽGˆGwjG›–G›ŒGoktpG

›Œ™”•ˆ“G l•ˆ‰“Œ‹ l•ˆ‰“Œ‹ kšˆ‰“Œ‹ kšˆ‰“Œ‹ kšˆ‰“Œ‹ kšˆ‰“Œ‹

zoom

l•ˆ‰“Œ‹ kšˆ‰“Œ‹ kšˆ‰“Œ‹ l•ˆ‰“Œ‹ h}

~Œ•GŠ–••ŒŠ›•ŽGˆ•Gh}G‹ŒŠŒGOz{iSG k}kSGŒ›ŠˎPG›–G›ŒGoktpG›Œ™”•ˆ“G l•ˆ‰“Œ‹ kšˆ‰“Œ‹ kšˆ‰“Œ‹ hœ›– hœ›–GšŒ››•Žš

T T T

The <Caption> function is supp orted when the external analog signal from the Video input contains subtitles.

• <Caption> : <Off>-<On>

• <Mode> : <Caption>-<Text>

• <Channel> : <1>-<2>

• <Field> : <1>-<2>

• Activated only in <AV> Mode.

• Depending on the external signal, a change to the channel or <Field> settings may be required.

• Each <Channel> and <Field> contains different information. <Field><2> carries additional information to supplement information contained in <Field><1>.

(e.g. If English subtitles are provided on <Channel><1>, Spanish subtitles will be provided on <Channel><2>.)

3-5

3-5

MENU

Network

Reset

DESCRIPTION

By connecting a LAN cable between the PC and projector, you can use the following supplementary functions on your PC.

On your PC, you can check the projector's condition (lifespan of the lamp, operation error, temperature) and remotely control the projector's power On/Off, brightness, and sound On/Off .

<Network> : <On> - <Off>

<IP Setting>

• <Automatic> : Automatically allots the IP address, Subnet mask and Gateway.

• <Manual> : Allows you to manually enter the IP address, Subnet mask and Gateway manually.

After pressing the [ ] button to enter values, change the values using the / buttons and move using the / buttons. Once the values are filled in, press the[ ] button.

<Server IP Setting> : Allows you to enter the server PC's IP address.

• To use the network function, <Network> must be set to <On>.

• If the network connection fails, enter the IP address of the server PC under <Server IP

Setting>.

Using this function, you can reset various settings to the factory default settings.

• <Factory Default> : Changes the settings to the factory defaults.

• <Reset Filter Time> : Resets the filter time.

• <Media Play> : The following functions are activated only when the projector fails to enter the

<Media Play> mode due to a <Media Play> mode error.

Activated only in <Media Play> Mode.

• <Recovery Mode>: When the projector is turned off during a firmware update, use this function to continue the update.

• <OK> - <Cancel>

Under normal usage, update by selecting <Setup>

→<Update/Reset>→<Firmware

Update> in the <Media Play> menu.

• <System Reset>: When the <Media Play> operation suddenly freezes, use this function to restart <Media Play>.

• <OK> - <Cancel>

3-5-4. Option

Using

MENU

Language

Menu Option

Sound

Filter Check Time

Auto Power On

Sleep Timer

Melody

Security

Panel Lock

Information

DESCRIPTION

Using this function, you can select the language used for the menu screen.

• <Position> : You can move Menu Position up/down/left/right.

• <Transparency> : You can set the translucency of the menu.

• <High>-<Medium>-<Low>-<Opaque>

• <Display Time> : You can set the display time of the menu.

• <5 sec>-<10 sec>-<30 sec>-<60 sec>-<90 sec>-<120 sec>-<Stay On>

The projector comes with an internal 7W (mono) speaker. Use the settings below to tailor the sound as desired.

• <100Hz>-<300Hz>-<1kHz>-<3kHz>-<10kHz>

Sets the check period for the filter. (Unit: hours)

• <Off>-<100>-<200>-<400>-<800>

If the filter usage time is larger than the filter check period, the filter check message is displayed for 1 minute whenever the projector is turned on.

Filter check message: "<Check the filter, and if necessary, clean or replace it.>".

With Auto Power On, if power is supplied to the projector, it turns on automatically without your pressing the Power button.

• <Off>-<On>

With Sleep Timer on, if there is no input signal for the specified time, the projector turns off automatically.

(There must be no button input from the remote control or the top of the projector for the specified time)

• <Off>-<10 min>-<20 min>-<30 min>

This function does not work in <Media Play> mode.

Set so that a melody plays when the Projector is turned on or off.

• <Off> - <Low> - <Medium> - <High>

To deter theft, you can set a password that users must enter when the projector powers on. When you set a password, the projector will not work without it.

• <Power On Protection>

• <Off> : Enter your current password and set the protection function to off.

• <On> : Enter a new password and set the protection function to on.

• <Change Password> : Change your current password.

• Use the displayed number keys to enter or change the password.

• If you forgot your password, contact a Samsung Service Center.

You can disable the buttons on the projector body so that the proj ector can only be ope rated by the remote control.

• <Off> - <On>

You can check external source signals, picture setup, and PC picture adjustment.

Using 3-5

3-6 Network Management

3-6-1. Management using the Web Browser

The Web Browser lets you monitor and control one projector from a PC without installing any software. Before you can use the Web Browser, you must connect your projector to your local area network. For directions explaining how to connect to a network,

see section 2-17, Connecting to a Network

.

To control multiple projectors from a single PC, install and run Samsung Projector Manager.

For information about Samsung Projector Manager, go to 3-6-2

.

Check the network connection between the PC and projector before connecting the Web Browser. If the network connection has failed, the Web browser window may not be available for use.

• To use the Web Browser, your PC must meet the following minimum system requirement :

• RAM: More than 10MB

• Hard Disk capacity: More than 10MB

• Display resolution: More than 640 x 480

• Supported OS : Microsoft Windows XP, Windows Vista

• Web browser : Microsoft Internet Explorer 6 or later version, Netscape Navigator 9 or later version, Mozilla FireFox 3.0.x or later version, Google Chrome.

1.

Connecting

• Enter the projector's IP address into the web browser address bar.

Find the projector's IP address by pressing the [MENU] button and selecting <Setup> -> <Network> -> <IP Setting>.

• The Network Projector window appears. For information about control items in the Network Projector window, refer to the items under Section 3-5, Using the Screen Adjustment Menu.

• Some functions listed in 'Using the Screen Adjustment Menu' cannot be used in the web browser because of limitations in remote control by the network.

3-6 Using

3-6-2. Projector Management using PC Software

You can monitor and control more than one projector using Samsung Projector Manager.

When installing or using Samsung Projector Manager in PC, you must log in as Administrator.

If you log in using your personal login, that login must have full administrator privileges.

• To use Samsung Projector Manager, your PC must meet the following minimum system requirement :

• RAM: More than 10MB

• Hard Disk capacity: More than 10MB

• Display resolution: More than 640 x 480

• Supported OS : Microsoft Windows XP, Windows Vista

1.

Installing the Samsung Projector Manager

• Click 'Samsung Projector Manager' on the CD supplied.

• Install according to the instructions displayed on the PC screen.

2.

Running the Samsung Projector Manager

When the installation of Samsung Projector Manager and the network setup for the projector have been completed, the

Samsung Projector Manager will be available for use.

• Click Start > Samsung Projector > Samsung Projector Manager

• The <Samsung Projector Manager> window appears.

3.

Using the Samsung Projector Manager

• Projector Grouping and Registering

• To browse projectors connected to the PC automatically, press <Tools>→<Auto Search>

• To group or directly register the projectors, select <List>→<Projector>, right-click over <Network Projector> under

Using 3-6

3-6

<Projector List>, and then select <Add Projector>.

• Specify the <Projector Name>, <IP Address> and <Group Name> to register, and then press <ADD>.

Any group whose name is not specified will automatically be named <Default Group>. To remove and / or rename a registered projector, right-click and then select <Delete> and / or <Rename> respectively.

If a projector is not displayed on the <Projector List >after registration, check if the network connection and the network settings are properly configured. See section 2-17, Connecting to a Network and section 3-5-3,

<Setup>→<Network> for information and instructions.

To save or load the registered projector's information, select <File>→<Export Config>.

Using

• Projector Management

• You can check a projector's lamp condition, temperature, operation, errors, etc in real time.

: You can view a projector's Name, IP Address, Group, Power On/Off status, LAMP lifespan, operation errors

(represented by icons), etc. in real time.

Samsung Projector Manager displays icons that indicate a projector's status. The icons are listed in the tables below. If the icons indicate a problem with your projector, see "Clearing Indicator Problems" in secton 3-4, LED

Indications.

Warning and Error status icons

ICONS STATUS

Error

Error

STATE

The lamp is not operating normally.

ACTION

The lamp cover protecting the lamp unit is not properly closed.

Refer to Action 2 in Clearing Indicator

Problems.

Refer to Action 5 in Clearing Indicator

Problems.

Error The lamp has reached the end of its life.

The lamp needs to be replaced.

Error

Error

The cooling fan 1 is not operating normally.

The cooling fan 2 is not operating normally.

Using

Error

Error

Error

Error

Warning

Error

Error

The cooling fan 3 is not operating normally.

The cooling fan 4 is not operating normally.

Refer to Action 1 in Clearing Indicator

Problems.

The cooling fan 5 is not operating normally.

The cooling fan 6 is not operating normally.

The internal temperature of the projector has risen higher than the limit.

The internal temperature of the projector has risen higher than the limit.

The internal temperature of the projector has risen higher than the limit.

Refer to Action 4 in Clearing Indicator

Problems.

Refer to Action 4 in Clearing Indicator

Problems.

Refer to Action 4 in Clearing Indicator

Problems.

3-6

ICONS STATUS

Warning

Warning

Error

STATE

The air filter has reached the end of its life.

The air filter has been blocked by dust.

The air filter has been blocked by dust.

ACTION

The air filter needs to be replaced.

The air filter needs to be cleaned.

The air filter needs to be cleaned.

Temperature Level Status Icons

ICONS STATUS

Temperature status

Temperature status

Temperature status

Temperature status

Temperature status

Temperature status

STATE ACTION

The projector's internal temperature is normal.(standby mode)

The projector's internal temperature is normal.(low)

The projector's internal temperature is normal.(medium)

The projector's internal temperature is normal.(little bit high)

The projector's internal temperature is higher than the limit.

The projector's internal temperature is too high. The projector is turned off automatically.

None. It's normal.

None. It's normal.

None. It's normal.

None. It's normal.

Refer to Action 3 in Clearing Indicator Problems.

Refer to Action 4 in Clearing Indicator Problems.

• Managing the Projectors

3-6

: Using the icons in the <Projector List> (only applicable to 'V'-marked projectors in the monitoring window)

(Refresh): Updates the status of the projector.

(Power On): Turns on the power of the projector.

(Power Off): Turns off the power of the projector.

Using

(Switch Source): Selects a source from HDMI, S-VIDEO, AV, PC, MP.

(Blank Off/Blank On): Turns the screen of the projector on or off.

(Adjust Aspect Ratio): Adjusts the aspect ratio of the projector to either 16:9 or

Normal.

• If the connected source does not have the <Media Play> feature, <MP> is not available in the Source list.

• If the projector does not have an [S-VIDEO IN] terminal, the <S-VIDEO> source is unusable.

: Connecting the Web browser from Samsung Projector Manager

By connecting to the Web Browser in Samsung Projector Manager, you can use more diverse functions. To perform the Web browser connection, select a Projector to connect to, and then right-click to select <WebControl>.

If the Web browser connection fails, check whether the network connection (see section 2-17, Connecting to a

Network) and network settings (see 3-5-3, Setup > Network) are correctly configured.

Operating one projector using both Samsung Projector Manager and the Web browser at the same time may cause a slowdown in PC operation or an error.

• Using the <Schedule> Function

Using the <Schedule> function, you can manage your projectors more efficiently.

If you select <List>→<Schedule>, the following window appears.

Using

The screen has four buttons:

• <New>: Adds a projector to make a Schedule for.

• <Delete >: Deletes the Schedule for a selected projector.

• <Delete All> : Deletes the Schedule for all of the projectors.

• <Edit> : Edits the Schedule for a selected projector.

• Registering a New Schedule

To register a new schedule, follow these steps:

3-6

1. Press the <New> button. The New Schedule screen appears.

2. Select the projectors to apply the new schedule to from the <Select Projectors> field. When you select a projector, a check mark appears in the check box to its left.

3. Set the <new schedule> <Title>, <Repeat>, <Time>, and <Work>, and enter a <Description> of the Schedule.

Explanations for each of these terms is below.

-<Title> : Sets the name of a Schedule.

-<Repeat> : Sets the schedule repetition (<Once>- Executes only once, <Every> - Specifies a repetition date).

-<Time> : Determines the time at which a schedule will be executed.

-<Work >: Sets Source switch or <Power On>/<Power Off>

-<Description> : Shows a detailed description of a Schedule.

4. After you have entered all the information, press <ADD>.

You can view the registration history of a Schedule. You can also view the status of a Schedule. The Status codes are below:

-<Complete>: Schedule complete.

-<Waiting>: Schedule still awaiting execution.

-<Running>: Repetitive schedule is running.

• To save or load the registered schedule, select <File>→<Export Config>.

• If you want to operate a Schedule loaded by <Import Config>, load the projector's information in advance.

3-6

• Other settings

The <Tools> selection in the Menu Bar contains two menu items, <Configure Monitoring Items> and <Options>.

- <Configure Monitoring Items>

<Configure Monitoring Item> lets you select an item to be displayed in the monitoring window display. After you select the item, you set the display priority of the item by moving it up or down in the list of items you have selected for display.

- <Options>

<Automatically Run> – When a PC is turned on, Samsung Projector Manager will be turned on automatically.

<Minimize to system tray> – Samsung Projector Manager will be minimized to the system tray.

<File> contains two selections.

- <File> →<Export Config>: Saves all of the configured settings under Samsung Projector Manager in the desired file names to the corresponding folders.

- <File> →<Import Config>: Imports a saved Configuration file. Sets the Samsung Projector Manager to the saved settings.

Using

4 Media Play Function

4-1 Connecting a USB Storage Device and Precautions

4-1-1. Connecting a USB Device

1.

Connect your USB storage device to the USB port on the back of the projector.

- The main page of the <Media Play> menu appears.

The main page of <Media Play> can also be opened by pressing the [MENU] button and selecting <Input>

→<Source

List>

→<Media Play>

• Supported file systems: FAT, FAT32 (NTFS is not supported.)

• Multi Partition is not supported.

• This projector is not compatible with a multi-card reader or USB hub.

[Selecting a Device]

2.

Move to the kind of media you want to view using the

▲/▼ buttons, press the [

] button.

3.

Move to <Internal Memory> or <USB> using the

▲/▼ buttons, and then press the [

] button.

[Selecting a File]

4.

Move to the file or folder you want to view or open using the

▲/▼ buttons, and then press the [

] button.

For Document, Music, and Movie folders, a number appears next to each folder, indicating the number of document, music, or movie files in the folder. For Photo folders, the screen displays the number of photo files when you move to the folder.

5.

Move to the file you want to view using the ▲/▼ buttons, and then press the [ ] button.

4-1-2. Precautions for using a USB storage device

•This product does not support multi-card readers.

•This product does not work if the USB storage device is connected by a USB HUB.

Media Play Function 4-1

•Some products which do not comply with standard USB specifications might not operate normally.

•A USB storage device with automatic recognition application or its own driver might not operate normally.

•A USB storage device that uses only a designated driver might not be recognized.

•Recognition speed for USB storage device may vary by device.

•Do not turn off the product or pull a connected USB storage device out while a USB storage device is in use. Doing so may result in damage to the USB storage device or stored file.

•Use a USB storage device which contains normal files. Abnormal files can cause a malfunction or the files may not play.

•USB storage devices must be formatted with the FAT or FAT32 (recommended) file systems supported by Windows.

<Media Play> may not work normally if the USB storage device is formatted with another file system.

•If the USB storage device uses external power, please connect the USB storage device to its external power source.

•Use the USB cable provided with the USB device when connecting to the projector. (For more information on purchasing cable and external devices, contact the respective manufacturer.)

•We do not guarantee <Media Play> will operate if a malfunction occurs in any external device caused by your using a cable that does not comply with designated standards.

•As the data in USB storage device can be damaged, please back up important data to avoid loss.

•When using a USB storage device with the projector, subfolders with a maximum depth of 4 from the top folder are supported. Also, if the number of files (including folders) in the same folder exceeds 2,900, it will not be recognized. In addition, if there are a large number of files on a USB device, individual files may take a long time to display.

•If an external memory device does not operate after you've connected it to the projector, try to connect it to a PC. If it still does not operate normally, contact the memory device's manufacturer service center or related customer center.

4-1 Media Play Function

4-2 Documents

You can view document files in various formats saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Documents screen

The Documents screen.

The Menu below appears when you press the [MEDIA.P] button while displaying the Documents screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to the selected item appears.

• Depending on the current language setting, folder names, file names, or text in a document may appear corrupted.

If that is the case, press the [MENU] button and change the language setting in <Language> under <Option>.

MENU ITEM

View

Copy

Copy All Files

Delete

Delete All Files

DESCRIPTION

View a document.

If an external memory device (USB memory device) is connected, files on the external memory device can be copied to the projector's internal memory and vice versa.

Copy all files to internal and external memory.

Delete the selected file.

Delete all files in a folder.

Menu displayed when you are viewing a document

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while viewing a document

MEDIA.P

: Open the document menu

PAGE ∨ : Move to the previous or next page

Move to the previous or next sheet in a Excel file

• ▲/▼/ / : Direction buttons

• : Enlarge a document

• : Return to the previous stage

• : View information about the available buttons

If you press the [MEDIA.P] button when viewing a document, the following menu appears.

Media Play Function 4-2

MENU ITEM

Zoom

Page Navigation

Page Map

Aspect Ratio

Rotate

Encoding

Video Clip

DESCRIPTION

Enlarge or reduce a document.

• <Zoom In> : Enlarge a document ( 25% increments within the range of 100% ~ 500%).

• <Zoom Out> : Reduce a document.

• < Custom > : Enlarge or reduce the screen by a specific percentage.

• <100%> - <200%> - <300%> - <400%> - <500%>

Enlarge or reduce a document view using the or button on the remote control.

Go directly to a specific page.

• Enter a page number using the / and / buttons, check the page number in the preview window on the upper right corner of the screen, and then select <Go> to move to that page.

Display the zoom area.

• <Off> - <On>

• If a page is zoomed in, the enlarged area is displayed in the <Page Map> window on the upper right corner.

• If a page is not zoomed in, the <Page Map> window does not appear.

• <Fit to Screen> : Display a document to fit the screen size.

• <Original Fit> : Display a document at its original size.

• <Fit to Width> : Display a document to fit the screen width.

• <Fit to Height> : Display a document to fit the screen height.

Rotate a document by a specified angle.

Select the angle you want using the / buttons, and then press the [ ] button.

• <0

° > - <90 ° > - <180 ° > - <270 ° >

Supported in PDF format only.

To view a text (.TXT) file without any character corruption, you must select the original language that was used to create the file.

Select the language using the direction keys.

• <Korean> - <Central Europe> - <Cyrillic> - <Baltic> - <Greek> - <Turkish> - <Hebrew> - <Arabic>

- <Latin> - <Vietnam> - <Germany> - <Français> - <Norway> - <Thai> - <Japanese> -

<Simplified Chinese GBK> - <Traditional Chinese Big5>

(e.g.: To view a text file created in German, select <Germany>)

• For some of the European countries whose languages are not found on the list, select

<Central Europe>.

• Files created in English do not require encoding.

This feature is used to play a video linked to a PowerPoint document (.ppt). Select the video file you want to play from the presentation slide.

• Only enabled for presentation slides with a video clip linked to them.

• The linked video file must be in the same folder as the corresponding document file.

• For supported file formats, refer to the '4-7 Supported File Formats' section.

• Loading time may be longer for large files.

• This product may not work properly when a file does not comply with standards or it is damaged.

• This product may not work when a file contains too much data to display on a screen.

4-2 Media Play Function

For example, too much data on one sheet in a Excel file.

• This product supports only one font. If a screen uses other fonts, the image Media Play displays may be different than the original screen.

(Ex)

1.

The position of line breaks in a sentence might be dissimilar.

2.

The position of page breaks in a MS Word document might be changed.

- In this case, the document might be shown incompletely according to the Layout properties for <Picture> or

<Shapes> or <Object> in MS word . (Please refer to the manual of MS Word for more information on the Layout properties.)

• This product does not support some functions found in original files. For example, the animation function in a PowerPoint file.

• This product does not support encrypted files (DRM).

Media Play Function 4-2

4-3 Photo

Enjoy a slideshow of photos saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Photo Thumbnails screen

The Photo Thumbnails screen.

The Menu below appears when you press the [MEDIA.P] while displaying the Photo Thumbnails screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.

• Depending on the current language setting, folder or file names may appear corrupted.

If this occurs, press the [MENU] button and change the language setting in <Language> under <Option>.

MENU ITEM

Start Slideshow

Play Mode

Copy

Copy All Files

Delete

Delete All Files

Set as Background

DESCRIPTION

Start a slideshow.

• <All Photos>: Play photos in order of file name.

• <Photo in Folder>: Play photos in a specific folder in order of file name.

• <Shuffle All Photos>: Play photos found in a specific memory device randomly.

• <Shuffle Photo in Folder>: Play photos in a specific folder randomly.

• <Repeat One Photo>: Play only one specific photo repeatedly.

If a USB memory device is connected to the projector, you can copy files from the USB device to the projector's internal memory and from the internal memory to the USB device.

Copy all files to internal memory or to a USB device.

Deletes a selected image.

Deletes all image files in a USB storage device.

Set a specific picture as the background image of the main page of <Media Play>.

Set as Custom Logo

Sets the selected image as the projector logo.

•To use this option, press [MENU] and go to <Setup>. Check that <Background> is set to

<Custom Logo>.

•The recommended resolution for a picture to be set as the user logo is 600x300.

To use this function in your presentation, convert general word processor files to image files before saving them to a USB storage device.

For example, convert .ppt (Microsoft Powerpoint) files to

→ .jpg /.bmp /.gif

Convert .pdf (Adobe Acrobat) files to

→ .jpg

Caution: Make sure to save image files to your USB storage device in the order of presentation.

4-3 Media Play Function

Slideshow

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control during a slideshow:

MEDIA.P

: Open the photo menu.

• / : View the previous or next photo.

• : Pause or resume a slideshow.

• : Return to the previous stage.

• : Only enabled in the document and movie menu.

If you press the [MEDIA.P] button when viewing a slideshow, the following menu appears.

MENU ITEM DESCRIPTION

Stop Slideshow / Start

Slideshow

Stop or start a slideshow.

Slideshow Setting

<Transition> : Selects the slideshow mode.

• <No Effect> - <Wipe> - <Blind> - <Box In/Out> - <Silk> - <Circle> - <Plus> - <Random>

<Speed> : Adjusts the slideshow playback rate.

• <Fast> - <Normal> - <Slow>

<Mode> : Selects manual (view one by one) or auto (slideshow) play.

• <Auto> - <Manual>

If you selected <Manual>, move between photos using the </> buttons on the projector or the / buttons on the remote control.

Play Mode

Rotate

Aspect Ratio

Delete

Set as Background

• <All photos> : Plays all available image files.

• <Photo in Folder> : Plays all image files in a selected folder.

• <Shuffle all photos> : Randomly plays all available image files in a USB storage device.

• <Shuffle photo in Folder> : Randomly plays all image files in a selected folder.

• <Repeat one photo> : Displays an image file repeatedly.

Rotate a photo by a specified angle.

Select the angle you want using the [ ] button.

• <90°> - <180°> - <270°> - <Original>

• <Original Fit> : Display a photo smaller than the screen at the original size or reduce a photo larger than the screen in direct proportion to the screen size.

• <Auto Fit> : Resize a photo to fit the screen, maintaining the original aspect ratio of the photo (the image may be cut off horizontally or vertically).

• <Fit to Width> : Resize a photo to fit the screen width.

• <Fit to Screen> : Enlarge or reduce the size of a photo, regardless of the aspect ratio of the photo, to fit the full screen.

Delete the selected file.

Set a specific picture as the background image of the main page of <Media Play>.

Media Play Function 4-3

MENU ITEM DESCRIPTION

Background Music

• <On> : Play music defined as background music in file name order.

• <Off> : Stop the background music that is being played.

• <Music Setting> : Define background music for a slideshow.

Set as Custom Logo

Sets the selected image as the projector logo.

• To use this option, press [MENU] and go to <setup>. Check that <Background> is set to

<Custom Logo>.

• The recommended resolution for a picture to be set as the user logo is 600x300.

4-4 Music

Enjoy music files saved on a USB memory device or the projector's internal memory.

Menu displayed from the Music List screen.

The Music List screen.

The Menu below appears when you press the [MEDIA.P] button while displaying the Music List screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.

• Depending on the current language setting, folder or file names may appear corrupted.

If this occurs, press the [MENU] button and change the language setting in <Language> under <Option>.

MENU ITEM

Play Music

Play Mode

Copy

Copy All Files

Delete

Delete All Files

DESCRIPTION

Plays music files.

• <All musics> : Play music in file name order.

• <Music in Folder> : Play music in a specific folder in file name order.

• <Shuffle all musics> : Play music in a specific memory device randomly.

• <Shuffle music in Folder> : Play music in a specific folder randomly.

• <Repeat one music> : Play only one specific music file repeatedly.

If an external USB memory device is connected to the projector, files on the external memory device can be copied to the projector's internal memory and vice versa.

Copy all files to internal or external memory.

Deletes a selected music file.

Deletes all music files in a USB storage device.

4-4 Media Play Function

Menu displayed when playing music.

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while playing music:

MEDIA.P

: Open the music menu.

• / : Play the previous or next music file.

• : Pause or resume playing music.

• : Return to the previous stage.

: Only enabled in the document and movie menu.

If you press the [MEDIA.P] button when playing music, the following menu appears.

Depending on the current language setting, the music file information [ ] may appear corrupted. If that is the case, press the [MENU] button and change the language in <Language> under <Option>.

MENU ITEM

Play Mode

DESCRIPTION

• <All music> : Plays all available music files.

• <Music in Folder> : Plays all music files in a selected folder.

• <Shuffle all music> : Randomly plays all available music files.

• <Shuffle music in Folder> : Randomly plays all music files in a selected folder.

• <Repeat one music> : Plays a selected music file repeatedly.

4-5 Movie

Enjoy video files saved on a USB memory device or in the projector's internal memory.

Menu displayed from the Movie List screen

The Movie File screen.

The Menu below appears when you press the [MEDIA.P] button while displaying the Movie List screen.

• If you are displaying a screen or item, and then press the [MEDIA.P] button, the menu corresponding to that screen or item appears.

• Depending on the current language setting, folder or file names may appear corrupted..

If this occurs, press the [MENU] button and change the language setting in <Language> under <Option>.

Media Play Function 4-5

MENU ITEM

Play Movie

Play Mode

Copy

Copy All Files

Delete

Delete All Files

DESCRIPTION

Plays video files.

• <All Movies> : Play video files in order of file name.

• <Movie in Folder> : Play video files in a specific folder in order of file name.

• <Shuffle All Movies> : Play video files in a specific memory device randomly.

• <Shuffle Movie in Folder> : Play video files in a specific folder randomly.

• <Repeat One movie> : Play only one specific video file repeatedly.

If an external USB memory device is connected to the projector, files on the external memory device can be copied to the projector's internal memory and vice versa.

Copy all files to internal or external memory.

Delete the selected file.

Delete all files in a folder.

Menu displayed when playing a movie

Select the file you want using the ▲/▼ buttons on the projector or remote control.

Using the remote control while playing video

MEDIA.P

:Open the video menu

• / : Play the previous or next video file

• : Pause or resume playing video

• : Return to the previous stage

: View information about the available buttons

If you press the [MEDIA.P] button when playing a movie, the following menu appears.

4-5 Media Play Function

MENU ITEM

Play Mode

Subtitle Setting

Aspect Ratio

DESCRIPTION

• <All Movies> : Plays all available video files.

• <Movie in Folder> : Plays all video files in a selected folder.

• <Shuffle all movies> : Randomly plays all available video files.

• <Shuffle movie in Folder> : Randomly plays all video files in a selected folder.

• <Repeat one movie> : Plays a selected video file repeatedly.

• <Subtitle Setting>: Switch the subtitle function <On> or <Off>

• <Language> : Select the subtitle language.

• <Background> : Change the subtitle background settings.

• <On> - <Off>

• <Position> : Change the subtitle location settings.

• <Down> - <Up> - <Reset>

• The video must have external subtitles in order to view them with the Caption feature turned on.

• See the table for supported subtitle file types. Refer to "4-7 Supported File Formats".

• Subtitle files must be in same directory as the video file.

• <Font> : Change the <Font Size>, <Font Color> and <Shadow Effect> settings for subtitles.

• <Font Size> : <Small> - < Middle> - <Large>

• <Font Color> : <White> - <Black> - <Red> - <Green> - <Blue> - <Yellow>

• <Shadow Effect> : <Off> - <On>

• <Sync> : Use in the occurrence of a mismatch between a video and subtitles.

• <- 0.5Sec> - <+0.5Sec> - <Reset>

Not supported for video files with internal subtitles.

Change the screen aspect ratio settings.

• <4:3> - <16:9> - <Original Ratio>

Media Play Function 4-5

4-6 Settings

Use the ▲/▼/ buttons to move to and access the Setting menus listed below.

4-6 Media Play Function

MENU ITEM

Options

Preference

DESCRIPTION

<Button Sound> : Change the button control sound settings for the <Media Play> menu.

• <Off> - <On>

<Internal Memory Copy> : Change the size of photos you want to copy to internal memory.

• <Original Size> : Copy photos at the original size to internal memory.

• <Resized> : Reduce the size of photos according to the optimal screen resolution and then copy.

<Open Source License> : To send inquiries and requests for questions regarding open sources, contact Samsung via Email ([email protected]).

<Home Background> : Select the image that will be displayed on the main page of the <Media Play>.

• <Default> : Display the default image provided by the projector.

• <Custom> : Display the image you selected as background image.

<DivX(R)VOD> : You can view the certified registration code for the projector when you use the VOD

(Video on Demand) service provided by DivX.

DivX®VOD

ABOUT DIVX VIDEO:

• DivX® is a digital video format created by DivX, Inc. This is an official DivX Certified device that plays DivX video.

Visit www.divx.com for more information and software tools to convert your files into

DivX video.

DivX Certified® to play DivX® video up to 320x240

May play DivX® video up to 720x480

ABOUT DIVX VIDEO-ON-DEMAND:

• This DivX Certified® device must be registered in order to play DivX Video-on-Demand

(VOD) content. To generate the registration code, locate the DivX VOD section in the device setup menu. Go to vod.divx.com with this code to complete the registration process and learn more about DivX VOD.

Pat. 7,295,673

Update/Reset

• <Firmware Update> : Update the firmware.

Please see the '4-6-1 Firmware Update' section.

• <Reset Settings> : Initialize the settings customized by the user

• <Product Information> : Display the firmware version and copyright information of the projector.

Safely Remove USB

Remove your USB device safely.

If the <You can remove the USB.> message appears, remove the USB device.

Media Play Function 4-6

4-6-1. Firmware Update

Download the latest firmware version from the Samsung Electronics website (http://www.samsung.com) and install.

• As data saved in the internal memory can be deleted during an update, always back up your data.

• Do not remove the external memory (USB) device during the update.

• Do not operate any buttons during the update.

• Do not turn the projector off during the update.

• Once the update is complete, turn the projector off, remove the external memory (USB) device and turn the projector on again.

• Select <Settings>

→<Update/Reset>→<Product Information> and see if the software version has been updated successfully.

Before Software Upgrade!

1.

Prepare a USB memory device.

2.

Download the latest firmware version from the Samsung Electronics website onto your PC.

3.

Connect the USB memory device to the PC.

4.

Copy the downloaded software to the USB memory device.

To upgrade software

1.

Connect the USB memory device to the projector.

2.

Open the main page of <Media Play>.

3.

Move to <Settings> using the [

▲/▼] buttons, and then press the [

] button.

4.

Move to <Update/Reset> using the [

▲/▼] buttons, and then press the [

] button.

5.

Select <Firmware Update> using the [ ] button.

• The update will start automatically.

4-6 Media Play Function

4-7 Supported File Formats

Supported File Formats

ITEM

Document


Music

FILE EXTENSION

MS Word 97 ~ 2007 ( doc, docx )

Adobe PDF 1.2 ~1.7 ( pdf )

MS PowerPoint 97 ~ 2007 ( ppt, pptx )

MS Excel 95 ~2007 ( xls, xlsx )

Text ( txt)

JPEG

• The Progressive format is not supported.

• CYMK color is not supported (It is displayed Black and white)

• Crop function is not supported (resolution larger than1024x768)

MP3 (sample rate: 8~320Khz)

WMA (sample rate: 8~384Khz)

ITEM

Movie

AVI

FILE EXTENSION

ASF(WMV)

MP4

(MPEG, MPG)

CODEC

Divx 3.11

Divx 4.x

Divx 5.1

Divx 6.0

XviD

MPEG-4 SP

MPEG-4 ASP

Windows Media Video 9

MPEG1

REMARKS

(MAXIMUM

RESOLUTION/BIT

RATE ETC.)

Resolution: 720 X 480

Frame/sec: 30

Mbps: 2

Resolution: 720 X 480

Frame/sec: 30

Mbps: 8

AUDIO CODEC

Supported Format

MP3

AC3

ADPCM

(MULAW,ALAW)

AAC

HE_AAC(AAC+)

WMA

Audio sampling rate :

8000

11025

12000

16000

22050

24000

32000

44100

48000

Supported Subtitile formats

Media Play Function 4-7

SAMI

SubRip

SubViewer

Micro DVD

NAME

.smi

.srt

.sub

.sub or .txt

FILE EXTENSION

HTML string-based string-based string-based

FORMAT

4-7 Media Play Function

5 Troubleshooting

5-1 Before Requesting Service

Please check the following before requesting After-Sales service. If the problem continues, please contact your nearest

Samsung Electronics Service Center.

Installation and

Connection

Menu and

Remote

Control

Symptoms

No Power.

I want to install my projector on the ceiling.

External Source can not be selected.

Remote control does not work.

I cannot select a menu.

Troubleshooting

Check the power cable connections.

The ceiling installation bracket is sold separately. Contact your local product distributor.

Be su re that the video cable or cables are properly connected to the correct jack or jacks on both ends. I f the device is not connected properly, it can not be selected.

Be sure that the proper external source is selected.

Check the battery in the remote. If there is something wrong with it, replace it with a new battery of the recommended size.

Be sure to aim the remote at sensor on the back of the unit and at a distance of no more than approximately 32.8 feet(10 m).

Remove any obstacles between your remote control and the product.

Direct light from 3-way light bulbs or other lighting devices on the remote sensor of the projector may affect the sensitivity and cause the remote control to malfunction.

Check if the remote control battery compartment is empty.

Check whether the LED indicator on the top of the projector is turned on.

Check if the menu is displayed in gray. Gray-colored menu items are unavailable.

Troubleshooting 5-1

Screen and

External

Source

Symptoms

Cannot see picture images.

Poor color.

Images are not clear.

Strange noise.

An operating LED is lit.

Lines appear on screen.

No external device screen is displayed.

Only a blue screen appears.

Screen appears in black and white or in an odd color, or the screen is too dark or bright.

Troubleshooting

Be sure that the power cord of the projector is connected.

Be sure that the proper input source is selected.

Check that the connectors are properly connected to the ports at the back of the projector.

Check the Remote Control batteries.

Be sure that the <Color> and<Brightness> settings are not at their lower limit.

Adjust the <Tint> and <Contrast>.

Adjust the focus.

Check if the projector is too far from or too near to the screen.

If a strange sound continues, contact your Service Center.

Refer to the LED Indications section.

On-screen noise may occur when using your PC. Adjust the frequency (refresh rate) of the screen.

Check the operating status for the external device and check whether the adjustable menu items, such as <Brightness> and

<Contrast> have been changed correctly in the <Mode> command screen of the Projector menu.

Be sure to properly connect the external devices. Check the connection cables again.

As mentioned above, check the adjustable items such as

<Brightness>, <Contrast>, or <Color> in the menu.

If you want to restore various settings to their factory defaults, run <Factory Default> from the menu.

5-1 Troubleshooting

Network

Symptoms Troubleshooting

The Web browser will not start up.

The Web browser will not connect to the projector.

Installation of Samsung Projector Manager has failed.

The projector will not connect to Samsung Projector Manager.

I want to remove Samsung Projector Manager.

Check the system requirements for the PC to connect to the Web browser.

1. Check whether the power cable is connected to the projector

(See Section 2-9, Connecting the Power).

2. Check if the network environments for the PC and projector are correct (See Section 2-17, Connecting to a Network).

3. Check whether the correct network card in the PC has been selected when the PC (server) has more than two network cards.

Check Samsung Projector Manager's system requirements for

PCs.

1. Check if the <IP Setting> and network connection between the PC and projector are correct.

2. If <IP Setting> for the projector is set to <Automatic>, check whether the PC and projector share the same network. If it is not the same network, configure the IP of the server PC using the <Server IP Setting> option.

3. Check if the projector's network access is blocked by the

PC's Windows firewall.

4. If Samsung Projector Manager connection's failure persists, remove and retry installation.

Samsung Projector Manager can be removed using the [Add or Remove Programs] option. To remove Samsung Projector

Manager in Windows XP, follow these steps :

1. Select [Control Panel] from the [Start] menu. (Windows XP)

2. Run [Add or Remove Programs].

3. Select Samsung Projector Manager under [Add or Remove

Programs], and then click [Change/Remove].

4. Select "Yes" to start the removal.

5. Follow additional directions as they appear on your screen.

Other versions of Windows have a similar removal process.

Troubleshooting 5-1

Symptoms Troubleshooting

Media Play

Function

I hear no sound when playing a video file from my USB storage device.

The subtitle is not displayed for video that is being played.

The <Media Play> function doesn't work.

Name of a folder or a file and document contents are distorted.

A file can not be opened.

The font of documents look different from the original one.

The connected USB doesn't work.

Files are not copied even though there is enough space in the internal memory.

Check the audio format of the video file.

Sound is not available for non-supported formats such as AC3, etc.

Convert the audio format into a supported format using a video converter.

Press the [MEDIA.P] button on the screen where video is being played and check if <Subtitle Setting> is set to <On>.

To view video with the subtitle function on, the video file must contain an external subtitle file.

For the subtitle file formats supported, please refer to the "4-7

Supported File Formats" section.

The subtitle file must be located in the same folder as the video file.

Reset the <Media Play> mode by pressing the [MENU] button and selecting <Setup>

→<Reset>→<Media Play>→<Recovery

Mode>.

If the problem persists, download the latest version of firmware onto your USB device, connect the USB device to the projector and run <Setup>

→<Reset>→<Media Play>→<System

Reset>.

The latest version of firmware can be downloaded from

"http://www.samsung.com/".

This can happen when the language of the folder or file differs from the language you selected as the display language for the product.

Change to the proper language in <Option>

→<Language> on the Screen Adjustment menu by pressing [MENU] button.

Files that have a format not supported by the product or that have security settings might not open. Check the file format in

"4-7. Supported File Formats" or release the security settings.

This product supports one font. Documents written in other fonts are converted into the supported font and displayed.

Check that USB is connected to USB jack properly. If the connection is good, the USB icon appears at the right upper part of

<Media Play> screen.

Damaged USB devices can not connect and will malfunction.

Try the USB again after formatting or other USB device.

Refer to "4-1. USB Connecting a USB Storage Device and

Precautions" before operating the USB.

Available space could be smaller than the files you intend to copy, delete other files and try to copy.(Available storage capacity is 59MB)

5-1 Troubleshooting

6 More Information

6-1 Specifications

6-1-1. SP-M205 / SP-M225 / SP-M255

Panel

MODEL

Size

Resolution

Aspect ratio

Power

Lamp

Dimension

Weight

Key Features

Input signal

Speaker

User Environment

Noise

Power Consumption

V o tl a g e

Power Consumption

Life Time

Brightness

Contrast

Projection Range

Keystone

Network

Zoom Adjustment

Focus Adjustment

Screen Size (Diagonal)

Lens

Zoom Ratio

D-Sub 15p

HDMI

RCA x 1

Media Play

Temperature and Humidity

SP-M205 SP-M225 SP-M255

0.63 inches 3P LCD

XGA (1024 x 768)

4 : 3

240 W 240 W 260 W

(Standby : under 1W) (Standby : under 1W) (Standby : under 1W)

1 0 0 ~ 2 4 0 V AC, 50/60Hz

200 W 180 W 180 W

3,000 Hours (Eco : 5,000 Hours )

279 x 229 x 79 mm / 10.98 x 9.02 x 3.11 inches

2.5 Kg / 5.5lbs

2,000 ANSI

500 : 1

2,200 ANSI 2,500 ANSI

1 m ~ 14 m / 39.37 inches ~ 551.18 inches

Auto

: Vertical(±20°) / Manual : Vertical (±20°)

Wired LAN Port (RJ45), 10 Mbps

Manual

Manual

Diagonal 30 inches ~ 400 inches

F = 1.7 ~ 1.87, f = 19.2 mm ~ 23 mm

1 : 1.2

Analog RGB, analog YPbPr

Digital RGB, digital YPbPr

Composite video

USB supports

7 W (Mono)

Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C),

Humidity : 20 % ~ 80 % (Non-condensing)

Storage : Temperature 14 °F ~ 140 °F (-10 °C ~ 60 °C),

Humidity : 10 % ~ 90 % (Non-condensing)

Eco : 31 dB, Bright : 36 dB

More Information 6-1

6-1-2.

SP-M275 / SP-M305

Panel

Aspect ratio

Power

Lamp

Dimension

Weight

Key Features

Input signal

Speaker

User Environment

V o

MODEL

Size

Resolution

Power Consumption tl a g e

Power Consumption

Life Time

B ir g h t n e s s

Contrast

Projection Range

Keystone

Network

Zoom Adjustment

Focus Adjustment

Screen Size (Diagonal)

Lens

Zoom Ratio

D-Sub 15p

HDMI

RCA x 1

Media Play

Temperature and Humidity

SP-M275 SP-M305

0.63 inches 3P LCD

XGA (1024 x 768)

4 : 3

280 W

(Standby : under 1W)

1 0 0 ~ 2 4 0 V AC, 50/60Hz

230 W

295 W

(Standby : under 1W)

3,000 Hours (Eco : 5,000 Hours )

279 x 229 x 79 mm / 10.98 x 9.02 x 3.11 inches

2.7 Kg / 6.0 lbs

2 , 7 0 0 ANSI 3,000 ANSI

2000 : 1 (Only in Dynamic of picture mode)

1 m ~ 14 m / 39.37 inches ~ 551.18 inches

Auto: Vertical(±20°) / Manual: Vertical (±20°)

Wired LAN Port (RJ45), 10 Mbps

Manual

Manual

Diagonal 30 inches ~ 400 inches

F = 1.7 ~ 1.87, f = 19.2 mm ~ 23 mm

1 : 1.2

Analog RGB, analog YPbPr

Digital RGB, digital YPbPr

Composite video

USB supports

7 W (Mono)

Operating : Temperature 41 °F ~ 95 °F (5 °C ~ 35 °C),

Humidity : 20 % ~ 80 % (Non-condensing)

Storage : Temperature 14 °F ~ 140 °F (-10 °C ~ 60 °C),

Humidity : 10 % ~ 90 % (Non-condensing)

Eco : 31 dB, Bright : 35 dB Noise

Class B (Information Communication equipment for residential use)

This device is registered for EMC requirements for home use (Class B). It can be used in all areas. (Class B equipment emits less electromagnetic waves than Class A equipment.)

The LCD panel used in the LCD projector consists of hundreds of thousands of fine pixels. Like other video display devices, the LCD panel may contain bad pixels which do not operate. When shipping a product, the conditions for identifying bad pixels and the number of bad pixels that a LCD panel is allowed to contain are strictly managed in accordance with the relevant specified standards by the LCD panel manufacturer and our company. Though a screen may have some dead pixels, this does not affect the overall screen quality and the lifetime of the product.

6-1 More Information

6-2 RS232C Command Table

Communication Format (Complies with the RS232C Standard)

• Baud rate : 9,600 bps

• parity : None

• Data bits : 8, stop bit : 1

• Flow Control : None

Serial Communication Protocol

1.

Command Packet Structure [7bytes]

0x08 0x22 cmd1 cmd2 cmd3 value

• A command packet consists of 7 bytes in total.

• The two bytes 0x08 and 0x22 signify that the packet is for serial communication.

• The following 4 bytes represent a pre-defined command that can be defined by the user.

• The last byte is the checksum which checks the validity of the current packet.

CS

• Header [2 Byte]: Pre-defined values fixed to 0x08 and 0x22.

• Cmd1 [1 Byte]: The first value of the code defined in the command list (Hexadecimal)

• Cmd2 [1 Byte]: The second value of the code defined in the command list (Hexadecimal)

• Cmd3 [1 Byte]: The third value of the code defined in the command list (Hexadecimal)

• Value [1 Byte]: Input parameter for the command (Default: 0) (Hexadecimal)

• CS [1 Byte]: Checksum (the 2’s complement of the sum of all the values except for the CS value.)

2.

Response Packet Structure [3 Bytes]

1.

Success

2.

Fail

0x03 0x0C 0xF1

0x03 0x0C 0xFF

• When the received packet from an external device has a valid value, a Success packet is sent. Otherwise, a Fail packet is sent.

• A Fail packet is sent if:

• The received packet length is not equal to 7 bytes.

• The 2 byte packet header value is not equal to 0x08, 0x22.

• The check sum is incorrect.

• Failure detection by an external device

• An external device classifies the packet as Fail if it does not receive a Success packet within 100ms.

More Information 6-2

Command Table

General

Input

Power

Volume

Mute

Blank

Still

CONTROL ITEM

Power On

Protection

Source List

Power

CMD1

Direct Power

Off

Direct 0x01

Continuous Up

Down

On

Off

0x02

AV

PC

HDMI

Media Play

Display OSD

/ Power On

OK

Cancel

On

Off

On

Off

(0~9) Keypad

AV

PC

HDMI

Media Play

0x00

0x03

0x04

0x05

0x0A

CMD2

0x00

CMD3

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x01

0x03

0x04

0x05

0x00

0x01

0x02

0x00

0x00

0x00

0

VALUE

1

2

3

0

0

0

0

0

1

0

1

(0~100)

0

0

0

1

(0~9)

6-2 More Information

Picture Mode

Contrast

Brightness

Sharpness

Color

Tint (G/R)

Color Tone

WB

CONTROL ITEM

Dynamic

Standard

Presentation

Text

Movie

Game

User

0~100

0~100

0~100

0~100

G50 / R50

Cool2

Cool1

Warm1

Warm2

R offset

G offset

B offset

R gain

G gain

B gain

CMD1

0x0B

CMD2

0X00

CMD3

0x00

0X02

0X03

0X04

0X05

0x06

0x0A

0x0B

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x01

0x02

0x03

0x04

0x05

VALUE

3

4

1

2

(0~100)

(0~100)

(0~100)

(0~100)

2

3

0

1

4

5

6

(0~100)

(0~100)

(0~100)

(0~100)

(0~100)

(0~100)

(0~100)

More Information 6-2


CONTROL ITEM

Gamma

Save

-3~3

Display OSD

OK

Cancel

Direct Save

Reset

Size

Digital NR

Black Level

Overscan

Film Mode

PC

Normal

Zoom1

Zoom2

16:9

Off

On

0 IRE/NOR-

MAL

7.5 IRE/LOW

Off

On

Off

Auto

Auto adjustment

Coarse fine

Reset

UP

DOWN

Up

DOWN

Display OSD

OK

Cancel

Direct Reset

Zoom x1 x2 x4 x8

LEFT

RIGHT

Up

Down

CMD1

0x0B

CMD2

0x0C

0x0D

0x0E

0x0F

0x10

0x11

0x12

0x13

0x14

0x15

0x16

0x17

0x18

0x19

CMD3

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0x00

0

1

0

1

0

1

VALUE

0

1

3

0

1

2

(0~6)

0

0

1

2

3

0

1

2

3

0

3

1

2

3

0

1

2

1

0

0

1

0

6-2 More Information


Setup

CONTROL ITEM CMD1 CMD2 CMD3 VALUE

Horizontal

Position

Vertical Position

Install

Lamp Mode

Keystone

Continuous

Continuous

LEFT

RIGHT

DOWN

Up

-50~50

Off

On

0x0B 0x1A

0x1B

0x00

0x00

Front-Floor 0x0C

Front-Ceiling

ECO

Bright

0x00 0x00

Rear-Floor 2

Rear-Ceiling 3

0x01 0x00

0

1

0

2

V-Keystone

Auto Keystone

0x02 0x00

0x02

0

1

0

1

0x03 0x00

1

0

(0~100)

0

Background Logo

Blue

Black

Test Pattern

Custom Logo

Crosshatch

Screen size

Pattern Off

0x04 0x00

3

0

1

2

Video Type Auto

RGB(PC)

RGB(AV)

YPbPr(AV)

0x05 0x00 0

1

1

2

Reset

PC

AV

Factory

Default

Reset Filter

Time

Display OSD

Ok

Cancel

Direct Factory Default

Display OSD

Ok

0x06 0x00

0x01

2

3

0

1

4

5

2

3

Cancel

Direct Reset

Filter Time

2

3

0

1

More Information 6-2

Setup Reset

CONTROL ITEM

Recovery

Mode

Caption

Network

System

Reset

Caption

Mode

Channel

Field

Network

IP Setting

CMD1

1

2

1

2

Off

On

Automatic

Manual

IP Address

Display OSD 0x0C

Ok

Cancel

Direct Factory Default

Display OSD

Ok

Cancel

Direct Reset

Filter Time

Off

On

Caption

Text

0x0E

CMD2

0x06

0x07

0x01

0x02

0x03

CMD3

0x02

0x03

0x00

0x01

0x02

0x03

0x00

0x00

Server IP

Setting

Subnet Mask

Gateway

Server IP

0x04

0x05

0x06 0x00

0x01

0x02

0x03

0x00

0x01

0x02

0x03

0x00

0x01

0x02

0x03

0x00

0x01

0x02

0x03

2

3

0

1

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0~255

0

1

0

1

0~255

0~255

0~255

0~255

0

1

0

1

0

1

0

1

2

3

0

1

VALUE

6-2 More Information

Option

CONTROL ITEM

Language English

Deutsch

Nederlands

Español

Français

Italiano

Svenska

Português

Русский

中国语

한국어

Türkçe

ไทย

Menu Option Position

Transparency

Display Time 5 sec

10 sec

30 sec

60 sec

90 sec

120 sec

Stay On

LEFT

RIGHT

UP

DOWN

High

Medium

Low

Opaque

CMD1

0x0D

CMD2

0x00

CMD3

0x00

0x01

0x02

0x03

0x00

0x00

0x00

6

7

4

5

8

9

2

3

0

1

10

4

5

2

3

6

0

1

2

3

0

1

2

3

0

1

11

12

VALUE

More Information 6-2

Option Sound

CONTROL ITEM

100Hz

300Hz

1KHz

3KHz

10KHz

Filter Check

Time

Auto Power

ON

800

Off

On

Sleep Timer Off

10 min

20 min

30 min

Information

Panel Lock Off

On

Melody

Off

100

200

400

Off

Low

Medium

High

Up

Down

Up

Down

Up

Down

Up

Down

Up

Down

CMD1

0x0D

CMD2

0x04

CMD3

0x01

0x05

0x06

0x07

0x08

0x0A

0x0B

0x02

0x03

0x04

0x05

0x00

0x00

0x00

0x00

0x00

0x00

0

1

3

0

1

2

1

0

2

3

0

1

4

0

2

3

0

1

0

1

0

1

0

1

0

1

0

1

VALUE

6-2 More Information

6-3 Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

U.S.A

CANADA

MEXICO

NORTH AMERICA

1-800-SAMSUNG(726-7864)

1-800-SAMSUNG(726-7864)

01-800-SAMSUNG(726-7864) http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

ARGENTINA

BRAZIL

CHILE

COLOMBIA

COSTA RICA

ECUADOR

EL SALVADOR

GUATEMALA

HONDURAS

JAMAICA

NICARAGUA

PANAMA

PUERTO RICO

REP. DOMINICA

TRINIDAD & TOBAGO

VENEZUELA

AUSTRIA

BELGIUM

CZECH

LATIN AMERICA

0800-333-3733

0800-124-421

4004-0000 http://www.samsung.com

http://www.samsung.com

800-SAMSUNG(726-7864) http://www.samsung.com

01-8000112112 http://www.samsung.com

0-800-507-7267

1-800-10-7267 http://www.samsung.com

http://www.samsung.com

800-6225

1-800-299-0013 http://www.samsung.com

http://www.samsung.com

800-7919267 http://www.samsung.com

1-800-234-7267 http://www.samsung.com

00-1800-5077267

800-7267

1-800-682-3180

1-800-751-2676

1-800-SAMSUNG(726-7864)

0-800-100-5303 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

EUROPE

0810 - SAMSUNG(7267864,€ 0.07/min) http://www.samsung.com

02-201-24-18

800 - SAMSUNG (800-726786) http://www.samsung.com/be (Dutch) http://www.samsung.com/be_fr

(French) http://www.samsung.com

DENMARK

EIRE

ESTONIA

FINLAND

FRANCE

More Information

70 70 19 70

0818 717100

800-7267

030 - 6227 515

01 48 63 00 00 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

6-3

ARMENIA

AZERBAIJAN

BELARUS

GEORGIA

KAZAKHSTAN

KYRGYZSTAN

MOLDOVA

RUSSIA

TADJIKISTAN

UKRAINE

UZBEKISTAN

AUSTRALIA

CHINA

HONG KONG

GERMANY

HUNGARY

ITALIA

LATVIA

LITHUANIA

LUXEMBURG

NETHERLANDS

NORWAY

POLAND

PORTUGAL

SLOVAKIA

SPAIN

SWEDEN

SWITZERLAND

U.K

6-3

EUROPE

01805 - SAMSUNG (726-7864,€ 0,14/

Min)

06-80-SAMSUNG(726-7864) http://www.samsung.com

800-SAMSUNG(726-7864)

8000-7267

8-800-77777

261 03 710 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

0900 - SAMSUNG (0900-7267864) (€

0,10/Min)

815-56 480

0 801 1SAMSUNG (172678)

022 - 607 - 93 - 33

80820 - SAMSUNG (726-7864) http://www.samsung.com

http://www.samsung.com

0800-SAMSUNG(726-7864)

902 - 1 - SAMSUNG (902 172 678)

0771 726 7864 (SAMSUNG)

0848-SAMSUNG(7267864, CHF 0.08/ min) http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com/ch http://www.samsung.com/ch_fr (French)

0845 SAMSUNG (7267864) http://www.samsung.com

CIS

0-800-05-555

088-55-55-555

810-800-500-55-500

8-800-555-555

8-10-800-500-55-500

00-800-500-55-500

00-800-500-55-500

8-800-555-55-55

8-10-800-500-55-500

0-800-502-000

8-10-800-500-55-500 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com/ua http://www.samsung.com/ua_ru http://www.samsung.com

ASIA PACIFIC

1300 362 603

400-810-5858

010-6475 1880

(852) 3698 - 4698 http://www.samsung.com

http://www.samsung.com

http://www.samsung.com/hk http://www.samsung.com/hk_en/

More Information

INDIA

INDONESIA

JAPAN

MALAYSIA

NEW ZEALAND

PHILIPPINES

SINGAPORE

TAIWAN

THAILAND

VIETNAM

BAHRAIN

JORDAN

SOUTH AFRICA

TURKEY

U.A.E

ASIA PACIFIC

3030 8282

1800 110011

1800 3000 8282

1800 266 8282

0800-112-8888

021-5699-7777

0120-327-527

1800-88-9999

0800 SAMSUNG (0800 726 786)

1-800-10-SAMSUNG(726-7864)

1-800-3-SAMSUNG(726-7864)

1-800-8-SAMSUNG(726-7864)

02-5805777

1800-SAMSUNG(726-7864)

0800-329-999

1800-29-3232

02-689-3232

1 800 588 889

MIDDLE EAST & AFRICA

8000-4726

800-22273

0860-SAMSUNG(726-7864)

444 77 11

800-SAMSUNG(726-7864) http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

http://www.samsung.com

More Information 6-3

6-4 Correct Disposal - Europe only

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories

(e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product - Europe only

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg,

Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive

2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

6-4 More Information
