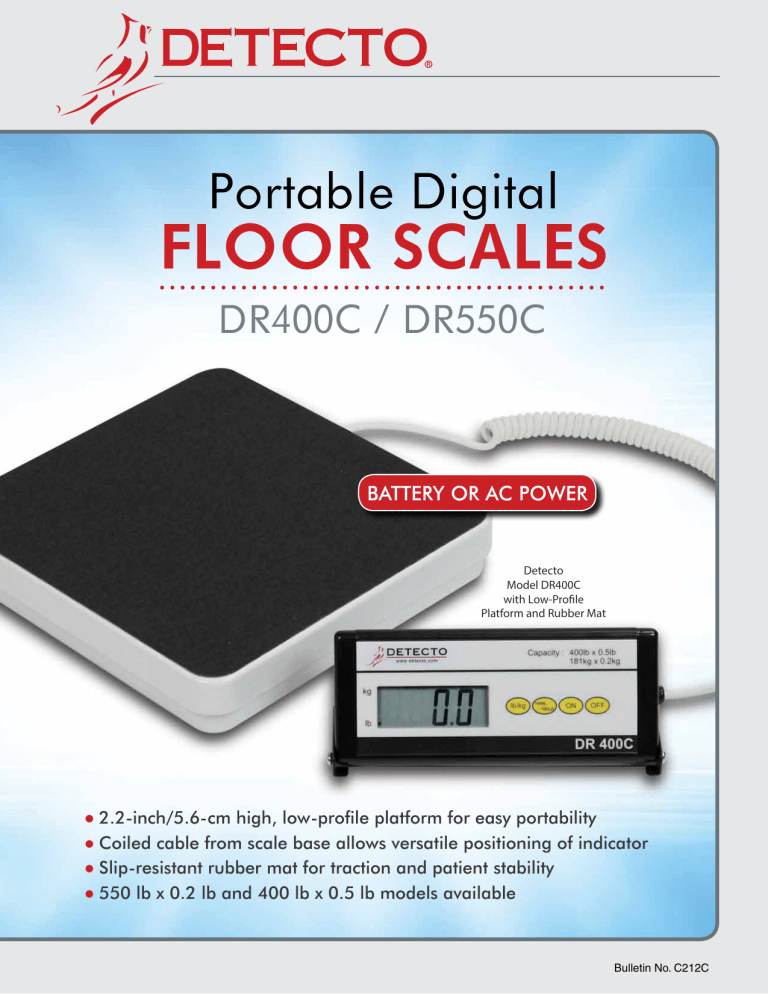

Portable Digital
FLOOR
SCALES
............................................
DR400C / DR550C
BATTERY OR AC POWER
Detecto
Model DR400C
with Low-Profile
Platform and Rubber Mat
● 2.2-inch/5.6-cm high, low-profile platform for easy portability
● Coiled cable from scale base allows versatile positioning of indicator
● Slip-resistant rubber mat for traction and patient stability
● 550 lb x 0.2 lb and 400 lb x 0.5 lb models available
Bulletin No. C212C
● Lightweight, mobile weighing platform for easy transport
● Auto Shut-Off after 2 minutes conserves battery power
● Simple four-key operation is easy to use even for novices
● Pushbutton Tare will zero out the load on the platform
● Pounds and kilograms conversion with Units key
● RS232 serial port on DR400C for EMR/EHR-ready output
DETECTO’s model DR400C and DR550C digital portable
floor scales will provide you with years of accurate and
reliable weighing from the brand you trust in clinical
weighing. The scales arrive assembled for use.
The portable lightweight platform and large bold readouts make
this scale ideal for mobile clinics, home healthcare nurses, doctor's
offices, general purpose use, and home bathroom weighing.
The scale's moveable display lets you place it on a work
surface or mounted to the wall, wherever it's most convenient
for you to view. An optional black carrying case is available.
DETECTO is the largest medical scale manufacturer in
the United States providing clinical-grade accuracy
and dependability for over a century.
Detecto
Model DR550C
with Stainless Steel
Low-Profile Platform
The economical DR400C and DR550C are battery powered,
so you can take the scales anywhere you need them.
The bold LCD is viewable in almost any lighting condition.
Versatile Display Options
The indicator’s versatile mounting bracket and coiled cable allows
the display to be positioned on the floor or tabletop for quick mobile
weighing use or you may permanently mount it on the wall using
the included screws (see below).
FLOOR / TABLETOP
MOBILE
Positioning
WALL MOUNT
FIXED
rear bracket view
Positioning
The bracket can temporarily rest
on any flat surface for mobile weighing
rear bracket view
2 screws and 2 drywall anchors
are included for the mounting bracket
CONNECTIVITY
The DR400C scale comes with a RS232 serial port for EMR/EHR-ready
output of weight measurements in a clinical environment.
Battery or AC Power
The DR400C and DR550C come with a UL listed 9V 100mA DC adapter
(included) or may be powered by 6 AA batteries (not included) for mobile use.
Easy access to 6 AA batteries
located conveniently underneath
the platform cover.
The DR400C features a RS232 serial port (not included on DR550C).
Capacity
DR400C
DR550C
400 lb x 0.5 lb / 180 kg x 0.2 kg
550 lb x 0.2 lb / 250 kg x 0.1 kg
11.9 in W x 12.3 in D x 2.2 in H / 30.2 cm W x 31.3 cm D x 5.6 cm H
Scale Base Platform Dimensions
Weight Indicator Dimensions
Scale Base Platform Construction
8.8 in W x 3.6 in D x 1.8 in H / 22.2 cm W x 9.2 cm D x 4.4 cm H (minus bracket)
Mild steel with rubberized mat
Liquid Crystal Display, 4 digit, 7 segment
Display Type
2.9 in W x 1.1 in H / 7.5 cm W x 2.7 cm H overall LCD size
LCD Display Dimensions
0.9 in H x 0.4 in W / 2.4 cm H x 1.0 cm W per digit
LCD Digit Dimensions
Cable Length (indicator to base)
Keypad
Coiled: 33.4 in / 84.8 cm
Fully Extended: 117.5 in / 298.5 cm
LB/KG, TARE/HOLD, ON, OFF
ON/OFF, NET/GROSS, UNIT, TARE
RS232 serial
Connectivity Port
Power
Stainless steel with rubberized mat
6 AA 1.5V batteries (not included) or UL listed 9V 100mA DC adapter (included)
Tare
100% of full scale capacity
Zero
Established on power up routine and maintained by auto-zero circuitry
40º F - 105º F (5º C - 40º C)
Operating Temperature
25% ~ 95% RH
Operating Humidity
809161143904
UPC Code
809161144000
Net Weight
10 lb / 4.5 kg
Shipping Weight
13 lb / 5.9 kg
Detecto Scale reserves the right to improve, enhance, or modify features and specifications without prior notice.
OPTIONAL ACCESSORIES
Wall-Mount Grab Bar
Carrying Case
Stainless steel wall-mount support
handles (ordered 1 bar per model)
Black carrying case with handle and
zipper for DR400C and DR550C
Model GBSS18-WM
Model DR-CASE
DETECTO
®
SOLD BY:
A Division of Cardinal Scale Manufacturing Co.
203 E. Daugherty, Webb City, MO 64870 USA
Ph: 417-673-4631 or 1-800-641-2008 Fax: 417-673-5001
www.Detecto.com
Mobile: m.detecto.com
© Copyright 2015 Cardinal Scale Mfg. Co.
• Printed in USA • CAR/00/0615/C212C
