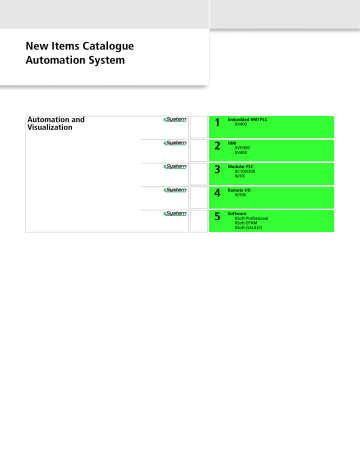

New Items Catalogue Automation System

New Items Catalogue Automation System
New Items Catalogue
Automation System
Automation and
Visualization
1
Embedded HMI PLC
XV400
2
HMI
XVH300
XV400
3
Modular PLC
XC100/200
XI/OC
4
Remote I/O
XI/ON
5
Software
XSoft-Professional
XSoft-EPAM
XSoft-GALILEO
Contents
1/1
Description
XV400 – Flexible in Application
Page
1/2
1/2
Touch Display HMI or HMI-PLC XV400
1/3
Accessories
1/4
Licensing procedure
XV400
1/5
1/5
Technical data
1/8
Dimensions
1/10
Embedded HMI-PLC
Moeller NK2720-1151
1/2
Description
XV400 – Flexible in Application
Embedded HMI-PLC
Moeller NK2720-1151
HMI or combined HMI-PLC – with the XV400 series, the customer decides on the device functions and the preferred project engineering tool.
Devices in the XV400 series offer a very wide range of communication options. CANopen, Ethernet 10/100Mbit, USB Device, USB Host, RS232 dirctly on board offer maximum flexibility - whether as HMI, HMI-PLC, as a panel with gateway functionality, or connected to the supervisory level via Ethernet TCP/IP. Optional communication
cards (PROFIBUS DP master/slave, MPI, DeviceNet etc.) round off the performance spectrum.
On-board functionality such as WEB browser, FTP server, Remote Client/Server or OPC Client/Server not only offer new possibilities for networking and programmming,
they also provide customers and users with an innovative leap for their automation.
Features of 5.7“ devices:
•
•
•
•
•
•
•
•
5.7“ STN Display
32 bit/400 MHz RISC CPU
Windows™ CE
Resistive or Infra-red Touch
1 slot for CompactFlash™
1 slot for communication modules
Multitasking-capable PLC
Vertical or horizontal mounting is possible
Features of 10" and 12" devices:
•
•
•
•
•
•
•
•
10.4 or 12.1“ TFT display
32 bit/400 MHz RISC CPU
Windows™ CEd
Resistive or Infra-red Touch
2 slots for CompactFlash™
2 slots for communication modules
Multitasking-capable PLC
Vertical or horizontal mounting is possible
Touch Display HMI-PLC XV400
1/3
Moeller NK2720-1151
Front
version
Screen
diagonal
Display area Resolution
Slots for
communication
cards
Inch
mm
Qty.
Pixel
Type
Article no.
Price
Std.
see price list pack
Embedded HMI-PLC
Display
Touch Display HMI-PLC XV400
Processor RISC CPU, 32 bit, 400 MHz
Data/project memory: 1.5 MB/32 – 64 MB
Display: 5.7“ STN color LCD, 256 colours; 10.4“/12“ TFT color LCD, 65535 colours
Integrated interfaces: Ethernet (programming interface/SYMArti communication), CANopen, RS232
Communication slots for communication modules
Approvals: UL/c-UL
Explosion protection: zone 22, category 3D
Software: visualization = XSoft-GALILEO or XSoft-EPAM,
Programming = XSoft-Professional
Basic device with 140 points enable communication via SYMARTI or on-board interface
For additional communication and PLC functionality a see Licensing at www.moeller.net/support
CompactFlashTM with operating system is required a see Accessories: XT-OS-FLASH...
5.7
118 x 89
320 x 240
IR-Touch (infra-red Standard
film
optical grid),
robust, scratch118 x 89
320 x 240
Satin-finish 5.7
proof front (lamibrushed
nated safety glass) stainless
steel
1
1
XV-442-57CQB-X-13-1
289797
XV-442-57CQB-X-50-1
290435
Resistive-touch,
absolutely plane
(seamless) front
Standard
film
5.7
118 x 89
320 x 240
1
XV-432-57CQB-X-13-1
289798
IR-Touch (infra-red
optical grid),
robust, scratchproof front (laminated safety glass)
Standard
film
Satin-finish
brushed
stainless
steel
10.4
211 x 158
640 x 480
2
10.4
211 x 158
640 x 480
2
XV-440-10TVB-X-13-1
289799
XV-440-10TVB-X-50-1
290436
Resistive-touch,
absolutely plane
(seamless) front
Standard
film
10.4
211 x 158
640 x 480
2
XV-430-10TVB-X-13-1
289830
IR-Touch (infra-red
optical grid),
robust, scratchproof front (laminated safety glass)
Standard
film
Satin-finish
brushed
stainless
steel
12.1
246 x 185
800 x 600
2
12.1
246 x 185
800 x 600
2
XV-440-12TSB-X-13-1
289831
XV-440-12TSB-X-50-1
290437
Resistive-touch,
absolutely plane
(seamless) front
Standard
film
12.1
246 x 185
800 x 600
2
XV-430-12TSB-X-13-1
289832
1 off
1/4
Accessories
Embedded HMI-PLC
Moeller NK2720-1151
For use with
Type
Article no.
Memory cards
small
CompactFlash with operating system
CompactFlash with operating system
XT-OS-FLASH-S
290319
XT-OS-FLASH-L
290340
1 off
large
XVH-3..
XV-4..
XVH-3..
XV-4..
XV-4..
XT-MPB1-TP
289836
XT-MPB2TP
289837
XT-DPM-MC2
289838
XT-PDP-TP
289839
XT-BCP-TP
289850
XT-BCB-TP-EPROM-DNET
289851
XT-BCB-TP-EPROM-CANOPEN
289852
1 off
XVH-3...
XV-4...
MC-HPG-...
XVC-601-...
XCC-601-...
XVH-3...
XV-4...
MC-HPG-...
XVC-601-...
XCC-601-...
XT-CAT5-X-2
256487
1 off
XT-CAT5-X-5
256488
1 off
XV400
5.7"
XV400
10.4", 12"
XVH-3..
XV-4..
XVH-3..
XV-4..
XT-LIC-PLC-XV-SMALL
290438
XT-LIC-PLC-XV-MEDIUM
290443
XT-LIC-OPT-40
290445
XT-LIC-OPT-80
290447
1 off
XVH-3..
XV-4..
XT-HKS-IP65
292276
1 off
Communication cards
–
Multiple protocol board
–
Multiple protocol board MPI
XV-4..
–
PROFIBUS-DP master
XV-4..
–
PROFIBUS-DP slave
XV-4..
–
CAN communication module
XV-4..
–
EPROM DeviceNet for XT-BCP-TP
XV-4..
–
EPROM CANOpen for XT-BCB-TP
XV-4..
Price
see
price list
Std. pack
Description
1 off
Connection cable
Ethernet cross-cable for programming
2 m length
–
5 m length
–
XV licenses
–
PLC license
–
PLC license
–
License certificate 40 POINTS
–
License certificate 80 POINTS
Additional fixing clamps
–
Additional fixing clamps for IP65
Licensing procedure
XV400
1/5
Licensing HMI-PLC
The range of functions is decided by licence points, which are clearly allocated to the
component.
All XV400 components already contain 140 licence points and therefore permit the
use as HMI with an external communication, such as SYMArti or CANopen.
Using licence certificates (a Accessories XV licenses) you can allocate further licence
points to the device. The licensing is carried out via www.moeller.net/support. If you
enter the licence certificate number and device serial number in the Internet portal,
you will receive (via e-mail) a licence code and a confirmation of the licence for your
production documentation.
Enter the licence code through the licensing menu in the device, and this will increase the number of internal licence points in the device.
Note:
If the licence point level of the device is inadequate for the required function, the
display box of the touch display will prompt you at regular intervals to extend the
licence for the device.
Calculation of the required licence points:
Determine the required functions (communication) and add up the licence points
needed for these functions. From this sum, deduct the number of licence points
(140) already available in the device. The difference is the number of licence points
that you need to install through a licence certificate.
Number of licence points for the XV400 devices, depending on the required functionality:
Licence points
Runtime
Communication can be used by ...
100
100
PLC
HMI
XSoft-Professional
XSoft Galileo
Function
HMI (Galileo or EPAM):
PLC (XSoft ):
Communication (on board):
HMI
XSoft EPAM1)
Programming input (Ethernet)
SYMArti local (PLC n GALILEO/EPAM)
SYMArti external, (Ethernet)
MODBUS TCP Client, (Ethernet)
SUCOM-A, (RS 232)
MODBUS RTU, (RS 232)
CANopen, Master
CANopen, Slave (Device)
0
0
0
–
0
0
0
0
0
0
40
80
40
40
–
40
0
0
0
–
–
–
–
–
Optional plug-in communication modules
(no licence points required):
XT-MPB1-TP (RS232, TTY,RS485, RS422, RS422 MP) (Suconet K)
XT-MPB2-TP ((RS232, TTY,RS485, RS422, RS422 MP, MPI)
XT-PDP-TP (PROFIBUS-DP Slave)
XT-PDP-TP (PROFIBUS-DP Master)
XT-BCB-TP + XT-BCB-TP-EPROM-DNET (DeviceNet)
–
–
–
0
–
0
0
0
–
0
–
–
–
–
–
1)
The communication PLC a EPAM takes place exclusively via SYMArti. Variables that are, for instance, linked via CANopen and declared in the PLC project,
can of course also be used via the symbol file (SYMArti local) in EPAM.
The following licence certificates are available, depending on the functionality that is needed:
PLC Licence Certificate:
XT-LIC-PLC-XV-SMALL
XT-LIC-PLC-XV-MEDIUM
Communication licence certificates:
PLC licence (100 licence points), XV-400-5,7“
PLC licence (100 licence points), XV-400-10,4“, 12“
Example
CANopen
Ethernet
(SYMArti)
XV-442-57
HMI Runtime +
PLC Runtime
XC200
XI/ON
Necessary licence points
HMI Runtime:
100
(Galileo)
PLC Runtime:
100
(XSoft)
Communication:
0
(CANopen, Master)
Communication:
40
(SYMArti external)
Total:
240
– already included in XV-442-57:
140
PLC licence certificate required for 100 points
= XT-LIC-PLC-XV-SMALL
XT-LIC-OPT-40
XT-LIC-OPT-80
40 licence points
80 licence points
Embedded HMI-PLC
Moeller NK2720-1151
1/6
Licensing procedure
XV400
Moeller NK2720-1151
Embedded HMI-PLC
Cashing in the licence certificates
It is really easy to cash in the licence certificates. When the licence certificate
number and the device serial number have been entered on the Moeller Internet
page www.moeller.net/support, the licence code for enabling the device functionality will be produced promptly. When this licence code has been entered into the
XVH-300/XV400, the additional licence points will be added directly to the device.
Technical data
Technical data
Moeller NK2720-1151
Embedded HMI-PLC
XV-442-57CQB-X-13-1
General
Standards
Ambient temperature
Ambient temperature, storage
Relative humidity, non-condensing (IEC 60 068-2-30)
Mechanical shock resistance (IEC 60068-2-27)
Vibrations (IEC/EN 60068-2-6)
Electromagnetic com- Emitted interference
patibility (EMC)
Interference immunity
Safety ITE (information technology equipment)
Degree of protection Front side (with accessory XT-HKS-IP65)
Rear
Weight
°C
°C
%
kg
Display
Screen diagonal
Type
Resolution
Display area
Colours
Contrast ratio (normally)
Brightness (normally)
Max. viewing angle
Back-lighting
Service life of back-lighting
Inch
Pixel
mm
Qty.
cd/m2
Hours of op.
XV-442-57CQB-X-50-1
EN 50178
0x+50
0x+50
-20/60
-20/60
10 – 95
10 – 95
15 g/11 ms
15 g/11 ms
10 – 57 Hz (g 0.075 mm), 57 – 150 Hz (g 1 g)
EN 61000-6-4
EN 61000-6-2
EN 60950
IP65
IP65
IP20
IP20
1.6
1.6
5.7
STN LCD
320 x 240
118 x 89
256
Normally 40
150
Vertical 70°
Horizontal 100°
CCFL
50000
5.7
STN LCD
320 x 240
118 x 89
256
Normally 40
150
Vertical 70°
Horizontal 100°
CCFL
50000
XV-432-57CQB-X-13-1
Moeller NK2720-1151
XV-440-10TVB-X-13-1
XV-440-10TVB-X-50-1
IP65
IP20
1.6
EN 50178
0x+50
0x+50
-20/60
-20/60
10 – 95
10 – 95
15 g/11 ms
15 g/11 ms
10 – 57 Hz (g 0.075 mm), 57 – 150 Hz (g 1 g)
EN 61000-6-4
EN 61000-6-2
EN 60950
IP65
IP65
IP20
IP20
2.8
2.8
5.7
STN LCD
320 x 240
118 x 89
256
Normally 40
150
Vertical 70°
Horizontal 100°
CCFL
50000
10.4
TFT LCD
640 x 480
211 x 158
65535
Normally 500
350
Vertical 100°
Horizontal 130°
CCFL
50000
0x+50
-20/60
10 – 95
15 g/11 ms
10.4
TFT LCD
640 x 480
211 x 158
65535
Normally 500
350
Vertical 100°
Horizontal 130°
CCFL
50000
XV-430-10TVB-X-13-1
XV-440-12TSB-X-13-1
XV-440-12TSB-X-50-1
XV-430-12TSB-X-13-1
0x+50
-20/60
10 – 95
15 g/11 ms
0x+50
-20/60
10 – 95
15 g/11 ms
0x+50
-20/60
10 – 95
15 g/11 ms
0x+50
-20/60
10 – 95
15 g/11 ms
IP65
IP20
2.8
IP65
IP20
3.2
IP65
IP20
3.2
IP65
IP20
3.2
10.4
TFT LCD
640 x 480
211 x 158
65535
Normally 500
350
Vertical 100°
Horizontal 130°
CCFL
50000
12.1
TFT LCD
800 x 600
246 x 185
65535
Normally 400
300
Vertical 90°
Horizontal 120°
CCFL
50000
12.1
TFT LCD
800 x 600
246 x 185
65535
Normally 400
300
Vertical 90°
Horizontal 120°
CCFL
50000
12.1
TFT LCD
800 x 600
246 x 185
65535
Normally 400
300
Vertical 90°
Horizontal 120°
CCFL
50000
Front
Type
Laminated safety glass, anti-reflective
Polyester film
Laminated safety glass, anti-reflective
Polyester film
Laminated safety glass, anti-reflective
Polyester film
Operation
Technology
Infra-red Touch
Resistive-Touch
Infra-red Touch
Resistive-Touch
Infra-red Touch
Infra-red Touch
Resistive-Touch
24 DC
20.4 – 28.8 DC rms
10
F5
19
0.8
Yes
24 DC
20.4 – 28.8 DC rms
10
F5
34
1.4
Yes
24 DC
20.4 – 28.8 DC rms
10
F5
34
1.4
Yes
24 DC
20.4 – 28.8 DC rms
10
F5
34
1.4
Yes
24 DC
20.4 – 28.8 DC rms
10
F5
34
1.4
Yes
>10 years
24 DC
24 DC
20.4 – 28.8 DC rms
20.4 – 28.8 DC rms
10
10
F5
F5
34
34
1.4
1.4
Yes
Yes
Yes, internal fuse
No (0V is at housing potential)
>10 years
>10 years
>10 years
>10 years
>10 years
>10 years
Yes
RISC, 32 bit, 400 MHz
XSoft Professional
Ethernet or CAN
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
XSoft-Galileo/XSoft-EPAM
Yes, e.g. Chinese, Japanese,...
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Ethernet
10/100
RJ45
Yes
115
Ethernet
10/100
RJ45
Yes
115
Ethernet
10/100
RJ45
Yes
115
Ethernet
10/100
RJ45
Yes
115
Ethernet
10/100
RJ45
Yes
115
No
125, max. 500
No
125, max. 500
No
125, max. 500
No
125, max. 500
No
125, max. 500
Yes
64
2
2
Yes
64
2
2
Yes
64
2
2
Yes
64
2
2
Yes
64
2
2
Power supply
Rated voltage
Admissible range
Voltage dips (IEC/EN 61131-2)
Residual ripple
Power consumption
Current consumption
Protection against polarity reversal
Fuse
Potential isolation
Battery (service life)
Pmax.
V
V
ms
%
W
A
Infra-red Touch
24 DC
24 DC
20.4 – 28.8 DC rms
20.4 – 28.8 DC rms
10
10
F5
F5
19
19
0.8
0.8
Yes
Yes
Yes, internal fuse
No (0V is at housing potential)
>10 years
>10 years
PLC (programmable logic controller)
Processor
Programming
Network variables
RTC (real-time clock)
RISC, 32 bit, 400 MHz
XSoft Professional
Ethernet or CAN
Yes
Visualization
Software
Character sets
Recipes
Password protection
XSoft-Galileo/XSoft-EPAM
Yes, e.g. Chinese, Japanese,...
Yes
Yes
Yes
Yes
Interfaces/communication
Programming interface
Ethernet
Data transfer rate
Connection types
Potential isolation
RS 232 serial interface Data transfer rate
Connection types
Potential isolation
CANopen
Data transfer rate
Connection types
Potential isolation
Stations
Slots for communication cards
Slots for CompactFlash cards
Mbit/s
KBit/s
KBit/s
Qty.
Qty.
Qty.
Ethernet
10/100
RJ45
Yes
115
CiA, 9-pole Sub-D plug
No
125, max. 500
CiA, 9-pole Sub-D plug
Yes
64
1
1
Yes
Ethernet
10/100
RJ45
Yes
115
Ethernet
10/100
RJ45
Yes
115
No
125, max. 500
No
125, max. 500
Yes
64
1
1
Yes
64
1
1
1/9
Ethernet
10/100
RJ45
Yes
115
CiA, 9-pole Sub-D plug
No
125, max. 500
CiA, 9-pole Sub-D plug
Yes
64
2
2
Infra-red Touch
Embedded HMI-PLC
1/8
1/10
Dimensions
Moeller NK2720-1151
Dimensions
f
b
Embedded HMI-PLC
Mounting dimensions
c
a
d
e
Part no.
a
b
c
d
e
f
XV-4xx-57
XV-4xx-10
XV-4xx-12
212
345
361
156
260
279
75.5
88
88
6
5
5
198
329
344
142
238
262
Contents
2/1
Moeller NK2720-1151
Description
XVH300: High Performance – Low Cost
Page
2/2
2/2
Touch Display HMI XVH300
2/3
The XV400 series devices can also be used exclusively
as HMI units.
For a description of the XV400 devices, see chapter 1.
Accessories
2/4
Licensing procedure
XVH300
2/5
2/5
Technical data
2/8
Dimensions
2/10
HMI
Touch Display HMI or HMI-PLC XV400
2/2
Description
XVH300: High Performance – Low Cost
Moeller NK2720-1151
HMI
The XVH-340 (Infra-red Touch) and XVH-330 (Resistive Touch) are specially developed, high-performance data management and visualization systems with Ethernet,
USB and communication interfaces (CANopen, MPI or RS232). They are particularly applicable to tasks in machinery and industrial automation. The compact
design, especially the shallow mounting depth, bring the most modern HMI technology to even the smallest machine. The replaceable CompactFlash™ provides maximum
flexibility. With this device, the user can both define the memory/data size for the project and specify the preferred visualization. In this case, the user chooses between
the graphic visualization tool XSoft-GALILEO and the table-oriented visualization tool XSoft-EPAM (based on MS Excel) in conjunction with SymArti communication.
XVH-340-57 Infrared Touch
Features
• Ethernet on board
• CANopen, MPI or RS232 on board
• 5.5“ STN display
• Infra-red Touch
• Windows™ CE on board
• 1 slot for CompactFlash™
• Vertical or horizontal mounting is possible
XVH-330-57 Resistive Touch
Features
• Ethernet on board
• CANopen, MPI or RS232 on board
• 5.5“ STN display
• Resistive Touch
• Windows™ CE on board
• 1 slot for CompactFlash™
• Vertical or horizontal mounting is possible
Touch Display HMI XVH300
2/3
Moeller NK2720-1151
Display
Front version
Screen diagonal
Display
area
Resolution
Inch
mm
Pixel
CommunicationInterface
Type
Article no.
XVH-340-57CAN-X-13-1
289795
XVH-340-57MPI-X-13-1
290337
XVH-342-57BAS-X-13-1
290426
XVH-330-57CAN-X-13-1
289796
XVH-330-57MPI-X-13-1
290335
XVH-332-57BAS-X-13-1
290427
Price
see price list
Std. pack
Touch Display HMI XVH300
IR touch
(infra-red light matrix)
rugged, scratchproof front
(safety glass)
Resistive touch, fully
seamless front
HMI
Processor: RISC CPU, 32-bit, 200 MHz
Data/project memory: 1.5 MB/32 – 64 MB
Display: 5.7” STN colour LCD, 256 colours
Integrated interfaces: Ethernet (programming interface/SYMArti communication)
Small mounting depth (55 mm)
Approvals: UL/c-UL
Explosion protection: Zone 22, category 3D
Software: Visualization: XSoft-GALILEO or XSoft-EPAM
Basic units with 140 points allow communication via SYMArti or via on-board interface
a See licensing under www.moeller.net/support
Compact Flash with operating system required a see Accessories: XT-OS-FLASH...
Standard film
5.7
118 x 89
320 x 240
CANopen
Standard film
5.7
118 x 89
320 x 240
Siemens MPI
Standard film
5.7
118 x 89
320 x 240
RS 232
Standard film
5.7
118 x 89
320 x 240
CANopen
Standard film
5.7
118 x 89
320 x 240
Siemens MPI
Standard film
5.7
118 x 89
320 x 240
RS 232
1 off
2/4
Accessories
Moeller NK2720-1151
Accessories
Memory cards
small
HMI
large
For use with
Type
Article no.
CompactFlash with operating system
XVH-3..
XV-4..
XVH-3..
XV-4..
XT-OS-FLASH-S
290319
XT-OS-FLASH-L
290340
1 off
XVH-3...
XV-4...
MC-HPG-...
XVC-601-...
XCC-601-...
XVH-3...
XV-4...
MC-HPG-...
XVC-601-...
XCC-601-...
XT-CAT5-X-2
256487
1 off
XT-CAT5-X-5
256488
1 off
XVH-3..
XV-4..
XVH-3..
XV-4..
XT-LIC-OPT-40
290445
XT-LIC-OPT-80
290447
1 off
XVH-3..
XV-4..
XT-HKS-IP65
292276
1 off
CompactFlash with operating system
Connection cable
Ethernet cross cable for programming
2 m length
–
5 m length
–
XV licenses
–
License certificate 40 POINTS
–
License certificate 80 POINTS
Additional fixing brackets
–
Additional fixing clamps for IP65
Price
see
price list
Std. pack
Description
1 off
1 off
Licensing procedure
XVH300
2/5
Moeller NK2720-1151
Number of licence points for the XVH300 devices, depending on the
required functionality:
The range of functions is decided by licence points, that are clearly allocated to the
component.
All XVH300 components already contain 140 licence points and therefore allow the
use as HMI and external communication, such as SYMArti or CANopen.
Using licence certificates (a Accessories XV licenses) you can allocate further licence
points to the device. The licensing is carried out via www.moeller.net/support. If you
enter the licence certificate number and device serial number in the Internet portal,
you will receive (via e-mail) a licence code and a confirmation of the licence for your
production documentation.
Enter the licence code through the licensing menu in the device, and this will increase the number of internal licence points in the device.
Note:
Should the licence point level of the component not be enough for the necessary
function you will be prompted to extent the licence for the device at regular intervals, by the display box of the touch display.
Calculation of the necessary licence points:
Determine the required functions (communication) and add up the licence points
needed for these functions. From this sum, deduct the number of licence points
(140) already available in the device. The difference is the number of licence points
that you need to install through a licence certificate.
Function
HMI
(Galileo or EPAM):
Communication (on board):
Licence points
Runtime Communication
can be used by ...
100
Programming input (Ethernet)
SYMArti external, (Ethernet)
MODBUS TCP Client, (Ethernet)
SUCOM-A, (RS 232)
MODBUS RTU, (RS 232)
CANopen, Slave
MPI (RS 485)
XSoft Galileo
XSoft EPAM
0
40
80
40
40
40
40
0
0
–
–
–
–
–
HMI
Licensing procedure for HMI
The following licence certificates are available, depending on the functionality that
is needed:
Communication licence certificates:
XT-LIC-OPT-40
XT-LIC-OPT-80
40 licence points
80 licence points
Examples
Necessary licence points
100
Communication:
(CANopen, Slave)
40
Total:
140
– already included in the XVH300:
140
XVH-300
HMI Runtime
Ethernet
(SYMArti)
HMI Runtime:
(Galileo)
CANopen
CANopen
XVH-300
HMI Runtime
Necessary licence points
i.e. no licence certificate required
100
Communication:
(CANopen, Slave)
40
Communication Ethernet:
(SYMArti)
40
Total:
180
– already included in the XVH300:
140
Licence certificate required for 40 points
= XT-LIC-OPT-40
XC100
XC100
HMI Runtime:
(Galileo)
XC200
2/6
Licensing procedure
XVH300
Moeller NK2720-1151
Cashing in the licence certificates
HMI
It is really easy to cash in the licence certificates. When the licence certificate number
and the device serial number have been entered on the Moeller Internet page
www.moeller.net/support, the licence code for enabling the device functionality will
be produced promptly. When this licence code has been entered into the XVH-300/
XV400, the additional licence points will be added directly to the device.
Technical data
Technical data
Moeller NK2720-1151
HMI
XVH-340-57CAN-X-13-1
General
Standards
Ambient temperature
Ambient temperature, storage
Relative humidity, non-condensing (IEC 60 068-2-30)
Mechanical shock resistance (IEC 60068-2-27)
Vibrations (IEC/EN 60068-2-6)
Electromagnetic com- Emitted interference
patibility (EMC)
Interference immunity
Safety ITE (information technology equipment)
Degree of protection Front (with XT-HKS-IP65 accessory)
Rear
Weight
°C
°C
%
kg
Display
Screen diagonal
Type
Resolution
Display area
Colours
Contrast ratio (normally)
Brightness (normally)
Max. viewing angle
Back-lighting
Service life of back-lighting
Inch
Pixel
mm
Qty.
cd/m2
Hours of op.
XVH-340-57MPI-X-13-1
EN 50178
0/+50
0/+50
-20/60
-20/60
10 – 95
10 – 95
15 g/11 ms
15 g/11 ms
10 – 57 Hz (g 0.075 mm), 57 – 150 Hz (g 1 g)
EN 61000-6-4
EN 61000-6-4
EN 61000-6-2
EN 61000-6-2
EN 60950
EN 60950
IP65
IP65
IP20
IP20
1.4
1.4
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
XVH-342-57BAS-X-13-1
Moeller NK2720-1151
XVH-330-57CAN-X-13-1
EN 61000-6-4
EN 61000-6-2
EN 60950
IP65
IP20
1.4
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
Front plate
Type
Glass, non-reflective, scratchproof
Polyester film
Operation
Technology
Infra-red touch
Resistive touch
Power supply
Rated voltage
Admissible range
Voltage dips (IEC/EN 61131-2)
Residual ripple
Power consumption
Current consumption
Protection against polarity reversal
Fuse
Potential isolation
Battery
Battery (service life)
Pmax.
V
V
ms
%
W
A
Visualization
Processor
Programming
Siemens MPI
Potential isolation
Data transfer rate
Connection types
Potential isolation
Stations
Data transfer rate
Connection types
Potential isolation
Stations
USB interface
USB connection
24 DC
20.4 – 28.8 DC rms
20
F5
14
1.1
Yes
RISC, 32 Bit, 200 MHz
XSoft-Galileo, XSoft-EPAM
Interface/communication
Programming interface
Ethernet
Data transfer rate
Connection types
Potential isolation
RS 232 serial interface Data transfer rate
Connection types
CANopen
24 DC
24 DC
20.4 – 28.8 DC rms
20.4 – 28.8 DC rms
20
20
F5
F5
14
14
1.1
1.1
Yes
Yes
Yes, internal fuse
No (0 V connection to housing potential)
CR2032 (190m A/h)
> 10 years (de-energized)
Mbit/s
KBit/s
KBit/s
Qty.
Qty.
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
24 DC
24 DC
20.4 – 28.8 DC rms
20.4 – 28.8 DC rms
20
20
F5
F5
14
14
1.1
1.1
Yes
Yes
Yes, internal fuse
No (0 V connection to housing potential)
CR2032 (190m A/h)
> 10 years (de-energized)
XVH-332-57BAS-X-13-1
0/+50
-20/60
10 – 95
15 g/11 ms
EN 61000-6-4
EN 61000-6-2
EN 60950
IP65
IP20
1.4
5.7
STN LCD
320 x 240
118 x 89
256
40
150
Vertical 70°
Horizontal 100°
1 x CCFL
50000
24 DC
20.4 – 28.8 DC rms
20
F5
14
1.1
Yes
RISC, 32 Bit, 200 MHz
XSoft-Galileo, XSoft-EPAM
Ethernet
10/100
RJ45
Yes
–
–
Ethernet
10/100
RJ45
Yes
–
–
–
125, max. 500 kBit/s
CiA, 9-pole Sub-D connector
Yes
64
–
–
–
–
–
–
–
1 x USB 1.1
Type B (4-pole)
XVH-330-57MPI-X-13-1
EN 50178
0/+50
0/+50
-20/60
-20/60
10 – 95
10 – 95
15 g/11 ms
15 g/11 ms
10 – 57 Hz (g 0.075 mm), 57 – 150 Hz (g 1 g)
EN 61000-6-4
EN 61000-6-4
EN 61000-6-2
EN 61000-6-2
EN 60950
EN 60950
IP65
IP65
IP20
IP20
1.4
1.4
0/+50
-20/60
10 – 95
15 g/11 ms
–
–
Max. 1000 kBit/s
CiA, 9-pole Sub-D connector
Yes
31
1 x USB 1.1
Type B (4-pole)
Ethernet
10/100
RJ45
Yes
115
CiA, 9-pole Sub-D connector
No
–
–
2/9
Ethernet
10/100
RJ45
Yes
–
–
Ethernet
10/100
RJ45
Yes
–
–
–
–
–
–
–
–
–
–
125, max. 500 kBit/s
CiA, 9-pole Sub-D connector
Yes
64
–
–
–
–
1 x USB 1.1
Type B (4-pole)
–
–
1 x USB 1.1
Type B (4-pole)
–
–
Max. 1000 kBit/s
CiA, 9-pole Sub-D connector
Yes
31
1 x USB 1.1
Type B (4-pole)
Ethernet
10/100
RJ45
Yes
115
CiA, 9-pole Sub-D connector
No
–
–
–
–
–
–
–
–
1 x USB 1.1
Type B (4-pole)
HMI
2/8
2/10
Dimensions
Moeller NK2720-1151
Dimensions
f
HMI
b
Mounting dimensions
c
a
d
e
Part no.
a
b
c
d
e
f
XVH-3xx-57
212
156
55
6
198
142
Contents
3/1
Moeller NK2720-1151
Basic units, Accessories
Page
3/2
3/2
Technical data
XI/OC Analog Input Modules
XI/OC Communication Module
Line filter
3/3
3/3
3/4
3/5
Engineering
3/6
Dimensions
3/7
Modular PLC
XI/OC
3/2
XI/OC
Basic units, Accessories
Moeller NK2720-1151
Description
Type
Article no.
Price
see price
list
Std. pack
Modular PLC
XI/OC
• Compact I/O system for connection to XC100/200 Modular PLCs
• XC100/200 expandable with up to 15 XI/OC modules
• Optionally, screw terminals or spring-loaded terminals for digital/analog modules
Analog modules
Inputs
4 inputs for thermocouples
Type K, J, L, B, N, E, R, S, T
XIOC-4AI-T
289933
1 off
–
PROFIBUS DP slave module
1 off
–
Suconet K master module
XIOC-NET-DP-S
286419
XIOC-NET-SK-M
289982
–
Empty module to cover free XI/OC slots
XIOC-NOP
288894
1 off
–
Interface adapter to split the combined RS232/Ethernet interface of
the XC200 into RJ45 sockets
Use connection cable EASY-NT-30/80/150
XT-RJ45-ETH-RS232
289170
1 off
–
Interference suppression of the external 24 V DC supply of the
XC100/200
Max. current drawn: 2.2 A
XT-FIL-1
285316
1 off
Communication modules
1 off
Accessories
Empty module
Interface switch
Filter
Technical Data
XI/OC Analog Input Modules
3/3
Moeller NK2720-1151
General
Standards
Ambient temperature
Storage
Vibration resistance
Shock resistance
Impact resistance
Overvoltage category
Pollution degree
Protection class
Protection type
Emitted interference
Weight
Channels
Number
Temperature measuring range
Deviation
Error indication
°C
°C
kg
IEC/EN 61131-2
EN 50178
0 to +55
-25 to +70
10 – 57 Hz g0.075 mm
57 – 150 Hz g1.0 mm
15 g/11 ms
500 g/o 50 mm g25 g
II
2
1
IP20
DINxEN 55011x22, class A
0.2
4
K Type: -200 – 1370
J Type: -210 – 1200
B Type: 300 – 1820
N Type: -150 – 1300
E Type: -180 – 1000
R Type: -50 – 1760
T Type: -200 – 0
Converter: max. 0.5 % of preset final value
Cold junction: max. 4 °C
Detection of wire break and out of range values
Modular PLC
XIOC-4AI-T
3/4
Technical Data
XI/OC Communication Module
Moeller NK2720-1151
Modular PLC
General
Standards
Ambient temperature
Storage
Vibration resistance
Shock resistance
Impact resistance
Overvoltage category
Pollution degree
Protection class
Protection type
Emitted interference
Weight
Interfaces
Function
Number of slaves
Message format
Transmit/receive data
Interfaces
Plug arrangement
Potential isolation
Current consumption
Baud rate/length
Bus terminating resistors
Bus diagnostics
Number of modules
Slots
°C
°C
kg
mA
XIOC-NET-DP-S
XIOC-NET-SK-M
IEC/EN 61131-2
EN 50178
0 to +55
-20 to +70
10 – 57 Hz g0.075 mm
57 – 150 Hz g1.0 mm
15 g/11 ms
500 g/o 50 mm g25 g
II
2
1
IP20
DINxEN 55011x22, class A
0.2
IEC/EN 61131-2
EN 50178
0 to +55
-20 to +70
10 – 57 Hz g0.075 mm
57 – 150 Hz g1.0 mm
15 g/11 ms
500 g/o 50 mm g25 g
II
2
1
IP20
DINxEN 55011x22, class A
0.2
Slave
–
PROFIBUS-DP-0
Max. 244 Byte
RS 485
9-pole Sub-D socket
Yes, from internal power supply
300
9.6 KBit/s with 1200 m
19.2 KBit/s with 1200 m
93.75 KBit/s with 1200 m
187.5 KBit/s with 1000 m
500 KBit/s with 400 m
1500 KBit/s with 200 m
3000 KBit/s with 100 m
6000 KBit/s with 100 m
12000 KBit/s with 100 m
Switchable
LED
XC100: 2
XC200:3
1, 2, 3
Master
16
Suconet K/K1
120/120 Byte
RS 485
6-pole spring-loaded terminal block
Yes, from internal power supply
275
187.5 or 375 Kbit/s
Switchable
LED
XC100: 2
XC200: 4
As required
Technical Data
Line filter
3/5
Moeller NK2720-1151
General
Standards
Ambient temperature
Storage
Mounting position
Vibration resistance
Shock resistance
Impact resistance
Overvoltage category
Pollution degree
Protection type
Rated impulse withstand voltage
Emitted interference
Interference immunity
Weight
Dimensions (W x H x D)
Terminations
Terminal capacities
Screw terminals
Flexible with ferrule
Solid
Power supply
Input voltage
Admissible range
Residual ripple
Mains overvoltage protection
Potential isolation
Input voltage against PE
Input voltage agaisnt output voltage
Output voltage against PE
Rated value
Output current
°C
°C
Uimp
V
kg
mm
IEC/EN 61131-2
EN 50178
0 – +55
-25 – +70
Horizontal/vertical
10 – 57 Hz g0.075 mm
57 – 150 Hz g1.0 g
15 g/11 ms
500 g/o 50 mm g25 g
II
2
IP20
850
EN 50081-2, Class A
EN 50082-2
0.095
35 x 90 x 30
Screw terminals
mm2
mm2
0.2 – 2.5 (AWG22 – 12)
0.2 – 2.5 (AWG22 – 12)
V DC
V DC
%
24
20.4 – 28.8
F5
Yes
V DC
A
Yes
No
Yes
24
2.2
Modular PLC
24 V DC filter XT-FIL-1
3/6
Engineering
Moeller NK2720-1151
Terminal layout
XIOC-4AI-T
Wiring of the modules
XIOC-4AI-T
+ U0
Modular PLC
– U0
+ U0
+ U1
+ U2
+ U3
– U0
– U1
– U2
– U3
+ U1
– U1
+ U2
– U2
+ U3
– U3
Interface switch
XT-RJ45-ETH-RS232
XC-CPU201-...
EASY-NT-30/80/150
I
N
E
T
H
E
R
N
E
T
RJ45
E
T
H
2
3
RJ45 2
RJ45
R
S
2
3
2
RJ45
Line filter
XT-FIL-1
+ 24 VDC
0 VDC
PE
0 V in 24 V in
PE
a
XT-FIL-1
b
0 V out
24 V out
a
0V
a
24 V
XC-CPU101/201
a internally linked
b additional PE connection via
spring contact on the back
Dimensions
3/7
Moeller NK2720-1151
Modular PLC
100
XI/OC modules
30
95
21
90
Interface switch
XT-RJ45-ETH-RS232
35
30
90
Line filter
XT-FIL-1
35
30
Contents
4/1
Moeller NK2720-1151
XI/ON
Electronics modules, Base modules
Page
4/2
4/2
4/3
4/3
Technical data
XN-PLC-CANOPEN
XN-32DO-24VDC-0.5A-P
XN-4AI-U/I
4/4
4/4
4/5
4/6
Dimensions
4/7
Remote I/O
Description
Programmable Gateway XN-PLC-CANopen
4/2
Description
Programmable Gateway XN-PLC-CANopen
Remote I/O
Moeller NK2720-1151
The programmable gateway now delivers PLC performance straight to the fieldbus
terminals. The device is ideally suited for decentralization of automation tasks and
reducing the load on the supervisory PLC. Programming or online commissioning
can be comfortably carried out through the supervisory PLC and the CANopen fieldbus.
The Intelligent Gateway can also be used as an autonomous , space-saving PLC, and
connected to decentralized remote stations. The serial interface is used for programming, diagnostics and as a freely available user interface (transparent mode). The
PLC does not require a battery, so it is maintenance-free. The integrated FLASH
memory is used to save programs and data.
Configuration examples
PLC with HMI
PLC with CANopen periphery
HMI
Distributed intelligence
HMI
Ethernet TCP/IP
HMI-PLC
XN-PLC
XN-PLC
Drives
XI/ON Remote I/O
XN-PLC
XI/ON
Electronics modules, Base modules
4/3
Moeller NK2720-1151
Price
see price
list
Std. pack
Description
For use with
Type
Article no.
Gateway with integrated supply
Connection to CANopen
Supports up to 74 disc-type modules
Transmission rate selectable up to 1MBit/s
1 x Open Style Connector
Connection for the supply voltage via spring-loaded terminals
PS/2 socket (service interface for connecting to I/Oassisant)
Address set with two decimal rotary switches
Address range: 1 – 99
Bus refreshing module is already integrated
–
XN-PLC-CANOPEN
274124
1 off
32 digital outputs, 24 V DC/0.5 A
Positive switching
Block module
4 analog inputs
-10/0 to +10 V DC
Switchable as channels
XN-B6T-SBCSBC
XN-B6S-SBCSBC
XN-32DO-24VDC-0.5A-P
289790
1 off
XN-B6T-SBCSBC
XN-B6S-SBCSBC
XN-4AI-U/I
289162
1 off
Base modules
Tension spring connection
32 x 2-/3-wire
Block module
XN-32DO-24VDC-0.5A-P
XN-B6T-SBCSBC
289164
1 off
Screw connection
32 x 2-/3-wire
Block module
XN-32DO-24VDC-0.5A-P
XN-B6S-SBCSBC
289166
1 off
Remote I/O
Gateways1)
I/O modules
Notes
1) The
delivery for all gateways includes: 2 x end bracket XN-WEW-32/2-SW, 1 x end plate XN-ABPL.
4/4
Technical data
Moeller NK2720-1151
Remote I/O
XN-PLC-CANOPEN
Networking
Field bus
Supply voltage
Coordination type "1"
Field voltage
Admissible range
Residual ripple
Service interface
Connection design for field bus
Data transfer rate
Data transfer rate setting
Addressing
Field bus termination
Address range
Memory
Program code/data
Marker/retentive data
Cycle time for 1 k of instructions (Bit, Byte)
Interfaces
Serial interface (RS232) without handshake lines
Data transfer rate
Connection technique
Electrical isolation
CANopen
Maximum data transfer rate
Potential isolation
Device profile
PDO type
Watch-dog
RTC (real-time clock)
U sys
UL
V DC
V DC
V DC
%
kBit/s
CANopen
24
18 – 30
24 V DC
18 – 30
According to EN 61131-2
PS/2 socket
1 x SUB-D plug, 9-pole; 1 x direct wiring
20, 50, 125, 250, 500, 800, 1000
through DIP switch
2 hexadecimal rotary switches
External
1 – 99 decimal
kByte
kByte
ms
128/96
8/2
0.5
kBit/s
max. 57.6
RJ45
No
Bits/s
500000
Yes
To DS 301 V4
Asyn., cyc., acyc.
Yes
Yes
Technical data
4/5
Moeller NK2720-1151
Digital output modules
Channels
Rated voltage through supply terminal
Rated current consumption from the supply terminal
(at load current = 0 mA)
Rated current consumption from module bus
Power loss
Output voltage
High-Pegel
Output current
High level (rated value)
High level (permissible range)
Number of outputs switched in parallel
Module total current
Delay on signal change and resistive load
from Low to High level
From High to Low signal
Load resistance range
Utilization factor
Can be connected
Resistive load
Inductive load
Lamp load
Switching frequency
With resistive load
with lamp load
Diagnostics
Short-circuit proof to EN 61131-2
Reset after short-circuit rectified
Base modules
with C connection
Number
UL
IL
IMB
mA
32
24 V DC
30
mA
W
50
Normally5
UHxUA
IH
IH
max.
min. L+ (-1 V)
A
A
ms
ms
%
g
RLL
O
H
W
f
Ii
Hz
Hz
0.5 A
1.0
2
10
300
300
48 O – 1 kO
See module total current
Resistive loads
Inductive loads
Lamp loads
f 48
F 1.2
6
100 (RLO < 1 kO)
–
Yes
Yes
Automatic
2-wire/3-wire
XN-B6x-SBCSBC
Output changeover on signal change and resistive load/operating frequency, resistive
load: RLO < 1 kO
Remote I/O
XN-32DO-24VDC-0.5A-P
4/6
Technical data
Moeller NK2720-1151
Remote I/O
XN-4AI-U/I
Analog input modules
Channels
Rated voltage through supply terminal
Rated current consumption from supply terminal
Rated current consumption from module bus
Heat dissipation
Input current
Maximum input current
Input voltage
Maximum input voltage
Input impedance
Limit frequency (–3 db)
Offset error
Linearity
Basic error limit at 23 °C
Repetition accuracy (deviation)
Temperature coefficient
Resolution of the A/D converter
Measuring principle
Measured value representation
Diagnostics
Base modules
without C connection
Number
UL
IL
IMB
mA
mA
W
mA
mA
V DC
Hz
%
%
%
%
4
24 V DC
20
50
<1
0/4 – 20
50
-10/0 bis +10 V DC
35 V continuous
< 62 O/> 98.5 O
20
0.1
0.05
0.3
0.05
300 ppm/°C of full scale
16-bit
Delta Sigma
16-bit signed integer
12-bit signed integer, flush-left
Yes
2-wire/3-wire
XN-S6x-SBCSBC
Dimensions
4/7
Moeller NK2720-1151
XN-PLC-CANopen
113.25
Remote I/O
74.4
114.75
50.6
Electronics module
XN-4AI-U/I
Electronics module in block version
XN-32DO-24VDC-0.5A-P
101
72.1
74.1
74.1
72.1
46.1
55.4
47.3
Block modules
2-wire/3-wire
XN-B6T-SBCSBC
XN-B6S-SBCSBC
Screw connection
XN-x6...
Tension spring connector
XN-x6...
101
17.6
50
50
24.1
155
155
155
24.1
23.5
48.2
41.6
Contents
5/1
Moeller NK2720-1151
Software
XSoft-EPAM
XSoft-GALILEO
XSoft-Professional
Page
5/2
5/2
5/3
5/4
5/5
5/5
Software
Description
XSoft-EPAM:
the WEB-capable visualization tool under MS-OFFICE™
XSoft-GALILEO:
the MS-Windows™-based visualization tool
XSoft:
Programming to international standards
5/2
Description
XSoft-EPAM: the WEB-capable visualization tool under MS-OFFICE™
Moeller NK2720-1151
Project engineering under MS-Excel™
The project engineering for the visualization is preformed under MS-Excel™. It is not necessary to install a specific software package, just link in XSoft-EPAM as an addin to Microsoft Excel™. And then all the object that are needed for a visualization under Microsoft Excel™ are already available. The textual description of the visualization
is stored in the Excel™ table. The project engineer has unlimited access to all Excel™ features while creating the project. Forms or objects that have already been created
once can simply be re-used, using Copy & Paste. This brings a considerable reduction in cost-intensive engineering time.
Software
1.
Simple and efficient
programming with EXCEL
3.
Simple
positioning
2.
Import of variables
from XSoft
4.
... and it’s ready to run
WEB visualization made easy
Keep an eye on everything – with remote control
With XSoft-EPAM, both new and existing EPAM applications are made WEBcapable with a mouse-click. A JAva applet is loaded via the integrated WEB server,
and this produces a 1:1 image of the visualization in every Java-capable standard
browser, thus enabling remote operation via Ethernet. It also ensures that a 1:1
image is always available for viewing on site. Inputs from the user can be tracked,
and corrected if necessary. WEB makes it easy and fast to diagnose whether a
machine or operator error has occured, anywhere in the world.
XSoft-EPAM provides the facility to insert screen contents from other Touch panels.
In this way, all the touch functions present on the screen can be carried out on a
local or decentralized basis. These functions bring you advantages both for system
visualization and operation as well as for teleservice applications, for the remote
diagnosis of the status of machinery and systems, or for implementing operator
actions.
EPAM-Application
Intranet/
Internet
Java-capable
standard browser
Description
XSoft-GALILEO: the MS-Windows™-based visualization tool
5/3
Moeller NK2720-1151
Just a few steps for the finished product
Software
XSoft-GALILEO, the MS-Windows™-based, intelligent and interactive visualization tool, enables you to create projects for operating and visualizing machinery,
plant and buildings in the simplest possible way. The up-to-date handling in Windows™ with intuitive menu-guidance reduces the learning phase and cuts down project
planning time.
1.
Create form
2.
Insert objects
3.
Insert
function keys
Features XSoft-GALILEO:
• UNICODE support
(supporting foreign languages that have their own character sets, such as Chinese)
• Standard WIN PCL printer functions
• WEB-CAM link
• Linear conversion of the variables between PLC and HMI
• Variable types (e.g. Bit, Byte, Word, Double-word, Error, Float, Array, Struct)
• Standard keyboard layouts and user-defined keys
• Password management (200 levels, 500 users)
• Extensive scripting language and parameter list
• Online project simulation on the PC, without HMI
• Context-sensitive help
• Alarm and history functions
• Recipe management
• Imports 15 different graphics formats (.bmp, .tif, .jpg, .gif, .png etc.)
4.
After testing the project on the PC and
the panel – create documentation
5/4
Description
XSoft: Programming to international standards
Moeller NK2720-1151
CoDeSys based IEC 61131-3 software
XSoft is a programming system for industrial control according to the international standard IEC 61131-3. Proven technical features, simple handling and a wide distribution of this sofware in automation components of different manufacturers guarantees its success.
Software
User-friendly PLC configuration
The optimal programming language for every task
(IL, ST, FBD, CFC, LD, SFC)
Extensive debugging and
commissioning tools save
time and money.
Engineering Feature
•
•
•
•
Auto Declare: Automatic variable declaration
Auto Format/Syntax Coloring
Automatic formatting and colouring of the code/declaration text
User-friendly project comparison
Programming languages
•
•
•
•
•
Instruction List (IL) and Structured Text (ST)
Function Block Diagram (FBD)
Free graphical Function Block Diagram/Continuous Function Chart (CFC)
Ladder diagram (LD)
Sequential Function Chart (SFC)
Debugging and commissioning
XSoft offers you a large number of important functions for debugging, testing and
commissioning your PLC applications quickly and efficiently. All these features are
available as soon as you have logged onto the PLC (online mode).
Simulation
You can also test your application program without being connected to the PLC.
XSoft comes with an integrated online simulation tool specially designed for this.
You don't have to leave the normal operator interface, and handling is exactly the
same as in online mode with the PLC connected.
A number of features enable the application to be created quickly and are designed
with one objective in mind: cost savings by reducing project design times. A selection of other features: global search and replace, the generation and use of libraries,
context-sensitive help, the output of a cross-reference list, testing of unused variables.
Software
5/5
Moeller NK2720-1151
Description
Type
Article no.
Price
see price list
Std. pack
XSoft-EPAM
Software tool for creating vizualisation modules
–
The visualization tool Easy Page Machine (EPAM) has been specially
developed for graphical user guidance with Touch-Displays, and enables simple parameterization of the visualization without comprehensive programming.
1 off
XSOFT-GALILEO
290170
1 off
Programming to IEC 61131-1 with IL, ST, LADF, FBS, AS, CFC
Bus configuration: CANopen, PROFIBUS-DP, XI/ON, XI/OC
Creation of visualizations for simulation and WEB visualization
OPC configurator, extensive online and help functions
Documentation as a PDF file
XSOFT-PROFESSIONAL
255930
1 off
XSoft 2.x must be installed.
Note upgrade ordering conditions
XSOFT-PROFESSIONAL-U
283396
1 off
The closed-loop control toolbox is a function block comprising
approximately 100 function blocks from the following areas:
Closed-loop controllers
Pulse duration modulation
Signal processing
Simulations
Mathematical functions
CD – incl. documentation as a PDF file
The motion-control toolbox is a function block library comprising
approximately 30 function blocks from the following areas:
Sequencer
Simulation of a rotating axis
Frequency measurement
Synchronisation
Other function blocks:
Cam controller
Hydraulics
Referencing
Incremental encoder evaluation
CD – incl. documentation as a PDF file
XSOFT-APPLIB-REG
262547
1 off
XSOFT-APPLIB-MOTIONCONTROL
262548
1 off
The motion-control toolbox is a function block library comprising
approximately 30 function blocks from the following areas:
Sequencer
Simulation of a rotating axis
Frequency measurement
Synchronisation
Other function blocks:
Cam controller
Hydraulics
Referencing
Incremental encoder evaluation
CD – incl. documentation as a PDF file
XSOFT-APPLIB-MOTIONCONTROL
262548
1 off
Software
XSOFT-EPAM
281648
XSoft-GALILEO
Software for creating visualization screen pages
–
XSoft-GALILEO, the MS-Windows™-based, intelligent and interactive
visualization tool, enables you to create projects for operating and visualizing machinery, plant and buildings in the simplest possible way.
XSoft Professional
Programming and
configuration software
Upgrade XSoft1)
XSoft toolbox
Closed-loop
control toolbox
Motion control toolbox
Motion-control toolbox
Motion control toolbox
Notes
1) Ordering
conditions for upgrades:
To use an upgrade a previous version must be installed. When the upgrade is installed, the system searches for a previous version. The
upgrade is the same as the standard version.
For information on updates visit the Internet: www.moeller.net/automation
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
