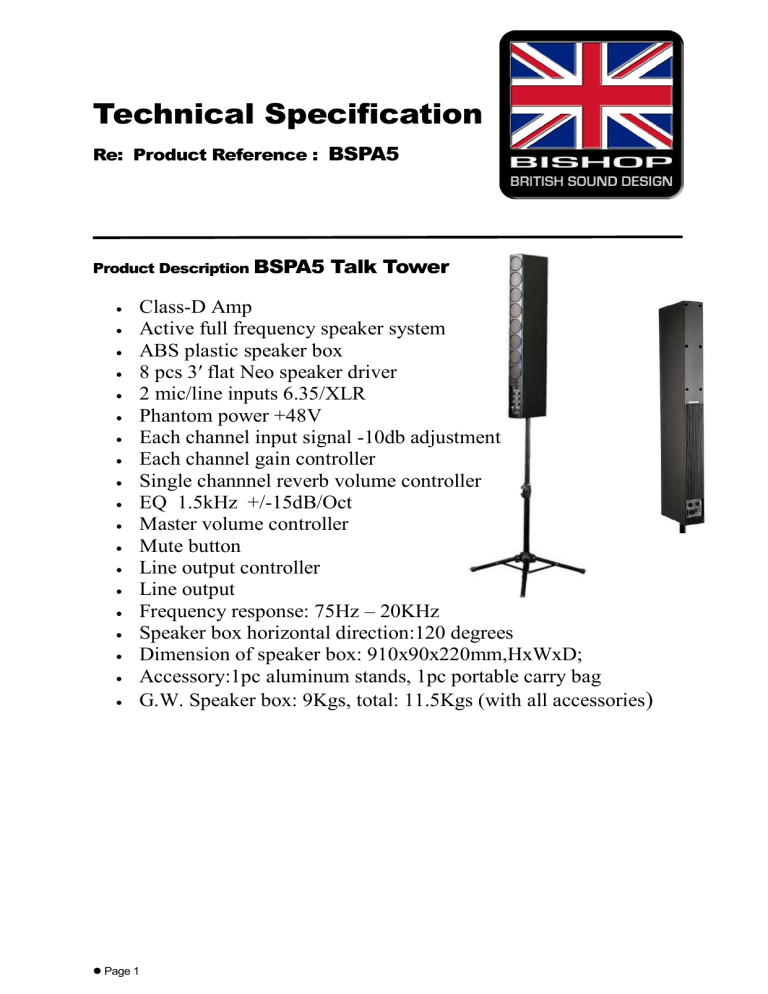

Technical Specification
Technical Specification
Re: Product Reference : BSPA5
Product Description BSPA5



















Talk Tower
Class-D Amp
Active full frequency speaker system
ABS plastic speaker box
8 pcs 3′ flat Neo speaker driver
2 mic/line inputs 6.35/XLR
Phantom power +48V
Each channel input signal -10db adjustment
Each channel gain controller
Single channnel reverb volume controller
EQ 1.5kHz +/-15dB/Oct
Master volume controller
Mute button
Line output controller
Line output
Frequency response: 75Hz – 20KHz
Speaker box horizontal direction:120 degrees
Dimension of speaker box: 910x90x220mm,HxWxD;
Accessory:1pc aluminum stands, 1pc portable carry bag
G.W. Speaker box: 9Kgs, total: 11.5Kgs (with all accessories)
 Page 1
