Manual AC1599 (POF-820-HB)

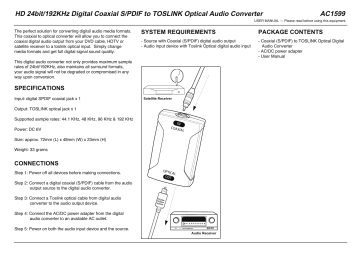

HD 24bit/192KHz Digital Coaxial S/PDIF to TOSLINK Optical Audio Converter
AC1599
USER MANUAL — Please read before using this equipment.
The perfect solution for converting digital- audio media formats.
This coaxial to optical converter will allow you to connect the
coaxial digital audio output from your DVD cable, HDTV or
satellite receiver to a toslink optical input. Simply change
media formats and get full digital signal sound quality.
SYSTEM REQUIREMENTS
PACKAGE CONTENTS
- Source with Coaxial (S/PDIF) digital audio output
- Audio input device with Toslink Optical digital audio input
- Coaxial (S/PDIF) to TOSLINK Optical Digital
Audio Converter
- AC/DC power adapter
- User Manual
This digital audio converter not only provides maximum sample
rates of 24bit/192KHz, also maintains all surround formats,
your audio signal will not be degraded or compromised in any
way upon conversion.
SPECIFICATIONS
Input: digital SPDIF coaxial jack x 1
Satellite Receiver
Output: TOSLINK optical jack x 1
Supported sample rates: 44.1 KHz, 48 KHz, 96 KHz & 192 KHz
Power: DC 6V
IN
COAX
IAL
Size: approx. 72mm (L) x 48mm (W) x 23mm (H)
Weight: 33 grams
CONNECTIONS
Step 1: Power off all devices before making connections.
OPTIC
OUT
AL
Step 2: Connect a digital coaxial (S/PDIF) cable from the audio
output source to the digital audio converter.
Step 3: Connect a Toslink optical cable from digital audio
converter to the audio output device.
Step 4: Connect the AC/DC power adapter from the digital
audio converter to an available AC outlet.
Step 5: Power on both the audio input device and the source.
Audio Receiver
