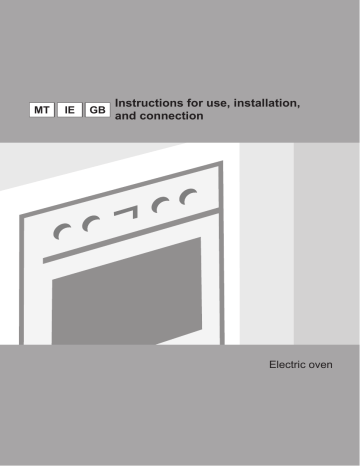

Instructions for use, installation, and connection

Instructions for use, installation, and connection

MT IE GB

Instructions for use, installation, and connection

Electric oven

Electric oven

Dear customer!

Instructions for connection

Rating plate

We sincerely thank you for your purchase. We believe you will soon fi nd ample evidence that you can really rely on our products. To make the use of the appliance easier, we attach these comprehensive instruction manual.

The instructions should aid you in getting familiar with your new appliance. Please, read them carefully before using the appliance for the fi rst time.

In any case, please make sure the appliance was supplied to you undamaged. Should you identify and transport damage, contact your sales representative or the regional warehouse from where the product was delivered. You will fi nd the telephone number on the receipt or delivery report. We wish you a lot of pleasure with your new household appliance.

The connection should be carried out in compliance with the instructions in the section “Connection to the power mains”, and the relevant effective regulations and standards. This should only be performed by a qualifi ed technician.

The rating plate indicating the basic information on the appliance is attached to the edge of the oven and it is visible when you open the oven door.

2

Important - Read before using the appliance ..............3

Appliance description ....................................................5

The oven ..........................................................................6

Food preparation ..........................................................18

Cleaning and maintenance ..........................................27

Special warnings and error reporting.........................34

Instructions for installation and connection ..............35

Technical characteristics .............................................38

Important - Read before using the appliance

Safety percautions

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or metal capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

• Only use the temperature probe recommended for this oven.

• WARNING: Ensure that the appliance is switched off before replacing lamp to avoid the possibility of electric shock.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

• Do not use steam cleaners or high-pressure cleaners to clean the cooking hob, as this may result in an electric shock.

• The appliance is not intended to be controlled by external timers or special control systems.

Warnings

• The appliance may only be connected to the power mains by an authorized service technician or expert.

• Tampering with the appliance or non-professional repair thereof may result in risk of severe injury or damage to the product. Any repairs may only be carried out by an authorized service technician or expert.

• If the power cords of appliances located near this appliance are caught in the oven door, they can be damaged, which may in turn result in a short circuit. Therefore, keep the power cords of other appliances at a safe distance.

• The appliance is intended solely for cooking. Do not use it for any other purpose, e.g. for room heating.

• Be particularly careful when cooking food in the oven. Due to high temperatures, baking trays, baking sheets, the grid and the oven interior walls become very hot. Always use oven mitts.

• Do not line the oven walls with aluminium foil and do not place baking trays or other cookware on the oven bottom. Aluminium foil would prevent air circulation in the oven, hinder the cooking process, and ruin the enamel coating.

3

• Appliance operation is safe with and without tray guides.

• Oven door become very hot during operation. A third glass is installed or additional protection to reduce the temperature of the outside surface (only with some models).

• Oven door hinges may be damaged if overloaded. Do not place heavy cookware on the open oven door and do not lean against the door while cleaning the oven. Before cleaning the oven, remove the oven door (see chapter »Removing and re-installing the oven door«). Do not stand or sit on the open oven door (children!).

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of thisproduct. For more detailed information about recycling of this product, please contact your local city offi ce, your household waste disposal service or the shop where you purchased the product.

Appliance purpose

The appliance is intended for conventional preparation of food in households and should not be used for any other purpose.

Individual options of use are comprehensively described in this instruction manual.

4

Appliance description

The fi gure represents one of the appliance models. Since a group of appliances to which these instructions apply, have different features, the instruction manual may describe functions and equipment that may not be available in your appliance.

1. Control panel

2. Oven door handle

3. Oven door

1 Electronic program digital timer with

temperature and operation mode display

Cooling fan

2 On/off button and oven mode selector

(only with some models)

The appliance features a built-in cooling fan which cools the appliance housing and control panel.

5

The oven

Before using the oven for the fi rst time

Important warnings

Electronic program digital timer with temperature and operation mode display

• Remove all accessories from the oven and clean them with warm water and a conventional detergent. Do not use abrasive cleaning aids.

• When the oven is heated up for the fi rst time, a specifi c odor of a

“new appliance” will be discharged; therefore, ventilate the room thoroughly while the oven heats up.

• Use dark, black silicon coated or enamel coated baking trays, as these transmit the heat particularly well.

• Only preheat the oven if specifi cally stated in the recipe or in the instruction tables herein.

• Heating up an empty oven uses a lot of energy; therefore, a lot of power is saved if several types of pastry are cooked consecutively, as the oven is already heated up.

• Approximately ten minutes before the anticipated end of the cooking process, the oven may be turned off. This way, you will save some power and make use of the accumulated heat.

• Note: When cooking is completed, the cooling fan will stop operating. If you leave the dish in the oven, steam could evaporate from it and condense on the front panel and the oven door. In order to prevent condensation, set the program selector switch to the »light« position. Thus, the cooling fan will continue to operate and cool the oven, preventing the accumulation of condensate.

Sensor keys:

A Settings selection and confi rmation sensor key

B Temperature setting sensor key

C Value increase (plus) sensor key

D Value decrease (minus) sensor key

Display:

1 Oven operation duration

2 Oven operation stop time

3 Countdown alarm timer

4 Time of day

5 Child lock

6 Clock – time display / meat probe temperature display

7 Operation mode display

8 Temperature display

9 Heater operation symbol

6

• When the appliance is connected to the power supply or after a power failure, the word “META” or “GLAS” is fi rst displayed for a short while; then, the display fl ashes for some time. In order to enable the operation of the oven, use the (C) and (D) sensor keys to set the time of day.

• Each press / activation of a sensor key is acknowledged by a beep.

• Select the type of setting you wish to make by pressing the (A) sensor key. The selected symbol on the display fl ashes quickly, indicating the function that you can set or change. After fi ve seconds, the symbol starts fl ashing more slowly and the time set is displayed. The symbols that are lit are selected, but not currently shown on the display (6). The most recent setting made is always displayed.

• If one of the value settings sensor keys (C) or (D) is touched and kept pressed, the rate at which the value being set is changing will increase.

• In case of a power failure which lasts less than two minutes, all settings remain active.

To improve the response of the sensor keys, touch them with a larger surface of your fi nger.

Setting the time of day (clock)

• Set the clock to the current time of day by pressing the settings selection sensor key (A). Then, select the symbol (4).

• Use the (C) and (D) sensor key to set the exact time of day.

• Confi rm the setting by pressing the (A) sensor key again; if the (A) key is not pressed, the setting is automatically confi rmed after a few seconds.

Setting the timer functions

In addition to setting the temperature, the electronic program timer can also be used to set the timer functions. Both settings are indicated on the same display. Require display is set by pressing the relevant sensor key (A) or (B).

The program timer can be used to program the oven operation

in three ways:

Cooking time setting - immediate start of oven operation; after a set period of time, the oven is turned off automatically.

Cooking end time setting - the time at which oven operation is to end is set.

Delayed start setting - automatic start and end of oven operation at a selected time.

7

8

Setting the cooking time

With this program mode, the duration of oven operation is set

(cooking time). Maximum setting allowed is 10 hours.

• Press the (A) sensor key to select the symbol (1). Use the (C) and

(D) sensor keys to set the duration / cooking time.

• Turn on the oven (set the selector knob and cooking temperature).

After the expiration of the set time, the oven will automatically stop operating (end of cooking time). An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.

• The symbol (1) and the sign (_:_ _) will fl ash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the cooking end time

This mode allows you to set the time at which the oven should stop operating. Maximum setting allowed is 10 hours relative to the current time of day.

• Make sure the current time of day is set correctly.

• Use the (A) sensor key and select the symbol (2). The current time of day is indicated on the display. Press the (C) and (D) sensor keys to set the cooking end time.

• Turn on the oven (set the selector knob and cooking temperature).

The oven starts to operate immediately and stops operation at the set time. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.

• Symbol (1) and the cooking time “0.00” on the display start to fl ash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the oven delayed start

With this operation mode, two settings have to be made: cooking time (duration of oven operation) and cooking end time (tie at which the operation should stop).

Cooking end time can be delayed by a maximum of 24 hours relative to the current time of day.

• Make sure the current time of day is set correctly.

• First, set the cooking time: Press the (A) sensor key to select the symbol (1). Use the (C) and (D) sensor keys to set the duration / cooking time.

• Then, set the cooking end time: Use the (A) sensor key and select the symbol (2). (A sum of the current time of day and the oven operation time is automatically shown on the display). Press the

(C) and (D) sensor keys to set the cooking end time.

• The timer will wait for the start of the cooking – both symbols (1 and 2) are lit.

Setting the child lock

• Turn on the oven (set the selector knob and cooking temperature).

At the corresponding time, the oven starts operating automatically

(the symbol (2) goes off upon the start of operation), and switches off when the set cooking time has elapsed. An intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute.

• Symbol (1) and the cooking time “0.00” on the display start to fl ash. If you wish to resume cooking, press the (A) sensor key and set a new duration if necessary.

Setting the alarm timer

The clock can also be used independently of the oven operation, as an alarm timer that sounds an alarm after the expiration of a preset time.

• Use the (A) sensor key to select the symbol (3). Then, use the

(C) and (D) sensor keys to set the time before the alarm sounds.

Maximum setting allowed is 10 hours.

• When the set time has elapsed, an intermittent beep will sound, which can be stopped by pressing any key; if no key is pressed, the beep stops after one minute. The symbol (3) will go off.

The last minute of the timer countdown is displayed in second intervals.

For safety reasons, the oven will automatically go off after a certain period of time:

- after 10 hours, if the cooking temperature is above

120°C;

- after 24 hours, if the temperature set is lower than

120°C.

Setting the beep volume (loudness)

The alarm volume can be set when no timer function is activated

(only current time of day is displayed).

• Press the (D) sensor key and hold it approximately three seconds; a volume indicator will appear, and the corresponding sample sound will sound. “oooo” indicates maximum volume, and “o” indicates minimum volume. Use the (D) sensor key to select among the four loudness levels.

• Confi rm the selected volume level by pressing the (A) sensor key; if the (A) sensor key is not pressed the setting will be confi rmed and stored automatically after a few seconds.

Activation: Press the (A) sensor key to select the symbol (5). Use the (C) and (D) sensor keys to activate the child lock; the display will read “ON”. Confi rm the setting by pressing the (A) sensor key.

Deactivation: Press the (C) or (D) sensor to deactivate the child lock; “OFF” is displayed.

The setting must be confi rmed by pressing the (A) sensor key.

9

Operating your oven

Rapid oven preheat

- If the timer is locked when no timer function is set (only the current time of day is displayed), the oven will not operate and no changes to any setting will be allowed.

- If the timer is locked after one of the timer functions has been set, the oven will operate as usually; however, no changes to the settings will be possible.

Display dimmer

One minute after the appliance is turned off, the display will be dimmed.

Deleting the timer settings

- All timer settings can be deleted any time by pressing the (C) and (D) sensor keys simultaneously and holding them for three seconds. The set programs are automatically interrupted and the timer switches to display of the current time of day.

- Any timer setting can also be deleted in the following way: selecting it using the (A) sensor key, then press the (C) and (D) sensor keys simultaneously. Another way to delete a setting is by setting the timer value to “0.00”.

On/off button and oven mode selector

Rotate the selector dial to the desired cooking mode/system or the desired type of food. Cooking mode and the preset temperature will appear on the display. The oven starts to operate.

The selector dial may be used in two ways:

cooking by selecting the type of food and cooking by selecting the cooking mode.

Use this system to rapidly preheat the oven to the desired temperature. This operation mode is not suitable for cooking food.

• Select the cooking system with the oven mode selector.

• Oven preheating starts immediately.

• If required, adjust the preset temperature.

• When the oven is heated up to the desired temperature, the preheat process is completed and an intermittent sound will be emitted. To turn off this sound, rotate the selector dial.

• The oven is now ready for further cooking.

10

The oven can operate in the following modes:

Cooking by selecting the type of food or operation mode

Use this mode when you wish to prepare any type and quantity of food. It allows you to choose the heating system and temperature. Preset temperature may also be changed as you may fi nd suitable.

Cooking table for selected types of food

Cutlets, chops, fi sh*

(larger pieces)

Cutlets, fi sh*

(smaller pieces)

Chicken

Pizza

Small pastry, cookies

Bread

Defrosting

Cleaning

Rapid preheat

Plate warmer

240

240

170

200

160

190

-

70

160

275

275

275

275

275

275

-

90

275

0:25

0:23

1:05

4x0,2

2x0,2

1

0:19 1x0,5

4

3*

4

3*

2

2

0:26 2x0,3 2,3

Baking in shallow baking trays in two levels

/ guides simultaneously.

0:55 1 2

Cooking / grilling on the grid placed in guides 4, 3*; a dip tray should be placed in guides 2, oven door should be closed. Turn the food halfway through.

Cooking / grilling on the grid placed in guides 4, 3*; a dip tray should be placed in guides 2, oven door should be closed. Turn the food halfway through.

Roast the chicken on a grid in the 2nd guide, installing the dip tray in the bottom guide.

Baking in the shallow baking tray / tin.

-

0:30

-

-

2

2

-

Baking in shallow baking tray / tin.

Place the food on the grid, the dip tray should be installed in the bottom guide.

Pour 0.6 l of water into the baking tray and place it into the bottom guide. After

30 minutes, the food remains on the oven enamel surfaces will soften and they can be removed with a damp cloth.

Not appropriate for cooking food.

60 230

2

Note: A dot next to the food symbol means that the oven should be preheated to the indicated temperature before the food is placed in it. With large and small grill heater, preheating takes approximately 5 minutes.

11

12

Oven lighting

With some models, there are two interior lighting lamps: one on the upper part of the back wall, and the other, additional lamp on middle of the right side wall. Oven lighting can be selected independently, without selecting another function. With all other modes of operation, the oven lighting is turned on automatically when the operation mode is selected.

( )

Upper / lower heater

The heaters on the upper and lower side of the oven radiate heat uniformly and evenly into the oven interior. Pastry and meat can be cooked on one shelf level only.

Preset temperature 200°C.

( ) Grill

Only the infra / grill heater, a part of the large grill, will operate.

It is appropriate for grilling smaller quantities of sandwiches, sausages, or for toasting bread. Temperature is preset to 240°C.

( ) Large grill

With this operation mode, the upper heater and the infra heater are activated simultaneously. The infra heater installed on the oven interior ceiling radiates heat directly. To boost the heating effect or to make optimal use of the entire area of the oven grid, the upper heater is also activated.

This operation mode is appropriate for cooking smaller chunks of meat, such as steaks, roasts, chops, ribs, etc.

Preset temperature 240°C.

( ) Grill & fan

With this operation mode, the infra heater and the fan are activated simultaneously. It is appropriate for grilling meat and large chunks of meat or poultry on one shelf level. Also appropriate for cooking food au gratin or browning.

Preset temperature 170°C.

( )

Hot air and lower heater

With this operation mode, the lower heater and the hot air fan operate simultaneously. This is particularly convenient for making pizza. Also ideal for moist or heavy pastry, fruit cakes made of leavened dough, short pastry, or cheesecakes.

Preset temperature 200°C.

( ) Hot air

With this operation mode, the round heater and the fan operate simultaneously. The fan at the oven back wall causes the hot air to circulate constantly around a roast of pastry. This operation mode is appropriate for roasting meat and making pastry on several shelves simultaneously. Cooking temperature should be set lower than with conventional operation modes.

Preset temperature 160°C.

( ) Defrosting

With this mode, the air is circulating without any heater being turned on. Only the fan is in operation. This is used for slow defrosting or thawing of frozen food.

( ) Lower heater and fan

In this mode, the lower heater and fan operate simultaneously.

Such mode of operation is appropriate for heating the plates, as well as for baking low-risen pastry and preserving fruit and vegetables.

Use the fi rst guide from the bottom and baking trays that are not too high, as the heated air should be allowed to circulate around the upper part of the food as well.

The temperature is preset to 60°C.

( ) Lower heater

Lower heater may be used to clean your oven.

Further details on cleaning can be found in the chapter “Cleaning and Maintenance”.

Only the heater in the bottom of the oven will operate in this mode. Select this operation mode when you wish to brown the lower side of the pastry (e.g. when baking a juicy sponge cake with fruit fi lling).

13

Setting the oven temperature

Use the electronic program timer to set the cooking temperature and timer functions:

• As soon as the selector knob (operation mode selection knob) is turned, the relevant cooking mode and the preset temperature are displayed; the symbol “°C” will fl ash for a few seconds.

• As long as the symbol “°C” is fl ashing, the sensor keys (C) and (D) can be used to set the required temperature in the interval from 30-275 °C, in 5°C steps. Maximum temperature is limited in some operation modes. Each time the sensor key is pressed, the temperature is changed by one step (5 °C); if the sensor key is pressed and held, the rate at which the value is changing will increase.

• Rising actual oven temperature is indicated on the display, in 5°C steps. As long as the oven temperature is less than

30°C, “---°C” will be displayed. Symbol (9) is also displayed, indicating the operation of the heaters.

• When the set temperature is reached, the symbol (9) will go off, and a short beep will sound.

• During cooking, the temperature is maintained by occasional activation of the heaters; each time this happens, the symbol

(9) appears.

• Cooking temperature may be changed any time by touching the

(B) sensor key, which makes the “°C” symbol fl ash for a while, and changing the value using the sensor keys (C) and (D).

14

Turning off the oven

After the end of cooking process, rotate the selector knob to the “zero” position. This will also interrupt and delete all timer functions (see the section “Setting the timer functions”); the timer will switch to time of day / clock display.

After the end of cooking and when the oven is turned off, the temperature display will indicate the falling temperature until it reaches 50°C.

Shelf levels (depending on the model)

• Accessories (grid, shallow and deep baking tray) can be inserted into the oven at four levels.

• Please note that the shelf levels are always referred to by consecutive numbers starting from the bottom (particular shelf levels are described in the cooking tables below)

• The guides may be drawn, wire, or telescopic (depending on the appliance model). Telescopic (pull-out or, retractable) guides are installed for the second, third, and fourth level. In case of wire guides, the grid and the trays should always be inserted into the leading slot formed by adjacent wire profi les.

15

Telescopic pull-out guides (depending on the model)

Telescopic (pull-out or, retractable) guides are installed for the second, third, and fourth level. They are installed on the left and right side wall of the oven interior at three levels.

Pull-out levels consist of (depending on the model):

- three guides that can be pulled out partially,

- one guide that can be pulled out completely and two that can be pulled out partially, or

- three guides that can be pulled out completely.

Telescopic pull-out guides and other parts of oven accessories will heat up! Use a kitchen glove or similar protection when handling them.

• To insert the grid, baking tray, or drip tray, fi rst pull out the telescopic guides of the desired level.

• Place the grid or the shallow or deep baking tray on the pull-out guides and push it into the oven with your hand. Close the oven door only when the telescopic guides have been fully retracted.

Oven accessories

(depending on the model)

The glass tray is intended for baking dishes, but may also be used as a serving tray.

The grid onto which the container with food, or the food directly, is placed.

A safety stop is fi tted on the grid and on the guides.

To pull out the grid, lift it slightly when it hits the stop.

Shallow baking tray is only intended for baking pastry and cakes.

16

Deep baking tray is intended for baking meat and moist pastry; it is also intended as a drip tray.

Unless you are using the grill, or the deep baking tray is used only as a drip tray when spit-roasting, the deep tray should not be inserted into the fi rst guide.

Oven back wall is coated with a catalytic fi lm that may be installed or removed only by an authorized expert or service technician.

Grease fi lter (depending on the model)

When roasting meat, the use of grease fi lter is highly recommended. The grease fi lter, installed on the back wall of the oven interior, protects the fan, the round heater, and the oven from grease. When baking pastry, always remove the fi lter. If the grease fi lter is in place when baking rolls with risen dough, the results may be below your expectations.

17

Food preparation

Baking pastry

• For baking pastry, use the , or . mode of operation.

(Oven operation with the selected mode, or system, depends on the appliance model).

• When baking pastry, always remove the fat fi lter.

Instructions

• When baking pastry, always observe the instructions on the shelf / guide level, temperature, and cooking time indicated in the pastry baking table. Do not be prejudiced by experience you may have with other ovens. The values indicated in the cooking table are defi ned and checked especially for this particular oven.

• If the baking table does not specifi cally address a particular type of pastry, see the information for a similar type of pastry.

Baking pastry with upper and lower heater

• Bake the pastry at one level only.

• Upper / lower heater combination is particularly appropriate for baking various types of pastry, bread, and meat.

• Use dark-colored baking trays. Light-colored trays refl ect the heat, which leads to poorer cooking (browning) results. Always place the models on the grid. If you are using the supplied baking tray, remove the grid.

• Preheating will shorten the cooking time. Place the dish into the oven only when the selected temperature has been reached, i.e. when the control lamp (heater operation lamp) goes off for the fi rst time.

Baking pastry with hot air

Baking pastry with hot air is particularly convenient when you wish to bake on several shelf / guide levels simultaneously, especially when preparing bite-size pastry in shallow trays.

Preheating is recommended, and the use of the second and third guide level. This mode is also appropriate for moist pastry and fruit cakes (in this case, bake on a single level only).

• The temperature is normally set lower than when baking with the upper/lower heater combination (see also the pastry baking table).

• Various types of pastry can be baked simultaneously, if the required temperature is at least approximately the same for all.

• Baking time can vary, even for equal baking trays. When baking in several baking trays simultaneously – on two or even three levels, baking time for each tray can e different. You may have to remove one of the trays sooner (normally, this would be the uppermost tray.

• If possible, prepare bite-size pastry, such as cupcakes, in the same thickness and height. Unevenly sized pastry will be unevenly browned!

18

• When baking several types of pastry simultaneously, there will be a signifi cant amount of vapor in the oven, resulting in accumulation of condensate on the oven door.

Tips on baking pastry

Is the pastry completely done?

Use a wooden stick to pierce the pastry at the highest point.

If there are no traces of dough when the stick is removed, the pastry is done. Turn off the oven and use the remaining accumulated heat.

The pastry has collapsed

Check the recipe. Next time, use less liquid. Observe the instructions on mixing / kneading time, especially when using small household appliances.

The pastry is too light-colored

Next time, use a dark-colored baking tray, place the tray one guide level lower, or turn on the lower heater towards the end of the cooking process.

The pastry with a moist fi lling (e.g. cheesecake) is not completely done

Next time, reduce the temperature and extend the cooking time.

Notes on the pastry baking table:

• Two values are indicated for temperature, lower and upper.

Initially, set the lower temperature; if the pastry is not brown enough, increase the temperature next time.

• Cooking times are given as an estimate and may vary subject to a number of circumstances.

• The value printed in bold in the temperature table indicates the most appropriate operating mode for a particular type of pastry.

• The indication * means that the oven should be preheated with the corresponding operating mode selected.

• When using baking paper, make sure it is resistant to high temperature.

19

Pastry baking table for combined upper and lower heater or hot air operating mode

Type of pastry Guide

(from the bottom)

Temperature

(°C)

Guide

(from the bottom)

Temperature (°C) Cooking time

(minutes)

Sweet pastry

Marble cake, ring cake

Rectangle-shaped cake

Cake made in cake tin

Cake tin cheesecake

Fruit cake, short pastry

Fruit cake with dressing

Sponge cake*

Cake with icing

Fruit cake, mixed dough

Cherry cake

Sponge cake roll*

Leavened dough cake

Hefezopf (leavened dough)

Christmas cake

Apple pie

Oven-baked donuts

Savory pastry

Quiche Lorraine

Pizza*

Bread

Buns*

Bite-size pastry

Short pastry – cookies *

Merengue *

Leavened dough

Puff pastry

Choux pastry (cream fi lled)

Souffl és

Rice souffl é

Fresh cheese souffl é

Frozen pastry

Apple, cheese pie

Cheesecake

Pizza

French fries for oven *

Croquettes

2

2

2

2

2

2

1

1

2

2

1

1

1

1

1

1

1

1

2

2

2

2

2

2

2

2

2

2

2

2

1

2

160-170

160-170

160-170

170-180

180-190

170-180

170-180

180-190

170-180

180-200

180-190

160-170

180-200

170-180

180-200

170-180

190-210

210-230

190-210

200-220

160-170

160-170

180-190

190-200

180-190

190-200

190-200

180-200

180-190

200-220

200-220

200-220

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1

1

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

150-160

150-160

150-160

150-160

160-170

160-170

150-160

160-170

150-160

150-160

160-170

150-160

160-170

150-160

170-180

150-160

170-180

190-210

170-180

180-190

150-160

150-160

170-180

170-180

180-190

180-190

180-190

170-180

160-170

170-180

170-180

170-180

50-65

25-45

50-60

30-40

15-25

15-28

20-35

20-30

25-45

35-50

40-50

50-70

65-85

20-30

20-35

20-35

35-60

15-25

25-35

35-50

45-70

40-60

40-55

50-70

55-70

45-60

65-85

50-70

60-70

30-40

25-35

45-65

Note: Guide number refers to the grid onto which smaller baking trays or cake tins are placed, and to shallow baking tray. The deep baking tray should not be inserted into the fi rst guide.

20

Settings table for baking pastry with hot air and lower heater

Type of pastry Guide (from the bottom) Temperature (°C)

Cheesecake (750g cheese)

- short pastry

Pizza * - leavened dough

Quiche Loraine - short crust dough

Apple pie with icing - leavened dough

Fruit cake - mixed dough

Apple pie - fl aky pastry

2

2

2

2

2

2

150-160

200-210

180-200

150-160

150-160

170-180

Cooking / roasting meat

Cooking time

(minutes)

65-80

15-20

35-40

35-40

45-55

45-65

• To cook meat, use the operating modes and .

• Data printed in bold represent the most appropriate operation mode for a particular type of meat.

• When cooking meat, the use of the fat fi lter is recommended

(depending on the model).

Tips on using the cookware

• Meat can be cooked in enamel coated cookware, tempered glass (Pyrex) cookware, clay, or cast iron cookware.

• Stainless steel baking trays are less appropriate because they refl ect the heat.

• If the roast is covered, it will remain juicier, and the oven will not be as dirty.

• In an open baking tray, the roast will brown sooner.

Some notes on cooking meat

• The meat cooking table indicates recommended temperatures, guide/shelf level, and cooking time. Since cooking times depend strongly on the type, weight, and quality of meat, they may have to be adjusted.

• Cooking meat, poultry, and fi sh in an oven is economical only at weights exceeding 1 kg.

• When cooking meat, add enough liquid to prevent the fat and juices from the meat to be burnt onto the baking tray. This means that, in case of longer cooking times, the roast should be checked upon every one in a while, and liquid should be added.

• After approximately half of cooking time, turn the roast around, especially when baking in a tray. For better results, start the cooking with the upper side turned downwards.

• When cooking larger chunks of meat, condensate may accumulate on the oven door. This is a natural phenomenon which does not affect the operation of the appliance. After cooking, wipe the door and door glass dry.

• In order to prevent accumulation of condensate, do not let the dishes to cool down in the oven.

21

Meat cooking table for upper/lower heater combination or with hot air

Type of meat Weight

(g)

Guide (from bottom)

Temperature (°C)

Guide (from bottom)

Temperature (°C)

Cooking time

(min.)

Beef

Beef roast

Beef roast

Roastbeef, medium done

Roastbeef, well done

Pork

Pork roast, incl. skin

Pork belly

Pork belly

Shoulder

Pork roll

Cutlet

Minced meet roast (pork meat loaf)

Veal

Veal roll

Veal joint

Lamb

Lamb loin

Sheep joint

Venison

Rabbit loin

Deer joint

Wild boar joint

Poultry

Chicken, whole

Chicken

Duck

Goose

Turkey

Fish

Whole fi sh

Fish souffl é

1000

1500

1000

1000

1500

1500

2000

1500

1500

1500

1500

1500

1700

1500

1500

1500

1500

1500

1200

1500

1700

4000

5000

1000

1500

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

190-210

190-210

200-210

200-210

180-190

190-200

180-200

190-200

190-200

180-200

200-210

180-200

180-200

190-200

190-200

190-200

190-200

190-200

190-200

190-200

180-190

160-170

150-160

190-200

180-200

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

180-190

170-180

180-200

180-200

170-180

170-180

160-170

160-170

160-170

160-170

170-180

170-190

170-180

170-180

170-180

180-190

170-180

170-180

180-190

180-190

160-170

150-160

140-150

170-180

150-170

100-120

120-150

30-50

40-60

140-160

120-150

150-180

120-140

120-140

100-120

60-70

90-120

120-130

100-120

120-130

100-120

100-120

100-120

60-80

70-90

120-150

180-200

180-240

50-60

50-70

Note: The guide indication applies to the deep tray; smaller trays should be placed on the grid inserted into the fi rst guide – ; 1st – 2nd guide – . (The deep tray may not be inserted into the fi rst guide from the bottom).

22

Grilling and browning

• When grilling meat, you should be particularly careful. The high temperatures and infra heater heat the grid and other parts of the oven to very high degrees; use protective kitchen gloves and special meat tongs.

• Hot fat may squirt out of pierced meat (e.g. from sausages). To avoid burning your skin or eyes, use meat tongs.

• When grilling meat, control the process at all times. Due to high temperature, meat can be burnt quickly!

• Do not let children anywhere near the grill.

• Roasting with infra heater is recommended for crisp and low-fat preparation of grilled sausages. meat chunks, and fi sh

(steak, chops, salmon fi llets, etc.) or toasted bread, as well as for browning.

Some tips on using the grill function

• When using the grill, oven door should always be closed.

• The cooking table for grilling indicates recommended temperature, guide level, and cooking time. Since cooking time depends strongly on the type, quality, weight, and quality of meat, it may have to be adjusted.

• When cooking meat, the use of fat fi lter is recommended

(depending on the model).

• The infra heater (Large grill and Grill operating mode) should be preheated for fi ve minutes.

• When cooking on a grid, spread some oil over it to prevent the meat from sticking onto it.

• Place thin slices of meat on the grid and insert it into the fourth guide level.

• Insert a baking tray, which will serve as a drip tray in this case, into the fi rst or second guide level to collect the dripping fat and meat juices.

• Grilled meat should be turned halfway through the cooking.

Cook the fi rst side somewhat longer than the other one.

• When grilling larger chunks of meat on a grid (chicken, fi sh), insert the grid into the second level and the drip tray into the fi rst level.

• Thinner slices of meat should only be turned once, while the thicker ones should be turned several times. Use meat tongs to turn the meat around, to prevent too much juice to be lost.

• Darker meat will brown better and sooner than pork or veal.

• After using the grill, clean the oven and accessories each time to prevent the dirt to be burnt onto the oven the ext time you use it.

23

Cooking table - Large grill

Type of food Weight

(g)

Guide level (from bottom)

Temperature

(°C)

Temperature

(°C)

Cooking time

(min)

Meat and sausages

4 beef loin chops, rare

4 beef loin chops, medium

4 beef loin chops, well done

4 pork neck chops

4 cutlets

4 veal steaks

6 lamb cutlets

8 grill sausages

3 pcs of meatloaf

1/2 chicken

180g/pc

100g/pc

100g/pc

200g/pc

600g

4

4

4

4

4

4

4

4

4

2

240

240

240

240

240

240

240

240

240

-

-

-

-

-

-

-

-

-

-

180-190

14-16

16-20

18-21

19-23

20-24

19-22

15-19

11-14

9-15

25 ( 1.side)

20 (2. side)

Fish

Salmon slices

4 trout

Toasted bread

6 slices white bread

4 slices of mixed fl our bread

Toasted sandwich

Meat / poultry*

Duck*

Chicken*

Pork roast

Pork shoulder

Pork joint

Roastbeef / beef loin

Vegetables au gratin **

Caulifl ower, kale

Asparagus

600

200g/pc

2000

1500

1500

1500

1000

1500

/

/

/

2

2

2

2

2

2

4

4

4

3

2

240

-

240

240

240

210

210-220

-

-

-

-

-

170-180

-

-

-

150-170

160-170

150-160

150-160

150-160

170-180

19-22

45-50

1,5-3

2-3

3,5-7

80-100

60-85

90-120

120-160

120-140

40-80

750

750

2

2 -

210-230

210-230

15-25

15-25

Note: the guide level refers to the grid on which you place the meat; in the section meat/poultry, the guide level refers to the deep tray, while with chicken, it refers to the grid.

When cooking meat in a tray, make sure there is enough liquid in the tray to prevent the meat from burning; approximately halfway through the cooking progress, turn the chunk of meat around. When grilling meat on the grid, insert the deep tray into the fi rst or second guide; this way, it will serve as a drip tray (see tips on grilling meat).

Recommendation: Dry the trout with a paper towel. Put some parsley, salt, and garlic into the fi sh abdomen, oil it from the outside, and place it on the grid. Do not turn during grilling.

* This type of meat can also be prepared on a roast spit (see instructions for spit roasting).

** Vegetables are fi rst partly cooked and covered in béchamel sauce and grated cheese. Use the smaller glass baking tray and place it on the grid.

24

Cooking table - grill

Food type

Meat and sausages

2 beef loin stakes, well done

2 cutlets

2 pork neck steaks

4 grill sausages

4 toasted sandwiches

Toast - browning

3 trout - on the grid

Chicken - on the grid

Pork shoulder - deep tray

Weight (g) Guide level (from bottom)

Temperature

(°C)

Temperature

(°C)

Cooking time

(min.)

180g/pc

180g/pc

100g/pc

200g/pc

1500g

1500g

2

2

2

4

4

4

4

4

4

240

240

-

-

-

240

240

240

240

-

-

-

-

160-170

160-170

150-160

18-21

20-22

18-22

11-14

5-7

3-4

40-50

60-80

120-160

Preservation

For food preservation, use the lower heater + fan operating mode.

Prepare the food to be preserved and the jars as usually. Use conventional jars with a rubber sealing and glass cover. Do not use jars with threaded or metal covers and metal cans / tins.

Preferably, the jars should be of the same size, fi lled with the same type of food, and tightly sealed. Up to six one-liter jars can be placed into the oven simultaneously.

• Only use fresh food.

• Pour approximately one liter of hot water (about 70°C) into the deep baking tray to provide the required humidity level in the oven. Place the jars into the oven in such way that they are not in contact with the walls and each other (see fi gure). Rubber seals should be wetted before use.

• Insert the deep tray with the jars into the second guide level from bottom up. During preservation, observe the jars; cook until the contents of the jars starts to boil – bubbles appear in the fi rst jar. Pleas note the cooking times from the preservation table below.

25

Preservation table

Food to be preserved Quantity

T=170-180°C, until boiling / bubbling

(min.)

After appearance of bubbles

Standing time

(in the oven

(min)

Fruit

Strawberries

Stone fruit

Apple puree

Vegetables

Sour gherkin

Beans, carrots

6x1 liter

6x1 liter

6x1 liter approx. 40-55 approx. 40-55 approx. 40-55 turn off turn off turn off

25

30

35

6x1 liter

6x1 liter approx. 40 do 55 approx. 40 do 55 turn off

Set to 120°C,

60 min

30

30

Durations: given in the chart are approximate only. Actual time may vary de to differences in room temperature, number of jars, quantity and temperature of the fruit an vegetables to be preserved, etc. Before turning off the oven (for fruit) or setting a lower temperature (for some types of vegetables), make sure there are actually visible bubbles in the jars.

Important: Observe carefully when the bubbles appear in the fi rst jar.

Defrosting

• Air circulating in the oven may speed up the process of defrosting frozen food. To do this, set the oven to “Defrosting” mode.

• Food appropriate for defrosting includes cakes with heavy cream or butter-based fi lling, other cakes and pastry, bread, buns, and deep-frozen fruit.

• For reasons of hygiene, meat and poultry should not be defrosted in an oven.

If possible, turn the food around or mix several times to make sure they are defrosted evenly.

26

Cleaning and maintenance

Do not use a steam cleaner or a high-pressure steam cleaner to clean the appliance. Before you start cleaning the appliance, disconnect it from the power mains and let it cool down.

Appliance housing front

Clean the surfaces with liquid non-abrasive detergents intended for smooth surfaces, and a soft cloth. Apply the detergent on the cloth and wipe off the dirt; then, rinse with water. Do not apply the detergent directly on the surfaces. Do not use aggressive or abrasive cleaners, sharp objects or steel wool, as these will scratch the appliance.

Aluminum surfaces

Aluminum surfaces should be cleaned with non-abrasive liquid detergents intended for such materials. Apply the detergent on a wet cloth and clean the surface; then, rinse the surface with water. Do not apply the cleaner directly on the aluminum surface. Do not use abrasive cleaners or abrasive sponges. The surface should not come into contact with oven cleaning sprays.

Stainless steel front panels

(only with some models)

Clean the surface with a mild cleaner (soapsuds) and a soft sponge that will not scratch the material. Do not use abrasive or solvent-based cleaners. If these instructions are ignored, the housing surface can be damaged.

Lacquer-coated and plastic surfaces

(only with some models)

Clean the buttons / knobs and the door handle with a soft cloth and liquid detergents intended for cleaning smooth lacquer-coated surfaces. You may also use the cleaners made especially for this type of surfaces; in this case, follow the manufacturer’s instructions.

WARNING: The above surfaces should never come into contact with oven cleaning sprays, as these will permanently damage the aluminum parts.

27

Cleaning

Oven

• The oven can be cleaned in conventional manner (with detergents, oven spray), but only when there is vey dirty and when the stains are particularly stubborn.

• For regular cleaning of your oven (after each use), the following procedure is recommended: rotate the operation mode selection knob to the position . Pour 0.6 l of water into a glass or shallow baking dish and insert it into the lower guide. After thirty minutes, the food residues on the enamel will have softened, allowing you to wipe them with a dap cloth.

When dealing with stubborn stains, please not the following:

The oven should be cooled down before each cleaning process.

• Clean the oven and accessories after each use to prevent the dirt from being burnt onto the oven.

• The easiest way to remove grease is by using warm soapsuds while the oven is still warm.

• In case of particularly stubborn dirt, use the conventional oven cleaners. Then, rinse the oven thoroughly with clean water to remove all residues of the cleaner.

• Never use aggressive cleaners such as steel wool, abrasive dishwashing sponges, stain removers, etc.

• Lacquer-coated, stainless steel, and zinc-coated surfaces, as well as aluminum parts, should never come into contact with oven cleaning sprays, as these may cause damage and discoloration. The same applies for the thermostat sensor

(if the cooker features a timer with a probe) and the heaters accessible at the upper part.

• When purchasing and dispensing detergents, consider the environment and observe the instructions provided by respective cleaning agent manufacturers.

Catalytic layer (only with some models)

• Catalytic enamel is soft and sensitive to mechanical stress; therefore, the use of abrasive cleaners and sharp objects is not recommended.

• Coarse catalytic enamel speeds up the disintegration of grease and other types of impurity. Minor stains that remain after cooking normally disintegrate by the time the oven is used for the next time.

In general, the stains will disappear at temperatures above 220°C, while with lower temperatures they will disappear only in part.

• Self-cleaning power of the catalytic parts is weakened in tome. We recommend replacing the layer after a few years of regular use.

Practical tip

• When cooking larger fatty chunks of meat, we recommend wrapping them in aluminum foil of a suitable cooking bag, to prevent the grease from being spattered on the oven interior walls.

28

• When grilling meat on the grid, place a drip tray underneath.

Accessories

Wash the accessories (baking trays, grid, etc.) with hot water and some conventional detergent.

Grease fi lter (only with some models)

After each use, clean the grease fi lter with a soft brush in hot water and some detergent, or wash it in a dishwasher.

Special enamel coating

The oven, interior side of the door, and baking trays, are covered with special enamel that has a smooth and resistant surface.

This special layer enables easier cleaning at room temperature.

Maintenance (depending on the model)

Removing the telescopic pull-out guides

To facilitate cleaning of the oven interior side walls, the telescopic pull-out guides can be removed

• Hold the guide rack by its lower end and rotate it inwards; then, remove them from the holes on the upper side.

• Clean the racks with telescopic guides only with conventional cleaners.

• Do not wash the telescopic pull-out guides in a dishwasher.

Do not attempt to grease the telescopic retractable guides.

After cleaning, simply replace the guide rack by following the procedure in reverse order.

Removing wire guide racks

To facilitate cleaning of the oven interior side walls, the wire guide rack can be removed.

• Hold the guide rack by its lower end and rotate it inwards; then, remove them from the holes on the upper side.

• Clean the guide racks guides only with conventional cleaners.

• After cleaning, simply re-hang the guide rack in the holes provided and pull the downwards.

29

30

2

REMOVING INSIDE DOOR GLASS – APPLIES TO PREMIUM

FULL-GLASS DOOR (make A and B)

Door glass can also be cleaned from the interior side; however, door has to be removed fi rst (see section on removing and replacing the oven door).

a)

• Hold the door glass pane by its lower edge. Pull it gently towards yourself and lift it slightly – but not too far – by a maximum of 10 mm, until the glass support wedge slips out of the groove (Figure 1).

• Remove the glass (in the direction of arrow 3). fi gure 1

• Interior glass (only in some models) is removed by fi rst undoing the screws on the glass supports and then by lifting it (Figure 2). Remove the supports before cleaning the glass pane. fi gure 2

• Reinstall the door by following the same procedure in reverse order.

Note: Insert the glass into the slot and push it forward (Figure

3).

1 fi gure 3 b)

• Slightly lift the supports on the left and right side of the door

(marking 1 on the support) and pull them away from the glass

(marking 2 on the support) (see Figure 1).

fi gure 1

• Hold the door glass by the lower edge, slightly lift it so that it is no longer attached to the support, and remove it (Figure 2).

fi gure 2

• To remove the third inside glass (only with some models), lift and remove it. Also remove the rubbers on the glass (Figure

3).

fi gure 3

• To replace the door, observe the reverse order.

Note: To replace the glass, make sure the markings

(crescent) on the door and the glass are aligned (Figure

4). fi gure 4

REMOVING AND REPLACING THE OVEN DOOR WITH A

CAM HINGE

• Completely open the oven door. Lift the clips of the lower hinge supports on both sides to the upright position and clip them to the plug of the upper hinge supports.

• Close the oven door half way and gently pull them out.

Replace the door in the reverse order.

• Insert the door in the half-closed position (angle of approximately 60°) by pushing them towards the oven while opening them all the way. Pay attention to the notches on the lower hinge supports, which should coincide with the lower edge of the notches on the front side. When the door is completely opened, remove the clips from the plugs of the upper hinge supports and return them to horizontal position.

REMOVING AND REPLACING THE OVEN DOOR WITH A

SINGLE-AXIS HINGE (depending on the model)

a) Conventional closing b) GentleClose – the system absorbs the shock from door closing. It allows simple, quiet, and smooth closing. A gentle push (to a 15° angle relative to the closed door position) is enough for the door to close automatically and softly.

If the force applied to close the door is too strong, the effect of the GentleClose system is reduced or the system will be bypassed for safety.

31

32

• Fully open the oven door and rotate the stoppers all the way back – applies to conventional door closing (Figure 1).

fi gure 1

• With GentleClose door system, rotate the stoppers back by

90°(Figure 2).

fi gure 2 fi gure 3

• Slowly close the door until the clips are pressed against the supports / seats. At approximately 15° (relative to the closed door position), pull the door slightly upward and pull them out of the both hinge supports on the appliances (Figure 3).

• Replace the door in the reverse order. Insert the door under an angle of 15° into the hinge supports at the front side of the appliance and push them downwards and to the front until they slide into their supports / seats.

• Then, completely open the door and rotate the attachment clips back to their initial position. Slowly close the door and check, if they close properly. If the door does not open or close correctly, make sure whether the hinge notches are correctly placed in their seat hinges.

Attention

Always make sure the hinge attachment clips are fi rmly seated in their supports when installing the door. If this is not the case, the main hinge that is operated by a strong spring may be released any time while installing or removing the door. Risk of physical injury.

Door lock (only with some models)

• Oven door is fi tted with a door lock that prevents it from being open until the lock is released. Door lock is opened by a slightly pressing your thumb to the right and simultaneously pulling the door outwards.

• When the oven door is closed, the door lock automatically returns to its initial position.

Note: If the door lock is supplied with the appliance, attach it under the appliance control panel in compliance with the instructions for installation, which are supplied with the lock.

Replacing appliance parts

The oven lamp base and socket are under voltage. There is a risk of electric shock!

Before replacing the oven lighting bulb, disconnect the appliance from the power mains by removing the fuses or tripping the main network switch.

Oven bulb

(only with some models)

Oven bulb is considered a replacement ware part and is not covered by the warranty. Replace the bulb with a new one with the following specifi cations: socket E 14, 230 V, 25 W, 300°C.

• Unscrew the glass cover in the counterclockwise direction, replace the bulb, and replace the cover.

Bulb lamps used in this appliance are special purpose lamps selected for household appliances use only. The are not suitable for household room illumination.

33

Special warnings and error reporting

During the warranty period, any repairs may only be performed by service technicians authorized by the appliance manufacturer.

Before starting the repair, the appliance must be disconnected from the power mains by removing the fuse or by removing the mains cord from the wall outlet.

Unauthorized tampering and repairs may cause the risk of electric shock and short circuit; therefore, do not attempt them yourselves. Leave such tasks to an expert or an authorized service technician.

In case of minor faults or problems with the appliance operation, check the following instructions to see whether you can eliminate the causes by yourselves.

Important

A visit by a service technician during the warranty period will be charged if the appliance is not functioning because of improper use. Store these instructions in a place where they are always readily accessible; if pas the appliance on to another person, the instructions should also be included.

Following is some advice on rectifying some common problems.

Sensors do not respond, the display has frozen

Electronic temperature display indicates unusual or unreasonable values, or turns on and off uncontrolled

Disconnect the cooker from the power network for a few minutes

(remove the fuse or trip the main switch); then, reconnect it to the power network and turn on the oven

Call a service technician! The main fuse is tripped repetitively

Oven interior lighting does not work

The oven does not heat up...

The process of replacing the bulb is described in the section

“Appliance part replacement”.

• Was the temperature and operating mode selected appropriately?

• Is the oven door closed?

The pastry is not cooked thoroughly...

• Have you removed the grease fi lter?

• Did you observe the instructions and tips from the section “Baking pastry”?

• Did you follow the instructions in the baking table closely?

• In case of a failure of the electronic temperature display, disconnect the appliance from the power mains for a few minutes (remove the fuse or turn off the main switch); then, reconnect it.

If the problem persists despite observing the instructions above, call an authorized service technician. Elimination of any errors or warranty claims that resulted from improper connection or use of the appliance is not covered by our warranty. In such cases, the costs of repair are borne by the user.

34

Instructions for installation and connection

Important warnings

• The appliance may only be connected by a qualifi ed expert.

• The appliance should be fi tted with a device that disconnects it from all poles of the home network (an omnipolar switch), with at least 3 mm of distance between the contacts in open position. LS-switches or fuses are appropriate.

• To connect the appliance, use the rubber mains cords (type HO5RR-F with the green/yellow earth wire), PVC insulated (type HO5VV-F with the green/yellow earth wire), or other equivalent or superior cables.

• Veneer, glue, or plastic fi nish of the furniture next to which the cooker is installed, should be treated heat resistant (>75°C). If the veneers are not high temperature resistant, they may be deformed.

• Packaging (plastic foil, polystyrene, etc.) must be kept out of reach of children, as it can be a source or threat to them. Small parts can be swallowed by the children, and the foils are hazardous because of the risk of suffocation.

Installation

• Veneer or other fi nish of the furniture the appliance is being built into should be processed with heat-resistant glue (100°C); otherwise, high temperatures may cause them to deform.

• Before installing the appliance, remove the back wall from the piece of kitchen furniture the appliance is being built into, along the entire length of the cutout.

• The installation cutout should be dimensioned as indicated in the fi gure.

• The bottom panel of the piece of kitchen furniture (max. 530 mm) should always be shorter than the side walls to enable adequate air circulation.

• Level the piece of furniture the appliance was built into with a spirit level.

• The piece of kitchen furniture the appliance is built into must be secured against movement, e.g. attached to the adjacent pieces of kitchen furniture.

• Push the appliance into the kitchen furniture element enough that the guides for the screws that are inserted in the oven frame holes are placed against the kitchen element side walls.

• When attaching the appliance, make sure the screws are not fastened too strongly as this may damage the furniture or the appliance enamel coating.

35

Electrical connection

The appliance may only be connected to the power mains by an authorized service technician or a registered electrician! Incorrect connection may result in damage to or destruction of respective parts of the appliance; in such cases, the warranty is void.

• Open the connection clip using a screwdriver, as indicated on the fi gure on the cover.

• The voltage (230V against N) in your home network must be checked by an expert using appropriate equipment!

• Before connection, make sure the voltage on the rating plate is consistent with the actual network voltage.

• The length of the power cord should be at least 1.5 meters; thus, the appliance can be connected before it is pushed to the wall.

• The length of the power cord should be adjusted in such way that in case of pulling load on the cable, the ground wire is strained later than the voltage wires.

36

Procedure

• Use a screwdriver to open the connection clamp cover at the back of the appliance. Use the screwdriver to release the two clips as indicated on the connection clamp cover.

• The power mains cable must be led through a tension release device that protects the cable from being pulled out.

Conduit colors

L1 = external conduit conveying voltage. Normally, the color is black or brown.

N = neutral

This conduit is normally blue.

Make sure the N-wire is correctly connected!

PE = protection (ground) conduit

This conduit is green and yellow.

37

Technical characteristics

Rating plate

A Serial number

B Code

C Model

D Type

E Trademark

F Technical information

G Compliance indications / symbols

38

WE RESERVE THE RIGHT TO MAKE ANY CHANGES THAT

DO NOT AFFECT THE FUNCTIONALITY OF THE APPLIANCE.

Instructions for use of the appliance can also be found on our website at www.gorenje.com / < http://www.gorenje.com />

EVP - EPTTD+_SIMPLICITY en (07-16)

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
