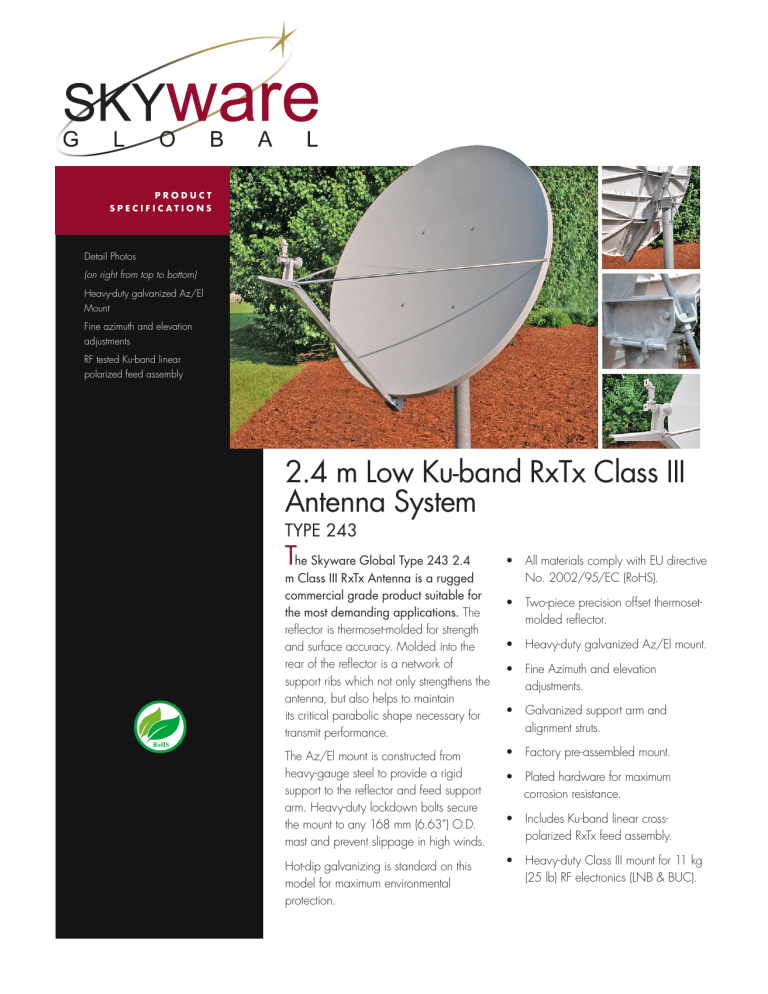

2.4 m Low Ku-band RxTx Class III Antenna System

2.4 m Low Ku-band RxTx Class III Antenna System
PRODUCT
SPECIFICATIONS
Detail Photos
(on right from top to bottom)
Heavy-duty galvanized Az/El
Mount
Fine azimuth and elevation
adjustments
RF tested Ku-band linear
polarized feed assembly
2.4 m Low Ku-band RxTx Class III
Antenna System
TYPE 243
The Skyware Global Type 243 2.4
m Class III RxTx Antenna is a rugged
commercial grade product suitable for
the most demanding applications. The
reflector is thermoset-molded for strength
and surface accuracy. Molded into the
rear of the reflector is a network of
support ribs which not only strengthens the
antenna, but also helps to maintain
its critical parabolic shape necessary for
transmit performance.
The Az/El mount is constructed from
heavy-gauge steel to provide a rigid
support to the reflector and feed support
arm. Heavy-duty lockdown bolts secure
the mount to any 168 mm (6.63”) O.D.
mast and prevent slippage in high winds.
Hot-dip galvanizing is standard on this
model for maximum environmental
protection.
• All materials comply with EU directive No. 2002/95/EC (RoHS).
• Two-piece precision offset thermoset-
molded reflector.
• Heavy-duty galvanized Az/El mount.
• Fine Azimuth and elevation adjustments.
• Galvanized support arm and
alignment struts.
• Factory pre-assembled mount.
• Plated hardware for maximum
corrosion resistance.
• Includes Ku-band linear cross-
polarized RxTx feed assembly.
• Heavy-duty Class III mount for 11 kg (25 lb) RF electronics (LNB & BUC).
S P E C I FI C AT I O N S
Type 243
2.4 m Ku-band RxTx Class III Antenna System
Model Information
Antenna Model Mechanical Performance
. . . . . . . . . . . . . . . . . . . . . . . . . .
62 - 2435611G
RF Performance
Effective Aperture . . . . . . . . . . . . . . . . . . . . . . . . . .
2.4 m (96 in)
Operating Frequency . . Tx . . . . . . . . . . . . . . . . . . . . . . . . . . 12.75 - 13.25 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 10.95 - 11.70 GHz
Polarization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Linear, Orthogonal
Gain (±.2 dBi) . . . . . . . Tx . . . . . . . . . . . . . . . . . . . . . . . . . . 47.6 dBi @ 13.0 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 46.4 dBi @ 11.3 GHz
3 dB Beamwidth . . . . . . .Tx . . . . . . . . . . . . . . . . . . . . . . . . . . 0.7˚ @ 13.0 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 0.8˚ @ 11.3 GHz
Sidelobe Envelope (Tx, Co-Pol dBi)
main beam < q < 20˚
20˚ < q < 26.3˚
26.3˚ < q < 48˚
48˚ < q < 180˚
. . . . . . . . . . . . . . . 29 - 25 Log q
. . . . . . . . . . . . . . . -3.5
. . . . . . . . . . . . . . . 32 - 25 Log q
. . . . . . . . . . . . . . . -10
Reflector Material . . . . . . . . . . . . . . . . . . . . . . . . .
Glass Fiber Reinforced Polyester
Antenna Optics . . . . . . . . . . . . . . . . . . . . . . . . .
Two-Piece Offset Feed Prime Focus
Mount Type
. . . . . . . . . . . . . . . . . . . . . . . . .
Elevation over Azimuth
Elevation Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
Azimuth Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
10˚ - 90˚ Continuous Fine Adjustment
Feed Support . . . . . . . . . . . . . . . . . . . . . . . . .
Rectangular Section with Alignment Legs
360˚ Continuous ±12˚ Fine Adjustment
Mast Pipe Interface
. . . . . . . . . . . . . . . . . . . . . . . . . 168 mm (6.63 in) Diameter
Wind Loading . . . . . . . . . . . . . . . Operational . . . . . . .
80 km/h (50 mph)
Survival
. . . . . . .
200 km/h (125 mph)
Temperature . . . . . . . . . . . . . . . . . . . . . . . . .
-50˚C to 80˚C
Humidity
. . . . . . . . . . . . . . . . . . . . . . . . .
0 to 100% (Condensing)
Atmosphere . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Hardware Meets 500 Hour
Salt Spray Test Requirements
(ASTM B-117)
Solar Radiation 360 BTU/h/ft2
. . . . . . . . . . . . . . . . . . . . . . . . .
Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . .
As Encountered During Shipping and
Handling
Antenna Cross-Polarization
. . . . . . . . . . . . . . . . . . . . . . . . . . 30 dB on Axis
Antenna Noise
Temperature 10˚ El . . . . . . . . . . . . . . 55˚ K
20˚ El . . . . . . . . . . . . . . 46˚ K
30˚ El . . . . . . . . . . . . . . 45˚ K
VSWR . . . . . . . . . Tx . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1
Isolation (Port to Port) . . Tx . . . . . . . . . . . . . . . . . . . . . . . . . . 75 dB
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 35 dB
Feed Interface Tx . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . WR75 Flat Flange
(All specifications typical)
Skyware Global
1315 Industrial Park Drive
Smithfield, NC 27577
USA
Telephone: +1-919-989-2280
Sales: [email protected]
Internet: www.skywareglobal.com
All designs, specifications and availabilities of
products and services presented in this bulletin
are subject to change without notice.
VST-017.1G
© 2010 Skyware Global
