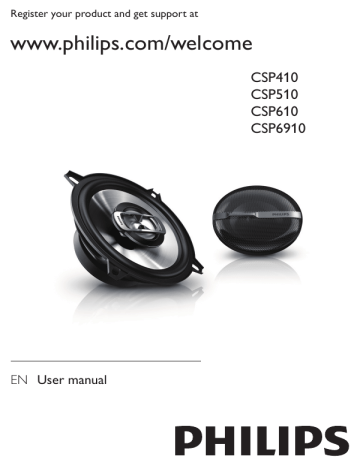

Register your product and get support at
www.philips.com/welcome
CSP410
CSP510
CSP610
CSP6910
EN User manual
1. Important
Safety
•
•
•
•
•
Read and understand all instructions before you use the apparatus.
If damage is caused by failure to follow instructions, the warranty
does not apply.
Use only the supplied mounting hardware for a safe and secure
installation.
Do not continuously use the speaker system beyond the peak power
handling capacity.
Keep credit cards, watches, recorded tapes etc. with magnetic coding
away from the speaker system to prevent damage caused by the
magnets in the speakers.
Clean the apparatus with soft, damp cloth. Never use substances
such as alcohol, chemicals or household cleaners on the apparatus.
Notice
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
2009 © Koninklijke Philips Electronics N.V. All rights reserved.
Specifications are subject to change without notice. Trademarks are the property of Koninklijke
Philips Electronics N.V. or their respective owners. Philips reserves the right to change products at
any time without being obliged to adjust earlier supplies accordingly.
2.Your car stereo speakers
Congratulations on your purchase, and welcome to Philips! To fully
benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With the speakers, you can enjoy high power music with vivid sound.
What’s in the box
Check and identify the contents of your package:
a Speakers (x2)
a
b
c
d
b Grille net + Frame (x2)
c Speaker wire (x2)
d Screw (x8)
e
e Shrapnel (x8)
3. Installation
A depth of at least 48mm is required to mount
the subwoofer. Measure the depth of the area
where you are to mount the subwoofer, and
ensure that the subwoofer does not obstruct any
other components of the car.
Option 1: Mount on door (front or rear)
You can mount the speakers on the front/rear door of your car.
Note
•• Make sure that nothing obstructs around the mounting location of the door.
•• A hole for mounting may already be cut out of the inner panel of the door
(front or rear). In this case, you need to modify the board only.
•• Ensure that the speaker terminals, frame or magnet do not interfere with any
inner parts, such as the window mechanism in the door (when you open or
close the window), etc. Also ensure that the speaker grille does not touch any
inner fittings, such as the window cranks, door handles, arm rests etc.
1 Turn off the car ignition key.
•
If the power is on, the click noise generated by the
connection may damage the speakers.
2 Cut out the mounting template from the packing box.
3 Paste the template on the location selected for mounting the
speaker.
4 Mark the cut-off hole and the 4 bolt holes.
5 Cut out the marked area and drill the bolt holes.
6 Remove the grille net.
7 Strip the speaker wires and connect them to the amplifier.
•
Black wire: connect to left speaker
•
Black (white lined): connect to right speaker
Right
White lined
White lined
Right
Amplifier
CSP410
Black
Left
Black
Left
Note
•• Match the “left”, “right”, “+” and “-” terminals correctly. Revised polarity may
degrade sound quality.
•• Two 4-ohm speakers, wired in stereo, present a 4 ohm load to each channel
of the amplifier. Most two channel amplifiers work well in this configuration.
However, if two 4-ohm speakers, wired in parallel to a bridged two -channel
amplifier, present a 2-ohm mono load to the amplifier. Most 2-channel
amplifiers do not support 2-ohm mono operation! Amplifier damage may
result!
8 Mount on the speaker as shown below.
9 Press and insert the edges of the grille net.
Tip
•• The speaker grille can be mounted without the grille net,
if you like.
Option 2: Mount on rear tray
You can also mount the speakers into the surface of the rear tray.
Follow the steps in section “Option 1: Mount in door” to mount
the spkeakers into the rear tray:
4. Product information
Note
•• Product information is subject to change without
prior notice.
Model
CSP410
CSP510
Speaker type
10cm 2-way
coaxial speaker
13cm, 2-way
coaxial speaker
RMS power (Watts)
30W
35W
Peak music power
(Watts)
150W
180W
Sensitivity (dB/W/m)
88dB
89dB
Frequency response (Hz) 50-30kHz
45-30kHz
Impedance (ohms)
4 ohms
4 ohms
Magnet mass (Oz)
4.4Oz
6.4Oz
Model
CSP610
CSP6910
Speaker type
16.5cm, 2-way
coaxial speaker
16x24cm, 3-way
triaxial speaker
RMS power (Watts)
40W
50W
Peak music power
(Watts)
210W
300W
Sensitivity (dB/W/m)
90dB
90dB
Frequency response (Hz) 40-30kHz
28-32kHz
Impedance (ohms)
4 ohms
4 ohms
Magnet mass (Oz)
7.6Oz
12.6Oz
5.Troubleshooting
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, go to the Philips
web site (www.philips.com/welcome). When you contact Philips,
ensure that the apparatus is nearby and the model number and serial
number are available.
Hazardous/toxic Substance
Name of the Parts
Pb, Lead
Hg, Mercury
Cd, cadmium
Chromium 6+
PBB
PBDE
Housing
O
O
O
O
O
O
Loudspeakers
O
O
O
O
O
O
PWBs
X
O
O
O
O
O
Accessories (Remote
control & cables)
X
O
O
O
O
O
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for this part is
below the limit requirement in SJ/T11363 - 2006.
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous materials used
for this part is above the limit requirement in SJ/T11363 - 2006.
Environmental Protection Use Period
This logo refers to the period ( 10 years ) during which the toxic or hazardous substances or elements contained in electronic
information products will not leak or mutate so that the use of these [substances or elements] will not result in any severe
environmental pollution, any bodily injury or damage to any assets.
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
