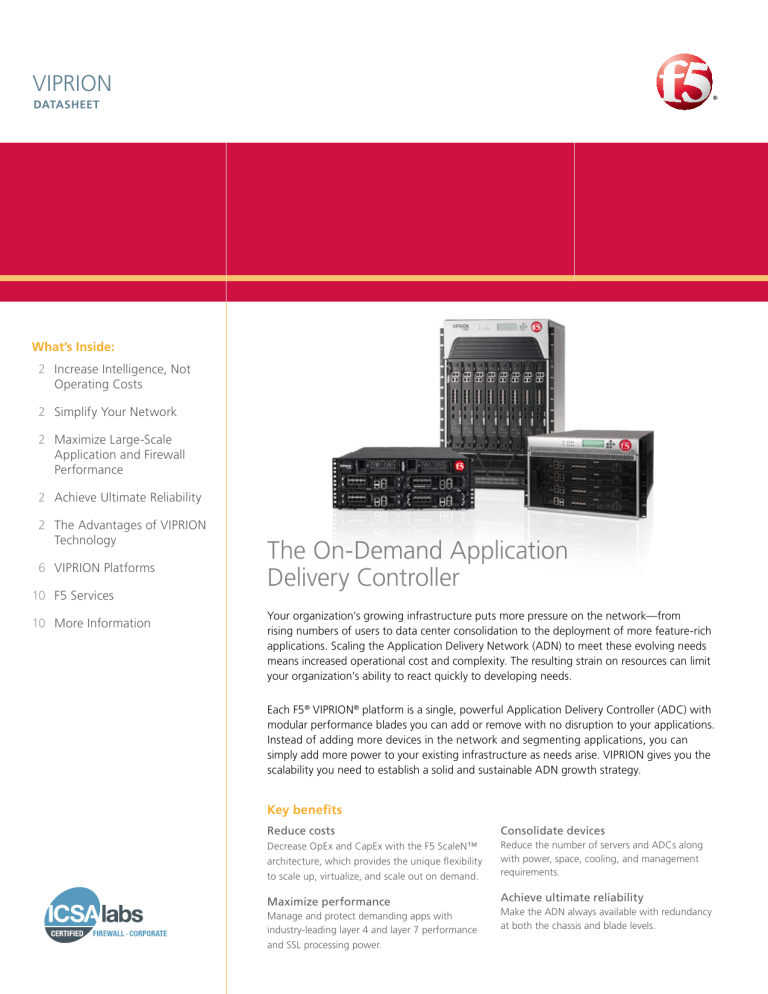

VIPRION

DATASHEET

What’s Inside:

2

Increase Intelligence, Not

Operating Costs

2

Simplify Your Network

2

Maximize Large-Scale

Application and Firewall

Performance

2

Achieve Ultimate Reliability

2

The Advantages of VIPRION

Technology

6

VIPRION Platforms

10

F5 Services

10

More Information

The On-Demand Application

Delivery Controller

Your organization’s growing infrastructure puts more pressure on the network—from rising numbers of users to data center consolidation to the deployment of more feature-rich applications. Scaling the Application Delivery Network (ADN) to meet these evolving needs means increased operational cost and complexity. The resulting strain on resources can limit your organization’s ability to react quickly to developing needs.

Each F5

®

VIPRION

®

platform is a single, powerful Application Delivery Controller (ADC) with modular performance blades you can add or remove with no disruption to your applications.

Instead of adding more devices in the network and segmenting applications, you can simply add more power to your existing infrastructure as needs arise. VIPRION gives you the scalability you need to establish a solid and sustainable ADN growth strategy.

Key benefits

Reduce costs

Decrease OpEx and CapEx with the F5 ScaleN™ architecture, which provides the unique flexibility to scale up, virtualize, and scale out on demand.

Maximize performance

Manage and protect demanding apps with industry-leading layer 4 and layer 7 performance and SSL processing power.

Consolidate devices

Reduce the number of servers and ADCs along with power, space, cooling, and management requirements.

Achieve ultimate reliability

Make the ADN always available with redundancy at both the chassis and blade levels.

DATASHEET

VIPRION

VIPRION 4800 Chassis

VIPRION 4480 Chassis

VIPRION 2400 Chassis

VIPRION blades can be added or removed without disruption. For more processing power, simply add a blade. It starts processing traffic automatically. In a

VIPRION system with multiple blades, you can remove a blade and the others instantly take over the processing load.

Increase Intelligence, Not Operating Costs

As your growing infrastructure requires more processing power for layer 4 and layer 7 processing, SSL, compression, and more, you can simply add a blade to the VIPRION chassis and it will start processing traffic automatically. Whether you’re using one blade or four,

VIPRION remains one device with fixed management costs.

Simplify Your Network

VIPRION can help you simplify your network by offloading servers and consolidating devices, saving management costs as well as power, space, and cooling in the data center.

With VIPRION’s massive performance and scalability, you can reduce the number of

Application Delivery Controllers you need to deliver even the most demanding applications.

By offloading computationally intense processes, VIPRION can significantly reduce the number of application servers needed. VIPRION includes:

• SSL hardware acceleration—Offloads costly SSL encryption. Accelerates key exchange and bulk encryption to provide best-in-market SSL performance.

• Hardware compression—Enables you to cost effectively offload traffic compression processing from your servers. Improves page load times and reduces bandwidth utilization.

• OneConnect ™ connection pooling—Aggregates millions of TCP requests into hundreds of server-side connections. Increases server capacity and ensures requests are handled efficiently by the back-end system.

Maximize Large-Scale Application and Firewall Performance

With its industry-leading layer 4/7 throughput, connection processing, and SSL performance,

VIPRION can manage the most demanding applications, offload the servers, and consolidate the Application Delivery Network. In addition, as an ICSA certified firewall solution, BIG-IP ®

Local Traffic Manager ™ on VIPRION provides native, high performance network firewall services to protect public facing websites and data center applications from distributed, multi-layer cyber attacks.

Achieve Ultimate Reliability

In a VIPRION system with multiple blades, you can remove a blade without disruption. The other blades will instantly take over the processing load. You can also deploy VIPRION in an active/standby configuration to add another level of redundancy. The chassis is built with redundant power supplies and field swappable components. This multi-layered redundancy significantly reduces the possibility of downtime.

The Advantages of VIPRION Technology

With VIPRION, your organization will benefit from the unique F5 ScaleN architecture and patented hardware and software innovations that offer unmatched capabilities.

The F5 ScaleN architecture provides you with the ability to scale performance on demand, virtualize, or horizontally cluster multiple VIPRION chassis, creating an elastic Application

Delivery Networking infrastructure that can efficiently adapt as your business needs change.

2

DATASHEET

VIPRION

VIPRION

STATUS

ALARM

1

POWER

2 3 4

1 2 3 4

CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU

CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU

CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU

CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU CPU

With Virtual Clustered

Multiprocessing, multiple virtual

BIG-IP instances can be run on the VIPRION platform, each with dedicated resources.

Device and Application

Service Clustering

APP APP APP

VIPRION

APP APP APP

APP APP APP

VIPRION

APP APP APP

VIPRION

Device and Application Service

Clustering provides true scale out of BIG-IP devices, automatic configuration syncing, and failover of specific application workloads in an active N+1 device cluster.

On-demand scaling improves performance

Increase resource capacity and performance with on-demand scaling, where you can simply add more power to your existing infrastructure instead of adding more devices.

VIPRION chassis provide true linear scalability through modular blades that use Clustered

Multiprocessing (CMP ® ) technology. As blades are added, their CPU resources, network interfaces, SSL, and compression processing power are all automatically available as the configurations and policies are copied to the new blades from the master blade.

Multi-tenant device virtualization enables isolation

F5 is able to virtualize Application Delivery Controller (ADC) services with a multi-tenant architecture that supports a variety of BIG-IP versions and product modules on a single device. Multi-tenant device virtualization is provided by F5’s unique Virtual Clustered

Multiprocessing (vCMP

®

) technology, which enables VIPRION to run multiple BIG-IP guest instances. Each BIG-IP guest instance looks and acts like a physical BIG-IP device, with a dedicated allocation of CPU, memory, and other resources.

Each vCMP guest can further be divided using multi-tenant features such as partitions and route domains, which can isolate configuration and networks on a per virtual domain basis.

Within each virtual domain, organizations can further isolate and secure configuration and policies by using a role-based access system for greater administrative control.

The ability to virtualize BIG-IP ADC services means providers and enterprise users can isolate based on BIG-IP version, enabling departmental or project-based tenancy as well as performance guarantees, while getting the benefits of managing a single, consolidated application delivery platform and increased utilization of VIPRION systems.

Horizontal clustering increases capacity

Increase capacity by adding BIG-IP resources through an all-active approach. With horizontal clustering, you can scale beyond the traditional device pair to eliminate the need for idle and costly standby resources. Horizontal clustering achieves this through two forms of horizontal scale: Application Service Clustering, which focuses on application scalability and high availability, and Device Service Clustering, designed to efficiently and seamlessly scale BIG-IP application delivery services.

Application Service Clustering delivers sub-second failover and comprehensive connection mirroring for a highly available cluster of up to eight devices at the application layer, providing highly available multi-tenant deployments. Workloads can be moved across a cluster of devices or virtual instances without interrupting other services and can be scaled to meet the business demand.

Device Service Clustering can synchronize full device configurations in an all-active deployment model, enabling consistent policy deployment and enforcement across devices up to 32 active nodes. This ensures a consistent device configuration that simplifies operations.

3

DATASHEET

VIPRION

VIPRION 4800 Chassis

VIPRION 4480 Chassis and

Redundant Fans

VIPRION 4480 Chassis and

Redundant Power Supplies

The VIPRION chassis has field replaceable parts and redundant power supplies, significantly reducing the possibility of downtime.

VIPRION

Virtualization

VIPRION

On-Demand

Scaling

Horizontal Clustering

VIPRION

VIPRION

VIPRION

VIPRION

The ScaleN architecture provides the ultimate flexibility to scale on demand, virtualize, and provide Application and Device Service Clustering.

CPUs ePVA

CPUs

High Speed Bridge

Disaggregator Switch Fabric

CPUs

High Speed Bridge

CPUs ePVA

Disaggregator Switch Fabric

Client

Disaggregator ePVA

Switch Fabric

High Speed Bridge

CPUs CPUs

Disaggregator Switch Fabric

High Speed Bridge ePVA

CPUs CPUs

Servers

The VIPRION 4300 blade has 12 processor cores, and the VIPRION 4480 chassis can support four blades. The VIPRION 4800 chassis can support eight 4300 blades.

ePVA

CPUs

High Speed Bridge

Disaggregator Switch Fabric

CPUs

High Speed Bridge

Disaggregator ePVA

Switch Fabric

Client

Disaggregator ePVA

Switch Fabric

High Speed Bridge

Disaggregator Switch Fabric

High Speed Bridge ePVA

Servers

CPUs CPUs

The VIPRION 2100 blade has four processor cores, and the VIPRION 2400 chassis can support four 2100 blades.

4

DATASHEET

VIPRION

Virtualized processing fabric shares the load across blades

Using custom disaggregation, high speed bridge FPGAs, and advanced software, VIPRION shares the processing load not just within a blade, but across the entire chassis.

The physical interfaces are fully meshed. Any port on any blade can be used for any application, so the system can be wired for redundancy and simplicity.

Clustered management cuts administration time

Spend less time managing your Application Delivery Network. To administrators, the

VIPRION unit looks like a single Application Delivery Controller. One blade is automatically selected as the “primary” and all settings and controls are mirrored to the other blades.

When a new blade is plugged in, it will install the firmware version from the primary blade, copy all of its settings, and begin processing traffic within minutes.

SuperVIP simplifies the network

Rather than requiring that a single, demanding application be segmented, VIPRION uses

SuperVIP. This is a virtual IP that can span multiple blades within the VIPRION system. A demanding application will use SuperVIP to harness the processing power of all the blades in the system.

TMOS delivers performance and flexibility

At the heart of VIPRION is the F5 unique operating system called TMOS that provides a unified system for optimal application delivery, giving you total vision, flexibility, and control across all services. TMOS empowers VIPRION to intelligently adapt to the diverse and evolving requirements of applications and networks.

5

DATASHEET

VIPRION

VIPRION Platforms

Each VIPRION system consists of a chassis and one to eight blades.

Specifications

Dimensions:

Weight:

Power Supply:

Operating Temperature:

Relative Humidity:

Safety Agency Approval:

Certifications/Susceptibility

Standards:

VIPRION 4800 Chassis VIPRION 4480 Chassis

VIPRION 4800 Chassis VIPRION 4480 Chassis

27.8” (70.6 cm) H x 17.4” (44.2 cm) W x 21.25” (54.0 cm) D

16U industry standard rack-mount chassis

12.2” (30.9 cm) H x 17.4” (44.2 cm) W x 21” (53.3 cm) D

7U industry standard rack-mount chassis

126 lbs. (57.2 kg)

(2 power supplies, 2 fan trays, 8 blanks)

One to four 200 VAC to 240 VAC auto ranging

(80+ Gold Efficiency) (2 power supplies included)

4920W maximum draw for high line input

(8 blades installed)

DC power (future option)

87 lbs. (39.5 kg)

(4 power supplies, 1 fan tray, 3 blanks)

Four 90 VAC to 240 VAC auto ranging

2100W maximum draw for low line input

2125W maximum draw for high line input

36VDC to 72VDC (option)

32° to 104° F (0° to 40° C)

5 to 85% at 104° F (40° C)

UL 60950 (UL1950-3)

CSA-C22.2 No. 60950-00

(bi-national standard with UL 60950)

CB test certification to IEC 950 EN 60950

32° to 104° F (0° to 40° C)

5 to 85% at 104° F (40° C)

UL 60950 (UL1950-3)

CSA-C22.2 No. 60950-00

(bi-national standard with UL 60950)

CB test certification to IEC 950 EN 60950

EN55022 1998 Class A

EN55024 1998 Class A

FCC Part 15B Class A

VCCI Class A

EN55022 1998 Class A

EN55024 1998 Class A

FCC Part 15B Class A

VCCI Class A

NEBS Certified

6

DATASHEET

VIPRION

Specifications

Intelligent Traffic Processing:

Hardware DDoS Protection:

Processors:

Memory:

Hard Drive Capacity:

Network Interfaces:

Power Consumption:

Heat Output:

Weight:

VIPRION 4300 Blade VIPRION 4200 Blade

VIPRION 4300/4340N Blade

2.5M L7 requests per second (B4300)

2M L7 requests per second (B4340N)

1.4M L4 connections per second (B4300)

1.1M L4 connections per second (B4340N)

14M L4 HTTP requests per second

80 Gbps L4, 40 Gbps L7,

20 Gbps max hardware compression

600 Mbps included compression

Included SSL TPS: 500/CPU core | 6000/blade

Max TPS: 30,000 (2K keys)

Bulk crypto: 20 Gbps

Note: Compression and SSL resources are allocated evenly across the number of vCMP instances set up.

Hardware SYN-Cookies: 80M SYN-Cookies Per Second

2 hex core processors (24 total processing cores)

48 GB (B4300)

96 GB (B4340N)

VIPRION 4200 Blade

1.6M L7 requests per second

700K L4 connections per second

18 Gbps L4, 18 Gbps L7,

12 Gbps max compression

400 Mbps included compression

Included SSL TPS: 500/CPU core | 4000/blade

Max TPS: 10,000 (2K keys)

Bulk crypto: 9 Gbps

Note: Compression and SSL resources are allocated evenly across the number of vCMP instances set up.

N/A

2 quad core processors

16 GB

600 GB hard drive

One 10/100/1,000 Mbps Ethernet management port

Eight 1,000 Mbps/10 Gigabit ports (SFP+)

(2 ea. 10GBASE-SR – 850nm transceivers included)

(Optional 1G SFP fiber 1G-LC/850nm or copper

RJ45 transceivers)

Two 40 Gigabit (or eight 10 Gigabit) fiber ports (QSFP+)

(QSFP+ 40GBASE-SR4 100m transceivers sold separately)

(QSFP+ optical breakout cable assemblies available to convert to 10 Gigabit ports)

Note: Only optics provided by F5 are supported.

Typical: 430W (under heavy load)

Maximum: 515W

Typical: 1468 BTU/hour

Maximum: 1758 BTU/hour

18.5 lbs. (8.39 kg)

160 GB hard drive

8 GB compact flash

One 10/100/1000 Mbps Ethernet management port

Four 10/100/1000 Mbps copper ports

Eight 1000 Mbps/10 Gbps SFP+ ports

(2 ea. 10GBASE-SR – 850nm transceivers included)

(Optional 1G SFP fiber 1G-LC/850nm or copper

RJ45 transceivers)

Note: Only optics provided by F5 are supported.

Typical: 325W (under heavy load)

Maximum: 350W

Typical: 1100 BTU/hour

Maximum: 1200 BTU/hour

14.5 lbs. (6.58 kg)

7

DATASHEET

VIPRION

Specifications

Dimensions:

Weight:

Power Supply:

Operating Temperature:

Relative Humidity:

Safety Agency Approval:

Certifications/Susceptibility

Standards:

VIPRION 2400 Chassis

VIPRION 2400 Chassis

6.89” (17.5 cm) H x 17.64” (44.8 cm) W x 21.18” (53.8 cm) D

4U industry standard rack-mount chassis

42.5 lbs. (19.3 kg)

AC power supply

Two 100-127 VAC/200-240 VAC (1400W) auto ranging

(80+ Gold Efficiency)

17A per input line (max)

DC power supply (option)

Two 1400W 38 to 72 VDC 44A per input (max)

32° to 104° F (0° to 40° C)

5 to 85% at 104° F (40° C)

EN 60950-1:2006, 2nd Edition

Evaluated to all CB Countries

UL 60950-1, 2nd Edition, CSA C22.2 No. 60950-1-03

FCC Part 15 Class A

VCCI Class A

EN 300 386 V1.3.2 (2003-05)

EN 55022:2006 + C1:2006

EN 61000-3-2:2000

EN 61000-3-3:1995 +A1:2000

EN 55022:2006 + C1:2006 Class A

EN 61000-3-3:1995 +A1:2000+ A2:2005

EN 55024:1998 +A1: 2001 +A2:2003

8

DATASHEET

VIPRION

Specifications

Intelligent Traffic Processing:

Hardware DDoS Protection:

Software Architecture:

Processor:

Memory:

Hard Drive Capacity:

Network Interfaces:

Power Consumption:

Heat Output:

Weight:

VIPRION 2100 Blade

VIPRION 2100 Blade

1M L7 requests per second

400K L4 connections per second

7M L4 HTTP requests per second

40 Gbps L4, 18 Gbps L7

10 Gbps maximum hardware compression

200 Mbps included compression

Included SSL TPS: 500/CPU Core | 2000/Blade

Maximum SSL TPS: 10,000 TPS (2K keys)

Bulk crypto: 9 Gbps

Note: Compression and SSL resources are allocated evenly across the number of vCMP instances set up.

Hardware SYN cookies: 40M SYN cookies per second

64-bit TMOS

Single quad core processor (8 total processing cores)

16 GB

300 GB 10,000 RPM

One 10/100/1,000 Mbps Ethernet management port

Eight 1,000 Mbps/10 Gbps SFP+ ports

(2 ea. 10GBASE-SR – 850nm transceivers included)

(Optional 1G SFP fiber 1G-LC/850nm or copper

RJ45 transceivers)

Note: Only optics provided by F5 are supported.

Typical: 175W (conditions: 25C, 50% load, 110 VAC)

Maximum: 265W (conditions: 40C, 110 VAC)

Typical: 597 BTU/hour

Maximum: 904 BTU/hour

9.5 lbs. (4.3 kg)

9

DATASHEET

VIPRION

F5 Services

F5 Services offers world-class support, training, and consulting to help you get the most from your F5 investment. Whether it’s providing fast answers to questions, training internal teams, or handling entire implementations from design to deployment,

F5 Services can help you achieve IT agility. For more information about F5 Services, contact [email protected]

or visit f5.com/services .

More Information

For more information about VIPRION, use the search function on f5.com

to find these resources. For the latest product specifications, see the applicable platform guide on askf5.com

.

Datasheets

BIG-IP Local Traffic Manager

BIG-IP Application Security Manager

BIG-IP Global Traffic Manager

BIG-IP Access Policy Manager

BIG-IP WebAccelerator

BIG-IP Advanced Firewall Manager

White papers

Clustered Multiprocessing: Changing the Rules of the Performance Game

VIPRION: The Cost of Management

Virtual Clustered Multiprocessing (vCMP)

The New Data Center Firewall Paradigm

BIG-IP Application Delivery Hardware: A Critical Component

Video

VIPRION Unboxing

10

F5 Networks, Inc. 401 Elliott Avenue West, Seattle, WA 98119 888-882-4447 www.f5.com

F5 Networks, Inc.

Corporate Headquarters [email protected]

F5 Networks

Asia-Pacific [email protected]

F5 Networks Ltd.

Europe/Middle-East/Africa [email protected]

F5 Networks

Japan K.K.

[email protected]

©2013 F5 Networks, Inc. All rights reserved. F5, F5 Networks, and the F5 logo are trademarks of F5 Networks, Inc. in the U.S. and in certain other countries. Other F5 trademarks are identified at f5.com.

Any other products, services, or company names referenced herein may be trademarks of their respective owners with no endorsement or affiliation, express or implied, claimed by F5. CS03-00020 0113

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
