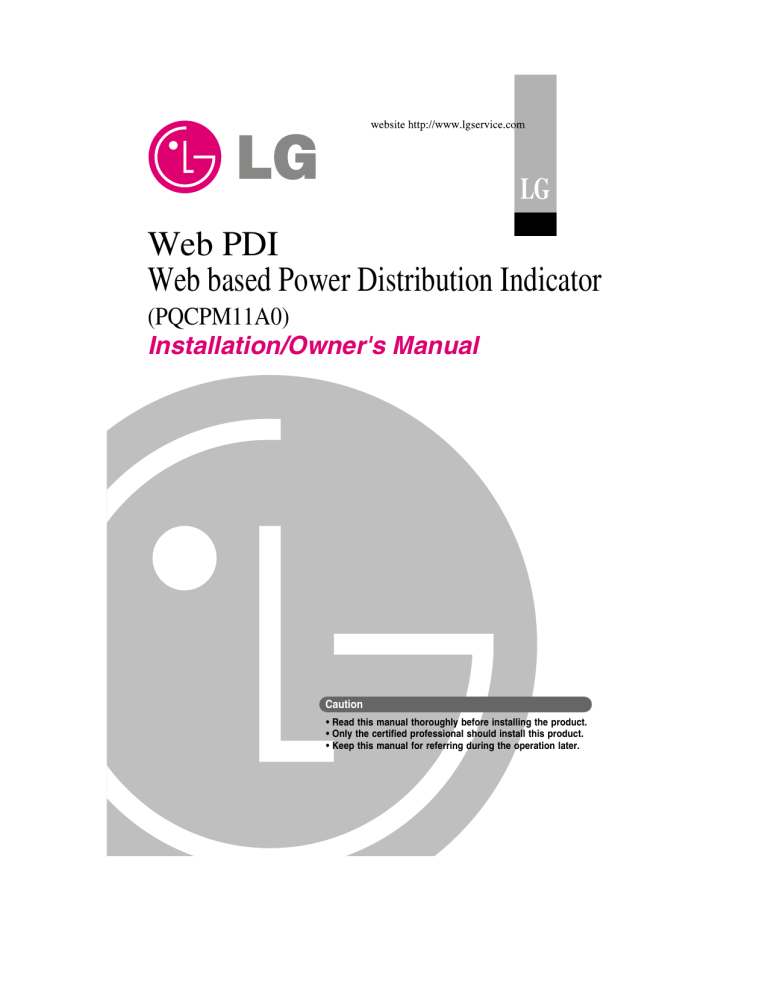

Web PDI

Web based Power Distribution Indicator

(PQCPM11A0)

Installation/Owner's Manual

Caution

• Read this manual thoroughly before installing the product.

• Only the certified professional should install this product.

• Keep this manual for referring during the operation later.

Advanced Control Platform

Contents

1. Web PDI Functions & Specification ...............1-1

Functions of Web PDI .....................................................................................................1-1

Denomination of Web PDI ..............................................................................................1-3

Components of Web PDI ................................................................................................1-4

Hardware Specification of Web PDI ..............................................................................1-5

2. Installing Web PDI ...........................................2-1

Wiring Digram..................................................................................................................2-2

Internal Wiring Digram....................................................................................................2-3

Installing the Web PDI and Connecting the cable........................................................2-4

• Fixing the Web PDI at the installation site ...............................................................2-4

• Connecting RS485 cable to Web PDI .......................................................................2-5

• Connecting Ethernet cable to Web PDI....................................................................2-6

• Connecting Power adaptor to Web PDI....................................................................2-7

Configuring the Web PDI network .................................................................................2-8

• Before configuring the Web PDI environment.........................................................2-8

• Setting the IP address..............................................................................................2-12

• Setting the gateway address...................................................................................2-13

• Setting the netmask address ..................................................................................2-14

• Checking the network environment .......................................................................2-15

Configuring the ACCS access .....................................................................................2-16

• Checking MS JAVA VM installation........................................................................2-16

• Checking the MS Explorer security setting ...........................................................2-18

Configuring indoor units information on ACCS.........................................................2-22

2

Web PDI

3. Functions of ACCS ..........................................3-1

Monitoring the air conditioner status............................................................................3-1

Monitoring power consumption ...................................................................................3-2

Setting the system ..........................................................................................................3-6

4. Reference .........................................................4-1

Troubleshooting..............................................................................................................4-1

Guide for Open source software ...................................................................................4-1

UTP cable connection chart...........................................................................................4-2

Installation/Owner's Manual

3

Note for safety

Note for safety

In order to prevent the user's injury or the damage of the product, keep the followings to use the product.

■ The service center or the professional installation agency cettified by our company should perform the installation because the professional technique is required to install.

■ The installer should be responsible for all problems related the installation occurred by the installation work without the installation certification, for which our company does not offer the free-of-charge service.

■ Using the product ignoring the note for safety may cause the misoperation of the product, which may cause the body's injury or the damage of the product. The note for safety is classified into two following items:

WARNING

This symbol indicates the possibility of death or serious injury.

CAUTION

This symbol indicates the possibility of injury or damage to properties only.

■ The symbols used at this manual have the following meanings:

Be sure not to do.

Be sure to follow the instruction.

4

Web PDI

Note for safety

WARNING

When installing

Any question about the product should be asked to the service center or the professional installation agency.

• The non-professional may cause accident, electric shock, explosion or injury.

Consult the service center or the professional installation agency about reinstalling the installed product.

• The non-professional may cause accident, electric shock, explosion or injury.

Use standardized parts.

• The non-standard part may cause electric shock, explosion, injury or failure.
