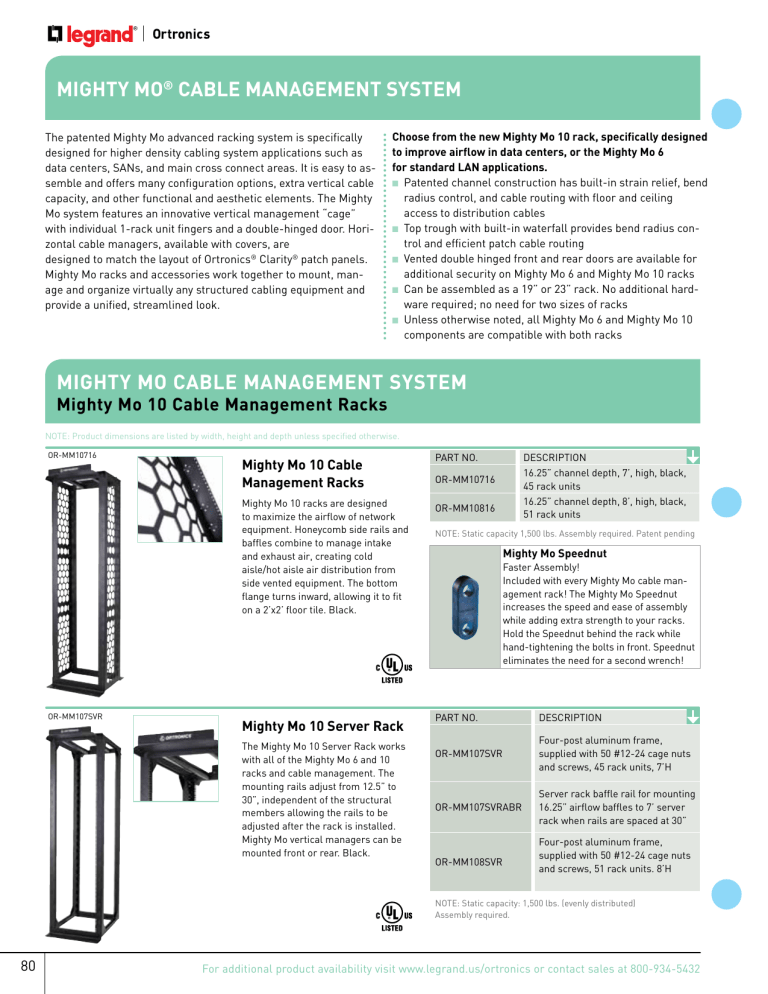

MIGHTy MO® CABLE MANAGEMENT SySTEM MIGHTy MO CABLE

MIGHTy MO® CABLE MANAGEMENT SySTEM MIGHTy MO CABLE

80

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

The patented Mighty Mo advanced racking system is specifically designed for higher density cabling system applications such as data centers, SANs, and main cross connect areas. It is easy to assemble and offers many configuration options, extra vertical cable capacity, and other functional and aesthetic elements. The Mighty

Mo system features an innovative vertical management “cage” with individual 1-rack unit fingers and a double-hinged door. Horizontal cable managers, available with covers, are designed to match the layout of Ortronics

®

Clarity

®

patch panels.

Mighty Mo racks and accessories work together to mount, manage and organize virtually any structured cabling equipment and provide a unified, streamlined look.

Choose from the new Mighty Mo 10 rack, specifically designed to improve airflow in data centers, or the Mighty Mo 6 for standard LAN applications.

n

Patented channel construction has built-in strain relief, bend radius control, and cable routing with floor and ceiling access to distribution cables n

Top trough with built-in waterfall provides bend radius control and efficient patch cable routing n

Vented double hinged front and rear doors are available for additional security on Mighty Mo 6 and Mighty Mo 10 racks n

Can be assembled as a 19” or 23” rack. No additional hardware required; no need for two sizes of racks n

Unless otherwise noted, all Mighty Mo 6 and Mighty Mo 10 components are compatible with both racks

MIGHTy MO CABLE MANAGEMENT SySTEM

Mighty Mo 10 Cable Management Racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM10716

Mighty Mo 10 Cable

Management Racks

Mighty Mo 10 racks are designed to maximize the airflow of network equipment. Honeycomb side rails and baffles combine to manage intake and exhaust air, creating cold aisle/hot aisle air distribution from side vented equipment. The bottom flange turns inward, allowing it to fit on a 2’x2’ floor tile. Black.

PART NO.

OR-MM10716

OR-MM10816

DESCRIPTION

16.25” channel depth, 7’, high, black,

45 rack units

16.25” channel depth, 8’, high, black,

51 rack units

NOTE: Static capacity 1,500 lbs. Assembly required. Patent pending

Mighty Mo Speednut

Faster Assembly!

Included with every Mighty Mo cable management rack! The Mighty Mo Speednut increases the speed and ease of assembly while adding extra strength to your racks.

Hold the Speednut behind the rack while hand-tightening the bolts in front. Speednut eliminates the need for a second wrench!

OR-MM107SVR

Mighty Mo 10 Server Rack

The Mighty Mo 10 Server Rack works with all of the Mighty Mo 6 and 10 racks and cable management. The mounting rails adjust from 12.5” to

30”, independent of the structural members allowing the rails to be adjusted after the rack is installed.

Mighty Mo vertical managers can be mounted front or rear. Black.

PART NO.

OR-MM107SVR

OR-MM107SVRABR

OR-MM108SVR

DESCRIPTION

Four-post aluminum frame, supplied with 50 #12-24 cage nuts and screws, 45 rack units, 7’H

Server rack baffle rail for mounting

16.25” airflow baffles to 7’ server rack when rails are spaced at 30”

Four-post aluminum frame, supplied with 50 #12-24 cage nuts and screws, 51 rack units. 8’H

NOTE: Static capacity: 1,500 lbs. (evenly distributed)

Assembly required.

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo 10 Rack Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM10VMD712

Mighty Mo 10 Cable

Management Cage with Door

Cage design promotes efficient routing of patch cords between racks. Hinged doors allow easy access during moves, adds, and changes. 16” wide cage creates a 12.25” gap between racks. 12” wide cage creates a 8.25” gap between racks for front-to-back routing of equipment cables and patch cords. Both are supplied with four spools and 12 bendlimiting clips. Black.

PART NO.

DESCRIPTION

OR-MM10VMD712 With door, 12.13” x 13” x 7’

OR-MM10VMD716 With door, 16.38” x 13” x 7’

OR-MM10VMD812 With door, 12.13” x 13” x 8’

OR-MM10VMD816 With door, 16.38” x 13” x 8’

NOTE: All cable managers include hardware necessary to mount the cage on the face of two Mighty Mo 6 or 10 racks.

Patent Numbers 6,946,605, 6,968,647 and 7,026,553

OR-MM10AB71612

Mighty Mo 10

Airflow Baffles

Mighty Mo 10 airflow baffles mount between racks and direct intake and exhaust air on side flow network equipment from cold aisle to hot aisle. Black.

PART NO.

OR-MM10AB71612

OR-MM10AB71616

OR-MM10AB73012

OR-MM10AB73016

OR-MM10AB81612

OR-MM10AB81616

OR-MM10AB83012

OR-MM10AB83016

DESCRIPTION

For use with 7’ x 16” Mighty Mo 10 rack and 12” wide Mighty Mo 10 cage

For use with 7’ x 16” Mighty Mo 10 rack and 16” wide Mighty Mo 10 cage

For use with 7’ Mighty Mo 10 Server

Rack and 12” wide Mighty Mo 10 cage when rails are spaced at 30” apart.

For use with 7’ Mighty Mo 10 Server

Rack and 16” wide Mighty Mo 10 cage when rails are spaced at 30” apart.

For use with 8’ x 16” Mighty Mo 10 rack and 12” wide Mighty Mo 10 cage

For use with 8’ x 16” Mighty Mo 10 rack and 16” wide Mighty Mo 10 cage

For use with 8’ Mighty Mo 10 Server

Rack and 12” wide Mighty Mo 10 cage when rails are spaced at 30” apart.

For use with 8’ Mighty Mo 10 Server

Rack and 16” wide Mighty Mo 10 cage when rails are spaced at 30” apart.

NOTE: Includes all hardware necessary to mount between two

Mighty Mo 10 racks. Not intended for use with Mighty Mo 6 racks.

Patent pending

OR-MM10VDA7248

Mighty Mo 10 Vented

Door Assemblies

Door design allows mounting to the front or rear of any Mighty Mo 6 or

Mighty Mo 10 rack. The double- hinged door pivots to the right or left and is easily removed. Black.

PART NO.

OR-MM10VDA7248

OR-MM10VDA7244

OR-MM10VDA8248

OR-MM10VDA8244

DESCRIPTION

7’ x 24” with 8.38” of clearance behind door for use with VMD-style vertical managers

7’ x 24” with 4.38” of clearance behind door for use without vertical managers

8’ x 24” with 8.38” of clearance behind door for use with VMD-style vertical managers

8’ x 24” with 4.38” of clearance behind door for use without vertical managers

NOTE: Door designed to work with Mighty Mo racks assembled in the 19” configuration.

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

81

82

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo 10 Rack Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM1070206VCT

Vertical Cable Trays for

Mighty Mo 10 Server Rack

Vertical cable trays consist of a pre-cut section of 2” x 6” Cablofil

® cable tray and mounting hardware designed to mount on the rack and manage distribution cables routing from the patch panel and equipment out of the rack. It mounts to the strut on the rack and can be adjusted front to back.

PART NO.

OR-MM1070206VCT

OR-MM1080206VCT

DESCRIPTION

Vertical cable tray 2” wide x 6” deep for the Mighty Mo 10 7 foot server rack

Vertical cable tray 2” wide x 6” deep for the Mighty Mo 10 8 foot server rack

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo 6 Cable Management Racks

OR-MM6710

OR-MM6716

Mighty Mo 6 Cable

Management Racks

Mighty Mo

®

6 racks are available in

6.5”, 10.5” and 16.25” channel depths.

The 16.25” size is designed specifically for large and heavy network equipment. The bottom flange on the

16.25” standard rack turns inward, allowing it to fit on a 2’ x 2’ floor tile.

PART NO.

OR-MM6706

OR-MM6710

DESCRIPTION

6.5” channel depth, 7’ high, black,

45 rack units

10.5” channel depth, 7’, high, black,

45 rack units

OR-MM6716

OR-MM6810

16.25” channel depth, 7’, high, black, 45 rack units

10.5”channel depth, 8’, high, black,

51 rack units

OR-MM6816

16.25” channel depth, 8’, high, black, 51 rack units

NOTE: Static capacity 1,500 lbs. Assembly required.

Patent No. D360,189

Mighty Mo Speednut

Faster Assembly!

Included with every Mighty Mo 6!

The Mighty Mo Speednut increases the speed and ease of assembly while adding extra strength to your racks. Hold the Speednut behind the rack while hand-tightening the bolts in front. Speednut eliminates the need for a second wrench! Finish tightening with a wrench and your rack is ready to load.

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo 6 Vertical Management

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM6VMD710

Mighty Mo 6 Cable

Management Cage with Door

Cage design promotes efficient routing of patch cords between racks.

Hinged doors allow easy access during moves, adds, and changes.

10” wide cage creates a 6.5” gap between racks. 6” wide cage creates a 2.5” gap between racks for frontto-back routing of equipment cables and patch cords. Both are supplied with four spools and 12 bend-limiting clips. Black.

PART NO.

DESCRIPTION

OR-MM6VMD706 With door, 6” x 8” x 7’

OR-MM6VMD710 With door, 10” x 13” x 7’

OR-MM6VMD806 With door, 6” x 8” x 8’

OR-MM6VMD810 With door, 10” x 13” x 8’

NOTE: All cable managers include hardware necessary to mount the cage on the face of two Mighty Mo 6 racks. The 6” wide model contains gusset brackets and is recommended for a single rack or end of a row.

Patent Numbers 6,946,605, 6,968,647 and 7,026,553

OR-MM6VMS704

Mighty Mo 6 Vertical

Cable Management

Cage with Cover

Cage design promotes efficient routing of patch cords between racks. Dual snap on hinged covers allow easy access during moves, adds, and changes. 6” wide cage creates a 2.5” gap between racks for front-to-back routing of equipment cables and patch cords. 6” wide cage is supplied with four spools and 12 bend-limiting clips. Black.

PART NO.

DESCRIPTION

OR-MM6VMS704 With cover, 4” x 7” x 7’

OR-MM6VMS706 With cover, 6” x 7” x 7’

OR-MM6VMS804 With cover, 4” x 7” x 8’

OR-MM6VMS806 With cover, 6” x 7” x 8’

NOTE: Includes all hardware necessary to mount cage on face of two Mighty Mo 6 racks, single rack or end of row.

Patent Numbers 6,946,605 and 7,026, 553

OR-MM6VML706

Mighty Mo 6 Vertical

Cable Management

Cage with Latches

Patented design promotes efficient routing of patch cords between racks. Hinged latches allow easy access during moves, adds, and changes. 6” wide cage creates a

2.5” gap between racks for front- to-back routing of equipment cables and patch cords. Black.

PART NO.

DESCRIPTION

OR-MM6VML704 With latches, 4” x 6” x 7’

OR-MM6VML706 With latches, 6” x 6” x 7’

NOTE: Includes all hardware necessary to mount cage on face of two Mighty Mo 6 racks, single rack or end of row.

Patent No. 6,365,834

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

83

84

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo Rack Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM10WFE

Mighty Mo 10

Waterfall Extension

PART NO.

OR-MM10WFE

DESCRIPTION

Increases the height of the front flange of the Mighty Mo waterfall by 2.25” when additional cable capacity is required.

Black

NOTE: Fits all Mighty Mo 10, 6 and 3 waterfalls

OR-60400614

OR-60400017

OR-MM6CMS8

Cable Management Rings

These black plastic rings flex at the end for easy insertion or removal of cross connect cables. They snap in place on the front and back of the

Mighty Mo racks. Black.

PART NO.

DESCRIPTION

OR-60400614 Snap-type, 1.75” X 6”, package of 14

OR-60400542 Snap-type, 1.75” X 6”, package of 2

OR-60400314 Snap-type, 1.75” x 3”, package of 14

OR-60400302 Snap-type, 1.75” x 3”, package of 2

NOTE : No hardware needed.

Cable Management Rings

These rings allow efficient routing of patch or cross connect cables between distribution racks. They can be mounted where needed on the front and back of the Mighty Mo racks. Black.

PART NO.

DESCRIPTION

OR-60400017 2” x 6”, package of 14, Black

OR-60400062 2” x 6”, package of 2, Black

NOTE : Includes mounting hardware.

Mighty Mo Cable

Management Spools

Cable management spools effectively manage excess copper or fiber cable slack. They mount at rack unit intervals, providing flexibility and proper bend radius for cables on the front of the 6” wide cage with door or on the front and rear of the 10” wide cage with door. Set of four. Black.

PART NO.

OR-MM6CMS10

OR-MM6CMS8

OR-MM6CMS6

DESCRIPTION

11” long for 10” vertical management cage with door

8” long for 10” vertical management cage with door

6” long for 6” vertical management cage with door

OR-MM6BLC

Mighty Mo Bend Limiting Clip

Bend limiting clips snap on to any finger on the vertical management cage to provide bend limitation for fiber jumpers entering and exiting the cage. Set of 12. Black.

PART NO.

OR-MM6BLC

DESCRIPTION

3.25” long for vertical management cages with door or cover

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo Rack Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM6CBL10

Mighty Mo Channel

Bend Limiters

Mighty Mo channel bend limiters clip onto the top edge of Mighty Mo channels providing the proper bend radius for cables entering the channel. Set of 2. Black.

PART NO.

OR-MM6CBL06

OR-MM6CBL10

OR-MM6CBL16

DESCRIPTION

For use with Mighty Mo racks with

6.5” channels

For use with Mighty Mo racks with

10.5” channels

For use with Mighty Mo racks with

16.25” channels

OR-MMPDUMBT

OR-60400687

Mighty Mo PDU

Mounting Bracket Kit

Enables the mounting of toolless

(button mount) PDUs to the side of a

Mighty Mo rack.

PART NO.

DESCRIPTION

OR-MMPDUMBT Mighty Mo PDU Mounting Bracket Kit

Mighty Mo Vertical

Management Bracket Kit

Vertical management bracket kit includes 4 brackets and all the hardware needed to mount 2 Mighty Mo 6 vertical managers to a standard EIA rack. Black.

PART NO.

OR-60400687

DESCRIPTION

Kit consists of 4 brackets, 8 panel mounting screws and 4 cage mounting screws

OR-MM6CRB06

OR-MM6CRB16

OR-MM6CRB10

OR-MM10CRBSVR

Mighty Mo Cable Runway

Mounting Brackets

Mounts to top of either the

Mighty Mo 6 or Mighty Mo 10 racks.

Provides a mounting location for 6”

- 18” ladder racking.

PART NO.

OR-MM6CRB06

OR-MM6CRB10

OR-MM6CRB16

DESCRIPTION

For rack with 6.5” channel depth

For rack with 10.5” channel depth

For rack with 16.25” channel depth

OR-MM10CRBSVR For MM10 server rack

OR-MM10CRBRSVR For rear of MM10 server rack

OR-MM6BDC10 OR-MM6BDC16

Mighty Mo Rack

Base Dust Cover

Prevents dust and debris from accumulating in rack base. Scored for bending to clear cables from floor up to channel. Black.

PART NO.

OR-MM6BDC06

OR-MM6BDC10

OR-MM6BDC16

DESCRIPTION

For 6.5” channel standard rack

For 10.5” channel standard rack

For 16.25” channel standard rack

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

85

86

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo Rack Accessories

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-MM6CEK10

Mighty Mo Runway

Ceiling Extension Kit

Mounts on the top of Mighty Mo 6 racks. The kit extends one channel

24” and is supplied with a cover to hide the cables. Black.

PART NO.

OR-MM6CEK06

OR-MM6CEK10

OR-MM6CEK16

DESCRIPTION

For rack with 6.5” channel depth, one per kit with cover

For rack with 10.5” channel depth, one per kit with cover

For rack with 16.25” channel depth, one per kit with cover

NOTE: Extension uses rack hardware for mounting

OR-MM6EP710 OR-MM6EP706

Mighty Mo End Panel

The end panel is used to finish the end of a row of Mighty Mo racks.

It mounts flush and provides a surface for the vertical cable management channel while concealing cables in the rack channel. Black.

Standard

For use with 6” Mighty Mo 6 vertical cable managers

PART NO.

OR-MM6EP706

OR-MM6EP710

OR-MM6EP716

OR-MM6EP810

OR-MM6EP816

DESCRIPTION

For 7’ rack with 6.5” channel depth

For 7’ rack with 10.5” channel depth

For 7’ rack with 16.25” channel depth

For 8’ rack with 10.5” channel depth

For 8’ rack with 16.25” channel depth

NOTE: Includes mounting hardware

Narrow

For use with 4” Mighty Mo 6 vertical cable managers*

PART NO.

OR-MM6EPN706

OR-MM6EPN710

OR-MM6EPN716

OR-MM10EPN730

OR-MM6EPN810

OR-MM6EPN816

DESCRIPTION

For 7’ rack with 6.5” channel

For 7’ rack with 10.5” channel

For 7’ rack with 16.25” channel

For 7’ Mighty Mo 10 Server rack rails set at 30”

For 8’ rack with 10.5” channel

For 8’ rack with 16.25” channel

NOTE: Includes mounting hardware

*To use the narrow end panels with 10” or 12” vertical managers, the OR-MM10EPS end support bracket kit must be installed.

PART NO.

OR-MM10EPS

DESCRIPTION

End panel support bracket kit

OR-MM6CT4RUK

OR-MMIPK

Mighty Mo 6 Cable Trough

For supporting fiber cables at the bottom of Mighty Mo racks. The kit includes an extension that bridges the space between racks. Black

PART NO.

OR-MM6CT4RU

DESCRIPTION

Cable trough, 4 rack unit

OR-MM6CT4RUK Cable trough kit, 4 rack unit

NOTE : Includes mounting hardware.

Mighty Mo Isolation Pad Kit

Isolates Mighty Mo racks from concrete floors for effective bonding

& grounding.

PART NO.

OR-MMIPK

DESCRIPTION

Isolation pad kit for Mighty Mo racks

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo Horizontal Management

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Ortronics

®

Mighty Mo cable management panels are optimized to organize patch cords vertically and horizontally on

Mighty Mo racks. They will also mount on any standard 19” rack. The finger design encourages defined and traceable routing of individual patch cords.

Mighty Mo 6 Horizontal Management Panels

OR-MM6HMF1RU OR-MM6HMF2RU

OR-MM6HMF4RU

OR-MM6HM62RU

OR-MM6HM82RU

OR-MM6HM61RU

OR-MM6HM81RU

OR-MM6HM6D2RU

PART NO.

OR-MM6HMF1RU

OR-MM6HMF2RU

OR-MM6HMF4RU

DESCRIPTION

Multiple fingers, cover, one rack unit

(1.75” x 19”), Black

Multiple fingers, cover, two rack units

(3.5” x 19”), Black

Multiple fingers, cover, four rack units

(7.0” x 19”), Black

OR-MM6HM61RU

OR-MM6HM62RU

OR-MM6HM81RU

Six-port finger spacing, cover, one rack unit (1.75” x 19”), Black

Six-port finger spacing, cover, two rack units (3.5” x 19”), Black

Eight-port finger spacing, cover, one rack unit (1.75” x 19”), Black

OR-MM6HM82RU

Eight-port finger spacing, two rack units (3.5” x 19”), Black

OR-MM6HM6D2RU

Six-port finger spacing, double-sided, covers, two rack units (3.5” x 19”),

Black

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

87

88

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Equipment Shelves for Mighty Mo Racks

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

OR-60400355

OR-60400517

OR-60400655

OR-604045681

OR-60400538

See pages 124-127 for additional shelves for Mighty Mo and standard 19” racks

Double Equipment Shelves for Mighty Mo Racks

Ortronics double equipment shelf supports miscellaneous equipment, test gear, etc. The double shelves work with

Mighty Mo racks with 6.5” deep channels. Shelf width is

17”. Black.

Double Equipment Shelves for Mighty Mo Racks

Ortronics double equipment shelf supports miscellaneous equipment or test gear. The double shelf works with

Mighty Mo racks with 6.5” deep channels when assembled in a 23” configuration. Shelf width is 21.37”. Black.

Double Equipment Shelves for Mighty Mo Racks

Ortronics extra width double equipment shelf is 18.75” wide in front and back; usable width between mounting flanges is 17.5”. This shelf works with Mighty Mo racks with 6.5” deep channels. Black.

PART NO.

OR-60400355

OR-60400517

DESCRIPTION

19” x 5.25” x 24”, 150 lbs capacity

23” x 5.25” x 24”, 150 lbs capacity

OR-60400655 19” x 5.25” x 24”, 150 lbs capacity

NOTE: Shelf is slotted to accept the Ortronics monitor strap kit

OR-70700126. Includes #12-24 mounting hardware.

Four Point Equipment Shelf for Mighty Mo Racks and Cabinets

Ortronics four point equipment shelf supports miscellaneous equipment or test gear. The one unit shelf works with Mighty Mo racks with all depth channels and Mighty Mo cabinets 24” and deeper.

Shelf is 17.25” wide. Black.

PART NO.

OR-604045681

DESCRIPTION

19” x 1.72” x 20”, 100 lbs capacity

NOTE: Shelf is slotted to accept the Ortronics monitor strap kit OR-

70700126. Includes #12-24 mounting hardware.

Mighty Mo Server Rack

Equipment Shelf

The Mighty Mo server rack equipment shelf has a fixed front flange with an infinitely adjustable rear flange that allows for secure four point mounting as deep as 30”.

Shelf width is 17.25”. Black.

PART NO.

OR-60400538

DESCRIPTION

19” x 1.7” x 30”, 200 lbs capacity

NOTE: Shelf is slotted to accept the Ortronics monitor strap kit OR-

70700126. Includes #12-24 mounting hardware.

OR-70700126

Mighty Mo Monitor Strap Kit

The monitor strap kit consists of hook and loop straps which can secure a monitor with a base of any size or shape to all equipment shelves on this page. The monitor screen remains fully adjustable. Black.

PART NO.

OR-70700126

DESCRIPTION

Hook and loop type strap kit

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

MIGHTy MO

®

CABLE MANAGEMENT SySTEM

Mighty Mo Overhead Cable Pathway Rack

NOTE: Product dimensions are listed by width, height and depth unless specified otherwise.

Mighty Mo overhead cable pathway racks provide cable management and an innovative mounting method for 19” rack mount copper and fiber panels and cabinets. The pathway racks allow horizontal connectivity to be supported by the overhead pathway freeing up valuable rack or cabinet space below.

OR-60401001

Mighty Mo Overhead

Cable Pathway Rack

The Mighty Mo overhead cable pathway racks come with everything needed to mount the bracket to the side of

Homaco runway with 1-1/2” stringers or any Cablofil cable tray 2” or deeper. Black

PART NO.

OR-60401001

OR-60401015

OR-60401089

DESCRIPTION

2 rack units, 23.6”W x 7.4”H x 9”D,

90 lbs. capacity

5 rack units, 23.6”W x 12.6”H x 9”D,

90 lbs. capacity

8 rack units,23.6”W x 18.1”H x 9”D,

90 lbs. capacity

MIGHTy MO CABLE MANAGEMENT SySTEM

Mighty Mo Telecom Enclosure

The Mighty Mo telecom enclosure combines advanced cable management with security and flexibility to change the way you bring high performance to the desktop. Based on the foundation of Mighty Mo technology, the telecom enclosure provides capacity for both active and passive equipment and can support up to 48 users.

OR-MMTECSG22

OR-MMTECFCBP

OR-MMTECFSP

Mighty Mo Ceiling Mount

Telecom Enclosure

The Mighty Mo ceiling mount telecom enclosure has a unique patent pending swing gate design that allows for easy access to patching and equipment by simply opening the front cover. The swing-out access supports easy re-termination and includes dampening cylinders to control the speed of opening. The attractive exterior blends well with office decor and a lockable front door provides security and protection in public areas.

Built-in cable management supports and organizes cables, ensuring proper bend radius.

Approved to UL-2043 for use in air handling spaces.

PART NO.

OR-MMTECSG22

DESCRIPTION

Mighty Mo telecom enclosure, ceiling mount, 23.50” W x 23.50” H x 20.61” D,

10 rack units, 80 lbs. capacity, Beige

NOTE: Patent pending

Ceiling Mount Accessories

PART NO.

OR-MMTECFCBP

DESCRIPTION

Plate Kit - includes Fan Plate with

100 CFM fan, guard, 3 ft. cord with plug, Cable Brush Plate, and mounting hardware, Black

OR-MMTECFSP

Fire Stop Cable Plate Kit - includes intumescent foam and mounting hardware. Set of 2, Beige

OR-MMTEHMR2RU

Cable Management Panel

Double-sided cable management panel with front rings to manage patch cords and a rear trough with slots to protect and route terminated cables.

Cable Management Accessory

PART NO.

DESCRIPTION

OR-MMTEHMR2RU

Cable management panel for the

Mighty Mo telecom enclosure, 19.00”

W x 3.47” H x 6.75” D, 2 rack units.

For additional product availability visit www.legrand.us/ortronics or contact sales at 800-934-5432

89

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
