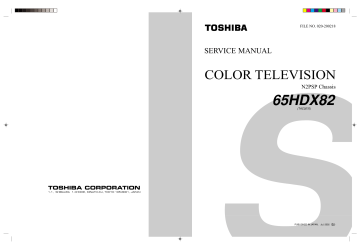

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

FILE NO. 020-200218

SERVICE MANUAL

COLOR TELEVISION

N2PSP Chassis

65HDX82

(TAC0270)

PUBLISHED IN JAPAN, Jul. 2002 So

TABLE OF CONTENTS

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS .............................................................................................................................................. 3

CRT ASSEMBLY REPLACEMENT AND MOUNTING ................................................................................................... 4

PICTURE TUBE COMPONENTS ADJUSTMENT .......................................................................................................... 6

REPLACEMENT OF THE CRT ....................................................................................................................................... 9

SERVICE MODE .......................................................................................................................................................... 10

ELECTRICAL ADJUSTMENT ...................................................................................................................................... 12

CONVERGENCE ADJUSTMENT ................................................................................................................................ 14

SCREEN AND MIRROR ALIGNMENTS ...................................................................................................................... 17

CIRCUIT CHECKS ....................................................................................................................................................... 18

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA .................................................................................................................................... 19

LOCATION OF CONTROLS ......................................................................................................................................... 20

PROGRAMMING CHANNEL MEMORY ....................................................................................................................... 22

MECHANICAL DISASSEMBLY .................................................................................................................................... 23

CHASSIS REPLACEMENT PARTS LIST ..................................................................................................................... 27

PC BOARDS BOTTOM VIEW ....................................................................................................................................... 51

TERMINAL VIEW OF TRANSISTORS ......................................................................................................................... 64

CIRCUIT BLOCK DIAGRAM ........................................................................................................................................ 67

SPECIFICATIONS .................................................................................................................................................... END

APPENDIX:

CIRCUIT DIAGRAM

– 2 –

CHAPTER 1 GENERAL ADJUSTMENTS

SAFETY INSTRUCTIONS

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRECAU-

TION” AND “PRODUCT SAFETY NOTICE” INSTRUCTIONS BELOW.

X-RAY RADIATION PRECAUTION

1. Excessive high voltage can produce potentially hazardous

X-RAY RADIATION. To avoid such hazards, the high voltage must not be above the specified limit. The nominal value of the high voltage of this receiver is (A) kV at zero beam current (minimum brightness) under a 120V AC power source. The high voltage must not, under any circumstances, exceed (B) kV.

Refer to table-1 for high voltage (A), (B).

(See SETTING & ADJUSTING DATA on page 19)

Each time a receiver requires servicing, the high voltage should be checked following the HIGH VOLTAGE CHECK procedure in this manual. It is recommended that the reading of the high voltage be recorded as a part of the service record. It is important to use an accurate and reliable high voltage meter.

2. This receiver is equipped with a Fail Safe (FS) circuit which prevents the receiver from producing an excessively high voltage even if the B+ voltage increases abnormally. Each time the receiver is serviced, the FS circuit must be checked to determine that the circuit is properly functioning, following the FS CIRCUIT CHECK procedure in this manual.

3. The only source of X-RAY RADIATION in this TV receiver is the picture tube. For continued X-RAY RADIATION protection, the replacement tube must be exactly the same type tube as specified in the parts list.

4. Some part in this receiver have special safety-related characteristics for X-RAY RADIATION protection. For continued safety, parts replacement should be undertaken only after referring to the PRODUCT SAFETY NOTICE below.

SAFETY PRECAUTION

WARNING : Service should not be attempted by anyone unfamiliar with the necessary precautions on this receiver. The following are the necessary precautions to be observed before servicing this chassis.

1. An isolation Transformer should be connected in the power line between the receiver and the AC line before any service is performed on the receiver.

2. Always discharge the picture tube anode to the CRT conductive coating before handling the picture tube. The picture tube is highly evacuated and if broken, glass fragments will be violently expelled. Use shatter proof goggles and keep picture tube away from the unprotected body while handling.

3. When replacing a chassis in the cabinet, always be certain that all the protective devices are put back in place, such as; non-metallic control knobs, insulating covers, shields, isolation resistor-capacitor network etc.

4. Before returning the set to the customer, always perform an AC leakage current check on the exposed metallic parts of the cabinet, such as antennas, terminals, screwheads, metal overlays, control shafts etc. to be sure the set is safe to operate without danger of electrical shock. Plug the AC line cord directly into a 120V AC outlet (do not use a line isolation transformer during this check). Use an AC voltmeter having 5000 ohms per volt or more sensitivity in the following manner:

Connect a 1500 ohm 10 watt resistor, paralleled by a 0.15

µF, AC type capacitor, between a known good earth ground

(water pipe, conduit, etc.) and the exposed metallic parts, one at a time. Measure the AC voltage across the combination of 1500 ohm resistor and 0.15

µF capacitor. Reverse the AC plug at the AC outlet and repeat AC voltage measurements for each exposed metallic part. Voltage measured must not exceed 0.3 volts rms. This corresponds to 0.2 milliamp. AC. Any value exceeding this limit constitutes a potential shock hazard and must be corrected immediately.

Good earth ground such as a water pipe, conduit, etc.

PRODUCT SAFETY NOTICE

AC VOLTMETER

0.15

µF

1500 ohm

10 watt

Place this probe on each exposed metallic part.

Many electrical and mechanical parts in this chassis have special safety-related characteristics. These characteristics are often passed unnoticed by a visual inspection and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the international hazard symbols on the schematic diagram and the parts list.

Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts which do not have the same safety characteristics as specified in the parts list may create shock, fire, X-ray radiation or other hazards.

– 3 –

CRT ASSEMBLY REPLACEMENT AND MOUNTING

CAUTION : DO NOT LOOSEN THE HEX HEAD BOLTS WITH SPRINGS (12 PCS), BECAUSE THOSE ARE FOR

SEALING OF CRT COOLANT.

R G B

8 o’clock

4 o’clock

Attention Serviceman

The Hex Head

Bolts with

Springs. (see sketch) used on

CRT assembly, are “NOT”

Adjustment Screws

DO NOT LOOSEN-FLUID

LEAKAGE WILL OCCUR.

4 Screws

4 Screws

Lens Assembly

CRT Assembly

CRT Anode Cap Assembly

S.V.M. Coil

CRT DRIVE Board

CRT Mounting

Deflection Yoke and Conver Yoke

Lens and Neck Components View

– 4 –

TO REMOVE CRT (Same procedure for R, G, B)

1. Remove CRT DRIVE Board, S. V. M. COIL and

DEF. YOKE from CRT.

2. Remove Lens Assembly.

3. Detach CRT Anode Cap from CRT.

4. Remove CRT Assembly from CRT Mounting.

CRT REPLACEMENT (Same procedure for R, G, B)

Reverse the removal procedures except the followings.

1. Anode Cable should be replaced with new one.

See “SERVICING PRECAUTIONS” shown below.

2. Install silicon (T461B) to the CRT, replace the Anode cable and put enough silicon again on around the Anode Cap as illustrated.

CAUTION: Align the Anode cable as illustrated on page

4.

ADJUSTING PROCEDURE IN REPLACING CRT

1. R.G.B. FOCUS ADJUSTMENT (page 7.)

2. PICTURE TILT ADJUSTMENT (page 7.)

3. USER CONVERGENCE CENTER CHECK

(See owner's manual.)

4. CENTERING ADJUSTMENT (page 7.)

5. CONVERGENCE ADJUSTMENT (page 14.)

6. WHITE BALANCE ADJUSTMENT (page 13.)

Adjustments are complete.

Silicon

(On shaded area)

TSE3843W #23960136

Anode Cap

2 ~ 5 mm

15 ~ 25 mm

SERVICING PRECAUTIONS

■ Do not use a magnetized screw driver for screws of Deflection Yoke and Velocity Modulation Coil to avoid magnetization of electron gun.

Magnetization of electron gun will degrade basic function and result in unbalance of right and left shift of user static convergence, and result in no variable quantity.

■ When replacing the anode cap assembly (CRT) or anode lead assembly (F.B.T.), remove the anode lead holder from old one and attach the holder again to new anode lead.

■ Check the point of anode lead in a straight line, if it is winding, please revise it.

Screw for

D.Y

Screw for SVM coil

Anode lead holder

– 5 –

WARNING : BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE-

CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

PICTURE TUBE COMPONENTS ADJUSTMENT

DESCRIPTION OF NECK COMPONENTS

� Deflection yoke and convergence yoke

The position on the neck is required most front

(CRT funnel side) and the screw is fastened after rotating yoke adjusting picture tilt.

� Centering magnet

After adjusting picture tilt, picture position is finally fixed by this magnet.

In order to get maximum margin of user convergence control for center of screen, this magnet have to be used for center convergence adjustment.

PREPARATION

Operate the receiver for at least 5 minutes.

– 6 –

R, G, B FOCUS ADJUSTMENT

1. Before adjusting the R, G, B FOCUS, remove the 4 screws of Lens Assembly which is fixed on the CRT Assembly.

(See page 4.)

Then turn around the Lens Assembly by 180˚ to adjust the fastening screw (Fig. a) and fasten the 4 screws to secure Lens Assembly.

2. Select the adjustment mode. (See page 10.)

3. Press “7” button to display the built-in cross-hatch.

4. Press “0” and “RTN” buttons to make the picture a single

Red color.

100 button ................ to erase Red color

0 button .................... to erase Green color

RTN button .............. to erase Blue color.

5. Loosen the fasten screw and adjust Red lens focus to best focusing point of picture center. Then fasten the screw.

(See Fig. a.)

TILT ADJUSTMENT

Rotate R, G, B deflection yoke so that picture becomes horizon, then fasten screw.

CENTERING ADJUSTMENT

1. Stretch a thread between two center of screen edge (top and bottom, left and right).

Fig. a

6. Adjust FOCUS VR “R” of FOCUS PACK to find best focusing point of picture center.

7. Repeat steps 3 to 5 for Green and Blue colors.

2. Receive NTSC.

Then select SERVICE MODE. (See Page 10.)

3. Select CONVERGENCE ADJUSTING mode, and press

"7" button to display the built-in cross-hatch pattern.

Move Cursol and recognize horizontal line indicated Y:4.

This line is vertical center. Push "9" button to display the vertical stripes, and recognaize horizontal center.

4. Perform VCEN adjustment. (See page 12.)

5. Adjust G centering magnet so that the cross-bar pattern center comes to screen center.

6. Perform HEIGHT adjustment . (See page 13.)

7. Perform VERT. LINEARITY adjustment.

8. Perform WIDTH adjustment. (See page 12.)

9. Check whole quality of green line.

10. Adjust R, B centering magnet so that the cross-bar pattern center comes to screen center.

– 7 –

LOCATION OF SCREEN AND FOCUS VR’S

Speaker grille

R G B

SCREEN VR

FOCUS VR

– 8 –

REPLACEMENT OF THE CRT

Service parts are provided for each R, G and B.

The contents of the parts are as follows.

R

23008174

G

23008175

HITACHI

CRT

REPLACEMENT OF HIGH VOLTAGE CABLE

ANODE LEAD

RUBBER BOOT

LEAD HOLDER

B

23008176

1. When replacing Anode Lead or Anode Cap with new one, remove Lead Holder from old lead as shown in figure below, and put it on new lead. Do not throw away Lead

Holder.

NOTE : THE LEAD HOLDER IS ATTACHED TO TPA5007

(Z450), BUT IS NOT ATTACHED TO ANODE

LEAD AND ANODE CAP. RUBBER BOOT IS AT-

TACHED TO ANODE LEAD AND ANODE CAP.

2. Detaching Lead Holder

RUBBER BOOT

OLD

ANODE LEAD or

ANODE CAP

Fig. a

Z450 TPA5007

LOCK LEAD HOLDER Cut here rubber boot and lead together to detach Lead Holder.

Fig. b

– 9 –

1. ENTERING TO SERVICE MODE

1) Press MUTE button twice on Remote Control.

SERVICE MODE

2) Press MUTE button again to keep pressing.

3) While pressing the MUTE button, press MENU button on TV set.

S

MUTE

2. DISPLAYING THE ADJUSTMENT MENU

1) Press MENU button on TV.

Service mode

S

Press

Press

Adjustment mode

Item

Data

(Service mode display)

3. KEY FUNCTION IN THE SERVICE MODE

The following key entry during display of adjustment menu provides special functions.

Screen adjustment mode ON/OFF:

Selection of the adjustment items :

Change of the data value :

Adjustment menu mode ON/OFF :

TV (ANT)/VIDEO button (on TV)

Channel s/t (on TV or Remote)

Volume s/t (on TV or Remote)

MENU button (on TV)

Initialization of the memory (QA02) : RECALL+Channel button on TV (s)

Initialization of the self diagnostic data: RECALL+Channel button on TV (t)

“RCUT” selection :

“GCUT” selection :

“BCUT” selection :

“SCNT” selection :

“SCOL” selection :

“TNTC” selection :

Convergence adj :

Self diagnostic display :

1 button

2 button

3 button

4 button

5 button

6 button

7 button

9 button

– 10 –

4. SELECTING THE ADJUSTING ITEMS

1) Every pressing of CHANNEL s button in the service mode changes the adjustment items in the order of table-2.

(t button for reverse order)

Refer to table-2 for preset data of adjustment mode.

(See SETTING & ADJUSTING DATA on page 19)

5. ADJUSTING THE DATA

1) Pressing of VOLUME s or t button will change the value of data in the range from 00H to FFH. The variable range depends on the adjusting item.

6. EXIT FROM SERVICE MODE

1) Pressing POWER button to turn off the TV once.

INITIALIZATION OF MEMORY DATA OF QA02

After replacing QA02, the following initialization is required.

1. Enter the service mode, then select any register item.

2. Press and hold the RECALL button on the Remote, then press the CHANNEL s button on the TV. The initialization of QA02 has been complated.

3. Check the picture carefully. If necessary, adjust any adjustment item above.

Perform “Programming Channel Memory” on the owner's manual.

CAUTION: Never attempt to initialize the data unless QA02 has been replaced.

7. SELF DIAGNOSTIC FUNCTION

1) Press “9” button on Remote Control during display of adjustment menu in the service mode.

The diagnosis will begin to check if interface among IC’s are executed properly.

2) During diagnosis, the following displays are shown.

SELF CHECK

NO. 23 * * * * * *

POWER : 000

BUS LINE : OK

BUS CONT : OK

BLOCK : MAIN SUB

SET ID : 01

EEP VER : 02

OPT1 : 05 OPT2 : 70

� Part number of microprocessor (QA01)

� Operation number of protection circuit (current limiter) . . . . “000” is normal.

� BUS line check

“OK” ................... Normal

“SCL-GND” or “NG” ........... SCL-GND short circuit

“SDA-GND” or “NG” ........... SDA-GND short circuit

“SCL-SDA” or “NG” ............ SCL-SDA short circuit

� BUS line ACK (acknowledge) check

“OK” ..................... Normal

Display of Location Number . . . . NG

(Display example)

“QA02 NG”, “H001 NG”, “Q501 NG” etc.

� Sync. signal check

Note: The indication of failure place is only one place though failure places are plural. When repair of a failure place finishes, the next failure place is indicated. (The order of priority of indication is left side.)

Green display ..... Normal

Red display ........ NG

MAIN ........ Main sync

SUB .......... Sub sync (when turn on the PIP)

� ID code for TV Set

� Version of "EEP"

� Data for "OPT"

– 11 –

ELECTRICAL ADJUSTMENT

ITEM

ƒH

(free-running frequency of Hor.

oscillator)

VERTICAL POSI-

TION (VCEN)

ADJUSTMENT PROCEDURE

1. Receive NTSC signal.

2. Short the terminal “TP +9V ” and the terminal “ TP (Free run) ” on the signal board with a jumper wire.

3. Connect the probe of frequency counter to the lead of R426 and GND.

4. Adjust the frequency to “33.75

±0.2 kHz” by turning R4034 on DPC Board.

5. Disconnect the shorted wire, then confirm that the picture is synchronized.

1. Receive NTSC signal.

2. Connect he probe of digital voltmeter to TP-V and TP-G on SIGNAL Board.

3. Call up the adjustment mode display, then select the item VCEN.

4. Press the VOLUME s or t button to get the voltage 0±10 mV.

PICTURE POSITION

(HPOS)

1. Receive NTSC signal.

2. Call up the adjustment mode display.

3. Select the item “HPOS”, and adjust the data to “80H”.

4. Adjust the picture position alternately by turning CENTERING MAGNETS for proper picture position.

5. Check the picture with off-air signal.

WIDTH

(WID)

1. Receive NTSC signal.

2. Select the "FULL" mode by PIC SIZE button on Remote Control.

3. Call up the adjustment mode display, then select the item WID.

4. Press the VOLUME s or t button to get the picture so that left and right eddes of video signal begin to lack.

5. Press the VOLUME s button to advance the data by 8 steps.

NOTE: Check the horizontal picture position is correct.

SUB-BRIGHTNESS

(BRTC)

1. Receive the air signal or aux Video signal.

2. Enter sports mode on user menu.

3. Enter the service mode, then select “BRTC” register.

4. Adjust the data to set dark area of picture to proper level.

SUB-COLOR

(SCOL)

1. Receive color-bar signal from color-bar generator.

2. Adjust the BRIGHTNESS and CONTRAST to the center (RESET status).

3. Connect oscilloscope to TP501on the MAIN board.

Blue

4. Enter the service mode, then select “SCOL”.

5. Adjust the data value to achieve 1.8V

0-p

of blue bar on scope.

6. Check the picture with off-air signal.

0

Magenta

2

3 (1.8V

0-P

)

– 12 –

HEIGHT

(HIT)

ITEM

VERTICAL LINEARITY

(VLIN)

(FULL mode only)

ADJUSTMENT PROCEDURE

1. Receive NTSC signal.

2. Select the "FULL" mode by PIC SIZE button on Remote Control.

3. Call up the adjustment mode display and select the item HIT.

4. Press the VOLUME s or t button to get the picture so that top and bottom of video signal begin to lack.

5. Press the VOLUME s button to advance the data by 8 steps.

Note: Check the vertical picture position is correct.

Adjust the data of height after vertical linearty.

1. Receive cross-hatch pattern.

2. Call up the adjustment mode display, then select the item VLIN.

3. Press the VOLUME s or t button to obtain the picture of the best linearity.

4. Then readjust the item HIT.

WHITE BALANCE

(RCUT)

(GCUT)

(BCUT)

(RDRV)

(BDRV)

1. Press RESET button on TV or remote hand set.

2. Call up the adjustment mode display, then adjust the data of items RCUT, GCUT and BCUT to “80”.

3. Press TV (ANT)/VIDEO button on TV.

4. Gradually rotate R, G and B SCREEN volume of FOCUS PAC (page 9) clockwise or counterclockwise until the raster appears slightly on the CRT through the each lens, and leave them.

(Look into the lens in order to check the raster.)

5. Press TV (ANT)/VIDEO button on TV again.

6. Exit from service mode.

7. Receive white laster pattern signal, and adjust the contrast to the minimum to make white picture to low light.

8. Adjust the data of items RCUT, GCUT and BCUT for low light area.

9. Adjust the contrast to the maximum to make white picture to high light.

10. Adjust the data of items RDRV and BDRV Controls for proper white-balanced picture in high light area.

11. Check the white balance in both low and high light areas. If necessary, perform again steps from 7 to 9.

– 13 –

CONVERGENCE ADJUSTMENT

Adjust convergence from center to circumference in order.

KEY FUNCTION IN THE CONVERGENCE ADJUSTMENT:

Lord BACK UP DATA:

Up :

Selet Green color:

Left :

Blinking of cursor ON/OFF:

Right:

Adjust mode ON/OFF:

Down:

Vertical stripe ON/OFF

Erase Green line:

Erase Red line:

Erase Blue line:

1 button

2 button

3 button

4 button

5 button

6 button

7 button

8 button

9 button

0 button

100 button

ENT button

Note:

Adjusting procedure in replacing convergence board.

1. User convergence center check. Make sure the best convergence setting is about the center of adjustable range.

2. CENTERING ADJUSTMENT

3. PICTURE POSITION ADJUSTMENT

4. HIT, WID ADJUSTMENT

5. CONVERGENCE ADJUSTMENT

6. Execute TOUCH FOCUS following instructions displayed on the screen after finishing CONVERGENCE ADJUST-

MENT.

7. If TOUCH FOCUS ERROR is displayed after finishing

TOUCH FOCUS, the method of CROSS-HATCH PAT-

TERN after CONVERGENCE adjustment is different from what is exhibited on the right figure, or HARDWARE is out of order.

1. Select the adjustment mode following the steps on page

10.

RCUT

40H

2. Press “7” button to display the built-in cross-hatch pattern and press "9" button to display the vertical stripes.

3. If there is need to load BACKUP DATA, push "1" button, and then push "ENTER" button according to following message. Convergence become adjusted state at factory by this action.

If there is no need, pass this process.

Never to use this function to new convergence board, because BACKUP DATA is not exist.

4. Adjustment around cursor can be done.

The pattern includes three colors (R, G, B).

The cursor should be blinking in Red.

This means that the Red color is adjustable.

5. Press “3” button to select Green color to be adjusted.

6. Press “5” button to stop the blinking of cursor.

7. Press “2 (up)”, “8 (down)”, “4 (left)” or “6 (right)” to obtain the correct cross-hatch pattern as above.

If necessary, the specified color line can be erased from the screen.

100 button ...................... to erase Red line

0 button ...................... to erase Green line

CH RTN button ...................... to erase Blue line

8. Press “5” button to make the cursor blinking.

9. Press “2”, “8”, “4”, “6” buttons to move the cursor to other point to be adjusted.

10. Repeat steps 6 to 9.

11. Repeat steps 5 to 10 to adjust Red and Blue colors.

Converge the selected color line into the Green line.

12. Press “7” button to memorize the adjusted states.

At this time, picture changes for about 1 second.

13. Press the TOUCH FOCUS button when "PLEASE PUSH

TOUCH FOCUS" is displayed on the screen.

14. TOUCH FOCUS CALIBRATION MODE is executed.

15. It retur ns to the normal screen after displaying

"CALIBRATION FINISHED".

– 14 –

Adjusting Dimension of Each Picture Screen

(16:9 screen size:) 65 inches

(1) HD (1080I/NTSC)

65 inches 16:9 Screen Size:horizontal 1442mm :Vertical 810mm

(QH173, 16KB, CHIP1, UFO-*,BANK1) Vspan49.1mm Hspan115.0

31.0

690.0

575.0

345.0

115.0

0 115.0

345.0

0

147.3

294.3

392.3

575.0

690.0

31.0

392.3

294.3

147.3

– 15 –

NOTES

In many cases, color misconvergence may be corrected by returning HIT and WID data in main deflection side to initial adjusting values. Following cases will surely require readjustment of convergence.

CRT REPLACEMENT

When CRT is replaced, main deflection readjustment and color matching are required.

Perform following procedures.

1. Replace two CRT’s of blue and red.

2. Perform horizontal adjustment for blue and red yokes on base of green CRT data. Mount yoke and velocity mod. coil alignment, pushing towards CRT without gap.

3. Adjust alignment of blue and red. (Refer Alignment adjustment for details.)

4. Rotating centering magnet, adjust CRT centers of red and blue to CRT center of green.

(Picture position adjustment)

5. Adjust HIT and WID data of main deflection, and decide data at the most precise screen comparing to green data.

6. Adjust convergence of screen picture for color matching. Do not move green one at this time.

7. After convergence adjustment of screen picture finishes, replace green CRT.

For green CRT as well, repeat steps 2 to 5 above on bases of red and blue color matching to adjust convergence.

8. Execute TOUCH FOCUS following instructions displayed on the screen after finishing convergence adjustments of all the colors.

Note: Press button "7" again after "PLEASE PUSH TOUCH FOCUS" has been displayed. Then, TOUCH FOCUS will not be executed, and the current state of convergence will be displayed.

REPLACING CONVERGENCE UNIT

When replacing convergence unit, picture screen require readjustment basically, but the following method allows process be reduced considerably.

1. Replace the memory (Q713) on defective unit with memory on new unit. Mounting the unit on the SET after the above working realizes picture screen before replacement immediately.

2. Mount unit which has old memories, on SET and turn it on. Screen shows whole picture looks like straightly shifted towards vertical or horizontal direction.

3. Adjust again centers of green, red and blue with centering magnets.

4. Check picture screen for slight disparity of color and picture size. If necessary, add some adjustments of main deflection and color matching of convergence.

5. Execute TOUCH FOCUS following instructions displayed on the screen after finishing convergence adjustments of all the colors.

Note: Press button "7" again after "PLEASE PUSH TOUCH FOCUS" has been displayed. Then, TOUCH FOCUS will not be executed, and the current state of convergence will be displayed.

– 16 –

SCREEN AND MIRROR ALIGNMENTS

ASSEMBLING OF FRONT SCREEN MOUNTING OF FRONT SCREEN

INSIDE

0 to 1 mm

K503 FRONT PANEL

K501

LENTICULAR

K502

FRESNAL

<INSIDE>

OUT SIDE

LENS

BLACK STRIPES

FRESNEL

LENTICULAR

FRONT PANEL

<OUTSIDE>

SMOOTH

BLACK STRIPES

SPACER

FRONT PANEL

LENTICULAR

FRESNEL

SMOOTH

BEZEL

SMOOTH

CAUTION : Do not hold the optical system parts (lens and mirror) with bare hand to avoid finger-prints on the surface of those parts.

HOW TO CLEAN LENS AND MIRROR

1. Be sure to remove sand dust with an air brush, etc.

2. When it is stained slightly, breathe upon it and wipe away with the specified cleaning cloth.

For other stains than the above, wipe the stains away with the specified cloth into which a cleaning liquid has been soaked.

Cleaning liquid .................... LENS LUSTER (Manufactured by Edmund Scientific

Co.), etc.

HOW TO CLEAN SCREEN

When cleaning the screen, use a soft cloth so as not to damage the screen.

1. Wipe the screen with a dry cloth to remove moisture on the screen.

Note : Absolutely do not use detergent, water, alcohol, benzine, thinner, etc. for cleaning in order not to wipe away the black print on the surface.

– 17 –

CIRCUIT CHECKS

HIGH VOLTAGE CHECK

CAUTION: There is no HIGH VOLTAGE ADJUSTMENT on this chassis. Checking should be done following the steps below.

1. Connect an accurate high voltage meter to the anode of the picture tube.

2. Turn on the receiver. Set the BRIGHTNESS and CON-

TRAST to minimum (zero beam current).

3. High voltage must be measured below (B) kV.

Refer to table-1 for high voltage (B).

(See SETTING & ADJUSTING DATA on page 19)

4. Vary the BRIGHTNESS to both extremes to be sure the high voltage does not exceed the limit under any conditions.

CAUTION:

When the following parts fail, check the High Voltage after replacing.

Location

No.

T461

C407

C408

C441

C432

C433

Name

Flyback

Capacitor

Capacitor

Capacitor

Capacitor

Capacitor

Descriptions

65"

TFB3092AD

4700pF,

±3%

8200pF,

±5%

4700pF,

±3%

8200pF,

±5%

1200pF,

±3%

FS CIRCUIT CHECK

The Fail Safe (FS) circuit check is indispensable for the final check in servicing. Checking should be done following the steps below.

1. Turn the receiver on.

2. Temporarily short TP- (R) and TP- (X) on the DEF/POWER

Board with a jumper wire.

Raster and sound will disappear.

3. The receiver must remain in this state even after removing the jumper wire. This is the evidence that the FS circuit is functioning properly.

4. To obtain a picture again, temporarily turn the receiver off and allow the FS circuit more than 5 seconds to reset. Then turn the receiver on to produce a normal picture.

Troubleshooting Guide for Fail Safe Circuit

Check that the set returns to normal operation when pin 12 of Z801 is grounded with jumper wire.

YES NO

Check the voltage across

Capacitor C419 is approximately ( C) volts.

Refer to table –3 for fall safe voltage (

C)

.

YES

Faulty power circuit or horizontal circuit.

(See SETTING & ADJUSTING

DATA on page 19)

ANODE VOLTAGE MEASURING METHOD

CAUTION: Take extra precaution when measuring this high voltage. High voltages are also present in surrounding circuit boards (CRT DRIVE assembly, DEFLECTION assembly, and POWER

SUPPLY assembly).

1. Disconnect the FBT anode cable as outlined below. Measure high voltage at the point where the cable enters the

FBT.

2. Holding the rubber cover firmly, turn it counterclockwise and check that the lock has been disengaged. (See Fig. b on page 9.)

3. Determine the extent of the rubber cover before disconnecting the cable.

4. Pull straight up the anode cable to disconnect.

5. When reconnecting the cable, proceed in the reverse order.

After reconnecting, tug on the cable to check that it is secure.

Defective Fail Safe Circuit

NO

– 18 –

CHAPTER 2 SPECIFIC INFORMATIONS

SETTING & ADJUSTING DATA

SAFETY INSTRUCTIONS

HIGH VOLTAGE AT ZERO BEAM:

MAX HIGH VOLTAGE:

Table-1

SERVICE MODE

ADJUSTING ITEMS AND DATA IN THE SERVICE MODE:

Item

SCOL

SCNT

HPOS

VPOS

HIT

LIN

VSC

WID

RCUT

GCUT

BCUT

RDRV

BDRV

BRTC

TNTC

Name of adjustment

R CUTOFF

G CUTOFF

B CUTOFF

R DRIVE

B DRIVE

SUB-BRIGHT

SUB-TINT

SUB COLOR

SUB-CONTRAST

HORIZ. POSITION

VERT. POSITION

HEIGHT

V-LINEARITY

V-S CORRECTION

PICTURE WIDTH

Preset

80H

80H

80H

40H

40H

80H

48H

0BH

15H

80H

01H

31H

14H

10H

1FH

Data

55H

(A)

(B)

65"

31.0 kV

32.5 kV

Item Name of adjustment

PHUE

PCNT

PCOL

VCEN

TVOP

OPT1

OPT2

VPS

COLC

VCP

PARA

CNR

HCP

VFC

V-SHIFT

SUB COLOR CEN NTSC

V-COMPENSATE

E-W PARABOLA (DPC)

E-W CORNER

H-COMPENSATE

V-F CORRECT

PIP TINT

PIP CONT

PIP COLOR

V POSITION

TV OPTION

TV SET OPTION

TV SET OPTION

Preset Data

40H

18H

1AH

76H

58H

50H

8DH

0AH

52H

0AH

17H

08H

00H

00H

Table-2

CIRCUIT CHECKS

HIGH VOLTAGE DET

Table-3

(C)

8.7 V

– 19 –

LOCATION OF CONTROLS

TV front

VIDEO-S IN

S-VIDEO VIDEO

L/MONO

AUDIO

R

MENU

VOLUME

INSIDE DOOR

REAR :

CHANNEL

EXIT TV/VIDEO TOUCH FOCUS POWER

TV rear

AUDIO CENTOR

CHANNEL IN

DVI

IN

IR BLASTER

OUT IN

S-VIDEO

VIDEO

Y

L/

MONO

AUDIO

R

VIDEO1

IN

VIDEO2

P

B

P

R

COLOR

STREAM

HD-1

IN

L

AUDIO

R

R

ON

OUT

L

VAR

AUDIO

R

OFF

L

VIDEO

L/

MONO

AUDIO

R

OUT

Y

P

B

P

R

COLOR

STREAM

HD-2

IN

L

AUDIO

R

ANT(75

)

ANT1

OUT

ANT2

– 20 –

Remote Control

Power turns the TV on or off

SLEEP sets the TV to turn at a specific time

LIGHT

The initial press of the LIGHT button causes two actions:

Channel Numbers (0–9, 100) allow direct access to channels

MODE

cycles through the 6 device modes

FAVOURITE allows access to Multi-Window function

PIC SIZE cycles through the three picure formats

MENU allows access to programming

ENTER sets programming menu information stT S selects or adjusts programming menus

[FAV] T S selects your favourite channels

Volume st adjusts the volume level

EXIT exits programming menus

Channel st cycles through programmed channels

CH RTN returns to the last viewed channels

RECALL displays on-screen information

MUTE mutes the sound

INPUT selects video input source

PIP allows access to PIP functions

PIP turns the PIP on or off

PIP CH st selects the PIP channels

MULTI allows access to Multi-Windows function

STILL freezes the PIP

SOURCE selects the PIP source

LOCATE moves the PIP

SWAP switches the PIP and main pictures

– 21 –

CH RTN

PIC SIZE

PROGRAMMING CHANNEL MEMORY

The channel memory is the list of TV channel numbers the TV tunes in when you press the CHANNEL s or t button.

First, use the TV/CABLE and CH PROGRAM functions to preset all active channels in your area automatically.

If necessary, arrange the preset channels with the ADD/ERASE functions so that you can tune into only desired channels.

Note: If you utilize both ANT-1 and ANT-2 terminals for some model, perform programming channels for each input source.

TV/CABLE function

1

Press MENU, then press S or T until the SET UP menu appears.

2

Press t (or s) until “TV/CABLE” is highlighted.

3

Press : or ; to highlight either “TV” or “CABLE”, whichever you use.

CH PROGRAM function

1

Select “CH PROGRAM” following steps 1 and 2 above.

2

Press : or ; to start channel programming.

The TV will automatically cycle through all the TV or

CABLE channels selected by the TV/CABLE function, and store active channels in the channel memory.

3

When channel programming is complete, you will see the message to the right appears.

4

Press CHANNEL s or t to make sure the channel programming has been done properly.

ADD/ERASE function

After performing the CH PROGRAM function, you can add or erase specific channels.

1

Select the channel you want to erase using the CHANNEL s or t button, or select the channel you want to add using the Channel Number buttons.

2

Press MENU, then press S or T until the SET UP menu appears.

3

Press t (or s) until “ADD/ERASE” is highlighted.

4

Press S or T :

To erase the channel press the button until “ERASE” is highlighted.

To add the channel press the button until “ADD” is highlighted.

5

Repeat steps 1 to 4 for other channels.

You have now completed the channel programming.

Note: The CHANNEL t/s buttons on the TV function as the t/s buttons while a menu is on the screen.

* Please refer to owner's manual in detail.

– 22 –

1 Speaker Grille Removal

A201

(A268)

A101

(A001)

2 Control Panel Removal

MECHANICAL DISASSEMBLY

3 Front Mask Removal

4 Shield Plate, Lens Removal

4 screws

K111

K112

K113

A102

2 screws

5 Mirror Removal

5 screws

A202

A140

A143

K601

K501

K502

K503

6 Back Board Removal

8 screws

– 23 –

7 Light Box Removal

5 screws

5 screws

3 screws

A421

(A424)

A160

– 24 –

6 screws

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 25 –

– 26 –

CHASSIS REPLACEMENT PARTS LIST

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE “X-RAY RADIATION PRECAUTION”, “SAFETY PRE-

CAUTION” AND “PRODUCT SAFETY NOTICE” ON PAGE 3 OF THIS MANUAL.

CAUTION: The international hazard symbols “ ” in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE. Do not degrade the safety of the receiver through improper servicing.

NOTICE:

• The part number must be used when ordering parts, in order to assist in processing, be sure to include the Model number and Description.

• The PC board assembly with

*

mark is no longer available after the end of the production.

Models : 65HDX82

Capacitors ............. CD : Ceramic Disk

Resistors ............... CF : Carbon Film

PF

CC

:

:

Plastic Film

Carbon Composition

EL

MF

:

:

Electrolytic

Metal Film

OMF : Oxide Metal Film VR : Variable Resistor FR : Fusible Resistor

(All CD and PF capacitors are

±5%, 50V and all resistors, ±5%, 1/6W unless otherwise noted.)

Location

No.

Parts No.

CAPACITORS

C102 24665221

C105 24100102

C106 24669479

C107 24666221

C112 24665221

C115 24100102

C117 24666221

C201 24203100

C202 24100104

C203 24100104

C204 24100104

C205 24100104

C205 24206229

C206 24100104

C207 24105100

C207 24203100

C208 24100104

C208 24105100

C209 24100104

C209 24105100

C210 24100104

C211 24100104

C212 24203100

C212 24666100

C213 24100104

C214 24100104

C215 24100104

C216 24203100

C217 24100104

C218 24100104

C219 24109103

C220 24206479

C220 24503041

C221 24203100

C221 24503041

C222 24100104

C223 24100104

C224 24100104

Description

ELECTROLYTIC, 10V 220UF M 3A

CERAMIC CHIP, 50V F 1000PF Z

ELECTROLYTIC, 50V 4.7UF M 3A

ELECTROLYTIC, 16V 220UF M 3A

ELECTROLYTIC, 10V 220UF M 3A

CERAMIC CHIP, 50V F 1000PF Z

ELECTROLYTIC, 16V 220UF M 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 50V 2.2UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 4.7UF M 7L 3A

PLASTIC FILM , 63V 0.1UF J

ELECTORLYTIC, 16V 10UF M 7L 3A

PLASTIC FILM , 63V 0.1UF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

Location

No.

Parts No.

C225 24203100

C226 24100104

C227 24100104

C228 24100104

C229 24100104

C230 24100104

C231 24100104

C232 24203100

C233 24109103

C236 24100104

C237 24100104

C238 24203100

C239 24100104

C240 24100104

C241 24100104

C242 24100104

C243 24203100

C244 24100104

C245 24105560

C246 24105150

C247 24105270

C248 24105101

C249 24105820

C250 24105560

C251 24105150

C252 24105270

C253 24105101

C254 24105820

C255 24105560

C256 24105150

C257 24105270

C258 24105101

C259 24105820

C260 24203100

C261 24203100

C262 24100104

C263 24100104

C264 24105100

C265 24105100

Description

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 56PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 27PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 82PF J

CERAMIC CHIP, 50V CH 56PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 27PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 82PF J

CERAMIC CHIP, 50V CH 56PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 27PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 82PF J

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

CERAMIC CHIP, 50V CH 10PF D

– 27 –

Location

No.

Parts No.

C336 24503041

C337 24212101

C338 24073020

C339 24666101

C341 24591222

C342 24591222

C343 24667101

C344 24567393

C345 24503041

C346 24669100

C347 24085946

C348 24503045

C349 24503045

C351 24503041

C352 24669229

C353 24669010

C354 24567823

C355 24567563

C356 24665220

C357 24073037

C401 24214332

C402 24214391

C403 24676220

C405 24567124

* C407 24503099

* C408 24820822

C410 24503149

C411 24678220

C412 24828104

C413 24214221

* C414 24503142

C415 24092484

C416 24503334

C266 24105100

C267 24100104

C268 24105101

C269 24105101

C272 24100104

C273 24100104

C301 24617820

C302 24669101

C303 24109473

C304 24503053

C305 24082057

C306 24082260

C307 24109333

C308 24617820

C309 24693473

C311 24109471

C312 24666100

C313 24666220

C321 24503041

C322 24503045

C323 24503045

C324 24073053

C325 24503041

C326 24503041

C327 24567103

C328 24617912

C329 24567183

C331 24212102

C332 24073020

C333 24567103

C334 24591102

C335 24503049

Description

CERAMIC CHIP, 50V CH 10PF D

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 50V 100UF M 11L 3D

ELECTROLYTIC, 50V 100UF M 3A

CERAMIC CHIP, 25V B 0.047UF K

PLASTIC FILM, 63V 1UF J

PLASTIC FILM, 100V 220000PF J

PLASTIC FILM, 100V 4700PF J

CERAMIC CHIP CK73B 25V 33000PFK

ELECTROLYTIC, 50V 100UF M 11L 3D

PLASTIC FILM, 100V 0.047UF J

CERAMIC CHIP, 50V B 470PF K

ELECTROLYTIC, 10V 10UF M 3A

ELECTROLYTIC, 16V 22UF M 3A

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 63V 0.22UF J

PLASTIC FILM, 63V 0.22UF J

ELECTROLYTIC, 25V 100UF M 3A

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 50V 0.01UF J

ELECTROLYTIC, 50V 2.2UF K 3A LI

PLASTIC FILM, 50V 18000PF J

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 10V 1000UF M 3A

PLASTIC FILM, 50V 0.01UF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM, 63V 0.47UF J

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 50V B 100PF K

ELECTROLYTIC, 10V 1000UF M 3A

ELECTROLYTIC, 16V 100UF M 3A

PLASTIC FILM, 50V 2200PF J

PLASTIC FILM, 50V 2200PF J

ELECTROLYTIC, 25V 100UF M 3A

PLASTIC FILM, 50V 39000PF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 10UF M 3A

ELECTROLYTIC, NONPOLAR, 16V 10UF M 3A

PLASTIC FILM, 63V 0.22UF J

PLASTIC FILM, 63V 0.22UF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 2.2UF M 3A

ELECTROLYTIC, 50V 1.0UF M 3A

PLASTIC FILM, 50V 82000PF J

PLASTIC FILM, 50V 56000PF J

ELECTROLYTIC CE04Q 10V 22UF M 3A

ELECTROLYTIC, 16V 47UF M 3A

CERAMIC DISC, 500V B 3300PF K

CERAMIC DISC, 500V B 390PF K

ELECTROLYTIC, 100V 22UF M 3A

PLASTIC FILM, 50V 0.12UF J

MT PLA CAP T 1800VH 472H

PLASTIC FILM, 630V 8200PF J

PLASTIC FILM, 250V 3.3UF

ELECTROLYTIC, 200V 22UF M

PLASTIC FILM CQ92 T 200V R1UF J

CERAMIC DISC, 500V B 220PF K

MT PLA CAP T 400V 274J

CERAMIC DISC, 2KV B 1500PF K

MT PLA CAP T 250V 155J

– 28 –

Location

No.

Parts No.

24666331

24567103

24501151

24503041

24666331

24591332

24436220

24503049

24073039

24073084

24073035

24666101

24109103

24109103

24666221

24666100

24109103

24109103

24109103

24085903

24503041

24436100

24503041

24501561

24501272

24669479

24567103

24591822

24669229

24669229

24501272

24501102

24503041

24503041

24666331

24666101

24591223

24503099

24567223

24073038

24109223

24797010

24109103

24085903

24669010

24073038

24100104

24105101

24109103

24503252

24073120

24503041

24073118

24591102

24211222

24828473

24591153

24567123

24591102

24567333

24591102

24820822

24503061

24073057

24503041

C474

C475

C476

C477

C478

C479

C481

C482

C462

C463

C464

C465

C467

C471

C472

C473

C434

C435

C436

C437

C438

C439

* C441

C451

C452

C453

C454

C455

C456

C457

C458

C459

C493

C496

C497

C498

C499

C510

C511

C513

C483

C484

C485

C486

C487

C488

C489

C491

C515

C518

C529

* C417

C418

C420

C421

C422

C423

C424

C426

C427

C428

C429

C431

* C432

* C433

Description

MT PLA CAP T 400V 304J

250V 33UF TOKU

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 160V 33UF M

PLASTIC FILM, 50V 1000PF J

CERAMIC DISC, 2KV B 2200PFK

PLASTIC FILM, 200V 47000PF J

PLASTIC FILM, 50V 0.015MF J

PLASTIC FILM, 50V 12000PF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM, 50V 33000PF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM, 630V 8200PF J

MT PLA CAP T 1800VH 122H

ELECTROLYTIC, 25V 1000UF M 3A

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 16V 330UF M 3A

ELECTROLYTIC, 16V 100UF M 3A

PLASTIC FILM, 50V 0.022MF J

MT PLA CAP T 1800VH 472H

PLASTIC FILM, 50V 22000PF J

ELECTROLYTIC, 16V 100UF M 3A

CERAMIC CHIP, 25V B 0.022UF K

ELECTROLYTIC, 50V 1UF M

CERAMIC CHIP, 50V B 0.01UF K

ELEC. NONPOLAR, 50V 1.0UF M NP 3A

ELECTROLYTIC, 50V 1.0UF M 3A

ELECTROLYTIC, 16V 100UF M 3A

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

ELEC. NONPOLAR, 50V 1.0UF M NP 3A

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 50V SL 10PF C

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 50V 560PF J

PLASTIC FILM, 50V 27OO PF J

ELECTROLYTIC, 50V 4.7UF M 3A

PLASTIC FILM, 50V 0.01UF J

PLASTIC FILM, 50V 8200PF J

ELECTROLYTIC, 50V 2.2UF M 3A

ELECTROLYTIC, 50V 2.2UF M 3A

PLASTIC FILM, 50V 27OO PF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 16V 330UF M 3A

PLASTIC FILM, 50V 0.01UF J

50V 151J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 16V 330UF M 3A

PLASTIC FILM, 50V 3300PF J

CERAMIC DISC, 50V SL 22PF J

PLASTIC FILM, 63V 0.47UF J

ELECTROLYTIC CE04P 16V 220UF M 3A

ELECTROLYTIC, 50V 4.7UF M 3A

ELECTROLYTIC CE04P 16V 22UF M 3A

ELECTROLYTIC, 16V 100UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 220UF M 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

Location

No.

Parts No.

C662 24797010

C663 24797010

C664 24797100

C665 24109103

C666 24797010

C667 24794100

C680 24669471

C681 24666100

C682 24092538

C683 24092538

C690 24109103

C704 24232103

C705 24206479

C707 24797470

C712 24797470

C713 24790470

C715 24214472

C717 24214472

C718 24666470

C719 24435560

C720 24790220

C721 24666470

C726 24212102

C760 24797470

C761 24212102

C762 24797470

C765 24214472

C766 24214472

C767 24790470

C768 24666470

C769 24666470

C770 24435560

C771 24790220

C530 24669010

C531 24666101

C532 24666100

C536 24109103

C537 24109103

C547 24109103

C551 24100104

C552 24100104

C553 24100104

C554 24100104

C555 24100104

C556 24100104

C563 24206229

C564 24666100

C565 24206478

C566 24206229

C567 24206478

C568 24109103

C570 24669010

C601 24109102

C602 24109102

C603 24669100

C604 24669100

C605 24667470

C606 24667470

C607 24503041

C608 24503041

C609 24669102

C610 24669102

C611 24667470

C612 24794221

C661 24797010

Description

ELECTROLYTIC, 50V 1.0UF M 3A

ELECTROLYTIC, 16V 100UF M 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 10V 10UF M 3A

ELECTROLYTIC, 50V 0.47UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 0.47UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 1.0UF M 3A

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 1000PF K

ELECTROLYTIC, 50V 10UF M 3A

ELECTROLYTIC, 50V 10UF M 3A

ELECTROLYTIC, 25V 47UF M 3A

ELECTROLYTIC, 25V 47UF M 3A

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 1000UF M 3A

ELECTROLYTIC, 50V 1000UF M 3A

ELECTROLYTIC, 25V 47UF M 3A

ELECTROIYTIC, 16V 220UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 10UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 16V 10UF M

ELECTROLYTIC, 50V 470UF M 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 10V F 1UF Z

CERAMIC CHIP, 10V F 1UF Z

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC DISC, 50V F 10000PF Z

ELECTROLYTIC, 50V 4.7UF M 7L 3A

ELECTROLYTIC, 50V 47UF M

ELECTROLYTIC, 50V 47UF M

ELECTROLYTIC, 160V 47UF M

CERAMIC DISC, 500C B 4700PF K

CERAMIC DISC, 500C B 4700PF K

ELECTORLYTIC, 16V 47UF M 3A

CERAMIC DISC, 500V SL 56PF J

ELECTROLYTIC, 160V 22UF M

ELECTORLYTIC, 16V 47UF M 3A

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 50V 47UF M

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 50V 47UF M

CERAMIC DISC, 500C B 4700PF K

CERAMIC DISC, 500C B 4700PF K

ELECTROLYTIC, 160V 47UF M

ELECTORLYTIC, 16V 47UF M 3A

ELECTORLYTIC, 16V 47UF M 3A

CERAMIC DISC, 500V SL 56PF J

ELECTROLYTIC, 160V 22UF M

– 29 –

Location

No.

Parts No.

C830 24073037

C831 24503047

C832 24073038

C833 24073037

C834 24503047

C835 24073016

C836 24073037

C837 24503047

C838 24073016

C840 24679220

C841 24073043

C842 24503041

C843 24092469

C845 24073082

C851 24073073

C852 24073094

C853 24073057

C854 24073092

C857 24073060

C858 24073060

C860 24214103

C862 24092474

C863 24503041

C864 24092347

C865 24092347

C866 24503053

C867 24591682

C868 24073067

C869 24678229

C870 24503171

C871 24092347

C873 24503045

C874 24092474

C780 24797470

C781 24212102

C782 24797470

C784 24214472

C786 24214472

C787 24790470

C788 24666470

C789 24666470

C790 24435560

C791 24790220

C792 24669229

C801 24203101

C801 24503002

C802 24203100

C803 24100104

C804 24617033

C805 24203100

C806 24100104

C810 24073119

C811 24092597

C812 24092597

C813 24092597

C814 24092593

C815 24092593

C820 24763101

C821 24092730

C822 24763101

C823 24109103

C824 24092730

C825 24109103

C826 24763101

C827 24092730

Description

ELECTROLYTIC, 50V 47UF M

CERAMIC DISC, 50V B 1000PF K

ELECTROLYTIC, 50V 47UF M

CERAMIC DISC, 500C B 4700PF K

CERAMIC DISC, 500C B 4700PF K

ELECTROLYTIC, 160V 47UF M

ELECTORLYTIC, 16V 47UF M 3A

ELECTORLYTIC, 16V 47UF M 3A

CERAMIC DISC, 500V SL 56PF J

ELECTROLYTIC, 160V 22UF M

ELECTROLYTIC, 50V 2.2UF M 3A

ELECTROLYTIC, 16V 100UF M 7L 3A

PLASTIC FILM, AC275V 0.22UF M

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

CHEMICON 04CP 25V 4R7M

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

200V1000U105C

CERAMIC DISC CK45E AC250V 4700PF M

CERAMIC DISC CK45E AC250V 4700PF M

CERAMIC DISC CK45E AC250V 4700PF M

CERAMIC DISC, AC250V E 1000PF M

CERAMIC DISC, AC250V E 1000PF M

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 16V B 0.1UF K

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 16V B 0.1UF K

ELECTROLYTIC, 16V 47UF M 3A

PLASTIC FILM, 63V 0.33UF J

ELECTROLYTIC, 16V 100UF M 3A

ELECTROLYTIC, 16V 47UF M 3A

PLASTIC FILM, 63V 0.33UF J

ELECTROLYTIC CE04P 10V 100UF M 3A

ELECTROLYTIC, 16V 47UF M 3A

PLASTIC FILM, 63V 0.33UF J

ELECTROLYTIC CE04P 10V 100UF M 3A

ELECTROLYTIC, 250V 22UF M 3A

ELECTROLYTIC, 16V 2200UF M 3A

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 2KV B 100PF K

CHEMICON 04P 50V 2R2M

ELECTROLYTIC, 35V 2200UF M 3A

ELECTROLYTIC, 50V 1000UF M 3A

ELECTROLYTIC, 25V 1000UF M 3A

ELECTROLYTIC, 50V 330UF M 3A

ELECTROLYTIC, 25V 4700UF M 3A

ELECTROLYTIC, 25V 4700UF M 3A

CERAMIC DISC, 500V B 10000PF K

CERAMIC DISC, 2KV B 220PF K

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 2KV R 1500PF K

CERAMIC DISC, 2KV R 1500PF K

PLASTIC FILM, 63V 1UF J

PLASTIC FILM, 50V 6800PF J

ELECTROLYTIC CE04P 35V 47UF M 3A

ELECTROLYTIC, 200V 2.2UF M 3A

PLASTIC CAP T 630V 124J

CERAMIC DISC, 2KV R 1500PF K

PLASTIC FILM, 63V 0.22UF J

CERAMIC DISC, 2KV B 220PF K

Location

No.

Parts No.

C876 24503041

C877 24092347

C878 24503171

C879 24212101

C882 24678478

C884 24086916

C890 24073095

C891 24828333

C894 24073059

C895 24073044

C898 24092398

C901 24211102

C902 24794101

C903 24232103

C904 24436221

C906 24679220

C907 24214101

C911 24211102

C912 24794101

C913 24232103

C914 24436221

C915 24679220

C917 24214101

C921 24211102

C922 24794101

C923 24436221

C924 24232103

C925 24679220

C926 24214101

C930 24214103

C935 24214103

C936 24214103

C961 24763102

C962 24203100

C967 24436471

C7703 24503037

C7704 24667101

C7706 24503047

C7708 24105150

C7709 24105150

C7710 24105150

C7711 24105150

C7712 24105150

C7713 24105150

C7714 24105150

C7715 24105150

C7716 24105150

C7717 24105150

C7718 24105150

C7719 24105150

C7721 24105102

C7722 24105331

C7724 24669101

C7725 24669101

C7726 24105101

C7727 24105331

C7729 24105102

C7730 24105331

C7732 24105331

C7733 24105331

C7735 24669101

C7736 24669101

C7737 24105102

C7738 24105331

Description

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 2KV R 1500PF K

PLASTIC CAP T 630V 124J

CERAMIC DISC, 50V B 100PF K

ELECTROLYTIC, 200V 0.47UF M 3A

ELECTROLYTIC CE692R 160V 330UF M 3D

ELECTROLYTIC, 50V 2200UF M 3A

PLASTIC FILM, 200V 33000PF J

ELECTROLYTIC, 25V 3300UF M 3A

ELECTROLYTIC, 16V 3300UF M 3A

CERAMIC DISC, 25V 0.1UF Z, 24092398A NI

TOOITSU

CERAMIC DISC, 2KV B 1000PF K

ELECTROLYTIC, 16V 100UF M

CERAMIC DISC, 50V F 10000PF Z

CERAMIC DISC, 50V SL 220PF J

ELECTROLYTIC, 250V 22UF M 3A

CERAMIC DISC, 500V B 100PF K

CERAMIC DISC, 2KV B 1000PF K

ELECTROLYTIC, 16V 100UF M

CERAMIC DISC, 50V F 10000PF Z

CERAMIC DISC, 50V SL 220PF J

ELECTROLYTIC, 250V 22UF M 3A

CERAMIC DISC, 500V B 100PF K

CERAMIC DISC, 2KV B 1000PF K

ELECTROLYTIC, 16V 100UF M

CERAMIC DISC, 50V SL 220PF J

CERAMIC DISC, 50V F 10000PF Z

ELECTROLYTIC, 250V 22UF M 3A

CERAMIC DISC, 500V B 100PF K

CERAMIC DISC, 500V B 10000PF K

CERAMIC DISC, 500V B 10000PF K

CERAMIC DISC, 500V B 10000PF K

ELECTROLYTIC, 16V 1000UF M

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC DISC, 50V SL 470PF J

MT PLA CAP 63V 0.047UF J

ELECTROLYTIC, 25V 100UF M 3A

PLASTIC FILM, 63V 0.33UF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 50V CH 15PF J

CERAMIC CHIP, 25V CH 1000PF J

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 100UF M 3A

ELECTROLYTIC, 50V 100UF M 3A

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 25V CH 1000PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 100UF M 3A

ELECTROLYTIC, 50V 100UF M 3A

CERAMIC CHIP, 25V CH 1000PF J

CERAMIC CHIP, 50V CH 330PF J

– 30 –

Location

No.

Parts No.

C7822 24503053

C9100 24436471

C9200 24436471

CA04 24109103

CA05 24109103

CA06 24109392

CA07 24109392

CA08 24109103

CA09 24011683

CA14 24666100

CA18 24666100

CA23 24105101

CA25 24100103

CA27 24092538

CA28 24085970

CA30 24085970

CA31 24092538

CA33 24100103

CA34 24092538

CA37 24105101

CA38 24105101

CA39 24105101

CA42 24109392

CA45 24105471

CA46 24105101

CA49 24105101

CA54 24092730

CA59 24105101

CA60 24105101

CA61 24666220

CA68 24666100

CA69 24109103

CA71 24105331

C7740 24105331

C7741 24105331

C7751 24667101

C7753 24567334

C7766 24667221

C7767 24667101

C7768 24667101

C7769 24109103

C7770 24667101

C7772 24567334

C7774 24105331

C7779 24105331

C7780 24105471

C7783 24105471

C7791 24667471

C7792 24109472

C7793 24503041

C7794 24503041

C7795 24109223

C7796 24669221

C7797 24667471

C7798 24669221

C7810 24092511

C7811 24105471

C7812 24109103

C7813 24666220

C7814 24666220

C7815 24591223

C7817 24109332

C7818 24109102

C7819 24109102

C7820 24109332

Description

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 25V 100UF M 3A

PLASTIC FILM, 50V 0.33UF J

ELECTROLYTIC, 25V 220UF M 3A

ELECTROLYTIC, 25V 100UF M 3A

ELECTROLYTIC, 25V 100UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 25V 100UF M 3A

PLASTIC FILM, 50V 0.33UF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 470PF J

CERAMIC CHIP, 50V CH 470PF J

ELECTROLYTIC, 25V 470UF M 3A

CERAMIC CHIP, 50V B 4700PF K

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

CERAMIC CHIP, 25V B 0.022UF K

ELECTROLYTIC, 50V 220UF M 3A

ELECTROLYTIC, 25V 470UF M 3A

ELECTROLYTIC, 50V 220UF M 3A

CHIP CERA CAP 50V CH 471B

CERAMIC CHIP, 50V CH 470PF J

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 22UF M 3A

ELECTROLYTIC, 16V 22UF M 3A

PLASTIC FILM, 50V 0.022MF J

CERAMIC CHIP, 50V B 3300PF K

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 3300PF K

PLASTIC FILM, 63V 1UF J

CERAMIC DISC, 50V SL 470PF J

CERAMIC DISC, 50V SL 470PF J

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 3900PF K

CERAMIC CHIP, 50V B 3900PF K

CERAMIC CHIP, 50V B 0.01UF K

CHIP, METAL FILM, 1/20W 68K OHM J

ELECTROLYTIC, 10V 10UF M 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 10V F 1UF Z

ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L

ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L

CERAMIC CHIP, 10V F 1UF Z

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 10V F 1UF Z

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V B 3900PF K

CERAMIC CHIP, 50V CH 470PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

ELECTROLYTIC, 16V 22UF M 3A

ELECTROLYTIC, 10V 10UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V CH 330PF J

Location

No.

Parts No.

CC04 24100104

CD01 24797479

CD02 24797479

CD03 24503041

CD04 24503041

CD05 24590102

CD06 24503045

CD07 24797229

CD08 24794221

CD09 24232103

CD10 24797479

CD11 24797479

CD12 24797479

CD13 24797479

CD14 24797479

CD15 24797479

CD16 24797479

CD17 24503045

CD18 24590102

CD19 24567333

CD20 24503039

CD21 24539104

CD22 24797479

CD23 24797479

CD24 24590103

CD25 24590103

CD26 24590103

CD41 24503041

CD42 24590103

CD43 24503041

CD44 24503041

CD45 24503049

CD46 24503049

CA72 24085970

CA73 24666100

CA80 24503041

CA81 24073015

CA82 24503049

CA251 24073015

CA331 24073015

CA611 24109103

CA701 24092538

CA705 24666100

CB01 24794470

CB05 24666100

CB13 24085970

CB14 24105331

CB15 24794100

CB51 24590103

CB52 24794470

CB53 24503041

CB54 24436221

CB55 24797010

CB56 24794470

CB57 24503041

CB58 24794470

CB59 24590103

CB60 24794100

CB61 24503041

CB62 24105331

CB90 24109103

CB91 24666100

CC01 24203100

CC02 24100104

CC03 24203100

Description

ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L

ELECTROLYTIC, 10V 10UF M 3A

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 10V 47UF M 3A

PLASTIC FILM, 63V 0.47UF J

ELECTROLYTIC, 10V 47UF M 3A

ELECTROLYTIC, 10V 47UF M 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 10V F 1UF Z

ELECTROLYTIC, 10V 10UF M 3A

ELECTORLYTIC, 16V 47UF M

ELECTROLYTIC, 10V 10UF M 3A

ELECTROLYTIC, NONPOLAR, 16V 10UF M 7L

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 16V 10UF M

PLASTIC FILM, 50V 0.01MF J

ELECTORLYTIC, 16V 47UF M

PLASTIC FILM , 63V 0.1UF J

CERAMIC DISC, 50V SL 220PF J

ELECTROLYTIC, 50V 1UF M

ELECTORLYTIC, 16V 47UF M

PLASTIC FILM , 63V 0.1UF J

ELECTORLYTIC, 16V 47UF M

PLASTIC FILM, 50V 0.01MF J

ELECTROLYTIC, 16V 10UF M

PLASTIC FILM , 63V 0.1UF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 10V 10UF M 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM, 63V 0.22UF J

ELECTROLYTIC, 50V 2.2UF M

ELECTROIYTIC, 16V 220UF M

CERAMIC DISC, 50V F 10000PF Z

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

PLASTIC FILM, 63V 0.22UF J

PLASTIC FILM, 50V 1000PF J

PLASTIC FILM, 50V 33000PF J

PLASTIC FILM, 63V 0.068UF J

PLASTIC FILM, 50V 0.1UF J

ELECTROLYTIC, 50V 4.7UF M

ELECTROLYTIC, 50V 4.7UF M

PLASTIC FILM, 50V 0.01MF J

PLASTIC FILM, 50V 0.01MF J

PLASTIC FILM, 50V 0.01MF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 50V 0.01MF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM, 63V 0.47UF J

PLASTIC FILM, 63V 0.47UF J

– 31 –

Description

PLASTIC FILM, 63V 0.33UF J

PLASTIC FILM, 63V 0.33UF J

ELECTROLYTIC, 50V 1UF M

ELECTROLYTIC, 50V 10UF M

PLASTIC FILM, 50V 0.033UF J

PLASTIC FILM, 50V 0.01MF J

PLASTIC FILM, 63V 0.47UF J

PLASTIC FILM, 50V 0.33UF J

CERAMIC DISC, 50V SL 220PF J

ELECTROIYTIC, 16V 220UF M

CERAMIC DISC, 50V F 10000PF Z

ELECTROLYTIC, 50V 10UF M

ELECTROIYTIC, 16V 220UF M

ELECTROLYTIC, 50V 10UF M

ELECTROLYTIC, 50V 10UF M

ELECTROLYTIC, 50V 10UF M

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 4.7UF M

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 10V F 470NF Z

ELECTROLYTIC, 10V 220UF M

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V SL 100PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 50V SL 33PF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V SL 100PF J

CERAMIC CHIP, 50V SL 100PF J

CERAMIC CHIP, 50V SL 100PF J

CERAMIC CHIP, 50V SL 100PF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP CC73CH 50V 7PF D

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP CC73CH 50V 7PF D

CERAMIC CHIP CC73CH 50V 7PF D

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 50V B 4700PF K

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V B 4700PF K

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 50V B 4700PF K

CERAMIC CHIP, 25V F 0.1UF Z

Location

No.

Parts No.

CH014 24108101

CH015 24108330

CH016 24108330

CH017 24108330

CH018 24108330

CH019 24108330

CH020 24108330

CH040 24100104

CH041 24108101

CH042 24108101

CH043 24108101

CH044 24108101

CH051 24100104

CH052 24100104

CH053 24105070

CH061 24109103

CH062 24092730

CH063 24100104

CH101 24105070

CH102 24105070

CH241 24100104

CH244 24100104

CH247 24100104

CH249 24092730

CH250 24092730

CH301 24109472

CH302 24100104

CH303 24100104

CH304 24109472

CH305 24567104

CH306 24567104

CH307 24109472

CH308 24100104

CD47 24503047

CD48 24503047

CD49 24797010

CD60 24797100

CD61 24590333

CD62 24590103

CD63 24503049

CD64 24539334

CD65 24436221

CD70 24794221

CD71 24232103

CD73 24797100

CD74 24794221

CD75 24797100

CD76 24797100

CD77 24797100

CD81 24503041

CD82 24503041

CD83 24503041

CD84 24503041

CD89 24797479

CH001 24100104

CH004 24100104

CH005 24100104

CH006 24100104

CH007 24100104

CH008 24100104

CH009 24100104

CH010 24092743

CH011 24762221

CH012 24763101

CH013 24763101

Description

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V B 4700PF K

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 25V F 0.1UF Z

PLASTIC FILM, 50V 0.1UF J

PLASTIC FILM, 50V 0.1UF J

CERAMIC CHIP, 25V F 0.1UF Z

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V CH 22PF J

CERAMIC CHIP, 50V CH 22PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 50V F 0.01UF Z

ELECTROLYTIC, 16V 10UF M

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

ELECTORLYTIC, 16V 47UF M

ELECTORLYTIC, 16V 47UF M

ELECTORLYTIC, 16V 47UF M

ELECTORLYTIC, 16V 47UF M

ELECTORLYTIC, 16V 47UF M

ELECTORLYTIC, 16V 47UF M

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 25V F 0.1UF Z

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

Location

No.

Parts No.

CH514 24100104

CH515 24100104

CH516 24100104

CH517 24100104

CH518 24100104

CH521 24105100

CH522 24590222

CH523 24100103

CH524 24105821

CH526 24105050

CH527 24105181

CH541 24105100

CH542 24590222

CH543 24100103

CH544 24105821

CH546 24105050

CH547 24105181

CH561 24105100

CH562 24590222

CH563 24100103

CH564 24105821

CH566 24105050

CH567 24105181

CH621 24105100

CH622 24590222

CH623 24100103

CH624 24105821

CH626 24105050

CH627 24105181

CH641 24105100

CH642 24590222

CH643 24100103

CH644 24105821

CH309 24100104

CH310 24109472

CH311 24567104

CH312 24567104

CH313 24100104

CH314 24100104

CH315 24567104

CH316 24567104

CH317 24100104

CH318 24567104

CH319 24567104

CH320 24100104

CH321 24763101

CH322 24763101

CH401 24105220

CH402 24105220

CH403 24100103

CH404 24100103

CH407 24100103

CH408 24794100

CH409 24100103

CH413 24100104

CH414 24100104

CH501 24794470

CH502 24794470

CH503 24794470

CH504 24794470

CH505 24794470

CH506 24794470

CH511 24100104

CH512 24100104

CH513 24100104

– 32 –

Location

No.

Parts No.

CS29 24105331

CS32 24203100

CS33 24203100

CS34 24105331

CS35 24206229

CS36 24206229

CS38 24206229

CS43 24203100

CS45 24203100

CS51 24206229

CS52 24206229

CS53 24206229

CS54 24206229

CS55 24105331

CS56 24105331

CS57 24105331

CS58 24105331

CS60 24503041

CS91 24206229

CS92 24206229

CS93 24206229

CS94 24206229

CS95 24763101

CS96 24109103

CS122 24797101

CS123 24797470

CS124 24797229

CS125 24590103

CS652 24794220

CS676 24109103

CV01 24085981

CV02 24109103

CV03 24085981

CH646 24105050

CH647 24105181

CH661 24105100

CH662 24590222

CH663 24100103

CH664 24105821

CH666 24105050

CH667 24105181

CH707 24794470

CR12 24092730

CR13 24092730

CR14 24092730

CR15 24092730

CR16 24092730

CR17 24092730

CS03 24109221

CS04 24206010

CS07 24109221

CS08 24206010

CS09 24105331

CS10 24206229

CS11 24206010

CS12 24109221

CS13 24206010

CS14 24109221

CS15 24105331

CS16 24206229

CS21 24105101

CS22 24105101

CS24 24105331

CS25 24206229

CS28 24105331

Description

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

CERAMIC CHIP, 50V CH 10PF D

PLASTIC FILM, 50V 2200PF J

CERAMIC CHIP, 50V F 0.01UF Z

CERAMIC CHIP, 25V CH 820PF J

CERAMIC CHIP, 50V CH 5PF C

CERAMIC CHIP, 50V CH 180PF J

ELECTORLYTIC, 16V 47UF M

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP, 16V B 0.1UF K

CERAMIC CHIP CK73B 50V 220PF K

ELECTROLYTIC, 50V 1.0UF M 7L 3A

CERAMIC CHIP CK73B 50V 220PF K

ELECTROLYTIC, 50V 1.0UF M 7L 3A

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 1.0UF M 7L 3A

CERAMIC CHIP CK73B 50V 220PF K

ELECTROLYTIC, 50V 1.0UF M 7L 3A

CERAMIC CHIP CK73B 50V 220PF K

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 2.2UF M 7L 3A

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 100PF J

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 2.2UF M 7L 3A

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 50V CH 330PF J

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

CERAMIC CHIP, 50V CH 330PF J

PLASTIC FILM , 63V 0.1UF J

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 100UF M

ELECTROLYTIC, 50V 47UF M

ELECTROLYTIC, 50V 2.2UF M

PLASTIC FILM, 50V 0.01MF J

ELECTROLYTIC, 16V 22UF M

CERAMIC CHIP, 50V B 0.01UF K

ELEC. NONPOLAR CE04J 16V 10UF M 11L NP

CERAMIC CHIP, 50V B 0.01UF K

ELEC. NONPOLAR CE04J 16V 10UF M 11L NP

Location

No.

Parts No.

CV04 24203100

CV05 24203100

CV08 24666471

CV09 24666471

CV10 24203100

CV13 24794100

CV14 24232103

CV15 24232103

CV17 24203100

CV21 24203100

CV22 24203100

CV23 24109103

CV24 24109102

CV27 24762471

CV29 24763101

CV30 24109103

CV37 24797339

CV38 24203101

CV39 24109102

CV46 24109103

CV60 24203470

CV61 24203470

CV62 24109103

CV63 24109103

CV64 24206100

CV65 24591122

CV66 24105561

CV67 24591102

CV68 24206010

CV77 24763222

CV78 24109103

CV82 24203470

CV83 24203470

CV84 24203470

CV85 24203470

CV86 24203470

CV87 24203470

CV90 24109103

CV91 24763101

CV100 24206229

CV135 24203470

CV136 24203470

CV137 24203470

CV138 24203470

CW09 24109103

CX91 24092538

CY40 24206100

RESISTORS

R101 24383183

R119 24000445

R150 24011101

R151 24011562

R152 24011103

R171 24011103

R172 24011273

R173 24011103

R174 24011273

R201 24011102

R202 24872102

R203 24872102

R204 24011102

R205 24011152

R205 24011101

R206 24011102

Description

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTROLYTIC, 16V 470UF M 3A

ELECTROLYTIC, 16V 470UF M 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTROLYTIC, 16V 10UF M

CERAMIC DISC, 50V F 10000PF Z

CERAMIC DISC, 50V F 10000PF Z

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

ELECTORLYTIC, 16V 10UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 1000PF K

ELECTROLYTIC, 10V 470UF M

ELECTROLYTIC, 16V 100UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIO, 50V 3.3UF M

ELECTROLYTIC, 16V 100UF M 7L 3A

CERAMIC CHIP, 50V B 1000PF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 50V 10UF M 7L 3A

PLASTIC FILM, 50V 1200PF J

CERAMIC CHIP, 50V CH 560PF J

PLASTIC FILM, 50V 1000PF J

ELECTROLYTIC, 50V 1.0UF M 7L 3A

ELECTROLYTIC CE04G 16V 2200UF M

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

ELECTROLYTIC, 16V 100UF M

ELECTROLYTIC, 50V 2.2UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

ELECTROLYTIC, 16V 47UF M 7L 3A

CERAMIC CHIP, 50V B 0.01UF K

CERAMIC CHIP, 10V F 1UF Z

ELECTROLYTIC, 50V 10UF M 7L 3A

OXIDE METAL FILM, 2W 18K OHM J

CHIP JUMPER, 1608TYPE

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 5.6K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/16W 1K OHM J

CHIP, METAL FILM, 1/16W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

– 33 –

Location

No.

Parts No.

R240 24011101

R241 24367153

R241 24011102

R242 24367333

R242 24011101

R243 24367223

R243 24011102

R244 24367223

R244 24011101

R245 24366124

R245 24011102

R246 24366102

R246 24011101

R247 24366474

R247 24011101

R248 24011101

R249 24366472

R249 24011101

R250 24366472

R250 24011101

R251 24366101

R251 24011101

R252 24366103

R252 24011101

R253 24011473

R254 24011472

R255 24011101

R256 24011103

R257 24011103

R258 24011101

R259 24011101

R301 24011472

R302 24011102

R207 24011102

R208 24011332

R209 24011332

R210 24011101

R211 24011101

R212 24011101

R213 24011101

R214 24011101

R215 24011101

R216 24011102

R217 24011330

R218 24011330

R219 24011330

R220 24011330

R221 24011330

R222 24011330

R223 24011302

R224 24872750

R225 24872750

R226 24872750

R227 24872750

R228 24872750

R229 24872750

R230 24011103

R231 24011153

R233 24011472

R234 24019436

R235 24019436

R236 24019436

R237 24019436

R238 24019436

R239 24019436

Description

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 3K OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/16W 75 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP BLOCK, 1/16W P-8 22 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 15K OHM G

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 33K OHM G

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 22K OHM G

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 22K OHM G

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 120K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 470K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

Location

No.

Parts No.

R341 24366472

R342 24000633

R343 24366103

R344 24366123

R345 24000633

R346 24019119

R347 24019119

R348 24000525

R349 24366103

R351 24366153

R352 24366273

R353 24366824

R354 24366273

R355 24366822

R356 24366102

R357 24366100

R358 24366103

R359 24366392

R361 24366123

R362 24366103

R363 24366103

R365 24366682

R366 24366103

R367 24366103

R368 24366102

R369 24366103

R371 24366823

R372 24366332

R373 24366823

R374 24366104

R375 24366153

R376 24366333

R377 24366103

R303 24011102

R304 24011102

R305 24321129

R306 24382151

R307 24322828

R308 24382391

R309 24011471

R310 24011472

R311 24011471

R312 24011103

R313 24011472

R314 24011103

R315 24011103

R317 24011472

R321 24366103

R322 24366101

R323 24366103

R324 24366183

R325 24366113

R326 24366471

R327 24366471

R328 24366562

R329 24366103

R331 24366473

R332 24366821

R333 24366102

R334 24366153

R335 24000245

R336 24000368

R337 24000203

* R338 24366103

R339 24366472

Description

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

OXIDE METAL FILM, 1/2W 1.2 OHM J

OXIDE METAL FILM, 1W 150 OHM J

OXIDE METAL FILM, 1W 0.82 OHM J

OXIDE METAL FILM, 1W 390 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 18K OHM J

CARBON FILM, 1/6W 11K OHM J

CARBON FILM, 1/6W 470 OHM J

CARBON FILM, 1/6W 470 OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 820 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 15K OHM J

METAL FILM, 1/4W 33K OHM F

METAL FILM, 1/4W 2.7K OHM F

METAL FILM, 1/4W 27K F

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 4.7K OHM J

METAL FILM, 1/4W 10K OHM F

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 12K OHM J

METAL FILM, 1/4W 10K OHM F

METAL FILM, 1/6W 30K OHM J

METAL FILM, 1/6W 30K OHM J

METAL FILM, 1/4W 4.7K OHM F

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 15K OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 820K OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 8.2K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 3.9K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 6.8K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 82K OHM J

CARBON FILM, 1/6W 3.3K OHM J

CARBON FILM, 1/6W 82K OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 15K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 10K OHM J

– 34 –

Location

No.

Parts No.

R452

R453

R454

R455

R456

R457

R459

R461

R462

R443

R444

R445

R446

R447

R448

R449

R451

R435

R436

R437

R438

R439

R440

R441

R442

R425

R427

R428

R430

R431

R432

R433

R434

R417

R418

R419

R420

R421

R422

R423

R424

R408

R409

R410

R411

R412

R413

R414

R415

R388

R401

R402

R403

R404

R405

R406

R407

R378

R379

R381

R382

R383

R384

R385

R386

24366562

24366562

24366472

24366103

24366152

24366333

24366223

24366103

24366103

24366472

24366562

24019259

24366224

24366223

24366392

24366103

24366222

24366101

24942102

24310109

24383153

24383102

24376274

24376274

24376274

24366101

24382561

24382561

24382561

24366103

24366103

24366474

24366103

24366101

24555220

24555220

24323479

24366101

24366272

24366101

24533331

24366101

24366332

24942102

24382473

24377224

24376104

24376104

24322398

24366682

24366103

24366102

24366103

24366222

24019090

24000633

24000639

24000141

24366223

24366223

24553101

24383101

24366103

24382222

24381100

Description

CARBON FILM, 1/6W 6.8K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 2.2K OHM J

METAL FILM, 1/4W 330K OHM F

METAL FILM, 1/4W 10K OHM F

METAL FILM, 1/4W 22K OHM F

METAL FILM, 1/4W 220 F

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 22K OHM J

OXIDE METAL FILM, 1W 100 OHM J

OXIDE METAL FILM, 2W 100 OHM J

CARBON FILM, 1/6W 10K OHM J

OXIDE METAL FILM, 1W 2.2K OHM J

OXIDE METAL FILM, 1/2W 10 OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 3W 22 OHM J

OXIDE METAL FILM, 3W 22 OHM J

METAL FILM, 2W 4.7 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 2.7K OHM J

CARBON FILM, 1/6W 100 OHM J

FUSIBLE, 2W 330 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 3.3K OHM J

CARBON COMPOSITION, 1/2W 1K OHM J

OXIDE METAL FILM, 1W 47K OHM J

CARBON FILM, 1W 220K OHM J

CARBON FILM, 1/2W 10OK OHM J

CARBON FILM, 1/2W 10OK OHM J

OXIDE METAL FILM, 1W 0.39 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON COMPOSITION, 1/2W 1K OHM J

OXIDE METAL FILM, 1/2W 1 OHM J

OXIDE METAL FILM, 2W 15K OHM J

OXIDE METAL FILM, 2W 1K OHM J

CARBON FILM, 1/2W 270K OHM J

CARBON FILM, 1/2W 270K OHM J

CARBON FILM, 1/2W 270K OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 1W 560 OHM J

OXIDE METAL FILM, 1W 560 OHM J

OXIDE METAL FILM, 1W 560 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 470K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 1.5K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 5.6K OHM J

FUSIBLE, 1/4W 27 OHM G

CARBON FILM, 1/6W 220K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 3.9K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 2.2K OHM J

Location

No.

Parts No.

R542 24011182

R543 24011182

R544 24011182

R545 24011182

R546 24011182

R563 24011560

R564 24011560

R565 24011560

R601 24011332

R602 24011332

R603 24011152

R604 24011152

R609 24366229

R610 24366229

R611 24011272

R612 24011272

R613 24011222

R661 24011101

R662 24011392

R663 24011102

R665 24011223

R666 24011473

R667 24011223

R668 24011473

R669 24011332

R671 24011101

R672 24011392

R673 24011102

R674 24011472

R682 24011473

R463 24366103

R464 24366332

R465 24366474

R466 24552331

R467 24366472

R481 24322568

R482 24552271

R483 24552151

R484 24366102

R485 24000141

* R486

24000360

* R487 24000147

R488 24366103

R489 24366100

R505 24011101

R520 24011101

R521 24011101

R522 24011102

R523 24011101

R524 24011102

R525 24011101

R526 24011102

R527 24011101

R530 24011101

R531 24011101

R532 24011101

R533 24552471

R534 24552471

R535 24552471

R536 24011330

R537 24011472

R538 24011103

R539 24552221

R540 24011103

R541 24011182

Description

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 3.3K OHM J

CARBON FILM, 1/6W 470K OHM J

OXIDE METAL FILM, 1/2W 330 OHM J

CARBON FILM, 1/6W 4.7K OHM J

OXIDE METAL FILM, 1W 0.56 OHM J

OXIDE METAL FILM, 1/2W 270 OHM J

OXIDE METAL FILM, 1/2W 150 OHM J

CARBON FILM, 1/6W 1K OHM J

METAL FILM, 1/4W 220 F

METAL FILM, 1/4W 1.2K OHM F

METAL FILM, 1/4W 470 OHM F

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

OXIDE METAL FILM, 1/2W 470 OHM J

OXIDE METAL FILM, 1/2W 470 OHM J

OXIDE METAL FILM, 1/2W 470 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

OXIDE METAL FILM, 1/2W 220 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 56 OHM J

CHIP, METAL FILM, 1/20W 56 OHM J

CHIP, METAL FILM, 1/20W 56 OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CARBON FILM, 1/6W 2.2 OHM J

CARBON FILM, 1/6W 2.2 OHM J

CHIP, METAL FILM, 1/20W 2.7K OHM J

CHIP, METAL FILM, 1/20W 2.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

– 35 –

Location

No.

Parts No.

R740 24553330

R741 24322229

R742 24321229

R743 24554221

R744 24366122

R745 24366122

R755 24366333

R761 24366273

R762 24366563

R763 24552331

R764 24366470

R765 24552100

R766 24366470

R767 24552221

R768 24366751

R769 24366122

R770 24553330

R771 24322229

R772 24366683

R773 24366683

R774 24366751

R775 24366122

R776 24553330

R777 24321229

R778 24366102

R779 24554221

R781 24366273

R782 24366563

R783 24552221

R784 24552100

R785 24366470

R786 24366751

R787 24366122

R683 24011223

R684 24011223

R687 24011103

R689 24011222

R690 24011102

R691 24011103

R692 24011103

R693 24011102

R695 24000445

R702 24552221

R709 24366563

R713 24366273

R715 24366333

R716 24366273

R717 24366333

R718 24366101

R719 24366100

R720 24552331

R722 24552471

R723 24366101

R724 24366151

R725 24366332

R730 24552100

R731 24552331

R732 24366470

R733 24366683

R734 24366470

R735 24366683

R736 24553330

R737 24366751

R738 24366102

R739 24366751

Description

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP JUMPER, 1608TYPE

OXIDE METAL FILM, 1/2W 220 OHM J

CARBON FILM, 1/6W 56K OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 10 OHM J

OXIDE METAL FILM, 1/2W 330 OHM J

OXIDE METAL FILM, 1/2W 470 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 150 OHM J

CARBON FILM, 1/6W 3.3K OHM J

OXIDE METAL FILM, 1/2W 10 OHM J

OXIDE METAL FILM, 1/2W 330 OHM J

CARBON FILM, 1/6W 47 OHM J

CARBON FILM, 1/6W 68K OHM J

CARBON FILM, 1/6W 47 OHM J

CARBON FILM, 1/6W 68K OHM J

OXIDE METAL FILM, 1W 33 OHM J

CARBON FILM, 1/6W 750 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 750 OHM J

OXIDE METAL FILM, 1W 33 OHM J

OXIDE METAL FILM, 1W 2.2 OHM J

OXIDE METAL FILM, 1/2W 2.2 OHM J

OXIDE METAL FILM, 2W 220 OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 56K OHM J

OXIDE METAL FILM, 1/2W 330 OHM J

CARBON FILM, 1/6W 47 OHM J

OXIDE METAL FILM, 1/2W 10 OHM J

CARBON FILM, 1/6W 47 OHM J

OXIDE METAL FILM, 1/2W 220 OHM J

CARBON FILM, 1/6W 750 OHM J

CARBON FILM, 1/6W 1.2K OHM J

OXIDE METAL FILM, 1W 33 OHM J

OXIDE METAL FILM, 1W 2.2 OHM J

CARBON FILM, 1/6W 68K OHM J

CARBON FILM, 1/6W 68K OHM J

CARBON FILM, 1/6W 750 OHM J

CARBON FILM, 1/6W 1.2K OHM J

OXIDE METAL FILM, 1W 33 OHM J

OXIDE METAL FILM, 1/2W 2.2 OHM J

CARBON FILM, 1/6W 1K OHM J

OXIDE METAL FILM, 2W 220 OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 56K OHM J

OXIDE METAL FILM, 1/2W 220 OHM J

OXIDE METAL FILM, 1/2W 10 OHM J

CARBON FILM, 1/6W 47 OHM J

CARBON FILM, 1/6W 750 OHM J

CARBON FILM, 1/6W 1.2K OHM J

Location

No.

Parts No.

R882 24366101

R883 24381682

R884 24366222

R891 24366473

R899 24010001

R900 24000907

R901 24366101

R903 24552101

R905 24366270

R906 24366271

R908 24366680

R909 24366180

R911 24366101

R913 24552101

R915 24366270

R916 24366271

R918 24366680

R919 24366180

R920 24366222

R921 24366101

R923 24552101

R925 24366180

R926 24366271

R927 24366100

R928 24366680

R929 24366270

R930 24366222

R931 24568472

R932 24568472

R933 24366560

R934 24366560

R938 24366150

R941 24568472

R788 24366683

R789 24366683

R790 24366751

R791 24366122

R792 24366102

R793 24321229

R794 24553330

R795 24322229

R796 24554221

R797 24366470

R798 24552331

R799 24553330

R810 24045011

R818 24366102

R819 24366103

R829 24011102

R840 24552562

R841 24366102

R842 24376563

R843 24376563

R844 24366103

R861 24382153

R862 24381330

R864 24552102

R865 24552470

R866 24366103

R867 24366223

R868 24552560

R870 24381271

R871 24382820

R872 24382124

R873 24366150

Description

CARBON FILM, 1/6W 68K OHM J

CARBON FILM, 1/6W 68K OHM J

CARBON FILM, 1/6W 750 OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 1K OHM J

OXIDE METAL FILM, 1/2W 2.2 OHM J

OXIDE METAL FILM, 1W 33 OHM J

OXIDE METAL FILM, 1W 2.2 OHM J

OXIDE METAL FILM, 2W 220 OHM J

CARBON FILM, 1/6W 47 OHM J

OXIDE METAL FILM, 1/2W 330 OHM J

OXIDE METAL FILM, 1W 33 OHM J

CEMENT RES G 20W 1R2J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

OXIDE METAL FILM, 1/2W 5.6K OHM J

CARBON FILM, 1/6W 1K OHM J

CARB0N FILM, 1/2W 56K OHM J

CARB0N FILM, 1/2W 56K OHM J

CARBON FILM, 1/6W 10K OHM J

OXIDE METAL FILM, 1W 15K OHM J

OXIDE FILM, 1/2W 33 J

OXIDE METAL FILM, 1/2W 1K OHM J

OXIDE METAL FILM, 1/2W 47 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 22K OHM J

OXIDE METAL FILM, 1/2W 56 OHM J

OXIDE METAL FILM, 1/2W 270 OHM J

OXIDE METAL FILM, 1W 82 OHM J

OXIDE METAL FILM, 1W 120K OHM J

CARBON FILM, 1/6W 15 OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 1/2W 6.8K OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/2W 3.9M OHM J

FUSIBLE, 1W 3.9 OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CARBON FILM, 1/6W 27 OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 68 OHM J

CARBON FILM, 1/6W 18 OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CARBON FILM, 1/6W 27 OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 68 OHM J

CARBON FILM, 1/6W 18 OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CARBON FILM, 1/6W 18 OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 10 OHM J

CARBON FILM, 1/6W 68 OHM J

CARBON FILM, 1/6W 27 OHM J

CARBON FILM, 1/6W 2.2K OHM J

CERAMIC COVERED G 7W 4.7K J

CERAMIC COVERED G 7W 4.7K J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 15 OHM J

CERAMIC COVERED G 7W 4.7K J

– 36 –

Location

No.

Parts No.

R4016 24366105

R4017 24000639

R4018 24000203

R4020 24000370

R4021 24000637

R4022 24000368

R4023 24366472

R4024 24000203

R4025 24000364

R4026 24383470

R4030 24366102

R4031 24366562

R4032 24000639

R4033 24000147

R4034 24066864

R4035 24000372

R4036 24366102

R4502 24011472

R4503 24011222

R4505 24011223

R4506 24011103

R4507 24011103

R4508 24011222

R4509 24011102

R4513 24011222

R4514 24000824

R4515 24011682

R4516 24011102

R4517 24011101

R4521 24011222

R4522 24011103

R4523 24011102

R4524 24011103

R953

R954

R958

R961

R962

R963

R964

R965

R942

R943

R944

R945

R948

R950

R951

R952

R966

R967

R968

R978

R987

R988

R991

R992

24366331

24366681

24366222

24366222

24366101

24366222

24366222

24366222

R995 24366330

R4005 24366102

R4010 24366102

R4011 24366223

R4012 24366223

R4013 24366103

R4014 24366222

R4015 24000633

24568472

24366560

24366560

24366150

24366222

24366222

24568472

24568472

24366560

24366560

24366150

24366122

24366471

24366100

24366332

24366101

Description

CERAMIC COVERED G 7W 4.7K J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 15 OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 2.2K OHM J

CERAMIC COVERED G 7W 4.7K J

CERAMIC COVERED G 7W 4.7K J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 15 OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 470 OHM J

CARBON FILM, 1/6W 10 OHM J

CARBON FILM, 1/6W 3.3K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 330 OHM J

CARBON FILM, 1/6W 680 OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 2.2K OHM J

CARBON FILM, 1/6W 33 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 2.2K OHM J

METAL FILM, 1/4W 10K OHM F

CARBON FILM, 1/6W 1M OHM J

METAL FILM, 1/4W 22K OHM F

METAL FILM, 1/4W 27K F

METAL FILM, 1/4W 3.3K OHM F

METAL FILM, 1/4W 15K OHM F

METAL FILM, 1/4W 2.7K OHM F

CARBON FILM, 1/6W 4.7K OHM J

METAL FILM, 1/4W 27K F

METAL FILM, 1/4W 1.8K OHM F

OXIDE METAL FILM, 2W 47 OHM J

CARBON FILM, 1/6W 1K OHM J

CARBON FILM, 1/6W 5.6K OHM J

METAL FILM, 1/4W 22K OHM F

METAL FILM, 1/4W 470 OHM F

VARIABLE RESISTOR

METAL FILM, 1/4W 3.9K OHM F

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP JUMPER, 2125TYPE

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

Location

No.

Parts No.

R7725 24383221

R7726 24547189

R7727 24011472

R7728 24011472

R7730 24383221

R7731 24547189

R7732 24011472

R7733 24011472

R7735 24383221

R7736 24547189

R7766 24011223

R7767 24011153

R7775 24011333

R7776 24011472

R7777 24011333

R7778 24011472

R7779 24011102

R7780 24011102

R7781 24011333

R7793 24011123

R7797 24011472

R7798 24011472

R7799 24011222

R7836 24011472

R7837 24011221

R7841 24011221

R7842 24011103

R7843 24011472

R7844 24011103

R7845 24871102

R7846 24011103

R7847 24011103

R7848 24011472

R4525 24011103

R4527 24011102

R4528 24011102

R4531 24011103

R4532 24011472

R4533 24011331

R4534 24011471

R4535 24011471

R4536 24011472

R4538 24011222

R4539 24011472

R4541 24011471

R4542 24011330

R4545 24011101

R4546 24011101

R4551 24011101

R4552 24011101

R4553 24011101

R7707 24011472

R7708 24011472

R7710 24383221

R7711 24547189

R7712 24011472

R7713 24011472

R7715 24383221

R7716 24547189

R7717 24011472

R7718 24011472

R7720 24383221

R7721 24547189

R7722 24011472

R7723 24011472

Description

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

OXIDE METAL FILM, 2W 220 OHM J

FUSIBLE, 1W 1.8 OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/8W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

– 37 –

Location

No.

Parts No.

R7911 24011221

R7912 24011221

R7913 24011221

R7914 24381182

R9028 24552101

R9085 24552101

R9086 24552101

R9501 24366101

R9503 24366681

R9507 24366330

R9607 24366101

R9608 24366681

R9620 24366330

RA01 24011102

RA02 24011101

RA03 24011101

RA04 24011102

RA05 24011102

RA06 24011102

RA07 24011102

RA08 24011102

RA09 24011102

RA12 24011102

RA13 24011102

RA14 24011103

RA15 24011102

RA16 24011102

RA17 24011101

RA18 24011103

RA21 24011102

RA22 24011682

RA23 24011102

RA26 24011333

R7849 24871102

R7861 24011472

R7862 24011472

R7864 24011221

R7865 24011102

R7866 24011102

R7867 24011102

R7868 24011822

R7871 24000358

R7872 24011103

R7880 24011221

R7881 24011472

R7882 24011103

R7883 24011103

R7884 24011103

R7885 24011153

R7886 24011224

R7887 24011103

R7888 24011333

R7889 24011123

R7890 24011471

R7891 24011471

R7893 24011101

R7894 24011472

R7895 24011103

R7896 24011221

R7897 24011103

R7898 24011472

R7899 24011221

R7904 24000247

R7906 24011472

R7910 24011222

Description

CHIP, METAL FILM, 1/8W 1K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 8.2K OHM J

METAL FILM, 1/4W 1K OHM F

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

METAL FILM, 1/4W 39K OHM F

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

OXIDE METAL FILM, 1/2W 1.8K OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 680 OHM J

CARBON FILM, 1/6W 33 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 680 OHM J

CARBON FILM, 1/6W 33 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

Location

No.

Parts No.

RA77 24366153

RA77 24011103

RA78 24366273

RA78 24011333

RA79 24366823

RA79 24011333

RA80 24011101

RA81 24011473

RA021 24011101

RA031 24011101

RA141 24011103

RA161 24011103

RA181 24011103

RA221 24011153

RA361 24011102

RA401 24011471

RA431 24011103

RA703 24011102

RA705 24011103

RA708 24011101

RB01 24366391

RB03 24011330

RB04 24366473

RB05 24366102

RB05 24011102

RB14 24011153

RB15 24366471

RB15 24011153

RB16 24011471

RB17 24011332

RB19 24366470

RB41 24011151

RB51 24366224

RA28 24011101

RA30 24011101

RA32 24011682

RA35 24011152

RA36 24011332

RA37 24011101

RA38 24011101

RA39 24011101

RA40 24011101

RA41 24011332

RA42 24011151

RA43 24011102

RA44 24011102

RA45 24011102

RA46 24011102

RA49 24011102

RA50 24011102

RA51 24011101

RA52 24011103

RA54 24011332

RA55 24011102

RA59 24011101

RA60 24011101

RA71 24366273

RA72 24366153

RA72 24011332

RA73 24366822

RA73 24011471

RA74 24011153

RA75 24011153

RA76 24366822

RA76 24011103

Description

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 6.8K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 150 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 27K OHM J

CARBON FILM, 1/6W 15K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CARBON FILM, 1/6W 8.2K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CARBON FILM, 1/6W 8.2K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 15K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 27K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CARBON FILM, 1/6W 82K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CARBON FILM, 1/6W 390 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CARBON FILM, 1/6W 470 OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CARBON FILM, 1/6W 47 OHM J

CHIP, METAL FILM, 1/20W 150 OHM J

CARBON FILM, 1/6W 220K OHM J

– 38 –

Location

No.

Parts No.

RB93 24011271

RB94 24011222

RB95 24011222

RB96 24011273

RB97 24011273

RB98 24011102

RB031 24011330

RB032 24011330

RB033 24011103

RB051 24011102

RB052 24011332

RB512 24011100

RB551 24011102

RB552 24011102

RB553 24011332

RC01 24011101

RC02 24011101

RC03 24011473

RC05 24011103

RC06 24011103

RC07 24011103

RC08 24011103

RC09 24011102

RC10 24872101

RC11 24011222

RC12 24011102

RD01 24366101

RD02 24366105

RD03 24366101

RD04 24366101

RD05 24366101

RD06 24366472

RD07 24366332

RB52 24366123

RB53 24366123

RB54 24366123

RB55 24366224

RB56 24366151

RB57 24366103

RB58 24366103

RB59 24366122

RB60 24366224

RB61 24011222

RB62 24366272

RB62 24011103

RB63 24366271

RB64 24366102

RB64 24011332

RB65 24366472

RB65 24011392

RB66 24366473

RB67 24366221

RB69 24366272

RB70 24366331

RB71 24366109

RB72 24366220

RB73 24366560

RB74 24366104

RB81 24011122

RB82 24011123

RB83 24011123

RB84 24011562

RB90 24011392

RB91 24011473

RB92 24011271

Description

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 220K OHM J

CARBON FILM, 1/6W 150 OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 220K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CARBON FILM, 1/6W 2.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CARBON FILM, 1/6W 270 OHM J

CARBON FILM, 1/6W 1K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CARBON FILM, 1/6W 4.7K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 220 OHM J

CARBON FILM, 1/6W 2.7K OHM J

CARBON FILM, 1/6W 330 OHM J

CARBON FILM, 1/6W 1 OHM J

CARBON FILM, 1/6W 22 OHM J

CARBON FILM, 1/6W 56 OHM J

CARBON FILM, 1/6W 100K OHM J

CHIP, METAL FILM, 1/20W 1.2K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 5.6K OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 270 OHM J

CHIP, METAL FILM, 1/20W 270 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 33 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 10 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/16W 100 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 1M OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 3.3K OHM J

Location

No.

Parts No.

RD83 24366103

RD85 24366223

RD86 24366223

RD87 24366223

RD88 24366223

RH002 24011473

RH003 24011473

RH004 24011221

RH005 24011221

RH006 24011221

RH007 24011221

RH008 24011221

RH009 24011104

RH041 24011101

RH042 24011101

RH043 24011101

RH044 24011101

RH051 24011222

RH061 24011561

RH062 24011102

RH063 24011103

RH064 24011103

RH201 24011472

RH202 24011472

RH205 24011472

RH206 24011472

RH207 24011331

RH208 24011221

RH209 24011102

RH210 24011102

RH211 24011473

RH212 24011473

RH301 24011684

RD09 24366104

RD11 24366104

RD12 24366101

RD13 24366104

RD14 24366221

RD15 24366104

RD16 24366123

RD17 24366101

RD18 24366105

RD19 24366101

RD21 24366332

RD41 24366123

RD42 24366333

RD43 24366272

RD44 24366123

RD45 24366333

RD46 24366272

RD47 24366104

RD48 24366103

RD49 24366562

RD60 24366682

RD61 24366682

RD62 24366109

RD72 24366101

RD73 24366101

RD74 24366101

RD75 24366473

RD76 24366122

RD77 24366473

RD78 24366122

RD79 24366123

RD81 24366123

Description

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 220 OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 1M OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 3.3K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 2.7K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 33K OHM J

CARBON FILM, 1/6W 2.7K OHM J

CARBON FILM, 1/6W 100K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 5.6K OHM J

CARBON FILM, 1/6W 6.8K OHM J

CARBON FILM, 1/6W 6.8K OHM J

CARBON FILM, 1/6W 1 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 100 OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 47K OHM J

CARBON FILM, 1/6W 1.2K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 12K OHM J

CARBON FILM, 1/6W 10K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 22K OHM J

CARBON FILM, 1/6W 22K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 560 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 680K OHM J

– 39 –

Location

No.

Parts No.

RH334 24011103

RH335 24011224

RH336 24011224

RH337 24011224

RH338 24011224

RH339 24011101

RH340 24011101

RH341 24011101

RH342 24011101

RH343 24011102

RH344 24011102

RH345 24011102

RH346 24011102

RH347 24011104

RH401 24011101

RH402 24011101

RH404 24011101

RH405 24011102

RH406 24011473

RH407 24011101

RH408 24011101

RH412 24011103

RH413 24011103

RH414 24011101

RH415 24011101

RH416 24011101

RH417 24011101

RH420 24011332

RH421 24011681

RH422 24011102

RH425 24011331

RH427 24011222

RH428 24011472

RH302 24011102

RH303 24011153

RH304 24011153

RH305 24011102

RH306 24011684

RH307 24011684

RH308 24011102

RH309 24011203

RH310 24011203

RH311 24011102

RH312 24011684

RH313 24011474

RH314 24011474

RH315 24011474

RH316 24011474

RH317 24011104

RH318 24011102

RH319 24011104

RH320 24011102

RH321 24011104

RH322 24011102

RH323 24011104

RH324 24011102

RH325 24011333

RH326 24011333

RH327 24011152

RH328 24011103

RH329 24011152

RH330 24011103

RH331 24011152

RH332 24011103

RH333 24011152

Description

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/2OW 15K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 680K OHM J

CHIP, METAL FILM, 1/20W 680K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 20K OHM J

CHIP, METAL FILM, 1/20W 20K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 680K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 470K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 33K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 220K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 680 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

Location

No.

Parts No.

RH564 24998103

RH565 24998103

RH566 24011822

RH567 24998683

RH568 24998103

RH569 24011911

RH621 24011911

RH622 24998103

RH623 24998103

RH624 24998103

RH625 24998103

RH626 24011822

RH627 24998683

RH628 24998103

RH629 24011911

RH641 24011911

RH642 24998103

RH643 24998103

RH644 24998103

RH645 24998103

RH646 24011822

RH647 24998683

RH648 24998103

RH649 24011911

RH661 24011911

RH662 24998103

RH663 24998103

RH664 24998103

RH665 24998103

RH666 24011822

RH667 24998683

RH668 24998103

RH669 24011911

RH429 24011105

RH430 24011472

RH431 24011101

RH501 24011101

RH502 24011101

RH503 24011101

RH504 24011101

RH506 24011101

RH507 24011101

RH508 24011101

RH509 24011101

RH521 24011911

RH522 24998103

RH523 24998103

RH524 24998103

RH525 24998103

RH526 24011822

RH527 24998683

RH528 24998103

RH529 24011911

RH541 24011911

RH542 24998103

RH543 24998103

RH544 24998103

RH545 24998103

RH546 24011822

RH547 24998683

RH548 24998103

RH549 24011911

RH561 24011911

RH562 24998103

RH563 24998103

Description

CHIP, METAL FILM, 1/20W 1M OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, METAL FILM, 1/20W 910 OHM J

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 8.2K OHM J

CHIP, METAL FILM, 1/16W 68K OHM D

CHIP, 1/16W 10K OHM

CHIP, METAL FILM, 1/20W 910 OHM J

– 40 –

Location

No.

Parts No.

RS32 24011104

RS33 24011222

RS34 24011222

RS35 24011103

RS36 24011103

RS37 24011101

RS40 24011101

RS42 24011101

RS48 24011101

RS49 24011103

RS51 24011103

RS52 24011103

RS53 24011103

RS54 24011103

RS91 24011101

RS92 24011101

RS93 24011101

RS94 24011101

RS120 24552821

RS121 24011103

RS122 24011103

RS123 24011473

RS124 24011102

RS125 24011222

RS651 24011101

RS652 24011101

RS665 24011103

RS671 24000445

RS672 24011273

RS673 24000445

RS674 24011273

RS675 24011223

RS676 24011101

RR15 24011680

RR16 24011680

RR17 24011680

RR52 24011102

RR53 24011471

RR54 24011102

RR55 24011471

RR56 24011102

RR57 24011471

RR61 24011152

RR61 24011222

RR62 24011152

RR62 24011222

RR63 24011152

RR63 24011222

RS02 24011472

RS04 24011102

RS06 24011102

RS07 24011103

RS08 24011103

RS09 24011102

RS10 24011102

RS12 24011103

RS21 24011104

RS22 24011104

RS25 24011223

RS26 24011223

RS27 24011471

RS28 24011471

RS29 24011104

RS30 24011104

RS31 24011103

Description

CHIP, METAL FILM, 1/20W 68 OHM J

CHIP, METAL FILM, 1/20W 68 OHM J

CHIP, METAL FILM, 1/20W 68 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 470 OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

OXIDE METAL FILM, 1/2W 820 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 47K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP JUMPER, 1608TYPE

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP JUMPER, 1608TYPE

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 22K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

Location

No.

Parts No.

RV81 24011472

RV83 24011332

RV84 24011750

RV85 24552101

RV86 24011101

RV87 24011182

RV89 24011680

RV91 24011102

RV92 24011103

RV93 24011101

RV94 24011472

RV95 24011273

RV97 24011221

RV117 24011750

RV118 24011750

RV119 24011750

RV124 24011392

RV125 24011123

RV126 24011274

RV127 24011331

RV128 24011472

RV140 24011103

RV141 24011302

RV142 24011103

RV143 24011103

RV144 24011472

RV169 24011102

RV178 24011152

RV179 24011472

RV180 24011472

RV181 24011101

RV182 24011101

RV183 24011101

RS683 24011103

RS685 24011103

RS686 24011103

RS687 24011103

RV01 24011472

RV03 24011101

RV04 24011101

RV11 24011100

RV12 24011100

RV13 24011100

RV15 24011222

RV20 24366750

RV21 24366750

RV22 24366750

RV23 24366332

RV24 24011750

RV25 24011750

RV26 24011750

RV31 24011222

RV31 24011332

RV32 24011101

RV32 24011750

RV38 24872184

RV39 24872334

RV50 24872472

RV51 24011101

RV63 24011102

RV64 24011750

RV65 24011750

RV67 24011750

RV70 24011472

RV74 24011750

Description

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 10 OHM J

CHIP, METAL FILM, 1/20W 10 OHM J

CHIP, METAL FILM, 1/20W 10 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 75 OHM J

CARBON FILM, 1/6W 3.3K OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 2.2K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/16W 180K OHM J

CHIP, METAL FILM, 1/16W 330K OHM J

CHIP, METAL FILM, 1/16W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 3.3K OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

OXIDE METAL FILM, 1/2W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 68 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 27K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 75 OHM J

CHIP, METAL FILM, 1/20W 3.9K OHM J

CHIP, METAL FILM, 1/20W 12K OHM J

CHIP, METAL FILM, 1/20W 270K OHM J

CHIP, METAL FILM, 1/20W 330 OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 3K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1.5K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 4.7K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

– 41 –

Location

No.

Parts No.

RV184 24011182

RV185 24011182

RV186 24011182

RW10 24011102

RW11 24011101

RW12 24011102

RW30 24011102

RW31 24011102

RW32 24011102

RW33 24011101

RW34 24011101

RW40 24011182

RW45 24011103

RX11 24011221

RX12 24011221

RY81 24011101

RY82 24011182

Description

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 1K OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

CHIP, METAL FILM, 1/20W 10K OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 220 OHM J

CHIP, METAL FILM, 1/20W 100 OHM J

CHIP, METAL FILM, 1/20W 1.8K OHM J

L202

L203

L204

L205

L206

L207

L208

L209

L210

L219

L220

L221

L222

L301

L302

L303

L304

L211

L212

L213

L214

L215

L216

L217

L218

L305

L401

L402

COILS & TRANSFORMERS

L101

L103

L111

L113

L115

L121

L122

L201

23289845

23289844

23289845

23289842

23103852

23238562

23238562

23103152

23103152

23103152

23103152

23103152

23103152

23103152

23103152

23103152

23103152

23246191

23246191

23246190

23246191

23246191

23246190

23246191

23246191

23246190

23246195

23246195

23246195

23237975

23248073

23248073

23103859

23103775

23289560

23103880

COIL, PEAKING 68.00MMHJ, COLTRF4680AT

COIL, PEAKING, TRF4470AT

COIL, PEAKING 68.00MMHJ, COLTRF4680AT

COIL, PEAKING, TRF4220AT

COIL, FILTER, TEM2028AH

COIL, PEAKING, TRF4109AJ

COIL, PEAKING, TRF4109AJ

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R39MMHJ, TRF4R39CG

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R39MMHJ, TRF4R39CG

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R47MMHJ, TRF4R47CG

CHIP-INDUCTOR-R39MMHJ, TRF4R39CG

COIL, CHIP INDUCTOR, TRF41R0CG

COIL, CHIP INDUCTOR, TRF41R0CG

COIL, CHIP INDUCTOR, TRF41R0CG

COIL, PEAKING, TRF4101AC

COIL, CHOKE, TLN3299D

COIL, CHOKE, TLN3299D

COIL, CHOKE, TEM2011

COIL, FERRITE CHOKE, TEM2014

COIL, PEAKING, TRF4560AF

COIL, CHOKE, TEM2011Y

L822 23103152

L823 23103152

L882

L885

L888

L889

L891

L892

L893

L894

L895

L896

L840

L851

L852

L853

L854

L861

L862

L881

23280019

23103880

23103880

23103880

23103880

23103880

23103880

23103880

23103880

23248073

23103880

23103880

23103880

23103880

23103880

23103880

23248247

23248235

L897

L898

L902

L904

L905

23248087

23248087

23289159

23289120

23289689

Location

No.

Parts No.

23103845

23237987

23261974

23103859

23103859

23103859

23103859

23103859

23261974

23237987

23237987

23103859

23103859

23261974

23103152

23248248

23248191

23103775

23103775

23289120

23233995

23237975

23231325

23231325

23231325

23102499

23102499

23102499

23289120

23289120

23103845

* L403

L404

L405

L406

L410

* L441

L450

* L462

* L463

* L464

L472

L473

L474

L502

L503

L510

L511

L701

L702

L704

L705

L762

L764

L765

L766

L769

L780

L781

L782

L783

L801

L802 23103152

L813

L821

23103880

23103152

Description

COIL, CHOKE, TLN3500AH

COIL, CHOKE, TLN3351AD

COIL, FERRITE CHOKE, TEM2014

COIL, FERRITE CHOKE, TEM2014

COIL, PEAKING, TRF4120AF

COIL, LINEARITY, TLN2215AG

COIL, PEAKING, TRF4101AC

COIL, DEFLECTION YOKE, TDY707PS

COIL, DEFLECTION YOKE, TDY707PS

COIL, DEFLECTION YOKE, TDY707PS

MAGNET, CPM29.1VM, MAG-1119

MAGNET, CPM29.1VM, MAG-1119

MAGNET, CPM29.1VM, MAG-1119

COIL, PEAKING, TRF4120AF

COIL, PEAKING, TRF4120AF

COIL, COMMONMODE, TEM2030AY

COIL, COMMONMODE, TEM2030AY

COIL, PEAKING, TRF4100AC

COIL, FERRITE BEAD, HC5-035

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, FERRITE BEAD, HC5-035

COIL, PEAKING, TRF4100AC

COIL, PEAKING, TRF4100AC

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, FERRITE BEAD, HC5-035

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

COIL, CHOKE, TEM2011Y

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

COIL, PEAKING, TRF4330AZ

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TLN3299D

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TEM2011Y

COIL, CHOKE, TLN3499AH

COIL, CHOKE 12X18H 22MMH 4.2A,

TLN3462AF

COIL, CHOKE, TLN3312D

COIL, CHOKE, TLN3312D

COIL, PEAKING 1.5MMH J 0405, TRF41R5AF

COIL, PEAKING, TRF4120AF

COIL, PEAKING, TRF46R8AF

– 42 –

Location

No.

Parts No.

L911

L913

L915

L916

L923

L924

L925

L961

23289100

23289159

23289689

23289120

23289159

23289120

23289689

23289100

L7701 23103859

L7702 23103859

L7703 23103859

L7704 23103859

L7705 23103859

L7706 23103859

L7708 23103859

L7709 23103859

L7710 23248195

L7711 23248195

L7712 23248031

L7713 23248031

LB51

LB52

LC01

23237987

23237987

23103152

LH001 23103864

LH002 23103864

LH003 23103859

LH004 23103859

LH005 23103859

LH009 23103795

LH010 23103795

LH012 23103859

LH061 23103864

LH062 23103864

LH063 23103864

LH064 23103864

LH065 23103864

LH066 23103864

LH067 23103864

LH122 23103864

LH124 23103864

LH125 23103864

LH126 23103864

LH301 23103859

LH302 23103859

LH401 23245830

LH402 23103864

LH403 23103864

LH404 23103864

LH405 23103864

LH411 23103864

LH521 23289102

LH522 23289471

LH541 23289102

LH542 23289471

LH561 23289102

LH562 23289471

LH621 23289102

LH622 23289471

LH641 23289102

LH642 23289471

LH661 23289102

LH662 23289471

LH800 23103795

LS90 23289100

Description

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHIP, TRF4100CB

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

COIL. PEAKING, TRF4102AF

COIL, PEAKING, TRF4471AF

IMPEDER, MMZ2012S301A

COIL, PEAKING, TRF4100AF

COIL, PEAKING, TRF4100AF

COIL, PEAKING 1.5MMH J 0405, TRF41R5AF

COIL, PEAKING, TRF46R8AF

COIL, PEAKING, TRF4120AF

COIL, PEAKING 1.5MMH J 0405, TRF41R5AF

COIL, PEAKING, TRF4120AF

COIL, PEAKING, TRF46R8AF

COIL, PEAKING, TRF4100AF

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TLN3441AT

COIL, CHOKE, TLN3441AT

COIL, CHOKE, TLN3274D

COIL, CHOKE, TLN3274D

COIL, PEAKING, TRF4100AC

COIL, PEAKING, TRF4100AC

FILTER, CHIP BEAD 1.5A 600OHM

BLM31PG601SN1, TEM2133AM

COIL, FILTER, TEM2103T

COIL, FILTER, TEM2103T

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

COIL, CHOKE, TEM2011

IMPEDER, MMZ2012S301A

IMPEDER, MMZ2012S301A

COIL, CHOKE, TEM2011

Location

No.

Parts No.

LV05 23289560

LV06 23289560

LV10 23289100

LV13 23289100

LV14 23289100

LV20 23238705

LV81 23289100

LY22 23103824

LY80 23289100

T400 23224364

T401 23224371

* T461A 23192961

T802

T840

T862

23211759

23217431

23217560

Description

COIL, PEAKING, TRF4560AF

COIL, PEAKING, TRF4560AF

COIL, PEAKING, TRF4100AF

COIL, PEAKING, TRF4100AF

COIL, PEAKING, TRF4100AF

COIL, PEAKING, TRF4560AJ

COIL, PEAKING, TRF4100AF

COIL, FILTER, TEM2028K

COIL, PEAKING, TRF4100AF

TRANSFORMER, FOCUS, TLN2168AH

TRANSFORMER, HORIZ DRIVE, TLN1080AH

ANODE CAP ASSY, TCC5605AU

COIL, LF LH35V 21990A

TRANSFORMER, CONVERTER, TPW3425AH

CONV EER40 50H82, TPW3500AS

SEMICONDUCTORS

Q151 23205123

Q152 23314204

Q171 23205057

Q172 23205057

Q201 23009234

Q201 23205057

Q202 23009233

Q203 23009238

Q204 23009235

Q205 23205151

Q206 23205151

Q207 23314163

Q208 23314163

Q209 23314163

Q210 23314204

Q211 23205151

Q212 70114402

Q213 23314204

Q221 23114756

Q301 23319787

Q301B 70391355

Q302 23205054

Q305 23904896

Q321 70119059

Q322 23905266

Q323 23314965

Q324 70119059

Q325 23314965

Q326 23314962

Q327 23314965

Q328 23114462

Q329 23114461

Q400 23205079

Q401 23205166

Q402 23314962

Q403 23314965

Q404 23205149

Q404B 72471082

Q404D 23850638

Q405 23114437

Q406 70128158

Q407 23319808

Q408 23205031

Q409 23314965

Q410 23319203

Q411 23114756

Q420 23316816

TRANSISTOR, 2SA933ASQ

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

IC,TI TFP501

TRANSISTOR, KTC3875Y

IC, TI THS8200

IC, TMP87C809M-xxxx

IC,EPM3032A

TRANSISTOR, FET, BSN20

TRANSISTOR, FET, BSN20

TRANSISTOR, 2SA1162-Y

TRANSISTOR, 2SA1162-Y

TRANSISTOR, 2SA1162-Y

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, FET, BSN20

TRANSISTOR, 2SC3437-Y

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, 2SC2482

IC, LA7833S

SCREW, 3X8MM

TRANSISTOR, KTA1504Y

IC, JLC1562BF

IC, OP AMP, TA75902P(J)

IC, TA8859CP

TRANSISTOR, KTC3198 Y

IC, OP AMP, TA75902P(J)

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, RN1202

TRANSISTOR, RN1203

TRANSISTOR, 2SC4686A

TRANSISTOR, FET, 2SK2962

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, 2SC5859(FA)

SCREW, 3X10MM

INSULATOR, TRANSISTOR,

AC263(NO SERVICE PART)

TRANSISTOR, 2SC752GTM-Y

IC, BA10393

IC, M5218AP

TRANSISTOR, FET, 2SK2920

TRANSISTOR, KTC3198 Y

IC, MC7812CT

TRANSISTOR, 2SC2482

IC, LA7860

– 43 –

Location

No.

Parts No.

Q711 23314909

Q711B 23712306

Q712 23314912

Q712B 23712306

Q719 23114528

Q720 23114528

Q751 23905094

Q752 23905094

Q755 23906689

Q760 23205123

Q761 23314909

Q761B 23712306

Q764 23319720

Q765 23205057

Q766 23205057

Q767 23904442

Q769 23114528

Q771 23314912

Q771 23319267

Q771B 23712306

Q772 23205054

Q776 23205057

Q777 23205054

Q778 23205057

Q779 23114528

Q779 23205057

Q780 23205054

Q781 23114528

Q781 23205057

Q782 23205123

Q782 23318840

Q783 23114528

Q783 23205037

Q421 23114437

Q431 70114402

Q432 70114402

Q434 70114402

Q435 70114402

Q436 23205057

Q437 23000370

Q510 23009251

Q520 23205123

Q521 23205123

Q522 23205123

Q523 23205057

Q524 23114502

Q525 23114502

Q526 23114502

Q527 23205054

Q528 23205054

Q529 23205054

Q601 23000269

Q601B 70391356

Q612 23205054

Q661 70114396

Q662 70114396

Q663 23906597

Q664 23114493

Q681 70114396

Q682 70114396

Q683 23205057

Q706 23114528

Q707 23114437

Q709 23114528

Q710 23205123

Description

TRANSISTOR, 2SC752GTM-Y

TRANSISTOR, 2SC3437-Y

TRANSISTOR, 2SC3437-Y

TRANSISTOR, 2SC3437-Y

TRANSISTOR, 2SC3437-Y

TRANSISTOR, KTC3875Y

IC, TA1318N

IC, TA1360N(MOD)

TRANSISTOR, 2SA933ASQ

TRANSISTOR, 2SA933ASQ

TRANSISTOR, 2SA933ASQ

TRANSISTOR, KTC3875Y

TRANSISTOR, RN1401

TRANSISTOR, RN1401

TRANSISTOR, RN1401

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

IC, TA8216H

SCREW, BITTB3X10 SZN

TRANSISTOR, KTA1504Y

TRANSISTOR, 2SC3326B

TRANSISTOR, 2SC3326B

IC, BA4558F

TRANSISTOR, RN2404

TRANSISTOR, 2SC3326B

TRANSISTOR, 2SC3326B

TRANSISTOR, KTC3875Y

TRANSISTOR, 2SC1740S

TRANSISTOR, 2SC752GTM-Y

TRANSISTOR, 2SC1740S

TRANSISTOR, 2SA933ASQ

TRANSISTOR, 2SA1837

SCREW, PP3X.5X6SZN

TRANSISTOR, 2SC4793

SCREW, PP3X.5X6SZN

TRANSISTOR, 2SC1740S

TRANSISTOR, 2SC1740S

IC, STK392-110

IC, STK392-110

IC, PQ05RR11

TRANSISTOR, 2SA933ASQ

TRANSISTOR, 2SA1837

SCREW, PP3X.5X6SZN

IC, TC74HC14AF

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

IC, TC74HC4066AF

TRANSISTOR, 2SC1740S

TRANSISTOR, 2SC4793

IC, AN79M12F

SCREW, PP3X.5X6SZN

TRANSISTOR, KTA1504Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTA1504Y

TRANSISTOR, KTC3875Y

TRANSISTOR, 2SC1740S

TRANSISTOR, KTC3875Y

TRANSISTOR, KTA1504Y

TRANSISTOR, 2SC1740S

TRANSISTOR, KTC3875Y

TRANSISTOR, 2SA933ASQ

IC, AN79M05F

TRANSISTOR, 2SC1740S

TRANSISTOR, 2SJ512, -250V,-5A,30W

Location

No.

Parts No.

Q921 23205159

Q922 23205165

Q924 23205158

Q925 23205156

Q961 23314965

Q962 23314962

Q973 23314962

QA01 23009282

QA02 23906642

QA70 23319935

QA71 23205057

QA72 23205057

QA80 23906295

QA81 70200563

QB01 23114528

QB03 23114498

QB05 23205057

QB14 23205057

QB15 23205057

QB30 23314965

QB51 23319808

QB52 23314965

QB53 23314962

QB54 23314962

QB55 23205057

QB55 23314965

QB61 70114402

QB81 70114396

QB82 70114396

QB83 23205054

QB84 23205057

QB85 23205054

QB86 23205054

Q784 23314909

Q784B 23712306

Q785 23314912

Q785B 23712306

Q792 23906429

Q793 23205031

Q796 23205057

Q797 23906164

Q798 23318537

Q799 23318537

Q801 23009236

Q801 23135013

Q820 23906484

Q822 70129444

Q830 23000804

Q831 23319941

Q832 23000805

Q840 23906133

Q841 23000823

Q842 23000823

Q843 23314965

Q862 23000823

Q881 23319693

Q901 23205159

Q902 23205165

Q904 23205158

Q905 23205156

Q911 23205159

Q912 23205165

Q913 23314962

Q914 23205158

Q915 23205156

Description

TRANSISTOR, 2SA1837

SCREW, PP3X.5X6SZN

TRANSISTOR, 2SC4793

SCREW, PP3X.5X6SZN

IC, TC74HC123AF

TRANSISTOR, FET, 2SK2920

TRANSISTOR, KTC3875Y

IC, TA75S393F

IC, TC4S66F

IC, TC4S66F

IC,TI TPS76918

IC, STR-Z4317

IC, BA033T

IC, PST994D

IC, +9V 2% REG. TO220, SI-3090J(LF1

IC, SI-3050C

IC, SI-3033CA(LF1101)

IC, MIP280

IC, PHOTO COUPLER, TLP421F(GR)

IC, PHOTO COUPLER, TLP421F(GR)

TRANSISTOR, KTC3198 Y

IC, PHOTO COUPLER, TLP421F(GR)

IC, SE116N, LF4

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, NPN VCBO=30V

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, PNP VCBO=-300

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, NPN VCBO=30V

TRANSISTOR, KTA1266 Y

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, PNP VCBO=-300

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, NPN VCBO=30V

TRANSISTOR, NPN VCBO=300V

TRANSISTOR, PNP VCBO=-300

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTA1266 Y

IC, MCU 1CHIP 16BIT 4M 64, MN102H85KFF

IC, AT24C64-10PC

IC, MM1096BS

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

IC, UPC29M33HB

IC, RESET VS=2.9V, PST9129

TRANSISTOR, 2SC1740S

TRANSISTOR, RN1405

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3198 Y

IC, M5218AP

TRANSISTOR, KTC3198 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTA1266 Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3198 Y

TRANSISTOR, 2SC3437-Y

TRANSISTOR, 2SC3326B

TRANSISTOR, 2SC3326B

TRANSISTOR, KTA1504Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

– 44 –

QH301 23358557

QH305 23906585

QH306 23906585

QH307 23906585

QH308 23906429

QH309 23906429

QH401 23009185

QH402 70119743

QH404 23318977

QH405 23319595

QH406 23205054

QH501 23009177

QH520 23906909

QH540 23906909

QH560 23906909

QR14 23205054

QR15 23205054

QR16 23205054

QS01 70114396

QS107 23904896

QS108 23205057

QS11 70114396

QS12 23114493

QS120 23906597

QS13 23314204

QS14 23314204

QS90 23000529

QV01 23905539

QV10 23314204

QV20 23114499

QV21 23314204

QV22 23205045

QV23 23205045

QV28 23114500

QV30 23905590

QV31 23205057

QV37 23205054

QV38 23205054

Location

No.

Parts No.

QB87 23205054

QB88 23205054

QC01 23000040

QC02 23205151

QC03 23205151

QC04 23000040

QC05 23314204

QD01 23009142

QD41 23000725

QD42 23314085

QD44 23114460

QD45 23114460

QD81 23114466

QD82 23114623

QD83 23114623

QH001 23000380

QH004 23319595

QH005 23905013

QH006 23906908

QH173 23905666

QH301 23358557

QH301 23358557

QH301 23358557

Description

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

IC, 4K BIT CMOS EEPROM, AT24C04N10SC

TRANSISTOR, FET, BSN20

TRANSISTOR, FET, BSN20

IC, 4K BIT CMOS EEPROM, AT24C04N10SC

TRANSISTOR, 2SC2412K,Q

IC, NJM1136D

IC, NJM2700L

TRANSISTOR, FET, 2SK372 V

TRANSISTOR, RN1204

TRANSISTOR, RN1204

TRANSISTOR, RN2204

TRANSISTOR, 2SC2878-A(TEM

TRANSISTOR, 2SC2878-A(TEM

IC, TC190C060AF-301(Z)

IC, TC74HC244AF

IC, TLC2932IPW

IC, MC33078D

IC, AT24C1610PC

OPT DEVICE, AM. PHOTOSENSOR,

AM-30-24CA

OPT DEVICE, AM. PHOTOSENSOR,

AM-30-24CA

OPT DEVICE, AM. PHOTOSENSOR,

AM-30-24CA

OPT DEVICE, AM. PHOTOSENSOR,

AM-30-24CA

IC, QUAD OP-AMP DMP14 14P, NJM2058M

IC, QUAD OP-AMP DMP14 14P, NJM2058M

IC, QUAD OP-AMP DMP14 14P, NJM2058M

IC, TC74HC123AF

IC, TC74HC123AF

IC, MCU 1CHIP 8BIT 8M 42P, 8700CPN-3R14

IC, PST523D

IC, MC14052BF

IC, TC74HC244AF

TRANSISTOR, KTA1504Y

IC, D/A CONVERTER 6CH IN, CD0031AMT

IC, MC33079D

IC, MC33079D

IC, MC33079D

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

TRANSISTOR, 2SC3326B

IC, JLC1562BF

TRANSISTOR, KTC3875Y

TRANSISTOR, 2SC3326B

TRANSISTOR, RN2404

IC, BA4558F

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, 2SC2412K,Q

IC, SW 2IN 1OUT 3CIRCUIT 0 CLP, MM1231XD

IC, TA8851CN

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, RN1404

TRANSISTOR, 2SC2412K,Q

TRANSISTOR, 2SA1037AKQ

TRANSISTOR, 2SA1037AKQ

TRANSISTOR, RN1403

IC, M52055FP

TRANSISTOR, KTC3875Y

TRANSISTOR, KTA1504Y

TRANSISTOR, KTA1504Y

Location

No.

Parts No.

D305 23118041

D311 23316682

D312 23316732

D313 23118859

D314 23118859

D315 23118859

D401 23118094

D402 23118094

D403 23316731

D404 23316254

D405 23118094

D406 23118094

D407 23316731

D408 23115910

D409 23118094

D411 23118094

D413 23118707

D414 23118707

D415 23118859

D416 23118094

D416 23118041

D417 23316591

D418 23316591

D419 23316571

D420 23118041

D461 23224366

D461B 70391355

* D482 23115774

D520 23316647

D521 23118041

D522 23118041

D523 23118041

D530 23316586

QV39 23205054

QV48 23114433

QV49 23114433

QV61 23205054

QV81 23318438

QV83 23205057

QV91 23205057

QW04 23205057

QW05 23205057

QW08 23205057

QW10 23205057

QW11 23205057

QW17 23114502

QY260 23314204

D101 23316755

D201 23118041

D202 23118041

D203 23118041

D204 23118041

D205 23316573

D206 23316573

D215 23118041

D216 23118041

D217 23118041

D218 23118041

D219 23118041

D220 23118041

D260 23118094

D301 23118094

D302 23316794

D303 23118822

D304 23118822

Description

TRANSISTOR, KTA1504Y

TRANSISTOR, 2SC1815-Y

TRANSISTOR, 2SC1815-Y

TRANSISTOR, KTA1504Y

IC, M52055P

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, KTC3875Y

TRANSISTOR, RN1401

TRANSISTOR, 2SC2412K,Q

DIODE, ZENER, MTZJ33C

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER, MA8062-L

DIODE, ZENER, MA8062-L

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, EU2A

DIODE, EU2A

DIODE, SC570A

DIODE, ERB12-02

DIODE, ERB12-02

DIODE, MA111

DIODE, ZENER, MTZJ7.5C

DIODE, ZENER, MTZJ18C

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, EU2A

DIODE, EU2A

DIODE, ZENER, MTZJ18B

DIODE, ERC06-15

DIODE, EU2A

DIODE, EU2A

DIODE, ZENER, MTZJ18B

DIODE, S5295G

DIODE, EU2A

DIODE, EU2A

DIODE, RP-1H

DIODE, RP-1H

DIODE, 1SS133

DIODE, EU2A

DIODE, MA111

DIODE, ZENER, MA8100-M

DIODE, ZENER, MA8100-M

DIODE, ZENER CHIP VZ5.48-5.76V MA8056-M

DIODE, MA111

DIODE, FMQ-3GU

SCREW, 3X8MM

DIODE, ZENER, RD6.2E(FA-1)

DIODE, ZENER, MTZJ2.0B

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER, MA8082-H

– 45 –

Location

No.

Parts No.

D531 23316584

D532 23118822

D533 23316586

D534 23316792

D535 23316591

D601 23118041

D602 23118041

D603 23118041

D604 23118041

D607 23316616

D608 23316616

D611 23118041

D612 23118041

D613 23118041

D614 23118041

D615 23118041

D616 23118041

D661 23316580

D704 23118859

D705 23118859

D715 23118859

D721 23118859

D761 23118859

D762 23118859

D763 23118859

D764 23118859

D781 23118859

D782 23118859

D783 23118859

D784 23118859

D801 23316784

D820 23118041

D821 23118094

D840 23357207

D841 23118528

D842 23118536

D843 23118094

D845 23118859

D846 23118633

D847 23118633

D848 23118859

D851 23357215

D852 23316714

D853 23316714

D854 23316399

D855 23316399

D862 23118094

D864 23118094

D873 23118622

D875 23118623

D876 23118603

D879 23118615

D881 23118859

D882 23357012

D883 23118859

D884 23357217

D885 23357216

D890 23316661

D891 23357214

D892 23316768

D899 24019485

D901 23118859

D904 23118859

D905 23118859

Description

DIODE, ZENER CHIP VZ7.77-8.17V MA8082-L

DIODE, ERB12-02

DIODE, ZENER, MA8082-H

DIODE, SC215

DIODE, ZENER, MA8100-M

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER CHIP 21.45-22.55V MA8220-M

DIODE, ZENER CHIP 21.45-22.55V MA8220-M

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER CHIP VZ7.29-7.67V MA8075-M

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, RBV1506, LF-A

DIODE, MA111

DIODE, EU2A

DIODE, LN1WBA60

DIODE, ZENER, RD5.6ESA B3

DIODE, ZENER, RD4.7ES B1

DIODE, EU2A

DIODE, 1SS133

DIODE, ZENER, RD3.0ES B2

DIODE, ZENER, RD3.0ES B2

DIODE, 1SS133

DIODE, D4SBS6

DIODE, RL2Z

DIODE, RL2Z

DIODE, EL1Z

DIODE, EL1Z

DIODE, EU2A

DIODE, EU2A

DIODE, ZENER, RD10ES B2

DIODE, ZENER, RD10ES B1

DIODE, ZENER VZ33.40-35.13

DO-34RD36ESA B3

DIODE, ZENER, RD27ES B3

DIODE, 1SS133

DIODE, 1SS244

DIODE, 1SS133

DIODE, D4SBL40

DIODE, D4SBL20U

DIODE, ZENER, MTZJ3.9B

DIODE, D4SBS4

DIODE, FMB-26L

VARISTOR, TNR10V431K

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

Location

No.

Parts No.

D7734 23118275

D7736 23118538

D7738 23118041

D7739 23118041

D7740 23118041

D7741 23118041

D7742 23118041

D7743 23118041

D7745 23118041

D7746 23118041

D7747 23118041

D7748 23118041

D7749 23118041

D7760 23118041

D7806 23118041

D7807 23316402

D7808 23316766

DA02 23316574

DA23 23118041

DA43 23118041

DA44 23118041

DA45 23118041

DA46 23118041

DA70 23118041

DB01 23358564

DB03 23358522

DB30 23118041

DB31 23118041

DB51 23358573

DB52 23118859

DB53 23118859

DB54 23118859

DB61 23118041

D906 23357012

D907 23357012

D908 23357012

D909 23357012

D912 23118859

D913 23115337

D914 23118859

D915 23118859

D916 23357012

D917 23357012

D918 23357012

D919 23357012

D921 23118859

D924 23118859

D925 23118859

D926 23357012

D927 23357012

D928 23357012

D929 23357012

D936 23115337

D967 23115337

D7705 23118041

D7706 23118041

D7707 23118041

D7708 23118041

D7709 23118538

D7715 23118041

D7716 23118041

D7717 23118538

D7718 23118538

D7719 23118538

D7733 23118275

Description

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS133

DIODE, 1S1834

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1SS244

DIODE, 1S1834

DIODE, 1S1834

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER, RD6.2ESA B2

DIODE, MA111

DIODE, MA111

DIODE, ZENER, RD6.2ESA B2

DIODE, ZENER, RD6.2ESA B2

DIODE, ZENER, RD6.2ESA B2

DIODE, ZENER, RD18MB2

DIODE, ZENER, RD18MB2

DIODE, ZENER, RD6.2ESA B2

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, RL4Z

DIODE, RU2YX

DIODE, ZENER CHIP VZ6.05-6.36V MA8062-M

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, LED, SLR-56VC3FPQ

DIODE, LED, SIR-56SB3F

DIODE, MA111

DIODE, MA111

PHOTO DIODE, PIN 940NM

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, MA111

– 46 –

Location

No.

Parts No.

DC01 23118041

DC02 23118041

DC03 23118041

DC04 23118041

DD81 23118859

DD82 23118859

DD83 23118859

DH001 23316675

DH002 23316675

DH003 23316675

DH301 23316672

DH301 23316672

DH301 23316672

DH301 23316672

DH301 23316672

DH302 23316672

DH303 23316672

DH304 23316672

DH305 23316672

DH306 23316672

DH307 23316672

DH308 23316672

DH309 23118859

DH310 23118859

DH311 23118859

DH312 23118859

DH313 23316666

DH314 23316666

DH315 23316666

DH316 23316666

DH401 23316574

DR10 23118041

DR11 23118041

DR12 23118041

DR13 23118041

DR14 23118041

DR15 23118041

DS90 23316596

DS120 23316740

DV01 23316587

DV02 23316587

DV03 23316587

DV07 23316587

DV08 23316587

DV09 23316587

DV11 23316587

DV12 23316587

DV13 23316587

DV17 23316587

DV18 23316587

DV25 23118041

DV30 23316792

DV31 23316672

DV39 23358543

DV161 23316587

DV161 23316591

DV162 23316587

DV162 23316591

DV163 23316587

DV163 23316591

DV164 23316587

DV164 23316591

DV165 23316587

DV165 23316591

Description

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, ZENER, MTZJ6.2B

DIODE, ZENER, MTZJ6.2B

DIODE, ZENER, MTZJ6.2B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, ZENER, MTZJ5.6B

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, 1SS133

DIODE, ZENER, MTZJ4.7B

DIODE, ZENER, MTZJ4.7B

DIODE, ZENER, MTZJ4.7B

DIODE, ZENER, MTZJ4.7B

DIODE, ZENER CHIP VZ6.05-6.36V MA8062-M

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, MA111

DIODE, ZENER 11.40-11.96V

DIODE, ZENER VZ21.52-22.63

DO34 MTZ J 22D

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, MA111

DIODE, SC215

DIODE, ZENER, MTZJ5.6B

PHOTO SENSOR, IF=10MA 650NM, S7565

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

Location

No.

Parts No.

DV166 23316587

DV166 23316591

Description

DIODE, ZENER CHIP VZ8.58-9.02V MA8091-L

DIODE, ZENER, MA8100-M

E918 23737007

E948 23737007

E978 23737007

F470 23144624

F801 23144481

F801A 23165433

F840

F850

23144581

23144627

F851

F852

F853

F860

23144627

23144624

23144622

23144456

F889

F890

23144626

23144625

F891 23144627

G101 24011151

G102 24011151

GCD86 24797100

GCD88 24797100

GCD90 24797100

GCD91 24797100

GJ01 24000445

GJ01 24000445

GJ02 24000445

GJ03 24000445

GJ05 24000445

GJ05 24000445

GJ06 24000445

GJ07 24000824

GJ11 24000445

GJ13 24000445

GJ14 24000445

GJ14 24000445

GJ14 24000445

GJ15 24000445

GJ15 24000445

GJ15 24000445

GJ16 24000445

GJ16 24000445

GJ17 24000445

GJ18 24000445

GJ19 24000445

GJ20 24000445

GJ20 24000445

GJ21 24000445

GJ30 24000445

MISCELLANEOUS

B110 23929684

B224 23035412

B230 23037312

B233 23035412

B234 23035412

B235 23035310

B236 23035412

BB10 23713014

BB11 23713013

BB20 23713014

BB21 23713013

BB30 23903022

BB31 23903022

BB300 23368627

BACK TERM BOARD 65HDX82

SCREW, BTB4X12SZN

SCREW, BTBW3X12SZN

SCREW, BTB4X12SZN

SCREW, BTB4X12SZN

SCREW, BTB3X10SZN

SCREW, BTB4X12SZN

CONNECTOR, BRIDGE PLUG 16P 1.5

BASE SOCKET 16P 1.5

CONNECTOR, BRIDGE PLUG 16P 1.5

BASE SOCKET 16P 1.5

CONNECTOR, BASE B-B 8P 2.5 JST

CONNECTOR, BASE B-B 8P 2.5 JST

CONNECTOR, BRIDGE B-B 8P 2.5JST

08TM-2.5FJ-E

BOLT, BOLT ASSY 50A60

BOLT, BOLT ASSY 50A60

BOLT, BOLT ASSY 50A60

FUSE, AXIAL, 125V 2.0A

FUSE, 125V 7.0A-T U/C MINI

FUSE HOLDER, 5.2 SOC

FUSE, AXIAL, 125V 200MA

FUSE, AXIAL, 125V 5.0A

FUSE, AXIAL, 125V 5.0A

FUSE, AXIAL, 125V 2.0A

FUSE, AXIAL, 125V 1.25A

FUSE, AXIAL, 125V 5.0A

FUSE, AXIAL, 125V 4.0A

FUSE, AXIAL, 125V 3.15A

FUSE, AXIAL, 125V 5.0A

CHIP, METAL FILM, 1/20W 150 OHM J

CHIP, METAL FILM, 1/20W 150 OHM J

ELECTROLYTIC, 50V 10UF M

ELECTROLYTIC, 50V 10UF M

ELECTROLYTIC, 50V 10UF M

ELECTROLYTIC, 50V 10UF M

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 2125TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

– 47 –

Location

No.

Parts No.

GJ202 24000445

GJ203 24000445

GJ204 24011220

GJ205 24000445

GJ207 24000445

GJ208 24000445

GJ208 24000445

GJ209 24000445

GJ210 24000445

GJ210 24000445

GJ211 24000445

GJ212 24000445

GJ216 24000445

GJ223 24000445

GJ224 24000445

GJ225 24000445

GJ226 24000445

GJ227 24000445

GJ228 24000445

GJ229 24000445

GJ664 24000445

GJ665 24000445

GJA33 24000445

GR99 24000445

GRD80 24366472

GRD82 24366472

H003 23124087

H003A 23740989

JX601 24000445

JX602 24000445

K913 23306465

KB01 23000852

GJ33 24000445

GJ40 24000445

GJ41 24000445

GJ61 24000445

GJ62 24000445

GJ63 23103237

GJ64 24000445

GJ65 24000445

GJ66 23103237

GJ67 24000445

GJ68 24000445

GJ69 23103237

GJ71 24000445

GJ72 24000445

GJ73 23103237

GJ74 24000445

GJ75 24000445

GJ76 23103237

GJ77 24000445

GJ77 24000445

GJ78 24000445

GJ79 23103237

GJ80 24000445

GJ81 24000824

GJ82 24000824

GJ83 24000824

GJ91 24000445

GJ92 24000445

GJ93 24000445

GJ97 24000445

GJ98 24000445

GJ201 24000445

Description

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP BEAD INDUCTOR 102OHM, TEM2141AD

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 2125TYPE

CHIP JUMPER, 2125TYPE

CHIP JUMPER, 2125TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP, METAL FILM, 1/20W 22 OHM J

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

CARBON FILM, 1/6W 4.7K OHM J

CARBON FILM, 1/6W 4.7K OHM J

ANTENNA SWITCH, BUNPAI, RSU135X1

NUT, F-CONNECTOR 2H BS

CHIP JUMPER, 1608TYPE

CHIP JUMPER, 1608TYPE

REMOCON HAND UNIT IR, IR

IC, REMOCON RECEIVER, PIC-37043TE2

Location

No.

Parts No.

P350 23368634

P410 23903025

P540 23903040

P708 23902655

P709 23902655

P713 23164787

P714 23164787

P715 23164787

P801 23372191

P802 23368013

P900 23164563

P900 23164563

P900 23164563

P900 23164563

PB13A 23367677

PH001 23367724

PH002 23367724

PR80 23023028

PR83 23023028

PV02 23365819

PV04 23023027

PV05 23368646

PV06 23903040

S602 23145412

SA01 23145226

SA02 23145226

SA03 23145226

SA04 23145226

SA05 23145226

SA06 23145226

SA07 23145226

SA08 23145226

SA09 23145226

SR81 23146577

UZ01 23148024

* V901A

23903168

* V902A 23903168

* V903A 23903168

W661 23151232

W662 23151232

W663 23351172

W664 23351172

X4401 23153721

X4402 23153721

XA01 23153533

XH401 23153752

XV01 23153533

* Z401

Z405

24083013

23140203

Z410

Z410

23110841

23110847

Z450A 23501755

* Z801 23148734

ZH001 23103823

ZH002 23103823

ZH04 23103778

ZH05 23103840

ZH121 23103823

Description

CONNECTOR, PLUG, B-B 1.5MM 25P,

JDV-PS25LB-10-1

CONNECTOR, SOCKET, B-B 1.5MM 25P

JDV-R25LB-10-1

SOCKET, B-B 2MM 56P TAIKO

CONNECTOR, 15P

CONNECTOR, 15P

CONNECTOR, PLUG, 7P

CONNECTOR, PLUG, 7P

CONNECTOR, PLUG, 7P

POWER CORD, U/C FL 125V7A

CONNECTOR, PLUG, 2P 11.88MM W VT-JST

CONNECTOR, PLUG 3P

CONNECTOR, PLUG 3P

CONNECTOR, PLUG 3P

CONNECTOR, PLUG 3P

PLUG, 4P L TYPE 2.5MM

CONNECTOR, PLUG, B-B 15P

CONNECTOR, PLUG, B-B 15P

JACK, EARPHONE YKB21-5206

JACK, EARPHONE YKB21-5206

JACK, 1S3P

PIN(1G+1B+2L:F+2R:F+1R)

PLUG, B-B 2MM 56P TAIKO

SOCKET, B-B 2MM 56P TAIKO

SWITCH, SLIDE SWITCH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

SWITCH, 1C1P, PUSH

RELAY, DLS5D1-O(M)0.25W

SCAN CONVERTER MODUL, N.H, MVPU14

SOCKET, CVT3277-5104G SMK

SOCKET, CVT3277-5104G SMK

SOCKET, CVT3277-5104G SMK

SPEAKER, SPK-1235, 160X160, 65HZ, 8 OHM

SPEAKER, SPK-1235, 160X160, 65HZ, 8 OHM

SPEAKER, TWC 50X50 16-OHM 15W,

SPK-1417AM

SPEAKER, TWC 50X50 16-OHM 15W,

SPK-1417AM

CERAMIC RESONATOR, 503KHZ

CERAMIC RESONATOR, 503KHZ

CERAMIC RESONATOR, CERA RESO,

TCR1082AM

CRYSTAL, 8.000 40PPM 50OHM

CERAMIC RESONATOR, CERA RESO,

TCR1082AM

COMPOSITE PARTS, CR-BLOCK, TPA5010AH

SPARK GAP, 2.0-3.0KV C-010,

AG20PC152F-L3N

FOCUS PACK, TPA6030

FOCUS PACK, TPA6030BY

ANODE CABLE, 400LD FBT-C

MODULE, PROTECTOR, HIC1026A

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

FILTER, FERRITE CORE, TFE1008

FERRITE CORE, TFE1013

COIL, FILTER, TEM2027D

– 48 –

Location

No.

Parts No.

ZV13

ZV14

ZV15

ZV16

ZV17

ZV18

ZV19

ZV20

ZV60

ZV61

ZH122 23103823

ZH141 23103823

ZH142 23103823

ZH161 23103823

ZH162 23103823

ZH408 23103823

ZH500 23103823

ZV12 23103840

23103840

23103840

23103840

23103840

23103840

23103840

23103840

23103840

23103778

23103778

Description

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

COIL, FILTER, TEM2027D

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FERRITE CORE, TFE1013

FILTER, FERRITE CORE, TFE1008

FILTER, FERRITE CORE, TFE1008

PC BOARD ASSEMBLIES

*

E021Z 23787467 A/V BOARD, PD0646A1

*

E022Z 23787725 REM BOARD, PD0646A2

*

E031Z 23787458 CRT-D/R BOARD, PD0641A1

*

E032Z 23787459 CRT-D/G BOARD, PD0641A2

*

E033Z 23787460 CRT-D/B BOARD, PD0641A3

*

E034Z 23787461 SVM/R BOARD, PD0641A4

*

E035Z 23787462 SVM/G BOARD, PD0641A5

*

E036Z 23787463 SVM/B BOARD, PD0641A6

*

E041Z 23787915 FRONT-CON BOARD, PD0221A-1

*

E042Z 23787916 FRONT-IN BOARD, PD0221A-2

*

E044Z 23787917 FRONT-SEN BOARD, PD0221A-4

*

E051Z 23786222 CONV-SEN BOARD, PD0079-1

*

E052Z 23786223 CONV-SEN2 BOARD, PD0079-2

*

E053Z 23786224 CONV-SEN3 BOARD, PD0079-3

*

E054Z 23786225 CONV-SEN4 BOARD, PD0079-4

*

U401 23787717 DPC BOARD, PD0077D

*

U801 23787710 DEF/POWER BOARD, PD0640B

*

U901 23787720 SIG/CONV BOARD, PD0639B

*

UD01 23787523 WOW BOARD, PD0645B

*

UH01 23787714 DIGI-CONV BOARD, PD0638D

*

UV02 23787468 DVI BOARD, PD0647A

PICTURE TUBE

* V901R

23086306

* V902G 23086307

* V903B 23086308

CRT CPLG R

CRT CPLG G

CRT CPLG B

TUNER

H001 23321411

HY01 23321412

ACCESSORIES

K912

Y101

23306458

23565682

TUNER, TIM 181CH IIC PH SHINSEN, EL967LW

TUNER, TIF 181CH IIC PH TDL, EL963L

REMOCON HAND UNIT IR, CTV, CT-90121

OWNER’S MANUAL, ENGLISH/FRENCH,

65HDX82

CABINET PARTS

A001

A102

23411712

23527203

A139 23451976

A140A 23427972

A143

A160

A175

A201

23445516

23469228

23929314

23540678

WOOD CAB SHIP 65HDX82

GRILLE, SPK GRILLE ASSY 65HX81

PUSH CATCH, CLICK

DOOR, DOOR PROPER 50HX81

BUTTON, POWER 50HX81

CASTER, TP50H60

PIECE, CLIP, TZ50V61

COVER, BEZEL 65H81

Location

No.

Parts No.

A202 23450389

A268 23540681

A421 23540170

A424 23530340

A510 23030815

A519 23030815

A521 23030815

A543 72471068

A701 23064865

A703 23946215

A708 23946380

K111 23405024

K112 23405024

K113 23405024

K501 23311953

K502 23311954

K503 23311900

K601 23405029

Description

PANEL, CONTROL PANEL ASSY 50HX81

COVER, FRONT COVER 50HX81

COVER, REAR BOARD 50A60

BACK BOARD 65HDX82

WOOD SCREW PTD #6 X 3/4 TNP LOCAL

WOOD SCREW PTD #6 X 3/4 TNP LOCAL

WOOD SCREW PTD #6 X 3/4 TNP LOCAL

SCREW, 4X12

CARTON, CARTON 65HDX82

PACKING, TOP PACKING 65H81

BOTTOM PACKING 65H82

LENS, DELTA265A/B

LENS, DELTA265A/B

LENS, DELTA265A/B

SCREEN, 65DM LENTI SHEET,

SCREEN65DM-L

SCREEN, 65DM FRESNEL, SCREEN65DM-F

SCREEN, PROTECTOR 65AL AR T0,

SCR-PRO65AL

MIRROR, 65WL 65H81, MIRROR65WL

Location

No.

Parts No.

Description

– 49 –

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 50 –

SIGNAL/CONV BOARD PD0639B

BOTTOM (FOIL) SIDE

– 51 – – 52 –

DEF/POWER BOARD PD0640B

BOTTOM (FOIL) SIDE

– 53 – – 54 –

AV BOARD PD0646A-1

BOTTOM (FOIL) SIDE

REM BOARD PD0646A-2

BOTTOM (FOIL) SIDE

– 55 – – 56 –

DPC BOARD PD0077D

BOTTOM (FOIL) SIDE

fh ADJ

R4034 R364

E

R4007

R4006

Q423

B

Q323

C335

+

C338

R363

C334

Q321

+

C492

C324

R362

1

14

C325

R3 21

7

8

R3

81

1

C322

16

R3

79

R3

37

R336

+

C3

21

C3

28

C3

23

R338

R334

R325

Q322

8

9

C327

C344

R322

R327

R326

R4009

R4016

C342

+

C439

+

+

C481

C484

R342

1

14

Q324

7

8

R3

47

+

R4023

R4018

C474

R4020

R4033

C477 C478 C482

R4024

C486

C347

R4017

C473

C471

C354

C355

E

+

C3

53

1

30

B

+

C356

C4

89

+

R382

15

Q420

R4032

16

+

R4010

R4036

C487

C4

93

C351

R373

R375

E

Q328

R369

Q327

B

+

C332

E

P350

R4030

R377

B

+

C357

+

C3

46

R352

R351

C3

52

+

R376

C343

R368

R354

R343

C345

Q329

Q421

C3

37 B

E

C4

72

R4013

R4011

– 57 –

DIGI-CONV BOARD PD0638D

BOTTOM (FOIL) SIDE

– 58 –

CONV-SEN BOARD PD0079

BOTTOM (FOIL) SIDE

B1-V-O

+

P900

-

CRT DRIVE(RED) BOARD PD0641A-1

BOTTOM (FOIL) SIDE

– 59 –

CRT DRIVE(GRN) BOARD PD0641A-2

BOTTOM (FOIL) SIDE

CRT DRIVE(BLE) BOARD PD0641A-3

BOTTOM (FOIL) SIDE

– 60 –

SVM-R BOARD PD0641A-4

BOTTOM (FOIL) SIDE

SVM-G BOARD PD0641A-5

BOTTOM (FOIL) SIDE

SVM-B BOARD PD0641A-6

BOTTOM (FOIL) SIDE

– 61 –

FRONT-CONTROL BOARD PD0221A-1

BOTTOM (FOIL) SIDE

SA05

POW

B1-V-0 T-D

DB01

PB13B

SA08

DEMO

SA07

ANT/VIDEO

EXIT

SA09

VOL UP

SA03

SA01

CH UP

SA04

VOL DN

SA02

CH DN

RA76

SA06

MENU

FRONT-SEN BOARD PD0221A-4

BOTTOM (FOIL) SIDE

PB22

DB03

+

FRONT-ALS BOARD PD0221A-1

BOTTOM (FOIL) SIDE

FRONT-IN BOARD PD0221A-2

BOTTOM (FOIL) SIDE

C

Y

V

PV02

L

R

– 62 –

B1-V-0 T-D

WOW BOARD PD0645B

BOTTOM (FOIL) SIDE

– 63 –

2SC5144

2SC5859

E

C

B

TERMINAL VIEW OF TRANSISTORS

2SC3852

2SD1763A

2SC1569

2SC4544

2SA1788

2SA1306

2SA1186A

E

C

B

2SC752GTM

2SC2482

2SC2655

2SC4721P

B

CE

2SC752

2SA562TM

2SA1015

2SC1815

2SC2878

2SC1740S

2SC2120

2SA9335

B

CE

2SA1788

E

C

B

RN2203

RN2201

RN2004

RN1203

RN1204

RN2204

RN1205

RN1202

RN1201

E

C B

2SD1554

2SD2253

2SD1556

2SD2553

2SC5143

E

C

B

ON4409

E

C

B

– 64 –

THIS PAGE IS

INTENTIONALLY LEFT

BLANK.

– 65 –

SCHEMATIC DIAGRAM

MODEL : 65HDX82

WARNING: BEFORE SERVICING THIS CHASSIS, READ THE "X-RAY RADIATION PRECAUTION", "SAFETY

PRECAUTION" AND "PRODUCT SAFETY NOTICE" ON THE MANUAL FOR THIS MODEL.

CAUTION: The international hazard symbols "*" in the schematic diagram and the parts list designate components which have special characteristics important for safety and should be replaced only with types identical to those in the original circuit or specified in the parts list. The mounting position of replacements is to be identical with originals.

Before replacing any of these components, read carefully the PRODUCT SAFETY NOTICE on the MANUAL for this model. Do not degrade the safety of the receiver through improper servicing.

NOTE:

1. RESISTOR Resistance is shown in ohm [K = 1.000, M = 1.000.000]. All resistors are 1/6W and 5% tolerance carbon resistor, unless otherwise noted as the following marks.

1/2R = Metal or Metal oxide of 1/2 watt 1/2S = Carbon compsistion of 1/2 watt

1RF = Fuse resistor of 1 watt

K =

±

10% G =

±

2% F =

±

1%

10W = Cement of 10 watt

2. CAPACITOR Unless otherwise noted in schematic, all capacitor values less than 1 are expressed in

?F, and the values more than 1 in pF.

All capacitors are ceramic 50V, unless otherwise noted as the following marks.

Electolytic capacitor Mylar capacitor

3. The parts indicated with " * " have special characteristics, and should be replaced with identical parts only.

4. Voltages read with DIGITAL MULTI-METER from point indicated to chassing ground, using a color bar signal with all

controls at normal, line voltage 120 volts.

5. Waveforms are taken receiving color bar signal with enough sensitivity.

6. Voltage reading shown are nominal values and may vary

±

20% except H.V.

SCHEMATIC DIAGRAM STRUCTURE:

SIGNAL / CONVER Circuit ( Conver )

( Defrection )

( If )

( Maicon )

[ SHEET - 1/7 ] ...................... 1/19

[ SHEET - 2/7 ] ...................... 2/19

[ SHEET - 3/7 ] ...................... 3/19

[ SHEET - 4/7 ] ...................... 4/19

( Power )

( Audio )

( Video )

( Power )

[ SHEET - 5/7 ] ...................... 5/19

[ SHEET - 6/7 ] ...................... 6/19

[ SHEET - 7/7 ] ...................... 7/19

[ SHEET - 1/2 ] ...................... 8/19 POWER / DEF Circuit

( Defrection ) [ SHEET - 2/2 ] ...................... 9/19

DPC Circuit ........................................................................................................... 10/19

DIGITAL CONVER Circuit ( 1/2 )

( 2/2 )

[ SHEET - 1/2 ] .................... 11/19

[ SHEET - 2/2 ] .................... 12/19

AV / REM Circuit

CRT / SVM Circuit

( 1/2 )

( 2/2 )

[ SHEET - 1/2 ] .................... 13/19

[ SHEET - 2/2 ] .................... 14/19

FRONT / T. FOCUS-SENSOR Circuit ................................................................. 15/19

SRS-WOW Circuit ................................................................................................. 16/19

( CRT )

( SVM )

[ SHEET - 1/2 ] .................... 17/19

[ SHEET - 2/2 ] .................... 18/19

DVI Circuit ............................................................................................................. 19/19

– 66 –

CIRCUIT BLOCK DIAGRAM

– 67 – – 68 –

65HDX82

BLOCK DIAGRAM

TELEVISION SYSTEM

CHANNEL COVERAGE

POWER SOURCE

POWER CONSUMPTION

AUDIO POWER

SPEAKER TYPE

VIDEO/AUDIO TERMINALS

DIMENSIONS/MASS

SPECIFICATIONS

NTSC standard

VHF: 2 through 13

UHF: 14 through 69

Cable TV: Mid band (A-8 through A-1, A through I)

Super band (J through W)

Hyper band (AA through ZZ, AAA, BBB)

Ultra band (65 through 94, 100 through 125)

120 V AC, 60 Hz

180W (Average)

15 W + 15 W

Two 6-5/16 inches (16 cm) round

S-VIDEO INPUT

Y-INPUT: 1V (p-p), 75 ohm, negative sync.

C-INPUT: 0.286 V(p-p) (burst signal), 75 ohm

VIDEO/AUDIO INPUT

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent, 47 kohm)

ColorStream TM (Component video) INPUT

Y-INPUT: 1 V(p-p), 75 ohm

P

R

-INPUT: 0.7 V(p-p), 75 ohm

P

B

-INPUT: 0.7 V(p-p), 75 ohm

AUDIO: 150mV(rms). 47 kohm

VIDEO/AUDIO OUTPUT

VIDEO: 1 V(p-p), 75 ohm, negative sync.

AUDIO: 150 mV(rms) (30% modulation equivalent, 4.7 kohm)

VARIABLE AUDIO OUTPUT

0-300 mV(rms) (30% modulation equivalent, 4.7 kohm)

AUDIO CENTER CHANNEL INPUT

300 mV(rms) (30% modulation equivalent, 10 kohm)

Dimension (W/H/D)

65HDX82 59-1/2 x 60-7/8 x 26.0 inches

(1,511 x 1,546 x 660 mm)

Mass

299 lbs

(136 kg)

SUPPLIED ACCESSORIES Remote Control with 2 size “AA” alkaline batteries

*Please refer to owner's manual in detail.

TOSHIBA CORPORATION

1-1, SHIBAURA 1- CHOME, MINATO-KU, TOKYO 105-8001, JAPAN

FILE NO. 020-200218

SERVICE MANUAL

COLOR TELEVISION

N2PSP Chassis

65HDX82

(TAC0270)

PUBLISHED IN JAPAN, Jul. 2002 So

Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project
