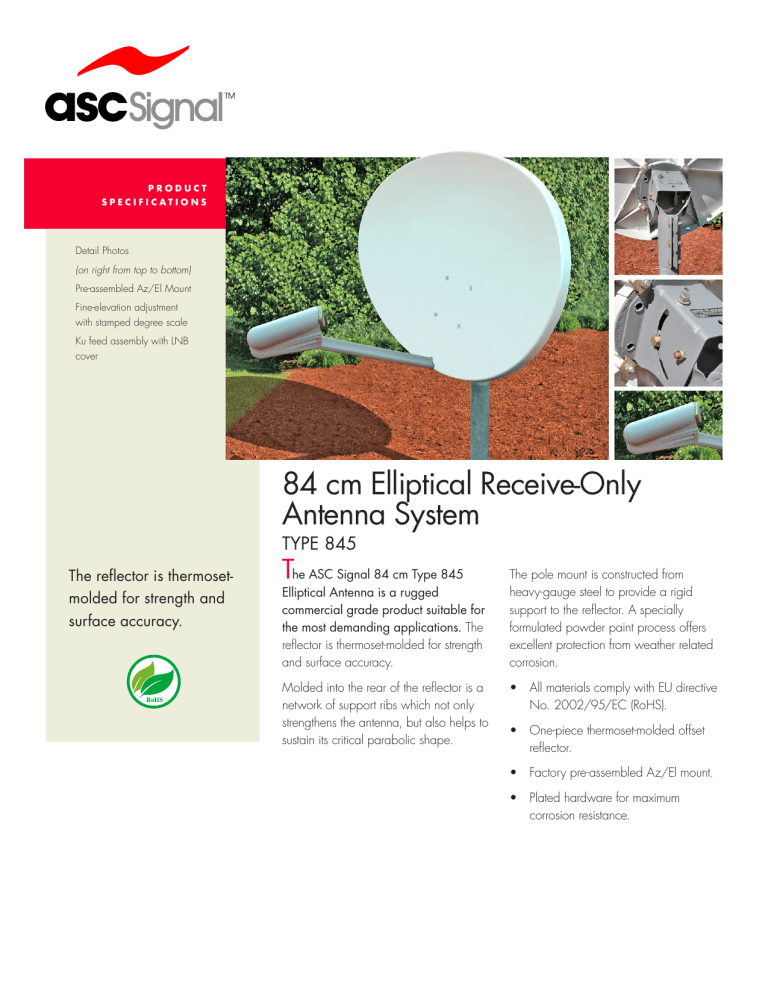

84 cm Elliptical Receive

84 cm Elliptical Receive
PRODUCT
SPECIFICATIONS
Detail Photos
(on right from top to bottom)
Pre-assembled Az/El Mount
Fine-elevation adjustment
with stamped degree scale
Ku feed assembly with LNB
cover
84 cm Elliptical Receive-Only
Antenna System
TYPE 845
The reflector is thermosetmolded for strength and
surface accuracy.
The ASC Signal 84 cm Type 845
Elliptical Antenna is a rugged
commercial grade product suitable for
the most demanding applications. The
reflector is thermoset-molded for strength
and surface accuracy.
Molded into the rear of the reflector is a
network of support ribs which not only
strengthens the antenna, but also helps to
sustain its critical parabolic shape.
The pole mount is constructed from
heavy-gauge steel to provide a rigid
support to the reflector. A specially
formulated powder paint process offers
excellent protection from weather related
corrosion.
• All materials comply with EU directive No. 2002/95/EC (RoHS).
• One-piece thermoset-molded offset
reflector.
• Factory pre-assembled Az/El mount.
• Plated hardware for maximum corrosion resistance.
S P E C I F I C AT I O N S
Type 845
84 cm Elliptical Receive Only Antenna System
RF Performance
Effective Aperture . . . . . . . . . . . . . . . . . . . . . . . . .
Mechanical Performance
84 cm Elliptical (33 in)
Reflector Material . . . . . . . . . . . . . . . . . . . . . . . . .
Glass Fiber Reinforced Polyester
Dimensions of Reflector . . . . . . . . . . . . . . . . . . . . . . . . .
102 cm x 77 cm
Antenna Optics . . . . . . . . . . . . . . . . . . . . . . . . .
One-Piece Offset Feed Prime Focus
Operating Frequency Polarization . . . . . . . . . . . . . . . . . . . . . . . . .
10.95 - 12.75 GHz
Mount Type
. . . . . . . . . . . . . . . . . . . . . . . . .
Skew over Elevation over Azimuth
. . . . . . . . . . . . . . . . . . . . . . . . .
Linear
Elevation Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
5˚ - 90˚ Continuous Fine Adjustment
Gain @ 11.95 GHz . . . . . . . . . . . . . . . . . . . . . . . . .
39. dBi
Azimuth Adjustment Range . . . . . . . . . . . . . . . . . . . . . . . . .
360˚ Continuous
3 dB Beamwidth .........................
1.8˚
Polarization (Skew) Adjustment Range . . . . . . . . . . . . . . . .
±90˚ Continuous
Antenna Noise Temperature @ 30˚ El . . . . . . . . . . . . . . . . 25˚ K
VSWR 1.3:1
Mast Pipe Interface
. . . . . . . . . . . . . . . . . . . . . . . . . 60 mm (2.38 in)
Wind Loading . . . . . . . . . . . . . . . Operational . . . . . . .
80 km/h (50 mph)
Survival
. . . . . . .
200 km/h (125 mph)
. . . . . . . . . . . . . . . . . . . . . . . . .
Cross-Polarization Discrimination (Linear) . . . . . . . . . . . . . .
30 dB on Axis
Feed Interface WR75 Flat Flange
. . . . . . . . . . . . . . . . . . . . . . . . .
(All specifications typical)
Temperature . . . . . . . . . . . . . . . . . . . . . . . . .
-50˚C to 80˚C
Humidity
. . . . . . . . . . . . . . . . . . . . . . . . .
0 to 100% (Condensing)
Atmosphere . . . . . . . . . . . . . . . . . . . . . . . . .
Standard Hardware Meets 500 Hour
Salt Spray Test Requirements
(ASTM B-117)
Solar Radiation 360 BTU/h/ft2
. . . . . . . . . . . . . . . . . . . . . . . . .
Shock and Vibration . . . . . . . . . . . . . . . . . . . . . . . . .
