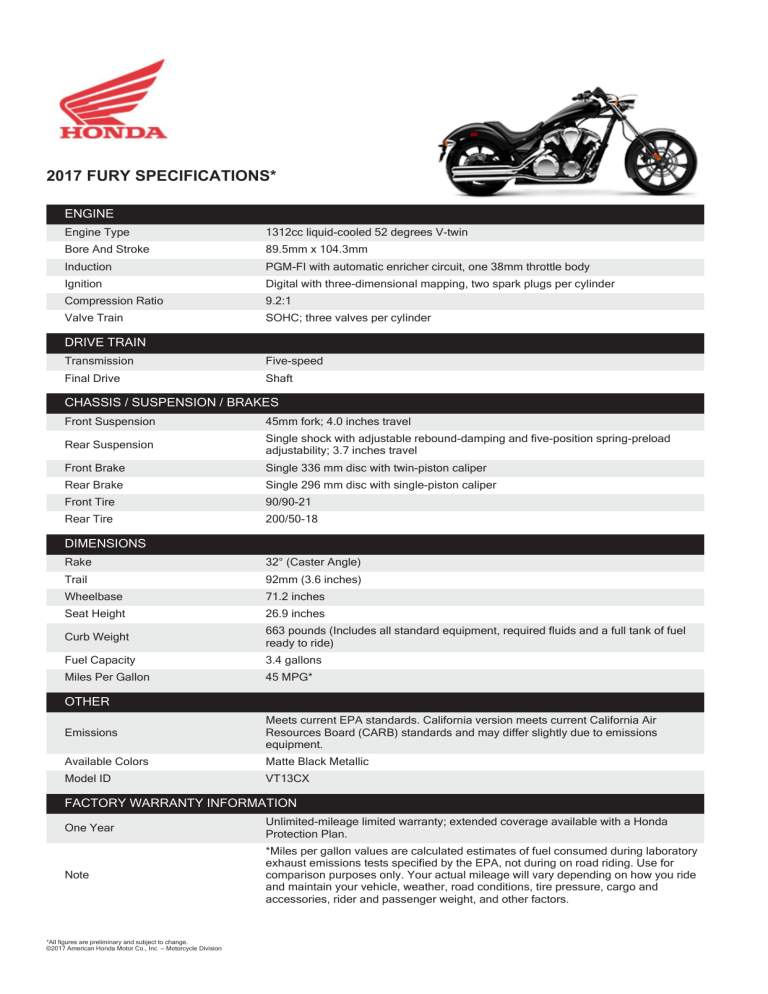

2017 FURY SPECIFICATIONS*
ENGINE
Engine Type
1312cc liquid-cooled 52 degrees V-twin
Bore And Stroke
89.5mm x 104.3mm
Induction
PGM-FI with automatic enricher circuit, one 38mm throttle body
Ignition
Digital with three-dimensional mapping, two spark plugs per cylinder
Compression Ratio
9.2:1
Valve Train
SOHC; three valves per cylinder
DRIVE TRAIN
Transmission
Five-speed
Final Drive
Shaft
CHASSIS / SUSPENSION / BRAKES
Front Suspension
45mm fork; 4.0 inches travel
Rear Suspension
Single shock with adjustable rebound-damping and five-position spring-preload
adjustability; 3.7 inches travel
Front Brake
Single 336 mm disc with twin-piston caliper
Rear Brake
Single 296 mm disc with single-piston caliper
Front Tire
90/90-21
Rear Tire
200/50-18
DIMENSIONS
Rake
32° (Caster Angle)
Trail
92mm (3.6 inches)
Wheelbase
71.2 inches
Seat Height
26.9 inches
Curb Weight
663 pounds (Includes all standard equipment, required fluids and a full tank of fuel
ready to ride)
Fuel Capacity
3.4 gallons
Miles Per Gallon
45 MPG*
OTHER
Emissions
Meets current EPA standards. California version meets current California Air
Resources Board (CARB) standards and may differ slightly due to emissions
equipment.
Available Colors
Matte Black Metallic
Model ID
VT13CX
FACTORY WARRANTY INFORMATION
One Year
Unlimited-mileage limited warranty; extended coverage available with a Honda
Protection Plan.
Note
*Miles per gallon values are calculated estimates of fuel consumed during laboratory
exhaust emissions tests specified by the EPA, not during on road riding. Use for
comparison purposes only. Your actual mileage will vary depending on how you ride
and maintain your vehicle, weather, road conditions, tire pressure, cargo and
accessories, rider and passenger weight, and other factors.
*All figures are preliminary and subject to change.
©2017 American Honda Motor Co., Inc. — Motorcycle Division
