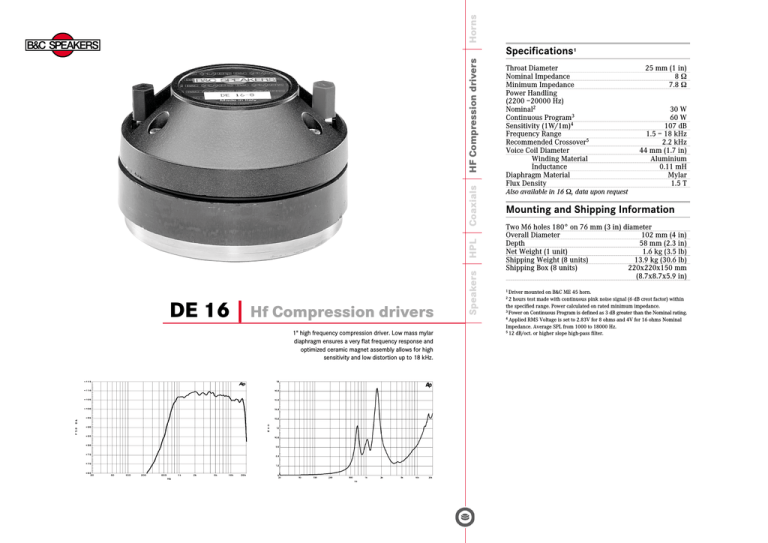

DE 16 | Hf Compression drivers
1" high frequency compression driver. Low mass mylar
diaphragm ensures a very flat frequency response and
optimized ceramic magnet assembly allows for high
sensitivity and low distortion up to 18 kHz.
Speakers
HPL
Coaxials
HF Compression drivers
Specifications1
Throat Diameter
Nominal Impedance
Minimum Impedance
Power Handling
(2200 –20000 Hz)
Nominal2
Continuous Program3
Sensitivity (1W/1m)4
Frequency Range
Recommended Crossover5
Voice Coil Diameter
Winding Material
Inductance
Diaphragm Material
Flux Density
Also available in 16 Ω, data upon request
25 mm (1 in)
8Ω
7.8 Ω
30 W
60 W
107 dB
1.5 – 18 kHz
2.2 kHz
44 mm (1.7 in)
Aluminium
0.11 mH
Mylar
1.5 T
Mounting and Shipping Information
Two M6 holes 180° on 76 mm (3 in) diameter
Overall Diameter
102 mm (4 in)
Depth
58 mm (2.3 in)
Net Weight (1 unit)
1.6 kg (3.5 lb)
Shipping Weight (8 units)
13.9 kg (30.6 lb)
Shipping Box (8 units)
220x220x150 mm
(8.7x8.7x5.9 in)
1
Driver mounted on B&C ME 45 horn.
2 hours test made with continuous pink noise signal (6 dB crest factor) within
the specified range. Power calculated on rated minimum impedance.
3
Power on Continuous Program is defined as 3 dB greater than the Nominal rating.
4
Applied RMS Voltage is set to 2.83V for 8 ohms and 4V for 16 ohms Nominal
Impedance. Average SPL from 1000 to 18000 Hz.
5
12 dB/oct. or higher slope high-pass filter.
2
