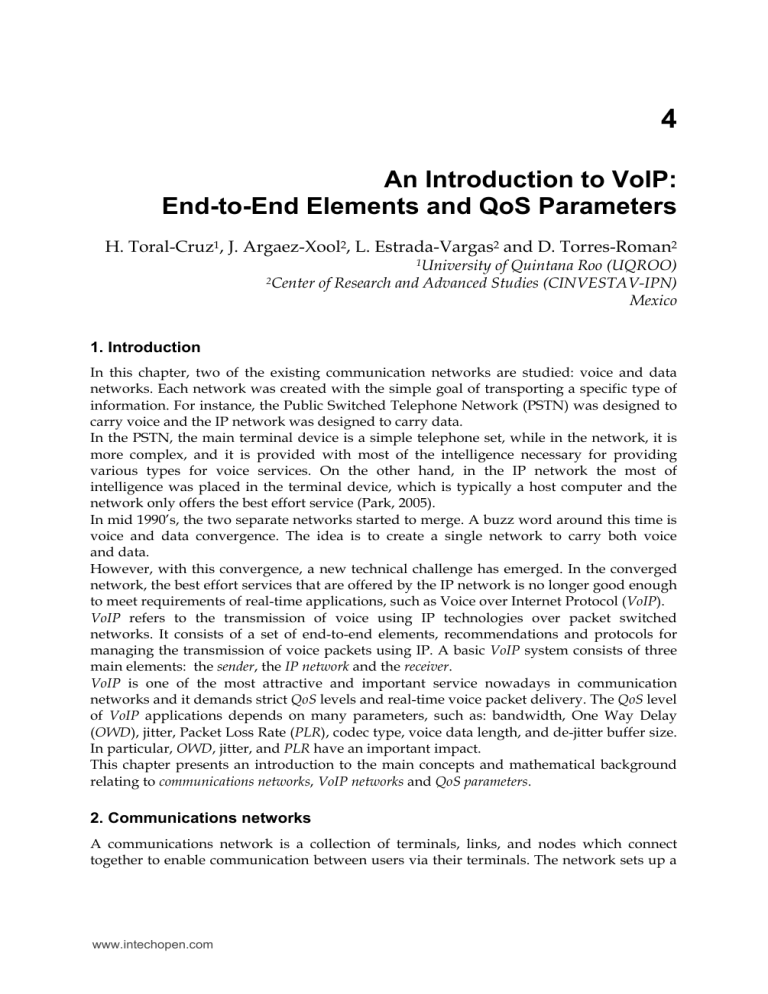

An Introduction to VoIP:
End-to-End Elements and QoS Parameters
H. Toral-Cruz1, J. Argaez-Xool2, L. Estrada-Vargas2 and D. Torres-Roman2
1University
2Center
of Quintana Roo (UQROO)
of Research and Advanced Studies (CINVESTAV-IPN)
Mexico
1. Introduction
In this chapter, two of the existing communication networks are studied: voice and data
networks. Each network was created with the simple goal of transporting a specific type of
information. For instance, the Public Switched Telephone Network (PSTN) was designed to
carry voice and the IP network was designed to carry data.
In the PSTN, the main terminal device is a simple telephone set, while in the network, it is
more complex, and it is provided with most of the intelligence necessary for providing
various types for voice services. On the other hand, in the IP network the most of
intelligence was placed in the terminal device, which is typically a host computer and the
network only offers the best effort service (Park, 2005).
In mid 1990’s, the two separate networks started to merge. A buzz word around this time is
voice and data convergence. The idea is to create a single network to carry both voice
and data.
However, with this convergence, a new technical challenge has emerged. In the converged
network, the best effort services that are offered by the IP network is no longer good enough
to meet requirements of real-time applications, such as Voice over Internet Protocol (VoIP).
VoIP refers to the transmission of voice using IP technologies over packet switched
networks. It consists of a set of end-to-end elements, recommendations and protocols for
managing the transmission of voice packets using IP. A basic VoIP system consists of three
main elements: the sender, the IP network and the receiver.
VoIP is one of the most attractive and important service nowadays in communication
networks and it demands strict QoS levels and real-time voice packet delivery. The QoS level
of VoIP applications depends on many parameters, such as: bandwidth, One Way Delay
(OWD), jitter, Packet Loss Rate (PLR), codec type, voice data length, and de-jitter buffer size.
In particular, OWD, jitter, and PLR have an important impact.
This chapter presents an introduction to the main concepts and mathematical background
relating to communications networks, VoIP networks and QoS parameters.
2. Communications networks
A communications network is a collection of terminals, links, and nodes which connect
together to enable communication between users via their terminals. The network sets up a
www.intechopen.com
80
VoIP Technologies
connection between two or more terminals by making use of their source and destination
addresses (Fiche & Hébuterne, 2004).
Switched networks are divided into circuit-switched and packet-switched networks. The
packet-switched networks are further divided into connection-oriented and connectionless
packet networks (Kurose & Ross, 2003; Tanenbaum, 2003; Stallings, 1997). Figure 1 shows
this classification.
Networks
Circuit Switched
Packet Switched
Connection Oriented
Connectionless
Fig. 1. Networks types
2.1 Circuit-switched network
Besides voice transport, circuit-switched networks are regularly used to transport different
traffic types, such as data and control signals between computers and terminals,
respectively. However, no matter which traffic type is transported, the user equipment and
the set of nodes are called terminal and network, respectively. The network establishes the
communication path between the terminals. The path is a connected sequence of links
between nodes.
The communication via circuit-switched networks implies that there is a dedicated
communication path between two or more terminals all through the communication session.
Therefore, the resources (links and nodes) are reserved exclusively for information
exchanges between origin and destination terminals. This communication involves three
phases: circuit establishment, data transfer, and circuit disconnect. Before communication
can occur between the terminals, a circuit is established between them. Thus, link capacity
www.intechopen.com
An Introduction to VoIP: End-to-End Elements and QoS Parameters
81
must be reserved between each pair of nodes in the path, and each node must have available
internal switching capacity to handle the requested connection. The nodes must have the
intelligence to make these allocations and to devise a route through the network.
In circuit-switched networks, the nodes do not examine the contents of the information
transmitted; the decision on where to send the information received is made just once at the
beginning of the connection and remains the same for the duration of the connection. Thus,
the delay introduced by a node is almost negligible. After the circuit has been established,
the transmission delay is small and it is kept constant through the duration of the
connection.
The circuit-switched networks can be rather inefficient. Once a circuit is established, the
resources associated to it cannot be used for another connection until the circuit is
disconnected. Therefore, even if at some point both terminals stop transmitting, the
resources allocated to the connection remain in use.
The most common examples of circuit-switched network are the PSTN and the Integrated
Services Digital Network (ISDN).
2.2 Packet-switched network
The data traffic is bursty and non-uniform. Terminals do not transmit continuously, i.e., are
idle most of the time and very bursty at certain time. Data rates are not kept constant
through the duration of the connection but they vary dynamically. A particular data
transmission has a peak and average data rates associated to it and these are usually not the
same. Therefore, employing dedicated circuits to transmit traffic with these characteristics is
a waste of resources. The packet-switched network was first designed to fulfill the
requirements of bursty traffic presented by data transmission.
In the packet-switched networks, the information is split up by the terminal into blocks of
moderate size, called packets. These packets are autonomous, i.e., they are capable of
moving on the network thanks to a header that contains the source and destination
addresses. The packet is sent to the first node in this communication network.
The nodes are referred to as routers. When the router receives the packet, it examines the
header and forwards the packet to the next appropriate router. This technique of inspection
and retransmission is called store-and-forward, and it is accomplished in all routers of the
path until the packet reaches its destination, unless the packet is lost. After reaching the
destination, the destination terminal strips off the header of the packet to obtain the actual
data that was originated at the source.
In this communication process, the terminal sends packets at its own rate, and the network
multiplexes the packets from various origins in the same resources, to optimize their use. In
this way several communications can share the same resources. The packet-switched
network enables a better use of the transmission resource than circuit-switched network, in
which the transmission resources are allocated without sharing. On the other hand, the
multiplexing of different connections on the same resources causes delays and packet loss,
which do not happen with circuit-switched network.
Finally it must be noted that in packet-switched networks a distinction is made between two
modes of operation: connection-oriented mode and connectionless mode.
In connection-oriented mode, a path is established before any packets are sent; this path is
called virtual circuit. There is a prior exchange of initial signaling packets to reserve
resources and to establish the path. The connection-oriented mode is modeled after the
telephone system. In order to talk to someone, one has to pick up the phone, dial the
www.intechopen.com
82
VoIP Technologies
number, talk, and then hang up. Similarly, in connection-oriented mode, the user establishes
a connection, uses the connection, and then releases the connection. The essential aspect of a
connection is that it acts like a tube, the sender pushes objects (packets) in at one end, and
the receiver takes them out at the other end. In most cases the order is preserved so that the
packets arrive in the order they were sent.
In connectionless mode, each packet is treated independently, with no reference to packets
that have gone before and the routing decisions are taken at each node. The connectionless
mode is modeled after the postal system. Each message (packet) carries the full destination
address, and each one is routed through the system independently of all the others.
Normally, when two packets are sent to the same destination, the first one sent will be the
first one to arrive. However, it is possible that the first one sent can be delayed so that the
second one arrives first.
The connectionless mode has been popularized mainly by Internet protocol. The IP
networks have progressed to the point that it is now possible to support voice and
multimedia applications, but does not guarantee quality of service, because are based on
"best effort" services.
3. VoIP networks
A communications network is a collection of terminals, links, and nodes which connect VoIP
is the real-time transmission of voice between two o more parties, by using IP technologies
over packet-switched networks. It consists of a set of recommendations and protocols for
managing the transmission of voice packets using the IP protocol.
Current implementations of VoIP have two main types of architectures, which are based on
H.323 (ITU-T Recommendation H.323, 2007; Sulkin A., 2002) and Session Initiation Protocol
(SIP) frameworks (Rosenberg et al 2002; Sulkin, 2002; Camarillo, 2002), respectively. H.323,
which was ratified by International Telecommunication Union (ITU-T), is a set of protocols
for voice, video, and data conferencing over packet-based network. SIP, which is defined in
request for comments 3261 (RFC 3261) of the Multiparty Multimedia Session Control
(MMUSIC) working group of Internet Engineering Task Force (IETF), is an application-layer
control signaling protocol for creating, modifying, and terminating sessions with one or
more participants. Regardless of their differences, the fundamental architectures of these
two implementations are the same. They consist of three main logical components: terminal,
signaling server, and GW. They differ in specific definitions of voice coding, transport
protocols, control signaling, GW control, and call management.
The current H.323 and SIP frameworks do not provide QoS. VoIP is one of the most QoS
sensitive and demands strict QoS levels. The QoS level of VoIP applications depends on
many parameters, such as: bandwidth, OWD, jitter, PLR, codec type, voice data length, and
de-jitter buffer size. In particular, OWD, jitter, and PLR have an important impact.
3.1 H.323 architecture
ITU-T H.323 (ITU-T Recommendation H.323, 2007; Sulkin A., 2002) is a set of protocols for
voice, video, and data conferencing over packet-switched networks such as Ethernet Local
Area Networks (LANs) and the Internet that do not provide a guaranteed QoS. The H.323
protocol stack is designed to operate above the transport layer of the underlying network.
H.323 was originally developed as one of several videoconferencing recommendations
issued by the ITU-T. The H.323 standard is designed to allow clients on H.323 networks to
www.intechopen.com
An Introduction to VoIP: End-to-End Elements and QoS Parameters
83
communicate with clients on other videoconferencing networks. The first version of H.323
was issued in 1996, designed for use with Ethernet LANs and borrowed much of its
multimedia conferencing aspects from other H.32.x series recommendations. H.323 is part of
a large series of communications standards that enable videoconferencing across a range of
networks. This series also includes H.320 and H.324, which address the ISDN and PSTN
communications, respectively. H.323 is known as a broad and flexible recommendation.
Although H.323 specifies protocols for real-time point-to-point communication between two
terminals on a packet-switched network, also includes support of multipoint conferencing
among terminals that support not only voice but also video and data communications. This
recommendation describes the components of H.323 architecture. This includes terminals,
Gateways (GW), Gatekeepers (GK), Multipoint Control Units (MCU), Multipoint Controller
(MC), and Multipoint Processors (MP).
•
Terminal: An H.323 terminal is an endpoint on the network which provides real-time,
two-way communications with another H.323 terminal, GW, or MCU. This
communication consists of control, indications, audio, moving color video pictures,
and/or data between the two terminals. A terminal may provide speech only, speech
and data, speech and video, or speech, data, and video.
•
Gateway: The GW is a H.323 entity on the network which allows intercommunication
between IP networks and legacy circuit-switched networks, such as ISDN and PSTN.
They provide signaling mapping as well as transcoding facilities. For example, GWs
receive an H.320 stream from an ISDN line, convert it to an H.323 stream, and then send
it to the IP network.
•
Gatekeeper: The GK is a H.323 entity on the network which performs the role of the
central manager of VoIP services to the endpoints. This entity provides address
translation and controls access to the network for H.323 terminals, GWs, and MCUs.
The GK may also provide other services to the terminals, GWs, and MCUs such as
bandwidth management and locating GWs.
•
MCU: The MCU is an H.323 entity on the network which provides the capability for
three or more terminals and GW to participate in a multipoint conference. It may also
connect two terminals in a point-to-point conference which may later develop into a
multipoint conference. The MCU consists of two parts, a mandatory MC, and an
optional MP. In the simplest case, an MCU may consist only of an MC with no MPs. An
MCU may also be brought into a conference by the GK without being explicitly called
by one of the endpoints.
•
MC: The MC is an H.323 entity on the network which controls three or more terminals
participating in a multipoint conference. It may also connect two terminals in a pointto-point conference which may later develop into a multipoint conference. The MC
provides the capability of negotiation with all terminals to achieve common levels of
communications. It may also control conference resources such as who is multicasting
video. The MC does not perform mixing or switching of audio, video, and data.
•
MP: The MP is an H.323 entity on the network which provides for the centralized
processing of audio, video and/or data streams in a multipoint conference. The MP
provides for the mixing, switching, or other processing of media streams under the
control of the MC. The MP may process a single media stream or multiple media
streams depending on the type of conference supported.
The H.323 architecture is partitioned into zones. Each zone is comprised by the collection of
all terminals, GW, and MCU managed by a single GK. H.323 is an umbrella
www.intechopen.com
84
VoIP Technologies
recommendation which depends on several other standards and recommendations to enable
real-time multimedia communications. The main ones are:
•
Call Signaling and Control: Call control protocol (H.225), media control protocol (H.245),
security (H.235), digital subscriber signaling (Q.931), generic functional protocol for the
support of supplementary services in H.323 (H.450.1), supplemental features (H.450.2H.450.11).
•
H.323 Annexes: Real-time facsimile over H.323 (Annex D), framework, and wireprotocol for multiplexed call signaling transport (Annex E), simple endpoint types - SET
(Annex F), text conversation and Text SET (Annex G), Security for annex F (Annex J),
hypertext transfer protocol (HTTP)-based service control transport channel (Annex K),
stimulus control protocol (Annex L), and tunneling of signaling protocols (Annex M).
•
Audio Codec’s: Pulse Code Modulation (PCM) audio codec 56/64 kbps (G.711), audio
codec for 7 Khz at 48/56/64 kbps (G.722), speech codec for 5.3 and 6.4kbps (G.723),
speech codec for 16 kbps (G.728), and speech codec for 8/13 kbps (G.729).
•
Video Codec’s: Video codec for ≥ 64 kbps (H.261) and video codec for ≤ 64 kbps (H.263).
3.2 SIP architecture
SIP was developed by IETF in reaction to the ITU-T H.323 recommendation. The IETF
believed that H.323 was inadequate for evolving IP telephony, because its command
structure is complex and its architecture is centralized and monolithic. SIP is an application
layer control protocol that can establish, modify, and terminate multimedia sessions or calls
(Rosenberg et al 2002; Sulkin, 2002; Camarillo, 2002). SIP transparently supports name
mapping and redirection services, allowing the implementation of ISDN and intelligent
network telephony subscriber services. The early implementations of SIP have been in
network carrier IP-Centrex trials. SIP was designed as part of the overall IETF multimedia
data and control architecture that supports protocols such as Resource Reservation Protocol
(RSVP), Real-time Transport Protocol (RTP), Real-time Streaming Protocol (RTSP), Session
Announcement Protocol (SAP), and Session Description Protocol (SDP). SIP establishes,
modifies, and terminates multimedia sessions. It can be used to invite new members to an
existing session or to create new sessions. The two major components in a SIP network are
User Agent (UA) and network servers (registrar server, location server, proxy server, and
redirect server).
•
User Agents: Is an application that interacts with the user and contains both a User
Agent Client (UAC) and User Agent Server (UAS). A user agent client initiates SIP
requests, and a user agent server receives SIP requests and returns responses on user
behalf.
•
Registrar Server: Is a SIP server that accepts only registration requests issued by user
agents for the purpose of updating a location database with the contact information of
the user specified in the request.
•
Proxy Server: Is an intermediary entity that acts both as a server to user agents by
forwarding SIP requests and as a client to other SIP servers by submitting the
forwarded requests to them on behalf of user agents or proxy servers.
•
Redirect Server: Is a SIP server that helps to locate UAs by providing alternative locations
where the user can be reachable, i.e., provides address mapping services. It responds to
a SIP request destined to an address with a list of new addresses. A redirect server does
not accept calls, does not forward requests, and does not it initiate any of its own.
www.intechopen.com
An Introduction to VoIP: End-to-End Elements and QoS Parameters
85
The SIP protocol follows a web-based approach to call signaling, contrary to traditional
communication protocols. It resembles a client/server model; where SIP clients issue
requests and SIP servers return one or more responses. The signaling protocol is built on
this exchange of requests and responses, which are grouped into transactions. All the
messages of a transaction share a common unique identifier and traverse the same set of
hosts. There are two types of messages in SIP; requests and responses. Both of them use the
textual representation of the ISO 10646 character set with UTF-8 encoding. The message
syntax follows HTTP/1.1, but it should be noted that SIP is not an extension to HTTP.
•
SIP Responses: Upon reception of a request, a server issues one or several responses.
Every response has a code that indicates the status of the transaction. Status codes are
integers ranging from 100 to 699 and are grouped into six classes. A response can be
either final or provisional. A response with a status code from 100 to 199 is considered
provisional. Responses from 200 to 699 are final responses.
1. 1xx Informational: Request received, continuing to process request. The client should
wait for further responses from the server.
2. 2xx Success: The action was successfully received, understood, and accepted. The client
must terminate any search.
3. 3xx Redirection: Further action must be taken in order to complete the request. The
client must terminate any existing search but may initiate a new one.
4. 4xx Client Error: The request contains bad syntax or cannot be fulfilled at this server.
The client should try another server or alter the request and retry with the same server.
5. 5xx Server Error: The request cannot be fulfilled at this server because of server error.
The client should try with another server.
6. 6xx Global Failure: The request is invalid at any server. The client must abandon search.
The first digit of the status code defines the class of response. The last two digits do not have
any categorization role. For this reason, any response with a status code between 100 and
199 is referred to as a "1xx response", any response with a status code between 200 and 299
as a "2xx response", and so on.
•
SIP Requests: The core SIP specification defines six types of SIP requests, each of them
with a different purpose. Every SIP request contains a field, called a method, which
denotes its purpose.
1. INVITE: INVITE requests invite users to participate in a session. The body of INVITE
requests contains the description of the session. Significantly, SIP only handles the
invitation to the user and the user’s acceptance of the invitation. All of the session
particulars are handled by the session description protocol used. Thus, with a different
session description, SIP can invite users to any type of session.
2. ACK: ACK requests are used to acknowledge the reception of a final response to an
INVITE. Thus, a client originating an INVITE request issues an ACK request when it
receives a final response for the INVITE.
3. CANCEL: CANCEL requests cancel pending transactions. If a SIP server has received
an INVITE but has not returned a final response yet, it will stop processing the INVITE
upon receipt of a CANCEL. If, however, it has already returned a final response for the
INVITE, the CANCEL request will have no effect on the transaction.
4. BYE: BYE requests are used to abandon sessions. In two-party sessions, abandonment
by one of the parties implies that the session is terminated.
5. REGISTER: Users send REGISTER requests to inform a server (in this case, referred to
as a registrar server) about their current location.
www.intechopen.com
86
VoIP Technologies
6.
OPTIONS: OPTIONS requests query a server about its capabilities, including which
methods and which session description protocols it supports.
SIP is independent of the type of multimedia session handled and of the mechanism used to
describe the session. Sessions consisting of RTP streams carrying audio and video are
usually described using SDP, but some types of session can be described with other
description protocols. In short, SIP is used to distribute session descriptions among potential
participants. Once the session description is distributed, SIP can be used to negotiate and
modify the parameters of the session and terminate the session.
3.3 VoIP system structure
VoIP is a rapidly growing technology that enables transport of voice over data networks
such as Ethernet LANs. A basic VoIP system consists of three parts: the sender, the IP
networks, and the receiver, as shown in Figure 2.
Fig. 2. VoIP system
Sender: The first component is the coder which periodically samples the original voice signal
and assigns a fixed number of bits to each sample, creating a constant bit rate stream.
The voice stream from the voice source is first digitized and compressed by using a suitable
coding algorithm such as G.711, G.729, etc. Various speech codec’s differ from each other in
terms of features such as coding bit-rate (kbps), algorithmic delay (ms), complexity, and
speech quality (Mean Opinion Score - MOS). In order to simplify the description of speech
codec’s they are often broadly divided into three classes: waveform coders, parametric
coders, or vocoders, and hybrid coders (as a combination thereof).
Typically waveforms codec’s are used at high bit rates, and give very good quality speech.
Parametric codec’s operated at very low bit rates, but tend to produce speech which sounds
synthetic. Hybrid codec’s use techniques from both parametric and waveform coding, and
give good quality speech an intermediate bit rates.
After compression and encoding into a suitable format the speech frames are packetized.
The packetized process is implemented for gathering a set of voice data to be transmitted
and adding the information needed for routing and handling those voice data across the IP
network. The added bits are referred as the header, and the voice data to be delivered are
referred as the payload. The structure of an IP packet over an Ethernet is shown in Figure 3.
The voice data length can be changed according to the VoIP transmission efficiency (TE [%]).
The Media Access Control (MAC) header, IP header, User Datagram Protocol (UDP) header,
RTP header, and Frame Check Sequence (FCS) are necessary for transmitting voice data
over the Ethernet, while preamble and Inter Packet Gap (IPG) should be considered as
occupied bandwidth on the transmission line. For instance, the total occupied bandwidth is
98 bytes including IPG, preamble, MAC header, IP header, UDP header, RTP header, and
FCS when transmitting 20 byte voice data. The 78 bytes thus correspond to the overhead of
IP transmission, so the ratio of voice data to the total is less than 25%, i.e. TE
[%]=x/(x+y)*100, where “x” is the voice data and “y” is the overhead.
www.intechopen.com
87
An Introduction to VoIP: End-to-End Elements and QoS Parameters
The voice data length of an IP packet usually depends on the coding algorithm used. Eighty
byte voice data is often used for G.711, whereas 20 byte voice data is used for G.729 in
conventional VoIP communication. Table 1 shows the relationship between the voice data
length in milliseconds and the voice data length in bytes, and Figure 4 shows the
relationship between the voice data length and the bandwidth occupied by the VoIP frames
of an Ethernet.
Fig. 3. VoIP packet structure for Ethernet
Voice Data Length
(ms)
10
20
30
40
50
60
70
80
90
100
Voice Data Length
(Bytes)
G.711
G.729
80
10
160
20
240
30
320
40
400
50
480
60
560
70
640
80
720
90
800
100
Table 1. Voice data length of VoIP packets
Occupied Bandwidth (kbps)
800
700
600
500
400
300
200
100
0
0
10
20
30
40
50
60
70
Voice Data Length (ms)
G.711
Fig. 4. Bandwidth occupied by VoIP frames
www.intechopen.com
G.729
80
90
100
88
VoIP Technologies
The longer the voice data length in a voice packet becomes, the more the transmission
efficiency increases because the VoIP packet has overheads for the MAC header (in the case
of the Ethernet), IP header, UDP header, and RTP header (see Figure 5). However, the
longer one packet becomes, the more packet errors are likely to occur, so it is important to
evaluate how the network traffic conditions affect the packet behavior and QoS in VoIP
systems.
Transmission Efficiency (%)
100
90
80
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
Voice Data Length (ms)
G.711
G.729
Fig. 5. Transmission efficiency
IP Network: Due to the shared nature of IP network, guaranteeing the quality of service of
Internet applications from end-to-end is difficult. Since current IP networks are based on
best-effort services, the packet may suffer different network impairments (e.g. packet loss,
delay, and jitter), which directly impact the quality of VoIP applications.
Receiver: The packet headers are stripped off and voice samples are extracted from the
payload by depacketizer. The voice samples must be presented to the decoder in such a way
that the next sample is present for processing when the decoder has finished with its
immediate predecessor. Such a requirement severely constrains the amount of jitter that can
be tolerated in a VoIP system without having to gap the samples. When jitter results in an
Inter-arrival Time (IAT) that is greater than the time required to re-create the waveform
from a sample, the decoder has no option but to continue to function without the next
sample information. Therefore, the effects of jitter will be manifested as an increase in the
packet loss rate.
The buffer that holds the queued segments is called de-jitter buffer. The employment of such
de-jitter buffers defines the relationship between jitter and packet loss rate in the receiver
side. The delay variation that can be tolerated becomes therefore the essential descriptor of
intrinsic quality that supplants jitter.
Therefore an important design parameter at the receiver side is the de-jitter buffer size or
playout delay of a de-jitter buffer. Since, de-jitter buffer is used to compensate for network
jitter at the cost of further delay (buffer delay) and loss (late arrival loss). Finally, the dejittered speech frames are decoded to recover the original voice signal.
The playout delay is explained in the next few paragraphs. Figure 6 and Table 2 show a
sample of packet delays. In the Figure6, the abscissa is the time at which a packet is sent, the
www.intechopen.com
89
An Introduction to VoIP: End-to-End Elements and QoS Parameters
ordinate is the time at which the packet is received, and the time here is measured by a
globally synchronized clock. In an ideal network such as circuit switched network, the delay
d for a given path is constant and low, so the (x,y) points form a line y=x+d (e.g. d=5ms). This
means packets can be played out as soon as they are received without having to pause (ideal
playout time, y=x+5). In the packet switched network such as the Internet, delays are not
constant, as queuing delays can vary significantly over time.
100
90
y = x + 13
y=x+5
y: Time Received (ms)
80
70
60
50
40
30
20
10
0
0
10
20
30
40
50
60
70
80
90
100
x: Time Sent (ms)
Ideal Playout Time
Real Playout Time
Ideal Packet Delay
Real Packet Delay
Fig. 6. Illustration of packet delay and playout delay
Time Sent
(ms)
Ideal: Time
Received (ms)
Real: Time
Received (ms)
30
40
50
60
70
80
35
45
55
65
75
85
39
46
57
73
78
90
Table 2. Sample of packet delays
An example is the diamond-shaped plot in Figure 6. For VoIP applications, if the receiver
plays out voice packets as they come in, it will have to generate a pause if the next packet
delayed arrives. Therefore, in Figure 6, we must wait at least dplay time to prevent this
situation. The term dplay is called the playout delay. Usually, dplay is calculated by subtracting
the actual play time of the first packet from its receiving time. In this example, the first
packets is sent at 30 ms, received at 39 ms, and played at 43 ms. Therefore, dplay is 4 ms, since
the actual play times of all packets form a line y=x+13 (real playout time). An alternative
definition of playout delay is the delay between sending time and playout time.
www.intechopen.com
90
VoIP Technologies
Many techniques have been developed for controlling the playout delay. Most existing
playout adaptation algorithms work by taking some measurements on the delays
experienced by packets and updating the playout delay.
4. QoS parameters
The voice quality of VoIP applications depends on many parameters, such as bandwidth,
OWD, jitter, packet loss rate, codec, voice data length, and de-jitter buffer size. In particular,
OWD, jitter, and packet loss have an important impact on voice quality.
4.1 One way delay
The delay experienced by a packet across a path consists of several components:
propagation, processing, transmission, and queuing delays (Park, 2005). The Internet metric
called one way delay (ITU-T Recommendation G.114, 2003) is the time needed for a packet
to traverse the network from a source to a destination host. It is described analytically by
Equation (1):
s ⎛
⎞
L
DK ( L )OWD = δ + σ + ∑ ⎜⎜
+ X hK ( t ) ⎟⎟
C
h =1 ⎝ h
⎠
(1)
where DK ( L )OWD is the OWD of a packet K of size L , δ represents the propagation delay,
σ the processing delay, s the number of hops, L C h the transmission delay, and X hK ( t )
the queuing delay of a packet K of size L at hop h ( h = 1,..., s ) with capacity C h . The
OWD variation between two successive packets, K and K − 1 is called OWD jitter and is
given by the Equation (2):
J K ( L ) = DK ( L )OWD − DK − 1 ( L )OWD
(2)
4.2 Jitter
When voice packets are transmitted from source to destination over IP networks, packets
may experience variable delay, called delay jitter. The packet IAT on the receiver side is not
constant even if the packet Inter-departure Time (IDT) on the sender side is constant. As a
result, packets arrive at the destination with varying delays (between packets) referred to as
jitter. We measure and calculate the difference between arrival times of successive voice
packets that arrive on the receiver side, according to RFC 3550 (Schulzrinne et al, 2003), this
is illustrated in Figure 7.
Sender
Receiver
SK-3
SK-2
SK-1
SK
K-3
K-2
K-1
K
Internet
IDT(K,K-1)=SK-SK-1
Fig. 7. Jitter experienced across Internet paths
www.intechopen.com
RK-3
RK-2
RK-1
RK
K-3
K-2
K-1
K
IAT(K,K-1)=RK-RK-1
An Introduction to VoIP: End-to-End Elements and QoS Parameters
91
Let SK denote the transmission timestamp for the packet K of size L , and RK the arrival
time for packet K of size L . Then for two packets K and K − 1 , J K ( L ) may be expressed as:
J K ( L ) = ( RK − SK ) − ( RK − 1 − SK − 1 ) = ( RK − RK − 1 ) − (SK − SK − 1 )
IDT ( K , K − 1 ) = (SK − SK − 1 )
(3)
(4)
IAT ( K , K − 1 ) = ( RK − RK − 1 )
(5)
IAT ( K , K − 1 ) = J K ( L ) + IDT ( K , K − 1 )
(6)
where, IDT ( K , K − 1 ) is the Inter-departure Time (in our experiments, IDT= {10ms, 20ms,
40ms, and 60ms}) and IAT ( K , K − 1 ) is the Inter-arrival Time for the packets K and K − 1 .
In the current context, IAT ( K , K − 1 ) is referred to as jitter. So, the VoIP jitter between two
successive packets, i.e., packets K and K − 1 , is:
4.3 Packet loss
There are two main transport protocols used in IP networks: UDP and TCP. While UDP
protocol does not allow any recovery of transmission errors, TCP include an error recovery
process. However, the voice transmission over TCP connections is not very realistic. This is
due to the requirement for real-time operations in most voice related applications. As a
result, the choice is limited to the use of UDP which involves packet loss problems.
Amongst the different quality elements, packet loss is the main impairment which makes
the VoIP perceptually most different from the public switched telephone network. Packet
loss can occur in the network or at the receiver side, for example, due to excessive network
delay in case of network congestion.
Owing to the dynamic, time varying behavior of packet networks, packet loss can show a
variety of distributions. The packet loss distribution most often studied in speech quality
tests is random or Bernoulli-like packet loss. Uniform random loss here means independent
loss, implying that the loss of a particular packet is independent of whether or not previous
packets were lost. However, uniform random loss does not represent the loss distributions
typically encountered in real networks. For example, losses are often related to periods of
network congestion. Hence, losses may extend over several packets, showing a dependency
between individual loss events. In this work, dependent packet loss is often referred to as
bursty. The packet loss is bursty in nature and exhibits temporal dependency (Yajnik et al,
1999). So, if packet n is lost then normally there is a higher probability that packet n + 1 will
also be lost. Consequently, there is a strong correlation between consecutive packet losses,
resulting in a bursty packet loss behavior. A generalized model to capture temporal
dependency is a finite Markov chain (ITU-T Recommendation G.1050, 2005).
2-state Markov Chain: Figure 8 shows the state diagram of a 2-state Markov chain.
In this model, one of the states (S1) represents a packet loss and the other state (S2)
represents the case where packets are correctly transmitted or received. The transition
probabilities in this model, as shown in Figure 8, are represented by p21 and p12 . In other
words, p21 is the probability of going from S2 to S1, and p12 is the probability of going from
S1 to S2. Different values of p21 and p12 define different packet loss conditions that can
occur on the Internet.
www.intechopen.com
92
VoIP Technologies
Fig. 8. 2-state Markov chain
The steady-state probability of the chain to be in the state S1, namely the PLR, is given by
Equation (7):
PLR = S1 =
p21
p21 + p12
(7)
and clearly S2 = 1 − S1 .
The distributions of the number of consecutive received or lost packets are called gap
( f g ( k ) ) and burst ( f b ( k ) ) respectively, and can be expressed in terms of p21 and p12 . The
probability that the transition from S2 to S1 and S1 to S2 occurs after k steps can be expressed
by Equations (8) and (9):
f g ( k ) = p21 ( 1 − p21 )
f b ( k ) = p12 ( 1 − p12 )
k −1
k −1
(8)
(9)
According to Equation (9), the number of steps k necessary to transit from S1 to S2, that is,
the number of consecutively lost packets is a geometrically distributed random variable.
This geometric distribution of consecutive loss events makes the 2-state Markov chain (and
higher order Markov chains) applicable to describing loss events observed in the Internet.
The average number of consecutively lost and received packets can be calculated by b and
g , respectively, as shown in Equations (10) and (11).
{
}
b = E fb ( k ) =
{
}
g = E fg (k) =
1
p12
(10)
1
p21
(11)
4-state Markov Chain: Figure 9 shows the state diagram of this 4-state Markov chain.
In this model, a ‘good’ and a ‘bad’ state are distinguished, which represent periods of lower
and higher packet loss, respectively. Both for the ‘bad’ and the ‘good’ state, an individual 2state Markov chain represents the dependency between consecutively lost or found packets.
www.intechopen.com
An Introduction to VoIP: End-to-End Elements and QoS Parameters
93
Fig. 9. 4-state Markov chain
The two 2-state chains can be described by four independent transition probabilities (two each
one). Two further probabilities characterize the transitions between the two 2-state chains,
leading to a total of six independent parameters for this particular 4-state Markov chain.
In the 4-state Markov chain, states S1 and S3 represent packets lost, S2 and S4 packets found
and six parameters ( p21 , p12 , p43 , p34 , p23 , p32 ∈ ( 0,1 ) ) are necessary to define all the transition
probabilities.
In the “good state” (G) packet loss occur with (low) probability PG while in the “bad state” (B)
they occur with (high) probability PB. The occupancy times for states B and G are both
1
1
and
, respectively. The steady
geometrically distributed with respective means
p32
p23
p32
p32
state probabilities of being in states G and B are π G =
and π G =
,
p32 + p23
p32 + p23
respectively.
The overall packet loss rates in the ‘good’ and ‘bad’ states PG and PB can be calculated by the
following Equations:
PG =
PB =
p21
p21 + p12
(12)
p43
p43 + p34
(13)
The overall packet loss for the four-state Markov model is given by:
PLR = PG ⋅ π G + PB ⋅ π B
www.intechopen.com
(14)
94
VoIP Technologies
5. Conclusion
VoIP has emerged as an important service, poised to replace the circuit-switched telephony
service in the future. However, when the voice traffic is transported over Internet, the
packet based transmission may introduce degradations and have influence on the QoS
perceived by the end users. The current Internet only offers best-effort services and was
designed to support non-real-time applications. VoIP demands strict QoS levels and realtime voice packet delivery.
The voice quality of VoIP applications depends on many parameters, such as: bandwidth,
OWD, jitter, PLR, codec, voice data length, and de-jitter buffer size. In particular, packet loss,
OWD and jitter have an important impact on voice quality.
This chapter presents an introduction to the main concepts and mathematical background
relating to communications networks, VoIP networks and QoS parameters.
6. References
Camarillo, G. (2002). SIP Demystified. USA: McGraw-Hill Companies, Inc.
Fiche, G., & Hébuterne, G. (2004). Communicating Systems & Networks: Traffic & Performance.
London and Sterling, VA: Kogan Page Science.
ITU-T Recommendation G.114, (2003). One-Way Transmission Time. International
Telecommunications Union, Geneva, Switzerland.
ITU-T Recommendation G.1050, (2005). Network Model for Evaluating Multimedia Transmission
Performance over Internet Protocol. International Telecommunications Union, Geneva,
Switzerland.
ITU-T Recommendation H.323, (2007). Packet-Based Multimedia Communications Systems.
International Telecommunications Union, Geneva, Switzerland.
Kurose, J., & Ross, K. (2003). Computer Networking: A Top-Down Approach Featuring the
Internet. USA: Pearson Education, Inc.
Park, K. I. (2005). QoS in Packet Networks. Boston, MA: Springer Science + Business Media,
Inc.
Rosenberg, J., et al (2002). SIP: Session Initiation Protocol (RFC 3261). Internet Engineering
Task Force.
Schulzrinne, H., et al (2003). RTP: A Transport Protocol for Real-Time Applications (RFC 3550).
Internet Engineering Task Force.
Stallings. W. (1997). Data and Computer Communications. Upper Saddle River, NJ: Pearson
Education, Inc.
Sulkin, A. (2002). PBX Systems for IP Telephony: Migrating Enterprise Communications. New
York, NY: McGraw-Hill Professional.
Tanenbaum, A. S. (2003). Computer Networks. Upper Saddle River, NJ: Pearson Education,
Inc.
Yajnik, M., Moon, S., Kursoe, J., & Towsley, D. (1999). Measurement and Modelling of the
Temporal Dependence in Packet Loss. Paper presented at the 18th International
Conference on Computer Communications (IEEE INFOCOM), New York, NY.
www.intechopen.com
VoIP Technologies
Edited by Dr Shigeru Kashihara
ISBN 978-953-307-549-5
Hard cover, 336 pages
Publisher InTech
Published online 14, February, 2011
Published in print edition February, 2011
This book provides a collection of 15 excellent studies of Voice over IP (VoIP) technologies. While VoIP is
undoubtedly a powerful and innovative communication tool for everyone, voice communication over the
Internet is inherently less reliable than the public switched telephone network, because the Internet functions
as a best-effort network without Quality of Service guarantee and voice data cannot be retransmitted. This
book introduces research strategies that address various issues with the aim of enhancing VoIP quality. We
hope that you will enjoy reading these diverse studies, and that the book will provide you with a lot of useful
information about current VoIP technology research.
How to reference
In order to correctly reference this scholarly work, feel free to copy and paste the following:
H. Toral-Cruz, J. Argaez-Xool, L. Estrada-Vargas and D. Torres-Roman (2011). An Introduction to VoIP: Endto-End Elements and QoS Parameters, VoIP Technologies, Dr Shigeru Kashihara (Ed.), ISBN: 978-953-307549-5, InTech, Available from: http://www.intechopen.com/books/voip-technologies/an-introduction-to-voipend-to-end-elements-and-qos-parameters
InTech Europe
University Campus STeP Ri
Slavka Krautzeka 83/A
51000 Rijeka, Croatia
Phone: +385 (51) 770 447
Fax: +385 (51) 686 166
www.intechopen.com
InTech China
Unit 405, Office Block, Hotel Equatorial Shanghai
No.65, Yan An Road (West), Shanghai, 200040, China
Phone: +86-21-62489820
Fax: +86-21-62489821
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
