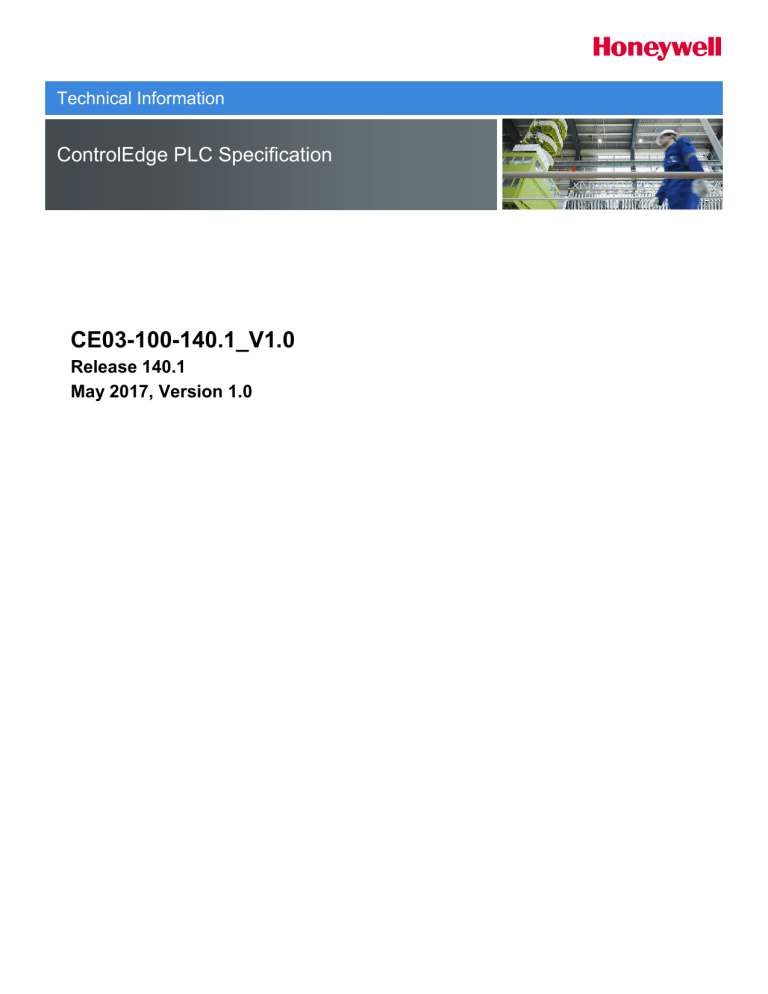

ControlEdge PLC Specification
Technical Information
ControlEdge PLC Specification
CE03-100-140.1_V1.0
Release 140.1
May 2017, Version 1.0
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Revision History
Revision
Date
Description
1.0
May 2017
ControlEdge PLC R140 software release and New IO module hardware
Note:
Product release number is applicable for software and firmware of the product. Hardware is referred with version number
and is not associated with software release number.
Page 2
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Table of Contents
1.
2.
Introduction ..................................................................................................................................................................... 4
1.1.
ControlEdge PLC Overview ...................................................................................................................................... 4
1.2.
Document Scope ...................................................................................................................................................... 4
1.3.
Terminology .............................................................................................................................................................. 5
Specifications ................................................................................................................................................................. 5
2.1.
2.1.1.
Performance and Capability ................................................................................................................................................. 5
2.1.2.
Hardware specification and Features ................................................................................................................................... 5
2.1.3.
Communication Capabilities ................................................................................................................................................ 6
2.2.
3.
Control Processor Module (900CP1-0200) ............................................................................................................... 5
Expansion Processor Module (900SP1-0200) .......................................................................................................... 7
2.2.1.
Hardware specification and Features ................................................................................................................................... 7
2.2.2.
Communication Capabilities ................................................................................................................................................ 7
2.3.
I/O Network Topology ............................................................................................................................................... 8
2.4.
Input/output Module .................................................................................................................................................. 9
2.4.1.
Universal Input/output Module (900U01-0100) ..................................................................................................................... 9
2.4.2.
Universal AI (900A01-0202)................................................................................................................................................11
2.4.3.
Digital Input 120/240 VAC (900G03-0202) ..........................................................................................................................14
2.4.4.
Digital Input 24 VDC (900G32-0101) ..................................................................................................................................15
2.4.5.
Digital Output 120/240 VAC (900H32-0202) .......................................................................................................................16
2.4.6.
Digital Output 24 VDC (900H32-0102) ................................................................................................................................17
2.5.
I/O Wiring ................................................................................................................................................................ 18
2.6.
Power Supply .......................................................................................................................................................... 19
2.6.1.
120/240VAC Power Supply (900P01-0301) ........................................................................................................................19
2.6.2.
24VDC Power supply (900P24-0301) .................................................................................................................................19
2.7.
Power Status Module (900PSM-0200) .................................................................................................................... 19
2.8.
ControlEdge Builder Specification ........................................................................................................................... 20
2.8.1.
ControlEdge Builder Capabilities ........................................................................................................................................20
2.8.2.
ControlEdge Builder Hardware Requirements.....................................................................................................................20
Hardware Power Consumption, Heat Dissipation and Weight.................................................................................. 21
3.1.
Power Consumption and Heat Dissipation .............................................................................................................. 21
3.2.
Dimensions and Weight .......................................................................................................................................... 22
4.
Hardware Spacing Requirement .................................................................................................................................. 23
5.
Environment Conditions .............................................................................................................................................. 23
6.
Standards and Approvals ............................................................................................................................................ 24
7.
Module Number List ..................................................................................................................................................... 26
Page 3
ControlEdge PLC Specification, CE03-100-140.1_V1.0
1.
Introduction
This document provides technical information for the Honeywell ControlEdge PLC. Further product descriptions can be
found in the Product Information Note. Detailed planning, installation and configuration information is available in the product
user guides.
1.1.
ControlEdge PLC Overview
Honeywell’s advanced Programmable Logic Controller (PLC) technology improves control performance while offering greater
flexibility and lower costs. The new ControlEdge™ PLC improves integration with Experion® , HMIs and third-party devices,
and reduces configuration efforts by utilizing the industry-accepted IEC 61131-3 programming languages, as well as remote
configuration and firmware updates..
The key features of the ControlEdge PLC include:
 First PLC with HART enabled Universal I/O for greater configuration flexibility
 Designed and developed by Honeywell, a global leader in process automation for more than 40 years
 Tightly integrated with Experion, Honeywell’s best-in-class Distributed Control System (DCS), Supervisory Control and
Data Acquisition (SCADA) system, and safety system
 Tight integration with Honeywell’s market leading Field Device Manager - FDM and FDM Express
 Tight integration with Honeywell’s new Panel PC – Experion Panel PC
 Native
controller
redundancy Scope
1.2.
Document
 Optionally redundant power supplies
 Two variants of power supplies: 58W 24VDC and 110/240VAC
 Leverages Honeywell’s LEAP project methodology and Universal I/O for greater configuration flexibility
 I/O racks of various sizes
 Integration with third-party systems and devices such as motors, drivers, and compressors
 Connects to Human-Machine Interface (HMI) through Modbus and OPC UA protocols
 Compatible with leading open network standards such as Modbus and OPC UA
 Powerful IEC 61131-3 programming environment
 Best-in-class cyber security capabilities like built in Control Firewall, Secure boot, Secure Communication to ensure
the safety of the system, personnel and critical information
This document provides specifications for the following components:

ControlEdge PLC Controller

ControlEdge PLC Power Status Modules

ControlEdge PLC IO Modules

ControlEdge PLC Racks

ControlEdge PLC Expansion Processor Module

Remote Termination Panel

ControlEdge PLC Power Supplies

ControlEdge Builder
Page 4
ControlEdge PLC Specification, CE03-100-140.1_V1.0
1.3.
Terminology
Terminology
Description
CPM
Control Processor Module
EPM
Expansion Processor Module
UIO
Universal Input/output Module
RTP
Remote Terminal Panel
OWD
Open wire detect
Local I/O Rack
I/O Rack with CPM installed
Expansion I/O Rack
I/O Rack with EPM installed
Redundant CPM Rack
Rack with 2 CPMs installed
I/O Network
Network between CPM and expansion I/O rack
IPSec
Internet Protocol Security
2.
Specifications
2.1.
Control Processor Module (900CP1-0200)
The ControlEdge PLC has a rack based modular hardware design with control processor modules that plug onto different
rack options depending on system configuration requirement.
2.1.1.
Performance and Capability
Item
Specification
Maximum I/O Modules for controller
144
Maximum Analog channels for controller
23041
Maximum Digital channels for controller
4608
Maximum expansion I/O racks for non-redundant controller
11
Maximum expansion I/O racks for redundant controller
12
Note: For more information, see the section Universal Input/output Module.)
2.1.2.
Hardware specification and Features
Item
Specification
Processor
Dual Core ARM® Cortex™-A9 Core (32 bit) 667 MHz
User Programming memory, max
SD card support
10 MB (Program 5MB, Data 5MB)
32GB Class 6 / Class 10 industry standard
Controller Redundancy
Supported
Real-Time Clock
2 weeks of retention after a power loss
CPU Watchdog
CPU automatically resets if error is detected
Nonvolatile memory
16Mbits
Nonvolatile memory data life
20+ years (no battery required)
Real-time clock resolution
1 ms
I/O Scan Time
10 ms – 3000ms (adjustable per control strategy)
Switchover
Internal parameters, variables and outputs are maintained during transition.
Page 5
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Item
Specification
Run Locked
Stop Locked
Operating Modes
Remote Running
Remote Stopped
LED
2 LEDs, three color each, indicate the status and role of the CPM
2.1.3.
Communication Capabilities
Item
Specification
Ethernet Ports
4
Network connection
Shielded RJ45 connector, auto-crossover
Network port speed
10/100BaseTx, auto-detecting
Isolation
1500 Volts RMS 1 minute, 60 Hz
Transient Voltage Suppression
600W peak pulse power capability at 10×1000μs waveform, repetition rate:0.01%
Diagnostic LEDs on each port
Protocols, CPM ports 1 & 2
Yes
MODBUS TCP, OPC UA, HART-IP
Protocols, CPM ports 3 & 4
I/O Communication
Embedded
Firewall1
IPSec2
Note:
1.
2.
Supported on ports 1&2
Supported on ports 1&2
For detail information on Firewall refer to User’s Guide
Running on Windows 10 or Windows Server 2016 OS.
Modbus TCP Protocol
Item
Specification
Device Function
Master and Slave
Multi-Master support
Yes
Ethernet support
MODBUS TCP, Configurable TCP port number
Serial support
Via device server/protocol converter
Slave connection per CPM
64 per port
Master connection per CPM
16 per port
Maximum Number of Registers per CPM as slave
8000
Ethernet Network Connection
10/100 Base-T, RJ-45
OPC UA Protocol
Item
Specification
Device Function
Server and Client
Generic OPC information models
Data Access (DA)
Technology specific information models
PLCOpen V1.0
Number of OPC UA Client per CPM
10
Number of OPC UA Server per CPM
Number of variable for one CPM acting as OPC UA
Server
Number of variable for one CPM acting as OPC
UA Client
MDIS Server support
10
Page 6
2000
500
Yes
ControlEdge PLC Specification, CE03-100-140.1_V1.0
HART-IP Protocol
Honeywell’s Field Device Manager1 R500.2 and FDM Express1 R500 Express onwards uses HART-IP for instrument asset
management of ControlEdge PLC connected HART devices.
Item
Specification
Read system capacity of ControlEdge PLC
Read ControlEdge PLC and HART devices identity information
Device Function
HART command pass through to the connected HART devices
HART delayed response mechanism to maximize system
performance
HART-IP Protocol, Version 7, based on TCP/IP
Ethernet support
Configurable TCP port number
Support single Honeywell Field Device Manager connection
Note:For more information about FDM, please refer to FDM Specification.
2.2.
Expansion Processor Module (900SP1-0200)
EPM acts as the interface module between expansion I/O and control processor module. Required for I/O racks to
communicate to CPMs in a different rack.
2.2.1.
Hardware specification and Features
Item
Specification
Processor
Dual Core ARM® Cortex™-A9 Core (32 bit) 667 MHz
Rotary Address Switch
Determine the Rack address range from 1 to 99
LED
2 LEDs, three color each, indicate the status of EPM
2.2.2.
Communication Capabilities
Item
Specification
Ethernet Ports
2
Network connection
Shielded RJ45 connector, auto-crossover
Network port speed
10/100BaseTx, auto-detecting
Isolation
1500 Volts RMS 1 minute, 60 Hz
Transient Voltage Suppression
600W peak pulse power capability at 10×1000μs waveform, repetition
rate:0.01%
Diagnostic LEDs on each port
Protocols, EPM ports 1 & 2
Yes
I/O Communication
Page 7
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.3.
I/O Network Topology
ControlEdge 900 platform hardware supports both Star and Ring topology to connect Expansion IO rack with CPM rack.
Item
Expansion I/O Network Topology
Specification
Star or Ring topology supported up to 100baseTx using standard RJ45
connections for both Redundant and non-redundant systems.
Shielded Ethernet cable
100 m (328 ft.) CPM to EPM (expansion I/O rack), or to switch.
I/O network maximum cable lengths
Fiber Optic Equipment
Recommendations2
Note:
1.
2.
Page 8
Fiber optic cable
5000m (16404 ft.)1 CPM to EPM or to switch.
Unmanaged Ethernet Switch
 Moxa Unmanaged Ethernet Switch module EDS-308 with (eight) 10/100
Ethernet ports.(requires 24VDC Power)
 Moxa Unmanaged Ethernet Switch model EDS-308-MM-SC with (six) 10/100
Ethernet ports, (two) multi-mode fiber ports with SC Connectors (requires
24VDC power)
 Moxa Unmanaged Ethernet Switch module EDS-316-MM-SC with (fourteen)
10/100 Ethernet ports, (two) multi-mode fiber ports with SC Connectors
(requires 24VDC Power)
Converter
 Qualified Moxa IMC-101-M-SC with 10/100BaseT(X) to 100BaseFX multimode fiber port with SC connectors (require 24VDC power),
Copper Ethernet cable
 Shielded CAT5 Cable
Fiber optic cable
 Multi-mode, Duplex, 62.5/125 with SC connectors on both ends
Select qualified Moxa switch as I/O Network Switch.
Honeywell Model number is available in Model number list.
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.4.
Input/output Module
ControlEdge PLC supports various input/output modules. This document provides technical information to configure
ControlEdge PLC IO Modules. The following IO modules are included in this documents.

Universal Input/output module, 16 channel

Universal AI – RTD,TC,V 8 Channel

Digital Input 120/240 VAC, 16 Channel

Digital Input 24 VDC, 32 Channel

Digital Output 120/240 VAC, 16 Channel

Digital Output 24 VDC, 32 Channel
2.4.1.
Builder)
Universal Input/output Module (900U01-0100, HW Revision D/E, Version 02 in
Universal IO channel can be soft configured as AI with HART, AO with HART, DI or DO. Please refer Hardware planning and
installation guide for version B hardware specifications.
Item
Specification
Channels
Galvanic Isolation
16 (Isolate to rack)
1kV AC between logic and field
24V Field Supply Voltage
Load
24V DC(Typical)
22V DC(Min)
27V DC(Max)
Max 4.2 Amps per module
500 mA per channel
Analog Input
Item
A/D Converter Resolution
Specification
Current (2, 3, or 4 wire devices) , with HART Support
16 Maximum per module
(with or without open wire detect)
16 Bit
Input Range
0-20 mA or 4-20 mA
Crosstalk, dc to 60 Hz (channel-to-channel)
58dB
Input Impedance
Maximum Input Voltage (any input
referenced to common, no damage)
250 Ω nominal
Input type
Input Channels
0 - 30V
Transmitter Field Power Conditioning
0.1% of full-scale (23.5 ± 2°C)
0.25% of full-scale (0 to +60°C)
Current limited to 24 mA
Input Filter
First-order low-pass 100Hz
Max HART Multi-drop Connection
One device per channel
Hardware accuracy
Analog Output
Item
Output Type
Output Channels
Output Ripple
Specification
4-20 mA current loop &
0-20 mA Current loop
with HART Support
6 Maximum per module1
(with or without open wire detect)
=< 125 mV peak-to-peak at power line frequency, across 250 Ohm load
Page 9
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Item
Specification
Output Temperature Drift
0.5 % of FSR
Output Current Linearity
< 0.05%
Resolution
12 Bit
Calibrated Accuracy
<0.5% of Full Scale (25°C) including linearity
Directly Settable Output Current Range
0 mA to 23 mA
Maximum Resistive Load
500 Ohms
Minimum Resistive Load
Maximum Output Compliant Voltage
(24 V supply = 22 VDC through 28 VDC)
Maximum Open Circuit Voltage
100 Ohms
Fail Safe value configuration
Yes
14 VDC
24 VDC
Max HART Multi-drop Connection
One device per channel
Note:
1. Connecting greater than 100 ohms resistance load will increase maximum AO channel number per UIO module.
Please refer to the User’s guide to determine channel usage in different scenarios.
Digital Input with Open Wire Detect
Item
Specification
Open Voltage
24V
Short Circuit Current
7 mA
Open Contact
15 kΩ > 0.1 W
Closed Contact
5 kΩ > 0.25 W
Short circuit detection:
I > 6mA +/-5%
Closed contact detection:
2.8mA < I < 6mA +/-5%
Lead Breakage Detection
I < 0.9mA +/-5%
Input filter
First-order low-pass 100Hz
Digital Input without Open Wire Detect
Item
Specification
Open Voltage
24V
Closed contact current
7 mA ± 5%, after open state detection
3.5 mA ± 5%, after closed state detection
Closed contact detection
I > 2.81mA
Open contact detection
I < 1.8mA
Input filter
First-order low-pass 100Hz
Digital Output
Item
Specification
Output Channels
16 Maximum per module (with or without open wire detect)
Output Type
Solid state source, short circuit proof
Page 10
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Item
On-State Voltage
Specification
0mA Minimum to 0.5A Maximum per channel
4.2 A Maximum per module
24 V (typical), load current @ 0.5A
Off-State Voltage
0 VDC
Off-State Leak Current
< 0.1 mA
Load Current
1
Fail Safe State configuration
Yes
Note:
1. A Universal IO Channel configured for Digital Output can incorrectly report Line Monitoring failures if the load
current is less than 10mA. Applications using such light loads need to disable Line Monitoring for those channels
to avoid nuisance alarms
2.4.2.
Universal AI (900A01-0202)
The Universal Analog Input module supports up to 8 user-configurable inputs on a per point basis for thermocouple, RTD,
Resistance, V, mV, mA. Point-to-point isolation and back-plane isolation are provided. Modules perform analog to digital
conversion in synchronization with CPU control execution, eliminating data interchange latency. All analog input modules are
processed in parallel, eliminating scan time increases as modules are added. A green blinking status LED on the module
indicates when the module is being scanned and red status LED when module diagnostics exist. A user-selectable
BURURNOUTN value is supported on a per channel basis. A warning signal is provided for thermocouple inputs to indicate
maintenance is needed prior to a sensor failure. A sensor failure signal is also provided.
Item
Specification
Inputs per module
8 (isolated)
Input types
mV, V, T/C, RTD, ohms, mA
See Table 2 below for range types. Thermocouple
with cold junction compensation
RTD , PT100 3 wire, 40 ohms balanced maximum
Signal Source
Thermocouples: 100 Ohms/Leg
100 (except Low), 500 & 1000 RTD: 100 Ohms/Leg
100 YIS: 100 Ohms/Leg
100-Low RTD & 10 ohm Cu: 10 Ohms/Leg
Input Impedance
10 megohms for T/C and mV inputs; >1 megohm for volts and 250 ohms for
mA inputs
Galvanic Input Isolation
400 VDC point to point, 1K VDC to logic
RTDs are isolated in pairs
Noise Rejection
Series Mode >60dB.
Common Mode >130dB at 120VAC.
Burnout
T/C, mV, V configurable to upscale, downscale, defined value, or
none.
Over-range limit
+/- 10% for linear ranges (volts). +/-1% for non-linear ranges (T/C,
RTD).
T/C Break Detection
Via current pulse
Faulty thermocouple detection
If greater than 100 ohms, a warning status is provided as an
output for the AI block
Page 11
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Item
Accuracy
Specification
Factory configured accuracy = ± 0.1 % of range (± 0.2 % of range for 0V
to 10V and -10V to 10V)
Cold junction accuracy = ± 0.7 °C
Reference conditions:
Temperature = 25 °C ± 3 °C (77 °F ± 5 °F)
Humidity = 45 % to 55 % RH non-condensing
Line voltage = Nominal ± 1 %
Source resistance = 0 ohm
Series mode and common mode = 0 V Frequency = Nominal ± 1
%
Temp. Effect on Accuracy
 0.01% of full scale per degree Celsius maximum
A/D Converter
One per module
A/D Resolution
15 Bits
Reference Junction Sensing
Via 2 RTDs at top/bottom of module
Update rate
500ms (Analog to Digital Converter per module)
Long term Stability
0.1% per year
Calibration
Data is stored in non-volatile memory Redundant Factory
Calibration Individual
Diagnostics
Monitoring of Factory Calibration, 24 VDC supply, and
configuration.
Channel Configuration Data
Stored in non-volatile memory
Power supply loading
5V; 40mA max
24V; 25mA max
Page 12
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Table 2 - Analog Input Reference Accuracy
Input Type
Thermocouple inputs
Range
F
C
Reference Accuracy
F
C
B T/C
0 to 105
-18 to 41
NA
NA
105 to 150
41 to 66
55.0
30.6
150 to 500
66 to 260
30.0
16.7
500 to 1000
260 to 538
8.0
4.5
1000 to 3300
538 to 1815
4.0
2.3
-454 to -202
-270 to -130
25.0
14.0
-202 to 1832
-130 to 1000
2.3
1.3
E (low) T/C
-200 to 1100
-129 to 593
2.0
1.2
J T/C
0 to 1600
-18 to 871
1.2
0.6
J (low) T/C J
T/C
K T/C
K (low) T/C
K T/C (mid)** K
T/C
Ni-NiMo (NNM68)
20 to 770
-292 to 32
0 to 2400
-20 to 1000
0 to 1800
32 to 2192
32 to 500
500 to 2500
32 to 1260
32 to 500
500 to 2500
32 to 1260
0 to 2372
0 to 1472
32 to 2192
0 to 500
500 to 3100
0 to 500
500 to 3100
-300 to 700
-100 to 700
-200 to 500
-4 to 600
600 to 3600
3600 to 4200
-7 to 410
-180 to 0
-18 to 1316
-29 to 538
-18 to 982
0 to 1200
0 to 260
260 to 1371
0 to 682
0 to 260
260 to 1371
0 to 682
-18 to 1300
-18 to 800
0 to 1200
-18 to 260
260 to 1704
-18 to 260
260 to 1704
-184 to 371
-73 to 371
-129 to 260
-20 to 2320
316 to 1982
1982 to 2316
1.0
1.0
2.0
1.6
1.8
2.0
2.0
1.5
1.3
2.0
1.5
1.3
2.0
1.4
2.0
5.0
2.2
4.5
2.2
4.0
2.0
1.0
27.0
4.0
4.2
0.5
0.5
1.2
0.8
1.0
1.2
1.2
0.8
0.7
1.2
0.7
0.7
1.2
0.9
1.2
2.8
1.2
2.5
1.2
2.3
1.2
0.5
15.0
2.3
2.4
0 to 600
600 to 3600
3600 to 4200
0 to 2240
-18 to 316
316 to 1982
1982 to 2316
-18 to 1227
3.5
3.0
3.5
2.5
2.0
1.7
2.0
1.4
E T/C
Ni-NiMo (low)
NiMo-NiCo (NM90)
NiMo-NiCo (low)
N T/C
N T/C
N T/C
R T/C
S T/C
T T/C
T (low) T/C W_
W 26
W 5 W 26 T/C *
*W
W2626is(low)
W55W
also T/C*
known as type “C” Thermocouple.
** Type K thermocouple (mid-range) has a working range from 75 to 1800 °F, 25 to 982 °C. Input measurements below
75°F or 25°C may cause the input to default to the programmed failsafe value. Use type K low or full ranges if
measurements are required outside the mid- working range.
Page 13
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.4.3.
Digital Input 120/240 VAC (900G03-0202)
The AC Digital Input modules are externally powered and accommodate two circuit voltages for up to 8 inputs each. Two
common terminals are provided for each circuit. AC power applied between the common terminal and an input cause the
input to turn ON. There is a green LED state indicator for each channel on the module to indicate when a digital input is
ON. Logic in the controller allows the state to be inverted when necessary.
A green blinking status LED on the module indicates when the module is being scanned and red status LED when
module diagnostics exist.
Item
Specification
Inputs per module
16 (sinking)
Input Voltage Range
80 VAC to 264 VAC
Peak Voltage
264 VAC
AC Frequency
47 Hz to 63 Hz
Galvanic Isolation
2 groups of 8 inputs (350VAC max.)
ON Voltage Level
75 VAC
OFF Voltage Level
20 VAC
Input Impedance
48 K ohms nominal
Input Current
1 mA nominal @ 120 VAC, 60 Hz
2 mA nominal @ 230 VAC, 50 Hz
Minimum ON Current
0.3 mA
Maximum OFF Current
0.2 mA
OFF to ON response time*
4 ms + 1.5 line cycles maximum
ON to OFF response time*
4 ms + 2 line cycles maximum
Power Supply Loading
5V; 130mA max
24V; 0mA
Active input De-rating table for ACDI
Page 14
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.4.4.
Digital Input 24 VDC (900G32-0101)
The DC Digital Input module provides 32 inputs separated in to 2 groups of 16 channels each. Each group has a pair of
screw terminals for the COM connection. DC power applied between the common terminal and an input cause the input to
turn ON. There is a green LED state indicator for each channel on the module to indicate when a digital input is ON. A green
blinking status LED on the module indicates when the module is being scanned. Red status LED when module diagnostics
exist. Logic in the controller allows the state to be inverted when necessary.
Requires Euro style 36-terminal terminal block.
Item
Specification
Inputs per module
32 (sinking)
[Input Voltage Range
10 VDC to 32 VDC
Peak Voltage
32 VDC
Galvanic Isolation
2 groups of 16 inputs (30VDC max.)
ON Voltage Level
9.5 VDC minimum
OFF Voltage Level
3.5 VDC maximum
Input Impedance
6.9 K ohms nominal
Input Current
1.7 mA @ 12 VDC 3.5 mA @ 24 VDC nominal
Minimum ON Current
1.0 mA
Maximum OFF Current
0.7 mA
OFF to ON response time*
5 ms max
ON to OFF response time*
5 ms max
Power Supply Loading
5V; 215mA max
24V; 0mA
Page 15
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.4.5.
Digital Output 120/240 VAC (900H32-0202)
The AC Digital Output module provides 8 isolated zero switching Triac solid-state outputs. A shorting comb (900J020001/900J10-0001) is available for use with barrier type terminal blocks to simplify connections to a common voltage source
for all outputs. Each output has a MOV for transient over- voltage protection and a field-replaceable fuse.
There is a green LED state indicator for each channel on the module to indicate when a digital output is ON.
A green blinking status LED on the module indicates when the module is being scanned. Red status LED when module
diagnostics exist.
Item
Specification
Outputs per Module
8
Galvanic Isolation
Per output to output, output to logic
Operating Voltage
85 VAC to 240 VAC
Output Type
Triac (zero switching voltage)
Peak Voltage
250 VAC
AC Frequency
47 Hz to 63 Hz
ON Voltage Drop
<2.0 VAC (>0.1 A)
<3.0 VAC (<0.1 A)
Transient Over voltage
Protection
MOV
Maximum Load Current
2 A per point, 8 A max. per module, resistive load
Maximum Leakage Current
4 mA (240 VAC, 60 Hz)
1.2 mA (100 VAC, 60 Hz)
0.9 mA (100 VAC, 50 Hz)
Maximum Inrush Current
15 A for 10 ms
Minimum Load
50 mA
OFF to ON response time1
3 ms + 0.5 line cycle max
ON to OFF response time1
3 ms + 0.5 line cycle max
Fail Safe State configuration
Yes
Fuses
1 per output, 3.15 A Time-lag. Replacement part: Littelfuse
37413150410
Power Supply Loading
5V; 220mA max
24V; 0mA
Note:
1. excluding controllers scan time and excluding transmission time from module to backplane
Page 16
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.4.6.
Digital Output 24 VDC (900H32-0102)
The DC digital Output module provides 32 outputs separated in to 2 groups of 16 channels each that are powered externally.
Each group has a pair of screw terminals for +V and COM connections. The outputs are high side switching (current
sourcing) type. Over current protection is provided for all outputs in 4 groups of 8 channels each. In case of short circuit for
any output channel, that whole group of 8 is switched off. Power cycling is not required to reset the module.
There is a green LED state indicator for each channel on the module to indicate when a digital output is ON.
A green blinking status LED on the module indicates when the module is being scanned and red status LED when module
diagnostics exist. Requires Euro style 36-terminal terminal block.
Item
Specification
Outputs per module
32 (current sourcing, high side).
Galvanic Isolation
2 groups of 16 outputs
Operating Voltage
10.5 to 32 VDC
Output Type
High side driver
Peak Voltage
32 VDC
ON Voltage Drop
0.15 VDC @ 0.5 A load
Overload Protection
Active Current Limiting is integrated into the output driver as 4 groups of 8 channels
each. Power cycling is not required to reset the module after a fault condition.
Maximum Load Current
0.5 A per point, 6 A max per channel group
12 A max. per module, resistive load
0.25 A per point incandescent lamp load
(5 mH max)
Maximum Leakage
Current
0.15mA @ 32 VDC
Maximum Inrush Current
2 A for 10 ms
Minimum Load
0.0 mA
OFF to ON response time*
6 ms
ON to OFF response time1
6 ms
Fail Safe State configuration
Yes
Fuses
Electronic limiting
Power Supply Loading
5V; 235mA
24V; 0mA
Note:
1.
excluding controllers scan time and excluding transmission time from module to backplane
Page 17
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.5.
I/O Wiring
Remote Termination Panel provides an easy way to terminate field wiring away from I/O Module. Remote Terminal block
plugs on to IO modules and are not required if RTP cables are used.
Type
Terminal Block
Styles
Wire Size
Removable terminal blocks
(900TEK-0200, 900TER-0200,
900TCK-0200, 900TBR-0200,
900TBK-0200)
20 screw: Barrier or Euro-style,
gold-plated
36 screw: Euro style, gold-plated
Remote Terminal Panel1 (900RTS-0001,900RTA-L001)
40 screw: Euro-style
20-screw:
Euro-style - 0.1 mm2 to 2.0 mm2 (#14 to 26 AWG) solid or stranded
Barrier style - 0.1 mm2 to 2.0 mm2 (#14 to 26 AWG) solid or stranded
36-screw:
Euro-style – 0.1 mm2 to 3.0 mm2 (#12 to 26 AWG) solid or stranded
40-screw:
Euro-style – 0.1 mm2 to 3.0 mm2 (#12 to 26 AWG) solid or stranded
Shield terminals
(900TSS-0001)
RTP Cable
Optional brackets mounted top/bottom of rack. Each strip is 4 slots long with 4 screws.
RTP Dimensions
N/A
Terminal load rating2
4.2A
Note:
1.
2.
N/A
Low Voltage RTP Cable (1.0M, 3.28ft.)
Low Voltage RTP Cable (2.5M, 8.2ft.)
Low Voltage RTP Cable (5.0M, 16.4ft.)
High Voltage RTP Cable (1.0M, 3.28ft.)
High Voltage RTP Cable (2.5M, 8.2ft.)
High Voltage RTP Cable (5.0M, 16.4ft.)
Low Power 16/32CH RTP Cable (1.0M, 3.28ft)
Low Power 16/32CH RTP Cable (2.5M, 8.2ft)
Low Power 16/32CH RTP Cable (5.0M, 16.4ft)
4.38” L x 3.70” W x 2.60” H
111.1mm L x 94.0mm W x 66.0mm H
2.8A (Low Voltage RTP Cable)
4.2 A (High Voltage RTP Cable)
Standard 35mm wide DIN Rail. Provides connection of field wiring to I/O within an enclosure only.
External power supply provides power input for UIO, current load rating need to be align with cable rating.
Below table list the relationship between all I/O modules and their related terminal block or RTP.
Terminal Block
Terminal Block
RTP
RTP required
I/O Module
(Euro)
(Barrier)
per module
900U01-0100
900TEK-0200
900TBK-0200
900RTS-0001
1
RTP Cable
900RTC-L2xx
900A01-0202
900TEK-0200
900TBK-0200
900RTA-L001
1
900RTC-L2xx
900G32-0101
900TCK-0200
N/A
900RTS-0001
2
900RTC-34xx
900G03-0202
900TER-0200
900TBR-0200
900RTS-0001
1
900RTC-H2xx
900H32-0102
900TCK-0200
N/A
900RTS-0001
2
900RTC-34xx
900H03-0202
900TER-0200
900TBR-0200
900RTS-0001
1
900RTC-H2xx
Page 18
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.6.
Power Supply
2.6.1.
120/240VAC Power Supply (900P01-0301)
Item
Specification
Voltage
90 to 264 V AC, 47 to 63 Hz
Current
1.4 A Max continuous
Inrush Current
40 Amps peak-to-peak for 120 ms at 240 V AC
Input rating
130 VA
Output rating
58W
Fuse
Internal non-replaceable fuse.
Power Supply Hold up time
20milliseconds @ 115V AC, 60HZ maximum Load
Wiring
Screw type terminals , 0.3 mm2 to 3.3 mm2 (#12-22AWG)
Test jacks
5 V DC, 24 V DC
2.6.2.
24VDC Power supply (900P24-0301)
Item
Specification
Voltage
21 to 29V DC
Current
5A Max. continuous
Inrush Current
30A for 3ms @ 29V DC
Input rating
72.5W
Output rating
58W
Fuse
Internal non-replaceable fuse.
Power Supply Hold up time
20 milliseconds @ 24V DC, maximum Load
Wiring
Screw type terminals , 0.3 mm2 to 3.3 mm2 (#12-22AWG)
2.7.
Power Status Module (900PSM-0200)
Item
Specification
Status indication
Green directional indicators using LEDs
Power supply Loading
5V;22mA Max
Page 19
ControlEdge PLC Specification, CE03-100-140.1_V1.0
2.8.
ControlEdge Builder Specification
ControlEdge Builder is ControlEdge PLC’s configuration tool to design, configure, program and maintain your PLC project
2.8.1.
ControlEdge Builder Capabilities
Item
Specification
IEC 61131-3 Programming
Yes
Programming Languages
Ladder Diagram (LD)
Function Block Diagram (FBD)
Structured Text (ST)
Instruction List (IL)
Sequential Function Chart (SFC)
Function Block Libraries1
Standard IEC61131-3
Honeywell Control
MODBUS
OPC UA
Communication Medium to PLC
Ethernet
Remote Download of Program
Yes
Remote Reboot
Cold or Warm Reboot
Remote Firmware Upgrade
Yes
Remote Diagnostics
Yes
Note:
1. See Online help in ControlEdge Builder
2.8.2.
Item
ControlEdge Builder Hardware Requirements
Specification
Operate System
Pentium or compatible processor (2 GHz)
Recommended: Intel® Core™ i5 equivalent or better
Minimum: 1 GB
Recommended : 4 GB
Windows 7 32-bit or 64-bit with SP1, Windows 10 32-bit or 64-bit
Hard drive
5 GB available memory
DVD-ROM drive
Required
Graphic Card
DirectX 9 capable graphics adapter
Display color settings
True color (32 bit)
Display Resolution
Recommended resolution : 1280 x 800 or above
Minimum Processor
System RAM
Optimal resolutions: 1920 x 800, 1366 x 768, 1280 x 1024 and 1280 x 800
Page 20
ControlEdge PLC Specification, CE03-100-140.1_V1.0
3.
Hardware Power Consumption, Heat Dissipation and Weight
3.1.
Power Consumption and Heat Dissipation
Module number
Power Consumption (W)
Control Processor Module
900CP1-0200
3.75W 1
Heat Dissipation
(W)
3.75W
Expansion Processor Module
900SP1-0200
2.6W 1
2.6W
900U01-0100
1.9W 1
8.5W
Universal AI -RTD, TC, V, 8 ch
900A01-0202
0.8W 2
0.8W
Digital Input 120/240 VAC, 16 Ch
900G03-0202
0.65W 1
0.65W
900G32-0101
1.1W 1
1.1W
Digital Output - 120/240 VAC, 8 Ch
900H03-0202
1.09W 1
1.09W
Digital Output - 24VDC, 32 Ch
900H32-0102
1.175W 1
1.175W
120/240 V AC, 60W Power Supply
900P01-0301
25W
25W
24V DC, 60W Power Supply
900P24-0301
25W
25W
Redundant Power Status Module
900PSM-0200
0.11W 1
0.11W
50008930-001
8.4W
8.4W
50008930-002
9.12W
9.12W
50135395-001
3.84W
3.84W
Item
UIO Module
Digital Input 24VDC, 32Ch
Ethernet Switching Hub (8 ports)
Ethernet Switching Hub (16 ports)
IMC-101-M-SC
Note:
1.
2.
Power consumption @ 5VDC
UAI Module power consumption includes - 0.2W @5V and 0.6W @24V
Page 21
ControlEdge PLC Specification, CE03-100-140.1_V1.0
3.2.
Dimensions and Weight
Item
Module Number
Dimension
Weight
4 I/O slot Rack1,2
900R04-0200
5.4” H* x 10.5” W x 6.0” D
137mm H* x 266.7mm W x 151.7mm D
2104g
8 I/O slot Rack1,2
900R08-0200
5.4” H* x 16.5” W x 6.0” D
137mm H* x 419.1mm W x 151.7mm D
3126g
8 I/O slot Rack with redundant
power support1,2
900R08R-0200
5.4” H* x 20.9” W x 6.0” D
137mm H* x 530.9mm W x 151.7mm D
4422g
12 I/O slot Rack1,2
900R12-0200
5.4” H* x 22.5” W x 6.0” D
137mm H* x 571.5mm W x 151.7mm D
4072g
12 I/O slot Rack with redundant
power support1,2
900R12R-0200
5.4” H* x 26.9” W x 6.0” D
137mm H* x 683.3mm W x 151.7mm D
5252g
Redundant CPM Rack1,2
900RR0-0200
5.4” H* x 10.3” W x 6.0” D
137mm H* x 261.6mm W x 151.7mm D
1751g
CPM, ControlEdge 900
900CP1-0200
5.4" H x 1.4"W
137mm H* 25.6mm W
320g
EPM, ControlEdge 900
900SP1-0200
5.4" H x 1.4"W
137mm H* 25.6mm W
320g
Universal IO Module
900U01-0100
5.4" H x 1.4"W
137mm H* 25.6mm W
190g
900A01-0202
5.4" H x 1.4"W
137mm H* 25.6mm W
210g
900G03-0202
5.4" H x 1.4"W
137mm H* 25.6mm W
210g
900G32-0101
5.4" H x 1.4"W
137mm H* 25.6mm W
175g
900H03-0202
5.4" H x 1.4"W
137mm H* 25.6mm W
230g
900H03-0202
5.4" H x 1.4"W
137mm H* 72.6mm W
180g
900P01-0301
5.4" H x 2.86" W
137mm H* 72.6mm W
820g
900P24-0301
5.4" H x 2.86" W
137mm H* 72.6mm W
792g
900PSM-0200
5.4" H x 1.4"W
137mm H* 25.6mm W
448g
50008930-001
5.31" H x 2.11"W x 4.13” D
135mm H* x 53.6mm W x 105mm D
790g
50008930-002
5.31" H x 3.15"W x 4.13” D
135mm H* x 80.1mm W x 105mm D
1140g
Universal AI -RTD, TC, V, 8 ch
Digital Input 120/240 VAC, 16 Ch
Digital Input 24VDC, 32Ch
Digital Output - 120/240 VAC, 8 Ch
Digital Output - 24VDC, 32 Ch
Power Supply 120/240VAC, 60W
Power Supply 24VDC, 60W
Power Status Module, Redundant
Ethernet Switching Hub (8 ports)
MOXA: Network switch, 16 Port
Multi mode
5.31" H x 2.11"W x 4.13” D
MOXA: IMC-101-M-SC Fiber Optic
50135395-001
630g
135mm H* x 53.6mm W x 105mm D
convertor
Note:
1. Surface mounting with 4 screws in back of rack. Installation Category II, Pollution Degree 2, IEC 60664, UL840
Installation coordination.
2. Rear mounting plate extends height to 6.9” (175.3mm).
Page 22
ControlEdge PLC Specification, CE03-100-140.1_V1.0
4.
Hardware Spacing Requirement
Item
Specification
Vertical Spacing (between rack to rack, rack to cell/floor)
6.5 ” (165mm)
Horizontal Spacing
0 ” (0 mm)
5.
Environment Conditions
Item
Rated
Transportation & Storage
Ambient Temperature
32 to 140 °F
0 to 60 °C
-40 to 158 °F
-40 to 70 °C
10% to 90 % RH
non-condensing
1g
30 ms
5 % to 95 % RH
non-condensing
Ambient Relative Humidity
Mechanical shock
Acceleration Duration
Not rated
0 Hz to 14 Hz— amplitude 2.5 mm (peak-topeak)
14 Hz to 250 Hz— acceleration 1 g
Vibration
See below table
The Test condition of random vibration
Frequency (Hz)
PSD (g2/Hz)
10
0.0065
20
0.0065
120
0.0002
121
0.003
200
0.003
240
0.0015
340
0.00003
500
0.00015
5
0.01
100
0.01
300
0.00001
RMS (g)
Duration
0.74
Direction
X, Y
60min/direction
1.07
Z
Page 23
ControlEdge PLC Specification, CE03-100-140.1_V1.0
6.
Standards and Approvals
Item
Specification
This product is in conformity with the protection requirements of the following European Council
Directives: 2014/35/EU, the Low Voltage Directive, and 2014/30/EU, the EMC Directive.
Conformity of this product with any other “CE Mark” Directive(s) shall not be assumed.
LVD Directive:
Title
Number
Issue date
Safety requirements for electrical equipment for
measurement, control, and laboratory use –Part 1:
General requirements
EN 61010-1
2010
Number
Issue date
IEC 61131-2
2007
EN 61326-1
2013
CISPR 11
2015
IEC 61000-3-2
2014
IEC 61000-3-3
2013
IEC 61000-4-2
2008
IEC 61000-4-3
2006+A1:2007+A2;
2010
IEC 61000-4-4:2012
2012
IEC 61000-4-5
2014
IEC61000-4-6
2013
Electromagnetic compatibility (EMC) – Part 4-8:
Testing and measurement techniques – Power
frequency magnetic field immunity test
IEC61000-4-8
2009
Electromagnetic compatibility (EMC) – Part 4-11:
Testing and measurement techniques – Voltage
dips, short interruptions and voltage variations
immunity tests
IEC61000-4-11
2004
EMC directive:
Title
Programmable controllers- Part 2: Equipment
requirements and Tests
Electrical equipment for measurement, control and
laboratory use - EMC requirements -- Part 1:
General requirements
Industrial, scientific and medical (ISM) radiofrequency equipment – Electromagnetic
disturbance characteristics – Limits and methods
of measurement
CE Conformity
Electromagnetic compatibility (EMC) – Part 3-2:
Limits –Limits for harmonic current emissions
(equipment input current ≤ 16A per phase)
Electromagnetic compatibility (EMC) – Part 3-3:
Limits –Limitation of voltage changes, voltage
fluctuations and flicker in public low-voltage supply
systems, for equipment with rated current ≤ 16 A
per phase and not subject to conditional
connection
Electromagnetic compatibility (EMC) – Part 4-2:
Testing and measurement techniques –
Electrostatic discharge immunity test
Electromagnetic compatibility (EMC) – Part 4-3:
Testing and measurement techniques – Radiated,
radio-frequency, electromagnetic field immunity
test
Electromagnetic compatibility (EMC) – Part 4-4:
Testing and measurement techniques – Electrical
fast transient/burst immunity test
Electromagnetic compatibility (EMC) – Part 4-5:
Testing and measurement techniques – Surge
immunity test
Electromagnetic compatibility (EMC) – Part 4-6:
Testing and measurement techniques – Immunity
to conducted disturbances, induced by radiofrequency fields
Page 24
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Item
Specification
c UL us(General
purpose safety)
Compliant with EN61010-1, ANSI/UL 61010-1 and CAN/CSA-C22.2 No. 61010-1-12
RCM
Electromagnetic compatibility (EMC) – Part
6.3: Generic standards – Emission standard
for residential, commercial and light-industrial
environments
Electromagnetic compatibility (EMC) – Part
6.4: Generic standards – Emission standard
for industrial environments
FM1
AS/NZS 61000.6.3
2012
AS/NZS 61000.6.4
2012
Electrical Equipment for Use in Hazardous
(Classified) Locations, General Requirements
FM 3600
2011
Non-incendive Electrical Equipment for Use in
Class I and II, Division 2 and Class III, Division 1
and 2, Hazardous (Classified) Locations
FM 3611
2004
Electrical and Electronic Test, Measuring and
Process Control Equipment
FM 3810
2005
Non-incendive Electrical Equipment for use in
Hazardous Locations
CAN/CSA C22.2
No. 213 – M1987
2008
Electrical and Electronic Test, Measuring and
Process Control Equipment
CAN/CSA-C22.2
No. 61010-1-12
2012
Electrical apparatus for explosive gas
atmospheres.
Part 0: General Requirements
EN 60079-0
2012
Electrical apparatus for explosive gas
atmospheres
Construction, test and marking of type of
protection “n” electrical apparatus
EN 60079-15
2010
CSA1
ATEX
Note:
1.
Certification reports will be available once issued by certification authority.
Page 25
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Hazardous Location Approvals
CSA
Approval Rating
Non-incendive for use in Class I, Division 2, Groups A, B, C & D
Class I, Zone 2, IIC T*
Class I, Division 2, Groups A, B, C & D T*
ATEX
II 3 G Ex nA IIC T* Gc
Temperature class (T*)
Module Number
T3C
900G03
T5
900G32
900H03, 900P01, 900P24, 900RR0, 900CP1, 900SP1,
900U01
900A01, 900H32, 900PSM, 900R04, 900R08, 900R12,
900R08R, 900R12R
FM
T4
T6
Note:
Classification of maximum surface temperatures for Group II electrical equipment are:
Temperature class
Maximum surface temperature ℃
T1
450
T2
300
T3
200
T4
135
T5
100
T6
85
7.
Module Number List
Model
Description
Racks
1
900RR0-0200
Redundant CPM Rack (Assembly)
2
900R04-0200
4 I/O Slot Rack - Non Redundant Power (Assembly)
3
900R08-0200
8 I/O Slot Rack - Non Redundant Power (Assembly)
4
900R12-0200
12 I/O Slot Rack - Non Redundant Power (Assembly)
5
900R08R-0200
8 I/O Slot Rack - Redundant Power (Assembly)
6
900R12R-0200
12 I/O Slot Rack - Redundant Power (Assembly)
Control Processor Module
7
900CP1-0200
Control Processor Module
Expansion Processor Module
8
900SP1-0200
Expansion Processor Module
IO Module
9
900U01-0100
Universal IO Module
10
900A01-0202
Universal AI,RTD, TC, V, 8 Ch
11
900G03-0202
Digital Input 120/240 VAC, 16 Ch
12
900G32-0101
Digital Input 24VDC, 32Ch
13
900H03-0202
Digital Output, 120/240 VAC, 8 Ch
14
900H32-0102
Digital Output,24VDC, 32 Ch
Power Supply
15
900P01-0301
120/240 V AC, 60W Power Supply
16
900P24-0301
24 V DC, 60W Power Supply
17
900PSM-0200
Redundant Power Status Module
Page 26
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Terminal Blocks
18
900TEK-0200
TB Housing, Black 20 Position Euro style
19
900TER-0200
TB Housing, Red 20 Position Euro style
20
900TCK-0200
TB Housing, Black 36 Position Euro style
21
900TBR-0200
High Voltage Terminal Block (Barrier Style)
22
900TBK-0200
Low Voltage Terminal Block (Barrier Style)
RTP and RTP Cable
23
900RTS-0001
DI, DO, AO Remote Terminal Panel (RTP)
24
900RTA-L001
Analog Input Remote Terminal Panel
25
900RTC-L210
Low Voltage RTP Cable (1.0M, 3.28ft.)
26
900RTC-L225
Low Voltage RTP Cable (2.5M, 8.2ft.)
27
900RTC-L250
Low Voltage RTP Cable (5.0M, 16.4ft.)
28
900RTC-H210
High Voltage RTP Cable (1.0M, 3.28ft.)
29
900RTC-H225
High Voltage RTP Cable (2.5M, 8.2ft.)
30
900RTC-H250
High Voltage RTP Cable (5.0M, 16.4ft.)
31
900RTC-3410
RTP Cable, Low Power 16/32CH 1.0M 3.28ft
32
900RTC-3425
RTP Cable, Low Power 16/32CH 2.5M 8.2ft
33
900RTC-3450
RTP Cable, Low Power 16/32CH 5.0M 16.4ft
Auxiliary Hardware
34
51307946-001
Security cover, CPM/EPM
35
514522622-503
IO Module Insert Label Kit
36
900TNF-0200
Filler Block Terminal Cover
37
900RNF-0200
Redundant CPM Rack Filler plate (no RSM)
38
900TSS-0001
Shield Terminal Strip (package of 2)
39
900J02-0001
Jump 2 Position
40
900J10-0001
Jump 10 Position PKG of 10
41
51205995-501
MI/MP 250 Ohm Resistor Kit of 8
Networking Components
42
50008930-001
Ethernet Switching Hub, 8 ports Multi mode
43
50008930-002
Ethernet Switching Hub, 16 ports Multi mode
44
50135395-001
Ethernet to Fiber Converter
45
SP-CSPLC1
Execution Environment, ControlEdge PLC
46
SP-EMD140
ControlEdge Builder Media Kit
47
51156191
CONTROLEDGE BUILDER R140 MEDIA R140.1
48
SP-EBLDR1
ControlEdge Builder Client License
Software and Media Kit
Page 27
ControlEdge PLC Specification, CE03-100-140.1_V1.0
Experion® is a registered trademark of Honeywell International Inc.
All other products and brand names shown are trademarks of their respective owners.
This document contains Honeywell proprietary information. It is published for the sole usage of Honeywell Process
Solutions’ customers and prospective customers worldwide. Information contained herein is to be used solely for the
purpose submitted, and no part of this document or its contents shall be reproduced, published, or disclosed to a third party
without the express permission of Honeywell International Inc.
While this information is presented in good faith and believed to be accurate, Honeywell disclaims the implied warranties of
merchantability and fitness for a particular purpose and makes no express warranties except as may be stated in its written
agreement with and for its customer.
In no event is Honeywell liable to anyone for any indirect, special or consequential damages. The information and
specifications in this document are subject to change without notice.
For more information
To learn more about Honeywell’s products or solutions
visit our website www.honeywellprocess.com
.com or contact your Honeywell account manager.
Automation & Control Solutions
Process Solutions
Honeywell
1250 West Sam Houston Parkway South
Houston, TX 77042
Honeywell House, Arlington Business Park,
Bracknell, Berkshire, England RG12 1EB UK
Building #1, 555 Huanke Road, Zhang Jiang Hi-tech
Park, Pudong New Area
Shanghai, China 201203
www.honeywellprocess.com
CE03-100-140.1_V1.0
May 2017
© 2017 Honeywell International Inc.
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
