Copper Apparatus

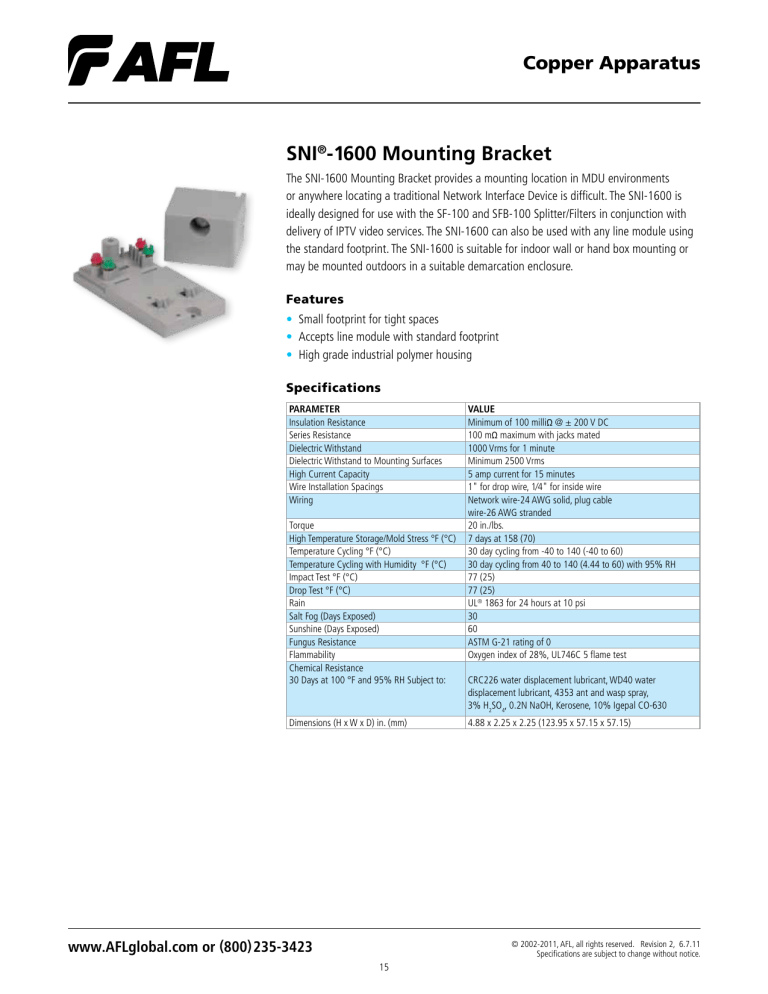

SNI®-1600 Mounting Bracket
The SNI-1600 Mounting Bracket provides a mounting location in MDU environments
or anywhere locating a traditional Network Interface Device is difficult. The SNI-1600 is
ideally designed for use with the SF-100 and SFB-100 Splitter/Filters in conjunction with
delivery of IPTV video services. The SNI-1600 can also be used with any line module using
the standard footprint. The SNI-1600 is suitable for indoor wall or hand box mounting or
may be mounted outdoors in a suitable demarcation enclosure.
Features
• Small footprint for tight spaces
• Accepts line module with standard footprint
• High grade industrial polymer housing
Specifications
PARAMETER
Insulation Resistance
Series Resistance
Dielectric Withstand
Dielectric Withstand to Mounting Surfaces
High Current Capacity
Wire Installation Spacings
Wiring
Torque
High Temperature Storage/Mold Stress °F (°C)
Temperature Cycling °F (°C)
Temperature Cycling with Humidity °F (°C)
Impact Test °F (°C)
Drop Test °F (°C)
Rain
Salt Fog (Days Exposed)
Sunshine (Days Exposed)
Fungus Resistance
Flammability
Chemical Resistance
30 Days at 100 °F and 95% RH Subject to:
Dimensions (H x W x D) in. (mm)
www.AFLglobal.com or (800) 235-3423
VALUE
Minimum of 100 milliΩ @ ± 200 V DC
100 mΩ maximum with jacks mated
1000 Vrms for 1 minute
Minimum 2500 Vrms
5 amp current for 15 minutes
1" for drop wire, 1⁄4" for inside wire
Network wire-24 AWG solid, plug cable
wire-26 AWG stranded
20 in./lbs.
7 days at 158 (70)
30 day cycling from -40 to 140 (-40 to 60)
30 day cycling from 40 to 140 (4.44 to 60) with 95% RH
77 (25)
77 (25)
UL® 1863 for 24 hours at 10 psi
30
60
ASTM G-21 rating of 0
Oxygen index of 28%, UL746C 5 flame test
CRC226 water displacement lubricant, WD40 water
displacement lubricant, 4353 ant and wasp spray,
3% H2SO4, 0.2N NaOH, Kerosene, 10% Igepal CO-630
4.88 x 2.25 x 2.25 (123.95 x 57.15 x 57.15)
© 2002-2011, AFL, all rights reserved. Revision 2, 6.7.11
Specifications are subject to change without notice.
15
Copper Apparatus
SNI®-1600 Mounting Bracket
COCOT Applications
T he SNI-1600 is idealy suited for
customer-owned coin-operated
telephone services.
Custom Order Matrix (consult customer service for availability)
Basic Unit
Line Module
Security
Subscriber
Termination
Type of
Electronics
Number of
Lines Equipped
Lightning
Protection*
Telco Cover
Fastener
SNI-1600
1
BT
2
1
37
H
SNI-1600
1 = Without individual
subscriber
security covers
2 = With individual
subscriber
security covers
A =2 Screw, 2 Wire,
RJ-11 interface
1 = Interface Module
only
B =4 Screw, 2 Wire,
RJ-11 Interface
(Green and Red
electrically active)
2 = Half Ringer
Equivalence
C =6 screw, 2 wire,
Bridging Module
4 = RFI Filter
(Radio Frequency
Interference)
D =4 screw, 4 wire,
RJ-14 Interface
(Green, Yellow, Red
and Black are
electrically active)
1 = 1
(Up to 2)
37=125
57=356
90=455
N=NONE
H = 3/8" Hex Head
Screw
S =
Pin-In-Hex
Security Screw
(for use with
KS-19192 tool)
EXAMPLE: SNI-1600 – 1 – BT – 1 – 2 – 37 – H
This model number indicates that the following has been ordered:
SNI-1600 Mounting Bracket, supplied without individual subscriber security covers, line
module includes; 4 screws, 2 wire RJ-11 interface and a sealed RJ-11 ETO “Jumping
Jack”, one line capacity, 125EW style lightning protector, 3/8" Hex Head screw for telco
cover fastener.
F = 2 screw, 8 position,
2 Wire Interface
(Special Services)
J = 4 Screw, 2 Wire,
RJ-11 Interface
(Dual Green and
Red screws
electrically active)
* NOTE: Addition of lightning protection limits the number of line modules used to one.
T = Sealed RJ-11 ETO
“Jumping Jack”
(n/a with C, D or F
termination above)
N =None
www.AFLglobal.com or (800) 235-3423
© 2002-2011, AFL, all rights reserved. Revision 2, 6.7.11
Specifications are subject to change without notice.
16
