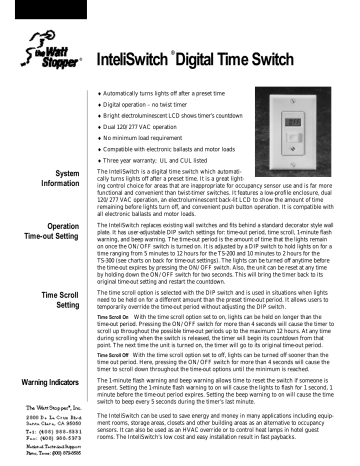

InteliSwitch Digital Time Switch
®
®
InteliSwitch Digital Time Switch
♦ Automatically turns lights off after a preset time
♦ Digital operation – no twist timer
♦ Bright electroluminescent LCD shows timer’s countdown
♦ Dual 120/277 VAC operation
♦ No minimum load requirement
♦ Compatible with electronic ballasts and motor loads
♦ Three year warranty; UL and CUL listed
System
Information
The InteliSwitch is a digital time switch which automatically turns lights off after a preset time. It is a great lighting control choice for areas that are inappropriate for occupancy sensor use and is far more
functional and convenient than twist-timer switches. It features a low-profile enclosure, dual
120/277 VAC operation, an electroluminescent back-lit LCD to show the amount of time
remaining before lights turn off, and convenient push button operation. It is compatible with
all electronic ballasts and motor loads.
Operation
Time-out Setting
The InteliSwitch replaces existing wall switches and fits behind a standard decorator style wall
plate. It has user-adjustable DIP switch settings for: time-out period, time scroll, 1-minute flash
warning, and beep warning. The time-out period is the amount of time that the lights remain
on once the ON/OFF switch is turned on. It is adjusted by a DIP switch to hold lights on for a
time ranging from 5 minutes to 12 hours for the TS-200 and 10 minutes to 2 hours for the
TS-300 (see charts on back for time-out settings). The lights can be turned off anytime before
the time-out expires by pressing the ON/OFF switch. Also, the unit can be reset at any time
by holding down the ON/OFF switch for two seconds. This will bring the timer back to its
original time-out setting and restart the countdown.
Time Scroll
Setting
The time scroll option is selected with the DIP switch and is used in situations when lights
need to be held on for a different amount than the preset time-out period. It allows users to
temporarily override the time-out period without adjusting the DIP switch.
Time Scroll On With the time scroll option set to on, lights can be held on longer than the
time-out period. Pressing the ON/OFF switch for more than 4 seconds will cause the timer to
scroll up throughout the possible time-out periods up to the maximum 12 hours. At any time
during scrolling when the switch is released, the timer will begin its countdown from that
point. The next time the unit is turned on, the timer will go to its original time-out period.
Time Scroll Off With the time scroll option set to off, lights can be turned off sooner than the
time out period. Here, pressing the ON/OFF switch for more than 4 seconds will cause the
timer to scroll down throughout the time-out options until the minimum is reached.
Warning Indicators
The 1-minute flash warning and beep warning allows time to reset the switch if someone is
present. Setting the 1-minute flash warning to on will cause the lights to flash for 1 second, 1
minute before the time-out period expires. Setting the beep warning to on will cause the time
switch to beep every 5 seconds during the timer’s last minute.
The InteliSwitch can be used to save energy and money in many applications including equipment rooms, storage areas, closets and other building areas as an alternative to occupancy
sensors. It can also be used as an HVAC override or to control heat lamps in hotel guest
rooms. The InteliSwitch’s low cost and easy installation result in fast paybacks.
InteliSwitch Technical Infor mation
Specifications
Ordering
Information
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
♦
Operates at 120 or 277 VAC; No minimum load requirement
TS-200, TS-250, TS-260: time-out adjustments range from 5 minutes to 12 hours
TS-300, TS-350, TS-360: time-out adjustments range from 10 minutes to 2 hours
Compatible with all electronic ballasts and motor loads
Optional beep warning every five seconds during last minute of countdown
Optional one second light flash warning at one minute before timer runs out
Time scrolling options for overriding the preset time
Simple reset feature for returning the switch to its original preset amount
Electroluminescent back-lit Liquid Crystal Display shows timer countdown
The Watt Stopper’s exclusive Zero Crossing Circuitry, Patent Pending
Custom microcontroller enhances reliability
Size: 2.68” x 1.69” x 1.50” (68.0mm x 43.0mm x 38.0mm)
Catalog No.
Voltage
Load Requirements
120 VAC, 60 Hz or
277 VAC, 60 Hz
0-800W Ballast for 120 VAC or
0-1200W Ballast for 277 VAC
TS-200
TS-250
230 VAC, 50 Hz
0-1200W Ballast
TS-260
347 VAC, 60 Hz
0-1500W Ballast
TS-300
120 VAC, 60 Hz or
277 VAC, 60 Hz
0-800W Ballast for 120 VAC or
0-1200W Ballast for 277 VAC
TS-350
230 VAC, 50 Hz
0-1200W Ballast
TS-360
347 VAC, 60 Hz
0-1500W Ballast
ASP-211
Cover plate for single gang box (one included with each switch)
ASP-422
Blank cover plate for 2-gang box
ASP-432
Cover plate for 2-gang box with switch option
Add to the end of the catalog no.: -W for white, -I for ivory
Product Controls &
Installation
InteliSwitch
LCD
ON/OFF
Switch
ASP-211
Wall
Junction
Box
Beeper
DIP Switch
Wiring Diagrams
Single Level Wiring
3-Way Switching
120VAC ground -Green
277VAC ground -Green/Yellow
Time-Out
Settings
The Watt Stopper®, Inc.
Pub. No. 4403
Dip Switch Time-out Settings
Timer Displays
Hours
Minutes
The LCD shows the
amount of time remaining
before lights turn off.
When the amount of time
remaining is 1 hour or
more, the colon flashes.
When there are only min utes left in the time-out
period, the indicator does
not flash, but you see the
seconds counting down.
TS-200 series
TS-300 series
