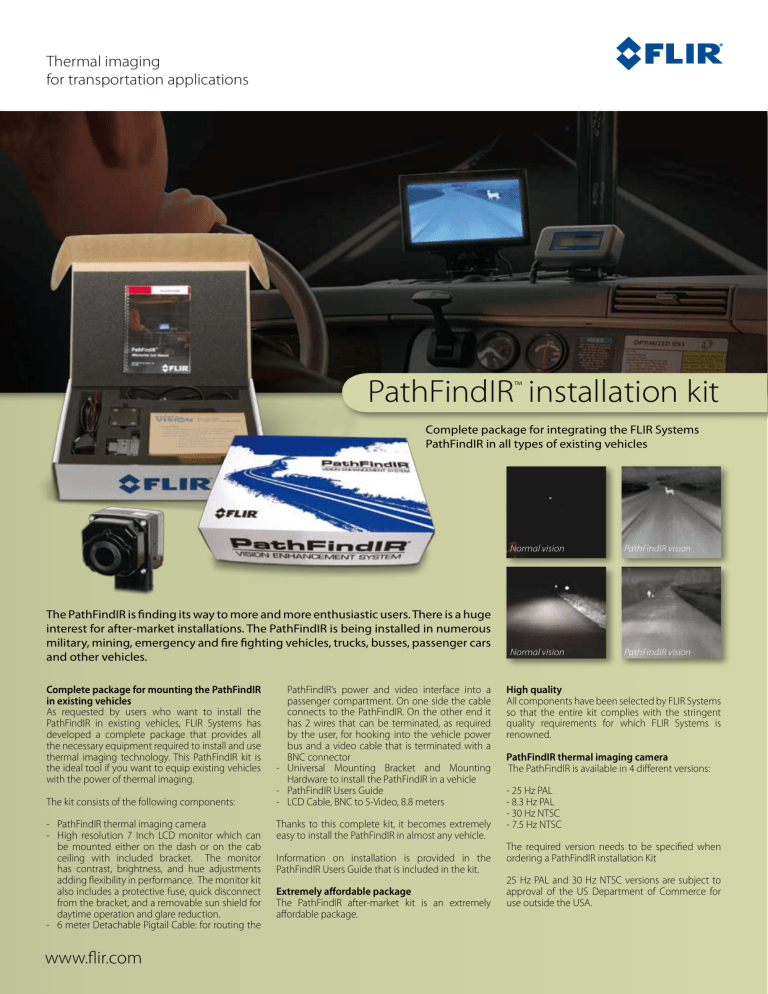

PathFindIR™ installation kit

PathFindIR™ installation kit
Thermal imaging
for transportation applications
PathFindIR installation kit
™
Complete package for integrating the FLIR Systems
PathFindIR in all types of existing vehicles
The PathFindIR is finding its way to more and more enthusiastic users. There is a huge
interest for after-market installations. The PathFindIR is being installed in numerous
military, mining, emergency and fire fighting vehicles, trucks, busses, passenger cars
and other vehicles.
Complete package for mounting the PathFindIR
in existing vehicles
As requested by users who want to install the
PathFindIR in existing vehicles, FLIR Systems has
developed a complete package that provides all
the necessary equipment required to install and use
thermal imaging technology. This PathFindIR kit is
the ideal tool if you want to equip existing vehicles
with the power of thermal imaging.
The kit consists of the following components:
- PathFindIR thermal imaging camera
- High resolution 7 Inch LCD monitor which can
be mounted either on the dash or on the cab
ceiling with included bracket. The monitor
has contrast, brightness, and hue adjustments
adding flexibility in performance. The monitor kit
also includes a protective fuse, quick disconnect
from the bracket, and a removable sun shield for
daytime operation and glare reduction.
- 6 meter Detachable Pigtail Cable: for routing the
www.flir.com
PathFindIR’s power and video interface into a
passenger compartment. On one side the cable
connects to the PathFindIR. On the other end it
has 2 wires that can be terminated, as required
by the user, for hooking into the vehicle power
bus and a video cable that is terminated with a
BNC connector
- Universal Mounting Bracket and Mounting
Hardware to install the PathFindIR in a vehicle
- PathFindIR Users Guide
- LCD Cable, BNC to S-Video, 8.8 meters
Thanks to this complete kit, it becomes extremely
easy to install the PathFindIR in almost any vehicle.
Information on installation is provided in the
PathFindIR Users Guide that is included in the kit.
Extremely affordable package
The PathFindIR after-market kit is an extremely
affordable package.
Normal vision
PathFindIR vision
Normal vision
PathFindIR vision
High quality
All components have been selected by FLIR Systems
so that the entire kit complies with the stringent
quality requirements for which FLIR Systems is
renowned.
PathFindIR thermal imaging camera
The PathFindIR is available in 4 different versions:
- 25 Hz PAL
- 8.3 Hz PAL
- 30 Hz NTSC
- 7.5 Hz NTSC
The required version needs to be specified when
ordering a PathFindIR installation Kit
25 Hz PAL and 30 Hz NTSC versions are subject to
approval of the US Department of Commerce for
use outside the USA.
PathFindIR™ installation kit
PathFindIR: technical specifications
IMAGING PERFORMANCE
Detector type
Thermal imaging for driver vision enhancement
Thermal imaging is a powerful driver’s vision enhancement system, which significantly reduces the risks
of night-time driving and allows you to see up to 5x
further than with headlights. It produces clear images
in total darkness, smoke, rain and light fog. It needs
no light whatsoever to operate. Thanks to thermal
imaging, drivers can more quickly detect and recognize potential hazards and avoid deadly accidents.
Spectral range
Field of view
Spatial resolution (IFOV)
Thermal sensitivity*
Image frequency
Focus
Image processing
Focal Plane Array (FPA), uncooled microbolometer
324 x 256 pixels
8 to 14µm
36° (H) x 27° (V) with 19 mm lens
2 mrad
100 mK at +25°C
8.3 Hz PAL or 7.5 Hz NTSC *
Automatic (25 m to infinity)
Digital Detail Enhancement (DDE)
SYSTEM FEATURES
Time to image
Automatic heater
< 2 seconds
When window temperature is below +4°C
IMAGE PRESENTATION
Video output
Connector type
RS170 EIA/NTSC or CCIR/PAL composite video, 75Ω
Standard 6 meter power/video cable with sealed connector
POWER
Requirements
Consumption
6 - 16 V DC
2 W quiescent, 6 W max (with window heater on)
ENVIRONMENTAL SPECIFICATIONS
Operating temperature range
Storage temperature range
Humidity
Sand / dust
Icing
Encapsulation
Shock
Vibration
PHYSICAL CHARACTERISTICS
Camera Weight
Camera Size
-40°C to +80°C
-57°C to +105°C (Extended storage time above +40°C
is not recommended due to reduction in service life)
6,500 hours at 81%rh at +25°C and salt spray per IEC 60068-2-11Ka
Mil-Std810
Heater will defrost 2 mm of ice within 15 minutes at -30°C and
windspeed of 100 km/h
Hermetically sealed enclosure - IP67
5 30g shocks in 2 directions on 3 axes (30 total) 11 mSec duration per
IEC 60068-2-27Ea
IEC 60068-2-64
Shipping Weight
Shipping Size
360 grams
57.4 mm x 56.1 mm x 71.4 mm excluding connector
which protrudes an additional 28.7 mm
680 grams (PathFindIR only) - 816 grams (PathFindIR + pigtale cable)
228 mm x 228 mm x 228 mm
Shipping Weight : PathFindIR installation kit
Shipping Size : PathFindIR installation kit
3.4 kg
483 mm x 483 mm x 483 mm
* 30 Hz NTSC or 25 Hz PAL available. Subject to approval of the
US Department of Commerce for use outside the USA.
PathFindIR installation kit:
Part number 421-0029-00
The PathFindIR installation kit
consist of the following components:
PathFindIR
Thermal imaging camera
By allowing drivers to see thermal images of the road
ahead - well beyond what headlights illuminate - drivers are able to detect obstacles, other cars, curves
in the road, ... much sooner and have more time to
react. Thanks to thermal imaging, drivers can more
quickly detect and recognize potential hazards and
avoid deadly accidents.
FLIR Commercial Vision Systems B.V.
Charles Petitweg 21
4847 NW Teteringen - Breda
The Netherlands
Phone : +31 (0) 765 79 41 94
Fax
: +31 (0) 765 79 41 99
e-mail
: [email protected]
FLIR Systems, Inc
CVS World Headquarters
70 Castilian Drive
Santa Barbara, CA 93117
USA
Phone
: +1 805 964 9797
Fax
: +1 805 685 2711
e-mail
: [email protected]
FLIR Systems Ltd.
United Kingdom
Phone : +44 (0) 1732 220 011
Fax
: +44 (0) 1732 220 014
e-mail
: [email protected]
FLIR Systems AB
Spain
Phone
: +34 915 73 48 27
Fax
: +34 915 73 58 24
e-mail
: [email protected]
FLIR Systems AB
Sweden
Phone
: +46 (0) 8 753 25 00
Fax
: +46 (0) 8 753 23 64
e-mail
: [email protected]
Pigtale cable for routing the
High resolution
Universal
PathFindIR’s power and video
7 Inch LCD monitor
mounting
interface into a passenger bracket + mounting
compartment
hardware
LCD Cable, BNC
to S-Video, 8.8 meters
Users Guide
334-0001-00P
334-0001-00PS
334-0001-00
334-0001-00S
Your local dealer:
Please specify the required version of the PathFindIR
when ordering a PathFindIR installation kit
Legal disclaimer:
FLIR Systems accepts no responsibility and can not be held liable for any error or accident resulting from the use of its thermal
imaging systems or errors in the interpretation of the image by the user.
SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE
©Copyright 2009, FLIR Systems, Inc. All other brand and product names are trademarks of their respective owners.
Thermal imaging cameras for transportation applications
AM_0908_0002_EN
FLIR Systems Middle East, FZE
Dubai - United Arab Emirates
Phone
: +971 4 299 6898
Fax
: +971 4 299 6895
e-mail
: [email protected]
Part numbers PathFindIR:
- 25 Hz PAL - 8.3 Hz PAL
- 30 Hz NTSC
- 7.5 Hz NTSC
FLIR Commercial Vision Systems
China
Phone
: +86 10 5869 9786/8762
Fax
: +86 10 5869 8763
e-mail
: [email protected]
