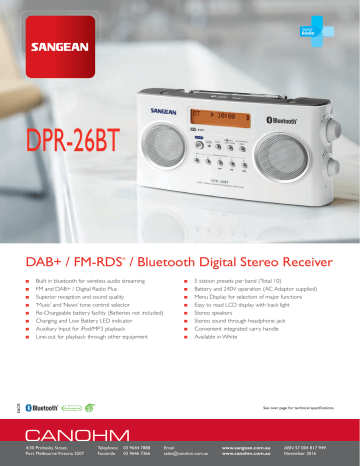

DPR-26BT
DPR-26BT
DAB+ / FM-RDS* / Bluetooth Digital Stereo Receiver
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
■■
5 station presets per band (Total 10)
Battery and 240V operation (AC Adaptor supplied)
Menu Display for selection of major functions
Easy to read LCD display with back light
Stereo speakers
Stereo sound through headphone jack
Convenient integrated carry handle
Available in White
E&OE
■■
Built in bluetooth for wireless audio streaming
FM and DAB+ / Digital Radio Plus
Superior reception and sound quality
‘Music’ and ‘News’ tone control selector
Re-Chargeable battery facility (Batteries not included)
Charging and Low Battery LED indicator
Auxiliary Input for iPod/MP3 playback
Line-out for playback through other equipment
See over page for technical specifications.
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
ABN 57 004 817 949
November 2016
SPECIFICATIONS
Tuner
DAB
Band III Frequency (MHz)
FM
Frequency (MHz)
RDS
Bluetooth
Preset
Media
USB
Aux - in
Others
Bluetooth
Version
Clock
Real time Radio Control - DAB / RDS
Display
LCD Viewable Area (mm)
Graphic / Character Type
Back Light
Features
Stereo
Bluetooth
Charger
Software Upgrade
Audio
EQ
Tone Control
Amplifier
Speaker Output (Typ.)
Earphones Output
Others
Speaker
Size (mm)
Impedance
I/O Socket
AC / DC - in
Aux - in
Line - out
Earphones
USB
Power Supply
DC
Batteries
Accessories
AC Adapter
Dimensions
W x H x D (mm) Weight (g)
Warranty
174 - 240 (W / DAB+)
87.5 - 108
PS / PTY / CT / RT
Yes
10 (5 DAB+ and 5 FM)
SW Upgrade only
Yes
Bluetooth wireless audio
3.0
DAB / RDS
Yes
85 x 30
16 characters x 2 Lines
Yes
Earphone / Speaker
Yes
Yes
Via Micro USB (B type)
NEWS / MUSIC (Switch)
1W + 1W
5 + 5 mW
Class D amplifier
64
8 ohms
DC
Yes
Yes
Yes (Stereo)
Micro USB (B type)
12V / 1A
6 x 1.5V (UM - 2) C Size
12V / 1A
260 x 136 x 63
884
12 months
DPR-26BT
E&OE
*RDS (Radio Data System) is a system by which various
information sent by the radio station can be displayed on
the screen of an RDS equipped radio. Information can
include: Station identification (name – shown in place
of the frequency), program information, promotional
announcements, weather, time and more. RDS is intended
to provide an enhanced experience for the listener.
NOTE: RDS is not provided by all radio stations.
4/30 Prohasky Street,
Port Melbourne Victoria 3207
Telephone 03 9644 7888
Facsimile 03 9646 7366
Email
sales@canohm.com.au
www.sangean.com.au
www.canohm.com.au
ABN 57 004 817 949
November 2016
