QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview

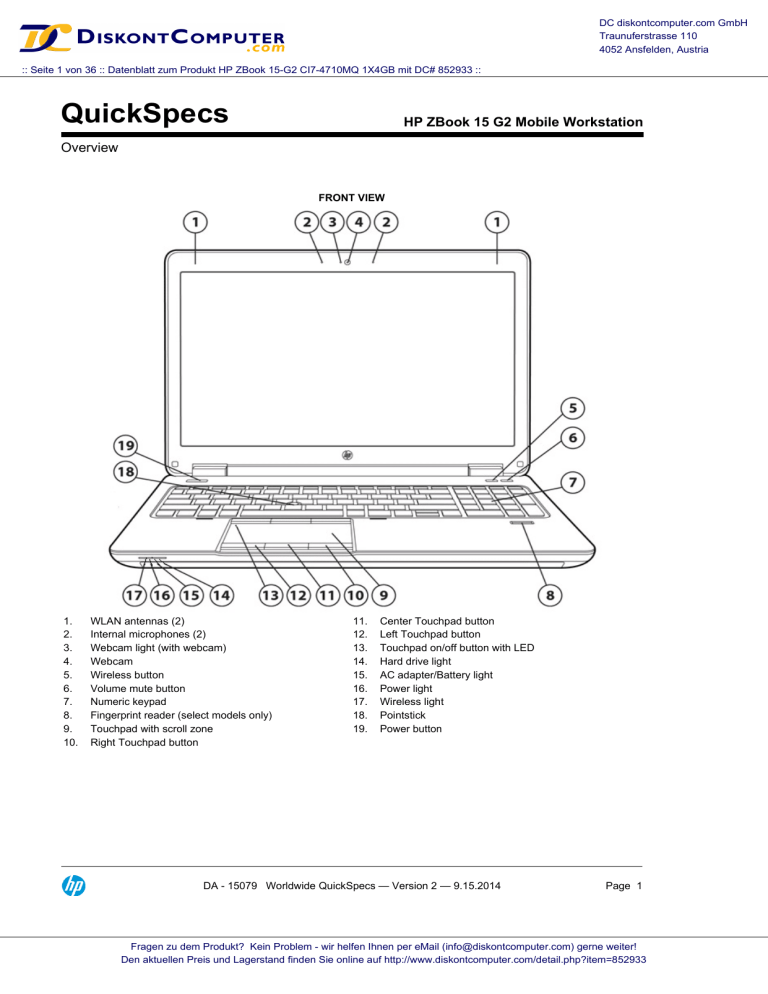

FRONT VIEW
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
WLAN antennas (2)
Internal microphones (2)
Webcam light (with webcam)
Webcam
Wireless button
Volume mute button
Numeric keypad
Fingerprint reader (select models only)
Touchpad with scroll zone
Right Touchpad button
11.
12.
13.
14.
15.
16.
17.
18.
19.
Center Touchpad button
Left Touchpad button
Touchpad on/off button with LED
Hard drive light
AC adapter/Battery light
Power light
Wireless light
Pointstick
Power button
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 1
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 2 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview
1.
Security cable slot
9.
Audio-out (headphone) jack/Audio in (microphone) jack
2.
USB 2.0 port
10. USB 3.0 port
3.
Thunderbolt port*
11. Optical drive (select models only)
4.
DisplayPort
12. External monitor port
5.
USB 3.0 charging port
13. USB 3.0 port
6.
Smart card reader
14. Power connector
7.
ExpressCard port
15. RJ-45 (network) jack/lights (2)
8.
Memory card reader
* Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
At A Glance
Windows 8.1 versions, Windows 7 versions, Ubuntu Linux, or FreeDOS
Thin and light form factor and industrial design. Durable HP Duracase with magnesium-reinforced chassis, HP
DuraFinish with brushed aluminum on top cover and smooth aluminum around top, right, and left sides chassis with
hematite /graphite color, HP DisplaySafe frame, latch-less design with precision aluminum-alloy hinges, backlight
keyboard in full aluminum deck, chemically strengthened glass touchpad, and updated system functions indicators
Designed to meet the military standard Mil-Std-810G for drop, vibration, shock, high temperature, low temperature,
temperature shock, dust, altitude, and humidity*
Workstation-caliber NVIDIA® Quadro® discrete graphics: NVIDIA Quadro K610M (1GB GDDR5), NVIDIA Quadro
K1100M (2GB GDDR5), AMD FirePro™ W5170M (2GB GDDR5), NVIDIA Quadro K2100M (2GB GDDR5); NVIDIA
Optimus or AMD Enduro™ technology enabled for improved battery life.
ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D
textures
Choice of 4th generation Intel® Core™ i7 and i5 processors
Intel Core i7 with vPro and Core i5 with vPro technology (optional) ****
Intel Smart Response Technology support for higher system performance with a hard drive
HP Performance Advisor for optimal configuration, compatibility and performance
Up to four SODIMMs on configurations with quad-core processor, for system memory up to 32 GB
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 2
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 3 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Overview
Supports multi-display, including up to four without a docking station (both with and without hybrid graphics enabled),
up to four with HP Advanced Docking Station (sold separately) without hybrid graphics enabled and up to five with
HP Advanced Docking Station (sold separately) and hybrid graphics enabled
New Thunderbolt 2 port** for high speed data/video/audio transfer support
Thunderbolt 2 port can be connected to monitors supporting DisplayPort 1.2 to achieve HBR2 and MST functionality.
DTS Studio Sound HD audio optimized for high fidelity audio with immersive surround sound with deep, rich bass
and crystal clear dialog without distortion at high volume
Choice of battery solutions: 8-cell (83 WHr) or 8-cell (75 WHr) HP Long Life Battery, combined with optional external
batteries for extended life.
2 discrete buttons with LED indicator for convenient one touch access - Wireless On/Off, Volume Mute
Widescreen 15.6-inch diagonal anti-glare LED-backlit display:
HD (1920x1080) eDP with standard viewing angle, FHD (1920x1080) eDP with PSR (Panel Self Refresh) with
ultrawide viewing angle, QHD+ (3200x1800) eDP with ultrawide viewing angle or FHD ultrawide viewing angle
Upgrade Bay for optional second hard drive or weight saver
Flexible wireless connectivity options:
Intel Dual Band Wireless-N 7260 802.11 a/b/g/n (2x2) WiFi ; Intel Dual Band Wireless-AC 7260 802.11
a/b/g/n/ac (2x2) WiFi and Bluetooth 4.0 combo; Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi
and Bluetooth 4.0 combo
Optional integrated wireless 3G or 4G (LTE) mobile broadband module support
Choice of tool free capable, user-removable hard drive up to 1 TB with HP 3D DriveGuard protection,
or SATA 6 Gb/s 128/180/240/256/512*** GB Solid State Drive, 256 GB Z Turbo Drive (PCIe SSD)
Security features including HP Client Security Manager, managed via single console
Low halogen***
HP BIOS technology, including HP Sure Start to identify and recover from known and unknown BIOS attacks.
* MIL-STD-810G testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contracts or
for military use. Test results are not a guarantee of future performance under these test conditions.
** Thunderbolt is new technology. Install all the latest drivers for your Thunderbolt device before connecting the device to
the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with Windows. To
determine whether your device is Thunderbolt Certified for Windows, see https://thunderbolttechnology.net/products.
*** External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after
purchase may not be low halogen.
**** Multi-Core is designed to improve performance of certain software products. Not all customers or software applications
will necessarily benefit from use of this technology. 64-bit computing system required. Performance will vary depending on
your hardware and software configurations. Intel's numbering is not a measurement of higher performance. Some vPro
functionality, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd
party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent
on 3rd party software providers. Microsoft Windows required.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 3
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 4 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
OPERATING SYSTEM
Preinstalled
Windows 8.1 Pro 64*
Windows 7 Professional 64 (available through downgrade rights from Windows 8.1 Pro)**
Windows 8.1 64*
Windows 7 Professional 64**
Ubuntu Linux***
FreeDOS
Supported
Windows 8.1 Enterprise 64*
Windows 7 Enterprise 64**
Certified
* Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or
separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. See
http://www.microsoft.com for details.
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8
Pro software. You may only use one version of the Windows software at a time. Switching between versions will
require you to uninstall one version and install the other version. You must back up all data (files, photos, etc.) before
uninstalling and installing operating systems to avoid loss of your data.
*** Not available with WWAN
PROCESSOR*
4th Generation Intel® Core™ i7-4910MQ (2.9 GHz, 1600MHz, 8 MB L3 cache, 4 cores, 47W)*
Up to 3.90 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4810MQ (2.8 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W)*
Up to 3.80 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4710MQ (2.5 GHz, 1600MHz, 6 MB L3 cache, 4 cores, 47W) (no vPro support)*
Up to 3.50 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i7-4610M (3.00 GHz, 1600 MHz, 4 MB L3 Cache, 2 cores, 37W)
Up to 3.70 GHz with Intel Turbo Boost Technology
4th Generation Intel® Core™ i5-4340M (2.90 GHz, 1600 MHz, 3 MB L3 Cache, 2 cores, 37W)
Up to 3.60 GHz with Intel Turbo Boost Technology
Intel Dual-Core i5-4210M (3.20 GHz, 1600 MHz, 3 MB L3 Cache, 4 threads, 37W)
Up to 3.20 GHz with Intel Turbo Boost Technology
* Multi-Core is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. 64-bit computing system required. Performance will
vary depending on your hardware and software configurations. Intel's numbering is not a measurement of higher
performance.
NOTE: NVIDIA Optimus is enabled by default. If you choose to disable this functionality, Intel® integrated graphics will
not be used.
CHIPSET
Mobile Intel® QM87
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 4
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 5 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
INTEL® CORE™ I5 WITH VPRO/CORE™ I7 WITH VPRO TECHNOLOGY CAPABLE
Intel Core i5 with vPro and Core i7 with vPro technology is a selectable feature that is available on units configured
with select processors, a qualified Intel Centrino® WLAN module and a preinstalled Windows operating system. It
provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel
Active Management Technology 9.0 (iAMT) offers built-in manageability and proactive security for networked mobile
workstations, even when they are powered off* or when the operating system is inoperable. It can help identify threats
before they reach the network, isolate infected systems, and update mobile workstations regardless of their power
state.
*Requires a Windows operating system, network hardware and software, connection with a power source, and a
direct (non-VPN) corporate network connection which is either cable or wireless LAN.
NOTE: Some functionality of Intel Core i5 with vPro/Core i7 with vPro technology, such as Intel Active Management
technology and Intel Virtualization technology, requires additional third- party software in order to run. Availability of
future "virtual appliances" applications for Intel Core i5 with vPro/Core i7 with vPro technology is dependent on thirdparty software providers. Compatibility with future "virtual appliances" is yet to be determined.
GRAPHICS
NVIDIA Quadro K610M with 1 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K1100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
AMD FirePro™ W5170M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Quadro K2100M with 2 GB dedicated GDDR5 video memory
Microsoft DirectX 11.1 (Shader Model 5.0) and OpenGL 4.2 capable
NVIDIA Optimus Technology and AMD Enduro™ Technology supported
NOTE: NVIDIA Quadro mobile professional graphics support up to five independent displays when using an HP
Advanced Docking station (sold separately). AMD FirePro™ professional graphics support up to five independent
displays when using an HP Advanced Docking station (sold separately).
Multi-Display Support
Without Docking Station:
HP ZBook 15 without the use of a Docking Station supports up to a maximum of four independent displays. These
four displays are the internal panel plus three external displays connected to the VGA, the DisplayPort (DP), and the
Thunderbolt™ Port connectors.
With Docking Station*:
The Advanced Docking Station has VGA and four digital display output connectors (two DVI and two DP). Of those
four digital display connectors, only two may be used at a time (two DVI, two DP or one DP and one DVI). When used
together with the HP ZBook 15, a maximum of five independent displays are supported. These five displays are the
internal panel plus four external displays connected to three display outputs connectors from the standard or
Advanced Docking Station*, and the Thunderbolt™ connector from the ZBook.
DP 1.2 "daisy-chain" feature:
On HP ZBook 15, the maximum number of independent displays is increased to six with the use of DP1.2 "daisychain" feature. This requires Hybrid Graphics to be enabled, one monitor connected to the dock VGA, and at least one
daisy chain connection on (A) System DP, (B) Docking Station DP 1, (C) Docking Station DP 2.
* Advanced docking station sold separately.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 5
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 6 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
DISPLAY
Internal
15.6" diagonal LED-backlit FHD SVA eDP anti-glare (1920 x 1080)
15.6" diagonal LED-backlit FHD UWVA IPS eDP anti-glare + Panel Self Refresh (PSR) (1920 x 1080)
15.6" diagonal RGB LED-backlit FHD UWVA IPS eDP anti-glare (1920 x 1080)
External
Up to 32-bit per pixel color depth
Thunderbolt™ 2*
Supported as part of the daisy chain connected with Intel approved thunderbolt cables. For additional information,
please visit https://thunderbolttechnology.net/.
Thunderbolt™ Features
Legacy: DP 1.1a, DVI-A/D, HDMI and VGA displays attached to the end of the thunderbolt daisy chain via Intel
certified dongles
DP 1.2 redrive: DisplayPort monitors capable of supporting DP 1.2 may be directly attached to the Thunderbolt
port to achieve HBR2 and MST functionality.
DP display with miniDP connector may be attached directly to TB (Thunderbolt) port.
DP display with standard DP connector and other legacy displays (HDMI, DVI, VGA) may be attached to TB
with the use of a dongle.
DP1.2 MST feature ("daisy-chain" feature) is supported through TB port.
* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the
device to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with
Windows. To determine whether your device is Thunderbolt Certified for Windows, see
https://thunderbolttechnology.net/products.
DisplayPort w/MST (Multi-stream Transport)
Supports resolutions up to QFHD 3840 x 2160, 24/30-bit color depth at 60 Hz, and WUXGA (1920 x 1200) monitors,
24/30-bit color depth at 120 Hz.
DisplayPort Feature
Multi-stream Transport (MST): Multi-stream Transport is a DP 1.2 feature that allows daisy chaining of DP 1.2
monitors (requires built in support of DP 1.2 MST in monitor), or the use of DP 1.2 hubs with MST to achieve 4
active displays without a docking station.
VGA
Port supports resolutions up to 2048 x 1536 at 75 Hz, and lower resolutions at up to 100 Hz
DVI-D (single link)
Video signal available through DVI port in optional HP Docking Station (sold separately), as well as through
DisplayPort to DVI-D; DisplayPort to DVI-D (dual link); and DisplayPort to HDMI adapters.
Supports resolutions up to 1600 x 1200 at both full and reduced blanking, and 1920 x 1200 at reduced blanking
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 6
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 7 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
STORAGE AND DRIVES
Z Turbo Drive Storage Bay
256 GB Z Turbo Drive (PCIe Solid State Drive)
Primary Storage Bay
Hard Drives*
500/750 GB, 1 TB 7200 rpm SMART SATA II
500 GB 7200 rpm SMART SATA II Self Encrypting Drive
500 GB 5400 rpm SMART SATA II Self Encrypting Drive FIPS 140-2 compliant
HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses
three-axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from
shock and vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt
motion is detected.
Solid State Drive*
128/180/240/256/512 GB SATA 6 Gb/sec
NOTE: For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16 GB
(for Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.
DRIVE CONTROLLERS
Primary drive and upgrade bay:
Z Turbo Drive:
RAID:
SATA-3 or SATA-2 for HDD and SATA-3 for SSD
PCIe SSD
0 and 1 supported
OPTICAL DRIVES
Fixed 9.5 mm SATA optical drive
Blu-ray R/RE DVD+/-RW SuperMulti DL Drive*,**
Blu-ray ROM DVD+/-RW SuperMulti DL Drive *,**
DVD+/-RW SuperMulti DL Drive**
*With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not
constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles
to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD
movies cannot be played.
**Double Layer discs can store more data than single layer discs. However, double-layer discs burned with this drive
may not be compatible with many existing single-layer DVD drives and players The DVD-RAM cannot read or write to
2.6GB Single Sided/5.2 GB Double Sided - Version 1.0 media.
Second hard drive
750 GB 7200 rpm SMART SATA II Hard Drive
512 GB SATA 6 Gb/sec Solid Sate Drive
256 GB SATA 6 Gb/sec Self Encrypting Drive
RAID 0 and 1 supported
Weight saver
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 7
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 8 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
MEMORY
Standard
DDR3L 1.35V SDRAM (1600 MHz)
Two SODIMM slots (Dual-core processor) or four SODIMM slots (Quad-core processor) supporting dual-channel
memory
2 GB, 4 GB, and 8 GB SODIMMs
Maximum
Upgradeable to 16384 MB with optional 8192 MB SODIMMs in both slots (Dual-core processor)
Upgradeable to 32768 MB with optional 8192 MB SODIMMs in all 4 slots (Quad-core processor)
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded
memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
Maximum memory capacities assume Windows 64-bit operating systems or Linux.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN and wireless WAN options featuring support for the
latest industry standards. Optional broadband Wireless (WWAN) requires a Windows operating system and is
available in select countries as a standard, factory configurable feature only. Integrated Bluetooth® is also available
(factory configurable only) and can be combined with any of the supported wireless LAN and wireless WAN options.
Mobile Broadband options
HP hs3110 HSPA+ Mobile Module
HP lt4112 LTE/HSPA+ Qualcomm® Gobi™ 4G Module
HP lt4211 LTE/EV-DO/HSPA+ Gobi 4G Module
All 802.11 integrated wireless LAN options
Intel Dual Band Wireless-NB 7260 802.11 a/b/g/n (2x2) WiFi
Intel Dual Band Wireless-AC 7260 802.11 a/b/g/n/ac (2x2) WiFi and Bluetooth 4.0 combo
Intel Dual Band Wireless-AN 7260 802.11 a/b/g/n (2x2) WiFi and Bluetooth 4.0 combo
Communications
Integrated Integrated Intel® I217-LM Gigabit** Network Connection (vPro configurations)
* Broadband wireless is an optional feature and requires separately purchased service contract. Check with your local
vendor for coverage area and availability in your area. Connection and speeds will vary due to location, environment,
network conditions, and other factors. 4G LTE not available on all products, in all regions.
** The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit
Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a
Gigabit Ethernet server and network infrastructure is required.
*** Integrated Intel® Wi-Di feature is available on select configurations only and requires separately purchased
projector, tv or computer monitor with an integrated or external Wi-Di receiver. External Wi-Di receivers connect to the
projector, tv or computer monitor via a standard HDMI cable, also sold separately.
****802.11 requires access point and internet service. Availability of public wireless access points limited.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 8
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 9 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
AUDIO/MULTIMEDIA
Audio
DTS Studio Sound HD audio (Windows OS only)
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Button for volume mute; function keys for volume up and down
Combo mic-in / stereo headphone-out jack
Webcam
Optional 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
Optional backlit keyboard with Function key control to toggle backlit brightness setting - off/full/half brightness
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that
funnels fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components
underneath. The 101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features,
such as editing keys, both left and right control and alt keys, function keys, and 19.05 x 19.05 mm key pitch (center-tocenter spacing). U.S. and International key layouts are available. Other features include hot keys for instant access to
power conservation and brightness.
Pointing Devices
Touchpad with On/Off button, two-way scroll, gestures, three pick buttons
Pointstick with three additional pointstick buttons
Image sensor touchpad for enhanced performance and improved precision on scroll and gesture
Buttons and Function Keys
Separate launch buttons provide easy access to the following features: wireless on/off, volume mute. Function keys
provide control of the following features: standby mode, external display, volume down, volume up, HP Power
Assistant (Windows 7 only), and display brightness.
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
Windows 8
Windows 7
Security
HP Device Access Manager with Just In Time
Authentication
DigitalPersona Fingerprint Driver
HP Drive Encryption1
HP File Sanitizer2
HP Client Security Manager
HP SpareKey
Microsoft Defender
Validity Fingerprint Driver
Security
HP Device Access Manager with Just In Time
Authentication
HP Drive Encryption
HP File Sanitizer
HP Client Security Manager
HP SpareKey
Microsoft Security Essentials
Validity Fingerprint Driver
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 9
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 10 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
BIOS Features
BIOS Features
Absolute Persistence Module3
HP Sure Start
HP Automatic Drive Lock4
HP BIOS Protection
HP Disk Sanitizer (Not for SSD)5
HP DriveLock6
HP SpareKey
Hybrid Boot
Master Boot Record Security
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Boot
Secure Erase (SSD & HDD)7
BIOS Update via Network
Absolute Persistence Module
HP Sure Start
HP Automatic Drive Lock
HP BIOS Protection
HP Disk Sanitizer (Not for SSD)
HP DriveLock
HP SpareKey
Hybrid Boot
Master Boot Record Security
Measured Boot
Power On Authentication
Pre-Boot Security
Secure Erase (SSD & HDD)
BIOS Update via Network
MultiMedia
MultiMedia
Cyberlink Power2Go
Cyberlink PowerDVD
Cyberlink Power2Go
Cyberlink PowerDVD
Cyberlink YouCam BE
HP Value Add
Getting Started with Windows 8
HP 3D DriveGuard8
HP ePrint Driver9
HP Hotkey Support
HP Manageability
HP PageLift App10
HP Support Assistant
Box 50GB Offer11
Foxit PhantomPDF Express for HP
Skype
HP Value Add
HP 3D DriveGuard
HP ePrint Driver
HP Hotkey Support
HP Manageability
HP PageLift
HP Recovery Manager
HP Support Assistant
HP Recovery Disc Creator (HPRDC)
Box 50GB
Foxit PhantomPDF Express for HP
Skype
Microsoft Products
Buy Office
Microsoft Products
Buy Office
Additional Software Available from the Web
HP SoftPaq Download Manager
HP Software System Manager
Workstation ISV Certifications
See the latest list of certifications at: http://www.hp.com/united-tates/campaigns/workstations/partnerships.html
HP Remote Graphics Software
The remote desktop solution for serious workstation users and their most demanding applications.
Download at: www.hp.com/go/RGS
HP Performance Advisor
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 10
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 11 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best
performance. HP Performance Advisor will guide your system setup allowing a "custom" configuration that best
matches the workstation to user requirements.
Download at: www.hp.com/go/performanceadvisor
HP Recovery Manager
Models shipped with Windows 7 include HP Recovery Manager. HP Recovery Manager enables fast recovery of the
factory preinstalled image if the system becomes corrupted or if important system files are accidentally deleted. Up to
36 GB (for Windows 7) of system and up to 36 GB (for Windows 8) disk is reserved for system recovery software.
Security
See Software section above.
Other Standard Security Features
Integrated Smart Card Reader
HP Spare Key (requires initial user setup)
One-Step Logon
Common Criteria EAL4+ Augmented Certified Discrete TPM 1.2 Embedded Security Chip
Security lock slot
Support for Intel AT12
Optional Security Features
HP Fingerprint Sensor (optional)
Computrace* with GPS Tracking - Subscription based security solution providing the ability to track, initiate physical
recovery, conduct asset management, and perform remote data delete by utilizing GPS technology. GPS functionality
requires HP Mobile Broadband Module.
* The Computrace agent is shipped turned off, and must be activated by customers when they purchase a
subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute
for availability outside the U.S.
1
HP Drive Encryption requires Windows. Data is protected prior to login. Turning the PC off or into hibernate logs out
of Drive Encryption and prevents data access.
2 File Sanitizer requires Windows. For the use cases outlined in the DOD 5220.22-M Supplement. Does not support
Solid State Drives (SSDs). Initial setup required. Web history deleted only in Internet Explorer and Firefox browsers
and must be user enabled. With Windows 8.1, user must turn off Enhanced Protection Mode in IE11 for shred on
browser close feature.
3 BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and
activate a subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional
subscription service of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details
visit: http://www.absolute.com/company/legal/agreements/computrace-agreement. If Data Delete is utilized, the
Recovery Guarantee payment is null and void. In order to use the Data Delete service, customers must first sign a
Pre-Authorization Agreement and either create a PIN or purchase one or more RSA SecurID tokens from Absolute
Software.
4 HP Automatic DriveLock will work on another HP Business PC when the BIOS passwords are the same. Requires
user set up.
5 For the use cases outlined in the DOD 5220.22-M Supplement. Does not support Solid State Drives (SSDs).
6 HP DriveLock does not support Self Encrypting HDs (SEDs) if the encryption PIN is enabled.
7 HP Secure Erase is for the methods outlined in the National Institute of Standards and Technology Special
Publication 800-88.
8 HP 3D DriveGuard requires Windows.
9 HP ePrint requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of
eligible printers, supported documents and image types and other HP ePrint details, see
www.hp.com/go/businessmobileprinting
10 HP PageLift requires Windows 7 or higher.
11 Box offer requires Box registration. Offer available to new Box users only. Offer subject to change without notice.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 11
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 12 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
Box app requires Windows 8 or 8.1.
12 Intel AT security requires a separately purchased Absolute Computrace service subscription and must be activated
and configured. Check with Absolute for availability in your country. Intel and HP assume no liability for lost or stolen
data and/or systems or any other damages resulting therefrom. See http://www.intel.com/technology/anti-theft/
HP CENTRAL MANAGEMENT
HP offers a variety of scalable hardware, software, and BIOS-based security features to help you defend your
organization against viruses and other threats. These integrated security features safeguard what matters to you the
most - your data, device and identity. Now, be confident your fleet of devices is protected in multiple layers of HP
Client Security protection.
HP BIOS Protection keeps you up and running with enhanced protection against virus attacks and other threats. And
if the BIOS is accidently compromised, the auto recovery feature automatically restores it to its fully functional state.
HP Sure Start detects and negates a BIOS attack with automatic recovery of the BIOS even when the installation is
accidentally compromised (i.e. power outage). When HP Sure Start heals the BIOS an event log is generated that an
IT administrator can retrieve so the business is aware of a BIOS attack. Golden copy of BIOS is stored in protected
nonvolatile memory providing redundant, hardware-based protection against a new generation of attacks. This helps
to future-proof your technology and business.
An optional fingerprint reader and integrated Smart Card Reader help keep your identity secure. The security cable
slot helps keep your notebook physically secure.
HP Drive Encryption+ with TPM enhanced security protects your data on your hard drive from unauthorized access.
Authentication is required before Windows will even start.
Or you can even permanently destroy data on your hard drive in preparation for your system disposal or redeployment
with Secure Erase.
This hardware-based solution encrypts and decrypts data as it is written or read from the hard drive and is supported
by HP Drive Encryption+. You get faster encryption performance than that of software- based encryption solutions.
+ Requires Windows. Data is protected prior to Drive Encryption login. Turning the PC off or into hibernate logs out of
Drive Encryption and prevents data access.
HP provides a separate management solution, targeted at the enterprise and the SMB:
Digital Persona Pro Workgroup: Designed for the small business customer. Provides features similar to the Active
Directory version, but for workgroups. Workgroup activation is built into HP ProtectTools, and activation of up to 5
seats is completely free.
For more information on Central Management for HP ProtectTools, refer to: http://www.hp.com/products/security
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 12
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 13 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
POWER
Power Supply
External HP 150W Slim Smart AC adapter
(167.0 x 82.0 x 25.4mm)
External HP 200W Slim Smart AC adapter
(172 x 96 x 25.4mm)
Power cord included is 6-foot (1.8 meter).
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge*
Primary Battery
HP 8-cell Lithium-Ion Battery (83 WHr)
HP Long Life 8-cell Lithium-Ion Battery (75 WHr) **
Secondary Battery
HP BB09 Ultra Extended Life Notebook Battery (9-cell/100 WHr)
HP ST09 Extended Life Notebook Battery (9-cell/73 WHr)
Battery Life
Battery life up to xx hours and xx minutes***
System Standby Time
In sleep mode 1 week
* HP Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. HP Fast Charge does
not apply to the HP ST09 Extended Life Notebook Battery or HP BB09 Ultra Extended Life Notebook Battery.
** Available with 3-year warranty only
***Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless
functionality and power management settings. The maximum capacity of the battery will naturally decrease with time
and usage. See MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional
details.
Power Conservation
NVIDIA Optimus technology
Hibernation
Standby
ACPI compliance
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT®
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 13
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 14 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Features
WEIGHTS & DIMENSIONS
Weight
Starting at 6.13 lb (2.78 kg) with Z Turbo Drive and weight saver (no optical drive)
Starting at 6.45 lb (2.93 kg) with hard drive and DVD-R/W drive
Dimensions (w x d x h)
1.2 in (at front)/1.4 in (at rear) x 15.0 in x 10.1 in
30.5 mm (at front)/35.5 mm (at rear) x 381.5 mm x 257.0 mm
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by
configuration and components. Weight includes 8-cell battery, hard drive, 1 GB memory, and no optical drive. Weight
varies by configuration and components.
PORTS/SLOTS
Ports
VGA - One
DisplayPort v1.2- One
Thunderbolt™ 2* - One
Stereo microphone in / headphone-out combo jack - One
Power Connector - One
Secondary Battery Connector - One
Docking Connector - One
RJ-45 (Ethernet) - One
USB 3.0 - Two
USB 3.0 Charging Port - One
USB 2.0 - One
Security lock slot - One
Digital Media Slots
ExpressCard/54 slot – One (Supports ExpressCard/54)
SD UHS-II Flash Media slot – One (Supports next generation SD (Secure Digital), backward compatible to SDHC,
SDXC,
Integrated Smart Card Reader (Compatible with ISO 7816 compliant Smart Cards PC/SC interface support)
* Thunderbolt™ 2 is new technology. Install all the latest drivers for your Thunderbolt device before connecting the
device to the Thunderbolt port. Thunderbolt cable and Thunderbolt device (sold separately) must be compatible with
Windows. To determine whether your device is Thunderbolt Certified for Windows, see
https://thunderbolttechnology.net/products
SERVICE AND SUPPORT
HP Services offers 3-year and 1-year limited warranty options depending on country.
On-site service and extended coverage is also available. HP Care Pack Services are optional extended service
contracts that go beyond the standard limited warranties. To choose the right level of service for your HP product, use
the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool.
Additional HP Care Pack Services information by product is available at: http://www.hp.com/hps/carepack.
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsp
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 14
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 15 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
SYSTEM UNIT
Stand-Alone Power
Requirements (AC
Power)
Temperature
Relative Humidity
Shock
Random Vibration
Nominal Operating
Voltage
Average Operating
Power
19.5 V
Windows 7 (64-bit)
NVIDIA Graphics
16.8 W
Max Operating Power < 150 W
or
< 200 W
Operating
32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating
Operating
Non-operating
Operating
Non-operating
-4° to 140° F (-20° to 60° C)
10% to 90%, non-condensing
5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
40 G, 2 ms, half-sine
200 G, 2 ms, half-sine
Operating
0.75 grms
Non-operating
Altitude (unpressurized) Operating
Non-operating
Planned Industry
UL
Standard
CSA
Certifications
FCC Compliance
ENERGY STAR®
EPEAT
ICES
Australia /
NZ A-Tick Compliance
1.50 grms
-50 to 10,000 ft (-15.24 to 3,048 m)
-50 to 40,000 ft (-15.24 to 12,192 m)
Yes
Yes
Yes
Select models*
< 150 W
or
< 200 W
Yes
Yes
CCC
Yes
Japan VCCI
Yes
Compliance
KC
Yes
BSMI
Yes
CE Marking
Yes
Compliance
* Configurations of the HP ZBook 15 that are ENERGY STAR qualified are identified as HP ZBook 15 ENERGY STAR on
HP websites and on www.energystar.gov.
** EPEAT registration varies by country. See www.epeat.net for registration status by country.
EPEAT status listed above applies to U.S.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility.
DISPLAY
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 15
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 16 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
15.6" diagonal LEDbacklit FHD UWVA IPS
eDP anti-glare + Panel
Self Refresh (PSR)
(1920 x 1080)
Active Area (W x H)
Dimensions (W x H)
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
Weight
420 g (max)
Surface Treatment
Contrast Ratio
Anti-glare
600:1 (typical)
Refresh Rate
Brightness
60 Hz
300 nit typical
Pixel Resolution
Format
1920 x 1080 (FHD)
Configuration
LED
RGB Stripe
Backlight
PPI
Viewing Angle
142
UWVA 85/85/85/85
15.6" diagonal LEDActive Area (W x H)
backlit FHD SVA eDP Dimensions (W x H)
anti-glare (1920 x 1080)
Weight
13.54 x 7.59 in (34.4 x 19.4 cm)
15.6 in (39.6 cm)
380 g (max)
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Anti-glare
400:1 (typical)
60 Hz
300 nit typical
Format
Backlight
PPI
Viewing Angle
Configuration
LED
142
SVA 45/45/25/35
15.6" diagonal LEDActive Area (W x H)
backlit QHD+ UWVA
Dimensions (W x H)
eDP anti-glare (3200 x
Weight
1800)
Surface Treatment
Contrast Ratio
Refresh Rate
Brightness
Pixel Resolution
Backlight
PPI
Viewing Angle
1920 x 1080 (FHD)
RGB Stripe
13.60 x 7.59 in (34.56 x 19.44 cm)
15.6 in (39.6 cm)
360 g (max)
Anti-glare
600:1 (typical)
60 Hz
300 nit typical
Format
3200 x 1800 (QHD+)
Configuration
RGB Stripe
LED
235
UWVA 85/85/85/85
STORAGE AND DRIVES
Internal Storage
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 16
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 17 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
1 TB 7200 rpm SATA
Hard Drive
Drive Weight
Capacity
0.25 lbs (115g)
1 TB
Height
0.37 in (9.5 mm)
Width
Interface
2.75 in (69.85 mm)
ATA-8, SATA 3.0,
Transfer Rate
Synchronous
(maximum)
Single Track
Seek Time
(typical reads, including Average
settling)
Maximum
600 MB/s
2 ms
13 ms
15 ms
Cache
32 MB
Rotational Speed
7200 rpm
Logical Blocks
1,953,525,168
Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]
Features
750 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
ATA Security, S.M.A.R.T., NCQ, Ultra DMA
0.25 lbs (115g)
750 GB
0.37 in (9.5 mm)
2.75 in (70 mm)
ATA-8, SATA 3.0
Synchronous
(maximum)
Single Track
Seek Time
(typical reads, including Average
settling)
Maximum
Cache
600 MB/s (Drive Capability)
1.5 ms ~ 2 ms
11 ms ~ 13 ms
15 ms ~ 21 ms
Up to 32 MB
Up to 32 MB
Rotational Speed
7200 rpm
Logical Blocks
1,465,149,168
Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]
Features
ATA Security, NCQ, S.M.A.R.T., Ultra DMA
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 17
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 18 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
500 GB 7200 rpm SATA Drive Weight
Hard Drive
Capacity
0.20 lbs. (92 g) ~ 0.25 lbs (115 g)
500 GB
Height
0.28 in (7 mm)/0.38 in (9.7 mm)
Width
Interface
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Transfer Rate
Synchronous
(maximum)
Single Track
Seek Time
(typical reads, including Average
settling)
Maximum
600 MB/s (Drive Capability)
1.5 ms ~ 2 ms
11 ms ~ 13 ms
18 ms ~ 22 ms
Cache
Up To 32 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]
Features
500 GB 5400 rpm SATA Drive Weight
FIPS* Hard Drive
Capacity
Height
Width
Interface
Transfer Rate
ATA Security, NCQ, S.M.A.R.T., Ultra DMA
0.21 lbs. (95 g)
500 GB
0.28 in (7 mm)
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Synchronous
(maximum)
Single Track
Seek Time
(typical reads, including Average
settling)
Maximum
Cache
16 MB
Rotational Speed
5400 rpm
Logical Blocks
976,773,168
600 MB/s (Drive Capability)
1.5 ms
11 ms
22 ms
Operating Temperature32° to 140° F (0° to 60° C) [case temp]
Features
ATA Security, TCG Opal SSC 2.0 and FIPS 140-2-level2
* FIPS-certified, hardware-based AES-256 encryption image.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 18
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 19 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
500 GB 7200 rpm
SMART SATA II Self
Encrypting Drive
Drive Weight
Capacity
0..21 lbs. (95 g)
500 GB
Height
0.28 in (7 mm)
Width
Interface
2.75 in (69.85 mm)
ATA-8, SATA 2.6
Transfer Rate
Synchronous
(maximum)
Single Track
Seek Time
(typical reads, including Average
settling)
Maximum
300 MB/s (Drive Capability)
1 ms
13 ms
18 ms
Cache
32 MB
Rotational Speed
7200 rpm
Logical Blocks
976,773,168
Operating Temperature32° to 140° F (0° to 60° C) [top cover temp]
SATA 6 Gb/s 512 GB,
2.5-inch Solid State
Drive
Features
ATA Security; TCG OPAL v1.00, S.M.A.R.T., NCQ, Ultra DMA
Drive Weight
Capacity
Height
Width
0.17 lb. (78 g)
512 GB
0.28 in (7 mm)
2.75 in (69.85 mm)
Interface
Performance
ATA-8, SATA 3.0
Maximum Sequential Maximum Sequential Write
Read
460 MB/s
260 MB/s
Logical Blocks
1,000,215,216
Operating Temperature32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
SATA 6 Gb/s 240 GB,
2.5-inch Solid State
Drive
Drive Weight
Capacity
NAND Type
Height
Width
Interface
Performance
0.17 lb. (78g)
240 GB
MLC
0.28 in (7 mm)
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Maximum Sequential Maximum Sequential Write
Read
Up to 540 MB/s
Up to 490 MB/s
Logical Blocks
468,862,128
Operating Temperature32° to 158° F (0° to 70° C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 19
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 20 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
SATA 6 Gb/s 180 GB,
2.5-inch Solid State
Drive
Drive Weight
Capacity
0.17 lb. (78g)
180 GB
NAND Type
MLC
Height
Width
0.28 in (7 mm)
2.75 in (69.85 mm)
Interface
Performance
ATA-8, SATA 3.0
Maximum Sequential Maximum Sequential Write
Read
Logical Blocks
Up to 540 MB/s
351,651,888
Up to 490 MB/s
Operating Temperature32° to 158° F (0° to 70° C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
SATA 6 Gb/s 128 GB,
2.5-inch Solid State
Drive
Drive Weight
0.17 lb. (78 g)
Capacity
Height
128 GB
0.28 in (7 mm)
Width
Interface
Performance
2.75 in (69.85 mm)
ATA-8, SATA 3.0
Maximum Sequential Maximum Sequential Write
Read
Up to 550 MB/s
Up to 350 MB/s
Logical Blocks
250,069,680
Operating Temperature32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
Z Turbo Drive 256 GB, Drive Weight
PCIe Solid State Drive Capacity
Height
Width
Interface
Performance
0.02 lb. (10 g)
256 GB
0.24 in (60 mm)
0.87 in (22 mm)
ATA-8, PCIe 2.0
Maximum Sequential Maximum Sequential Write
Read
730 MB/s
620 MB/s
Logical Blocks
500,118,192
Operating Temperature32° to 158°F (0° to 70°C) [ambient temp]
Features
ATA Security; DIPM; TRIM; DEVSLP
* For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 16
GB (for Windows 7) of system and up to 30 GB (for Windows 8) disk is reserved for system recovery software.
Optical Drives
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 20
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 21 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
DVD+/-RW SuperMulti Access Times
DL Drive
Random
<140ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
Transfer Mode
Interface
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
UDMA Mode 5
Gen 1 SATA
Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVDRAM
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM,
DVD+R DL, DVD-R DL
Max Media Capacity 8.5 GB
(read)
Max Media Capacity 8.5 GB
(write)
Transport
Tray Loading
Blu-ray ROM DVD+/-RW Access Times
SuperMulti DL Drive
Random
<190 ms CD-ROM (typical)
< 180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
Transfer Mode
UDMA Mode 5
Interface
Gen 1 SATA
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 21
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 22 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVDRAM, BD-ROM, BD-R, BD-RE
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,
DVD-RW, DVD-RAM
Max Media Capacity 50.0 GB
(read)
Blu-ray R/RE DVD+/RW SuperMulti DL
Drive
Max Media Capacity
(write)
8.5GB
Transport
Tray Loading
Access Times
Random
<165 ms CD-ROM (typical)
<185 ms DVD-ROM (typical)
<205 ms BD-ROM (typical)
Max Data Transfer Rate24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD+R Dual Layer
6X DVD-R Dual Layer
Transfer Mode
5X DVD-RAM
6X BD-ROM
6X BD-R
2X BD-RE
UDMA Mode 5
Interface
Gen 1 SATA
Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I,
CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CDEXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5,
DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW. DVDRAM, BD-ROM, BD-R, BD-RE
Supported Media (write)CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL,
DVD-RW, DVD-RAM, BD-R, BD-RE
Max Media Capacity 50.0 GB
(read)
Max Media Capacity 50.0 GB
(write)
Transport
Tray Loading
SECURITY
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 22
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 23 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP Fingerprint Sensor Mobile Voltage
3.0V-3.6V Single Supply
Operation
Operating Temperature14° - 167°F (-10° - 75°C)
Current consumption
36mA
Low latency wait for
finger
Capture rate
950 uA
ESD Resistance
Detection Matrix
IEC 6100-4-2 4B (+/-15KV)
200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm
3000 lines/sec
NETWORKING/COMMUNICATIONS
Intel® I217-LM Gigabit Ethernet Features
Network Connection
Power
Management
Performance
Features
Manageability
Interface
NIC Device Driver
Name
10 Mbit/s operation (10BASE-T; IEEE 802.3; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses
21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023.
Clauses 40)
IEEE 802.3u Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and
100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
IEEE 802.1as/1588 conformance
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel vPro
iSCSI Boot
Wake-on-LAN from standby and hibernation (Magic Packet and
Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB
(802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.
NOTE: Intel® I217-LM Gigabit interface is not PCIe compliant. It
operates at half of PCIe specification V1.1 (2.5GT/S) speed.
Intel Ethernet Network Connection I217-LM
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 23
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 24 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP hs3110 HSPA+
Mobile Module*
Technology/Operating HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 700 (Band 17)
Bands
MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)
MHz
Wireless Protocol
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
Standards
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and
MSC1 - MSC9
GPS
Standalone, A-GPS
GPS Bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
Maximum data rates
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
Maximum Output
Power
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
Maximum Power
Consumption
Form Factor
M.2, 3042-S3 Key B
Weight
6g
Dimensions
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
(Length x Width x
Thickness)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract,
network support, and is not available in all areas. Contact service provider to determine the
coverage area and availability. Connection speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products or in all countries.
HP lt4112 LTE/HSPA+ Technology/Operating LTE: 2100 (Band 1), 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 2600
Qualcomm® Gobi™ 4G Bands
(Band 7), 900 (Band 8), 800 MHz (Band 20, DD800) MHz
Module *
HSPA+: 2100 (Band 1), 1900 (Band 2), 850 (Band 5), 900 (Band 8)
MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)
MHz
Wireless Protocol
3GPP Release 8 LTE Specification
Standards
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and
MSC1 - MSC9
GPS
Standalone, A-GPS
GPS Bands
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
Maximum data rates LTE: 100 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
Maximum Output
LTE: 23 dBm
Power
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 24
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 25 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Maximum Power
Consumption
LTE: 1,200 mA (peak); 900 mA (average)
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
Form Factor
Weight
M.2, 3042-S3 Key B
6g
Dimensions
(Length x Width x
Thickness)
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
* Mobile Broadband is an optional feature. Connection requires wireless data service contract,
network support, and is not available in all areas. Contact service provider to determine the
coverage area and availability. Connection speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products or in all countries.
HP lt4211 LTE/EVDO/HSPA+ Gobi 4G
Module
Technology/Operating LTE: 1900 (Band 2), 1700/2100 (Band 4), 850 (Band 5), 700 (Band 13
bands
upper SMH), 700 (Band 17 lower SMH), 1900 MHz (Band 25, extended
PCS) MHz
HSPA+: 2100 (Band 1), 1900 (Band 2), 1700/2100 (Band 4), 850 (Band
5), 900 (Band 8) MHz
E-GPRS: 1900 (Band 2), 1800 (Band 3), 850 (Band 5), 900 (Band 8)
MHz
EV-DO: 800 (BC0), 1900 (BC1) MHz
Wireless protocol
3GPP Release 8 LTE Specification
standards
WCDMA R99, 3GPP Release 5, 6 and 7 UMTS Specification
E-GPRS: Class B, Multi-slot class 33, coding schemes CS1 - CS4 and
MSC1 - MSC9
EVDO Release 0 and Release A
GPS
GPS bands
Maximum data rates
Standalone, A-GPS
1575.42 MHz ± 1.023 MHz, GLONASS 1596-1607MHz
LTE: 100 Mbps (Download), 50 Mbps (Upload)
DC-HSPA+: 42 Mbps (Download), 5.76 Mbps (Upload)
HSPA+: 21.6 Mbps (Download), 5.76 Mbps (Upload)
EDGE: 236.8 kbps (Download), 236.8 kbps (Upload)
GPRS: 85.6 kbps(Download), 85.6 kbps (Upload)
CDMA 1x: DL 153.6 kbps/UL 153.6 kbps
EVDO Rev.A: DL 3.1 Mbps/UL 1.8 Mbps
Maximum output powerLTE: 23 dBm
HSPA+: 23.5 dBm
E-GPRS 1900/1800: 26.5 dBM
E-GPRS 900/850: 27.5 dBM
GPRS 1900/1800: 29.5 dBm
GPRS 900/850: 32.5 dBm
CDMA/EVDO: 24dBm
Maximum power
LTE: 1,200 mA (peak); 900 mA (average)
consumption
HSPA+: 1,100 mA (peak); 800 mA (average)
E-GPRS: 2,800 mA (peak); 700 mA (average)
EVDO: 1000mA (peak); 720mA (average)
Form Factor
M.2, 3042-S3 Key B
Weight
6g
Dimensions
1.65 x 1.18 x 0.09 in (42 x 30 x 2.3 mm)
(Length x Width x
Thickness)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 25
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 26 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
* Mobile Broadband is an optional feature. Connection requires wireless data service contract,
network support, and is not available in all areas. Contact service provider to determine the
coverage area and availability. Connection speeds will vary due to location, environment, network
conditions, and other factors. 4G LTE not available on all products or in all countries.
Intel® Dual Band
Wireless-NB 7260
802.11 a/b/g/n (2x2)
WiFi Adapter*
Wireless LAN
Standards
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
Interoperability
Frequency Band
Wi-Fi certified
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
Data Rates
Modulation
Security1
Network Architecture
Models
Roaming
Output Power2
Power Consumption
Power Management
Receiver Sensitivity3
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2.402 - 2.482 GHz
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
Direct Sequence Spread Spectrum
BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
WAPI
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between access points
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Maximum output power must be able to achieve modular
regulatory certification with notebooks that have antennas >20cm
from the user and peak gain of +3dBi at 2.4GHz and +4dBi at
5GHz
Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Idle mode (PSP): 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio disabled: 75 mW
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 26
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 27 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
dBm (11 Mbps)
802.11a/g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), 85 dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm
(48 Mbps), -74 dBm (54 Mbps)
802.11n:-69 dBm (72.2 Mbps), -66 dBm (300 Mbps)
Antenna type
High efficiency antenna with spatial diversity, mounted in the display
enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the card
to support WLAN MIMO communications and Bluetooth
communications
Form Factor
Dimensions
Weight
PCI-Express Half-MiniCard
0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
3.1g
Operating Voltage
Temperature
3.3v +/- 9%
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Humidity
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
Altitude
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Activity
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and
a packet error rate of 10% for 802.11a/g (OFDM modulation).
Bluetooth Specification
Bluetooth SpecificationV4.0 High Speed, V2.1+EDR, backwards compatible with V1.1, 1.2 and
2.0
Number of Available
Channels
Data Rates and
Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
Bluetooth Software
Supported
Link Topology
Security
79 (1 MHz) available channels
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
-6 dBm to 4 dBm (Bluetooth Class II)
Better than -80 dBM at 0.1 % raw bit error rate
Peak (Tx) 330 mW
Peak (Rx) 230 mW
Sleep <17 mW
Internally integrated within module
Up to 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 27
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 28 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Power Management
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
Certifications
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Bluetooth Profiles
Supported
Generic Access Profile (GAP)
Service Discovery Application Profile (SDAP)
Serial Port Profile (SPP)
Dial_Up Networking Profile (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
File Transfer Profile (FTP)
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Generic Audio/Video Distribution Profile (GAVDP)
Advanced Audio/Video Distribution Profile (A2DP)
FAX Profile (FAX)
Basic Imaging Profile (BIP)
Headset Profile (HSP)
Hands Free Profile (HFP)
Basic Printing Profile (BPP)
VDP (Video Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
* Wireless access point and internet service required. Availability of public wireless access points
limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the
final specifications differ from the draft specifications, it may affect the ability of the notebook to
communicate with other 802.11ac WLAN devices
Intel® Dual Band
Wireless LAN
Wireless-AC 7260
Standards
802.11 a/b/g/n/ac (2x2)
WiFi + Bluetooth 4.0
Combo Adaptor*
Interoperability
Frequency Band
Antenna Structure
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
Wi-Fi certified
Cisco Compatible Extensions Program compliant with Microsoft
Windows 7, Windows Vista and XP (details at:
http://www.hp.com/go/notebooks/WLAN)
802.11b/g/n
2.402 - 2.482 GHz
802.11a/n
4.9 - 4.95 GHz (Japan)
5.15 - 5.25 GHz
5.25 - 5.35 GHz
5.47 - 5.725 GHz
5.825 - 5.850 GHz
2 transmit; 2 receive (2x2)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 28
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 29 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Data Rates
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: card will support rates for NSS=1 and NSS=2 for RX and TX
for 20 and 40 MHz channels. Short and long guard interval shall be
supported.
Modulation
Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM
IEEE and WiFi compliant 64 / 128 bit WEP encryption for a/b/g
mode only
AES-CCMP: 128 bit in hardware
802.1x authentication
WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
WPA2 certification
IEEE 802.11i
Cisco Certified Extensions, all versions through CCX4 and CCX
Lite
WAPI
Security1
Sub-channels
Network Architecture
Models
Roaming
Output Power2
Power Consumption
Power Management
Receiver Sensitivity4
Multinational support with frequency bands and channels compliant to
local regulations.
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
IEEE 802.11 compliant roaming between band Access Points
2.4G: +13.5dBm minimum
5G: +12dBm minimum
Transmit: 2.0 Watts
Receive: 1.6 Watts
Idle mode3: 250 mW (WLAN Associated)
Idle mode: 100 mW (WLAN unassociated)
Radio off: 75 mW
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85
dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48
Mbps), -74 dBm (54 Mbps)
802.11b:-95 dBm (1 Mbps), -93 dBm (2 Mbps), -91 dBm (5.5 Mbps), -88
dBm (11 Mbps)
802.11g:-90 dBm (6 Mbps), -89 dBm (9 Mbps), -87 dBm (12 Mbps), -85
dBm (18 Mbps), -82 dBm (24 Mbps), -79 dBm (36 Mbps), -76 dBm (48
Mbps), -74 dBm (54 Mbps)
Antenna Connections
Form Factor
Dimensions
Weight
Operating Voltage
Temperature
Humidity
802.11n:-69 dBm (150 Mbps), -66 dBm (300 Mbps)
2 U.FL type connectors (output impedance of 50 ± 2 ohms)
PCI-Express Half-MiniCard
0.12 x 1.06 x 1.18 in (3.1 x 26.8 x 30.0 mm)
3.1g
3.3v +/- 9%
Operating
14° to 158° F (-10° to 70° C)
Non-operating
-40° to 176° F (-40° to 80° C)
Operating
10% to 90% (non-condensing)
Non-operating
5% to 95% (non-condensing)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 29
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 30 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Altitude
LED Activity
Operating
0 to 10,000 ft (3,048 m)
Non-operating
0 to 50,000 ft (15,240 m)
LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. In Power Save Polling mode and on battery power.
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CCK modulation) and
a packet error rate of 10% for 802.11a/g (OFDM modulation).
5. WLAN supplier's client utility is required for Cisco Compatible Extensions support with Microsoft
Windows XP. WLAN may also be compatible with certain third-party software supplicants. WLAN
supplier IHV extensions required for Cisco Compatible Extensions support for Microsoft Windows
Vista.
HP Integrated Module Bluetooth Specification4.0+EDR Compliant
with Bluetooth 4.0+EDR Dimensions
1.18 x 0.26 x 0.13 in (30 x 6.5 x 3.25 mm)
Wireless Technology
Frequency Band
2402 to 2480 MHz
Number of Available 79 (1 MHz) available channels
Channels
Data Rates and
Throughput
Transmit Power
Receiver Sensitivity
Power Consumption
Antenna
Range
Electrical Interface
Bluetooth Software
Supported
Link Topology
Security
Power Management
Certifications
Bluetooth Profiles
Supported
3 Mbps data rate; throughput up to 2.17 Mbps
Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels
Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric or 1306.9 kbps symmetric
-1.5 dBm to 4 dBm (Bluetooth Class II)
Better than -20 dBM at 0.1 % raw bit error rate
Peak (Tx) 264 mW
Peak (Rx) 231 mW
Sleep <1 mW
Internally integrated within module
Up to 33 ft (10 m)
USB 2.0 compliant
Microsoft Windows Plug and Play compliant
Broadcom Bluetooth for Windows
Microsoft Windows Bluetooth Software
Point to Point, Multipoint Pico Nets up to 7 slaves
Full support of Bluetooth Security Provisions
Microsoft Windows ACPI, and USB Bus Support
Self configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff
All necessary regulatory approvals for supported countries, including:
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
ETS 300 328, ETS 300 826
Low Voltage Directive IEC950
UL, CSA, and CE Mark
Serial Port Profile (SPP)1
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)1,2
Generic Object Exchange Profile (GOEP)1,2
Object Push Profile (OPP)1,2
File Transfer Profile (FTP)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 30
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 31 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Synchronization Profile (SYNC)
Hard Copy Cable Replacement (HCRP)1,2
Personal Area Networking Profile (PAN)1,2
Human Interface Device Profile (HID)1,2
FAX Profile (FAX)
Basic Imaging Profile (BIP)2
Headset Profile (HSP)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
1. indicates the profile is supported by Microsoft Windows XP SP2
2. indicates the profile is part of Windows Vista
* Wireless access point and internet service required. Availability of public wireless access points
limited.
AUDIO/MULTIMEDIA
AUDIO/MULTIMEDIA - DTS SOUND+
Hardware
Audio Output Quality
Implementation
IDT 92HD91
Function Key
Volume Controls
Volume up, volume down, and mute
Full Duplex
Microphone In
Headphone/Line Out
Integrated Microphone
Yes
Stereo
Stereo
Yes, dual digital microphone array when equipped with optional webcam
Frequency Response
Signal to Noise Ratio
Total Harmonic
Distortion
20 Hz - 20 kHz
>85 dB
0.01%
Noise Floor
Play/Record Sampling
Rate(s)
DAC
ADC
-110 dB
8 kHz - 48kHz
Internal Stereo SpeakerPower Rating
Impedance
16, 20 or 24-bit
16 or 20-bit
2 Watts
4 ohms
POWER
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 31
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 32 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP 200W Slim Smart
AC Adapter
Dimensions
Weight
6.77 x 3.80 x 1.0 in (172 x 96 x 25.4 mm)
1.65 lb (748 g)
Input
100 to 240 VAC
Output
Input Efficiency
Input frequency range
87% min at 115 VAC
47 to 63 Hz
Input AC current
Output power
2.9 A at 90 VAC, 1.45 A at 180 VAC
200W
DC output
19.5V
Hold-up time
Output current limit
5 msec at 115 VAC input
<16A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design Operating
32° to 104° F (0° to 40° C)
temperature
Non-operating (storage) -4° to 149° F (-20° to 65° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
EMI and Safety
Certifications
HP 150W Slim Smart
AC adapter
Dimensions
Weight
Input
20% to 80%
Storage Humidity
10% to 90%
CE Mark- full compliance with LVD and EMC directives; Worldwide
safety standards- IEC950, EN60950, UL1950, Class 1, SELV; Agency
approvals- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC
Class B, CISPR22 Class B, CCIB, NOM-1 NYCE; MTBF- over 200,000
hours at 25°C ambient condition.
6.59 x 3.23 x 1.0 in (167.5 x 82 x 25.4 mm)
1.25 lb (565 g)
100 to 240 VAC
Input Efficiency
87% min at 115 VAC
Input frequency range
47 to 63 Hz
<2.7 A at 90 VAC
150W
19.50V +5.0%/-5.0%
5 msec at 115 VAC input
<15A, Over voltage protection- 29V max
automatic shutdown
Connector
3 pin/grounded, mates with interchangeable cords
Environmental Design Operating
41° to 95° F (5° to 35° C)
temperature
Non-operating (storage) -4° to 185° F (-20° to 85° C)
temperature
Altitude
0 to 10,000 ft (0 to 3,048 m)
Humidity
10% to 95%
Storage Humidity
10% to 95%
EMI and Safety
Worldwide safety and EMC approvals including CE, UL, CSA or cUL,
Certifications
GS, Australian Electric Permit, C-tick, NOM, CCC, KC, GOST, SABS, S
mark, BSMI, ISC, PSE, PSB and SII.
Output
Input AC current
Output power
DC output
Hold-up time
Output current limit
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 32
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 33 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
HP 8-cell Lithium-Ion
Battery (83 WHr)
Dimensions (H x W x L) 0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
Weight (max)
0.99lb (0.442 kg)
Cells/Type
Lithium-Ion
Energy
Voltage
Amp-hour capacity
14.8V
5.6Ah
Watt-hour capacity
Operating (Charging)
83Wh
32° to 113° F (0° to 45° C)
Temperature
Operating (Discharging) 14° to 122° F(-10° to 50° C)
Battery Re-Charge
Time
Fuel Gauge LED
Warranty
Non-operating
System in OFF or
Standby Mode
System ON
No
1 year
-4° to 122° F (-20° to 50° C)
2.5 hours
3 to 5 hours
Compatible with
Yes
optional Travel Battery
HP Long Life 8-cell
Dimensions (H x W x L)
Lithium-Ion Battery (75 Weight (max)
WHr)
Cells/Type
Energy
0.8 x 2.1 x 10.6 in (2 x 5.3 x 27cm)
0.99lb (0.442 kg)
Temperature
8-cell; Lithium-Ion
Voltage
Amp-hour capacity
Watt-hour capacity
Operating (Charging)
Battery Re-Charge
Time
Operating (Discharging) 14° to 140° F (-10° to 60° C)
Non-operating
-4° to 140° F (-20° to 60° C)
System in OFF or
2.5 hours
Standby Mode
System ON
No
3 year
Yes
14.4V
5.1Ah
75Wh
32° to 113° F (0° to 45° C)
3 to 5 hours
Fuel Gauge LED
Warranty*
Compatible with
optional Travel Battery
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 33
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 34 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Technical Specifications
Optional HP BB09 Ultra Dimensions (H x W x L)
Extended Life
Weight (max)
Notebook Battery
Cells/Type
(secondary battery)
Energy
Temperature
Battery Re-Charge
Time
1.2 x 5.9 x 11.4 in (3x15x29cm)
1.5lb, (.682kg)
Lithium-Ion
Voltage
Amp-hour capacity
11.25V
8.85Ah
Watt-hour capacity
Operating (Charging)
100Wh
32° to 113° F (0° to 45° C)
Operating
(Discharging)
Non-operating
14° to 122° F(-10° to 50° C)
System in OFF or
Standby Mode
System ON
3.5 to 5 hours
-4° to 122° F (-20° to 50° C)
4 to 7 hours
Fuel Gauge LED
Yes
Warranty
1 year
Compatible with
No
optional Travel Battery
Optional HP ST09
Extended Life
Notebook Battery
("Travel Battery")
(secondary battery)
Dimensions (H x W x L)
Weight (max)
Cells/Type
Energy
Temperature
Battery Re-Charge
Time
Fuel Gauge LED
Warranty
Compatible with
optional Travel Battery
1.2 x 6.1 x 12 in (3x15.5x30.5cm)
1.2lb, (.550kg)
Lithium-Ion Polymer
Voltage
11.1V
Amp-hour capacity
6.6Ah
Watt-hour capacity
Operating (Charging)
Operating
(Discharging)
Non-operating
73Wh
32° to 113° F (0° to 45° C)
14° to 122° F(-10° to 50° C)
System in OFF or
Standby Mode
System ON
Yes
1 year
Yes
3.5 to 5 hours
-4° to 122° F (-20° to 50° C)
4 to 7 hours
ENVIRONMENTAL
US ENERGY STAR ®
IT ECO declaration
EPEAT®
COUNTRY OF ORIGIN
China
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 34
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 35 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Type
Memory
Cases
Description
HP 4 GB DDR3L-1600 1.35V SODIMM
Part #
H6Y75AA#xxx
HP 8 GB DDR3L-1600 1.35V SODIMM
H6Y77AA#xxx
HP Business Top Load Case (fits up to 15.6")
HP Business Backpack (fits up to 17.3")
HP Essential Top Load Case (up to 15.6")
HP Professional Leather Case (up to 17.3")
HP Business 4 Wheel Roller Case (fits up to 17.3")
Docking
H5M92AA
H5M90AA
H2W17AA#xxx
H4J94AA
H5M93AA
HP Adjustable Dual Monitor Stand
HP Adjustable Display Stand
AW664AA#xxx
AW663AA#xxx
HP Dual Hinge II Notebook Stand
HP Display and Notebook II Stand
HP 230W Docking Station
HP 230W Advanced Docking Station
E8F99AA
E8G00AA
A7E34AA#xxx
A7E38AA#xxx
HP 3005pr USB 3.0 Port Replicator
HP 3001pr USB 3 Port Replicator
H1L08AA
F3S42AA
HP Universal Port Replicator
E6D70AA#xxx
Input/Output - Mice
Comfort Grip Mouse
HP Stylish USB KB/Mouse
HP Slim Bluetooth Keyboard
HP 3-Button Laser Mouse
HP USB Essential Keyboard and Mouse
HP Ultra Mobile Wireless Mouse
HP Wireless Keyboard and Mouse
HP X4000 Bluetooth Mouse
USB Graphics Adapter
HP Slim Bluetooth Mouse
HP USB Smart Card Reader
H2L63AA
H4B80AA#xxx
H4Q44AA#xxx
H4B81AA#xxx
H6L29AA#xxx
H6F25AA#xxx
G1K29AA#xxx
H3T50AA#xxx
NL571AT
F3J92AA#xxx
F6V67AA
Power Adapters
HP 90W Slim AC Adapter
HP 150W Smart AC Adapter (slim)
HP 90W Slim Combo Adapter w/USB Adapter
90W Smart AC/Auto/Air Combo Adapter
90W Smart Auto/Truck Adapter
90W Slim Adapter
HP Smart 230W AC Adapter
HP 230W Slim Adapter
HP 65W Smart AC Adapter
HP 90W Smart AC Adapter
HP 65W Slim AC Adapter
H6Y83AA#xxx
AL192AA#xxx
H6Y84AA#xxx
AJ652AA#xxx
ED493AA
BT796AA#XXX
AT895AA#xxx
H1D36AA#xxx
H6Y89AA#xxx
H6Y90AA#xxx
H6Y82AA#xxx
Adapters
HP Wireless display adapter
USB dual output graphics adapter
DisplayPort to DVI Adapter
DisplayPort to VGA Adapter
DisplayPort to HDMI Adapter
Adapter, USB Graphics - dual output (Monitor Accy)
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
J1V25AA#xxx
C5U89AA
F7W96AA
F7W97AA
F3W43AA
C5U89AA/AT
Page 35
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
DC diskontcomputer.com GmbH
Traunuferstrasse 110
4052 Ansfelden, Austria
:: Seite 36 von 36 :: Datenblatt zum Produkt HP ZBook 15-G2 CI7-4710MQ 1X4GB mit DC# 852933 ::
QuickSpecs
HP ZBook 15 G2 Mobile Workstation
Options and Accessories (sold separately and availability may vary by country)
Storage - External
Storage
Batteries
HP 2013 MWS Upgrade Bay DVD
HP 2013 MWS Upgrade Bay 750GB HDD
HP External USB Optical Drive
HP 500GB 7200rpm HDD
HP 750GB 7200rpm HDD
HP 128GB Solid State Drive
HP 180GB Solid State Drive
G1Y57AA
G1Y56AA
F2B56AA
F3B97AA
H2P67AA
F4P50AA
H4T75AA
HP 512GB Solid State Drive
HP MWS HDD/SDD Bracket Only
J2V75AA
J2D73AA
HP ST09 Extended Life Notebook Battery
HP BB09 Ultra Extended Life Notebook Battery
HP AR08XL Notebook Battery
QK639AA
QK640AA
E7U26AA
Health and Education HP 20-Notebook Managed Charging Cart
QL489AA#xxx
HP 20-Notebook Charging Cart
QL488AA#xxx
HP 30-Notebook Managed Charging Cart
HP 30-Notebook Charging Cart
QL490AA#xxx
H4F31AA#xxx
Security
HP Docking Station Cable Lock
HP UltraSlim Keyed Cable Lock
AU656AA#xxx
H4D73AA
Wireless
HP hs3110 HSPA+ Mobile Module
HP lt4211 LTE/EV-DO/HSPA+ WWAN
HP lt4112 LTE/HSPA+ W8.1 WWAN
J8F05AA
J8F06AA
J8F07AA
Copyright © 2014 Hewlett-Packard Development Company, L.P.
All rights reserved. All trademarks are the property of their respective owners. Intel, Core, and Celeron are registered
trademarks or trademarks of Intel Corporation in the U.S. and/or other countries. Bluetooth is a registered trademark of
Bluetooth SIG, Inc., in the U.S. and other countries. Adobe is a trademark of Adobe Systems Incorporated. All other product
names mentioned herein may be trademarks of their respective companies.
The information contained herein is subject to change without notice and is provided "as is" without warranty of any kind.
The warranties for HP products are set forth in the express limited warranty statements accompanying such products.
Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.
DA - 15079 Worldwide QuickSpecs — Version 2 — 9.15.2014
Page 36
Fragen zu dem Produkt? Kein Problem - wir helfen Ihnen per eMail ([email protected]) gerne weiter!
Den aktuellen Preis und Lagerstand finden Sie online auf http://www.diskontcomputer.com/detail.php?item=852933
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
