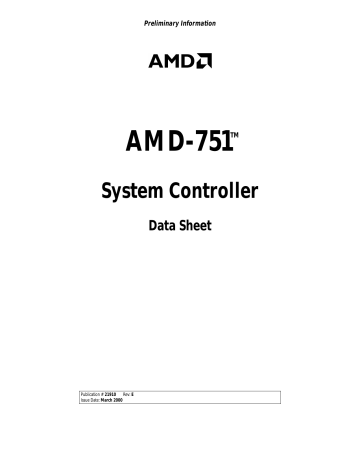

AMD-751™ System Controller Data Sheet

AMD-751™ System Controller Data Sheet
Preliminary Information
AMD-751
TM
System Controller
Data Sheet
Publication # 21910
Rev: E
Issue Date: March 2000
Preliminary Information
© 2000 Advanced Micro Devices, Inc. All rights reserved.
The contents of this document are provided in connection with Advanced
Micro Devices, Inc. (“AMD”) products. AMD makes no representations or
warranties with respect to the accuracy or completeness of the contents of
this publication and reserves the right to make changes to specifications and
product descriptions at any time without notice. No license, whether express,
implied, arising by estoppel or otherwise, to any intellectual property rights
is granted by this publication. Except as set forth in AMD’s Standard Terms
and Conditions of Sale, AMD assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products including, but not
limited to, the implied warranty of merchantability, fitness for a particular
purpose, or infringement of any intellectual property right.
AMD’s products are not designed, intended, authorized or warranted for use
as components in systems intended for surgical implant into the body, or in
other applications intended to support or sustain life, or in any other application in which the failure of AMD’s product could create a situation where personal injury, death, or severe property or environmental damage may occur.
AMD reserves the right to discontinue or make changes to its products at any
time without notice.
Trademarks
AMD, the AMD logo, AMD Athlon, and combinations thereof, AMD-750, AMD-751, and AMD-756 are trademarks, and AMD-K6 is a registered trademark of Advanced Micro Devices, Inc.
Alpha is a trademark of Digital Equipment Corporation.
Microsoft is a registered trademark of Microsoft Corporation.
Other product names used in this publication are for identification purposes only and may be trademarks of
their respective companies.
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Contents
Revision History
1
2
xiii
Features
1
1.1
AMD Athlon™ System Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.2
Integrated Memory Controller . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3
PCI Bus Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4
AGP Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Overview
7
2.1
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2.1.1
2.1.2
2.1.3
2.1.4
2.1.5
2.1.6
2.1.7
Processor Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Memory Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
PCI Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Accelerated Graphics Port (AGP) . . . . . . . . . . . . . . . . . 10
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.2
Interface Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
2.3
Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3
Ordering Information
15
4
Signal Descriptions
17
4.1
Processor Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4.1.1
4.1.2
4.1.3
4.1.4
4.1.5
4.1.6
4.1.7
4.1.8
Table of Contents
CLKFWDRST (Clock Forward Reset) . . . . . . . . . . . . .
CONNECT (Connect) . . . . . . . . . . . . . . . . . . . . . . . . . . .
PROCRDY (Processor Ready) . . . . . . . . . . . . . . . . . . . .
SADDIN[14:2]# (Address/Command) . . . . . . . . . . . . . .
SADDINCLK# (System Address In Clock) . . . . . . . . . .
SADDOUT[14:2]# (System Address Out) . . . . . . . . . . .
SADDOUTCLK# (System Address Out Clock) . . . . . .
SCHECK[7:0]# (Data Bus Check Byte) . . . . . . . . . . . . .
17
17
17
18
18
18
19
19
iii
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.1.9 SDATA[63:0]# (Processor Data Channel) . . . . . . . . . .
4.1.10 SDATAINCLK[3:0]# (System Data In Clock) . . . . . . .
4.1.11 SDATAINVAL# (System Data In Valid) . . . . . . . . . . .
4.1.12 SDATAOUTCLK[3:0]# (System Address Out
Clock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.1.13 SYSCLK (System Clock) . . . . . . . . . . . . . . . . . . . . . . . .
4.2
22
23
23
24
24
25
25
26
26
26
27
27
27
28
28
28
29
DRAM Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.3.1 CS[5:0]# (Chip Selects) . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.2 DQM[7:0]# (Data Mask) . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.3 MAdA[14:0] and MAdB[14:0] (Memory Address) . . . .
4.3.4 MCKE[2:0] (SDRAM Clock Enable) . . . . . . . . . . . . . . .
4.3.5 MDAT[63:0] (Memory Data) . . . . . . . . . . . . . . . . . . . . .
4.3.6 MECCD[7:0] (Memory ECC) . . . . . . . . . . . . . . . . . . . . .
4.3.7 SCAS[2:0]# (SDRAM Column Address Strobes) . . . . .
4.3.8 SDRAM Clk_In . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.9 SDRAM Clk_Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.3.10 SRAS[2:0]# (SDRAM Row Address Strobes) . . . . . . . .
4.3.11 WE[2:0]# (SDRAM Memory Write Enables) . . . . . . . .
4.4
21
21
PCI Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
4.2.1 AD[31:0] (PCI Address/Data Bus) . . . . . . . . . . . . . . . . .
4.2.2 C/BE[3:0]# (PCI Command/Byte Enables) . . . . . . . . . .
4.2.3 DEVSEL# (PCI Device Select) . . . . . . . . . . . . . . . . . . .
4.2.4 FRAME# (PCI Cycle Frame) . . . . . . . . . . . . . . . . . . . . .
4.2.5 GNT[4:0]# (PCI Bus Grant) . . . . . . . . . . . . . . . . . . . . . .
4.2.6 IRDY# (Initiator Ready) . . . . . . . . . . . . . . . . . . . . . . . .
4.2.7 LOCK# (PCI Bus Lock) . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.8 PAR (PCI Bus Parity) . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.9 PCLK (PCI Clock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.10 PGNT# (PCI Grant to Peripheral Bus
Controller) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.11 PREQ# (PCI Request from Peripheral Bus
Controller) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.12 REQ[4:0]# (PCI Bus Request) . . . . . . . . . . . . . . . . . . . .
4.2.13 RESET# (Reset) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.14 SERR# (System Error) . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.15 STOP# (PCI Bus Stop) . . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.16 TRDY# (Target Ready) . . . . . . . . . . . . . . . . . . . . . . . . .
4.2.17 WSC# (Write Snoop Complete) . . . . . . . . . . . . . . . . . . .
4.3
20
20
21
30
30
30
31
31
32
32
32
33
33
33
AGP/PCI Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
4.4.1 A_AD[31:0] (Address/Data Bus) . . . . . . . . . . . . . . . . . . 34
4.4.2 A_C/BE[3:0]# (PCI Command/Byte Enables) . . . . . . . . 35
iv
Table of Contents
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.4.3 A_CLK (AGP Clock) . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4.4.4 A_DEVSEL# (PCI Device Select) . . . . . . . . . . . . . . . . .
4.4.5 A_FRAME# (PCI Cycle Frame) . . . . . . . . . . . . . . . . . .
4.4.6 A_GNT# (AGP Bus Grant) . . . . . . . . . . . . . . . . . . . . . . .
4.4.7 A_IRDY# (Initiator Ready) . . . . . . . . . . . . . . . . . . . . . .
4.4.8 A_PAR (PCI Bus Parity) . . . . . . . . . . . . . . . . . . . . . . . .
4.4.9 A_REQ# (AGP Bus Request) . . . . . . . . . . . . . . . . . . . . .
4.4.10 A_SERR# (System Error) . . . . . . . . . . . . . . . . . . . . . . .
4.4.11 A_STOP# (AGP Bus Stop) . . . . . . . . . . . . . . . . . . . . . . .
4.4.12 A_TRDY# (Target Ready) . . . . . . . . . . . . . . . . . . . . . . .
4.5
AGP-Only Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
4.5.1
4.5.2
4.5.3
4.5.4
4.5.5
4.5.6
4.6
ADSTB[1:0] (AD Bus Strobe) . . . . . . . . . . . . . . . . . . .
PIPE# (APG Pipeline) . . . . . . . . . . . . . . . . . . . . . . . . . .
RBF# (Read Buffer Full) . . . . . . . . . . . . . . . . . . . . . . . .
SBA[7:0] (Sideband Address Bus) . . . . . . . . . . . . . . . . .
SBSTB (Sideband Strobe) . . . . . . . . . . . . . . . . . . . . . . .
ST[2:0] (Status) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ROM_SCK (SROM Clock) . . . . . . . . . . . . . . . . . . . . . . .
ROM_SDA (SROM Data) . . . . . . . . . . . . . . . . . . . . . . . .
SCAN_EN# (Scan Enable) . . . . . . . . . . . . . . . . . . . . . . .
TRISTATE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Functional Operation
43
43
43
43
45
5.1
System Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
5.2
Processor Interface
5.2.1
5.2.2
5.2.3
5.2.4
5.3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Bus Interface Unit (BIU) . . . . . . . . . . . . . . . . . . . . . . . .
BIU Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Processor Write Posting . . . . . . . . . . . . . . . . . . . . . . . . .
Read Buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memory Interface
5.3.1
5.3.2
5.3.3
5.3.4
5.3.5
5.3.6
Table of Contents
40
40
41
41
42
42
Miscellaneous Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
4.6.1
4.6.2
4.6.3
4.6.4
5
35
36
36
36
37
37
38
38
38
38
53
54
57
58
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Memory Request Organizer (MRO) . . . . . . . . . . . . . . .
Memory Controller (MCT) . . . . . . . . . . . . . . . . . . . . . . .
Address Mapping and Memory Organization . . . . . . .
SDRAM Interface Memory . . . . . . . . . . . . . . . . . . . . . .
Shadow RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Synchronous DRAM (SDRAM) . . . . . . . . . . . . . . . . . . .
59
63
65
67
71
72
v
Preliminary Information
AMD-751™ System Controller Data Sheet
5.4
21910E—March 2000
PCI Bus Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
5.4.1
5.4.2
5.4.3
5.4.4
5.4.5
5.4.6
Memory Coherency . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Southbridge Signals . . . . . . . . . . . . . . . . . . . . . . . .
PCI Parity/ECC Errors . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI-to-Memory/PCI-from-Memory and Other
PCI Targets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.4.7 PCI-to-Processor Bus Read Transactions . . . . . . . . . . .
5.4.8 Processor-to-PCI Bus Write Transactions . . . . . . . . . . .
5.4.9 PCI Accesses by An Initiator . . . . . . . . . . . . . . . . . . . . .
5.5
Accelerated Graphics Port (AGP)
78
79
79
80
80
80
81
81
82
. . . . . . . . . . . . . . . . . . . . . 83
5.5.1
5.5.2
5.5.3
5.5.4
5.5.5
5.5.6
5.5.7
5.5.8
AGP Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . .
The AGP Queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AGP System DRAM Interface (SDI) . . . . . . . . . . . . . . .
AGP Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AGP Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
PCI Transactions on the AGP Bus . . . . . . . . . . . . . . . . .
Graphics Adapters and Main Memory . . . . . . . . . . . . .
AGP Virtual Address Space (Aperture) Range
and Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5.5.9 GART Cache Operation . . . . . . . . . . . . . . . . . . . . . . . . .
85
86
90
91
93
93
94
94
98
5.6
Power Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
5.7
Phase Locked Loop (PLL) Features . . . . . . . . . . . . . . . . . . . 110
6
Typical Settings
111
7
Configuration Registers
123
7.1
PCI Configuration Mechanism . . . . . . . . . . . . . . . . . . . . . . . 123
7.2
Register Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
7.2.1 Revision ID Nomenclature . . . . . . . . . . . . . . . . . . . . . 129
vi
7.3
Function 0, Device 0 Registers (Processor-to-PCI Bridge,
Memory Controller, etc.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
7.4
Device 1 Registers (AGP and PCI-to-PCI Bridge)
7.5
Memory-Mapped Control Registers . . . . . . . . . . . . . . . . . . . 173
. . . . . . . 161
Table of Contents
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
8
Electrical Data
179
8.1
Absolute Ratings
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
8.2
Operating Ranges . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
8.3
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
8.4
Power Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
8.4.1 Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . 183
9
10
Switching Characteristics
185
9.1
SYSCLK Switching Characteristics . . . . . . . . . . . . . . . . . . . 186
9.2
Valid Delay, Float, Setup, and Hold Timings . . . . . . . . . . . 188
9.3
PCI Interface Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
9.4
SDRAM Interface Timings . . . . . . . . . . . . . . . . . . . . . . . . . . 190
9.5
AGP Interface Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
9.6
AMD Athlon System Bus Timings
. . . . . . . . . . . . . . . . . . . . 193
I/O Buffer Characteristics
195
10.1
I/O Buffer Model
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
10.2
I/O Model Application Note . . . . . . . . . . . . . . . . . . . . . . . . . 196
10.3
I/O Buffer AC and DC Characteristics . . . . . . . . . . . . . . . . . 196
11
Pin Designations
197
12
Package Specifications
201
Appendix A Conventions, Abbreviations, and References
Signals and Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Data Terminology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Abbreviations and Acronyms . . . . . . . . . . . . . . . . . . . . . . . . .
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Index
Table of Contents
205
206
207
212
213
vii
Preliminary Information
AMD-751™ System Controller Data Sheet
viii
21910E—March 2000
Table of Contents
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
List of Figures
List of Figures
Figure 1.
AMD-750™ Chipset System Block Diagram . . . . . . . . . . . . . . . 6
Figure 2.
AMD-751™ System Controller Block Diagram. . . . . . . . . . . . 12
Figure 3.
AMD Athlon™ Processor-Based System Clocking . . . . . . . . . 14
Figure 4.
Ordering Information Elements . . . . . . . . . . . . . . . . . . . . . . . 15
Figure 5.
System Memory View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Figure 6.
Address Mapping for x86 Legacy . . . . . . . . . . . . . . . . . . . . . . 47
Figure 7.
Block Diagram of the Bus Interface Unit (BIU) . . . . . . . . . . . 53
Figure 8.
SIP Protocol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Figure 9.
AMD Athlon System Bus Data Buffers (BIU) . . . . . . . . . . . . . 58
Figure 10.
Memory Request Organizer (MRO) Block Diagram . . . . . . . 60
Figure 11.
Memory Queue Arbiter (MQA) Block Diagram . . . . . . . . . . . 61
Figure 12.
Memory Controller (MCT) Block Diagram . . . . . . . . . . . . . . . 63
Figure 13.
SDRAM Interface Example . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Figure 14.
DRAM Refresh Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Figure 15.
Refresh Timer and Counters . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Figure 16.
AMD-751 System Controller Clocking Scheme . . . . . . . . . . . 75
Figure 17.
100-MHz SDRAM Detailed Timing . . . . . . . . . . . . . . . . . . . . . 76
Figure 18.
AGP Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Figure 19.
AGP Queues and Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Figure 20.
AMD-751 System Controller Arbiters . . . . . . . . . . . . . . . . . . . 91
Figure 21.
Address Remapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Figure 22.
Cache Hierarchy (Conventional Two-Level Scheme) . . . . . . 96
Figure 23.
Conventional GART Scheme—Multiple Tables . . . . . . . . . . 96
Figure 24.
Page Translation Structures. . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Figure 25.
Page Directory Entry (PDE) Definition . . . . . . . . . . . . . . . . . 99
Figure 26.
Address Translation Flow Chart . . . . . . . . . . . . . . . . . . . . . . 101
Figure 27.
Two-Level GART Translation Scheme . . . . . . . . . . . . . . . . . 103
Figure 28.
Another View Of the Two-Level Indexing Scheme . . . . . . . 104
Figure 29.
Power Management Signal Connections. . . . . . . . . . . . . . . . 106
Figure 30.
ACPI Power States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
Figure 31.
SYSCLK Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Figure 32.
CLK Waveform . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
ix
Preliminary Information
AMD-751™ System Controller Data Sheet
x
21910E—March 2000
Figure 33.
Setup, Hold, and Valid Delay Timings . . . . . . . . . . . . . . . . . 188
Figure 34.
Test Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194
Figure 35.
Bottom Side View of Package . . . . . . . . . . . . . . . . . . . . . . . . 201
Figure 36.
Top and Side Views of Package . . . . . . . . . . . . . . . . . . . . . . . 202
List of Figures
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
List of Tables
List of Tables
Table 1.
SDRAM Organizations Supported . . . . . . . . . . . . . . . . . . . . . . . . 9
Table 2.
GART Table-Cache Sizes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Table 3.
AMD-751™ System Controller Interface Voltages . . . . . . . . . . 13
Table 4.
Valid Combinations for Ordering Parts . . . . . . . . . . . . . . . . . . . 15
Table 5.
AMD-751 System Controller Memory Address Map . . . . . . . . . 46
Table 6.
AMD Athlon™ Processor Special Cycle Encoding . . . . . . . . . . 48
Table 7.
SIP Protocol States and Actions . . . . . . . . . . . . . . . . . . . . . . . . . 56
Table 8.
SDRAM Memory Organizations . . . . . . . . . . . . . . . . . . . . . . . . . 66
Table 9.
PC-100 REV. 1.0 SDRAM DIMM Part Nomenclature. . . . . . . . 72
Table 10.
SDRAM DIMM Loading Analysis . . . . . . . . . . . . . . . . . . . . . . . . 74
Table 11.
Key SDRAM DIMM Timing Variables . . . . . . . . . . . . . . . . . . . . 77
Table 12.
Summary of GART Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Table 13.
Mask Bits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Table 14.
AMD-751 System Controller MSR Settings . . . . . . . . . . . . . . . 111
Table 15.
Configuration Port Register Summary . . . . . . . . . . . . . . . . . . 125
Table 16.
Function 0, Device 0 Configuration Registers . . . . . . . . . . . . 126
Table 17.
Function 0, Device 1 Configuration Registers . . . . . . . . . . . . 128
Table 18.
Memory Space Configuration Registers (BAR1 + n) . . . . . . . 129
Table 19.
Power Management Configuration Registers (BAR2 + n) . . 129
Table 20.
Revision ID Enumeration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129
Table 21.
Size Field versus AGP Memory Allocation . . . . . . . . . . . . . . . 135
Table 22.
Mapping Processor Address Lines to Memory Address
Lines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142
Table 23.
Absolute Ratings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Table 24.
Operating Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Table 25.
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
Table 26.
AMD Athlon System Bus/AMD-751 System Controller DC
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182
Table 27.
Typical and Maximum Power Dissipation . . . . . . . . . . . . . . . . 183
Table 28.
Heatsinks for the AMD-751 System Controller . . . . . . . . . . . . 183
Table 29.
Thermal Interface Material for the AMD-751 System
Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
xi
Preliminary Information
AMD-751™ System Controller Data Sheet
xii
21910E—March 2000
Table 30.
SYSCLK Switching Characteristics for 100-MHz Bus
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Table 31.
A_CLK Switching Characteristics for 66-MHz Bus
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
Table 32.
PCLK Switching Characteristics for 33-MHz PCI Bus . . . . . . 187
Table 33.
PCI Interface Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Table 34.
DRAM Interface Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190
Table 35.
AGP 1x Mode Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191
Table 36.
AGP 2x Mode Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192
Table 37.
AMD Athlon System Bus/AMD-751 System Controller AC
Specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 193
Table 38.
Symbol Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203
Table 39.
492-Pin PBGA 35.0 mm By 35.0 mm Package Specifications . 203
Table 40.
Geometric Tolerances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
Table 41.
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 207
Table 42.
Acronyms. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
List of Tables
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Revision History
Date
Rev
Description
Added cross reference to the AMD-751™ System Controller Memory Settings Application Note,
order# 22835 to “SDRAM Initialization” on page 70.
Added “Revision ID Nomenclature” on page 129.
March 2000
E
Changed note in Table 16, “Function 0, Device 0 Configuration Registers,” on page 126 and
“Revision ID Device 0 Offset 08h” on page 133 to cross-reference “Revision ID Nomenclature”
on page 129.
Added Queue to name for Bypass Enable bit in “BIU Control and Status Register Device 0
63h–60h” on page 147.
Offset
Moved “Conventions, Abbreviations, and References” from front of book to “Appendix A” on
page 205.
August 1999
Revision History
D
Initial public release
xiii
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
xiv
Revision History
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
1
Features
The AMD Athlon™ processor powers the next generation in
computing platforms, delivering the ultimate performance for
cutting-edge applications and an unprecedented computing
experience.
The AMD-750™ chipset is a highly integrated system logic
so lut io n t h a t d e livers e n h a n c e d p er fo rm a n c e for t h e
AMD Athlon processor and other AMD Athlon system
bus-compatible processors. The AMD-750 chipset consists of
the AMD-751™ system controller in a 492-pin plastic ball-grid
array (PBGA) package and the AMD-756™ peripheral bus
controller. The AMD-751 system controller features the
A M D A t h l o n s y s t e m b u s , s y s t e m m e m o ry c o n t ro l l e r,
accelerated graphics port (AGP) controller, and peripheral
component interconnect (PCI) bus controller. Figure 1 on page
6 shows a block diagram for the AMD-750 chipset.
The AMD-751 system controller is designed with the following
features:
n
n
n
n
The AMD Athlon system bus supports three 200-MHz
high-speed channels
The 33-MHz 32-bit PCI 2.2-compliant bus interface supports
up to six masters
The 66-MHz AGP 2.0-compliant interface supports 2x data
transfer mode
High-speed memory—The AMD-751 system controller is
designed to support a 100-MHz PC-100 Rev. 1.0 SDRAM
DIMMs
This document describes the features and operation of the
AMD-751 system controller. For a description of the AMD-756
peripheral bus controller, see the AMD-756™ Peripheral Bus
Controller Data Sheet, order# 21645. Key features of the
AMD-751 system controller are provided in this section.
Chapter 1
Features
1
Preliminary Information
AMD-751™ System Controller Data Sheet
1.1
21910E—March 2000
AMD Athlon™ System Bus
The AMD Athlon system bus has the following features:
n
n
n
n
n
n
n
n
1.2
High-performance point-to-point system bus topology
Source-synchronous clocking for high-speed transfers
HSTL-like low-voltage swing transceiver logic signal levels
Three 200-MHz independent high-speed channels:
• 13-pin processor request channel
• 13-pin system probe channel
• 72-pint data transfer channel (8-bit ECC)
1.6 Gigabyte per second peak data transfer rates at 200 MHz
Large 64-byte (cache line) data burst transfers
Data Buffers:
• Memory write FIFO (MWF)
• Memory read FIFO (MRF)
• PCI/APCI (AGP-PCI) write buffer
• PCI/APCI read buffer
Transaction Queues:
• Command queue (CQ)
• Memory write queue (MWQ)
• Memory read queue (MRQ)
• Probe (snoop) queue (PQ)
Integrated Memory Controller
The integrated memory controller has the following features:
n
n
2
Memory Request Organizer (MRO)—Serves as a data
crossbar, determines request dependencies, and optimizes
scheduling of memory requests
The AMD-751 system controller supports the following
concurrences:
• Processor-to-main-memory with PCI-to-main-memory
• Processor-to-main-memory with AGP-to-main-memory
• Processor-to-PCI with PCI-to-main-memory or
AGP-to-main-memory
Features
Chapter 1
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
n
n
n
n
n
n
n
n
n
n
n
n
Chapter 1
Memory error correcting code (ECC) support
Supports the following DRAM:
• Up to three non-buffered PC-100 Rev. 1.0 SDRAM
DIMMs using 16-Mbit, 64-Mbit, and 128-Mbit technology
(See Table 1 on page 9)
• 64-bit data width, plus 8-bit ECC paths
• Flexible row and column addressing
Supports up to 768 Mbytes of memory
Four open pages within one CS (device selected by chip
select) for one quadword
Default two-page leapfrog policy for eight quadword
requests
BIOS-configurable
memory-timing
parameters
and
configuration parameters
3.3-V memory interface operation with no external buffers
Four cache lines of processor-to-DRAM posted write buffers
with full read-around capability
Concurrent DRAM writeback and read-around-write
Burst read and write transactions
Decoupled and burst DRAM refresh with staggered CS
timing
Provides the following refresh options:
• Programmable refresh rate
• CAS-before-RAS
• Populated banks only
• Chipset powerdown via SDRAM automatic refresh
command
• Automatic refresh of idle slots—improves bus
availability for memory access by the processor or
system
Features
3
Preliminary Information
AMD-751™ System Controller Data Sheet
1.3
21910E—March 2000
PCI Bus Controller
The PCI bus controller has the following features:
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
n
1.4
Compliance with PCI Local Bus Specification, Revision 2.2
Supports six PCI masters
32-bit interface, compatible with 3.3-V and 5-V PCI I/O
Synchronous PCI bus operation up to 33 MHz
PCI-initiator peer concurrence
Automatic processor-to-PCI burst cycle detection
Four-entry, 64-bit PCI master (processor or AGP) write FIFO
Extensive utilization of FIFOs
Zero wait-state PCI initiator and target burst transfers
PCI-to-DRAM data streaming up to 132 Mbytes per second
Enhanced PCI command optimization, such as memory read
line (MRL), memory read multiple (MRM), and
memory-write-and-invalidate (MWI)
Timer-enforced fair arbitration between PCI initiators
Supports advanced concurrency
Supports retry disconnect for improved bus utilization
PCI read buffer keeps track of each master
PCI target request queue
AGP Features
The AGP features include the following:
n
n
4
Bus Features
• Compliance with AGP 2.0 specification
• Synchronous 66-MHz 1x and 2x data-transfer modes
• Multiplexed and demultiplexed transfers
• Up to four pipelined grants
• Support of sideband address (SBA) bus
Request Queue Features
• Separate read-request and write-request queues
• Reordering of high-priority requests over low-priority
requests in queue
Features
Chapter 1
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Simultaneous issuing of requests from both the write
queue and read queue
• Selects next request to optimize bus utilization
Transaction Queues
• Memory-to-AGP and processor-to-AGP transaction
queues
•
n
n
n
n
1.5
FIFO Features
• 16-entry (64-bit) AGP-to-memory write FIFO
• 64-entry (64-bit) memory-to-AGP read FIFO
Secondary PCI Bus Features
• Pipelined burst reads and writes
• Extensive utilization of FIFOs
GART (graphics address remapping table) Features
• Conventional (two-level) GART scheme
• Eight-entry, fully-associative GART table cache (GTC)
• Three fully-associative GART directory caches (GDC)
• One 4-entry for PCI
• One 8-entry for the processor
• One 16-entry for AGP
Power Management
The power management features include the following:
n
n
Chapter 1
Compliance support for both ACPI and Microsoft® PC 98
power management
The AMD-751 system controller supports the following
power states:
• Processor Halt/Stop Grant/Sleep states
• Power-On Suspend
Features
5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AMD Athlon™
Processor
64-bit data + 8-bit ECC
13-bit SADDIN +
13-bit SADDOUT
System Bus
AMD-751™
System Controller
Controller
System
Memory Bus
64-bit data + 8-bit ECC
AGP Bus
32-bit
SERR#
PREQ#
PGNT#
WSC#
SDRAM
DRAM
Graphics
DRAM
PCI Bus
32-bit
AMD-756™
Peripheral Bus
Southbridge
Controller
LAN
Ethernet
System Management,
Reset, Initialize,
Interrupts
1394A
BIOS
ISA
16-bit
USB
EIDE
Figure 1.
6
AMD-750™ Chipset System Block Diagram
Features
Chapter 1
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
2
Overview
The AMD-751 system controller is designed to optimize the
interaction between the processor, DRAM, AGP, and the PCI
bus with pipelined burst and concurrent transactions. Each bus
interface includes multiple specialized FIFO buffers to enable
optimum system concurrency. In the AMD-751, AMD has
introduced a memory-request organizer to optimize the
bandwidth of the DRAM. The AMD-751 system controller
implements the AGP to provide streamlined 3D renderings and
reduce graphics memory requirements. The AMD-751 is
packaged in a 492-pin PBGA.
2.1
System
The AMD-751 system controller is capable of performing I/O
transactions, single-a cces s m emo ry tra nsactio ns, and
block-access memory transactions. The AMD Athlon system
bus is a split-transaction bus. A split-transaction bus optimizes
system throughput by allowing the AMD-751 system controller
to schedule tasks and thereby free the bus during resource
delays.
The system controller responds only to I/O cycles within its
configuration-register space and to memory requests as
defined in its configuration registers.
All timing on the system bus is derived from the system clock
(SYSCLK).
2.1.1
Processor Interface
The AMD Athlon system bus consists of three independent
h i g h -s p e e d ch a n n e l s , i n c l u d i n g a 7 2 -b i t , 2 0 0 -M H z ,
point-to-point, non-multiplexed, source-synchronous clocked
data transfer channel capable of supporting the AMD Athlon
processor with transfer rates of 1.6 Gigabyte per second. To
achieve higher speed data transfers, the AMD Athlon system
b u s u s e s a n o p e n -d ra i n , H S T L -l i ke s i g n a l i n g l eve l .
Source-synchronous clocking compensates for PC board
propagation delays to enable higher speed transfers.
Chapter 2
Overview
7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
The AMD-751 processor interface responds to processor
commands, issues probes, and controls all data movement into
and out of the processor. More details on the processor
interface can be found in Chapter 5, “Functional Operation”
starting on page 45.
2.1.2
Memory Controller
T h e A M D -7 5 1 s y s t e m c o n t ro l l e r i n c o r p o ra t e s a
high-performance DRAM controller with a memory-request
o rg a n i z e r t h a t p rov i d e s t h e D R A M i n t e r f a c e fo r a n
AMD Athlon processor and can support PC-100 Rev. 1.0
SDRAM DIMMs at 100 MHz. The memory-request organizer
serves as a data crossbar and determines request dependencies
to provide optimum scheduling of memory requests. Large
on-chip FIFOs are used to decouple requests and provide
concurrency. These features combine with the split-transaction
processor bus to facilitate optimum use of the bus and memory
bandwidths. The memory controller can address up to three
slots of SDRAM at 100 MHz in various combinations, up to a
total of 768 Mbytes.
The AMD-751 system controller supports the following
concurrencies:
n
n
n
Processor-to-main-memory with PCI-to-main-memory
Processor-to-main-memory with AGP-to-main-memory
Processor-to-PCI-memory with PCI-to-main-memory or
AGP-to-main-memory
PC-100 Rev. 1.0 SDRAMs DIMMs allow fast bursting of data
between the DRAM and the internal controller data buffers at
100 MHz. The DRAM controller supports a 72-bit data path to
memory and can be configured to support error correcting code
(ECC), which can correct single-bit errors and detect double-bit
errors for data integrity. The BIOS must determine the type of
memory installed and program the configuration registers
accordingly.
The AMD-751 supports the SDRAM types shown in Table 1 on
page 9. It does not support x32 DRAM configurations in the
16-Mbit technology. The AMD-751 logically supports the x4
configuration, but it is not recommended with unbuffered
DIMMs.
8
Overview
Chapter 2
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 1.
SDRAM Organizations Supported
SDRAM Organization
Banks
Addressing
16M x 4
2
10 x 11
16M x 8
2
9 x 11
16M x 16
2
8 x 11
16M x 32
Not Supported
64M x 4
4
10 x 12
64M x 4
2
10 x 13
64M x 8
4
9 x 12
64M x 8
2
9 x 13
64M x 16
4
8 x 12
64M x 16
2
8 x 13
64M x 32
4
7 x 12
64M x 32
2
7 x 13
128M x 4
4
11 x 12
128M x 8
4
10 x 12
128M x 16
4
9 x 12
128M x 32
4
8 x 12
For more details on the memory controller, see Chapter 5,
“Functional Operation” starting on page 45.
2.1.3
PCI Controller
The AMD-751 system controller is compatible with the PCI
Local Bus Specification, Revision 2.2. It can operate at either 3.3
V or 5 V, and offers 64-bit to 32-bit data conversion. The
AMD-751 supports up to six external PCI masters.
The AMD-751 implements a very high degree of internal
concurrency. However, all PCI-to-memory transactions are, by
definition, coherent and therefore must be snooped in all
processors.
Five separate PCI FIFOs containing over 300 bytes of storage
are utilized to facilitate concurrency. In addition, the AMD-751
prefetches eight quadwords (one AMD Athlon processor cache
line) when performing memory reads for a PCI master.
Enhanced PCI bus commands, such as memory read line
( M R L ) , m e m o ry re a d m u l t i p l e ( M R M ) , a n d m e m o ry
Chapter 2
Overview
9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
write-and-invalidate (MWI), maximize data throughput. The
AMD-751 system controller employs a variety of techniques to
minimize PCI initiator read latency and DRAM utilization. The
combination of these features allows a PCI initiator to achieve
the full 133-Mbyte burst transfer rate. In addition, the
AMD-751 contains a PCI arbiter. See Chapter 5, “Functional
Operation” starting on page 45 for more information.
2.1.4
Accelerated Graphics Port (AGP)
The accelerated graphics port (AGP) is an alternate interface
bus for a computer system. The AGP provides a point-to-point
link between a graphics controller and the memory controller.
This additional pathway to memory removes 3D graphics traffic
from the PCI bus and provides a special access path to main
memory, allowing it to function as part of graphics memory and
reducing the amount of memory required on the graphics
adapter. Typically, the section of main memory allocated for
the AGP adapter would then be used to hold ‘textures’,
improving the realism of 3D images.
The AGP bus is essentially an expansion of the standard PCI
local bus containing additional s ideba nd signals and
commands. The three primary enhancements to PCI include
pipelined memory requests, separate address and data buses,
and double-pumped (2x) AC timing mode, in which data is
transferred on both edges of the AGP clock. Double-pumping
enables effective transfer rates as high as 133 MHz, generating
an effective data transfer rate of up to 533 Mbytes/second.
The AGP bus supports PCI as well as AGP transfers. As usual,
the A_FRAME# signal indicates PCI transfers, while a new
signal, PIPE#, is used to signify AGP transfers. To avoid
confusion in this document, the system-wide PCI bus is
re f e r re d t o a s t h e p r i m a ry P C I b u s , a n d t h e P C I
implementation on the AGP bus is referred to as the secondary
PCI bus or A-PCI.
The AMD-751 implements an AGP 1.0-compliant interface,
which provides a 32-bit-wide data path operating at either 66
MHz or 133 MHz. The AMD-751 can queue 16 outstanding AGP
transactions. See Chapter 5, “Functional Operation” starting
on page 45 for more information.
10
Overview
Chapter 2
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
The AMD-751 system controller functions as a PCI target on
the AGP bus. When the AGP bus functions in AGP mode, the
graphics controller is the AGP initiator and the AMD-751,
which contains the memory controller, functions as the AGP
target.
The AMD-751 implements a full-featured graphics-address
remapping table (GART). As shown in Table 2, this GART
implementation is distributed with individual table caches at
each interface and a common directory cache in the table-walk
logic that contains four fully associative entries. See Chapter 5,
“Functional Operation” starting on page 45 for more details on
the GART.
Table 2.
GART Table-Cache Sizes
Chapter 2
Interface
GART Table-Cache Size/Organization
AGP
16 Entries, fully associative
PCI & A-PCI
4 Entries, fully associative
Processor
8 Entries, fully associative
Overview
11
Preliminary Information
AMD-751™ System Controller Data Sheet
2.1.5
21910E—March 2000
Block Diagram
TW-FIFO
Memory
Request
Organizer
TR-FIFO
(MRO)
RM-FIFO
AGP/PCI
RD FIFO
MR-FIFO
AGP-WR-FIFO
SDI
AGP/PCI Interface
WE[2:0]#
SCAS[2:0]#
SRAS[2:0]#
CS[5:0]#
MECCD[7:0]
MDAT[63:0]
MCKE[2:0]
AGP RD-FIFO
MEM
RD FIFO WR FIFO
WR FIFO
CLKFWDRST
PROCRDY
CONNECT
Memory Controller (MCT)
Processor Interface (BIU)
SADDIN[14:2]#
SADDINCLK#
SADDOUT[14:2]#
SADDOUTCLK#
SDATA[63:0]#
SDATAINCLK[3:0]#
SDATAINVAL#
SCHECK[7:0]#
SDATAOUTCLK[3:0]#
MAdB[14:0]
DQM[7:0]#
MAdA[14:0]
Figure 2 shows the full complement of features and functions
built into the AMD-751 system controller system logic.
ST[2:0]
SBSTB
SBA[7:0]
RBF#
PIPE#
ADSTB1
ADSTB0
A_TRDY#
A_STOP#
A_SERR#
A_REQ#
A_PAR
A_IRDY#
A_GNT#
A_FRAME#
A_DEVSEL#
A_C/BE[3:0]#
A_AD[31:0]
Clock
Circuitry
MR-FIFO
TR-FIFO
MW-FIFO
TW-FIFO
SDRAMClkOut
SDRAMClkIn
RESET#
PCLK
SYSCLK
A_CLK
PCI-APC-FIFO
Figure 2.
12
C/BE[4:0]#
DEVSEL#
FRAME#
GNT[4:0]#
IRDY#
LOCK#
PAR
PGNT#
PREQ#
REQ[4:0]#
SERR#
STOP#
TRDY#
WSC#
AD[31:0]
PCI Interface
AMD-751™ System Controller Block Diagram
Overview
Chapter 2
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
2.1.6
Package
The AMD-751 is packaged in a 492-ball, 35-mm plastic ball grid
array (PBGA).
2.1.7
Power
The AMD-751 operates from a 3.3-V Vdd supply and dissipates
4.5 watts (W) operating under wo rst-ca se condi tions.
(Maximum Vdd is with heavy bus traffic.)
The AMD-751 implements the power-on-suspend (POS) power
management state. To implement the POS state, the AMD-751
provides two facilities —SDRAM self-refresh and PCI master
grant suspend.
SDRAMs are put in a self-refresh mode by the deassertion of
the MCKE[2:0] pins. The AMD-751 enters that mode in a Stop
Grant state. Careful routing of this signal on the board is
important to ensure that it stays clean when it is asserted or
deasserted. PCI master grants are disabled via register bit 0 in
BAR2 offset 0h (see page 177).
2.2
Interface Levels
A c om ple te pinout is show n in Chapte r 12, “Packag e
Specifications” on page 201. The rough grouping of signal
types is shown in Table 3.
Table 3.
AMD-751™ System Controller Interface Voltages
Chapter 2
Interface
Group
Voltages
Processor
OD
Open drain, pulled to 1.6 V
SDRAM
LVTTL
3.3 V
PCI
PCI
3.3 V, 5 V tolerant
AGP
AGP
3.3 V
Overview
13
Preliminary Information
AMD-751™ System Controller Data Sheet
2.3
21910E—March 2000
Clocking
The AMD-751 system controller receives a 100-MHz system
clock and a 33-MHz PCI clock. The AMD-751 generates and
drives the 100-MHz SDRAM clocks through a zero-delay buffer.
The 66-MHz AGP clock is provided by the system clock
generator as shown in Figure 3. It uses a non-JTAG, partial-scan
scheme for silicon and motherboard testability (NAND tree).
Clock Generator (PLL)
33 MHz
100 MHz
66 MHz
AMD-751™
Northbridge
PCI Slot
AMD-756™
Southbridge
Figure 3.
14
PC-100
Rev. 1.0
SDRAM
DIMMs
AGP Slot
Zero
Delay
Buffer
(ZDB)
AMD Athlon™ Processor-Based System Clocking
Overview
Chapter 2
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
3
Ordering Information
AMD standard products are available in several packages and
o p e ra t i n g ra n g e s . Th e o rd e r nu m b e r i s fo r m e d by a
combination of the elements shown in Figure 4. Table 4 shows
va l i d c o m b i n a t i o n s o f e l e m e n t s . C o n t a c t yo u r A M D
representative for detailed ordering information.
AMD-751
A
C
Case Temperature
C = Commercial Temperature range
Package Type
A = Plastic Ball Grid Array
Family/Core
AMD-751
Figure 4.
Ordering Information Elements
Table 4.
Valid Combinations for Ordering Parts
OPN
Package Type
AMD-751AC 492-pin PBGA ATX
Operating Voltage
3.135 V–3.6 V
Case Temperature
85° C
Note:
Valid combinations are configurations that are or will be supported in volume for this device.
Consult the local AMD sales office to confirm availability of specific valid combinations and
to check on newly released combinations.
Chapter 3
Ordering Information
15
Preliminary Information
AMD-751™ System Controller Data Sheet
16
21910E—March 2000
Ordering Information
Chapter 3
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4
Signal Descriptions
4.1
Processor Interface Signals
4.1.1
CLKFWDRST (Clock Forward Reset)
Output
Summary
CLKFWDRST resets the source-synchronous clock circuitry for
the processor.
Driven
This signal is negated by RESET#. It is asserted off the rising
edge of SYSCLK.
4.1.2
CONNECT (Connect)
Output
Summary
CONNECT is an output from the AMD-751 system controller
and is used for power management and source-synchronous
clock initialization at reset.
Driven
This signal is negated by RESET#. It is asserted off the rising
edge of SYSCLK.
4.1.3
PROCRDY (Processor Ready)
Input
Summary
PROCRDY is an input to the AMD-751 system controller and is
used for power management and source-synchronous clock
initialization at reset.
Sampled
This signal is sampled on the rising edge of SYSCLK.
Chapter 4
Signal Descriptions
17
Preliminary Information
AMD-751™ System Controller Data Sheet
4.1.4
21910E—March 2000
SADDIN[14:2]# (Address/Command)
Output
Summary
The SADDIN[14:2]# bus is the unidirectional system probe
channel to the processor. It is used to transfer probes or data
movement commands into the processor. All probes and
commands on the SADDIN[14:2]# channel are skew-aligned
with the source-synchronous clock, SADDINCLK#.
During PCI-to-DRAM cycles, the AMD-751 system controller
drives the SADDIN[14:2]# bus to snoop (inquire cycle) the
processor cache.
Driven
4.1.5
The AMD-751 system controller drives the SADDIN[14:2]#
channel on each edge of SADDINCLK#.
SADDINCLK# (System Address In Clock)
Output
Summary
SADDINCLK# is the single-ended source-synchronous clock for
the SADDIN[14:2]# bus driven by the AMD-751 system
controller. Each clock edge is used to transfer probes or data
movement commands to the processor.
Driven
This signal is driven inactive (negated) when the CLKFWDRST
signal is active (true). When CLKFWDRST is deasserted,
SADDINCLK# runs continuously.
4.1.6
SADDOUT[14:2]# (System Address Out)
Input
Summary
18
The SADDOUT[14:2]# channel is the unidirectional system
address interface from the processor to the AMD-751 system
controller. The SADDOUT[14:2]# channel is used to transfer
processor requests to the system. All commands on this
channel are skew-aligned with the source-synchronous clock,
SADDOUTCLK#.
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Sampled
The SADDOUT[14:2]# channel is sampled by the AMD-751
system controller on each edge of SADDOUTCLK#.
The AMD-751 system controller samples commands driven by
the processor on the SADDOUT[14:2]# channel and forwards
them to the PCI bus, AGP bus, or DRAM, depending on the
address range and AMD-751 configuration.
4.1.7
SADDOUTCLK# (System Address Out Clock)
Input
Summary
SADDOUTCLK# is the single-ended source-synchronous clock
for the SADDOUT[14:2]# channel driven by the processor. Each
edge is used to transfer commands.
This signal is driven inactive (negated) when the CLKFWDRST
signal is active (true). When CLKFWDRST is deasserted,
SADDOUTCLK# runs continuously.
4.1.8
SCHECK[7:0]# (Data Bus Check Byte)
Bidirectional
Summary
SC HE CK[ 7: 0] # contai ns the EC C ch eck bit s fo r data
transferred on the SDATA[63:0]# bus.
Driven, Sampled, and
Floated
A s O u t p u t s : T h e A M D -7 5 1 s y s t e m c o n t ro l l e r d r ive s
SCHECK[7:0]# with valid data.
As Inputs: During write cycles, the AMD-751 system controller
samples SCHECK[7:0]#.
SCHECK[7:0]# is floated out of RESET#. It remains floated
except when driven with write data by the processor, by read
data (writeback data) from the cache, or by read data from the
AMD-751 system controller.
Chapter 4
Signal Descriptions
19
Preliminary Information
AMD-751™ System Controller Data Sheet
4.1.9
21910E—March 2000
SDATA[63:0]# (Processor Data Channel)
Bidirectional
Summary
The SDATA[63:0]# channel is the bidirectional interface to and
from the processor and system for data movement. Data is
s ke w -a l i g n e d w i t h e i t h e r S DATA I N C L K [ 3 : 0 ] # o r
SDATAOUTCLK[3:0]#. Each edge is used to transfer data.
Note: In/Out is relative to the processor.
The SDATA[63:0]# channel connects to the 64-bit data channel
of the processor. Each of the four words of data that comprise
t h i s c h a n n e l i s q u a l i f i e d by a c o r re s p o n d i n g c l o c k
(SDATAINCLK[3:0]# or SDATAOUTCLK[3:0]#).
Driven, Sampled, and
Floated
As Outputs: The AMD-751 system controller drives the
SDATA[63:0]# channel with valid data on each edge of the
system address clocks (SDATAINCLK[3:0]#).
As Inputs: During write cycles, the AMD-751 system controller
s a m p l e s t h e S DATA [ 6 3 : 0 ] # ch a n n e l o n e a ch e d g e o f
SDATAOUTCLK[3:0]#.
SDATA[63:0]# is floated out of RESET#. It remains floated
except when driven with write data by the processor, by read
data (writeback data) from the cache, or by read data from the
AMD-751 system controller.
4.1.10
SDATAINCLK[3:0]# (System Data In Clock)
Output
Summary
SDATAINCLK[3:0]# is the single-ended source-synchronous
clock driven by the AMD-751 system controller to transfer data
on SDATA[63:0]#. Each 16-bit data word is skew-aligned with
this clock. Each edge is used to transfer data.
Driven
This signal is driven inactive (negated) when the CLKFWDRST
signal is active (true). When CLKFWDRST is deasserted,
SDATAINCLK# runs continuously.
20
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.1.11
SDATAINVAL# (System Data In Valid)
Output
Summary
SDATAINVAL# is driven by the AMD-751 system controller and
controls the flow of data into the processor. SDATAINVAL# can
be used to introduce an arbitrary number of cycles between
octawords (128 bits).
Driven
This signal is negated by RESET#. SDATAINVAL# is asserted
off the rising edge of SADDINCLK.
4.1.12
SDATAOUTCLK[3:0]# (System Address Out Clock)
Input
Summary
SDATAOUTCLK[3:0]# is the single-ended source-synchronous
clock driven by the processor and is used to transfer data on
t h e S DATA [ 6 3 : 0 ] # ch a n n e l . E a ch 1 6 -b i t d a t a wo rd i s
skew-aligned with this clock. Each edge is used to transfer
data.
This signal is driven inactive (negated) when the CLKFWDRST
signal is active (true). When CLKFWDRST is deasserted,
SDATAOUTCLK# runs continuously.
4.1.13
SYSCLK (System Clock)
Input
Summary
Chapter 4
SYSCLK is a single-ended input clock signal provided to the
phase locked loop (PLL) of the AMD-751 system controller
from the system-clock generator. It is set at 100 MHz operation.
Signal Descriptions
21
Preliminary Information
AMD-751™ System Controller Data Sheet
4.2
4.2.1
21910E—March 2000
PCI Interface Signals
AD[31:0] (PCI Address/Data Bus)
Bidirectional
Summary
The AD[31:0] bus contains the standard, multiplexed PCI
address and data lines. AD[31:0] contains a physical address
during the first clock of a PCI transaction, and data during
subsequent clocks. The address is driven when FRAME# is
asserted, and data is driven or received in subsequent cycles.
When the AMD-751 system controller is the PCI initiator, these
lines are outputs during the address and write data phases of a
transaction, and inputs during the read data phases.
When the AMD-751 is the PCI target, these lines are inputs
during the address and write data phases of a transaction, and
outputs during the read data phases.
Driven, Sampled, and
Floated
As Outputs: As an initiator, the AMD-751 system controller
drives AD[31:0] with a valid address off the first rising edge of
PCLK after it becomes the PCI bus master. During the first
clock that FRAME# is asserted, AD[31:0] contains the address.
During subsequent clocks, AD[31:0] contains data.
As Inputs: The AMD-751 system controller samples AD[31:0] on
the rising edge of PCLK. During the first clock after FRAME#
is asserted, the AMD-751 loads the bus contents into its
internal address register. On each subsequent clock in which
both TRDY# and IRDY# are asserted, AD[31:0] loads data into
its data FIFO.
AD[31:0] is floated for one clock in between the address phase
and the data phase of a read transfer. AD[31:0] is also floated
during RESET# and when there is no initiator driving the bus.
22
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.2.2
C/BE[3:0]# (PCI Command/Byte Enables)
Bidirectional
Summary
C/BE[3:0]# contain the PCI command during the first clock
cycle that FRAME# is asserted. These signals serve as a
byte-enable signal for subsequent cycles.
Driven, Sampled, and
Floated
As Outputs: The AMD-751 system controller drives C/BE[3:0]#
with a valid command or byte enables off the rising edge of
PCLK.
As Inputs: When the AMD-751 system controller is a target, it
samples C/BE[3:0]# on the rising edge of every PCLK.
C/BE[3:0]# are qualified by FRAME# for commands and
qualified by IRDY# and TRDY# for data.
C/BE[3:0]# are floated during RESET# and when there is no
initiator driving the bus.
4.2.3
DEVSEL# (PCI Device Select)
Bidirectional
Summary
The AMD-751 system controller samples DEVSEL# when it is
the initiator in a PCI cycle to determine if the target device has
responded. The AMD-751 drives DEVSEL# when it is the
targeted device in a PCI cycle.
Driven, Sampled, and
Floated
As an Output: The AMD-751 system controller drives this signal
when it decodes the address and determines it is the target of
the transfer.
As an Input: When the AMD-751 system controller is the
initiator, it samples this signal on the rising edge of every
PCLK to determine that the target is present. The target must
respond within eight clocks after FRAME# is asserted.
DEVSEL# is floated during RESET# and when there is no
initiator driving the bus.
Chapter 4
Signal Descriptions
23
Preliminary Information
AMD-751™ System Controller Data Sheet
4.2.4
21910E—March 2000
FRAME# (PCI Cycle Frame)
Bidirectional
Summary
The AMD-751 system controller asserts FRAME# at the
beginning of a PCI cycle when it is the initiator, and holds it
asserted until the beginning of the last data transfer in the
cycle.
If the AMD-751 is the targeted PCI device, it samples and
latches the C/BE[3:0]# and AD[31:0] signals and asserts
DEVSEL# at the first PCLK edge on which it samples FRAME#
asserted.
Driven, Sampled, and
Floated
As an Output: The AMD-751 system controller drives FRAME#
valid off the rising edge of PCLK. The duration of FRAME#
varies with the length of the transfer.
As an Input: When the AMD-751 system controller is a target, it
samples this signal on the rising edge of every PCLK. The
assertion of FRAME# indicates the start of a cycle. FRAME#
remains asserted during burst transfers.
FRAME# is floated during RESET# and when there is no
initiator driving the bus.
4.2.5
GNT[4:0]# (PCI Bus Grant)
Output
Summary
As the PCI bus arbiter, the AMD-751 system controller asserts
one of these device-specific bus grant signals off the rising
clock edge to indicate to an initiator that it has been granted
control of the PCI bus.
Driven
GNT[4:0]# signals are never floated. They are negated off the
rising edge of the clock, indicating that no device has been
granted the bus. One of the GNT[4:0]# signals is asserted off
the rising edge of the clock, indicating the particular channel
that is granted use of the bus.
24
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.2.6
IRDY# (Initiator Ready)
Bidirectional
Summary
IRDY# indicates that a PCI initiator is ready to complete the
current data phase of the transaction. During a read cycle,
IRDY# asserted indicates the master is ready to accept the
data. During a write cycle, IRDY# asserted indicates that write
data is valid on AD[31:0]. Data is transferred on the PCI bus on
each PCLK in which both IRDY# and TRDY# are asserted. Wait
states are inserted on the bus until both IRDY# and TRDY# are
asserted together.
Driven, Sampled, and
Floated
As an Output: When the AMD-751 system controller is the PCI
initiator, it drives IRDY# asserted one PCLK after it asserts
FRAME# and holds it asserted until one cycle before the end of
all transactions. The AMD-751 does not terminate a read or
write cycle until it samples both IRDY# and TRDY# asserted.
As an Input: IRDY# is sampled on every rising edge of PCLK,
when the AMD-751 system controller is a PCI target. When
IRDY# and TRDY# are both asserted, the controller advances
the FIFO to the next data. If either signal is negated, the
current data is held on the bus.
IRDY# is floated when there is no bus master currently driving
the bus.
4.2.7
LOCK# (PCI Bus Lock)
Bidirectional
Summary
A PCI initiator asserts LOCK# to prevent other devices from
accessing a targeted device during atomic transactions. Using
LOCK# is not recommended because it is not supported by the
AMD-751 system controller, and the system can hang if the
initiator does not unlock the resource.
Driven, Sampled, and
Floated
An 8.2-Kohm pullup resistor is required to keep LOCK#
inactive, if it is not implemented on an initiator.
Chapter 4
Signal Descriptions
25
Preliminary Information
AMD-751™ System Controller Data Sheet
4.2.8
21910E—March 2000
PAR (PCI Bus Parity)
Bidirectional
Summary
PAR indicates even parity. The AMD-751 system controller
drives PAR as a PCI initiator one clock after the address phase
and each data write phase to generate even parity across
A_AD[31:0] and A_C/BE[3:0]#. The AMD-751 drives PAR as a
PCI target one clock after each data read phase. The AMD-751
does not support parity checking.
Driven, Sampled, and
Floated
As an Output: This signal is asserted off the rising edge of every
PCLK.
As an Input: The AMD-751 system controller does not support
parity checking.
PAR is only floated when changing bus ownership from one
initiator to another.
4.2.9
PCLK (PCI Clock)
Input
Summary
4.2.10
PCLK is a 33-MHz clock provided by the system clock
generator. It is used by the AMD-751 logic in the PCI clock
domain. PCLK to A_CLK (AGP clock) skew is +/– 500 ps
maximum.
PGNT# (PCI Grant to Peripheral Bus Controller)
Output
Summary
PGNT# grants control of the PCI bus to the PCI-ISA/IDE bridge
functions implemented in the AMD-756 peripheral bus
controller.
Driven
PGNT# is driven off the rising edge of PCLK. RESET# forces
PGNT# inactive. PGNT# is asserted in response to a PREQ#.
26
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.2.11
PREQ# (PCI Request from Peripheral Bus Controller)
Input
Summary
The AMD-751 system controller samples PREQ# to determine
if the AMD-756 peripheral bus controller needs PCI bus access.
Sampled
This signal is sampled by the rising edge of every PCLK. If
asserted, the arbiter issues a PGNT# when the bus is available.
4.2.12
REQ[4:0]# (PCI Bus Request)
Input
Summary
As the PCI bus arbiter, the AMD-751 system controller samples
these device-specific bus request signals to determine if
another agent requires control of the PCI bus.
Sampled
These signals are sampled by the rising edge of every PCLK. If
active, the arbiter issues the corresponding GNT[4:0]# when
the bus is available.
4.2.13
RESET# (Reset)
Input
Summary
Asserting RESET# resets the AMD-751 system controller and
sets all register bits to their default values. Bidirectional
signals are three-stated and outputs are driven inactive. This
signal is driven by the PCIRST# signal from the AMD-756
peripheral bus controller.
Sampled
This signal may be asynchronous to SYSCLK and PCLK. It is
synchronized internally, therefore it must be active for a
minimum of four PCLK periods.
Chapter 4
Signal Descriptions
27
Preliminary Information
AMD-751™ System Controller Data Sheet
4.2.14
21910E—March 2000
SERR# (System Error)
Output
Summary
The AMD-751 system controller, as a PCI agent, asserts SERR#
off the rising edge of PCLK one clock after it detects a system
error. SERR# is an input to the AMD-756 peripheral bus
c o n t ro l l e r , w h i ch c a n b e p rog ra m m e d t o g e n e ra t e a
non-maskable interrupt (NMI).
Driven and Floated
SERR# is driven asserted on the rising edge of PCLK to
indicate that a fatal condition has been detected by the
AMD-751 system controller. This is an open-drain output —
normally a pullup resistor keeps this signal negated.
4.2.15
STOP# (PCI Bus Stop)
Bidirectional
Summary
As a PCI initiator, the AMD-751 system controller samples
STOP# to determine if the target device requires it to abort or
retry a transaction.
Sampled
STOP# is sampled by the current initiator on the rising edge of
every PCLK to determine if the current transaction should
continue or be stopped.
4.2.16
TRDY# (Target Ready)
Bidirectional
Summary
As a PCI initiator, the AMD-751 system controller samples
TRDY# to determine when the target agent is able to complete
the data phase of a transaction.
As a PCI target, the AMD-751 asserts TRDY# to indicate that it
has latched the data on AD[31:0] during a write phase or
driven the data on AD[31:0] during a read phase.
Driven, Sampled, and
Floated
28
As an Output: When the AMD-751 system controller is the PCI
target, it asserts TRDY# when valid data is available on the bus
(initiator read) or when there is room in its internal FIFO
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
(initiator write). The AMD-751 does not terminate a read or
write cycle until it samples both IRDY# and TRDY# asserted.
As an Input: TRDY# is sampled on every rising edge of PCLK
when the AMD-751 system controller is a PCI initiator. When
IRDY# and TRDY# are both asserted, the controller advances
the FIFO to the next data. If either signal is negated, the
current data is held on the bus.
TRDY# is floated when there is no bus master currently driving
the bus.
4.2.17
WSC# (Write Snoop Complete)
Bidirectional
Summary
WSC# is asserted to indicate that all of the snoop activity on
the processor bus on behalf of the last PCI-to-DRAM write
transaction is complete and that an APIC interrupt message
can be sent. This signal is used only in configurations where an
I/O APIC is installed.
Driven and Floated
WSC# is driven asserted on the rising edge of PCLK to indicate
to the AMD-756 peripheral bus controller that all probes due to
PCI DMA (direct memory access) are complete.
The AMD-756 peripheral bus controller requests that the
AMD-751 system controller issue a Fence command to its
buffers by placing a single PCLK pulse on WSC#. The AMD-751
then marks the data currently in its buffers and waits for this
data to reach processor-accessible (coherent) space. When this
data reaches processor-accessible space, the AMD-751
responds by sending a two-clock pulse back to the AMD-756
peripheral bus controller. After this pulse is received, the
AMD-756 peripheral bus controller transmits the interrupt
message over the interrupt message bus (IMB).
Chapter 4
Signal Descriptions
29
Preliminary Information
AMD-751™ System Controller Data Sheet
4.3
4.3.1
21910E—March 2000
DRAM Interface Signals
CS[5:0]# (Chip Selects)
Output
Summary
CS[5:0]# function as chip select signals for SDRAMs.
Driven
These signals are negated by RESET#. The memory controller
asserts or negates these signals off the rising edge of SYSCLK
at the appropriate time in the memory access sequence. See
Chapter 5, “Functional Operation” starting on page 45 for
more information.
4.3.2
DQM[7:0]# (Data Mask)
Output
Summary
DQM[7:0]# provides data masks for each byte during SDRAM
write cycles.
Driven
These control signals are negated by RESET#. The memory
controller asserts or negates these signals off the rising edge of
SYSCLK at the appropriate time in the memory access
sequence. See Chapter 5, “Functional Operation” starting on
page 45 for more information.
4.3.3
MAdA[14:0] and MAdB[14:0] (Memory Address)
Output
Summary
The multiplexed row and column address bits MAdA[14:0] and
MAdB[14:0] connect to the system SDRAMs. They can address
any size DRAM from 4 Mbits to 128 Mbits (for example, 16
Mbits x 4 = 64 Mbits, 16 Mbits x 8 = 128 Mbits). Two identical
sets of memory addresses are provided to reduce signal loading
for motherboard designs with three DIMM slots.
Driven
The memory controller asserts or deasserts these signals off
the rising edge of SYSCLK at the appropriate time in the
memory access sequence. See Chapter 5, “Functional
Operation” starting on page 45 for more information.
30
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.3.4
MCKE[2:0] (SDRAM Clock Enable)
Output
Summary
MCKE[2:0] are clock enable signals for the synchronous
DRAM. They operate in parallel to drive greater loads than a
single signal can support and are used for power saving modes.
Driven
These control signals are driven inactive (negated) by RESET#.
See Chapter 5, “Functional Operation” starting on page 45 for
more information.
4.3.5
MDAT[63:0] (Memory Data)
Bidirectional
Summary
MDAT[63:0] connect to the DRAM data I/O. They are driven by
the DRAM during reads and are driven by the AMD-751 system
controller during writes.
Driven, Sampled, and
Floated
As Outputs: These signals are driven with the data to be written
on the rising edge of SDRAM_CLKOUT. The data changes at
different times based on the type of memory and timing
selected. See Chapter 5, “Functional Operation” starting on
page 45 for more information.
As Inputs: MDAT[63:0] are sampled on the rising edge of
SDRAM_CLKIN.
MDAT[63:0] are floated when neither the AMD-751 system
controller or the memory are driving the bus.
Chapter 4
Signal Descriptions
31
Preliminary Information
AMD-751™ System Controller Data Sheet
4.3.6
21910E—March 2000
MECCD[7:0] (Memory ECC)
Bidirectional
Summary
MECCD[7:0] carry error correction codes for the eight bytes of
data on MDAT[63:0]. These signals are inputs to the AMD-751
system controller during DRAM read cycles and outputs during
DRAM write cycles.
Driven, Sampled, and
Floated
As Outputs: These signals are driven with the parity or ECC
data on the rising edge of SYSCLK. They change at different
times based on the type of memory and timing selected. See
Chapter 5, “Functional Operation” starting on page 45 for
more information.
As Inputs: MECCD[7:0] are sampled on the same rising edge of
SYSCLK that samples MDAT[63:0].
MECCD[7:0] are floated when neither the AMD-751 system
controller or the memory are driving the bus.
4.3.7
SCAS[2:0]# (SDRAM Column Address Strobes)
Output
Summary
SCAS0#, SCAS1#, and SCAS2# are column address strobe
signals for the synchronous DRAM. They operate in parallel to
drive greater loads than a single signal can support.
Driven
These control signals are driven inactive (negated) by RESET#.
The memory controller asserts or negates these signals off the
rising edge of SYSCLK at the appropriate time in the memory
access sequence. See Chapter 5, “Functional Operation”
starting on page 45 for more information.
4.3.8
SDRAM Clk_In
Input
Summary
32
The SDRAM Clk_In signal is used to clock in the data returned
from a SDRAM read operation. Data is clocked in on the rising
edge of this signal. This clock is provided by the ZDB and is
phase aligned with the SDRAM clocks.
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.3.9
SDRAM Clk_Out
Output
Summary
SDRAM Clk_Out is a clock signal for the synchronous DRAM.
Driven
This signal is a free-running clock generated by the internal
PLL in the AMD-751 system controller. This signal is used to
clock a zero delay buffer (ZDB) external to the AMD-751. The
ZDB, in turn, generates the clock for the SDRAMs. The
advantage of the ZDB is that the timing of the clocks to the
SDRAM DIMMs can be adjusted.
4.3.10
SRAS[2:0]# (SDRAM Row Address Strobes)
Output
Summary
SRAS0#, SRAS1#, and SRAS2# are row address strobe signals
for the synchronous DRAM. They operate in parallel to drive
greater loads than a single signal can support.
Driven
These control signals are driven inactive (negated) by RESET#.
The memory controller asserts or negates these signals off the
rising edge of SYSCLK at the appropriate time in the memory
access sequence. See Chapter 5, “Functional Operation”
starting on page 45 for more information.
4.3.11
WE[2:0]# (SDRAM Memory Write Enables)
Output
Summary
WE[2:0]# are write enable signals for all DRAM. They operate
in parallel to drive greater loads than a single signal can
support.
Driven
These control signals are driven inactive (negated) by RESET#.
The memory controller asserts or negates these signals off the
rising edge of SYSCLK at the appropriate time in the memory
access sequence. See Chapter 5, “Functional Operation”
starting on page 45 for more information.
Chapter 4
Signal Descriptions
33
Preliminary Information
AMD-751™ System Controller Data Sheet
4.4
21910E—March 2000
AGP/PCI Signals
The following signal descriptions apply to AGP bus signals
when used for AGP transactions. The AGP bus can also perform
PCI transactions, in which case the AGP bus pins function
identically to their PCI bus pin equivalents (same pin names
without the A_ prefix), as described in “PCI Interface Signals”
on page 22.
4.4.1
A_AD[31:0] (Address/Data Bus)
Bidirectional
Summary
In multiplexed mode, the A_AD[31:0] bus contains an AGP
address when PIPE# is sampled asserted and data when PIPE#
is sampled negated.
In demultiplexed mode, the A_AD[31:0] bus contains only AGP
data, while AGP addresses are provided on the sideband
address signals SBA[7:0].
Driven, Sampled, and
Floated
As Outputs: In demultiplexed mode, the AMD-751 system
controller drives A_AD[31:0] with ADSTB[1:0] during data
transfers to the graphics controller from the system controller.
In multiplexed mode, the AMD-751 drives A_AD[31:0] with a
valid address or data off the rising edge of SYSCLK during the
return of read requests. In addition, A_AD[31:0] are driven
during processor writes to the graphics controller.
As Inputs: In demultiplexed mode, the AMD-751 system
controller samples A_AD[31:0] on the rising edge of every
ADSTB[1:0] during data transfers from the graphics controller
to the system controller. In multiplexed mode, A_TRDY# and
A_IRDY# qualify the SYSCLK edges on which data is sampled.
A_AD[31:0] are floated for one clock between the address
phase and the data phase of a read transfer. In addition,
A_AD[31:0] are floated during reset and when the bus is idle.
34
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.4.2
A_C/BE[3:0]# (PCI Command/Byte Enables)
Bidirectional
Summary
In multiplexed mode, A_C/BE[3:0]# contain command
information when PIPE# is sampled asserted (see page 40), and
byte-enable signals when PIPE# is sampled negated.
For PCI cycles on the AGP bus, C/BE#[3:0] carry PCI commands
during the first clock cycle that A_FRAME# is asserted. After
the first clock, A_C/BE[3:0]# are byte enables.
In demultiplexed mode, the commands are sent on SBA[7:0],
and A_C/BE[3:0]# function only as byte enable signals during
data transactions. All four A_C/BE# signals are asserted in
each AGP data transaction because the minimum AGP data
size is four doublewords.
Driven, Sampled, and
Floated
A s O u t p u t s : T h e A M D -7 5 1 s y s t e m c o n t ro l l e r d r ive s
A_C/BE[3:0]# with valid command information off the rising
edge of SYSCLK when A_FRAME# or PIPE# is asserted. The
AMD-751 drives A_C/BE[3:0]# with valid byte enables off the
rising edge of SYSCLK when A_FRAME# or PIPE# is negated.
As Inputs: When the AMD-751 system controller is a target, it
samples A_C/BE[3:0]# on the rising edge of SYSCLK.
A_C/BE[3:0]# are floated during reset and when the bus is idle.
4.4.3
A_CLK (AGP Clock)
Input
Summary
Chapter 4
A_CLK receives a 66-MHz clock from the system clock
generator. A_CLK is used by the AMD-751 system controller
logic in the AGP clock domain.
Signal Descriptions
35
Preliminary Information
AMD-751™ System Controller Data Sheet
4.4.4
21910E—March 2000
A_DEVSEL# (PCI Device Select)
Bidirectional
Summary
A_DEVSEL# is used for PCI transfers on the secondary PCI
bus. Its function is the same as that of DEVSEL# on the
primary PCI bus (see page 23).
A_DEVSEL# is not used during AGP transfers.
4.4.5
A_FRAME# (PCI Cycle Frame)
Bidirectional
Summary
A_FRAME# is used for PCI transfers on the secondary PCI bus.
Its function is the same as that of FRAME# on the primary PCI
bus (see page 24).
A_FRAME# is not used during AGP transfers.
4.4.6
A_GNT# (AGP Bus Grant)
Output
Summary
As the AGP bus arbiter, the AMD-751 system controller asserts
A_GNT# in response to A_REQ# from the initiator (graphics
controller) to indicate to the initiator that it has been granted
control of the bus. At the same time, the system controller
provides status information on status signals ST[2:0] to
indicate to the initiator whether it is to supply data or receive
data in response to a previously queued request.
Driven
A_GNT# is asserted off the rising edge of SYSCLK in response
to an A_REQ#. A reset forces A_GNT# to be negated.
36
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.4.7
A_IRDY# (Initiator Ready)
Bidirectional
Summary
As a target, the AMD-751 system controller samples A_IRDY#
to look for the beginning of a write transfer from the initiator
to determine if the initiator is ready to transfer a block. For an
AGP write transfer, all data in the given transaction is sent
without wait-states, so A_IRDY# only needs to be sampled once
for the entire transaction. An AGP read transfer can have
wait-states, so the AMD-751 must sample A_IRDY# asserted for
each block of a read transfer. A block is the amount of data
transferred in four SYSCLK cycles—four doublewords in 1x
mode and eight doublewords in 2x mode.
As an initiator, the AMD-751 system controller asserts
A_IRDY# to signal the AGP device that it is ready to begin a
transfer.
Note: Because A_FRAME# is not used in an AGP transaction,
there is no relationship between A_FRAME# and A_IRDY#,
as there is in a PCI transaction.
Driven, Sampled, and
Floated
As an Output: The AMD-751 system controller drives A_IRDY#
valid off the rising edge of SYSCLK. For AGP transfers,
A_IRDY# is asserted for one clock. For PCI transfers, it is
driven during the entire transaction.
As an Input: When the AMD-751 system controller is a target, it
samples A_IRDY# on the rising edge of SYSCLK. For AGP
transfers, A_IRDY# is sampled only at the beginning of a cycle.
A_IRDY# is floated during reset and when there is no initiator
driving the bus.
4.4.8
A_PAR (PCI Bus Parity)
Bidirectional
Summary
A_PAR# is used for PCI transfers on the secondary PCI bus. Its
function is the same as that of PAR# on the primary PCI bus
(see page 26).
A_PAR# is not used during AGP transfers.
Chapter 4
Signal Descriptions
37
Preliminary Information
AMD-751™ System Controller Data Sheet
4.4.9
21910E—March 2000
A_REQ# (AGP Bus Request)
Input
Summary
As the bus arbiter, the AMD-751 system controller monitors
A_REQ# to determine if the graphics controller requests
access to the AGP bus. If A_REQ# is sampled asserted, the
arbiter asserts A_GNT# as soon as the bus is available.
Sampled
A_REQ# is sampled on the rising edge of every SYSCLK.
4.4.10
A_SERR# (System Error)
Input
Summary
4.4.11
A_SERR# is used for PCI transfers on the secondary PCI bus. It
is not used during AGP transfers.
A_STOP# (AGP Bus Stop)
Bidirectional
Summary
A_STOP# is used for PCI transfers on the secondary PCI bus.
Its function is the same as that of STOP# on the primary PCI
bus (see page 28).
A_STOP# is not used during AGP transfers.
4.4.12
A_TRDY# (Target Ready)
Bidirectional
Summary
As an AGP target, the AMD-751 system controller asserts
A_TRDY# to signal the start of a read or write data block
transfer. A block is the amount of data that can be passed in
four SYSCLK cycles—four doublewords in 1x mode, eight
doublewords in 2x mode. If a transfer is larger than one block,
A_TRDY# must be reasserted for each block. Asserting
A_TRDY# every four clock cycles completes the transfer
without wait states.
As an AGP initiator, the AMD-751 samples A_TRDY# to
determine if data is ready to be transferred.
38
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Driven, Sampled and
Floated
As an Output: The AMD-751 system controller drives A_TRDY#
valid off the rising edge of SYSCLK.
In AGP-multiplexed mode, data remains on the bus until
A_TRDY# is asserted. In AGP-demultiplexed mode, A_TRDY#
is asserted for one clock for each block transferred.
As an Input: When the AMD-751 system controller is an
initiator, it samples A_TRDY# on the rising edge of SYSCLK.
For AGP transfers, A_TRDY# is sampled only at block
boundaries.
A_TRDY# is floated during reset and when there is no target
driving the bus.
Chapter 4
Signal Descriptions
39
Preliminary Information
AMD-751™ System Controller Data Sheet
4.5
4.5.1
21910E—March 2000
AGP-Only Signals
ADSTB[1:0]
(AD Bus Strobe)
Bidirectional
Summary
In 2x mode, ADSTB0 provides timing for A_AD[15:0] and
ADSTB1 provides timing for A_AD[31:16]. The graphics
controller drives the strobes during AGP write operations, and
the AMD-751 system controller drives them during AGP read
operations. ADSTB[1:0] serves as a source-synchronized strobe
when transferring data in demultiplexed mode. This signal is
essentially a copy of the clock that is synchronized to the data.
This source-synchronized technique minimizes skew between
the strobe and data and compensates for propagation delay. In
1x mode, ADSTB[1:0] is ignored while SYSCLK is used.
Driven, and Floated
A s a n O u t p u t : A _ A D [ 3 1 : 0 ] a n d A D S T B [ 1 : 0 ] a re b o t h
synchronous to SYSCLK. When the AMD-751 system controller
is an initiator, it uses the rising and falling edges of ADSTB0 to
clock data into the target.
As an Input: When the AMD-751 system controller is a target, it
uses the rising and falling edges of ADSTB[1:0] to clock data
into its internal registers.
ADSTB[1:0] is floated during reset and when there is no device
driving the bus.
4.5.2
PIPE# (APG Pipeline)
Input
Summary
The assertion of PIPE# indicates the beginning of a new bus
cycle. The AMD-751 system controller queues a request from
the initiator on each rising clock edge on which it samples
PIPE# asserted. When PIPE# is sampled negated, no new
requests are queued.
Sampled
The AMD-751 system controller samples PIPE# on the rising
edge of every SYSCLK.
40
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.5.3
RBF# (Read Buffer Full)
Input
Summary
An AGP initiator asserts RBF# to indicate that its buffers are
full. As an AGP target, the AMD-751 system controller cannot
commence a low priority data read to the initiator until it
samples RBF# negated. RBF# does not apply to high-priority
read data.
Sampled
The AMD-751 system controller samples RBF# on the rising
edge of SYSCLK before initiating a low-priority read data
transfer.
4.5.4
SBA[7:0] (Sideband Address Bus)
Input
Summary
In AGP demultiplexed mode, the AMD-751 system controller
receives address and command signals from SBA[7:0] rather
than A_AD[31:0] and A_C/BE[3:0]#. In AGP multiplexed mode,
SBA[7:0] are ignored.
Sampled
The AMD-751 system controller samples SBA[7:0] using the
SBSTB signal. In 1x mode, the rising edge of SYSCLK strobes
in the commands on SBA[7:0]. In 2x mode, both edges of SBSTB
strobe in commands on SBA[7:0]. An FFh on these signals is a
NOP (no operation).
Chapter 4
Signal Descriptions
41
Preliminary Information
AMD-751™ System Controller Data Sheet
4.5.5
21910E—March 2000
SBSTB (Sideband Strobe)
Input
Summary
Sideband strobe is a synchronization clock generated by the
AGP initiator for SBA[7:0] in 2x mode. The AMD-751 system
controller uses SBSTB to strobe in commands on the SBA bus to
its request queue. SBSTB is driven continuously by the
graphics device—NOPs are strobed when no command is
present.
The AMD-751 strobes in commands on the rising edge of
SYSCLK in 1x mode and both rising and falling edges of SBSTB
in 2x mode.
4.5.6
ST[2:0] (Status)
Output
Summary
As the AGP arbiter, the AMD-751 system controller drives
ST[2:0] when it asserts A_GNT# to inform the graphics
controller of the type of data being returned, or that the
AMD-751 is ready to accept a command.
Driven
ST[2:0] are asserted off the rising edge of SYSCLK. Reset
forces ST[2:0] to be negated (bus-available state).
42
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
4.6
Miscellaneous Signals
4.6.1
ROM_SCK (SROM Clock)
Bidirectional
Summary
4.6.2
ROM_SCK drives the CLK pin of the debug SROM. If this
signal is pulled High during RESET#, the SROM supplies the
SIP packet. If this signal is pulled Low, the SIP packet is
generated internal to the AMD-751 system controller.
ROM_SDA (SROM Data)
Bidirectional
Summary
4.6.3
ROM_SDA connects to the data pin of the debug SROM.
SCAN_EN# (Scan Enable)
Input
Summary
When SCAN_EN# is asserted, the internal scan chains are
enabled. Scan chain heads and tails are multiplexed from
functional pins.
This signal has an internal pullup resistor.
4.6.4
TRISTATE#
Input
Summary
When TRISTATE# is asserted, all outputs are floated and the
NAND tree is enabled.
This signal has an internal pullup resistor.
Chapter 4
Signal Descriptions
43
Preliminary Information
AMD-751™ System Controller Data Sheet
44
21910E—March 2000
Signal Descriptions
Chapter 4
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5
Functional Operation
This section details the operation of the AMD-751 system
controller.
5.1
Overview
System Addressing
The AMD-751 system controller supports the AMD Athlon
system bus specification. The AMD Athlon processor contains
mapping logic for all legacy x86 addresses through an address
map (see Table 5 on page 46). As shown in Figure 5, legacy x86
(IBM PC-AT) memory mappings are implemented on the
AMD Athlon processor.
AMD Athlon™ Family
x86 Processor
PC Memory
View
Mapping Logic
AMD Athlon
System Bus
Northbridge
(AMD-751™)
PCI
Southbridge
(AMD-756™)
Figure 5. System Memory View
Chapter 5
Functional Operation
45
Preliminary Information
AMD-751™ System Controller Data Sheet
Address Map
Table 5.
21910E—March 2000
Table 5 shows the AMD-751 system controller address map.
AMD-751™ System Controller Memory Address Map
Address Space Start Address Space End Name/Command
Description
PA msb =0 and
1 FF00 0000
PA msb =0 and
3 FFFF FFFF
Reserved
(Masked)
PA msb =0 and
1 FE00 0000
PA msb =0 and
1 FEFF FFFF
This space is used to create PCI configuration cycles
PCI Configuration
using WrBytes, WrLWs, RdBytes, and RdLWs commands
Space (Masked)
only. See “PCI Configuration” on page 79.
PA msb =0 and
1 FC00 0000
PA msb =0 and
1 FDFF FFFF
PCI I/O Space
(Masked)
This space is used to create PCI I/O cycles using
WrBytesWrLWs, RdBytes, and RdLWs commands only.
Reserved for use by the AMD-751 system controller.
PA msb =0 and
1 F800 0000
PA msb =0 and
1 FBFF FFFF
PCI IACK/Special
Cycle Generation
(Masked)
WrLWs commands to this space are used to create PCI
special cycles. The lower 32 bits of the data are passed
on to the PCI bus as both the address and data with the
special-cycle PCI command. See Table 6 on page 48 for
all special cycles generated by the processor. RdBytes
commands to this space are used to create PCI IACK.
The lower 16 bits of these addresses are passed on to
the PCI unmodified with the IACK PCI command. See
“PCI Configuration Accesses” on page 50.
PA msb =0 and
1 0000 0000
PA msb =0 and
1 F7FF FFFF
Reserved
(Masked)
Reserved for use by the AMD-751.
PA msb =0 and
0 0000 0000
PA msb =0 and
0 FFFF FFFF
PCI Memory
Space
(Masked)
The lower 32-bits of these addresses are forwarded,
unmodified, to the PCI and are accessed with
Wr/RdBytes, Wr/RdLWs, or Wr/RdQWs only. The
AMD-751 generates low-order address bits required by
the AMD Athlon system bus MASK field.
PA msb =1 and
0 0000 0000
PA msb =1 and
3 FFFF FFFF
Normal Memory
(Masked Writes)
DRAM, accessed with masked write commands
WrBytes, WrLWs, and WrQWs only.
PA msb =1 and
0 0000 0000
PA msb =1 and
3 FFFF FFFF
Reserved
(Masked Reads)
The AMD-751 does not support masked reads to this
address space.
PA msb =1 and
0 FF000 0000
PA msb =1 and
3 FFFF FFFF
Reserved
(Blocks)
This address space can be used by the AMD-751 for
undefined purposes.
PA msb = 0 and
0 0000 0000
PA msb = 0 and
3 FFFF FFFF
Normal Memory
(Blocks)
DRAM, accessed with read and write block commands.
Note: The AMD-751 only uses 32 address bits internally and
the address space wraps. Address 1 0000 0000 is
treated the same as 0 0000 0000.
Note:
msb = Most Significant Bit
46
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Figure 6 shows the x86 view of memory from the perspective of
the AMD Athlon processor, and mapping to the AMD Athlon
system bus memory map.
I/O Space
0CF8h, 0CFCh
x86 In and Out Address Space
APIC Registers
Reserved
PCI Memory
PCI Config
PCI I/O
Reserved
PCI IACK/Special
AGP Virtual
(BAR0)
Top-of-Memory
(TOM)
PCI Memory
Reserved
GART
Extended Memory
Memory
F_FFFFh
BIOS
A_0000h
VGA
DOS Memory
x86 Memory Address Space
AMD Athlon™ System Bus Address Space
Figure 6. Address Mapping for x86 Legacy
Chapter 5
Functional Operation
47
Preliminary Information
AMD-751™ System Controller Data Sheet
Special Cycles
Table 6.
21910E—March 2000
There are seven special cycles generated by the AMD Athlon
processor that are passed onto the PCI bus with specific values
in the address and data fields of the PCI special cycle
command. Table 6 defines these values (same value for address
and data).
AMD Athlon™ Processor Special Cycle Encoding
Special Cycle
PCI Address
and Data Field
Contents
Processor Description
The AMD Athlon generates this special
cycle in response to a shutdown
condition.
Shutdown
0000 0000
The AMD Athlon system bus issues a
WrLWs command with PA =
SpecCycBase and SDATA[31:0] =
0000_0000h.
AMD-751™ and AMD-756™ Description
The AMD-751 forwards onto the PCI bus a
PCI special cycle command with AD[31:0] =
0000_0000h (address and data).
The AMD-756 asserts INIT to the processor.
Note: SpecCycBase is msb=0 and
PA[33:0] = 1 F800_0000h.
Halt
0000 0001
The AMD-751 waits for all queues to
memory to be empty (assumes the PCI
grant-enable register is clear, device 0,
The AMD Athlon generates this special offset 84). The AMD-751 optionally
cycle in response to a HALT instruction. (through offset 60, bit 18) initiates an
AMD Athlon system bus disconnect to the
The AMD Athlon system bus issues a
processor. The AMD-751 forwards onto the
WrLWs command with PA =
PCI bus (after the optional AMD Athlon
SpecCycBase and SDATA[31:0] =
system bus disconnect) a PCI special cycle
0000_0001h.
command with AD[31:0] = 0000_0001h
(address and data).
The AMD-756 ignores this cycle.
WB
Invalidate
48
0001 0002
The AMD Athlon generates this special
cycle in response to executing a
The AMD-751 forwards a PCI special cycle
WBINV instruction.
command onto the PCI bus with AD[31:0] =
The AMD Athlon system bus issues a
0001_0002h (address and data).
WrLWs command with PA =
The AMD-756 ignores this cycle.
SpecCycBase and SDATA[31:0] =
0001_0002h.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 6.
AMD Athlon™ Processor Special Cycle Encoding (Continued)
Special Cycle
Invalidate
Flush Ack
PCI Address
and Data Field
Contents
0002 0002
0003 0002
Processor Description
The AMD Athlon generates this special
cycle in response to executing an INVD
The AMD-751 forwards a PCI special cycle
instruction.
command onto the PCI bus with AD[31:0] =
The AMD Athlon system bus issues a
0002_0002h (address and data).
WrLWs command with PA =
The AMD-756 ignores this cycle.
SpecCycBase and SDATA[31:0] =
0002_0002h.
The AMD Athlon generates this special
cycle in response to assertion of the
FLUSH pin after all caches have been The AMD-751 forwards a PCI special cycle
flushed to memory.
command onto the PCI bus with AD[31:0] =
0003_0002h (address and data).
The AMD Athlon system bus issues a
WrLWs command with PA =
SpecCycBase and SDATA[31:0] =
0003_0002h.
Connect
0004 0002
AMD-751™ and AMD-756™ Description
The AMD Athlon generates this special
cycle as the first cycle after a Stop
Grant or Halt system bus special cycle.
The Connect cycle is issued by the
processor regardless of whether a
disconnect was achieved.
The AMD-756 ignores this cycle.
The AMD-751 forwards a PCI special cycle
command onto the PCI bus with AD[31:0] =
0004_0002h (address and data).
The AMD-756 ignores this cycle.
PA = SpecCycBase and SDATA[31:0] =
0004_0002h.
Stop Grant
Chapter 5
0012 0002
The AMD-751 waits for all queues to
memory to be empty (assumes the PCI
Grant-Enable register is clear, device 0,
offset 84). The AMD-751 optionally
(through device 0, offset 60, bit 17) initiates
The AMD Athlon generates this special an AMD Athlon system bus disconnect to
cycle in response to assertion of
the processor. The AMD-751 forwards onto
STPCLK#.
the PCI bus (after the optional AMD Athlon
system bus disconnect) a PCI special cycle
The AMD Athlon system bus issues a
command—AD[31:0] = 0012 0002 (address
WrLWs command PA = SpecCycBase
and data).
and SDATA[31:0] = 0012_0002h.
The AMD-756 receives and enters the
appropriate power state. The AMD-756 can
then assert DCSTOP# to the AMD-751 to
signal that it should deassert MCKE to the
SDRAMs and stop its internal clocks.
Functional Operation
49
Preliminary Information
AMD-751™ System Controller Data Sheet
PCI Configuration
Accesses
21910E—March 2000
In legacy x86 PC systems, PCI configuration cycles are
generated by an indirect method. A configuration address
register defined at I/O address 0CF8h allows the software to
load a 24-bit value that is asserted on the PCI address lines
during the next configuration read/write cycle. A configuration
data register defined at I/O address 0CFCh allows the software
to generate configuration read and write cycles on the PCI
using IN and OUT instructions.
Data sent to the configuration data register during OUT
instructions is driven on the PCI data lines during the
configuration write transaction. Data received in response to a
configuration read transaction is returned to satisfy the IN from
the configuration data register.
In AMD Athlon system bus systems, PCI configuration cycles
are generated by explicitly using RdBytes/RdLWs and
WrBytes/WrLWs commands to a 16-Mbyte region at address
1F-E000-0000h, as shown in Figure 6 on page 47. The x86
processor must detect IN and OUT instructions that reference
0 C F 8 h a n d 0 C F C h , a n d g e n e ra t e t h e a p p r o p r i a t e
RdBytes/Rd/LWs and WrBytes/WrLWs AMD Athlon system bus
commands.
Command Address
Decoding
Decoding logic in the AMD-751 processor and PCI interfaces
provides a consistent view of memory and PCI devices.
The AMD-751 considers the processor’s request and Physical
Address (PA) fields when decoding a command. This command
address decoding is summarized as follows:
n
n
50
If PA msb = 0 and the command is a block command, DRAM
is accessed.
• If PA[31:0] falls between device 0, BAR0 and device 0,
BAR0+Len, the address to AGP virtual address space is
passed through the GART before presentation to the
DRAM.
If PA msb = 1 and the command is a masked write command
(WrQWs, WrLWs, WrBytes), DRAM is accessed.
• If PA[31:0] falls between device 0, BAR0 and device 0,
BAR0+Len, the address to AGP virtual address space is
passed through the GART before presentation to the
DRAM.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
n
If PA msb = 0, PA[35:32] = 0, and the command is a masked
command, a PCI memory-mapped I/O cycle is performed.
• Using device 0, offset 14h, BAR1, the access is directed to
AMD-751 memory mapped GART control registers (see
Chapter 7, “Configuration Registers” on page 123).
• Using device 1, offset 20h and device 1, offset 22h,
memory base and limit registers, the access is directed to
either PCI or AGP/PCI using address bits 31–0.
n
If PA msb = 0, PA[35:24] = 1F8h, and the command is
RdBytes, an IACK special cycle is generated on the primary
PCI bus. PA[15:0] are driven on the PCI AD[15:0] bus during
this cycle. The data returned on the PCI bus is returned to
the processor.
If PA msb = 0, PA[35:24] = 1F8h, and the command is
WrBytes, a PCI special cycle is generated on the primary
PCI bus. PA[15:0] are asserted on the PCI AD[15:0] lines
during this cycle.
If PA msb = 0, PA[35:24] = 1FCh or 1FDh, and the command
is RdBytes or WrBytes, a PCI I/O command is generated.
PA[23:0] are driven on the PCI AD[23:0] lines with the PCI
I/O read or write command.
• Using device 1, offset 1Ch and device 1, offset 1Dh, I/O
base and range registers, the access is directed to either
the primary PCI bus or the secondary PCI bus.
If PA msb = 0, PA[35:24] = 1FEh, and the command is
RdBytes or WrBytes, a PCI configuration command is
generated. PA[23:0] are asserted on the PCI AD[23:0] lines
with the PCI configuration read or write command.
Note: The low-order processor address bits of PA only go down
to physical address PA[3]. For mask operations, the
MASK[7:0] bits are encoded to logically create PA[2:0].
n
n
n
Chapter 5
Functional Operation
51
Preliminary Information
AMD-751™ System Controller Data Sheet
PCI/AGP Master
Address Decoding
To route a transaction, the PCI controllers in the AMD-751
system controller compare the received PCI/AGP (secondary
PCI bus) address with the BAR registers and the memory
configuration registers. In addition, the AMD-751 decodes the
AMD Athlon processor commands to properly direct PCI traffic
that references the legacy 640-Kbyte to 1-Mbyte memory range.
This decoding is summarized as follows:
n
If AD[31:0] is less than the physical top-of-memory (from the
memory controller), DRAM is accessed.
n
If AD[31:0] is above the physical top-of-memory and falls
between device 0, BAR0 and device 0, BAR0+Len, the
address to the AGP virtual address space needs to pass
through the GART before presentation to DRAM.
If AD[31:0] is above the physical top-of-memory and falls
between device 1, 30h memory range decoding register start
and ending fields, the secondary PCI bus is accessed (for
writes only from the primary PCI).
Otherwise, the primary PCI bus is accessed (for writes from
the AGP/PCI bus only).
Note: The AMD-751 does not allow access to the
memory-mapped GART control registers from either
PCI or AGP/PCI masters. For more information about
the GART, see “GART Cache Operation” on page 98.
n
n
Configuration
Register Access
The AMD-751 system controller implements most registers as
PCI configuration registers. Configuration accesses in the
AMD-751 conform to the following rules:
n
n
n
n
52
21910E—March 2000
The AMD-751 is defined to be device 0 and device 1. All
external PCI devices must be wired to one of the AD[31:13]
wires. Logically, AD[12:11] are assigned to devices 0 and 1 in
the AMD-751 system controller.
Device 0 accesses correspond to the processor-to-PCI bridge
registers defined in Chapter 7, “Configuration Registers” on
page 123.
Device 1 accesses correspond to the PCI-to-PCI bridge
registers defined in Chapter 7, “Configuration Registers” on
page 123.
Accesses can have a byte, word, or doubleword length and
must be naturally aligned.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.2
Processor Interface
This section describes the interface logic between the
AMD Athlon processor and the AMD-751 system controller.
5.2.1
Bus Interface Unit (BIU)
The bus interface unit (BIU) is the interface between the
processor and the rest of the system. The BIU receives
commands and probe responses from the processor and issues
probes to the processor. The BIU initiates all data movement
into and out of the processor. Figure 7 shows a BIU block
diagram.
Processor
Source Synch Clock Transceiver
XCA
Preprocessing Block
Probe
Response
Probe Queue (PQ)
Fully Snoopable
Partial Tag Comp.
Issued Probes
ACK
SysDC
Read
Queue
(SRQ)
Command
Queue
(CQ)
Memory
Write
Queue
(MWQ)
PCI/A-PC
I
Write
Queue
(AWQ)
CSQ
Probe SysDC
Queue (PSQ)
Pending Probes
Queue (PPQ)
Fully Snoopable
Probe Done
Probe Response
Alert Agent (PRA)
From MRO, Memory Done
From PCI/A-PCI
To PCI/A-PCI
To MRO
Figure 7. Block Diagram of the Bus Interface Unit (BIU)
BIU Queues
The BIU contains the following queues:
n
Chapter 5
The command queue (CQ) receives transaction requests
from the processor and stores them until they can be
dispatched by the destination-dispatch agent.
Functional Operation
53
Preliminary Information
AMD-751™ System Controller Data Sheet
n
The probe queue (PQ) stores probes from the system to the
processor. To maintain coherency, the PQ is snoopable.
n
The processor system data and control queue (CSQ) stores
system data control commands in three separate read and
write buffers for data movement in and out of the processor
caused by commands generated by the processor itself.
The probe system data and control queue (PSQ) stores
system data control commands for data movement in and out
of the processor for probes generated by the system.
n
BIU Functional Units
5.2.2
21910E—March 2000
The BIU contains the following functional units:
n
The probe response alert agent (PRA) broadcasts probe
responses it receives from the processor. The probe response
can
come
as
a
quick
probe
miss
or
no-data-movement-required commands, or it can come as a
long probe-response command.
n
The transaction combiner agent (XCA) is responsible for
creating a command packet from the system to the processor
containing SysAddOut command format and probe
information. The XCA intelligently combines, when
possible, the CSQ or PSQ entry and the PQ entry, and
transmits it to the processor using the four-cycle SysAddOut
command format. When there is either no PQ entry, CSQ
entry, or PSQ entry ready for dispatching, a NOP is inserted
by the combiner logic. The acknowledge (A-bit) information
is also packed in the four-cycle SysAddOut command format.
BIU Start-Up
The AMD Athlon system bus is a unique, source-synchronous,
channel that uses protocol and fixed delivery windows to
provide maximum performance.
An AMD Athlon system bus is synchronous. However, the use of
multiple PLLs in the system and the use of source-synchronous
clocking create different clock domains from the processor to
the system logic and from the processor to a backside L2 cache.
A clock domain is the component or set of components running
on one clock signal for its logic operation. For example, the
AMD-751 system controller is one clock domain and operates on
its own PLL. Although this PLL is driven from the same clock
generator as the rest of the system, drifts and skews in the
54
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
internal clock place this device in a different clock domain than
the processor. Similarly, the processor has its own PLL and,
while synchronous, its own clock domain.
When the processor and system logic transfer data back and
forth, they send a source-synchronous clock with the data. In
this way, the data can be received into input buffers using a
clock that has a known, fixed relationship to the data. When
data is received, special logic (FIFOs, counters, etc.) allows the
data to be reliably moved from the clock domain of the
transmitting device to the clock domain of the receiving device.
To ensure efficient, reliable operation, and to know which clock
edge has which data, this logic must be programmed for the
component and board delays before any transfer can occur.
The processor uses a packet-based protocol with predefined
delays from protocol packets to data transfers. However, these
delays are defined based on the processor clock frequency and
certain programmable values. These values must be correctly
programmed and agreed upon before any transfer can occur.
As part of the reset sequencing, the processor and system logic
use a set of shared interface pins (CONNECT, CLKFWDRST,
and PROCRDY) to serially transfer a serial initialization packet
(SIP) from a ROM table in the AMD-751 to the processor.
Resister strapping options on the AMD Athlon system bus
card-edge connector select the entry in this ROM table. The
strapping tells the AMD-751 what speed and what processor
type is in the processor module. For the appropriate entry in the
table, the AMD-751 transmits a serial bit stream to the
processor and uses other bits for its own state machines and
logic. In this way, the processor and the AMD-751 establish a
predefined set of operating assumptions and conditions.
Because the AMD Athlon system bus protocol is packet-based,
the beginning of each packet must be negotiated between the
sender and the receiver. This negotiation is accomplished by
starting with an all 1b bit pattern (a NOP command) until the
first non-NOP packet boundary is identified. From that point
forward, simple counters can track the start of each packet.
Initially the processor issues a packet to the AMD-751, which
marks the beginning of the packet. The AMD-751 responds with
a packet that the processor uses to synchronize the return path.
As long as the bus clocks continue to run, the packet-timing
relationship remains valid.
Chapter 5
Functional Operation
55
Preliminary Information
AMD-751™ System Controller Data Sheet
Serial Initialization
Packet (SIP) Protocol
0ns
21910E—March 2000
The SIP protocol is shown in Figure 8 and described in Table 7.
For a typical system reset sequence, the AMD-756 peripheral
bus controller asserts PCIRST# to the system reset input and
CPURST# to the processor RESET# input.
25ns
50ns
75ns
100ns
125ns
NB_Reset#
RESET#
CLKFWDRST
CONNECT
Start
SIP1
SIPn
PROCRDY
SYSCLK
SADDOUTCLK#
ADDOUT[14:2]#
CMD
Figure 8. SIP Protocol
Table 7.
SIP Protocol States and Actions
State
Action
1
When NB_RESET# and RESET# are asserted, the system asserts CONNECT and CLKFWDRST and the processor
asserts PROCRDY.
When NB_RESET# is deasserted, the system deasserts CONNECT, but continues to assert CLKFWDRST.
2
When RESET# is deasserted, the processor deasserts PROCRDY and is ready for initialization (through the SIP
protocol).
Note: The system must be out of reset before the processor deasserts PROCRDY.
3
One or more SYSCLK periods after the deassertion of PROCRDY, the system deasserts CLKFWDRST. (States 3 and
4 are performed for AMD Athlon system bus legacy reasons.)
4
One or more SYSCLK periods after the deassertion of CLKFWDRST, the system again asserts CLKFWDRST.
5
Either at the assertion of CLKFWDRST or one or more SYSCLK periods later, the processor expects the start bit
(CONNECT asserted) of the SIP. The system delivers the SIP containing the processor source-synchronous
initialization state over CONNECT.
After the SIP is transferred, the system asserts and holds CONNECT, which indicates the end of the SIP transfer to
the processor.
6
56
One or more SYSCLK periods after receiving the SIP, the processor asserts PROCRDY to indicate to the system
that it has received the SIP, initialized itself, and is ready.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 7.
SIP Protocol States and Actions (Continued)
State
Action
7
One or more SYSCLK periods after the assertion of PROCRDY, the system deasserts CLKFWDRST.
8
Three SYSCLK periods after CLKFWDRST deassertion, the processor drives its source-synchronous clocks. The
processor indicates bit-time 0 to the system by issuing a non-NOP command on the appropriate
source-synchronous clock.
AMD Athlon™ Processor SIP Mapping. T h e
A M D -7 5 1
system
controller is responsible for supplying initialization values to
the AMD Athlon processor that are a function of physical
AMD Athlon system bus length, SYSCLK frequency, and
processor clock multiplier. These values must be loaded prior to
any AMD Athlon system bus transactions and are supplied
through the SIP protocol. The AMD-751 implements two
modes — production and debug. During reset, if ROM_SCK is
pulled High (debug mode), the SROM supplies the SIP packet
to the AMD-751. If ROM_SCK is pulled Low (production mode),
the SIP packet is generated internally.
5.2.3
Processor Write Posting
The AMD-751 system controller contains two write buffers to
enhance write performance. Each buffer can hold four entire
cache lines, also referred to as data blocks. Each data block is
64 bytes (eight quadwords). The write buffers are always
enabled. The memory controller supports both single writes
and block writes. Block writes are more common in a typical
system than single writes because the processor uses writeback
caches, which transfer data in blocks. When a writeback cache
is employed, the AMD-751 sees a block transaction every time
the processor clears a cache line. The posted write buffers of
the AMD-751 can handle four back-to-back block transactions
without wait states. Figure 9 on page 58 shows the organization
of the posted write buffers.
Chapter 5
Functional Operation
57
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
To the
Processor
From the
Processor
Probe Data Movement Buffer
64 Bytes X 4 Entries
Memory Read Data Buffer
64 Bytes X 4 Entries
Memory Write Data Buffer
64 Bytes X 4 Entries
PCI/A-PCI Read Data Buffer
64 Bytes X 2 Entries
PCI/A-PCI Write Data FIFO
8 Bytes X 12 Entries
Command
Select
Figure 9. AMD Athlon™ System Bus Data Buffers (BIU)
The write buffers are organized as pseudo first-in-first-out
(FIFO) buffers. That is, writes from the buffers to memory are
usually performed in the order they are received from the
processor. Four consecutive write transactions, whether single
or block, fill all four 64-byte buffers. Write buffers continue to
accept data until either the buffers are full or all data from the
processor is received. At that point, the AMD-751 begins
writing data to the DRAM. As each pending write to main
memory is performed, freeing the corresponding buffer, the
memory controller sends a command to the processor.
5.2.4
Read Buffer
The AMD-751 system controller contains two, 64-byte by
four-entry read buffers. Each buffer can hold an entire block of
data. Memory reads that fill the processor caches are by far the
most common types of reads. These reads occur as a burst read
of eight quadwords (64 bytes).
The read buffers snoop write transactions to maintain data
coherency. If a write transaction occurs to an address where one
of the re ad buffers contains data, that read buffe r is
invalidated.
58
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.3
Memory Interface
The AMD-751 system controller memory interface contains two
functional blocks — the memory request organizer (MRO),
which serves as a data crossbar and kernel for the AMD-751,
and the memory controller (MCT), which is designed to operate
up to three PC-100 SDRAM DIMMs.
5.3.1
Memory Request Organizer (MRO)
The memory request organizer (MRO) is responsible for
scheduling read/write requests to main memory from the BIU,
primary PCI, and secondary A-PCI (AGP). The MRO evaluates
all the dependencies a particular read/write request may have,
waits for all these dependencies to resolve, and routes the data
accordingly.
The MRO consists of the following modules:
n
n
Memory queue arbiter (MQA)
Four memory read queues (MRQ[3:0])
Memory write queue (MWQ)
n
Memory write selector (MWS)
n
A top-level diagram of the MRO is shown in Figure 10 on
page 60.
Chapter 5
Functional Operation
59
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
From BIU
From PCI
From A-PCI
From AGP
Memory Queue Arbiter
(MQA)
AGP Address Translator
(AAT)
MRQ3
MRQ2
MRQ1
MRQ0
MWQ
MWS
RBN
To MCT
Figure 10. Memory Request Organizer (MRO) Block Diagram
Memory Queue
Arbiter (MQA)
The memory queue arbiter (MQA) is responsible for choosing
between read and write requests from all sources (BIU, PCI,
and A-PCI) in a round-robin (RBN) manner. The MQA sends one
read or write transaction to the MRQs or MWQ on each clock
cycle. In addition, the arbiter performs translation from the
physical address to the DRAM bank/row/column address, based
on the DRAM socket addressed in a request.
A two-level prioritization scheme is used. At the highest level
there are two requesters — the BIU and all other requesters
OR’ed together. The second level of the hierarchy contains a
round-robin arbiter between the peripheral requesters.
Figure 11 on page 61 shows the structure of this arbiter. AGP
requests undergo address translation in the MRO and are
forwarded directly to the MCT.
60
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
The output from the MQA is passed on to one of the MRQs or
the MWQ, to be scheduled by the memory request scheduler
(MRS) as described in the “Memory Controller (MCT)” on
page 63. The MRS is responsible for scheduling requests from
various sources onto the actual memory interface.
Force Priority
Three-Input Round-Robin Arbiter
Top-Level of Arbiter
Request
BIU Request
Two-Input Round-Robin Arbiter
First-Level of Arbiter
A-PCI Request
PCI Request
Figure 11. Memory Queue Arbiter (MQA) Block Diagram
The arbiter is disabled if there are no free entries in the MRQs
or MWQ. All requests are held until some of the older requests
in the full queue are serviced. However, if one of the queues has
available entries, the arbiter continues to issue requests to it,
even if the other queue is stalled.
The Memory Read
Queues (MRQ)
The four memory read queues (MRQ) store four read requests,
each directed to the main memory (with the exception of AGP
read requests, which bypass the read queue). Each MRQ holds
read requests for one of the four banks of memory. Each entry
contains transfer-relevant information, such as address and
size, as well as dependency flags. The flags are cleared when
the dependencies are removed.
A read-request entry is placed in the MRQ by the MQA. The
new request is entered on top of the latest request in the queue,
unless the request is a page hit (PH). In the case of a page hit,
the request is placed ahead of any page-miss requests, but
behind any older page-hit requests. Therefore, the queue is
built with the oldest page-hit request at the bottom of the
queue and the newest page miss at the top. The RBN schedules
the read request to the MCT in a round-robin manner.
Chapter 5
Functional Operation
61
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
When the entry is put into the MRQ, the address of the read
request is passed through the memory write queue (MWQ) and
compared with all valid MWQ entries. If one or more write
requests in the MWQ are pending to the same cache line
addressed by the read request, a dependency exists and this
particular read request cannot be scheduled by the MRS until
the writes have completed.
Memory Write Queue
(MWQ)
The memory write queue (MWQ) stores six write requests
directed to main memory. Each entry contains transfer-relevant
information, such as address and size, as well as dependency
flags. The flags are cleared when the dependencies are
removed.
When the entry is put into the MWQ, the address of the write
request is compared with all current entries in the MWQ. If one
or more write requests in the MWQ are pending to the same
cache line addressed by the new write request, the dependent
writes are executed in order.
Memory Write
Selector (MWS)
The memory write selector (MWS) chooses one eligible write to
present to the MCT. The write that is chosen is the oldest entry
that has resolved all of its data dependencies. In addition, the
module contains logic to correctly sequence a merged write to
the MCT, which occurs when a partial cache line write results in
a processor probe data movement. The processor data is written
to memory first, followed by the partial cache line data. Both
writ es orig ina te f rom a single MW Q entry, present ed
back-to-back by the MWS.
AGP read/write requests are handled in a slightly different
manner than the other requests. AGP requests have address
translation applied in the MRO, and then the requests are
forwarded to the MCT.
The MRO forms a fully-coherent subsystem. To determine any
dependencies, all read requests entering the read queue cause
a probe to all pending write requests in the write queue. If a
dependency is detected, the read is not sent to memory until
the write is serviced. Likewise, all write requests entering the
write queue are compared with existing entries to see if
dependencies exist. If a dependency is found, the dependent
writes are executed in order.
62
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.3.2
Memory Controller (MCT)
The memory controller (MCT) arbitrates and optimizes
incoming memory requests, handles ECC and graphics address
remapping table (GART) walks (GTW), gathers and retrieves
data, and controls up to three SDRAM modules or six banks.
Bank one is enabled by CS[0]#, bank two is enabled by CS[1]#,
and so on. Single-banked memory modules require one CS[5:0]#
signal. Dual-banked memory modules occupy two rows of
memory and require one SRAS# and two CS[5:0]# signals.
DRAM banks are grouped into three pairs. Each pair can have
zero, one, or both banks populated. See Figure 13 on page 67 for
more information.
Figure 12 shows the block diagram for the MCT. The MCT
c o n f i g u ra t i o n re g i s t e rs a re d e s c r i b e d i n C h a p t e r 7 ,
“Configuration Registers” on page 123.
Write
Request
Four
Read
Requests
Accept Request
Data
Request
AGP Request
GART
Table Walk
(GTW)
Memory
Request
Arbiter
(MRA)
Read Data
Data
Acknowledge
GART Read Data
Next Request
Accept Request
Memory
Data
Path
(MDP)
ECC
ECC
Merge
Check
MUX*
MDP Control
SDRAM
Memory
Controller
(SMC)
Data
SDRAM Interface
Address and Controls
SDRAM
Note: * BIU data bypasses ECC generation and passes the system bus ECC directly to memory.
Figure 12. Memory Controller (MCT) Block Diagram
Chapter 5
Functional Operation
63
Preliminary Information
AMD-751™ System Controller Data Sheet
MCT Features
The MCT has the following features:
n
n
n
n
n
n
n
n
n
n
MCT Blocks
21910E—March 2000
Support for up to three, 168-pin SDRAM DIMMs using
16-Mbit (with the exception of 32-bit wide devices), 64-Mbit,
and 128-Mbit density SDRAMs.
Support for SDRAM DIMMs with either 72 bits with error
correcting code (ECC) or 64 bits with no ECC.
Support for up to 768 Mbytes of memory (128-Mbit by four
technology equals a 256-Mbyte per slot capacity for up to
768 Mbytes).
Support for up to four open pages within one CS (the device
selected by chip select) for one-quadword AGP requests.
Support for ECC with no scrubbing or correction of memory.
ECC from the AMD Athlon system bus is passed directly
into memory without checking and regeneration. No support
for parity generation and checking is provided.
Support for only one speed of SDRAM. The MCT does not
support a different SCAS# latency for each socket.
Power-down of the chipset is supported through the SDRAM
automatic refresh.
Automatic refresh of idle slots (attempt to keep refresh from
stealing bus utilization).
The MCT selects the next request to optimize bus utilization
as first importance (with configuration registers to limit
starvation) and then by the actual importance of the
request.
The MCT tracks up to four open pages and optimizes for up
to four open banks within a chip select (CS).
The MCT consists of the blocks described in this section.
Memory Request Arbiter (MRA). The MRA arbitrates and optimizes
between the different memory requesters—one AGP request,
one memory write queue (MWQ) request, four memory read
queue (MRQ) requests, and one MCT internal request —from
the GART table walk (GTW) address translation engine (ATE).
(For more information, see “GART Address Translation Engine
(ATE)” on page 100.) The MRA can select one request on each
cycle and present it to the SDRAM memory controller (SMC).
SDRAM Memory Controller (SMC). The SMC takes each request
presented from the MRA and schedules and optimizes the
correct events onto the SDRAM interface. In addition, the SMC
64
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
controls traffic and ECC production in the memory data path
(MDP), refreshes SDRAM, power-down, and power-up,
initializes SDRAM on RESET, and sets the mode register inside
the SDRAM with a BIOS-specified value for device 0, offset 5A,
bit 7.
Memory Data Path (MDP). The MDP is responsible for providing
and distributing data for memory requests and for dealing with
ECC and write-merging memory write requests of less than
64-bits that require ECC.
5.3.3
Address Mapping and Memory Organization
Addresses are decoded into the following four controls for
SDRAM operation:
n
n
n
n
CS (Chip Select)—Three DIMM sockets are supported, each
with up to two CS signals (CS[5:0]#). Each CS[5:0]# signal is
determined by performing an address less-than comparison
across all the end address configuration registers (see
Chapter 7, “Configuration Registers” on page 123) and
selecting the slot associated with the lowest slot match.
Bank—Bank selects one of up to four banks within a CS (or
memory module selected by CS). The bank signal is encoded
in two bits that select either two or four banks within a CS.
Row—Row selects one of up to 8-Kbyte rows within a bank.
Row addresses are up to 13 bits.
Col—Col selects one of up to 4-Kbyte quadwords within
each row. Column addresses are up to 12 bits.
These four parts of an address request are translated and
provided by each memory requester (AGP, MWQ, MRQ, and
ATE). All signals coming to the MCT are encoded. Using the CS,
bank, and row information, the MRA selects the next request
for the SMC to handle. The SMC then schedules the correct
sequence of events onto the SDRAM interface and merges the
bank bits onto the correct row and column bits according to the
memory size of the destination, configuration register settings,
and SDRAM organization.
The memory organizations listed in Table 8 on page 66 for
16-Mbit and 64-Mbit SDRAM are from current SDRAM specs
and from the JEDEC standard.
Chapter 5
Functional Operation
65
Preliminary Information
AMD-751™ System Controller Data Sheet
.
Table 8.
21910E—March 2000
SDRAM Memory Organizations
SDRAM Organization
Number of
SDRAMs
Needed for
64-Bit Bus
Total Memory
Module Size
Number of
Bank Bits
/Address Bits
Number of
Column Bits
Number of
Row Bits
16 Mbit
4-Bit Wide Device
Two Banks x 2 Mbytes
16
32 Mbytes
1/MA11
10
11
8-Bit Wide Device
Two Banks x 1 Mbyte
8
16 Mbytes
1/MA11
9
11
16-Bit Wide Device
Two Banks x 512 Kbytes
4
8 Mbytes
1/MA11
8
11
2
4 Mbytes
1/MA10
8
10
32-Bit Wide Device
Two Banks x 256 Kbytes
— Not Supported
64 Mbit
4-Bit Wide Device
Four Banks x 4 Mbytes
16
128 Mbytes
2/MA12-13
10
12
Two Banks x 8 Mbytes
16
128 Mbytes
1/MA13
10
13
8-Bit Wide Device
Four Banks x 2 Mbytes
8
64 Mbytes
2/MA12-13
9
12
Two Banks x 4 Mbytes
8
64 Mbytes
1/MA13
9
13
16-Bit Wide Device
Four Banks x 1 Mbyte
4
32 Mbytes
2/MA12-13
8
12
Two Banks x 2Mbytes
4
32 Mbytes
1/MA13
8
13
32-Bit Wide Device
Four Banks x 512 Kbytes
2
16 Mbytes
2/MA11-12
8
11
2
16 Mbytes
1/MA12
8
12
— Not Supported
Two Banks x 1 Mbyte
— Not Supported
128 Mbit
4-Bit Wide Device
Four Banks x 8 Mbytes
16
256 Mbytes
2/MA12-13
11
12
8-Bit Wide Device
Four Banks x 4 Mbytes
8
128 Mbytes
2//MA12-13
10
12
16-Bit Wide Device
Four Banks x 2 Mbytes
4
64 Mbytes
2//MA12-13
9
12
32-Bit Wide Device
Four Banks x 1 Mbytes
2
32 Mbytes
2/MA12-13
8
12
Note:
Shaded rows indicated unsupported memory sizes.
66
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.3.4
SDRAM Interface Memory
Figure 13 shows an SDRAM interface example.
AMD-751™ System Controller
SCASB#
SRAS2# SRAS1# SRAS0#
SCAS2# SCAS1# SCAS0#
DQM[7:0]#
MD[63:0]
MDP[7:0]
MAdB[14:0]
MAdA[14:0]
WE0# WE1# WE2#
CS[5:0]#
168-Pin, 64- or 72-bit SDRAM DIMM module
0
1
168-Pin, 64- or 72-bit SDRAM DIMM module
2
3
168-Pin, 64- or 72-bit SDRAM DIMM module
4
5
Figure 13. SDRAM Interface Example
Memory Detection
The AMD-751 system controller can accommodate different
memory sizes in different slots. To determine the type and size
of the memory device, the BIOS can use the serial presence
detect (SPD) feature found in PC-100 DIMMs (using the
AMD-756 peripheral bus controller to read DRAM information)
o r a m o re g e n e ra l -p u rp o s e s i z i n g a l g o r i t h m . S e e t h e
AMD Athlon™ BIOS Developers Guide, order# 21656 for more
information.
Error Correcting
Code (ECC)
The AMD-751 system controller supports error correcting code
(ECC) to check the integrity of transactions with system
memory. ECC, also referred to as Hamming code, corrects
single-bit and some double-bit errors. The DRAM ECC status
register is enabled in device 0, offset 59h–58h (see page 145).
Chapter 5
Functional Operation
67
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
ECC operation requires that system memory be initialized on
power-up. In this procedure, the BIOS writes to every memory
location, generating valid ECC that is stored in the DRAM
parity bits. If this procedure is not performed, errors occur
when writing data smaller than a 64-bit quadword.
Data from the AMD Athlon processor includes ECC, which is
passed directly into memory—providing protection along the
whole data path.
Memory types (72-bit and 64-bit DIMMs) cannot be mixed when
ECC is enabled.
DRAM Refresh
The AMD-751 system controller provides DRAM refresh that is
transparent to the rest of the system. Normal and burst can be
selected through device 0, offset 5Ah–5Bh (see page 145).
Accesses to the read and posted write buffers are allowed
during a refresh period. DRAM self-refresh mode is entered
when the system enters an S1 or S2 ACPI power-down state.
In addition, the AMD-751 system controller contains a refresh
counter that provides 4096 refresh cycles on MA[11:0]. The
refresh period is derived by dividing MCKE by 512, 1024, 1536,
or 2048. The refresh period is programmed in the DRAM
Mode/Status register (device 0, offset 5Ah) bits 1–0. Figure 14
shows the DRAM refresh timing.
MCKE
MA[13:0]
SRAS0#
SRAS1#
SRAS2#
SCAS[7:0]#
Figure 14. DRAM Refresh Timing
68
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
For example, in a system with SYSCLK = 100 MHz and a refresh
interval of 1024 cycles every 16 ms, the refresh divisor is
calculated as follows:
Refresh Interval/Refresh Cycles ≥ Refresh Cycles · Clock Period
(16 x 10–3sec) / 1536 cycles ≥ (1536 cycles) (10 x 10-9sec)
Refresh State
Machine
The refresh state machine keeps track of when each of CS[5:0]
needs to be refreshed. Each CS is refreshed independently.
Refresh is only performed on rows that are populated. A
concurrent refresh cycle can be executed in parallel with other
read and write requests, if there is no CS conflict and the
command bus is free. Figure 15 shows the refresh timers and
counters.
SMCBusyCS[7:0]
RefAccept
Refresh State Machine
Refresh Timer Cycle Count
14 Bits
CS0
Refresh
Counter
CS1
Refresh
Counter
CS2
Refresh
Counter
CS3
Refresh
Counter
CS_urgentRef
CS4
Refresh
Counter
CS5
Refresh
Counter
Pick 1 CS
RefCS, Addr, CMD, V
RefCS Busy
To Memory Request
Arbiter (MRA)
Refresh State Machine
Figure 15. Refresh Timer and Counters
Chapter 5
Functional Operation
69
Preliminary Information
AMD-751™ System Controller Data Sheet
SDRAM Initialization
21910E—March 2000
This section contains basic information about SDRAM
initialization. For more details, see the AMD-751™ System
Controller Memory Settings Application Note, order# 22835.
Initialization can be broken down into two parts. The first is the
SDRAM initialization and the second is the BIOS initialization
to configure the MCT for correct and optimal operation.
SDRAMs require the following sequence to initialize:
1. Bring up VDD and start the clock (done by external logic).
2. Assert MCKE and DQM inputs High, hold the other inputs
at a NOP command—the MCT forces this condition when
RESET# is asserted.
3. Wait 100 to 200 microseconds (which is ensured by RESET#
staying asserted for this length of time), perform a
minimum of eight auto-refresh cycles to all banks by setting
the SDRAM initialization bit of the DRAM Mode/Status
register (device 0, offset 5Ah, bit 9), and set the refresh
counter refresh value (offset 5Ah, bits 1–0) to 11 (see
page 146). Then wait until SDRAM initialization status (bit
9) is reset, which indicates that eight refresh cycles have
occurred. The BIOS then turns off refresh again by writing a
zero into the refresh.
4. Write a 1 to SDRAM operation mode select (offset = 5Ah,
bit 7) to issue a mode register set command. The BIOS then
needs to write to the address corresponding to the value to
which the mode register is set (the mode command is on the
address lines and default address mapping is set to 16
Mbits). The conditions should be set as follows:
• A11–A7 must be equal to 00000b.
• A6–A4 = 010b for SCAS#=2 or 011b for SCAS#=3.
SCAS# latencies of 2 or 3 are specified by DIMM
manufacturers (see “Synchronous DRAM (SDRAM)” on
page 72).
•
•
A3 = 1 (for interleave burst).
A2–A0 = 011b for eight quadword bursts.
Row A11–A0 corresponds to A11, A12, and A22–A13 in
16-Mbyte address mapping. See Table 22 on page 142 for
address mappings.
70
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Memory Controller
Initialization
To correctly initialize the MCT, the BIOS must perform the
following steps:
1. Program DIMM timing values in device 0, offset 54h.
2. Enable the refresh counter (device 0, offset 5Ah, bits 1–0)
with a conservative value (for example, 11 = 512 cycles
between refreshes).
3. Set the timing configuration registers to the worst case
timing of any DIMM.
4. Enable each CS, one at a time, by using the bank-enable
registers (device 0, offsets 40h–4Bh) and perform the
following steps to determine the size of each CS:
A. Configure each CS to be a 256-Mbit memory module with
a 512-Mbyte ending address.
B. Write a unique pattern into the topmost quadword of
memory (address = 3FF_FFFFh).
C. Read the location (address = 3FF_FFFFh). If the pattern
read is the one written in the previous step, it is a
512-Mbyte module. If not, then:
i. Write a unique pattern into the topmost quadword of
memory (address = 1FF_FFFFh).
ii. Read the location (address = 1FF_FFFFh). If the
pattern read is the pattern written in the previous
step, it is a 256-Mbyte module. If not, then:
* Keep changing the msb to 0 until the size is
determined.
D. Repeat this process for each slot until the number of slots
is determined.
5.3.5
Shadow RAM
To prevent altering the content of this crucial system code, the
BIOS normally resides in ROM. Because ROM is substantially
slower than RAM, most systems provide for copying the ROM
contents to the upper memory area of RAM and making that
area read-only. The portion of RAM containing the BIOS copy is
referred to as shadow RAM.
The AMD-751 system controller does not contain any hardware
to support the shadowing of system, video, and other BIOS
functions to accelerate access. This capability is supported with
the AMD Athlon processor memory type and range registers
(MTRR).
Chapter 5
Functional Operation
71
Preliminary Information
AMD-751™ System Controller Data Sheet
5.3.6
21910E—March 2000
Synchronous DRAM (SDRAM)
The AMD-751 system controller only supports synchronous
DRAM (SDRAM), which is a cost-effective, mainstream type of
system memory. SDRAMs use a clock to synchronize address
and data rather than row and column strobes. The net effect is
burst performance that approaches SRAM. In addition,
SDRAMs can be programmed to select the burst length, write
mode, and type of burst (sequential or linear). The PC-100
specification has standardized the characteristics of SDRAM
DIMMs. Table 9 shows the timing parameter PC-100 Rev. 1.0
SDRAM DIMM part nomenclature used by manufacturers.
Table 9.
PC-100 REV. 1.0 SDRAM DIMM Part Nomenclature
TCL
TRCD
TRP
Comments
2 Clocks
2
2
Lowest Latency
3 Clocks
2
2
3 Clocks
2
3
3 Clocks
3
3
Highest Latency
Notes:
TCL is the SCAS# latency.
TRCD is the SRAS# to SCAS# delay.
TRP is the row precharge.
SDRAM memory does not toggle SCAS# to get new data, but
simply increases a counter to supply the address for succeeding
cycles, which substantially reduces bus delays. The basic
characteristics of SDRAM are as follows:
n
n
n
n
n
n
SRAS# and SCAS# act as clock enables rather than strobes.
The output drivers remain on when SCAS# is negated. They
are turned off when WE[2:0]# or CS# is asserted High or
when the burst count expires.
Read data is valid until the next rising clock edge.
Write data is sampled on each rising clock edge.
DQM[7:0]# determine which bytes are read or written.
Control signals need only be valid during CS#.
The BIOS configures the memory controller for SDRAM
memory operation by programming device 0, offset 55h–54h
(see page 143).
72
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Multiple Pages Open
Using SDRAM, the AMD-751 system controller allows multiple
pages in a DIMM module to be open at the same time, which
increases the effective memory bandwidth by eliminating some
RAS cycles.
SDRAM at 100 MHz
When using SDRAM on a 100-MHz memory bus, some special
considerations and analysis are required. This section describes
the 100-MHz SDRAM implementation method for the AMD-751
and the timing analysis required for reliable system design. An
unbuffered SDRAM DIMM organization is used for this
analysis.
For the 100-MHz SDRAM system, it is assumed that a maximum
of 10 clock loads are allowed on one DIMM slot (single or
double rows). This constraint implies the following:
n
n
n
Chapter 5
To support 4-bit wide devices, the zero delay buffer (ZDB)
provides up to four clocks per DIMM to distribute the load.
8-bit wide devices can be used in single-row, unbuffered
DIMM modules. Unbuffered DIMMs cannot be used in the
case of dual-row DIMMs because of 16/18 loads on SRAS#,
SCAS#, and MA[11:0].
16-bit wide and 32-bit wide devices have no restrictions.
Functional Operation
73
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 10 gives a more detailed SDRAM DIMM loading analysis.
Table 10. SDRAM DIMM Loading Analysis
DIMM
Size
DIMM
Organization
Number Number Number of
Number Number Number
of Rows/ of Loads
Loads
of Loads of Loads of Load
Number
MD
Clock
MA/Ctrl1 SRAS#/CS#2 DQM
of IC
SDRAM
Technology
Unbuffered DIMM Modules
8 Mbytes
1 Mbyte x 64
1 Mbit x16/16 Mbit
1/4
4
4
1
1
4
8 Mbytes
1 Mbyte x 72
1 Mbit x16/16 Mbit
1/63
5
5
1
1
5
16 Mbytes 2 Mbytes x 64 1 Mbit x16/16 Mbit
2/8
8
4
1
2
8
16 Mbytes 2 Mbytes x 72 1 Mbit x16/16 Mbit
2/104
10
5
1
2
10
16 Mbytes 2 Mbytes x 72 2 Mbit x 8/16 Mbit
1/9
9
9
1
1
9
32 Mbytes 4 Mbytes x 64 4 Mbit x16/64 Mbit
1/4
4
4
1
1
4
32 Mbytes 4 Mbytes x 72 4 Mbit x16/64 Mbit
1/63
6
6
1
1
6
64 Mbytes 8 Mbytes x 72 8 Mbit x 8/64 Mbit
1/9
9
9
1
1
9
64 Mbytes 8 Mbytes x 64 4 Mbit x16/64 Mbit
2/8
8
4
1
2
8
64 Mbytes 8 Mbytes x 72 4 Mbit x16/64 Mbit
2/104
10
5
1
2
10
Unbuffered DIMM Modules (difficult to support)
32 Mbytes 4 Mbytes x 64 2 Mbit x 8/16 Mbit
2/16
16
8
1
2
16
32 Mbytes 4 Mbytes x 72 2 Mbit x 8/16 Mbit
2/18
18
9
1
2
18
Notes:
1.
2.
3.
4.
74
Control includes SRAS#, SCAS#, or SWE#.
Row Chip Select.
In the JEDEC specification, 72-bit wide ECC DIMMs use two extra 4-bit wide devices for a single-row DIMM.
72-bit wide ECC DIMMS use four extra 4-bit wide devices for dual-row DIMMs. However, to reduce loading, two 8-bit wide devices
are recommended.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
The SDRAM 100-MHz
Scheme
To achieve the 100-MHz timing, a careful system timing analysis
is required. Figure 16 shows the AMD-751 system controller
clocking scheme.
System Clock Generator
SysCLK (100 MHz)
DIMM #1
AMD-751™ System
Controller
DIMM #2
DIMM #3
SDCLK[3:0]
Zero Delay
Buffer
(ZDB)
SDRAM
CLK_Out
SDRAM
CLK_In
SDCLK[7:4]
SDCLK[11:8]
Figure 16. AMD-751™ System Controller Clocking Scheme
Delay Analysis
The most important two numbers in the clocking scheme are as
follows:
n
n
How early can the command (SRAS#, SCAS#), memory
address (MA), and memory data (MD) be driven (in a write
cycle)?
How late can the returned data be latched?
Figure 17 on page 76 shows the 100-MHz SDRAM timing in
detail. Table 11 on page 77 contains descriptions of the timing
variables.
Chapter 5
Functional Operation
75
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
0ns
50ns
tsu
th
tSU
tsu
clock
early clock
tSU
late clock
tVD
tVD
MA
tprop
MA (delay)
tVD
tVD
SRAS#,SCAS#,WE#
tprop
tprop
ctrl (delay)
tVD
MD (write)
tprop
tprop
MD (write delay)
tcq
tcq
MD (read)
tprop
tprop
MD (read delay)
GR-100
Figure 17. 100-MHz SDRAM Detailed Timing
76
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 11. Key SDRAM DIMM Timing Variables
Timing Variable SCAS#=3 SCAS#=2
Description
3
2
SCAS# latency—The fundamental timing number that communicates how
many cycles it takes to activate or read data.
Tcl=4 is supported for buffered SDRAM.
Trcd
3–2
2
SRAS# to SCAS# latency—The delay from activation to RD/WR command.
Trc
8–7
5–7
Bank cycle time—The minimum time from activation to activation of the same
bank, or auto refresh to activation (mode register set command).
Tras
5
3–5
Minimum bank active time—The time from activation to precharge of the same
bank.
Trp
3
2
Precharge time—The time from the precharge command to when the bank
can be activated again (mode register set or refresh).
Trw
1
1
Timing variable—Dictates R->W for how many NOP cycles must exist between
RD and WR and when the data bus needs to be tri-stated before the last read
data. Not configurable.
Tdimm
1
1
One cycle for DIMM turn-around time for page miss. Not configurable.
Trrd
2
2
Bank to different bank in same slot delay time—The delay from activating two
banks within the same slot. Not configurable.
Tcl = Taa
Signal Timing Analysis. The following equation calculates how
early the AMD-751 system controller needs to send out SDRAM
address and control signals. The calculation is as follows, with
the reference as the external system clock:
tprop = tcycle – (tVD + tckskew + tsetup)
Where:
n
n
n
n
n
tcycle —100-MHz cycle time = 10 ns
tVD —Clock to output valid delay = 6 ns
tckskew —Total allowable clock skew and phase error
between the AMD-751 and SDRAM = 0.325 ns
tsetup —SDRAM setup requirement = 2 ns
tprop —AMD-751 to SDRAM propagation delay < 1.675 ns
The result shows that, if the system clock is used to drive the
SDRAM clocks, only a very short propagation delay is allowed.
To allow greater propagation delays and compensate for the tVD
time, use a ZDB to drive the SDRAM clock.
For more information on SDRAM timing analysis, see the
AMD-751™ System Controller SDRAM Cookbook, order#
22912.
Chapter 5
Functional Operation
77
Preliminary Information
AMD-751™ System Controller Data Sheet
5.4
21910E—March 2000
PCI Bus Controller
The AMD-751 system controller drives the 32-bit PCI bus
synchronously with the PCI clock (PCLK) supplied by the
system clock generator. The AMD-751 converts the 64-bit
processor data to 32-bit PCI data and regenerates commands
with minimal overhead. A processor-to-PCI post write buffer
enables the processor and PCI to operate concurrently. The
AMD-751 converts consecutive processor addresses to burst PCI
cycles. A PCI-to-DRAM post write buffer and a DRAM-to-PCI
p re f e t ch b u f f e r e n a b l e c o n c u r re n t P C I b u s a n d
processor-DRAM accesses during PCI-initiator transactions.
When the processor drives an I/O cycle to an address other than
the AMD-751 system controller configuration register
addresses, the AMD-751 passes the I/O cycle to the PCI bus. The
AMD-751 posts the I/O cycle in one of its write buffers. The
AMD-751 does not respond to I/O cycles driven by PCI initiators
on the PCI bus. The AMD-751 allows these cycles to complete
on the PCI bus. A memory write is the only transaction
permitted from PCI to AGP.
Each PCI block can be broken up into two sub-blocks—the PCI
target module and the PCI master module. The PCI target
module handles cycles initiated by an external master on the
PCI bus. The AMD-751 responds to cycles that are directed to
main memory or writes that are sent to the other PCI interface.
This module contains write buffers (PCI-to-memory and
PCI-to-PCI), read buffers from memory, and a target sequencer
that keeps track of the bus while the AMD-751 is a PCI target.
Memory requests from both the PCI interfaces are sent through
the MRO. See “AGP System DRAM Interface (SDI)” on page 90
for more information.
The PCI master module handles processor-to-PCI bus cycles.
Within a processor stream, no reordering is done.
5.4.1
Memory Coherency
The AMD-751 system controller determines whether the data
accessed through the PCI buses are coherent. Data written by
the processor is made available for PCI reads and data from PCI
writes is provided to the processor when it reads the same
78
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
location. If the PCI cycles get mapped through the GART, the
AMD-751 performs one of the following actions to guarantee
coherency:
n
If this memory is cacheable, the processor should only access
this memory through its physical address space and not
through the GART. The PCI bus can access the memory
either through the GART table address space or through the
standard physical address space.
n If the processor cannot guarantee accesses to this space
through the physical address space, it needs to use the same
data type as in AGP (write-combining and noncacheable).
Note: For more information about the GART, see “GART Cache
Operation” on page 98.
5.4.2
PCI Arbitration
The AMD-751 system controller contains arbitration logic that
allocates ownership of the PCI bus among itself, the AMD-756
peripheral bus controller, and five other PCI initiators.
When there are no requests for the bus, ownership defaults to
the processor through the AMD-751. Parking the bus in this
ma nner is s ome tim es re fe rred to as processo r-ce nt ric
a r b i t ra t i o n . Th e A M D -7 5 1 c a n b e p rog ra m m e d t o b e
memory-centric, which parks the bus on the PCI master. This
mode is controlled by device 0, offset 84h, bit 0 (see page 154).
5.4.3
PCI Configuration
The AMD-751 uses PCI configuration mechanism #1 to select all
of the options available for interaction with the processor,
DRAM, and the PCI bus. This mechanism is defined in the PCI
Local Bus Specification Revision 2.2. All configuration functions
for the AMD-751 are performed by using two I/O-mapped
configuration registers—IO_CNTRL (I/O address 0CF8h) and
IO_DATA (I/O address 0CFCh).
These two registers are used to access all the other internal
configuration registers of the AMD-751. The AMD-751 decodes
accesses to these two I/O addresses and handles them
internally. A read to a nonexistent configuration register
returns a value of FFh. Accesses to all other I/O addresses are
forwarded to the PCI bus as regular I/O cycles. Read and write
cycles involving the AMD-751 configuration registers are only
distinguished by the address and command that is sent.
Chapter 5
Functional Operation
79
Preliminary Information
AMD-751™ System Controller Data Sheet
5.4.4
21910E—March 2000
PCI Southbridge Signals
The AMD-751 supports one pair of PCI request/grant signals,
PREQ# and PGNT#, to connect to a Southbridge device such as
an ISA/EISA bridge. These signals are generally used when a
PCI device, an ISA master, or a DMA device requires ownership
of the system main memory. The ISA bus device asserts PREQ#
to request the bus. The AMD-751 system controller grants the
request after all of its write buffers have been flushed by
asserting PGNT#.
Note: The AMD-751 system controller allows a Southbridge device
to hold PREQ# for an extended time in order to complete an
ISA transfer and avoid a potential deadlock condition.
5.4.5
PCI Parity/ECC Errors
The AMD-751 system controller indicates that an ECC error
occurred on the memory bus by setting bit 15 in the status
register (device 0, offset 07h–06h).
On the PCI Bus
5.4.6
The AMD-751 does not check parity on the PCI bus. The status
bit (device 0, offset 07h–06h, bit 8) is always zero.
PCI-to-Memory/PCI-from-Memory and Other PCI Targets
The PCI target memory write FIFO is used to gather PCI
writes-to-memory into cache lines. Only writes from a single
PCI write transaction are gathered. By gathering them into
complete cache lines, the probe (snoop) to the processor can
invalidate the cache line instead of writing it back to the
memory. In the case of a partial cache line write, the data is
always written back to memory.
A dedicated PCI FIFO is used for writes going to the other
A-PCI interface. In addition, this FIFO allows the PCI master to
b u rs t , g a t h e r i n g 3 2 by t e s a t a t i m e , w h i ch i m p rove s
performance.
The PCI target read FIFO is used to hold the cache line being
read from memory. In addition, it is used to merge writeback
data from the processor cache. The size of this FIFO is large
enough to allow read prefetching.
80
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.4.7
PCI-to-Processor Bus Read Transactions
The AMD-751 contains an 8-byte read buffer that assembles two
32-bit PCI read cycles into one 64-bit quadword for the
processor data bus. In addition, the buffers are used when any
read crosses a 32-bit boundary. Aligned byte/word/doubleword
processor reads are passed on to the PCI bus by the AMD-751
system controller. The read buffer is always enabled.
When the processor reads from the PCI bus, the AMD-751 acts
as a PCI initiator. The AMD-751 responds to the read with data
from one of its internal buffers, or with data obtained by
performing a read operation on the PCI bus.
5.4.8
Processor-to-PCI Bus Write Transactions
The AMD -7 51 syst em co nt roller converts a f ull 64 -bit
(quadword) processor-to-PCI write into two consecutive 32-bit
(doubleword) PCI write cycles. This feature reduces the bus
bandwidth required to complete PCI writes.
The AMD-751 contains a post-write buffer between the
processor and the PCI bus. Every processor-to-PCI write is
stored in the buffer unless it is full, allowing the processor to
begin its next operation without having to wait for the write to
complete. When the PCI bus is available, the AMD-751
perform s up t o f ive 32 -bit PCI writ es to co mplete t he
transaction.
Processor To/From
the PCI Buses (PCI
Master)
The PCI master write FIFO is used to store the data for a
processor-to-PCI write, which allows concurrent writes to both
PCI buses. The architecture support is optimized for 64-byte
transfers. In addition, this FIFO can hold multiple smaller
transfers. In the case of video capture cards sitting on the
standard PCI bus, PCI-to-AGP PCI write cycles are also sent
through this buffer.
The PCI master read FIFO is able to hold the largest processor
read from the secondary PCI bus. The standard PCI bus is
optimized for single quadword accesses.
Burst Cycles
Chapter 5
The AMD-751 writes all of its buffer contents in a single PCI
transaction when the bus becomes available. In this way,
consecutive pro cessor-t o-P CI writ es, whether two f ull
quadwords or several smaller transactions combined through
byte merging, are performed in a single PCI transaction.
Functional Operation
81
Preliminary Information
AMD-751™ System Controller Data Sheet
5.4.9
21910E—March 2000
PCI Accesses by An Initiator
A PCI initiator begins a memory read or write cycle by asserting
FRAME# and placing the memory address on AD[31:0]. The
AMD-751 system controller decodes the address. If the address
is within the domain of the processor or memory, the AMD-751
accepts the cycle and responds as a PCI target by asserting
DEVSEL#. If the address is not within the AMD-751 or
processor domain, the AMD-751 ignores the cycle and allows it
to complete on the PCI.
Prefetch Options
Read requests from the PCI block to the MRO are made in
terms of cache lines only. After fetching the initial cache line, it
is possible to start prefetching the next cache line. Prefetching
the next cache line is preferred, because the PCI master
typically reads more than one line, but can waste DRAM
bandwidth if this line is thrown away.
Read/Write Request
The length of a read request is always eight quadwords (one
c a che l i n e) . D u r i n g wr i t e s, t h e A MD -75 1 at t e m p t s t o
accumulate an entire cache line. If the start address is not cache
aligned, the AMD-751 makes single write requests until it gets
cache aligned. When aligned, it makes a request every eight
quadwords. Each time a write request is made, the request
length is reset. If a partial quadword write is detected, no more
data is accumulated and a request is issued. When there are a
few accumulated quadwords and then there is a partial
quadword write, the request is broken up into two requests —
one request with the current length minus 1 containing all
enabled bytes, and one request of a single partial-quadword
write. This splitting up of requests is done in the PCI SDI
request queue.
Request Queue
When the queue is empty, the request passes through and is
sent directly to the SDI and the other PCI bus. If the SDI is not
ready to accept the request or there is a GART translation
involved, the request is held in the queue.
82
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Write Data and Byte
Enables
5.5
The PCI data bus is 32 bits wide while main memory and
internal data buses within the AMD-751 are 64 bits wide. When
a PCI write occurs to memory (and the other PCI interface), two
consecutive doublewords are accumulated into a quadword of
data. In addition, the corresponding byte enables are
accumulated. Data and byte enables corresponding to the lower
doubleword are latched. When the high doubleword is written,
this data along with the latched lower doubleword are written
to the write data FIFO. When there is no write to the upper
doubleword, the corresponding byte enables must be inactive
while writing the latched lower doubleword to the write data
FIFO. If the first write is to the upper doubleword, the lower
byte enables must be masked off.
Accelerated Graphics Port (AGP)
The accelerated graphics port (AGP) is a point-to-point
connection between a graphics adapter (AGP initiator) and a
memory controller (AGP target) that enables the adapter to
store and use graphics data in main memory. This connection
relieves graphics traffic from the PCI bus and g reatly
accelerates video performance.
The AMD-751 system controller functions as an AGP target,
providing all the signals, buffers, and logic required for full
compliance with AGP specification version 1.0.
AGP Features
While AGP relieves traffic on the PCI bus and frees up graphics
adapter memory, the greatest impact on system performance
comes from the many innovations AGP brings to data transfer
operations. These improvements include the following:
n
Split Transactions—Requests to read or write data are
separate from the data transfers.
n
Pipelined Requests—Requests can be issued contiguously
and stored in the AMD-751 system controller request queue.
Pipelining allows AGP to achieve high levels of concurrency
with PCI and the processor.
Pipeline Grants—Pipelined GNT# signals for up to four write
transactions.
n
Chapter 5
Functional Operation
83
Preliminary Information
AMD-751™ System Controller Data Sheet
n
Prioritizing (reordering)—Read and write requests can be
assigned a high priority or a low priority to ensure that more
urgent requests are serviced first.
n
A command set geared toward optimizing queued,
prioritized requests.
Defined-Length Requests—The amount of data requested is
indicated in the AGP command, rather than the duration of
an asserted signal, such as FRAME# in PCI.
n
n
n
n
n
n
n
n
84
21910E—March 2000
An 8-byte minimum data size for AGP 2x transfers, which
provides a more efficient method for moving the large
amount of data typical in a graphics request.
A separate, optional sideband address (SBA) bus that
enables concurrent transmissions of requests and data
transfers.
An optional 2x mode that doubles the AGP graphics adapter
data transfer rate (double-pumped transfers at 66 MHz).
Freedom from the coherency requirements of PCI, which
eliminates the latency resulting from cache snooping.
Full PCI 2.2 capability, which enables the AMD-751 to pass
programming information from the processor to the graphics
adapter.
A deep request queue.
A graphics address remapping table (GART). See “GART
Cache Operation” on page 98 for more information.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.5.1
AGP Block Diagram
Figure 18 shows the AGP block diagram.
TLB Miss
AGP Write Data
AD
recv
WRQ
Addr
and
ROF
AGP Bus
SBA
recv
DRAM Write Data
WBT
DRAM
SDI
GART
Request
Memory Controller
AGP Bus
AGP Address
Write
FIFO
RDQ
SBA
seq
Seq
AXQ
Arbiter
AGP Queues
AD
xmit
Read
AGP Read Data
DRAM Read Data
FIFO
AGP I/O
AGP Data FIFOs
Legend:
AD xmit
AXQ
AD Bus Transmitter
AGP Transaction Queue
SBA
SDI
Sideband Address
RDQ
Read Request Queue
seq
Sequencer
recv
Receive
WBT
Write Buffer Tag
ROF
Reorder FIFO
WRQ
Write Request Queue
System DRAM Interface
Figure 18. AGP Block Diagram
GART Cache
Chapter 5
The GART cache is made up of the GART directory caches
(GDC) and the GART table cache (GTC). The request is read
out of the queue in the address module, and the virtual address
is translated into a physical address. If the corresponding GART
entry is not present, a request is sent to the ATE, a GART table
walk is performed, and the entry is fetched from the memory.
Functional Operation
85
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
See “GART Address Translation Engine (ATE)” on page 100 for
more information.
5.5.2
The AGP Queues
This section describes the queuing structures in the AMD-751
system controller AGP block. There are two types of queues—
request queues and transaction queue.
When an AGP request is detected, either in the standard PIPE#
mode or through the SBA mode, it is written to the request
queues. These queues sort the request based on priority and
present the next request to be serviced (based on priority).
There are two queues—one for reads and one for writes, each
with a depth of eight entries. Because the output of these two
request queues goes to different blocks, they can both send out
requests at the same time.
The AMD-751 queues and data buffers streamline AGP read
and write requests and data transfers. These queues and
buffers are shown in Figure 19 on page 87.
86
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
DRAM Controller
and GART Table Walk
Processor
AGP Interface
PCI FIFOs
Transaction
Queue
AGP Write Data
FIFO
AGP Write
Request Queue
AGP Read
Request Queue
Reorder
FIFO
GART TLB
AGP Read Data
FIFO
AGP Bus
Graphics Adapter
Figure 19. AGP Queues and Buffers
AGP Request Queue
The AGP request queue has the following specifications:
n
n
n
n
n
n
n
Chapter 5
Two queues—one for read requests and one for write
requests.
40 bits per entry in each of the request queues.
Holds the GART-translated physical address.
Each queue automatically reorders high-priority requests in
front of low-priority requests.
The write request queue (WRQ) interfaces to the write
buffer tag (WBT) and the AGP transaction queue (AXQ).
The read request queue (RDQ) interfaces to the SDI and the
read acknowledge queue (RXA).
Requests can be issued from both the write queue and read
queue in the same clock.
Functional Operation
87
Preliminary Information
AMD-751™ System Controller Data Sheet
Structure of the AGP
Request Queue
21910E—March 2000
The AGP request queue is split up into two queues — one for
read requests and one for write requests. Because there is a
reordering FIFO in the address module, the request queues do
not have to be large. The read queue is big enough to hold all
outstanding read requests, which avoids stalling writes that run
on the bus while the reads are being done on memory.
Requests from the SBA bus are multiplexed with PIPE#
requests and written to the same queues. High-priority requests
are inserted in front of low-priority requests so that the request
to be serviced is at the top of the queue. This reordering is done
dynamically as a new request is written into the queue.
Because requests from each of the queues go to a different
sub-block, requests can be read out of both the queues at the
same time. The DRAM starts fetching data from memory and
the write data is sent across the AGP bus at the same time.
Read Ordering with
Respect to Writes
The AGP ordering rules specify that writes are ordered ahead of
reads. Reads are serviced only when all the preceding writes
have been written to memory, which is only required for
low-priority requests and does not affect high-priority read
requests. When a low-priority request is the next one to be
serviced from the read queue, the tag of that request is sent to
the write queue module and WBT modules. The tag is compared
with all valid entries in the two modules. If any of them hits
(matches), the read request is blocked. After the write requests
get serviced, the read is allowed to proceed.
AGP Request Queue. In general, the AGP request queue services
AGP requests in the order received, subject to their priority
(read high, write high, read, write).
Ordering Rules. The request queue is subject to the following
AGP ordering rules:
n
n
n
n
n
88
Read requests are processed in the order they are received.
Write requests are processed in the order they are received.
Reads push writes, meaning that a write request is serviced
before a subsequently received read request is serviced.
Writes can pass reads, meaning that a write request can be
serviced before a previously received read request.
There are no ordering restrictions between AGP and PCI
transactions on the AGP bus.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
n
PCI transactions on the AGP bus follow the PCI ordering
rules described in the PCI Local Bus Specification, Revision
2.2.
n
High-priority reads and writes bypass low-priority reads and
writes.
If a low-priority data transfer is in progress when a high-priority
request is received, the data transfer completes before the
high-priority request is serviced — that is, a request is not
preemptable. A high-priority request supersedes a low-priority
request on a request boundary only.
The AMD-751 system controller ignores the processor LOCK#
signal when the graphics adapter reads a location in memory
that is currently locked by the processor. In addition, the AGP
PCI bus does not honor LOCK# from the primary PCI bus. If a
PCI master attempts to access a locked location, the access
proceeds normally and generates a retry (or an SERR#). Using
LOCK# can result in a system hang or other operational
problems. LOCK# is not normally used on the PCI bus and its
use should be avoided. In addition, because AGP does not
enforce coherency, read requests can return stale data and
write requests can be overwritten by cached data when it is
written back.
AGP provides two commands, Flush and Fence, to give software
control over request ordering.
Fence Command
The Fence command ensures that all requests preceding it are
processed before all requests that follow it. Write requests
issued after the Fence command do not pass read requests
issued before the Fence command.
Flush Command
The Flush command forces the immediate servicing of all write
requests in the request queue. A single quadword of random
data is returned when the last write is completed. This process
forces all data residing in the AMD-751 system controller
buffers to be visible to the rest of the system, ensuring that a
subsequent memory access returns the correct AGP data.
After the flush request gets queued, and until it is serviced, any
high-priority write requests entering the queue are serviced
before the flush occurs.
Chapter 5
Functional Operation
89
Preliminary Information
AMD-751™ System Controller Data Sheet
AGP Transaction
Queue
5.5.3
21910E—March 2000
The AGP transaction queue (responses to AGP requests) holds
information about transactions that are ready to run on the AGP
bus. Write transactions are put into this queue as soon as the
request is retired from the request queue. Read transactions
only enter this queue after some data for that transaction is
available in the read buffer. The arbiter looks at this queue to
decide which transaction should be granted the bus next. In
addition, the bus sequencer looks at this queue to know what
transaction to run next. The order in which the transactions are
sent to the queue is the order in which the transactions are run
on the bus.
AGP System DRAM Interface (SDI)
The AGP logic interfaces with the MCT through the system
DRAM interface (SDI). The SDI gets write requests from the
write buffer and read requests from the read request queue. It
arbitrates between these two requests and sends the request on
to the MCT. In addition, it is responsible for breaking requests
down to the size that the MCT can accept and making sure that
requests do not cross a DRAM page boundary. The SDI has a
two-level pipeline so that, if there are a number of small
requests pending, it can continuously accept these requests and
send them on to the MCT on every clock.
Memory Request
Address and Length
Calculation
90
In an x86 system, the memory burst sequence is interleaved and
the AGP burst sequence is linear. Therefore, bursts can be done
only when they are aligned to a cache-line boundary. The
maximum size of a request to the memory controller is eight
quadwords. The SDI sub-block checks that the address is
cache-line (or four quadword) aligned. If it is not aligned, the
AMD-751 system controller requests single quadwords.
Otherwise, the AMD-751 requests an entire block (eight
quadwords). In addition, in the case of writes, if all the bytes in
the transaction are not enabled and if ECC is enabled, the
transaction is broken down into single quadword transfers.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.5.4
AGP Arbitration
The AGP arbiter is responsible for granting the bus to the
master in response to a bus request, and for scheduling data
transactions that are ready to run on the AGP bus. In addition,
the AGP arbiter can generate pipelined data grants to get the
maximum bandwidth.
There are three different arbiters in the AMD-751 system
controller—the PCI arbiter, the memory arbiter, and the AGP
arbiter. The relationship between these three arbiters and their
various inputs is shown in Figure 20.
Priority High/Low
AGP Data Req.
Graphics
Adapter
Processor_AGP_REQ
Transaction
Queue
AGP Master RQ
AGP Data L/H
A_GNT#
AGP Bus
Arbiter
Priority Tag
AGP RD/WR
Processor
Processor
Request
Steering
Processor_MEM_REQ
SBA Bus
A_AD Bus
PCI
Bus
AMD-756™
Peripheral Bus
Controller
Read High
Write High
Read
Write
Request
Queue
AGP-REQ
Memory
Arbiter
REQ0
REQ1
REQ2
REQ3
REQ4
Processor_PCI_REQ
PCI
Arbiter
DRAM
CTRL
PCI-MEM-REQ
PCI_Bus_Grants
PCI/A-PCI
Arbiter
A-PCI_MEM_REQ
Figure 20. AMD-751™ System Controller Arbiters
Chapter 5
Functional Operation
91
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
PCI Arbiter
The PCI arbiter receives requests from the processor, the
AMD-756 peripheral bus controller, and other PCI agents, and
determines which request is serviced on the PCI bus.
Memory Arbiter
The memory arbiter receives requests from the processor, the
PCI arbiter, and the AGP request queue. Requests are serviced
on a first-come, first-serve basis.
AGP Bus Arbiter
The AGP bus arbiter prioritizes requests for the AGP bus in the
following order:
1. High-priority data
2. AGP accesses from the processor
3. PCI requests from the graphics controller
4. Low-priority data
High-priority AGP requests are serviced before any other AGP
bus requests. The processor is second in the priority chain,
ensuring that it is not locked out by other requests. However,
processor traffic to the frame buffer can constitute a significant
portion of the traffic on the AGP bus. Back-to-back processor
requests with a tight polling loop could starve out the ability of
the graphics controller to queue new transactions and prevent
the transfer of low-priority AGP data. To avoid this situation,
systems employing polling loops rather than interrupts should
pad the loops with delays.
Graphics controller (AGP master) address requests and PCI
cycles are third on the AGP bus priority chain. These requests
h ave p r i o r i t y ove r l ow -p r i o r i t y AG P d a t a t ra n s f e rs ,
guaranteeing that the new transactions are queued using brief
bus cycles by asserting PIPE#. This prioritization allows the
request pipeline to stay full.
Low-priority AGP data transfers have the lowest AGP bus
priority so that transactions, such as a series of long reads, do
not starve processor accesses to the frame buffer or the AGP
request pipeline.
92
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
5.5.5
AGP Data
The minimum granularity of AGP data transfers is eight bytes,
and data is always aligned on 8-byte boundaries. Smaller
transfers must be done through PCI cycles. AGP cycles incur
substantially less processor overhead than PCI cycles because
the caches are not snooped. However, data coherency is lost.
Data transfers requiring coherency should be transferred with
PCI cycles.
To service an AGP read request, the AMD-751 system controller
reads the requested data from memory, stores it in its
64-quadword read data FIFO, and sends it to the adapter during
AGP data phases. To service an AGP write request, the
controller accepts data from the adapter during AGP data
phases and stores it in its 16-quadword write data FIFO until it
can write the data to memory.
5.5.6
PCI Transactions on the AGP Bus
Using the secondary PCI bus — that is, performing PCI
transactions on the AGP bus — is preferable or necessary in
some circumstances. To program control information into the
graphics adapter, the AMD-751 system controller configures the
PCI registers of the adapter through the secondary PCI bus. If
the adapter must perform a memory read smaller than eight
bytes (the minimum AGP data size), it can do so by using a PCI
transaction. PCI transactions are required in cases where data
coherency must be maintained, because AGP cycles do not
generate cache snoops.
A secondary PCI transaction is indicated by the assertion of
A_FRAME#. The AMD-751 system controller maintains a
separate buffer for PCI transactions that use the AGP bus. The
adapter can write to a PCI device but cannot read from one. The
AMD-751 supports PCI-to-AGP writes and AGP-to-PCI writes
but does not support AGP-to-PCI reads or PCI-to-AGP reads.
Chapter 5
Functional Operation
93
Preliminary Information
AMD-751™ System Controller Data Sheet
5.5.7
21910E—March 2000
Graphics Adapters and Main Memory
To work with data stored in main memory, a graphics adapter
must either load the data into its local memory or manipulate
the data in place in main memory. The AGP specification refers
to these two approaches as DMA mode and execute mode,
respectively. While the AMD-751 system controller can
implement either approach, the execute mode more effectively
reduces the burden on graphics adapter memory, which is a
primary objective of AGP.
5.5.8
AGP Virtual Address Space (Aperture) Range and Size
The GART aperture defines the amount of memory allocated to
the AGP virtual address space. There are seven different AGP
aperture sizes available—32 Mbyte, 64 Mbyte, 128 Mbyte, 256
Mbyte, 512 Mbyte, 1 Gbyte, and 2 Gbyte. Depending on the
selected AGP aperture size, address bit 31 to bit nn (where nn is
a variable bit number) of the issued AGP virtual address is used
for a GART range check. Address bits nn–1 to 12 are used for
translating the virtual address to a physical address.
A graphics adapter requires a contiguous view of memory, but
most systems allocate memory in non-contiguous blocks. To
accommodate this disparity, the AMD-751 system controller
implements a graphics adapter remapping table (GART)
described in the AGP Interface Specification, Revision 2.0. The
GART translates the contiguous addresses used by the adapter
(referred to as virtual addresses) to their actual, generally not
contiguous, physical addresses in main memory. The GART acts
much like the page table in the processor, mapping linear
addresses to physical addresses. Figure 21 shows this
remapping.
Processor
Processor AGP
Linear Address
Processor
Page
Table
Physical
Address
Memory
Physical
Address
GART
AGP
Device
Address
Graphics
Device
Figure 21. Address Remapping
94
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
The GART table or tables reside in memory. They are set up and
maintained by device driver calls through application
programming interface (API) routines as defined in the AGP
specification. Each entry in the table(s) correlates a virtual
address with a physical address. Configuration registers in the
AMD-751 system controller determine the location of the
table(s) in memory, and the location and size of the AGP
memory block to which the GART translates its addresses.
Conventional
(Two-Level) GART
Scheme
The GART scheme is a conventional two-level scheme. The
scheme is designed to accommodate the 4-Kbyte pages
employed by many systems, and requires two memory accesses
to translate the AGP virtual memory address to the actual
physical memory address.
The size of a table is constrained to one page (4 Kbytes). Each
entry address is four bytes, limiting the table to a maximum of
1-Kbyte entries. To enable the use of more than 1-Kbyte entries,
the conventional scheme employs multiple 1-Kbyte-entry GART
tables, each containing 1024 virtual address/physical address
translations. Each GART table entry is four bytes in length. Bits
31–12 are the base address of a 4-Kbyte page in system memory.
Bits 11–2 are reserved for future use. Bit 1 is always ignored,
and bit 0 is the valid bit. The GART table base address is
aligned on a 64-Kbyte boundary initialized by the device driver
in the GART base address register.
The memory location of each GART table is tracked in a
separate, 1-Kbyte-entry GART directory. Therefore, there can
be up to 1024 GART tables. In addition, each GART directory
entry is four bytes in length, with bits 31–12 containing the
corresponding GART table base address. Bits 11–2 are reserved
for future use, bit 1 is ignored, and bit 0 is the valid bit for the
entry. The base addresses of the GART directory and GART
tables are all 64-Kbyte aligned.
The AMD-751 system controller contains the following two
on-board translation lookaside buffers (TLB), which reduce the
number of memory accesses to the GART:
n
n
Chapter 5
An 8-entry fully associative GART directory cache (GDC).
Three fully associative GART table caches (GTC).
Functional Operation
95
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Figure 22 and Figure 23 show the GDC and GTC hierarchy. See
“GART Cache Operation” on page 98 for more information.
16-Entry
AGP
GTC
8-Entry
Processor
GTC
8-Entry
GDC
4-Entry
PCI/A-PCI
GTC
Figure 22. Cache Hierarchy (Conventional Two-Level Scheme)
Virtual Address
A[21:12]
Virtual Address
A[31:22]
Master
Table
Cached in GDC
Physical Address of
GART table
A[31:12]
Page
Translation
Table
Cached in GTC
Final Physical Address
A[31:12]
Physical Page
Virtual Address supplies
Final Physical Address
A[11:3]
Address
Figure 23. Conventional GART Scheme—Multiple Tables
96
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
When an address issued by the graphics controller (the virtual
address) falls within AGP memory range and misses both of the
GART caches, two memory accesses take place. The first access
uses AGP virtual address A[31:22], concatenated with the page
directory base, to select an entry from the GART directory. This
entry contains the 20-bit base address A[31:12] of the GART
page table to be used. The second memory access uses AGP
virtual address A[21:12] to select an entry in the GART table.
This entry contains the final physical page address (PPA).
Figure 24 shows the two memory accesses.
Page Directory Base Register
31
12
Physical Memory
4 Kbytes
Cached in GDC
4 Kbytes
PDE
...
n (1 to 1-Kbyte) entries
Page Directory Table
Page Table
Base Addresses
Increasing Memory Address
Note: Page Directory Entries
(PDE) contain the page
table base addresses.
Page Table
Page Table Entries
1-Kbyte Entries
Note: Page Table Entries
(PTE) contain the page
base addresses or the
page frame address
Cached in GTC
Figure 24. Page Translation Structures
Chapter 5
Functional Operation
97
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
GART Table Cache
(GTC)
The GART table cache (GTC) consists of the actual cache that
stores the physical addresses corresponding to the most
recently accessed virtual addresses and associated state
machine. The GTCs are distributed amongst all the agents that
require GART translation. Therefore, there are three GTCs in
the AMD-751 system controller.
GART Table Walk
The GART table walk (GTW) consists of the Table Walk state
machine, a centralized resource that also contains the GART
directory cache common to all GTCs. See “GART Address
Translation Engine (ATE)” on page 100 for more information.
GTC Front End
The GTC front end consists of agent-specific hooks required for
optimizing normal operation (for example, AGP-required page
crossover detection on accesses performed before the request
enters the AGP request queue).
5.5.9
GART Cache Operation
Table 12 summarizes GART terminology used in this section.
Table 12. Summary of GART Terms
Term
Abbreviation
Location
Cached In:
Translation
Page Directory Table
PDT
Memory
GDC
1st level
Page Directory Entry
PDE
Memory/GDC
GDC
1st level
GART Directory Cache
GDC
AMD-751
GART Front End
GFE
Page Tables
PT
Memory
GTC
2nd level
Page Tables Entry
PTE
Memory/GTC
GTC
2nd level
GART Table Cache
GTC
AMD-751
1st level
2nd level
The AMD-751 system controller contains three GART table
caches (GTCs) and an 8-entry GDC. In the two-level scheme, a
virtual address that hits the GTC cache can be translated to its
physical address without any memory accesses. Missing the
GTC, but hitting the GDC cache requires only one memory
access. Missing both caches requires two memory accesses.
The GTC and GDC are hardware-driven and transparent to the
system software except during initialization or modification by
chipset device-driver management software. Configuration
space register bits are used to enable, disable, flush, and purge
98
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
GTC and GDC entries. See device 0, offsets ACh–B3h and
memory mapped registers at BAR1 + offset 00h to 13h. Figure
25 shows the structure of page table entries.
31. . . . . . . . . . . . . . . 12
11
10
9
8
7
6
5
4
3
2
1
0
Page Base Address
R
R
R
R
M2
M1
M0
R
R
R
R
P
Figure 25. Page Directory Entry (PDE) Definition
The bits in Figure 25 have the following definitions:
n
n
n
Bit 0—Present bit
• 1=Present and Valid
• 0=Not Present/Page Not Valid
Bits 4–1 Reserved for future use
Bits 7–5 —TLB lookup mask bits M[2:0]. A 1 in any bit
position masks that bit from being compared during lookup.
See Table 13 for the proper use of the mask bits.
Table 13. Mask Bits
n
n
Number
of Pages
M2
M1
M0
1
0
0
0
2
0
0
1
4
0
1
1
8
1
1
1
Bits 11–8—Reserved for future use
Bits 31–12—4-Kbyte Page Base Address
The page cacheable bit indicates the cacheability of the page in
the processor caches. If the page is cacheable, any AGP/PCI
access to a virtual address that translates to the physical
address of this page, and whose PC bit is set, must snoop the
processor cache with this physical address.
The PC bit is set in the page table/page directory entry in the
GART by the miniport driver when 4-Kbyte pages are reserved
by the graphics application.
For texture data, the page is usually uncacheable. For geometry
data, it is advantageous for the page to be cacheable.
Chapter 5
Functional Operation
99
Preliminary Information
AMD-751™ System Controller Data Sheet
Distributed GART—
GDC Features
The GART directory cache (GDC) contains three GART table
caches (GTC)—one each for the processor, AGP, and PCI/A-PCI.
These GTCs have the following features:
n
n
n
GART Table Cache
(GTC)
21910E—March 2000
The AGP GTC is a 16-entry, fully associative cache.
The processor GTC is an 8-entry, fully associative cache.
The GTC for PCI/A-PCI is a 4-entry, fully associative cache.
The AGP GTC is a 16-entry, fully associative cache for storing
the most recently used page address translation information.
The implementation for the GTC returns a physical address for
a GTC hit in one clock.
The GTCs are distributed TLBs. The entire TLB array is used for
each agent that requires GART translation, which minimizes
table walks for accesses from each agent. The GTC sizes in each
agent are different.
GART Address
Translation Engine
(ATE)
The GART address translation engine (ATE) is a state machine
responsible for the entire address remapping process, which
includes the following functions:
n
n
n
n
n
Routing the AGP virtual address to the GTC and/or GDC
Conducting cache searches
Initiating a memory request for a GART directory or GART
table entry after a cache miss
Deriving the physical address either from cache or memory
Routing the physical address to the DRAM controller
GART Table Walk (GTW). The GART table walk is part of the ATE
state machine that handles the table walk functions for GTC
misses from each of the GTCs, and fetches the translated
physical address top-of-page from the table entries in memory.
Figure 26 on page 101 shows the address translation flow.
100
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Virtual Page Address A31–A12
In GART range?
No
Yes
Hit
Table 2 (GTC) Search
Miss
Request to GTW
GTW
No
Two-level indexing?
Yes
Table #1 (GDC) Cache Search
Hit
Miss
Table #1 Memory Access
Bypass (No Translation)
Physical Address = Virtual Address
Table #2 Memory Access
Physical Page Address A31–A12
Figure 26. Address Translation Flow Chart
Chapter 5
Functional Operation
101
Preliminary Information
AMD-751™ System Controller Data Sheet
Page Directory Entry
(PDE)
21910E—March 2000
Each PDE is 32-bits wide. Bits 31–12 form bits PA[31:12] of the
physical address (PA) used to fetch the PDE. Bits 11–2 are
formed by bits 31–22 of the linear address provided by the
graphics master. Bits 11–8 of the PDE are reserved for future
use, bits 7–5 are mask bits (see Table 13 on page 99), and bits 4–
1 are reserved. Bit 0 indicates a valid entry.
Bits 31–12 of the PDE concatenated with bits 21–12 of the linear
address form the 32-bit page table address from which the page
base address is fetched from memory.
Note: Bits 21–12 of the linear address represents bits 11–2 of the
page table address (or the page table offset).
Bits 31–12 of the page base address, concatenated with bits 11–
3 of the linear address (that is, the page offset) forms the
physical address in memory from which the operand is finally
fetched. Figure 27 on page 103 and Figure 28 on page 104 show
this translation scheme.
The page directory table (PDT) contains up to 1-Kbyte entries,
depending on the amount of remapped graphics memory.
102
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
31
22 21
Page Directory
Offset
12 11
Page Table
Offset
31
0
Page Offset
12 11
Page Directory Base
2
0
2
0
Page Directory Offset
(from linear address)
Fetch from Memory
31
12 11
Page Table Base
Page Table Offset
(from linear address)
Fetch from Memory
31
12 11
0
Page Offset
(from linear address)
Page Base
Fetch Operand from Memory
Figure 27. Two-Level GART Translation Scheme
Chapter 5
Functional Operation
103
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AMD-751™ System
Controller
(Northbridge)
Physical
Memory
1-Kbyte Table Entries
Table Cache
GART Table
1-Kbyte Table Entries
GART Directory
(up to 1-Kbyte
entries)
Directory Cache
Directory Entry 2
Directory Entry 1
GART Base Address
Register points here
(Device 0, BAR1 + 04)
Figure 28. Another View Of the Two-Level Indexing Scheme
GTC Data
The GTC supports the referencing of a variable number of
pages by one GTC entry. The GTC allows for some virtual
address bits to be selectively masked, depending on the number
of contiguous pages, before a comparison is done with the
stored virtual address. Up to eight contiguous pages aligned on
an eight-page boundary can be combined. The number of
contiguous pages that one GTC entry can be referenced in the
GTC (with the appropriate mask bits—see Table 13 on page 99)
is equal to the actual number of contiguous pages
approximated to the nearest lower power of 2. Therefore, if
there are seven contiguous pages starting on an 8-page aligned
boundary, the following conditions apply:
n
n
n
104
The first GTC entry references four physical pages.
The second GTC entry references two physical pages.
The third GTC entry references one page.
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
In the scheme where PTEs and PDEs reference a variable
number of pages, each PTE refers to a variable number of
pages, depending on the number of contiguous pages starting
from the page whose physical address is given by bits 31–12 of
this PTE. The GTC uses this PTE to increase its hit rate.
Because the chipset miniport driver sets up the PTEs and
programs the page directory of the chipset or table base
address, it knows the number of contiguous pages equal to the
nearest lower power of 2, starting from each page referenced by
a given PTE. Software uses this number of contiguous pages to
arrive at mask bits for up to three virtual address bits (14–12).
These mask bits are used during virtual address comparison to
mask off some or all of bits 14–12 before comparison,
depending on the number of contiguous pages starting at this
page. Table 13 on page 99 explains the mask bit derivation.
Values other than those shown in the table are illegal. In
addition, software must ensure that the first page of a
contiguous block of N pages (N=2, 4, 8) is aligned on an N-page
boundary.
GART Table Cache (GTC). The GTC is a fully-associative TLB with
sixteen 19-bit comparators that uses tag-comparison and a
least-recently used (LRU) replacement algorithm. Each entry
consists of one valid bit, an 18-bit VPA, and a 20-bit PPA.
When a new VPA is available, it is compared with all 16 tag
entries in parallel. If one of the 16 parallel address comparators
m a t ch e s a n d i s q u a l i f i e d by t h e e n t ry va l i d b i t , t h e
corresponding Hit[15:0] signal selects the correct PPA through
the output multiplexer.
Chapter 5
Functional Operation
105
Preliminary Information
AMD-751™ System Controller Data Sheet
5.6
21910E—March 2000
Power Management
The AMD-751 system controller supports the Advanced
Configuration Power Interface (ACPI) Specification, On-Now,
and PC 98 requirements through a handshake mechanism with
the processor. The counters required for these features are
contained in the AMD-756 peripheral bus controller companion
device. SMM memory remapping is handled by a model-specific
register in the AMD Athlon processor. See the AMD Athlon™
BIOS Developers Guide, order# 21656 for more information about
the SMM remapping operation.
SDRAMs
CKE
AMD Athlon™
Processor
AMD-751™
System
Controller
(Northbridge)
AMD Athlon
System Bus
PCI
AMD-756™
Peripheral Bus
Controller
(Southbridge)
STPCLK
100-MHz
System
Clocks
66-MHz
AGP
Clock
33-MHz
PCI
Clocks
CPUSTOP
PCISTOP
Clock Generator
Figure 29. Power Management Signal Connections
As shown in Figure 29, the processor and the AMD-751 system
controller communicate power state transitions through the
AMD Athlon system bus connect/disconnect protocol and
special cycles (masked writes to a defined AMD Athlon system
106
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
bus address with specific data encoding). In general, the
processor initiates a request for a disconnect with a special
cycle and the AMD-751 system controller may or may not
actually disconnect the processor with the connect/disconnect
p r o t o c o l . T h e A M D -7 5 1 p e r f o r m s t h e re q u e s t e d
connect/disconnect as part of the process of entering and
exiting certain ACPI states. The following two special cycles are
of interest:
n
n
Halt—Generated by the AMD Athlon processor in response
to executing a HALT instruction. Optionally, the AMD-751
system controller (through a configuration register bit)
initiates an AMD Athlon system bus disconnect to the
processor and then sends a Halt special cycle on the PCI bus.
In addition, when a Halt-Disconnect occurs, the AMD-751
places the SDRAMs into self-refresh operation.
Stop Grant—Generated by the AMD Athlon processor in
response to assertion of STPCLK#. When the AMD-751
system controller receives a Stop Grant from the processor,
it initiates the following sequence of actions:
1. The AMD-751 system controller disables PCI/AGP
arbitration and waits for all queues to memory to be
empty (including refresh requests)
2. The AMD-751 completes the AMD Athlon system bus
cycle. The AMD-751 then initiates a AMD Athlon system
bus disconnect to the processor.
3. The AMD-751 sends a Stop Grant special cycle on the
PCI bus.
4. The AMD-756 peripheral bus controller receives and
enters the appropriate power state. The AMD-756 may
then assert DCSTOP#.
Note: The AMD-751 does not support DCSTOP#.
Halt special cycles are generally considered part of an ACPI
state definition (C1). STPCLK#, however may be asserted at
random times while the processor is in the full-running state
(C0), which conserves power (clock throttling).
The only programmable power management function in the
AMD-751 system controller is bit 0 in PM2 (BAR2, offset 0).
This bit disables arbitration when the system is powered down.
Chapter 5
Functional Operation
107
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
ACPI
When the processor samples STPCLK# asserted, it generates a
Stop Grant special cycle. The AMD-751 passes this cycle to the
PCI bus in the form of a special cycle and preserves the address
during the address phase of the cycle, although the PCI
specification does not require it. The the PCI Stop Grant special
cycle informs the AMD-756 peripheral bus controller ACPI logic
to transition to the lower-power state.
ACPI Power States
The AMD-751 system controller implements two basic power
states—Full-On and Halt/Stop Grant. These states are entered
and exited through special cycles from the processor. Figure 30
on page 109 shows the AMD-751 power management state
machine (PMSM). The two basic power states are described in
this section.
Full-On (C0). In this state the AMD-751 system controller is fully
operational, all clock trees are running, and the AMD-751
provides refresh to the SDRAMs.
Halt (C1), Stop Grant (C2), and Sleep (C3). I f t h e A M D -7 5 1 s y s t e m
controller detects a Halt special cycle from the processor, the
Halt state (C1) is entered and the AMD-751 disconnects the
processor. PCI and AGP masters continue to run (ARB_DIS
clear). If the AMD-751 detects a PCI DMA master transaction
that needs a snoop, the processor is connected and the probe
cycle(s) run (C2). If the processor does not start any non-NOP
AMD Athlon system bus cycles while the probe is in progress,
the AMD-751 system controller puts the processor back to sleep
(C3) following the completion of the probe. If the processor
starts sending non-NOP AMD Athlon system bus cycles while
connected, the AMD-751 transitions to the Full-On state.
If the AMD-751 system controller has detected a Stop Grant
special cycle from the processor, the Stop Grant state is entered
and the AMD-751 disconnects the processor. SDRAM is put in
self-refresh mode. If software sets ARB_DIS, no DMA activity is
allowed on the PCI bus and the system is in the Sleep state (C3).
When the AMD-751 system controller detects that the processor
wishes to wake up (PROCRDY assertion), SDRAMs are taken
out of self-refresh mode and the processor is reconnected.
108
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
C0
Running
Halt or Stop Grant
Disconnect
Abort
Wait For
Idle
ARB_DIS
Flush
Disconnect
Abort
Idle
C-Bit
Disconnect
Halt and
Disconnect Done
Enter
Self-Refresh
Wait for
Self-Refresh
Entered
Entered
PCI
ARB_Enable
Halt and
Disconnect
Done
C1 if Halt
C3 if Stop Grant
TRDY
Halt/
Stop Grant
PROCRDY from
Processor
Request from PCI/AGP
Exit
Self-Refresh
Connect
Done
Self-Refresh
Exited
Wait
Connect Done
Wait for
Self-Refresh
Exit
Exit
Self-Refresh
Self-Refresh
Exited
Wait
Connect Done
C2
Disconnect
Pending
Running
Disconnect
Abort
Wait for
Self-Refresh
Exit
Any PCI/AGP
Request
No PCI Requests
Figure 30. ACPI Power States
Chapter 5
Functional Operation
109
Preliminary Information
AMD-751™ System Controller Data Sheet
5.7
21910E—March 2000
Phase Locked Loop (PLL) Features
The phase locked loop (PLL) has the following specifications:
n
n
n
n
PLL Clock Outputs
Peripheral clock (PCLK) operates at 66 MHz.
AGP 2x clock (AGP2xCLK) operates at 133 MHz.
Core clock (CCLK) can be switched between 100 MHz and
66 MHz, as defined by an input pin at reset. The core clock
must be an integral multiple of 33 MHz.
The two clocks (PCLK and CCLK) must have a common
edge.
The PLL has two output clocks that are distributed throughout
the AMD-751. The peripheral clock, which runs at 66 MHz, is
used by all the sequencers and logic controlling the peripheral
buses (PCI and AGP). The standard PCI logic runs internally at
66 MHz. The external bus operates at half that speed, and the
conversion is done with clock-enable logic at the bus interface.
In addition, the AGP logic gets the 133-MHz clock it needs for
the double-pumped logic. Every rising edge of the AGP 2x clock
has to align with an edge of the peripheral clock (66 MHz).
The core clock is distributed throughout the AMD-751. It runs
either at 100 MHz or 66 MHz, depending on the system board
and external configuration. The pin that defines which of these
frequencies to use is static and must not change during
operation.
The PLL enables the two clocks (core clock and peripheral
clock) to have a common rising edge. If the clock frequencies
are 66 MHz for the peripheral and 100-MHz for the core, there is
a common rising edge every three core clocks and every two
peripheral clocks.
110
Functional Operation
Chapter 5
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
6
Typical Settings
Table 14 lists typical MSR settings for the AMD-751 system
controller.
Table 14. AMD-751™ System Controller MSR Settings
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Register
Func:Reg
Bit
0:0x10
31:25
AGP base address high
xxxxb
No
AGP aperture size is selected in
Dev0:0xAC[3:1] and has to be set
before PCI enumeration
24:0
Base low, prefetchable, type,
memory
0008h
No
Base low (24:4) are hardwired to 0
31:12
GART memory mapped register
base high
xxxxh
No
Assigned by PCI enumeration
11:0
Base low, prefetchable, type,
memory
008h
No
Base low (11;4) are hardwired to 0
31:24
Reserved
23:2
PM2_BLK I/O register base
address
0:0x14
0:0x18
0:0x40/41,
0:0x42/43,
0:0x44/45,
0:0x46/47,
0:0x48/49,
0:0x4A/4B
Chapter 6
Description
Setup Option
0
Assigned by PCI enumeration.
xxxxh
No
Port has to be enabled by setting
Dev0: 0x84[7] to “1”
1
Reserved
0
0
I/O space
1
No
hardwired
xxh
No
According to memory installed
15:7
Bank base address [31:23] –
starting address of the bank (at
8M byte boundary)
Typical Settings
111
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
Used as the size of a bank
6:1
0:0x50,
0:0x51,
0:0x52
Bank address mask [28:23]
xh
No
0
Bank enable
x
No
0 – if memory is not present
1 – if memory is present
7
Reserved
0h
6
Bank(x+1) address mode
X
No
0 – 16Mbit x4, x8, x16
1 – 64Mbit x4, x8, x16
5
Number of banks in bank(x+1)
(internal DRAM banks on a
DIMM)
x
No
0 – 2 banks
1 – 4 banks
Reserved
00
2
Bank(x) address mode
x
No
0 – 16Mbit x4, x8, x16
1 – 64Mbit x4, x8, x16
1
Number of banks in bank (x)
(internal DRAM banks on a
DIMM)
x
No
0 – 2 banks
1 – 4 banks
0
Reserved
0
31:25
Reserved
No
See bit[13:12]
Yes
00 – low
01 – medium low
10 – medium high
11 – high
4:3
0:0x54
24
23:22
112
000001 – 8M
000011 – 16M
000111 – 32M
001111 – 64M
011111 – 128M
111111 – 256M
Idle Cycle Limit bit 2
SDRAM AddrB Drv
ClkOut Drv
0
xxb
Typical Settings
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
21:20
SDRAM AddrA Drv
19:18
SDRAM CAS[2:0], RAS[2:0],
WE[2:0], CKE[2:0], CS[5:0] drive
xxb
xxb
Yes
Yes
00 – low
01 – medium low
10 – medium high
11 – high
00 – low
01 – medium low
10 – medium high
11 – high
SDRAM DQM drive
1
Yes
15:14
Page Hit request before a
non-Page Hit
10
No
Idle cycle to wait before
precharging the idle bank
01
Setup Option
00 – low
01 – medium low
10 – medium high
11 – high
17:16
13:12
Chapter 6
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
00 – 1cyc,
01 – 4cyc
10 – 32cyc,
11 – 64cyc
No
000 – 0 cyc
001 – 8 cyc (deflt)
010 – 12 cyc
011 – 16 cyc
100 – 24 cyc
101 – 32 cyc
110 – 48 cyc
111 – rsvd
001 – 4cyc
011 – 6cyc
101 – 8cyc
111 – rsvd
11:9
Trc timing value
101
No
000 – 3cyc,
010 – 5cyc,
100 – 7cyc,
110 – rsvd,
8:7
Trp timing
00
No
00 – 3cyc,
1x – 1cyc
01 – 2cyc,
001 – 3cyc
011 – 5cyc
101 – 7cyc
111 – rsvd
01 – 2cyc
11 – 4cyc
6:4
Tras timing
101
No
000 – 2cyc
010 – 4cyc
100 – 6cyc
110 – rsvd
3:2
Tcl (CAS latency)
00
Yes
00 – 3cyc
10 – rsvd
Typical Settings
113
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
1:0
0:0x58
31:26
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Trcd (RAS to CAS latency)
10
Yes
00 – 1cyc
10 – 3cyc
01 – 2cyc
11 – 4cyc
Reserved
25
SDRAM init
1
No
24
SDRAM type (reserved for
future use)
0
No
0
No
0 – SDRAM, 1 – ESDRAM
23
Setup Option
Mode register status (read/write
once)
ESDRAM is not supported by the
AMD-751 system controller
0 – off/done, 1– to set
22:21
Reserved
00b
Burst refresh enable
20
0 – no bursting refreshing,
0
Yes
0
No
0
Yes
00b
No
1 – queue up to 4 refreshes
before issuing
19
Largest burst length (for future
use)
0 – 8QW
18
1 – 4QW
ECC enable
0 – disable 1 – enable
Disabled by default
Refresh counter
17:16
15:10
114
00 – 2K cycle
01 – 1.5K cycle
10 – 1K cycle
11 – 512K cycle
Reserved
000000b
9:8
ECC status
00 – no error
01 – multi-bit error (SERR)
10 – single-bit error detected
11 – single and multi-bit error
(SERR)
00b
7:6
Reserved
00b
Typical Settings
No
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
0:0x60
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Bit
Description
5:0
One hot encoded chipselect of
request that generate the single
or multi-bit error
31
Setup Option
00000b
No
Probe enable for CPU0
(0 – disable, 1 – enable)
1
No
30
Lck Half C2M
0
No
29
Lck Half M2C
0
No
28
Lck Half Prb
0
No
27:25 Xca Probe Count
010b
No
Default
24:22 Xca Read Count
110b
No
Default
21:19
100b
No
Default
0
Yes
Setup item is for debugging only
1
No
111b
No
Xca Write Count
Halt disconnect enable
18
0 – no AMD Athlon system bus
disconnect following HALT
1 – perform AMD Athlon
system bus disconnect after
HALT
Stop grant disconnect enable
17
0 – no AMD Athlon system bus
disconnect following
STOPGRANT
1 – perform AMD Athlon
system bus disconnect after
STOPGRANT
Probe limit
000 – 1 probe
16:14
001 – 2 probes
….
111b
110 – 7 probes
111 – 8 probes (max)
Chapter 6
Typical Settings
115
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
Ack limit
0000 – 1 un0acked command
13:10
0001 – 2
Read only
0011b
Processor SysAckLimit =
Ack_Limit + 1
….
1111 –- 16
Bypass Enable
9
1 – System controller bypasses
certain memory to processor
pipe stages for optimal
performance
0
Yes
SysDCOut delay
8:7
6:3
00 – rsvd
01 – 1 Clk
10 – 2 Clks
11 – 3 Clks
10b
SysDCIn delay
Read only
1010b
No
Read only
2
WR2RD
0
No
Read only
1:0
RD2WR
10b
No
Read only
0
No
All Read Only bits
52321824h
No
0:0x68
BIU1 status/control (not used)
00000000h
No
0:0x6C
BIU1 SIP (not used)
00000000h
No
0
No
ClkFwd Offset
0:0x64
31
0 – AMD-751 system controller
delays assertion of data and
clock for AMD Athlon system
bus SysData
1 – no delay
30:0
0:0x70
116
31:11
Reserved
Typical Settings
Read only
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
PCI pipe enable
10
0 – MRO checks outstanding
read probe before PCI
transactions
1
No
Always set
1
No
Always set
1 – MRO pipelines PCI
transactions
PCI Block Write Enable
9
0 – BIU performs RID/INV
probes, forcing MRO MWQ
to wait for data movement
1 – BIU performs NOP/INV
probes for PCI full-block
writes
8:6
Arbitration mode (testing only)
000b
No
5:2
Memory Read Queue Disable
(testing only)
0000b
No
1
Memory Write Queue Disable
(testing only)
0
No
0
No
Reorder disable
0
0 – MRO reorders memory
requests to optimize
memory performance
1 – no reordering
0:0x80
Chapter 6
31:18
Reserved
0
17
BIU1 present
0
Read only
16
BIU0 present
1
Read only
15:8
First AMD Athlon system bus ID
00h
Read only
7:0
Who AM I
00h
Read only
Typical Settings
117
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
AGP VGA BIOS address decode
Bit31: 0D_C000 – 0D_FFFF
0:0x84
31:24
Bit30: 0D_8000 – 0D_BFFF
00h
No
…
Bit24: 0C_0000 – 0C_3FFF
23:18
Reserved
000000b
Enable APC chaining
17
1 – processor writes to APC are
chained together
1
Yes
Enable PCI chaining
16
1 – processor writes to PCI are
chained together
1
Yes
15
MDA support
x
Yes
0
No
0
No
1
No
If MDA is present and AGP is
present
PCI Write-Post retry
14
0 – no retry
1 – enables retry on PCI if there
are pending posted write
APCI Write Post retry
13
0 – no retry
1 – enables APCI if there are
pending posted write
Dis Rd Data Err
12
0 – returns read data error to
processor on master abort
or target abort
1 – AMD-751 system controller
returns all ones on data read
error
118
Typical Settings
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
Dis APC Early Probe
11
1 – disable early snoop from
AGP master running a PCI
cycle to memory
0
No
0
No
0
No
0
No
1
No
0
Yes
0
Yes
0
No
Dis PCI Early Probe
10
1 – disable early probe request
for write cycles from an
external PCI master
Dis AGP arbiter pipelining
9
1 – disable AGP arbiter from
pipelining grants onto bus
Southbridge lock disable
8
1 – disable flushing function
performed before granting
bus to the SB.
PM register enable
7
1 – enables R/W accesses to PM
register at 0:0x18
ACPI required
15M hole enable
6
0 – disable memory hole at
15–16M
1 – enable a memory hole at
15–16M
14M hole enable
5
0 – disable memory hole at
14–15M
1 – enable a memory hole at
14–15M
EV6 mode
4
Chapter 6
1 – enable PCI decoding in EV6
mode
Typical Settings
May be enabled to allow DMA
transfer at A0000–FFFFF
119
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
Target latency timer disable
3
1 – disable AMD-751 system
controller target latency
timer on both PCI and AGP’s
PCI interfaces
0
No
1
No
1
No
1
No
ApcPreEn
2
1 – enables AMD-751 to
prefetch data from SDRAM
when a PCI master on AGP
bus reads from main
memory
PciPreEn
1
1 – enables AMD-751 system
controller to prefetch data
from SDRAM when a PCI
master on PCI bus reads
from main memory
ParkPCI
0
0 – PCI arbiter parks on
processor accesses to PCI
1 – enables parking on an
external PCI master
0:0x88
31:0
Config Status
02410004h
Read only
0:0xA0
31:0
AGP Capability Identifier
Register
00100002h
Read only
0:0xA4
31:0
AGP Status Register
0f000203h
Read only
0:0xA8
31:10
Reserved
9
Sideband addressing enable
0 – disable
1 – enable
0
No
0
Yes
AGP operation enable
8
0 – AGP operation ignored
1 – enable AGP operation
120
Typical Settings
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
7:6
5
Reserved
0
Greater than 4G address
support
0
No
0
No
0 – disable
4:2
1:0
0:0xAC
31:17
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
1 – enable
Reserved
AGP data transfer mode
01b – 1x
10b – 2x
Reserved
Power on default
000h
VGA ISA address decoding
16
0 – no ISA aliasing on address
[15:0]
1
Yes
1 – force AMD-751 system
controller to alias ISA
address [15:0]
15:4
Reserved
000h
AGP aperture size
3:1
000 – 32MB
010 – 128MB
100 – 512MB
110 – 2GB
001 – 64MB
011 – 256MB
101 – 1GB
000b
Yes
0
Yes
0
No
AGP aperture base address
enable
0
0 – disable register 0:0x10
(BAR0)
1 – if AGP is enabled in setup page
1 – enable register 0:0x10
(BAR0)
0:0xB0
31:21
20
Chapter 6
Reserved
AGP Read Buffer Size
0 – 64QW
1 – 32QW
Typical Settings
121
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 14. AMD-751™ System Controller MSR Settings (Continued)
Register
Func:Reg
Bit
BIOS
Setup Option
Initialized
Required/
Value
Suggested
Description
Setup Option
Non-GART Snoop
19
0 – AGP address falling outside
GART do not cause probes
0
No
0
No
0
No
0
No
0
No
1 – enable probes
Post GART queue size
18
17
0 – 8 entries
entries
1–4
GART page directory cache
enable
0 – disable
1 – enable
GART Index Scheme control
16
15:8
0 – Two-level mode
1 – One-level mode
Reserved
Processor/AGP Read/Write sync
enable
0 – no synchronization
7
6:0
1 – AMD-751 system controller
ensures that all writes to
GART range from processor
to memory are retired
before initiating
processor-to-AGP cycle
Reserved
PCI to PCI bridge config spaces
1:0x00 ~
1:0x3F
122
BIOS assigns this P-to-P bridge
as bus 1 and sets memory and
I/O base/limit according to
P-to-P bridge spec if AGP video
is installed
Typical Settings
No
Chapter 6
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
7
Configuration Registers
All of the many options available on the AMD-751 system controller are
selected by writing to its PCI configuration registers. These registers are
usually programmed during system initialization and are not accessed
during normal operation. However, some registers may require specific
programming sequences during power-on self-test (POST) to detect the
type and size of installed memory.
This section provides a description of the mechanism used to access the
AMD-751 PCI configuration registers as well as the location and
functional details of each register.
7.1
PCI Configuration Mechanism
The AMD-751 system controller uses PCI configuration mechanism #0 or
#1 to convey and receive configuration data to and from the AMD Athlon
processor. These mechanisms, described in PCI Local Bus Specification,
R e v i s i o n 2 . 2 , e m p l oy I / O l o c a t i o n s 0 C F 8 h – 0 C F B h ( a d d re s s
1F_C000_0CF8h) to specify the target address and I/O locations 0CFCh–
0CFFh (address 1F_C000_0CFCh) for data to or from the target address.
The target address includes the PCI bus, device, function, and register
numbers of the PCI device.
The AMD-751 system controller implements most registers as PCI
configuration registers. x86 software executes IN and OUT instructions to
I/O addresses of 0CF8h and 0CFCh to access all configuration registers,
which are translated by the processor into AMD Athlon system bus
RdBytes and WrBytes commands, with the lower 24 bits of the address
field containing the logical contents of the ConfigAddr register (I/O
address 0CF8h).
Configuration accesses in the AMD-751 system controller conform to the
following rules:
■
■
■
Chapter 7
The AMD-751 is defined to be device 0. The IDSEL pin on every
external PCI device must be wired to one of the AD[31:12] lines,
because logically AD[11] is assigned to device 0.
Device 0 accesses correspond to the Processor-to-PCI bridge registers
listed in Table 16 on page 126 and defined starting on page 130.
Device 1 accesses correspond to the PCI-to-PCI bridge registers listed
in Table 17 on page 128 and defined starting on page 161.
Configuration Registers
123
Preliminary Information
AMD-751™ System Controller Data Sheet
■
21910E—March 2000
Accesses can be byte, word, or doubleword in length and must be
naturally aligned.
The AMD-751 system controller creates type 0 and type 1 accesses as
follows:
■
■
If SysAddOut[23:16] = 0 (Bus number = 00h), a type 0 configuration
cycle is generated and PCI AD[1:0] = 00b. Device number,
SysAdd[15:11] is decoded and asserted on PCI AD[31:11] for IDSEL.
If SysAddOut[23:16] is not = 0 (Bus number = 00h), a type 1
configuration cycle is generated and PCI AD[1:0] = 01b. Bus number
and device number fields are passed onto the PCI directly with no
decoding. PCI AD[31:24] = 00h.
Configuration Address
31 Bit 30
En
–
Reserved
I/O Address OCFBh
Bit 24
Bit 23
Ports 0CFBh–0CF8h
–
Bit 16
Bus Number
I/O Address OCFAh
Bit 15
–
Bit 11 10 –
Device Number
8
Function #
I/O Address OCF9h
Bit 7
–
Bit 2
Register Number
1
0
0
0
I/O Address OCF8h
Configuration address is a read-write port that responds only to
doubleword accesses. Byte or word accesses are passed on unchanged.
Bit 31
Configuration Space Enable—Bit 31 enables the AMD-751 configuration space.
1 = The targeted PCI device responds
0 = The I/O access is passed on unchanged
Bits 30–24 Reserved (always reads 0)
Bits 23–16
PCI Bus Number—These bits select a specific system PCI bus. The AMD-751
only supports one logical PCI bus.
Bits 15–11
Device Number—This field defines which device is to be accessed in the
system on the target PCI bus. For type #0 configuration cycles, the
AMD-751 system controller decodes this field and asserts the appropriate
AD signal during the address phase to select the defined device. For type
#1 configuration cycles, the AMD-751 passes this field through to the AD
bus undecoded to select the defined device. Devices are assigned a
number by tying the device IDSEL# pin to a PCI AD line. The AMD-751
system controller uses device 0 and device 1, which correspond to AD11
and AD12, respectively. Device 0 (00000b) is the standard Processor-to-PCI
bridge registers. Device 1 (00001b) is the PCI-to-PCI bridge register set
used to access the AGP registers.
Note: AD11 and AD12 are reserved for the AMD-751 system controller and
should not be accessed as IDSEL signals by any other PCI device.
124
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bits 10–8
Function Number—These bits select the number of a specific function. The
AMD-751 system controller is Function 0.
Bits 7–2
Register Number—These bits specify the offset number of a register within
the selected device space. The register number is a doubleword that, in
conjunction with the PCI byte enable lines C/BE[3:0]#, specifies the
configuration register offset number.
Bits 1–0
Reserved (always reads 0)
Configuration Data
Ports 0CFFh–0CFCh
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9
8
7
6
5
4
3
2
1
0
xxxxxxxxh
Configuration data is a read-write port that responds only to doubleword
accesses. Byte or word accesses are passed on unchanged.
Note: In the AMD-751 system controller, IDSEL is internally connected to
AD11. Other PCI devices in a system must connect their IDSEL lines to
a unique line in AD[31:12] and cannot use AD11.
Table 15 summarizes the I/O ports involved in PCI configuration.
Table 15.
Chapter 7
Configuration Port Register Summary
Register Name
I/O Address
Type
Default Value
Size
IO_CNTRL
0CF8h
R/W
0000 0000h
32
IO_DATA32
0CFCh
R/W
0000 0000h
32
IO_ODD_DATA16
0CFCh
R/W
0000h
16
IO_EVEN_DATA16
0CFEh
R/W
0000h
16
IO_0_DATA8
0CFCh
R/W
00h
8
IO_1_DATA8
0CFDh
R/W
00h
8
IO_2_DATA8
0CFEh
R/W
00h
8
IO_3_DATA8
0CFFh
R/W
00h
8
Configuration Registers
125
Preliminary Information
AMD-751™ System Controller Data Sheet
7.2
21910E—March 2000
Register Overview
Table 16 through Table 18 summarize the AMD-751 system controller
configuration register offsets, devices, default values after reset, and
access types. Access types are indicated as follows:
■
RW
RO
RWC
RWS
■
RW0
■
■
■
Table 16.
Read/Write
Read Only
Read and/or write 1’s to clear individual bits
Read, but can only write a 1 to set the bit (a 0 does not reset
the bit)
Read and Write only 0’s for proper operation
Function 0, Device 0 Configuration Registers
Offset
Cache Control
Reset
Access
Description
01h–00h
Vendor ID (AMD)
1022h
RO
page 130
03h–02h
Device ID Single Processor Device
7006h
RO
page 130
05h–04h
Command
0004h
RW
page 130
07h–06h
Status
0210h
RWC
page 131
08h
Revision ID
nn *
RO
page 133
09h
Programming Interface
00h
RO
page 133
0Ah
Subclass Code
00h
RO
page 133
0Bh
Base Class Code
06h
RO
page 133
0Ch
Reserved
00h
RO
page 133
0Dh
Latency Timer
00h
RW
page 134
0Eh
Header Type
80h
RO
page 134
0Fh
Reserved
00h
RO
13h–10h
Base Address 0 (BAR0) (AGP Memory)
0000_0008h
RW
page 135
17h–14h
Base Address 1 (BAR1) (GART Registers) 0000_0008h
RW
page 136
1Bh–18h
Base Address 2 (BAR2) (PM2)
0000_0001h
RW
page 136
37h–34h
Capabilities
0000_00A0h
RO
page 137
41h–40h
Base Address Chip Select 0
0000h
RW
page 137
43h–42h
Base Address Chip Select 1
0000h
RW
page 138
45h–44h
Base Address Chip Select 2
0000h
RW
page 138
47h–46h
Base Address Chip Select 3
0000h
RW
page 138
Note:
*
126
nn changes for each device revision. For more information, see 7.2.1 “Revision ID Nomenclature” on page 129.
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 16.
Function 0, Device 0 Configuration Registers (Continued)
Offset
Cache Control
Reset
Access
Description
49h–48h
Base Address Chip Select 4
0000h
RW
page 139
4Bh–4Ah
Base Address Chip Select 5
0000h
RW
page 139
50h
SDRAM Address Mapping 1/0
00h
RW
page 140
51h
SDRAM Address Mapping 3/2
00h
RW
page 140
52h
SDRAM Address Mapping 5/4
00h
RW
page 141
53h
Reserved
00h
RO
55h–54h
DRAM Timing
0000h
RW
page 143
57h–56h
DRAM CS Driver Strength
0000h
RW
page 144
59h–58h
DRAM ECC Status
00h
RW
page 145
5Bh–5Ah
DRAM Mode/Status
00h
RW
page 146
63h–60h
BIU Status and Control
0000_0Cxxh
RW
page 147
67h–64h
BIU SIP
0000_0000h
RW
page 149
69h–68h
BIU Status 1 (Reserved)
000xh
RW
page 150
6Bh–6Ah
Reserved
0000h
RW
6Fh–6Ch
Reserved
0000_0000h
RW
71h–70h
MRO Control Register
0001h
RW
page 150
81h–80h
Who Am I (WHAMI)
00xxh
RW
page 151
83h–82h
Reserved
0000h
RO
85h–84h
PCI Arbitration Control
0000h
RW
page 151
86h
PCI and APCI Chaining
00h
RW
page 154
87h
AGP VGA BIOS Mask
00h
RW
page 154
89h–88h
Config/Status #1
0x0xh
RW
page 155
8Bh –8Ah
Config/Status #2
000xh
RW
page 155
A3h–A0h
AGP Capability Identifier
0100_0002h
RO
page 156
A7h–A4h
AGP Status
0F00_0203h
RO
page 157
ABh–A8h
AGP Command
0000_0000h
RW
page 158
AFh–ACh
AGP Virtual Address Space Size
0001_0000h
RW
page 158
B0h
AGP Mode Control Register #1
00h
RW
page 159
B2h
AGP Mode Control Register #2
02h
RW
page 160
Note:
*
Chapter 7
nn changes for each device revision. For more information, see 7.2.1 “Revision ID Nomenclature” on page 129.
Configuration Registers
127
Preliminary Information
AMD-751™ System Controller Data Sheet
Table 17.
Function 0, Device 1 Configuration Registers
Offset
128
21910E—March 2000
PCI Header
Reset
Access
Description
01h–00h
Vendor ID
1022h
RO
page 161
03h–02h
Device ID
7007h
RO
page 161
05h–04h
AGP/PCI Command
0000h
RW
page 161
07h–06h
Status
0220h
RO
page 163
08h
AGP Revision ID
00h
RO
page 164
09h
Programming Interface
00h
RO
page 164
0Ah
Subclass Code
04h
RO
page 164
0Bh
Base Class Code
06h
RO
page 164
0Ch
Reserved
00h
RO
0Dh
Reserved
00h
RO
0Eh
Header Type
81h
RO
0Fh
Reserved
00h
RO
18h
Primary Bus Number
00h
RW
page 165
19h
Secondary Bus Number
00h
RW
page 165
1Ah
Subordinate Bus Number
00h
RW
page 165
1Bh
Secondary Latency Timer
00h
RW
page 166
1Ch
I/O Base Register
FFh
RW
page 166
1Dh
I/O Limit Register
0Fh
RW
page 166
page 165
1Fh–1Eh
AGP/PCI Secondary Status
0220h
RWC
page 167
21h–20h
Memory Base
0000h
RW
page 168
23h–22h
Memory Limit
0000h
RW
page 168
25h–24h
AGP/PCI Prefetchable Memory Base
0000h
RW
page 169
27h–26h
AGP/PCI Prefetchable Memory Limit
0000h
RW
page 169
30h
I/O Base
00h
RW
page 169
32h
I/O Limit
00h
RW
page 170
37h–34h
Reserved
0000_0000h
RO
3Dh–3Ch
Interrupt Control
0000h
RW
page 170
3Fh–3Eh
PCI-to-PCI Bridge Control
0000h
RW
page 171
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 18.
Memory Space Configuration Registers (BAR1 + n)
Offset
PCI Header
Reset
Access
Description
01h–00h
Features and Capabilities
0301h
RO
page 173
03h–02h
Enable and Status
0000h
RO
page 174
07h–04h
AGP GART Base Address
0000_0000h
RW
page 175
0Bh–08h
GART Cache Size
0000_0010h
RO
page 175
0Fh–0Ch
GART Cache Control
0000_0000h
RW
page 176
13h–10h
GART Entry Control
0000_0000h
RW
page 176
Table 19.
Power Management Configuration Registers (BAR2 + n)
Offset
PCI Header
01h–00h
7.2.1
PM2 (Power Management)
Reset
Access
Description
0000h
RW
page 177
Revision ID Nomenclature
Table 20 shows possible revision and stepping enumeration for the
AMD-751 system controller. For more information, see “Revision ID
Device 0 Offset 08h” on page 133.
Table 20.
Revision ID Enumeration
Revision (Bits 6:4)
Stepping (Bits 3:0)
Hex Pattern
Level
Hex Pattern
Level
0h
A
0h
0
1h
B
1h
1
2h
C
2h
2
.
.
.
.
Fh
.
.
.
.
P
Fh
15
For example, a revision ID of 25h indicates revision C, stepping 5.
Chapter 7
Configuration Registers
129
Preliminary Information
AMD-751™ System Controller Data Sheet
7.3
21910E—March 2000
Function 0, Device 0 Registers (Processor-to-PCI
Bridge, Memory Controller, etc.)
Vendor ID
Bit 15
Device 0
14
13
12
11
10
9
8
7
Offset 01h–00h
6
5
4
3
2
1
Bit 0
0
1
0
0
0
1
0
Vendor ID
Reset
0
0
0
1
0
0
0
0
0
This read-only value is defined as 1022h.
Device ID
Bit 15
Device 0
14
13
12
11
10
9
8
7
Offset 03h–02h
6
5
4
3
2
1
Bit 0
0
0
0
0
1
1
0
Device ID
Reset
0
1
1
1
0
0
0
0
0
This read-only value of 7006h represents the AMD-751 system controller
single processor device.
Command
Device 0
Bits 15–10
9
Reserved
Reset
0
0
0
0
8
FBBCE SERRE
0
0
0
0
7
6
STEP
PER
0
0
5
4
VGAPS MWIC
0
0
Offset 05h–04h
3
2
SCMON
ITEN
0
1
1
Bit 0
MEMSPC IOSPC
0
0
Bits 15–10
Reserved (always reads 0)
Bit 9
Fast Back-to-Back Cycle Enable (always reads 0)—Fast back-to-back cycles are
not supported.
0 = Fast back-to-back transactions only allowed to the same agent
Bit 8
SERR# Enable (RW)—This bit does not affect the setting of bit 14 in offset
07h–06h.
0 = SERR# output driver disabled (default)
1 = SERR# output driver enabled
Note: If a system error is detected, SERR# can be asserted by either the PCI
master or the AMD-756 peripheral bus controller.
Bit 7
Address/Data Stepping (always reads 0)
0 = Device never uses stepping
130
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 6
Parity Error Response Enable (always reads 0)
0 = Do not report parity errors in status register offset 06 bit 8 (default)
1 = Enable PCI parity response in status register offset 06 bit 8 (not
supported)
Bit 5
VGA Palette Snoop (always reads 0)
0 = Palette accesses generate normal PCI cycles
Bit 4
Memory Write-and-Invalidate Command (always reads 0)—This feature increases
overall performance by eliminating cache writebacks when a PCI initiator
writes to the address of a modified line.
0 = The AMD-751 system controller never generates MWI. The AMD-751
responds to MWI commands by generating the appropriate probe on
the AMD Athlon system bus.
Bit 3
Special Cycle Monitoring (always reads 0)
0 = Special cycles not monitored
Bit 2
Initiator Enable (always reads 1)
1 = AMD-751 system controller can behave as bus initiator
Bit 1
Memory Space (RW)
0 = Disable PCI memory space (default)
1 = Responds to PCI memory space accesses
Bit 0
I/O Space (always reads 0)—The AMD-751 does not act as an I/O target.
Status
Device 0
Bit 15
14
13
12
11
10–9
8
7
6
DPE
SERR#
RIA
RTA
STA
DEVSEL# Timing
PPE
FBBC
UDF
0
0
0
0
0
0
0
0
Reset
0
1
5
Offset 07h–06h
4
Bits 3–0
66 MHz CL
Reserved
0
1
0
0
0
0
Bit 15
DRAM Parity Error Detected (always reads 0)—The AMD-751 does not support
parity checking.
Bit 14
SERR# Error (RWC)—This bit is set whenever the AMD-751 system controller
generates a system error and asserts SERR#.
0 = No error signaled
1 = SERR# error signaled. The AMD-751 has asserted the SERR# pin
(MBE, GART error, or SERR# assertion on the AGP bus).
Chapter 7
Configuration Registers
131
Preliminary Information
AMD-751™ System Controller Data Sheet
Bit 13
21910E—March 2000
Received Initiator Abort (RWC)—This bit is set by a PCI initiator when its
transaction is terminated with initiator abort.
0 = PCI transactions proceeding normally
1 = The AMD-751 system controller has detected that a transaction was
terminated before completion
Bit 12
Received Target Abort (RWC)—The target issues a target abort when it detects
a fatal error or cannot complete a transaction. This bit is set by
simultaneously deasserting DEVSEL# and asserting STOP#.
0 = No abort received
1 = Transaction aborted by target
Bit 11
Signaled Target Abort (always reads 0)—The AMD-751 system controller does
not report target aborts.
Bits 10–9
DEVSEL# Timing (always reads 01)—This field indicates that the slowest
DEVSEL# timing is medium.
Bit 8
PCI Parity Error Detected (always reads 0)—The AMD-751 does not support
parity checking.
0 = No parity error detected/Not supported
Bit 7
Fast Back-to-Back Capability (always reads 0)—The AMD-751 can accept fast
back-to-back transactions only if they are from the same agent.
Bit 6
User-Defined Features (always reads 0)—The AMD-751 does not support
user-defined features.
Bit 5
66 MHz-Capable PCI Bus (always reads 0)—The AMD-751 system controller only
supports the 33-MHz PCI bus.
0 = 33-MHz PCI bus support (default)
1 = 66-MHz PCI bus support (not supported)
Bit 4
Capabilities List (always reads 1)—This bit indicates that the configuration
space of this device contains a capabilities list.
Bits 3–0
Reserved (always reads 0)
132
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Revision ID
Device 0
Bit 7
6
5
4
3
2
Offset 08h
1
Bit 0
—
—
AMD-751 System Controller Chip Revision and Stepping Code
Reset
Bits 7–0
—
—
—
—
—
—
AMD-751™ System Controller Revision Code (RO)—The most-significant nibble
indicates the die revision and the least-significant nibble represents the
stepping. See 7.2.1 “Revision ID Nomenclature” on page 129 for more
information.
Programming Interface
Bit 7
6
Device 0
5
4
3
Offset 09h
2
1
Bit 0
0
0
0
Programming Interface
Reset
Bits 7–0
0
0
0
0
0
AMD-751 System Controller Programming Interface (always reads 00h)—This
register is defined in different ways for each combination of base and
subclass codes. It is undefined for this type of device.
Subclass Code
Bit 7
Device 0
6
5
4
3
Offset 0Ah
2
1
Bit 0
0
0
0
Subclass Code
Reset
Bits 7–0
0
0
0
0
0
Subclass Code (always reads 00h)—The PCI-defined subclass code for a
processor bridge is 00h.
Base Class Code
Bit 7
Device 0
6
5
4
3
Offset 0Bh
2
1
Bit 0
1
1
0
Base Class Code
Reset
Bits 7–0
0
0
0
0
0
Base Class Code (always reads 06h)—The PCI-defined base class code for a
bridge device is 06h.
Reserved
Device 0
Bit 7
6
5
4
Offset 0Ch
3
2
1
Bit 0
0
0
0
0
Reserved
Reset
Bits 7–0
Chapter 7
0
0
0
0
Reserved (always reads 00h)
Configuration Registers
133
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Latency Timer
Bit 7
Device 0
6
5
4
3
Offset 0Dh
2
1
Bit 0
0
0
0
Latency Timer Values
Reset
Bits 7–0
0
0
0
0
0
Latency Timer Value (RW)—This 8-bit binary value specifies the latency timer
in units of PCI bus clocks.
00000000 = 0 PCI clocks
00000001–11111111 = (8-bit binary value) x PCI clocks
Header Type
Device 0
Bit 7
6
5
4
Offset 0Eh
3
2
1
Bit 0
0
0
0
0
Header Type
Reset
Bits 7–0
1
0
0
0
PCI Header Type (RO)—The AMD-751 system controller PCI header type is
80h, indicating a multifunction device.
Reserved
Device 0
Bit 7
6
5
4
Offset 0Fh
3
2
1
Bit 0
0
0
0
0
Reserved
Reset
Bits 7–0
134
0
0
0
0
Reserved (always reads 00h)
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Base Address Register 0 (BAR0)
Reset 0
Bits 31–25
Size
0 0 0 0 0
0
0
0
0
0
Device 0
0
Bits 24–4
Base Address Low
0 0 0 0 0 0 0
0
0
0
0
0
Bit 3
Pre
1
Offset 13h–10h
Bits 2–1
Type
0
0
Bit 0
Mem
0
This register is used by system BIOS memory mapping firmware to
allocate virtual address space for AGP.
Bits 31–25
Size (RW) (default = 000000b)—BIOS firmware writes 1s to this field, then
reads the field back to determine how much memory is required for AGP.
The meaning of the returned value, shown in Table 21, is a memory
allocation size identical to the value represented in Device 0, Offset ACh,
bits 3–1. (see page 159).
Table 21.
Size Field versus AGP Memory Allocation
Bit 31
Bit 30
Bit 29
Bit 28
Bit 27
Bit 26
Bit 25
Memory
Allocated
1
1
1
1
1
1
1
32 Mbytes
1
1
1
1
1
1
0
64 Mbytes
1
1
1
1
1
0
0
128 Mbytes
1
1
1
1
0
0
0
256 Mbytes
1
1
1
0
0
0
0
512 Mbytes
1
1
0
0
0
0
0
1 Gbytes
1
0
0
0
0
0
0
2 Gbytes
Bits 24–4
Base Address Low (always reads 0)—This field are cleared to indicate that the
minimum allocated memory size is 32 Mbytes.
Bit 3
Prefetchable (always reads 1)—This bit is set to indicate that the graphics
memory area can be prefetched.
Bits 2–1
Type (always reads 0)—These bits are cleared to indicate that this base
register is 32 bits wide and mapping can be performed anywhere in the
32-bit address space.
Bit 0
Memory (always reads 0)—This bit is cleared to indicate that this base
address register maps into memory space.
Chapter 7
Configuration Registers
135
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Base Address Register 1 (BAR1)
Reset 0
0
0
0
0
Device 0
Bits 31–12
Base Address High
0 0 0 0 0 0 0
0
0
0
0
0
Bits 11–4
Base Address Low
0 0 0 0 0 0 0
Offset 17h–14h
Bit 3
Pre
1
Bits 2–1
Type
0
0
Bit 0
Mem
0
This register is used by the AGP driver software to set the memory
location of the AGP memory-mapped control registers.
Bits 31–12
Base Address High (RW) (default = 000000h)—This field is loaded by BIOS
firmware to determine the base address A[30:11] of the memory-mapped
AGP registers (BAR1). See page 173 for more information.
Bits 11–4
Base Address Low (always reads 0)—This field is cleared to indicate that 4
Kbytes is allocated to AGP memory-mapped control registers and that the
registers reside in a 4-Kbyte boundary per the PCI Local Bus Specification,
Revision 2.2.
Bit 3
Prefetchable (always reads 1)—This bit is set to indicate that this range can be
prefetched.
Bits 2–1
Type (always reads 0)—These bits are cleared to indicate that BAR1 is 32 bits
wide and mapping can be performed anywhere in the 32-bit address space.
Bit 0
Memory (always reads 0)—This bit is cleared to indicate that BAR0 maps into
memory space.
Base Address Register 2 (BAR2)
Reset 0
0
Bits 31–24
Reserved
0 0 0 0
0
0
0
0
0
Device 0
0
0
0
Bits 23–2
PM2_Block Base Address [31:10]
0 0 0 0 0 0 0 0 0 0
0
Offset 1Bh–18h
0
0
0
0
1 0
R I/O
0 0 1
Bits 31–24
Reserved (always reads 0)
Bits 23–2
PM2 Block Base Address (RW)—This field contains the base address of the
power management register block. This field forms the upper part of
BAR2 containing A[31:10]. This field is loaded by BIOS firmware and
specifies the base of the PM2_BLK.
Bit 1
Reserved (always reads 0)
Bit 0
I/O space (always reads 1)—This bit indicates that the base address register
maps to x86 I/O space.
136
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Capabilities Pointer
Reset 0
0
0
0
0
0
Device 0
0
0
0
0
Bits 31–8
Reserved
0 0 0 0
0
0
0
0
0
0
0
0
0
0
1
Offset 37h–34h
Bits 7–0
CAP_PTR
1 0 0 0
0
0
0
Bits 31–8
Reserved (always reads 0)
Bits 7–0
CAP_PTR (always reads A0h)—This field contains the PCI device 1 offset of
the configuration register group in the AMD-751 system controller
specifically reserved for AGP functions. This register group is the first
item in the New Capabilities mechanism described in an amendment to the
PCI Local Bus Specification, Revision 2.1.
Base Address Chip Select Register 0
Reset
0
Bits 15–7
0
0
Device 0
Offset 41h–40h
Bits 15–7
Bits 6–1
0
Bank 0 Base Address A[31:23]
Bank 0 address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bank 0 Base Address A[31:23] (RW)— These bits determine the base or start
address of the bank 0 chip select. The bank 0 address mask bits determine
which of the address bits are to be used by the compare logic to generate a
chip select, depending on the size of the memory bank.
Note: Logically, chip select programming would be described in the following
way: (Mem_CS[n] = true) if (A[31:23] AND (NOT Bank(n) Mask)) =
(Bank(n) Base AND (NOT Bank(n) Mask)).
Bits 6–1
Bank 0 Address Mask A[28:23] (RW)—These bits are ANDed with A[28:23]
from the processor to determine the size of the memory bank (8 Mbytes,
16 Mbytes, etc.).
Note: The minimum bank size supported is 8 MByte.
Bit 0
Bank 0 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled
Note: BIOS firmware must configure the largest banks first as the lowest
addressed memory, then increasing addresses with decreasing bank sizes
available.
Chapter 7
Configuration Registers
137
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Base Address Chip Select Register 1
Reset
0
0
0
Device 0
Offset 43h–42h
Bits 15–7
Bits 6–1
0
Bank 1 Base Address A[31:23]
Bank 1 Address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–7
Bank 1 Base Address A[31:23] (RW)—See Base Address Chip Select Register 0
on page 137.
Bits 6–1
Bank 1 Address Mask A[28:23] (RW)—See Base Address Chip Select Register 0.
Bit 0
Bank 1 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled.
Base Address Chip Select Register 2
Reset
0
0
0
Device 0
Offset 45h–44h
Bits 15–7
Bits 6–1
0
Bank 2 Base Address A[31:23]
Bank 2 Address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–7
Bank 2 Base Address A[31:23] (RW)—See Base Address Chip Select Register 0
on page 137.
Bits 6–1
Bank 2 Address Mask A[28:23] (RW)—See Base Address Chip Select Register 0.
Bit 0
Bank 2 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled
Base Address Chip Select Register 3
Reset
0
0
0
Device 0
Offset 47h–46h
Bits 15–7
Bits 6–1
0
Bank 3 Base Address A[31:23]
Bank 3 Address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–7
Bank 3 Base Address A[31:23] (RW)—See Base Address Chip Select Register 0
on page 137.
Bits 6–1
Bank 3 Address Mask A[28:23] (RW)—See Base Address Chip Select Register 0.
Bit 0
Bank 3 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled
138
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Base Address Chip Select Register 4
Reset
0
0
0
Device 0
Offset 49h–48h
Bits 15–7
Bits 6–1
0
Bank 4 Base Address A[31:23]
Bank 4 Address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–7
Bank 4 Base Address A[31:23] (RW)—See Base Address Chip Select Register 0
on page 137.
Bits 6–1
Bank 4 Address Mask A[28:23] (RW)—See Base Address Chip Select Register 0.
Bit 0
Bank 4 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled
Base Address Chip Select Register 5
Reset
0
0
0
Device 0
Offset 4Bh–4Ah
Bits 15–7
Bits 6–1
0
Bank 5 Base Address A[31:23]
Bank 5 Address Mask A[28:23]
EN
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–7
Bank 5 Base Address A[31:23] (RW)—See Base Address Chip Select Register 0
on page 137.
Bits 6–1
Bank 5 Address Mask A[28:23] (RW)—See Base Address Chip Select Register 0.
Bit 0
Bank 5 Enable (RW)
0 = Memory bank is disabled (default)
1 = Memory bank enabled
Chapter 7
Configuration Registers
139
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
SDRAM Address Mapping Control Register 1/0
Reset
Bit 7
6
5
4
Reserved
Address
Mode 1
#Banks 1
0
0
0
Device 0
3
Reserved
0
0
Offset 50h
2
1
Bit 0
Address
Mode 0
#Banks 0
Reserved
0
0
0
Bit 7
Reserved (always reads 0)
Bits 6
CS1 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 5
Number of Banks in CS1 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
Bit 4–3
Reserved (always reads 0)
Bit 2
CS0 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 1
Number of Banks in CS0 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
Bit 0
Reserved (always reads 0)
SDRAM Address Mapping Control Register 3/2
Reset
Bit 7
6
5
4
Reserved
Address
Mode 3
#Banks 3
0
0
0
Device 0
3
Reserved
0
0
Offset 51h
2
1
Bit 0
Address
Mode 2
#Banks 2
Reserved
0
0
0
Bit 7
Reserved (always reads 0)
Bit 6
CS3 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 5
Number of Banks in CS3 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
140
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 4–3
Reserved (always reads 0)
Bit 2
CS2 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 1
Number of Banks in CS2 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
Bit 0
Reserved (always reads 0)
SDRAM Address Mapping Control Register 5/4
Reset
Bit 7
6
5
4
Reserved
Address
Mode 5
#Banks 5
0
0
0
Device 0
3
Reserved
0
0
Offset 52h
2
1
Bit 0
Address
Mode 4
#Banks 4
Reserved
0
0
0
Bit 7
Reserved (always reads 0)
Bit 6
CS5 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 5
Number of Banks in CS5 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
Bit 4–3
Reserved (always reads 0)
Bit 2
CS4 Address Mode (RW)—This bit specifies the row and column addressing as
shown in Table 22 on page 142.
Bit 1
Number of Banks in CS4 (RW)—This bit specifies the number of internal
DRAM banks in this chip select.
0 = Two banks (default)
1 = Four banks
Bit 0
Chapter 7
Reserved (always reads 0)
Configuration Registers
141
Mapping Processor Address Lines to Memory Address Lines
SDRAM
Reg 50h
Addr
Mode
0
16 Mbit
MA14 MA13 MA12 MA11 MA10 MA9
Row
Column
12
12
11
11
12
24
27
MA7
MA6
MA5
MA4
MA3
MA2
MA1
MA0
Row:Col
12
PC
22
24
21
23
20
10
19
9
18
8
17
7
16
6
15
5
14
4
13
3
x4 (11:10)
x8 (11:9)
x16 (11:8)
23
PC
22
26
21
25
20
10
19
9
18
8
17
7
16
6
15
5
14
4
13
3
x4 (14:11)
x8 (14:10)
x16 (14:9)
x32 (14:8)
Preliminary Information
Configuration Registers
Row
1
64 Mbit Column
128 Mbit
11
11
MA8
AMD-751™ System Controller Data Sheet
142
Table 22.
Mode 0, 2 Bank: MA13 = Bank select
Mode 1, 2 Bank: MA13 = Bank select
Mode 1, 4 Bank: MA[13:12] = Bank select
21910E—March 2000
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
DRAM Timing Register
Bit 15
14
PHL
Reset
0
Bits 15–14
12
11
ICL[1:0]
0
0
0
10
9
8
TRC
0
0
7
6
TRP
0
0
5
4
Offset 55h–54h
3
TRAS
0
0
0
2
1
TCL
0
0
Bit 0
TRCD
0
0
0
PH Limit (RW)—These bits specify the number of consecutive page-hit
requests to allow before choosing a non-page-hit request.
00
01
10
11
Bits 13–12
13
Device 0
= 1 cycle(default)
= 4 cycles
= 32 cycles (recommended safe configuration)
= 64 cycles
Idle Cycle Limit [1:0] (RW)—These bits specify the number of idle cycles to
wait before precharging an idle bank. (Idle cycles are defined as cycles
where no valid request is asserted to the MCT.)
Idle Cyle Limit[2:0]*
000
001
010
011
100
101
110
111
= 0 cycle (default)
= 8 cycles (recommended safe configuration)
= 12 cycles
= 16 cycles
= 24 cycles
= 32 cycles
= 48 cycles
= Disable idle precharge
* See Idle Cyle Limit [2] on page 144.
Bits 11–9
TRC Bank Cycle Time Value (RW)—These bits specify the minimum time from
activate to activate of the same bank.
000
001
010
011
100
101
110
111
Bits 8–7
TRP SRAS Precharge (RW)—These bits specify the delay from precharge
command to activate command.
00
01
1x
Chapter 7
= 3 cycles (default)
= 4 cycles
= 5 cycles
= 6 cycles
= 7 cycles
= 8 cycles (recommended safe configuration)
= Reserved
= Reserved
= 3 cycle (default) (recommended safe configuration)
= 2 cycles
= 1 cycles
Configuration Registers
143
Preliminary Information
AMD-751™ System Controller Data Sheet
Bits 6–4
21910E—March 2000
TRAS Value (RW)—These bits specify the minimum bank (SRAS[2:0]#)
active time.
000
001
010
011
100
101
110
111
Bits 3–2
= 2 cycles (default)
= 3 cycles
= 4 cycles
= 5 cycles
= 6 cycles
= 7 cycles (recommended safe configuration)
= Reserved
= Reserved
TCL SDRAM SCAS Latency Value (RW)—These bits specify the delay from
SCAS[2:0]# to data valid.
00
01
10
11
Bits 1–0
= 3 cycle (default) (recommended safe configuration)
= 2 cycles
= Reserved
= 4 cycles
TRCD SRAS to SCAS Latency Value (RW)—These bits specify the delay from the
activation of a bank to the time that a read or write command is accepted.
00
01
10
11
= 1 cycle (default)
= 2 cycles
= 3 cycles (recommended safe configuration)
= 4 cycles
DRAM CS Driver Strength Register
Bit 15
14
13
12
11
10
Device 0
9
Reserved
Reset
0
0
0
0
8
7
6
5
4
Offset 57h–56h
3
ICL[2] Address Bus B Address Bus A
DRV
DRV
0
0
0
0
0
0
0
0
2
1
Controls
DRV
0
0
Bit 0
DQM
DRV
0
0
Bits 15–9
Reserved (always reads 0)
Bit 8
Idle Cycle Limit [2] (RW)—This bit, along with those described on page 143,
specify the number of idle cycles to wait before precharging an idle bank.
Bits 7–6
SDRAM Address Bus B and ClkOut DRV (RW)—This bit specifies driver strength
selection for the SDRAM MAdB and clock signals.
00
01
10
11
144
= Light Load—One single-sided DIMM
= Medium Light Load—Not used
= Medium Heavy Load—Two single-sided DIMMs or
one double-sided DIMM
= Heavy Load—Two double-sided DIMMs
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bits 5–4
SDRAM Address Bus A DRV (RW)—This bit specifies driver strength selection
for the SDRAM MAdA signals.
00
01
10
11
Bits 3–2
= Light Load—One single-sided DIMM
= Medium Light Load—Not used
= Medium Heavy Load—Two single-sided DIMMs or
one double-sided DIMM
= Heavy Load—Two double-sided DIMMs
SDRAM Controls DRV (RW)—These bits specify driver strength selections for
SRAS[2:0]#, SCAS[2:0]#, MCKE[2:0], CS[5:0]#, and WE[2:0]# signals.
00
01
10
11
Bits 1–0
=
=
=
=
Drive strength selected Low
Drive strength selected Medium Low (Recommended setting)
Drive strength selected Medium High
Drive strength selected High
SDRAM DQM Bus DRV (RW)—This bit specifies driver strength selection for
the SDRAM DQM signals.
00
01
10
11
=
=
=
=
Drive strength selected Low
Drive strength selected Medium Low (Recommended setting)
Drive strength selected Medium High
Drive strength selected High
DRAM ECC Status Register
Bit 15
14
13
12
Device 0
11
10
9
Reserved
Reset
0
0
0
0
0
0
8
7
6
ECC Status
Reserved
0
0
0
0
5
4
Offset 59h–58h
3
2
1
Bit 0
0
0
Failing ECC Chip Select
0
0
0
0
Bits 15–10
Reserved (always reads 0)
Bits 9–8
ECC Status (RW)—This field indicates the status of the DRAM error
correcting code detect logic. An I/O write must clear both bits in this field
before any new status can be recorded.
00
01
10
11
= No error (default)
= Multiple bit error detected (SERR# asserts)
= Single bit error detected
= Single and multiple bit error detected (SERR# asserts)
Bits 7–6
Reserved (always reads 0)
Bits 5–0
ECC CS Status (RO)—This field indicates the chip select where the ECC error
occured. Bit 0 indicates CS0, bit 1 indicates CS1, etc.
Chapter 7
Configuration Registers
145
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
DRAM Mode/Status Register
Bit 15
14
13
12
11
Device 0
10
9
Reserved
Reset
0
0
0
0
8
SD Init Type
0
0
0
0
7
MWE
0
6
5
Reserved
0
Offset 5Bh–5Ah
4
3
2
BRE
R
EN
0
0
0
0
1
Bit 0
Cycles
0
0
Bits 15–10
Reserved (always reads 0)
Bit 9
SDRAM Init (RWS)—This bit is used to start the SDRAM initialization
sequence. When set, this bit cannot be reset. BIOS code should first set
SDRAM timing parameters and signal drive strength prior to initiating
this bit.
Bit 8
SDRAM Type (RW0)
0
1
Bit 7
= SDRAM (default)
= ESDRAM (not supported by the AMD-751 system controller)
Mode Write Enable (RW)—This bit is used by the BIOS to set the DRAM mode
register. TCL and Large Burst Enable must be set before this bit is
asserted (see page 144). The MCT clears this bit when the mode register
write is complete.
0
1
= Write to DRAM mode register is disabled/done (default)
= Mode register write enabled
Bits 6–5
Reserved (always reads 0)
Bit 4
Burst Refresh Enable (RW)
0
1
Bit 3
Large Burst Enable (always reads 0)
0
1
Bit 2
= ECC disabled (default)
= ECC enabled
Cycles per Refresh (RW)—This field specifies the number of 100-MHz clock
cycles between refresh request.
00
01
10
11
146
= Eight quadword burst (default)
= Four quadword burst
ECC Enable (RW)
0
1
Bits 1–0
= Refresh requests are only queued if memory requests are currently
being serviced (default)
= Up to four refresh requests are queued before being sent to the
MCT
= 2048 cycles between refresh (default)
= 1536 cycles between refresh (recommended)
= 1024 cycles between refresh
= 512 cycles between refresh
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
BIU Control and Status Register
31
30
Probe
Enable
Reset
0
14
0
13
Probe Limit
Reset
0
Bit 31
28
27
Reserved
R/W
0
Bit 15
29
0
0
12
Device 0
26
0
23
22
21
20
19
XCA Read Count
XCA Write Count
0
11
1
24
XCA Probe Count
18
0
0
0
0
0
0
0
0
10
9
8
7
6
5
4
3
2
Queue DCOut Delay
Bypass
Enable
1
0
X
X
DCin Delay
X
X
X
17
16
Halt
SGDis Probe
DSCEna Ena Limit
0
Ack Limit
0
25
Offset 63h–60h
WR2R
D Dly
X
X
0
1
0
Bit 0
RD2WR Delay
X
X
Probe Enable (RW)—When set, this bit allows probes to be sent to the
processor.
Bits 30–28 Reserved (always RW0)—This field must always be written as 000 for
maximum performance.
Bits 27–25 XCA Probe Count (RW)—This field is set by the BIOS firmware with the
maximum number of consecutive AMD Athlon system bus grants for
Probe transfers allowed before the AMD-751 system controller forces
another type of transfer to gain access to the AMD Athlon system bus.
The count limit prevents one type of transfer from dominating the
AMD Athlon system bus. The recommended value is 010b.
Bits 24–22 XCA Read Count (RW)—This field is set by the BIOS firmware with the
maximum number of consecutive AMD Athlon system bus grants for Read
transfers allowed before the AMD-751 forces another type of transfer to
gain access to the AMD Athlon system bus. The count limit prevents one
type of transfer from dominating the AMD Athlon system bus. The
recommended value is 110b.
Bits 21–19
XCA Write Count (RW)—This field is set by the BIOS firmware with the
maximum number of consecutive AMD Athlon system bus grants for Write
transfers allowed before the AMD-751 forces another type of transfer to
gain access to the AMD Athlon system bus. The count limit prevents one
type of transfer from dominating the AMD Athlon system bus. The
recommended value is 100b.
Bit 18
Halt Disconnect Enable (RW)
0
= No disconnect after a Halt special cycle (default)
1
= Disconnect after a Halt special cycle
Note: See ACPI Power States on page 108 for more information.
Chapter 7
Configuration Registers
147
Preliminary Information
AMD-751™ System Controller Data Sheet
Bit 17
Stop Grant Disconnect Enable (RW)
0
1
Bits 16–14
= No disconnect after a Stop Grant special cycle (default)
= Disconnect after a Stop Grant special cycle
Probe Limit (RW)—This field is set by the BIOS firmware with the maximum
probes that the processor can handle.
000
001
010
.
.
111
Bits 13–10
= 1 probe (default)
= 2 probes
= 3 probes
= 8 probes
Ack Limit (RO)—BIOS firmware reads this field to determine how many
outstanding ‘un-acked’ AMD Athlon system bus commands can be sent to
the AMD-751 system controller.
0000=
0001=
0010=
0011=
.
.
.
1111=
Bit 9
21910E—March 2000
1 un-acked commands
2 un-acked commands
3 un-acked commands
4 un-acked commands (default)
16 un-acked commands
Queue Bypass Mode Enable (RW)—When set, the AMD-751 allows low-latency
accesses to memory. The low-latency access “bypasses” internal FIFOs
(queues) and arbiters when no PCI or APCI operations are pending. This
mode is valid for use in AMD Athlon processor systems only.
Note: Bypass mode is available in Revision C and later of the AMD-751
system controller. In previous revisions, this bit was used as the RIH
enable control. RIH probes are always disabled.
Bits 8–7
DC Out Delay (RO)—This field specifies the number of system (normally
100-MHz) clock cycles from a processor read command and the start of
data.
00
01
10
11
148
=
=
=
=
Reserved
1 cycles
2 cycles
3 cycles
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bits 6–3
DC in Delay (RO)—This field specifies the number of system (100-MHz)
clocks from a processor write command and the start of data.
0000= 1 clock
0001= 2 clocks
.
.
.
1111= 16 clocks
Bit 2
WR2RD Delay (RO)—This field specifies the number of AMD Athlon system
bus cycles that are inserted between write and read transfers to allow the
data bus to turn around
Bits 1–0
RD2WR Delay (RO)—This field specifies the number of AMD Athlon system
bus cycles that are inserted between read and write transfers to allow the
data bus to turn around.
BIU SIP Register
Device 0
Offset 67h–64h
Bit 31 Bits 30–29 Bits 28–27
Bits 26–0
Clock Data Init Addr Init
SIP Packet
FO
Cnt
Cnt
Reset 0
INIT Logic
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Bit 31
Clock Forward Offset (RW)—This affects the clock forwarded data bus timing:
0 = AMD-751 system controller delays the assertion of SDATA [31:16] and
[63:48] bits and appropriate clocks by approximately 1000ps.
1 = All data groups are forwarded at the same time (nominally aligned
with a system clock edge)
Bits 30–29 Data FIFO Initialize Count (RO)—This field displays the value loaded by the
initialization logic in the data receive FIFO counters.
Bits 28–27 Address FIFO Initialize Count (RO)—This field displays the value loaded by the
initialization logic in the address receive FIFO counters.
Bits 26–0
Chapter 7
SIP[27:1] Serial Initialization Packet (RO)—This field contains the values loaded
into the processor during the AMD Athlon system bus connect protocol.
The initial state depends on the initialization logic.
Configuration Registers
149
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
BIU 1 Status Register
Bit 15
14
13
Device 0
12
11
10
9
8
7
Offset 69h–68h
6
5
4
3
2
1
Bit 0
0
0
0
X
X
X
0
Reserved
Reset
0
Bits 15–0
0
X
X
0
0
0
0
0
Reserved—Reserved for dual processor implementation.
MRO Control Register
Bit 15
14
13
Device 0
12
11
Reserved
Reset
0
0
0
10
9
8
PCIPipe PCIBlk
Enable WrFEn
0
0
0
0
7
6
Reserved
0
0
5
4
Offset 71h–70h
3
2
Memory Request Disable
0
0
0
0
0
1
Bit 0
MWD
RD
0
1
Bit s 15–11 Reserved (always reads 0)
Bit 10
PCI Pipeline Enable (RW)—This bit should be set to 1 for optimal operation.
When clear, all PCI tranfers are checked against outstanding processor
read probes. Those tranfers with matching block addresses are then
stalled until the matching read probe is complete. When set, PCI transfers
are pipelined for highest performance.
Bit 9
PCI Block Write Fast Enable (RW)—This bit should be set to 1 for optimal
operation. When set, the AMD-751 system controller sends an NOP
invalidate probe to the AMD Athlon processor for PCI block writes and
allows the PCI block write to memory to continue. When clear, the
AMD-751 sends a Read-if-Dirty invalidate probe to the processor and waits
for the data to return from the processor cache before allowing the PCI
block write to memory.
Bit s 8–6
Reserved (RW0)—These bits must remain 0 for proper operation.
Bit s 5–2
Memory Request Disable (RW)—These bits are for testing purposes only.
When set, these bits disable request entries in the memory read queue
(MRQ) (default 000).
Bit 1
Memory Write Queue Disable (RW)—This bit is for testing purposes only.
0 = Enables the request entry in the memory write queue (MWQ) (default)
1 = Disables the request entry in the MWQ
Bit 0
Reorder Disable (RW)
0 = The memory request organizer (MRO) reorders memory requests to
optimize memory performance
1 = The MRO does not reorder memory requests (default)
150
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Who Am I (WHAMI) Register
Bit 15
14
13
12
11
Device 0
10
9
8
7
6
5
4
First AMD Athlon™ System Bus ID
Reset
X
X
X
X
X
X
Offset 81h–80h
3
2
1
Bit 0
X
X
X
WHAMI
X
X
X
X
X
X
X
Bits 15–8
First AMD Athlon™ System Bus ID (RO)—This field contains the ID of the first
processor to read this register.
Bits 7–0
Who Am I (RO)—This field returns the ID of the processor that accesses it.
PCI Arbitration Control Register
Bit 15
MDA
Suprt
Reset
0
Bit 15
14
13
12
11
10
Device 0
9
8
7
6
5
PCIW APCI DisRD DisAP DisPCI AGPA SBlkDi PMRe 15Mh 14Mh
pRtr WpRtr err
CIeP
eP
D
s
gEna
ole
ole
0
0
0
0
0
0
0
0
0
0
Offset 84h–85h
4
3
2
1
Bit 0
EV6
TLTD
APE
PPE
Park
0
0
0
0
0
MDA Support (RW)—This bit allows monchrome display adapters (MDA) to
be used simultaneously with AGP display cards. Use this bit in
conjunction with the VGA enable bit (see page 171) as follows:
VGA = 0, MDA = 0—All VGA and MDA references go to the PCI bus
VGA = 0, MDA = 1—Undefined
VGA = 1, MDA = 0—MDA only operations (I/O 3BFh) go to PCI, all other
graphics references to AGP
VGA = 1, MDA = 1—All MDA references go to PCI and all AGP references
go to AGP
MDA address ranges are defined as follows:
Memory—0B0000h–0B7FFFh
I/O—3B4h, 3B5h, 3B8h, 3B9h, 3BAh, 3BFh
Bit 14
PCI Write-Post Retry (RW)—When set, this bit enables retries on the PCI if
there are pending posted writes.
Bit 13
APCI Write-Post Retry (RW)—When set, this bit enables retries on the APCI if
there are pending posted writes.
Bit 12
Disable Read Data Error (RW)—When set, this bit disables the AMD-751
system controller from reporting a data read error to the processor if the
BUI cycle was aborted. Instead, the AMD-751 then returns a data value of
all bits equal to 1b.
Chapter 7
Configuration Registers
151
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 11
Disable APCI Early Probe (RW)—When set, this bit disables the AMD-751
system controller from issuing an early cache snoop to the processor when
an APCI (AGP bus) master requests a memory write cycle. In the default
mode, as soon as the AMD-751 detects a memory write cycle from an
external APCI master, it sends a probe only request to the MRO, which
results in a processor snoop.
Bit 10
Disable PCI Early Probe (RW)—This bit works exactly the same as bit 11,
except that it affects PCI master requests rather than APCI requests.
Bit 9
AGP Arbiter Pipelining Disable (RW)—This bit disables the AGP arbiter from
pipelining grants onto the bus.
0 = Enabled (default)
1 = Disable the AGP arbiter from pipelining grants onto the bus
Bit 8
SB Lock Disable (RW)—This bit controls the response of the AMD-751 system
controller to a PCI request by the AMD-756 peripheral bus controller.
0 = The AMD-751 ensures that all previous requests from the BIU and PCI
are flushed out before granting the AMD-756 the PCI bus
1 = Disable the flushing of previous requests
Bit 7
Power Management Register Access Enable (RW)—This bit controls reading and
writing to the power management register (BAR2).
0 = Accesses to the power management register address (BAR2) are
forwarded to the PCI bus, which results in a PCI master abort cycle
(default)
1 = Enable access to the power management register
Bit 6
15Mbyte Hole Enable (RW)—When set, this bit creates a ‘hole’ in memory
from 15 Mbytes to 16 Mbytes, and the PCI decode logic does not assert a
match for those addresses.
Bit 5
14Mbyte Hole Enable (RW)—When set, this bit creates a ‘hole’ in memory
from 14 Mbytes to 15 Mbytes, and the PCI decode logic does not assert a
match for those addresses.
Bit 4
EV6 Mode (RW)—When set, this bit indicates that the PCI interface decodes
memory hits in the EV6 mode. There are no memory holes and DMA can
be performed on any address that lies within the SDRAM map.
0 = x86 mode (default)
1 = EV6 mode
152
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 3
Target Latency Timer Disable (RW)—When the AMD-751 system controller acts
as a PCI target, it has a latency timer that retries the write cycle if its
buffers are full for more than 8 bus clocks (16 clocks for the first transfer).
0 = Enabled (default)
1 = Disable the target latency timer on both the standard PCI and AGP PCI
interfaces
Bit 2
APCI Prefetch Enable (RW)—This bit enables the AMD-751 system controller
to prefetch data from the SDRAM when a PCI master on the AGP bus
reads from the main memory.
0 = Prefetch disabled (default)
1 = Prefetch enabled
Bit 1
PCI Prefetch Enable (RW)—This bit enables the AMD-751 to prefetch data
from the SDRAM when a PCI master on the standard PCI bus reads from
the main memory.
0 = Prefetch disabled (default)
1 = Prefetch enabled
Bit 0
Park PCI (RW)—This bit controls where the arbiter defaults to when there is
no request pending. Sometimes this is referred to as processor-centric
(parking on the processor) or memory-centric. Generally, a
processor-centric system has improved processor benchmarks and a
memory-centric system has improved overall system performance. The
philosophy in a memory-centric system is that the last requestor is most
likely to be the next requestor.
0 = The arbiter parks on the processor only (default)
1 = Enable parking for the PCI master (recommended)
Chapter 7
Configuration Registers
153
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
PCI and APCI Chaining Register
Bit 7
6
Device 0
5
4
3
2
Reserved
Reset
0
0
0
1
Offset 86h
Bit 0
Chaining Enable
0
0
0
0
0
Bit 1
Enable APCI Chaining—This bit allows chaining of back-to-back write
operations to APCI (from the processor). Only sequencially-addressed
write transactions that do not cross 4-Kbyte page boundaries can be
combined into one bus burst transfer (chaining).
Bit 0
Enable PCI Chaining—This bit allows chaining of back-to-back write
operations to PCI (from the processor). Only sequencially-addressed write
transactions that do not cross 4-Kbyte page boundaries can be combined
into one bus burst transfer (chaining).
Note: Enable APCI chaining and enable PCI chaining bits are available on the
AMD-751 system controller Revision C and later. In previous revisions,
these bits are read-only and always read 0.
AGP VGA BIOS Mask Register
Reset
Bits 15–8
Device 0
Offset 87h
Bit 7
6
5
4
3
2
1
Bit 0
DC
D8
D4
D0
CC
C8
C4
C0
0
0
0
0
0
0
0
0
AGP VGA BIOS Address (RW)—This field indicates the corresponding
16-Kbyte segment or segments that contains the VGA BIOS on the AGP
bus. The range of bit settings are as follows:
Bit 0 = address range 0xC0000h–0xC3FFFh
Bit 1 = address range 0xC4000h–0xC7FFFh
Bit 3 = address range 0xC8000h–0xCBFFFh
Bit 4 = address range 0xCC000h–0xCFFFFh
Bit 5 = address range 0xD0000h–0xD3FFFh
Bit 6 = address range 0xD4000h–0xD7FFFh
Bit 7 = address range 0xD8000h–0xDBFFFh
Bit 8 = address range 0xDC000h–0xDFFFFh
Each RW bit determines if accesses in the respective address range are
forwarded from the primary to the secondary PCI bus. When set, these bits
indicate that the corresponding segment (16 Kbytes) should be mapped to
the AGP PCI (secondary) bus. One or more of these bits should be set if
the AGP graphics card has a BIOS.
0 = Do not forward (default)
1 = Forward
Bits 7–2
154
Reserved (always reads 0)
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Config Status#1
Bit 15
14
Device 0
13
12
11
Reserved
Reset
0
0
0
10
9
8
7
6
Reserved
0
SBA7
SBA6
SBA5
5
4
Offset 89h–88h
3
2
Reserved
SBA4
0
0
0
1
Bit 0
Processor Divider
0
SBA3
SBA2
SBA1
SBA0
Bits 15–12
Reserved (always reads 0)
Bits 11–8
Reserved for Dual Processor Implementation
Bits 7–4
Reserved (always reads 0)
Bits 3–0
Processor Divider (RO)—This field contains the processor divider field
supplied by the AMD Athlon system bus. Together with the CLK speed
and the bus length fields, this field allows the AMD-751 system controller
to properly program the AMD Athlon processor interface logic using the
SIP protocol. The default value comes from bus pins AD[3:0].
Config Status #2
Bit 15
14
Device 0
13
12
11
10
9
Reserved
Reset
0
0
0
0
8
7
6
ProcB AGP/CoreCLK
Trshld
Ratio
0
0
0
AD40
0
5
4
CoreCLK
PLLDv AD31 AD30
Offset 8Bh–8Ah
3
2
Reserved
X
X
1
Bit 0
length 0
AD11
AD10
Bits 15–9
Reserved (always reads 0)
Bit 8
Processor Bus Threshhold (RO)—This bit indicates the threshold range for the
AMD Athlon system bus I/O cells.
0 = Low threshold of between 1.35V to 1.9V
1 = High threshold of between 2.0V to 2.2V
Bits 7–6
AGP to Core Clock Ratio (RO)—This field indicates the ratio of the AGP logic
clock and the system clock used to run the BIU and memory control logic.
Bit 6 is controlled by the PLL divisor pin. Bit 7 is hard wired to 0.
00 = AGP clock to system clock ratio of 1.0 to 1.0
01 = AGP clock to system clock ratio of 1.0 to 1.5 (production setting)
1x = Reserved
Bits 5–4
Clock Speed (RO)—The default comes from the bus pins AD[31:30]. This field
defines the speed of the system clock received by the AMD-751 system
controller.
00 = System clock speed is 100 MHz (production setting)
01 = System clock speed is 66 MHz
10 = System clock speed is 90 MHz
11 = Reserved
Chapter 7
Configuration Registers
155
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bits 3–2
Reserved for Dual Processor Implementation
Bits 1–0
AMD Athlon™ System Bus Length (RO)—This field indicates the relative length
of the AMD Athlon system bus trace routing on the motherboard. The
default comes from bus pins AD[11:10].
00
01
10
11
= Short, non-AMD Athlon system bus design
= Single AMD Athlon system bus slot, close
= Far AMD Athlon system bus slot, used for dual processor
configurations
= Farthest length AMD Athlon system bus slot (dual processor
designs)
AGP Capability Identifier
Reset
0
0
Bits 31–24
Bits 31–24
Reserved
0 0 0 0
0
Device 0
Bits 23–20 19 18 17 16
Major Revision Minor Revision
0 0 0 0 1 0 0 0 0 0
0
Bits 15–8
Next Pointer
0 0 0 0
7
0
0
0
Offset A3h–A0h
6 5 4 3 2 1
Capabilities Identifier
0 0 0 0 0 1
0
0
Reserved (always reads 0)
Bits 23–20 Major Revision of AGP Specification (RO)—These bits indicate
AGP-specification major revision to which the device conforms.
the
0000 = Revision 0
0001 = Revision 1
0010 = Revision 2
Note: See Bits 19–16 for an example.
Bits 19–16
Minor Revision of AGP Specification (RO)—These bits indicate
AGP-specification minor revision to which the device conforms.
the
0000 = Revision x.0
0001 = Revision x.1
0010 = Revision x.2
For example, if bits 23–16 = 20h, the device conforms to AGP-specification
revision 2.0.
Bit 15–8
Next Pointer (always reads 0)—The pointer to the next item in the new
capabilities linked list is set to null to indicate the last item in the list.
Bits 7–0
Capability Identifier (always reads 02h)—The default value 02h indicates AGP
as assigned by the PCI Special Interest Group.
156
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP Status
31 30 29 28 27 26 25 24
Maximum Request Depth
Reset 0 0 0 0 1 1 1 1 0
Device 0
0
0
Bits 23–10
Reserved
0 0 0 0 0
0
0
0
Bit 9
SBAE
1
Offset A7h–A4h
Bits 8–6 5 Bits 4–2
Reserved 4G Reserved
0 0 0 0 0 0 0
Bits 1–0
TRC
1
1
Bits 31–24
Maximum Request Depth (always reads 0Fh)—The read-only value of 0Fh
indicates that the AMD-751 system controller can handle a maximum of 16
AGP requests.
Bits 23–10
Reserved (always reads 0)
Bit 9
Sideband Address (always reads 1)—This bit is set to indicate that the
AMD-751 supports sideband addressing.
Bits 8–6
Reserved (always reads 0)
Bit 5
4-Gigabyte Address Space (RO)—This bit reflects the setting of the Command
Register, Offset A8h–ABh, bit 5.
0 = Address space is limited to four Gbytes (default)
1 = Address space can be greater than four Gbytes
Bits 4–2
Reserved (always reads 0)
Bits 1–0
Transfer Rate Capability (always reads 11b)—This field indicates that the
AMD-751 supports both 1x and 2x data transfers.
Chapter 7
Configuration Registers
157
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP Command Register #2
Reset 0
0
0
0
0
0
Device 0
Bits 31–10
Reserved
0 0 0 0 0
0
0
Bits 31–10
Reserved (always reads 0)
Bit 9
Sideband Address Enable (RW)
0
0
0
0
Offset ABh–A8h
Bit 9 Bit 8 Bits 7–6 5 Bits 4–2
SBAE AGPE Reserved 4G Reserved
0
0
0 0 0 0 0 0 0
Bits 1–0
TRS
0
0
0 = SBA operations are disabled (default)
1 = SBA operations are enabled
Bit 8
AGP Enable (RW)
0 = AGP operations are ignored (default)
1 = AGP operations are accepted
Bits 7–6
Reserved (always reads 0)
Bit 5
4G_ENA (always reads 0)—When this bit is 0, it indicates the address range is
up to four Gbytes. The AMD-751 system controller only supports 32-bit
addressing.
Bits 4–2
Reserved (always reads 0)
Bits 1–0
Transfer Rate Select (RW)—One bit must be set in this field and the other
cleared to indicate the desired AGP data transfer rate.
00
01
10
11
=
=
=
=
Reset condition (default)
Selects 1x transfer mode
Selects 2x transfer mode
Not allowed
AGP Virtual Address Space
Reset
0
0
0
0
0
Bits 31 – 17
Reserved
0 0 0 0 0
Device 0
0
0
0
Bits 31–17
Reserved (always reads 0)
Bit 16
VGA ISA Address Space (RW)
0
16
VI
0 1 0
0
0
0
Bits 15– 4
Reserved
0 0 0 0
Offset AF–ACh
3
0
0
0
0
2 1 0
VAS
GE
0 0 0 0
0 = Address bits A[15:10] are used for decoding
1 = Address bits A[9:0] are used for decoding (default)
Bits 15–4
158
Reserved (always reads 0)
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bits 3–1
Virtual Address Space (RW)—This field defines the amount of virtual address
space (VAS) allocated to the GART by the system BIOS. During its
memory mapping routine, the BIOS reads the graphics controller to
determine the amount of graphics memory required and adjusts these bits
accordingly. Changing these bits automatically changes Device 0, Offset
10h, bits 30–25 (see page 135).
The operating system allocates the actual number of non-contiguous
4-Kbyte blocks of physical system memory allocated to the GART. The
total amount of allocated physical memory can never exceed the VAS size.
000
001
010
011
100
101
110
Bit 0
= 32 Mbytes virtual address space (default)
= 64 Mbytes
= 128 Mbytes
= 256 Mbytes
= 512 Mbytes
= 1 Gbytes
= 2 Gbytes
GART Enable (RW)—This bit determines whether or not the system BIOS
allocates virtual address space for the GART. If the Processor-to-PCI
bridge (Device 0, Offset 10h) BAR0 is set to 0, no memory is allocated. The
PCI-to-PCI bridge (Device 1) capabilities pointer is set to point to the next
item in the linked list, or null if there is no other item. This bit is set by the
BIOS PCI enumeration routines. System BIOS allocates virtual address
space for the GART based upon the value in bits [3:1].
0 = GART operations are not valid (default)
1 = GART operations are valid
AGP Mode Control Register #1
Reset
Bit 7
Device 0
7
Bits 6–0
SynEn
Reserved
0
0
0
0
0
0
0
Offset B0h
0
Sync Enable (RW)
0 = No synchronization is guaranteed (default)
1 = The AMD-751 system controller enables all writes to the GART range
from processor to memory to be completed before initiating
processor-to-AGP cycles, allowing synchronization between the
processor and AGP
Bits 6–0
Reserved (RW0)—These bits must remain 0 for proper operation.
Chapter 7
Configuration Registers
159
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP Mode Control Register #2
7
6
Device 0
5
Reserved
Reset
0
0
0
Offset B2h
4
3
2
1
Bit 0
R
NGSE
R
GPDCE
G1LM
0
0
0
1
0
Bits 7–5
Reserved (always reads 0)
Bit 4
Reserved (RW0)—This bit must remain 0 for proper operation.
Bit 3
Non-GART Snoop Enable (RW)
0 = When clear, AGP addresses that fall outside of the GART range do not
cause probes (default)
1 = When set, this bit forces AGP accesses that are not in the GART range
to initiate AMD Athlon system bus probes to the processor(s)
Bit 2
Reserved (RW0)—This bit is always set to 0 for proper operation.
Bit 1
GART Page Directory Cache Enable
0 = GART page directory cache disabled.
1 = GART page directory cache enabled (default).
Bit 0
Config 1 Level Indexing
0 = Two-level GART indexing mode (default).
1 = One-level GART indexing mode.
160
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
7.4
Device 1 Registers (AGP and PCI-to-PCI Bridge)
These registers configure AGP and secondary PCI bus operation.
Vendor ID
Bit 15
Device 1
14
13
12
11
10
9
8
7
Offset 01h–00h
6
5
4
3
2
1
Bit 0
0
1
0
0
0
1
0
Vendor ID
Reset
0
0
0
1
0
0
0
0
0
This read-only value is defined as 1022h to indicate AMD.
Device ID
Device 1
Bit 15
14
13
12
11
10
9
8
7
Offset 03h–02h
6
5
4
3
2
1
Bit 0
0
0
0
0
1
1
1
Device ID
Reset
0
1
1
1
0
0
0
0
0
This read-only value of 7007h represents the AMD-751 system controller
PCI-to-PCI bridge in the single processor device.
AGP/PCI Command
Reset
0
0
Device 1
Offset 05–04h
Bits 15–10
9
8
7
6
5
4
3
2
1
Bit 0
Reserved
FBBE
SERRE
AS
PEEn
VPS
MWI
SC
AIA
AMSE
IOSE
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–10
Reserved (always reads 0)
Bit 9
Fast Back-to-Back Enable (always reads 0)—This bit indicates that fast
back-to-back transactions are only allowed to the same agent.
Bit 8
SERR# Enable (RW)—This bit and bit 6 must be set to 1 to report address
parity errors. ASERR# is an input to the AMD-751 system controller. The
AMD-751 receives ASERR# in the AGP timing domain and passes it onto
the PCI SERR# so that the AMD-756 peripheral bus controller may
generate an interrupt.
0 = SERR# driver disabled (default)
1 = SERR# driver enabled
Note: If a system error occurs, SERR# may be asserted by an AGP master.
Bit 7
Chapter 7
Address Stepping (always reads 0)—This device does not support address
stepping.
Configuration Registers
161
Preliminary Information
AMD-751™ System Controller Data Sheet
Bit 6
21910E—March 2000
Parity Error Enable (always reads 0)
0 = Parity error checking is not supported
Bit 5
VGA Palette Snoop (always reads 0)—Palette accesses generate normal PCI
cycles. Palette snooping of AGP devices is not supported.
Bit 4
Memory Write-and-Invalidate (MWI) Command (always reads 0)—PCI-to-PCI
bridges like the AMD-751 system controller implement this bit as read
only.
0 = The AMD-751 does not generate MWI commands
Bit 3
Special Cycle (always reads 0)—A PCI-to-PCI bridge never responds as a target
to special cycle transactions.
Bit 2
AGP Initiator Access (RW)—This bit enables the AGP initiator (graphics
controller) to access memory and the system PCI bus.
0 = Disable master accesses from the APCI bus (default)
1 = Enables the AMD-751 to accept master accesses from the APCI bus
Bit 1
AGP Memory Space Enable (RW)—By default, the processor writes to graphics
adapter memory on PCI bus 0. Setting this bit allows the processor (and
PCI masters) to write to graphics adapter memory on the AGP bus. APCI
memory space is defined by Device 1, Offset 20 on page 168.
0 = Primary PCI bus (default)
1 = AGP bus/secondary PCI bus
Bit 0
I/O AGP Enable (RW)—By default, the processor writes to graphics adapter
I/O space on PCI bus 0. Setting this bit allows the processor to write to
graphics adapter I/O space on the AGP bus.
0 = Primary PCI bus (default)
1 = AGP bus/secondary PCI bus
When set, the AMD-751 system controller forwards AMD Athlon system
bus accesses that reference APCI I/O space onto the APCI. APCI I/O space
is defined by Device 1, Offset 1C on page 166.
162
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Status
Device 1
Offset 07h–06h
Bit 15
14
13
12
11
10–9
8
7
6
5
Bits 4–0
DPE
ASERR#
RIA
RTA
STA
DEVSEL# Timing
PPE
FBBC
UDF
66 MHz
Reserved
0
0
0
0
0
0
0
0
1
Reset
0
1
0
0
0
0
0
Bit 15
DRAM Parity Error Detected (always reads 0)—The AMD-751 system controller
does not support parity checking.
Bit 14
ASERR# Error Detected (RWC)
0 = No error detected
1 = ASERR# error detected. A device has asserted the ASERR# pin. The
AMD-751 then asserts SERR#.
Bit 13
Received Initiator Abort (RO)—This bit is set by a PCI initiator when its
transaction is terminated with initiator abort.
0 = PCI transactions proceeding normally
1 = The AMD-751 has detected that a transaction was terminated before
completion
Bit 12
Received Target Abort (RO)—The target issues a target abort when it detects a
fatal error or cannot complete a transaction. This bit is set by
simultaneously deasserting DEVSEL# and asserting STOP#.
0 = No abort received
1 = Transaction aborted by target
Bit 11
Signaled Target Abort (always reads 0)—This AMD-751 system controller never
signals a target abort.
Bits 10–9
DEVSEL# Timing (RO)—This field indicates the DEVSEL# timing.
00
01
10
11
=
=
=
=
Fast
Medium (The AMD-751 only implements this timing)
Slow
Reserved
Bit 8
PCI Parity Error Detected (always reads 0)—The AMD-751 system controller
does not support parity checking.
Bit 7
Fast Back-to-Back Capability (always reads 0)—The AMD-751 can accept fast
back-to-back transactions only if they are from the same agent.
Bit 6
User-Defined Features (always reads 0)—The AMD-751 system controller does
not support user-defined features.
Chapter 7
Configuration Registers
163
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 5
66 MHz-Capable PCI Bus (always reads 1)—The APCI (AGP) interface supports
66-MHz operation.
Bits 4–0
Reserved (always reads 0)
AGP Revision ID
Bit 7
Device 1
6
5
4
Offset 08h
3
2
1
Bit 0
0
0
0
0
Revision ID
Reset
Bits 7–0
0
0
0
0
AMD-751 System Controller Revision Code (RO)—00h = Revision A
Programming Interface
Bit 7
6
Device 1
5
4
3
Offset 09h
2
1
Bit 0
0
0
0
Programming Interface
Reset
Bits 7–0
0
0
0
0
0
Programming Interface (always reads 0)—00h = Bridge
Subclass Code
Bit 7
Device 1
6
5
4
3
Offset 0Ah
2
1
Bit 0
1
0
0
Subclass Code
Reset
Bits 7–0
0
0
0
0
0
Subclass Code (always reads 04h)—The PCI-defined subclass code for a
PCI-to-PCI bridge is 04h.
Base Class Code
Bit 7
Device 1
6
5
4
3
Offset 0Bh
2
1
Bit 0
1
1
0
Base Class Code
Reset
Bits 7–0
164
0
0
0
0
0
Base Class Code (always reads 06h)—The PCI-defined base class code for a
bridge device is 06h.
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP Header Type
Bit 7
Device 1
6
5
4
Offset 0Eh
3
2
1
Bit 0
0
0
0
1
Header Type
Reset
Bits 7–0
1
0
0
0
Header Type (always reads 81h)
AGP Primary Bus Number
Bit 7
6
Device 1
5
4
3
Offset 18h
2
1
Bit 0
0
0
0
Primary Bus Number
Reset
Bits 7–0
0
0
0
0
0
Primary Bus Number (RW)—This field records the number of the PCI bus to
which the primary interface of the bridge is connected. The bridge uses
this number to decode type 1 configuration transactions on the secondary
interface that should be converted to special cycle transactions on the
interface.
AGP Secondary Bus Number
Bit 7
6
Device 1
5
4
3
Offset 19h
2
1
Bit 0
0
0
0
Secondary Bus Number
Reset
Bits 7–0
0
0
0
0
0
Secondary Bus Number (RW)—This field records the number of the PCI bus to
which the secondary interface of the bridge is connected. The bridge uses
this number to determine when to respond to type 1 configuration
transactions on the primary interface and convert them to type 0
transactions on the secondary interface.
AGP Subordinate Bus Number
Bit 7
6
Device 1
5
4
3
Offset 1Ah
2
1
Bit 0
0
0
0
Subordinate Bus Number
Reset
Bits 7–0
0
0
0
0
0
Subordinate Bus Number (RW)—This binary number is the system-assigned
number of the highest ranking PCI bus subordinate to a PCI bridge.
This field records the number of the highest numbered PCI bus that is
behind (or subordinate to) a bridge. The bridge uses this field in
conjunction with the secondary bus number register to determine when to
respond to type 1 configuration transactions on the primary interface and
to pass them on to the secondary interface.
Chapter 7
Configuration Registers
165
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP Secondary Latency Timer
Bit 7
6
Device 1
5
4
3
Offset 1Bh
2
1
Bit 0
0
0
0
Secondary Latency Timer
Reset
Bits 7–0
0
0
0
0
0
Secondary Latency Timer (RW)—This 8-bit binary value specifies the latency
timer for the secondary PCI bus in units of PCI bus clocks.
00000000 = 0 PCI clocks
00000001–11111111 = (8 bit binary value) x PCI clocks
I/O Base Register
Bit 7
Device 1
6
5
4
3
2
I/O Base Address Lower Nibble
Reset
1
1
1
Offset 1Ch
1
Bit 0
1
1
I/O Base RO
1
1
1
Bits 7–4
I/O Base Address Lower Nibble (RW)—These four bits determine A[15:12] of
the lower boundary of the address range in which the AMD-751 system
controller forwards I/O transactions from one interface to the other.
A[31:16] are specified in Device 1, Offset 31h–30h (see page 169). The
default of Fh disables the forwarding of I/O transactions.
Bits 3–0
I/O Base Decode Width (RO)—These bits are set to indicate that 32-bit address
decoding is available for I/O.
I/O Limit Register
Bit 7
Device 1
6
5
4
3
2
I/O Limit Address Lower Nibble
Reset
0
0
0
Offset 1Dh
1
Bit 0
1
1
I/O Limit RO
0
1
1
Bits 7–4
I/O Limit Address Lower Nibble (RW)—These four bits determine A[15:12] of
the upper boundary of the address range in which the AMD-751 system
controller forwards I/O transactions from one interface to the other.
A[31:16] are specified in Device 1, Offset 33h–32h (see page 169).
Bits 3–0
I/O Limit Decode Width (RO)—These bits are set to indicate that 32-bit
address decoding is available for I/O.
166
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP/PCI Secondary Status
Reset
Device 1
Bit 15
14
13
12
11
DPE
SSE
RIA
RTA
STA
0
0
0
0
0
Bits 10–9
8
7
DEVSEL# Tmg DPED FBBC
0
1
0
0
Offset 1Fh–1Eh
6
5
Bits 4–0
UDF
66 MHz
Reserved
0
1
0
0
0
0
0
Bit 15
Detected Parity Error (always reads 0)—The AMD-751 does not support parity
checking.
Bit 14
Signaled System Error (RWC)—The AMD-751 system controller sets this bit
when ASERR# is sampled asserted by an AGP device. It then asserts
SERR#.
0 = No error detected (default)
1 = System error on AGP
Bit 13
Received Initiator Abort (RWC)—This bit is set by an AGP initiator whenever
its transaction is terminated with initiator abort.
0 = AGP transactions proceeding normally
1 = The AMD-751, acting as a PCI initiator on the AGP bus, has terminated
a transaction before completion
Bit 12
Received Target Abort (RWC)—The target issues a target abort when it detects
a fatal error or cannot complete a transaction by simultaneously
deasserting DEVSEL# and asserting STOP#. The AMD-751 sets this bit
when it detects this condition on the secondary PCI bus.
0 = No abort received
1 = Transaction aborted by target
Bit 11
Signaled Target Abort (always reads 0)—The AMD-751 system controller does
not terminate transactions with target aborts.
Bits 10–9
DEVSEL# Timing (RO)—This field defines the DEVESL# timing.
00=Fast
01=Medium (default). The AMD-751 only supports this timing.
10=Slow
11=Reserved
Bit 8
Data Parity Error (always reads 0)—The AMD-751 system controller does not
support parity checking.
Bit 7
Fast Back-to-Back Capablility (always reads 0)—The AMD-751 can accept fast,
back-to-back transactions from the same agent only.
Chapter 7
Configuration Registers
167
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 6
User-Defined Features (always reads 0)—The AMD-751 does not support
user-defined features.
Bit 5
66-MHz-Capable PCI Bus (always reads 1)—The maximum secondary PCI bus
operating speed is 66 MHz.
Bits 4–0
Reserved (always reads 0)
Memory Base
Reset
0
0
Device 1
0
0
0
Offset 21h–20h
Bits 15–4
Bits 3–0
Memory Base
Reserved
0
0
0
0
0
0
0
0
0
0
0
Bits 15–4
Memory Base (RW)—This register defines the base address of the
nonprefetchable address range used by the AGP target (graphics
controller) where control registers and FIFO-like communication
interfaces are mapped. Bits [15:4] correspond to address bits [31:20]. The
lower 20 bits of the address are assumed to be 00000h. The memory
address range adheres to 1-Mbytes alignment and granularity.
Bits 3–0
Reserved (always reads 0)
Memory Limit
Reset
0
0
Device 1
0
0
0
Offset 23h–22h
Bits 15–4
Bits 3–0
Memory Limit
Reserved
0
0
0
0
0
0
0
0
0
0
0
Bits 15–4
Memory Limit (RW)—This register defines the top address of the
nonprefetchable address range used by the AGP target (graphics
controller) where control registers and FIFO-like communication
interfaces are mapped. The lower 20 bits of the address are assumed to be
0FFFFFh. The memory address range adheres to 1-Mbytes alignment and
granularity.
Bits 3–0
Reserved (RO) (always reads 0)
168
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AGP/PCI Prefetchable Memory Base
Reset
0
0
0
0
Device 1
Offset 25h–24h
Bits 15–4
Bits 3–0
Prefetchable Memory Base
Reserved
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–4
Memory Base (RW)—This register defines the base address of the
prefetchable address range used by the AGP target (graphics controller)
where control registers and FIFO-like communication interfaces are
mapped. Bits [15:4] correspond to address bits [31:20]. The lower 20 bits of
the address are assumed to be 00000h. The memory address range adheres
to 1-Mbyte alignment and granularity.
Bits 3–0
Reserved (always reads 0)
AGP/PCI Prefetchable Memory Limit
Reset
0
0
0
0
Device 1
Offset 27h–26h
Bits 15–4
Bits 3–0
Prefetchable Memory Limit
Reserved
0
0
0
0
0
0
0
0
0
0
0
0
Bits 15–4
Memory Limit (RW)—This register defines the top address of the
prefetchable address range used by the AGP target (graphics controller)
where control registers and FIFO-like communication interfaces are
mapped. Bits [15:4] correspond to address bits [31:20]. The lower 20 bits of
the address are assumed to be 0FFFFFh. The memory address range
adheres to 1-Mbyte alignment and granularity.
Bits 3–0
Reserved (always reads 0)
I/O Base
Device 1
Bit 7
6
5
4
Offset 30h
3
2
1
Bit 0
0
0
0
1
I/O Base
Reset
Bits 7–0
1
0
0
0
I/O Base (RW)—This register defines the top address bits A[23:16] of a
24-bit I/O base address.
Processor addresses that fall between the base and limit specified in this
register are passed to the AGP/APCI bus (when the enable bit in Device 1,
Offset 04, bit 0 is set).
Chapter 7
Configuration Registers
169
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
I/O Limit
Device 1
Bit 7
6
5
4
Offset 32h
3
2
1
Bit 0
0
0
0
1
I/O Limit
Reset
1
Bits 7–0
0
0
0
I/O Limit (RW)—This register defines the top address bits A[23:16] of a
24-bit I/O limit address.
Interrupt Control
Bit 15
14
13
Device 1
12
11
10
9
8
7
6
5
Interrupt Pin
Reset
0
Bits 15–8
0
0
0
0
4
Offset 3Dh–3Ch
3
2
1
0
0
0
0
Interrupt Line
0
0
0
0
0
0
0
0
Interrupt Pin (RW) default 00h—This field indicates which interrupt pin the
PCI-to-PCI bridge uses. This field is RW to allow BIOS software to program
the required value.
00h = No interrupt channel assigned (default)
01h = INTA#
02h = INTB#
03h = INTC#
04h = INTD#
05h–FFh = Not allowed
Bits 7–0
Interrupt Line (RW)—This field is RW to allow BIOS software to program the
required value. This register indicates to which input of the system
interrupt controller the interrupt signal pin is connected.
00h = Default
01h = INT1
02h = INT2
...
0Fh = INT15
10h–FEh = Not allowed
FFh = No interrupt channel assigned (default)
170
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
PCI-to-PCI Bridge Control
Bit 15
14
13
12
Device 1
Bits 11
10
9
8
Reserved
Reset
0
0
0
0
0
0
0
0
Offset 3Fh–3Eh
7
6
5
4
3
2
1
0
FB2B
SBR
IAM
R
VGAE
ISAE
SEN
PEE
0
0
0
0
0
0
0
0
Note:
Although required by the PCI-PCI bridge specification, this register is not used.
Bits 15–8
Reserved (always reads 0)
Bit 7
Fast Back-to-Back Enable (always reads 0)—Fast back-to-back transactions to
different devices on the secondary interface are not supported.
Bit 6
Secondary Bus Reset (always reads 0)—This bit is not implemented.
Bit 5
Initiator Abort Mode (always reads 0)—Determines the behavior of the
PCI-to-PCI bridge when a master abort termination occurs on either
interface when the bridge is the master of the transaction. Read
transactions return all bits equal to 1b, and write data is accepted by the
bridge and then dropped. A master abort is not reported.
Bit 4
Reserved (always reads 0)
Bit 3
VGA Enable (RW)—When this bit is set, the AMD-751 system controller
decodes and forwards VGA accesses to the secondary PCI bus rather than
the primary PCI bus. VGA accesses include memory accesses in the range
A0000–BFFFFh and I/O addresses in the ranges 3B0h–3BBh and 3C0–
3DFh.
0 = VGA accesses are forwarded to the primary PCI bus (default)
1 = VGA accesses are forwarded to the secondary PCI bus
Bit 2
ISA Enable (RW)—This bit modifies the response by the bridge to ISA I/O
addresses, which applies only to I/O addresses that are enabled by the I/O
base and I/O limit registers and are in the first 64 Kbytes of PCI I/O
address space (0000_0000h to 0000_FFFFh). When set, the bridge blocks
any forwarding from the primary PCI bus to the secondary PCI bus of I/O
transactions addressing the last 768 bytes in each 1-Kbyte block. In the
opposite direction (secondary to primary), I/O transactions are forwarded
if they address the last 768 bytes in each 1-Kbyte block.
0 = Forward all I/O addresses in the address range defined by the I/O base
and I/O limit registers (default)
1 = Block forwarding of ISA I/O addresses in the address range defined by
the I/O base and I/O limit registers in the first 64 Kbytes of PCI I/O
address space (top 768 bytes of each 1-Kbyte block)
Chapter 7
Configuration Registers
171
Preliminary Information
AMD-751™ System Controller Data Sheet
Bit 1
21910E—March 2000
SERR# Enable (RW)
0 = SERR# assertions on the secondary bus are not forwarded to the
primary bus (default)
1 = SERR# assertions on the secondary bus are forwarded to the primary
interface
Bit 0
172
Parity Error Enable (always reads 0)—(Secondary bus) The AMD-751 system
controller does not support parity checking.
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
7.5
Memory-Mapped Control Registers
The A M D -7 5 1 s y s t e m c o n t ro ll e r i m p l e m e nt s a se t o f
memory-mapped registers to control AGP functionality. The
system BIOS determines the base address of these registers
and loads that value in the BAR1 configuration register, Device
0, Offset 14h (see page 136).
Features and Capabilities Register
Reset
0
BAR1 + Offset 01h–00h
Bits 15–12
Bit 11 Bit 10
Bit 9
Bit 8
Bits 7–0
Reserved
GHng
PPC
MPC
VC
Revision ID
0
0
1
1
0
0
0
0
0
0
0
0
0
0
1
Bits 15–12
Reserved (always reads 0)
Bit 11
Enable Hang on Invalid GART Entries—This bit is used as a test mode to allow
the AMD-751 system controller to hang on invalid GART entries. This bit
is for software debug purposes only. For normal operation, do not set this
bit.
Note: The enable hang on invalid GART entries test mode is available on the
AMD-751 system controller Revision C and later. In previous revisions,
this bit is read-only and always reads 0.
Bit 10
PCI-to-PCI Capability (RO)—This bit is cleared to indicate that the AMD-751
only implements those PCI-to-PCI bridge commands required to
implement AGP. (The AMD-751 does not implement a complete PCI
2.2-compliant PCI-to-PCI bridge between the PCI bus and AGP.)
Bit 9
Multiple Pages Capability (always reads 1)—This bit is set to indicate that the
AMD-751 system controller supports multiple GART page entries.
Bit 8
Valid Bit Error Capability (always reads 1)—This bit is set to indicate that the
AMD-751 supports the detection of valid bit errors. The controller detects
an access to an invalid page by checking the valid bit for each page of the
GART.
Bits 7–0
Revision ID (always reads 01h)
Chapter 7
Configuration Registers
173
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Enable and Status Register
BAR1 + Offset 03h–02h
Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10
Reserved
Reset
0
0
0
0
Bit 9
Bit 8
Bits 7–4
Bit 3
Bit 2
Reserved
PPE
GCE
0
0
PPS
GCS
MPS
VBES
0
0
0
0
0
0
0
0
Bit 1
Bit 0
EnSb VBEE
Detect
0
0
Bit 15–12
Reserved (always reads 0)
Bit 11
PCI-to-PCI Status (always reads 0)—This bit is cleared to indicate that the
AMD-751 system controller only implements those PCI-to-PCI bridge
commands required to implement AGP. (The AMD-751 does not
implement a complete PCI 2.2-compliant PCI-to-PCI bridge between the
PCI bus and AGP.)
Bit 10
GART Cache Status (RO)
0 = GART cache is disabled (default)
1 = GART cache has been enabled by software (see description of bit 2
below)
Bit 9
Multiple Page Status (RO)—This bit is always 0 for the AMD-751 Revision C3
and later.
0 = Variable number of pages per GART directory cache (GDC) entry are
disabled. Each GDC entry cached refers to one 4-Kbyte page only.
(default)
1 = Variable number of pages per GDC entry are enabled. Each GDC entry
cached refers to multiple 4-Kbyte pages. (Not supported)
Bit 8
Valid Bit Error Status (RO)—The AMD-751 system controller sets this bit when
the GART attempts to access an invalid page. If valid bit error signalling
is enabled (bit 0 is set), the system also asserts SERR#.
0 = No error detected (default)
1 = Valid bit error detected
Bits 7–4
Reserved (always reads 0)
Bit 3
PCI-to-PCI Enable (always reads 0)—This bit is cleared to indicate that the
AMD-751 system controller only implements the PCI-to-PCI bridge
commands required to implement AGP. (The AMD-751 does not
implement a complete PCI 2.2-compliant PCI-to-PCI bridge between the
PCI bus and AGP.)
174
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Bit 2
Gart Cache Enable (RW)
0 = GART translation lookaside buffer (TLB) entry caching disabled
(default)
1 = GART TLB entry caching enabled
Bit 1
Disable SB_SBA Detect Logic (RW)—Setting this bit disables the automatic
SB_SBA strobe detect logic. For backwards compatibility, the power-on
default condition for this bit is 0 (Enable Detect Logic). BIOS and any
driver that writes to this register should set this bit to a 1 (disable) state
only on the AMD-751 Revision C3 and later.
Note: Enable SB_SBA Detect Logic is available on the AMD-751 system
controller Revision C3 and later. This newly defined control bit replaces
a previously existing control in this register, “Multiple Pages Enabled”,
which enabled multiple pages per GART entry. That feature is not
supported and bit 9 always read 0.
Bit 0
Valid Bit Error Enable (RW)—Setting this bit enables assertion of SERR#
when a graphics device attempts to access a page in AGP memory that is
not valid (page fault), generating a valid bit error.
0 = SERR# is not asserted on a valid bit error (default)
1 = SERR# is asserted on a valid bit error
AGP GART Base Address Register
Reset 0
0
0
0
0
0
0
BAR1 + Offset 07h–04h
Bits 31–12
GART Base Address
0 0 0 0 0 0
0
0
0
0
0
0
0
0
0
0
0
Bits 11–0
Reserved
0 0 0 0
0
0
0
0
Bits 31–12
Base Address High (RW) (Default 00000h)—These 20 bits correspond to the 20
most-significant bits of the 32-bit GART base address, which is aligned on
a 4-Kbyte page boundary. These 20 bits provide 4-Kbyte resolution, the
minimum allowable size of the GART. A value other than 0 defines a valid
base address.
Bits 11–0
Reserved (always reads 0)
GART Cache Size Register
Reset 0
0
Bits 31–0
Chapter 7
0
0
0
0
0
0
0
BAR1 + Offset 0Bh–08h
0
0
0
0
Bits 31–0
GART Cache Size
0 0 0 0 0 0
0
0
0
0
0
0
0
0
0
0
0
1
0
Cache Size (always reads 02h)—The AMD-751 system controller implements a
GART cache that contains 16 entries, organized as 8-way, two
set-associative.
Configuration Registers
175
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
GART Cache Control Register
Reset 0
0
0
0
0
0
0
0
0
0
BAR1 + Offset 0Fh–0Ch
0
0
0
Bits 31–1
Reserved
0 0 0 0
0
0
0
0
0
0
0
0
0
0
0
0
0
0
Inv
0
Bits 31–1
Reserved (always reads 0)
Bit 0
GART Cache Invalidate (RW) default 0—The AGP driver sets this bit to
invalidate the entire GART cache. When the AMD-751 system controller
samples the bit High, it invalidates the cache and clears the bit.
GART Entry Control Register
Reset 0
0
0
0
0
0
BAR1 + Offset 13h–10h
Bits 31–12
GART Entry Offset
0 0 0 0 0 0 0
0
0
0
0
0
0
0
0
0
Bits 11–2
Reserved
0 0 0
0
0
0
Bit 1
Updt
0
Bit 0
Inv
0
Bits 31–12
GART Entry Offset (RW) (default 00000h)—To invalidate or update an entry in
the GART cache, bits 31–12 are written with the most significant 20 bits of
the virtual address. If this address is present in the GART cache, it is
invalidated or updated based on the state of bits 1–0. If the address
written to bits 31–12 is either outside of the GART aperture or not present
in the GART cache, no action is taken.
Bits 11–2
Reserved (always reads 00h)
Bit 1
GART Cache Entry Update (RW) (default 0)—Setting this bit forces the AMD-751
system controller to update the GART cache entry specified in bits
A[31:12] with the current entry in the GART table in system memory. The
update function is performed immediately following the write to this
register. The bit is cleared when the update operation is completed.
Bit 0
GART Cache Entry Invalidate (RW) (default 0)—Setting this bit forces the
AMD-751 to invalidate the GART cache entry specified in bits [31:12] if
they are present in the GART cache. The invalidate function is performed
immediately following the write to this register. The bit is cleared when
the invalidate operation is completed.
Note: Bits 1–0 must never be set (11b) simultaneously.
00
01
10
11
176
=
=
=
=
No action (default)
Invalidate
Update
Not allowed
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
PM2 (Power Management)
Reset 0
0
0
0
0
0
0
0
0
BAR2 + Offset 04h–00h
0
0
0
0
Bits 31–1
Reserved
0 0 0
0
0
0
0
0
0
0
0
0
0
0
0
0
Bit 0
ArbD
0 0 0
Bits 31–1
Reserved (always reads 0)
Bit 0
Arbiter Disable (RW)—This bit is used to enable and disable the system
arbiter.
0 = The system arbiter is enabled and the arbiter can grant bus ownership
to other bus masters in the system (default)
1 = When this bit is High, the system arbiter is disabled and the boot
processor (given in WHAMI— Device 0, Offset 80—see page 151) has
ownership of the system. AGP and PCI masters are not granted
ownership of the bus.
Chapter 7
Configuration Registers
177
Preliminary Information
AMD-751™ System Controller Data Sheet
178
21910E—March 2000
Configuration Registers
Chapter 7
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
8
Electrical Data
8.1
Absolute Ratings
The AMD-751 system controller is not designed to operate
beyond the parameters shown in Table 23.
WARNING: The absolute ratings in Table 23 and associated
conditions must be adhered to in order to avoid
damage to the AMD-751 system controller and
motherboard. Systems using the AMD-751 must be
designed to ensure that the power supply and system
logic board guarantee that these parameters are not
violated. VIOLATION OF THE ABSOLUTE
RATINGS WILL VOID THE PRODUCT WARRANTY.
Table 23. Absolute Ratings
Parameter
Minimum
Maximum
Comments
VDD
–0.5 V
3.6 V
Core and I/O Supply
REF_5V
–0.5 V
5.5 V
Reference Supply
1.0 V
1mS max. excursion
VDD > REF_5V
VPIN SDRAM
–0.5 V
VDD + 0.5 V
VPIN Processor
–0.5 V
3.0 V
VPIN PCI
–0.5 V
REF_5V + 0.5 V
VPIN AGP
–0.5 V
VDD + 0.5 V
0 °C
70 °C
–55 °C
+125 °C
TCASE (under bias)
TSTORAGE
Chapter 8
Electrical Data
179
Preliminary Information
AMD-751™ System Controller Data Sheet
8.2
21910E—March 2000
Operating Ranges
The AMD-751 system controller is designed to provide
functional operation if the voltage and temperature parameters
are within the limits defined in Table 24.
Table 24. Operating Ranges
Parameter
Minimum
Typical
Maximum
Comments
REF_5V
4.5 V
5.0 V
5.5 V
5 Volt Reference
VDD
3.14 V
3.3V
3.46 V
Core (+/– 5%)
TCASE
0 °C
85°C
Note: The voltage applied to VDD should never exceed the voltage
applied to REF_5V.
180
Electrical Data
Chapter 8
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
8.3
DC Characteristics
Table 25 shows the DC characteristics for the AMD-751 system
controller. Table 26 on page 182 shows the DC characteristics
for the AMD Athlon system bus/AMD-751.
Table 25. DC Characteristics
Symbol
Preliminary Data
Parameter Description
Min
Max
VIL
Input Low Voltage (LVTTL Inputs)
–0.5 V
0.8 V
VIH
Input High Voltage (LVTTL Inputs)
2.0 V
5.5 V
VOL
Output Low Voltage (LVTTL Outputs)
VOH
Output High Voltage (LVTTL Outputs)
IREF_5V
5-V Power Supply Current
IDD
3-V Power Supply Current (Dynamic)
ILI
Input Leakage Current
10 µA
ILO
Output Leakage Current
10 µA
IIL
Input Leakage Current Bias with Pullup
40 µA
IIH
Input Leakage Current Bias with Pulldown
–40 µA
CIN
Input Capacitance
10 pF
COUT
Output Capacitance
15pF
COUT
I/O Capacitance
20pF
Chapter 8
Comments
0.45 V
2.4 V
1 mA
1.1 A
Electrical Data
1.5 A
181
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 26. AMD Athlon™ System Bus/AMD-751™ System Controller DC Specification
Symbol
Parameter Description
Minimum
Nominal
Maximum
Units
Notes
1.3
1.5
1.7
V
(0.6*VccCore)
–50
0.6*VccCore
(0.6*VccCore)
+50
mV
1
2
VccCore
DC Supply Voltage
VREF
DC Input Reference Voltage
IVREF
DC Reference Current
–50
–
50
µA
VIH (DC)
DC Input High Voltage
VREF + 100
–
VccCore + 300
mV
VIL (DC)
DC Input Low Voltage
–300
–
VREF – 100
mV
VIH (AC)
AC Input High Voltage
VREF + 200
–
VccCore + 500
mV
VIL (AC)
AC Input Low Voltage
–500
–
VREF – 200
mV
VOH (DC)
DC Output High Voltage
VccCore
–
VccCore + 300
mV
VOL (DC)
DC Output Low Voltage
–300
–
400
mV
VOH (AC)
AC Output High Voltage
VccCore
–
VccCore + 500
mV
VOL (AC)
AC Output Low Voltage
–500
–
400
mV
ILEAK
Tristate Leakage
–10
–
10
µA
IIH
Input High Current
–10
–
10
µA
3
IIL
Input Low Current
–10
–
10
µA
3
IOL
Output Low Current
33
–
–
mA
3
Notes:
* See Figure 34 on page 194 for more information about the test circuit.
1. VREF:
– VREF is nominally set by a (1%) resistor divider from VccCore.
– The suggested divider resistor values are 80.6 ohms over 121.0 ohms to produce a divisor of 060.
– Given: VccCore = 1.6 V, VREF = 960mV (1.6 * 0.60).
– Peak to Peak AC noise on VREF (AC) should not exceed 2% of VREF (DC).
2. IVREF should be measured at nominal VREF.
3. IIH, IIL, and IOL are measured at VIH-MIN (DC), VIL-MAX (DC), and VOL-MAX (DC) respectively.
182
Electrical Data
Chapter 8
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
8.4
Power Dissipation
Table 27 shows typical and maximum power dissipation of the
AMD-751 system controller during normal and reduced power
states. The measurements are taken with the VDD shown.
Table 27. Typical and Maximum Power Dissipation
Typical @
100 MHz
Maximum @
100 MHz
Normal (Thermal Power)
4.3 W @ 3.3 V
5.25 W @ 3.5 V
Halt-Disconnect
3.3 W @ 3.3 V
3.85 V @ 3.5 V
Clock Control State
8.4.1
Comments
With SYSCLK running
Thermal Considerations
To al low for p rop e r c oo l ing a n d t o m a int ai n t h e c a se
temperature specified in Table 23 on 179, the AMD-751 system
controller requires a heatsink. Table 28 and Table 29 list
recommended heatsinks and thermal materials, respectively.
Table 28.
Heatsinks for the AMD-751™ System Controller
Vendor
Part Number
Aavid
372924M02000
Foxconn
PHC0802-071
Table 29.
Thermal Interface Material for the AMD-751™ System
Controller
Vendor
Part Number
Chomerics
T710 *
Furon
FC1060
Furon
C960*
Furon
C964
Furon
C965
Bergquist
200G
Thermagon
T-pcm708
Thermagon
T-pcm910
Notes:
*
Chapter 8
An adhesive is included for easy attachment
Electrical Data
183
Preliminary Information
AMD-751™ System Controller Data Sheet
184
21910E—March 2000
Electrical Data
Chapter 8
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
9
Switching Characteristics
The AMD-751 system controller signal switching characteristics
are presented in Tables 30 through 36. Valid delay, float, setup,
and hold timing specifications are listed.
All signal timings are based on the following conditions:
■
■
■
Chapter 9
The target signals are input or output signals that are
switching from logical 0 to 1, or from logical 1 to 0.
Measurements are taken from the time the reference signal
(ACLK, PCLK, SDRAM CLK_IN, SYSCLK or RESET) passes
through 1.5V to the time the target signal passes through
1.5V.
Parameters are within the range of those listed in
”Operating Ranges” on page 180.
Switching Characteristics
185
Preliminary Information
AMD-751™ System Controller Data Sheet
9.1
21910E—March 2000
SYSCLK Switching Characteristics
Table 30 contains the switching characteristics of the SYSCLK
input to the AMD-751 system controller for 100-MHz processor
bus operation. These timings are all measured with respect to
the voltage levels indicated by Figure 31. Table 31 on page 187
contains the switching characteristics of the A_CLK input for
66-MHz PCI bus operation. Table 32 on page 187 contains the
switching characteristics of the PCLK input for 33-MHz PCI bus
operation. These timings are all measured with respect to the
voltage levels indicated by Figure 32 on page 187.
The CLK period stability specifies the variance (jitter) allowed
between successive periods of the CLK input measured at
appropriate reference voltage. This parameter must be
considered as one of the elements of clock skew between the
AMD-751 and the system logic.
Table 30. SYSCLK Switching Characteristics for 100-MHz Bus Operation
Symbol
Parameter Description
1/t2
Frequency
t3/t2 x 100
SYSCLK Duty Cycle
t4
t5
Preliminary Data
Min
Figure
Max
100 MHz
31
55%
31
SYSCLK Falling Edge Slew Rate
1.0 V/ns
31
SYSCLK Rising Edge Slew Rate
1.0 V/ns
31
SYSCLK Period Stability
± 250 ps
45%
Comments
1.15V Reference
1.15V Reference
t2
t3
1.5 V
1.15 V
0.8 V
t5
t4
t1
Figure 31. SYSCLK Waveform
186
Switching Characteristics
Chapter 9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 31. A_CLK Switching Characteristics for 66-MHz Bus Operation
Symbol
Parameter Description
Preliminary Data
Min
Frequency
Max
Figure
Comments
66 MHz
t2
A_CLK High Time
6.0 ns
32
t3
A_CLK Low Time
6.0 ns
32
t4
A_CLK Fall Time
0.15 ns
1.5 ns
32
t5
A_CLK Rise Time
0.15 ns
1.5 ns
32
± 250 ps
A_CLK Period Stability
1.5V Reference
Table 32. PCLK Switching Characteristics for 33-MHz PCI Bus
Symbol
Parameter Description
Preliminary Data
Min
Max
∞
Figure
t1
PCLK Cycle
30 ns
t2
PCLK High Time
11.0 ns
32
t3
PCLK Low Time
11.0 ns
32
t4
PCLK Fall Time
1 V/ns
4V/ns
32
t5
PCLK Rise Time
1 V/ns
4V/ns
32
32
± 250 ps
PCLK Period Stability
Comments
1.5V Reference
t2
2.0 V
1.5 V
t3
0.8 V
t5
t4
t1
Figure 32. CLK Waveform
Chapter 9
Switching Characteristics
187
Preliminary Information
AMD-751™ System Controller Data Sheet
9.2
21910E—March 2000
Valid Delay, Float, Setup, and Hold Timings
The valid delay and float timings for output signals during
functional operation are relative to the rising edge of the given
clock. The maximum valid delay timings are provided to allow
a system designer to determine if setup times can be met.
Likewise, the minimum valid delay timings are used to analyze
hold times.
The setup and hold time requirements for the AMD-751 system
controller input signals presented here must be met by any
device that interfaces with it to assure the proper operation of
the AMD-751.
Figure 33 shows the relationship between the rising clock edge
and setup, hold, and valid data timings.
tsu
Data In
th
CLK
Data Out
tvd
tvd
Figure 33. Setup, Hold, and Valid Delay Timings
188
Switching Characteristics
Chapter 9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
9.3
PCI Interface Timings
Table 33 shows the PCI interface timings. All of the timings are
relative to PCLK.
Table 33. PCI Interface Timings
Symbol
tsu
th
tvd
Parameter Description
Preliminary Data
Min
Max
Figure
AD[31:0] Setup Time
7 ns
33
PREQ#, REQ[3:0]# Setup Time
12 ns
33
Setup Time for
FRAME#
STOP#
TRDY#
DEVSEL#
IRDY#
C/BE[3:0]#
RESET#
7 ns
33
AD[31:0] Hold Time
0 ns
33
Hold Time for
FRAME#
TRDY#
IRDY#
PREQ#
0 ns
33
STOP#
DEVSEL#
C/BE[3:0]#
REQ[3:0]#
Comments
AD[31:0] Valid Delay
(address phase)
2 ns
11 ns
33
Pad 12 (Note)
AD[31:0] Valid Delay
(data phase)
2 ns
11 ns
33
Pad 12 (Note)
Valid Delay for
FRAME#
STOP#
TRDY#
DEVSEL#
IRDY#
C/BE[3:0]#
GNT[3:0]#
2 ns
11 ns
33
Pad 13 (Note)
PGNT# Valid Delay
2 ns
12 ns
33
28 ns
33
tfd
Float Delay for
FRAME#
STOP#
TRDY#
DEVSEL#
IRDY#
C/BE[3:0]#
tpw
RESET# Pulse Width
2 clks
33
tlat
REQ# to GNT# Latency
3 clks
33
Note
Note:
Measurements are taken with no load for tmin, and 50 pF for tmax.
Chapter 9
Switching Characteristics
189
Preliminary Information
AMD-751™ System Controller Data Sheet
9.4
21910E—March 2000
SDRAM Interface Timings
Table 34 shows the SDRAM interface timings. All of the
following timings are relative to SYSCLK, except where noted.
Table 34. DRAM Interface Timing
Symbol
tsu
th
tvd
Preliminary Data
Parameter Description
Min
Max
Figure
Comments
MDAT[63:0] Setup
2 ns
33
MECCD[7:0] Setup
2 ns
33
MDAT[63:0] Hold
1 ns
33
MECCD[7:0] Hold
1 ns
33
Relative to SDRAM
Clk_In (Note 3)
SDRAM Clk_Out Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
CS[5:0]# Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
MCKE[2:0] Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
DQM[7:0]# Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
SRAS[2:0]# Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
SCAS[2:0]# Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
WE[2:0]# Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
MAdA/MAdB[14:0] Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
MD[63:0] Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
MECCD[7:0] Valid Delay
2 ns
6 ns
33
Pad (Note 1 and Note 2)
Controls Outputs
–0.5 ns
1.5 ns
Relative to SDRAM
Clk_Out (Note 3)
MD[63:0] and MECCD[7:0] Outputs
TBD ns
2.0 ns
Relative to SDRAM
Clk_Out (Note 3)
tSKEW
Relative to SDRAM
Clk_In (Note 3)
Notes:
1. Measurements are taken with 50 ohm, ~ 30 pF load.
2. Measurements for Min. were taken with the drive strength set to light, and measurements for Max. were taken with the drive strength
set to high.
3. By design, not tested.
190
Switching Characteristics
Chapter 9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
9.5
AGP Interface Timings
The AGP interface can operate in two modes—1x and 2x. The
timings for the 1x mode, shown in Table 35, are relative to
A_CLK. The timings for the 2x mode, shown in Table 36 on
page 192, are relative to the respective strobe.
Table 35. AGP 1x Mode Timings
Symbol
Parameter Description
A_AD[31:0] Setup Time
tsu
Setup time for
A_FRAME#
A_TRDY#
A_IRDY#
A_REQ#
A_STOP#
A_DEVSEL#
A_C/BE[3:0]#
ADSTB[1:0]
SBA[7:0]
SBSTB
Preliminary Data
Min
Max
Figure
Comments
5.5 ns
Note
6 ns
Note
0 ns
Note
0 ns
Note
RBF#
A_AD[31:0] Hold Time
th
Hold time for
A_FRAME#
A_TRDY#
A_IRDY#
A_REQ#
A_STOP#
A_DEVSEL#
A_C/BE[3:0]#
ADSTB[1:0]
SBA[7:0]
SBSTB
RBF#
A_AD[31:0] Valid Delay
1 ns
6.0 ns
Note
A_C/BE[3:0]# Valid Delay
1 ns
5.5 ns
Note
Valid Delay for
A_FRAME#
A_STOP#
A_TRDY#
A_DEVSEL#
A_IRDY#
A_GNT#
1 ns
5.5 ns
Note
tfd
Float Delay (Active to Float)
1 ns
14 ns
Note
ton
Turn-on Delay (Float to Active)
1 ns
6 ns
Note
tvd
Note:
These signals are specified with a 10 pF load.
Chapter 9
Switching Characteristics
191
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 36. AGP 2x Mode Timings
Symbol
Preliminary Data
Parameter Description
Min
A_AD[31:0] Setup Time Relative to
Strobe
Setup Time Relative to Strobe for
A_FRAME#
A_STOP#
A_TRDY#
A_DEVSEL#
A_IRDY#
A_C/BE[3:0]#
A_REQ#
tsu
Max
Figure
Comments
1 ns
Note
1 ns
Note
1 ns
Note
1 ns
Note
SBA[7:0]
RBF#
A_AD[31:0] Hold Time Relative to
Strobe
Hold time relative to strobe for
A_FRAME#
A_STOP#
A_TRDY#
A_DEVSEL#
A_IRDY#
A_C/BE[3:0]#
A_REQ#
th
SBA[7:0]
RBF#
tDatava
A_AD[31:0] Valid Delay after Strobe
1.9 ns
Note
tCBEva
A_C/BE[3:0]# Valid Delay after
Strobe
1.9 ns
Note
tDatavb
A_AD[31:0] Valid before Strobe
1.7 ns
Note
A_C/BE[3:0]# Valid before Strobe
1.7 ns
Note
tCBEvb
tfd
Float Delay (Active to Float)
1 ns
12 ns
Note
ton
Turn-on Delay (Float to Active)
1 ns
9 ns
Note
Note:
These signals are specified with a 10 pF load.
192
Switching Characteristics
Chapter 9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
9.6
AMD Athlon™ System Bus Timings
Table 37 shows the AMD Athlon system bus timings. Figure 34
on page 194 shows the test circuit used to achieve the values in
the table.
Table 37. AMD Athlon™ System Bus/AMD-751™ System Controller AC Specification
Group
Symbol
Minimum
Nominal
Maximum
Units
Notes
SAMEEDGE
Output skew with respect to
the same clock edge
–
–
400
ps
1
TNB-SKEWDIFFEDGE
Output skew with respect to a
different clock edge
–
–
1025
ps
1
TNB-SU
Input Data Setup Time
500
–
–
ps
1,2
TNB-HD
Input Data Hold Time
800
–
–
ps
1,2
TRISE
Signal or Clock Rise Time
1
–
3
V/ns
TFALL
Signal or Clock Fall Time
1
–
3
V/ns
CDATA
Data Pin Capacitance
4
–
12
pF
CINCLK
Input Clock Capacitance
4
–
12
pF
SYSCLK to synchronous signal
output at pad (CONNECT,
CLKFWDRST)
2400
–
4800
ps
4,5
TNB-SETUPTO-SYSCLK
Input setup time for synchronous
signal to SYSCLK (PROCRDY)
1500
–
–
ps
4,5
TNB-HOLD-FRO
Input hold time for synchronous
signal to SYSCLK (PROCRDY)
1200
–
–
ps
4,5
Clock Forward Group Signals
TNB-SKEW-
Sync
Signals *3
TNB-SYSCLKTO-PAD
M-SYSCLK
Parameter Description
Notes:
* See Figure 34 on page 194 for more information about the test circuit.
1. TNB-SKEW-SAMEEDGE is the maximum skew within a clock forwarded group between any two signals or between any signal and its
forward clock, as measured at the package, with respect to the same clock edge.
TNB-SKEW-DIFFEDGE is the maximum skew within a clock forwarded group between any two signals or between any signal and its
forward clock, as measured at the package, with respect to different clock edges.
2. Input SU and HLD times are with respect to the appropriate Clock Forward Group input clock.
3. The synchronous signals include PROCREADY, CONNECT, and CLKFWDRST.
4. This value is measured with respect to the rising edge of SYSCLKIN.
5. Test Load—25pF.
Chapter 9
Switching Characteristics
193
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
VccCore
VccCore
Component
Component
68Ω
Device
Under
Test
68Ω
Package
Package
50Ω
1 max
50Ω
8 max
Device
Under
Test
50Ω
1 max
Figure 34. Test Circuit
194
Switching Characteristics
Chapter 9
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
10
I/O Buffer Characteristics
Except for the AMD Athlon system bus, all of the AMD-751
system controller inputs, outputs, and bidirectional buffers are
implemented using a 3.3 V buffer design. The AMD Athlon
system bus runs at the processor core voltage (nominally 1.6V).
AMD has developed a model that represents the characteristics
of the actual I/O buffers to allow system designers to perform
analog simulations of the AMD-751 system controller signals
that interface with the various system components. Analog
simulations are used to determine the time of flight of a signal
from source to destination and whether the system signal
quality requirements are met. Signal quality measurements
include overshoot, undershoot, slope reversal, and ringing.
10.1
I/O Buffer Model
AMD provides a model of the AMD-751 system controller I/O
buffer for system designers to use in board-level simulations.
This I/O buffer model conforms to the I/O Buffer Information
Specification (IBIS). The I/O model contains voltage versus
current (V/I) and voltage versus time (V/T) data tables for
accurate modeling of I/O buffer behavior.
The following list characterizes the properties of the I/O buffer
model:
■
■
■
Chapter 10
All data tables contain minimum, typical, and maximum
values to allow for worst-case, typical, and best-case
simulations, respectively.
The pullup, pulldown, power clamp, and ground clamp
device V/I tables contain enough data points to accurately
represent the nonlinear nature of the V/I curves. In addition,
the voltage ranges provided in these tables extend beyond
the normal operating range of the AMD-751 system
controller for those simulators that yield more accurate
results based on this wider range.
The rising and falling ramp rates are specified.
I/O Buffer Characteristics
195
Preliminary Information
AMD-751™ System Controller Data Sheet
■
For most of the drivers, the min/typ/max VCC3 operating
range is specified as 3.135V, 3.3V, and 3.6V, respectively.
■
Vil = 0.8V, Vih = 2.0V, and Vmeas = 1.5V
For the AMD Athlon system bus, the min/typ/max VCC3
operating range is specified as 1.3V, 1.5V, and 1.8V,
respectively.
Vil = 1.4V, Vih = 1.8V, and Vmeas = 1.6V
The R/L/C of the package is modeled.
The capacitance of the silicon die is modeled.
The model assumes a test load resistance of 50Ω for all pins
except for the AMD Athlon system bus, which assumes a
34Ω load.
■
■
■
■
■
10.2
21910E—March 2000
I/O Model Application Note
For the AMD-751 system controller I/O buffer IBIS model, go to
t h e A M D w e b s i t e a t w w w. a m d . c o m . Fo r b a ck g ro u n d
information refer to the AMD-K6 ® Processor I/O Model (IBIS)
Application Note, order# 21084.
10.3
I/O Buffer AC and DC Characteristics
See Chapter 9, “Switching Characteristics” starting on page
1 8 5 f o r t h e A M D -7 5 1 s y s t e m c o n t ro l l e r AC t i m i n g
specifications.
See Chapter 8, “Electrical Data” starting on page 179 for the
AMD-751 system controller DC specifications.
196
I/O Buffer Characteristics
Chapter 10
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
11
Pin Designations
1
2
3
4
5
6
7
8
9
10
11
12
13
A
MDAT[47]
MECCD[4]
MECCD[5]
SCAS[0]#
DQM[0]#
DQM[1]#
SRAS[2]#
MAdA[3]
MAdA[5]
MAdA[6]
MAdA[10]
MAdA[11]
CS[5]#
A
B
MDAT[14]
MECCD[0]
MECCD[1]
WE[2]#
DQM[4]#
DQM[5]#
SRAS[0]#
MAdA[0]
MAdA[2]
MAdA[7]
MAdA[8]
MAdA[13]
MAdA[14]
B
C
MDAT[44]
MDAT[13]
VSS
SCAS[2]#
WE[0]#
VSS
CS[1]#
MAdA[1]
VSS
MAdA[4]
MAdA[9]
VSS
CS[4]#
C
D
MDAT[10]
MDAT[42]
MDAT[11]
MDAT[15]
SCAS[1]#
CS[3]#
CS[2]#
SRAS[1]#
MAdB[1]
MAdB[3]
MAdB[5]
MAdB[6]
MAdB[8]
D
E
MDAT[6]
MDAT[39]
MDAT[9]
MDAT[45]
MDAT[46]
WE[1]#
CLKOUT
CLKIN
MAdB[0]
MAdB[2]
MAdB[4]
MAdB[9]
MAdB[7]
E
F
MDAT[5]
MDAT[37]
VSS
MDAT[12]
MDAT[43]
VSS
VSS
VDD
VDD
VDD
G
MDAT[34]
MDAT[3]
MDAT[4]
MDAT[40]
MDAT[41]
VSS
G
H
SADDOUT
[14]#
MDAT[1]
MDAT[2]
MDAT[38]
MDAT[8]
VDD
H
J
SADDOUT
[13]#
VSS
SADDOUT
[7]#
MDAT[36]
MDAT[7]
VDD
J
K
SADDOUT
CLK#
SADDOUT
[12]#
SADDOUT
[9]#
MDAT[33]
MDAT[35]
VDD
K
L
SADDOUT
[8]#
SADDOUT
[5]#
SADDOUT
[6]#
MDAT[32]
MDAT[0]
VSS
VSS
VSS
L
M
SADDOUT
[2]#
VSS
SADDOUT
[10]#
VTERM[6]
SADDOUT
[11]#
VSS
VSS
VSS
M
N
SADDOUT
[3]#
SDATAOU
TCLK[3]#
SCHECK
[6]#
SADDOUT
[4]#
SDATA
[55]#
VSS
VSS
VSS
N
P
SDATA
[53]#
SDATA
[49]#
SDATA
[63]#
SDATA
[54]#
SDATA
[52]#
VSS
VSS
VSS
P
R
SDATAINCLK[3]#
VSS
SDATA
[61]#
VTERM[7]
SDATA
[50]#
VSS
VSS
VSS
R
T
SDATA
[62]#
SDATA
[60]#
SCHECK
[7]#
SDATA
[51]#
SDATA
[48]#
VSS
VSS
VSS
T
U
SDATA
[59]#
SDATA
[58]#
SDATA
[57]#
SDATA
[36]#
SDATA
[46]#
VSS
U
V
SDATA
[39]#
VSS
SDATA
[37]#
VTERM[8]
SDATA
[35]#
VSS
V
W
SDATA
[56]#
SDATA
[47]#
SDATA
[38]#
SCHECK
[4]#
SDATA
[34]#
VSS
W
Y
SDATA
[45]#
SDATA
[44]#
SDATAINCLK[2]#
SDATA
[33]#
SDATA
[32]#
VSS
Y
AA
SCHECK
[5]#
VSS
SDATAOU
TCLK[2]#
VTERM[0]
SDATA
[30]#
VSS
VSS
VSS
VSS
VSS
AB
SDATA
[43]#
SDATA
[42]#
SDATA
[41]#
SDATA
[31]#
SDATAINCLK[1]#
SDATA
[28]#
SDATA
[27]#
SDATA
[24]#
SDATA
[1]#
SCHECK
[1]#
SDATA
[10]#
SADDIN
[7]#
SADDIN
[8]#
AB
AC
SDATA
[40]#
SDATAOU
TCLK[1]#
VSS
SCHECK
[3]#
SDATA
[29]#
VTERM[3]
SDATA
[25]#
SDATA
[15]#
VTERM[4]
SDATA
[8]#
SDATAOU
TCLK[0]#
VTERM[1]
SDATAINVAL#
AC
AD
VSS
SDATA
[23]#
SDATA
[19]#
VTERM[5]
SDATA
[17]#
SDATA
[26]#
SCHECK
[0]#
SDATAINCLK[0]#
SDATA
[12]#
SDATA
[14]#
SADDIN
[5]#
SADDIN
[6]#
SADDIN
[4]#
AD
AE
SDATA
[22]#
SDATA
[21]#
SCHECK
[2]#
SDATA
[18]#
SDATA
[16]#
VSS
SDATA
[4]#
SDATA
[3]#
VSS
SDATA
[11]#
SADDIN
[11]#
VSS
SADDIN
[10]#
AE
AF
VREF
SDATA
[20]#
VSS
SDATA
[7]#
SDATA
[6]#
SDATA
[5]#
SDATA
[2]#
SDATA
[0]#
SDATA
[13]#
SDATA
[9]#
SADDIN
[2]#
SADDIN
[3]#
SADDIN
[9]#
AF
1
2
3
4
5
6
7
8
9
10
11
12
13
Chapter 11
Pin Designations
F
AA
197
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
14
15
16
17
18
19
20
21
22
23
24
25
26
A
MCKE[2]
DQM[2]#
MAdB[12]
MECCD[3]
MDAT[49]
MDAT[19]
MDAT[52]
MDAT[54]
MDAT[24]
MDAT[26]
MDAT[28]
MDAT[29]
MDAT[31]
A
B
MCKE[1]
DQM[3]#
MECCD[2]
MDAT[16]
MDAT[18]
MDAT[51]
MDAT[21]
MDAT[23]
MDAT[25]
MDAT[27]
MDAT[60]
A_CLK
SYSCLK
B
C
CS[0]#
VSS
MECCD[6]
MDAT[17]
VSS
MDAT[20]
MDAT[22]
VSS
MDAT[57]
MDAT[59]
VSS
BYPASS#
S_CLKREF
C
D
MAdB[13]
MAdB[14]
MCKE[0]
DQM[7]#
MECCD[7]
MDAT[50]
MDAT[55]
MDAT[58]
MDAT[62]
REF_5V
S_CLKOUT
PCLK
ROM_SDA
D
E
MAdB[10]
MAdB[11]
DQM[6]#
MAdA[12]
MDAT[48]
MDAT[53]
MDAT[56]
MDAT[61]
MDAT[63]
MDAT[30]
DCSTOP#
RESET#
A_AD[1]
E
VSS
SPARE#
A_CLK
OUT
VSS
ROM_SCK
A_AD[3]
F
G
VSS
DIV#
TEST#
SCAN_EN
#
A_AD[7]
A_AD[4]
G
H
VDD
TRISTATE#
VDD_SYS
A_AD[8]
ADSTB[0]#
A_AD[6]
H
J
VDD
VDD_AGP
A_AD[0]
VSS
A_AD[9]
A_AD[10]
J
K
VDD
A_AD[2]
A_AD[5]
A_AD[14]
A_AD[11]
A_AD[12]
K
VDD
F
VDD
VDD
VSS
L
VSS
VSS
VSS
A_C/BE
[0]#
A_AD[13]
A_PAR
A_SERR#
A_C/BE[1]#
L
M
VSS
VSS
VSS
A_AD[15]
A_STOP#
VSS
A_TRDY#
A_DEVSEL#
M
A_VREF
A_IRDY#
N
N
VSS
VSS
VSS
A_FRAME#
A_AD[16]
A_C/BE
[2]#
P
VSS
VSS
VSS
A_AD[18]
A_AD[20]
A_AD[21]
A_AD[19]
A_AD[17]
P
VSS
ADSTB[1]#
A_AD[23]
R
R
VSS
VSS
VSS
A_AD[22]
A_C/BE
[3]#
T
VSS
VSS
VSS
A_AD[26]
A_AD[24]
A_AD[29]
A_AD[27]
A_AD[25]
T
U
VDD
A_AD[30]
A_AD[28]
SBA[5]
SBA[6]
A_AD[31]
U
V
VDD
SBA[3]
SBA[7]
VSS
SBSTB#
SBA[4]
V
W
VDD
AD[0]
PIPE#
SBA[1]
SBA[0]
SBA[2]
W
Y
VSS
C/BE[0]#
AD[6]
ST[0]
ST[2]
RBF#
Y
AA
VDD
VDD
VDD
VSS
VSS
PAR
AD[11]
VSS
A_REQ#
ST[1]
AA
AB
CONNECT
GNT[2]#
AD[27]
GNT[3]#
AD[26]
AD[22]
AD[18]
FRAME#
STOP#
AD[13]
AD[2]
AD[1]
A_GNT#
AB
AC
CLK
FWDRST
VTERM[2]
REQ[2]#
PGNT#
AD[28]
AD[24]
AD[20]
AD[16]
TRDY#
AD[15]
AD[5]
AD[4]
AD[3]
AC
AD
SADDIN
[13]#
GNT[4]#
GNT[1]#
REQ[1]#
VSS
AD[31]
C/BE[3]#
VSS
C/BE[2]#
LOCK#
VSS
AD[8]
AD[7]
AD
AE
SADDIN
CLK#
VSS
REQ[4]#
REQ[3]#
WSC#
AD[30]
AD[25]
AD[21]
AD[17]
DEVSEL#
C/BE[1]#
AD[12]
AD[9]
AE
AF
SADDIN
[14]#
SADDIN
[12]#
PROCRDY
GNT[0]#
REQ[0]#
PREQ#
AD[29]
AD[23]
AD[19]
IRDY#
SERR#
AD[14]
AD[10]
AF
14
15
16
17
18
19
20
21
22
23
24
25
26
198
Pin Designations
Chapter 11
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AMD-751™ System Controller Functional Grouping—1 of 2
DRAM
Pin
Name
CS[0]#
CS[1]#
CS[2]#
CS[3]#
CS[4]#
CS[5]#
DQM[0]#
DQM[1]#
DQM[2]#
DQM[3]#
DQM[4]#
DQM[5]#
DQM[6]#
DQM[7]#
MAdA[0]
MAdA[1]
MAdA[2]
MAdA[3]
MAdA[4]
MAdA[5]
MAdA[6]
MAdA[7]
MAdA[8]
MAdA[9]
MAdA[10]
MAdA[11]
MAdA[12]
MAdA[13]
MAdA[14]
MAdB[0]
MAdB[1]
MAdB[2]
MAdB[3]
MAdB[4]
MAdB[5]
MAdB[6]
MAdB[7]
MAdB[8]
MAdB[9]
MAdB[10]
MAdB[11]
MAdB[12]
MAdB[13]
MAdB[14]
MCKE[0]
MCKE[1]
MCKE[2]
MDAT[0]
MDAT[1]
MDAT[2]
MDAT[3]
MDAT[4]
MDAT[5]
MDAT[6]
MDAT[7]
MDAT[8]
MDAT[9]
MDAT[10]
MDAT[11]
MDAT[12]
MDAT[13]
MDAT[14]
MDAT[15]
MDAT[16]
MDAT[17]
DRAM
Pin
No.
C-14
C-7
D-7
D-6
C-13
A-13
A-5
A-6
A-15
B-15
B-5
B-6
E-16
D-17
B-8
C-8
B-9
A-8
C-10
A-9
A-10
B-10
B-11
C-11
A-11
A-12
E-17
B-12
B-13
E-9
D-9
E-10
D-10
E-11
D-11
D-12
E-13
D-13
E-12
E-14
E-15
A-16
D-14
D-15
D-16
B-14
A-14
L-5
H-2
H-3
G-2
G-3
F-1
E-1
J-5
H-5
E-3
D-1
D-3
F-4
C-2
B-1
D-4
B-17
C-17
Chapter 11
Pin
Name
MDAT[18]
MDAT[19]
MDAT[20]
MDAT[21]
MDAT[22]
MDAT[23]
MDAT[24]
MDAT[25]
MDAT[26]
MDAT[27]
MDAT[28]
MDAT[29]
MDAT[30]
MDAT[31]
MDAT[32]
MDAT[33]
MDAT[34]
MDAT[35]
MDAT[36]
MDAT[37]
MDAT[38]
MDAT[39]
MDAT[40]
MDAT[41]
MDAT[42]
MDAT[43]
MDAT[44]
MDAT[45]
MDAT[46]
MDAT[47]
MDAT[48]
MDAT[49]
MDAT[50]
MDAT[51]
MDAT[52]
MDAT[53]
MDAT[54]
MDAT[55]
MDAT[56]
MDAT[57]
MDAT[58]
MDAT[59]
MDAT[60]
MDAT[61]
MDAT[62]
MDAT[63]
MECCD[0]
MECCD[1]
MECCD[2]
MECCD[3]
MECCD[4]
MECCD[5]
MECCD[6]
MECCD[7]
SCAS[0]#
SCAS[1]#
SCAS[2]#
SRAS[0]#
SRAS[1]#
SRAS[2]#
WE[0]#
WE[1]#
WE[2]#
CLKIN
CLKOUT
Processor
Pin
No.
B-18
A-19
C-19
B-20
C-20
B-21
A-22
B-22
A-23
B-23
A-24
A-25
E-23
A-26
L-4
K-4
G-1
K-5
J-4
F-2
H-4
E-2
G-4
G-5
D-2
F-5
C-1
E-4
E-5
A-1
E-18
A-18
D-19
B-19
A-20
E-19
A-21
D-20
E-20
C-22
D-21
C-23
B-24
E-21
D-22
E-22
B-2
B-3
B-16
A-17
A-2
A-3
C-16
D-18
A-4
D-5
C-4
B-7
D-8
A-7
C-5
E-6
B-4
E-8
E-7
Pin Name
Processor
Pin
No.
CLKFWDRST
CONNECT
PROCRDY
RESET#
SADDIN[2]#
SADDIN[3]#
SADDIN[4]#
SADDIN[5]#
SADDIN[6]#
SADDIN[7]#
SADDIN[8]#
SADDIN[9]#
SADDIN[10]#
SADDIN[11]#
SADDIN[12]#
SADDIN[13]#
SADDIN[14]#
SADDINCLK#
SADDOUT[2]#
SADDOUT[3]#
SADDOUT[4]#
SADDOUT[5]#
SADDOUT[6]#
SADDOUT[7]#
SADDOUT[8]#
SADDOUT[9]#
SADDOUT[10]#
SADDOUT[11]#
SADDOUT[12]#
SADDOUT[13]#
SADDOUT[14]#
SADDOUTCLK#
SCHECK[0]#
SCHECK[1]#
SCHECK[2]#
SCHECK[3]#
SCHECK[4]#
SCHECK[5]#
SCHECK[6]#
SCHECK[7]#
SDATA[0]#
SDATA[1]#
SDATA[2]#
SDATA[3]#
SDATA[4]#
SDATA[5]#
SDATA[6]#
SDATA[7]#
SDATA[8]#
SDATA[9]#
SDATA[10]#
SDATA[11]#
SDATA[12]#
SDATA[13]#
SDATA[14]#
SDATA[15]#
SDATA[16]#
SDATA[17]#
SDATA[18]#
SDATA[19]#
SDATA[20]#
SDATA[21]#
SDATA[22]#
SDATA[23]#
SDATA[24]#
AC-14
AB-14
AF-16
E-25
AF-11
AF-12
AD-13
AD-11
AD-12
AB-12
AB-13
AF-13
AE-13
AE-11
AF-15
AD-14
AF-14
AE-14
M-1
N-1
N-4
L-2
L-3
J-3
L-1
K-3
M-3
M-5
K-2
J-1
H-1
K-1
AD-7
AB-10
AE-3
AC-4
W-4
AA-1
N-3
T-3
AF-8
AB-9
AF-7
AE-8
AE-7
AF-6
AF-5
AF-4
AC-10
AF-10
AB-11
AE-10
AD-9
AF-9
AD-10
AC-8
AE-5
AD-5
AE-4
AD-3
AF-2
AE-2
AE-1
AD-2
AB-8
Pin Name
SDATA[25]#
SDATA[26]#
SDATA[27]#
SDATA[28]#
SDATA[29]#
SDATA[30]#
SDATA[31]#
SDATA[32]#
SDATA[33]#
SDATA[34]#
SDATA[35]#
SDATA[36]#
SDATA[37]#
SDATA[38]#
SDATA[39]#
SDATA[40]#
SDATA[41]#
SDATA[42]#
SDATA[43]#
SDATA[44]#
SDATA[45]#
SDATA[46]#
SDATA[47]#
SDATA[48]#
SDATA[49]#
SDATA[50]#
SDATA[51]#
SDATA[52]#
SDATA[53]#
SDATA[54]#
SDATA[55]#
SDATA[56]#
SDATA[57]#
SDATA[58]#
SDATA[59]#
SDATA[60]#
SDATA[61]#
SDATA[62]#
SDATA[63]#
SDATAINCLK[0]#
SDATAINCLK[1]#
SDATAINCLK[2]#
SDATAINCLK[3]#
SDATAINVAL#
SDATAOUTCLK[0]#
SDATAOUTCLK[1]#
SDATAOUTCLK[2]#
SDATAOUTCLK[3]#
SYSCLK
VREF
Pin Designations
PCI
Pin
No.
AC-7
AD-6
AB-7
AB-6
AC-5
AA-5
AB-4
Y-5
Y-4
W-5
V-5
U-4
V-3
W-3
V-1
AC-1
AB-3
AB-2
AB-1
Y-2
Y-1
U-5
W-2
T-5
P-2
R-5
T-4
P-5
P-1
P-4
N-5
W-1
U-3
U-2
U-1
T-2
R-3
T-1
P-3
AD-8
AB-5
Y-3
R-1
AC-13
AC-11
AC-2
AA-3
N-2
B-26
AF-1
Pin
Name
Pin
No.
AD[0]
AD[1]
AD[2]
AD[3]
AD[4]
AD[5]
AD[6]
AD[7]
AD[8]
AD[9]
AD[10]
AD[11]
AD[12]
AD[13]
AD[14]
AD[15]
AD[16]
AD[17]
AD[18]
AD[19]
AD[20]
AD[21]
AD[22]
AD[23]
AD[24]
AD[25]
AD[26]
AD[27]
AD[28]
AD[29]
AD[30]
AD[31]
C/BE[0]#
C/BE[1]#
C/BE[2]#
C/BE[3]#
DEVSEL#
FRAME#
GNT[0]#
GNT[1]#
GNT[2]#
GNT[3]#
GNT[4]#
IRDY#
LOCK#
PAR
PCLK
PGNT#
PREQ#
WSC#
REQ[0]#
REQ[1]#
REQ[2]#
REQ[3]#
REQ[4]#
SERR#
STOP#
TRDY#
W-22
AB-25
AB-24
AC-26
AC-25
AC-24
Y-23
AD-26
AD-25
AE-26
AF-26
AA-23
AE-25
AB-23
AF-25
AC-23
AC-21
AE-22
AB-20
AF-22
AC-20
AE-21
AB-19
AF-21
AC-19
AE-20
AB-18
AB-16
AC-18
AF-20
AE-19
AD-19
Y-22
AE-24
AD-22
AD-20
AE-23
AB-21
AF-17
AD-16
AB-15
AB-17
AD-15
AF-23
AD-23
AA-22
D-25
AC-17
AF-19
AE-18
AF-18
AD-17
AC-16
AE-17
AE-16
AF-24
AB-22
AC-22
199
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
AMD-751™ System Controller Functional Grouping—2 of 2
AGP
Pin
Name
ADSTB[0]#
ADSTB[1]#
PIPE#
RBF#
SBA[0]
SBA[1]
SBA[2]
SBA[3]
SBA[4]
SBA[5]
SBA[6]
SBA[7]
SBSTB#
ST[0]
ST[1]
ST[2]
VDD_AGP
200
AGP/PCI
Pin
No.
H-25
R-25
W-23
Y-26
W-25
W-24
W-26
V-22
V-26
U-24
U-25
V-23
V-25
Y-24
AA-26
Y-25
J-22
Pin Name
A_AD[0]
A_AD[1]
A_AD[2]
A_AD[3]
A_AD[4]
A_AD[5]
A_AD[6]
A_AD[7]
A_AD[8]
A_AD[9]
A_AD[10]
A_AD[11]
A_AD[12]
A_AD[13]
A_AD[14]
A_AD[15]
A_AD[16]
A_AD[17]
A_AD[18]
A_AD[19]
A_AD[20]
A_AD[21]
A_AD[22]
A_AD[23]
A_AD[24]
A_AD[25]
A_AD[26]
A_AD[27]
A_AD[28]
A_AD[29]
A_AD[30]
A_AD[31]
A_C/BE[0]#
A_C/BE[1]#
A_C/BE[2]#
A_C/BE[3]#
A_CLK
A_DEVSEL#
A_FRAME#
A_GNT#
A_IRDY#
A_PAR
A_REQ#
A_SERR#
A_STOP#
A_TRDY#
A_VREF
Pin
No.
J-23
E-26
K-22
F-26
G-26
K-23
H-26
G-25
H-24
J-25
J-26
K-25
K-26
L-23
K-24
M-22
N-23
P-26
P-22
P-25
P-23
P-24
R-22
R-26
T-23
T-26
T-22
T-25
U-23
T-24
U-22
U-26
L-22
L-26
N-24
R-23
B-25
M-26
N-22
AB-26
N-26
L-24
AA-25
L-25
M-23
M-25
N-25
VSS
VSS
VDD
Pin
No.
Pin
No.
Pin
No.
AD-1
J-2
M-2
R-2
V-2
AA-2
C-3
F-3
AC-3
AF-3
C-6
F-6
G-6
U-6
V-6
W-6
Y-6
AA-6
AE-6
F-7
AA-7
AA-8
C-9
AA-9
AE-9
AA-10
L-11
M-11
N-11
P-11
R-11
T-11
C-12
L-12
M-12
N-12
P-12
R-12
T-12
AE-12
L-13
M-13
N-13
P-13
R-13
T-13
L-14
M-14
N-14
P-14
R-14
T-14
C-15
L-15
M-15
N-15
P-15
R-15
T-15
AE-15
L-16
M-16
N-16
P-16
R-16
T-16
C-18
AD-18
F-20
AA-20
C-21
F-21
G-21
Y-21
AA-21
AD-21
C-24
F-24
J-24
M-24
R-24
V-24
AA-24
AD-24
H-6
J-6
K-6
F-8
F-9
F-10
F-17
AA-17
F-18
AA18
F-19
AA-19
H-21
J-21
K-21
U-21
V-21
W-21
Pin Designations
MISC
Pin Name
A_CLKOUT
BYPASS#
DCSTOP#
DIV#
REF_5V
ROM_SCK
ROM_SDA
S_CLKOUT
S_CLKREF
SCAN_EN#
SPARE#
TEST#
TRISTATE#
VDD_SYS
VTERM[0]
VTERM[1]
VTERM[2]
VTERM[3]
VTERM[4]
VTERM[5]
VTERM[6]
VTERM[7]
VTERM[8]
Pin
No.
F-23
C-25
E-24
G-22
D-23
F-25
D-26
D-24
C-26
G-24
F-22
G-23
H-22
H-23
AA-4
AC-12
AC-15
AC-6
AC-9
AD-4
M-4
R-4
V-4
Chapter 11
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
12
Package Specifications
Figure 35 and Figure 36 on page 202 show the package
specifications for the AMD-751 system controller. Tables 38, 39,
and 40, starting on page 203, contain information about the
symbols shown in the figures.
Figure 35. Bottom Side View of Package
Chapter 12
Package Specifications
201
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Figure 36. Top and Side Views of Package
202
Package Specifications
Chapter 12
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 38.
Symbol Notes
Symbol
Table 39.
Description
1
Dimensions and tolerances conform to ASME Y14.5M–1994.
2
All dimensions are in millimeters.
3
Dimension ‘b’ is measured at the maximum solder ball
diameter on a plane parallel to Datum C.
4
Datum C and the seating plane are defined by the spherical
crowns of the solder balls.
5
The number of peripheral rows and columns.
6
‘S’ is measured with respect to Datums A and B, and defines
the position of the solder balls nearest the package centerlines.
7
Conforms to JEP-95, MO-151, Issue 9, Variation Bal-2.
8
The minimum flat area top side of the package is used for
marking and pickup. The flatness specification applied to this
area. Any ejector marks must be outside of this area.
9
Optional features.
492-Pin PBGA 35.0 mm By 35.0 mm Package Specifications
Symbol
Minimum
Nominal
Maximum
Description
A
2.20
2.33
2.46
Overall thickness
A1
0.50
0.60
0.70
Ball height
A2
0.51
0.56
0.61
Body thickness
D
35.00 BSC.
Body size
D1
31.75 BSC.
Ball footprint
E
35.00 BSC.
Body size
E1
31.75 BSC.
Ball footprint
M
26 x 26
Ball matrix size
N
492
Total ball count
MR
5
b
0.60
e
P
Number of rows 5
0.75
0.90
1.27 BSC.
29.9
30.0
Ball diameter
Ball pitch
30.1
Encapsulation area
P1
28.0 Minimum
Flat encapsulation area
S
0.635 BSC.
Solder ball placement
Chapter 12
Package Specifications
203
Preliminary Information
AMD-751™ System Controller Data Sheet
Table 40.
204
21910E—March 2000
Geometric Tolerances
Symbol
Tolerance
Description
aaa
0.15
Coplanarity
bbb
0.15
Parallelism
ccc
0.15
Flatness
Package Specifications
Chapter 12
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Appendix A
Conventions, Abbreviations,
and References
This section contains information about the conventions and
abbreviations used in this document and a list of related
publications.
Signals and Bits
n
n
n
n
Appendix A
Active-Low Signals—Signal names containing a pound sign,
such as SFILL#, indicate active-Low signals. They are
asserted in their Low-voltage state and negated in their
High-voltage state. When used in this context, High and
Low are written with an initial upper case letter.
Signal Ranges—In a range of signals, the highest and lowest
signal numbers are contained in brackets and separated by
a colon (for example, D[63:0]).
Reserved Bits and Signals—Signals or bus bits marked
reserved must be driven inactive or left unconnected, as
indicated in the signal descriptions. These bits and signals
are reserved by AMD for future implementations. When
software reads registers with reserved bits, the reserved bits
must be masked. When software writes such registers, it
must first read the register and change only the
non-reserved bits before writing back to the register.
Three-State—In timing diagrams, signal ranges that are
high impedance are shown as a straight horizontal line
half-way between the high and low levels.
205
Preliminary Information
AMD-751™ System Controller Data Sheet
n
21910E—March 2000
Invalid and Don’t-Care—In timing diagrams, signal ranges
that are invalid or don't-care are filled with a screen
pattern.
Data Terminology
The following list defines data terminology:
n
n
n
n
n
n
n
206
Quantities
• A word is two bytes (16 bits)
• A doubleword is four bytes (32 bits)
• A quadword is eight bytes (64 bits)
• An AMD Athlon™ processor cache
quadwords (64 bytes)
line
is
eight
Addressing—Memory is addressed as a series of bytes on
eight-byte (64-bit) boundaries in which each byte can be
separately enabled.
Abbreviations—The following notation is used for bits and
bytes:
• Kilo (K, as in 4-Kbyte page)
• Mega (M, as in 4 Mbits/sec)
• Giga (G, as in 4 Gbytes of memory space)
See Table 42 for more abbreviations.
Little-Endian Convention—The byte with the address
xx...xx00 is in the least-significant byte position (little end).
In byte diagrams, bit positions are numbered from right to
left—the little end is on the right and the big end is on the
left. Data structure diagrams in memory show low addresses
at the bottom and high addresses at the top. When data
items are aligned, bit notation on a 64-bit data bus maps
directly to bit notation in 64-bit-wide memory. Because byte
addresses increase from right to left, strings appear in
reverse order when illustrated.
Bit Ranges—In text, bit ranges are shown with a dash (for
example, bits 9–1). When accompanied by a signal or bus
name, the highest and lowest bit numbers are contained in
brackets and separated by a colon (for example, AD[31:0]).
Bit Values—Bits can either be set to 1 or cleared to 0.
Hexadecimal and Binary Numbers—Unless the context
makes interpretation clear, hexadecimal numbers are
followed by an h and binary numbers are followed by a b.
Appendix A
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Abbreviations and Acronyms
Table 42 contains the definitions of abbreviations used in this
document.
Table 41.
Abbreviations
Appendix A
Abbreviation
Meaning
A
Ampere
F
Farad
G
Giga-
Gbit
Gigabit
Gbyte
Gigabyte
H
Henry
h
Hexadecimal
K
Kilo-
Kbyte
Kilobyte
M
Mega-
Mbit
Megabit
Mbyte
Megabyte
MHz
Megahertz
m
Milli-
ms
Millisecond
mW
Milliwatt
µ
Micro-
µA
Microampere
µF
Microfarad
µH
Microhenry
µs
Microsecond
µV
Microvolt
n
nano-
nA
nanoampere
nF
nanofarad
nH
nanohenry
ns
nanosecond
ohm
Ohm
p
pico-
pA
picoampere
207
Preliminary Information
AMD-751™ System Controller Data Sheet
Table 41.
21910E—March 2000
Abbreviations (Continued)
Abbreviation
Meaning
pF
picofarad
pH
picohenry
ps
picosecond
s
Second
V
Volt
W
Watt
Table 42 contains the definitions of acronyms used in this
document.
Table 42.
Acronyms
208
Abbreviation
Meaning
AAT
AGP Address Translator
ACK
Acknowledge
ACPI
Advanced Configuration and Power Interface
AGP
Accelerated Graphics Port
APCI
AGP Peripheral Component Interconnect
API
Application Programming Interface
APIC
Advanced Programmable Interrupt Controller
ATE
Address Translation Engine
AWQ
PCI/APCI Write Queue
AXQ
AGP Transaction Queue
BAR
Base Address Register
BIOS
Basic Input/Output System
BIST
Built-In Self-Test
BIU
Bus Interface Unit
CS
Chip Select
CSQ
System Data and Control Queue
CQ
Command Queue
DDR
Double-Data Rate
DIMM
Dual Inline Memory Module
DMA
Direct Memory Access
DRAM
Direct Random Access Memory
ECC
Error Correcting Code
Appendix A
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 42.
Appendix A
Acronyms (Continued)
Abbreviation
Meaning
EIDE
Enhanced Integrated Device Electronics
EISA
Extended Industry Standard Architecture
EPROM
Enhanced Programmable Read Only Memory
EV6
Digital™ Alpha™ Bus
FID
Frequency Integer Divisor
FIFO
First In, First Out
GART
Graphics Address Remapping Table
GDC
GART Directory Cache
GFE
GART Front End
GTC
GART Table Cache
GTW
GART Table Walk
HSTL
High-Speed Transistor Logic
IACK
Interrupt Acknowledge
IDE
Integrated Device Electronics
IMB
Interrupt Message Bus
ISA
Industry Standard Architecture
JEDEC
Joint Electron Device Engineering Council
JTAG
Joint Test Action Group
LAN
Large Area Network
LRU
Least-Recently Used
LSB
Least Significant Bit
LVTTL
Low Voltage Transistor Transistor Logic
MA
Memory Address
MCT
Memory Controller
MD
Memory Data
MDA
Monochrome Display Adapter
MDP
Memory Data Path
MQA
Memory Queue Arbiter
MRA
Memory Request Arbiter
MRF
Memory Read FIFO
MRL
Memory Read Line
MRM
Memory Read Multiple
MRO
Memory Request Organizer
MRQ
Memory Read Queue
209
Preliminary Information
AMD-751™ System Controller Data Sheet
Table 42.
210
21910E—March 2000
Acronyms (Continued)
Abbreviation
Meaning
MRS
Memory Request Scheduler
MSB
Most Significant Bit
MTRR
Memory Type and Range Registers
MWF
Memory Write FIFO
MWI
Memory Write-and-Invalidate
MWQ
Memory Write Queue
MWS
Memory Write Selector
MUX
Multiplexer
NMI
Non-Maskable Interrupt
OD
Open Drain
PBGA
Plastic Ball Grid Array
PA
Physical Address
PCI
Peripheral Component Interconnect
PDE
Page Directory Entry
PDT
Page Directory Table
PH
Page Hit
PLL
Phase Locked Loop
PMSM
Power Management State Machine
POS
Power-On Suspend
POST
Power-On Self-Test
PPA
Physical Page Address
PPQ
Pending Probes Queue
PQ
Probe Queue
PRA
Probe Response Alert Agent
PSQ
Probe System Data and Control Queue
PT
Page Tables
PTE
Page Table Entries
RAM
Random Access Memory
RBN
Round Robin
RDQ
Read Request Queue
ROM
Read Only Memory
RXA
Read Acknowledge Queue
SBA
Sideband Address
SDI
System DRAM Interface
SDRAM
Synchronous Direct Random Access Memory
SIP
Serial Initialization Packet
Appendix A
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Table 42.
Appendix A
Acronyms (Continued)
Abbreviation
Meaning
SMbus
System Management Bus
SMC
SDRAM Memory Controller
SPD
Serial Presence Detect
SRAM
Synchronous Random Access Memory
SROM
Serial Read Only Memory
SRQ
SysDC Read Queue
SysDC
System Data Commands
TLB
Translation Lookaside Buffer
TOM
Top of Memory
TTL
Transistor Transistor Logic
VAS
Virtual Address Space
VPA
Virtual Page Address
VGA
Video Graphics Adapter
WHAMI
Who Am I
WBT
Write Buffer Tag
WP
Write Protect
WRQ
Write Request Queue
USB
Universal Serial Bus
XCA
Transaction Combiner Agent
ZDB
Zero Delay Buffer
211
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
Related Publications
The following books discuss various aspects of computer
architecture that may enhance your understanding of AMD
products:
AMD Publications
AMD Athlon™ Processor Data Sheet, order# 21016
AMD-756™ Peripheral Bus Controller Data Sheet, order# 22548
Bus Architecture
PCI Local Bus Specification, Revision 2.2, PCI Special Interest
Group, Hillsboro, Oregon, 1998.
AT Bus Design, Edward Solari, IEEE P996 Compatible,
Annabooks, San Diego, CA, 1990.
Accelerated Graphics Port Interface Specification Revision 2.0,
Intel Corporation, AGP Forum, 1998.
x86 Architecture
Programming the 80386, John Crawford and Patrick Gelsinger,
Sybex, San Francisco, 1987.
80x86 Architecture & Programming, Rakesh Agarwal, Volumes I
and II, Prentice-Hall, Englewood Cliffs, NJ, 1991.
General References
Computer Architecture, John L. Hennessy and David A.
Patterson, Morgan Kaufman Publishers, San Mateo, CA, 1990.
Websites
Visit the AMD website for documentation of AMD products.
www.amd.com
Other websites of interest include the following:
n
n
n
212
JEDEC home page—www.jedec.org
IEEE home page—www.computer.org
AGP Forum—www.agpforum.org
Appendix A
Preliminary Information
21910E—March 2000
AMD-751™ System Controller Data Sheet
Index
Numerics
100-MHz
Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73, 75–76, 106, 186
Clock . . . . . . . . . . . . . . . . . . . . . . 14, 75, 106, 146, 148–149
SDRAM . . . . . . . . . . . . . . . . . . . . . . . . 1, 14, 73, 75–76, 106
133-Mhz Burst Transfer Rate . . . . . . . . . . . . . . . . . . . . . . . . . 10
33-MHz PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187
3D
Graphics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Renderings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4G_ENA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
4-Gigabyte Address Space . . . . . . . . . . . . . . . . . . . . . . . . . . 157
66 MHz-Capable PCI Bus . . . . . . . . . . . . . . . . . . . . . . . 132, 164
66-MHz Bus . . . . . . . . . . . . . . . . . . . . . . . . . 132, 164, 168, 187
A
A_AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 34, 40–41
A_C/BE[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 35, 41
A_CLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 35
A_DEVSEL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
A_FRAME# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 35–37, 93
A_GNT# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38, 42
A_IRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 37
A_PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
A_REQ# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38
A_SERR# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_STOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 38
AAT (AGP address translator) . . . . . . . . . . . . . . . . . . . . 60, 208
Abbreviations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205, 207
Absolute Ratings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Accelerated Graphics Port (AGP). . . . . . . . . . . . . . . .See AGP
ACK (acknowledge) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53, 208
ACPI (advanced configuration and power
interface) . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 108, 208
Power States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108–109
Acronyms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
AD[31:0]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 24, 28, 52
Address
Decoding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
High . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Map. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46–47, 65
Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Stepping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Translation. . . . . . . . . . . . . . . . . . . . . . . See GART and ATE
Address Translation Engine (ATE). . . . . See GART and ATE
Address/Data Stepping. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Addressing, System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
ADSTB0 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Advanced Configuration and Power
Interface (ACPI). . . . . . . . . . . . . . . . . . . . . . . See ACPI
Advanced Programmable Interrupt
Controller (APIC). . . . . . . . . . . . . . . . . . . . . . See APIC
Index
AGP (accelerated graphics port) . . . . .1–2, 4–5, 7–8, 10–11,
. . . . . . . . . . . . . . . . . . . . . . . . 13–14, 47, 63, 208, 212
AGP Address Translator (AAT). . . . . . . . . . . . . . . See AAT
AGP-to-Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Header Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Initiator Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Peripheral Component Interconnect (APCI). . . See APCI
Primary Bus Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Request Queue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87–88
Revision ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Secondary Bus Number . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Secondary Latency Timer . . . . . . . . . . . . . . . . . . . . . . . . 166
Subordinate Bus Number . . . . . . . . . . . . . . . . . . . . . . . . 165
System DRAM Interface (SDI) . . . . . . . . . . . . . . . . . . . . . 90
Transaction Queue (AXQ). . . . . . . . . . . . . . . . . . . . See AXQ
Virtual Address Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
AGP Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10–11
A_AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
A_C/BE#[3:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
A_FRAME#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 93
AGP-Only Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91–92
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Ordering Rules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
PCI signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
PIPE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 34–35, 92
Request Queue. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
SBA[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34–35
ST[2:0]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
AGP/PCI Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
A_AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 40–41
A_C/BE#[3:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35, 41
A_DEVSEL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
A_FRAME#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35–37
A_GNT#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38
A_IRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 37
A_PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
A_REQ# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38
A_SERR# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_STOP#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 38
AGP-Only Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
A_CLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 35
A_GNT#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
ADSTB0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
PIPE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
RBF# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
SBA[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41–42
SBSTB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
ST[2:0]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
AMD Athlon Processor . . . . . . . . . . . . .1, 6–8, 14, 45, 47–49,
. . . . . . . . . . . . . . . . . . . . 52–53, 68, 71, 106–107, 206
213
Preliminary Information
AMD-751™ System Controller Data Sheet
AMD Athlon System Bus . . . . . . . . 1–2, 7, 45, 47–50, 54–58,
. . . . . . . . . . . . . . . . . 64, 106–108, 123, 131, 148–149,
. . . . . . . . . . . . .151, 155–156, 160, 162, 193, 195–196
AMD Publications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
AMD-750 Chipset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AMD-756 Peripheral Bus Controller . . . . . . . 1, 6, 14, 26–29,
. . . . . . . . . . . . . . . . . . . . . . . . . . 45, 48–49, 56, 67, 92,
. . . . . . . . . . . . . . . . . . . . . 106–108, 130, 152, 161, 212
APCI (AGP peripheral component
interconnect) . . . . . . . . . . . . 2, 10–11, 59–60, 61, 80,
91, 96, 100, 151–154,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162, 164, 169, 208
API (application programming interface) . . . . . . . . . . 95, 208
APIC (advanced programmable interrupt
controller) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47, 208
Application Programming Interface (API). . . . . . . . . See API
Arbitration
AGP Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91–92
PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
ATE (address translation engine) . . . . . . . . . 65, 85, 100, 208
AWQ (PCI/APCI write queue) . . . . . . . . . . . . . . . . . . . . 53, 208
AXQ (AGP transaction queue) . . . . . . . . . . . . . . . 85, 87, 208
B
BAR (base address register) . . . . . . . . . . . 13, 47, 50–52, 99,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107, 123–177, 208
Base
Address High . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136
Address Low . . . . . . . . . . . . . . . . . . . . . . . . . . .135–136, 166
Class Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
Base Address Register (BAR). . . . . . . . . . . . . . . . . . See BAR
Basic Input/Output System (BIOS). . . . . . . . . . . . . . See BIOS
BIOS (basic input/output system) . . . . . . . . . 3, 8, 47, 67–68,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70–72, 106, 208
BIST (build-in self-test) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
BIU (bus interface unit) . . . . . . . . . . . . . . . . . . 12, 58, 60, 208
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Functional Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Block Diagram
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
AMD-750 chipset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AMD-751 system controller . . . . . . . . . . . . . . . . . . . . . . . . 12
Bus Interface Unit (BIU) . . . . . . . . . . . . . . . . . . . . . . . . . . 53
MCT (memory controller) . . . . . . . . . . . . . . . . . . . . . . . . . 63
Memory Queue Arbiter (MQA) . . . . . . . . . . . . . . . . . . . . . 61
Memory Request Organizer (MRO) . . . . . . . . . . . . . . . . . 60
Block Writes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Buffer Characteristics, I/O . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Buffer Model, I/O . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Buffers
Prefetch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Read . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Write . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57–58, 78, 81
Built-In Self-Test (BIST). . . . . . . . . . . . . . . . . . . . . . . See BIST
Burst
Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Transfers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 58, 68, 78
Bus Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
Bus Interface Unit (BIU). . . . . . . . . . . . . . . . . . . . . . . See BIU
Byte Merging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 81
214
21910E—March 2000
C
C/BE[3:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23–24
Cache
GART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85, 98
L2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 79
Operation, GART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
SDRAM type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140–141
Size (AGP). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Snoops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Writeback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 131
CAP_PTR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Capability Identifier . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
CAS[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
CAS-Before-RAS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3, 68
Case Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
CCLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Chaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Characteristics
I/O buffer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
I/O Buffer AC and DC . . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Chip Select (CS). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See CS
CLKFWDRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 55
Clock
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Clocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Coherency . . . . . . . . . . . . . . . . . . . . . . . . . . . 58, 78, 84, 89, 93
Command Address Decoding . . . . . . . . . . . . . . . . . . . . . . . . 50
Command Queue (CQ). . . . . . . . . . . . . . . . . . . . . . . . . See CQ
Concurrency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Configuration
Register Access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Space Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Configuration Registers . . . . . . . . . . . . . . . . . . . . . . . 123–177
AGP Capability Identifier . . . . . . . . . . . . . . . . . . . . . . . . 156
AGP Command Register #2 . . . . . . . . . . . . . . . . . . . . . . 158
AGP GART Base Address Register . . . . . . . . . . . . . . . . 175
AGP Header Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
AGP Mode Control Register #1 . . . . . . . . . . . . . . . . . . . 159
AGP Mode Control Register #2 . . . . . . . . . . . . . . . . . . . 160
AGP Primary Bus Number . . . . . . . . . . . . . . . . . . . . . . . 165
AGP Revision ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
AGP Secondary Bus Number . . . . . . . . . . . . . . . . . . . . . 165
AGP Secondary Latency Timer. . . . . . . . . . . . . . . . . . . . 166
AGP Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
AGP Subordinate Bus Number . . . . . . . . . . . . . . . . . . . . 165
AGP VGA BIOS Mask . . . . . . . . . . . . . . . . . . . . . . . . . . . 154
AGP Virtual Address Space . . . . . . . . . . . . . . . . . . . . . . 158
AGP/PCI Prefetchable Memory Base . . . . . . . . . . . . . . . 169
AGP/PCI Prefetchable Memory Limit . . . . . . . . . . . . . . 169
AGP/PCI Secondary Status . . . . . . . . . . . . . . . . . . . . . . . 167
Base Address Chip Select . . . . . . . . . . . . . . . . . . . . 137–139
Base Address Register 0 . . . . . . . . . . . . . . . . . . . . . . . . . 135
Base Address Register 1 . . . . . . . . . . . . . . . . . . . . . . . . . 136
Base Address Register 2 . . . . . . . . . . . . . . . . . . . . . . . . . 136
Base Class Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
BIU 1 Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
BIU Control and Status . . . . . . . . . . . . . . . . . . . . . . . . . . 147
BIU SIP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 149
Capabilities Pointer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130, 161
Config Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 155
Device ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130, 161
DRAM CS Driver Strength . . . . . . . . . . . . . . . . . . . . . . . 144
Index
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
DRAM ECC Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145
DRAM Mode/Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
DRAM Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143
Enable and Status Register . . . . . . . . . . . . . . . . . . . . . . . 174
Features and Capabilities Register. . . . . . . . . . . . . . . . . 173
GART Cache Control Register . . . . . . . . . . . . . . . . . . . . 176
GART Cache Size Register . . . . . . . . . . . . . . . . . . . . . . . 175
GART Entry Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Header Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
I/O Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
I/O Base Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
I/O Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
I/O Limit Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Interrupt Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Latency Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Memory Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
Memory Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168
MRO Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
PCI and APCI Chaining . . . . . . . . . . . . . . . . . . . . . . . . . . 154
PCI Arbitration Control . . . . . . . . . . . . . . . . . . . . . . . . . . 151
PCI-to-PCI Bridge Control . . . . . . . . . . . . . . . . . . . . . . . . 171
PM2 (Power Management). . . . . . . . . . . . . . . . . . . . . . . . 177
Programming Interface . . . . . . . . . . . . . . . . . . . . . . 133, 164
Revision ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133
SDRAM Address Mapping Control . . . . . . . . . . . . . 140–141
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 163
Subclass Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
Vendor ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130, 161
Who Am I (WHAMI) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151
CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 55
Conventions, Abbreviations, and References . . . . . . . . . . 205
CPU
Clocks
CCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
CQ (command queue). . . . . . . . . . . . . . . . . . . . . . . . 2, 53, 208
CS (chip select) . . . . . . . . . . . . . . 3, 64–65, 137–141, 145, 208
CS[5:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 63, 65, 72
CSQ (system data and control queue) . . . . . . . . . .53–54, 208
D
Data
Block. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
GDC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Parity Error Detected . . . . . . . . . . . . . . . . . . . 132, 163, 167
DC Characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181
DCSTOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107
DDR (double-data rate) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208
Decoding
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Delay Analysis. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
Detected Parity Error. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
Device 0 . . . . . . . . . . . . . . . . 52, 123, 130–139, 141, 145–146,
. . . . . . . . . . . . . . . . . . . . . . . . . 148–153, 155–158, 160
Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Device 1 . . . . . . . . . . . . . . . . . . . . . 52, 123, 161–165, 167–172
Registers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Device Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
DEVSEL#. . . . . . . . . . . . . . . . . . 23–24, 82, 131–132, 163, 167
Timing (Device 0) . . . . . . . . . . . . . . . . . . . . . . . . . . . 132, 163
Timing (Device 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 167
DIMM (dual inline memory module) . . . . 1, 3, 8, 14, 30, 33,
. . . . . . . . . . . . . . . . 59, 64–68, 70–71, 73–75, 77, 208
Index
Direct Memory Access (DMA). . . . . . . . . . . . . . . . . See DMA
Direct Random Access Memory (DRAM). . . . . . . See DRAM
DMA (direct memory access) . . . . . 29, 80, 94, 108, 152, 208
Don’t-Care. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206
Double-Data Rate (DDR). . . . . . . . . . . . . . . . . . . . . . See DDR
Double-Pumping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 84
DQM[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 72
DRAM (direct random access memory). . . . . . . . . . 3–4, 7–8,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 208
Controller
CAS[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
CS[5:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
DQM[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 33
MA[13:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Memory Arbiter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
RAS[5:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 72
Refresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Shadow RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
WE[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
Interface Signals
CS[5:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
DQM[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MAdA[14:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MAdB[14:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MCKE[2:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 33
MDAT[63:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MECCD[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCAS[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
WE[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Dual Inline Memory Module (DIMM). . . . . . . . . . See DIMM
E
ECC (error correcting code) . . . . . 2–3, 8, 19, 63–65, 67–68,
. . . . . . . . . . . . . . . . . . . . . . 80, 90, 127, 145–146, 208
EIDE (enhanced integrated device
electronics) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 209
EISA (extended industry standard
architecture). . . . . . . . . . . . . . . . . . . . . . . . . . . . 80, 209
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 179
Enhanced Integrated Device
Electronics (EIDE). . . . . . . . . . . . . . . . . . . . . See EIDE
Enhanced Programmable Read Only
Memory (EPROM). . . . . . . . . . . . . . . . . . . See EPROM
EPROM (enhanced programmable read
only memory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Error Correction Code (ECC). . . . . . . . . . . . . . . . . . . See ECC
EV6 (DEC Alpha Bus) . . . . . . . . . . . . . . . . . . . . . 151–152, 209
Extended Industry Standard
Architecture (EISA). . . . . . . . . . . . . . . . . . . . See EISA
F
Fast Back-to-Back
Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132, 163, 167
Cycle Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130, 161
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
MCT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Fence Command. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
215
Preliminary Information
AMD-751™ System Controller Data Sheet
FID (frequency integer divisor) . . . . . . . . . . . . . . . . . . . . . 209
FIFO (first in, first out) . . . . . . . . . . . . . . . . . 2, 4–5, 7–9, 55,
. . . . . . . . . . . . . . . . . . . . . . . . . . 80–81, 85, 88, 93, 209
First In, First Out (FIFO). . . . . . . . . . . . . . . . . . . . . . See FIFO
Float Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Flush Command . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
FRAME# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22–25
Frequency Integer Divisor (FID). . . . . . . . . . . . . . . . . See FID
Full-On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Function Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Functional
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45–110
Pin Groupings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199–200
Units
BIU . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
G
GART (graphics address remapping
table) . . . . . . . . . . . . 5, 11, 47, 52, 63, 79, 82, 84, 209
Address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175–176
Remapping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Translation Engine (ATE). . . . . . . . . . . . . . . . . .See ATE
Alternative Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Base Address Register . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Cache . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Entry Invalidate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Entry Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Invalidate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . .98, 174–176
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Conventional Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . 95–96
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Cache (GDC) . . . . . . . . . . . . . . . . 5, 95–98, 100, 174, 209
Entry Offset. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Front End (GFE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 209
Memory Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Table Cache (GTC) . . . . . . . . . . . . . . . 95–98, 100, 105, 209
Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Front End . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Table Walk (GTW) . . . . . . . . . . . . 63–64, 98, 100–101, 209
Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95
Translation Scheme . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Virtual Address . . . . . . . . . . . . . . . . 94–95, 97–98, 100, 105
GDC (GART directory cache). . . . . . . . . . . . . . . . . See GART
Geometric Tolerances. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204
GFE (GART front end). . . . . . . . . . . . . . . . . . . . . . . See GART
GNT[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 27
Graphics
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Graphics Address Remapping Table (GART). . . . See GART
GTC (GART table cache). . . . . . . . . . . . . . . . . . . . . See GART
GTW (GART table cache). . . . . . . . . . . . . . . . . . . . See GART
H
Halt. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Hamming Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Heatsink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
High-Speed Transistor Logic (HSTL). . . . . . . . . . . See HSTL
Hold Timings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
HSTL (high-speed transistor logic) . . . . . . . . . . . . . . 2, 7, 209
216
21910E—March 2000
I
I/O
AGP Write Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169
Address Lower Nibble. . . . . . . . . . . . . . . . . . . . . . . . . 166
Decode Width. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
buffer AC and DC characteristics . . . . . . . . . . . . . . . . . 196
buffer characteristics . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
buffer model. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Address Lower Nibble. . . . . . . . . . . . . . . . . . . . . . . . . 166
model application note . . . . . . . . . . . . . . . . . . . . . . . . . . 196
Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
IACK (interrupt acknowledge) . . . . . . . . . . . . . 46–47, 51, 209
IBIS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195
IDE (integrated device electronics) . . . . . . . . . . . . . . . 26, 209
IMB (interrupt message bus) . . . . . . . . . . . . . . . . . . . . 29, 209
Industry Standard Architecture (ISA). . . . . . . . . . . . . See ISA
Initiator Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
Integrated Device Electronics (IDE). . . . . . . . . . . . . See IDE
Interface Levels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Interrupt
Line . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Pin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Interrupt Acknowledge (IACK). . . . . . . . . . . . . . . . See IACK
Interrupt Message Bus (IMB). . . . . . . . . . . . . . . . . . . See IMB
IRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25, 29
ISA (industry standard architecture). . . . . . . . . . . . 6, 26, 80,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158, 171, 209
J
JEDEC (joint electron device engineering
council) . . . . . . . . . . . . . . . . . . . . . . . . . 65, 74, 209, 212
Joint Electron Device Engineering
Council (JEDEC). . . . . . . . . . . . . . . . . . . . .See JEDEC
Joint Test Action Group (JTAG). . . . . . . . . . . . . . . . See JTAG
JTAG (joint test action group) . . . . . . . . . . . . . . . . . . . 14, 209
L
L2
Cache. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54, 79
LAN (large area network) . . . . . . . . . . . . . . . . . . . . . . . . . . 209
Large Area Network (LAN). . . . . . . . . . . . . . . . . . . . . . . . . 209
Latency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153, 166
Value . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Least-Recently Used (LRU). . . . . . . . . . . . . . . . . . . . See LRU
Least-Significant Bit (LSB). . . . . . . . . . . . . . . . . . . . . See LSB
Legacy x86 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45, 47, 50
Linking
Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
LOCK#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 89
Low Voltage Transistor Transistor
Logic (LVTTL). . . . . . . . . . . . . . . . . . . . . . . See LVTTL
LRU (least-recently used) . . . . . . . . . . . . . . . . . . . . . . 105, 209
LSB (least significant bit) . . . . . . . . . . . . . . . . . . . . . . . . . . 209
LVTTL (low voltage transistor transistor logic) . . . . . . . . 209
Index
Preliminary Information
AMD-751™ System Controller Data Sheet
21910E—March 2000
M
MA (memory address) . . . . . . . . . . . . . . . . . . . . . . . . . . 75, 209
MA[13:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
MAdA[14:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MAdB[14:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Master Abort Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Maximum Request Depth . . . . . . . . . . . . . . . . . . . . . . . . . . 157
MCKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68, 70
MCKE[2:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13, 31, 33
MCT (memory controller) . . . . . . . . . . 12, 59–63, 70, 90, 209
Blocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
MD (memory data) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75, 209
MDA (monochrome display adapter) . . . . . . . . . . . . . 151, 209
MDAT[63:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MDP (memory data path) . . . . . . . . . . . . . . . . . . . 63, 65, 209
MECCD[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Memory . . . . . . . . . . . . . . . . . . . . . . . . . 2–4, 47, 135–136, 206
AGP Write Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162
Base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168–169
Coherency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Controller (MCT). . . . . . . . . . . . . . . . . . . . . . . . . . See MCT
Data Path (MDP). . . . . . . . . . . . . . . . . . . . . . . . . . . See MDP
Detection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
DOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
High Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Limit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168–169
Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94
Memory-Mapped Control Registers . . . . . . . . . . . . . . . . 136
Memory-to-AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Mixing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Organization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Queue Arbiter (MQA). . . . . . . . . . . . . . . . . . . . . . See MQA
Read Queues (MRQ) . . . . . . . . . . . . . . . . . . . . . . . See MRQ
Read Queues (MRQ). . . . . . . . . . . . . . . . . . . . . . . . See MRQ
Request Arbiter (MRA). . . . . . . . . . . . . . . . . . . . . See MRA
Request Organizer (MRO). . . . . . . . . . . . . . . . . . . See MRO
Request Scheduler (MRS). . . . . . . . . . . . . . . . . . . See MRS
SDRAM Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Space . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Write Queues (MWQ). . . . . . . . . . . . . . . . . . . . . . .See MWQ
Write Selector (MWS). . . . . . . . . . . . . . . . . . . . . . See MWS
Write-and-Invalidate Command (Device 0) . . . . . . . . . . 131
Write-and-Invalidate Command (Device 1) . . . . . . . . . . 162
Memory Address (MA). . . . . . . . . . . . . . . . . . . . . . . . . See MA
Memory Data (MD). . . . . . . . . . . . . . . . . . . . . . . . . . . . See MD
Monochrome Display Adapter (MDA). . . . . . . . . . . See MDA
Most Significant Bit (MSB). . . . . . . . . . . . . . . . . . . . See MSB
MQA (memory queue arbiter) . . . . . . . . . . . . . . . . 59, 61, 209
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
MRA (memory request arbiter). . . . . . . . . . . . . . . .63–65, 209
MRF (memory read FIFO) . . . . . . . . . . . . . . . . . . . . . . . . 2, 209
MRL (memory read line) . . . . . . . . . . . . . . . . . . . . . . 4, 9, 209
MRM (memory read multiple). . . . . . . . . . . . . . . . . . 4, 9, 209
MRO (memory request organizer). . . . . 2, 12, 53, 59–60, 62,
. . . . . . . . . . . . . . . . . . . . . . . . . . . 78, 82, 150, 152, 209
Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
MRQ (memory read queues) . . . . .2, 53, 59–61, 65, 150, 209
MRS (memory request scheduler). . . . . . . . . . . . . .61–62, 210
Index
MSB (most significant bit) . . . . . . . . . 46, 48, 50–51, 71, 210
MTRR (memory type and range registers) . . . . . . . . . 71, 210
Multiple Page Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Multiplexer (MUX). . . . . . . . . . . . . . . . . . . . . . . . . . See MUX
MUX (multiplexer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 210
MWF (memory write FIFO) . . . . . . . . . . . . . . . . . . . 2, 80, 210
MWI (memory write-and-invalidate) . . . . . . . . . . . . 4, 9, 131,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162, 210
MWQ (memory write queue) . . . . . . . . . . . . . . . 2, 53, 59–62,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65, 150, 210
MWS (memory write selector) . . . . . . . . . . . . . . . . 59, 62, 210
N
NAND tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14, 43
NMI (non-maskable interrupt) . . . . . . . . . . . . . . . . . . . 28, 210
Non-Maskable Interrupt (NMI). . . . . . . . . . . . . . . . . See NMI
O
OD (Open Drain). . . . . . . . . . . . . . . . . . . . . . . See Open Drain
Open Drain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 13, 28, 210
Operating
Ranges. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Operation, Functional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Ordering Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Ordering Rules, AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
P
PA (physical address) . . . . . . . . . . . . . . . 46, 48, 51, 102, 210
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201, 203
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Page
Directory Entry (PDE). . . . . . . . . . . . . . . . . . . . . . . See PDE
Directory Table (PDT). . . . . . . . . . . . . . . . . . . . . . . See PDT
Hit (PH). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See PH
Table Entry (PTE). . . . . . . . . . . . . . . . . . . . . . . . . . See PTE
Tables (PT). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . See PT
Translation Structures. . . . . . . . . . . . . . . . . . . . . . . . . . . . 97
Page Directory Entry (PDE). . . . . . . . . . . . . . . . . . . . See PDE
PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Parity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131–132, 163, 167
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Error Detected . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 163
Error Response . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131
PBGA (plastic ball grid array) . . . . . . . . . . 1, 7, 13, 203, 210
PC-100 SDRAM DIMMs. . . . . . . . . . 1, 3, 8, 14, 59, 67, 72–73
PCI (peripheral component interconnect) . . . . . . . 1–2, 4–5,
. . . . . . . . . . . . . . . . 7–8, 50, 52–53, 59, 151, 154, 210
Header Type (Device 0). . . . . . . . . . . . . . . . . . . . . . . . . . 134
Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Parity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Targets. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
PCI Bus
Accesses by Another Initiator . . . . . . . . . . . . . . . . . . . . . 82
AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Arbitration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79, 92
Bus Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
C/BE[3:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
217
Preliminary Information
AMD-751™ System Controller Data Sheet
Configuration Address . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
Configuration Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Configuration Mechanism . . . . . . . . . . . . . . . . . . . . . . . . 123
Configuration Space Enable . . . . . . . . . . . . . . . . . . . . . . 124
Controller . . . . . . . . . . . . . . . . . . . . 4, 9–11, 13–14, 78, 212
Device 0 Registers (CPU-PCI Bridge). . . . . . . . . . . . . . . 130
Device 1 Registers (AGP). . . . . . . . . . . . . . . . . . . . . . . . . 161
Device Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
DEVSEL#. . . . . . . . . . . . . . . . . . . . . . 24, 131–132, 163, 167
FRAME# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22–23, 25
Function Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
GNT[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
IRDY#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Memory-Mapped Control Registers . . . . . . . . . . . . . . . . 173
Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124
PCI-from-Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
PCI-to-Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
PCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
PGNT# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
PREQ# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Primary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Reads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Register Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Secondary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
SERR# . . . . . . . . . . . . . . . . . . . 130–131, 161, 163, 172, 175
Sideband Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
STOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132, 163, 167
Transactions on the AGP Bus. . . . . . . . . . . . . . . . . . . . . . . 93
TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25
PCI Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
AD[31:0]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
C/BE[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
DEVSEL#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
FRAME# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
GNT[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
IRDY#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
LOCK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PGNT# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PREQ# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
REQ[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
RESET# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
SERR# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
STOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
WSC# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
PCI/APCI Write Queue (AWQ). . . . . . . . . . . . . . . . . See AWQ
PCI-PCI
Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
PCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 78
PDE (page directory entry) . . . . . . . . . . . . . . 97–99, 102, 210
PDT (page directory table) . . . . . . . . . . . . . . . . . 98, 102, 210
Pending Probes Queue (PPQ). . . . . . . . . . . . . . . . . . .See PPQ
Peripheral Component Interconnect (PCI). . . . . . . . See PCI
PGNT# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26–27, 80
PH (page hit) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61, 143, 210
Phase Locked Loop (PLL). . . . . . . . . . . . . . . . . . . . . . See PLL
Physical Address (PA). . . . . . . . . . . . . . . . . . . . . . . . . . See PA
Physical Page Address (PPA). . . . . . . . . . . . . . . . . . . . See PPA
Pin
Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Functional Groupings . . . . . . . . . . . . . . . . . . . . . . . . 199–200
Names. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197–200
Numbers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197–200
218
21910E—March 2000
PIPE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 34–35, 40, 92
Pipeline. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150
Pipelined Requests . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Plastic Ball Grid Array (PBGA). . . . . . . . . . . . . . . . See PBGA
PLL (phase locked loop) . . . . . . . . . . . . . . . . . . . . 14, 110, 210
PMSM (power management state machine) . . . . . . . 108, 210
POS (power-on suspend) . . . . . . . . . . . . . . . . . . . . . . . . 13, 210
POST (power-on self-test) . . . . . . . . . . . . . . . . . . . . . . 123, 210
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dissipation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
Management. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 106, 177
ACPI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
States . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Power Management State Machine (PMSM). . . . See PMSM
Power-On Self-Test (POST). . . . . . . . . . . . . . . . . . . . See POST
Power-On Suspend (POS). . . . . . . . . . . . . . . . . . . . . . See POS
PPA (physical page address). . . . . . . . . . . . . . . . . 97, 105, 210
PPQ (pending probes queue) . . . . . . . . . . . . . . . . . . . . 53, 210
PQ (probe queue). . . . . . . . . . . . . . . . . . . . . . . . . 2, 53–54, 210
PRA (probe response alert agent) . . . . . . . . . . . . . 53–54, 210
Prefetch Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Prefetchable
Graphics Memory. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Memory-Mapped Control Registers . . . . . . . . . . . . . . . . 136
PREQ#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26–27, 80
Primary PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Probe Queue (PQ). . . . . . . . . . . . . . . . . . . . . . . . . . . . . See PQ
Probe Response Alert Agent (PRA). . . . . . . . . . . . . See PRA
Probe System Data and Control Queue (PSQ). . . . . See PSQ
Processor
Bus
Read from PCI Target . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Write to PCI . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
Interface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 53
Interface Signals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CLKFWDRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CONNECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
PROCRDY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
SADDIN[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDINCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUT[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUTCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SCHECK[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SDATA[63:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINVAL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SDATAOUTCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . 21
SYSCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Write Posting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PROCRDY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17, 55
Programming Interface . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
PSQ (probe system data and control queue). . . . . 53–54, 210
PT (page tables) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98, 210
PTE (page table entries) . . . . . . . . . . . . . . . . . 97–98, 105, 210
R
RAM (random access memory). . . . . . . . . . . . . . . . . . . . . . 210
Random Access Memory (RAM). . . . . . . . . . . . . . . See RAM
RAS[5:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 72
RBF# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
RBN (round robin) . . . . . . . . . . . . . . . . . . . . . . . . . . 60–61, 210
RDQ (read request queue) . . . . . . . . . . . . . . . . . . . 85, 87, 210
Index
Preliminary Information
21910E—March 2000
Read
Acknowledge Queue (RXA). . . . . . . . . . . . . . . . . . See RXA
Buffers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Only Memory (ROM). . . . . . . . . . . . . . . . . . . . . . . See ROM
Request Queue (RDQ) . . . . . . . . . . . . . . . . . . . . 85, 87, 210
Read Acknowledge Queue (RXA). . . . . . . . . . . . . . . See RXA
Read/Write Request . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
Received Target Abort . . . . . . . . . . . . . . . . . . . . 132, 163, 167
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 205, 212
Refresh State Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
Register Number. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Related Publications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
REQ[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Request Queue . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87–88
RESET# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Revision
AGP Specification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
Revision Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
Revision ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126, 129, 164
Memory-Mapped . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
ROM (read only memory). . . . . . . . . . . . . . . . . . . . . . . . . . . 210
ROM_SCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 57
ROM_SDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Round Robin (RBN). . . . . . . . . . . . . . . . . . . . . . . . . . See RBN
RXA (read acknowledge queue) . . . . . . . . . . . . . . . . . . 87, 210
S
SADDIN[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDINCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUT[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUTCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SBA (sideband address) . . . . . . . . . . . . . . . . . 84–86, 157, 210
Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
SBA[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34–35, 41–42
SBSTB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SCAN_EN#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SCAS# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
SCAS[2:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCHECK[7:0]#] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SDATA[63:0]#]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINVAL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SDATAOUTCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SDI (system DRAM interface) . . . . . . . . . . . . . .12, 78, 82, 85,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87, 90, 210
SDRAM (synchronous DRAM) . . . . . . . . 1, 3, 6, 8–9, 13–14,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 63–64, 72, 210
100-MHz Scheme. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
DIMM
Loading Analysis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70
Interface Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Memory Organizations . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
SDRAM Memory Controller (SMC) . . . . . . . . . . . . . 64, 211
Secondary
APCI (AGP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Bus
Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165
Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
Latency Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166
PCI Bus. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5, 10, 52
Index
AMD-751™ System Controller Data Sheet
Self Refresh . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Serial
Initialization Packet (SIP). . . . . . . . . . . . . . . . . . . . . See SIP
Presence Detect (SPD). . . . . . . . . . . . . . . . . . . . . . See SPD
Read Only Memory (SROM). . . . . . . . . . . . . . . . See SROM
SERR#. . . . . . . . . . . . . . . . . . 28, 130–131, 161, 163, 172, 175
Enable
AGP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Primary PCI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Secondary PCI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . 172
Settings, typical . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
Setup Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
Shadow
RAM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71
Sideband Address (SBA). . . . . . . . . . . . . . . . . . . . . . . See SBA
Sideband Signals
PCI Bus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Signaled
Initiator Abort . . . . . . . . . . . . . . . . . . . . . . . . . 132, 163, 167
System Error . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 163, 167
Target Abort . . . . . . . . . . . . . . . . . . . . . . . . . . . 132, 163, 167
Signals. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17–43, 197–200, 205
A_AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 34, 40–41
A_C/BE#[3:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 35, 41
A_CLK. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 35
A_DEVSEL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
A_FRAME#. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10, 35–37, 93
A_GNT#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38, 42
A_IRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 37
A_PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
A_REQ# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 38
A_SERR# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_STOP#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
A_TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34, 38
AD[31:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 24, 28, 52
ADSTB0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
C/BE[3:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23–24
CAS[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
CLKFWDRST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CONNECT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CS[5:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 65, 72
DEVSEL# . . . . . . . . . . . . . . . . . . 23–24, 131–132, 163, 167
DQM[7:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30, 72
FRAME# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22–25
GNT[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24, 27
IRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25, 29
LOCK#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
MA[13:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
MAdA[14:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MAdB[14:0]. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
MCKE[2:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 33
MDAT[63:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
MECCD[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Miscellaneous. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
PAR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
PCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 78
PGNT#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26–27
PIPE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10, 34–35, 40, 92
PREQ#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26–27
PROCRDY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
RBF# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
REQ[4:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
RESET#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
219
Preliminary Information
AMD-751™ System Controller Data Sheet
ROM_SCK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43, 57
ROM_SDA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SADDIN[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUT[14:2]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
SADDOUTCLK# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SBA[7:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34–35, 41–42
SBSTB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
SCAN_EN#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
SCAS[2:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
SCHECK[7:0]#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
SDATA[63:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
SDATAINVAL# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SDATAOUTCLK[3:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
SERR# . . . . . . . . . . . . . . . .28, 130–131, 161, 163, 172, 175
SRAS# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
SRAS[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
ST[2:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 42
STOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 132, 163, 167
SYSCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
TRDY# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25, 28–29
TRISTATE# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
WE[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 72
WSC# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
SIP (serial initialization packet) . . . . . . . . . . 55–57, 149, 210
Size Field . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
SMbus (system management bus). . . . . . . . . . . . . . . . . . . . 211
SMC (SDRAM memory controller) . . . . . . . . . . . . .63–65, 211
Snoops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 53
SPD (serial presence detect) . . . . . . . . . . . . . . . . . . . . . 67, 211
Special Cycles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Monitoring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 162
Specifications
Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 201, 203
Split Transactions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
SRAM (synchronous RAM) . . . . . . . . . . . . . . . . . . . . . . 72, 211
SRAS# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63, 72
SRAS[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
SROM (serial read only memory) . . . . . . . . . . . . . 43, 57, 211
SRQ (SysDC read queue) . . . . . . . . . . . . . . . . . . . . . . . . 53, 211
ST[2:0] . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36, 42
Stop Grant . . . . . . . . . . . . . . . . . . . . . . . . 13, 49, 107–108, 148
STOP# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 132, 163, 167
STPCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49, 106–108
Subclass Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133, 164
Switching Characteristics . . . . . . . . . . . . . . . . . . . . . . 185–187
Synchronous Direct Random Access
Memory (SDRAM). . . . . . . . . . . . . . . . . . See SDRAM
Synchronous DRAM (SDRAM). . . . . . . . . . . . . . See SDRAM
Synchronous Random Access
Memory (SRAM). . . . . . . . . . . . . . . . . . . . . . See SRAM
SysAddOut. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Command Format . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
SYSCLK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7, 21, 56–57, 69
Switching Characteristics . . . . . . . . . . . . . . . . . . . . . . . . 186
SysDC (system data commands) . . . . . . . . . . . . . . . . . . 53, 211
SysDC Read Queue (SRQ). . . . . . . . . . . . . . . . . . . . . .See SRQ
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Addressing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Data and Control Queue (CSQ). . . . . . . . . . . . . . . .See CSQ
Data Commands (SysDC). . . . . . . . . . . . . . . . . . . See SysDC
DRAM Interface (SDI). . . . . . . . . . . . . . . . . . . . . . . See SDI
Interface. . . . . . . . . . . . . . . . See AMD Athlon System Bus
Management Bus (SMbus). . . . . . . . . . . . . . . . . .See SMbus
220
21910E—March 2000
T
Thermal Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . 183
TLB (translation lookaside buffer) . . . . . . . . . . . . 85, 87, 95,
. . . . . . . . . . . . . . . . . . . . . . . . . .99–100, 105, 175, 211
TOM (top of memory) . . . . . . . . . . . . . . . . . . . . . . . 47, 52, 211
Top of Memory (TOM). . . . . . . . . . . . . . . . . . . . . . . . .See TOM
Transaction Combiner Agent (XCA). . . . . . . . . . . . . See XCA
Transaction Queues . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Transfer Rate
Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Select. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Transistor Transistor Logic (TTL). . . . . . . . . . . . . . . See TTL
Translation Lookaside Buffer (TLB). . . . . . . . . . . . . See TLB
TRDY#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22, 25, 28–29
TRISTATE#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
TTL (transistor transistor logic) . . . . . . . . . . . . . . . . . . . . . 211
Typical Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
U
Universal Serial Bus (USB). . . . . . . . . . . . . . . . . . . . . See USB
USB (universal serial bus). . . . . . . . . . . . . . . . . . . . . . . . 6, 211
User-Defined Features. . . . . . . . . . . . . . . . . . . . . 132, 163, 168
V
Valid Bit Error
Capability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175
Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174
Valid Delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 188
VAS (virtual address space) . . . . . . . . . . . . . . . . . . . . 159, 211
VGA
Enable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 171
ISA Address Space. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158
Palette Snoop . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131, 162
VGA (video graphics adapter) . . . . . . . . . . . . . . 47, 131, 151,
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154, 158, 211
Video Graphics Adapter (VGA). . . . . . . . . . . . . . . . . See VGA
Virtual Address Space (VAS). . . . . . . . . . . . . . . . . . . See VAS
Virtual Page Address (VPA). . . . . . . . . . . . . . . . . . . . See VPA
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 195
VPA (virtual page address) . . . . . . . . . . . . . . . . . . . . . 101, 211
W
WBT (write buffer tag) . . . . . . . . . . . . . . . . . . . 85, 87–88, 211
WE[2:0]# . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 72
Website (www.amd.com) . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
WHAMI (who am I) . . . . . . . . . . . . . . . . . . . 127, 151, 177, 211
Who Am I (WHAMI). . . . . . . . . . . . . . . . . . . . . . . See WHAMI
WP (write protect) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Write
Buffer Tag (WBT). . . . . . . . . . . . . . . . . . . . . . . . . 87–88, 211
Buffers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57–58, 78, 81
Posting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Request Queue (WRQ) . . . . . . . . . . . . . . . . . . . . 85, 87, 211
Writeback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57, 131
WRQ (write request queue) . . . . . . . . . . . . . . . . . . 85, 87, 211
WSC#. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Index
Preliminary Information
21910E—March 2000
AMD-751™ System Controller Data Sheet
X
x86 Architecture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212
XCA (transaction combiner agent) . . . . . . . . . . . . .53–54, 211
Z
ZDB (zero delay buffer) . . . . . . . . . . . . . . . 33, 73, 75, 77, 211
Zero Delay Buffer (ZDB). . . . . . . . . . . . . . . . . . . . . . .See ZDB
Index
221
Preliminary Information
AMD-751™ System Controller Data Sheet
222
21910E—March 2000
Index
