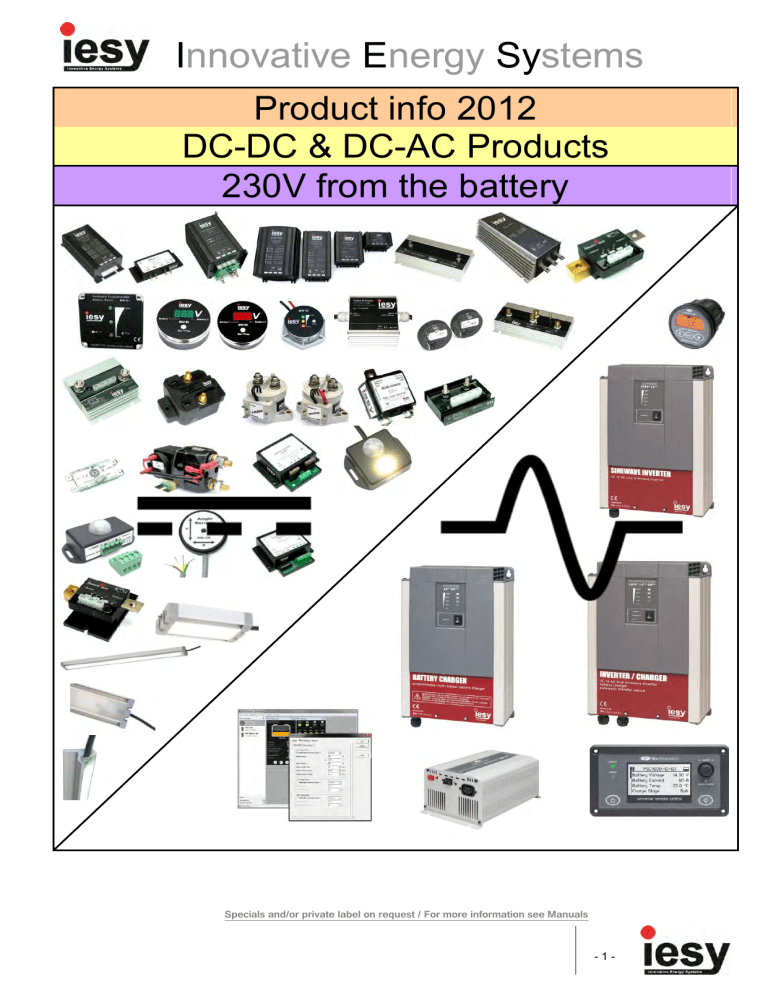

Product info 2012
DC-DC & DC-AC Products
230V from the battery
Specials and/or private label on request / For more information see Manuals
-1-
Innovative Energy Systems
Product info 2012 for
Battery Management
DC (Direct Current) Applications
Specials and/or private label on request / For more information see Manuals
-1-
Table of contents:
1.
DC / DC Converters, not isolated (Switch Mode Converter)
P. 3
2.
DC / DC Converters, with galvanic isolation (Switch Mode Galvanic)
P. 4
3.
DC / DC Trailer Converter TDC 650 IP65 &Trailer BOOSTER / CHARGER (12 & 24V-30/50A)
P. 5
4.
DC / DC Switch Mode Step-Up Converter, SMUC 1 Booster IP67
P. 5
5.
Galvanic Isolator GI-16 (The Corrosion Stopper!)
P. 5
6.
Battery Watch BW-01 & BW-02 (LED); BW-03 (Display), monitors the status of the battery and
displays it in an intelligent way.
P. 6
7.
Universal Battery Alert UBA, intelligent alarm which warns the user when the batteries needs to
be recharged, e.g. Electric vehicle, Scoot mobile id. Or START-/STOP System for generator.
P. 6
8.
Battery Combining Diode (to connect more batteries on one “Emergency” load ) two or more
DC power sources can be used in parallel to supply the mission critical load.
P. 7
9.
Diode Battery Isolator (charging of two or more batteries from one alternator, without
connecting the batteries together)
P. 7
10.
Battery Combining Relay (Battery Separator) intelligent self-switching split charge relay /
microprocessor controlled heavy duty relay
P. 8
11.
Universal Battery Separator UBS IP67, it’s a separate relay control board with 5 programs to
make a normal relay “intelligent”
P. 8
12.
Battery Guard / Battery Protect, disconnect (without relay) the battery from non-essential loads
before it is completely discharged (which would damage the battery) or before it has insufficient
power left to start the engine.
P. 9
13.
Battery Guard (Battery Protect) Specifications
P. 10
14.
SmartFuse => Battery Guard/Protect + programmable „Fuse“ + Battery Switch with alarm
contact
P. 11
15.
PIR DC-Switch (PDS-10), 12/24V-10A, Passive Infra-Red Detector Switch for 12/24V systems
P. 12
16.
PIR LED Switch (PLS-1), 12/24V, Passive Infra-Red Detector Switch + LED for 12/24V systems
P. 12
17.
Battery Equalizer BE24/1, 2x 12V in series (24V) to hold equal in Voltage while charging
P. 12
18.
Power Monitor PM04-3, 24/48V, to check in series placed batteries, suitable for 24/48V systems
P. 12
19.
BrightLine LED-Luminaires; BrightLine Angle LED lamp (40°, Viewing angle 120°)
P. 13
20.
BrightLine LED-Luminaires made in EU, PIR-DIM-Switch; Angle Sensor AS-01 (12/24VDC)
P. 14
21.
The difference between linear and “Switched -Mode” types DC / DC Converters;
Difference with or without galvanic isolation
P. 15
2 Years Warranty
Markets:
Applications (Battery voltage 6—120V DC)
Maritime sectors for example
Boat/Ship/Yacht
Automotive & Mobility
revalidation market
Navigation-, communication- and radio equipment - mobile telephone - HiFi system – on board computer
continuous supply of electric (DC) power; charging batteries
electric wheelchairs and scootmobils - Police/ambulance/fire brigade - (Boat)trailer - truck / bus - mobile
homes market carriage- special- / service cars – campervans - Auxiliary vehicle - demonstration truck DTM/Rally cars
Fork (lift) Truck - electric vehicles - Vehicle with two power source build in like: police cars, ambulances,
military vehicles, vessels, yachts, air planes and emergency power generators with more than one battery on
"board"
reliable and constant power supply, equipment has a stable power supply with the right voltage
Power Solutions for off-grid, autonomous energy (DC) supply
Back Up Power (DC/DC), emergency equipment
Internal Transport
Industry
Telecommunication
Autonomous PV-Solar systems
back-up power/energy systems
Specials and/ or private label on request / For more information see Manuals
-2-
An “iesy” wide range DC/DC converters
Series iesy SMC
A complete line of high quality DC/DC converters in a compact housing.
This series is eminently suitable for applications requiring stability, a modest
development of heat and above all a low energy consumption.
An ever-increasing amount of electric equipment is being used on vehicles
and boats. Because most low voltage equipment, such as navigation and
radio equipment, mobile telephones or car hi-fi systems, is designed for 12
Volts, “iesy” supplies DC/DC converters which deliver a stable 12 Volt
supply from a 24 Volt system. These products are also distinguished by high
efficiency, together with absolute safety.
An inferior supply can cause irreparable damage to your 12 Volt system, but
the use of an “iesy” voltage converter prevents such problems.
Next to the standard (non isolated) converters from 24 V to 12 V, a wide
range of other models is available.
DC / DC Converter
Not isolated
(Switch Mode Converter)
The SMC 5, 20, 30 & 60 can also be used as a 13.8Vdc battery
charger
The „iesy“ SMC 5, 20, 30 and 60 can also be used as a 13.8Vdc battery
charger, to charge from a 24V system a 12V starter or accessory battery.
Two units SMC 60 can be connected in parallel to obtain a 120 A battery
charger!
SMC 5 (IN: 18-35Vdc - OUT: 13,8Vdc/5A)
iesy DC/DC-converter and battery charger: Because most
equipment is designed for use on a 12V board system it
is necessary to use a converter on 24V board systems
(trucks, busses etc.) to convert the 24V to a reliable and
safe 12V. It is important to use as little energy as possible
and produce as little heat as possible in this process,
making it fuel-efficient and therefore environmentally
friendly.
SMUC 10 (Switch Mode Up Converter)
Type
SMC 5*
SMC 8
SMC 10-MEM **
SMC 12
SMC 20 *
SMC 30 *
SMC 60 *
SMC 6HV
SMUC 5 (Step-Up)
SMUC 7 (Step-Up)
SMUC 10 (Step-Up)
SMUC2432-5 (Step-Up)
Input (VDC)
18-35
18-35
18-35
20-35
20-35
20-35
20-35
24-60
5-7
9-18
9-18
10-30
SMC 60 (2x SMC 60 Parallel => 120 A)
Output (VDC)
13,8
13,6
13,6
13,6
13,8
13,8
13,8
12,3
12
25
25
32
Current (A)
5
8
10
12
20
30
60
6
5
7
10
5
Load (W)
69
109
136
158
276
414
828
74
60
175
250
160
Weight (g)
170
262
262
262
477
600
1200
240
270
310
500
310
Dim. LxWxH (mm)
68x88x49
98x88x49
98x88x49
98x88x49
126x88x49
151x88x49
176 (151)x88x98
86x88x49
98x88x49
98x88x49
126x88x49
98x88x49
* all models with 13,8 V output can also be used as a 12 V battery charger, for example as a 12 Volt starter or accessory battery in an otherwise 24V system.
Note: two units SMC 60 can be connected in parallel to obtain a 120 A converter / charger.
** The SMC 10-MEM has a extra memory output (max. 20mA) for example the memory in a car radio (channels).
Common Characteristics
Output voltage stability
Output voltage tolerance
Output noise
Off load current
Efficiency
Isolation
Operating temperature
Humidity
Casework
Connections
Protection: Overcurrent
Overheating
Reverse polarity conn.
Overvoltage
Standards: Emission
Immunity
Automotive Directive
2 % (SMUC 7 and SMUC 10: + 0% / -5%)
3%
< 50 mV rms
< 25 mA (isolated converters)
Non isolated: approx. 92%
Isolated: approx. 85%
> 400 Vrms between input, output and case (isolated products only)
- 20 to + 30°C (0 to 90°F). Derate linearly to 0 A at 70°C (160°F)
Max 95% non condensing
Anodised aluminum
6.3 mm (2.5 inch) push-on flat blade connectors
Short circuit proof
Reduction of output voltage
Fuse and reverse connected diode across input
Varistor (also protects against load dump)
EN 50081-1
EN 50082-1
95/45/EC
Specials and/or private label on request / For more information see Manuals
-3-
Any voltage you need: iesy SMG-series now with 48Vdc output voltage
for 200 & 360W and with adjustable output voltage
Series iesy SMG
DC / DC Converter
With galvanic isolation
(Switch Mode Galvanic)
The SMG-series is a unique series galvanic isolated high quality DC/DC converter. The
inlets and outlets feature complete galvanic isolation which makes them completely
interference-proof. The converter uses the “switch mode” technology, which results in a
lightweight compact housing, safe, reliable and efficient unit. The unit generates little heat,
which makes it easy to find a convenient location for installation.
This series is eminently suitable for applications requiring stability, a modest development
of heat and above all a low energy consumption (stand-by current <25mA)!
Protections: over current / overload, over voltages, overheating, reverse polarity
connection.
Markets: industry, internal transport, telecommunication, maritime, mobile and aircraft.
The iesy SMGCH 12A (12V=>27,6V/12A) is an 24 Volt battery charger with
galvanic isolation; SMGCH 10A to charge a 6V battery from a 12V system.
To charge a 24V battery from a 12V system. With this type the output voltage is
adjustable with a potentiometer. Input 9 – 18 V, output 27,6 V, current limit 12 A, fan
assisted cooling. To charge a 6V battery from a 12V system=> SMGCH 10A
A superwide input range buck boost regulator:
iesy SMG 3A (7-35V=>12V/3A
The SMG 3A is an galvanic isolated converter with a very wide input range, suitable for
both 12 V and 24 V systems, and a fixed 12,6 V output.
Input 7 – 35 V; Output 12,6 V; Current limit 3 A, current decrease linearly from 3 A at 18
V to 1,5 A at 7 V.
SMG 3A
SMG 1224/360
* SMG 1248/400W
New enclosures 2012
------------------------------------------------------------------------Converters denote DC / DC converters with different
input voltage range and a wide range of fixed output
voltage. Therefore, these converters also serve to
stabilize the supply voltage for the connected
equipment! Also, for example, car radios, navigation or
mobile (phone) adapters, the 12 volt models are
available in great variety. The same equipment for 24
volts are much more expensive relative to reduced
supply. For these purposes, are the iesy SMG
converters an affordable and easy to install solution for
operating the 12 volt equipment in trucks, buses and
construction equipment.
* SMG 1248/400 with „Coupler“ (12VDC=>48VDC/400W); SMG Series: The inputs can be connected parallel, the outputs in parallel and in
series. SMG Series 200W & 360W: Adjustable output voltage + / - 10%
Type
Input (VDC)
Output (VDC) Current (A)
Load (W)
Weight (g)
Dim. LxWxH (mm)
SMG 1212-100
9-18
12,5
8
100
500
152x88x49
SMG 2412-100
20-35
12,5
8
100
500
152x88x49
SMG 4812-100
30-60
12,5
8
100
500
152x88x49
SMG 7212-100
60-120
12,5
8
100
500
152x88x49
SMG 1224-100
9-18
24
4
100
500
152x88x49
SMG 2424-100
20-35
24
4
100
500
152x88x49
SMG 4824-100
30-60
24
4
100
500
152x88x49
SMG 7224-100
60-120
24
4
100
500
152x88x49
SMG 2448-100
20-35
48
2
100
500
152x88x49
SMG 4848-100
30-60
48
2
100
500
152x88x49
SMG 1212-200
9-18
12,5
15
200
600
182x88x49
SMG 2412-200
20-35
12,5
15
200
600
182x88x49
SMG 4812-200
30-60
12,5
15
200
600
182x88x49
SMG 7212-200
60-120
12,5
15
200
600
182x88x49
SMG 1224-200
9-18
24
7,5
200
600
182x88x49
SMG 2424-200
20-35
24
7,5
200
600
182x88x49
SMG 4824-200
30-60
24
7,5
200
600
182x88x49
SMG 7224-200
60-120
24
7,5
200
600
182x88x49
SMG 2448-200
20-35
48
3,2
200
600
182x88x49
SMG 4848-200
30-60
48
3,2
200
600
182x88x49
SMG 1212-360
9-18
12,5
25
360
1400
160x163x64
SMG 2412-360
20-35
12,5
25
360
1400
160x163x64
SMG 4812-360
30-60
12,5
25
360
1400
160x163x64
SMG 7212-360
60-120
12,5
25
360
1400
160x163x64
SMG 1224-360
9-18
24
12,5
360
1400
160x163x64
SMG 2424-360
20-35
24
12,5
360
1400
160x163x64
SMG 4824-360
30-60
24
12,5
360
1400
160x163x64
SMG 7224-360
60-120
24
12,5
360
1400
160x163x64
SMG 2448-360
20-35
48
6,2
360
1400
160x163x64
SMG 4848-360
30-60
48
6,2
360
1400
160x163x64
SMG 3A
7-35
12,6
1,5 - 3
19 - 38
270
86x88x49
SMGCH 10A
9-18
7,2
10
72
500
152x88x49
SMGCH 12A
9-18
27,6
12
330
1400
160x163x64
Isolated converters
SMG xx/yy-100W
Power rating (W)
100 (12,5V/8A or 24V/4A)
SMG xx/yy-200W
200 (12,5V/16A, 24V/8A or
48V/4A)
SMG xx/yy-360W
360 (12,5V/30A, 24V/15A or
48V/7,5A)
Temperature increase after 30 minutes at
25
30
30
full load (°C)
Fan assisted cooling (temp. controlled)
no
yes
yes
Input voltage (xx): 12 V (9 – 18 V) or 24 V (20 – 35 V) or 48 V (30 – 60 V) or 72 V (60 – 120 V)
Output voltage (yy): 12,5 V, 24V (or 48 Specials
Vdc output
voltage
for 200
andon
360W
with/input
voltage
of 24 or 48Vdc)
and/or
private
label
request
For more
information
see Manuals
-4-
The iesy Trailer Converter TDC 650 IP65 provides a
Series iesy TDC/TBC
12V (boat) trailer to a 24V system (truck or towing vehicle) to
connect the lighting of the trailer with the correct voltage. For
this purpose, six independent inputs and outputs are
available. Each will transform the 24V to 12V, independent
of each other. Every output can deliver 5A max.
DC/DC Trailer Converter TDC 650 IP65
Trailer Booster / Charger IP65
Technical specification Trailer Converter
TDC650:
Input voltage: 12-30VDC, Output voltage: 14,4VDC max.
Load: 40W, Current is limited, Temperature is limited
Short circuit protected,Reverse polarity protection on input
Dimensions (220)125*163*64mm including connectors,
W=1,6kg
Not galvanic isolated, Enclosure IP65 waterproof
Trailer Converter 6 in-/outputs
The iesy Trailer BOOSTER / CHARGER IP65
Technische specificaties Trailer BOOSTER/CHARGER:
For example, the Trailer BOOSTER can convert from a 12V
system to a 24V system (2nd battery set) to keep th voltage
on 24,5V if the dynamo/motor is running. With the
CHARGER is the output voltage higher, so the 2nd set (semitraction) batteries charging, for example truck tail lifts/gate
with cyclic loading.
W = 2, 38kg; Dimensions: 315x165x60mm (LxWxH)
1. BOOSTER: IN 12V => OUT 24,5V/30A
2. CHARGER: IN 12V => OUT 28,4V/30A
3. CHARGER: IN 24V => OUT 28,4V/50A
Other output voltage, on request, for example 28V or 28,6V.
The Booster or Charger must be mounted close to the 2nd battery.
This Charger will run above a input voltage from 13,2V (12V system) or 26,4V
(24V) and measuring or the 2nd battery is present/connected. If not, then the
Charger will disconnect the output (with MOSFET technology).
Technical Specification SMUC 1 Booster (IP67):
SMUC 1: Input: 9-18VDC => Output: 24VDC / 1Amp.
Not galvanic isolated
Dim. LxWxH 80x41x18mm incl. 6.3 mm (2.5 inches) flat blade.
Waterproof IP67, Weight: 70 g
Trailer BOOSTER / CHARGER
Series iesy SMUC 1 IP67
Switch Mode Up Converter
SMUC 1 (IP67)
(12VDC=>24VDC/1A)
Prevention of electrolytic corrosion
Galvanic corrosion (rust) occurs when two dissimilar metals in electrical
contact are simultaneously exposed to an electrically conducting fluid.
Seawater and, to a lesser extent, fresh water are such fluids. In
general, the more active alloy of the couple corrodes preferentially
while the less active (more noble) material is cathodically protected.
The rate of galvanic corrosion is a function of several variables
including area ratios, conductivity of the fluid, temperature, nature of
the materials, etc.
It is a misunderstanding that galvanic corrosion occurs only in metal
and aluminium hulls. In fact it can occur on any boat as soon as a
metallic part (the shaft and propeller) is in contact with water. Galvanic
corrosion will quickly dissolve your sacrificial anodes, and attack the
shaft, propeller and other metal parts in contact with water as soon as
the boat is connected to the shore-side supply.
It might therefore be tempting not to connect the ground conductor: this
is however extremely dangerous because GFCI’s will not work nor will
a fuse blow in case of a short circuit to a metal part on the boat.
In practice, for example, the ships in the circuit between the different
metals by the combination of the grounding line of the land connection
with the metal parts of the ship (earth) is necessarily closed. This leads,
as described above, to galvanic corrosion. Ship between the metal
(metal parts such as propellers, the drive shaft or the metal shell) and
the metal to country (sheet piling, dock lines or even in addition to
ships), a current flows. In this way will, the anodes, the propeller or the
vessel, to be attacked. By placing the galvanic isolator iesy GI-16 this
damage can be avoided.
Technical specification Galvanic Isolator GI-16:
Galv. Isolator GI-16
Max. current
Peak current
Connections
Enclosure:
Material
Protection category
Weight
Dimensions (HxWxL)
Test
Waterproof
16 A
1600 A / 20 ms
2x Bolt M6
Series iesy GI-16
Galvanic Isolator
to prevent corrosion
iesy Corrosion stopper!
The connection of the grounding (earth wire) of
the land connection to the metal parts of the vessel,
leads to galvanic corrosion!
Anodisiertes Aluminium
IP 67 (100% waterproof)
1 kg
55 x 120 x 200 mm
ANSI/ABYC A-28
Specials and/or private label on request / For more information see Manuals
-5-
Battery Monitor-Watch
Series iesy BW-01 & BW-02 (LED)
"iesy" introduces the revolutionary Battery Watch, a smart piece
of equipment which monitors the status of the battery and
displays it in an intelligent way. The smart design with a minimum
of components gives a broad range of information at the glance of
an eye.
If the Battery Watch is connected to a voltage between 7 and
32V, it will detect the battery voltage before displaying the status
of the battery.
At start-up the red LED is activated as a sign of power up. After
half a second the system is ready with the initialisation and
processing the necessary data to choose the battery system.
After initialisation the Battery Watch checks the battery voltage
and displays this with help of three LED's and a buzzer as
following:
LED's 12V
voltage is higher than 14,8 Volt (default) => BUZZER and walking light
voltage is higher than 13,3 Volt => green/yellow/red ( WALKING LIGHT )
voltage is higher than 12,4 Volt => green
voltage is higher than 11,6 Volt => green/yellow
voltage is higher than 11,1 Volt => yellow
voltage is higher than 10,9 Volt => yellow/red
voltage is higher than 10,5 Volt => red
voltage is lower than 10,5 Volt (default) => ALARM (LED’s & BUZZER)

Battery Watch Monitor
With alarm “Buzzer”
iesy BW-01 & BW-02 (Splash proof)
BW01: 65x65x25mm & BW02: Ø 35mm (M32/T=20mm)
(BW-01: L x B x H inkl. 6,3 mm / 2.5 inches (Flat blade)
Weight: BW-01: 45 g & BW-02: 40 g
With 24V => duplicate values accordingly as mentioned above.
Battery Monitor Watch (panel mounting) 12/24V auto
detect, for 2 batteries
Series iesy BW-03 (Display)
Battery Watch Monitor
The iesy BW03 is a smart battery meter that can measure and display
the voltage of one or more batteries. It can also generate an alarm from
under-and over-voltage difference.
Features
Low mounting depth
Several battery monitoring
Programmable
Very low power consumption
Switched alarm output
Auto Voltage Detection
Power-Save mode
Easy Installation
Water resistant to top
Software is completely customizable to client needs (in numbers)
Connecting
A total of 5 different battery
configurations are possible on the BW03.
These are:
1. 1x 12V
2. 1x 24V
3. 2x 12V
4. 2x 24V
5. 1x 12V & 1x 24V
Universal Battery Alarm with buzzer and alarm contact
or Start-Stop system for generator / aggregate
The “iesy” UBA has 3 main programs with buzzer and alarm contact for
example, electric vehicles from 12V or 24V.
The first two programs to “remember” the consumer to recharge the battery
from the electric vehicle. The third program is meant as a universal under
voltage alarm for 12V or 24V systems.
START-/STOP system for a generator. Through the alarm output from the UBA,
it is possible to connect for example a generator or battery charger. In case of
under voltage, it will start and if the battery is full, stopped.
With alarm "buzzer"
iesy BW-03 (splash proof)
BW-03: Ø 60mm (M55 / T = 20mm)
Weight: 70 g
Display: Red or Green
Series iesy UBA
Universal Battery Alert
Ø 45mm H=20mm
Specials and/or private label on request / For more information see Manuals
-6-
Battery Combiner Schottky Diode to guarantee continuous DC power
Series iesy BCD
Battery Combining Diode
“iesy” diode battery combiners are used to guarantee continuous DC power to
mission critical equipment, such as an electronic engine control system. With a
diode battery combiner two or more DC power sources can be used in parallel
to supply the mission critical load. Failure of one source will not interrupt power
to the critical load. The iesy battery combiners feature a low voltage drop thanks
to the use of Schottky diodes:
at low current the voltage drop is approximately 0,3 V and at the rated output
approximately 0,45V.
Application
With "Emergency" consumers who cannot without voltage or without a short
voltage drop, for example at the start of the engine. So whenever sufficient
voltage is needed on the consumers. This one does not need ”the hand switch”
between 2 or 3 batteries. The total battery capacity is the sum of all the
batteries which are connected.
Examples consumers: VHF marine radio, navigation, on board computer,
emergency equipment and an electronic engine control system.
iesy BCD 703 (70A / 3 batteries)
BCD302
Type
BCD 302
BCD 702
BCD 703
Inp. (V)
12 / 24
12 / 24
12 / 24
BCD702
Outp. (V)
12 / 24
12 / 24
12 / 24
Current (A) / Cons. OUT
30
70
70
Number of batteries IN
2
2
3
Diode Battery Isolators (with compensation diode)
Weight Kg
0,6
0,6
0,8
Dim. LxWxH (mm)
120x80x60
120x80x60
120x80x60
Series iesy DB
Diode Battery Isolators Diode Block
The iesy Diode battery isolators allow simultaneous charging of two
or more batteries from one alternator, without connecting the
batteries together.
The battery isolator can be used for example in boat’s, recreation
vehicle’s, trucks etc. where beside a starter battery also one or two
accessory batteries are present. Discharging the accessory battery
for example will not result in also discharging the starter battery.
The iesy battery isolators feature a low voltage drop thanks to the
use of high efficiency Schottky diodes: at low current the voltage
drop is approximately 0,3 V and at the rated output approximately
0,45 V.
All models are fitted with a compensation diode that can be used to
slightly increase the output voltage of the alternator; this
compensates the voltage drop from the diodes inside the isolator at
the output.
DB160-3C (Diode Block 160A / 3 batteries + comp. diode)
Schematic DB 120-3C
iesy Diode Battery Isolator
Note: Simply inserting the battery isolator in the cabling
(current circuit) between the alternator and the batteries will
slightly reduce charge voltage. The result can be that
batteries are not charged to the full 100% and the age of
batteries will be shorten.
DB 120-2C
DB70-2C
DB90-2C
DB90-3C
Maximum charge current (A)
50
70
70
Max. alternator current (A)
70
90
90
Number of batteries
2
2
3
Connection
M6 bolt
M8 bolt
M8 bolt
Connection compens.-Diode
M4
M4
M4
Weight kg (lbs)
0,6 (1.3)
0,8 (1.8)
1,2 (2.6)
Dimensions H x W x L in mm
60x120x80
60x120x100 60x120x150
(H x W x L in inches) (2.4x4.7x3.2) (2.4x4.7x3.9) (2.4x4.7x6.0)
DB120-2C
DB120-3C
DB160-2C
DB160-3C
100
120
2
M8 bolt
M4
0,8 (1.8)
100
120
3
M8 bolt
M4
1,2 (2.6)
130
160
2
M8 bolt
M4
1,2 (2.6)
130
160
3
M8 bolt
M4
1,5 (3.3)
60x120x100
(2.4x4.7x3.9)
60x120x150
(2.4x4.7x6.0)
60x120x150
(2.4x4.7x6.0)
60x120x200
(2.4x4.7x7.9)
Specials and/or private label on request / For more information see Manuals
-7-
No voltage loss! (universal=> auto voltage detection 12/24V)
The iesy Battery Separator/combiner (BS) is a microprocessor controlled battery
connect- and disconnect-relay for use in systems with more than one battery for
example in boats, caravans and campers. It safely charges the auxiliary battery
and prevents starting problems.
Also the BS can be used as a voltage dependent switch, connected on only one
(start) battery.
The BS is a microprocessor controlled high power mechanical switch. The BS
waits until the battery connected to the active charging source reaches 13.2V
(26,4V) for at least 7 seconds before paralleling and charging the auxiliary
batteries. Normally the accessories are connected to the auxiliary battery. The
system disconnects if the battery voltage reaches 12.8V (25,6V) for at least 60
seconds. This way the starter battery stays charged. The Battery Separator is an
excellent alternative for a diode or FET (battery) isolator.
The main feature is that there is virtually no voltage loss so that the output voltage
of alternators or battery chargers does not need to be increased. Another
advantage is that the Battery Separator can be mounted without changing the
existing circuit. That makes the Battery Separator not only very easy to install, but
is sometimes the only option because some alternators do not accept a Battery
Isolator between itself and the the battery.
Series iesy BS/BSW
Battery Separator / combiner:
the 10 bits
microprocessor-controlled battery connect- and
disconnect relay
- intelligent self switching split charge relay -
BS 140, LIR 250 & BS 500 IP54/67 Univ. (140A, 250 &
500A/12-24V auto Voltage detect). LIR 250/BS 500 IP
IP54/67 =>control board IP54/Relay gastight!
New: intelligent battery monitoring to prevent unwanted switching
(preventing of flip-flop effect)
The iesy BS 100/140/160IP/500IP Universal automatically detects the system
voltage (12V or 24V). To prevent that this relay is switching by a short voltage
drop or a voltage spike, is built a small delay between switching “on” and “off”. By
switching “on” the relay remains at least 60 sec. “on” (charging), to prevent the flipflop (on/off/on etc.) effect by a deep discharged second (auxiliary) battery.
Prioritising the starter battery
BS 400/24 NEW: BSW 160 IP67 Univ. (160A/12-24V
auto.); NEW: BSW 750 IP67 & BSW 250 IP67 with USB
In a typical setup the alternator is directly connected to the starter battery. The
accessory (auxiliary)battery, and possibly also a bow thruster and other batteries
are each connected to the starter battery with iesy battery separators/combiners
(BS). When a BS senses that the starter battery has reached the connect voltage
it will engage, to allow for parallel charging of the other batteries.
Bipolar-switching (Bidirectional voltage sensing and voltage supply
from all batteries)
The iesy Battery Separator/combiner (BS) has a second unique feature. If a
charger is connected to the second battery, for example in boats and campers,
and the battery reaches 13,2V (26,4V) for at least 7 seconds the switch will
connect the starter battery, so this will be charged also. This is an advantage if
you lie/stand still for a longer time. This way the starter battery also stays in
optimal condition. As the charger is removed and the voltage drops to 12,8V
(25,6V), for at least 60 seconds, the switch will open again.
iesy Start help (Parallel connection in an emergency)
The iesy Battery Separator / combiner (BS) has an extra connection for the
optional start help. If this connection is connected to the starter contact, the
Battery Separator will switch on and the second battery will assist starting the
engine. But be aware that large diesel engines can have very high start currents
which can damage the switch. Use for this feature the BS500.
2 batteries not necessarily needed!
UBS:
Easy
installation;
Fully
programmable,
Very
low
power
consumption;
12V/24V
Automatic
voltage detection, output relay status
indicator LED; emergency activation
function, small size; software completely
customizable to customers' needs
(regardless of the number)
Ø 45mm H=20mm
IP67
New: UBS IP67 Universal Battery Separator
iesy battery / equipment / accessories protection
New: Universal Battery Separator UBS IP67, is a
separate relay control board with 5 programs
All the types have a protection of the second battery and it's connected equipment
of over voltage due to a damaged voltage regulator of the alternator. If the voltage
will become too high the Battery Separator switch will open immediately and
connected equipment is saved.
The UBS can easily be connected to a normal relay, to make
a microprocessor controlled battery relays (Battery
separator). Voltage depend switching and start help also
possible.
Voltage dependent switch (user can be switched via relay)
In some cases it is desirable to have a connector that is only powered when the
vehicle is running. For this kind of application the BS is also useful. Connect the
primary battery connection to the starter battery and the other connection to the
equipment. If now the engine is started the starter battery will reach 13,2V (26,4V)
and the Battery Separator will connect the equipment to the battery. So, you
don’t need necessarily 2 batteries!
Because the switching process takes place without signal
lines from the vehicle, iesy BS relays can easily be
connected, even in modern vehicles with CAN-BUS system is
possible!
NEW: LIR 250 IP universal (Large Input Relais) is a power relay with a wide input voltage range.
Battery Separator/Combiner
type
*BS 100 / 140
*BSW160 IP67
BSW250 IP67
BS400 12 / 24
BS500 IP
BSW750 IP67
LIR250 IP uni.
Continuous current (A)
100 / 140
160
250
400
500
750
250
Connect voltage (V)
13,2 / 26,4
13,2 / 26,4
13,2 / 26,4
13,2 / 26,4
13,2 / 26,4
13,2 / 26,4
Uin=9-36VDC
Disconnect voltage (V)
12,8 / 25,6
12,8 / 25,6
12,8 / 25,6
12,8 / 25,6
12,8 / 25,6
12,8 / 25,6
<3 mA
<3 mA
<5 mA
<5 mA
<2 mA
<5 mA
√
√
√
√
√
√
LED
(LED UBS)
√
LED
(LED UBS)
0,11(0.24)/0,13(0.2
8)
0,47 (1.04)
0,42 (0.94)
0,9 (2.0)
0,42 (0.94)
0,8 (1.78)
0,42 (0.94)
46 x 46 x 80
108 x 72 x 58
90 x 65 x 60
78 x 102 x 110
80 x 70 x 72
132 x 75 x 71
80 x 70 x 72
Standby current
Connection for remote on / off
Micro switch for remote status
indication
Weight kg (lbs)
Dimension T x W x H in mm
*
Automatic Voltage Detection 12/24V; BSW=> Waterproof IP67 (BSW 250 & BSW 750 with UBS)
Specials and/or private label on request / For more information see Manuals
-8-
<2 mA
Battery Guard/protect
without relay!
Series iesy BG
Battery Guard Undervoltage protection for your battery
Preventing deep discharge of the battery!
The iesy universal programmable Battery Guard/Protect,
disconnect (without relay) the battery from non essential loads
before it is completely discharged (which would damage the
battery) or before it has insufficient power left to crank the engine
and protects electronic appliances against over voltage.
Fully programmable
The battery guard / protect can be set to engage / disengage at
several different voltages. The BG is microprocessor controlled
and is having 10 different programs to be chosen off.
Overvoltage protection
To prevent damage to your sensitive loads due too over voltage,
the load is disconnected whenever the DC-voltage exceeds 16V
(12V mode) or 32V (24V mode).
Ignition proof
No relay but MOSFET switches, and therefore no sparks!
Delayed alarm output (starting genset or battery charger)
The alarm output is activated if the battery voltage drops below
the preset disconnect level during more than 12 seconds. Starting
the engine, genset or battery charger will therefore not activate
the alarm. The alarm output is an open collector output to the
negative (minus) rail, max. current 500 mA. The alarm is typically
used to activate a buzzer and / or lamp.
A second application of this output is with the use of a relay. In
this application the BG should be programmed in programposition 12 (default is position 11). This way the relay will be
activated at alarm and when it reaches the upper voltage
threshold it will be deactivated again. This way the relay can be
used to activate a charger or generator.
BG 100 (100A, auto voltage detection 12/24Vdc)
Delayed load disconnect
Only 1 minute after the alarm has been activated the load will be
disconnected, but if the battery voltage increases to the connect
threshold within this minute (after the engine, genset or battery
charger has been started for example) the load will not be
disconnected.
iesy Battery Guard BG 10/18
The new Battery Guard BG10/BG18 (hereafter called BG) is an
intelligent, micro processor controlled, Battery Guard. The unit
has four faston connections, 2 Input and 2 Output connections,
to guarantee low losses. A yellow LED shows the status
(ON/OFF). In program- mode it shows the program position. The
BG has an 'Automatic Board system Detection'; the BG detects
which battery voltage (12 or 24V) is used. This does not need to
be programmed manually. There is a choice out of 10 on/off
threshold voltage programs, for both 12V and 24V, which can be
programmed in a simple way. The BG uses very little current.
During under voltage the BG uses just 2mA or less!
BG 40 (40A, auto voltage detection 12/24Vdc)
iesy Battery Guard BG 40/60/100 and 200A IP66
BG 18 (BG10/18 has no alarm output)
iesy Battery
Guard
BG 10
BG 18
BG 40 IP66
BG 60 IP66
BG 100 IP66
BG 200 IP66
Auto voltage
detect
12/24V
12/24V
12/24V
12/24V
12/24V
12/24V
The new Battery Guard BG40/60/100/200 (hereafter called BG) is an
intelligent, watertight, Battery Guard with accessory connections for a
ON/OFF switch, Alarm buzzer or relay and our Current Watch current
sensor (not included). The unit has two bolts as connection for the
Input+ and the Output+ to guarantee low losses. Other connections,
like the minus and the accessories, are made by a 4-pole 6.3mm
faston connector. A blue LED shows the status (ON/OFF). In
program- mode it shows the program position. The BG has an
'Automatic Board system Detection'; the BG detects which battery
voltage (12 or 24V) is used. This does not need to be programmed
manually. There is a choice out of 10 on/off threshold voltage
programs, for both 12V and 24V, which can be programmed in a
simple way. The BG uses very little current. In the OFF mode or when
in under voltage the BG uses just 2mA or less.
Maximum Load (shut down
current)
10-15A
18-25A
40-45A
60-65A
100-105A
200-210A
Peak current
Weight
[email protected]
75A @12V
120A
120A
240A
480A
0,02 kg
0,02 kg
0,19 kg
0,19 kg
0,8 kg
0,8 kg
Specials and/or private label on request / For more information see Manuals
-9-
Dimensions
LxWxH
62x27x9 mm
62x27x9 mm
80x60x40 mm
80x60x40 mm
120x110x60 mm
120x110x60 mm
Specifications BG10/18:
iesy Battery Guard: BG 10/18
Auto detect 12 or 24V Battery voltage

8-20V
->
12V mode

20-35V ->
24V mode
10 programmable voltage thresholds
Over voltage shut down

> 16V
(12V mode)

> 32V
(24V mode)
Current in use ~ 4mA
Current in OFF position or under- or over-voltage position ~ 2mA
Maximum Load (shut down current)

BG10
:
~ 10A (15A)

BG18
:
~ 18A (25A)
Peak current

BG10
:
75A (at 12V)

BG18
:
75A (at 12V)
Voltage tolerance
~2%
Programming Table ( Position 1 Standard Pos.)
Programming Table ( Position 1 Standard Pos.)
12 Volt Modus
BG 10/18
Shutdown (OFF) voltage
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
10,5V
10 V
9,5V
11,25 V
11,5V
10,5V
11,5V
11,8 V
12 V
10 V
12 V
11,5V
11,5V
13,25 V
13,8 V
12,8 V
12,8 V
12,8 V
13 V
13.2 V
Specifications BG40/60/100/200:
Auto detect 12 or 24V Battery voltage

8-20V
->
12V mode

20-35V
->
24V mode
10 programmable voltage thresholds
Over voltage shut down

> 16V
(12V mode)

> 32V
(24V mode)
Current in use ~ 4mA
Current in OFF position or under- or over-voltage position
~ 2mA
Maximum Load (shut down current)

BG40
:
~ 40A (45A)

BG60
:
~ 60A (65A)

BG100
:
~ 100A (105A)

BG200
:
~ 200A (210A)
Peak current

BG40 & BG60
:
120A

BG100
:
240A

BG200
:
480A
Shut down at overload after 5 sec. (after 1 minute start up)
Connections

ON/OFF switch

Alarm buzzer or relay

Current Watch current sensor
Voltage drop

BG40
:
~ 0,0875V @35A

BG60
:
~ 0,125V @ 50A

BG100
:
~ 0,125V @ 90A

BG200
:
~ 0,1125V @ 180A
Voltage tolerance
~2%
Current output tolerance
+/- 20%
The BG will shut down after about 5 seconds when overloaded.
After about 60 seconds the BG will start up again.
Watertight
IP66
Programming Table
12 Volt Modus
BG 40/60/100/200A
Shutdown (OFF)
voltage
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
Position 11
Position 12
10,5V
10 V
9,5V
11,25 V
11,5V
10,5V
11,5V
11,8 V
12 V
10 V
Normal Alarm
Relay function
24 Volt Modus
Switch ON voltage
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
Switch ON voltage
21 V
20 V
19 V
22,5 V
23 V
21 V
23 V
23,6 V
24 V
20 V
24 V
23 V
23 V
26,5 V
27,6 V
25,6 V
25,6 V
25,6 V
26 V
26.4 V
iesy Battery Guard: BG 40/60/100/200
Programming Table
Position 1 & 11 Default settings.
Normal alarm :Alarm output activated at alarm; deactivated after 1 minute.
Relay function : Alarm output activated at alarm; deactivated at over
voltage threshold
24 Volt Modus
Switch ON voltage
12 V
11,5V
11,5V
13,25 V
13,8 V
12,8 V
12,8 V
12,8 V
13 V
13.2 V
BG 10/18
Shutdown (OFF) volt.
BG 40/60/100/200A
Shutdown (OFF)
voltage
Position 1
Position 2
Position 3
Position 4
Position 5
Position 6
Position 7
Position 8
Position 9
Position 10
Position 11
Position 12
21 V
20 V
19 V
22,5 V
23 V
21 V
23 V
23,6 V
24 V
20 V
Normal Alarm
Relay function
Switch ON voltage
24 V
23 V
23 V
26,5 V
27,6 V
25,6 V
25,6 V
25,6 V
26 V
26.4 V
Specials and/or private label on request / For more information see Manuals
- 10 -
iesy SmartFuse => 3 in 1
Series iesy SF
SmartFuse
(no relay but MOSFET switches, and therefore no sparks!)
The iesy SmartFuse is an Battery Guard/Protect + „Fuse“ which can detect
under voltage, over voltage, over current (overload) and disconnect the
circuit. The voltage- and current values are programmable. The SmartFuse
can be used with a (little) remote switch as a Battery(Main)Switch. Instead of
three different individual products, you have with one SmartFuse a reduction
in costs in purchasing and installation time.
After shutdown (SmartFuse) the consumers by under voltage from the
battery, the SmartFuse let charge current through to the battery from the
charger, while load is disconnected. For example, by a “combi” inverter
(inverter/charger/AC transfer switch combination) so that the battery can be
recharged. Only when the “on” voltage has reached from the SmartFuse,
then is it possible to get again current/power from the battery.
SmartFuse properties:
 Battery Guard/Protect which can detect under voltage, over voltage,
over current (overload) and disconnect the circuit.
 Programmable electronic fuse => Six current values 75-250A
 To connect the equipment safely without any spark at the battery
 Battery Main Switch=> Activate or de-activate the SmartFuse is
possible with a (little) remote switch
 After overload/over current shutdown=>Activation with a pushbutton
 To prevent deep discharge of the battery => Four under voltage
programs
 Charging the battery is possible in case of under voltage shutdown
(disconnecting user)
 Alarm output for signalling or to connect for example a generator or
battery charger. In case of under voltage, it will start and if the
battery is full, stopped.
 Reverse polarity protection of plus / minus battery
 Over voltage shutdown (>[email protected] mode, >[email protected] mode)
 Watertight IP67 housing
+
Battery Guard
iesy
SmartFuse
SF250
SF250 + MP
auto
detect
12 / 24V
+
Fuse holder
SmartFuse 250A / 12-24Vdc auto detect


SmartFuse is fast with overload, normal fuse is
slow. No sticking or burning in of contacts
possible, likewise no sparks or oxidation of the
contacts, as with large DC currents, by use a
relay happens
High overload capability (ideal for starting
'Serious' heavy load)
+
Fuse
Shutdown current
(6 programs)
75-100-125200-150-250A
www.smartfuse.eu
=
Battery (main) Switch
Under-/upper voltage
threshold ( 4 programs)
12V Modus: 9,5-11,3V / 12,8V
24V Modus: 19-22,6V / 25,6V
Peak
current
[email protected]
Weight
0,5 kg
0,7kg
Specifications SmartFuse 250:
Dimension
TxWxH
52x115x46mm
100x115x52mm
Programming Table
Input voltage
Output current
Over load (current)
Over voltage shutdown
12/24V auto detect
250A
500A @ 5 seconds
>[email protected] mode
>[email protected] mode
Shutdown current Programs
6
(1 - 6)
Shutdown voltage Programs
4
(1 - 4)
Activate and de-activate connection:
Remote OFF=> SmartFuse ON; Remote ON=> SmartFuse OFF.
Alarm contact: max. 1A (12/24Vdc), switches with Alarm LED
Reverse polarity protection
Standby current: active
5mA
Switched off
1,5mA
Short circuit protection / ground loss proof
Program
1
2
3
4
5
6
1
2
3
4
Value
75 A
100 A
125 A
150 A
200 A
250 A
10,5V / 21V: off
10V/ 20V: off
9,5V / 19V: off
11,3V / 22,6V: off
DC cable diameter (L<5m)
Ø 25mm²
Ø 35mm²
Ø 50mm²
Ø 50mm²
Ø 70mm²
Ø 95mm²
12,8V/25,6V: on
12,8V/25,6V: on
12,8V/25,6V: on
12,8V/25,6V: on
SmartFuse
+
Mounting Plate
Specials and/or private label on request / For more information see Manuals
- 11 -
PIR (sensor) DC-Switch (PDS-10):
The iesy PDS-10 is a motion activated switch
for 12 and 24 Volt systems for which a
Passive Infra-Red Detector (PIR) is used. On
the output a load (e.g. lights or other
consumers) can be connected of max. to 10A
(continuous) in 12 or 24 V systems. Some
examples are: light on truck loading areas,
buses and ships.
In addition to the basic functions, the PDS-10
is to prevent some security features, like
disconnecting the load by overvoltage, under
voltage and overcurrent. Only for indoor use.
Series iesy PDS-10
PIR DC-Switch (auto detect 12-24VDC/10A)
PIR sensor) LED Switch (PLS-1) + LED:
The iesy PLS-1 is a motion activated LED lamp for 12
and 24 Volt systems for which a Passive Infra-Red
Detector (PIR) is used. The PLS-1 has a built in high
efficiency Power CREE LED (1 Watt).
The PLS-1 is designed for indoor use only. This could
be for example cargo space of a truck, a bus or inside
a ship. To prevent over-voltage, under-voltage and
overload the PLS-1 possesses, besides the basic
functionality, also some protection functions.
Type
Auto Voltage
PDS-10
PLS-1
12VDC /24VDC
12VDC /24VDC
Def. Switch OFF time
5 min. *
5 min. *
Series iesy PLS-1
PIR LED Switch (auto detect 12-24VDC)
Switch ON time
Detection angle
Detection
Weight
Dim L x W x H
+ / - 1 Sec.
+ / - 1 Sec.
60 ° H – 60 ° V
60 ° H – 60 ° V
5 meter
5 meter
30 g
35 g
76,5x48,5x30mm
67x50x30mm
* Switch OFF time is adjustable between 1 - 10min.
Battery Equalizer BE24/1, for extending battery life:
Serie iesy BE 24-1
Battery Equalizer
The Battery Equalizer is designed to provide a battery of
24 volts, which is composed of two batteries of 12 volts,
just to keep them equal in voltage.
Similar types of batteries, could be have after a while
different voltage values. Such (different) voltage can be
caused in part by different temperature of the batteries, or
modified the capacity. The Battery Equalizer ensures that
this problem is detected and corrected in time, prolonging
the life of the battery. Operation: this BE 24/1 "would
transfer" higher energy from one battery to another battery
with lower energy level, so the battery with the higher
"energy level" will not be overcharged!
PowerMonitor PM04/3:
The iesy PM04 is designed to check in series placed batteries. The
PM04 is suitable for 24 and 48 Volt systems. Hence 2 to 4 in series
placed batteries can be measured. The PM04 can produce an alarm
when an under- or over voltage occurs or an unbalance in the series
placed batteries. Also batteries that are charged can be checked
(Charge sensing), so in case of a failure the charge alarm is
activated.
The PM04 will keep the alarm status. In this way the mechanic can
establish the problem. Then the PM04 can be reset.
The PM04 is microprocessor controlled and can be (not free)
reprogrammed with different settings.
The PM04 gets its supply from the measured batteries and does not
need a separate power supply.
The PM04 has several potential free alarm contacts with which for
example a GSM system could be switched on.
Series iesy PM 04-3
Power Monitor
Specials and/or private label on request / For more information see Manuals
- 12 -
Made in the EU: 4 to 30 watt LED Luminaires:
BrightLine is a European brand for LED
luminaires designed for cargo-, luggage-,
machinery-, boat-/engine compartment- lighting
with much more light output in a compact size
compared to fluorescent lighting (see video).
Features a unique line of LED fixtures:









BrightLine 4 PIR DF
BrightLine 6 SW DF
With or without built-in PIR motion detector for automatic switch
on-off.
With or without (on-off) switch on the housing.
Dimmer function, adjustable light level with a standard switch.
10-30VDC input voltage range, is suitable for higher charging
voltage.
Very high efficiency!
Rugged, rainproof (without Switch / PIR).
Long life.
More light for less energy use.
Less heat.
BrightLine 10 PIR DF
BrightLine 12 DF
BrightLine 10 PIR DF
BrightLine 6
BrightLine 12
BrightLine 30
BrightLine 30 DF
BrightLine Small
The BLA LED lamp is designed for situations
where a 40° beam angle is needed
Applications




Indication light
Indoor en outdoor displays
Automotive
Cabinet lighting
BrightLine Angle LED lamp (40°, Viewing angle 120°)







Part number: BLA mmmm – 120 – vvT
mmmm is length in mm
120 is number of LEDs per meter
vv is Voltage (12V or 24V)
T is color temperature
W
=> 6000-7000K 1000-1300mcd
NW
=> 4000-5000K 1000-1300mcd
WW
=> 3000K 1000-1300mcd
Example: L=1250mm (=>1275mm incl. 2,5cm cable mount)
U=12VDC, 120 LEDs/m, T=6000-7000K
Type is: BLA 1275-120-12W
Lamp angle 40°
LED beam 120°
Isolation class IP44
Diffuse LED lens
Usable for 12VDC and 24VDC
Max length 2020mm
Current regulator
LED type:
3528 (7W/m @120LEDs/m)
Connection cable: 2mm² 2x0,75mm black, length 200cm
Profile casing:
Aluminium anodised blanc 20µ, 40°
angle
Cover:
Acryl Satine 2mm diffuse
Length:
variable at 5cm interval added to
2,5cm of cable mount
Specials and/or private label on request / For more information see Manuals
- 13 -
BL12 CL: 10-30VDC / 12W Clear
(12xCREE LED)
Dim.: 184x64x21mm (LxWxH)
BrightLine 6 CL: 10-30VDC
6W Clear (6x CREE LED)
Dim.:104x64x21mm
G=270 gr. (incl. 2m cable)
BrightLine 4 PIR DF:
IN: 10-30VDC / 4 Watt
(4x CREE LED) Diffuse + PIR
Dim.:104x64x21mm
BrightLine (4 - 30W) Series: High efficiency Power CREE LED’s with “switch
mode” technology!

Modular construction PCB:



Switch on the housing (type SW)
Without switch
Design/construction intelligent module:





1x6W to 5x6W=30W (Lmax.=604mm) => maximum possible with the standard module.
Or 1x 4Watt intelligent module (BL4), with a 6W module=>10W (BL10)
Construction standard module:



BrightLine 6 DF(6 Watt/Diffuse)
PIR sensor with or without "Daylight" feature
Low voltage battery protection and overheating protection function LED module by
automatically dimming the LED => energy saving mode (10% and 50% by overheating)
Dimmer function, programmable with a standard switch, linear dimmable light, 2 wire.
DIM option: for example Ambulance/fire brigade etc., with 3 position switch (1-0-2) on
customers wish to program, e.g. 100% => 20% DIM, 3 wire.
Cable can be bent into the plastic cover so that
it is not outside of the housing.
Common features:











IP21 housing (waterproof on request) made of anodized aluminium, W=64mm H=21mm
Side shields are from flame retardant glass reinforced nylon
High impact, shock and breakage
Large input voltage range 10 - 30VDC
High efficiency by use from „switch mode“ DC DC converter technology, see page 14
Lamps are also available with red, green or blue night lighting
Standard CREE MX3 LED 5000K (without cap) +/- 90lm / W. Possibly available with
clear cap with anti-reflective coating or cap with diffuse light => 84%
All BL lamps are equipped with aluminium profile for optimum cooling of the LEDs
Cable can be bent into the plastic cover so that it is not outside of the housing
Polarity proof, reversal protection of plus / minus pole battery
Software is completely customizable to client needs (in numbers)
With switch: BrightLine 6SW-DF(Switch-Diffuse)
Dim.: 109x64x21mm(LxWxH)
See video: BL 30DF (30W LED) 
2x18W (36W fluorescent lamp)
Custom made:
With the intelligent modules are more possible, software is completely customizable to client needs (in
numbers). Other light colours and / or color-temperature are available. Profile with LED lighting at an angle
of e.g. 40° is possible (BrightLine Angle 40°). Other wishes? Let us know!
BL Angle 40° IP44
Standard available light window: CL=clear & DF=diffuse
* Standard length. Length of the heat sinks are universally available! Longer enclosure on request.
Type BrightLine
Power (W):
Length (mm):
Weight (kg):
BL4
PIR
4
* 104
0,25
BL4
DIM
4
*104
0,20
BL6
6
*104
0,27
BL6
SW
6
*109
0,30
BL10
DIM
10
*184
0,40
BL10
PIR
10
*184
0,40
BL12
12
*184
0,40
BL12
SW
12
*189
0,45
BL16
PIR
16
*504
0,65
BL16
DIM
16
*504
0,62
BL18
18
*504
0,60
BrightLine Small
12V: 12V=>14,4V
24V: 24V=>28,8V
BrightLine Small:




IP21 housing made of anodized aluminium, 18mm wide and 13mm high
Available in different lengths (picture above: L = 51.5 cm with 60 LEDs, cool white light), max.
120 LEDs / m. (E.g. 50 LEDs / m also possible)
Available with mounting clips (12x19mm) or with double sided tape
Common features:





BL30
30
*604
0,92
BL30
SW
30
*604
0,99
PIR DC-Switch
PDS-10, Page 12
For example, to
automatically turn on /
off the BrightLine LED
lamp further away
Angle Sensor /
Switch type AS-01(x/y-/z-axis)
Tilt / angle switch:
when changing the
angle the potential free
contact will be active
=> alternative to the
banned mercuryswitch with extras.
BrightLine Small Series:

BL18
SW
18
*504
0,70
PIR LED Switch
PLS-1, page 12
PIR Switch + CREE
LED: 12/24VDC/1W
With built-in voltage "reducer", suitable for charging voltage of 14,4V @12V or 28,8V @ 24V
systems
High impact, shock and breakage
Optimum cooling by use of aluminium housing
Available in various colours of light and / or colour-temperature (heat-colour) LEDs
Also works in reverse polarity of the battery
Specials and/or private label on request / For more information see Manuals
- 14 -
What is the difference between linear and iesy switched-mode types DC / DC Converters?
For years, linear voltage reducers have been used to convert 24VDC to 12VDC. Linear reducers are technically
quite primitive, being, in effect, little more than a resistor. This method of reducing voltage has the disadvantage
of being very inefficient and, as a result, at least 50% of the input power is wasted and given off in the form of heat.
To deal with the heat a heat sink is required, increasing the overall size of the reducer and restricting the positioning
of it.
iesy Switched Mode Converters, however, work in a much more sophisticated and efficient way. At the input is a
switch (power FET) which converts the input voltage into a square wave. The square wave has a 50% duty cycle
(50% on, 50% off) and, when this signal is put through a rectifier with a capacitor, the output voltage is 50% of the
input voltage.
Because the resistance of the switch is low, power loss is reduced and efficiency as high as 95% can be achieved.
The greatest practical benefit of switch-mode reducers can be clearly shown as follows:
Example 1: 20 Amp linear converter supplying an average load of 50% (10 Amps):
Input power: 24Vx10A = 240Watts
Output power: 13,5Vx10A = 135 Watts
Power loss = 105 Watts
This means that, over the course of an 8 hour working day, 840 Watts of power is wasted.
Example 2: 20 Amp 85% efficient switched-mode converter supplying an average load of 50% (10A):
Output power: 13,5V x 10A = 135 Watts.
Input power: 135 Watts : 85 (% efficiency) x 100 = 158 Watts
Power loss = 23 Watts
The difference between linear and switched-mode reducers of the same power output is significant and, when
running at maximum load, switched-mode converters become even more efficient. In the above examples, the
switched-mode would use 82 Watts per hour less energy than the linear. Over the course of the year, the saving in
fuel costs alone would be considerable.
Other benefits of switched-mode converters are as follows:
-smaller size due to less need for heat dissipation;
-greater flexibility in choice of installation location;
-increased battery life
-longer life of the converter itself;
-low standby current drain.
A common problem with many switched-mode converters is that they create significant amounts of radio
interference, especially around 27MHz., the frequency used for CB radio. iesy converters are all heavily filtered and
are guaranteed not to produce such interference.
Difference, with or without galvanic isolation
Safe isolation. You have the choice. The iesy voltage converter with common ground of input and output (Not
Isolated) are of simple construction and therefore particularly compact and inexpensive.
Some vehicle manufacturers, however, require that the voltage converter must be against "mass loss" protection.
This means that the output voltage must not be exceeded, even if the mass on the supply and / or the output side is
no longer available. This request requires the isolated converters. Also prevented the isolated structure that can
occur in the event of an internal defect, a direct connection between input (e.g. 24V) and connected to the output
12V device.
Specials and/or private label on request / For more information see Manuals
- 15 -
Innovative Energy Systems
Sinewave inverters 230V from the battery
Battery chargers
Inverter-charger-switch
Description The PSC1600-12-60 and PSC180024-30 Powersine Combi products are based on the
latest generation Powersine inverter engine, which
guarantees very reliable operation and huge output
power reserves. The Powersine Combi also
features a powerful intelligent battery charger and
an ultra fast AC transfer switch. All this is combined
in a very compact, yet installer friendly unit.
Also available are a fully configurable alarm relay
output and a unique trigger input, that can convert
external trigger commands into a number of
Powersine Combi status changes.
Each Powersine Combi comes standard with DC
cables, a temperature sensor and a very clear
installation and operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• Universal Remote Control with LCD1)
• TBSLink communication kit including software
• Alarm output expander
1)
INTELLIGENT BATTERY CHARGERS
Furthermore, the Powersine Combi is equipped
with a TBSLink port to connect to the TBS
Universal Remote Control or to a Windows device
for easy step by step configuration and readout
through the TBS Dashboard software.
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The Powersine Combi offers many innovative
features like AC Input Power Boost, which
temporarily assists weak AC input sources when
more power is needed than available. Another
feature is AC Input Current Limit, which limits the
maximum current consumed from the AC input
source by the Powersine Combi in charger mode.
Applications
BATTERY MANAGEMENT SYSTEMS
combined inverter, battery charger and AC transfer switch
I
Powersine Combi
temperature, overload, short circuit, high ripple
voltage and low AC input voltage
• Automatic Standby function to reduce no-load
power consumption
• Variable speed fan for silent operation
• Remote on/off capability
• Configurable alarm relay
• Versatile trigger input
• Remote control capability via TBSLink
• Easy to access connection bay for installing AC-,
DC and control wiring
• 1.5 meters DC connection cable included
• CE certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
• True sinewave AC output
• Robust industrial design
• High surge power output
• Powerful 4-stage battery charger
• Power factor corrected AC input
• Fast AC transfer switch
• AC Input Power Boost
• AC Input Current Limit
• Protected against high/low battery voltage, high
TECHNICAL DATASHEET
Features
Technical specifications
Parameter
Pnom
P10minutes
Psurge
Output voltage / frequency
Output waveform
Input voltage (±3% tolerance) :
PSC1800-24-30
1300VA
1600VA
2500VA
1400VA
1800VA
3000VA
230Vac ± 2% / 50Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
24V
12V
212) – 32Vdc
10.52) – 16Vdc
94%
92%
<12W [3.5W]
<9.6W [2.5W]
Nominal
Range
185 - 260VAC / 45 - 65Hz / PF > 0.95
30A
60A
28.8V / 27.0V (programmable)
14.4V / 13.5V (programmable)
IUoUoP, intelligent 4-stage, temperature compensated (programmable)
16Arms
< 20ms
Note: the given specifications are subject to change without notice.
1)
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C. Pnom
is a typical value, measured using battery capacities of 200Ah @ 12V and 100Ah @ 24V.
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections.
3)
Measured at nominal input voltage and 25°C
4)
At high ambient temperatures, maximum output current shall be reduced automatically
2)
I
Dimensions
Bottom view
210
210
Side view
114
114
187
334
351
351
INTELLIGENT BATTERY CHARGERS
Front view
126
BATTERY MANAGEMENT SYSTEMS
DC connections
AC connections
Enclosure body size
Total weight
Protection class / operating temp. / storage temp.
Standards
I
Yes
high/low battery voltage, high temperature, overload, short circuit,
high ripple voltage and low AC input voltage
Two wires, length 1.5 meters, 35mm2
Screw terminals
351 x 210 x 114mm
11 kg
IP21 / -20°C to + 50°C / -40°C to + 80°C (humidity max. 95% non condensing)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, EN60335-2-29 and RoHS 2002/95/EC
DC-AC SINEWAVE INVERTERS
Maximum efficiency
No load power consumption3) [ASB]
Charger stage
AC input voltage
Maximum continuous charging current4)
Standard charge voltage (bulk / float @ 25°C)
Charge algorithm
AC Transfer switch
Maximum continuous current
Transfer time (typical)
General
TBSLink enabled
Protections
TECHNICAL DATASHEET
Inverter stage
Output power1)
PSC1600-12-60
• True sinewave AC output
• Robust industrial design
• High surge power output
• Very efficient
• Protected against high/low battery voltage, high
DC-AC SINEWAVE INVERTERS
temperature, overload, short circuit and high
ripple voltage
• Automatic Standby function to reduce no-load
power consumption
• Variable speed fan for silent operation
• Remote on/off capability
• Alarm relay
• Remote control capability via TBSLink
• Easy to access connection bay for installing AC-,
DC and control wiring
• 1.5 meters DC connection cable included
• CE certified
• 24 month warranty
TECHNICAL DATASHEET
Features
I
professional DC to AC true sinewave inverter
Description The PS1600-12, PS1800-24 and
PS1800-48 professional DC to AC true sinewave
inverters, offer superior performance for a wide
range of applications. Unlike many other inverters,
the very clean and interference free output of a
Powersine inverter ensures correct operation of
sensitive equipment like displays, test equipment
and battery chargers.
All Powersine inverters are easy to install and
operate. Each Powersine inverter comes standard
with DC cables, and a very clear installation and
operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• Universal Remote Control with LCD1)
• TBSLink communication kit including software
1)
INTELLIGENT BATTERY CHARGERS
The newest available technology results in
extremely efficient operation with very low 'no-load'
consumption. The Automatic Standby Function
(ASB), standard in all Powersine inverters, will
even reduce the no-load consumption by an extra
70%!
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The very robust electronic and mechanical design,
make the Powersine inverter series the best choice
for reliability. Designed for an extremely long
lifespan and protected against short circuits,
overloading and high temperatures, a Powersine
inverter will deliver trouble free operation for many
years.
Applications
BATTERY MANAGEMENT SYSTEMS
Powersine
Technical specifications
Parameter
PS1600-12
Output power1)
PS1800-48
Nominal
Range
Maximum efficiency
No load power consumption3)
[ASB]
ASB threshold
Operating temperature range (ambient)
Storage temperature range
Cooling
TBSLink enabled
Protected against
Indications
DC input connections
AC output connections
Enclosure body size
Total weight
Protection class
Standards
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C. Pnom
is a typical value, measured using battery capacities of 200Ah @ 12V, 100Ah @ 24V and 50Ah @ 48V.
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections
3)
Measured at nominal input voltage and 25°C
2)
I
Dimensions
Bottom view
210
210
Side view
114
114
187
334
351
351
INTELLIGENT BATTERY CHARGERS
Front view
126
BATTERY MANAGEMENT SYSTEMS
1)
I
Note: the given specifications are subject to change without notice.
DC-AC SINEWAVE INVERTERS
1400VA
1400VA
1800VA
1800VA
3000VA
3000VA
230Vac ± 2% or 115Vac ± 2%
50Hz ± 0.05% or 60Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
0.2 – 1 (up to Pnom)
48V
24V
12V
412) – 60Vdc
212) – 32Vdc
10.52) – 16Vdc
94%
92%
92%
<12W
<12W
<9.6W
[3.5W]
[2.5W]
[4.7W]
Pout=10W
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
Yes
Short circuit, overload, high temperature, AC back feed, high/low
battery voltage and high input ripple voltage
Power on, output power bar, error and ASB mode
Two wires, length 1.5 meters, 35mm2
25mm2
Screw terminals
351 x 210 x 114mm
10.5 kg
IP21 (mounted in upright position)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, RoHS 2002/95/EC
TECHNICAL DATASHEET
1300VA
1600VA
2500VA
Pnom
P10minutes
Psurge
Output voltage
Output frequency
Output waveform
Admissible cos φ of load
Input voltage (±3% tolerance) :
PS1800-24
• True sinewave AC output
• Robust industrial design
• High surge power output
• Very efficient
• Protected against high/low battery voltage, high
DC-AC SINEWAVE INVERTERS
temperature, overload, short circuit and high
ripple voltage
• Automatic Standby function to reduce no-load
power consumption
• Variable speed fan for silent operation
• Remote on/off capability
• Alarm relay
• Remote control capability via TBSLink
• Easy to access connection bay for installing AC-,
DC and control wiring
• 1.5 meters DC connection cable included
• CE certified
• 24 month warranty
TECHNICAL DATASHEET
Features
I
professional DC to AC true sinewave inverter
Description The PS1000-12 and PS1400-24
professional DC to AC true sinewave inverters,
offer superior performance for a wide range of
applications. Unlike many other inverters, the very
clean and interference free output of a Powersine
inverter ensures correct operation of sensitive
equipment like displays, test equipment and
battery chargers.
All Powersine inverters are easy to install and
operate. Each Powersine inverter comes standard
with DC cables, and a very clear installation and
operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• Universal Remote Control with LCD1)
• TBSLink communication kit including software
1)
INTELLIGENT BATTERY CHARGERS
The newest available technology results in
extremely efficient operation with very low 'no-load'
consumption. The Automatic Standby Function
(ASB), standard in all Powersine inverters, will
even reduce the no-load consumption by an extra
70%!
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The very robust electronic and mechanical design,
make the Powersine inverter series the best choice
for reliability. Designed for an extremely long
lifespan and protected against short circuits,
overloading and high temperatures, a Powersine
inverter will deliver trouble free operation for many
years.
Applications
BATTERY MANAGEMENT SYSTEMS
Powersine
Technical specifications
Parameter
Output power1)
Output voltage
Output frequency
Output waveform
Admissible cos φ of load
Input voltage (±3% tolerance) :
PS1400-24
850VA
1050VA
2000VA
1000VA
1450VA
2800VA
Nominal
Range
Maximum efficiency
No load power consumption3)
[ASB]
ASB threshold
Operating temperature range (ambient)
Storage temperature range
Cooling
TBSLink enabled
Protected against
Indications
DC input connections
AC output connections
Enclosure body size
Total weight
Protection class
Standards
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections
Measured at nominal input voltage and 25°C
I
Dimensions
Bottom view
210
210
Side view
114
114
187
351
126
INTELLIGENT BATTERY CHARGERS
Front view
334
3)
351
2)
BATTERY MANAGEMENT SYSTEMS
1)
I
Note: the given specifications are subject to change without notice.
DC-AC SINEWAVE INVERTERS
230Vac ± 2% or 115Vac ± 2%
50Hz ± 0.05% or 60Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
0.2 – 1 (up to Pnom)
24V
12V
212) – 32Vdc
10.52) – 16Vdc
92%
92%
<12W
<9.6W
[3.5W]
[2.5W]
Pout=10W
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
Yes
Short circuit, overload, high temperature, AC back feed, high/low
battery voltage and high input ripple voltage
Power on, output power bar, error and ASB mode
Two wires, length 1.5 meters, 25mm2
Screw terminals
351 x 210 x 114mm
10.5 kg
IP21 (mounted in upright position)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, RoHS 2002/95/EC
TECHNICAL DATASHEET
Pnom
P10minutes
Psurge
PS1000-12
• Two battery outputs
• Robust industrial design
• Designed for continuous duty charging
• Very efficient
• Universal power factor corrected auto ranging AC
input
Description The Omnicharge 12-40, 12-60, 24-20
and 24-30 are fully programmable, automatic
battery chargers designed for professional
applications.
All Omnicharge units are easy to install and come
standard with temperature sensor and a very clear
installation and operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• DC cable kits
• Universal Remote Control with LCD1)
• TBSLink communication kit including software
• Alarm output expander
1)
INTELLIGENT BATTERY CHARGERS
All Omnicharge models are equipped with
advanced temperature compensated 4 stage
charging programs. Standard available are
Flooded, GEL and AGM charge programs. But
users are also allowed to create a custom charging
program for their specific battery, such as a Lithium
based derivative, using the TBS Dashboard
software. The standard available TBSLink port
enables remote control and readout via the
optional TBS Universal Remote Control.
• Recreational vehicles
• Marine applications
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
Combining the latest technologies and the best
available parts with years of power electronics
design expertise, the Omnicharge battery chargers
will deliver long life performance even in the most
demanding applications. A unique active rectifier
output stage ensures unmatched efficiency figures.
Combined with active PFC, the Omnicharge
battery chargers are very energy efficient. This will
reduce running costs and guarantees a maximum
charge current per AC Watt.
Applications
BATTERY MANAGEMENT SYSTEMS
programmable automatic battery chargers
I
Omnicharge
temperature, overload, short circuit, low input
voltage and reverse polarity (fuse)
• Multistage intelligent charging programs
• Programmable charging programs up to 8 stages
• Protects the battery from being overcharged
• Variable speed fan for silent operation
• Remote on/off capability
• Alarm relay (optional Alarm Output Expander
available)
• Remote control capability via TBSLink
• Easy to access connection bay for installing AC-,
DC and control wiring
• Temperature sensor included
• CE certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
• No charge current derating at 115VAC input
• Protected against battery failure, high
TECHNICAL DATASHEET
Features
Technical specifications
Parameter
OC12-40
700VA
6A/3A
88%
OC24-20
100-260VAC / 47-63Hz / PF 0.95
1050VA
700VA
9A/4.5A
6A/3A
88%
89%
OC24-30
1050VA
9A/4.5A
89%
Indications
DC output connections
AC input connections
Enclosure body size
Total weight
Protection class
Standards
I
Dimensions
Bottom view
210
210
Side view
114
114
187
334
351
351
INTELLIGENT BATTERY CHARGERS
Front view
126
BATTERY MANAGEMENT SYSTEMS
Maximum output current tolerance is +/-3%. Maximum setpoint voltage deviations are +/- 0.1V for 12V and +/- 0.2V for 24V models. All setpoint voltages are temperature compensated when
battery temperature sensor is connected.
2)
Value is programmable
3)
Always consult battery manufacturers specifications for maximum allowable charge current
4)
At higher ambient temperatures (>40°C), maximum output current may be reduced automatically
I
Note: the given specifications are subject to change without notice.
1)
DC-AC SINEWAVE INVERTERS
12V
24V
40A(4A)
60A(4A)
20A(2.5A)
30A(2.5A)
IUoUoP, intelligent 4-stage, temperature compensated
14.4V
28.8V
13.5V
27.0V
15.5V
31.0V
Flooded / GEL / AGM / Custom
80-400Ah
120-600Ah
50-200Ah
70-300Ah
5mA
4mA
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
Yes
Low AC voltage, output short circuit, high temperature, battery overcharging
and reverse polarity (fuse)
Power on, output current bar, state of charge bar, error
M8 bolts (main output), Screw terminals (auxiliary output)
Screw terminals
351 x 210 x 114mm
5.8 kg
IP21 (mounted in upright position)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, EN60335-2-29
TECHNICAL DATASHEET
Input voltage
Full load consumption
AC input current (115V/230V)
Full load efficiency
Nominal output voltage1)
Total output current1) 4) (Aux.)
Charge characteristic2)
Absorption voltage2)
Float voltage2)
Equalize voltage2)
Supported Battery types2)
Recommended battery capacity3)
DC current draw (charger off)
Operating temp. range4)
Storage temp. range
Cooling
TBSLink enabled
Protected against
OC12-60
• True sinewave AC output
• Robust design
• High surge power output
• Very efficient
• Protected against low battery voltage, high
temperature, overload and short circuit
TECHNICAL DATASHEET
Features
• Automatic Standby function to reduce no-load
(IEC320 plug included)
• 1.5 meters DC connection cable included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
power consumption
• Variable speed fan for silent operation
• IEC320 worldwide accepted AC outlet
I
professional DC to AC true sinewave inverter
Description The PS200-12, PS200-24 and
PS200-48 professional DC to AC true sinewave
inverters, offer superior performance for a wide
range of applications. Unlike many other inverters,
the very clean and interference free output of a
Powersine inverter ensures correct operation of
sensitive equipment like displays, test equipment
and battery chargers.
All Powersine inverters are easy to install and
operate. Each Powersine inverter comes standard
with DC cables, separate IEC320 plug and a very
clear installation and operating instruction manual.
© 2009-2012
S150D-EN-REVD • www.iesy.eu
Designed to power your..
• Small CRT or flatpanel TV
• Notebook computer
• Small battery charger
• Portable work light
• Small test & measurement equipment
• DVD/Blu-ray player
• Cell/Smart phone charger
• Small thermal printer
INTELLIGENT BATTERY CHARGERS
The newest available technology results in
extremely efficient operation with very low 'no-load'
consumption. The Automatic Standby Function
(ASB), standard in all Powersine inverters, will
even reduce the no-load consumption by an extra
70%!
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The very robust electronic and mechanical design,
make the Powersine inverter series the best choice
for reliability. Designed for an extremely long
lifespan and protected against short circuits,
overloading and high temperatures, a Powersine
inverter will deliver trouble free operation for many
years.
Applications
BATTERY MANAGEMENT SYSTEMS
Powersine
Technical specifications
Parameter
PS200-12
Output power1)
Output voltage
Output frequency
Output waveform
Admissible cos φ of load
Input voltage (±3% tolerance) :
Nominal
Range
Indications
DC input connections
AC output connections
Enclosure body size
Total weight
Protection class
Standards
175VA
210VA
400VA
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections
Measured at nominal input voltage and 25°C
I
Dimensions
Top view
Side view
90mm
168mm
130mm
MOUNTING SCREW
SPACING WIDTH
INTELLIGENT BATTERY CHARGERS
Front view
MOUNTING SCREW SPACING LENGTH
(hole diameter = 5.5 mm)
3)
178mm
2)
98mm
1)
BATTERY MANAGEMENT SYSTEMS
Note: the given specifications are subject to change without notice.
I
175VA
175VA
220VA
220VA
500VA
500VA
230Vac ± 2% or 115Vac ± 2%
50Hz ± 0.05% or 60Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
0.2 – 1 (up to Pnom)
48V
24V
12V
412) – 60Vdc
212) – 31Vdc
10.52) – 16Vdc
93%
91%
90%
<3W
<4W
<2.8W
[0.8W]
[0.6W]
[1.2W]
Pout=10W
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
No
Short circuit, overload, high temperature, low
battery voltage
Power on, error and ASB mode
Two wires, length 1.5 meters, 4mm2
IEC320 outlet
154 x 98 x 130mm (without mounting brackets)
2.4 kg
IP20
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, e4-95/54/EC, RoHS 2002/95/EC
DC-AC SINEWAVE INVERTERS
Maximum efficiency
No load power consumption3)
[ASB]
ASB threshold
Operating temperature range (ambient)
Storage temperature range
Cooling
TBSLink enabled
Protected against
PS200-48
TECHNICAL DATASHEET
Pnom
P10minutes
Psurge
PS200-24
DC INPUT
WIRES
69mm
235mm
TOTAL LENGTH INCLUDING IEC320 PLUG AND
NEEDED SPACE FOR DC INPUT WIRES
• True sinewave AC output
• Robust design
• High surge power output
• Very efficient
• Protected against low battery voltage, high
temperature, overload and short circuit
TECHNICAL DATASHEET
Features
• Automatic Standby function to reduce no-load
(IEC320 plug included)
• 1.5 meters DC connection cable included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
power consumption
• Variable speed fan for silent operation
• IEC320 worldwide accepted AC outlet
I
professional DC to AC true sinewave inverter
Description The PS300-12, PS350-24 and
PS450-48 professional DC to AC true sinewave
inverters, offer superior performance for a wide
range of applications. Unlike many other inverters,
the very clean and interference free output of a
Powersine inverter ensures correct operation of
sensitive equipment like displays, test equipment
and battery chargers.
All Powersine inverters are easy to install and
operate. Each Powersine inverter comes standard
with DC cables, separate IEC320 plug and a very
clear installation and operating instruction manual.
© 2009-2012
S150D-EN-REVD • www.iesy.eu
Designed to power your..
• TV
• Notebook computer
• Battery charger
• Portable work light
• Test & measurement equipment
• DVD/Blu-ray player
• Cell/Smart phone charger
• Thermal printer
INTELLIGENT BATTERY CHARGERS
The newest available technology results in
extremely efficient operation with very low 'no-load'
consumption. The Automatic Standby Function
(ASB), standard in all Powersine inverters, will
even reduce the no-load consumption by an extra
70%!
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The very robust electronic and mechanical design,
make the Powersine inverter series the best choice
for reliability. Designed for an extremely long
lifespan and protected against short circuits,
overloading and high temperatures, a Powersine
inverter will deliver trouble free operation for many
years.
Applications
BATTERY MANAGEMENT SYSTEMS
Powersine
Technical specifications
Parameter
PS300-12
Output power1)
Output voltage
Output frequency
Output waveform
Admissible cos φ of load
Input voltage (±3% tolerance) :
Nominal
Range
Indications
DC input connections
AC output connections
Enclosure body size
Total weight
Protection class
Standards
250VA
330VA
700VA
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections
Measured at nominal input voltage and 25°C
I
Dimensions
Top view
Side view
90mm
198mm
130mm
MOUNTING SCREW
SPACING WIDTH
INTELLIGENT BATTERY CHARGERS
Front view
MOUNTING SCREW SPACING LENGTH
(hole diameter = 5.5 mm)
3)
208mm
2)
98mm
1)
BATTERY MANAGEMENT SYSTEMS
Note: the given specifications are subject to change without notice.
I
300VA
300VA
360VA
450VA
800VA
800VA
230Vac ± 2% or 115Vac ± 2%
50Hz ± 0.05% or 60Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
0.2 – 1 (up to Pnom)
48V
24V
12V
412) – 60Vdc
212) – 31Vdc
10.52) – 16Vdc
95%
93%
91%
<3.5W
<6.5W
<3W
[0.8W]
[0.7W]
[1.3W]
Pout=15W
Pout=12W
Pout=15W
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
No
Short circuit, overload, high temperature, low
battery voltage
Power on, error and ASB mode
Two wires, length 1.5 meters, 4mm2
IEC320 outlet
184 x 98 x 130mm (without mounting brackets)
3.5 kg
IP20
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, e4-95/54/EC, RoHS 2002/95/EC
DC-AC SINEWAVE INVERTERS
Maximum efficiency
No load power consumption3)
[ASB]
ASB threshold
Operating temperature range (ambient)
Storage temperature range
Cooling
TBSLink enabled
Protected against
PS450-48
TECHNICAL DATASHEET
Pnom
P10minutes
Psurge
PS350-24
DC INPUT
WIRES
69mm
266mm
TOTAL LENGTH INCLUDING IEC320 PLUG AND
NEEDED SPACE FOR DC INPUT WIRES
• True sinewave AC output
• Robust design
• High surge power output
• Very efficient
• Protected against low battery voltage, high
temperature, overload and short circuit
TECHNICAL DATASHEET
Features
• Automatic Standby function to reduce no-load
(IEC320 plug included)
• Remote on/off capability
• 1.5 meters DC connection cable included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
power consumption
• Variable speed fan for silent operation
• IEC320 worldwide accepted AC outlet
I
professional DC to AC true sinewave inverter
Description The PS600-12, PS800-24 and
PS800-48 professional DC to AC true sinewave
inverters, offer superior performance for a wide
range of applications. Unlike many other inverters,
the very clean and interference free output of a
Powersine inverter ensures correct operation of
sensitive equipment like displays, test equipment
and battery chargers.
All Powersine inverters are easy to install and
operate. Each Powersine inverter comes standard
with DC cables, separate IEC320 plug and a very
clear installation and operating instruction manual.
© 2009-2012
S150D-EN-REVD • www.iesy.eu
Designed to power your..
• TV
• Desktop/Notebook computer
• Battery charger
• Portable work light
• Test & measurement equipment
• DVD/Blu-ray player
• Cell/Smart phone charger
• Thermal printer
• Small kitchen appliance
• Electric tool
INTELLIGENT BATTERY CHARGERS
The newest available technology results in
extremely efficient operation with very low 'no-load'
consumption. The Automatic Standby Function
(ASB), standard in all Powersine inverters, will
even reduce the no-load consumption by an extra
70%!
• Recreational vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Mobile entertainment systems
• Service vehicles
• Remote homes
I
The very robust electronic and mechanical design,
make the Powersine inverter series the best choice
for reliability. Designed for an extremely long
lifespan and protected against short circuits,
overloading and high temperatures, a Powersine
inverter will deliver trouble free operation for many
years.
Applications
BATTERY MANAGEMENT SYSTEMS
Powersine
Technical specifications
Parameter
PS600-12
Output power1)
Output voltage
Output frequency
Output waveform
Admissible cos φ of load
Input voltage (±3% tolerance) :
Nominal
Range
Indications
DC input connections
AC output connections
Enclosure body size
Total weight
Protection class
Standards
500VA
600VA
1000VA
Measured with resistive load at 25°C ambient. Power ratings are subject to a tolerance of 4% and are decreasing as temperature rises with a rate of approx. 1.2%/°C starting from 25°C
Undervoltage limit is dynamic. This limit decreases with increasing load to compensate the voltage drop across cables and connections
Measured at nominal input voltage and 25°C
I
Dimensions
Top view
INTELLIGENT BATTERY CHARGERS
Front view
Side view
113mm
244mm
163mm
MOUNTING SCREW SPACING LENGTH
(hole diameter = 5.5 mm)
3)
258mm
2)
113mm
1)
DC INPUT
WIRES
69mm
MOUNTING SCREW
SPACING WIDTH
BATTERY MANAGEMENT SYSTEMS
Note: the given specifications are subject to change without notice.
I
600VA
600VA
800VA
800VA
1200VA
1250VA
230Vac ± 2% or 115Vac ± 2%
50Hz ± 0.05% or 60Hz ± 0.05%
True sinewave (THD < 5%1) @ Pnom)
0.2 – 1 (up to Pnom)
48V
24V
12V
412) – 60Vdc
212) – 31Vdc
10.52) – 16Vdc
94%
93%
92%
<6.5W
<8.2W
<4.8W
[0.7W]
[0.4W]
[0.5W]
Pout=15W
-20°C … +50°C (humidity max. 95% non condensing)
-40°C … +80°C (humidity max. 95% non condensing)
Variable speed fan controlled by temperature and load
No
Short circuit, overload, high temperature, low
battery voltage
Power on, error and ASB mode
Two wires, length 1.5 meters, 10mm2
IEC320 outlet
228 x 113 x 163mm (without mounting brackets)
6.2 kg
IP20
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, e4-95/54/EC, RoHS 2002/95/EC
DC-AC SINEWAVE INVERTERS
Maximum efficiency
No load power consumption3)
[ASB]
ASB threshold
Operating temperature range (ambient)
Storage temperature range
Cooling
TBSLink enabled
Protected against
PS800-48
TECHNICAL DATASHEET
Pnom
P10minutes
Psurge
PS800-24
320mm
TOTAL LENGTH INCLUDING IEC320 PLUG AND
NEEDED SPACE FOR DC INPUT WIRES
• Read your battery bank like a fuel gauge
• Provides critical information about the status of
your battery bank
• Displays voltage, current, consumed amphours
and remaining battery capacity
integration
• Autosensing battery voltage inputs
• Splash proof frontpanel
• 500 Amp shunt included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
• Two battery inputs
• Large display with backlight
• Quick nut mounting construction
• Programmable alarm relay
• Shunt selection capability, enables flexible system
TECHNICAL DATASHEET
Features
I
High precision battery monitor
Compared to the e-xpert pro, the e-xpert lite is a
more basic instrument, perfectly suited for users
focused on accurate state of charge readout and
very easy setup.
The e-xpert lite comes standard with a 500
Amp shunt and a very clear installation and
operating instruction manual.
© 2009-2012
• www.iesy.eu
• Marine applications
• Solar power systems
• Recreational vehicles
• Mobile entertainment systems
• Service vehicles
• Industrial systems
• Remote homes
Accessories
• Professional connection kit
• Quick connection kit
INTELLIGENT BATTERY CHARGERS
The e-xpert lite selectively displays voltage, chargeand discharge current, consumed amphours and
remaining battery capacity. Using a clear backlit
LCD and an intuitive user interface, all parameters
can be recalled with just a button press. A second
battery input is also provided to monitor an auxiliary
battery. A large bargraph delivers instant state of
charge information.
Applications
I
Description Operating your battery bank without
good metering is like running your car without any
gauges, although possible to do, it's always better
to know how much fuel is left in the tank. Defining
the amount of energy available in a battery is a
complex task since battery age, discharge current
and many other factors influence the actual battery
capacity. The e-xpert lite uses the same very
accurate measurement and calculation systems as
the high-end e-xpert pro.
BATTERY MANAGEMENT SYSTEMS
e-xpert lite
Technical specifications
Parameter
e-xpert lite
Supply voltage range
Supply current1) :
Readout resolution :
Voltage measurement accuracy
Current measurement accuracy
∅64mm (front diameter) / ∅64mm (body diameter) / 79mm (depth)
95gr
87 x 45 x 35mm
145gr
Note: the given specifications are subject to change without notice.
1)
2)
Measured with backlight and alarm relay turned off
Depends on selected shunt. With standard delivered 500A/50mV shunt (350A continuous), the range is limited to -600..+600A
I
Dimensions
Rear view
64mm
52mm
Side view
10mm
62.5mm
6mm
72.5mm
INTELLIGENT BATTERY CHARGERS
Front view
Mounting sequence
BATTERY MANAGEMENT SYSTEMS
IP20 (frontpanel only IP65)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, RoHS 2002/95/EC and e4-95/54/EC
I
Protection class
Standards
± 0.3%
± 0.4%
DC-AC SINEWAVE INVERTERS
± 0.1V
± 0.1A
± 1A
± 0.1Ah
± 1Ah
± 0.1%
voltage (0..35V)
current (0..100A)
current (100..999A)
amphours (0..100Ah)
amphours (100..999Ah)
state-of-charge (0..100%)
Meter dimensions
Meter weight
Shunt dimensions (length x width x height)
Shunt weight
TECHNICAL DATASHEET
9..35VDC
7mA
9mA
2..35VDC
0..35VDC
-999..+999A
20..999Ah
-20..+50°C
-30..+70°C
@Vin=24VDC
@Vin=12VDC
Input voltage range (auxiliary battery)
Input voltage range (main battery)
Input current range2)
Battery capacity range
Operating temperature range
Storage temperature range
• Read your battery bank like a fuel gauge
• Provides critical information about the status of
your battery bank
• Displays voltage, current, consumed amphours,
remaining battery capacity and time remaining
integration
• Communication/expansion port
• Stores a wide range of history events in internal
memory
• Splash proof frontpanel
• 500 Amp shunt included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
• Two battery inputs
• Large display with backlight
• Quick nut mounting construction
• Fully programmable alarm relay
• Shunt selection capability, enables flexible system
TECHNICAL DATASHEET
Features
I
High precision battery monitor
Description The e-xpert pro selectively displays
voltage, charge- and discharge current, consumed
amphours, remaining battery capacity and time
remaining of your battery bank. Using a clear
backlit LC Display and an intuitive user interface, all
parameters can be recalled with just a button press.
A second battery input is also provided to monitor
an auxiliary battery.
The e-xpert pro comes standard with a 500
Amp shunt and a very clear installation and
operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• Temperature sensor
• Professional connection kit
• Quick connection kit
• Isolated RS-232 interface
• Isolated USB interface
• Alarm relay output expander
• 1:5 voltage prescaler (active & passive versions)
• 1:10 voltage prescaler (passive version)
• Windows XP/Vista/7 software
INTELLIGENT BATTERY CHARGERS
The e-xpert pro is equipped with an internal
programmable alarm relay, to run a generator when
needed or to turn off devices when the battery
voltage exceeds programmable boundaries.
• Electric Vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Electric forklifts
• Mobile entertainment systems
• Service vehicles
• Recreational vehicles
• Remote homes
I
Defining the amount of energy available in a battery
is a complex task since battery age, discharge
current and temperature all influence the actual
battery capacity. High performance measuring
circuits, along with complex software algorithms,
are used to exactly determine the remaining battery
capacity. A new shunt selection feature enables the
e-xpert pro to measure currents up to 10.000Amps.
Applications
BATTERY MANAGEMENT SYSTEMS
e-xpert pro
Technical specifications
Parameter
e-xpert pro
Supply voltage range
Supply current1) :
Readout resolution :
Voltage measurement accuracy
Current measurement accuracy
IP20 (frontpanel only IP65)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, RoHS 2002/95/EC and e4-95/54/EC
Note: the given specifications are subject to change without notice.
1)
Measured with backlight and alarm relay turned off
Depends on selected shunt. With standard delivered 500A/50mV shunt (350A continuous), the range is limited to -600..+600A
3)
Only available when optional temperature sensor is connected
2)
I
Dimensions
Rear view
64mm
52mm
Side view
10mm
62.5mm
6mm
72.5mm
INTELLIGENT BATTERY CHARGERS
Front view
Mounting sequence
BATTERY MANAGEMENT SYSTEMS
∅64mm (front diameter) / ∅64mm (body diameter) / 79mm (depth)
95gr
87 x 45 x 35mm
145gr
I
Protection class
Standards
± 0.3%
± 0.4%
DC-AC SINEWAVE INVERTERS
± 0.01V
± 0.1A
± 1A
± 0.1Ah
± 1Ah
± 0.1%
± 1minute
± 1hr
± 0.5°C
voltage (0..35V)
current (0..200A)
current (200..9999A)
amphours (0..200Ah)
amphours (200..9990Ah)
state-of-charge (0..100%)
time remaining (0..24hrs)
time remaining (24..240hrs)
temperature (-20..+50°C)3)
Meter dimensions
Meter weight
Shunt dimensions (length x width x height)
Shunt weight
TECHNICAL DATASHEET
9..35VDC
7mA
9mA
2..35VDC
0..35VDC
-9999..+9999A
20..9990Ah
-20..+50°C
-30..+70°C
@Vin=24VDC
@Vin=12VDC
Input voltage range (auxiliary battery)
Input voltage range (main battery)
Input current range2)
Battery capacity range
Operating temperature range
Storage temperature range
• Optimized for 36V up to 48V battery systems
• Read your battery bank like a fuel gauge
• Provides critical information about the status of
your battery bank
• Displays voltage, current, consumed amphours,
remaining battery capacity and time remaining
integration
• Communication/expansion port
• Stores a wide range of history events in internal
memory
• Splash proof frontpanel
• 500 Amp shunt included
• CE and e-mark certified
• 24 month warranty
DC-AC SINEWAVE INVERTERS
• Two battery inputs
• Large display with backlight
• Quick nut mounting construction
• Fully programmable alarm relay
• Shunt selection capability, enables flexible system
TECHNICAL DATASHEET
Features
I
High precision battery monitor
Description The e-xpert pro-hv selectively displays
voltage, charge- and discharge current, consumed
amphours, remaining battery capacity and time
remaining of your battery bank. Using a clear
backlit LC Display and an intuitive user interface, all
parameters can be recalled with just a button press.
A second battery input is also provided to monitor
an auxiliary battery.
The e-xpert pro-hv comes standard with a 500
Amp shunt and a very clear installation and
operating instruction manual.
© 2009-2012
• www.iesy.eu
Accessories
• Temperature sensor
• Professional connection kit
• Quick connection kit
• Isolated RS-232 interface
• Isolated USB interface
• Alarm relay output expander
• Windows XP/Vista/7 software
INTELLIGENT BATTERY CHARGERS
The e-xpert pro-hv is equipped with an internal
programmable alarm relay, to run a generator when
needed or to turn off devices when the battery
voltage exceeds programmable boundaries.
• Electric Vehicles
• Marine applications
• Solar power systems
• Industrial systems
• Electric forklifts
• Mobile entertainment systems
• Service vehicles
• Recreational vehicles
• Remote homes
I
Defining the amount of energy available in a battery
is a complex task since battery age, discharge
current and temperature all influence the actual
battery capacity. High performance measuring
circuits, along with complex software algorithms,
are used to exactly determine the remaining battery
capacity. A new shunt selection feature enables the
e-xpert pro-hv to measure currents up to
10.000Amps.
Applications
BATTERY MANAGEMENT SYSTEMS
e-xpert pro-hv
Technical specifications
Parameter
e-xpert pro-hv
Supply voltage range
Supply current1) :
Readout resolution :
Voltage measurement accuracy
Current measurement accuracy
IP20 (frontpanel only IP65)
CE marked meeting EMC directive 2004/108/EC and LVD 2006/95/EC
complying with EN60335-1, RoHS 2002/95/EC and e4-95/54/EC
Note: the given specifications are subject to change without notice.
1)
Measured with backlight and alarm relay turned off
Depends on selected shunt. With standard delivered 500A/50mV shunt (350A continuous), the range is limited to -600..+600A
3)
Only available when optional temperature sensor is connected
2)
I
Dimensions
Rear view
64mm
52mm
Side view
10mm
62.5mm
6mm
72.5mm
INTELLIGENT BATTERY CHARGERS
Front view
Mounting sequence
BATTERY MANAGEMENT SYSTEMS
∅64mm (front diameter) / ∅64mm (body diameter) / 79mm (depth)
95gr
87 x 45 x 35mm
145gr
I
Protection class
Standards
± 0.3%
± 0.4%
DC-AC SINEWAVE INVERTERS
± 0.01V
± 0.1A
± 1A
± 0.1Ah
± 1Ah
± 0.1%
± 1minute
± 1hr
± 0.5°C
voltage (0..35V)
current (0..200A)
current (200..9999A)
amphours (0..200Ah)
amphours (200..9990Ah)
state-of-charge (0..100%)
time remaining (0..24hrs)
time remaining (24..240hrs)
temperature (-20..+50°C)3)
Meter dimensions
Meter weight
Shunt dimensions (length x width x height)
Shunt weight
TECHNICAL DATASHEET
14..70VDC
5mA
6mA
2..35VDC
0..70VDC
-9999..+9999A
20..9990Ah
-20..+50°C
-30..+70°C
@Vin=48VDC
@Vin=36VDC
Input voltage range (auxiliary battery)
Input voltage range (main battery)
Input current range2)
Battery capacity range
Operating temperature range
Storage temperature range
Was this manual useful for you? yes no
Thank you for your participation!

* Your assessment is very important for improving the work of artificial intelligence, which forms the content of this project

Download PDF

advertisement
