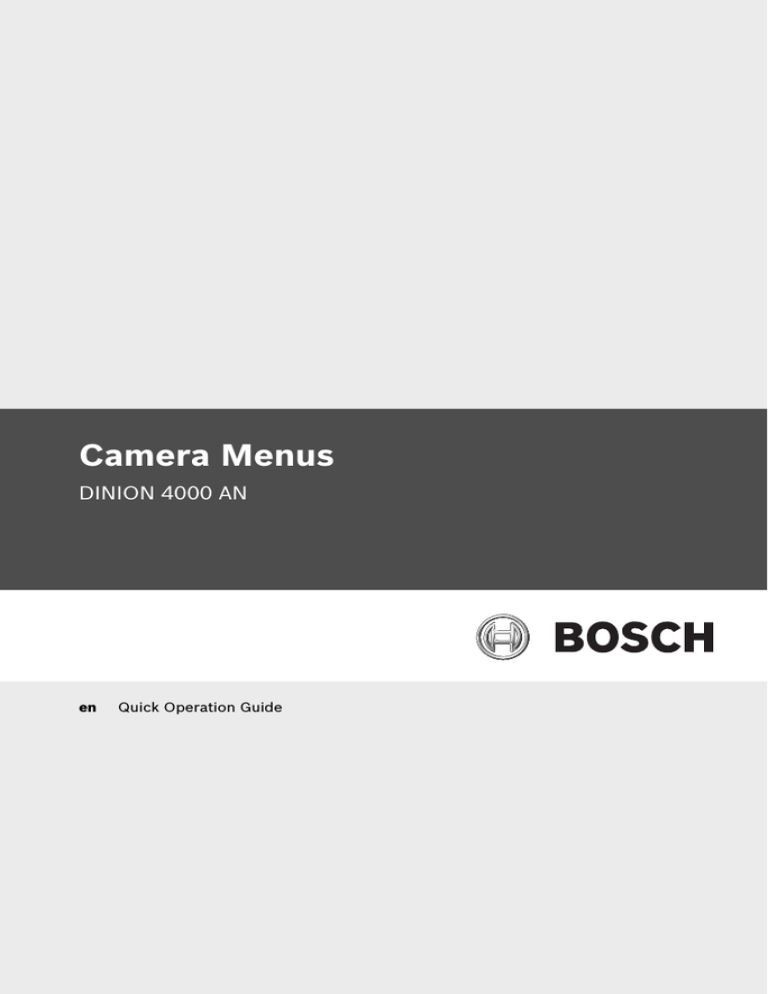

Camera Menus
DINION 4000 AN
en
Quick Operation Guide
Analog Camera Menus
1
Setup menu | en
3
Setup menu
Press the center button of the control pad to access the SETUP
menu.
Set
Menu
–
Press the up or down buttons to move the cursor through
–
Press the right or left buttons to change values.
–
When the symbol
the menus.
is shown, press the center button to
select an item or open a submenu.
Navigation items at the bottom of the screen
–
To move to the continuation of a menu, select NEXT.
–
To return to the previous menu, select BACK or RETURN.
–
To save changes, select SAVE ALL.
–
To close the SETUP menu, select EXIT.
Bosch Security Systems
Quick Operation Manual
AM18-Q0636 | v1.0 | 2013.01
4
en | Setup menu
1.1
Analog Camera Menus
Main menu
LENS
Iris setting
SHUTTER/AGC
Auto and manual exposure control
WHITE BAL
White balance setting
BACKLIGHT
Backlight compensation setting
PICT ADJUST
Image adjustment setting
DYN
Dynamic range setting
MOTION DET
Video motion detection setting
PRIVACY
Privacy masking setting
DAY/NIGHT
Day/Night setting
DNR
Digital noise reduction
CAMERA ID
Camera identification
SYNC
Synchronization mode setting
LANGUAGE
Language setting
CAMERA RESET
Restores all factory default values
SAVE ALL
Saves all settings
1.1.1
Lens menu
LENS
MANUAL
AUTO
TYPE
DC
MODE
OPEN, CLOSE, AUTO
SPEED
0 - 255
RETURN
AM18-Q0636 | v1.0 | 2013.01
Quick Operation Manual
Bosch Security Systems
Analog Camera Menus
1.1.2
Setup menu | en
5
Shutter/AGC (Automatic Gain Control) menu
SHUTTER/AGC AUTO
HIGH LUMINANCE
MODE
SHUT+AUTO IRIS, AUTO
IRIS
BRIGHTNESS
0 - 255
RETURN
LOW LUMINANCE
MODE
AGC, OFF
BRIGHTNESS
x0.25, x0.5, x0.75, x1.0
RETURN
MANUAL MODE
SHUTTER
SHUT+AGC
1/60, 1/120, 1/250, 1/500,
1/1000, /2000, 1/4000,
1/10000 (NTSC)
1/50, 1/100, 1/250, 1/500,
1/1000, 1/2000, 1/4000,
1/10000 (PAL)
AGC
6, 12, 18, 24, 30, 36, 42,
44.8
RETURN
Bosch Security Systems
Quick Operation Manual
AM18-Q0636 | v1.0 | 2013.01
6
en | Setup menu
1.1.3
Analog Camera Menus
White balance menu
WHITE BAL
ATW
SPEED
0 - 255
DELAY CNT
0 - 255
ATW FRAME
x0.5, x1.0, x1.5, x2.0
ENVIRONMENT
INDOOR, OUTDOOR
RETURN
PUSH
USER1
B-GAIN
0 - 255
R-GAIN
0 - 255
RETURN
USER2
B-GAIN
0 - 255
R-GAIN
0 - 255
RETURN
ANTI CR
MANUAL LEVEL
0 - 255
RETURN
PUSH
LOCK
–
ATW (Auto Tracking White balance) and PUSH (Full pull-in:
1,800 K to 10,500 K) continuously analyze color
temperature.
–
Use ANTI CR (Anti Color Rolling) when certain types of
fluorescent light cause the picture to periodically change
color.
–
Use PUSH LOCK with a reference white object filling the
screen.
AM18-Q0636 | v1.0 | 2013.01
Quick Operation Manual
Bosch Security Systems
Analog Camera Menus
1.1.4
Setup menu | en
7
Backlight menu
BACKLIGHT
OFF
BLC
HLC
–
Use BLC (Back Light Compensation) to see a dark object in
front of a bright background.
–
Use HLC (High Light Compensation) to darken highlights
and avoid image wash-out (for example, car headlights).
1.1.5
Picture adjust menu
PICT ADJUST
MIRROR
ON, OFF
BRIGHTNESS
0 - 255
CONTRAST
0 - 255
SHARPNESS
0 - 255
HUE
0 - 255
GAIN
0- 255
RETURN
1.1.6
Dynamic range setting menu
DYN
OFF
ON
LUMINANCE
LOW, MID, HIGH
CONTRAST
LOW, MIDLOW, MID,
MIDHIGH, HIGH
RETURN
–
Use DYN (Dynamic range setting) to improve dynamic
range by highlight compression and contrast
enhancement.
Bosch Security Systems
Quick Operation Manual
AM18-Q0636 | v1.0 | 2013.01
8
en | Setup menu
1.1.7
Analog Camera Menus
Motion detection menu
MOTION DET
OFF
ON
DETECT SENSE
0 - 127
BLOCK DISP
OFF, ON, ENABLE
MONITOR AREA
OFF, ON
AREA SEL
1-4
TOP
0 - 244 (NTSC), 288 (PAL)
BOTTOM
0 - 244 (NTSC), 288 (PAL)
LEFT
0 - 474 (NTSC), 468 (PAL)
RIGHT
0 - 474 (NTSC), 468 (PAL)
RETURN
–
The ENABLE function sets the regions/blocks where
motion detection does not work.
–
To exit the BLOCK DISP ENABLE function, press straight
down on the set button for a longer time.
1.1.8
Privacy masking menu
PRIVACY
OFF
ON
AREA SEL
1-8
TOP
0 - 244 (NTSC), 288 (PAL)
BOTTOM
0 - 244 (NTSC), 288 (PAL)
LEFT
0 - 474 (NTSC), 468 (PAL)
RIGHT
0 - 474 (NTSC), 468 (PAL)
COLOR
1-8
TRANSP
0.00, 0.50, 0.75, 1.00
MOSAIC
OFF, ON
RETURN
–
Only 4 areas are available if MONITOR AREA of motion
detection is on.
AM18-Q0636 | v1.0 | 2013.01
Quick Operation Manual
Bosch Security Systems
Analog Camera Menus
Setup menu | en
9
Area selection for motion or privacy masks
Select area 1, 2, 3 or 4 (8).
–
Top: extend or reduce upper limit of the detection area.
–
Bottom: extend or reduce bottom limit of the detection
area.
–
Left: extend or reduce left limit of the detection area.
–
Right: extend or reduce right limit of the detection area.
TOP
reduce
1
LEFT
RIGHT
RIGHT
extend
1
BOTTOM
1.1.9
Day/night menu
DAY/NIGHT
AUTO
BURST
OFF, ON
DELAY CNT
0 - 255
DAY->NIGHT
0 - 255
NIGHT->DAY
0 - 255
RETURN
COLOR
B/W
BURST
EXT
OFF, EXT1, EXT2
OFF, ON
RETURN
–
When EXT is on the IR cut-off filter is switched by an
external input.
–
With EXT1 the camera switches to night mode when alarmin is high; with EXT2 the camera switches to night mode
when alarm-in is low.
–
The output relay closes when the camera switches to
NIGHT mode.
Bosch Security Systems
Quick Operation Manual
AM18-Q0636 | v1.0 | 2013.01
10
en | Setup menu
1.1.10
Analog Camera Menus
Digital noise reduction menu
DNR
DNR MODE
OFF, Y, C, Y/C
Y LEVEL
0 - 15
C LEVEL
0 - 15
RETURN
1.1.11
CAMERA ID
Camera identification menu
OFF
ON
RETURN
When ON is selected, a virtual keyboard appears on the screen.
Use the control pad to move to the character you want and
select it. Repeat this to enter the camera ID you desire. You can
enter up to 52 characters.
1.1.12
SYNC.
Synchronization menu
INT
LL
PHASE
0 - 524 (624)
RETURN
Line-Lock (LL) is only available for cameras with a VAC power
supply.
1.1.13
LANGUAGE
Language menu
ENGLISH, JAPANESE, GERMAN, FRENCH, RUSSIAN,
PORTUGUESE, SPANISH, SIMPLIFIED CHINESE
AM18-Q0636 | v1.0 | 2013.01
Quick Operation Manual
Bosch Security Systems
Bosch Security Systems
www.boschsecurity.com
© Bosch Security Systems, 2013
